> Porsche 914 - 8 GTT, November '24 Update
Maltese Falcon
post Jun 2 2024, 08:47 PM
Post #821


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

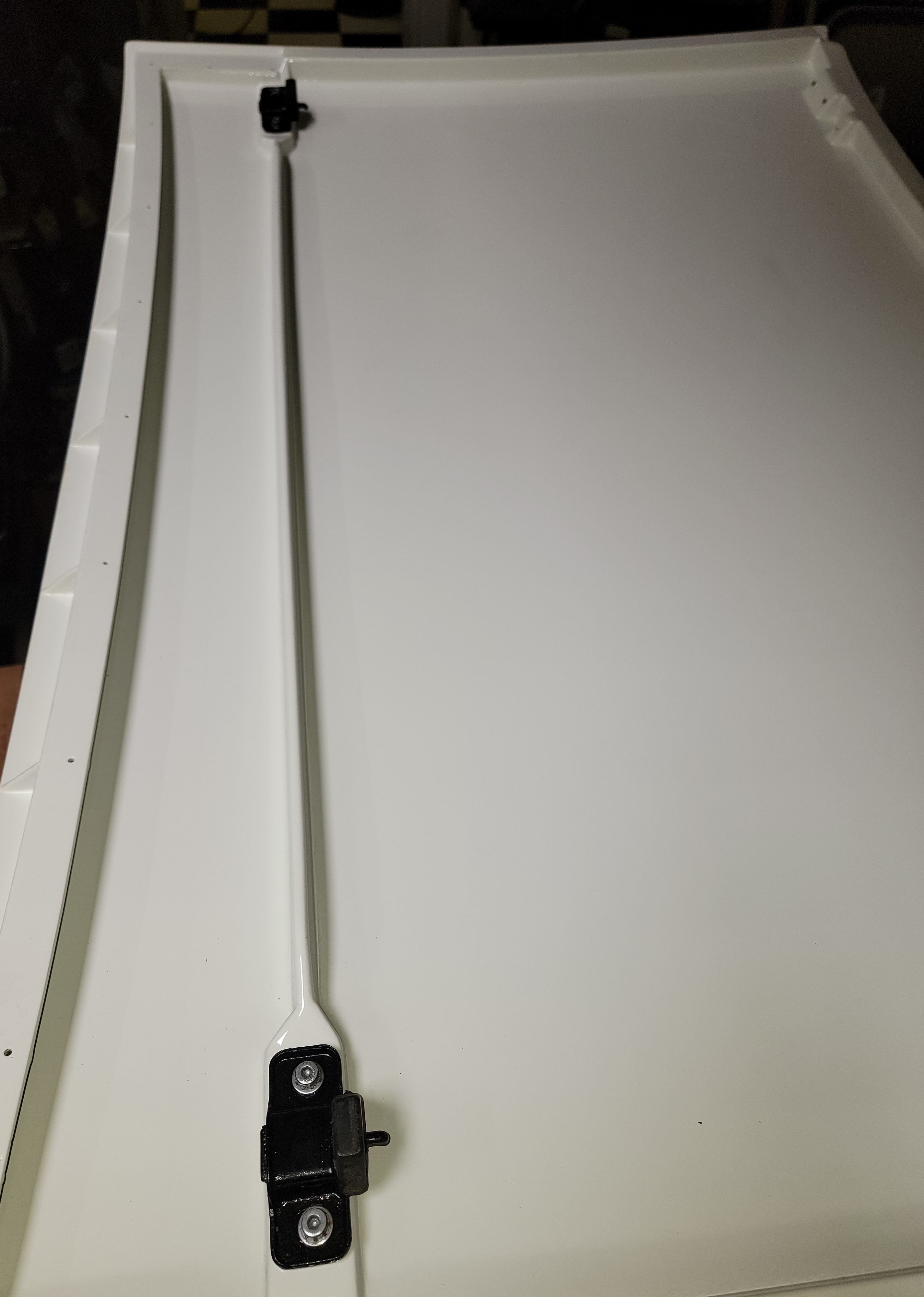

Last time this targa top had hardware installed on it, it was in a freind's backyard under a persimmon tree !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 2 2024, 08:52 PM
Post #822


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

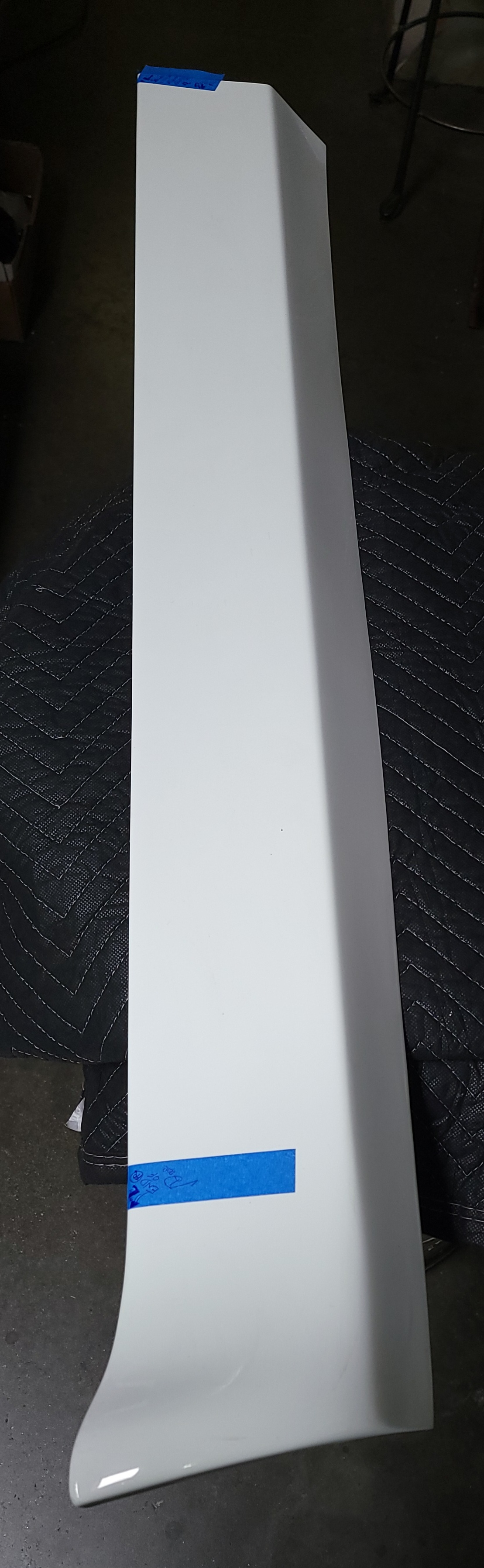

Next up will be setting the Porsche script on the Sheridan rocker panels
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 4 2024, 02:50 PM
Post #823


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

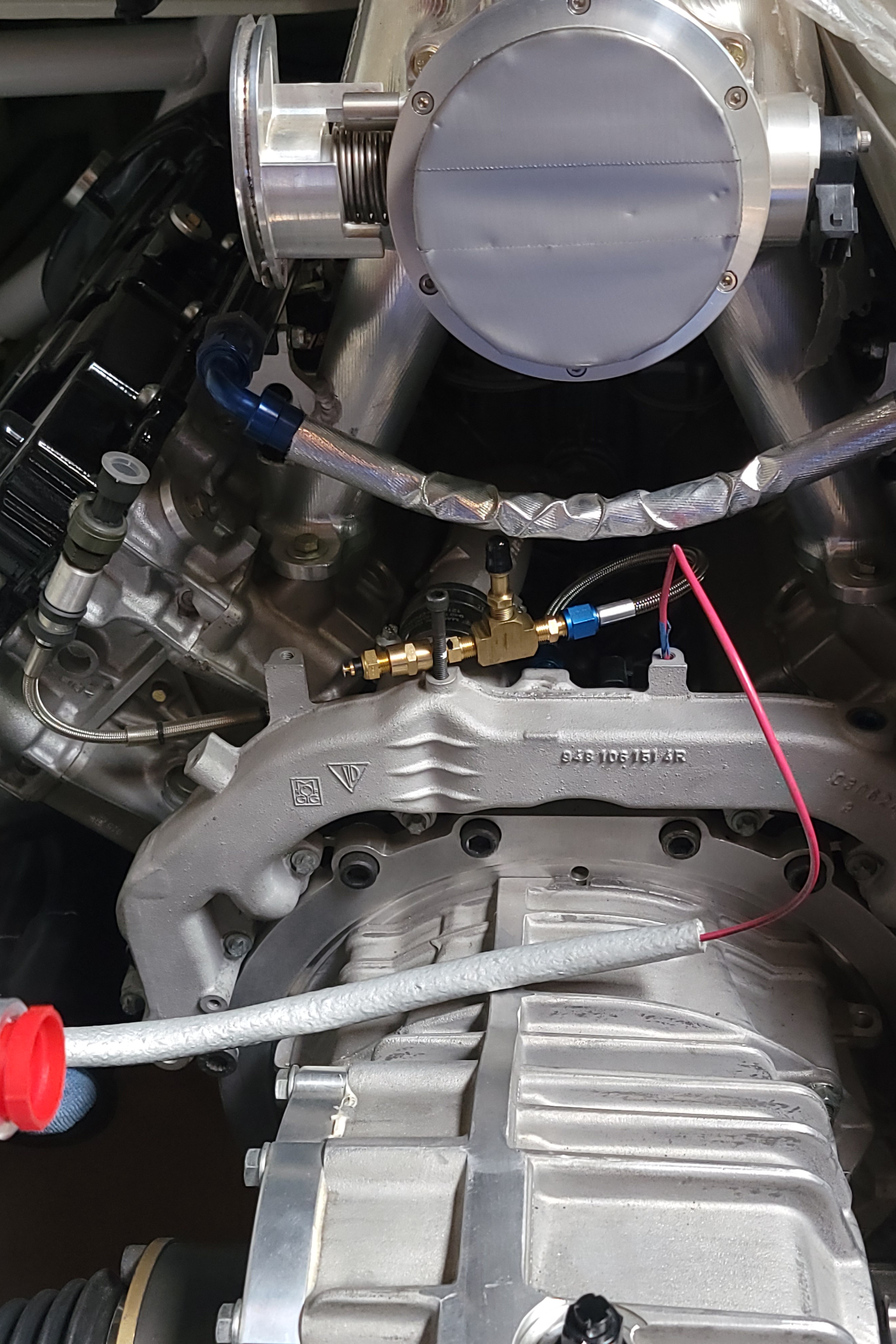

Getting back to engine accessories; setting up the coolant temp sender, coolant bleeder line (to fill tank); set up on a #4AN flexible line/ bracket (fab'ing up now).
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Jun 7 2024, 07:22 AM
Post #824


Newbie
*

Group: Members
Posts: 30
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None
QUOTE(Maltese Falcon @ Jun 1 2024, 02:47 AM) *


www.fittings.space in Sparks, NV, makes all sorts of 'Metric to SAE, AN, NPT adapters, which we used their *stainless steel part here/ in conjuction with a VDO ⅛" NPT sending unit.


Saving this resource. Little things like this can be so frustrating when you can't find the right adapter.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 13 2024, 06:57 PM
Post #825


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Throwback to the iconic Porsche showroom Sonauto in Paris: It's all Stock trust me !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 13 2024, 08:52 PM
Post #826


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

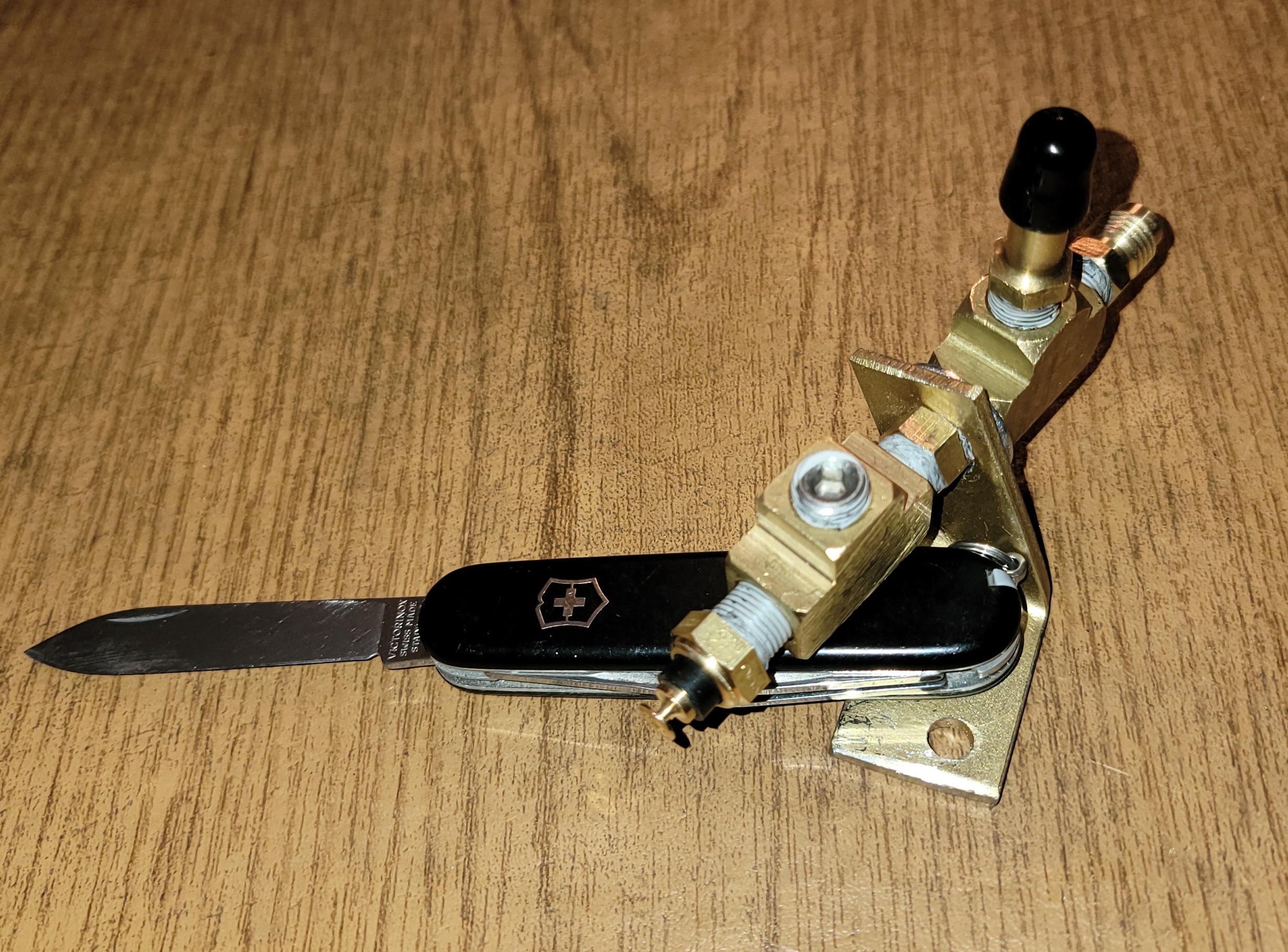

Bracketed and ready to install on to the Cayenne engine coolant-crossover manifold
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 18 2024, 09:51 AM
Post #827


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

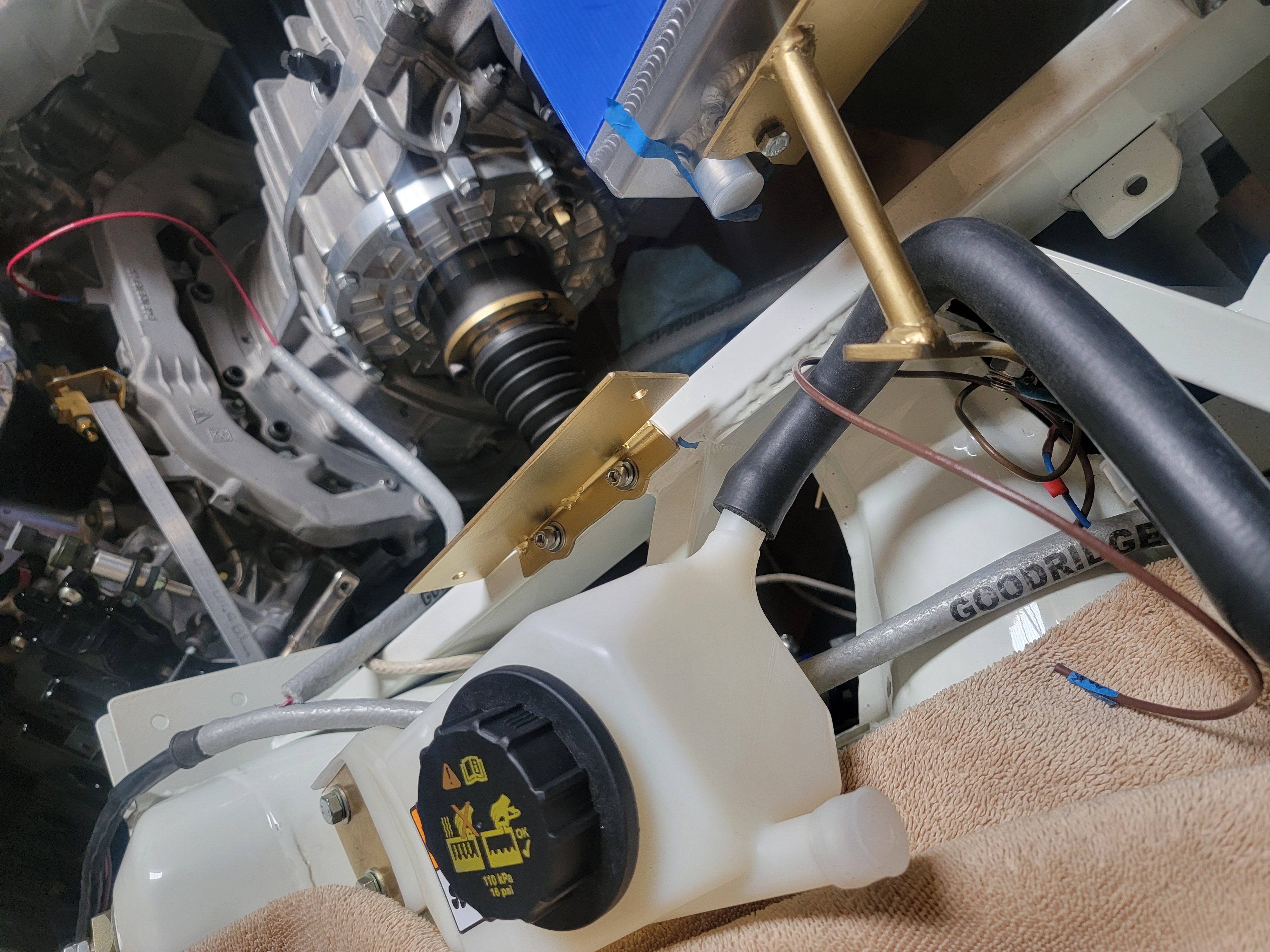

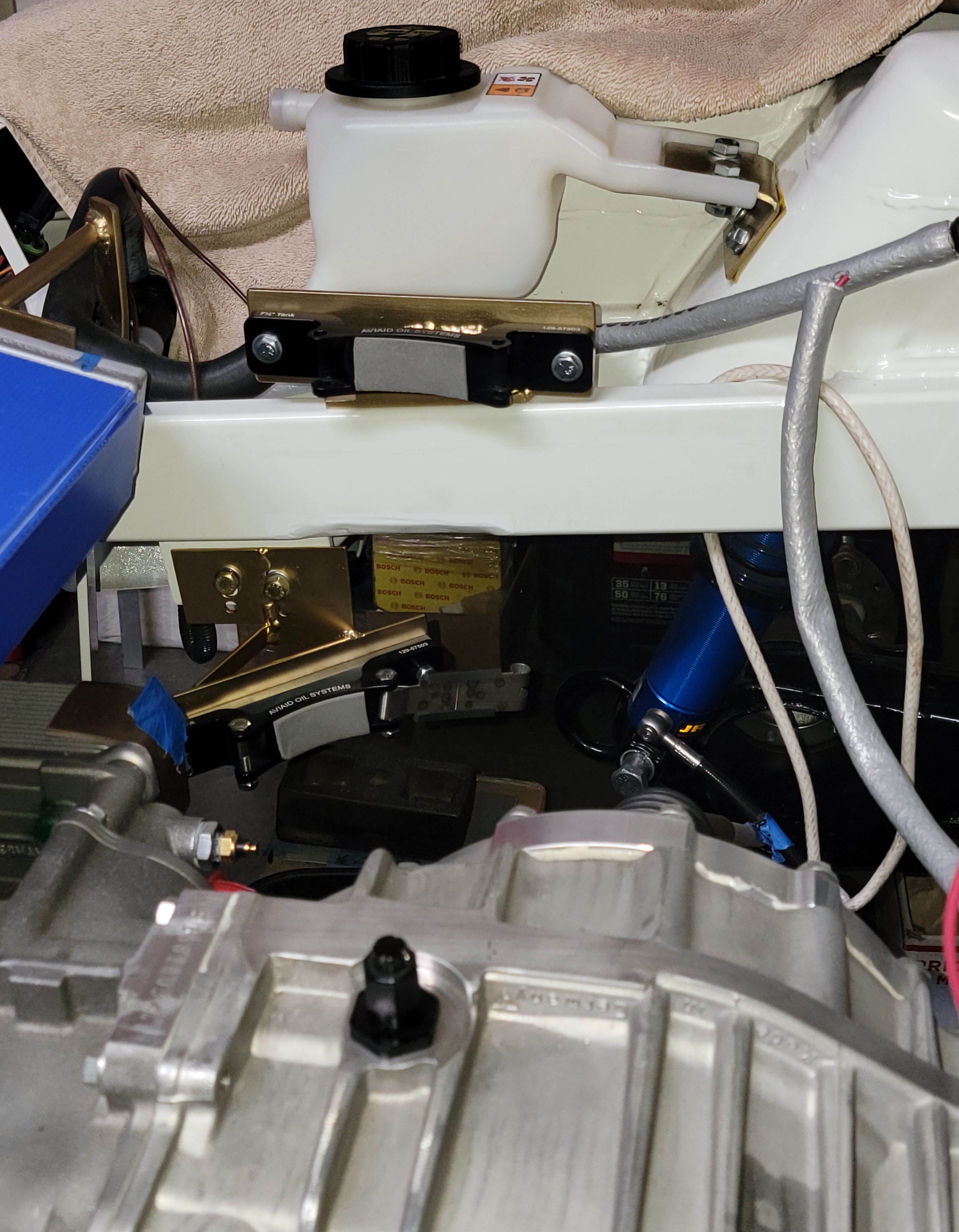

Oil Tank supports / upper & lower brackets. Top bracket mounts to spec frame rail>>drill and tap
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 18 2024, 09:55 AM
Post #828


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Using .125" c/r steel for the fabricated brackets (gold color)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 18 2024, 10:00 AM
Post #829


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
These black-anodized (Aviaid Co.) tank brackets are supplied from mfg. for use on this 7½" dia. oil tank
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 18 2024, 10:15 AM
Post #830


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
I think that with the adding of 2) Garretts, wastegates, intercooler and b/o/v are all packed into the 'Trunk area, No more luggage room avail. Maybe just strap these to the cold side of intercooler (IMG:style_emoticons/default/biggrin.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 20 2024, 04:30 PM
Post #831


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

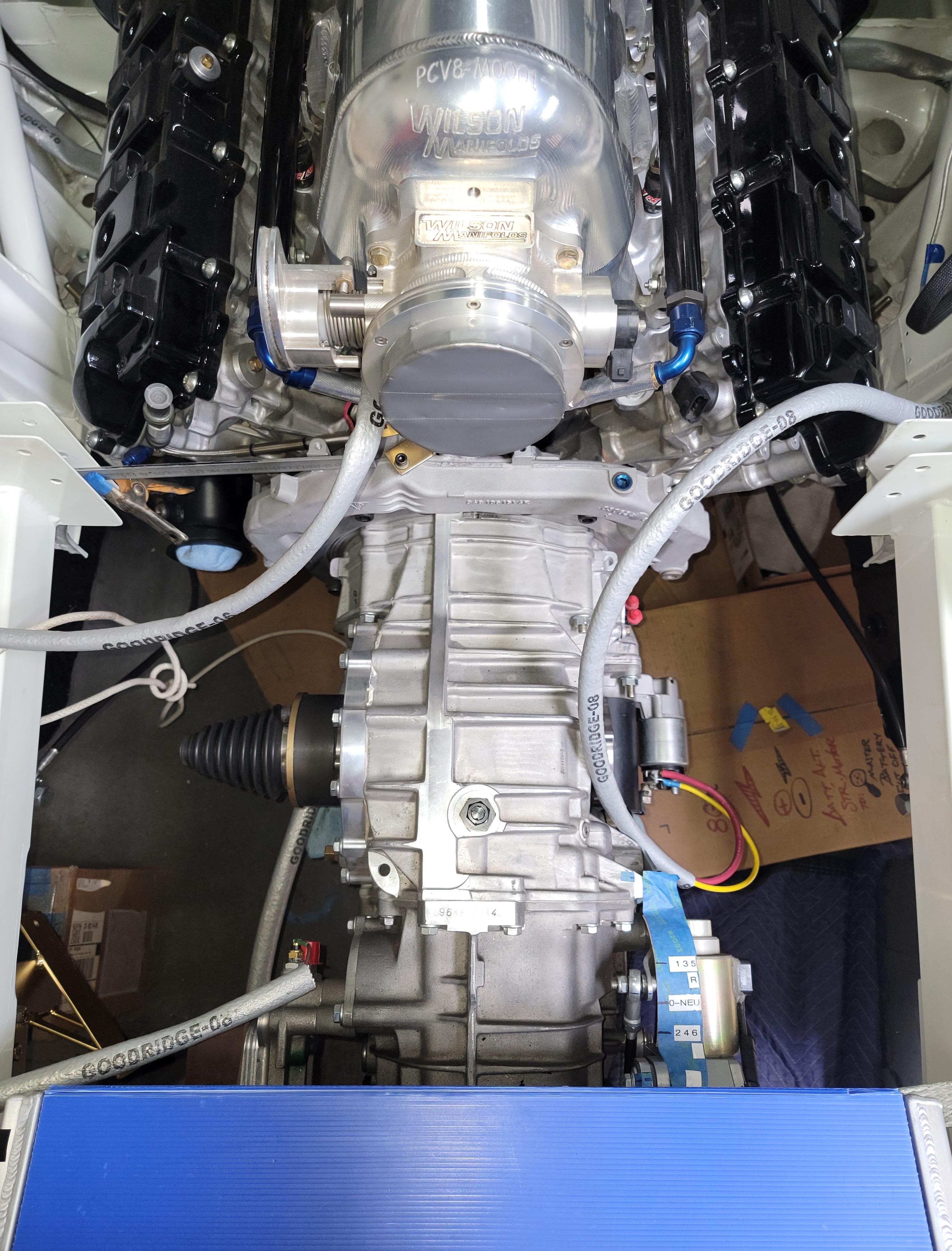

Good day today & tidied up runs of wire that have been pulled through into the trunk area. I use 'Goodridge fire sleeve which I've been sourcing at www.pegasusautoracing.com
Also purchased all sorts of racing hardware, Tilton pedal assembly, brake bias control, etc. from them; excellent product knowledge/ customer service (IMG:style_emoticons/default/thumb3d.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 20 2024, 04:39 PM
Post #832


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

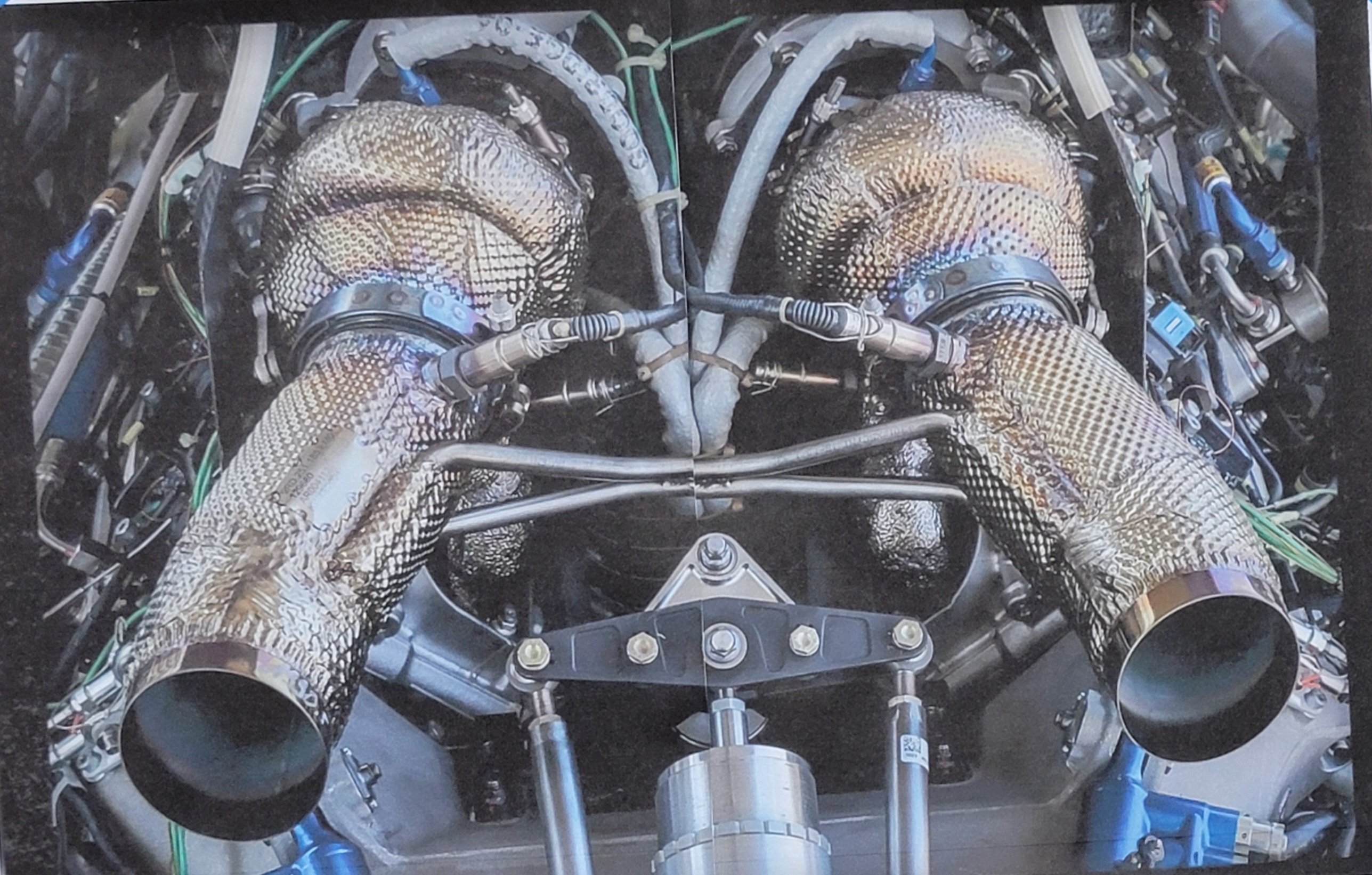

Nice to see Goodridge product on the Porsche 963 (IMG:style_emoticons/default/biggrin.gif)
Looks like they are fire-sleeving the turbo oil supply (#4AN) lines, and #12AN (oil drain scavenge) lines which seem to be in a super hot zone !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 21 2024, 06:20 PM
Post #833


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

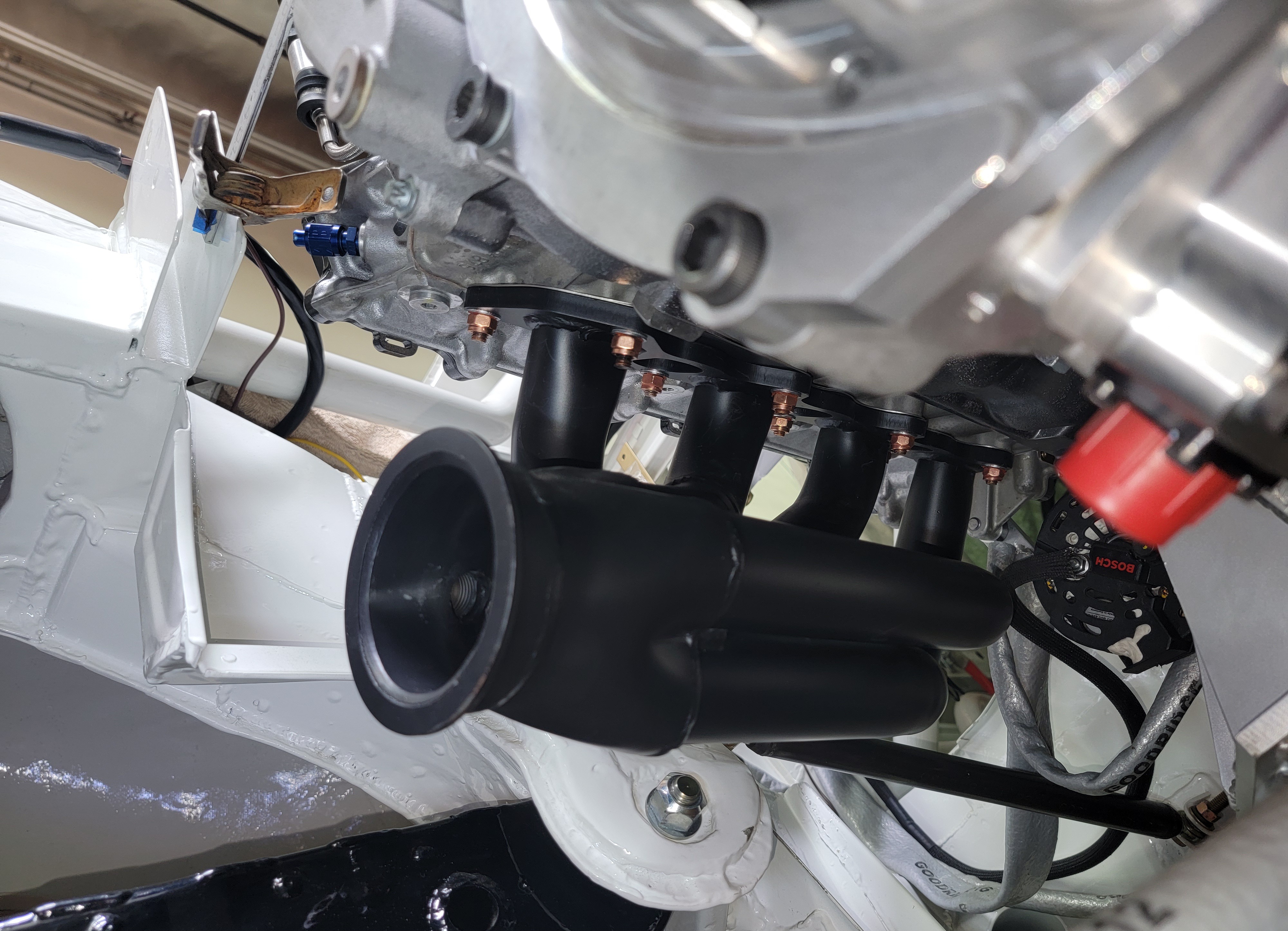

Driver side shorty header securly snuggled down.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Jun 21 2024, 07:11 PM
Post #834


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
QUOTE(Maltese Falcon @ Jun 21 2024, 04:20 PM) *

Driver side shorty header securly snuggled down.
Attached Image

That’ll make some sweet noise.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 23 2024, 08:51 AM
Post #835


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

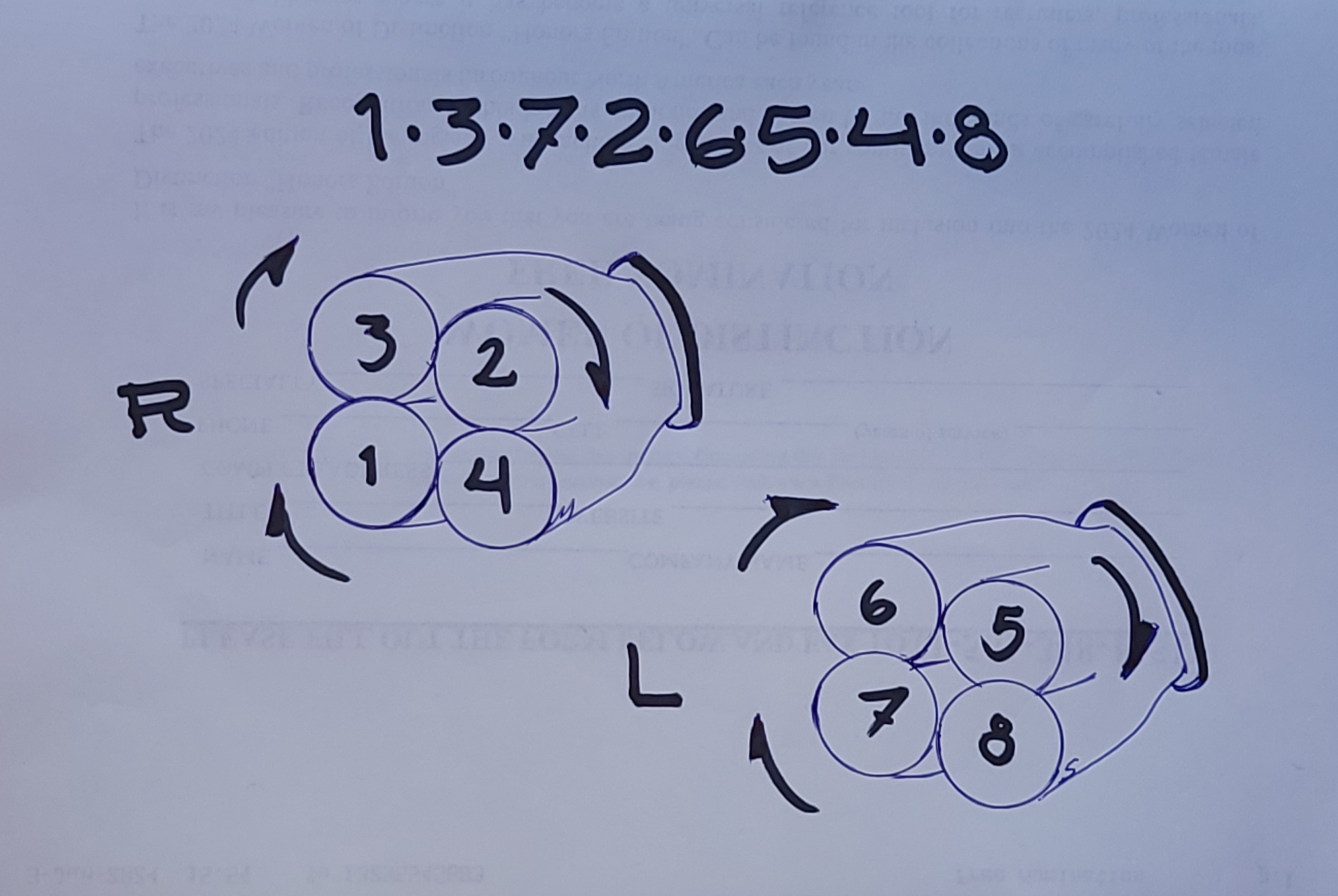

@KELTY360 Marc, the 8gtt sounds should be an earful...even for a non-flat plane crank Cayenne v8 ! The basic tech in my shorty shorty header design, is how the placement of the tubes enter into the collector; left and right side headers respectively.

Following the Cayenne v8 firing order: 1-3-7-2-6-5-4-8
I place the tubes in a (rotational) position, so during the normal scavenging taking place = the exhaust pulses fire into the collector in a rotational fashion.
This gives an extra performance benefit during evacuation of the exhaust pulses. Can't hurt getting the pulses to scaveng even quicker, right?
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jun 23 2024, 09:18 AM
Post #836


Michael
**********

Group: Members
Posts: 10,093
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Next level greatness for sure. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 25 2024, 05:19 PM
Post #837


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

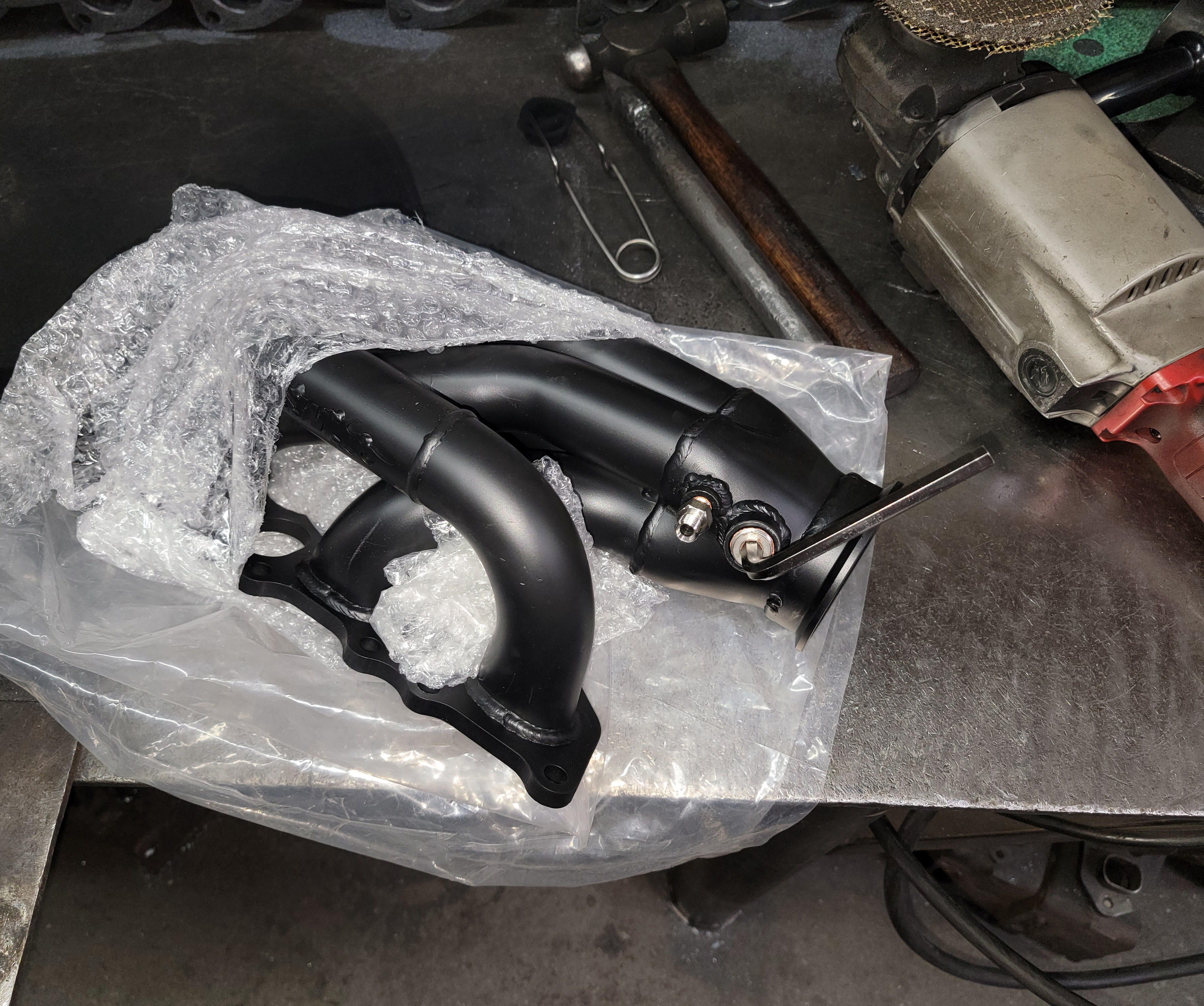

Passenger side exhaust header with EGT, and o2 port ready for install.
(IMG:style_emoticons/default/marty914.jpg)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 25 2024, 05:35 PM
Post #838


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

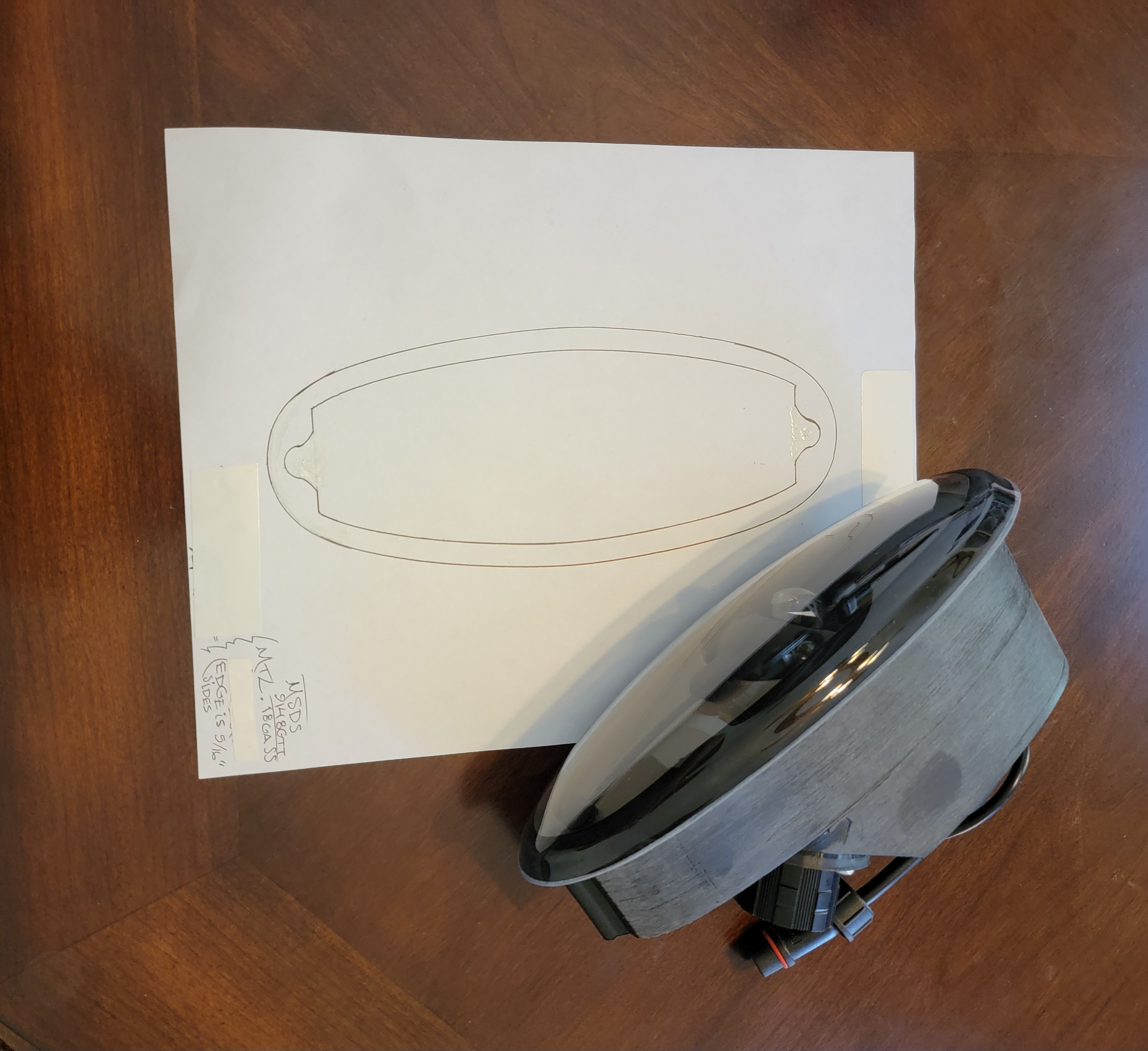

I'm having a few sets of these 18ga. SS plates laser cut for use with these cool 914 headlights, which install into the previous front turn signal locations.
Since we are using Sheridan fiberglass body panels, when you slice the (faux) turn signal 'Pods from the top of the fenders you are left with a ¹/16" perimeter edge...which is not real sturdy to attach these light fixtures on.
The thin plates will be epoxied into place, then these new light assemblies* will have a sturdy foundation to sit on. Then I will add another support bracket inside the fender, in order to catch the stud/nut on the assembly.
Mfg. by* www.3DGAUTO.com
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 25 2024, 05:43 PM
Post #839


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

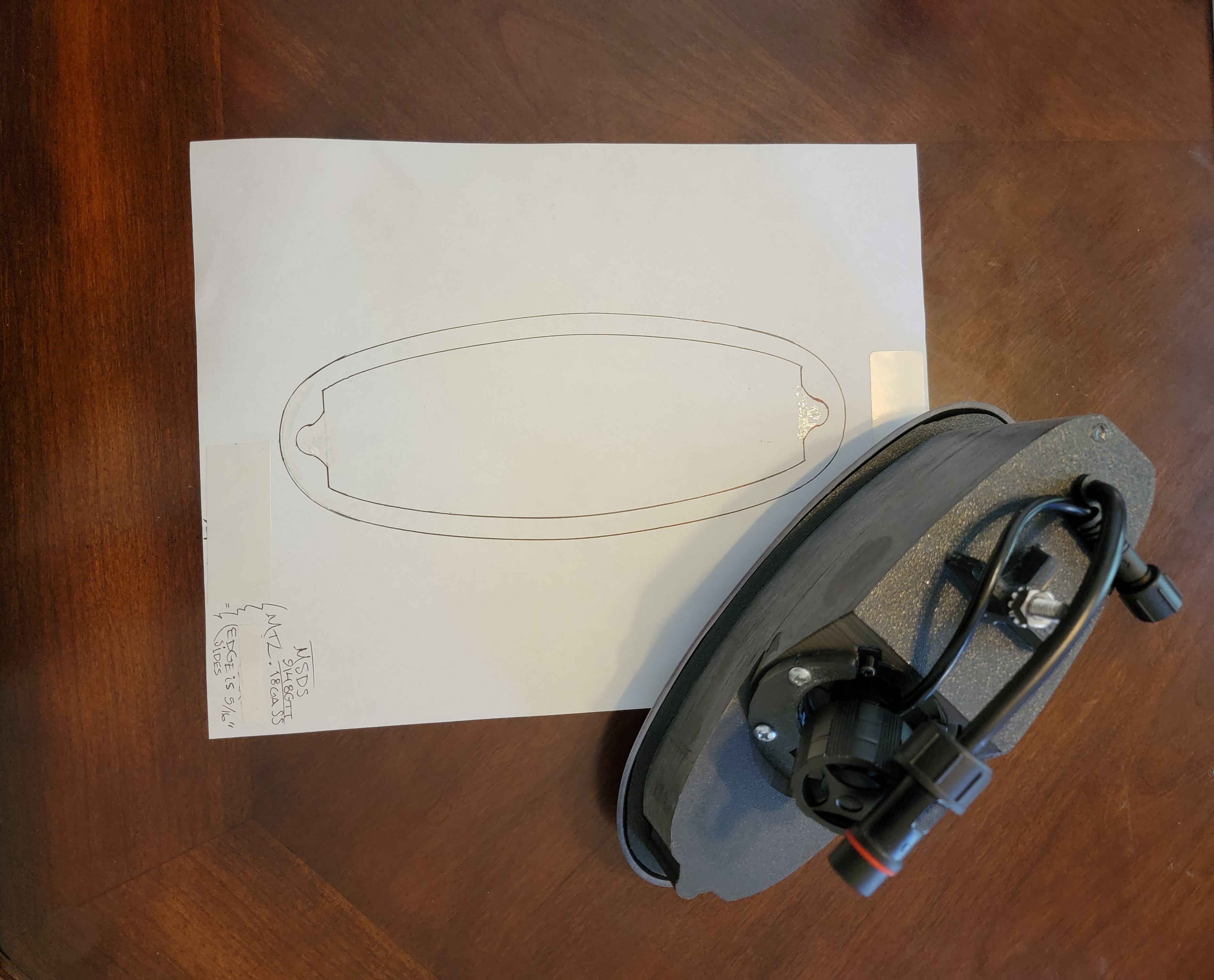

Back side of the new headlight assembly, high and low beam are in this set up. Fully adjustable, simple instructions, and looks like the wire cables are plug + play for converting a stock 914 .
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Jun 26 2024, 06:50 AM
Post #840


Newbie
*

Group: Members
Posts: 30
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None
very cool headlights
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
