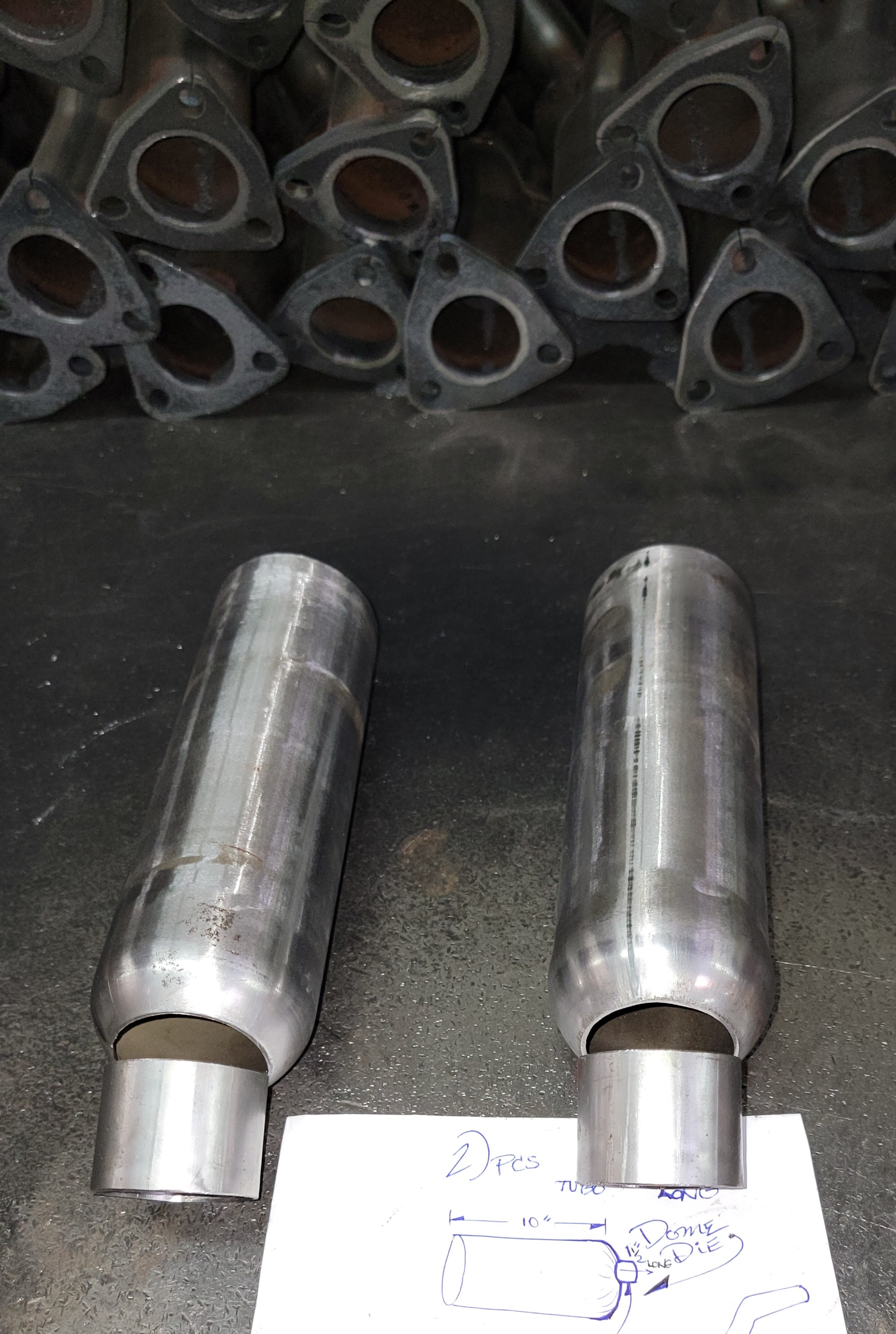

Some 3" exhaust tips to pop through the CGT surrounds; made these with the assistance from our hydraulic press + the Dome-die tooling.
The small 1⅞" od tubes (when finish welded) will be where the 1¾" od tubes with exhaust gasses will enter the tips. Why so small? See following ...
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 11 2024, 08:33 PM
Post #862


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

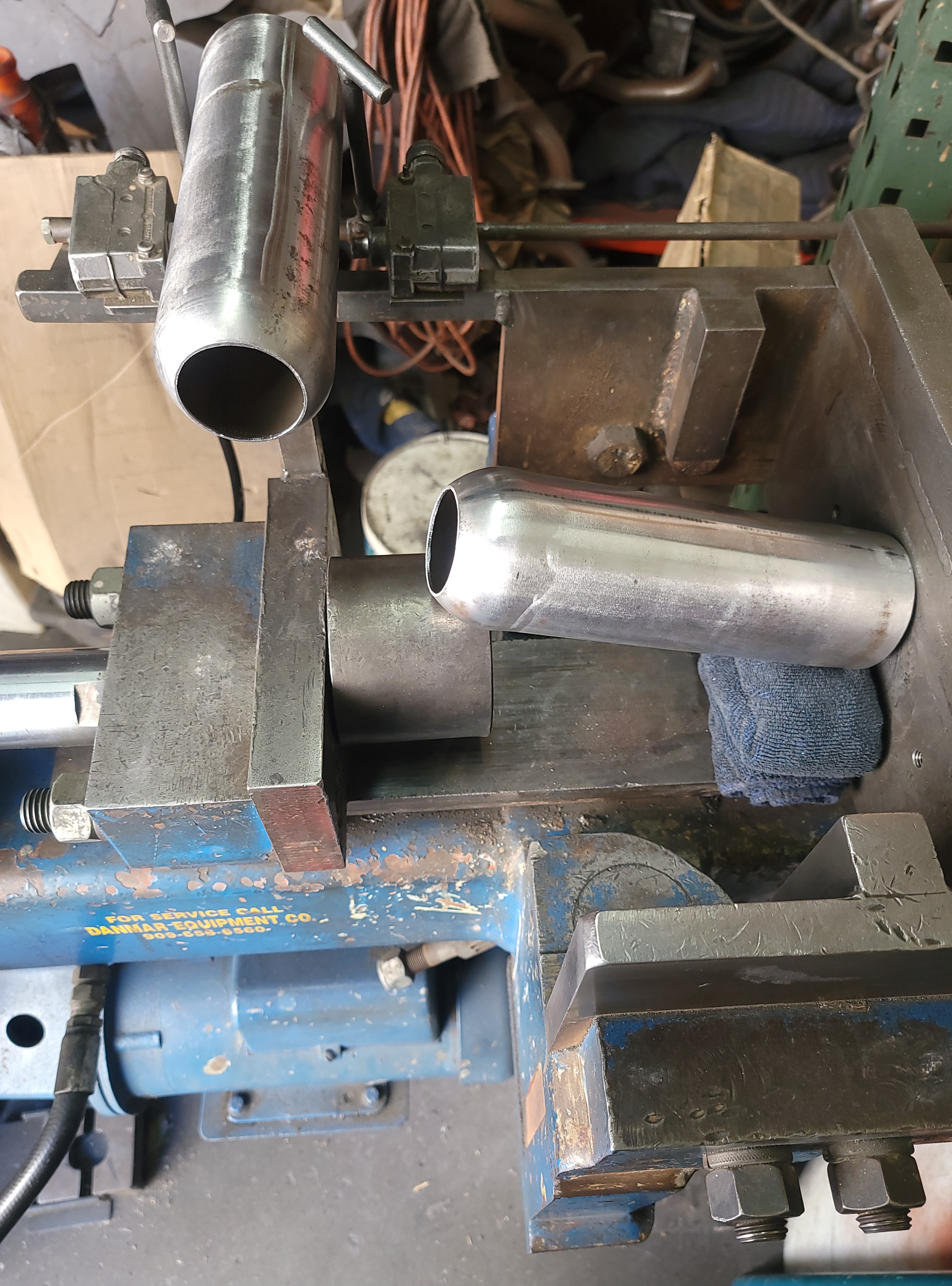

Our Hydraulic press makes all MSDS header collectors, cones, reducers, specialty dimples and domed caps on tubing ends. The end caps on these 3" od tube sections are 1⅞" id.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 11 2024, 08:55 PM
Post #863


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

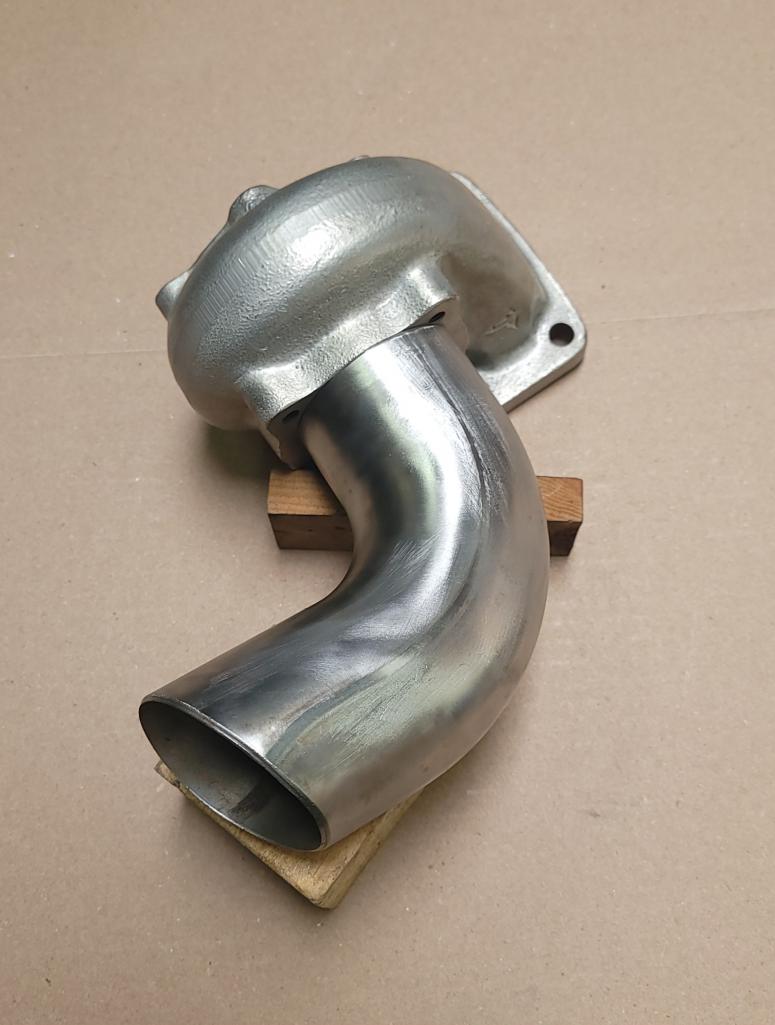

The goal was to move exhaust gas from left and right side Garrett turbos, but we have decided to vent the Left + Right wastegate exhaust down to the rear of the 914 instead; and the turbo exhaust out the top of the rear trunk lid...race car (or even 918) style. Routing 1¾" header tube around the drivetrain 'Maze is so much more compact compared to dual 3" dia tubing. Cooler engine bay temps as well, the wastegates oscillate the dispersing of exhaust gas, wherein the turbo exhaust is a constant flow.
Turbo exhaust will be simple 3" dia 45° angle cut, short and compact. Pic shows basic 1¾" mandrel bends which will be prototyped into place once the wastegates are situated.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 11 2024, 08:57 PM
Post #864


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Closeup...the final length of the tip protruding past the CGT surrounds TBD.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 11 2024, 09:01 PM
Post #865


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Turbo exhaust on this v8 Indy engine, short and right out of the turbine, and built into the slipstream of the body, very cool design (IMG:style_emoticons/default/biggrin.gif)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
NorCalScott
post Jul 17 2024, 07:02 AM
Post #866


Newbie
*

Group: Members
Posts: 30
Joined: 6-February 21
From: Sacramento
Member No.: 25,173
Region Association: None
Very interesting stuff. Thanks for sharing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 17 2024, 07:46 AM
Post #867


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

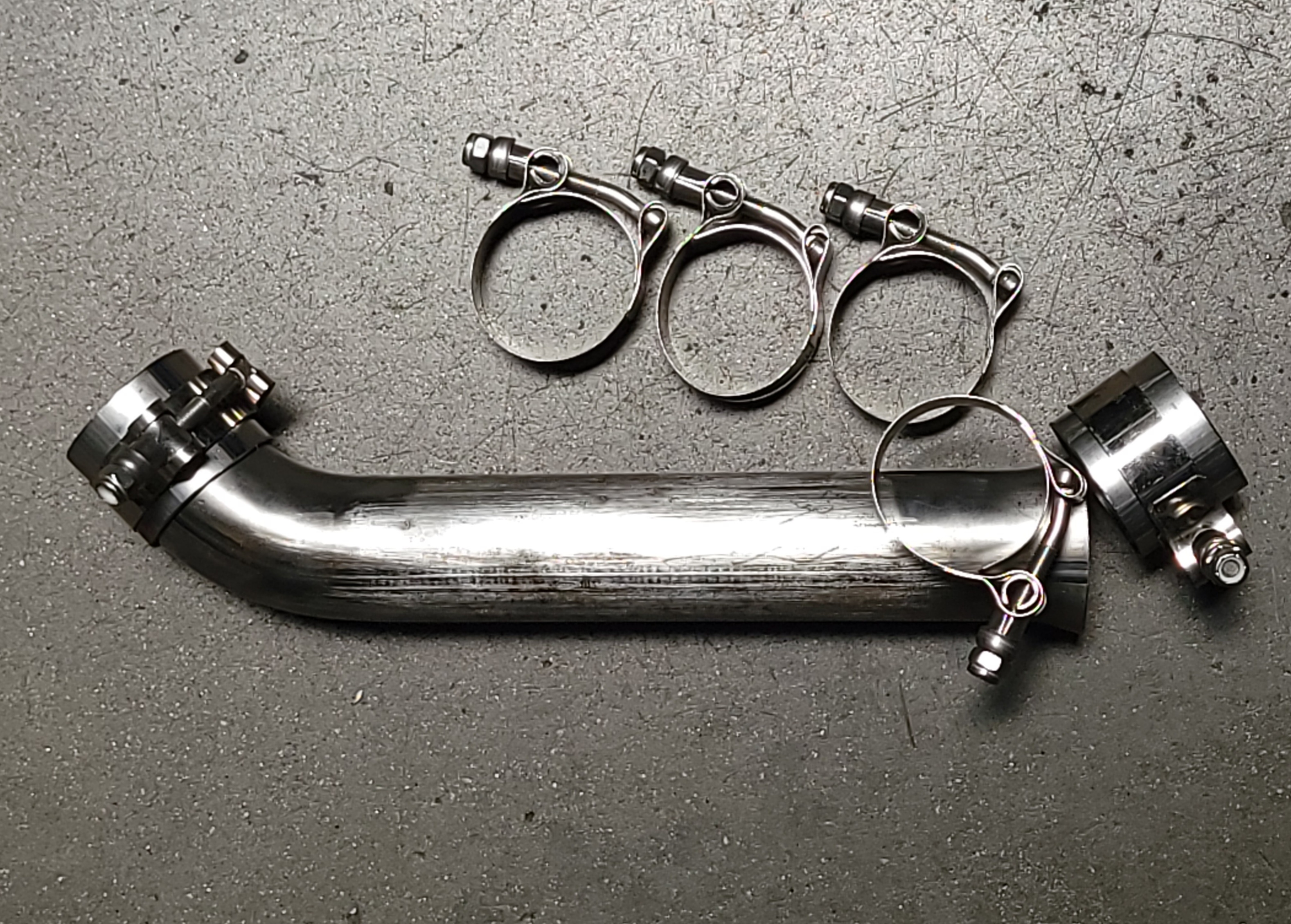

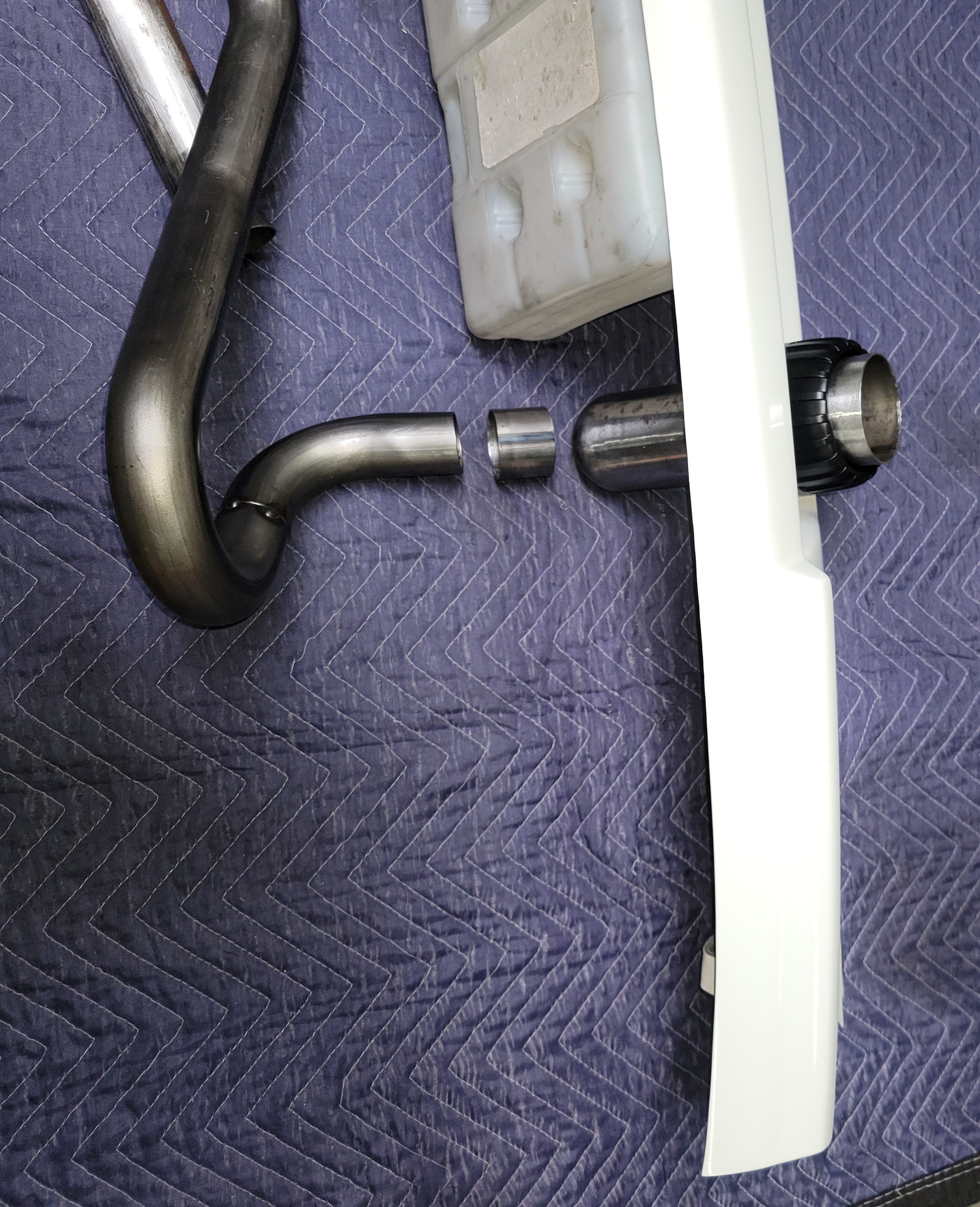

In house mfg. od/id swedge tubing (exhaust joints); one side welded in place, and one side snugged down with these SS clamps...available at most hydraulic supply stores.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 29 2024, 06:45 PM
Post #868


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

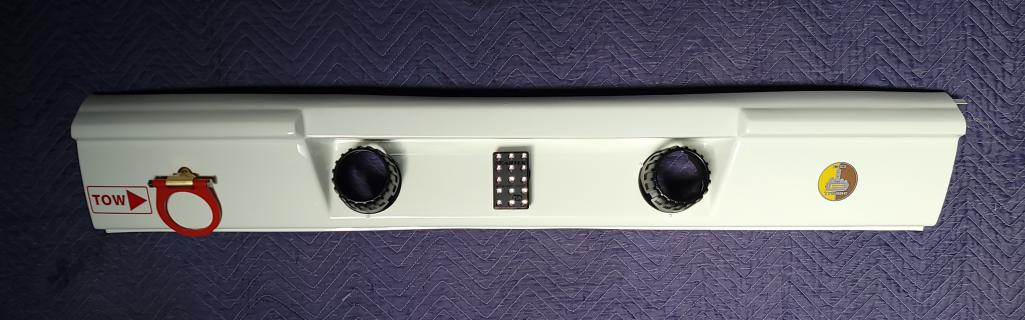

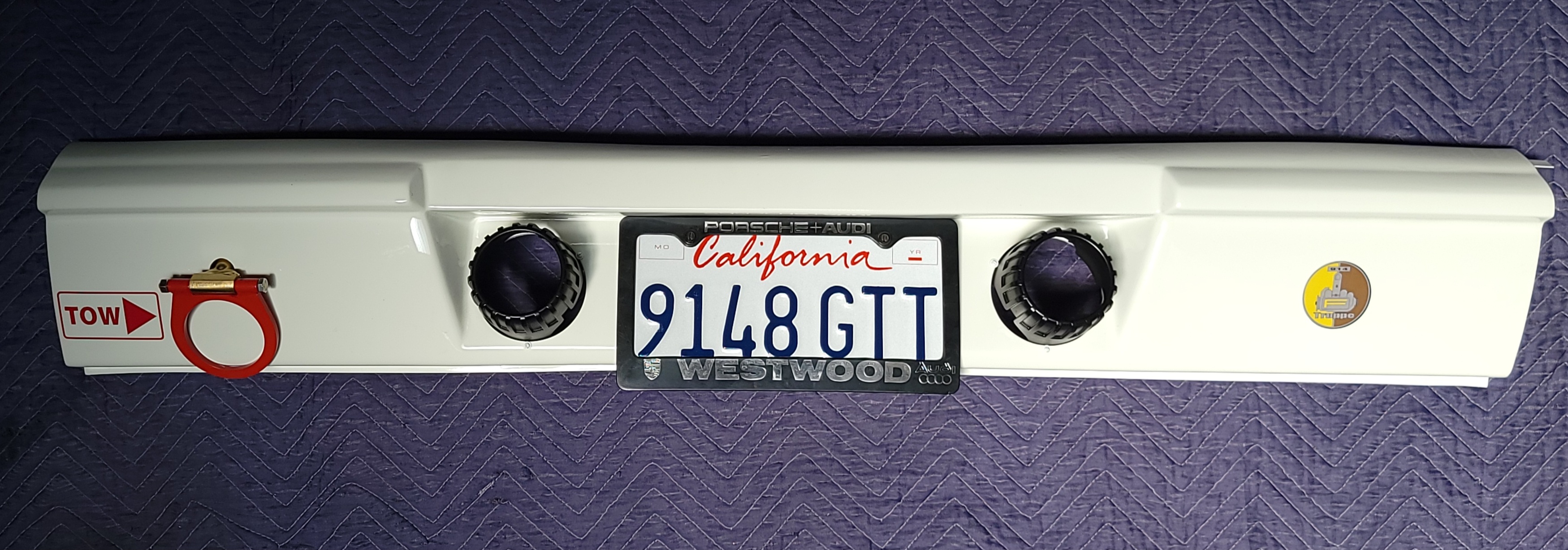

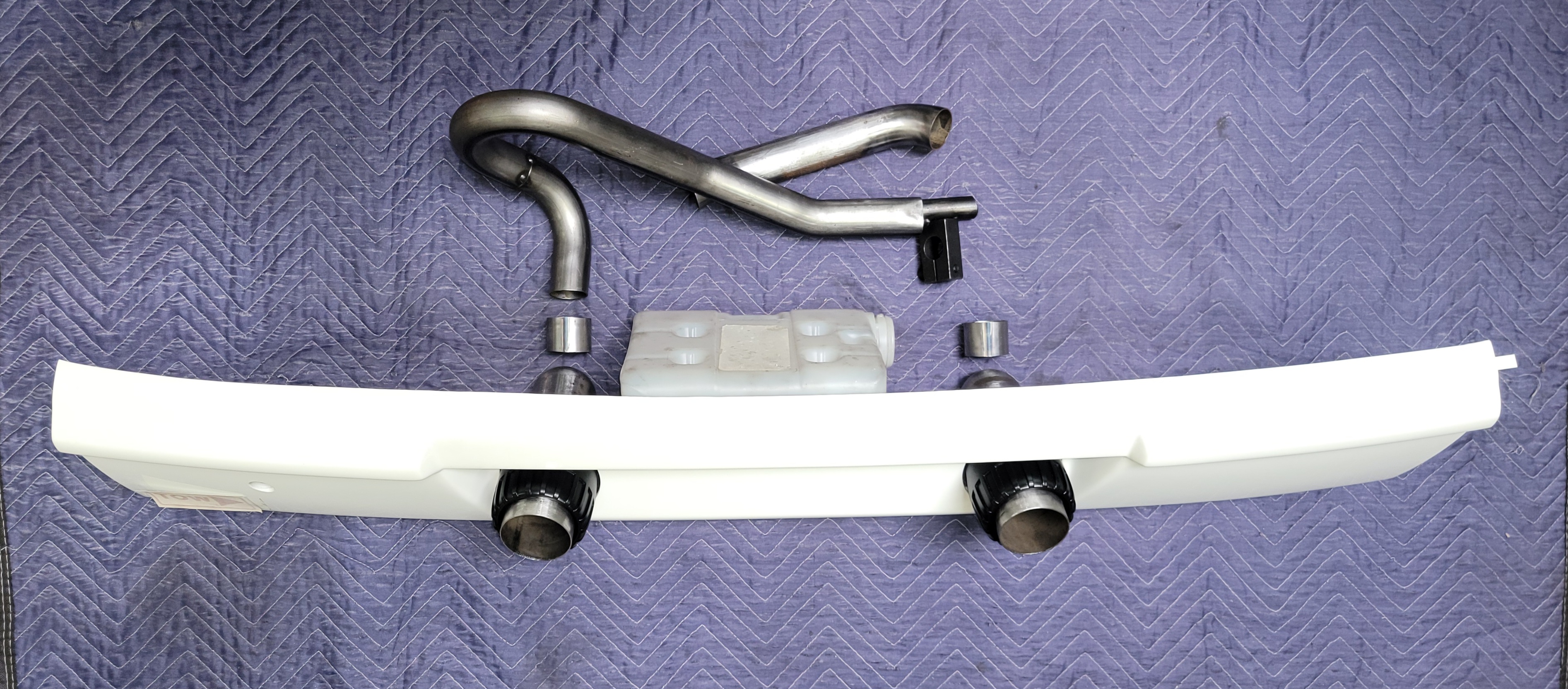

Rear A.I.R. fiberglass bumper and Cali Plate for (occasional) street use.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 29 2024, 06:50 PM
Post #869


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

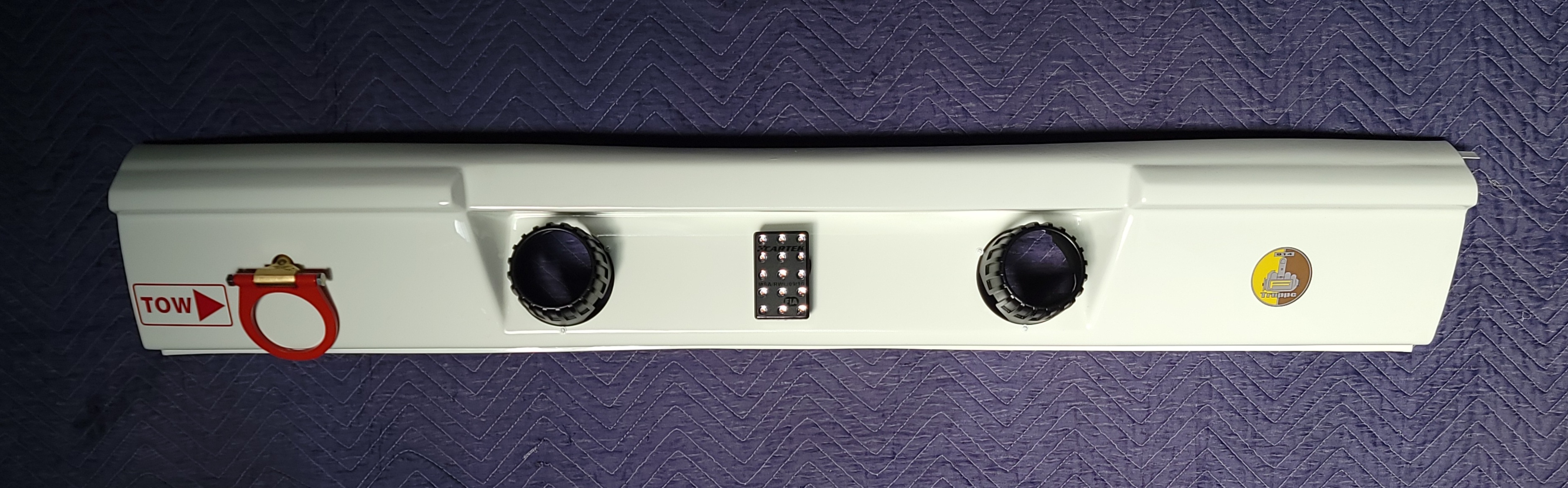

Combination Rain / or Stop l-e-d FIA spec lamp for Club trackwork days. Has quick disconnect 12v cable just behind the bumper.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 29 2024, 06:55 PM
Post #870


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
...and some time spent on tapping into the Daley oil pump for AN#4 oil lines (turbo o/p), and figuring out the large AN#18 route to dry sump tank. Large firewall access makes it a lot easier.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 31 2024, 07:18 PM
Post #871


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

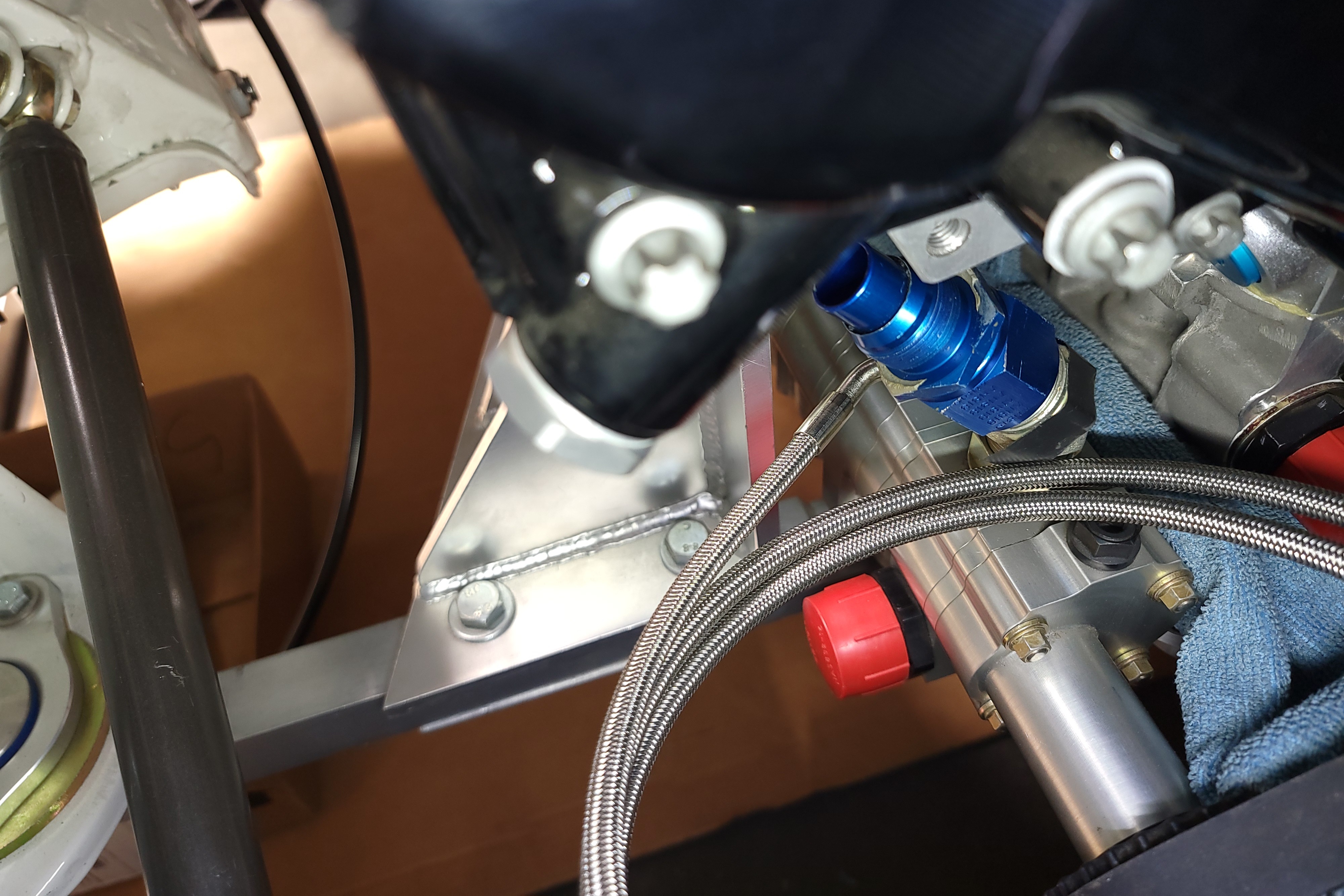

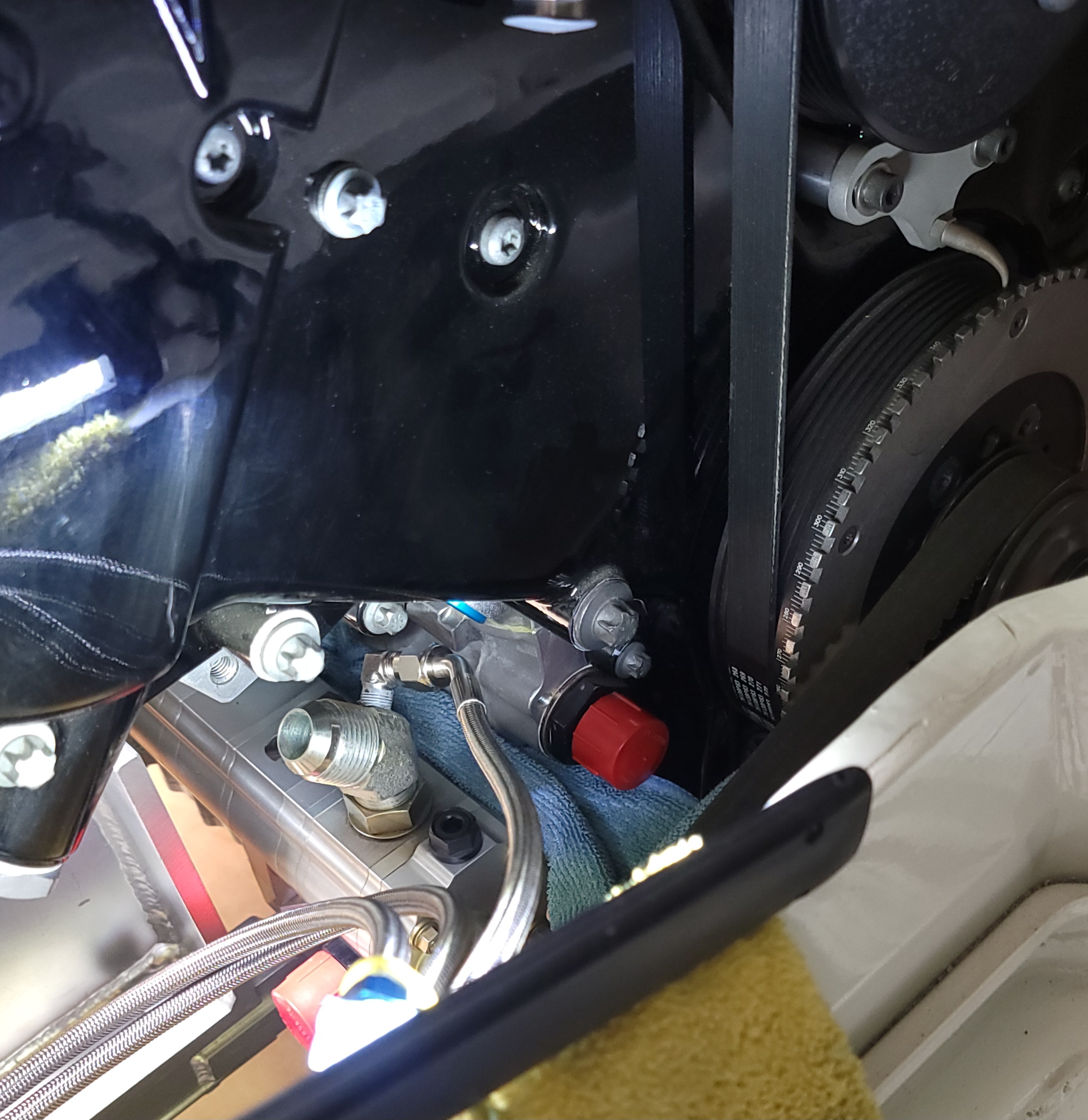

AN#4 oil line (Left side turbo) supply is a snug fit and clears the belts & pulleys.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Aug 1 2024, 09:46 PM
Post #872


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
Sanitary work Marty! Thanks for the update.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg) (IMG:style_emoticons/default/number40_914.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 2 2024, 10:40 AM
Post #873


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(Lucky9146 @ Aug 1 2024, 08:46 PM) *

Sanitary work Marty! Thanks for the update.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg) (IMG:style_emoticons/default/number40_914.jpg)


Thx Jim @Lucky9146 ! are you entering anything for Lüft Universal City this October ¿¿

(IMG:style_emoticons/default/marty914.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Aug 3 2024, 10:18 AM
Post #874


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(Maltese Falcon @ Aug 2 2024, 09:40 AM) *

QUOTE(Lucky9146 @ Aug 1 2024, 08:46 PM) *

Sanitary work Marty! Thanks for the update.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg) (IMG:style_emoticons/default/number40_914.jpg)


Thx Jim @Lucky9146 ! are you entering anything for Lüft Universal City this October ¿¿

(IMG:style_emoticons/default/marty914.jpg)


Yes, entered my '85 M491. BTW 40th anniversary of the "Turbo Look" option. Hope it's accepted! See you there?
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 3 2024, 10:59 AM
Post #875


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

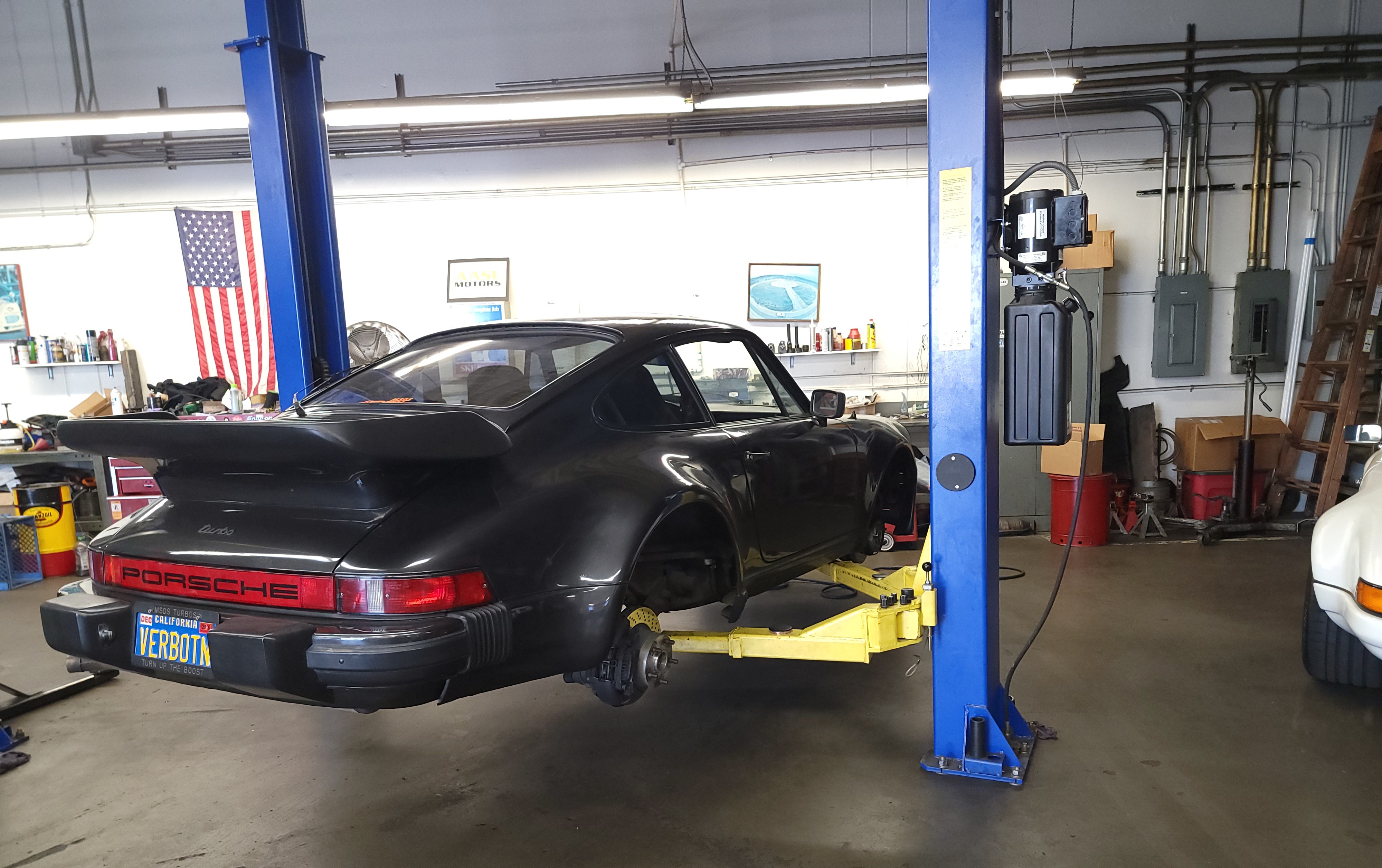

@Lucky9146 she's looking Sweet !! We threw the Sonauto car in the application...don't think they want a repeat car to show again as it was at San Pedro couple years ago (IMG:style_emoticons/default/blink.gif)
Our '79 VERBOTN was shown at Lüft 2 'Bandito Brothers years ago...but no application put in for #342 at Universal City.
LMK if you need your 'RSVP 'Local' spot this year (IMG:style_emoticons/default/smile.gif)
(IMG:style_emoticons/default/number40_914.jpg)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
MATTYLITE
post Aug 3 2024, 11:25 PM
Post #876


Member
**

Group: Members
Posts: 101
Joined: 23-August 12
From: California
Member No.: 14,843
Region Association: Southern California
Here are 2 quick videos we just posted to YouTube showing the onboard air jack system.



https://www.youtube.com/watch?v=lLjY0i8pH3o



https://www.youtube.com/watch?v=Zn9pa-0_Xyk
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 11 2024, 06:53 PM
Post #877


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

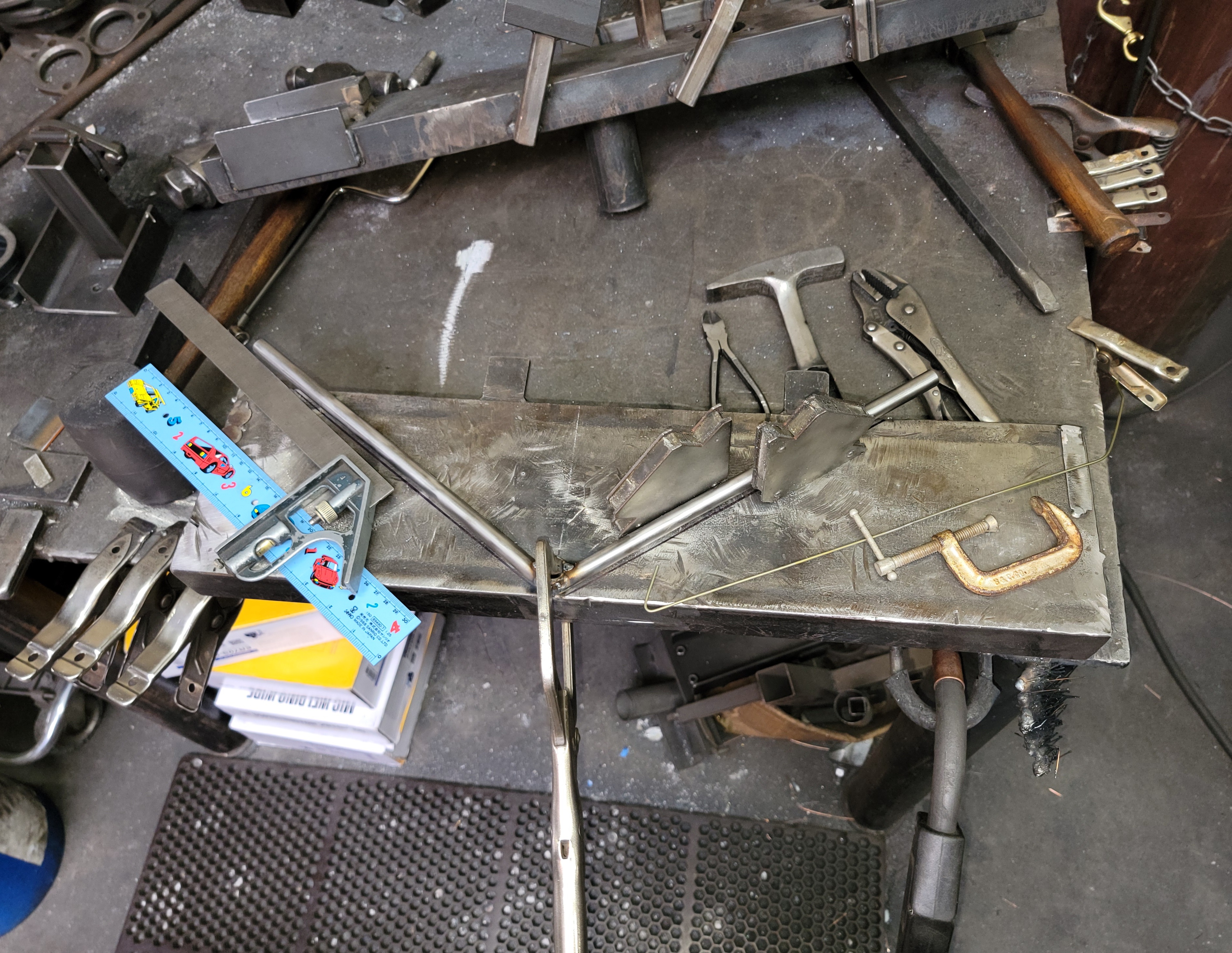

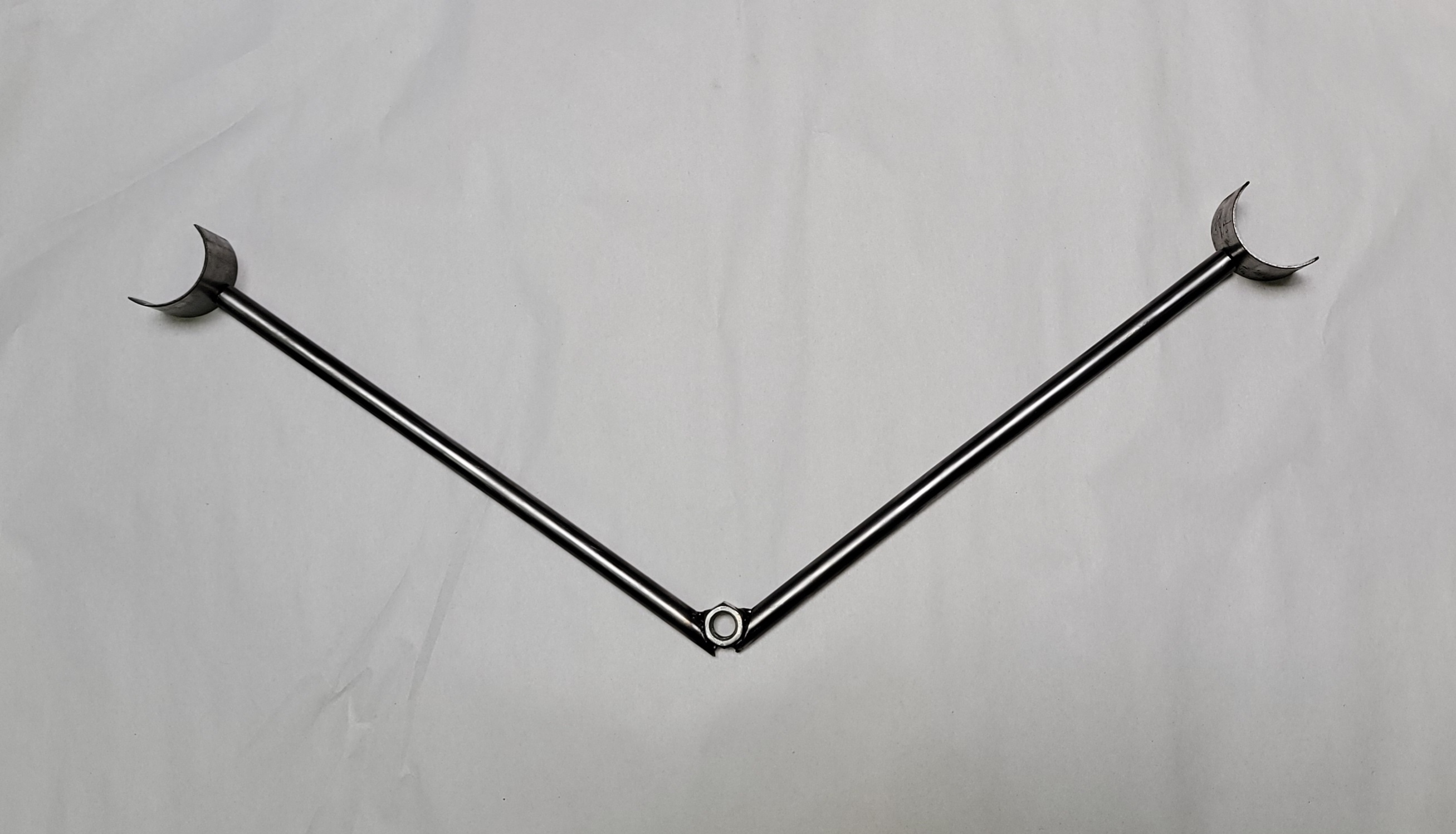

Simple fabrication today; just tack welding the dual exhaust support bracket that will come off of the trans nose-cone & guide the 2 pipes into the rear bumper. I'll finish weld (presentable!) after test fitment .
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 11 2024, 06:55 PM
Post #878


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

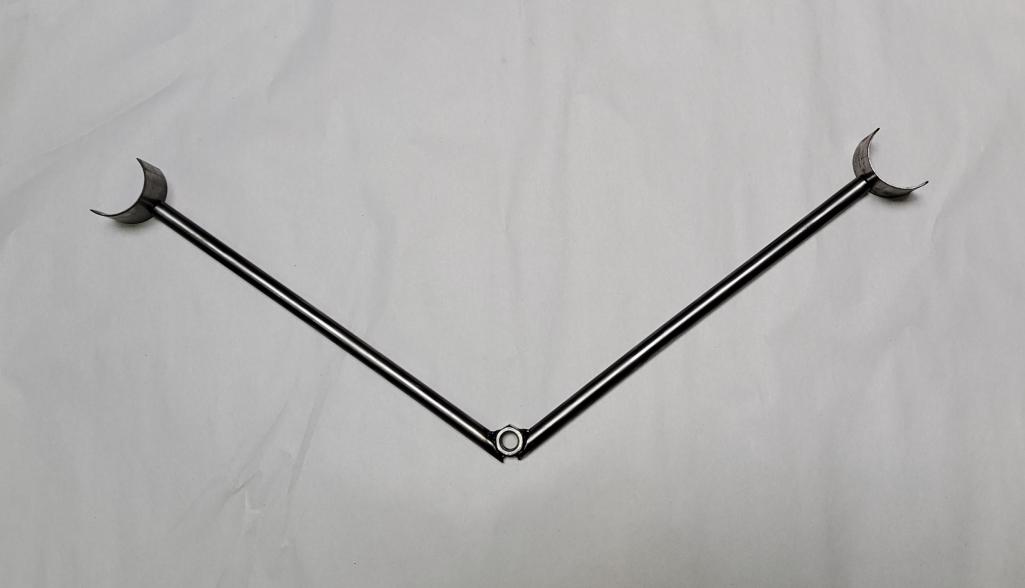

Support bracket >work in progress
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 19 2024, 07:26 PM
Post #879


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

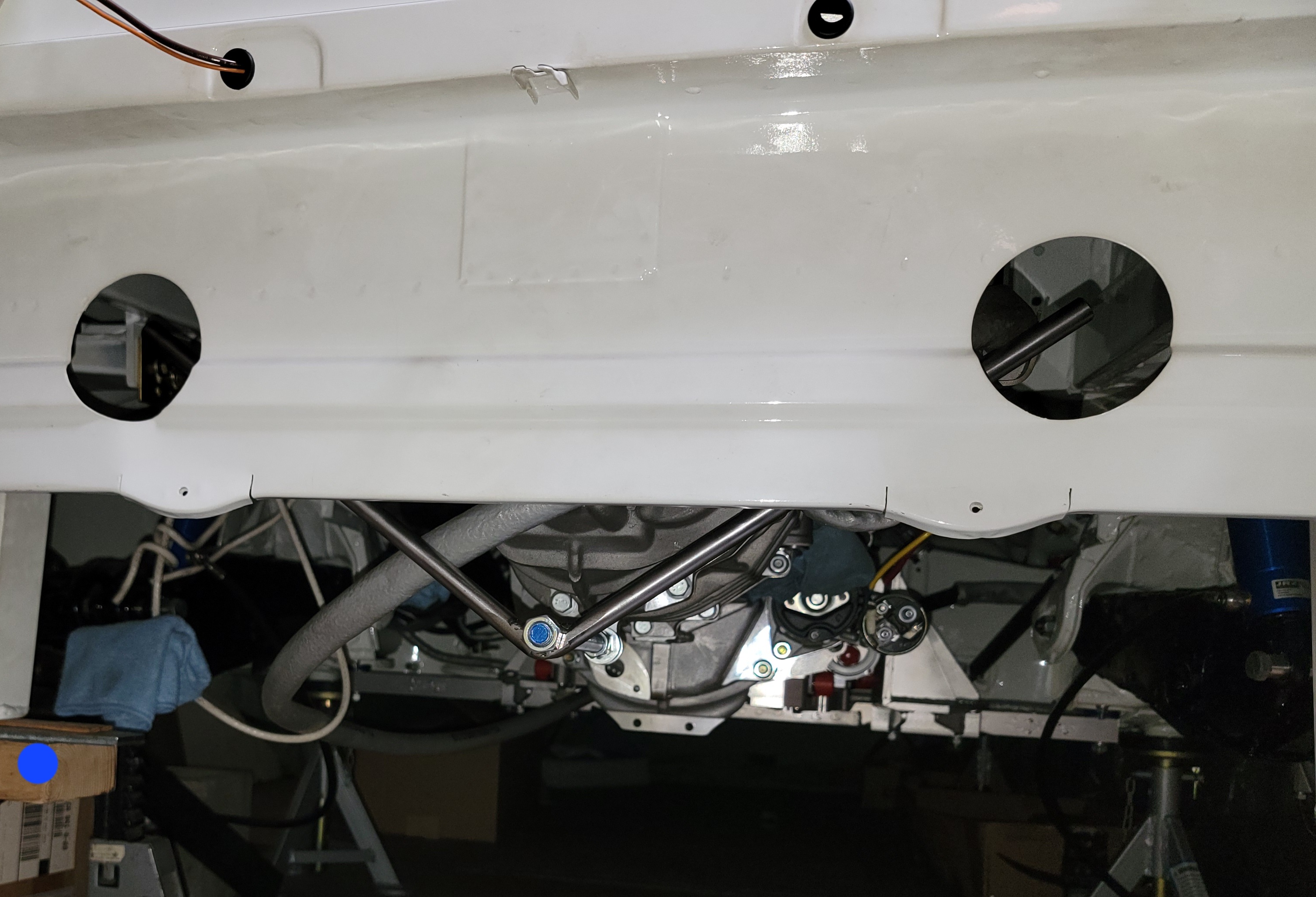

Rear exhaust tips support bracket now bolted on to the 996 gt2 transaxle. Lucked out and found an unused boss (for attachment) at the bottom rear of the nosecone !
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 21 2024, 05:47 PM
Post #880


Advanced Member
****

Group: Members
Posts: 4,845
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

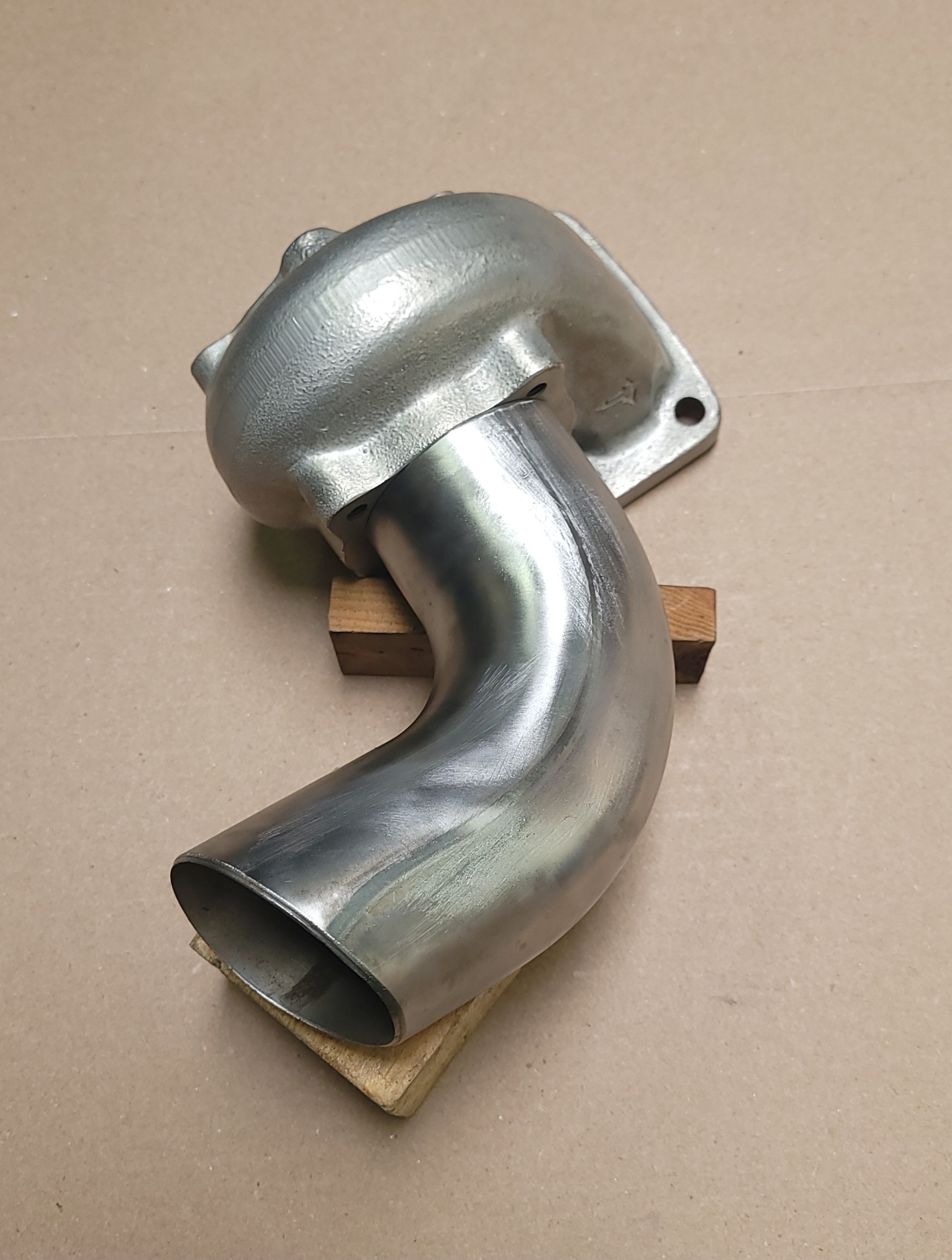

Did some innovative 1D mandrel bending in 2.75" od this week and came up with an end that gives a slight kidney bean + slash tip look: close enough for that Porsche Indy exhaust style.
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
