> My 2.4 Six Engine, Manufacturing prototype intake adapters.
JmuRiz
post Jul 19 2013, 09:15 PM
Post #21


914 Guru
*****

Group: Members
Posts: 5,515
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Carbs for up to 3.0 are typically 40, but this size will work well with EFI, as the computer can better control the fuel delivery. Seems like a good size, from the little bit I've heard.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 26 2013, 08:08 PM
Post #22


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Okay, time for another thought/question. The engine is a bit unknown on the inside. Here's the story that came with it.

QUOTE
70T p &c's
E cams

1969 Factory "S" heads
a. Port size 36X35 38mm intake
b. Valve size 45X39

1972 engine case

Engine right side below shroud: *6123464


Question is, should I pull the heads off and check what all I've got? Maybe a valve cleanup job?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jul 26 2013, 09:40 PM
Post #23


Resident Electrician
*****

Group: Members
Posts: 8,346
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Open it! You know you want to. DO IT!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Jul 26 2013, 09:51 PM
Post #24


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(McMark @ Jul 26 2013, 10:08 PM) *

Okay, time for another thought/question. The engine is a bit unknown on the inside. Here's the story that came with it.

QUOTE
70T p &c's
E cams

1969 Factory "S" heads
a. Port size 36X35 38mm intake
b. Valve size 45X39

1972 engine case

Engine right side below shroud: *6123464


Question is, should I pull the heads off and check what all I've got? Maybe a valve cleanup job?

Slippery slope. (IMG:style_emoticons/default/unsure.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jul 26 2013, 10:02 PM
Post #25


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,826
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Do a leak down first and make sure you "need to"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 27 2013, 02:58 AM
Post #26


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
It's more about knowing what heads, cams, pistons and compression ratios.

I have been dying to build another six engine. This isn't exactly a build and I don't have the funds to actually change anything so it can't get too crazy, other than possibly adding spacers to lower compression so I can run dual turbos. (yeah, I have the disease)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gary
post Jul 27 2013, 04:00 AM
Post #27


Senior Member
***

Group: Members
Posts: 746
Joined: 12-January 03
From: Mount Airy, MD
Member No.: 134
Region Association: MidAtlantic Region
Hey Mark - is this the motor I dropped off? If so, I have details on the build.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jul 27 2013, 10:14 AM
Post #28


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
What does this mean?

a. Port size 36X35 38mm intake

36 intake
35 exhaust
38?

Only two ports per head.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jul 27 2013, 10:33 AM
Post #29


914 Wizard
**********

Group: Members
Posts: 10,682
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
that configuration only has about 8-1 compression.

sell the 69 S heads and buy find some 2.2-2.4 heads.
T and E heads have the same port size. You will get easy to find valves, 40/46 and get back the .5 compression
they are easy to port to 36mm intake, Well depending on how you do it..

Or just run it, since you want to TURBO
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Jul 27 2013, 11:22 AM
Post #30


Send me your transmission!
***************

Group: Members
Posts: 23,034
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Jul 27 2013, 10:16 PM
Post #31


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California
Bolt on a set of carbs and run it on the test stand.


KT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 5 2013, 11:30 PM
Post #32


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
The $2500 carbs I don't have? (IMG:style_emoticons/default/blink.gif) Life is so simple when you're spending someone else's money. (IMG:style_emoticons/default/laugh.gif) Plus, what do I learn from bolting on carbs. I'm not building a car. I'm building an education.

I've been wanting to start familiarizing myself with AutoCAD and this seemed like a good project for this since the intake adapters I'll need are relatively simple.

I started with an intake gasket and scanned it. Then cheated and drew the outline in Illustrator since I can bang that out in about 2 minutes. Then imported that into AutoCAD and did the extrusion. It's pretty boring at this point. Gotta measure my actual intake port size, the OD of the throttle bodies, and decide on the height of the adapters I need/want. Then I'll start working on the actual tapered tube portion.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 9 2013, 01:15 AM
Post #33


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Finished the intake drawing (I think). Now I need to find someone who can print a prototype for me.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Aug 9 2013, 06:48 AM
Post #34


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
will those Polaris fuel injectors provide enough fuel?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 9 2013, 10:39 AM
Post #35


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
The injectors are pretty standard. So I was already planning on swapping them, I just haven't done any research into finding what I want to use. Something high impedance is certain, but I also need to find out what flow rate I need.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
polo classic
post Aug 9 2013, 12:33 PM
Post #36


Newbie
*

Group: Members
Posts: 32
Joined: 7-October 11
From: Oslo
Member No.: 13,650
Region Association: Scandinavia
Do you know what distance is from the throttle body to the valve on the OEM Porsche high butterflies throttle bodies?

From looking at the Rothsport versions, it looks like the manifolds are around twice the height of the throttle bodies

(IMG:http://www.914world.com/bbs2/uploads_offsite/rothsport-racing.com-13650-1376073558.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 9 2013, 01:59 PM
Post #37


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Not sure. I drew up 'shorties' because once I looked at the room in the 914 engine bay, there's only about 11" overall of space from the cylinder head mounting to the top of the engine bay. The TBs are about 4.5" and short, individual K&N filters are about 2", which leaves 4.5" of room for the adapters. And that's if I use all the available space. So I decided to just design the shorts ones and get a prototype made so I can hold it in my hand and see how it looks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Aug 9 2013, 03:25 PM
Post #38


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California
QUOTE(McMark @ Aug 5 2013, 10:30 PM) *

The $2500 carbs I don't have? (IMG:style_emoticons/default/blink.gif) Life is so simple when you're spending someone else's money. (IMG:style_emoticons/default/laugh.gif) Plus, what do I learn from bolting on carbs.



I was under the impression that this was an unknown condition motor that you were trying to determine whether or not it needed rebuilding.

I have a set of carbs/manifolds you could borrow for testing off my 2.6 race motor.
I still have that 6 into 1 tee pee off road exhaust for full effect...


Attached Image

Attached Image


KT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 9 2013, 04:29 PM
Post #39


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Ahhh, thats makes more sense. (IMG:style_emoticons/default/wink.gif) I expect it runs. I'm just planning on pulling it apart to know for sure what's inside and what the compression is, etc
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 9 2013, 07:28 PM
Post #40


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

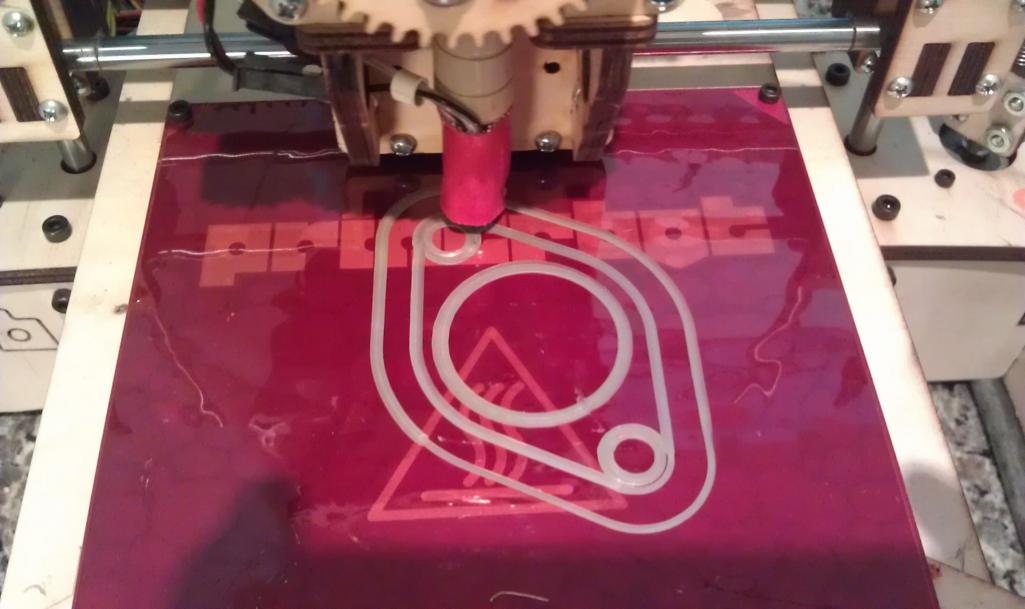

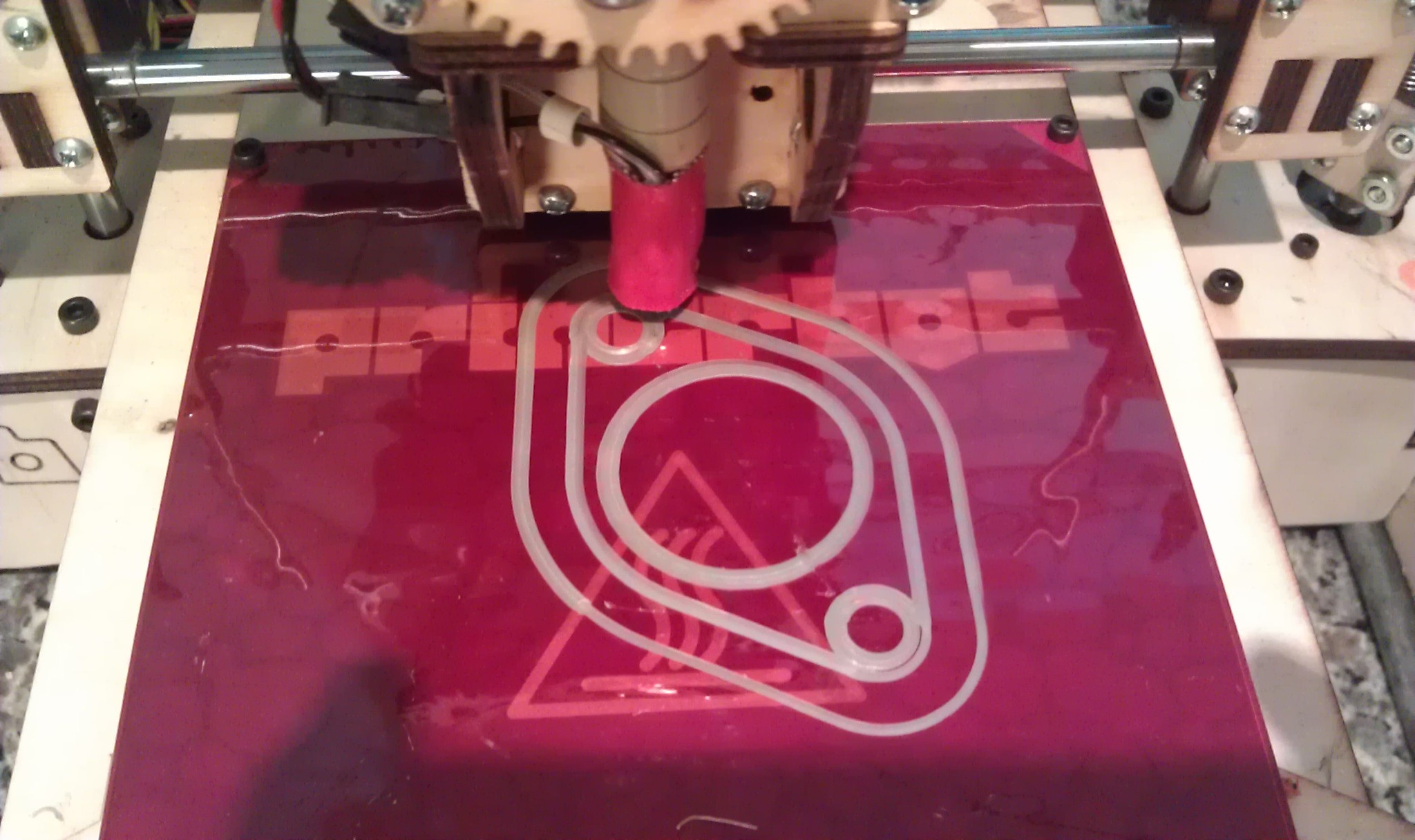

Prototype printing underway (not by me). (IMG:style_emoticons/default/boldblue.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
