> My 2.4 Six Engine, Manufacturing prototype intake adapters.
McMark
post Aug 9 2013, 11:09 PM
Post #41


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

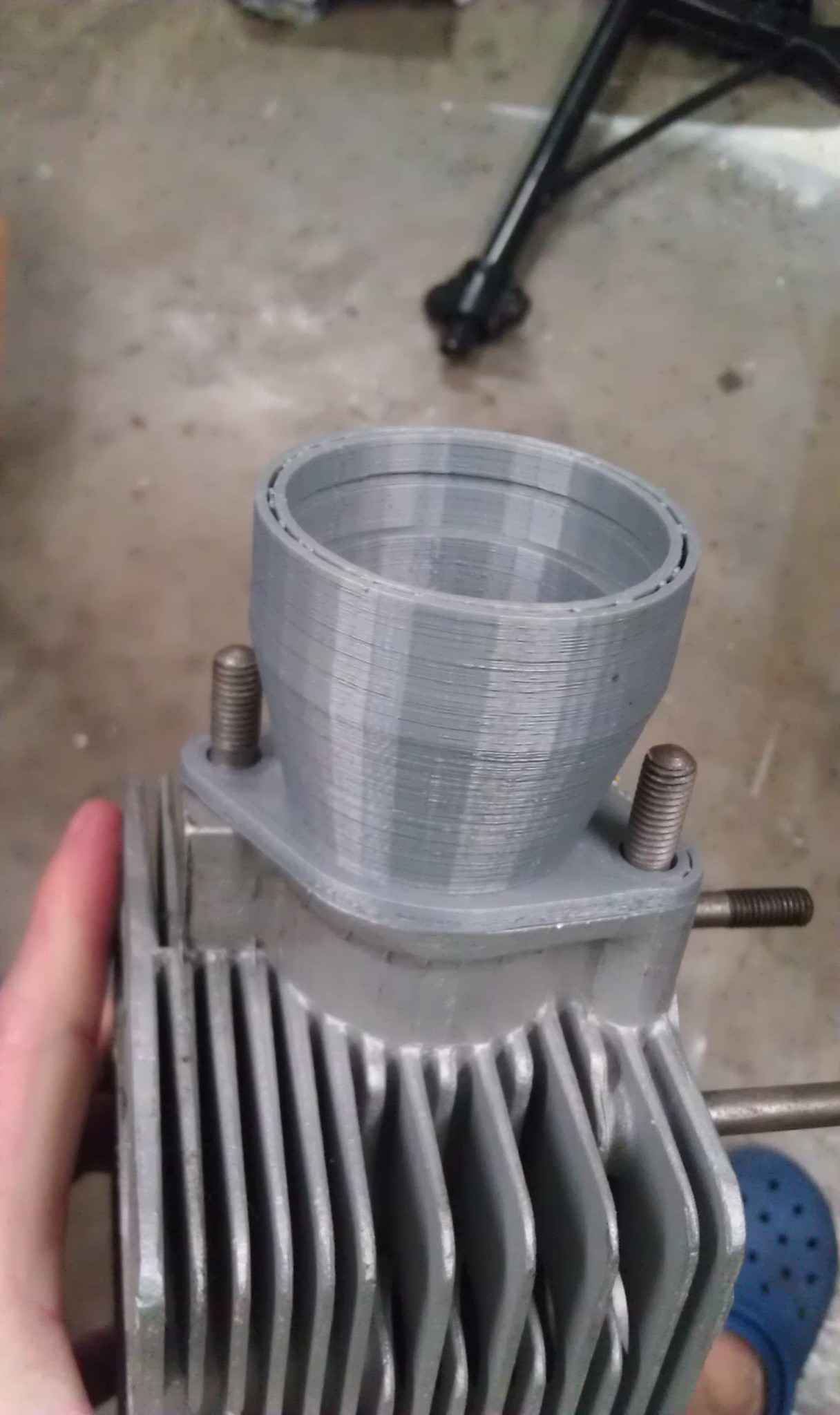

All done an ready to ship to me. (IMG:style_emoticons/default/boldblue.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Aug 10 2013, 01:09 AM
Post #42


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,860
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
Cool.

What is the material, Mark?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Aug 10 2013, 04:17 AM
Post #43


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

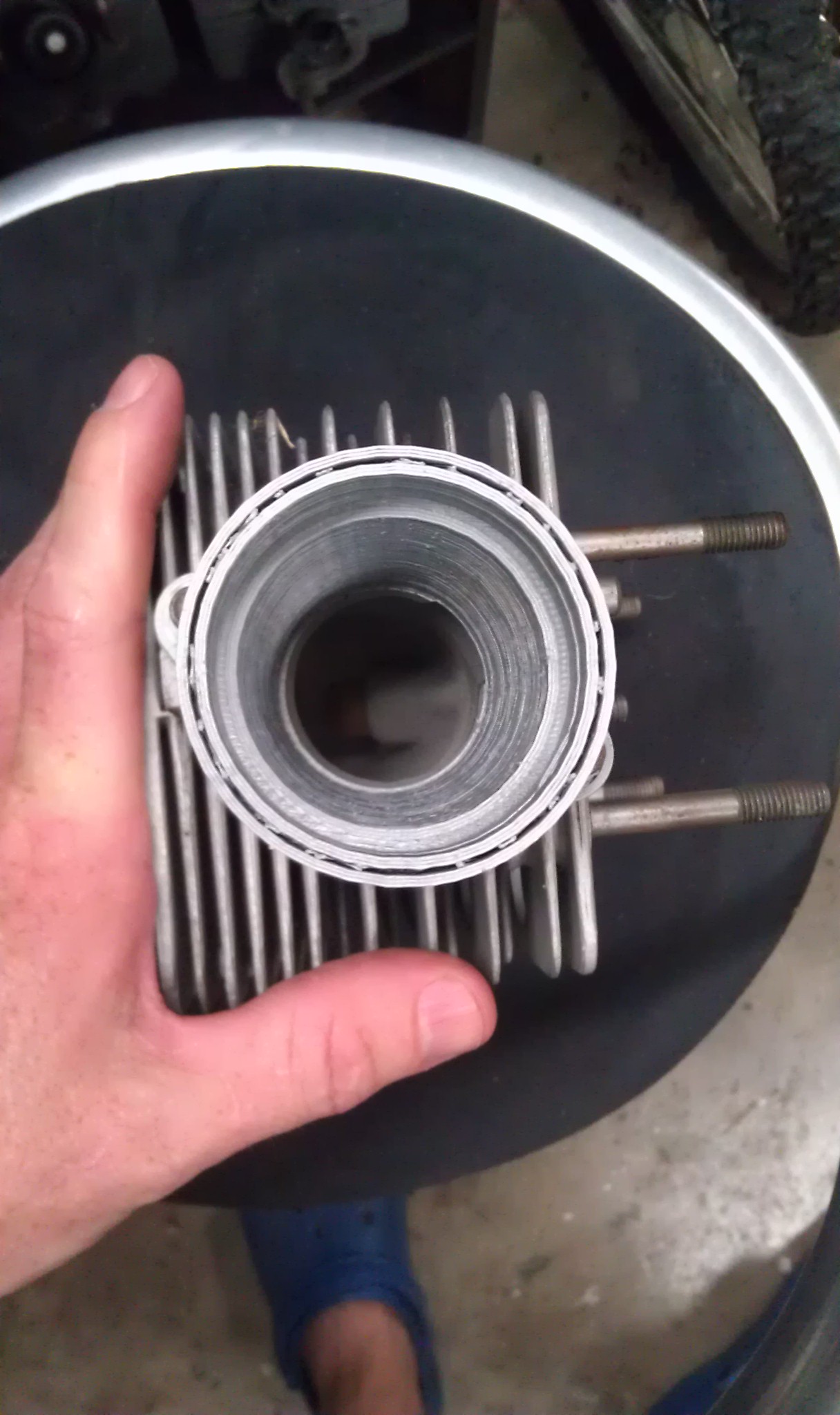

why the groove seen from top? is it a two piece part glued together?

so the printer does not cut material away from a block of material - instead - it builds material up and up and up till a part is done ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jpnovak
post Aug 10 2013, 06:18 AM
Post #44


They call me "Nanoman"
**

Group: Members
Posts: 231
Joined: 26-August 09
From: Austin TX
Member No.: 10,736
Region Association: Southwest Region
I hope Mark doesn't mind my response. I am printing the prototypes for him.

I am many have seen/heard about 3D printing. It is a pretty cool process.

The process starts with a 3D CAD file. There are many ways to get one of these but the process involves modeling in a CAD program. The CAD file is then transformed to a "surface" file that is a map of the external surfaces of the part. The printer software then slices this into invidividual layers. These are cross-sections cut to the plane of the base substrate. Its kinda like a stack of Pringles Chips.

Once the software knows what each layer looks at it starts the printing process. The printer is a hot filament extruder. There is a feed stock roll of plastic wire filament. There is a pinch roller and toothed gear that forces the plastic through the hot extruder tip (230 deg C). The tip is then numerically controlled via a standard coordinate system. Its like putting a tube of toothpaste on a XYZ positioning system.

The part prints the inner and outer perimeter first and then fills in the void space with a criss-cross pattern. The density of the fill is adjustable. The grove in the top is a software glitch where two perimeter lines close together do not get adequate fill due to the narrow space between them.

If you look at the part you can see the individual layers that are stacked. This is the concentric surface finish. There are ways to smooth this easily. The pictures just show the raw part off the printer to check for dimensional fit.

I printed these parts in ABS plastic. This does not print as smooth as the other common filament , PLA.

The prototyping process is VERY fast with one of these printers even if the print process is slow. This part took about 3 hours of print time. Material cost is just a few $. The process creates an accurate part for mock up and test fit. It is easy to modify parts without spending a lot of machine time and cost at an outside vendor. Compared to prototyping in a machine shop there is no cost comparison. Cheaper. Faster. Simpler.

PM me if anyone has an interest in having parts made. I have very reasonable rates.

I hope Mark likes the part. I plan to ship it out today.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Aug 10 2013, 09:27 AM
Post #45


Advanced Member
****

Group: Members
Posts: 4,769
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Very cool to see the cutting edge printing edge applied to our cars.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 10 2013, 09:39 AM
Post #46


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Thanks for chiming in Jamie. I didn't know if you wanted to be identified.

Apparently this ABS plastic is suitable for actually running on the car, but once I have a design that works, I'll be researching aluminum CNC production.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
polo classic
post Aug 22 2013, 02:43 PM
Post #47


Newbie
*

Group: Members
Posts: 32
Joined: 7-October 11
From: Oslo
Member No.: 13,650
Region Association: Scandinavia
Did you ever consider using Boxster/997/996 parts, seeing the port spacing is similar, although the water stuff have oval ports

http://forums.pelicanparts.com/porsche-911...rt-spacing.html

http://www.ebay.com/itm/OBX-ITB-INDIVIDUAL...3d8&vxp=mtr

(I know some, if not all OBX parts suck)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 22 2013, 05:23 PM
Post #48


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Cool! Hadn't seen that. I'd like to try that sometime. (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Aug 22 2013, 05:37 PM
Post #49


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
This looks very cool! What are you going to have them cast/molded out of?

What is your plan for engine management? (IMG:style_emoticons/default/poke.gif)

Thomas
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 22 2013, 06:24 PM
Post #50


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
If the prototype adapters work ill send the CAD files out to mill from billet aluminum.

I'll be using a MegaSquirt system I picked up. Still have to modify it for COP.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Aug 22 2013, 08:02 PM
Post #51


Advanced Member
****

Group: Members
Posts: 2,081
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California
QUOTE(McMark @ Aug 22 2013, 05:24 PM) *

If the prototype adapters work ill send the CAD files out to mill from billet aluminum.

I'll be using a MegaSquirt system I picked up. Still have to modify it for COP.


When you get to the "ill send the CAD files out to mill from billet aluminum" part of this project my brother works for a machining company, programming, running and supervising their mills. They have at least 2 monster 5 axis mills. I don't know if he can save you money but it is worth asking.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
edwin
post Aug 23 2013, 07:12 AM
Post #52


Member
**

Group: Members
Posts: 321
Joined: 20-May 09
From: Australia
Member No.: 10,384
Region Association: Australia and New Zealand
This part has "home cast aluminium" written all over it
You know you want to try it Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Aug 23 2013, 07:24 AM
Post #53


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,197
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
home cast? as in a garage?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 23 2013, 08:01 AM
Post #54


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Actually I do. Casting has been on my todo list for a long time now. (IMG:style_emoticons/default/boldblue.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jbyron
post Aug 23 2013, 09:38 AM
Post #55


Jamie
**

Group: Members
Posts: 155
Joined: 17-July 07
From: Ballwin, MO
Member No.: 7,916
Region Association: Upper MidWest
Looking at the pic, I'm concerned whether or not there's clearance to thread a nut onto the stud.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Aug 23 2013, 06:20 PM
Post #56


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
Yeah, it does look like you might have to lift it, start the nuts, then tighten it down. Then again, they do make shorter studs!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 23 2013, 06:29 PM
Post #57


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
George is thinking along the same lines as me. (IMG:style_emoticons/default/wink.gif)
The walls on the adapter are pretty thick too, I could probably add some clearance.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 26 2013, 10:59 PM
Post #58


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Quick update...

Intake manifolds are at the machine shop getting carved from aluminum. (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Oct 26 2013, 11:28 PM
Post #59


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
QUOTE(McMark @ Oct 27 2013, 12:59 AM) *

Quick update...

Intake manifolds are at the machine shop getting carved from aluminum. (IMG:style_emoticons/default/happy11.gif)


Awesome! Can't wait to see them!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 27 2013, 03:49 PM
Post #60


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada
This is Great.
Thanks for showing the World the latest in NewFangled Tech.
An Idea to Part in hours and not days,the response time of
CadCam system Integration in Manufacturing Systems.
You too can have your very own Protype shop in your garage.
Just like the Mechanix Illustrated BluePrints of the 60's.
Time to fire up your
[4valve head prototype investment casting pattern]
[transaxle housing]
....anything you can dream up.
the Future is Here Now.
Try the Rhino4 or 5 Cad.
Synergy by Weber is a cost effective Cam.
EMC2 is an OpenSource Machine Control System.
There is a lot of competition in the machining industry for large
systems.50K is likely beyond the pricepoint for the home user.
You have to look around and test,then make the decision that suits you
best for the most you wish to spend.There is a fellow here doing a custom
oil scavenge pan for his V8 conversion,inhouse or subcontracted?
It is possible to do it inexpensively,however,the labour intensity rises
accordingly.
A good example of the technology available today.


https://www.youtube.com/watch?v=r7V57_7H9zw

A 20yr old Hardinge retrofit.


https://www.youtube.com/watch?v=35tHYaDUmZQ

A Large 5axis from the 60's retrofit

If they can do it,so can we.
