> CptTripps' Restoration 2 - The Grey Matter Build, Back in Doug’s garage
Amenson
post Jul 16 2018, 08:31 PM
Post #1101


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

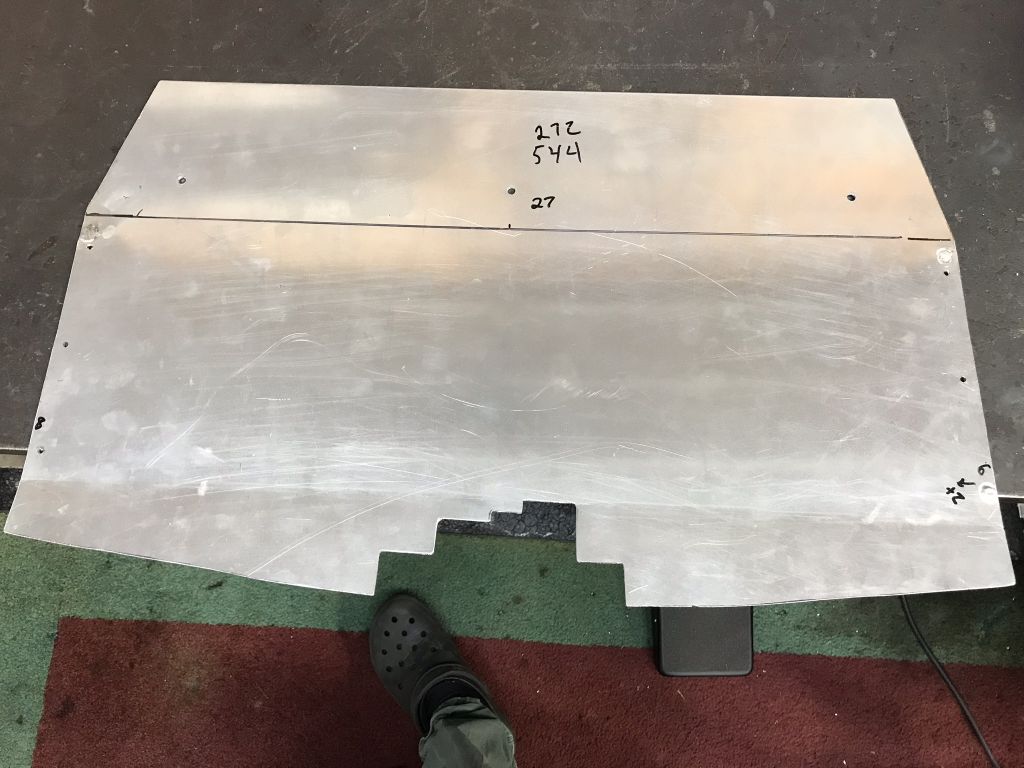

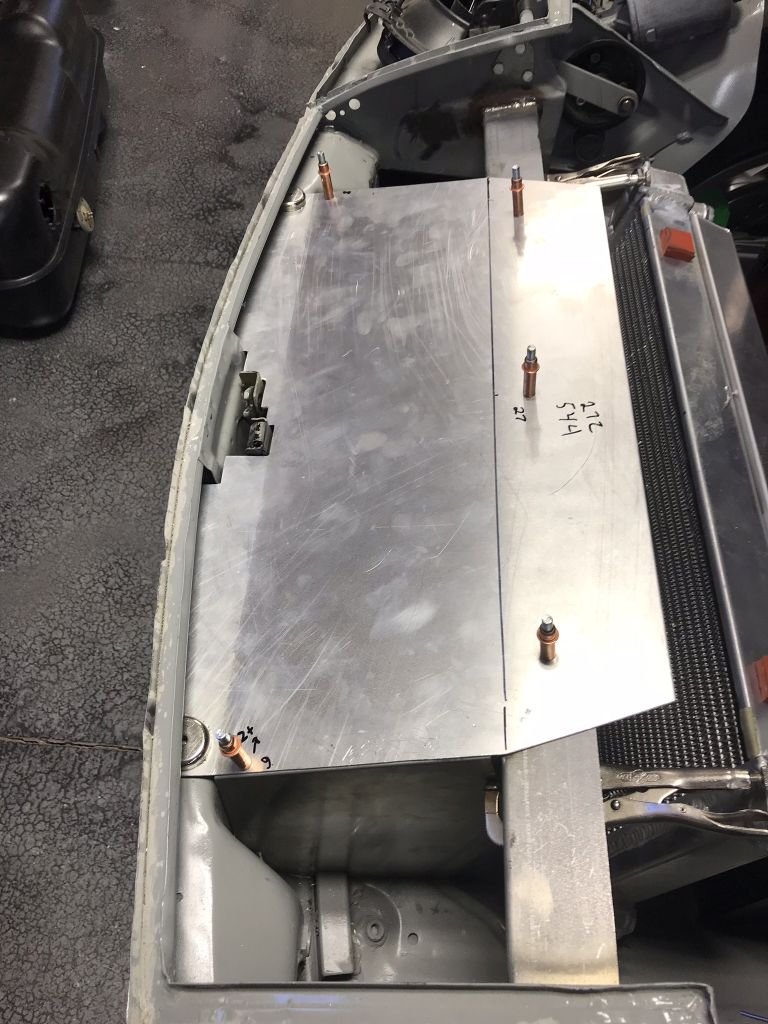

Great weekend of progress on Grey. Finished shaping the radiator shroud and got the placement set.

Attached Image

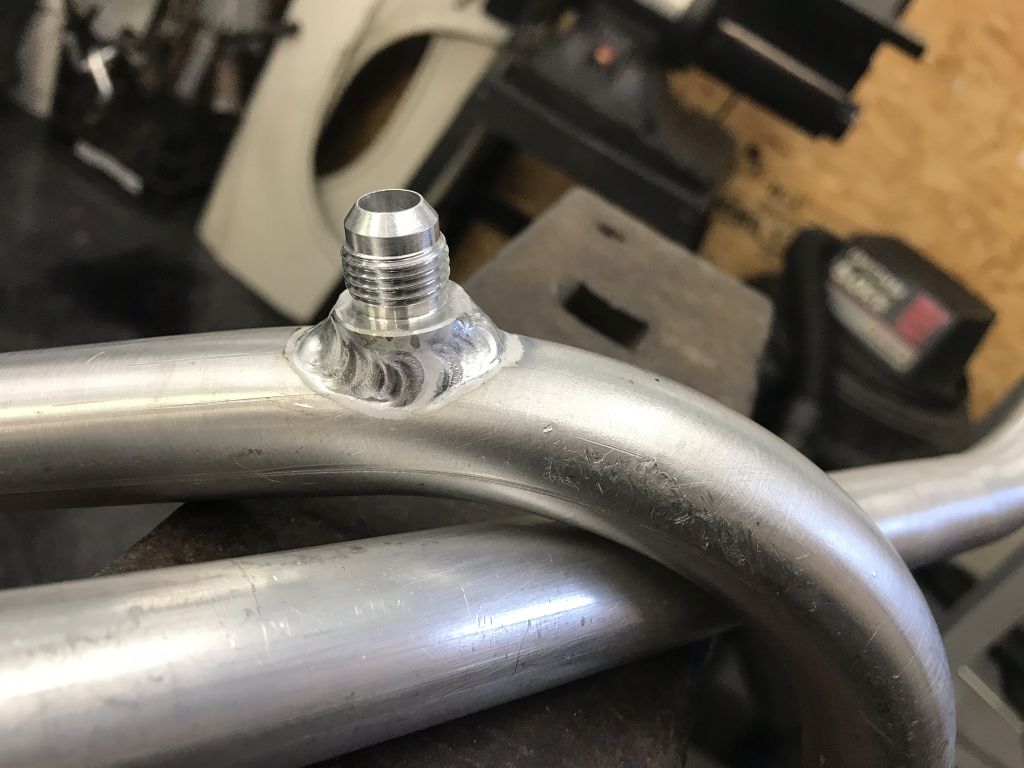

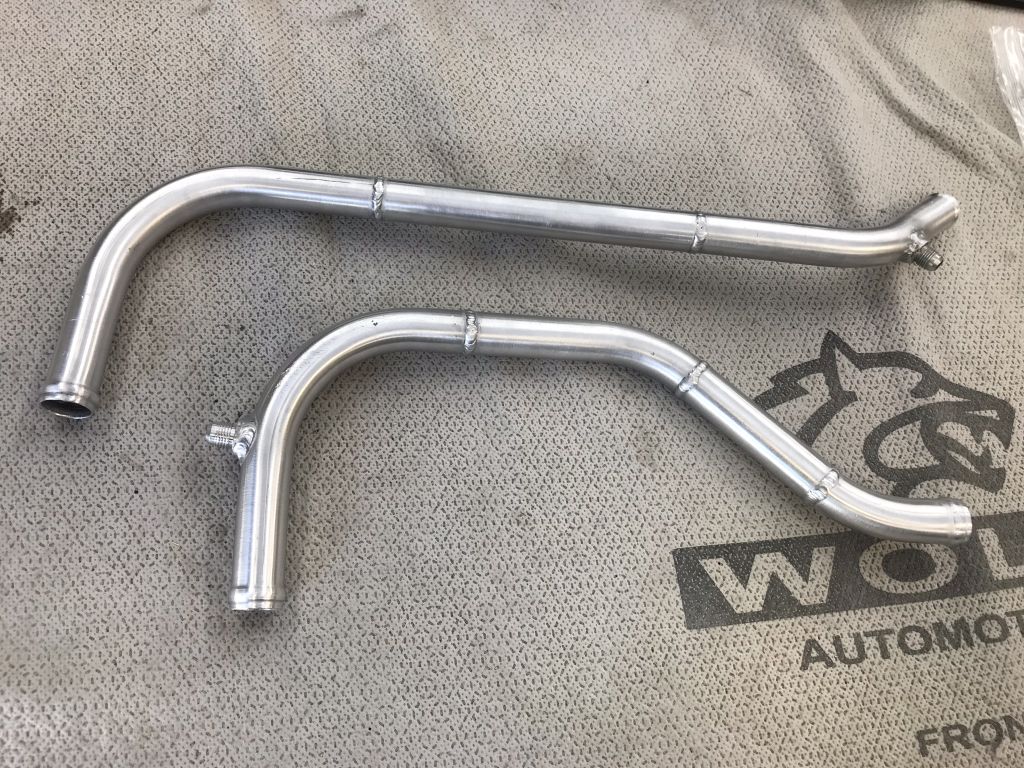

Also finished the front radiator tubes. Added the fittings for a heater core, finalized the length and finished the beads.

Attached Image

Attached Image

It has been hot as balls here lately so I have been working on the harness in the basement when I need a cooling cycle.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Jul 29 2018, 06:10 PM
Post #1102


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

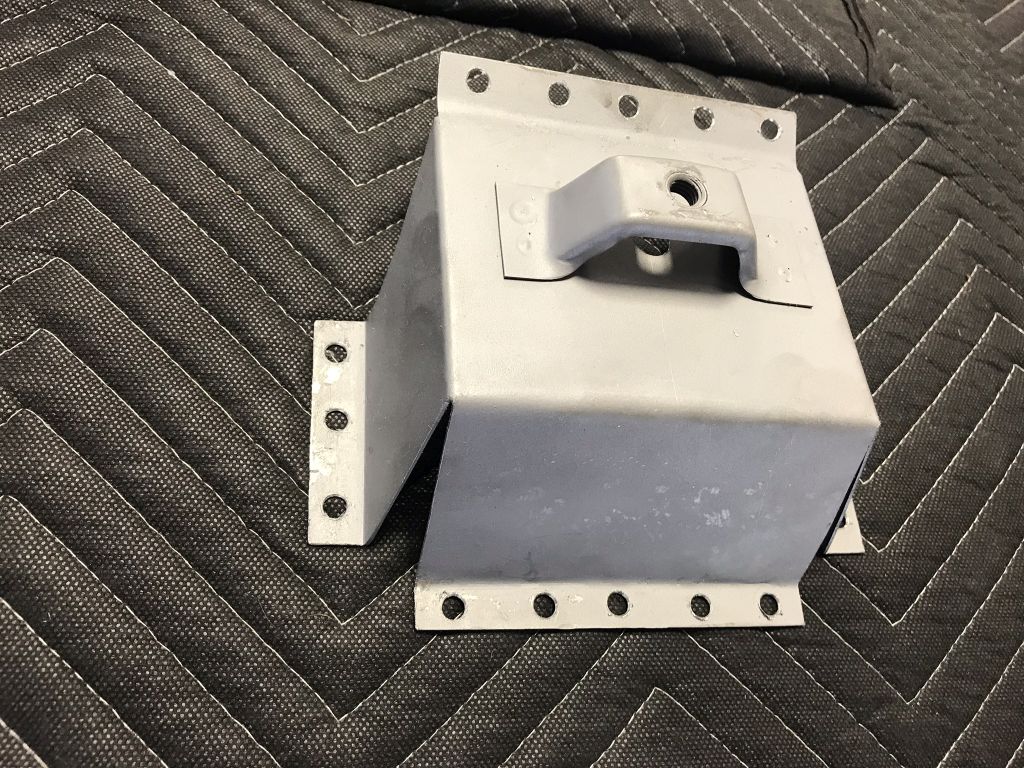

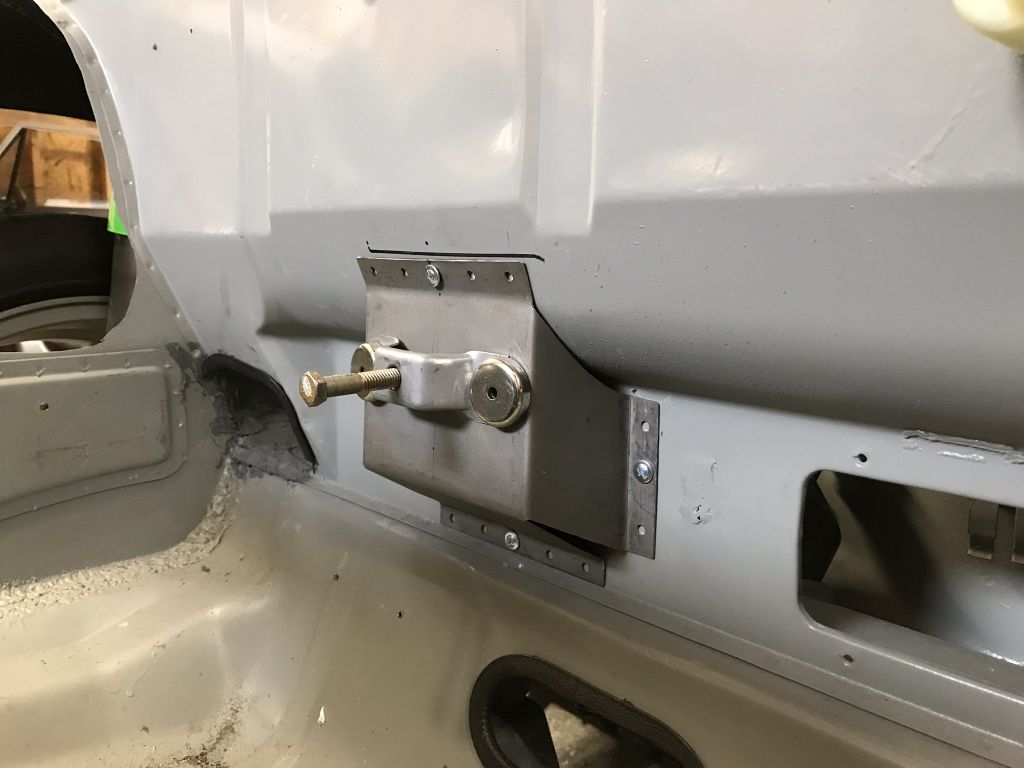

Many thanks to Kent for the design. Not quite as nice as his but definitely more than adequate.

Attached Image

Attached Image

Attached Image

Still need to grind the welds.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Aug 5 2018, 08:50 PM
Post #1103


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

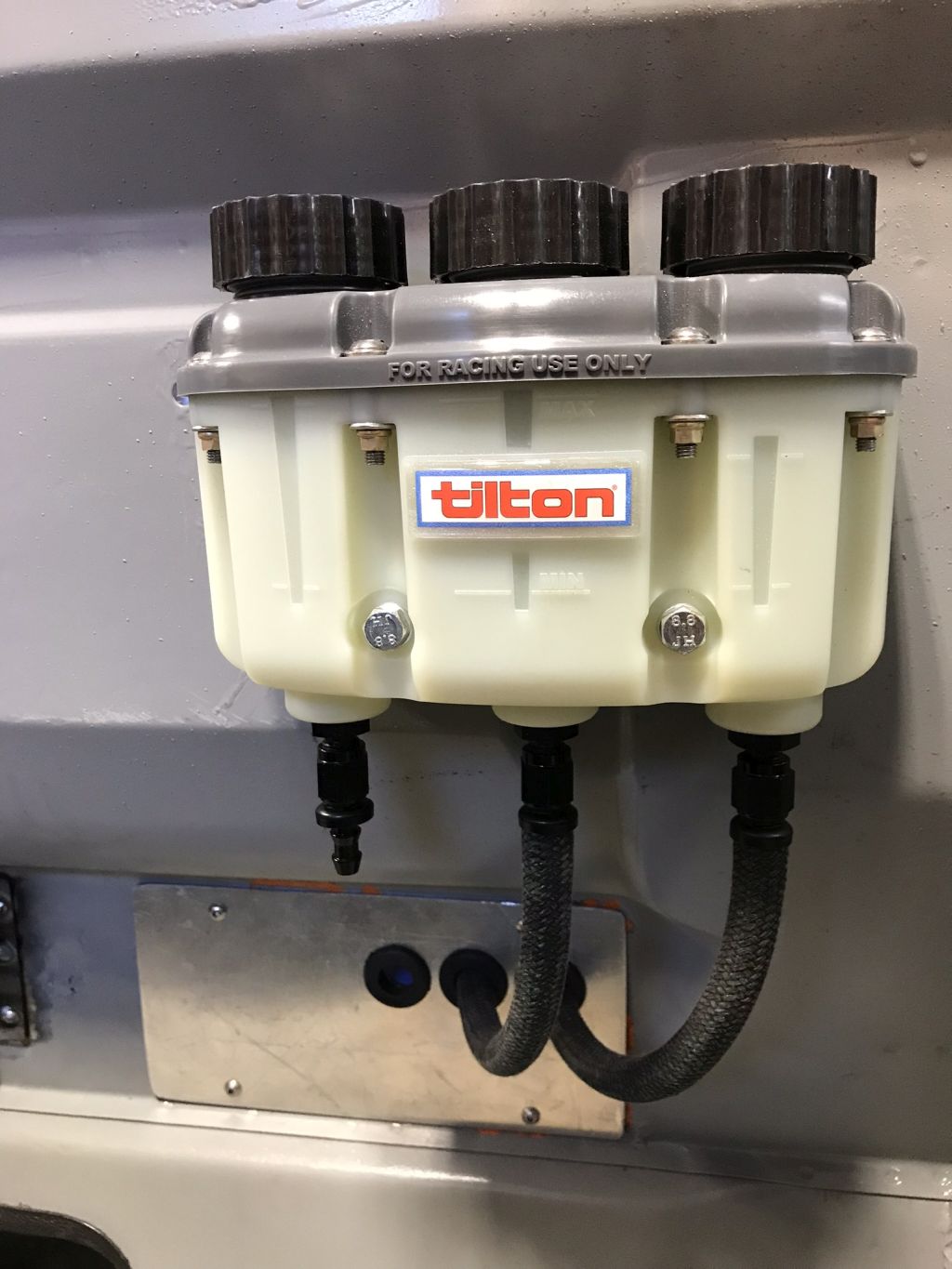

More pieces in for the final time. After much deliberation I decided to run the brake fluid reservoir hoses through the original holes in the steering rack hump and through the fuel pump opening. Only took two tries to get the block off plate the way I wanted it.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Aug 7 2018, 08:32 AM
Post #1104


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Scott What hose are you using for the brake lines? looks to be a push lock product of some sorts. (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Aug 13 2018, 08:19 PM
Post #1105


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
QUOTE(914forme @ Aug 7 2018, 10:32 AM) *

Scott What hose are you using for the brake lines? looks to be a push lock product of some sorts. (IMG:style_emoticons/default/confused24.gif)


Sorry for the delaaayyd reply...I was in Maine with my wife celebrating our 10 anniversary most of last week.

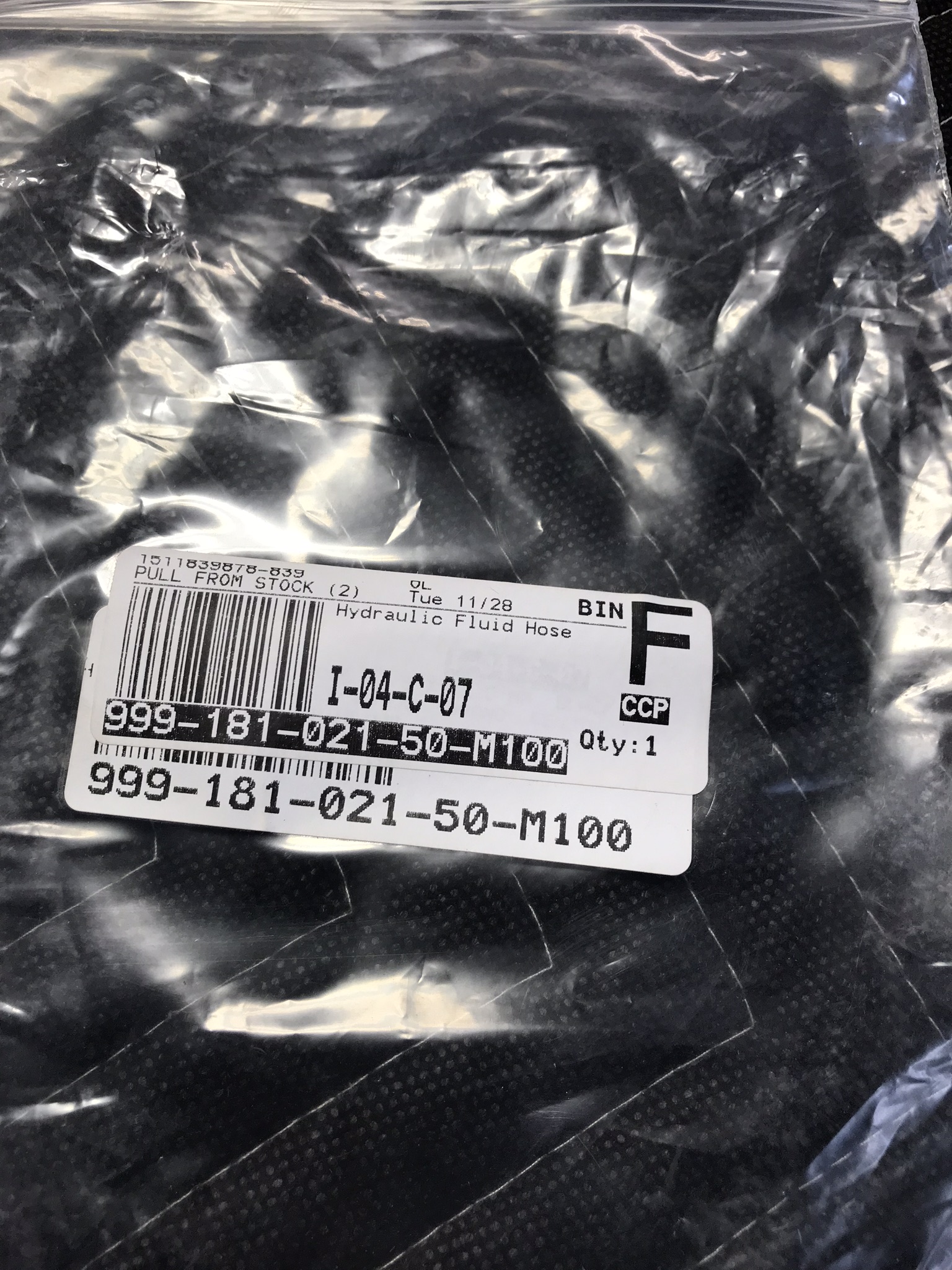

The hose is some "Porsche" remote reservoir hose, I believe from Pelican.

Attached Image

Works great with AN4 pushlock fittings and much better looking than the red Wilwood stuff that comes with the MC's.

In town for 26 hours and then off to Mexico for a day of meetings, no progress updates from this weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Aug 14 2018, 11:47 AM
Post #1106


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
The new owner can now only race this car. (IMG:style_emoticons/default/first.gif)

V V V

QUOTE(Amenson @ Aug 5 2018, 07:50 PM) *

More pieces in for the final time. After much deliberation I decided to run the brake fluid reservoir hoses through the original holes in the steering rack hump and through the fuel pump opening. Only took two tries to get the block off plate the way I wanted it.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 3 2018, 08:29 PM
Post #1107


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
I had a quick trip to Mexico for work after returning from Maine and brought back a 9 day case of Mantazuma's revenge. What a shitty situation and not very conducive to progress in the garage.

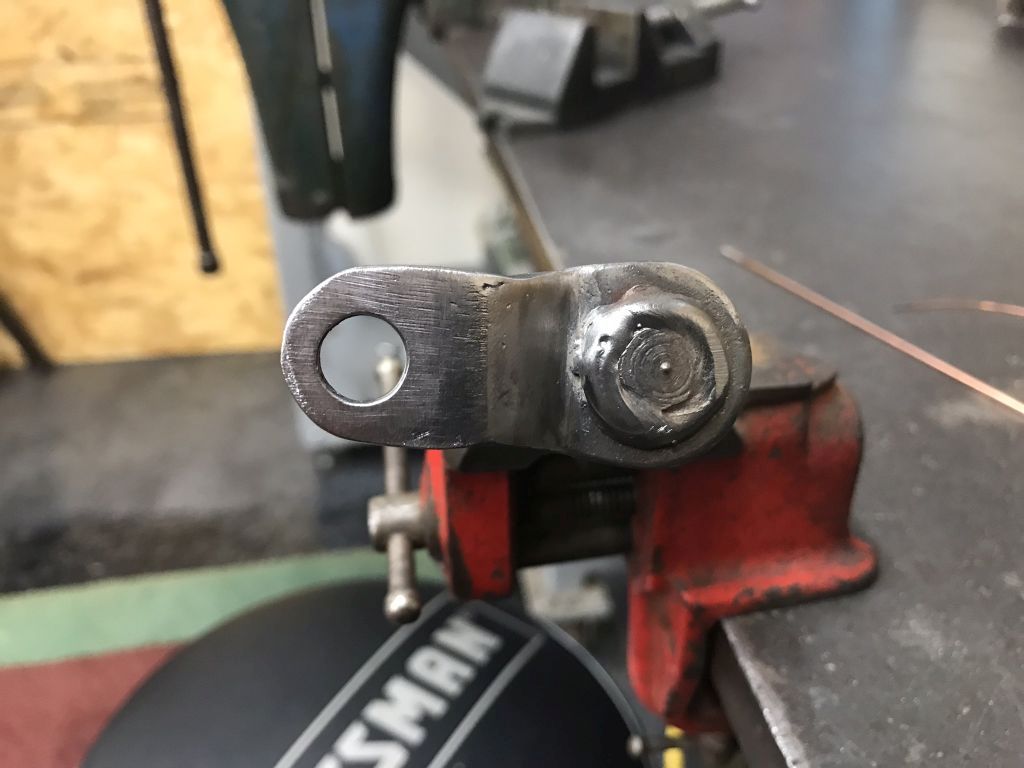

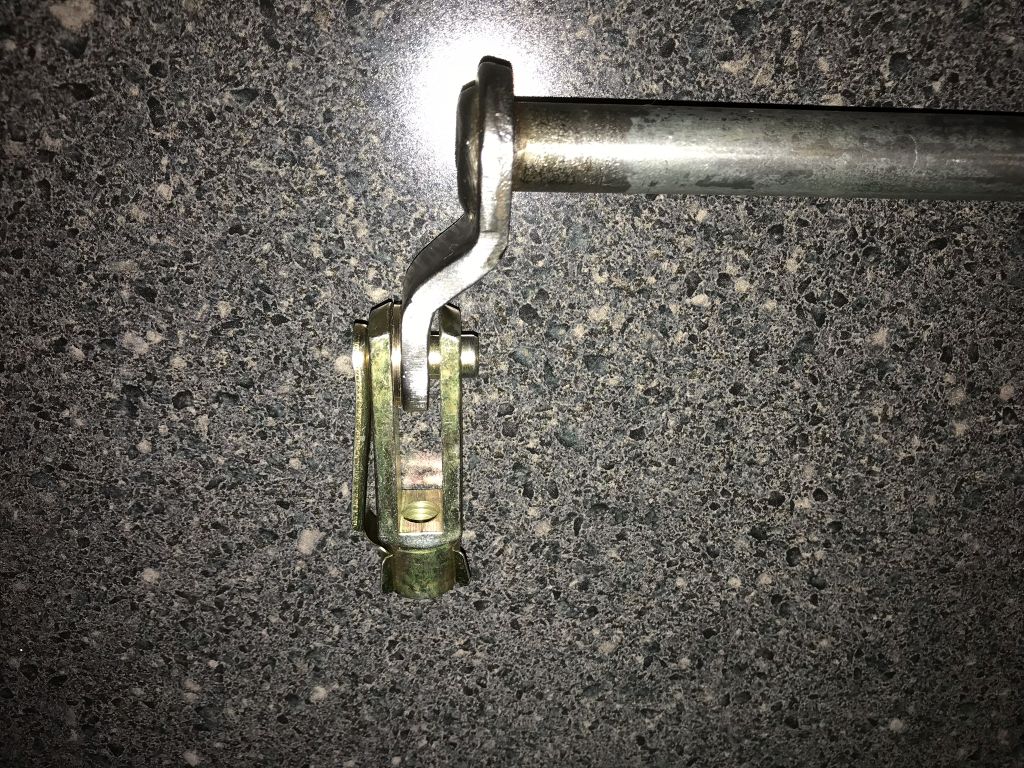

I did have a nice productive long weekend around in the garage. Not a lot of photogenic progress but I did get one fun thing finished. I decided to modify the clutch pivot to better work with the hydraulic MC. The old hole was slightly oblong and was pretty close to the size of the new pin so making a bushing was going to be challanging. I also wanted to gain a few more threads of engagement on the input rod. To accomplish this I welded some more material around the hole and then used a rotabroach cutter to open it up to 1/2".

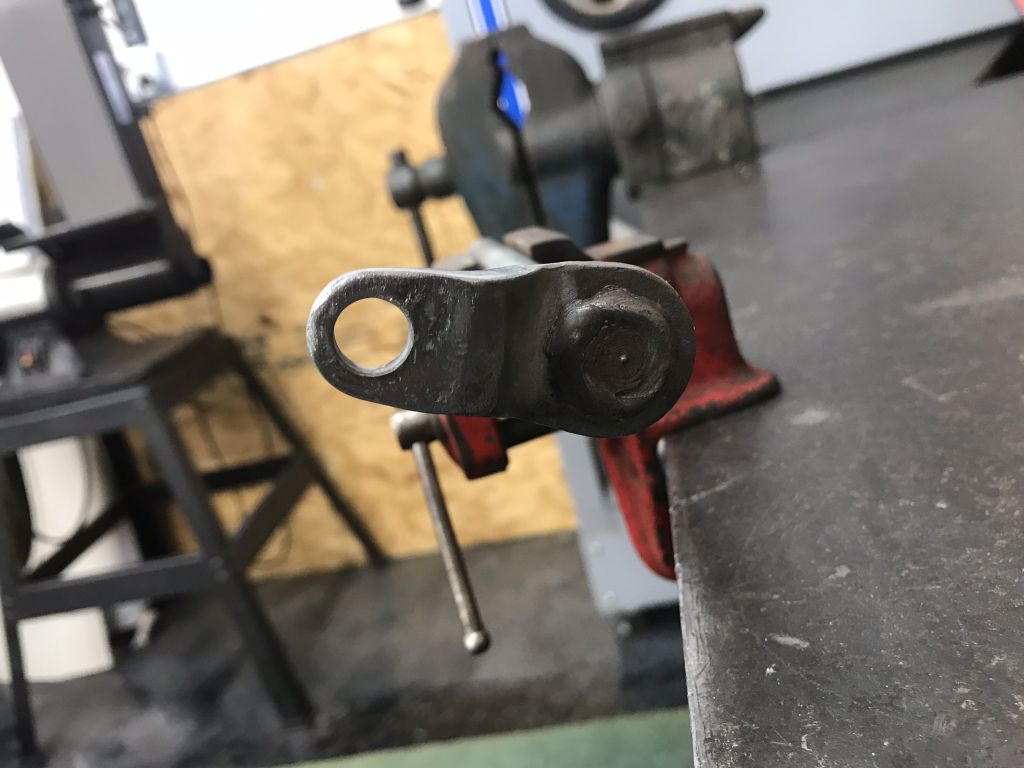

Stock
Attached Image

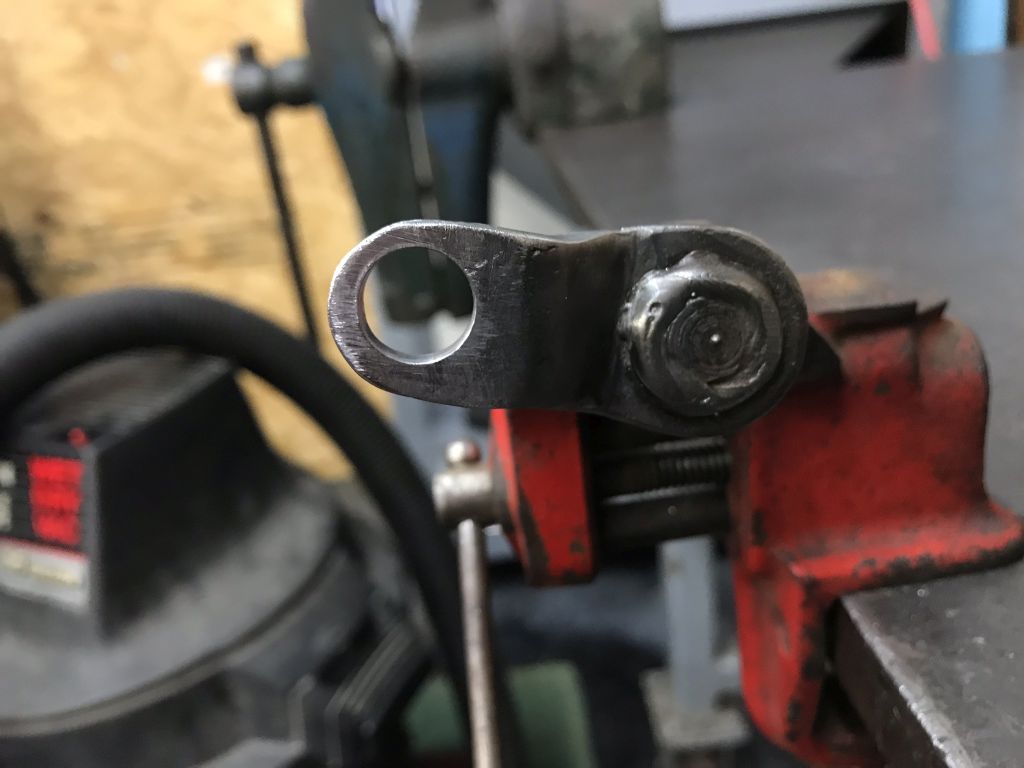

Extra material
Attached Image

Bigger hole
Attached Image

Bushing material arrives tomorrow. More fun with the lathe.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 16 2018, 08:24 PM
Post #1108


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
No progress last weekend because my wife and I had our annual trip to NY Finger Lakes wine region to restock the racks. 4.5 cases this trip should get us by until the snow starts flying. If you have not visited the area, definitely check it out. The reds do not hold up to California/European wines but some of the Dry whites are exceptional. Watkins Glen is also in the area. There was an SVRA event going on while we were there.

Good progress this weekend. Stephen stopped by and it was great to catch up.

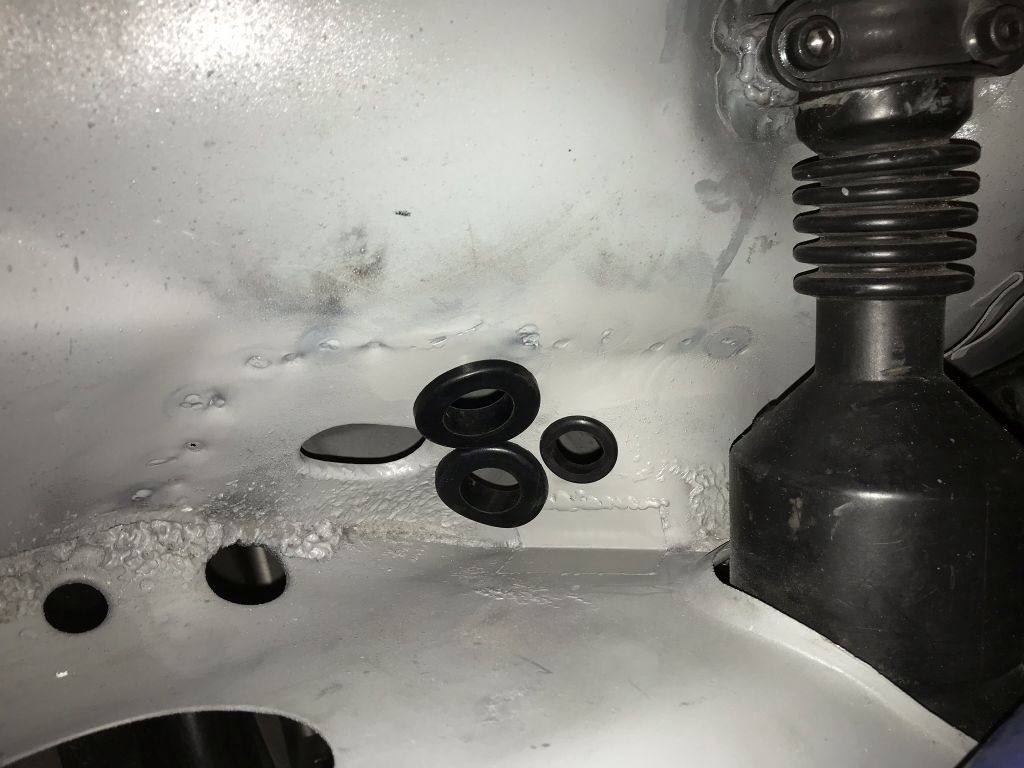

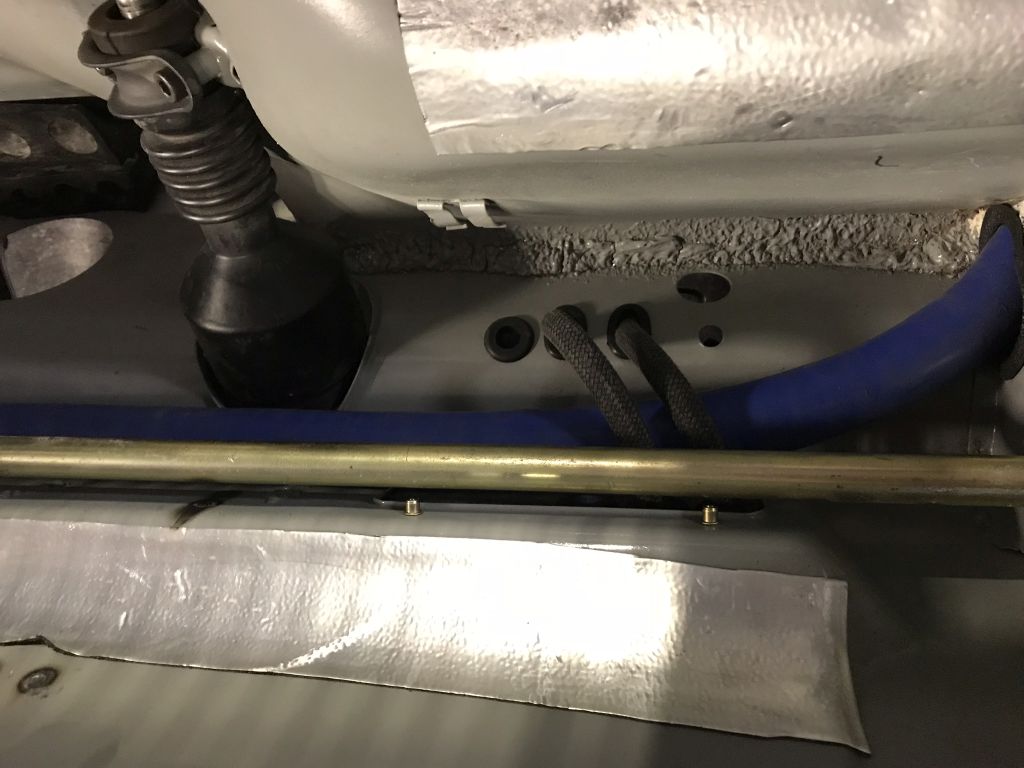

Finished the front end of the center tunnel. I missed putting in the radiator bleed return line hole while I had the center tunnel out. Tool a while to figure out how to get a drill in to make the hole. Could not get to it from the pedal area but a step bit in the pneumatic 90 deg drill did the trick. Cleaned up all of the exposed metal, a bit of paint and the proper sized grommets and we are ready to install the hoses. Still need a fuel line grommet. Could not find one in any of the bins.

Attached Image

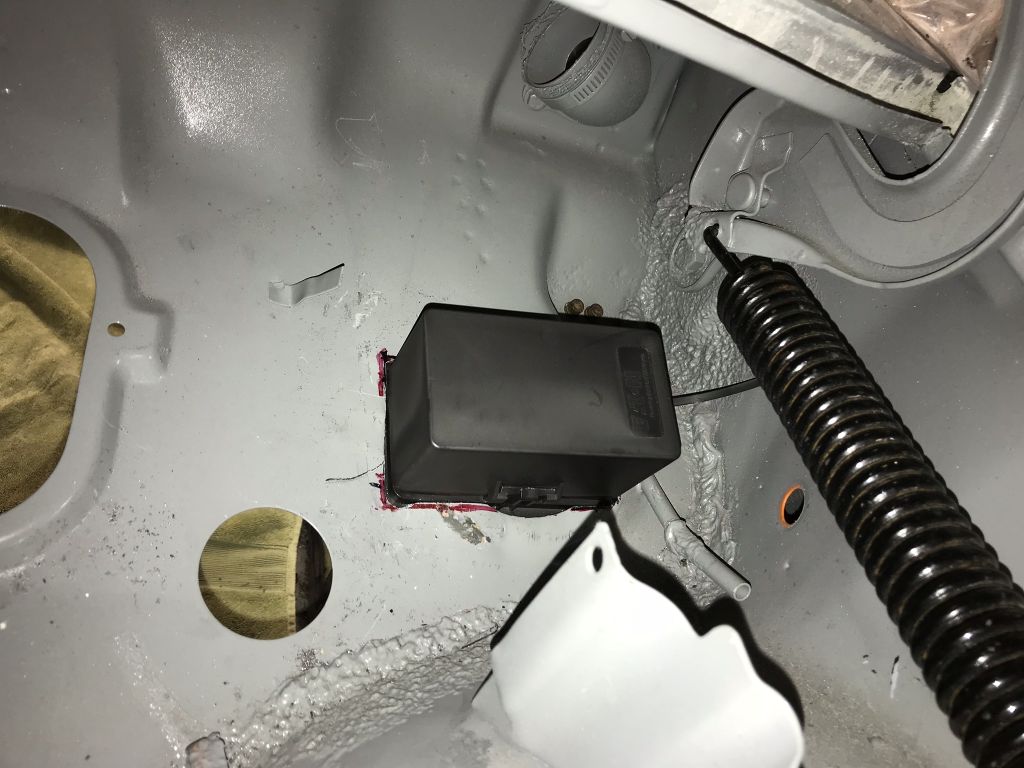

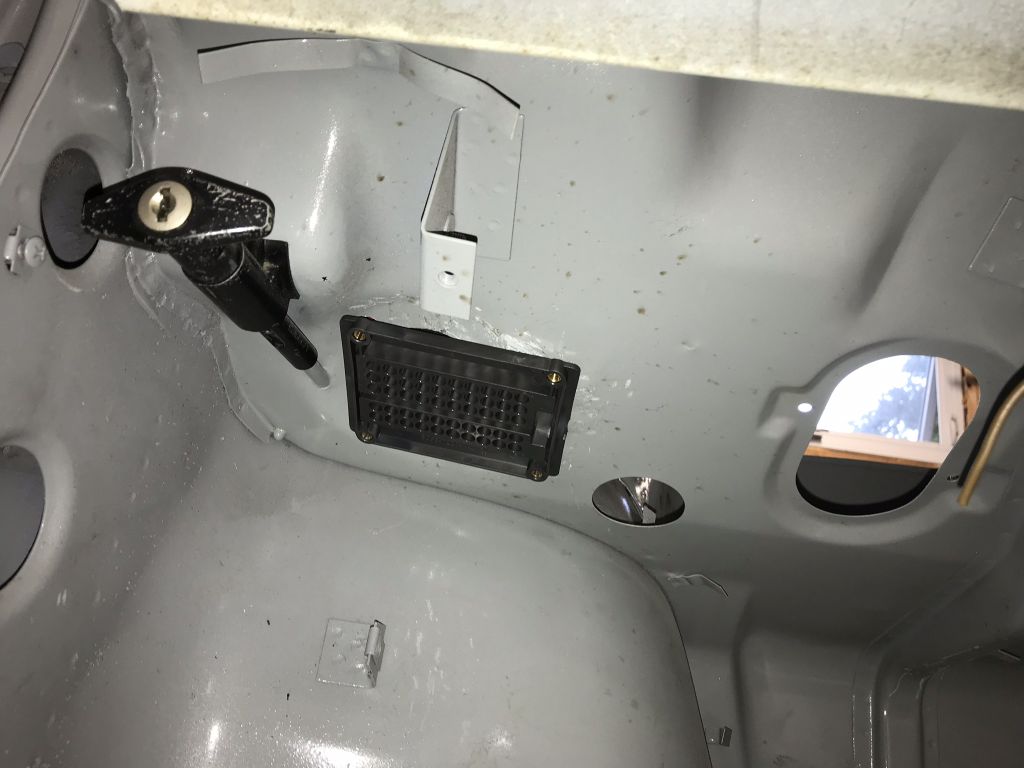

On to the auxiliary fuse/relay box. This is a very convenient place to put it but I underestimated how not flat this area was. After much reshaping is almost fits. I lost my dolly holder so there is still some shaping to go.

Attached Image

Attached Image

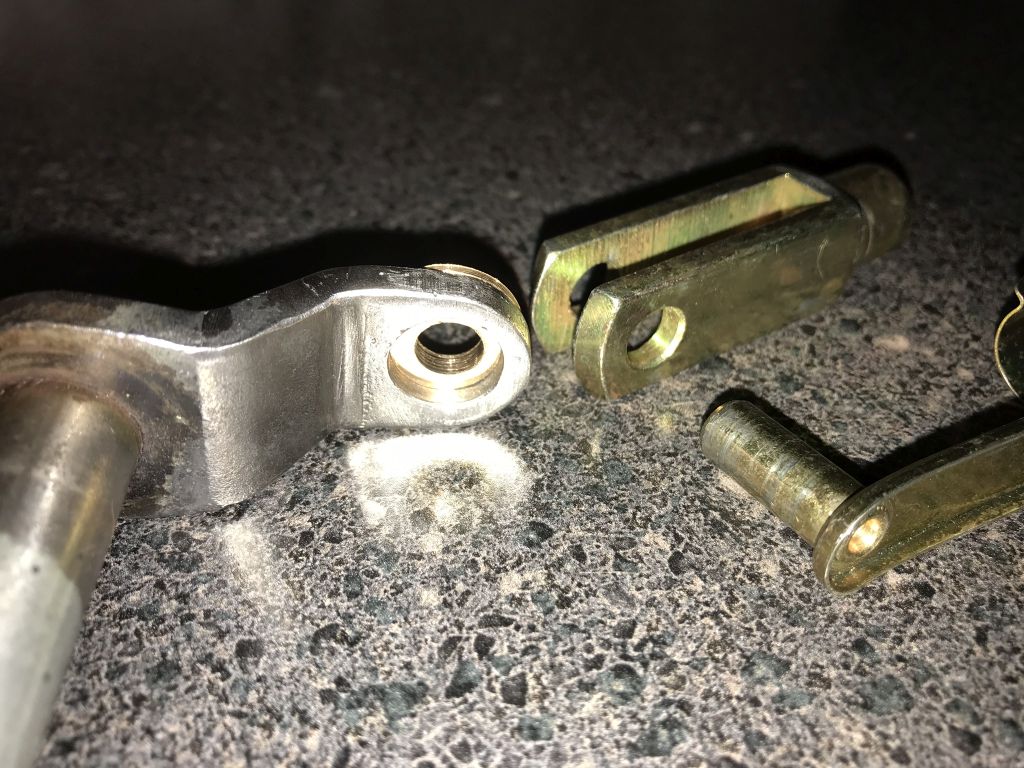

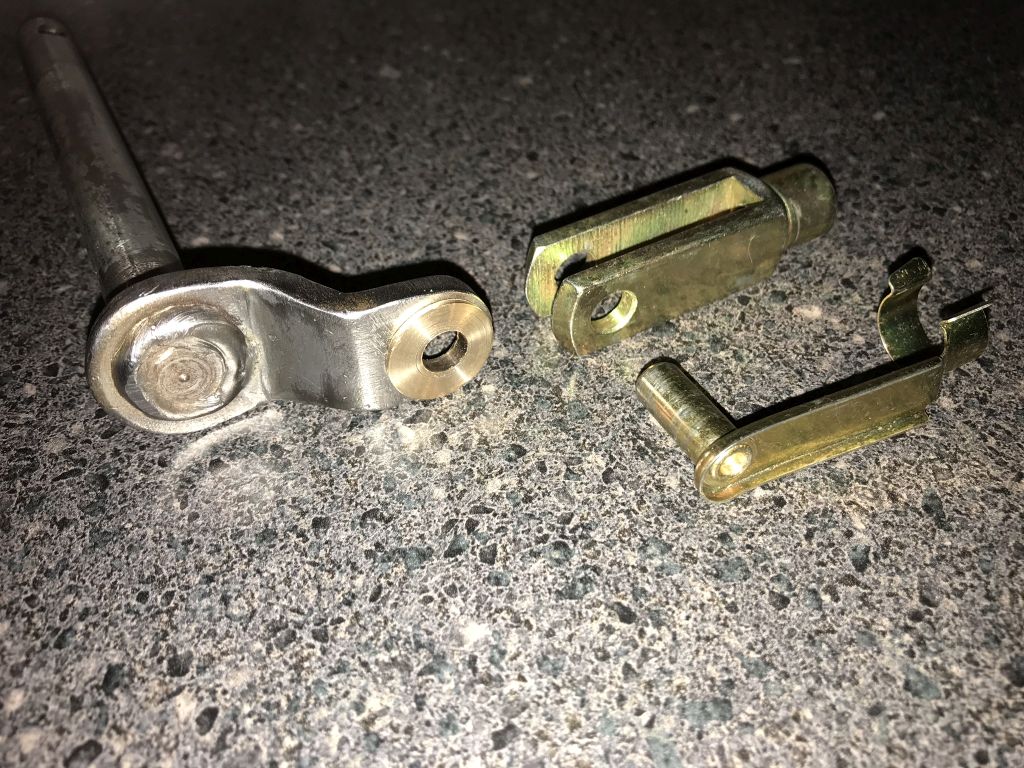

On with the clutch pivot. Turning wheels on the lathe is like a time warp. It is amazing how time flies while making chips. Unfortunately I am not the greatest machinist so I make a lot of chips. Eventually got one bushing pretty much the way it needed to be...although it will be remade.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Sep 16 2018, 09:26 PM
Post #1109


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Very nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 23 2018, 08:28 PM
Post #1110


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

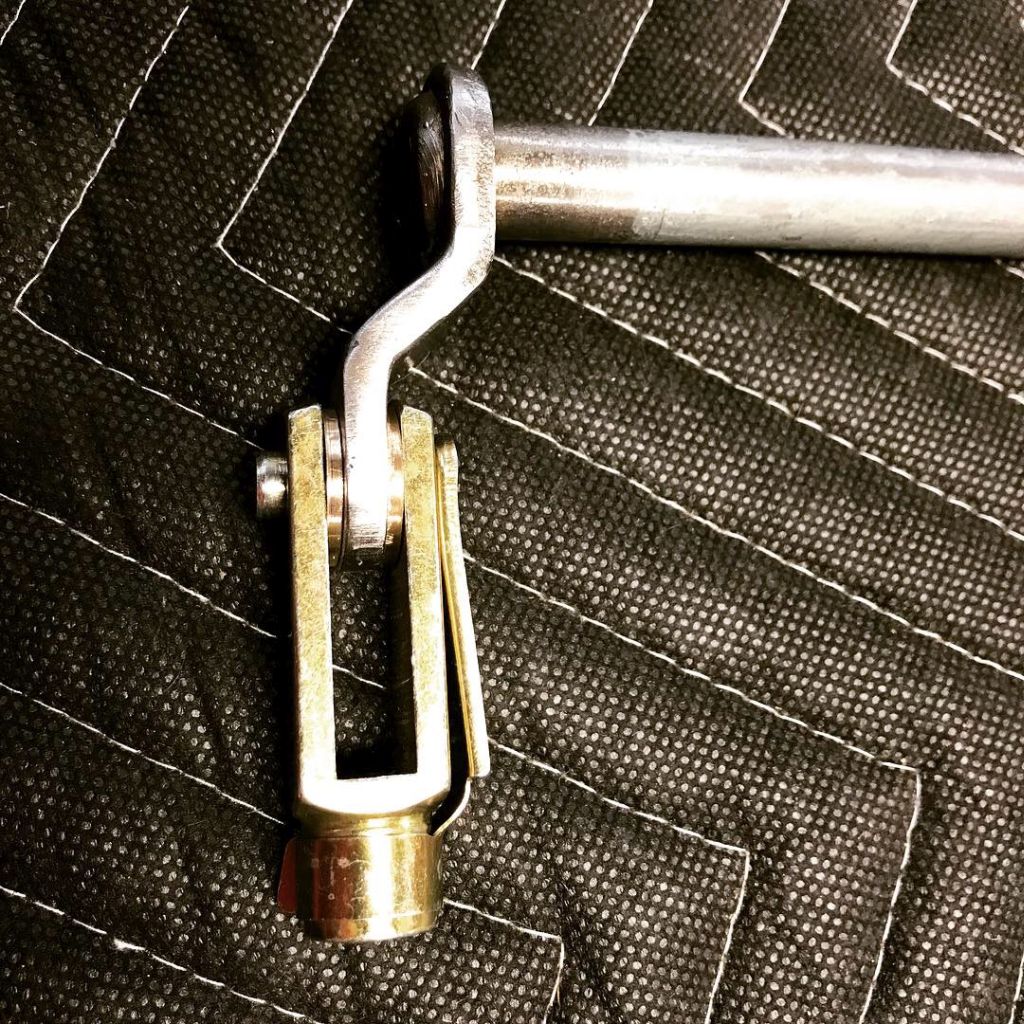

Hydraulic clutch master cylinder achieved.

Attached Image

It is so smooth I had to take a video. Posted it on instagram

@seec_motorsport

Set up the brake pedal also just to make sure that nothing was messedd up from the clutch bracket.

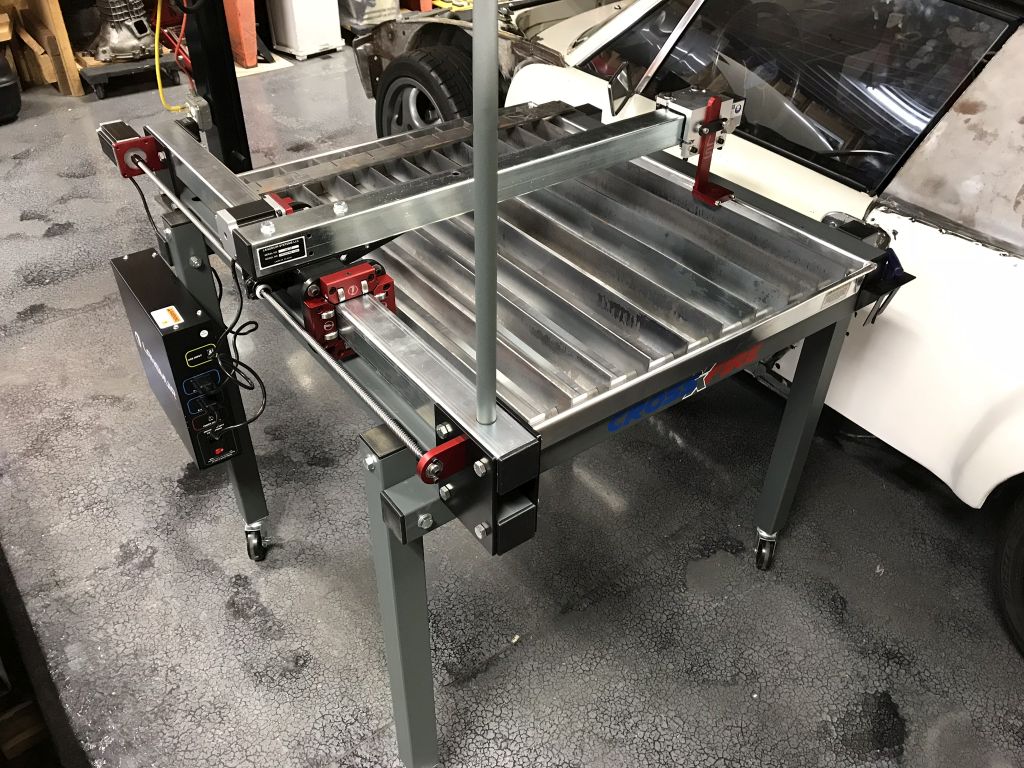

My new tool finally arrive!

Attached Image

Only took about 2 hours to assemble. Have not powered it up and made it to anything useful yet because that will likely be a rabbit hole of tinkering. Will wait unit I have something useful to make.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 23 2018, 08:53 PM
Post #1111


914-6 GT in waiting
***************

Group: Members
Posts: 19,691
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
For the less tool educated - me - what is it?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 24 2018, 07:37 AM
Post #1112


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
QUOTE(mepstein @ Sep 23 2018, 10:53 PM) *

For the less tool educated - me - what is it?


CNC plasma cutter table. (IMG:style_emoticons/default/cheer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Sep 24 2018, 07:49 AM
Post #1113


914 Guru
*****

Group: Members
Posts: 5,477
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
I know you already know this but...

You are going to LOVE your plasma table! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 24 2018, 07:54 AM
Post #1114


914-6 GT in waiting
***************

Group: Members
Posts: 19,691
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Amenson @ Sep 24 2018, 09:37 AM) *

QUOTE(mepstein @ Sep 23 2018, 10:53 PM) *

For the less tool educated - me - what is it?


CNC plasma cutter table. (IMG:style_emoticons/default/cheer.gif)

Oh, that’s going to be fun. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Amenson
post Sep 24 2018, 10:55 AM
Post #1115


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
QUOTE(tygaboy @ Sep 24 2018, 09:49 AM) *

I know you already know this but...

You are going to LOVE your plasma table! (IMG:style_emoticons/default/aktion035.gif)


You are partially responsible for this purchase...I have been in awe of your build and am feeling the pressure to up my game (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Sep 24 2018, 12:59 PM
Post #1116


914 Guru
*****

Group: Members
Posts: 5,477
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Amenson @ Sep 24 2018, 09:55 AM) *

QUOTE(tygaboy @ Sep 24 2018, 09:49 AM) *

I know you already know this but...

You are going to LOVE your plasma table! (IMG:style_emoticons/default/aktion035.gif)


You are partially responsible for this purchase...I have been in awe of your build and am feeling the pressure to up my game (IMG:style_emoticons/default/beer.gif)


Well, credit where credit is due: I totally swipped your reservoir mount location and cover plate design, so thanks for leading the way there...!

If I can help you with anything plasma table, send any of the .dxf files I have, etc., please just let me know!

Chris
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 9 2018, 08:49 PM
Post #1117


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

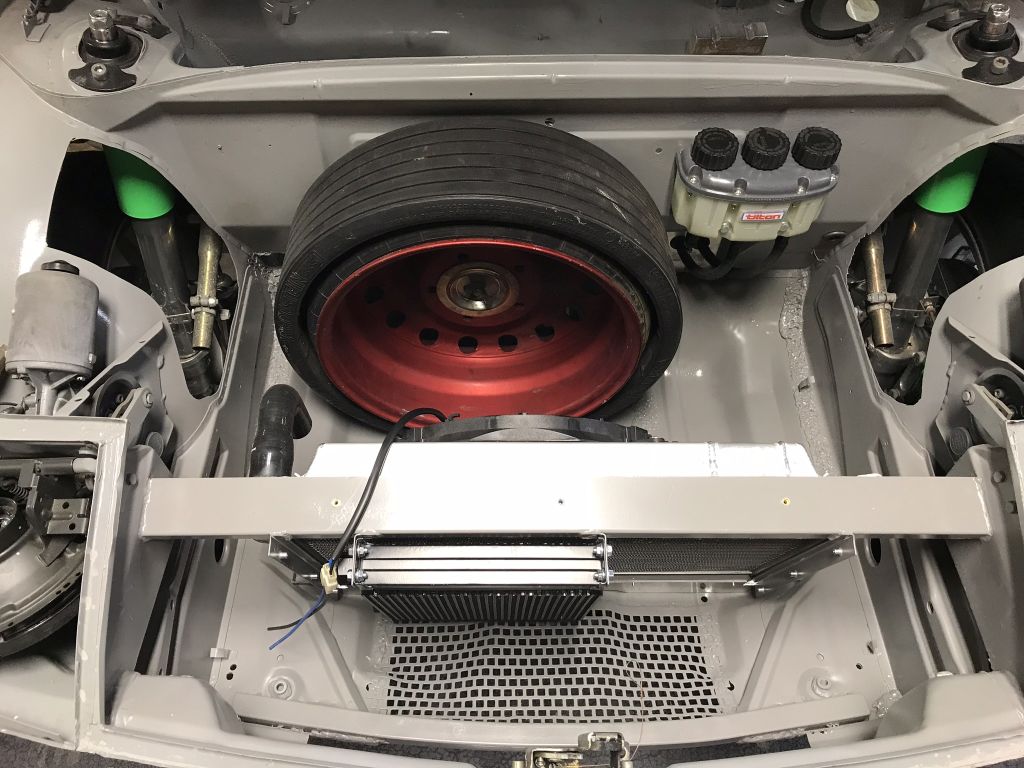

No turning back now. After much checking, rechecking, measuring, drilling I finally bit the bullet and painted the front trunk. I couldn't stand the huge stain from a brake fluid leak prior to me getting the car so I got rid of it and painted the entire floor too. Amazing how much etching occurred from the brake fluid. Had to use Metal Ready to make sure all of the corrosion was out of the pits.
Nutserts-4-life (IMG:style_emoticons/default/aktion035.gif)

Attached Image

Starting to look like something! I also added a few tabs in the intake to keep the front of the ducting from moving.

There were a few holes that I decided to shift a bit...no problem just weld them shut.

Attached Image

More parts installed for good is a good feeling.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 10 2018, 08:56 PM
Post #1118


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

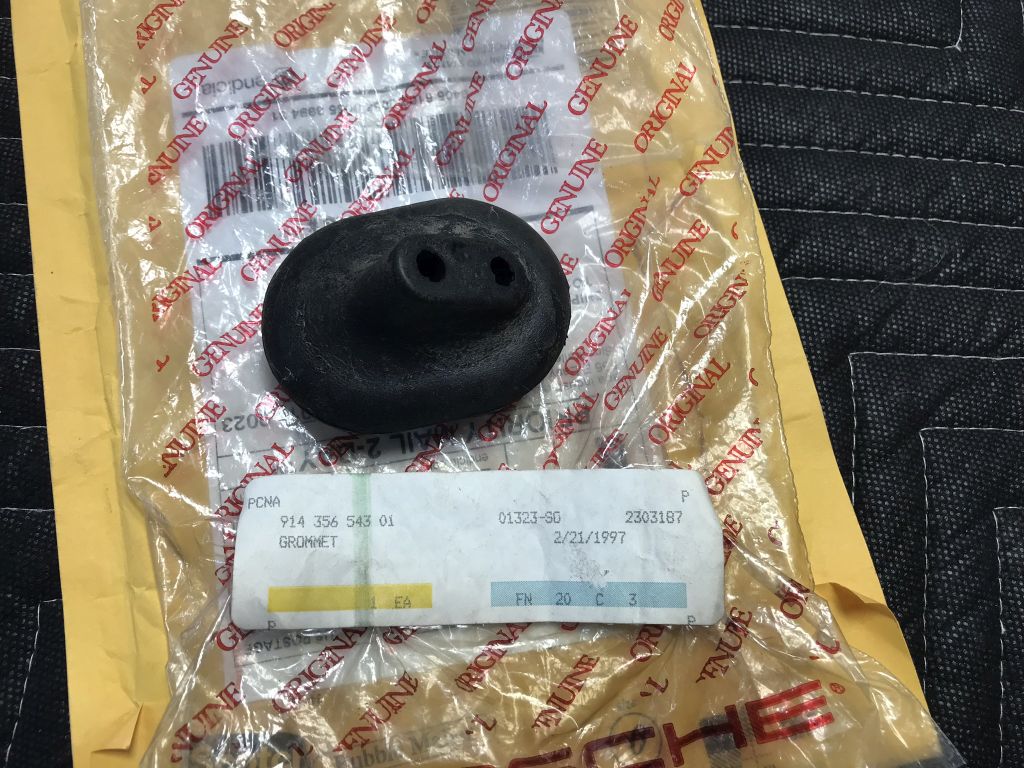

Tom...the front fuel line grommet arrived.
It is frick'n NOS. (IMG:style_emoticons/default/dry.gif)

Attached Image

I am going to feel bad slicing this up to work with the AN fuel lines. (IMG:style_emoticons/default/unsure.gif)

Where did you find it? I may order one to have it hand if I ever pull the lines from my car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Oct 11 2018, 08:58 AM
Post #1119


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
I know!

I got it from aturboman (Robert) in response to my WTB ad. He was able to get it out immediately and at a very decent price. Thanks, Robert!

I did consider the NOS fact for about 30 seconds, then figured it's not something a concourse judge will ever see, so no real value from that perspective.

Spare tire mount & repaint looks fantastic.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Oct 14 2018, 07:49 PM
Post #1120


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None

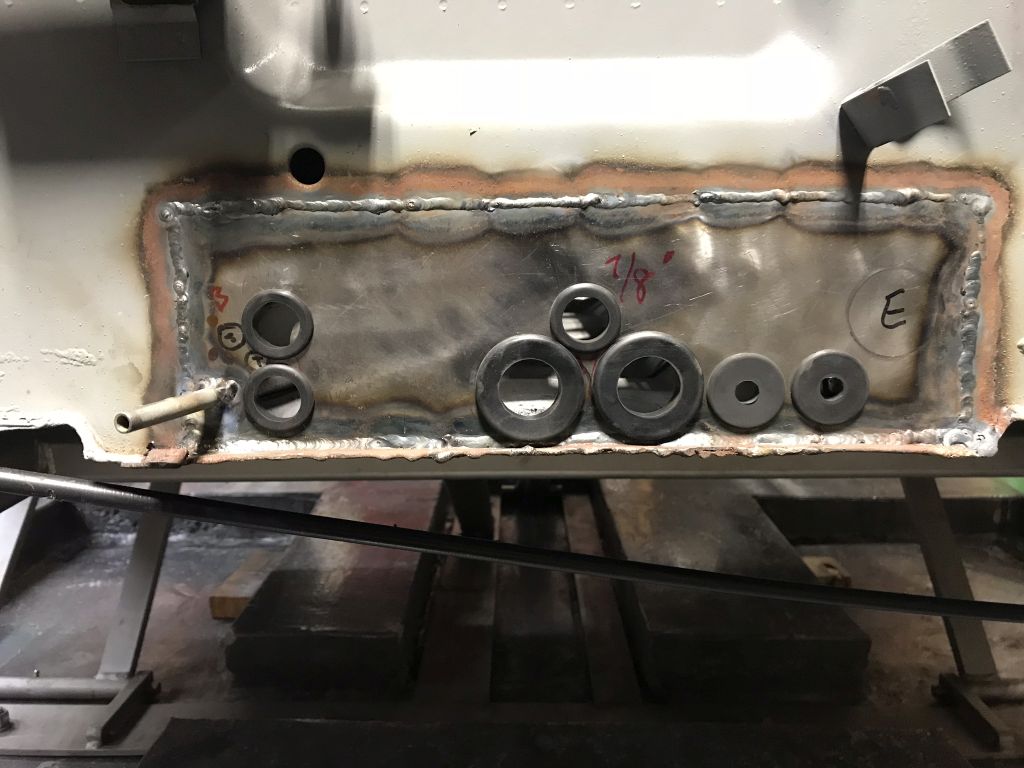

Pulled the engine so that I could finish running everything down the center tunnel.

Attached Image

Just a few grommets.

Attached Image

Still need to place the clutch and brake lines. I thought that I knew where I wanted them but decided to move things around a bit.
