> CptTripps' Restoration 2 - The Grey Matter Build, Back in Doug’s garage
Root_Werks
post Mar 16 2020, 10:27 AM
Post #1201


Village Idiot
*****

Group: Members
Posts: 8,532
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
It's been a while since I caught up on this thread. What great progress! You seem so close to getting back on the road.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 16 2020, 11:07 AM
Post #1202


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
I know!

I was shooting to get her finished last Fall (it's running and I even got her to pass State inspection!), but the turbo failure cost me a lot of time and I ended up just putting it away of the winter.

It seems I will be spending more time at home in the near future, so time to get back to it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Mar 17 2020, 03:18 PM
Post #1203


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Nice to see this car coming along
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Mar 20 2020, 04:19 PM
Post #1204


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
Did you check to make sure the bolts for the sway bar are both tight? That could be the "clunk" you're talking about.

GREAT to hear that she's sorted, and (more importantly) fast!

Also: WE NEED TO SEE PICS!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 20 2020, 04:28 PM
Post #1205


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
Yep - they were loose, too, but now tight. I probably need shorter end links, but that's for later.

I'm certain the noise is from the strut - I can make it clunk by lifting and lowering the corner by hand.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 24 2020, 10:44 PM
Post #1206


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States

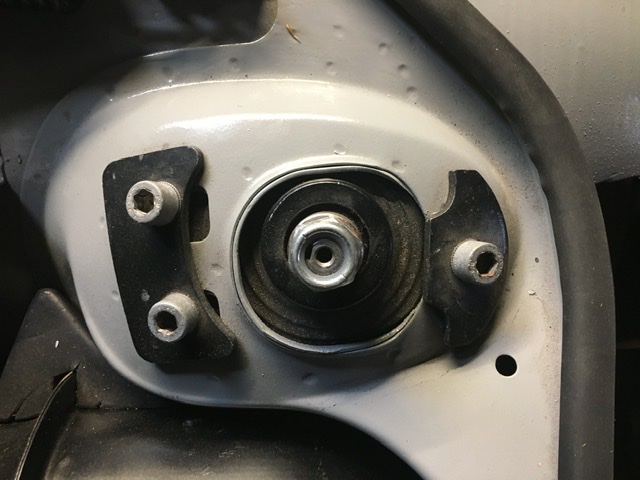

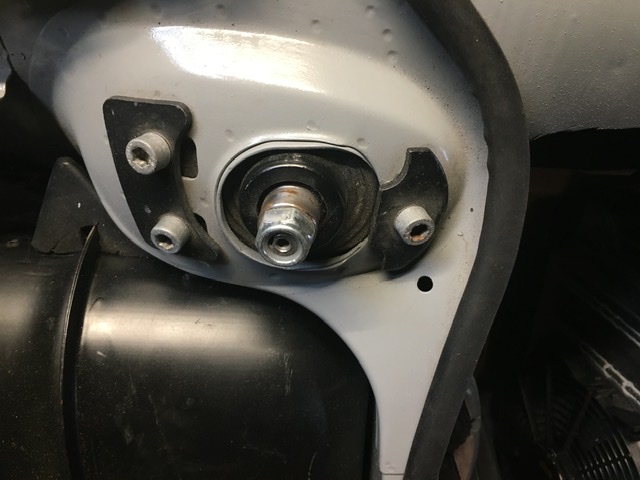

Ok- here’s a picture of the top of the strut. I put the impact wrench on it to make sure it was tight, but it still has maybe 1/8” play up & down.... just enough to make noise.

There’s a slot in the shaft, but no slotted washer. Any tricks to get this right?

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 25 2020, 07:38 AM
Post #1207


914-6 GT in waiting
***************

Group: Members
Posts: 19,691
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region

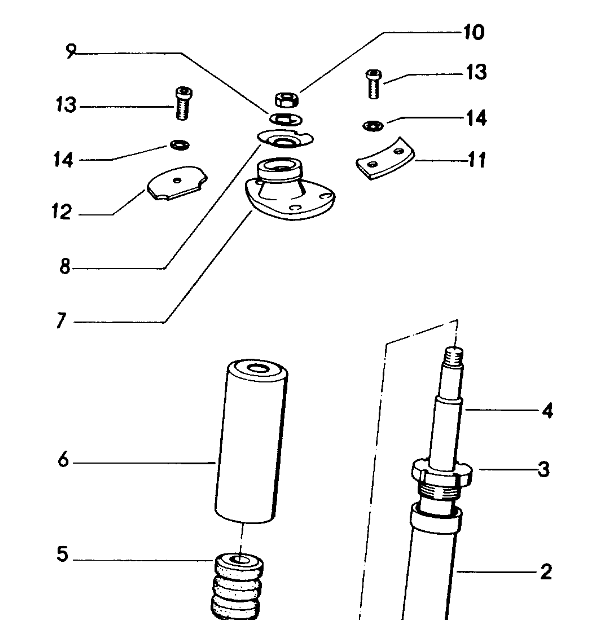

Looks like it's missing the large concave slotted washer. #8


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Mar 27 2020, 10:17 AM
Post #1208


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
I have them, if you need the Tom

If these are a mono ball mount or insert, not sure if it needs one, but if it has play it needs something. The large washer, does one thing well, it keeps the strut if the rubber mount fails, the strut doesn't drop out of the upper mount if that should happen.

You would know if it happens as it would go a bit wonky, but you could survive, and get the car stopped.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 27 2020, 10:51 AM
Post #1209


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
Thanks, Stephen. I'd like to at least try them.

They would help to let me torque the nut tight, but I'm not sure the washer will help tighten the gap which is allowing the allowing the strut to move up & down. I'll send a video clip.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 27 2020, 10:53 AM
Post #1210


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
Close up of the strut and movement:

Attached File  trim.10382841_FD17_47FE_B49E_7A58CF247F5E.MOV ( 1.59mb ) Number of downloads: 164
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 27 2020, 11:03 AM
Post #1211


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
Does the link work?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Mar 27 2020, 11:40 AM
Post #1212


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
I think that the strut nut is tight, looks like the monoball is moving in the housing. It is probably held in with a snap ring but it might also be held in with a crew in piece like these:

Monoball strut example
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Mar 27 2020, 11:47 AM
Post #1213


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
QUOTE(Amenson @ Mar 27 2020, 12:40 PM) *

I think that the strut nut is tight, looks like the monoball is moving in the housing. It is probably held in with a snap ring but it might also be held in with a crew in piece like these:

Monoball strut example



Pretty sure these are what they are but cant find a picture of the underside:
Ebay Link

Clunk Discussion:
DP Strut Tops

See if you can get a picture of the bottom so that we can see how the monoball is held in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 27 2020, 11:59 AM
Post #1214


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
Thanks Scott - yes, they look to be them. The reviews are not confidence inspiring.

I'll try to get a look from underneath this weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amenson
post Mar 27 2020, 12:05 PM
Post #1215


That's opposite lock!!
***

Group: Members
Posts: 645
Joined: 27-May 05
From: Dublin, OH
Member No.: 4,154
Region Association: None
QUOTE(theer @ Mar 27 2020, 12:59 PM) *

Thanks Scott - yes, they look to be them. The reviews are not confidence inspiring.

I'll try to get a look from underneath this weekend.



Looks like the design was borrowed from Weiltmeister...there should be a snap ring. Must be a spacer missing.

Weltmeister

This whole working from home thing is making me really productive. (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Mar 27 2020, 04:07 PM
Post #1216


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
To the manufacturer - I know Tooling paths cost money and time, but come on take some pride in your work, and make the last pass overlap, smooth out your tooling paths.

Oh sorry, things like that just irritate me.

I don't think you will get the play out of them. As Scott says they are held in by a snap ring. From what I am seeing the ball is moving in the bearing structure, most likely they used a teflon lined ball socket, and well the teflon failed somewhere along the line.

I have strut tops with stock rubber, or with poly inserts, either set I can toss in a box and send over.

All the washers also.

I'm not a huge fan that the Nut is not seated down so the nylock washer is in the threads, but hey, some loctite would fix that also.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
theer
post Mar 29 2020, 02:35 PM
Post #1217


Senior Member
***

Group: Members
Posts: 686
Joined: 31-July 15
From: Dover, MA
Member No.: 19,014
Region Association: North East States
Well, Scott was right- those are the mounts & the ball is only held in by a snap ring. Destined to fail. I put a shim-stock washer in there and it helps a little, but not completely.

Check out the damage to the housing- I left the chipped out chunk on top. Pretty much junk- eventually the snap ring won’t have a groove left to hold on to.

Attached Image

Washers won’t help, and in fact will use up precious threads for the nut (already not engaging the Nylock.)

Stephen -I’d be interested in your top mounts with poly inserts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2mAn
post Dec 17 2020, 05:37 PM
Post #1218


trying to see how long I can go without a 914
**

Group: Members
Posts: 487
Joined: 14-November 13
From: Westchester (Los Angeles)
Member No.: 16,644
Region Association: Southern California
Any updates? I was hoping this would end with some burnout pics or something
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Dec 31 2021, 02:58 PM
Post #1219


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
Came here to find this thread that I was following 7 years ago. Nice to see it was running. Hope it went out and had fun this past summer.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porschef
post Dec 31 2021, 03:31 PM
Post #1220


How you doin'
****

Group: Members
Posts: 2,180
Joined: 7-September 10
From: LawnGuyland
Member No.: 12,152
Region Association: North East States
It’s running, and its a rocket. (IMG:style_emoticons/default/beerchug.gif)

Passenger seat only…
