> Area51Werks starts another Autotopsy Resurrection of a Factory 6, Welding is Done! Fixtures are removed Onto the cleanup and paint work.
Freezin 914
post Feb 16 2024, 06:12 AM
Post #181


Senior Member
***

Group: Members
Posts: 926
Joined: 27-July 14
From: Wisconsin
Member No.: 17,687
Region Association: Upper MidWest
Very impressive! Looking good! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 16 2024, 07:00 AM
Post #182


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/welder.gif) wow , huge project, cars like that were crushed not many years ago,
nice that they have become worth enough to put the time and effort into saving.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 16 2024, 07:21 AM
Post #183


Michael
**********

Group: Members
Posts: 10,125
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Just so pleasing to see a badly damaged car come back from that and look like it did when it was assembled at the factory. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Feb 16 2024, 07:26 AM
Post #184


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
Well done Rick!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Feb 16 2024, 07:34 AM
Post #185


Distracted Member
***

Group: Members
Posts: 1,575
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California
Wow, just wow!

That is such a milestone, love to see those seams so tight and the welds started. You have got to be excited to see this coming back together.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
majkos1
post Feb 16 2024, 08:27 AM
Post #186


Member
**

Group: Members
Posts: 219
Joined: 11-August 17
From: Mile High 914
Member No.: 21,338
Region Association: Rocky Mountains
QUOTE(infraredcalvin @ Feb 16 2024, 08:34 AM) *

Wow, just wow!

That is such a milestone, love to see those seams so tight and the welds started. You have got to be excited to see this coming back together.

(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/popcorn[1].gif)

it's ART, as you majestically craft the pieces together. (IMG:style_emoticons/default/smiley_notworthy.gif)

You have secret help? (IMG:style_emoticons/default/alien.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TRS63
post Feb 16 2024, 09:30 AM
Post #187


Member
**

Group: Members
Posts: 324
Joined: 14-September 20
From: Germany - Stuttgart
Member No.: 24,690
Region Association: Europe
Looking fantastic!

Antoine
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 16 2024, 11:33 AM
Post #188


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,817
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(majkos1 @ Feb 16 2024, 08:27 AM) *

QUOTE(infraredcalvin @ Feb 16 2024, 08:34 AM) *

Wow, just wow!

That is such a milestone, love to see those seams so tight and the welds started. You have got to be excited to see this coming back together.

(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/popcorn[1].gif)

it's ART, as you majestically craft the pieces together. (IMG:style_emoticons/default/smiley_notworthy.gif)

You have secret help? (IMG:style_emoticons/default/alien.gif)


Hey Kevin! Wish i had an Alien helping me. When you tack the seam it pulls tight. You need to be able to hold a dolly on the back of the weld and strike the tack. This spreads the seam out again. Otherwise by the time you get 6" the metal is overlapping. I really needed a second set of hands but I figured it out.. (IMG:style_emoticons/default/smash.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 16 2024, 11:25 PM
Post #189


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,817
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Second day welding.

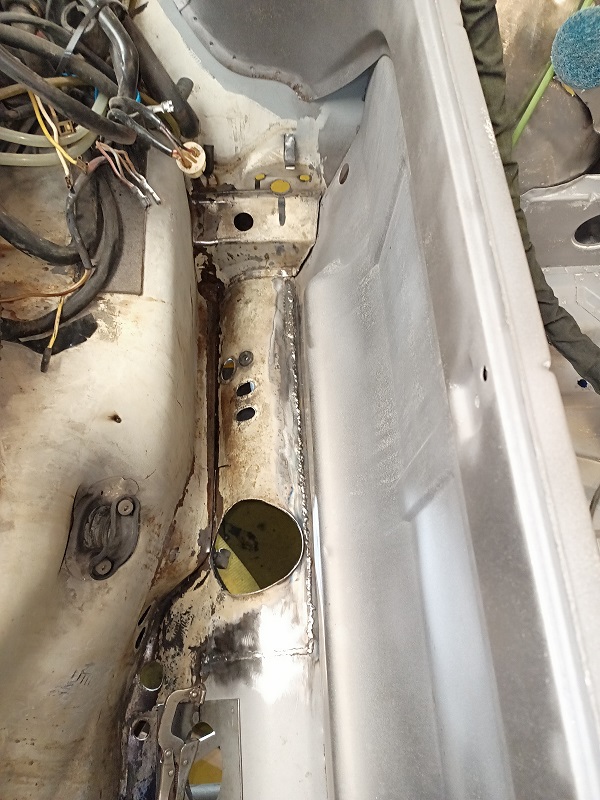

Not the prettiest welding I ever did but tig welding at the bottom of the gas tank well to me is like trying to build a ship in a bottle. I think my auto darkening hood was not working tonight. (IMG:style_emoticons/default/blink.gif) I had a low battery light on. Once I am finished I will flush off the weld.

Attached Image

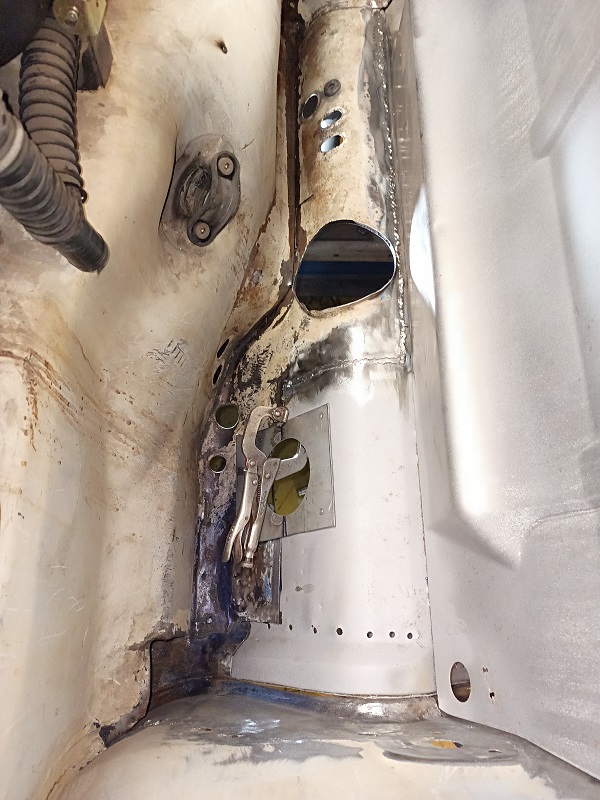

Note the fixture I made to align hole in the panel.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 25 2024, 11:02 PM
Post #190


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,817
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
I haven't posted any progress in a while. This type of repair is victory by millimeters.At this point I have the Frunk Floor welded to the inner wheelhouses. I have the bulkhead and cross support for the strut towers welded. I have the front panel lower supports for the front panel to floor to wheelhouse welded. I used my Lenco Panel spotter so it looks factory.

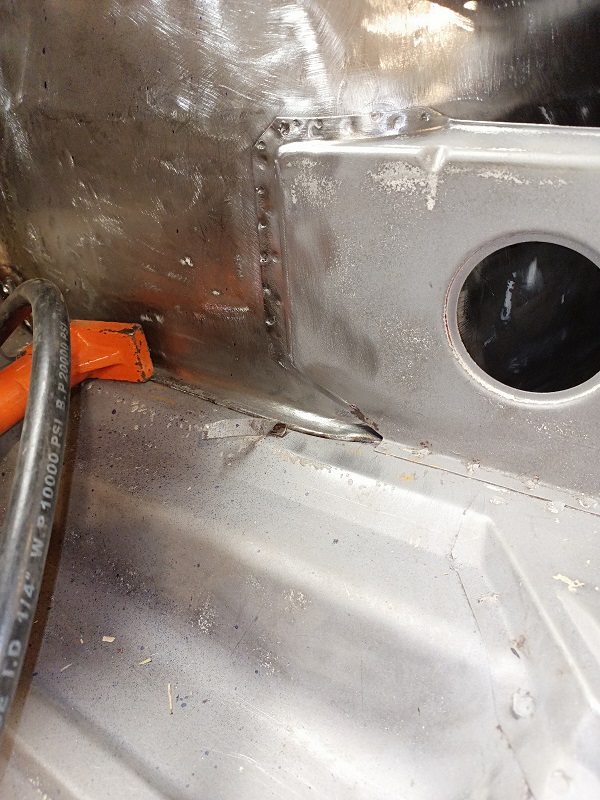

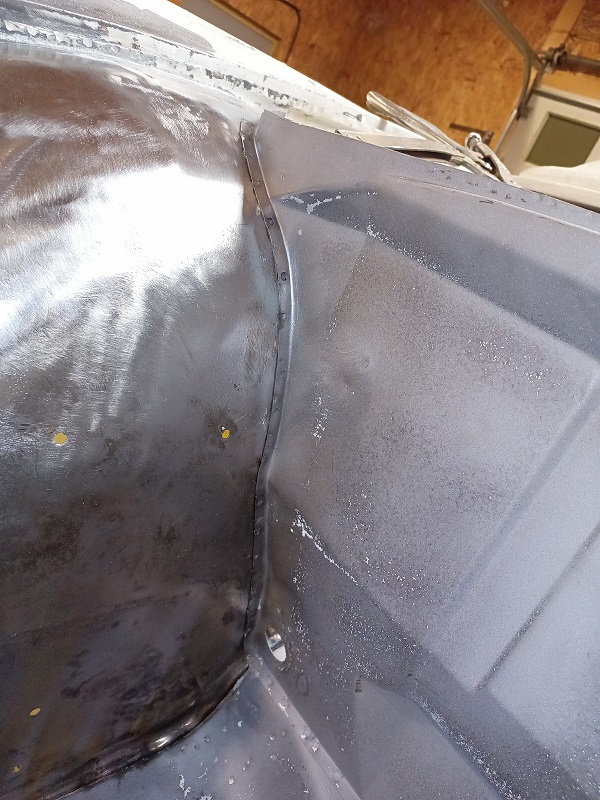

Here is the bulkhead fit prior to spot welding. Consiering this panel was buckled in half and rwisted this is a remarkable fit.
Attached Image

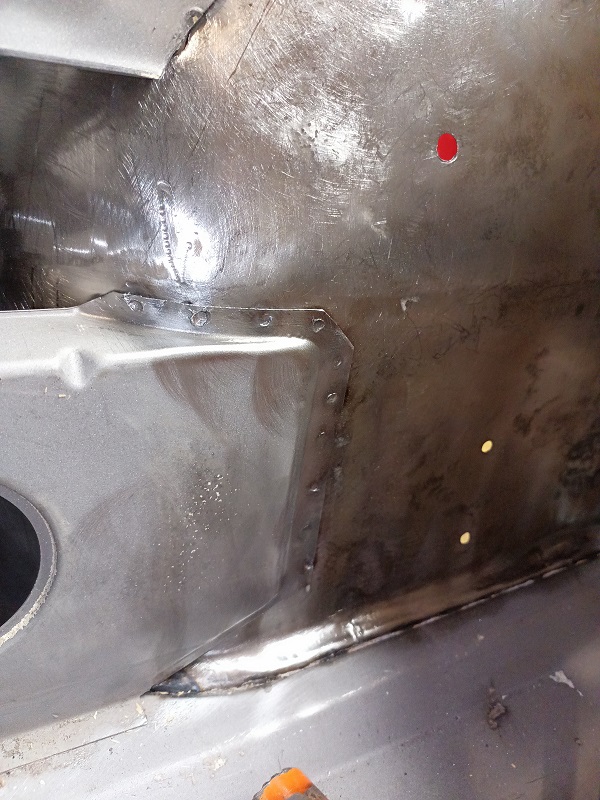

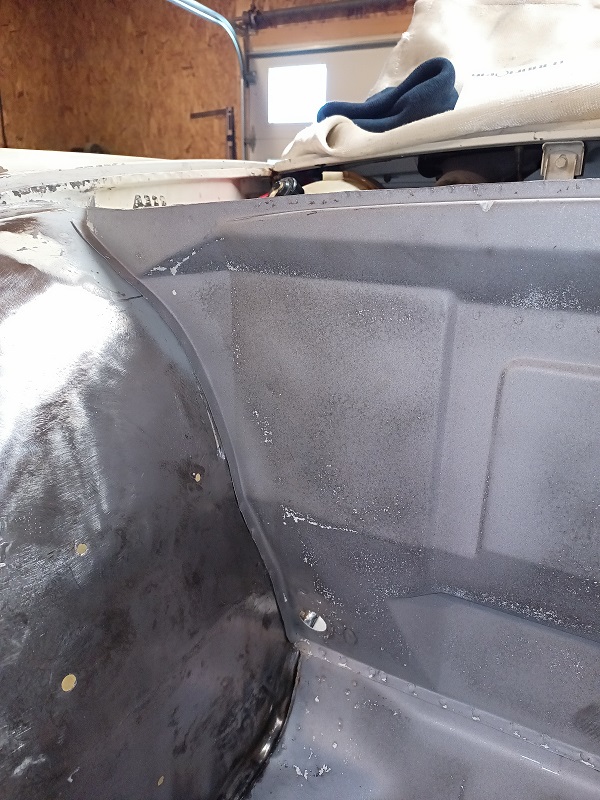

Here it is after spot welding
Attached Image

Right Brace
Attached Image

Left Brace
Attached Image

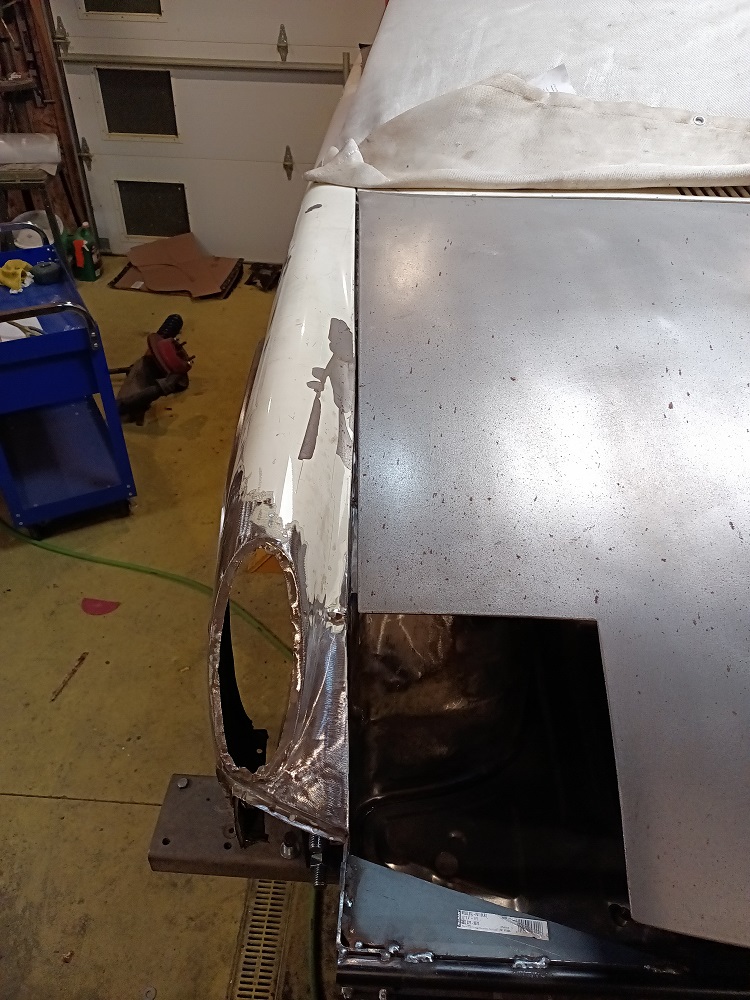

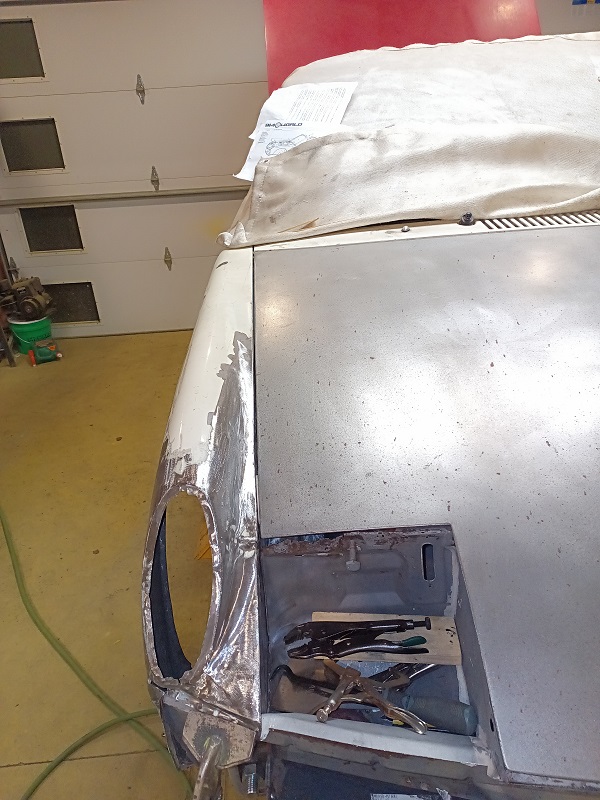

The best part of the progress is this right and left fender fit. There is literally dozens of hours in moving the upper body back into alignment. The right fender being the most challenging. As a reminder here is where I started.


Attached Image

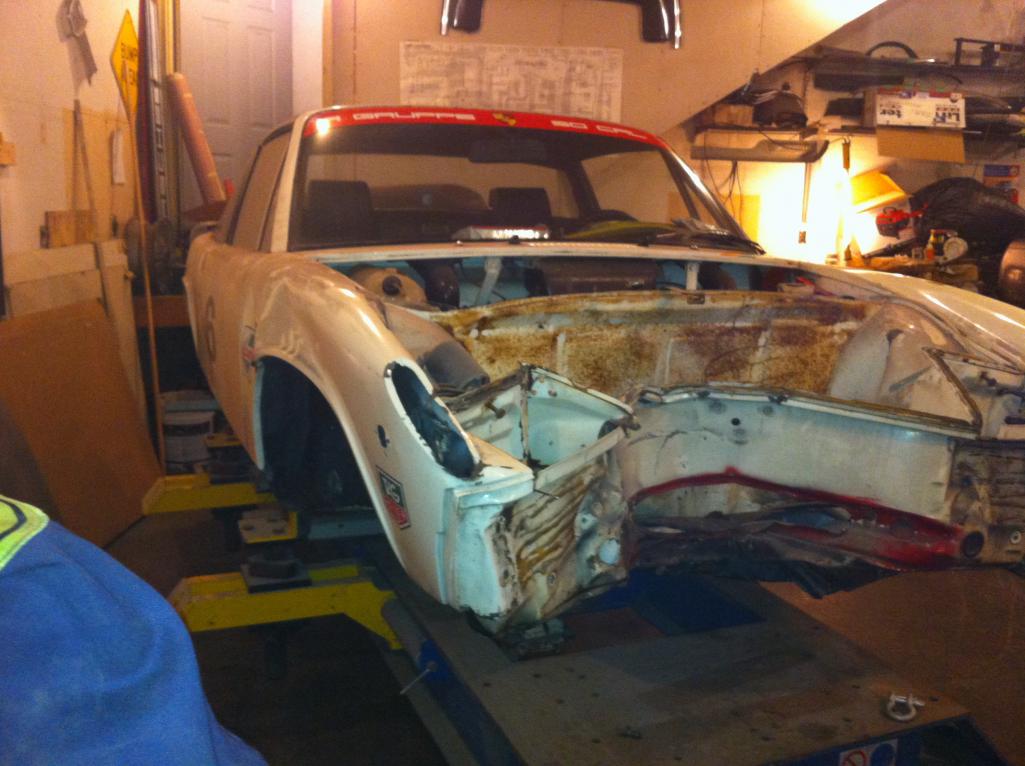

The first photo was over a month ago. The second photo was today.
Attached ImageAttached Image

There are about 8 hours of welding left. Granted I only get to work on the car a couple hours an evening if I am lucky. But I am getting close. Even when the welding is finished I will have several hours on correcting work on the right fender that was done prior to this crash.

Victory by Millimeters (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/assimilate.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
vintage914racer
post Feb 26 2024, 07:46 AM
Post #191


Member
**

Group: Members
Posts: 441
Joined: 28-December 03
From: Minneapolis, MN
Member No.: 1,473
Great work, Rick!

I'm always amazed by the work that you do.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 26 2024, 07:58 AM
Post #192


Michael
**********

Group: Members
Posts: 10,125
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Man, that fender/hood gap.... (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
doug_b_928
post Feb 26 2024, 09:01 AM
Post #193


Senior Member
***

Group: Members
Posts: 712
Joined: 17-January 13
From: Winnipeg
Member No.: 15,382
Region Association: Canada
That quarter gap is amazing!!! I’d be interested to see how you did that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 26 2024, 09:45 AM
Post #194


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,817
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
So much more to do before I can say I am happy keeping the right fender. There was a prior repair involving drilling holes and lots of body filler I don't like using. I will expand on the process later tonight.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Mar 1 2024, 06:10 AM
Post #195


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,817
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

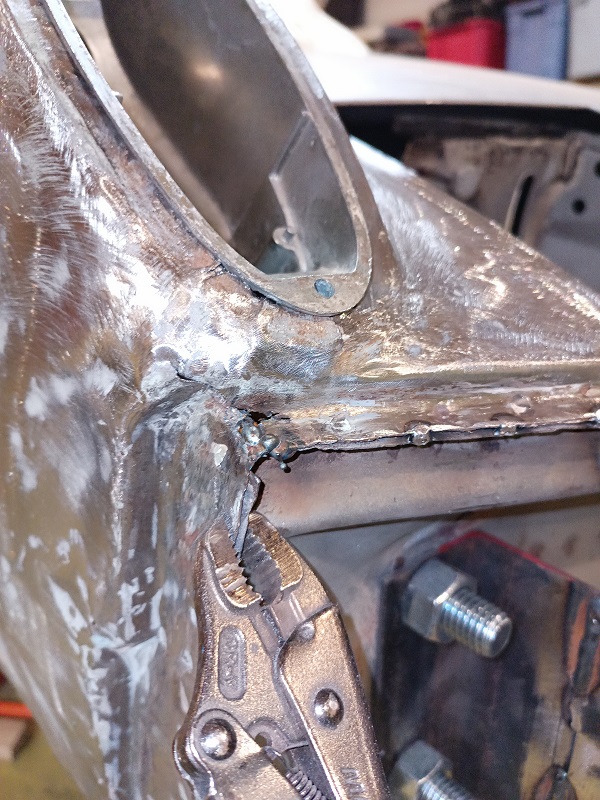

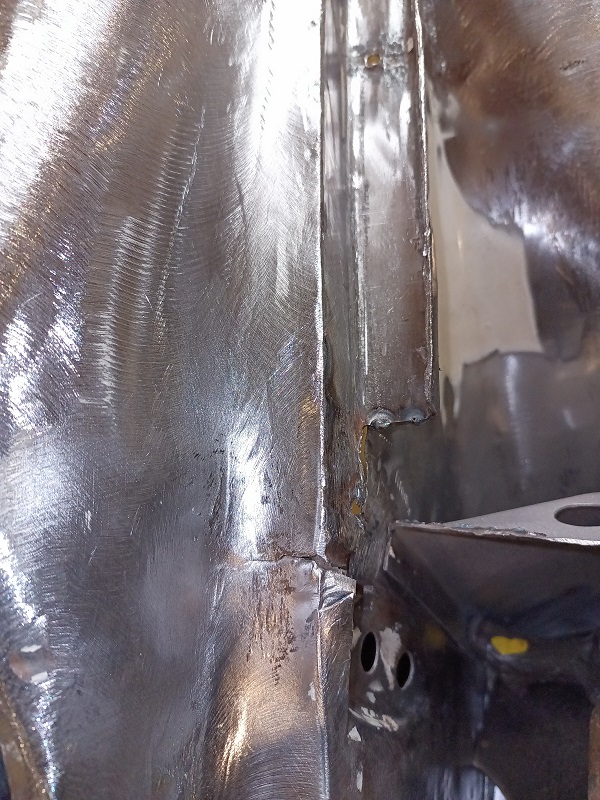

Continued working on the right fender. There was a crack in the fender by the Headlight bucket and a kink in the vertical wheelhouse extension where the headlight pivot bolts. The metal eas overlapping at the crack.

Attached Image

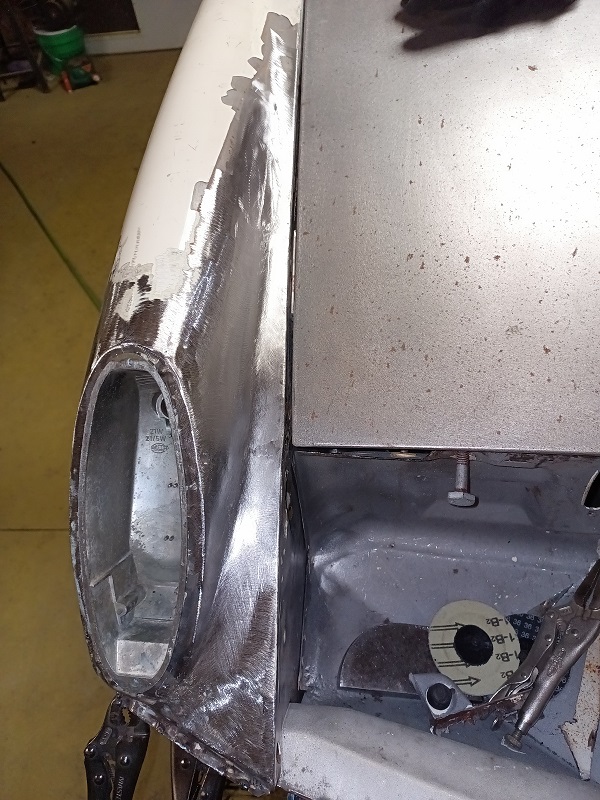

After about 3 hours the crack is repaired.
The hood is not bolted. I just wet it on and pushed it up against the cowl panel

Attached Image

Still working on the end of the fender around the running light. There are a few other rips that need attension. I could replace this frnder but I would rather repair the original if it works out.


Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Mar 4 2024, 10:00 PM
Post #196


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,817
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

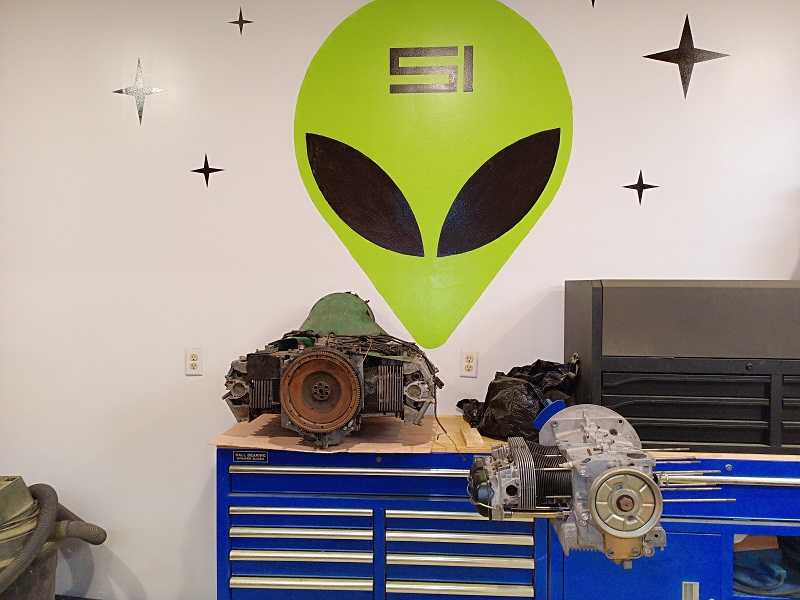

Finally brought the engine home. Kind of a special engine. I got this from Slits. It's a 73 2.7S

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Mar 5 2024, 07:17 AM
Post #197


914 Neferati
*****

Group: Members
Posts: 5,093
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
QUOTE(rick 918-S @ Mar 4 2024, 08:00 PM) *

Finally brought the engine home. Kind of a special engine. I got this from Slits. It's a 73 2.7S

Attached Image


(IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Mar 7 2024, 07:41 AM
Post #198


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,817
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

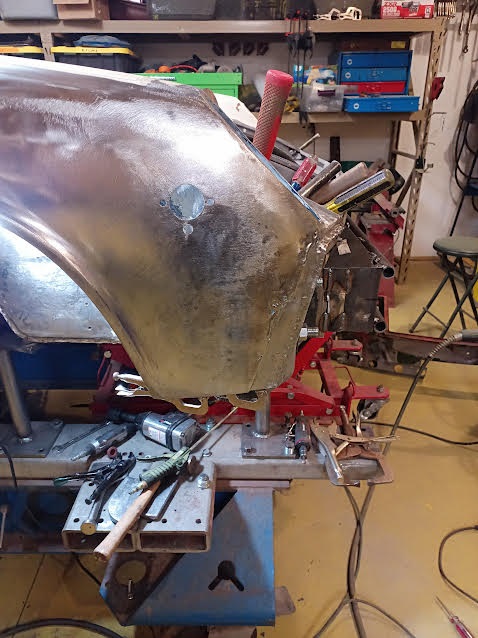

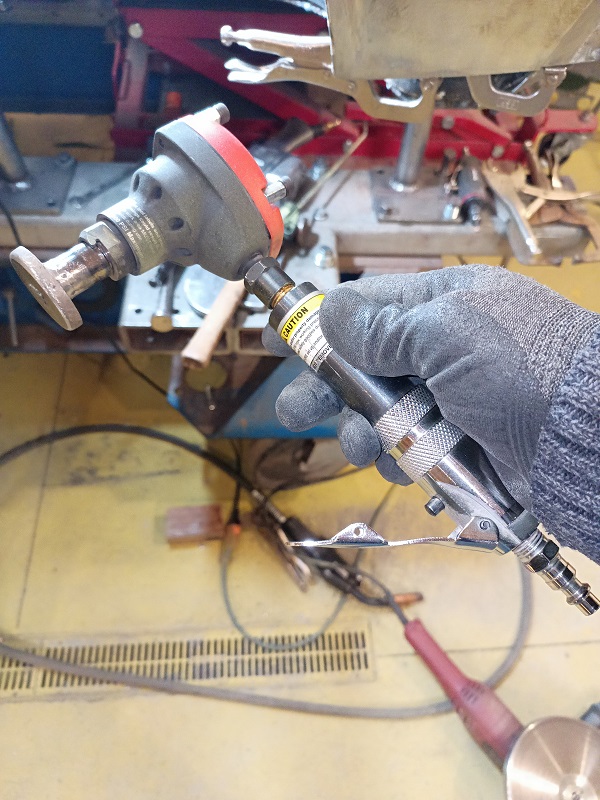

Little more progress on the right fender. This is one of the tools I made to planish out damage. As I started to strip this fender I discovered old damage that was pummeled with pick hammer marks and ground thin and stretched.

Attached Image

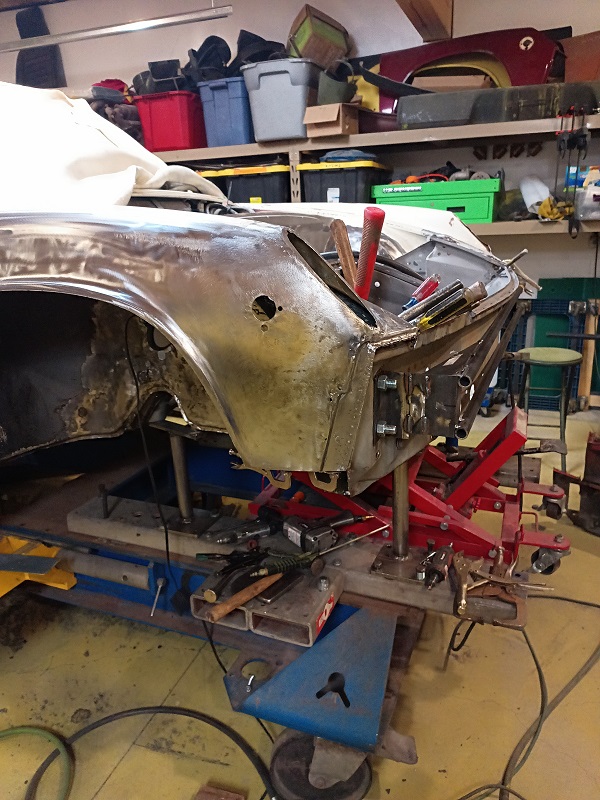

I held a slightly curved dolly on the back of the panel and planished out the pick marks we well as I was able. Then I spent about 2 hours with a shrinking disc and various body hammers and dollies working out the stretch.

Attached Image
Attached Image

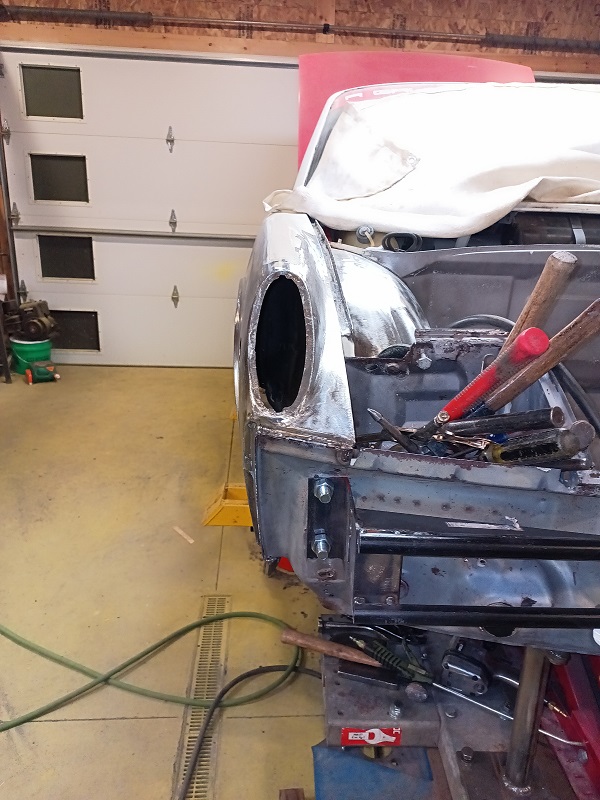

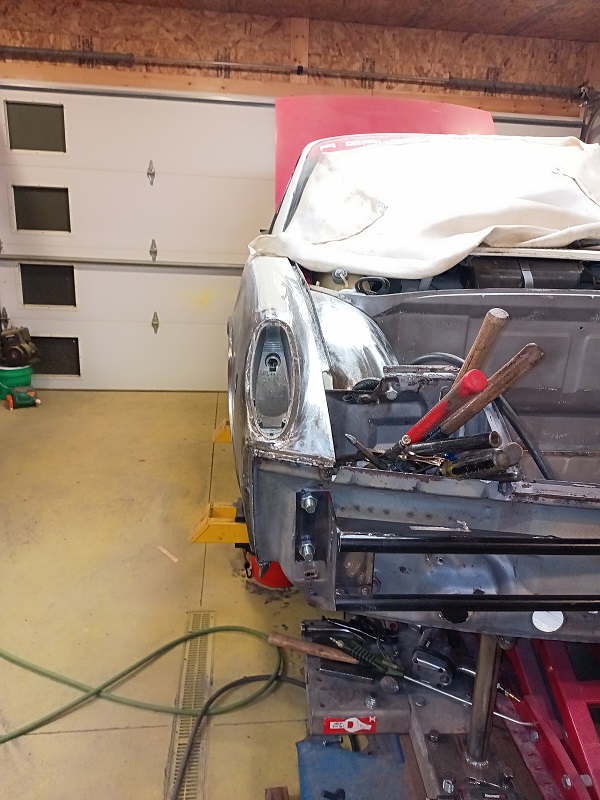

I have the running/signal light fitting nicely now.

Attached Image
Attached Image

Lots of work to do yet but I am getting closer to saying the original fender will remain with the car.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
76-914
post Mar 7 2024, 08:28 AM
Post #199


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,646
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
You have the patience of Jobe, Rick. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SteveL
post Mar 7 2024, 08:32 AM
Post #200


Senior Member
***

Group: Members
Posts: 663
Joined: 7-August 03
From: Andover, MN
Member No.: 991
Region Association: None
When the metal has been ground thin, how thin can it be and still be usable?
