> PMB Performance - Mike Krieger Build, Sorting out a -6 conversion and going 3.6
Eric_Shea
post Dec 7 2013, 11:01 AM
Post #1


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Hey Gang,

We've been working on this one for a while now and I thought you'd like to follow along. It has a lot of "914" issues to sort through and can be a good piece to show how and why to fix things properly, especially with the value of these cars climbing and the money invested in a car of this quality.

Mike came to us last year after finding us here for a PPI. In this case it was a "Post Purchase Inspection". The car was sold as a rust free (yes, enter your comments here) 3.2 six conversion. It turns out it was anything but. Regardless, Mike was in for the long haul and, he was determined to do things properly. He expressed interest in making the car a wide-body and fixing what needed to be fixed at the time.

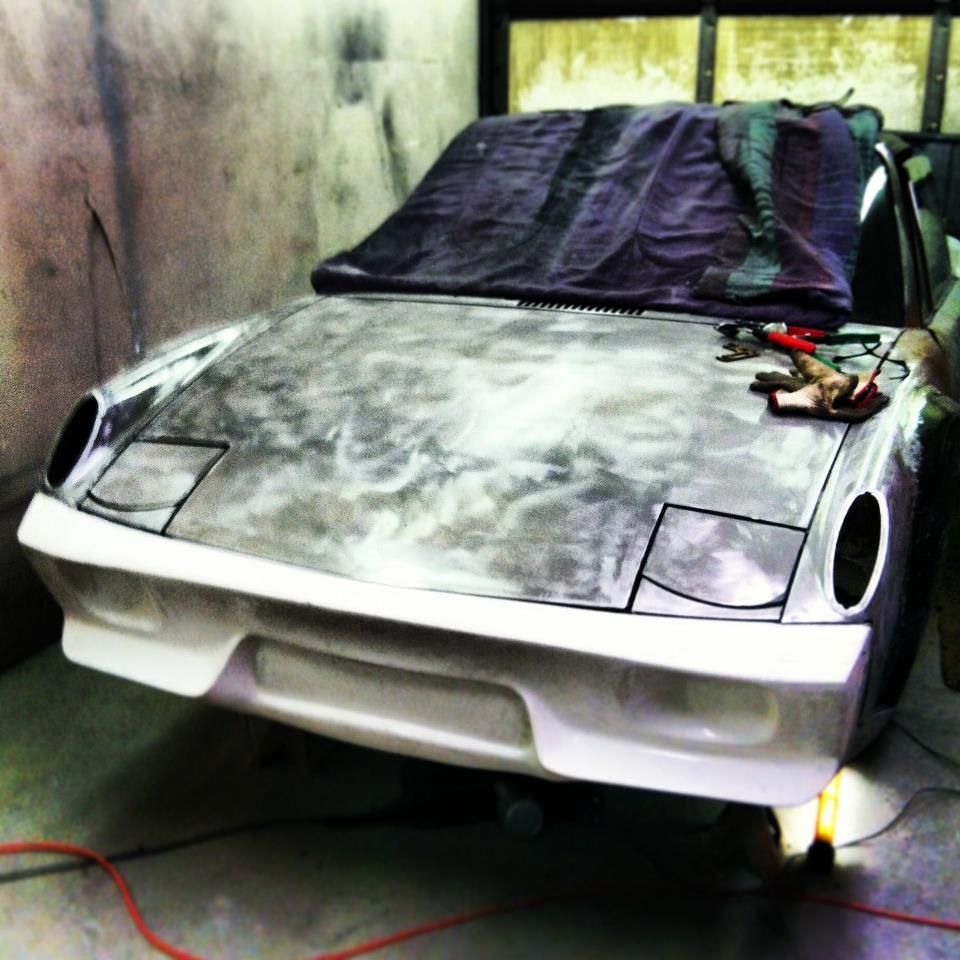

Off the tub went to be stripped and prepped for flares and paint work. Here you can see the "after" shot with the flares on and glass panels being fitted:

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435699.1.jpg)

There was a lot of metal work needed as indeed... the rust was free on this one. Before flares could go on, a new quarter panel was needed and various stiffening kits (factory and 914LTD) added to ensure minimal twist with an impending 3.6 install. The car was then painted "Signal Orange" and given back to Mike for some detail installments.

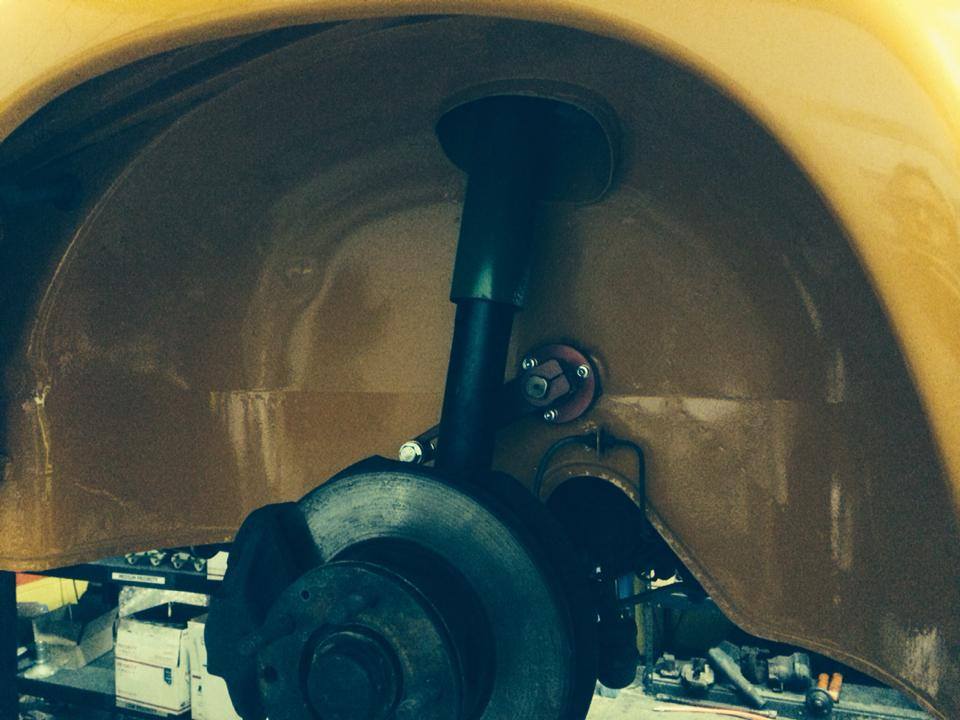

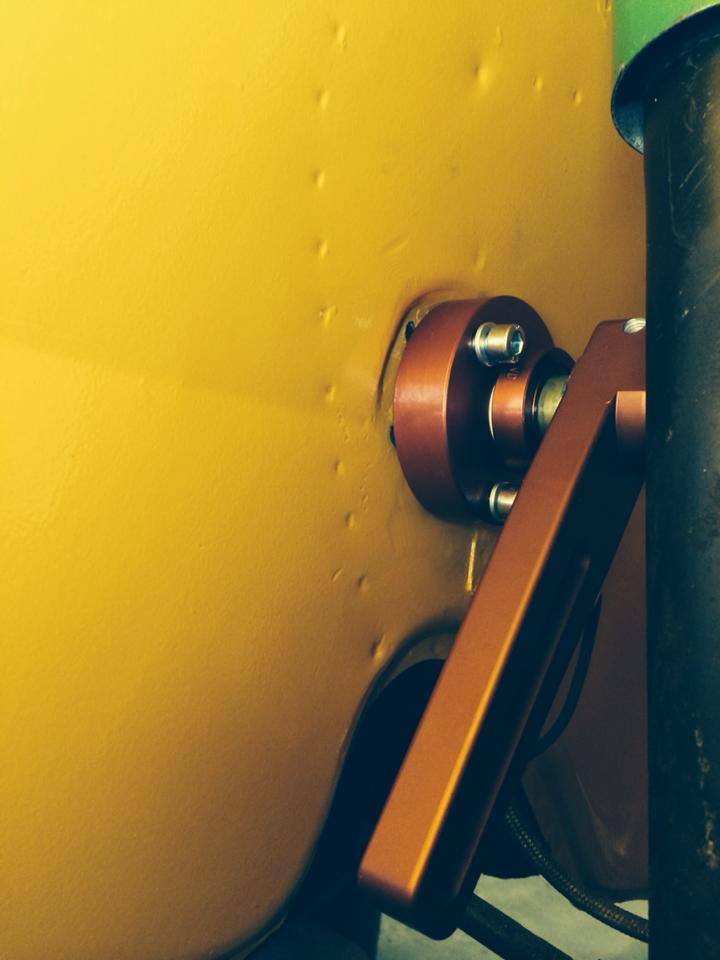

Fast forward to present day. We picked the car up from Mike and began ticking off items on his wish list. Install driving lights, front turn signal buckets, hood lights, hood pins, sway bar, get turn signals working, various trim pieces etc.

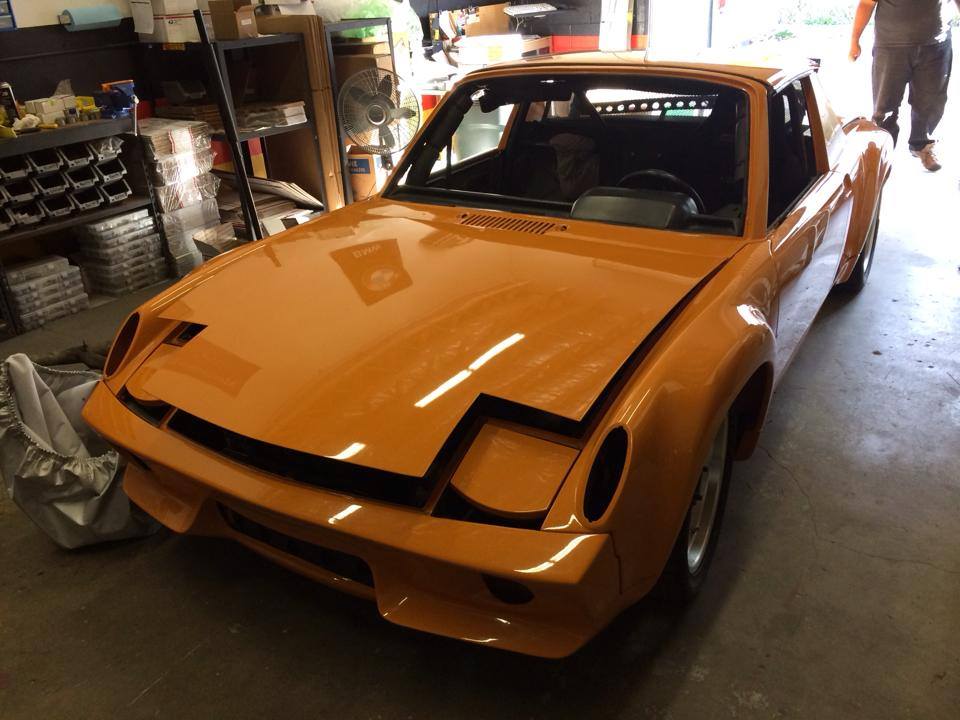

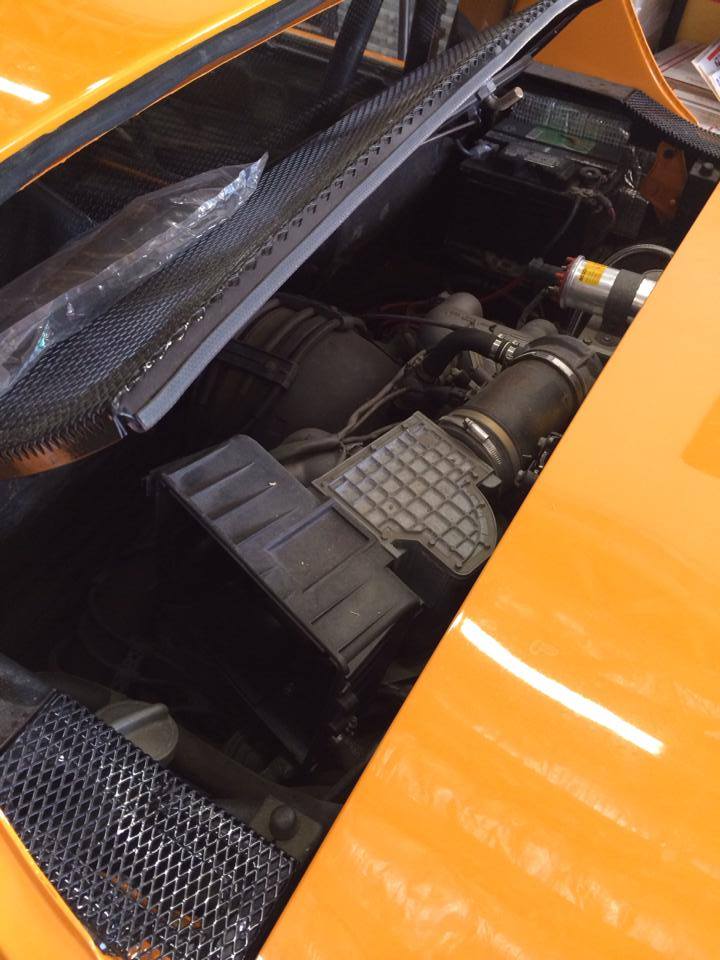

Here's how it it sat when we got'er in the shop:

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-a-lga.xx.fbcdn.net-1110-1386435700.2.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435701.3.jpg)

Then the "inevitable" happened. It began to act like any other DAPO 914. She began to show some of her true colors. I actually think the car was talking to us and letting us know about the problems before she burned to the ground in a heap of smoke and flames.

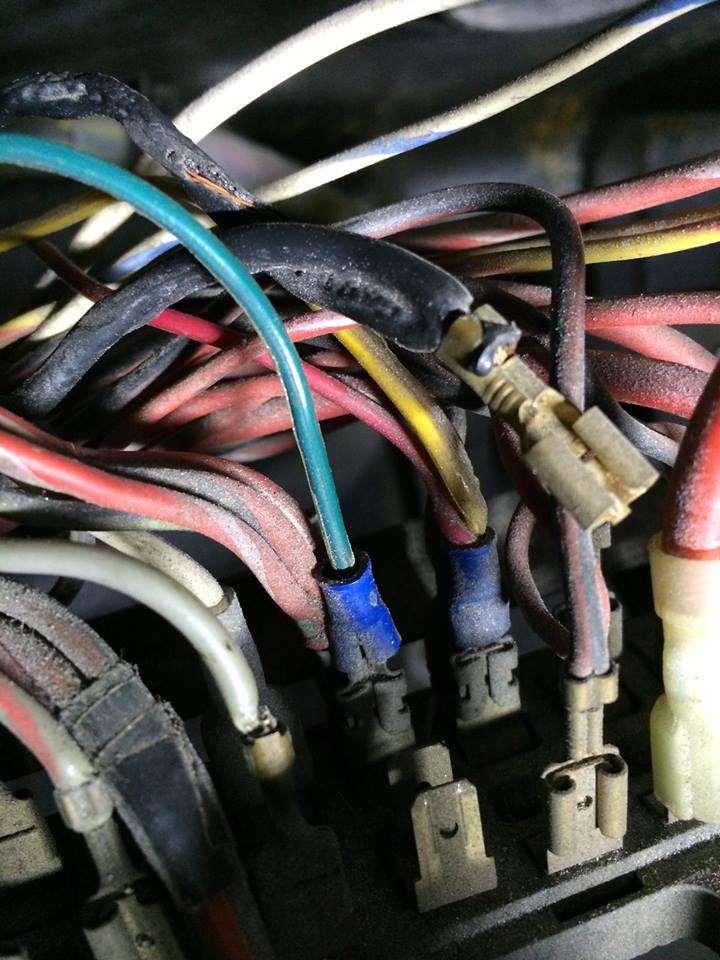

Let's start with wiring because we basically had to re-wire the car. What started as a simple request to "get the rear light buckets working" brought us to a few swapped wires on the install post paint and then... funny smells and blown fuses. When we looked at the fuse block we saw this:

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-a-lga.xx.fbcdn.net-1110-1386435702.4.jpg)

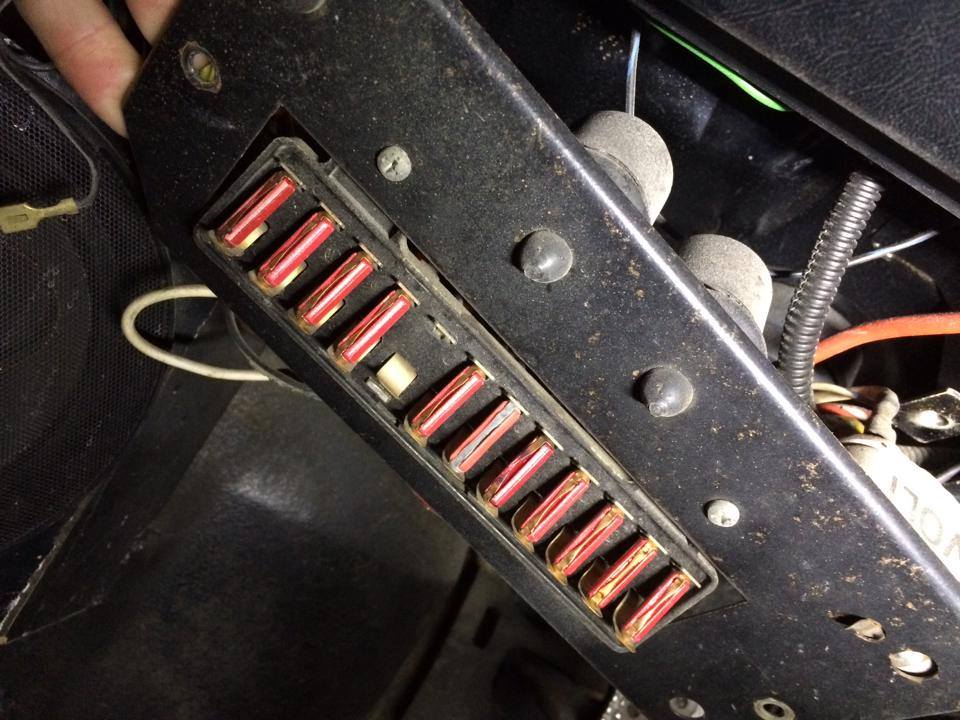

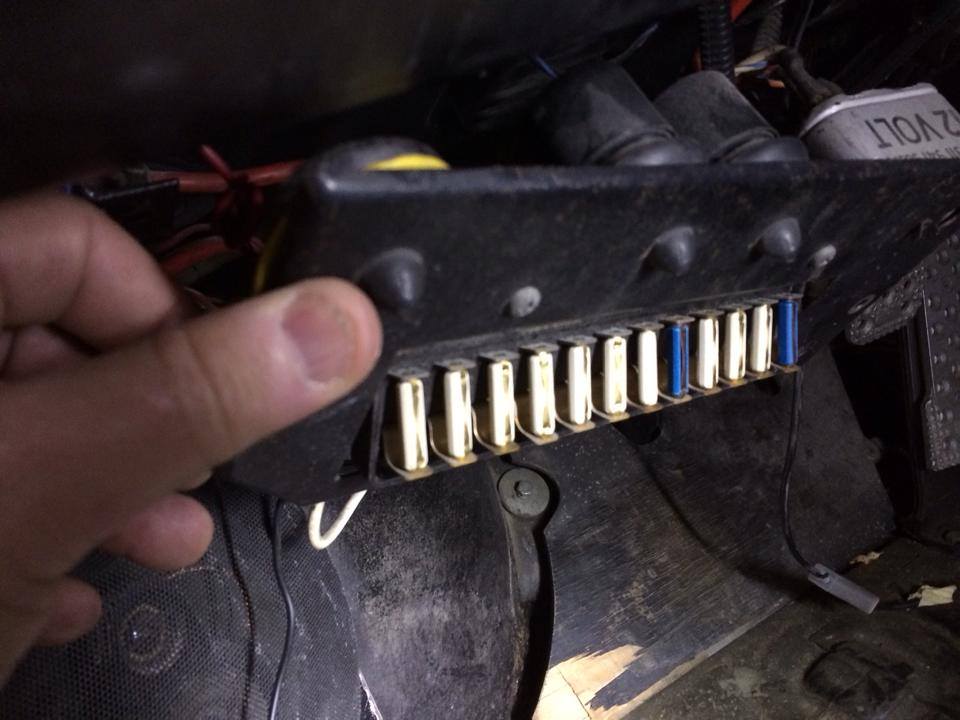

Yes, the blown fuse was also a 16a!! Needless to say, this was one of the first things we did...

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435702.5.jpg)

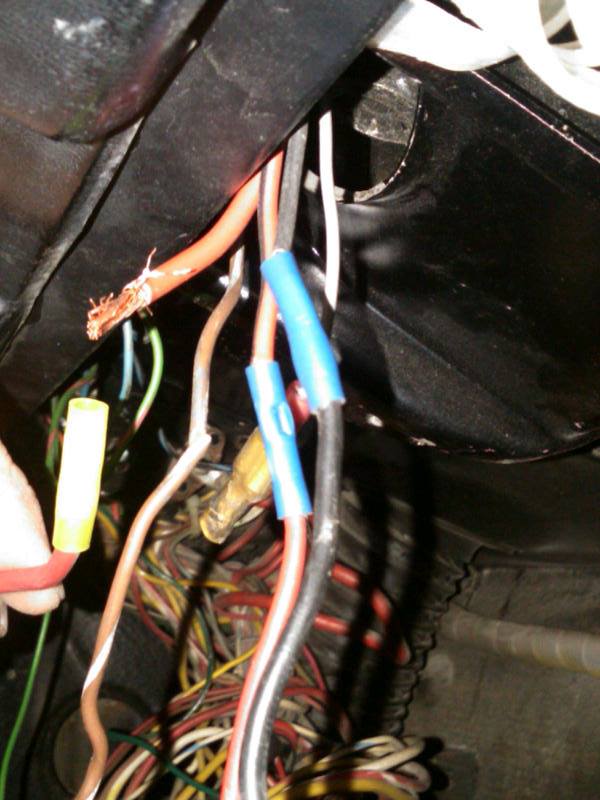

We also found some previous melted wires that could have been catastrophic:

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435703.6.jpg)

This caused us to start at the front and completely go over all of the wiring. Fix and replace with proper factory colored wires from a donor harness and wrap everything back up with the early cloth tape loom.

The factory driving light harness was cut and crimp on ends were all that existed in the apron. We went into the harness and soldiered in new leads and used factory sheathing to bring them through the grommets in the front apron. Mike wanted these PIAA lights so we then soldiered the PIAA ends on the factory wires and inserted them back into the connectors for a clean, clip-on installation:

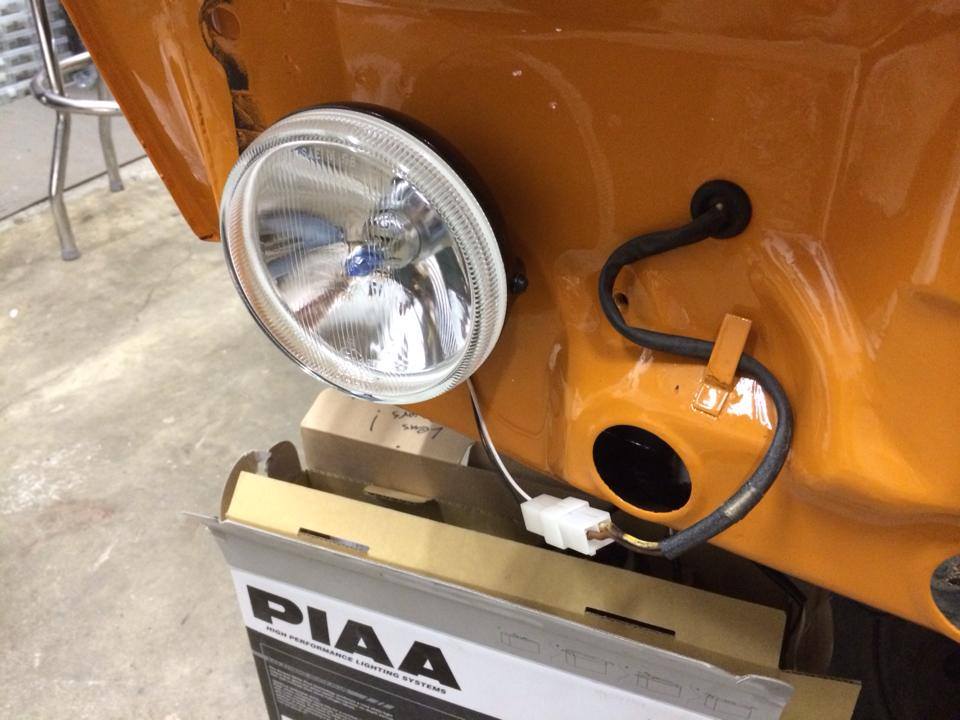

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435704.7.jpg)

Next we did the same thing while repairing the horn leads. Removed the crappy blue crimp on connectors and went full factory with the protective sheath. We also ran a second lead over for dual tone horns.

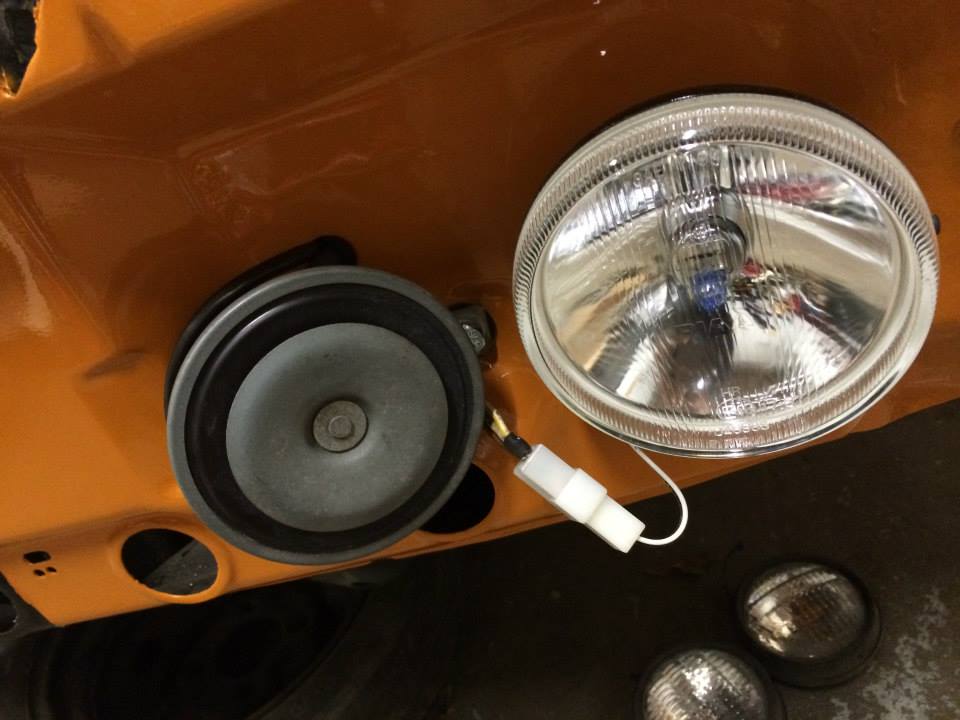

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435704.8.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435705.9.jpg)

Here's a shot of Mike's new harness:

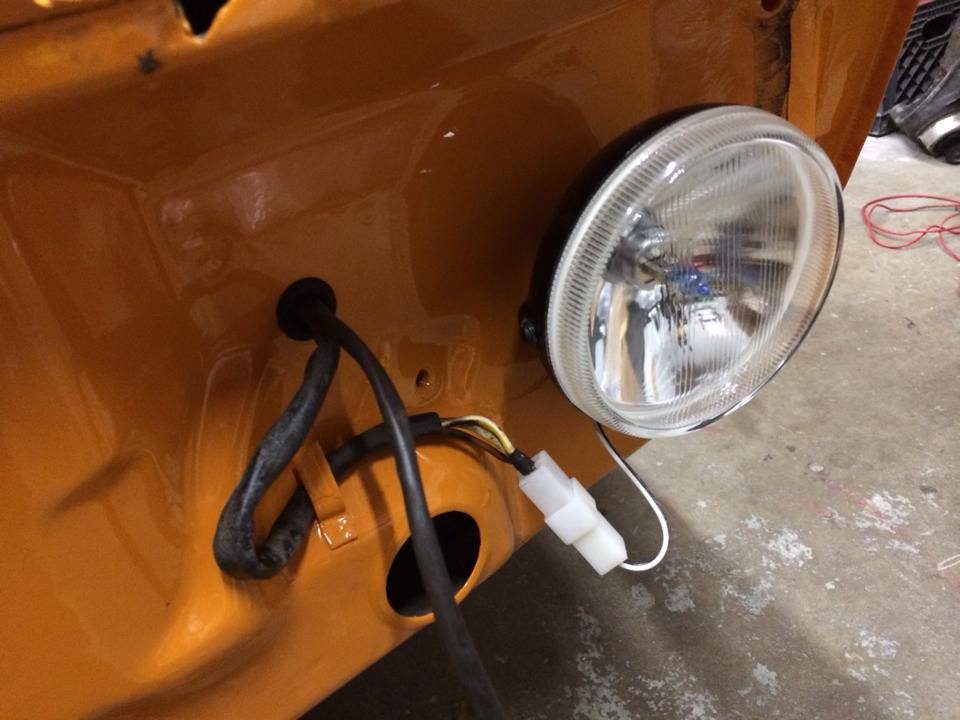

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386435786.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post Dec 7 2013, 11:07 AM
Post #2


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
QUOTE(Eric_Shea @ Dec 7 2013, 09:01 AM) *
We've been working on this one for a while now and I thought you'd like to follow along. It has a lot of "914" issues to sort through and can be a good piece to show how and why to fix things properly, especially with the value of these cars climbing and the money invested in a car of this quality.


Thanks for the inspiration. 3.6-(IMG:style_emoticons/default/smile.gif)... A 964 or 993 install? If I had to guess, 964 ..oh wait. 993 with webers -(IMG:style_emoticons/default/smile.gif)!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toolguy
post Dec 7 2013, 12:22 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,275
Joined: 2-April 11
From: San Diego / El Cajon
Member No.: 12,889
Region Association: Southern California
Eric. . pm sent. . Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Dec 7 2013, 12:28 PM
Post #4


Major Member
****

Group: Members
Posts: 2,197
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
Nice work as usual, Eric.

Will the 3.2 be for sale? Please PM me if so.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
shoguneagle
post Dec 7 2013, 01:29 PM
Post #5


shoguneagle
***

Group: Members
Posts: 1,180
Joined: 3-January 03
From: CA, OR, AZ (CAZOR); New Mexico
Member No.: 84
Region Association: Northern California
Very nice, indeed! One for great enjoyment.

Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rudedude
post Dec 7 2013, 01:57 PM
Post #6


Senior Member
***

Group: Members
Posts: 517
Joined: 1-January 05
From: minneapolis, mn
Member No.: 3,387
Region Association: Upper MidWest
Eric,

Very nice indeed! Keep us posted.

Jule
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Dec 7 2013, 02:16 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
Awesome!! (IMG:style_emoticons/default/smile.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post Dec 7 2013, 02:32 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,991
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region
Is this the car that rear quarter from my place went to? I felt a little bad about cutting that one up given how solid the longs were, but if this is the result of its sacrifice then it was totally worth it. Looks awesome!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
old dog
post Dec 7 2013, 06:09 PM
Post #9


Member
**

Group: Members
Posts: 63
Joined: 14-December 12
From: Oxnard,CA.
Member No.: 15,257
Region Association: Central California
Very nice !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Dec 7 2013, 06:14 PM
Post #10


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
(IMG:style_emoticons/default/beerchug.gif) Tell Brown E he does wonderful work (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Dec 7 2013, 06:32 PM
Post #11


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Thanks guys.

PM not received Dave.

3.2 is probably sold already.

James, it is indeed your quarter panel. If that car hs good longs you can always put a complete QRS kit on it! (IMG:style_emoticons/default/biggrin.gif) (more on that in our next build thread). Thanks for the good metal!!

We seriously had to dig into the wiring on this. Front and rear harness and most of the dash. We even did all of the harness behind the fuel tank and fresh air box. Anywhere we found "crimp-ons".

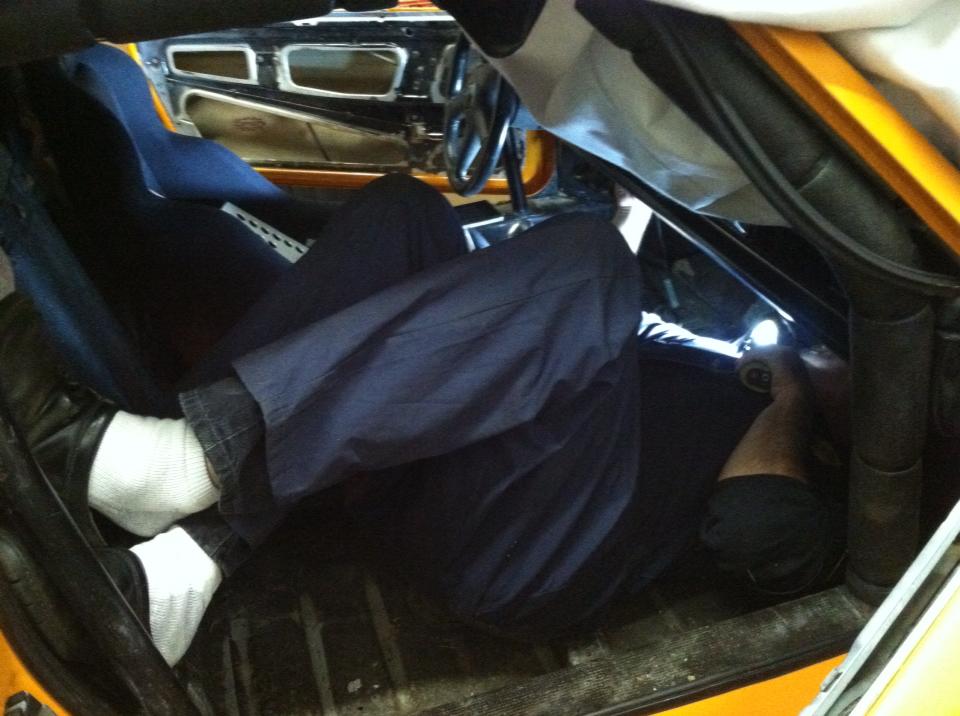

Here's David "assuming the 914 position".

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-a-lga.xx.fbcdn.net-1110-1386462714.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386462716.2.jpg)

Making progress...

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386462717.3.jpg)

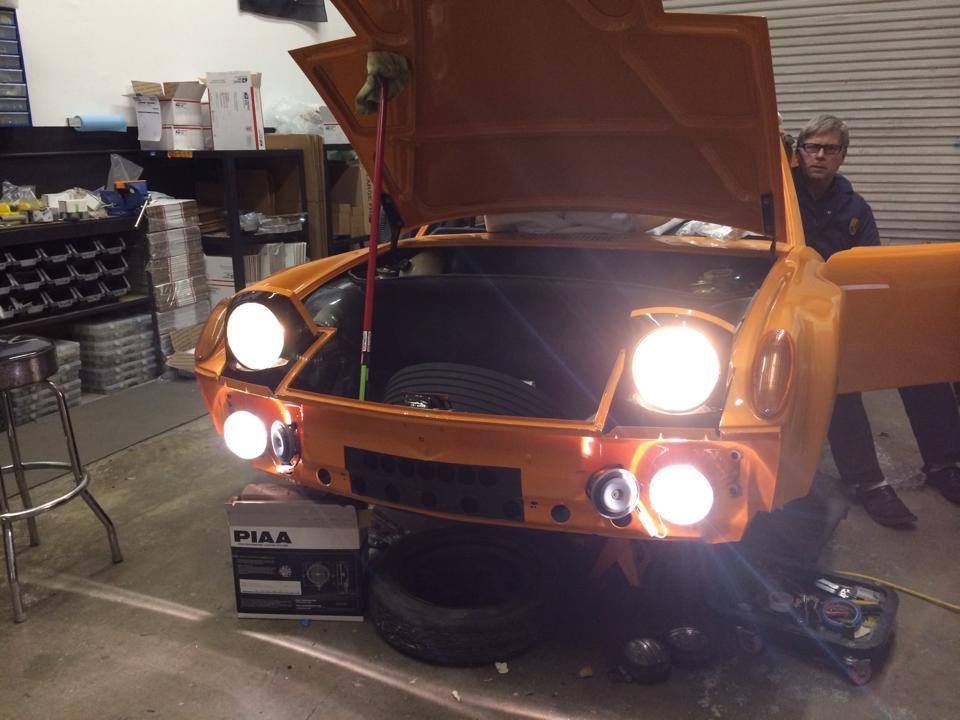

David checking the lights.

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-a-lga.xx.fbcdn.net-1110-1386462718.4.jpg)

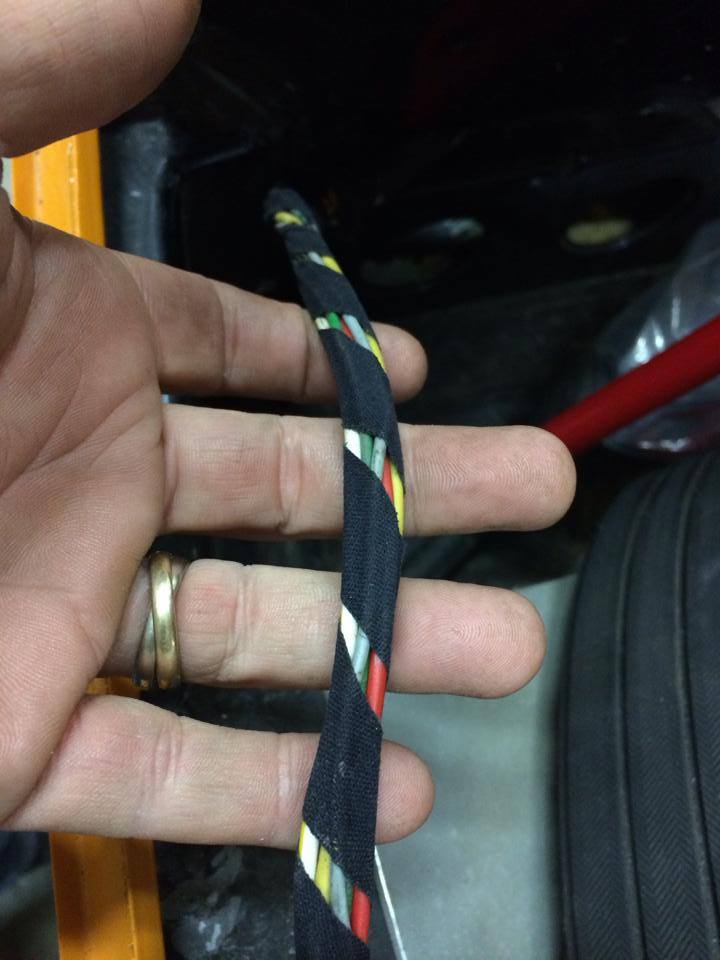

The rear harness was so brittle it was falling apart in our hands. Here's one of those 914 "tips". Do the wiring right and... to do that, one of the best things to get is an old harness out of a sawzall project. We pulled the rear harness apart from the engine compartment to the light housings. We then found the license plate leads were seriously so hard they were breaking like a twig. A few things can do this, heat and elements. We pulled the proper color and gauge wires from our donor harness and "soldiered" the factory ends on them and heat shrinked the ends. Do it right... IT ONLY TAKES A FEW MINUTES! And, wiring is one of those things that can come back to bite you time and time again.

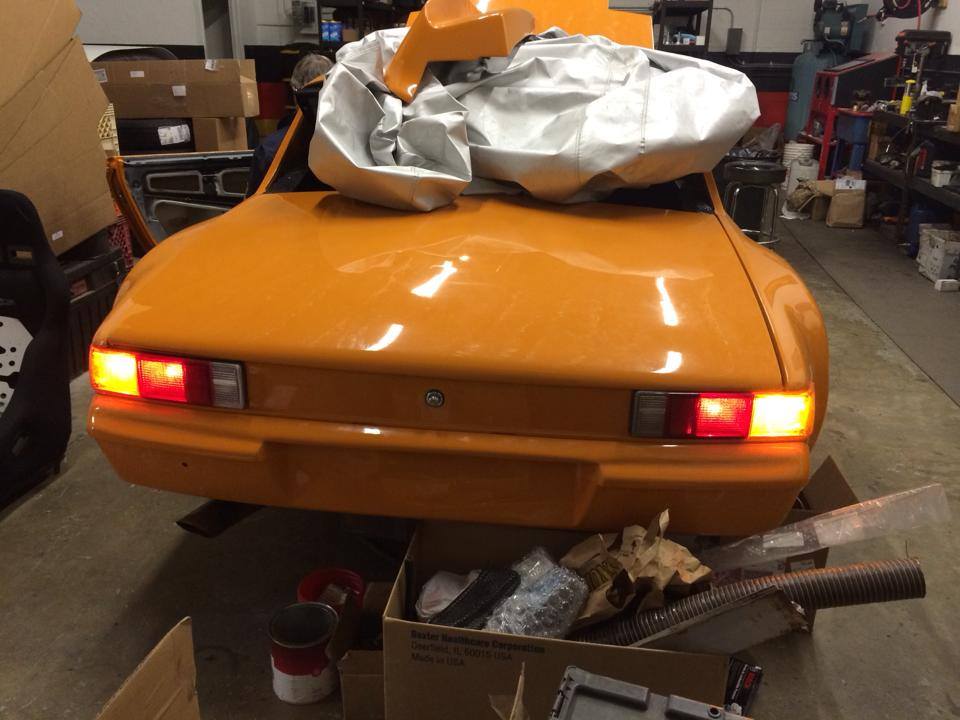

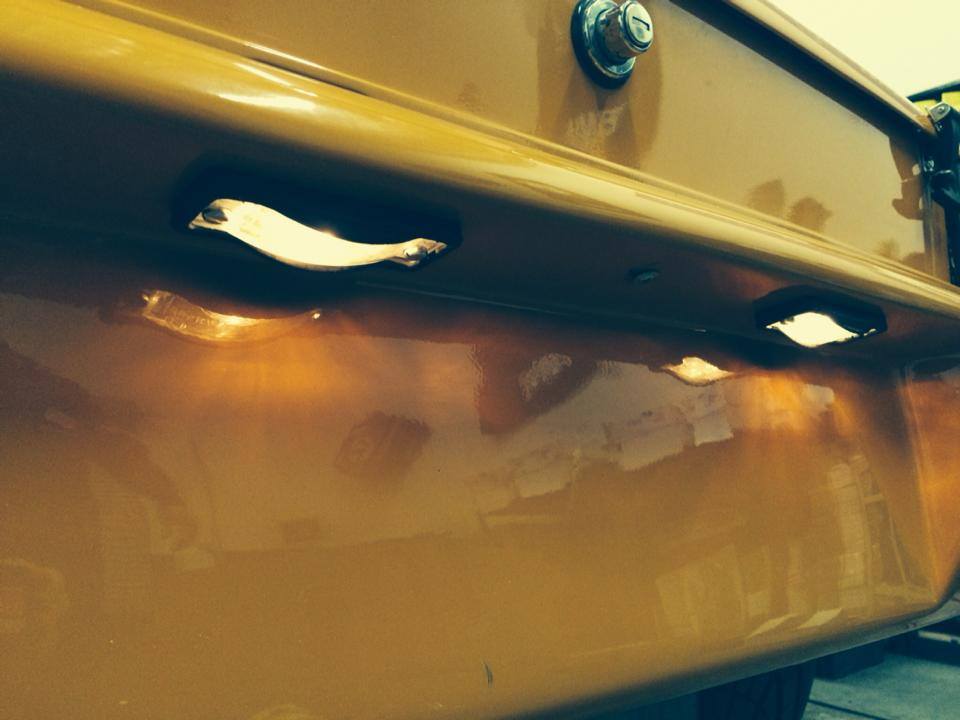

We installed the lights in the fiberglass bumper and hooked it up!

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-a-lga.xx.fbcdn.net-1110-1386462718.5.jpg)

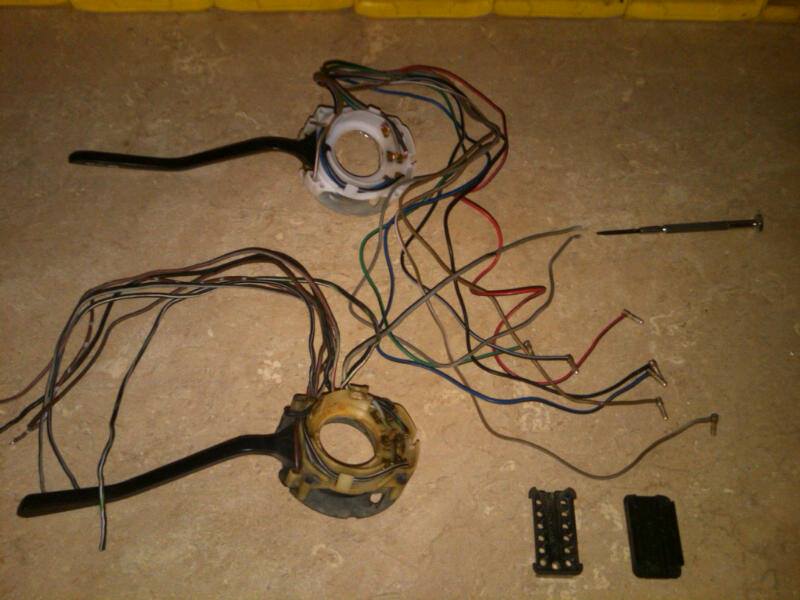

Guess what? Turn signals are still goofy. Switch! Guess what? More crimp-ons! We're pretty sure the melted wire came from a bad switch. We found the turn signal switch all metled. Time for a new switch but... NO MORE CRIMPS!!

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386462719.6.jpg)

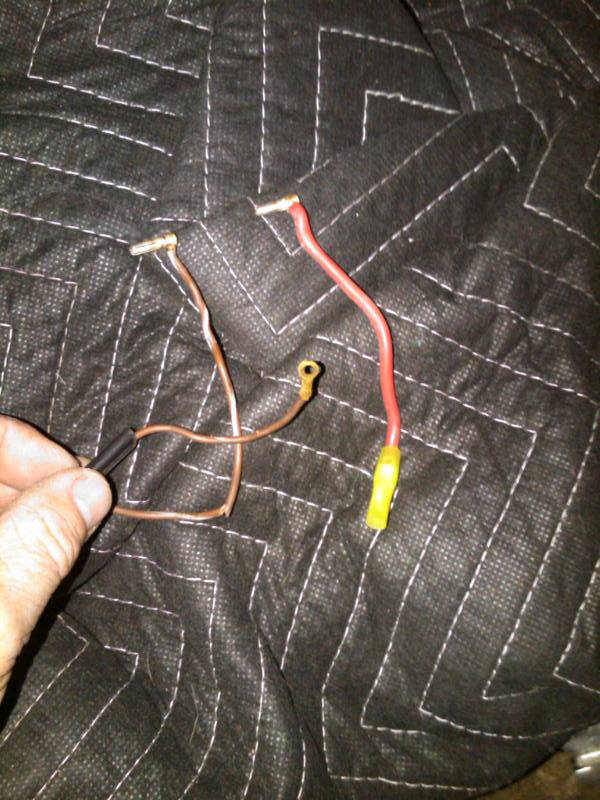

The hot lead pulled off in our hands and the horn ground was broken and frayed.

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-a-lga.xx.fbcdn.net-1110-1386462910.1.jpg)

We pulled the switch and tore into the 12-pin connector. Unsoldiered the factory pins and soldiered them on to the new switch. The worst part will be getting the cover back on.

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386462720.8.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Dec 7 2013, 06:38 PM
Post #12


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,783
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Wiring can be so time consuming. Nice car!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Dec 7 2013, 06:40 PM
Post #13


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains

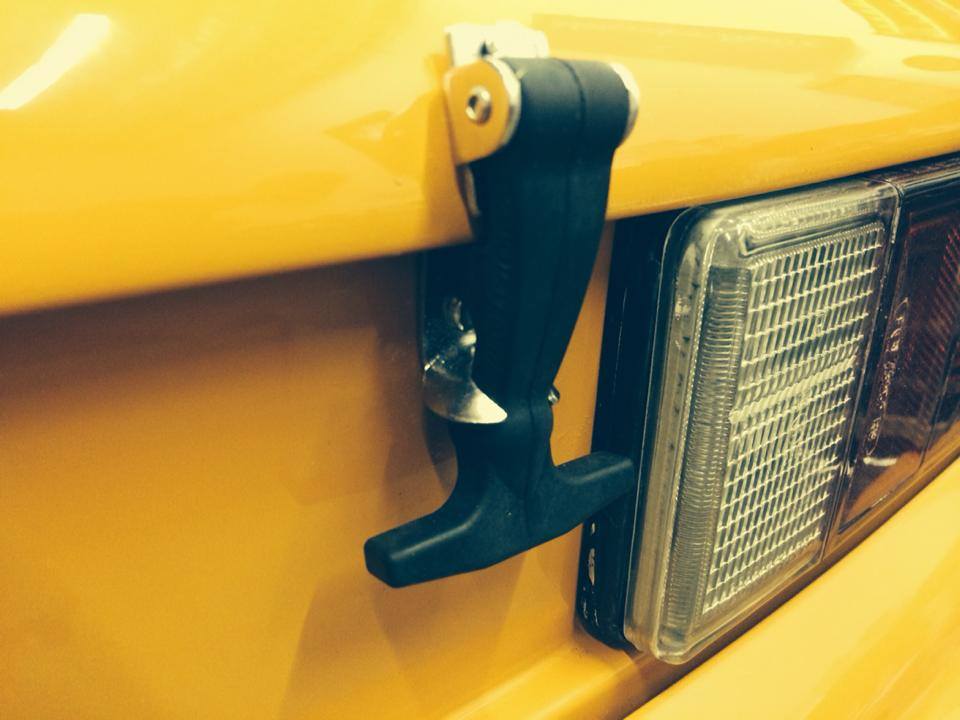

Rear hood tie-downs in place:

(IMG:http://www.914world.com/bbs2/uploads_offsite/scontent-b-lga.xx.fbcdn.net-1110-1386463213.1.jpg)

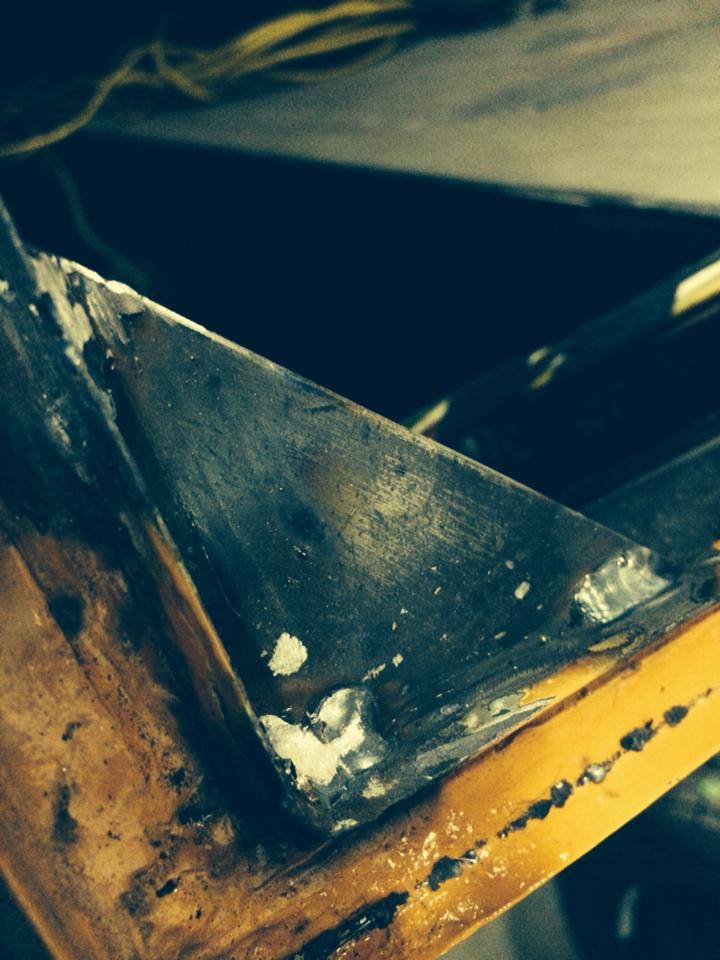

Hood pins are going on so we had to weld in new plates for the front trunk corners:
