> Another 914 goes under the knife, UPDATE: IT'S ALIVE....FINALLY
rick 918-S
post Feb 28 2014, 10:17 PM
Post #101


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
I have been working on this car but just finishing little details that don't really photo. I should have some photos in a couple days. Adding seam sealer and finishing welds. I have a patch cut for the front floor almost fit.

Still have to do the left side. (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
pete000
post Feb 28 2014, 11:16 PM
Post #102


Senior Member
***

Group: Members
Posts: 1,885
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States
Such impressive work !! (IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Mar 5 2014, 08:08 PM
Post #103


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

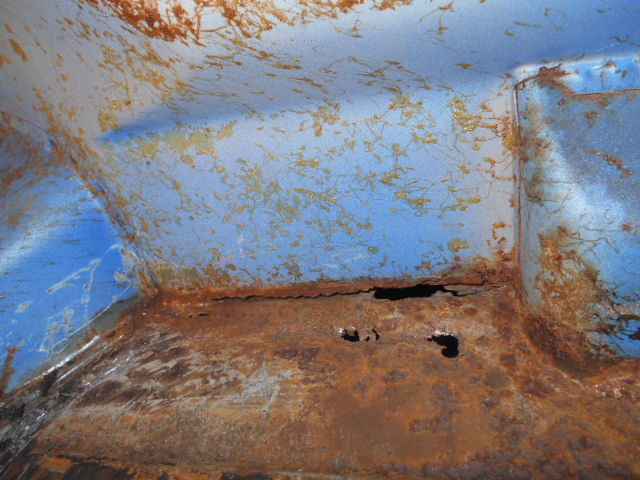

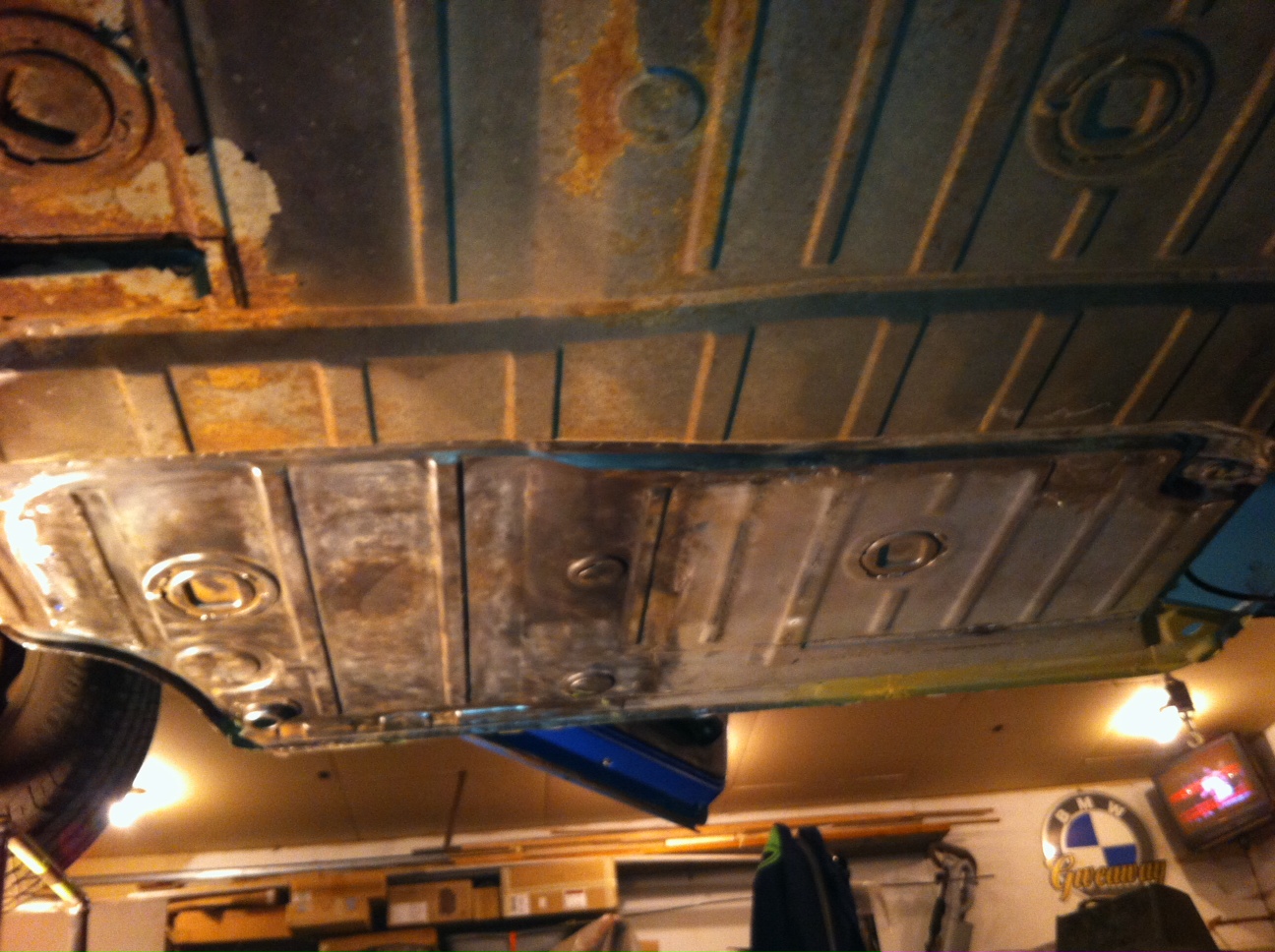

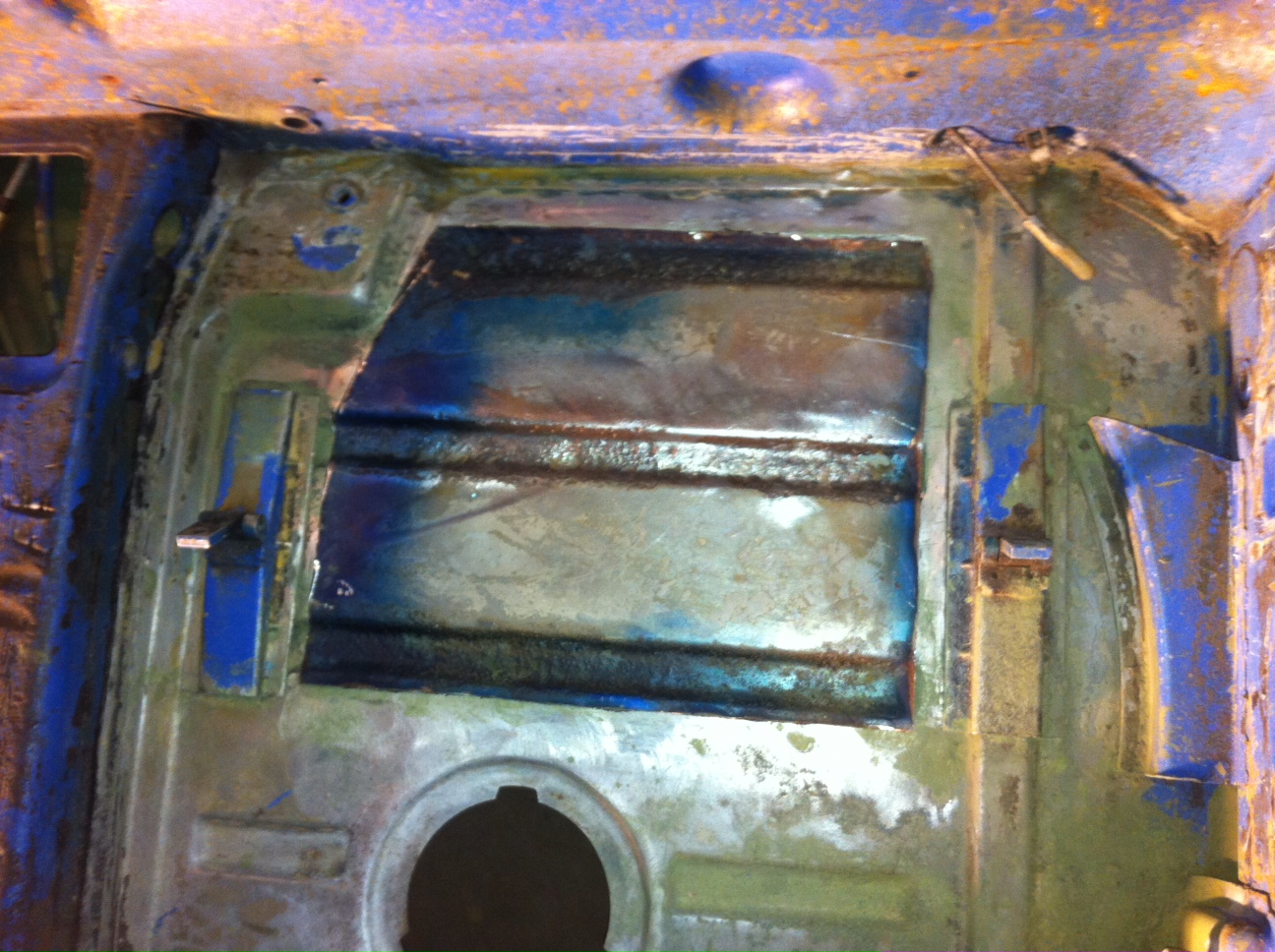

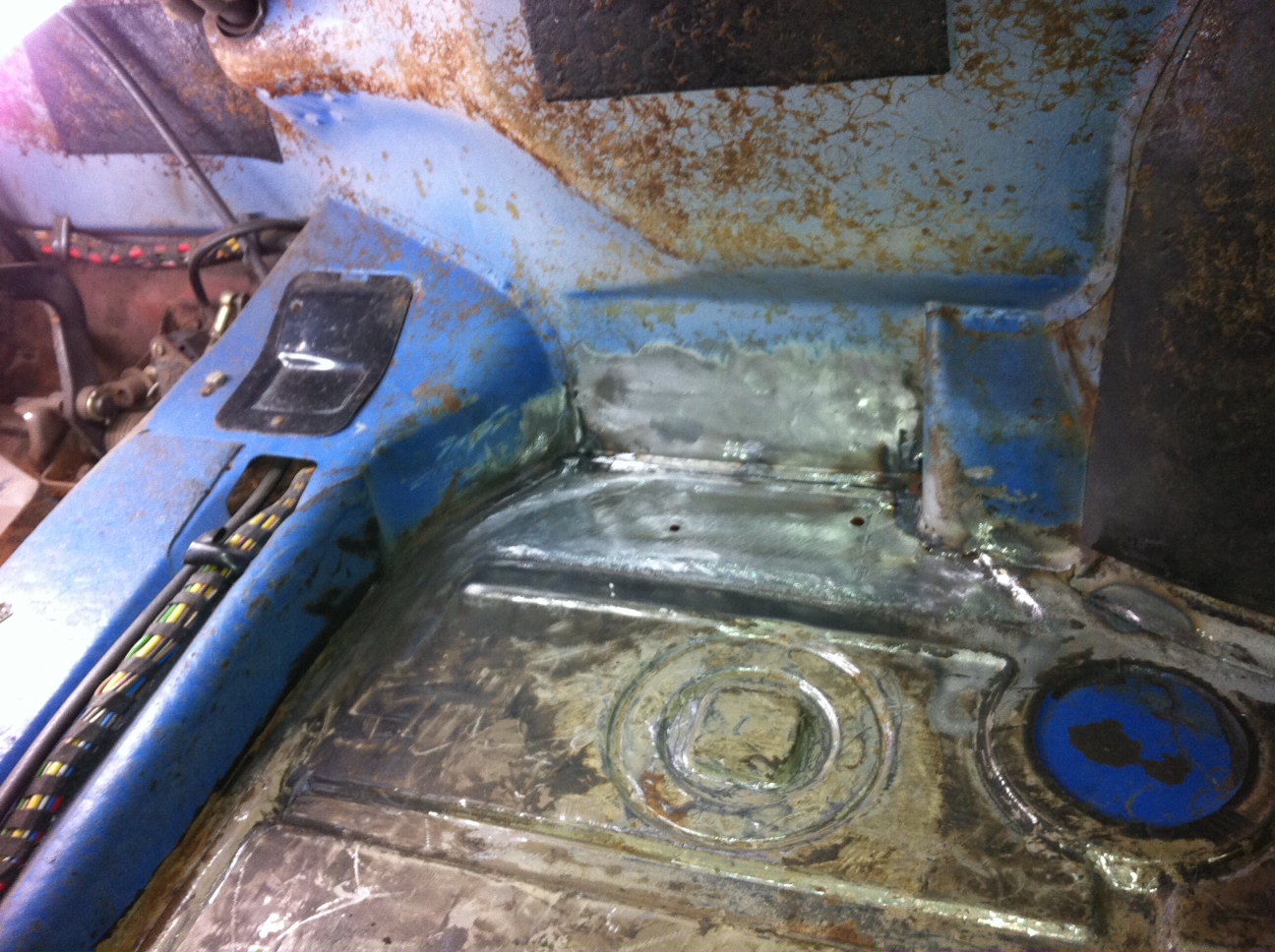

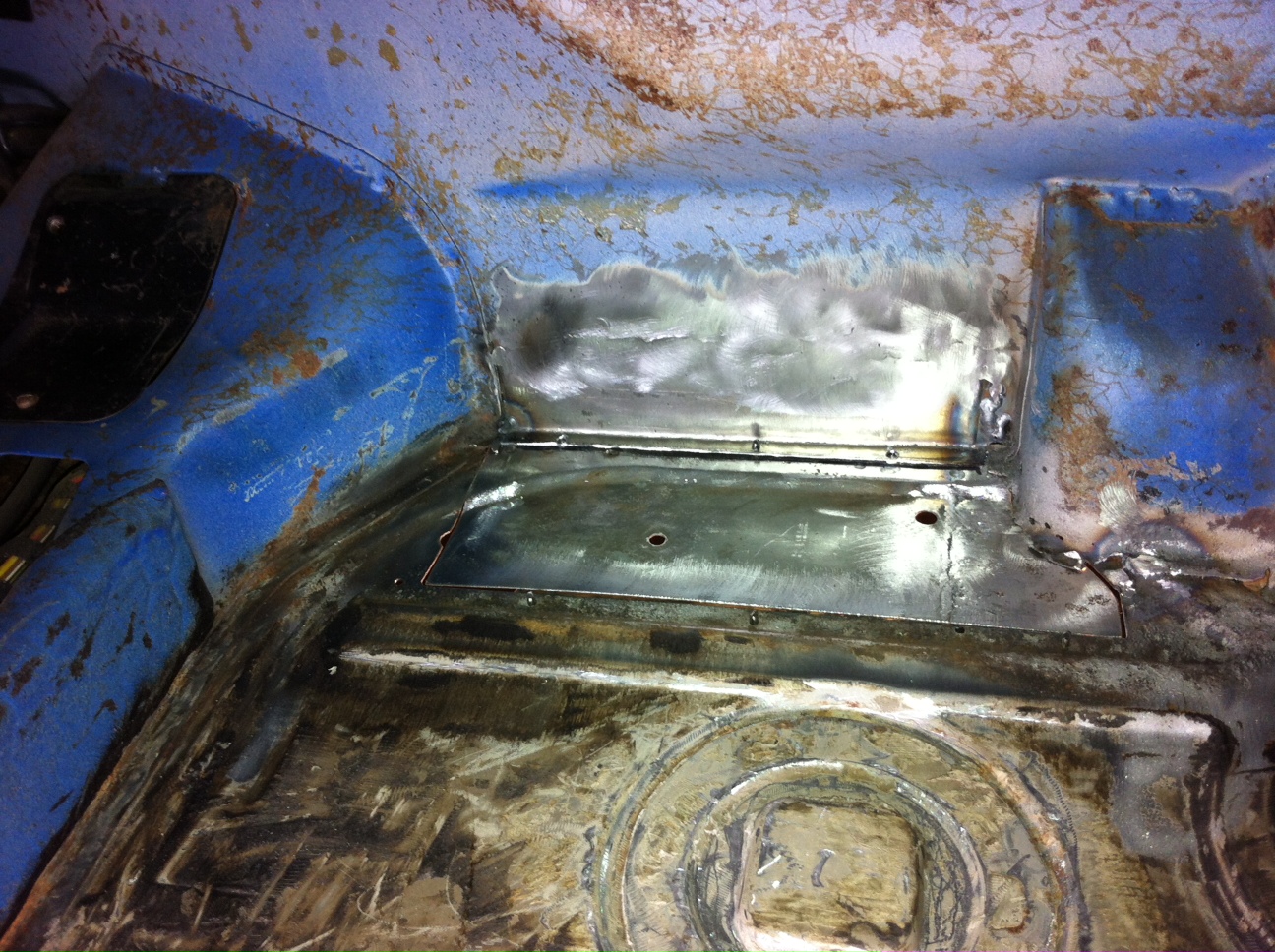

Couple progress photos. I have all the structural welding done of the right side. I am starting the left side this week.


Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
euro911
post Mar 6 2014, 09:45 AM
Post #104


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,858
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
Nice work, Rick (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post May 11 2014, 11:15 PM
Post #105


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
I was side tracked with a 911 project but I'm back on Ben's cars. Here are a couple photos of the progress.

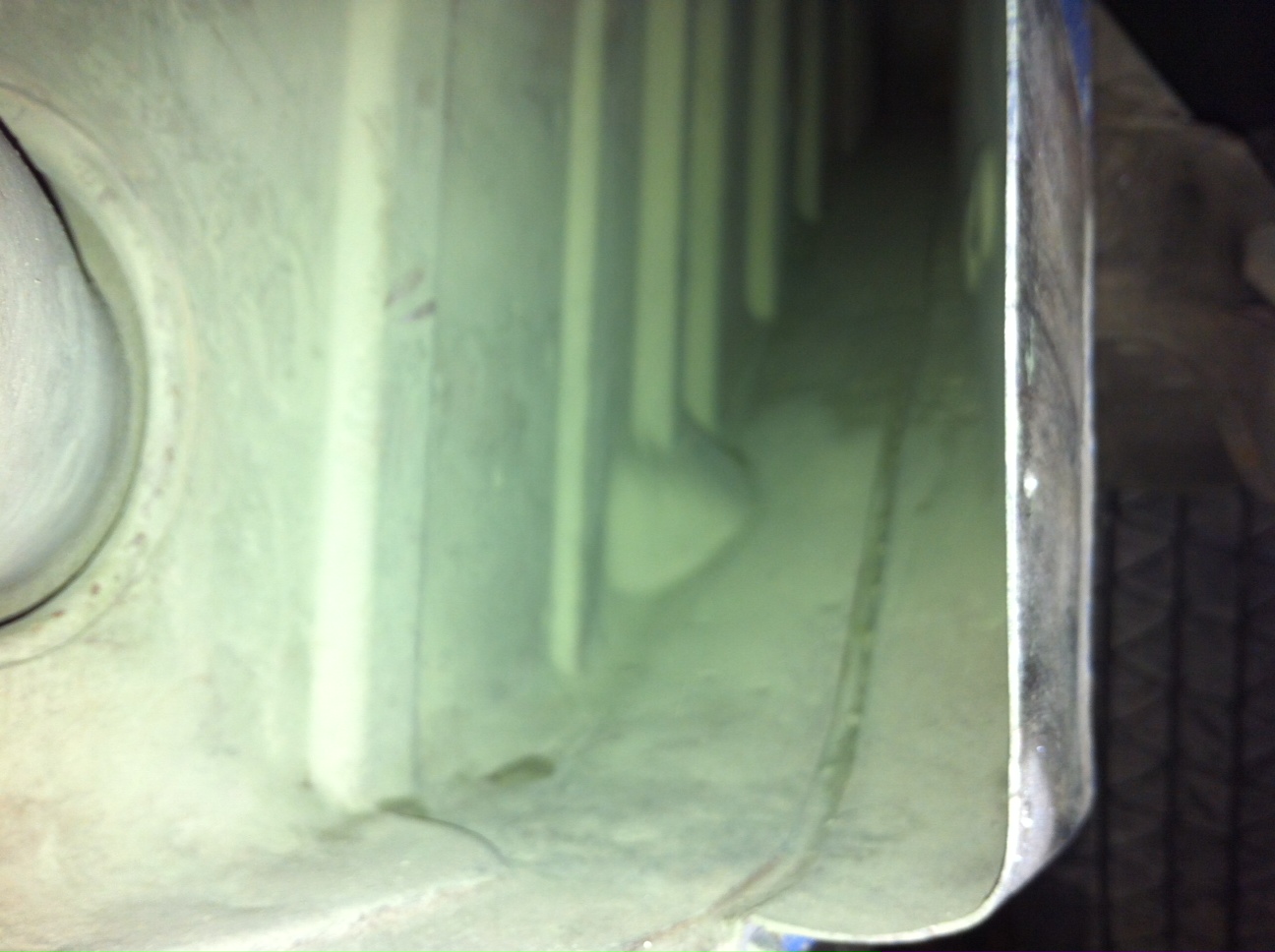

I cut out the left side jack post and examined the inside of the rail. It was really nice. I washed it out and clean it up then sprayed some Eastwood encapsulator inside and closed it up.

Attached Image

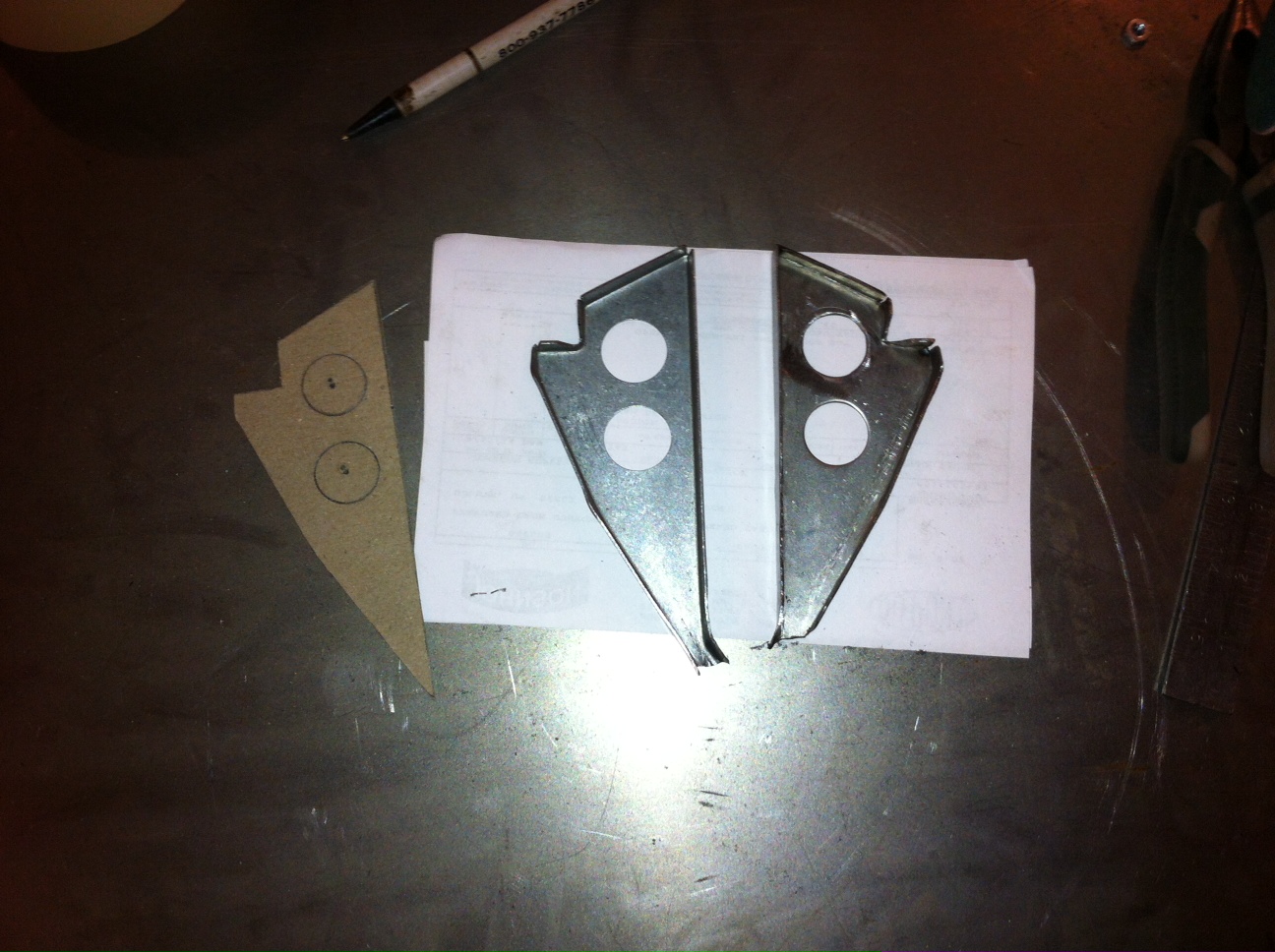

I only had to remove one triangle and the sill. When I went to install the triangle I realized the ones I have are for the right side. I called Restoration Design and was informed they only make the right side. I was told to face the flange backwards to install it on the left side. I couldn't bring myself to do that so I made a left side triangle.

Attached Image

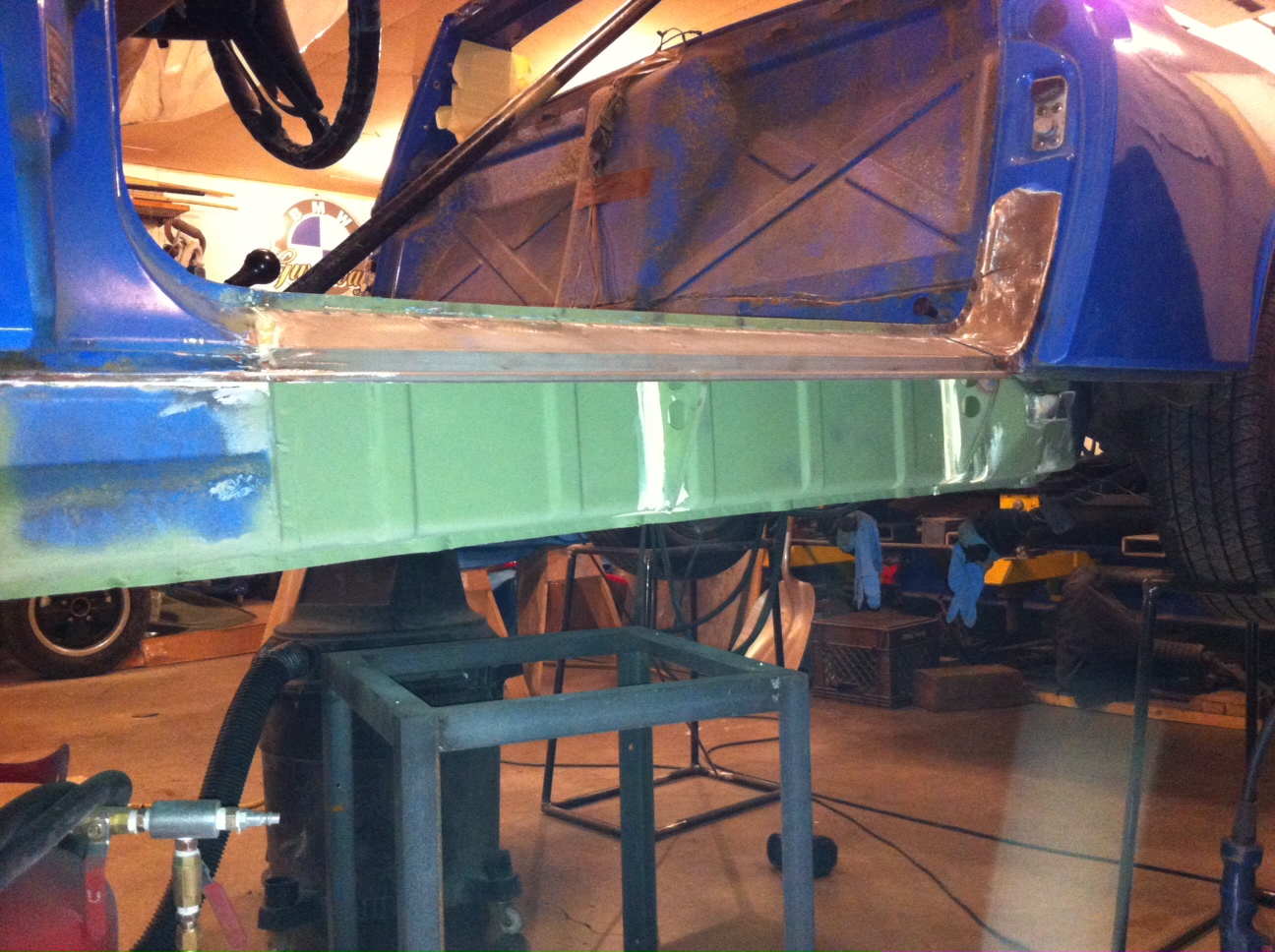

Here the jack post and long all closed up.

Attached Image

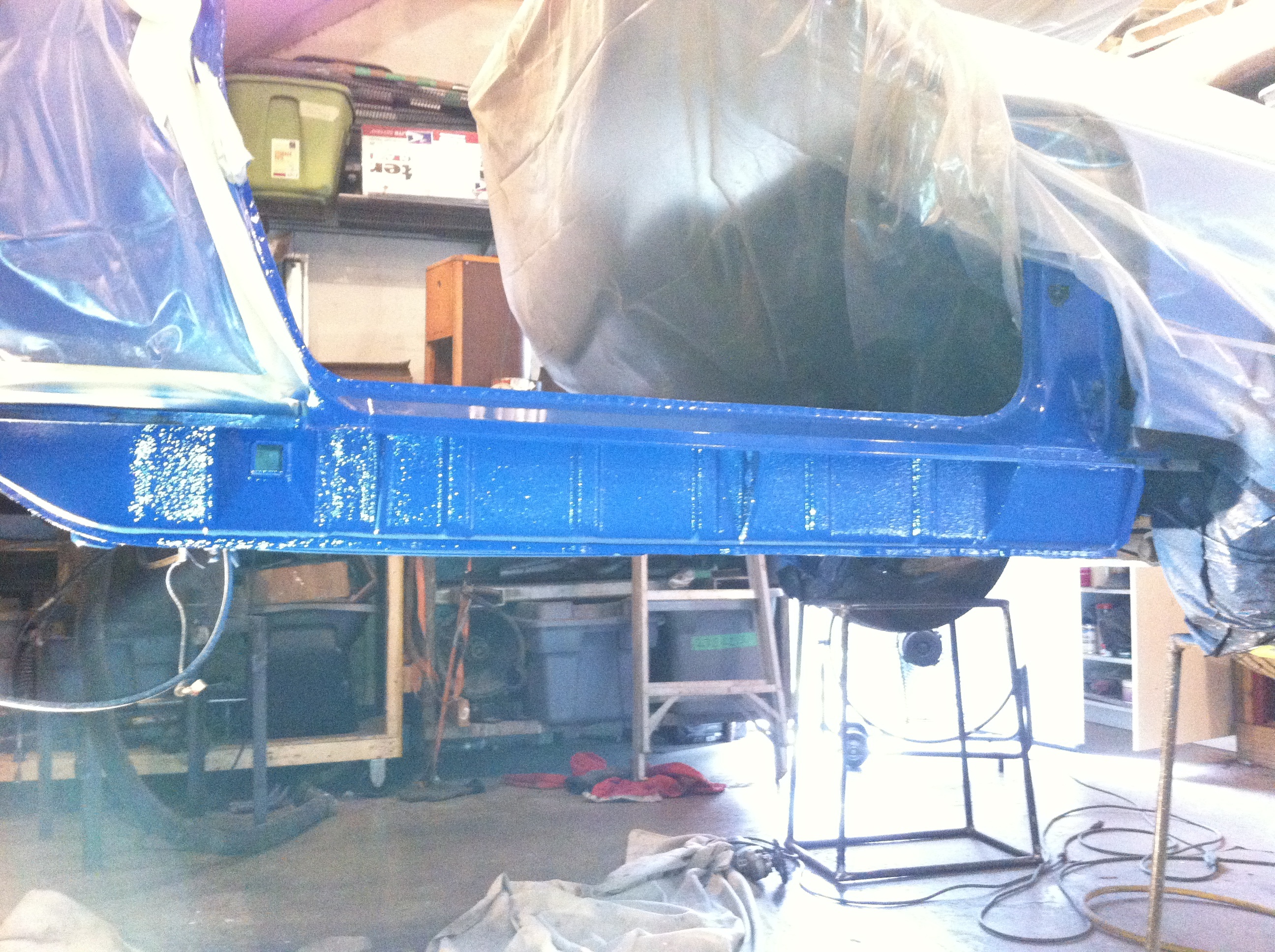

I'm only painting the areas I repaired for now. I'll have it finished this week.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
relentless
post May 12 2014, 01:32 PM
Post #106


Member
**

Group: Members
Posts: 350
Joined: 1-April 07
From: Oregon
Member No.: 7,636
This is a great educational thread to read! Your work is outstanding and attention to detail ditto. I especially appreciate that you are taking the time to make things right and not taking shortcuts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post May 12 2014, 06:57 PM
Post #107


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(relentless @ May 12 2014, 02:32 PM) *

This is a great educational thread to read! Your work is outstanding and attention to detail ditto. I especially appreciate that you are taking the time to make things right and not taking shortcuts.


Thank you. It has to be fun or I wouldn't do it. I was cleaning out the tunnel and found a penny. It's was under the shift console. I just had a feeling I should try to clean it off and check the date. I soaked it in some rust dissolver and gave it a quick buff so I could read the date. Sure enough...

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
abnrdo
post May 12 2014, 08:04 PM
Post #108


Member
**

Group: Members
Posts: 399
Joined: 24-September 04
From: Panama City, FL
Member No.: 2,820
Region Association: South East States
Nice work Rick! I love your wheel stands! How the heck did you get the car up there?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post May 12 2014, 08:26 PM
Post #109


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(abnrdo @ May 12 2014, 09:04 PM) *

Nice work Rick! I love your wheel stands! How the heck did you get the car up there?


I have a custom built floor jack. I'll take a photo of it when the car comes down.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
vintage914racer
post May 12 2014, 08:32 PM
Post #110


Member
**

Group: Members
Posts: 436
Joined: 28-December 03
From: Minneapolis, MN
Member No.: 1,473
Looking good, Rick. I'm looking forward to seeing the car this weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post May 14 2014, 07:09 PM
Post #111


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
The welding is officially finished. The only real issue with the left floor pan was some holes through the reinforcements under the driver seat. I was going to try to plug weld the holes but changed my mind last minute.

The passenger side floor was rusted through at the cross member and at the engine bulkhead. But the reinforcement ribs were clean as was the metal around them under the seat area. I recycled the good parts of the right side pan, made a repair panel and replace the left side under the seat.

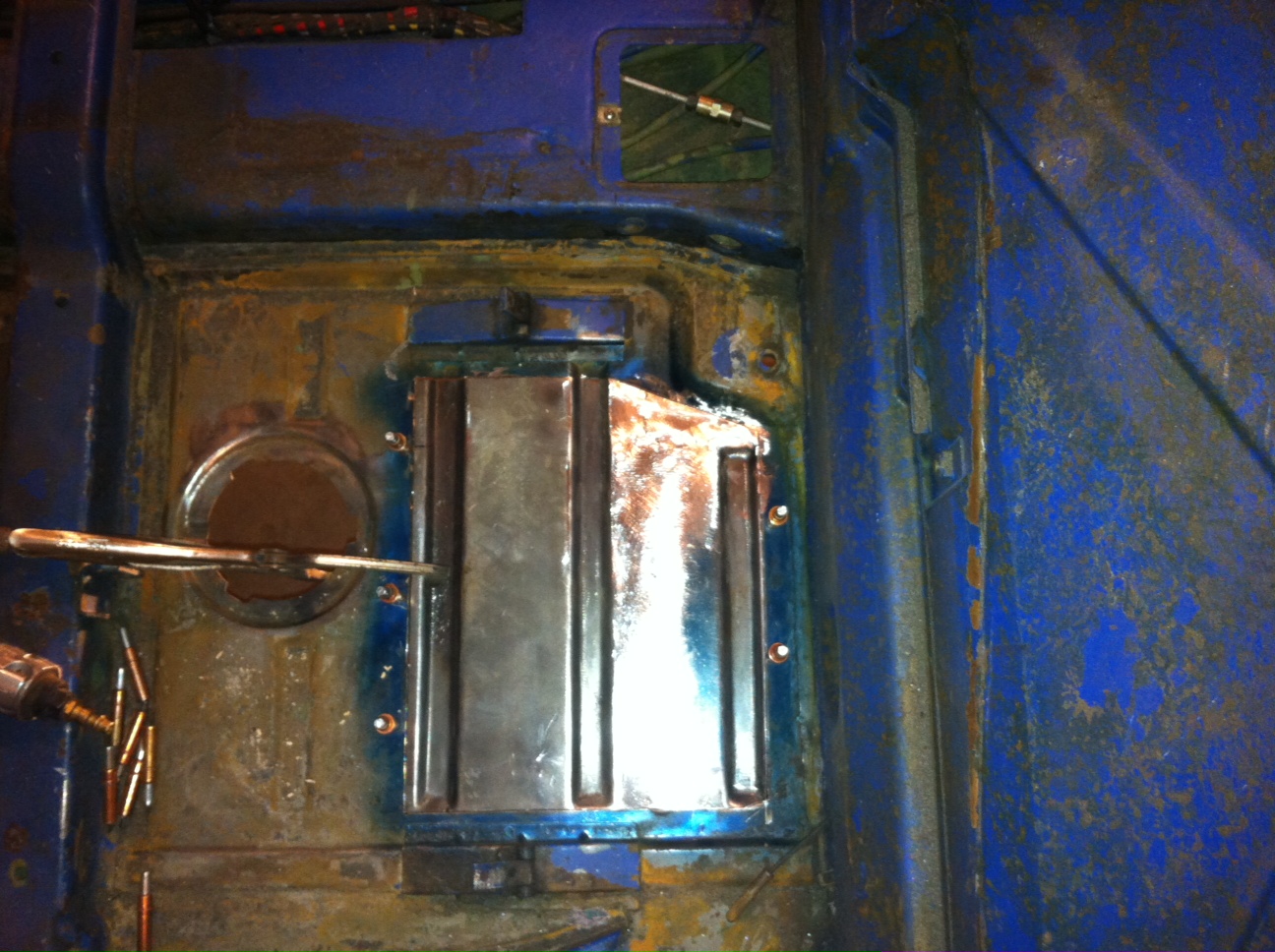

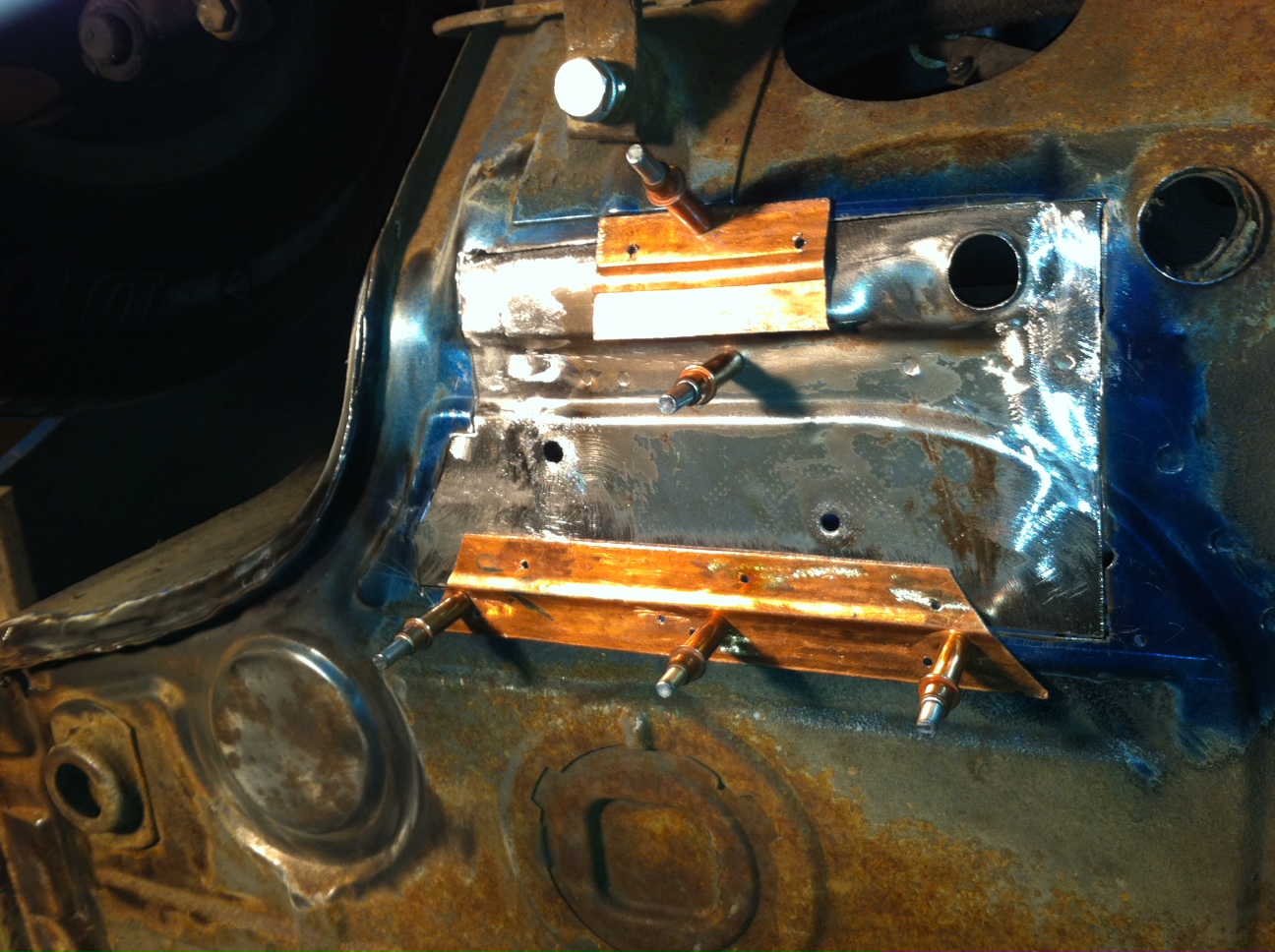

Here is the repair panel fit and ready to weld.

Attached Image

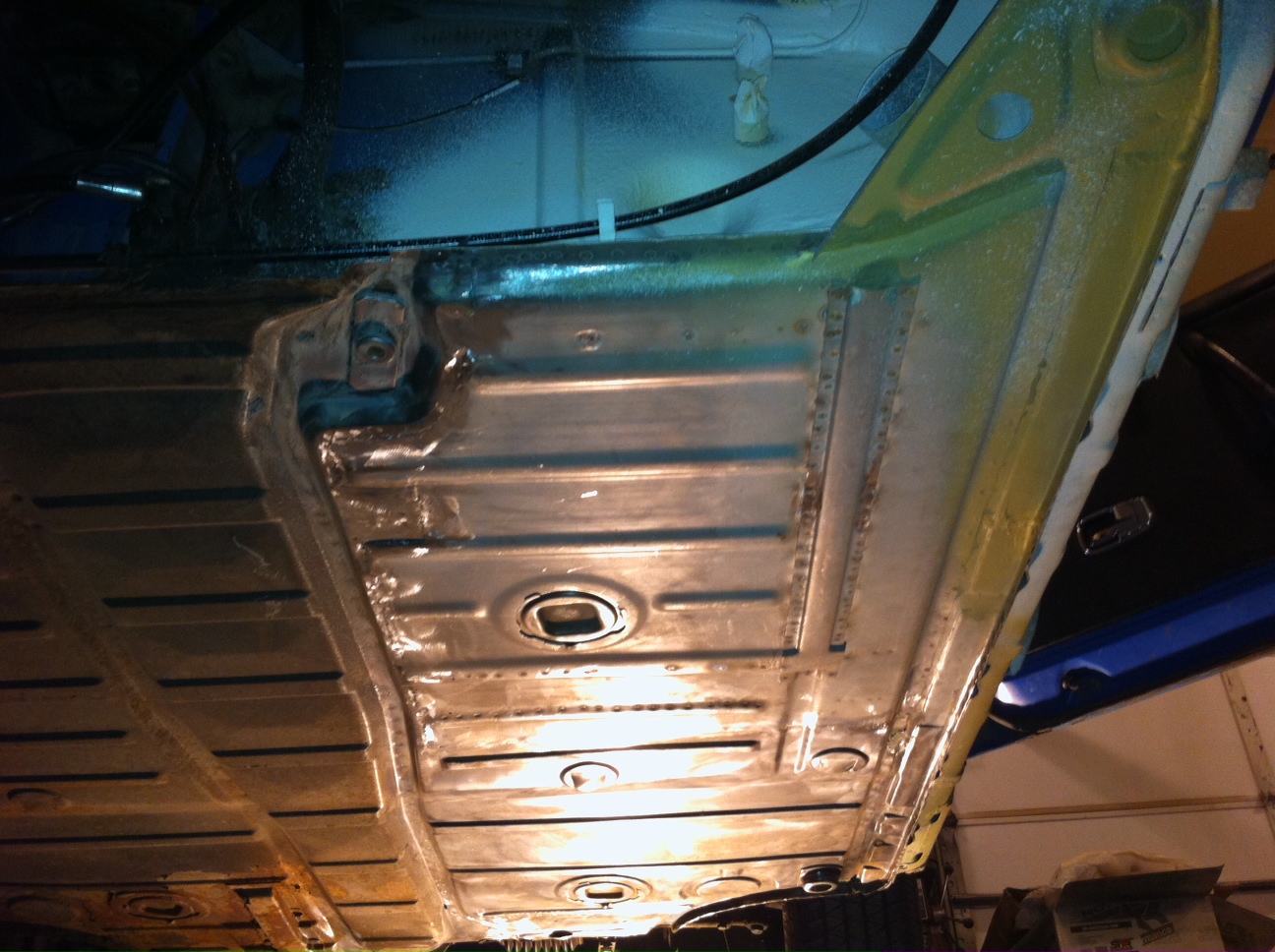

Here is the section I cut out laid over the finished repair.

Attached Image

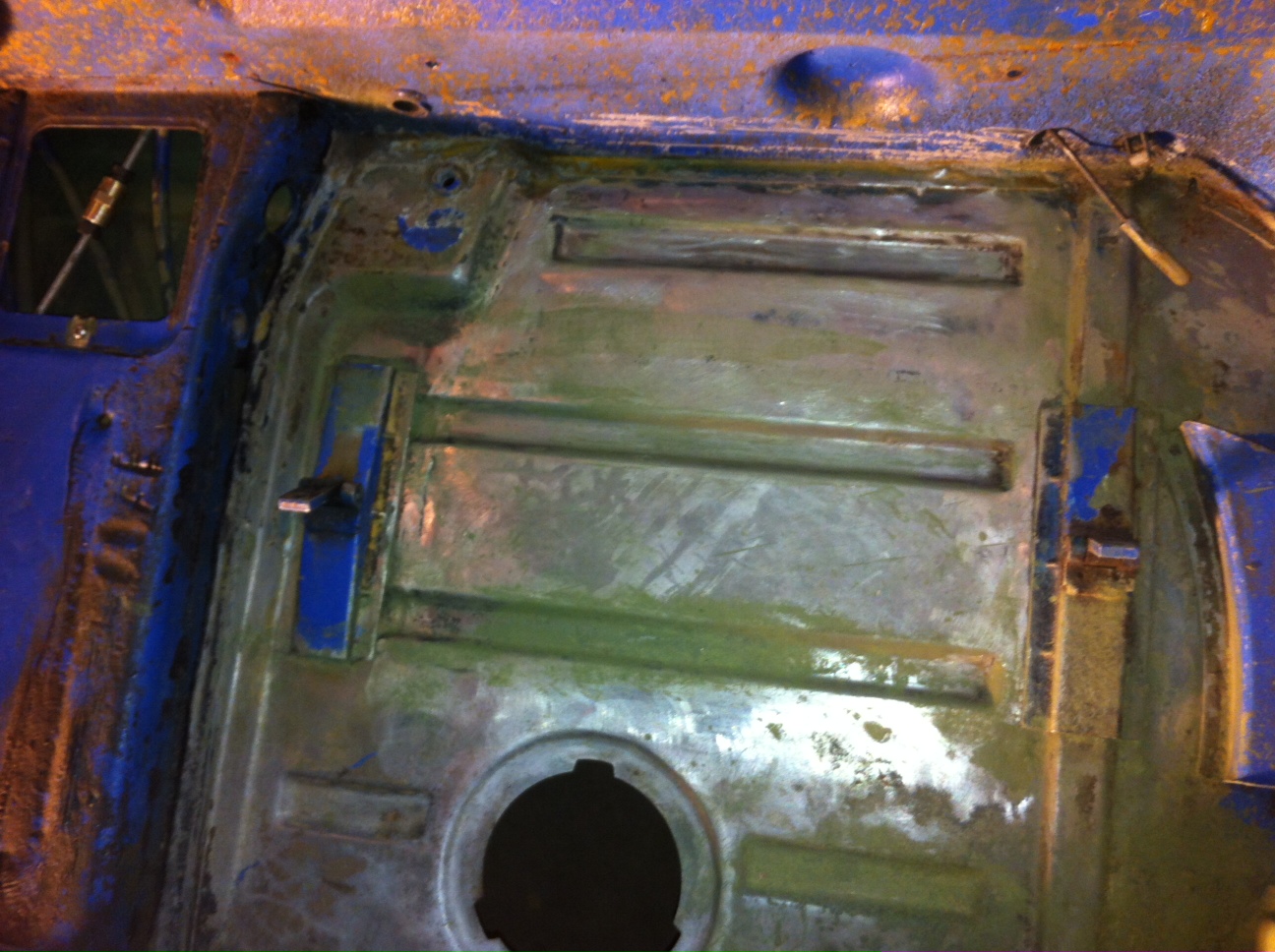

I used Eastwoods frame encapsulator spray in all the places I couldn't reach to clean. I used it in inside the longs, inside the tunnel, inside the lower engine bulkhead and inside the seat hinge stands. I flooded the areas and used my blow gun the move the excess. Then wiped up the excess. Here is the finished floor.

Attached Image

Still some work to do before paint.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post May 14 2014, 07:31 PM
Post #112


914 Wizard
**********

Group: Members
Posts: 10,638
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Lookin Good.. (IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmill
post May 14 2014, 07:57 PM
Post #113


Green Hornet
****

Group: Members
Posts: 2,449
Joined: 9-May 08
From: Racine, Wisconsin
Member No.: 9,038
Region Association: Upper MidWest
Beautiful work as usual!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete000
post May 14 2014, 09:54 PM
Post #114


Senior Member
***

Group: Members
Posts: 1,885
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States
Wow I wish the repair patches in mine were done as nicely as this one is!

Jealous ! (IMG:style_emoticons/default/hissyfit.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post May 16 2014, 08:26 AM
Post #115


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Almost ready for paint.

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post May 16 2014, 07:49 PM
Post #116


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
vintage914racer
post May 16 2014, 08:15 PM
Post #117


Member
**

Group: Members
Posts: 436
Joined: 28-December 03
From: Minneapolis, MN
Member No.: 1,473
QUOTE(rick 918-S @ May 16 2014, 05:49 PM) *

Attached Image

(IMG:style_emoticons/default/w00t.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post May 17 2014, 06:17 AM
Post #118


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
very nice. good work rick.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post May 17 2014, 07:25 AM
Post #119


Michael
**********

Group: Members
Posts: 10,094
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Just beautiful work as always. Adriatic Blue? Very nice color indeed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post May 17 2014, 06:08 PM
Post #120


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Your "lift" looks like a challenge to get a car up there...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
