 914.631.913.11, Foglight Lens, Clear, 1970-1974 |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
Posts in this area are restricted to the following format. If you have a general question, please post it in the Garage.
1. All new threads MUST be titled with a part number only. (i.e. 901.351.801.17)
2. Thread description should be an english description of the part. (i.e. Brake Dust Shields)
3. Replies to the thread are only restricted by pertinence. Some examples are original finish of the part (painted, cad plated, etc), common failures (cracking at the mount points), repair information or tips, pictures (stock or custom), upgrades, etc.
If you have any questions regarding the rules of this forum, please PM McMark.
  |
| orthobiz |
 Mar 30 2014, 06:46 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 1,757 Joined: 8-January 07 From: Cadillac, Michigan Member No.: 7,438 Region Association: Upper MidWest
 |
There are actually two kinds of early round lenses.

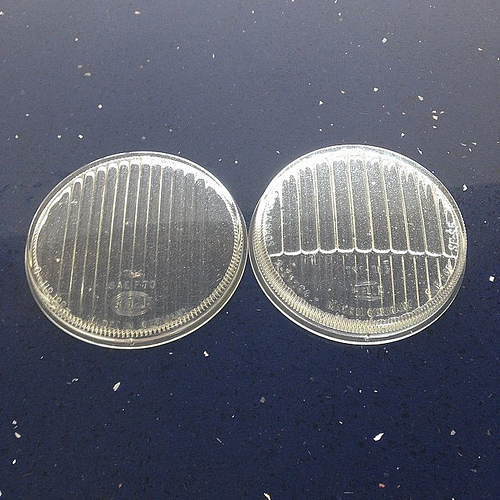

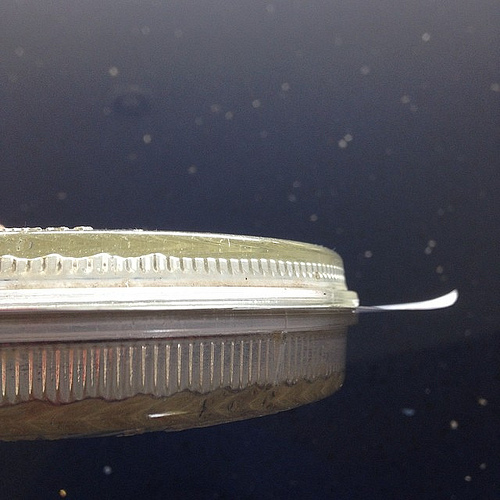

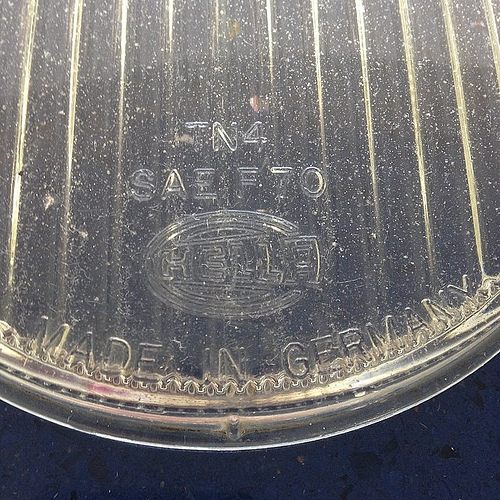

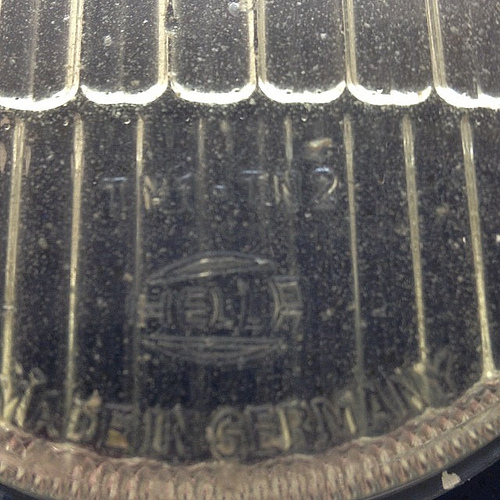

The earlier is thicker and has a horizontal marking below the equator. The later lens has vertical striations only. Early lens is on the right, later on the left: (IMG:http://www.914world.com/bbs2/uploads_offsite/farm4.staticflickr.com-7438-1396226791.1.jpg) The newer lens has Hella numbers (not pictured) 6-112129 (IMG:http://www.914world.com/bbs2/uploads_offsite/farm8.staticflickr.com-7438-1396226792.2.jpg) The older lens has Hella numbers (not pictured) 2-51764 with a prefix K8201 Note the horizontal feature in this closeup: (IMG:http://www.914world.com/bbs2/uploads_offsite/farm8.staticflickr.com-7438-1396226793.3.jpg) In this dramatic photo, the older lens is on the bottom and is noticeably thicker than the later lens. (IMG:http://www.914world.com/bbs2/uploads_offsite/farm4.staticflickr.com-7438-1396226793.4.jpg) The parts manual lists the main part number in the topic title as "light-diffusing lens, white, for additional headlamp." The accompanying diagram is confusing, however. Other numbers for the fog light specifically list a part number of 914.631.952.10, "light diffusing lens, white, for H3 + H1 fog headlamp, not for 914 1.8" and 914.631.930.10 has exactly the same description except is a yellow lens. Paul |
   |

|
| Thdbeat |
Jul 10 2016, 06:34 PM
Post
#2
|
|
Newbie Group: Members Posts: 26 Joined: 26-June 03 From: Phoenix AZ Member No.: 857 |
Hello Great examples.

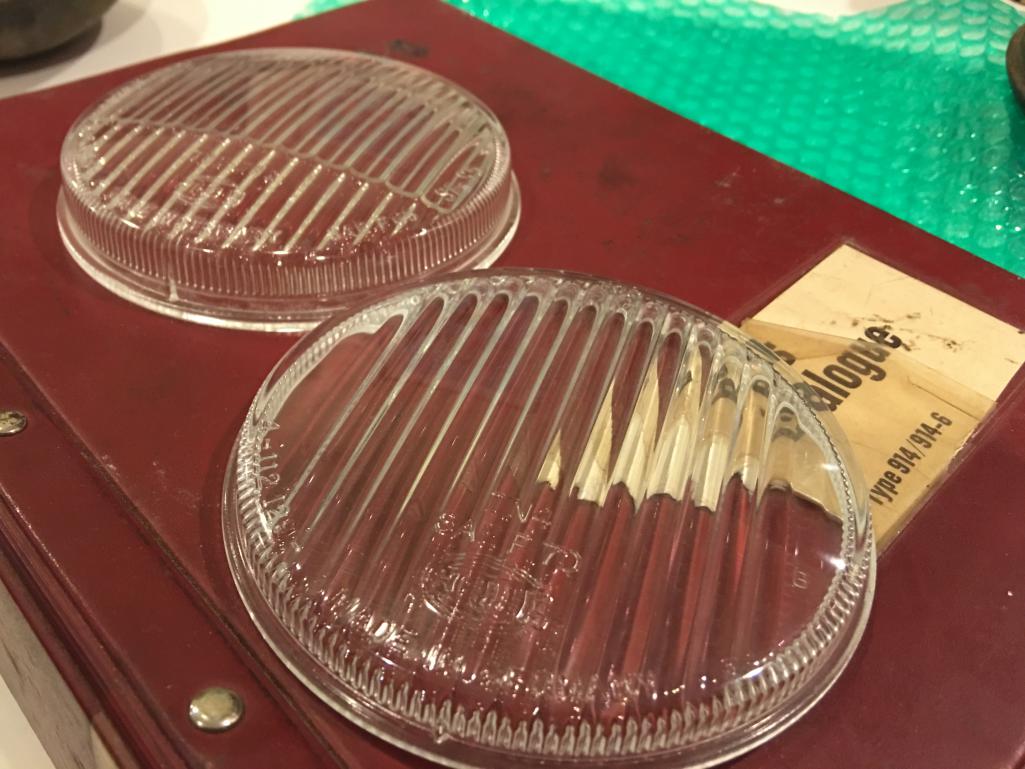

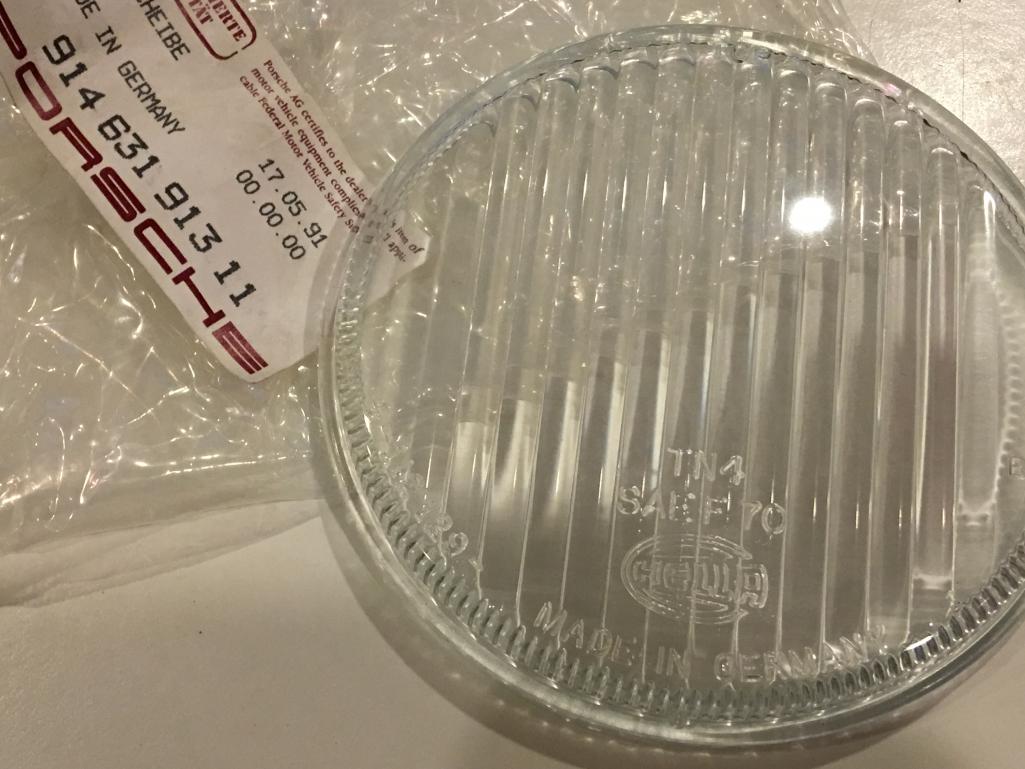

Here are some additional helpful pictures of my items. Erik Black Attached thumbnail(s)
|
|
|
|
|
