Anyone know which spade powers what?

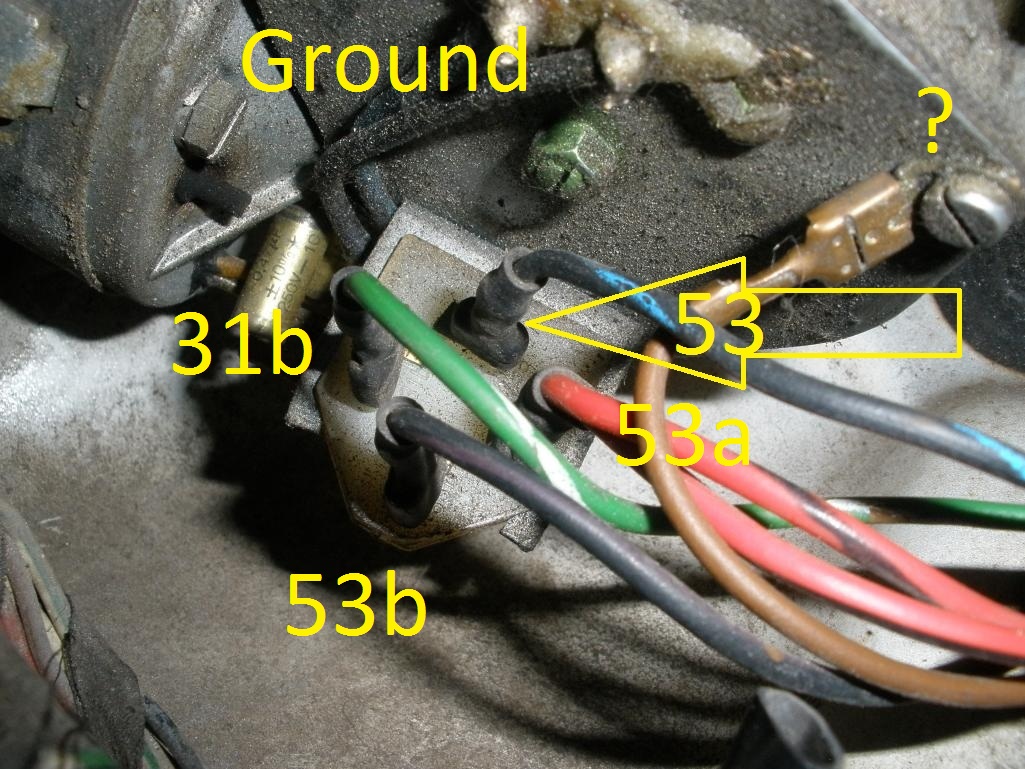

For instance, 53=powers/switches/grounds? High, low, parked? 53a=powers/switches/grounds? High, low, parked? 53b=powers/switches/grounds? High, low, parked? 31b=powers/switches/grounds? High, low, parked? And I've read that the poles are powered/switched/grounded differently between late and early wiper motors.... See picture. D  |
   |

|
| Mike Bellis |
Jul 4 2014, 11:45 AM
Post
#2
|
|
Resident Electrician Group: Members Posts: 8,346 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None
|
Red/Black - Hot from fuse
Green/White - Park Black/Blue - Slow Black/Violet - Fast Brown - Ground |
|
|
|
| HalfMoon |
Jul 4 2014, 12:08 PM
Post
#3
|
|
Senior Member Group: Members Posts: 828 Joined: 13-November 12 From: Shenandoah Junction, WV Member No.: 15,144 Region Association: MidAtlantic Region |
QUOTE(Mike Bellis @ Jul 4 2014, 01:45 PM)  Red/Black - Hot from fuse Green/White - Park Black/Blue - Slow Black/Violet - Fast Brown - Ground Thanks for that! I'm horribly color blind btw. Soooo, Red/Black - Hot from fuse=53a Green/White - Park=31b Black/Blue - Slow= Black/Violet - Fast= Brown - Ground=where I have a question mark in an arrow In theory I should be able to run a hotwire from the pins that operate the high/low for a test, right? As an aside the pins when tested to ground read 53a=1.900 ohm 53b=.500 ohm 31b=1.100 ohm 53= .340 ohm And I further assume the unit would have to be grounded for a hotwire test (if the test were being done for an un-installed motor)? |
|
|
|
| Mike Bellis |
Jul 4 2014, 12:11 PM
Post
#4
|
|
Resident Electrician Group: Members Posts: 8,346 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None
|
QUOTE(HalfMoon @ Jul 4 2014, 11:08 AM) QUOTE(Mike Bellis @ Jul 4 2014, 01:45 PM) Red/Black - Hot from fuse Green/White - Park Black/Blue - Slow Black/Violet - Fast Brown - Ground Thanks for that! I'm horribly color blind btw. Soooo, Red/Black - Hot from fuse=53a Green/White - Park=31b Black/Blue - Slow= 53 Black/Violet - Fast= 53b Brown - Ground=where I have a question mark in an arrow In theory I should be able to run a hotwire from the pins that operate the high/low for a test, right? As an aside the pins when tested to ground read 53a=1.900 ohm 53b=.500 ohm 31b=1.100 ohm 53= .340 ohm And I further assume the unit would have to be grounded for a hotwire test (if the test were being done for an un-installed motor)? I fixed it |
|
|
|
| Mike Bellis |
Jul 4 2014, 12:14 PM
Post
#5
|
|
Resident Electrician Group: Members Posts: 8,346 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None
|

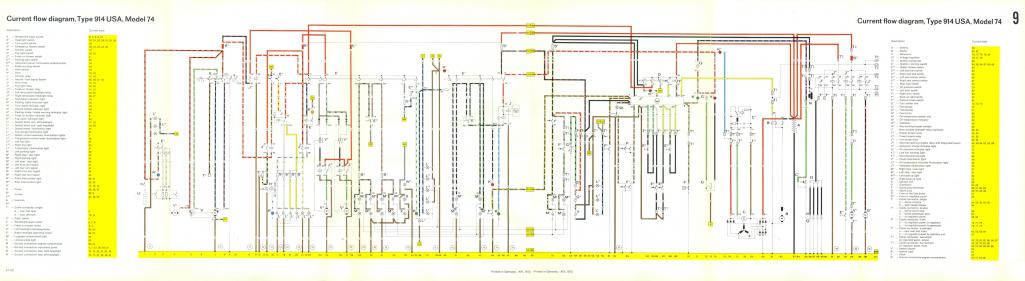

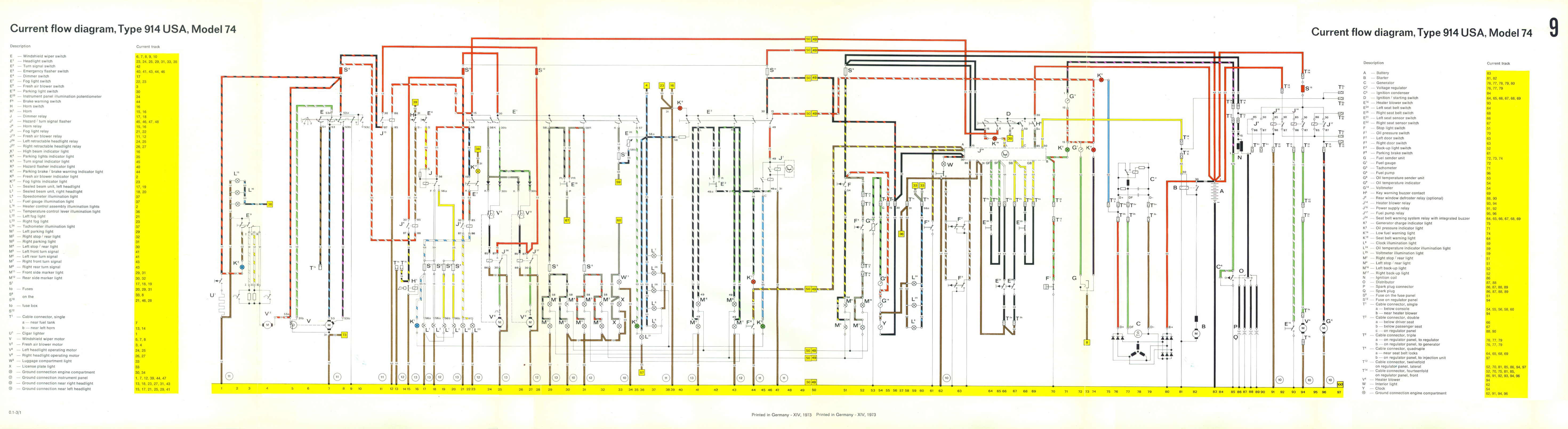

Use this diagram. It is shown in the OFF position.
 |
|
|
|
| HalfMoon |
Jul 4 2014, 01:58 PM
Post
#6
|
|
Senior Member Group: Members Posts: 828 Joined: 13-November 12 From: Shenandoah Junction, WV Member No.: 15,144 Region Association: MidAtlantic Region |
QUOTE(Mike Bellis @ Jul 4 2014, 02:11 PM) QUOTE(HalfMoon @ Jul 4 2014, 11:08 AM) QUOTE(Mike Bellis @ Jul 4 2014, 01:45 PM) Red/Black - Hot from fuse Green/White - Park Black/Blue - Slow Black/Violet - Fast Brown - Ground Thanks for that! I'm horribly color blind btw. Soooo, Red/Black - Hot from fuse=53a Green/White - Park=31b Black/Blue - Slow= 53 Black/Violet - Fast= 53b Brown - Ground=where I have a question mark in an arrow In theory I should be able to run a hotwire from the pins that operate the high/low for a test, right? As an aside the pins when tested to ground read 53a=1.900 ohm 53b=.500 ohm 31b=1.100 ohm 53= .340 ohm And I further assume the unit would have to be grounded for a hotwire test (if the test were being done for an un-installed motor)? I fixed it Thanks for that! Using the data I tested my spare both high and low work. A lil concerned about 53a only pulling 1.9 ohm on the spare :-( But it ought to work. My current wiper motor is zero ohm at 53a so that ain't gonna flush. Thanks again :-) |
|
|
|
|
