> New project:Adapting motorcycle Throttle Bodies, this should be "interesting" :)
Mueller
post Jan 21 2005, 01:53 PM
Post #1


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
The cost of aftermarket throttle bodies is way up there, the bottom of scale we have the CB Performance units which are about $250 each and the rest are easily 2X that about.....

so I swung by the motorcycle salvage yard in Fremont today and picked up these beauties (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

45mm at the butterfly....they taper down to 42.5mm at the bottom...

includes a nice TPS and injectors...I doubt the injectors flow enough, but who knows, I'll find out once I get the specs....

no idea of what bike they came off of yet.....price was $125

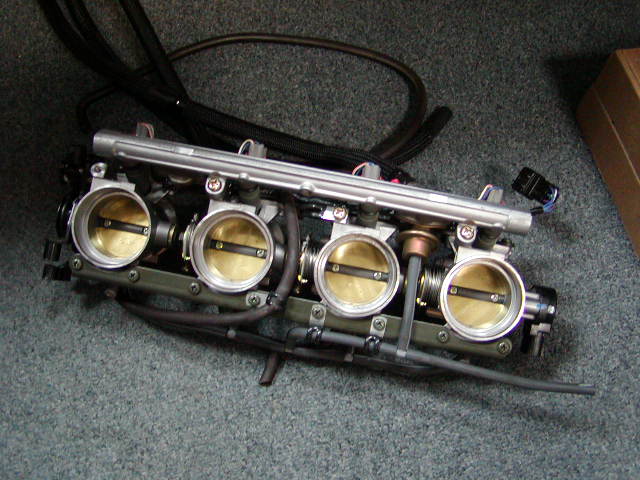

top view:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 21 2005, 01:53 PM
Post #2


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
and a view of the bottom of the assembly:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 21 2005, 01:55 PM
Post #3


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Dude! (IMG:http://www.914world.com/bbs2/html/emoticons/aktion035.gif) BTW that second picture looks like sir andy took it. (IMG:http://www.914world.com/bbs2/html/emoticons/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 21 2005, 01:58 PM
Post #4


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(rick 918-S)
Dude! (IMG:style_emoticons/default/aktion035.gif) BTW that second picture looks like sir andy took it. (IMG:style_emoticons/default/happy11.gif)

i had to hurry up and take the picture, I heard our CEO walking down the hallway (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 21 2005, 02:00 PM
Post #5


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE (Mueller @ Jan 21 2005, 11:58 AM)
QUOTE (rick 918-S @ Jan 21 2005, 12:55 PM)
Dude!  :headbanger:  BTW that second picture looks like sir andy took it. (IMG:http://www.914world.com/bbs2/html/emoticons/happy11.gif)

i had to hurry up and take the picture, I heard our CEO walking down the hallway (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

(IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif) That's funny! (IMG:http://www.914world.com/bbs2/html/emoticons/lol2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 21 2005, 02:34 PM
Post #6


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
it's lunch time now, no need to hide my projects (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

wow, the new throttle bodies sure come close to matching the centerline of the manifolds.......

centerline to centerline measurements:

Top of manifold = 90.78mm

bottom of manifold (mating surface to head) = 86.45mm

Throttle bodies = 89.85mm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 21 2005, 02:35 PM
Post #7


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
opps...here is a picture:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Jan 21 2005, 02:42 PM
Post #8


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Mike

Are those grooves in the TBs for O-rings. Maybe you could cut a seat in the manifolds and seal them with an O-ring. Use the studs for some sort of clamping rig. Then maybe some selective port matching.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Jan 21 2005, 02:54 PM
Post #9


Village Idiot
*****

Group: Members
Posts: 8,484
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Using bike TB's like this is a great idea really. A guy at work here is using them to put a stand along on his RX7. They are sort of universal in design. I like it and hope you get something put together! I would love to see it! (IMG:http://www.914world.com/bbs2/html/emoticons/rocking nana.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Jan 21 2005, 03:03 PM
Post #10


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
I have a TB on my 2.0 that is definitely not stock, but haven't bothered to see who or what. Maybe I'll take a pic of it and post it (It makes my car faster (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif) )
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lapuwali
post Jan 21 2005, 03:40 PM
Post #11


Not another one!
****

Group: Benefactors
Posts: 4,526
Joined: 1-March 04
From: San Mateo, CA
Member No.: 1,743
QUOTE(DNHunt)
Mike

Are those grooves in the TBs for O-rings. Maybe you could cut a seat in the manifolds and seal them with an O-ring. Use the studs for some sort of clamping rig. Then maybe some selective port matching.

Dave

Not really an O-ring (putting on my "worked on bikes for 15 years" hat). Bike intake to head manifolds are usually just rubber (or rubber-like) castings, with a lip machined into the inside to catch that groove. I haven't worked on bikes since EFI became commonplace. Those TBs look exactly like a typical set of carbs on any of a number of inline-4 bikes. There are (were) only two manufacturers of carbs on the Japanese bikes: Mikuni and Keihin. I'd be willing to bet money that one of those manufacturers made these TBs.

It would be interesting to know what the flow rate on those injectors are. I'd be willing to bet a set of injectors from a 750-1000cc bike engine would actually be adequate for a stock-ish Type IV. Figure 120-150hp for the bike engine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 21 2005, 03:50 PM
Post #12


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (lapuwali @ Jan 21 2005, 02:40 PM)
QUOTE (DNHunt @ Jan 21 2005, 12:42 PM)
Mike

Are those grooves in the TBs for O-rings. Maybe you could cut a seat in the manifolds and seal them with an O-ring. Use the studs for some sort of clamping rig. Then maybe some selective port matching.

Dave

Not really an O-ring (putting on my "worked on bikes for 15 years" hat). Bike intake to head manifolds are usually just rubber (or rubber-like) castings, with a lip machined into the inside to catch that groove. I haven't worked on bikes since EFI became commonplace. Those TBs look exactly like a typical set of carbs on any of a number of inline-4 bikes. There are (were) only two manufacturers of carbs on the Japanese bikes: Mikuni and Keihin. I'd be willing to bet money that one of those manufacturers made these TBs.

It would be interesting to know what the flow rate on those injectors are. I'd be willing to bet a set of injectors from a 750-1000cc bike engine would actually be adequate for a stock-ish Type IV. Figure 120-150hp for the bike engine.

James....yep Mikuni throttle bodies.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Jan 21 2005, 04:05 PM
Post #13


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
I have done this twice! It works...

That size is perfect for the size engine you are doing..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Jan 21 2005, 04:28 PM
Post #14


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
can't you also get TB's with slide valves too? woohoo!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bondo
post Jan 21 2005, 04:43 PM
Post #15


Practicing my perpendicular parking
****

Group: Members
Posts: 4,277
Joined: 19-April 03
From: Los Osos, CA
Member No.: 587
Region Association: Central California
Mueller: What are all of your projects? You seem to have quite a few... Will they all fit in one post? (IMG:http://www.914world.com/bbs2/html/emoticons/lol2.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jan 21 2005, 04:46 PM
Post #16


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,943
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
So mike are you considering breaking up the bank and appling a pair to each side (more work) or modifing runners for a central location & maintaing the linkage and single TPS?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stephane
post Jan 21 2005, 04:46 PM
Post #17


Newbie
*

Group: Members
Posts: 45
Joined: 13-February 04
From: New Brunswick, Canada
Member No.: 1,653
Those look good. What type of injection system are you gonna use with these?


Stephane
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 21 2005, 09:44 PM
Post #18


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
(IMG:http://www.914world.com/bbs2/html/emoticons/icon_bump.gif) I don't really have anything to say, except Cool!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 28 2005, 05:03 PM
Post #19


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Just got back from the local cycle shop...found out my new throttle bodies came off an '02 or '03 Kawasaki Ninja ZX-12R...rated at 165 horsepower (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

Who knows, the fuel injectors might just work on my new motor afterall....


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 28 2005, 06:32 PM
Post #20


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
You should just use the whole Ninja motor! (IMG:http://www.914world.com/bbs2/html/emoticons/happy11.gif) not!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
