> New project:Adapting motorcycle Throttle Bodies, this should be "interesting" :)
rick 918-S
post Mar 24 2006, 04:56 PM
Post #61


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(speedster356 @ Mar 24 2006, 02:45 PM)
I have heard that the original motorcycle mounting is the same bolt spacing as an IDF? I mate has used a set of Suzuki Hyabusa bodies on his Alfa 2.0ltr powered sports car with great success.

(IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 24 2006, 05:01 PM
Post #62


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(speedster356 @ Mar 24 2006, 03:45 PM)
I have heard that the original motorcycle mounting is the same bolt spacing as an IDF? I mate has used a set of Suzuki Hyabusa bodies on his Alfa 2.0ltr powered sports car with great success.

could be...it seems there is a "standard" 90mm bore to bore spacing for a lot of the throttle bodies
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 2 2006, 12:52 AM
Post #63


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

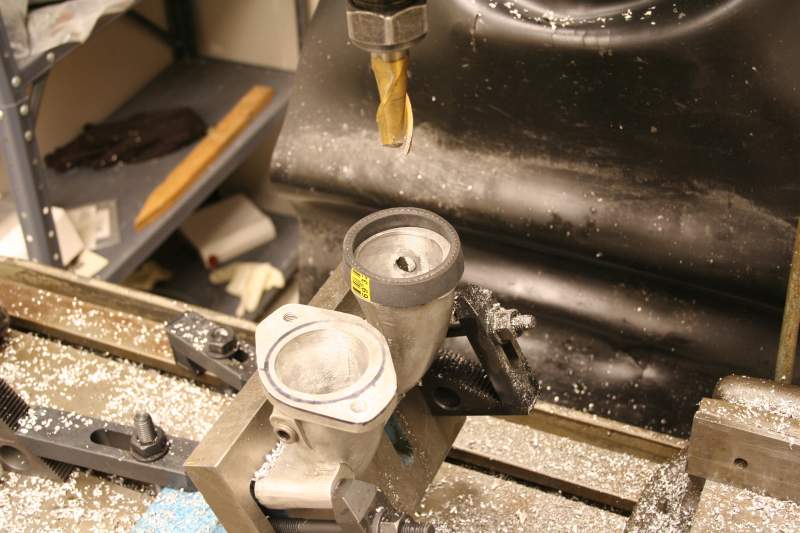

progress today...I decided no welding or brazing and no adapter plate....

I simply machined the top of the manifold and will attach the throttle body directly to it with a hose and clamp...this is a similar method to how the t/bs are held on on the motorcycle


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 2 2006, 12:52 AM
Post #64


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

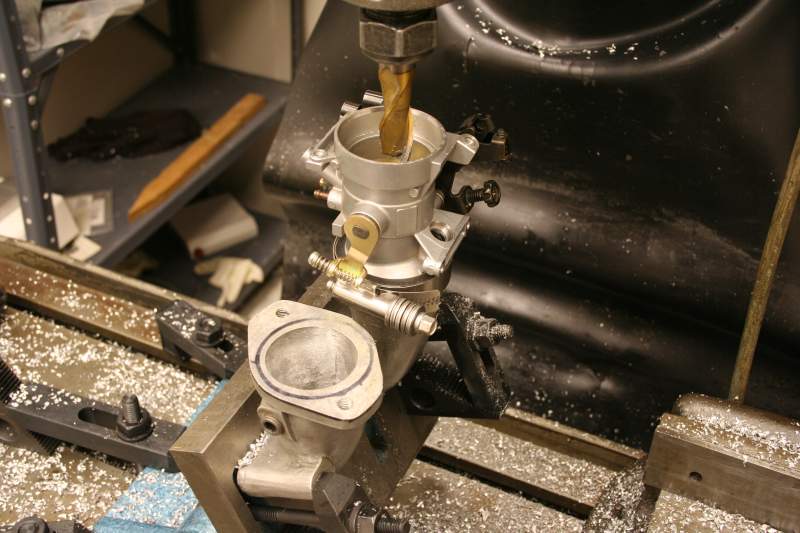

with hose section


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Apr 2 2006, 12:54 AM
Post #65


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
nicely done mike!

why did you choose the "shorty manifolds" over CB talls etc???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 2 2006, 12:54 AM
Post #66


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

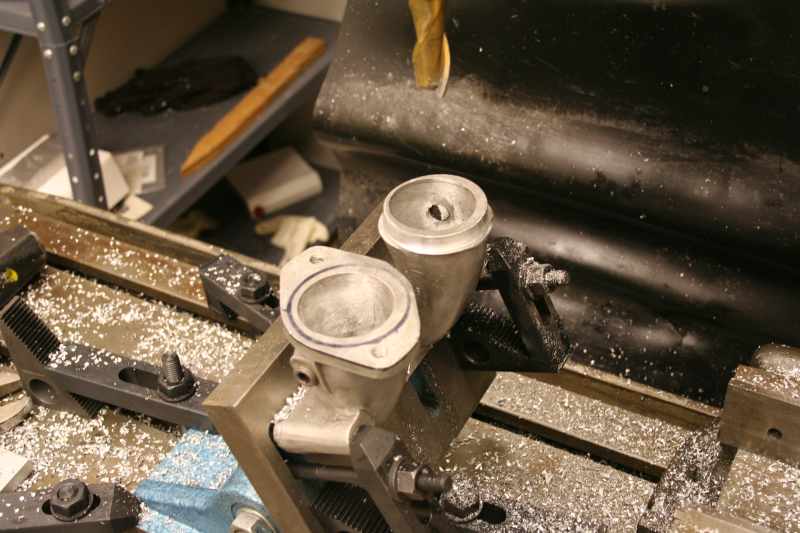

the hose clamp is a special clamp which is used in turbocharger applications, it has a true 360° hold on the hose....it's on there pretty darn tight, I'll still add a bracket to align each t/b to on another on a common manifold.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 2 2006, 12:55 AM
Post #67


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(Aaron Cox @ Apr 1 2006, 11:54 PM)
nicely done mike!

why did you choose the "shorty manifolds" over CB talls etc???

These are what I had, didn't know there are different options for the manifolds...oh yea, the cut is offset from the inlet on purpose, this matches the throttle body and allows the fuel injector to spray directly at the intake valve like the factory setup....it's a little further away, but I think it'll be fine...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DNHunt
post Apr 2 2006, 06:38 AM
Post #68


914 Wizard? No way. I got too much to learn.
****

Group: Members
Posts: 4,099
Joined: 21-April 03
From: Gig Harbor, WA
Member No.: 598
Very cool Mike. That sure looks like fun.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 2 2006, 08:53 AM
Post #69


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Very cool Mike! (IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif) Were watching you.. (IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 2 2006, 01:19 PM
Post #70


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(DNHunt @ Apr 2 2006, 05:38 AM)
Very cool Mike. That sure looks like fun.

Dave

thanks....hard part is not tracking the "chips" back into the house (IMG:style_emoticons/default/unsure.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Apr 2 2006, 02:21 PM
Post #71


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
QUOTE(Mueller @ Apr 2 2006, 11:19 AM)

thanks....hard part is not tracking the "chips" back into the house (IMG:style_emoticons/default/unsure.gif)

Hey Mike - is your CNC mill up and running now or are you still just jogging around with the keyboard?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 2 2006, 03:09 PM
Post #72


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(Porcharu @ Apr 2 2006, 01:21 PM)
QUOTE(Mueller @ Apr 2 2006, 11:19 AM)

thanks....hard part is not tracking the "chips" back into the house (IMG:style_emoticons/default/unsure.gif)

Hey Mike - is your CNC mill up and running now or are you still just jogging around with the keyboard?

full CNC operation(old PC running DOS program .....TurboCNC)....my G-code programming sucks, I have BobCAD which is kicking my tail trying to learn it...these cuts made with SimpleCNC
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jsteele22
post Apr 2 2006, 04:24 PM
Post #73


Senior Member
***

Group: Members
Posts: 727
Joined: 24-August 05
From: Colorado Springs, CO
Member No.: 4,653
QUOTE(Mueller @ Apr 1 2006, 11:52 PM)
with hose section

Glad to see this project coming back to life !

Just out of curiosity, what is that little hole in the outer side of the manifold ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 2 2006, 08:02 PM
Post #74


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(jsteele22 @ Apr 2 2006, 03:24 PM)
QUOTE(Mueller @ Apr 1 2006, 11:52 PM)
with hose section

Glad to see this project coming back to life !

Just out of curiosity, what is that little hole in the outer side of the manifold ?

the plug is for a vac. fitting
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Apr 3 2006, 08:10 AM
Post #75


914 Guru
*****

Group: Members
Posts: 5,504
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Sweet, was waiting on a update for this, looks good.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tdsmoonchild
post Apr 3 2006, 08:18 AM
Post #76


Terry
**

Group: Members
Posts: 197
Joined: 18-January 06
From: Duncanville,TX
Member No.: 5,431
QUOTE(JmuRiz @ Apr 3 2006, 08:10 AM)
Sweet, was waiting on a update for this, looks good.

(IMG:style_emoticons/default/agree.gif)

Can't wait to see how it turns out!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Apr 3 2006, 08:33 AM
Post #77


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
Mike,

since the TB's are not rigid mounted, how do you plan to do a linkage between them? seems it will be pretty hard to sync if they are free to move up and down a little.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jonwatts
post Apr 3 2006, 08:57 AM
Post #78


no rules, just wrong
****

Group: Benefactors
Posts: 2,321
Joined: 13-January 03
From: San Jose, CA
Member No.: 141
QUOTE(Aaron Cox @ Apr 3 2006, 06:33 AM)
Mike,

since the TB's are not rigid mounted, how do you plan to do a linkage between them? seems it will be pretty hard to sync if they are free to move up and down a little.....

I think he's going to add a bracket. Plus he's using a hose but it's so short there's only one clamp so I can see it being pretty tight. Hey Mike, is there enough material on the TB and manifold to machine it down for a V-band clamp? Then you wouldn't need to use the short hose at all.

QUOTE
I'll still add a bracket to align each t/b to on another on a common manifold.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Apr 3 2006, 09:29 AM
Post #79


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
QUOTE(Mueller @ Apr 2 2006, 01:09 PM)
.....TurboCNC)....my G-code programming sucks, I have BobCAD which is kicking my tail trying to learn it...these cuts made with SimpleCNC

I had the demo version of Bobcad - that thing is a bear to learn. More like a learning cliff than curve.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Apr 3 2006, 12:17 PM
Post #80


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(jonwatts @ Apr 3 2006, 07:57 AM)
Hey Mike, is there enough material on the TB and manifold to machine it down for a V-band clamp? Then you wouldn't need to use the short hose at all.


looked into it....I already bought the hose ($16 per ft), and don't want to spend too much time and effort on these...

here is them mounted on one side of the motor....

I screwed up, these manifolds are for 2.0 3-bolt heads...my motor is a 1.8 with 4-bolt heads, anyone want to buy these?? (IMG:style_emoticons/default/smile.gif)

(2.0 head in picture is thrashed beyond repair and for mock up use)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
