Installation of the rear LED boards.

For the brake/tailight PCB, 2 long straight clips go toward the inside of the car, one short clip on the outside of the car. Screw in screws so the clips are loose.

Attached Image

Attached Image

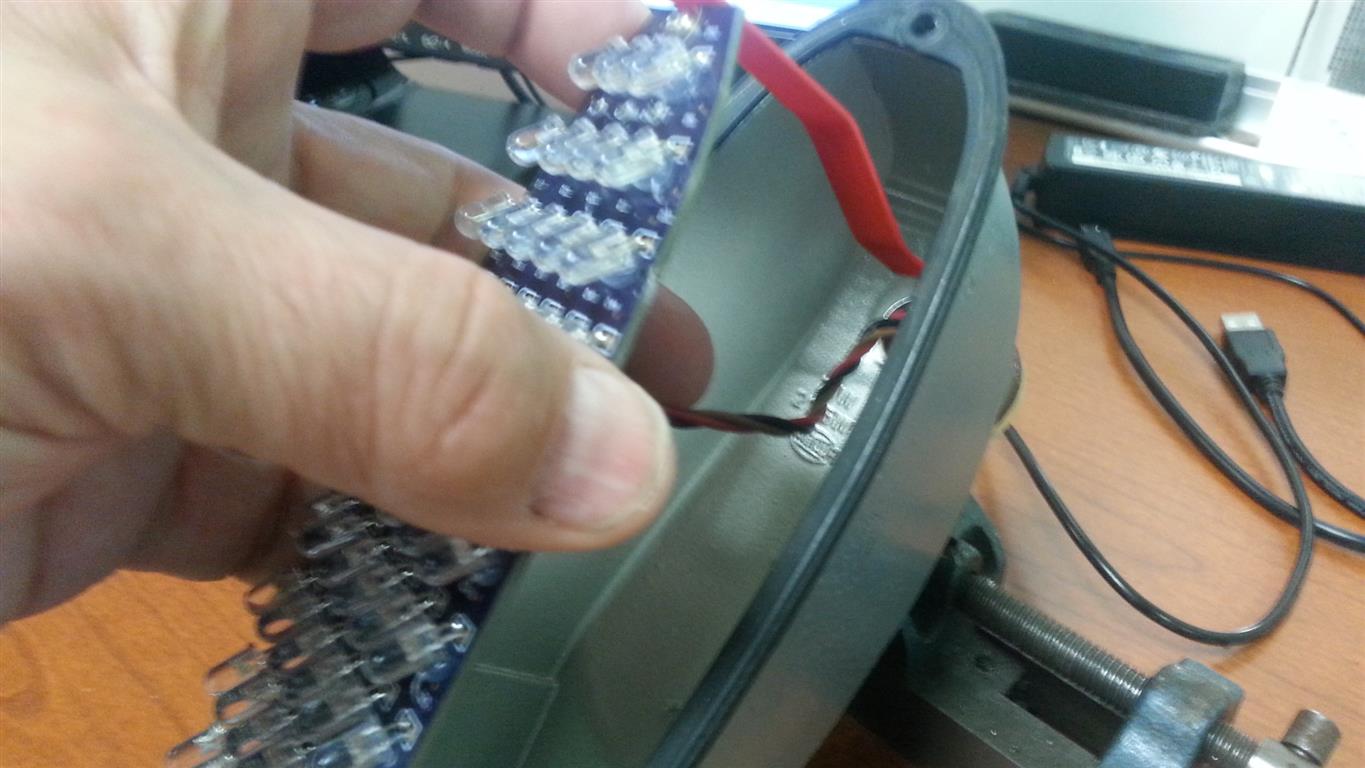

After removing the bulb and securing the LED bulb base, gently press in the board evenly side to side.

Attached Image

Once the board is seated, gently tighten screws until tight. Try not to overtighten.

Attached Image

For the turnsignal PCBs, screw in the 2 long clips with a bend on the side of the board with 2 holes. The side with one hole uses the largest clip mounted on the bottom of the board as shown. You can gently tighten the clips before mounting.

Attached Image

Attached Image

After removing the bulb and securing the LED bulb base, gently press in the board evenly side to side.

Attached Image

The clearance of the lens and the clips between the brake and turnsignal is very tight. Make sure the lens does not get caught on the clips. It should fit right between the clips.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 15 2015, 11:00 PM
Post #5


Jerry
*****

Group: Members
Posts: 7,104
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Installation of the front turnsignal bucket LED boards.

There are 2 clips for each board. The small one goes in front the the long one on the rear.

Attached Image

Screw in the rear clip.

Attached Image

The small front clip mounts on the top of the board. These will be screwed in when I build the board. The bottom of the board will contact the bucket base to keep the board straight.

Attached Image

Here's the board ready for installation with the bulb base connected.

Attached Image

When installing the board, make sure the pigtail does not interfere with the rear clip.

Attached Image

Gently slide the board in. There are slots on either side of the board to clear the guides on the sides of the bucket.

Attached Image

Ready for the lens. The lens will hold the board in place. If you need to reposition the board, do not grab the LEDs as they will move. Use a paper clip or similar wire to pull the board out.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
siverson
post Jan 16 2015, 12:11 AM
Post #6


Advanced Member
****

Group: Benefactors
Posts: 2,451
Joined: 5-May 03
From: San Diego, CA
Member No.: 654
Region Association: Southern California
I'll take a full set!

front: Brake Light: RED LEDs + Turnsignal: AMBER LEDs
rear: Euro Version - w/Blanking

Thanks!

-Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Firstcar
post Jan 16 2015, 02:05 AM
Post #7


Obsessive amateur mechanic
**

Group: Members
Posts: 98
Joined: 17-March 11
From: MA -South Shore
Member No.: 12,831
Region Association: North East States
Jerry,
I'll take a set of the front bucket LED board Euro Version - w/Blanking and a piggyback spade connector for the new relay! Thanks
-Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Jan 16 2015, 06:59 AM
Post #8


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains
I am in for a full set. I would like the US version for the front buckets as well as the rear brake light and turn signals.

Thanks,
Ray
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
griffindoug
post Jan 16 2015, 07:03 AM
Post #9


Newbie
*

Group: Members
Posts: 45
Joined: 24-June 14
From: Austin TX
Member No.: 17,539
Region Association: Southwest Region
Spoke,

I would like a set of the rear Red Brake, and amber turns with shipping for 190.00

Thanks
Doug
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Jan 16 2015, 07:12 AM
Post #10


Senior Member
***

Group: Members
Posts: 733
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada
Please put me down for a front bucket LED board in the US Version

Thank you,

Pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
chads74
post Jan 16 2015, 07:16 AM
Post #11


Member
**

Group: Members
Posts: 386
Joined: 13-March 12
From: Tampa, FL
Member No.: 14,252
Region Association: South East States
I am in for a front set option 3) Euro Version - w/Blanking: WHITE LEDs in clear of lens; Rest AMBER LEDs:

I remember seeing something about needing something additional to make the blinkers work if you have front and rear LEDs installed. Am I remembering correctly?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve Snyder
post Jan 16 2015, 07:21 AM
Post #12


Member
**

Group: Members
Posts: 241
Joined: 10-June 08
From: Graham, NC
Member No.: 9,158
Region Association: South East States
I would like a set of rear brake boards (just the brakes: $90 + shipping) and a set of front Euro turn signal boards with no blanking ($130 + shipping).
I do not need any seals, but thank you for making that option available.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zimms
post Jan 16 2015, 07:47 AM
Post #13


Senior Member
***

Group: Members
Posts: 1,414
Joined: 11-February 06
From: Michigan
Member No.: 5,565
Region Association: Upper MidWest
I am in for front turn signals, euro, non blanking
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Jan 16 2015, 08:24 AM
Post #14


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
Cool. Very Cool. (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Jan 16 2015, 09:06 AM
Post #15


914 Guru
*****

Group: Members
Posts: 5,764
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
I'm in for the following:
Front:
Euro Version - w/Blanking: $140 + $10 = $150
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
R_u_dd
post Jan 16 2015, 09:25 AM
Post #16


Member
**

Group: Members
Posts: 154
Joined: 3-March 14
From: Grants Pass, Oregon
Member No.: 17,072
Region Association: Pacific Northwest
I am interested in the Euro Front amber/white, so that I may use the front light as a white running light and turn signal. I have no side turn signals up front, so I need the blinking capability. Is that what blanking is? Please explain. So, yes put me down for a front end Euro configuration. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GermermanCarGuy
post Jan 16 2015, 10:09 AM
Post #17


GermanCarGuy
**

Group: Members
Posts: 81
Joined: 13-May 14
From: Rapid City, SD
Member No.: 17,346
Region Association: Upper MidWest
Still in for:
Rear Brakes Lights (pr)
Rear Amber Turn Signals (pr)
and Front Euro w/blanking (pr)


Very excited. (IMG:style_emoticons/default/piratenanner.gif)


Please bundle with complete seal package (f/r) as advertised in your Posted Feb 5 2015, 08:59 PM post.


Still excited. (IMG:style_emoticons/default/piratenanner.gif)(IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Jan 16 2015, 10:17 AM
Post #18


Professional Enthusiast
***

Group: Members
Posts: 1,646
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
Sign me up for a pair of the us front turn signals! I love my rears!

-Ross
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
StratPlayer
post Jan 16 2015, 10:21 AM
Post #19


StratPlayer
****

Group: Members
Posts: 3,299
Joined: 27-December 02
From: SLC, Utah
Member No.: 27
Region Association: Rocky Mountains
I'm in for a set. Front Euro's....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
75-914
post Jan 16 2015, 01:54 PM
Post #20


Newbie
*

Group: Members
Posts: 7
Joined: 4-March 14
From: Prattville, AL
Member No.: 17,073
Region Association: None
Count me in for front/ rear euro type
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jetsetsurfshop
post Jan 16 2015, 03:23 PM
Post #21


Senior Member
***

Group: Members
Posts: 815
Joined: 7-April 11
From: Marco Island Florida
Member No.: 12,907
Region Association: South East States
Is there any photos or a video with these lights in action?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cconcepcion
post Jan 16 2015, 03:33 PM
Post #22


Member
**

Group: Members
Posts: 51
Joined: 5-January 06
From: Peoria,Az
Member No.: 5,370
1 front set-euro-blanking please..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr.tim
post Jan 16 2015, 03:59 PM
Post #23


Member
**

Group: Members
Posts: 101
Joined: 17-December 11
From: Butte, America
Member No.: 13,907
Region Association: Rocky Mountains
Front, Option 3, please.

Euro Version - w/Blanking: $140 + $10 = $150
User is offlineProfile CardPM
Go to the top of the page
