> 914-Flat-8, Porsche 914 with a 908 3li engine
r_towle
post Feb 8 2005, 07:47 PM
Post #61


Custom Member
***************

Group: Members
Posts: 24,661
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
First off !!!!See it will fit!!!

Secondly, I think from what I can see the cam towers are driven from the middle of the engine by a gear, this gear seem to be attached to a maller drive shaft that is connected to the cams....

I could not find the 907 link....you linked to the 914gt page

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Feb 8 2005, 07:55 PM
Post #62


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif)

See the gears in the middle of the bank

http://www.pbase.com/917carl/image/21933262

http://www.pbase.com/917carl/image/21933259
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 8 2005, 08:02 PM
Post #63


914 Wizard
**********

Group: Members
Posts: 10,681
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains


http://www.pbase.com/9146gt/factory_racing...parts_907engine
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Feb 8 2005, 08:05 PM
Post #64


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Do I see right, in the first pictures, at the beginning of this thread, the engine compartment seems to be alot longer i.e. the panel between the engine compartment and the rear trunk is behind the strut towers !

Michel
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Feb 8 2005, 08:24 PM
Post #65


Custom Member
***************

Group: Members
Posts: 24,661
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
QUOTE (michel richard @ Feb 8 2005, 09:05 PM)
Do I see right, in the first pictures, at the beginning of this thread, the engine compartment seems to be alot longer i.e. the panel between the engine compartment and the rear trunk is behind the strut towers !

Michel

It still fits!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 8 2005, 08:40 PM
Post #66


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,825
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Cool, If the rear trunk panel is moved back for the longer 8 cylinder motor, then the transaxle is also moved back! I think.. (IMG:http://www.914world.com/bbs2/html/emoticons/aktion035.gif)

Quilmes, You Rock! If I ever get to Florida I want you to photo me ride! (IMG:http://www.914world.com/bbs2/html/emoticons/aktion035.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
swood
post Feb 8 2005, 10:27 PM
Post #67


Senior Member
***

Group: Members
Posts: 1,839
Joined: 6-February 03
From: Strong Beach
Member No.: 251
Region Association: None
Yeah Quilmes, you rock! You're a great addition to the group. You've been posting some great photos and great information.

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

(IMG:http://www.914world.com/bbs2/html/emoticons/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Feb 9 2005, 07:18 AM
Post #68


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Been thinking about this one a little more.

Does anybody know how wide the 8 cyl engine is ? with its double overhead cams and all.

It may be that with the double overhead cams it's a little wider than the regular 6 cyl, and that it may not fit between the ears of the inner rear suspension mounts, which means the engine may have to be inserted/extracted from above, which could explain the change in the configuration of the engine compartment / trunk area.

All speculation, of course, but I would be curious to know the width of the engine.

Michel
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BigD9146gt
post Feb 9 2005, 11:11 AM
Post #69


OCD member
**

Group: Members
Posts: 376
Joined: 24-January 05
From: Sydney, Australia
Member No.: 3,502
Region Association: Australia and New Zealand
Guys, thanks for the input... but please take a closer look at the 908 engine....

The cam gears on the 917 engine are in the middle, that is obvious. But what is also obvious is the gap allowing those gears to be between the cylinders and the cam covers also reviel a raised section for gears.

Now look at the 907 engine, no gap is obvious... the intake stacks are evenly spaced, and very close to eachother. Nothing at the ends of the motor either except what looks like oil lines.

It isn't chain driven because the top cam covers and the bottom cam covers don't have a bridge covering between the two.

Michel, i don't think the 908 engine is all that much wider than the 911 engine. Even if it was, the 911 engine still has about an inch on either side in the 914 engine bay. I too would like to know the dimensions of those engines.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:39 AM
Post #70


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510
QUOTE (michel richard @ Feb 8 2005, 06:05 PM)
Do I see right, in the first pictures, at the beginning of this thread, the engine compartment seems to be alot longer i.e. the panel between the engine compartment and the rear trunk is behind the strut towers !

Michel

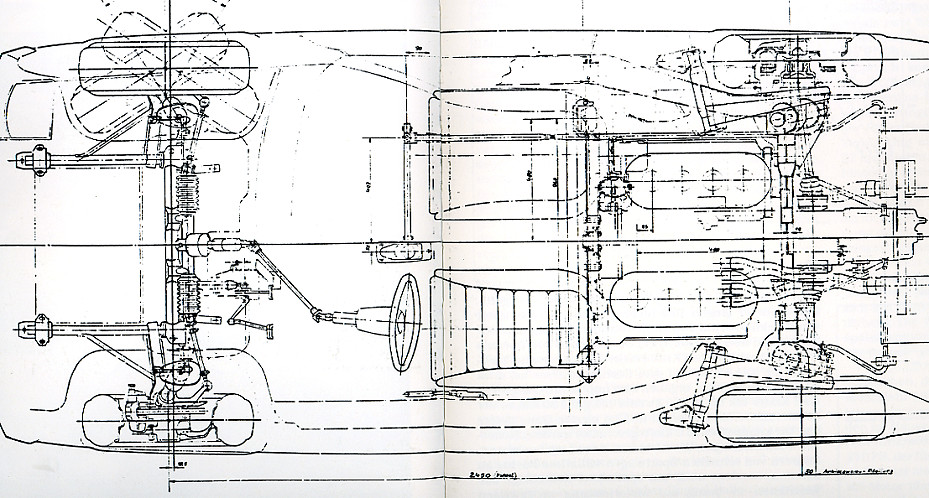

Here are some technical drawings of the 914-8 from Porsche. I got these from the Grosse VW-Porsche Buch from Michael von Klodt. Great book !!!
( I can hear the phone ringing from Germany Wavt in die Hell are you duuing chairing my drawings wit die 914club) (IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif)

I looked over the drawing and the dimension of the wheel base from the 914 and 914-8 are the same 2450.5mm, the trans does sit back more and the half shafts operate at a angle like the V8 conversions.
I guess one of us will just have to go out there and do a super underneath photo shoot of the engine and from all angles. (IMG:http://www.914world.com/bbs2/html/emoticons/mueba.gif)

Porsche 914-103 the rear trunk and engine cover seem to be one, I do not know if this was change later on for the 914-8???

Also some wood and clay pre-914 models included.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:41 AM
Post #71


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510

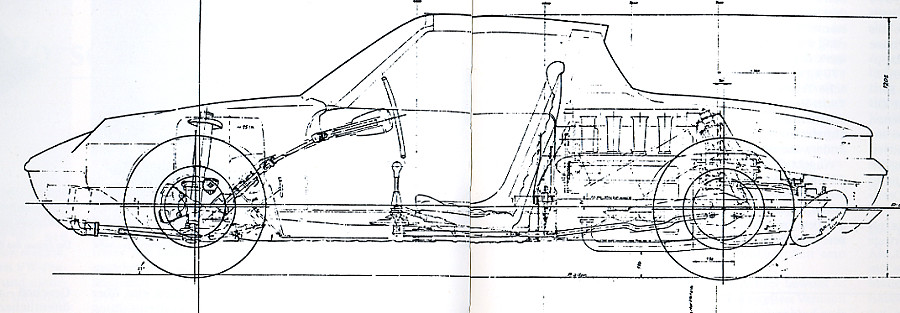

Tech drawing 914-8 side view:
notice on the top view from the before picture, the gear shaft placed infront of the pass seat.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:42 AM
Post #72


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510

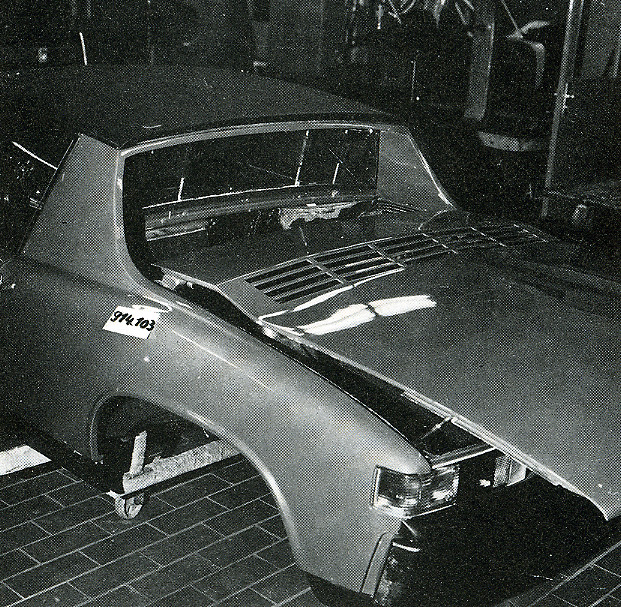

One piece engine and trunk.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:43 AM
Post #73


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510

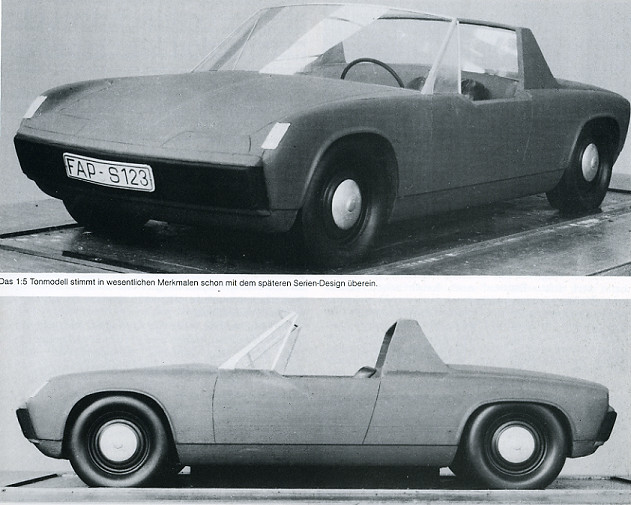

914 Clay model pre model


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:44 AM
Post #74


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510

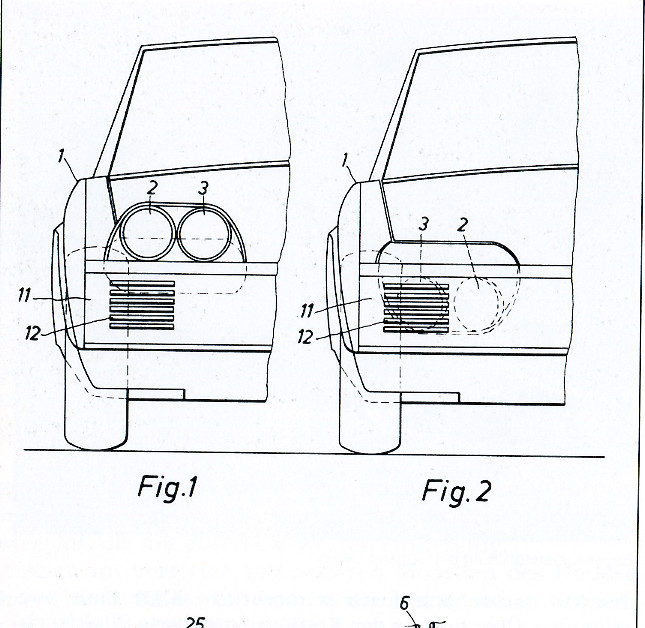

Dual headlight drawings


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 9 2005, 11:44 AM
Post #75


914 Wizard
**********

Group: Members
Posts: 10,681
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE
Here are some technical drawings of the 914-8 from Porsche. I got these from the Grosse VW-Porsche Buch from Michael von Klodt. Great book !!!
( I can hear the phone ringing from Germany Wavt in die Hell are you duuing chairing my drawings wit die 914club)


Could you convince him to do an English version of this Book. That would be awesome. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:45 AM
Post #76


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510
Actual dual headlights


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:47 AM
Post #77


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510
914 with dual light set up current and dual lights set up.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:49 AM
Post #78


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510
Wood 914 work,


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Quilmes
post Feb 9 2005, 11:52 AM
Post #79


Torino 380 W
**

Group: Members
Posts: 358
Joined: 26-January 05
From: Orlando, FL
Member No.: 3,510
Wood 914 work 2.

I do not know if these photos have been posted up on this site before, If so I apologize if not I hope that you enjoy them. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

Quilmes


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Reiche
post Feb 9 2005, 11:54 AM
Post #80


Member
**

Group: Members
Posts: 169
Joined: 13-October 04
From: Vista, CA
Member No.: 2,934
QUOTE (BigD9146gt @ Feb 9 2005, 09:11 AM)
Guys, thanks for the input... but please take a closer look at the 908 engine....

The cam gears on the 917 engine are in the middle, that is obvious. But what is also obvious is the gap allowing those gears to be between the cylinders and the cam covers also reviel a raised section for gears.

Now look at the 907 engine, no gap is obvious... the intake stacks are evenly spaced, and very close to eachother. Nothing at the ends of the motor either except what looks like oil lines.

It isn't chain driven because the top cam covers and the bottom cam covers don't have a bridge covering between the two.

So is it run with a bevel gear system like the older 4-cams?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
