> Shifter springs re-install, is there an easy way ?
pgollender
post Apr 26 2015, 11:28 PM
Post #1


Member
**

Group: Members
Posts: 193
Joined: 5-July 11
From: Sacramento
Member No.: 13,281
Region Association: Northern California

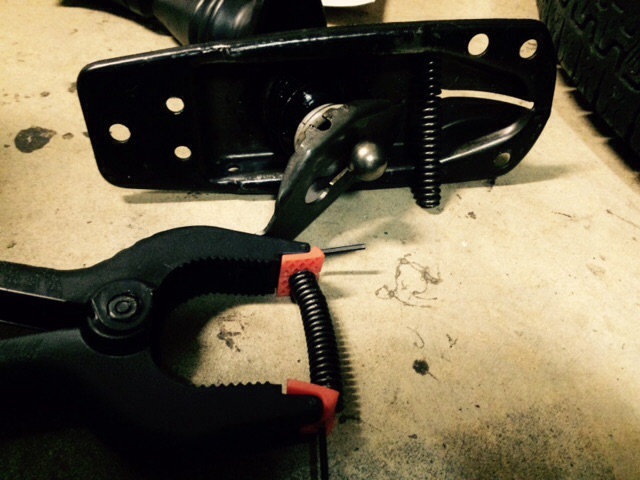

I decided to replace the ball socket on my 1970 shifter . I didn't realize the plate springs were under so much tension. I haven't found a way to put them back.
Any body have an idea ?Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Old Yella
post Apr 26 2015, 11:54 PM
Post #2


Old Yella
**

Group: Members
Posts: 158
Joined: 2-July 13
From: Canberra Australia
Member No.: 16,086
Region Association: Southwest Region



QUOTE(pgollender @ Apr 26 2015, 10:28 PM) *

I decided to replace the ball socket on my 1970 shifter . I didn't realize the plate springs were under so much tension. I haven't found a way to put them back.
Any body have an idea ?Attached Image


Yep they are a bitch.
I bent a small hook on the end of stiff piece of wire.
Placed the wire through one of the holes on the side of the shifter base.
Placed the spring on the wire.
Pulled the wire to compress the spring and get it in between the two holes in the shifter.
passed a Phillips screw driver through the holes and spring whilst simultaneously cutting the hook off the wire with wire cutters.
Then followed through with the retaining pin pushing the screwdriver out.
Same again for the other one.

You need strong fingers. It was a bitch but I have done it a few times that way now. Don't know if there is a special tool.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Apr 27 2015, 04:09 AM
Post #3


914-6 GT in waiting
***************

Group: Members
Posts: 19,576
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



Leather gloves. Safety glasses vise grips. I used a Phillips screw diver to hold the spring in then pushed it out with the pin.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Apr 27 2015, 04:49 AM
Post #4


Get that VIN ?
*****

Group: Members
Posts: 9,464
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



There is an easy way, i recently did it. Forget exactly how but I did a seach and found a thread with the info.... (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
saigon71
post Apr 27 2015, 05:55 AM
Post #5


Advanced Member
****

Group: Members
Posts: 2,006
Joined: 1-June 09
From: Dillsburg, PA
Member No.: 10,428
Region Association: MidAtlantic Region



Oh yeah...good times with those springs!

I put one end in the housing and grabbed the other end with vice grips to compress the spring...took a couple tries, but I finally got it.

As others suggested - wear safety glasses in case the spring flies!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Apr 27 2015, 07:03 AM
Post #6


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None



It can be done, but what a pain! I launched those things across the garage a couple of times and had to search to find them. My fingers hurt. My hands hurt. Frustration level was very high. (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Apr 27 2015, 07:22 AM
Post #7


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



Put one end of a spring near a hole. Push one of the pins in as far as you can. The pin should slide about a third of the way in to the spring. Put one of the clips on the pin. This will act as a stop later. The other end of the spring will be resting on the bottom of the base. The pin will keep the spring from jumping out while you wrestle the free end. Take a small metal putty knife, stick it in the free end of the spring and push the free end down into the base. The spring will bow up slightly in the middle. Push/work he pin thru the rest of the spring and hole, then install the other clip. Repeat. Done.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Apr 27 2015, 07:22 AM
Post #8


bdstone914
****

Group: Members
Posts: 4,695
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



Cap'n Krusty replied to a thread explaining to easy way.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brian_Boss
post Apr 27 2015, 09:55 AM
Post #9


Member
**

Group: Members
Posts: 324
Joined: 3-June 03
From: Dallas, TX
Member No.: 781



First off, if you are not holding the housing in a vice, you're making it significantly more difficult. If you don't have a vice, clamp it to something.

I basically do what Rhody said but I think it's easier if you use a long pin punch inside the spring in place of the pin. Once the spring is lined up, it will stay in place while you remove the punch and install the guide pin.

I use a long pin punch made for brake caliper work but anything that gives you a bit more leverage to "steer" the spring into place will do.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pgollender
post Apr 28 2015, 03:18 PM
Post #10


Member
**

Group: Members
Posts: 193
Joined: 5-July 11
From: Sacramento
Member No.: 13,281
Region Association: Northern California



Thanks everyone:
With the advice given, I found it very easy to install the springs. I documented it for future World DIYer's.
A couple words first: When you install the shift guide spring and guide rings...
(that is the spring that goes into the shifter housing to put tension on the shifter ball) the small conical side goes up into the housing with the smaller diameter guide on top and the larger diameter ring on the bottom. I had it reversed at first with little to no tension. That would have effectively or problematically locked me out of reverse.
Also when putting in the retaining pins, the C-clips are slightly problematic because they run into the housing when you are threading the pin. Sometimes you can twist the C-clip just enough to barely clear the shifter housing when pushing them in, otherwise just take them off and install them at the end.

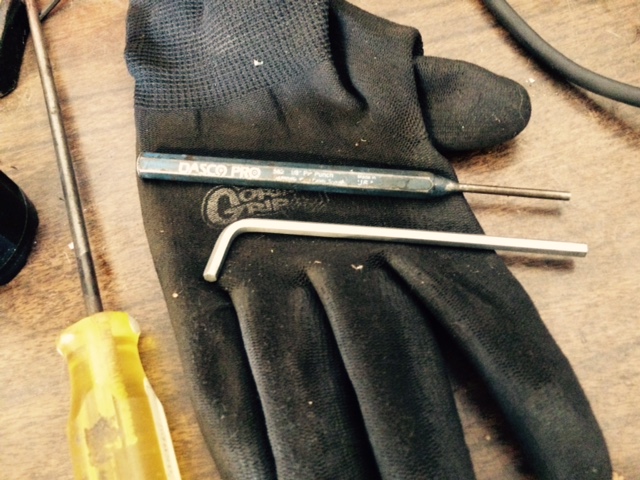

Tools needed:

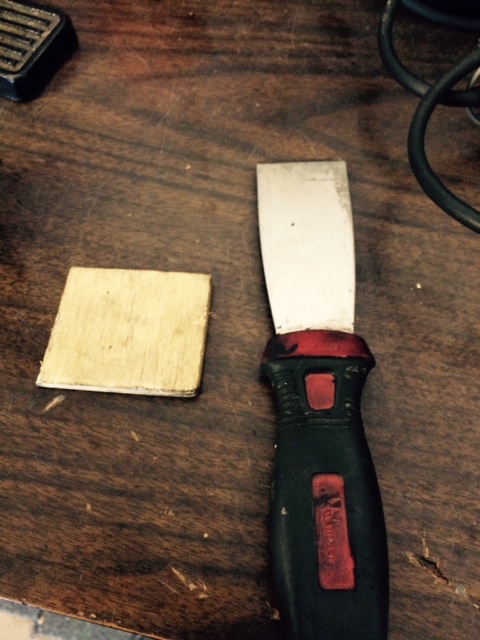

Safety glasses, gloves,vise, small flat block of wood, dummy pin ( nail punch, nail, allen wrench, stiff 1" putty knife:
Attached Image Attached Image Attached Image

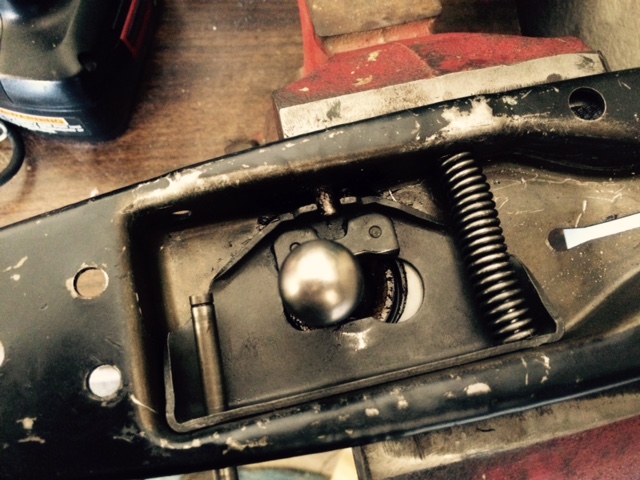

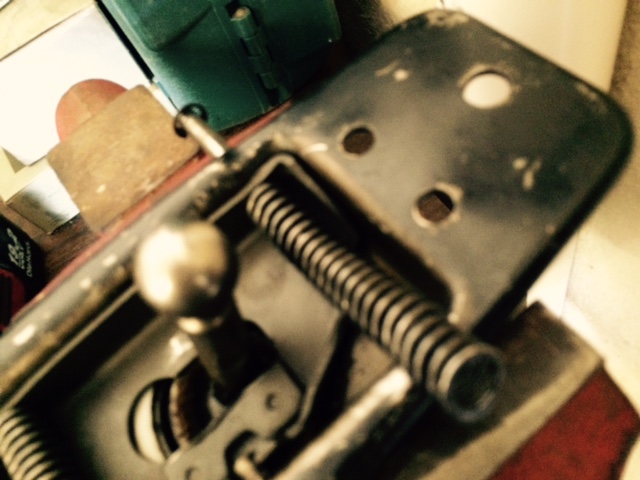

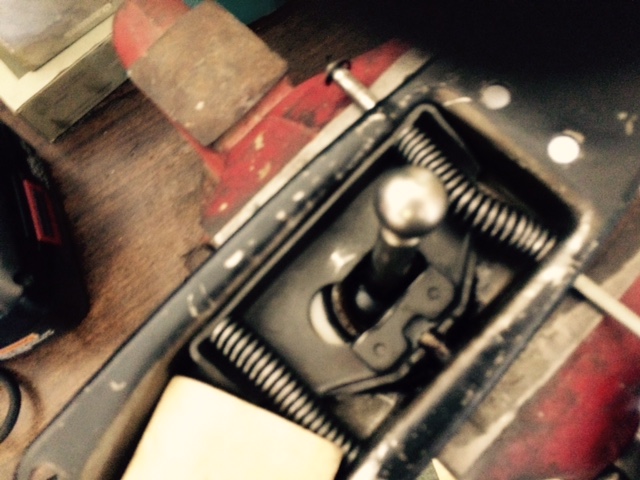

Here is the project 1/2 way done so you can see what was done and what has to be done:Attached Image

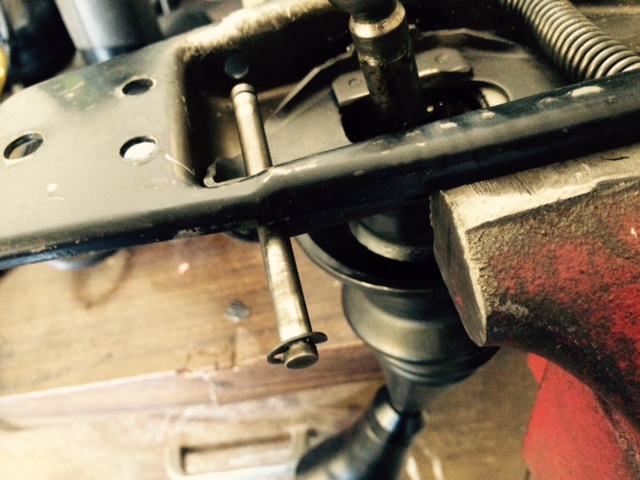

First you thread the retainer pin in:
Attached Image

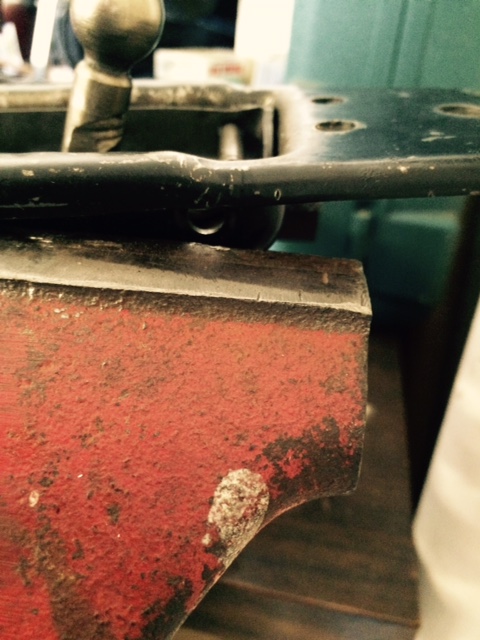

Make sure your vise doesn't block the exit hole:
Attached Image

Then thread the spring:

Attached Image

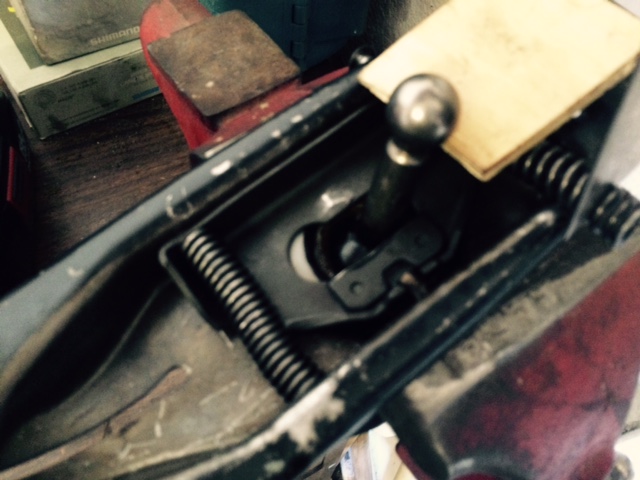

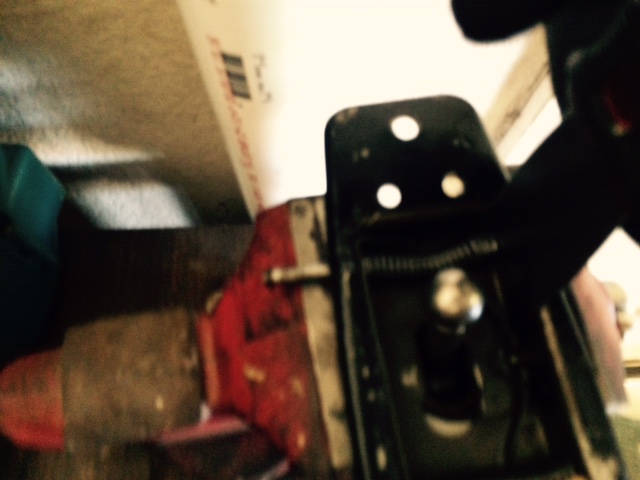

Put your block on top of the spring and jam the putty knife about three turns from the end:
Attached Image

Jam away and put pressure on top of the spring while pushing the knife-spring combination into the housing: You must get the hole of the spring to co-incide with the hole in the housing to pass your dummy pin through the open side:

Attached Image

Remove putty knife slowly keeping some pressure on the block, then thread the dummy pin in the open side. It will look a little wobbly like this:
Attached Image

Keeping a little pressure on the block, slowly push the stock retaining pin all the way through. Obviously the spring must not be blocking the exit hole:
Attached Image

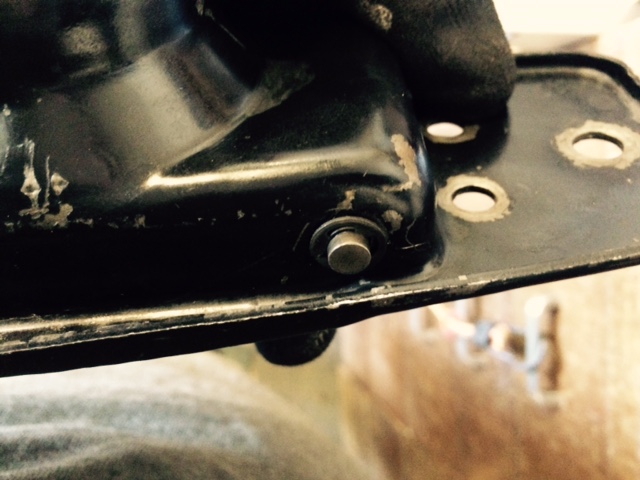

Don't forget the four C=clips:
Attached Image

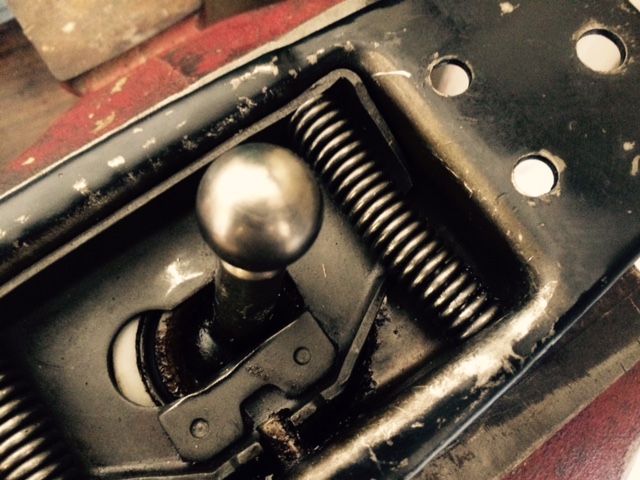

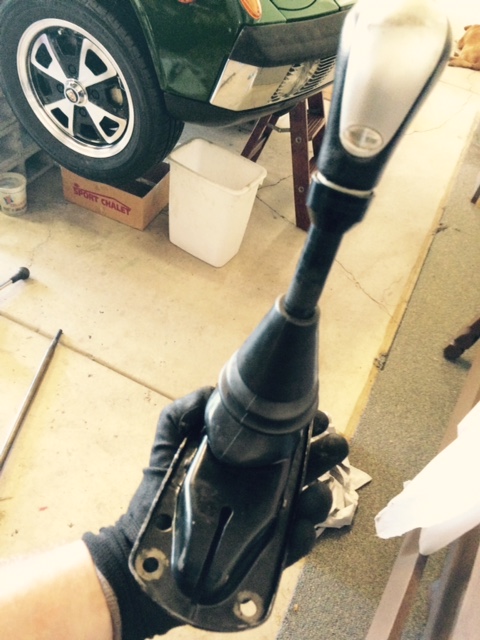

Viola!! Ready for Shifter rod docking:


Attached Image


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Apr 28 2015, 11:39 PM
Post #11


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



Well presented. The lever ball bushing are often overlooked. I hate to be a pain. The contact edge of the detention plate is pretty worn. It should be straight across the contact edge. Is the shift lever grooved at the contact point?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Apr 29 2015, 11:51 AM
Post #12


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch

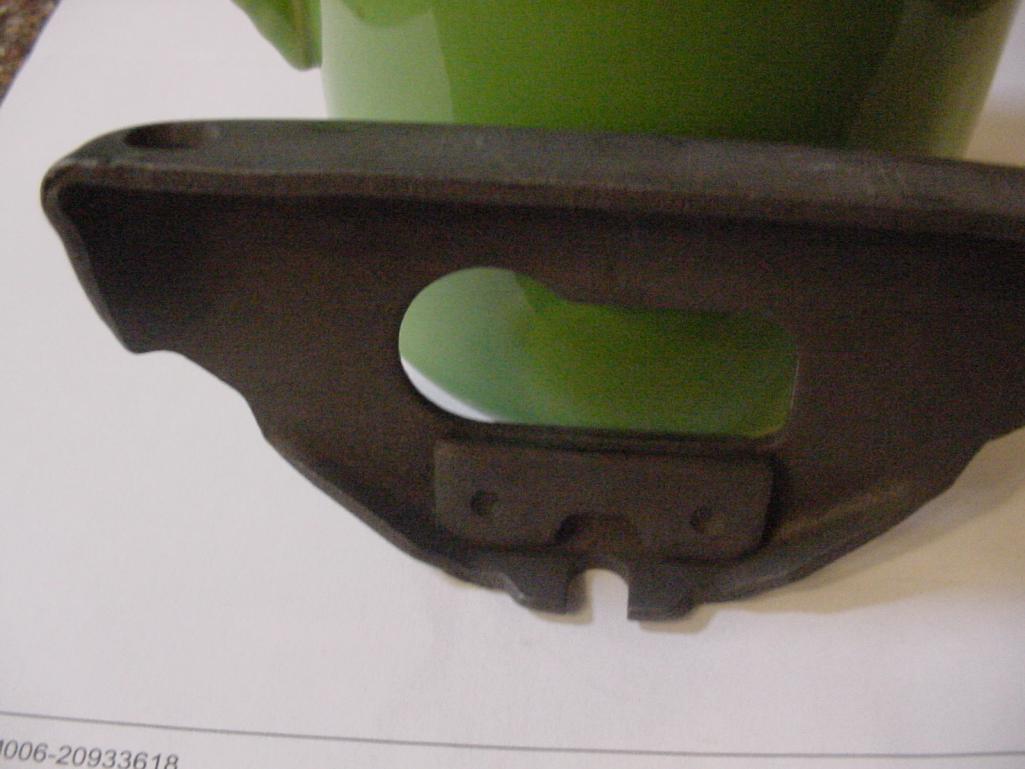

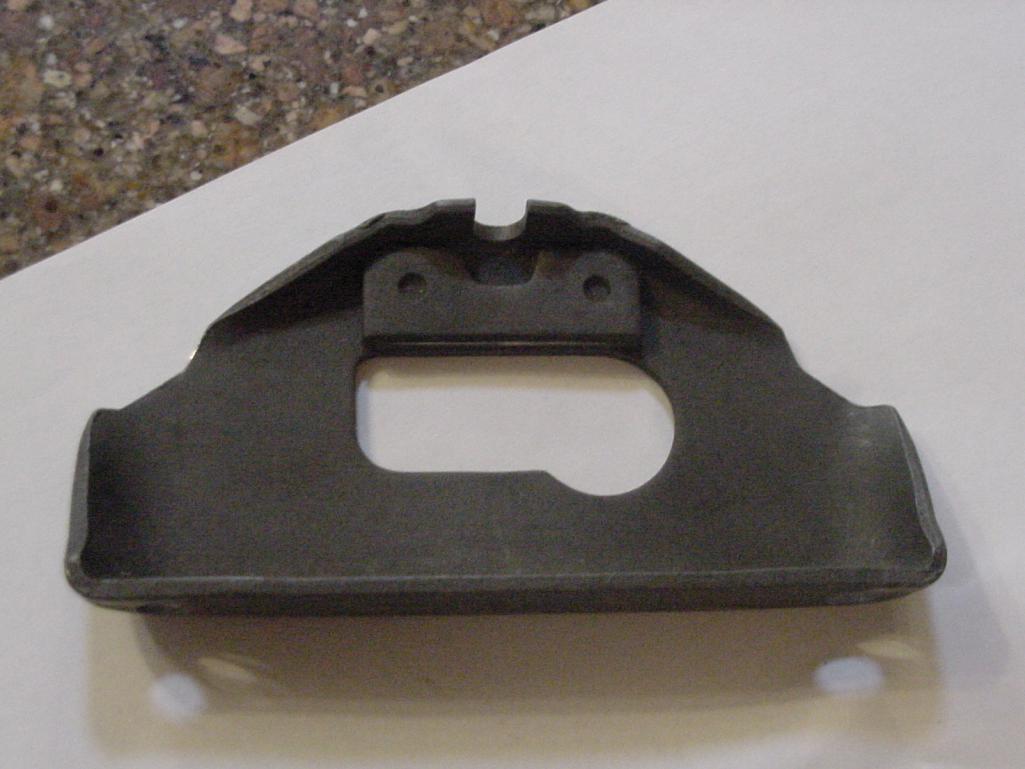

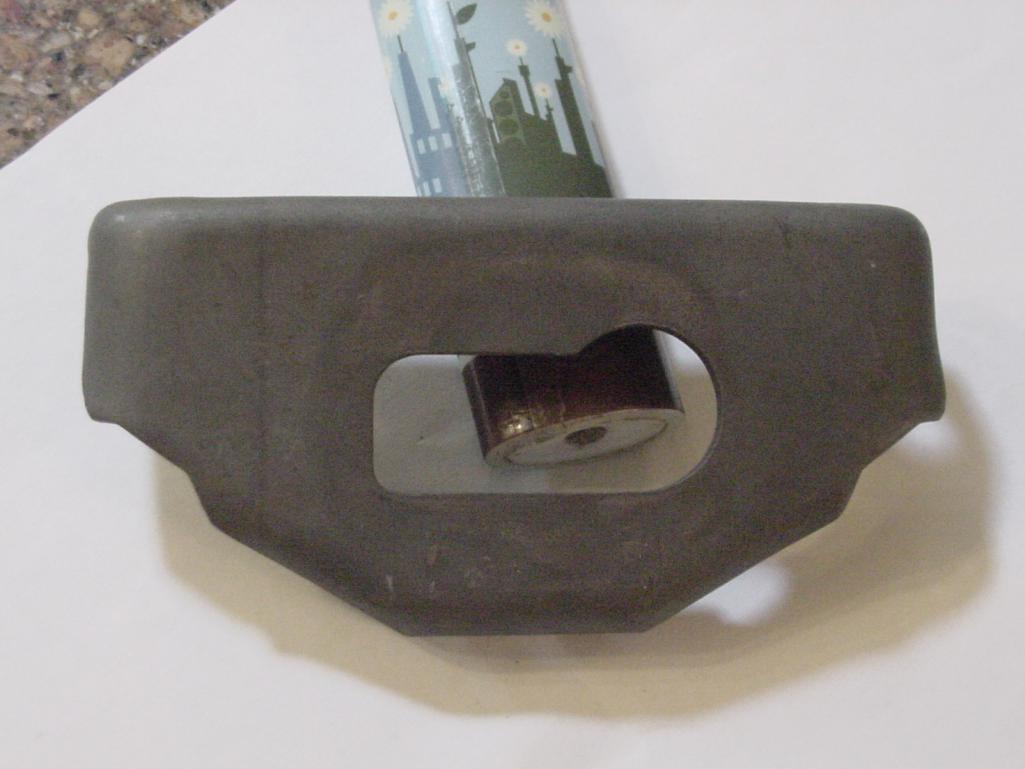

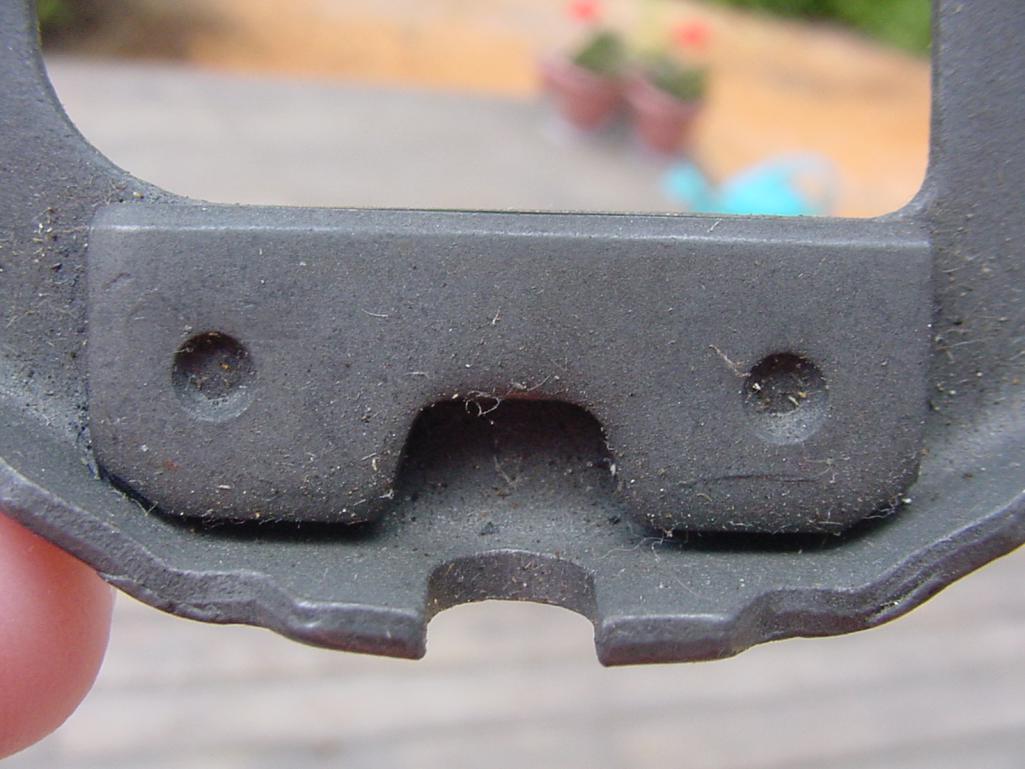

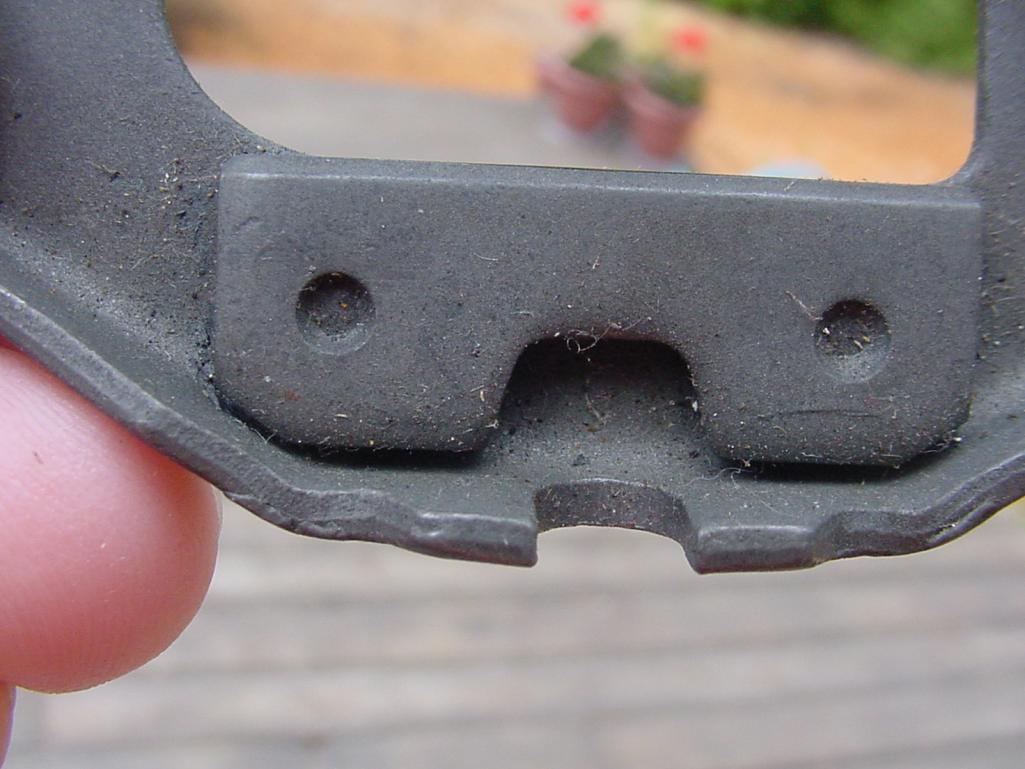

this is a pretty clean detent plate. junked up springs caked to the point they don't compress adds to the 1&R engagement issues. worn plate, worn shift levers, and spent lever ball bushings just makes matters worse. i'll see if i can find a shifter that has what i consider excessive wear at the detent plate rub point. the backing plate on yours is worn to the point that the crisp line is gone and the surface is wavy. new ones are $36.75 at the bird. gpr may have them also. pn 901 424 017 00. they are common for early and late shifters.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pgollender
post Apr 29 2015, 11:40 PM
Post #13


Member
**

Group: Members
Posts: 193
Joined: 5-July 11
From: Sacramento
Member No.: 13,281
Region Association: Northern California



QUOTE(rhodyguy @ Apr 28 2015, 10:39 PM) *

....The contact edge of the detention plate is pretty worn. It should be straight across the contact edge. Is the shift lever grooved at the contact point?


Rhody-
Yes the shifter bar is very worn, look at the 6th frame down.

Should I weld this back up and grind it smooth and round ?

Also I didn't catch the worn detent plate. Not enough experience.
$36 to rid as much slop sounds like a good deal.
Not sure what vendor is "the bird"?
Pelican parts ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Apr 30 2015, 06:30 AM
Post #14


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



Yes, pelican. I had missed the picture showing the wear point. I would consider that excessive.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Apr 30 2015, 08:04 AM
Post #15


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None



Some what off topic, but, Weltmeister offered a kit that added two additional springs, mounted parallel to the existing springs, to increase the spring force pushing the shift lever away from the reverse-first gear gate. It was marketed to prevent engaging reverse during a first to second shift. I don't know if they still offer the kit. (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Apr 30 2015, 08:21 AM
Post #16


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



Over kill. I bought into the hype and promptly took them out. MORE spring tension can't overcome wear or tighten up the shift pattern. Fix a shifter, r&r the bushings and external issues are moot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Apr 30 2015, 09:51 AM
Post #17


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



Glad you did this. And has been the case with my car.... do it once to learn how. Then do it again. I have done lots of things more than once. You get done, then say, "CRAP" and do it again.

Hey, in post 10 where you can see your front wheel. I see a stack of cinder blocks. Are they holding up your car? Cinder blocks are designed to be used with the holes vertical, not horizontal. You never see a Karate guy smash a block by hitting the top of the block.... always the side. You never see a whole building built with the holes showing either. Becareful.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Apr 30 2015, 10:19 AM
Post #18


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



iirc with the spring kit as per instructions you drill 2 new holes per side so the total number of springs is 4. small holes, plan on extra bits. got tired of the bit bill. didn't solve anything. then discovered the problem was the shifter assem. then the rest of the bushings. then the roll pin. very frustrating. pre internet and i didn't know another person with a 914. live and die by the haynes. then i put in a side shifter.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnhora
post Apr 30 2015, 02:51 PM
Post #19


Senior Member
***

Group: Members
Posts: 873
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None



nice write up pgollender...

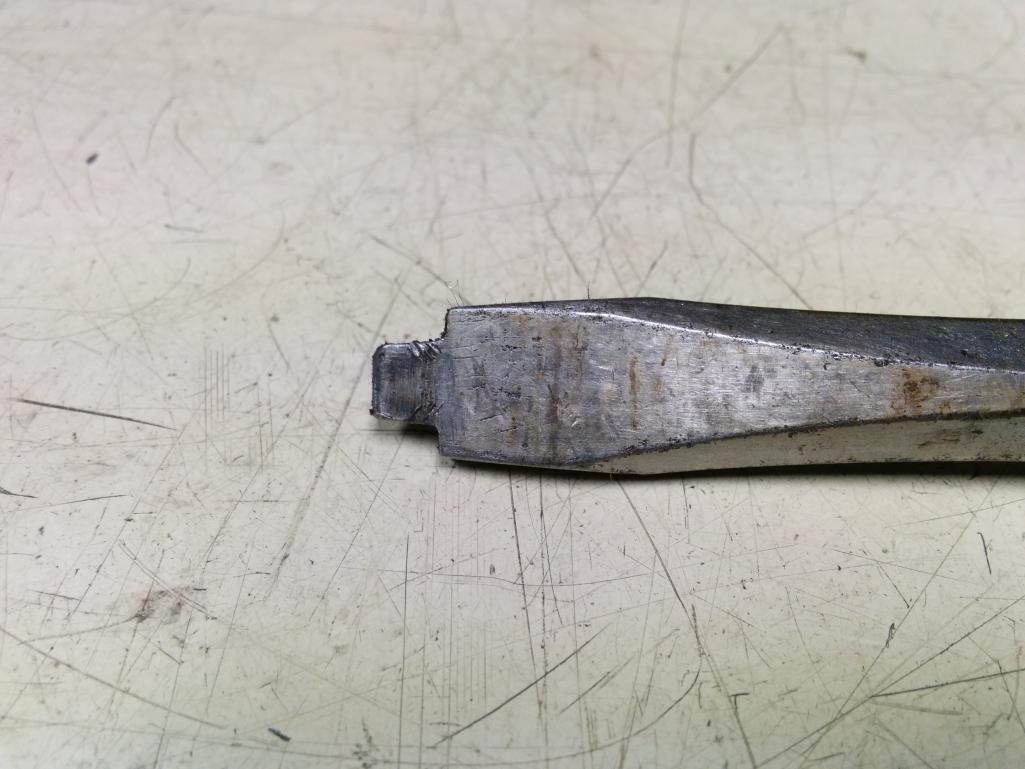

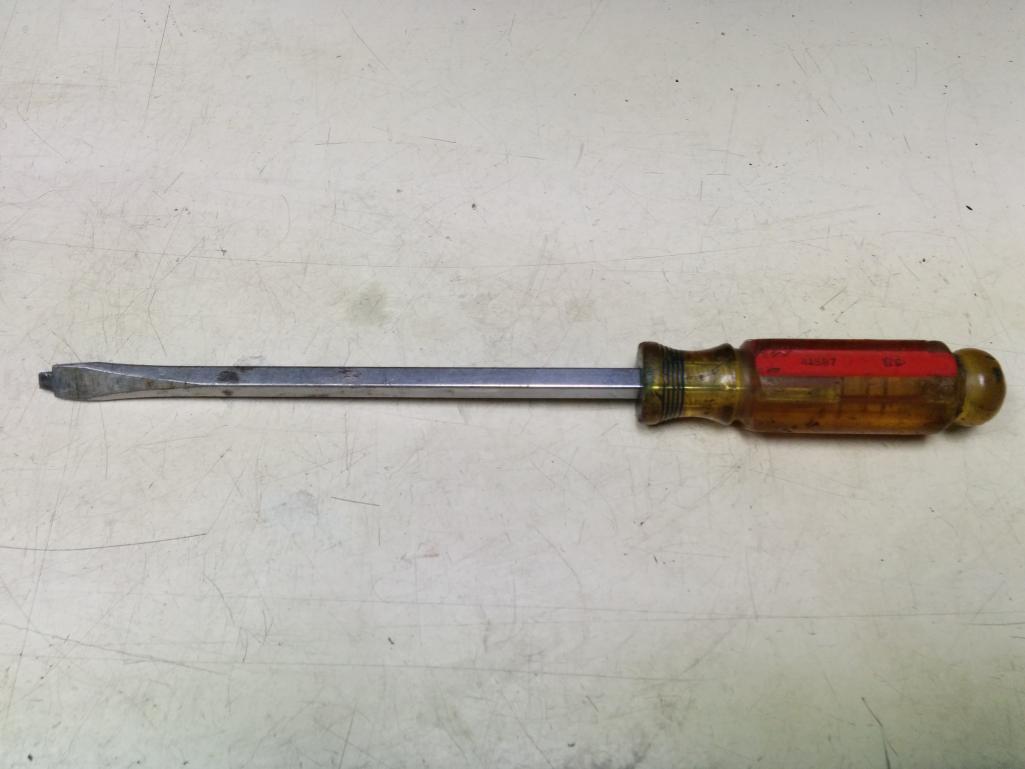

I made this tool a long time ago for just this type of project....guess I should patent it eh...modified a large flat blade screw driver....gives that little extra push(compression) on the spring with out slipping

Attached Image
Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Apr 30 2015, 03:02 PM
Post #20


Custom Member
***************

Group: Members
Posts: 24,638
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States



QUOTE(Brian_Boss @ Apr 27 2015, 11:55 AM) *

First off, if you are not holding the housing in a vice, you're making it significantly more difficult. If you don't have a vice, clamp it to something.

I basically do what Rhody said but I think it's easier if you use a long pin punch inside the spring in place of the pin. Once the spring is lined up, it will stay in place while you remove the punch and install the guide pin.

I use a long pin punch made for brake caliper work but anything that gives you a bit more leverage to "steer" the spring into place will do.

(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/agree.gif)
