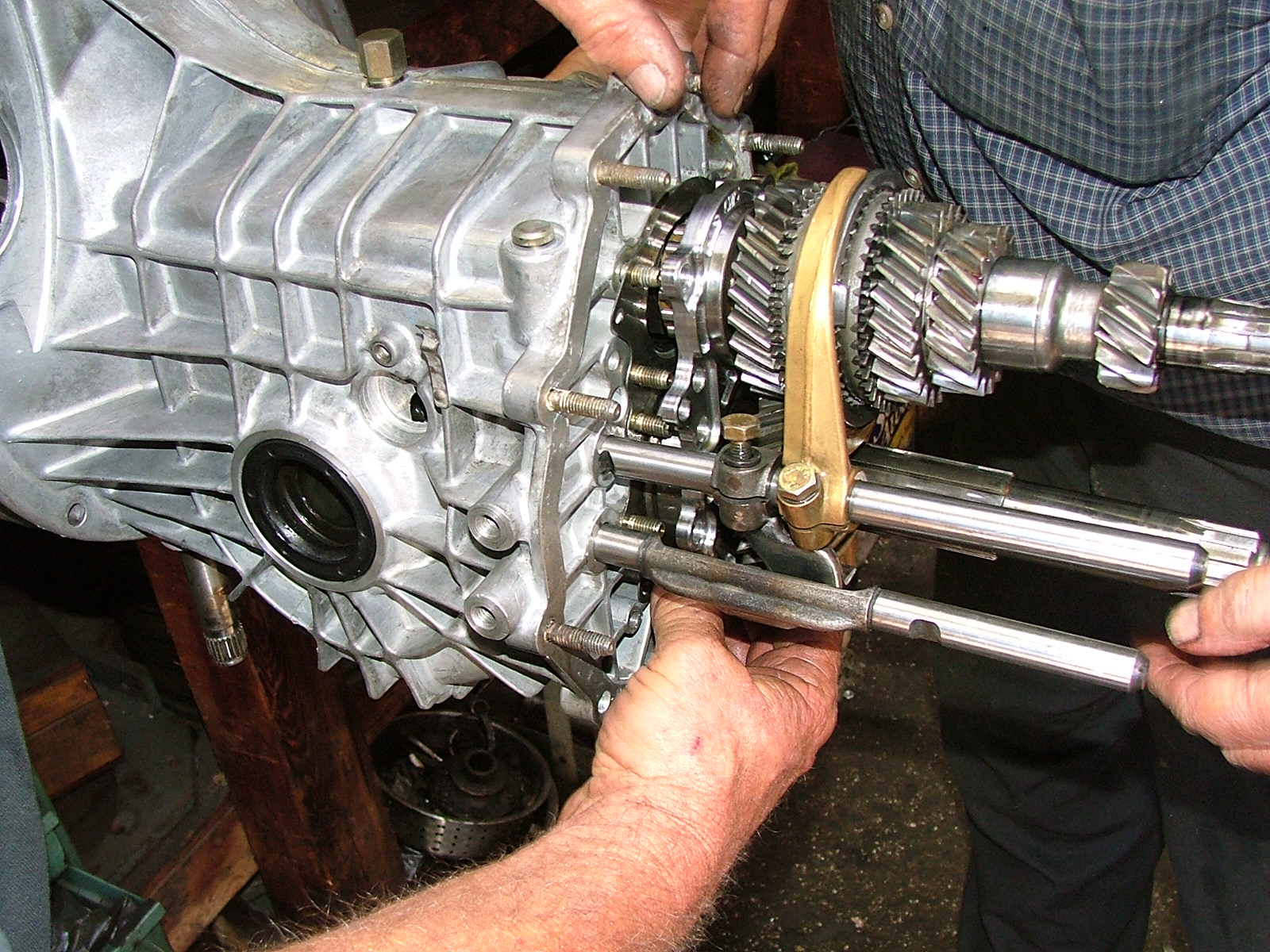

Saturday morning started with taking a picture of the 1st and 2nd gears and slider I received from the guy I bough the 915 box from.
A stand up guy to supply the parts after the fact and much appreciated for sure! (IMG:style_emoticons/default/beerchug.gif)
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 12:45 PM
Post #902


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(defianty @ Jun 1 2019, 01:22 AM) *

Very nice Jim, this will be great reference for anyone looking to do the same.


Thanks! There is information out there for sure, but requires digging, with bits and pieces here and there, not to mention Steve who is a wealth of knowledge and extremely helpful, plus gracious with his time.

But as far as "in process pics" and pitfalls, not much at least that I could find. So I am doing what I can to show in pictures, at least my experience to hopefully help.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 01:13 PM
Post #903


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

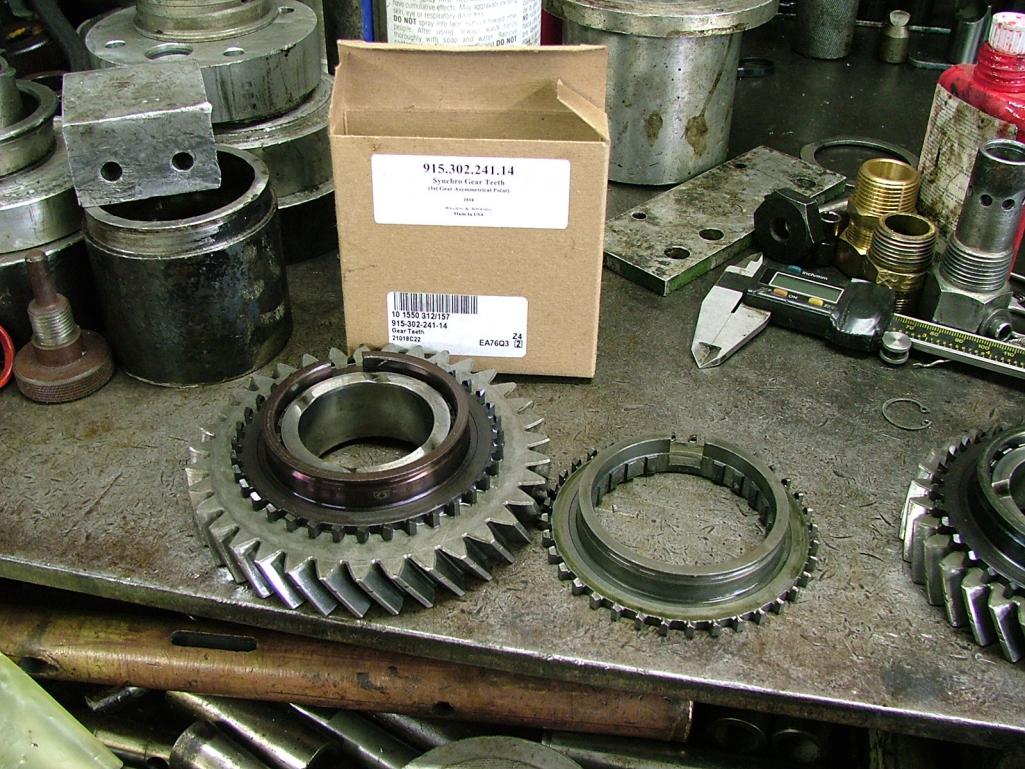

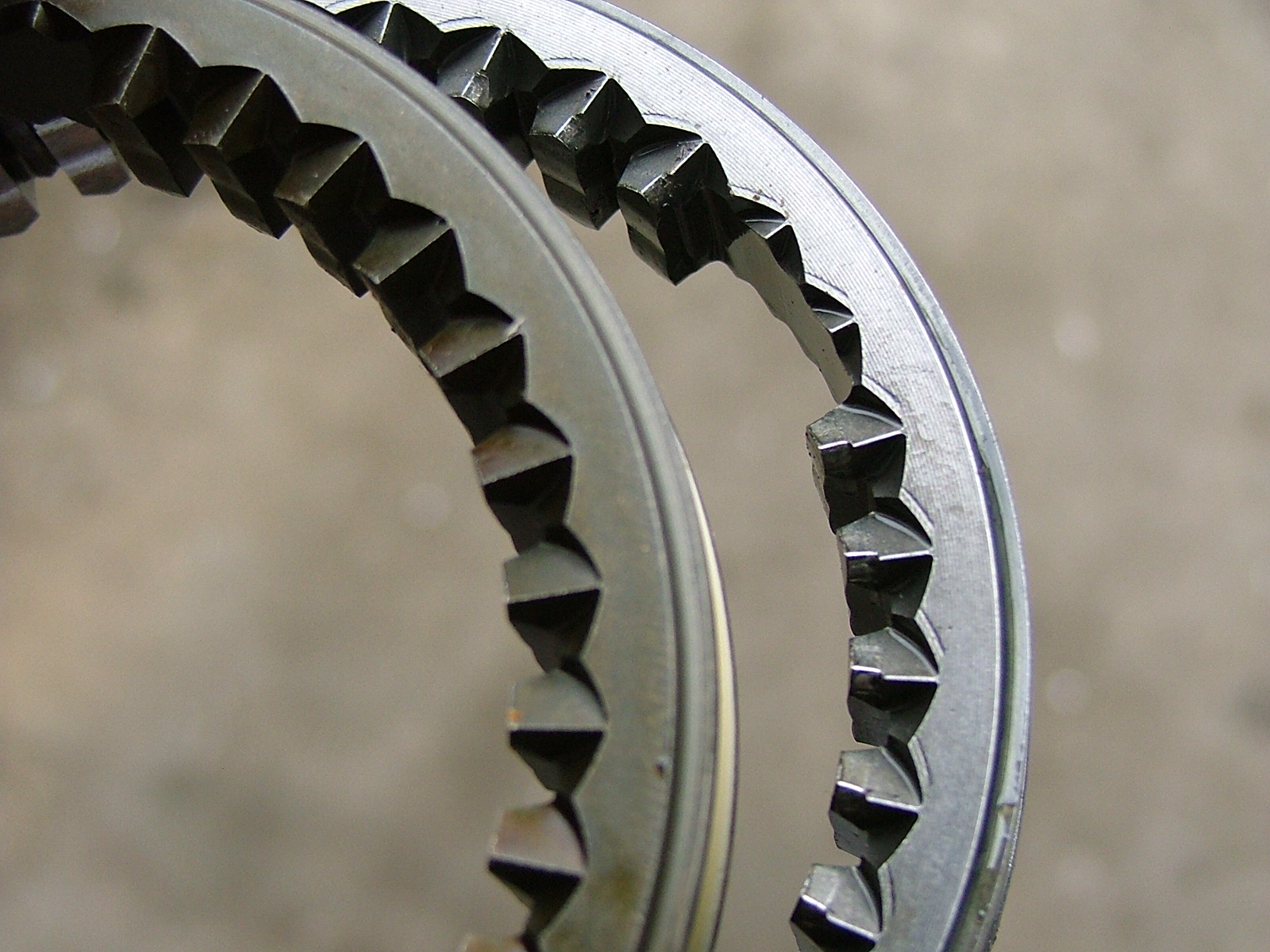

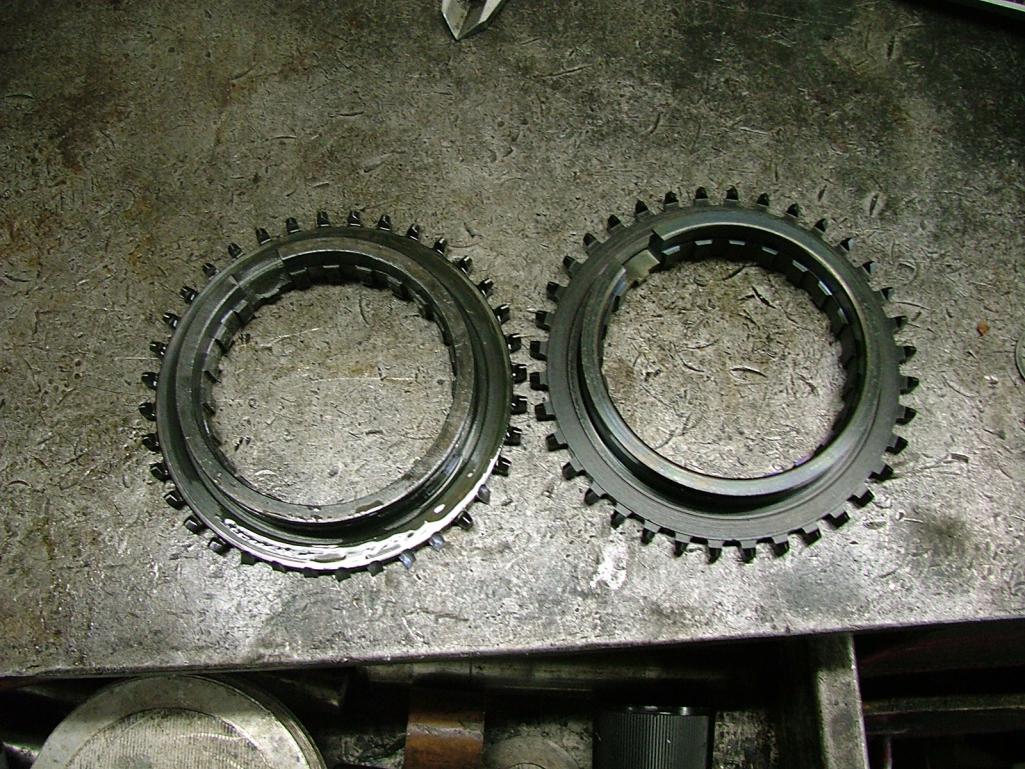

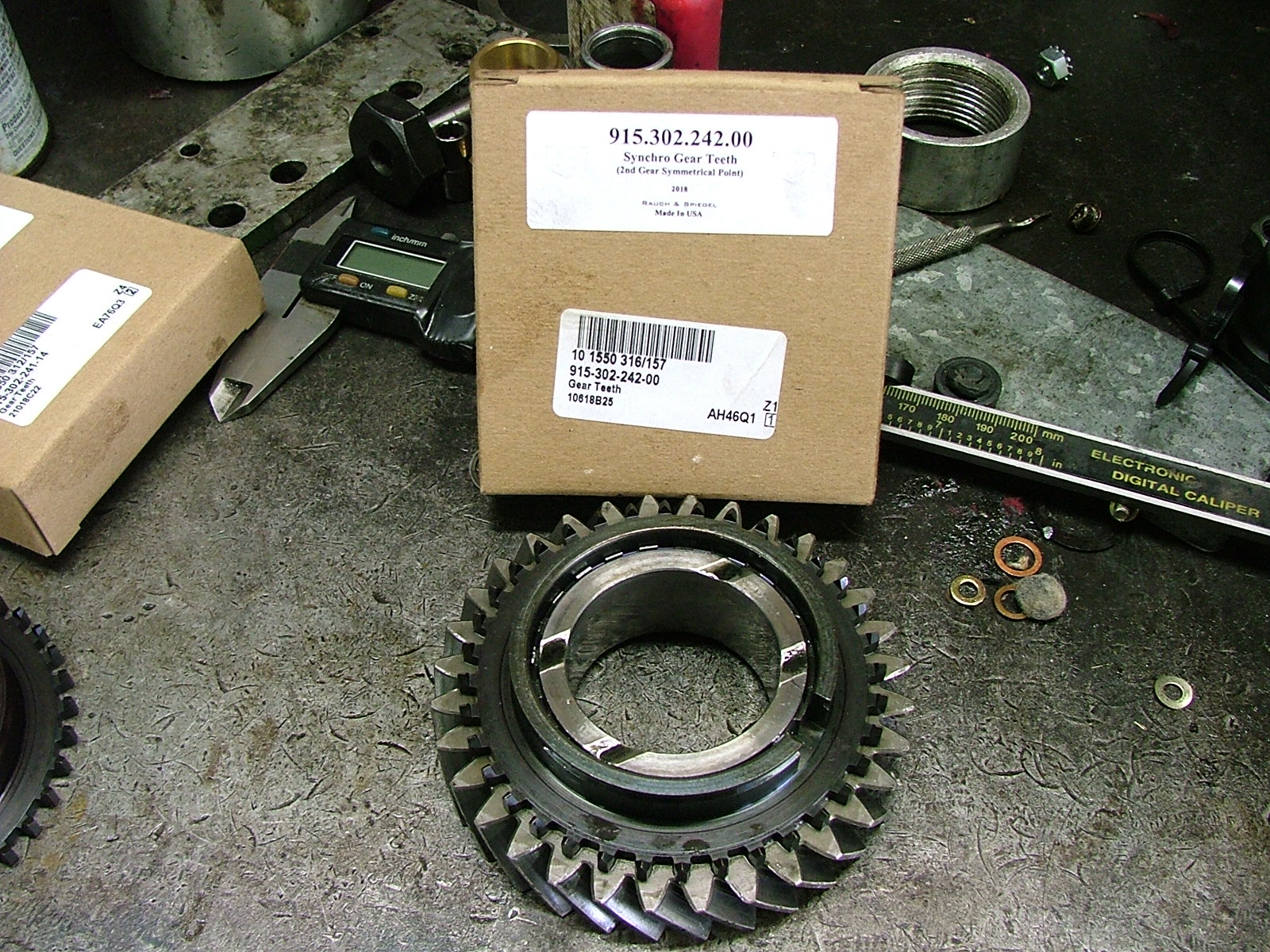

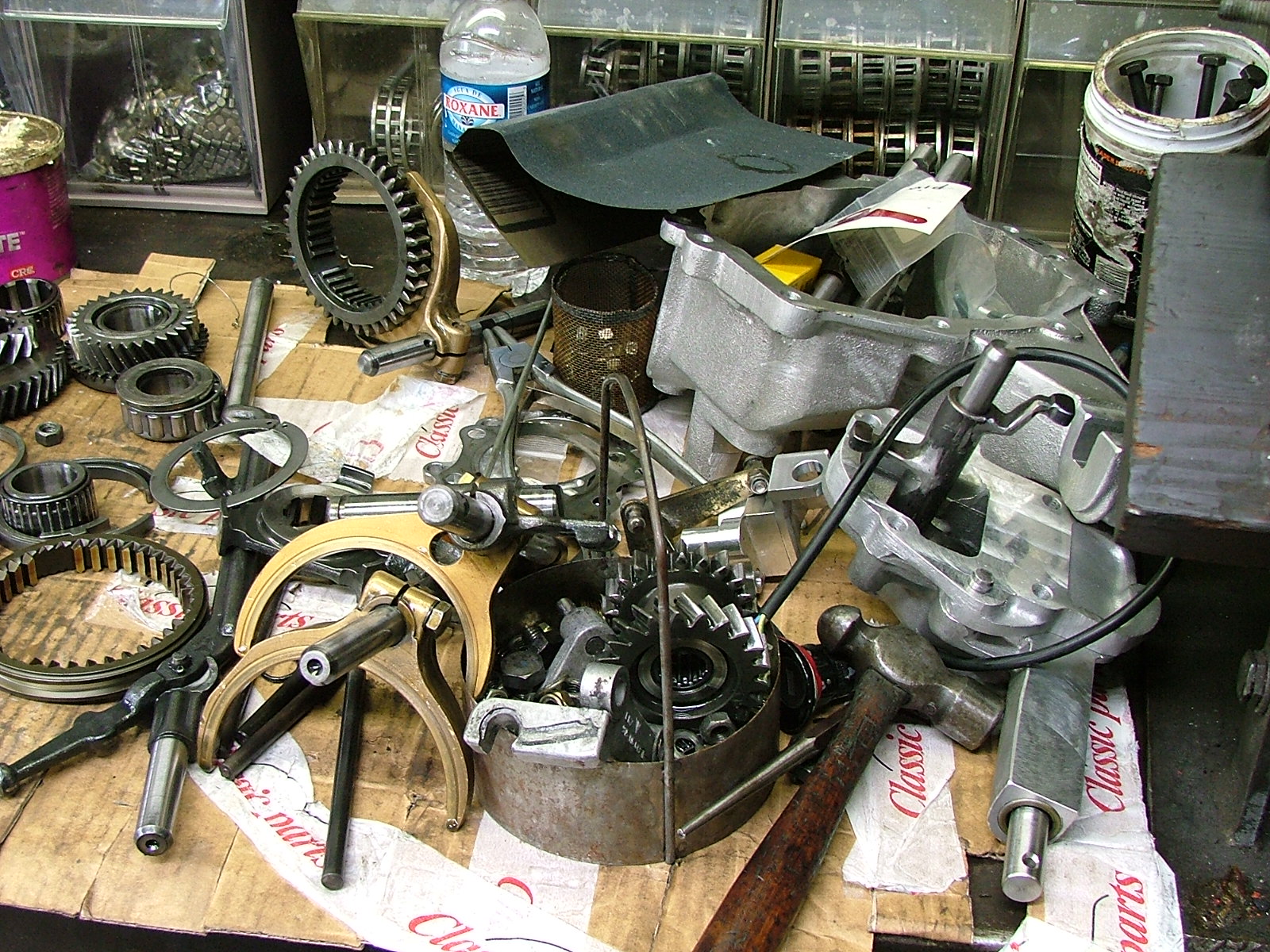

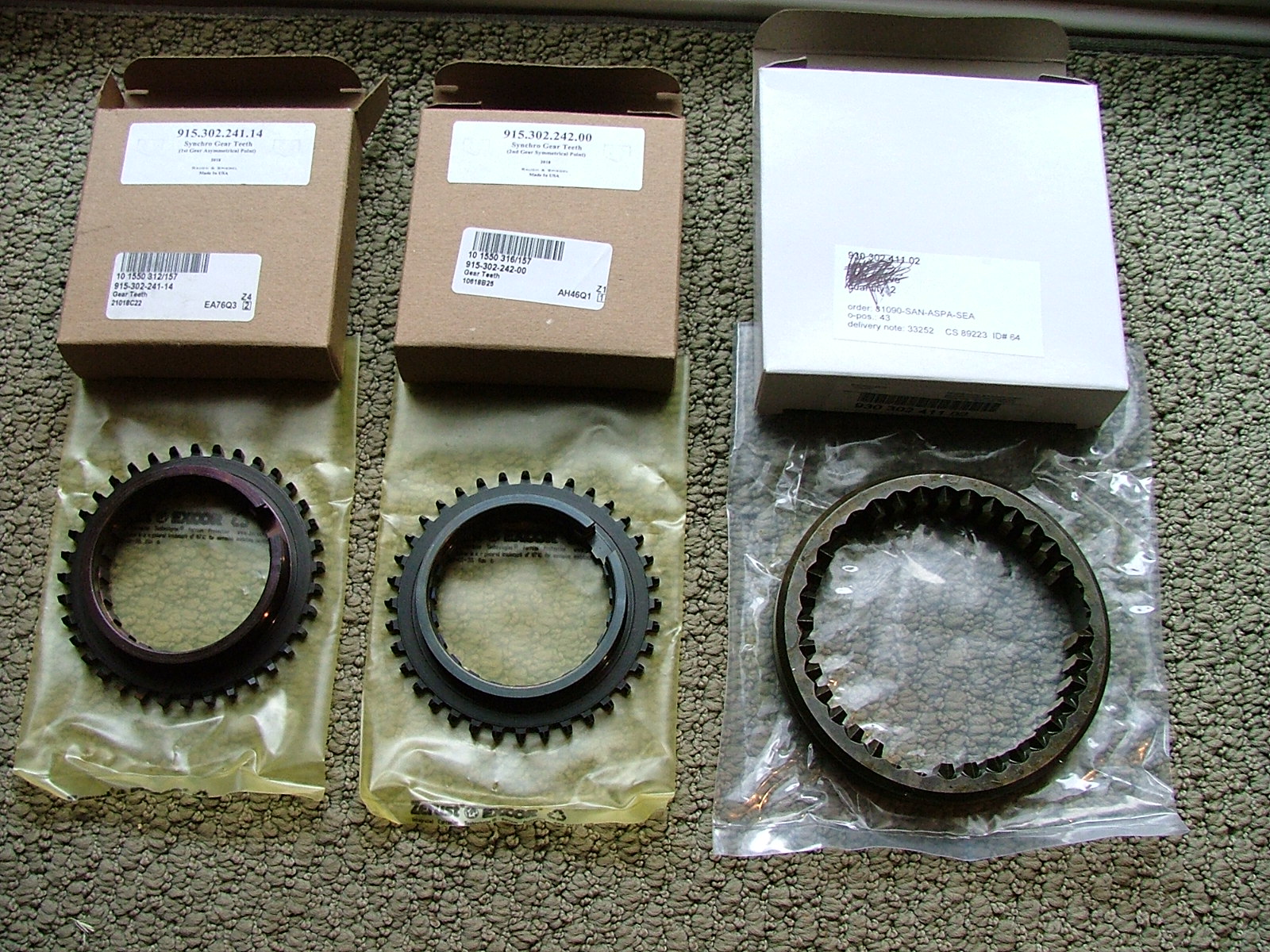

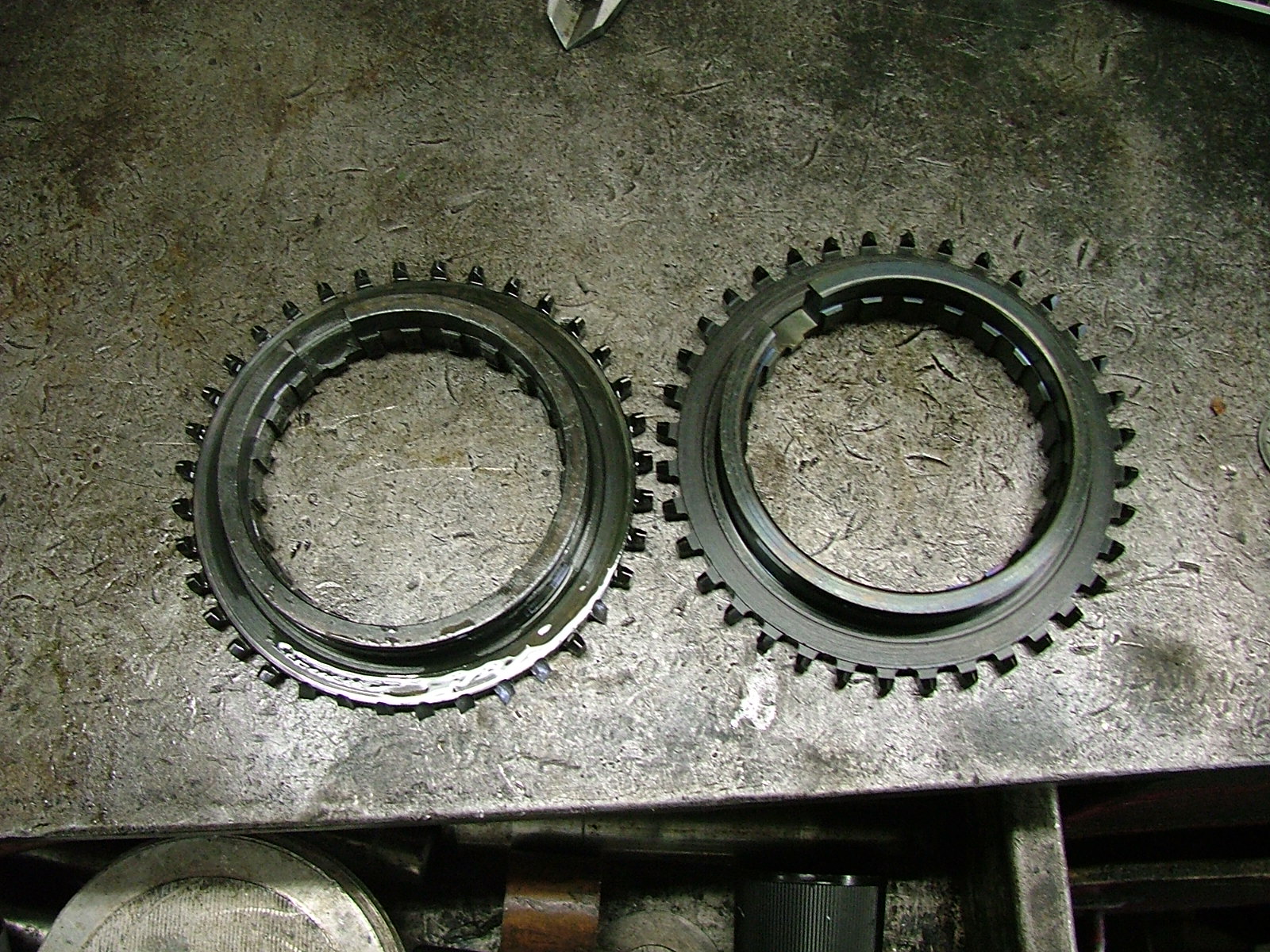

Back at the shop we started with changing the gear dogs. Of course this is not part of the kit install but something that needed to be done on my build. First was the worst!
Again my thanks to the seller of the gear box for stepping up. (IMG:style_emoticons/default/beerchug.gif)
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

Attached Image

Attached Image

And here is second gear

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 01:29 PM
Post #904


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

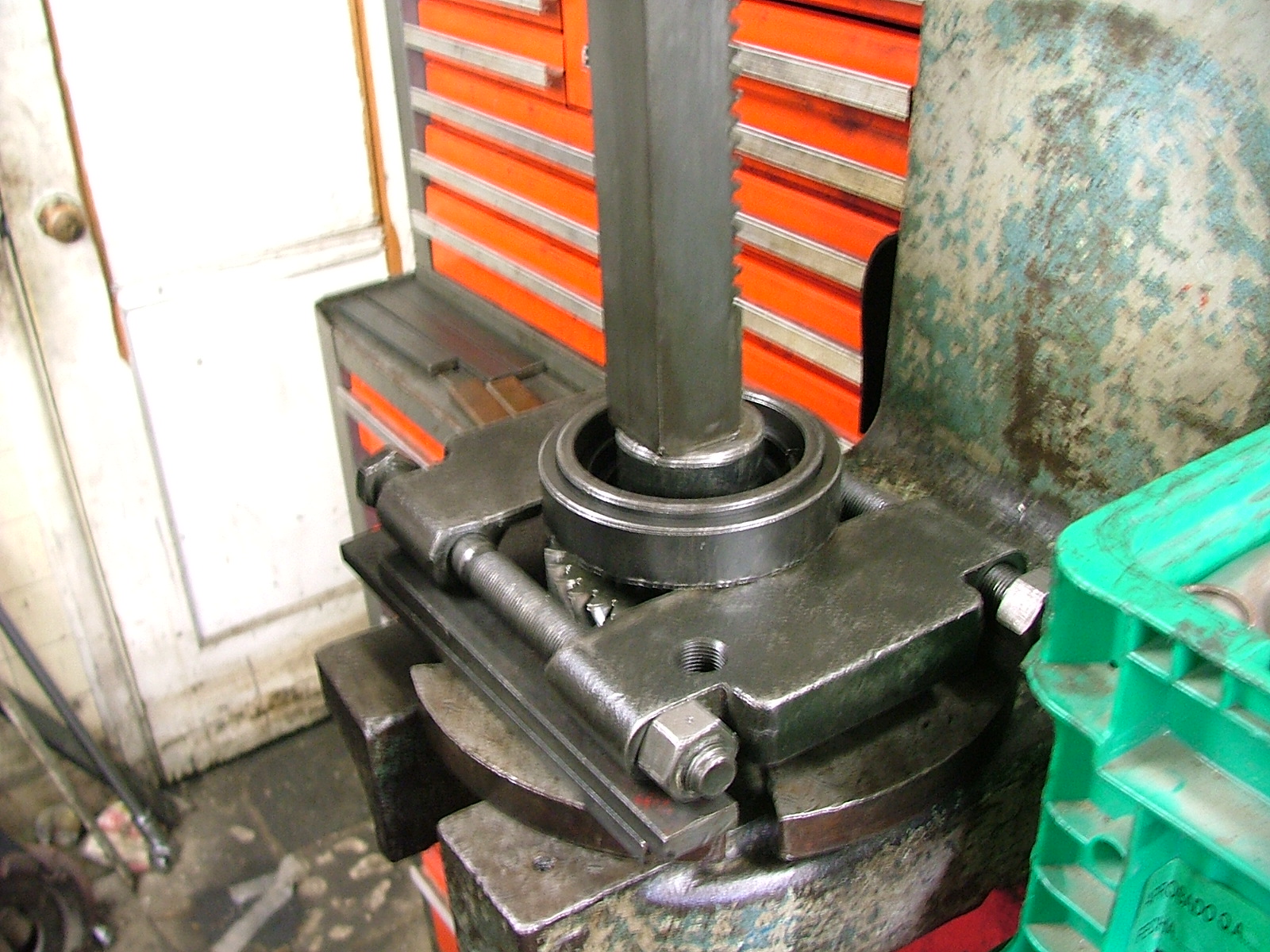

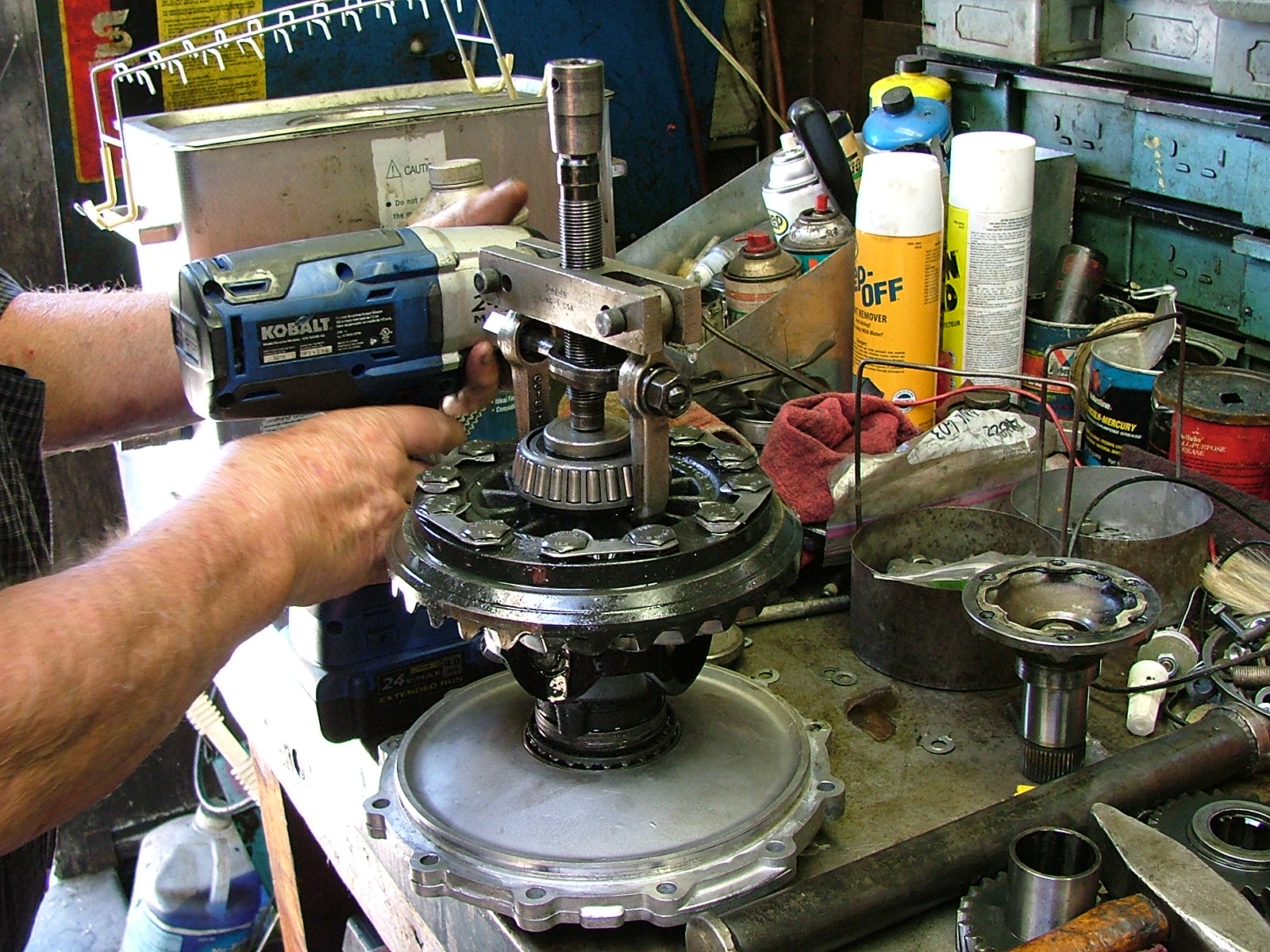

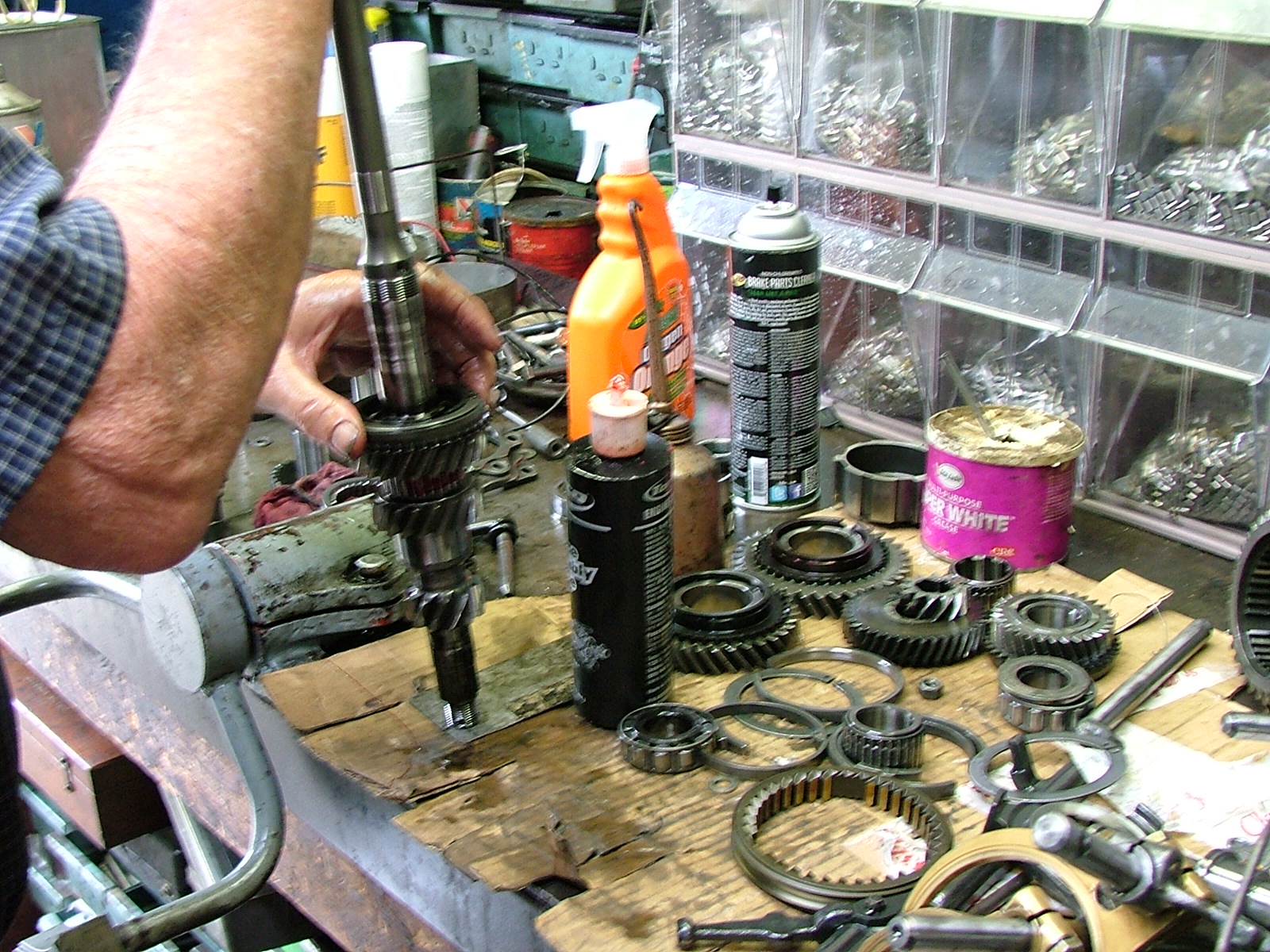

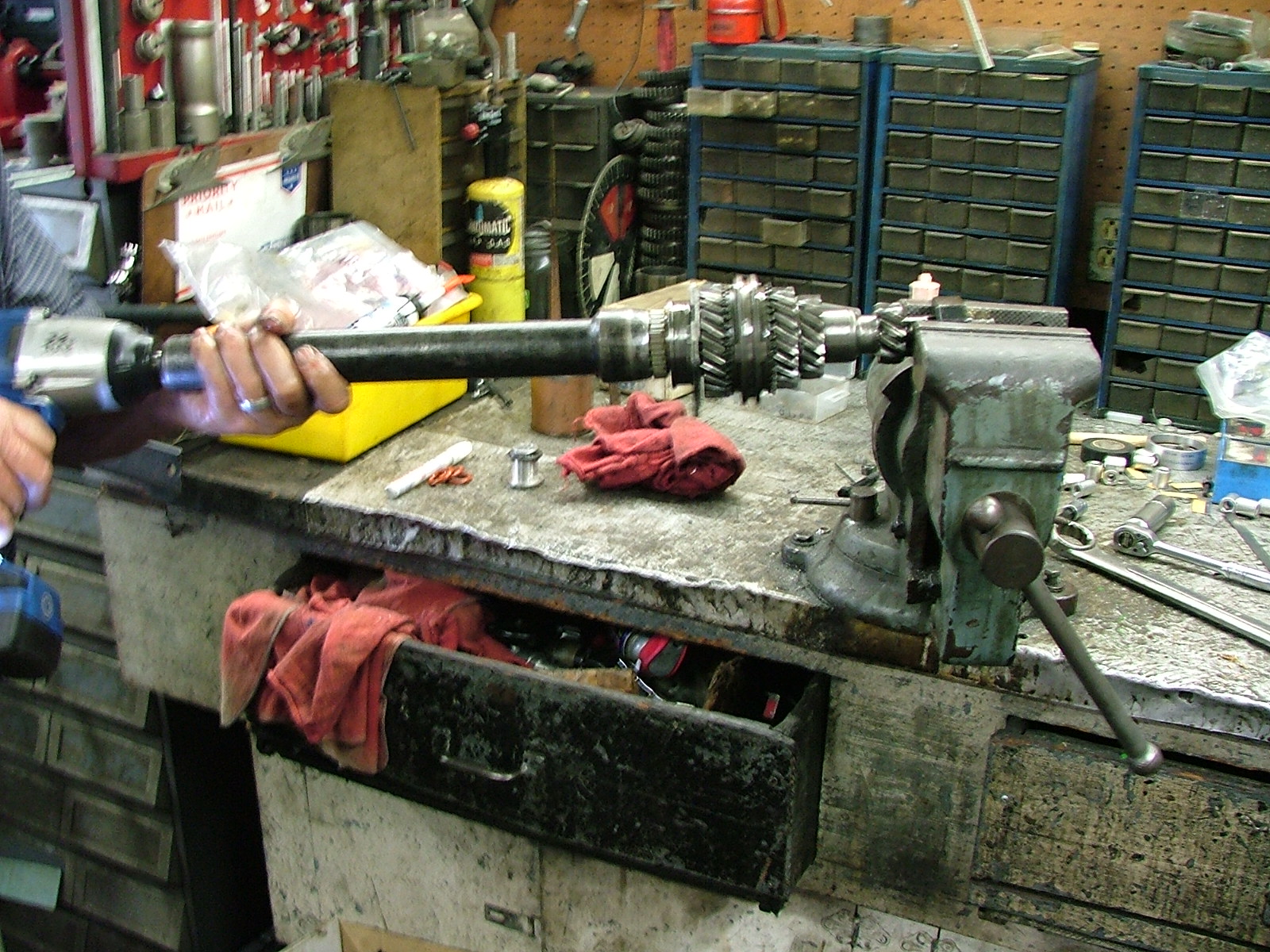

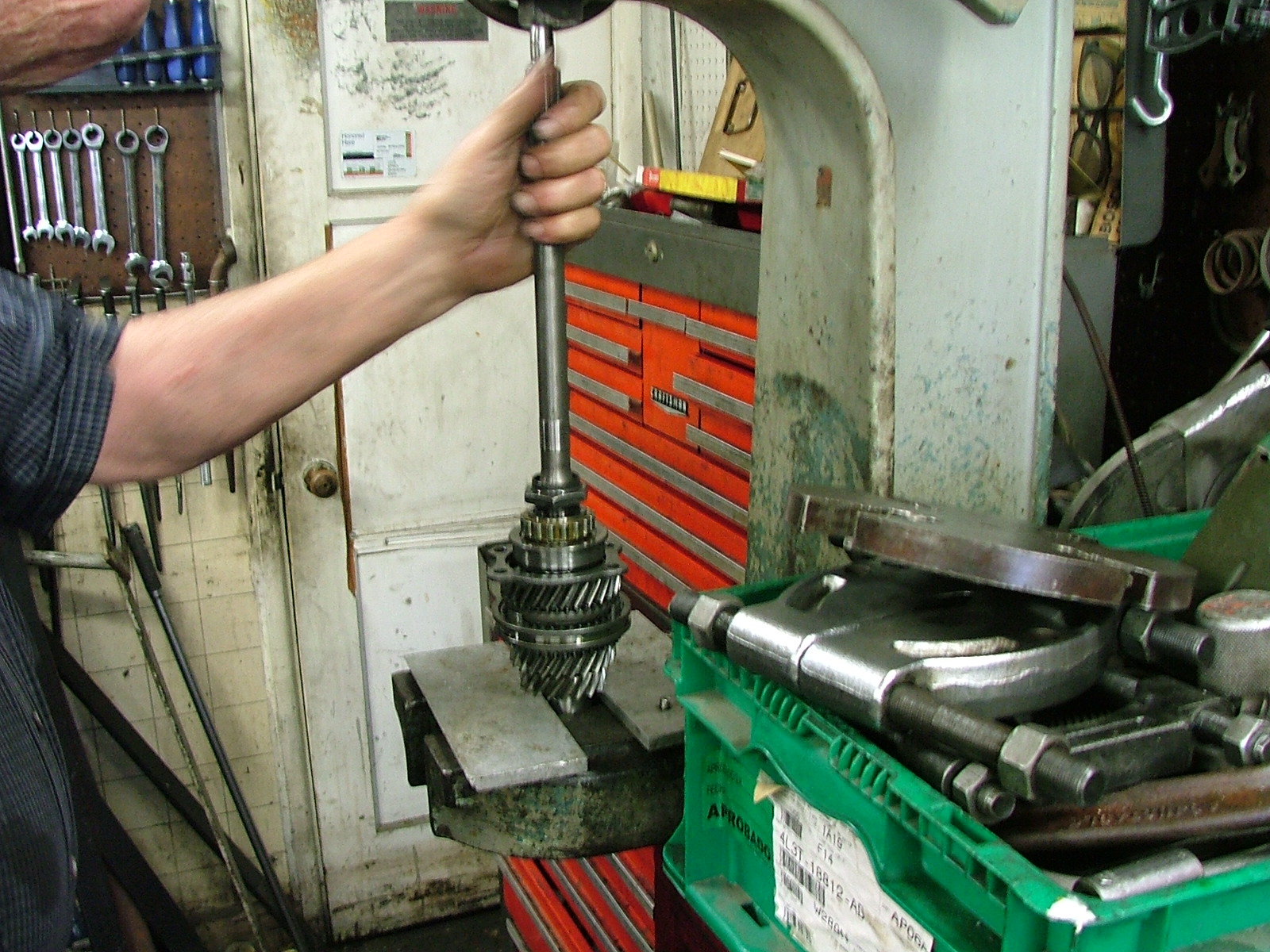

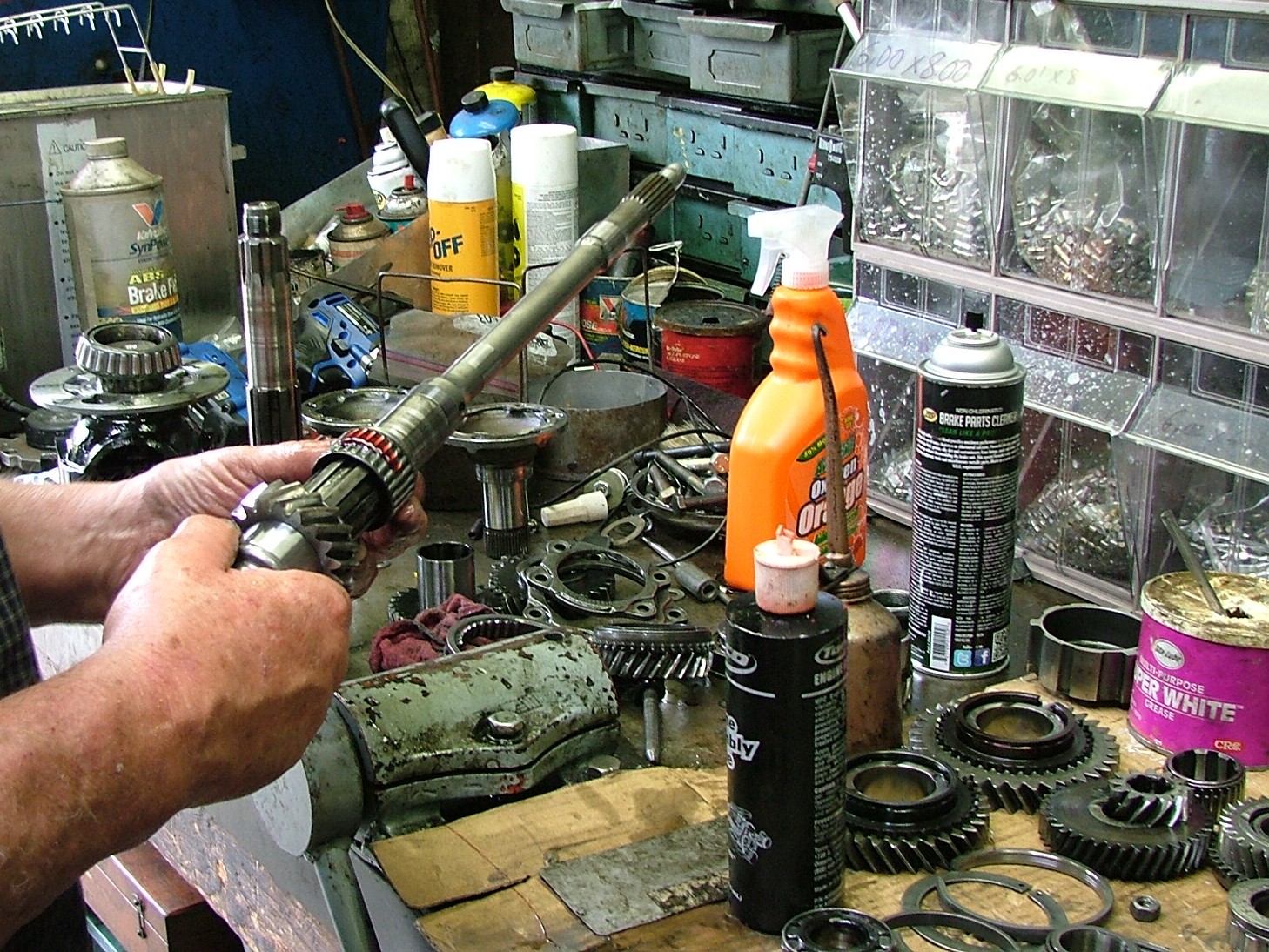

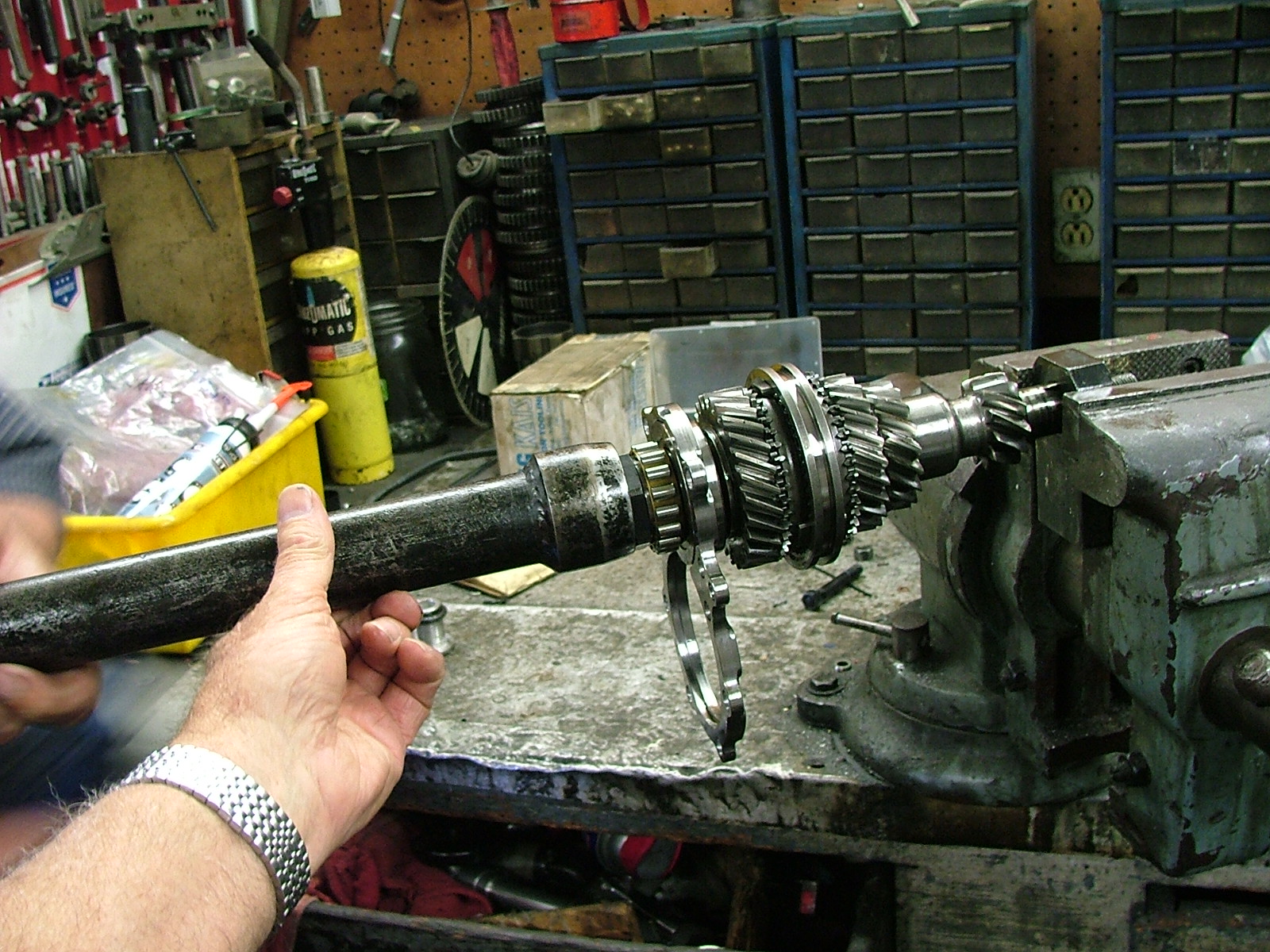

Next was disassembly of the main shaft to install the one piece bearing clamp.
Granted this was not part of the kit either, but my guy recommended it, so I did as he said and got it from California Motorsports. Not cheap!
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

Attached Image

Attached Image

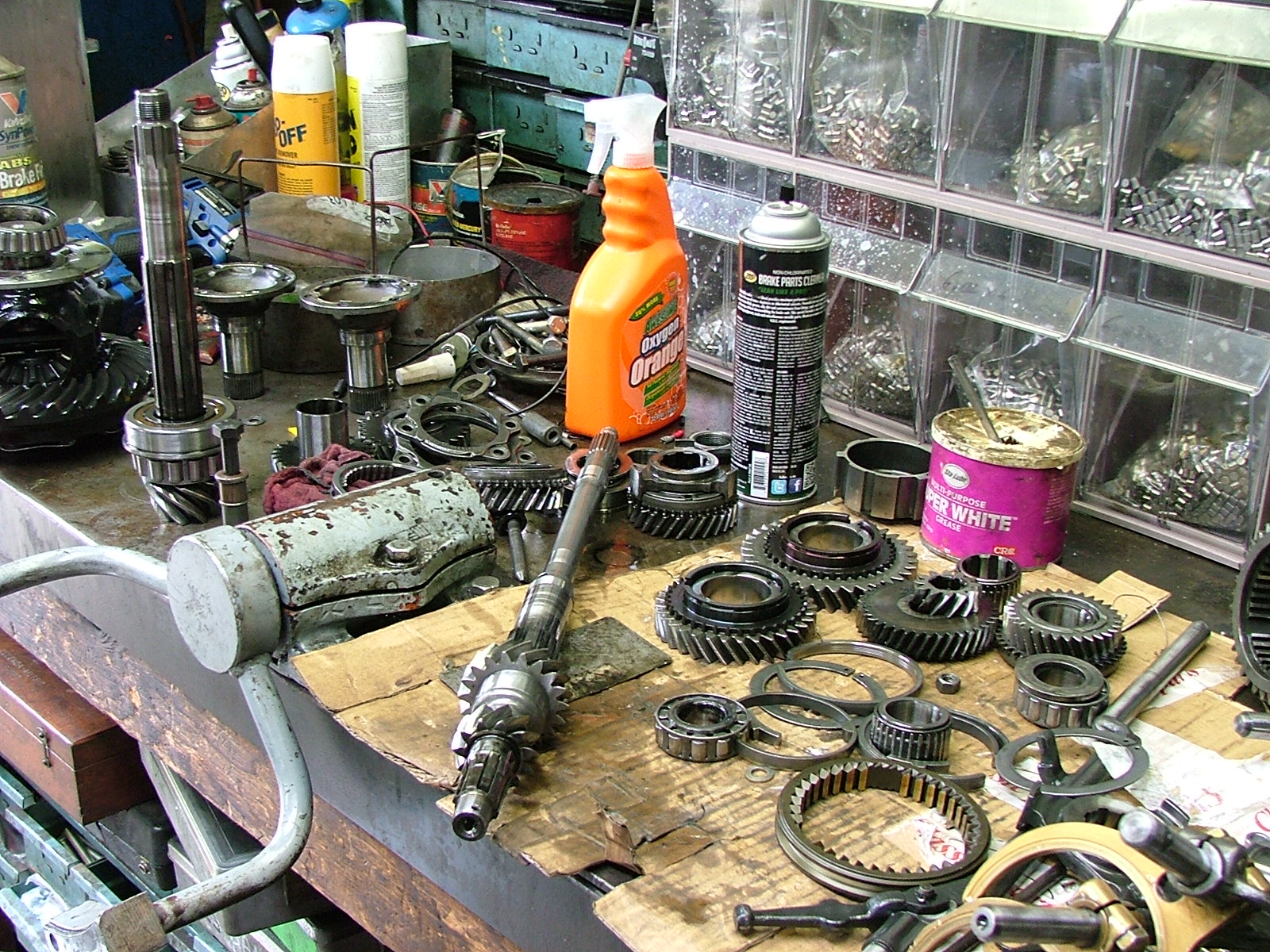

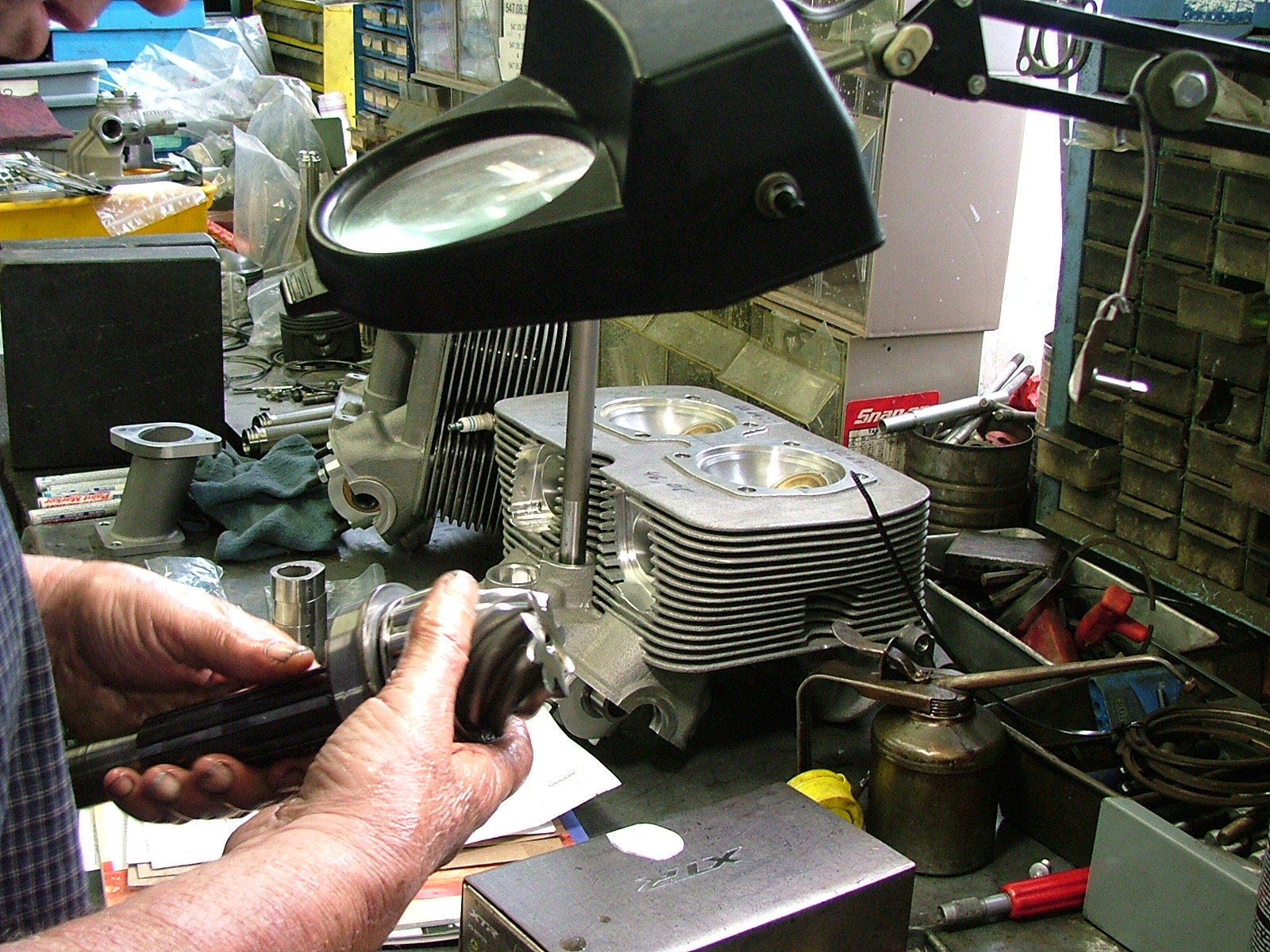

A thorough inspection of the pinion gear, yes that is a 356 Carrera 2, 4 cam head behind.

Attached Image

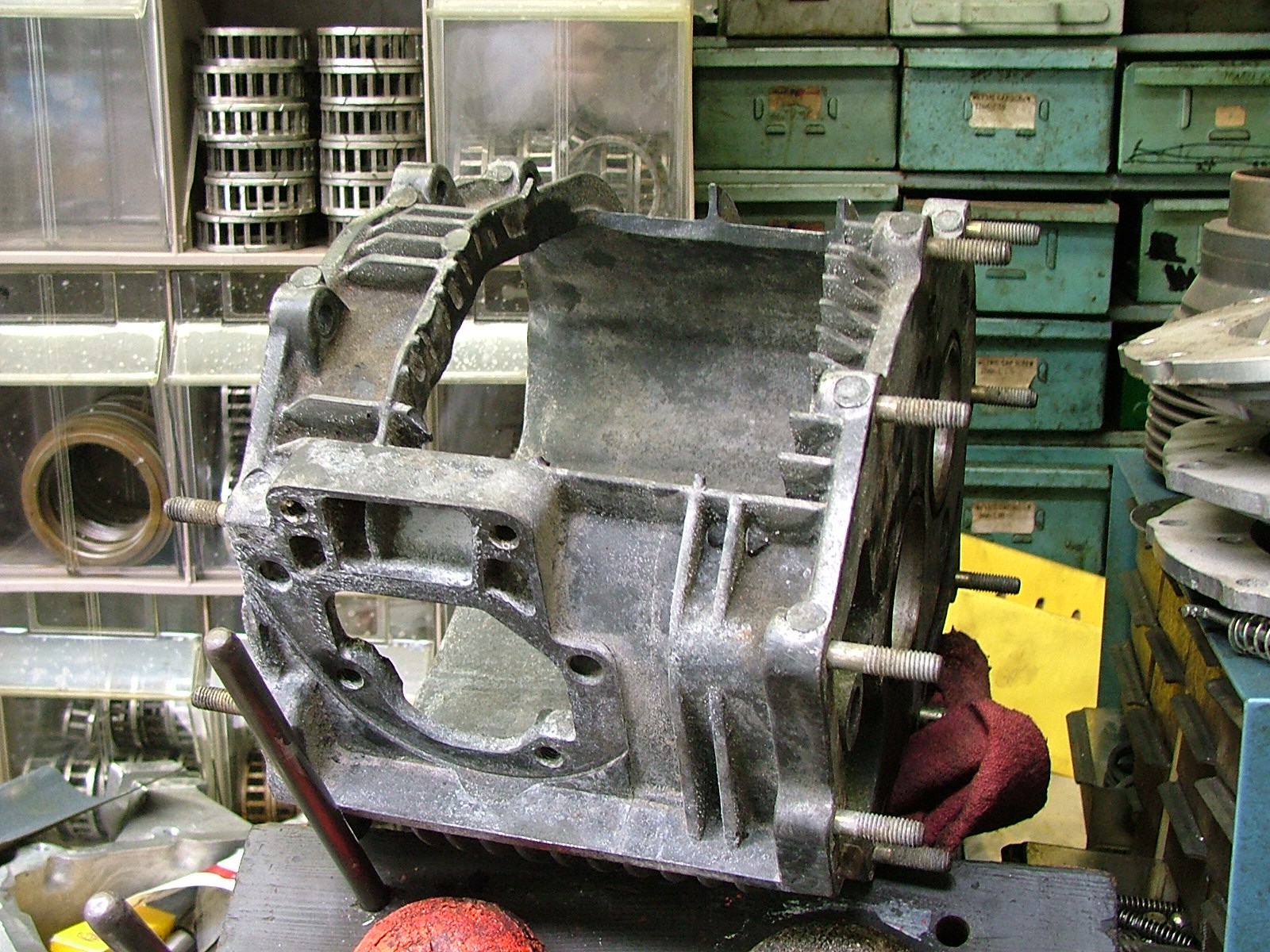

Random shot of his cut away case that would come to make a major contribution to the build.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 01:42 PM
Post #905


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

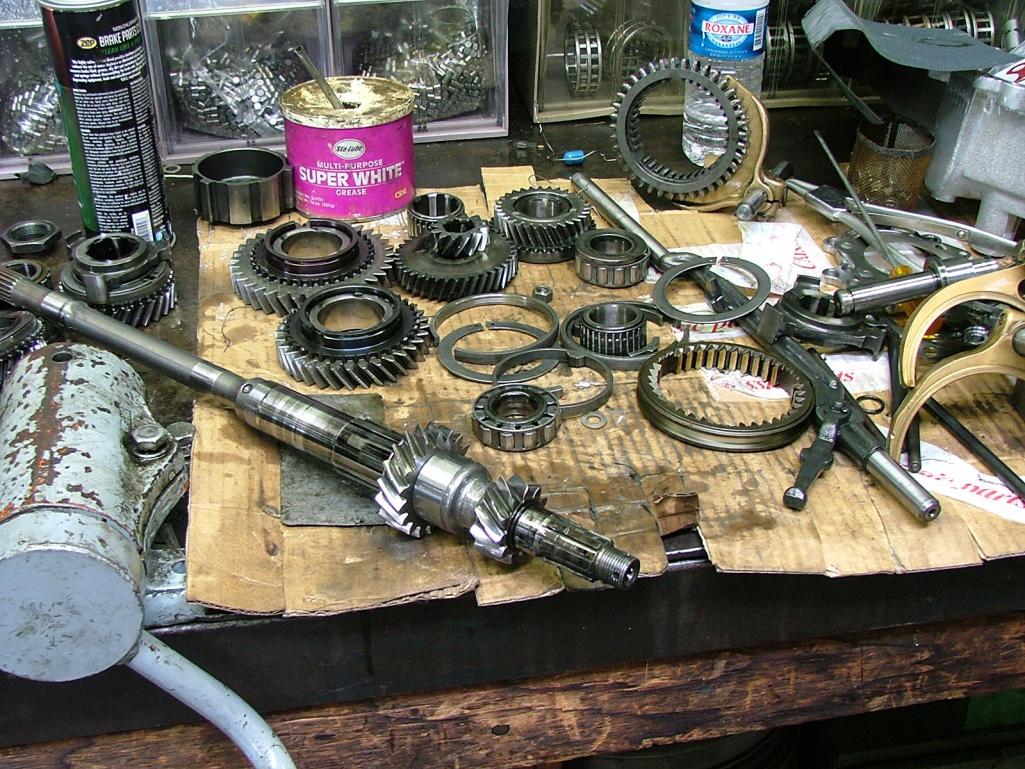

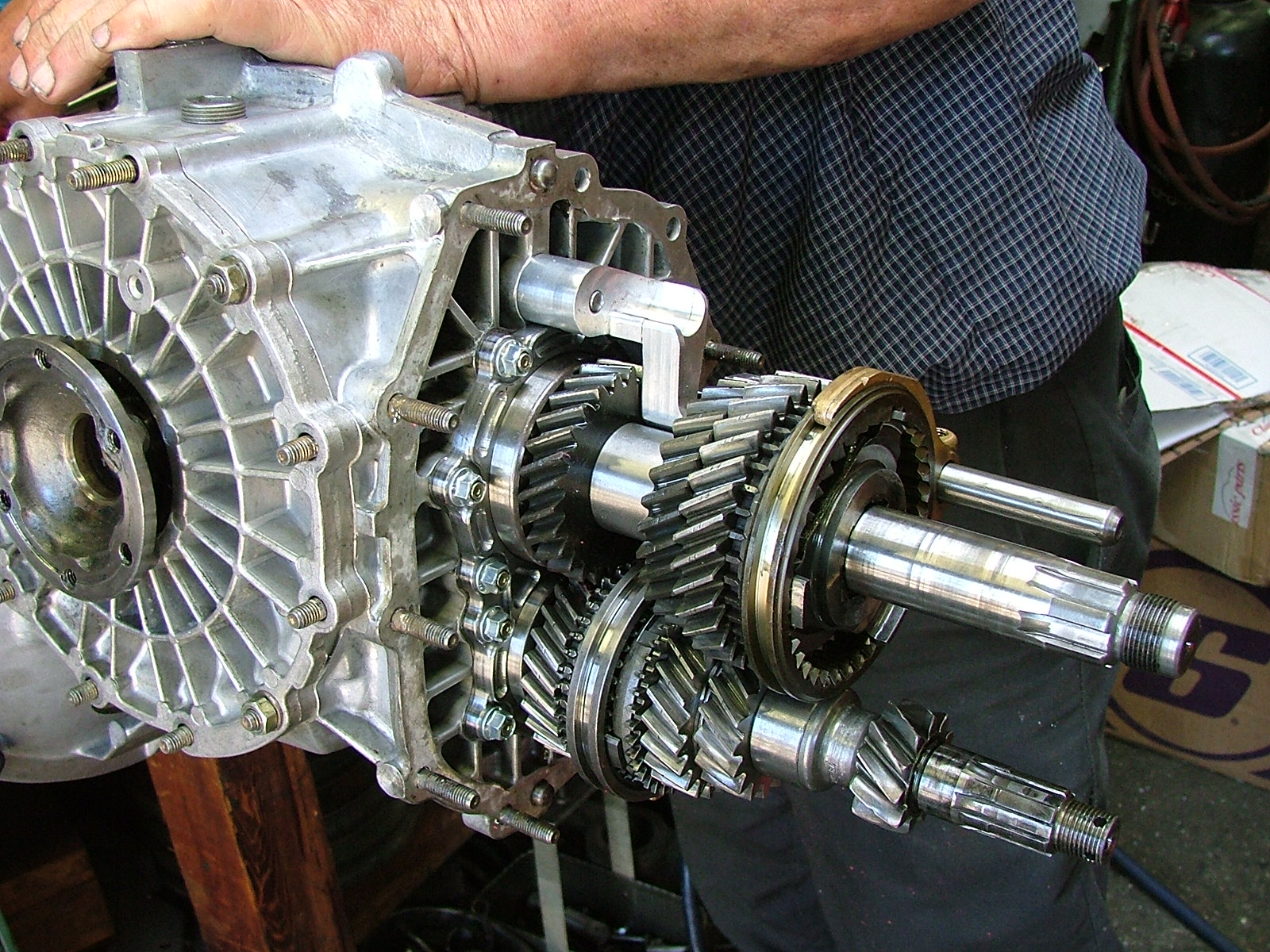

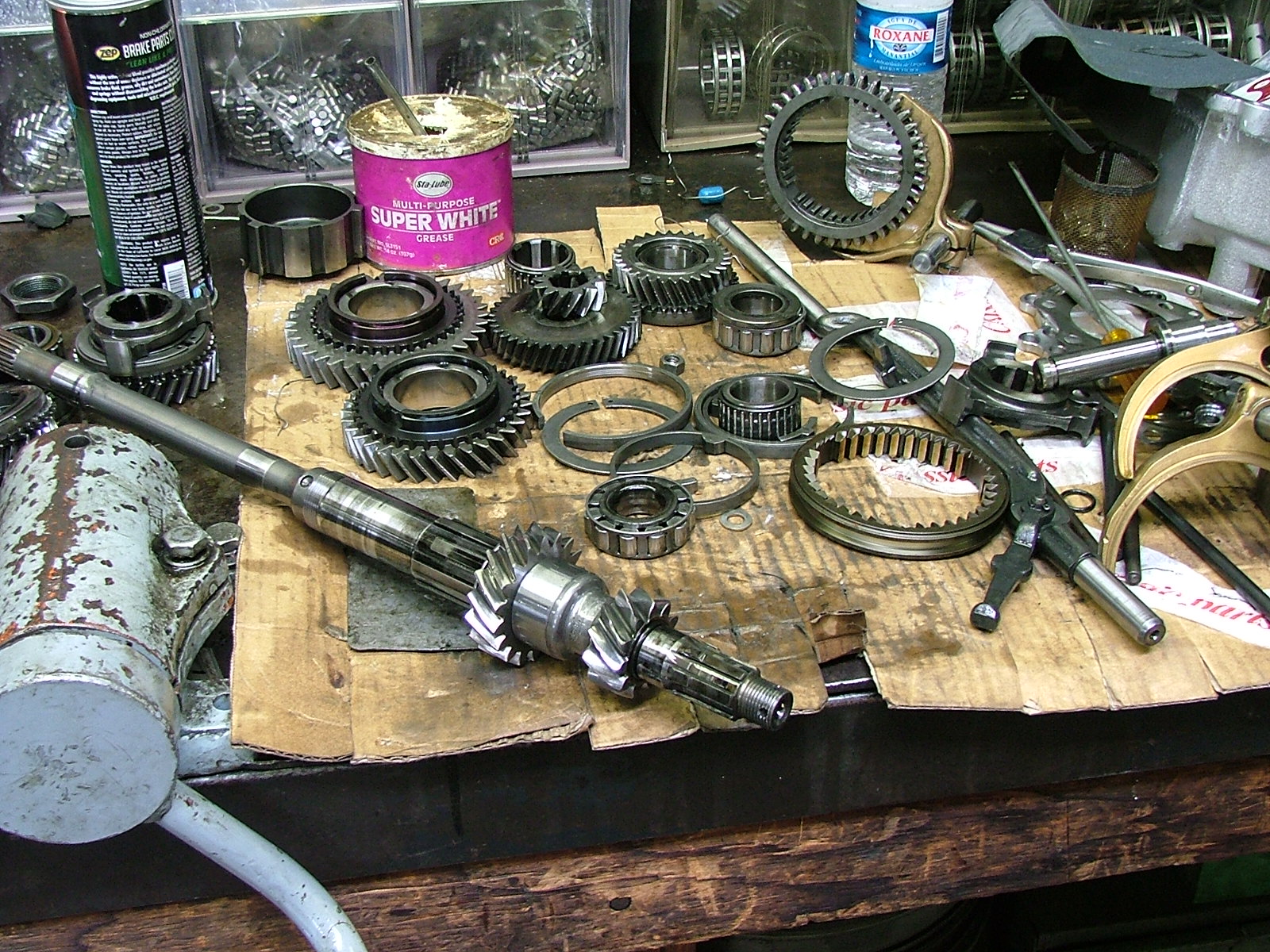

So now totally disassembled.

Attached Image

Attached Image

Attached Image

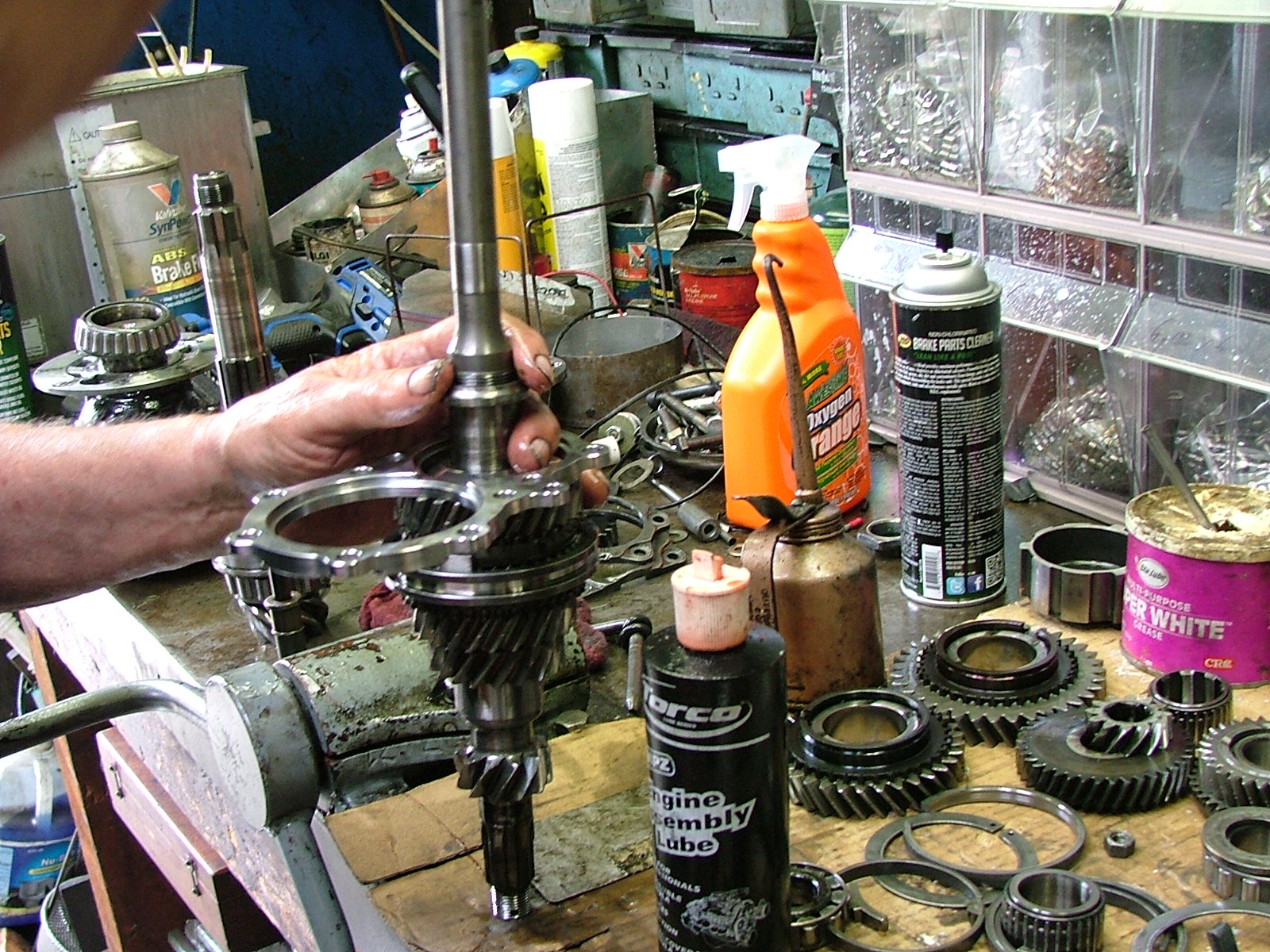

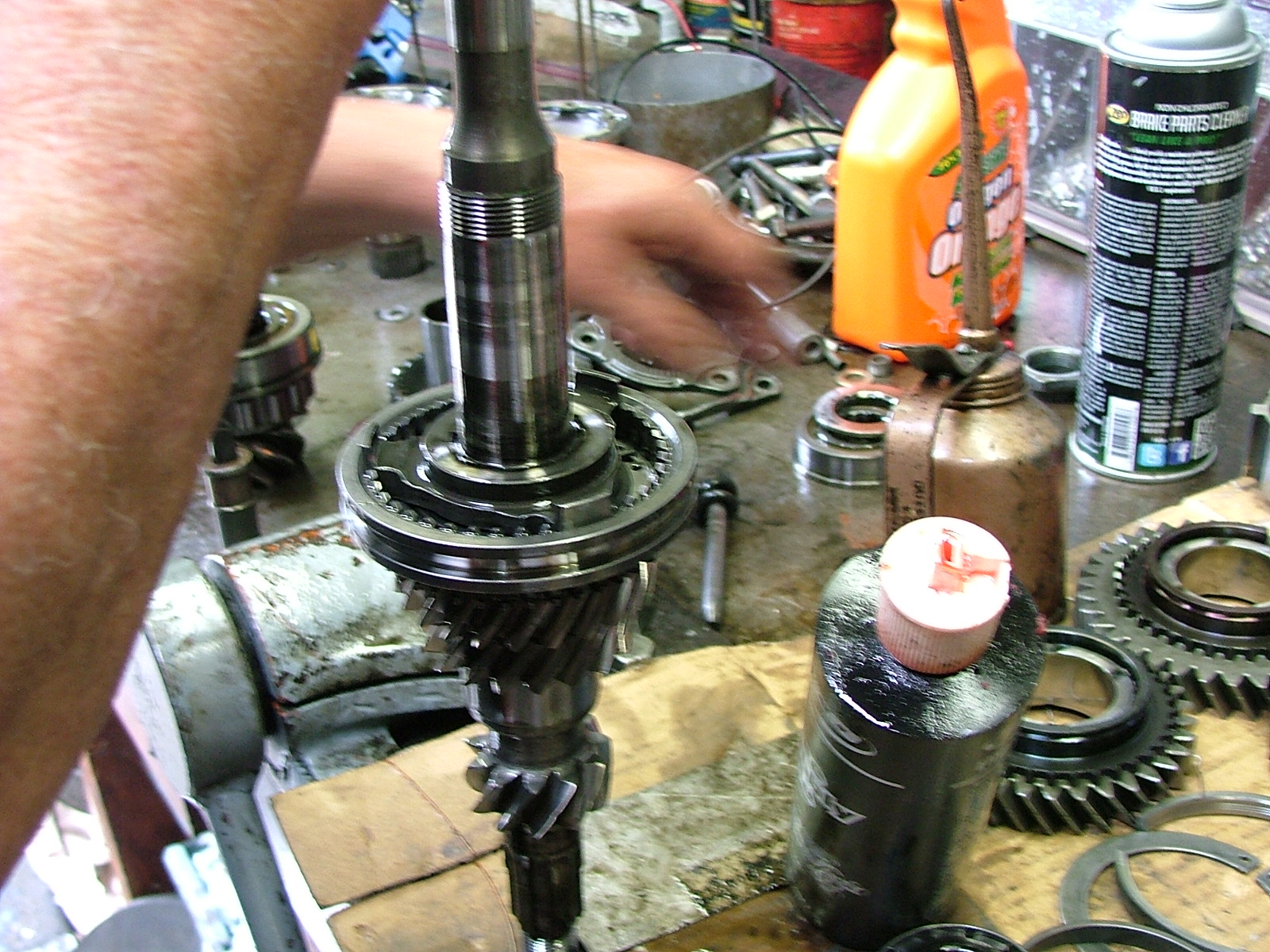

Reassembly begins

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 02:04 PM
Post #906


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

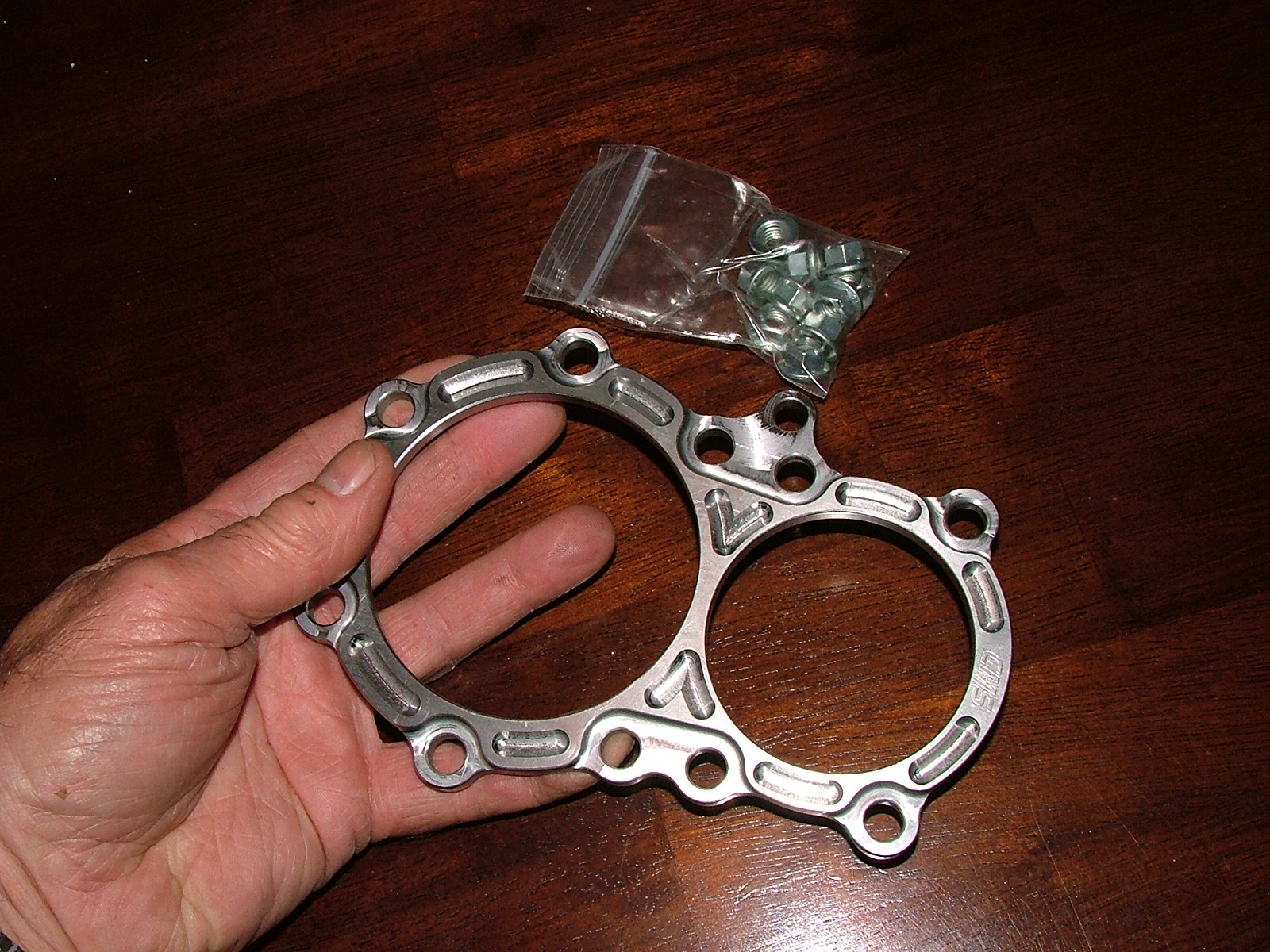

Here comes the bearing clamp and bearing, nut and torque

Attached Image

Attached Image

Attached Image

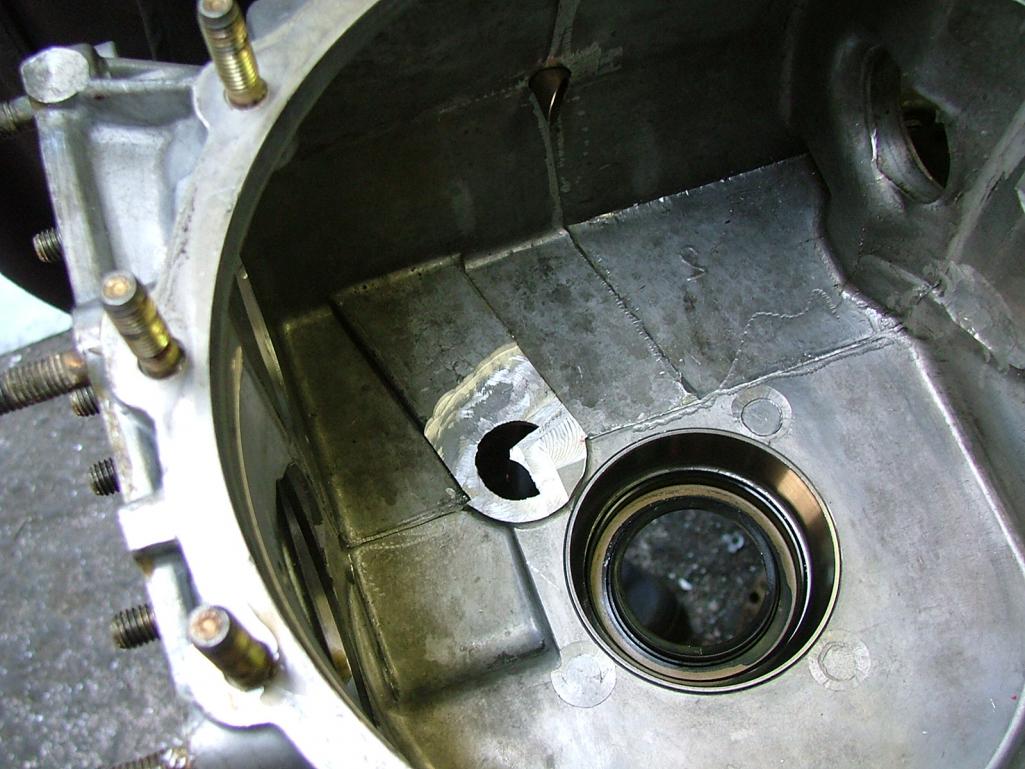

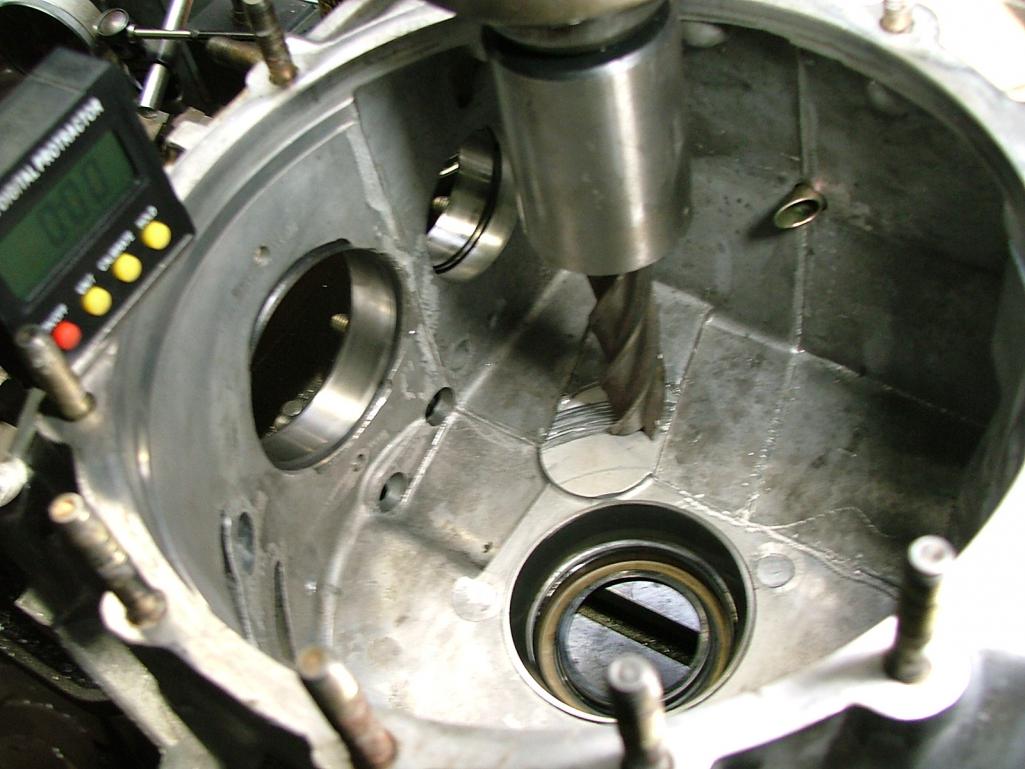

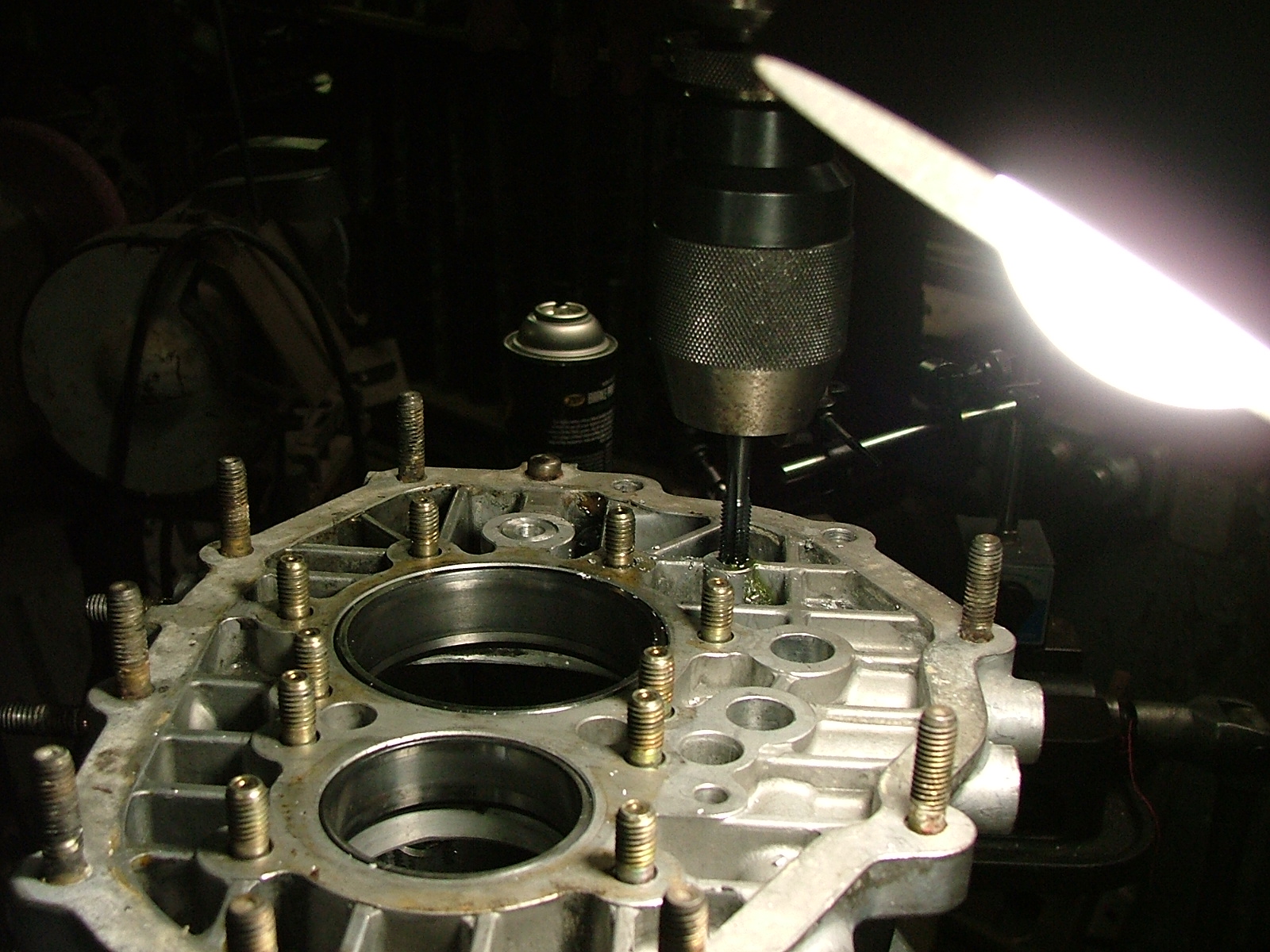

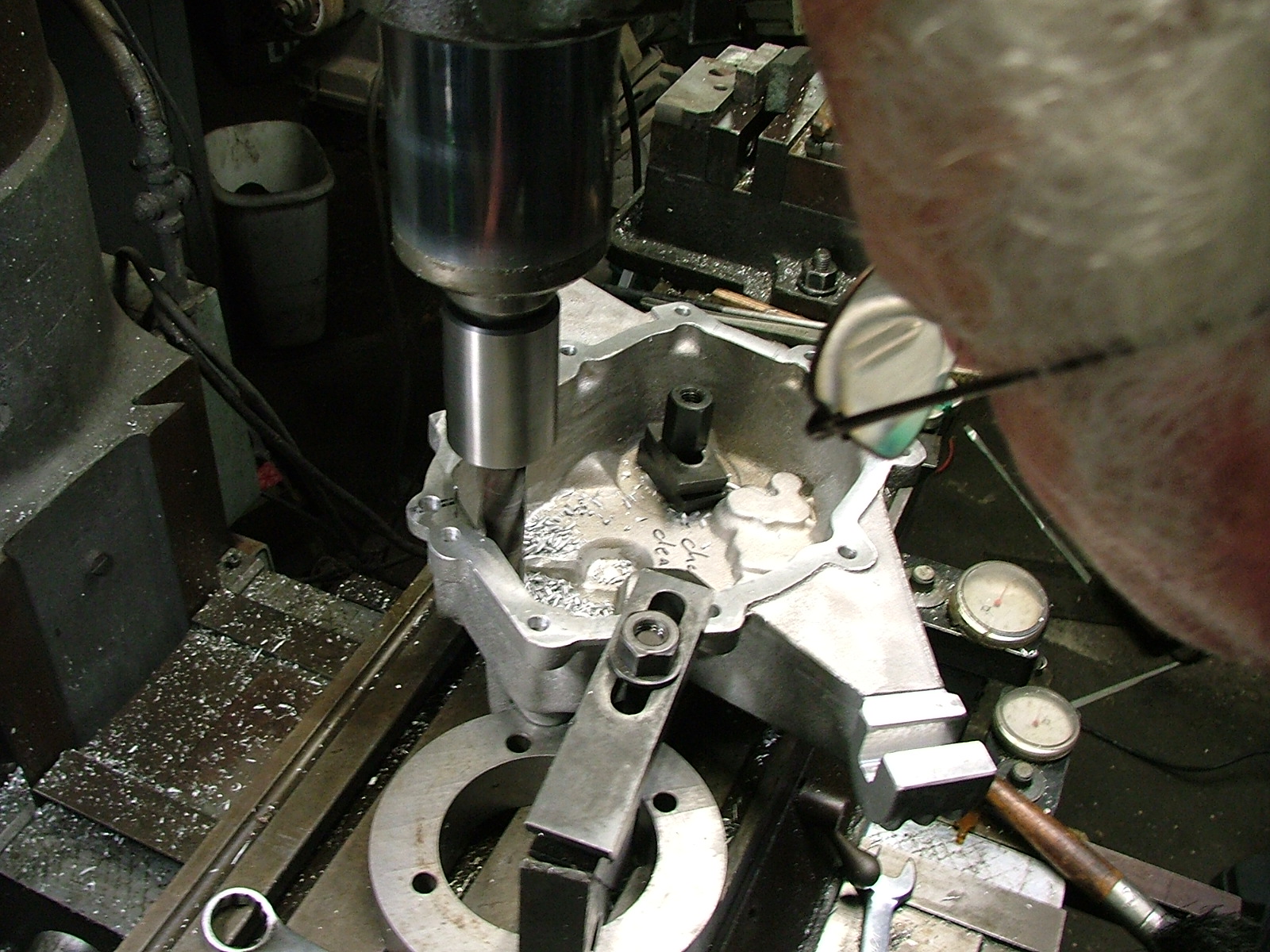

So now on to drilling and tapping the hole for the inner support block. That is the template provided by Martin Bott as a means to locate the hole but my guy was not impressed and with the use of his cut away case made a true center punch mark. Not to say this would not work and they were very close to be fair.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Jun 4 2019, 03:35 PM
Post #907


Advanced Member
****

Group: Members
Posts: 4,652
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
I love it.
Beautiful illustration.
Done by a guy who is obviously very experienced.
Just happens to have a pair of 356 Carrera 4 cam heads on the bench too.
Made my day.
Nice GT too.....what color is that again ? (IMG:style_emoticons/default/wub.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 10:08 PM
Post #908


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
Continuing on with Saturday work which by the way started at 9 am and went to 6 pm.

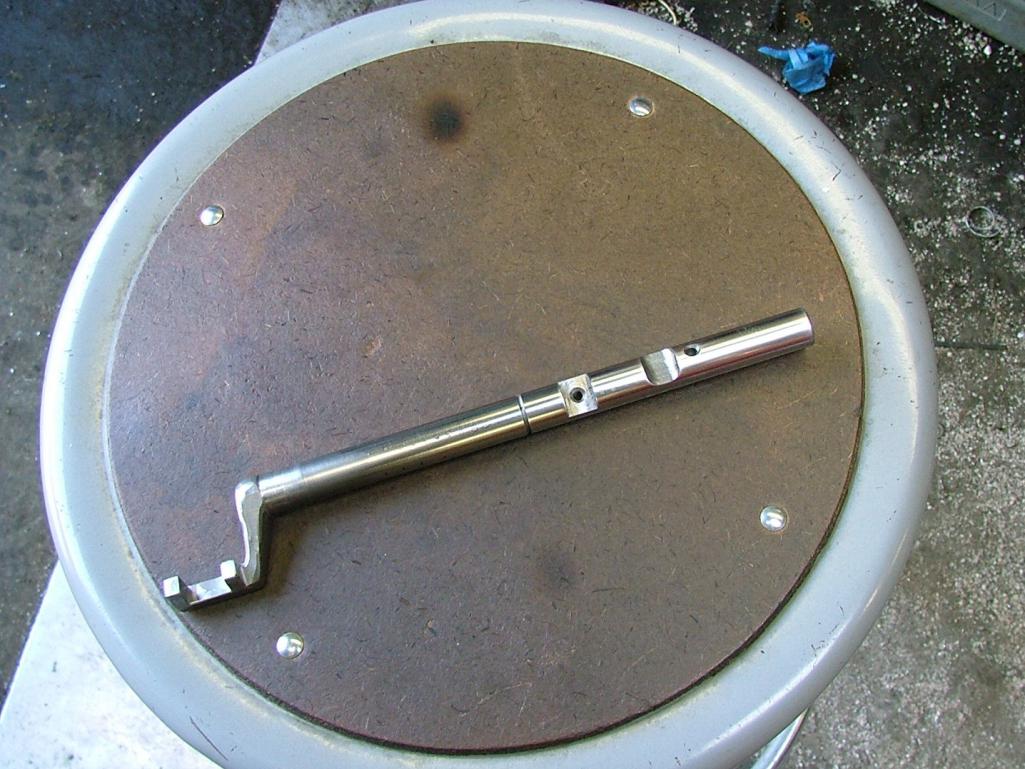

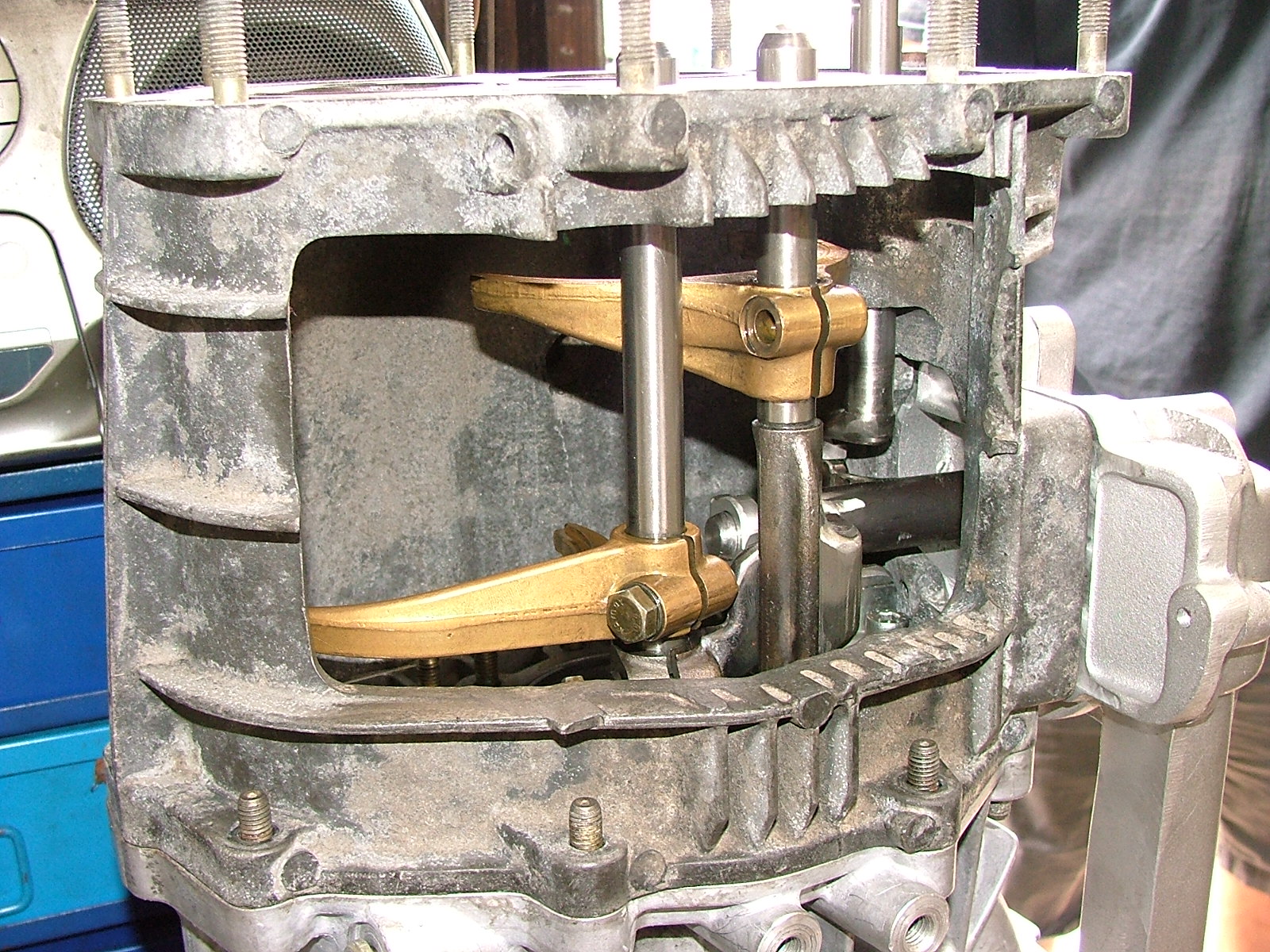

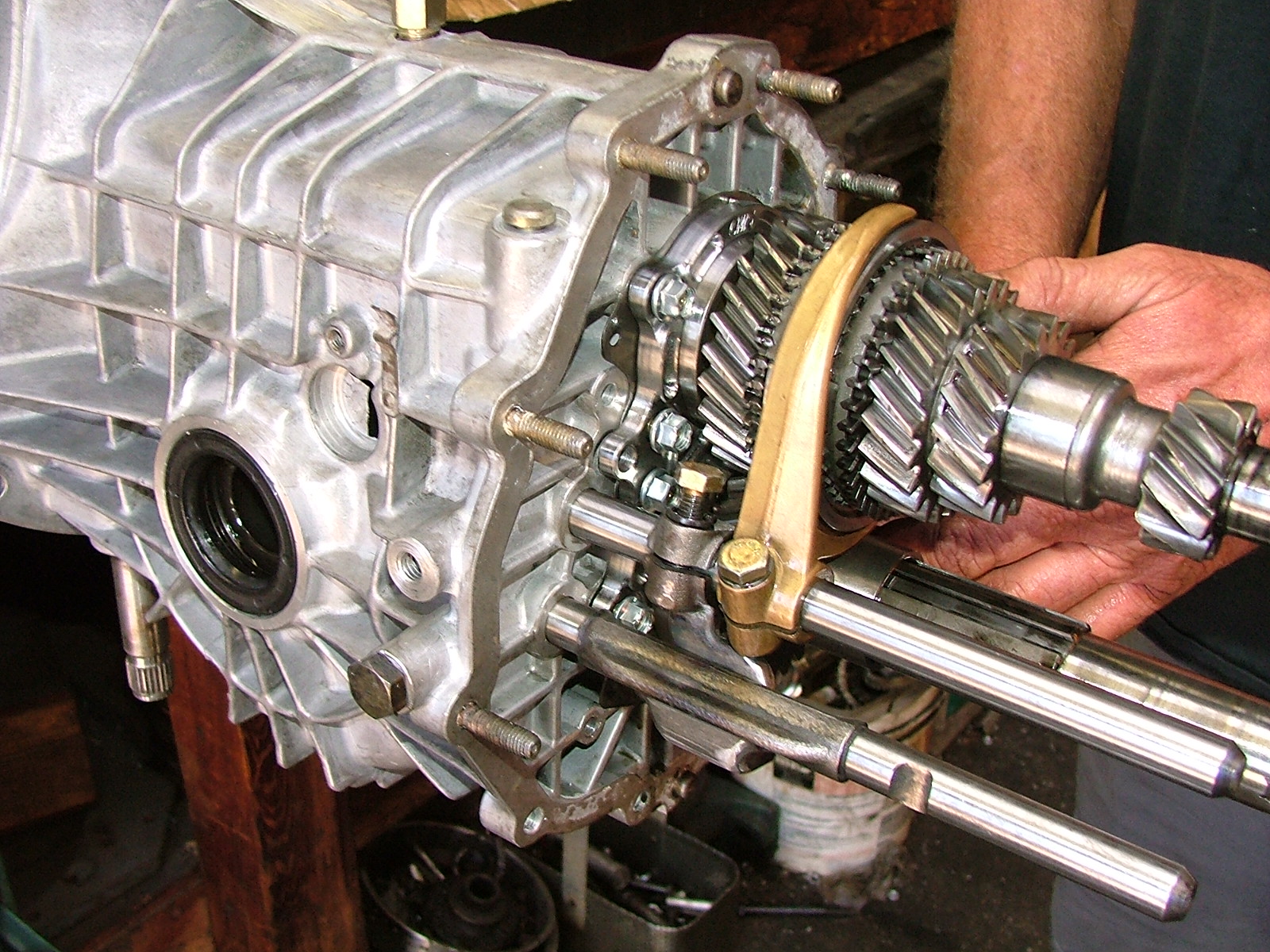

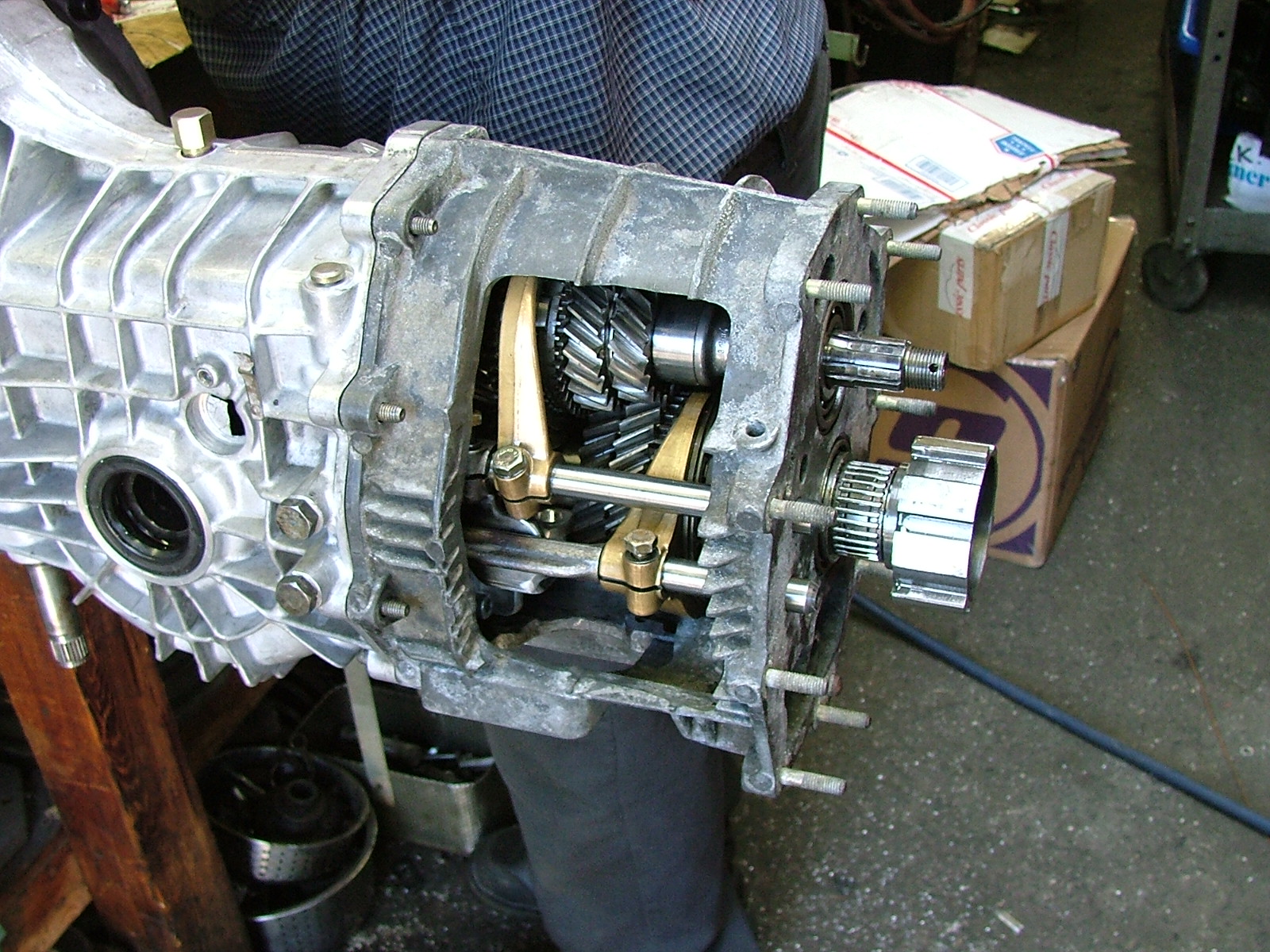

Switching the shifter fork from the old rod on left to the new on right. By the way this is the rod you have to make a deposit on to a guy in New Jersey for Martin until you return the old rod something I did not know until purchase time.

Attached Image

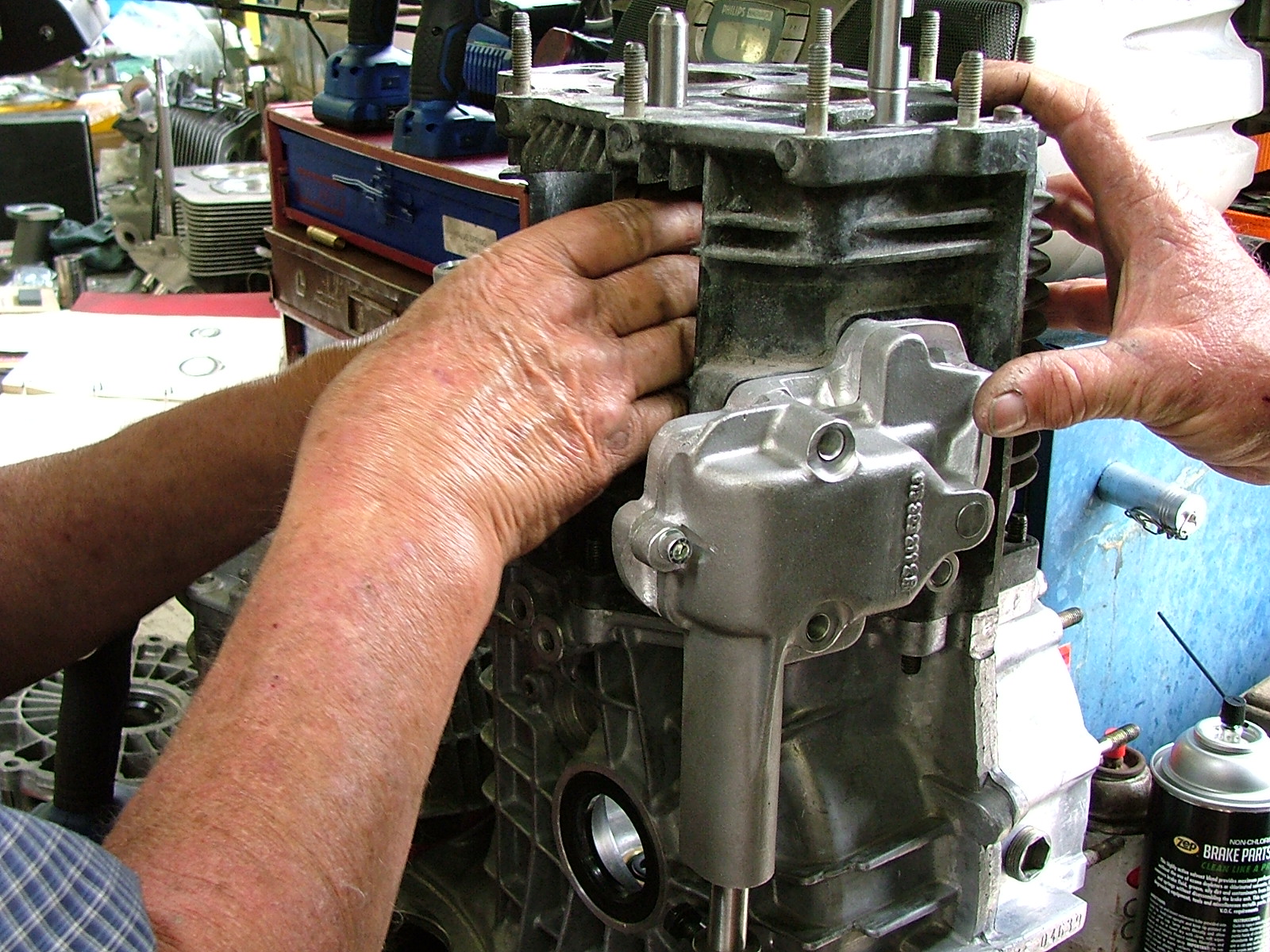

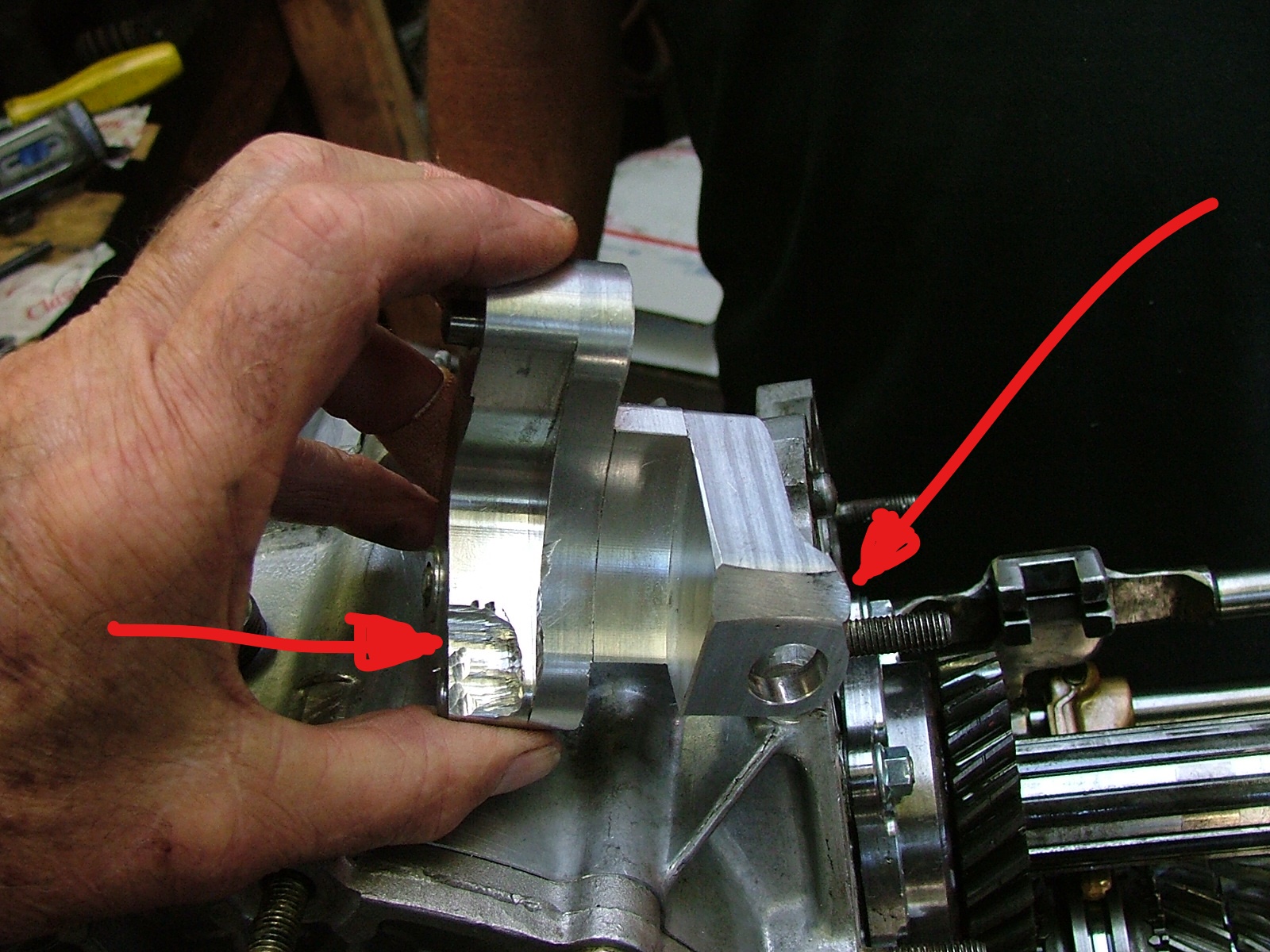

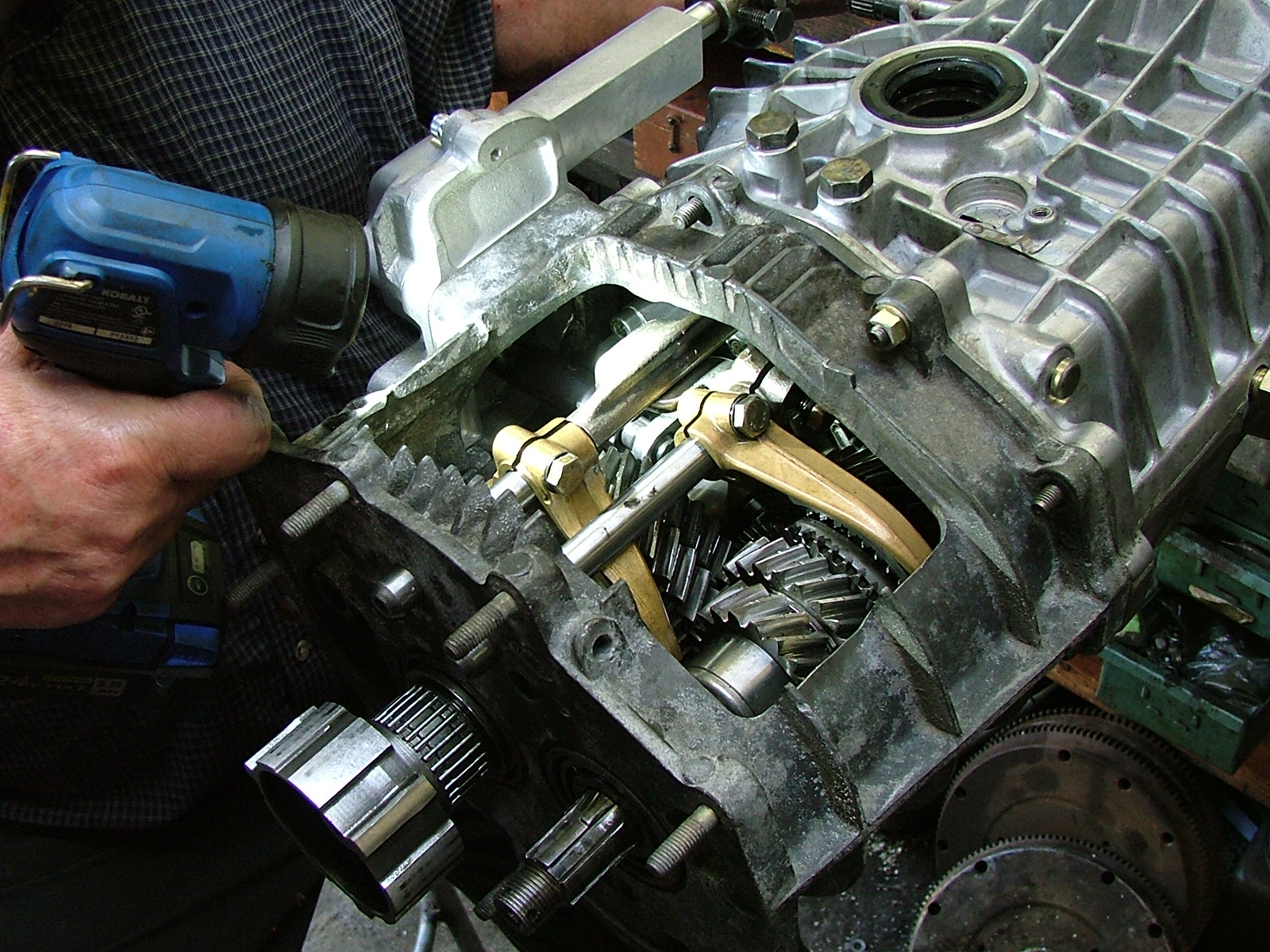

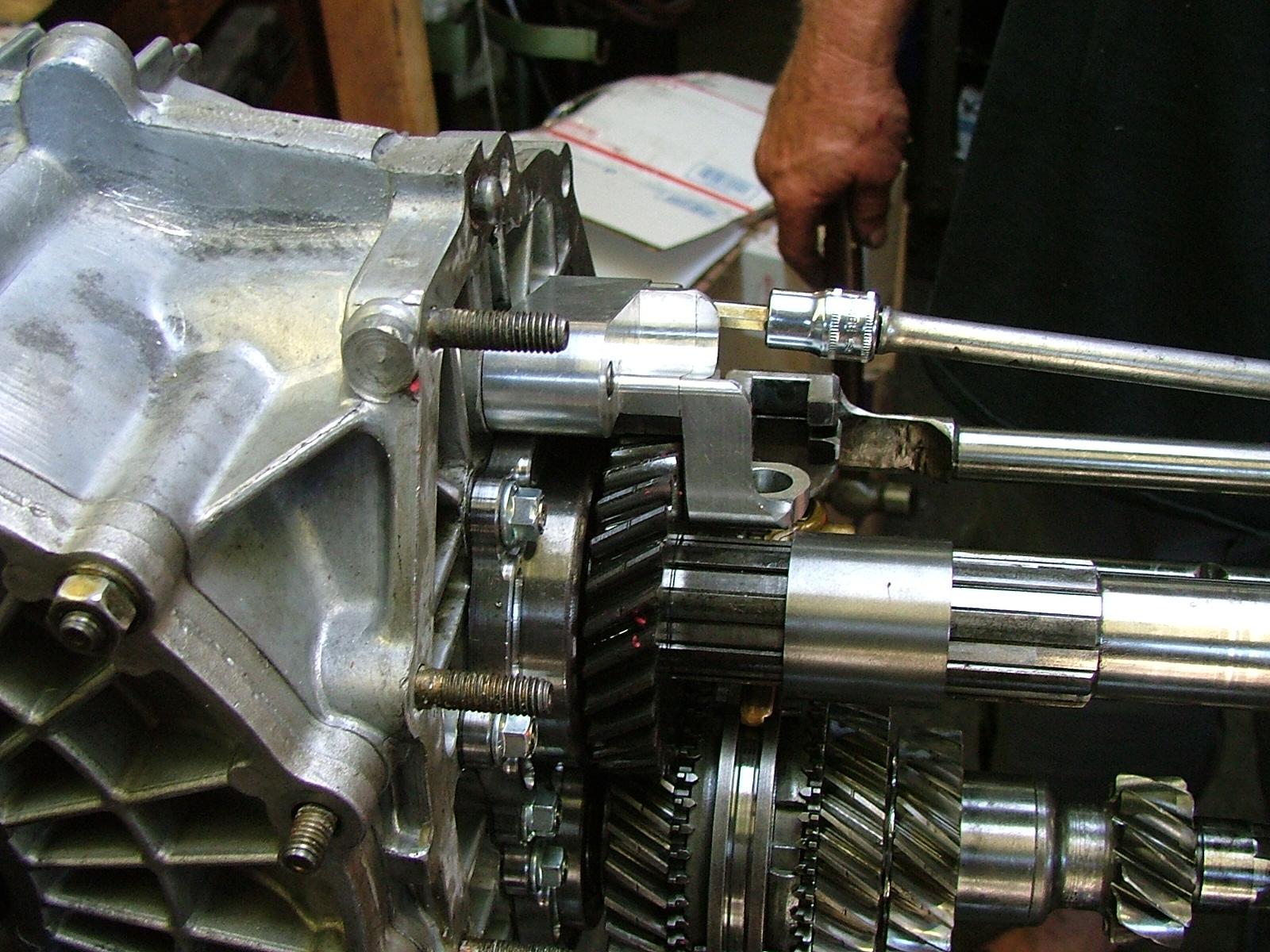

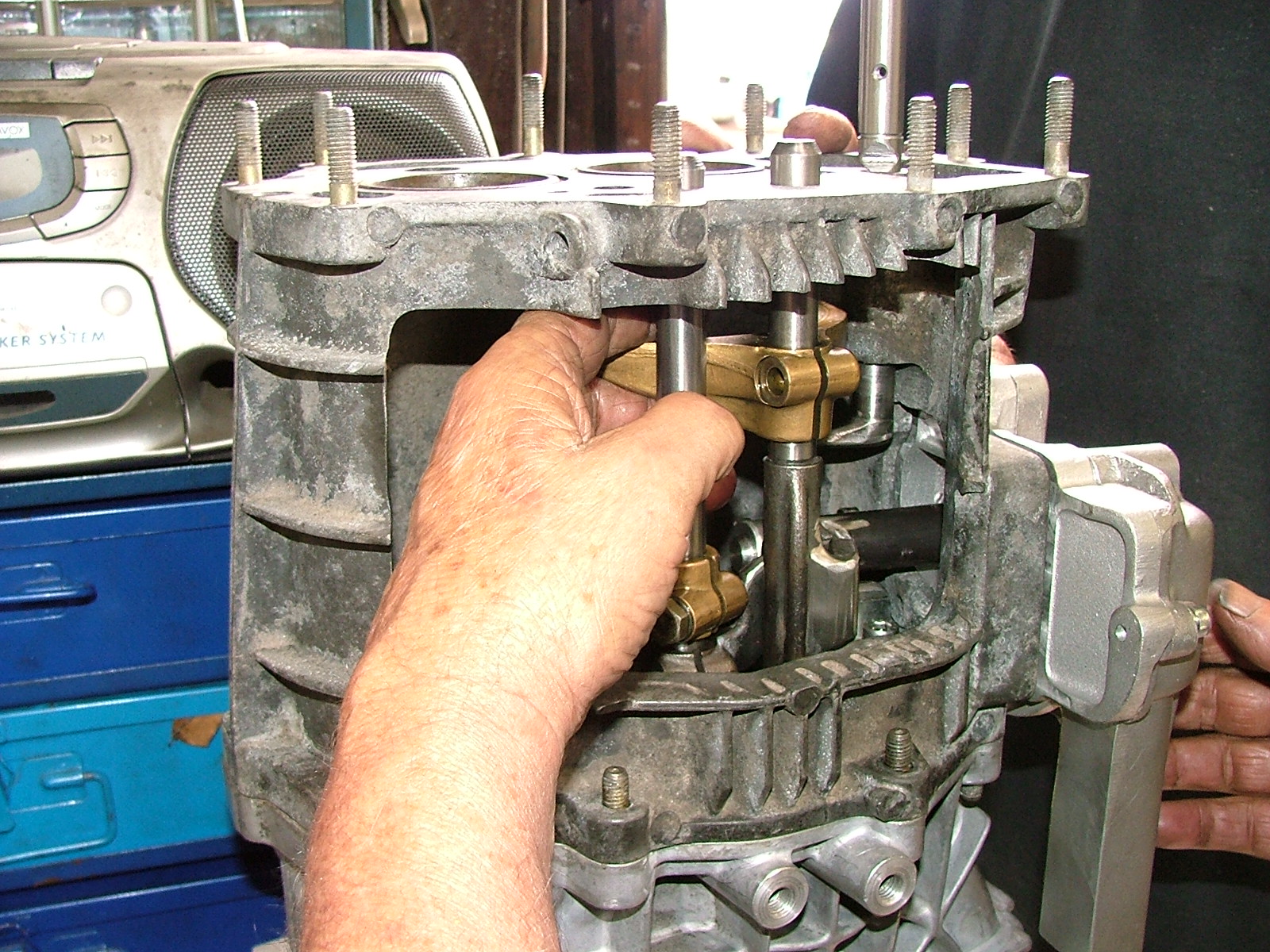

Now with the block installed a trial fit of the side shifter housing to the inner support block with shift rods.

Attached Image

Attached Image

Attached Image

Next was a fit of the ring gear assembly which yielded those score marks on the housing, right where the speed pick up used to be.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 10:28 PM
Post #909


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

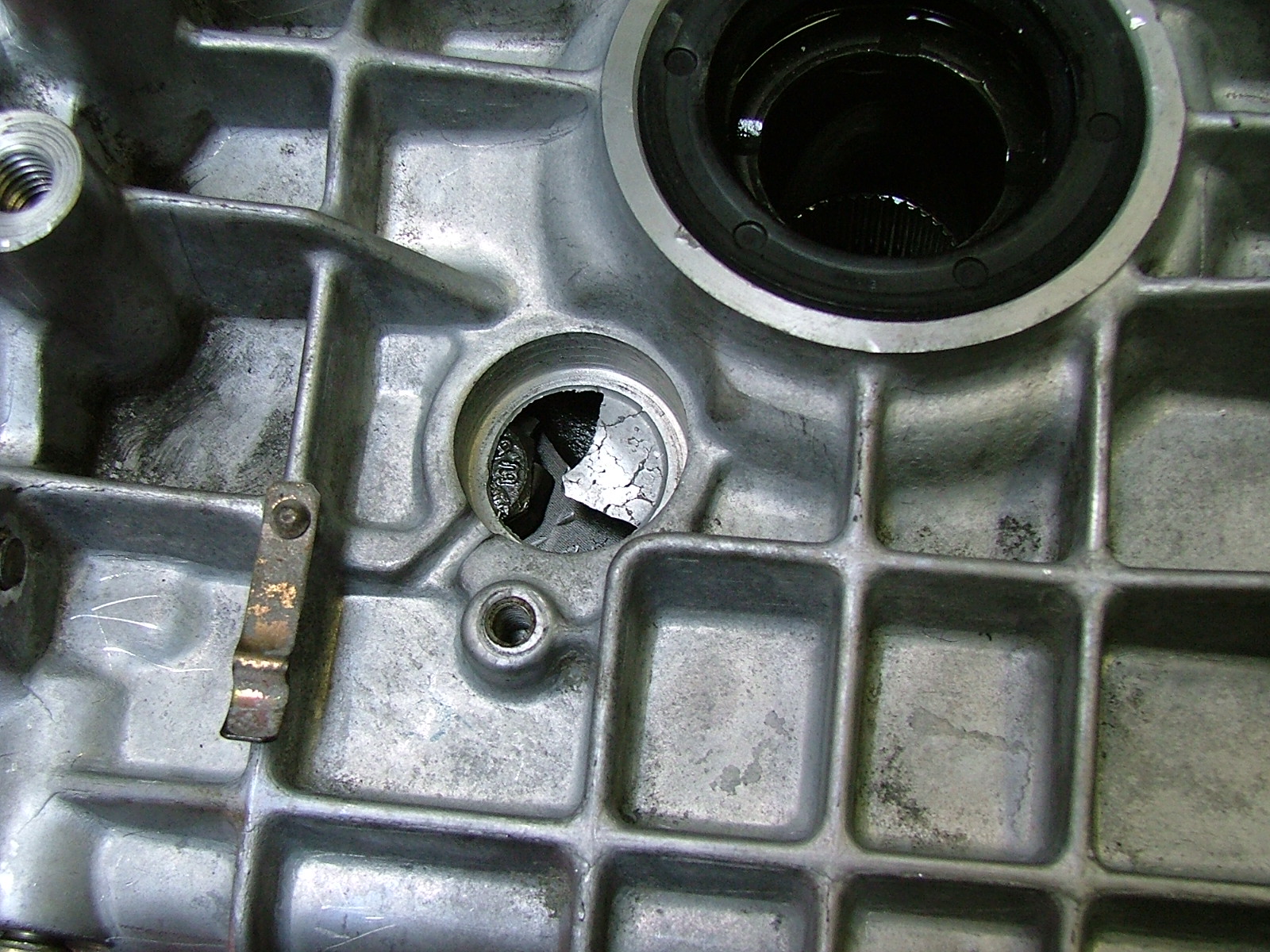

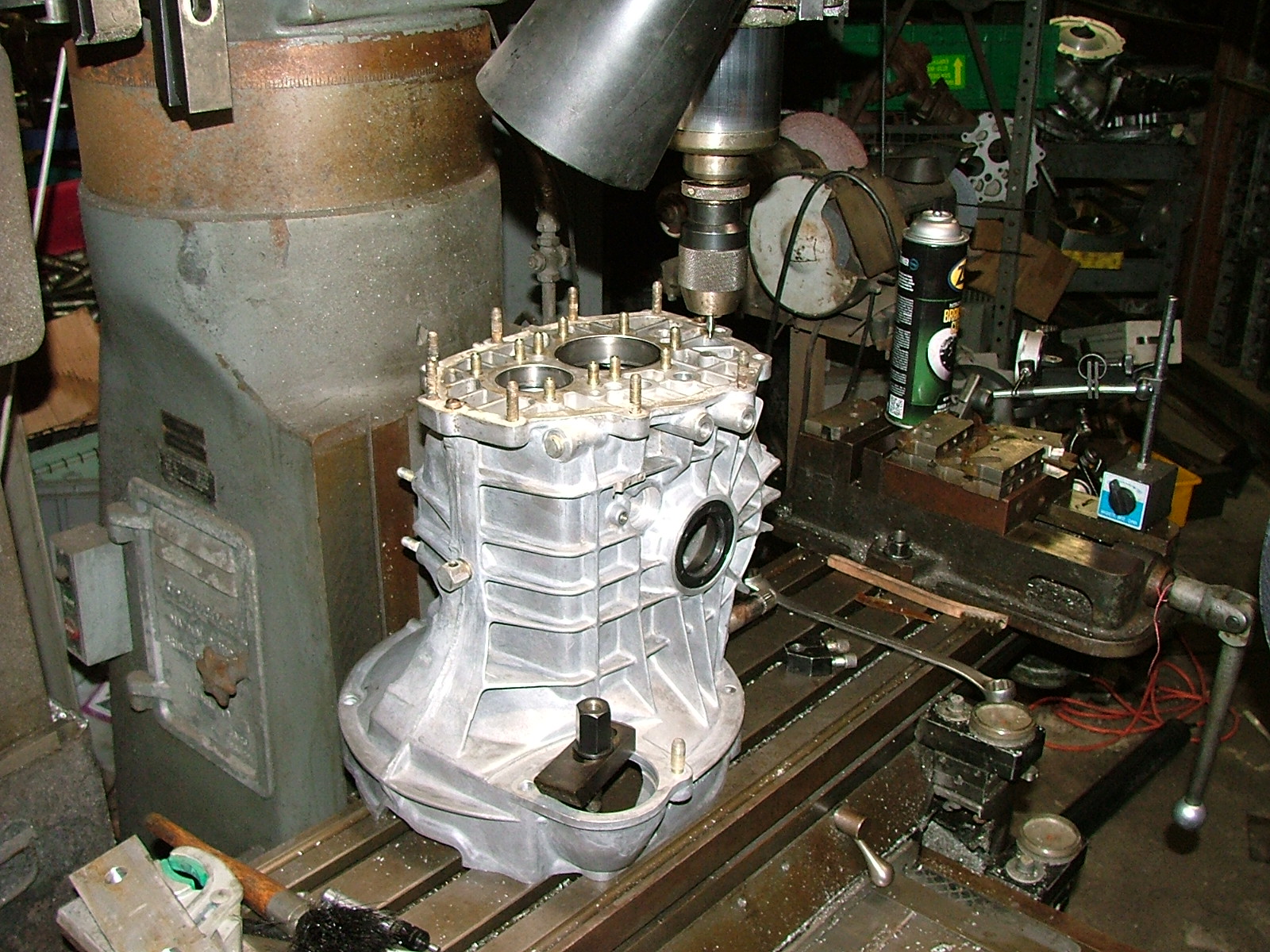

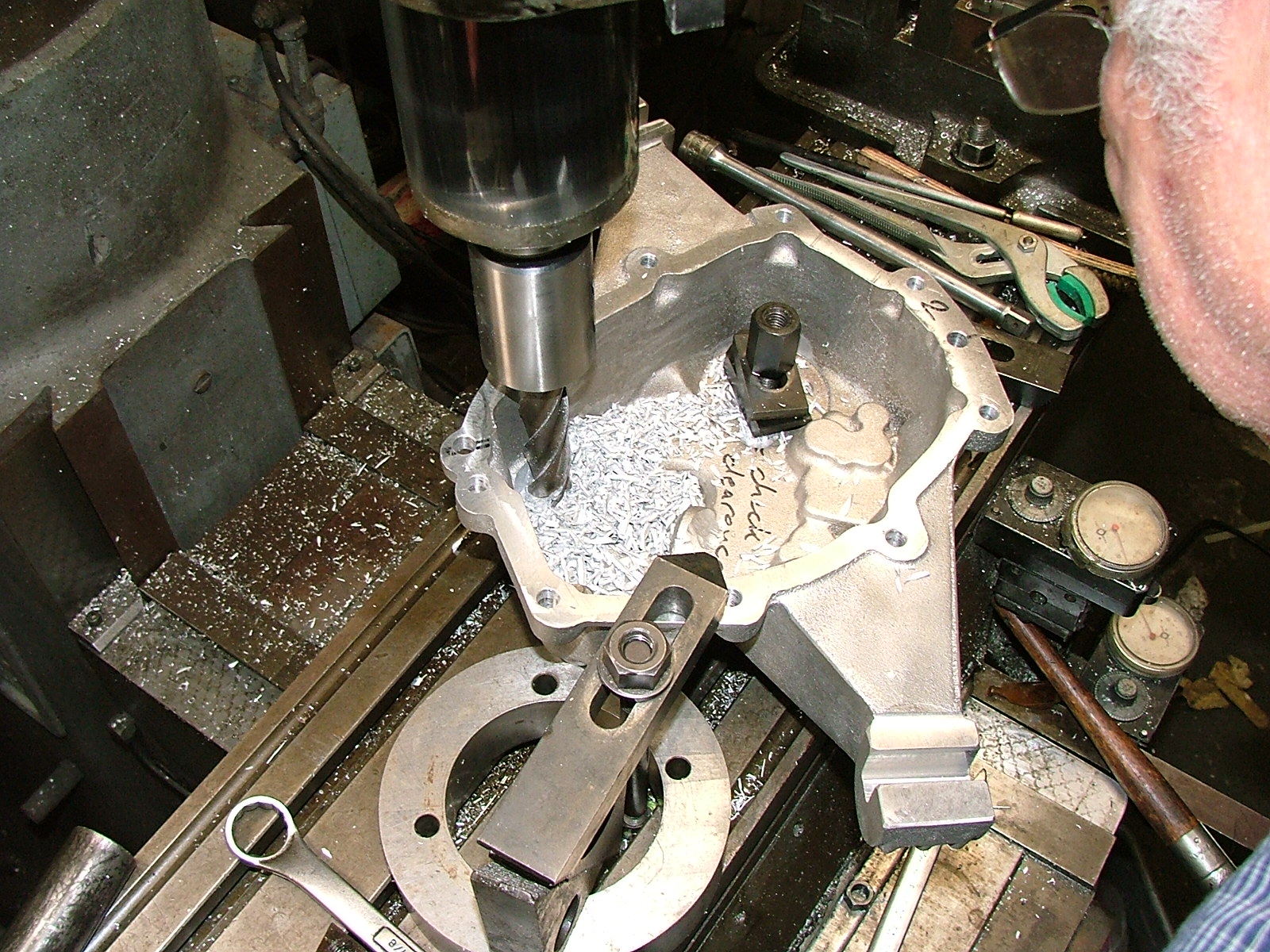

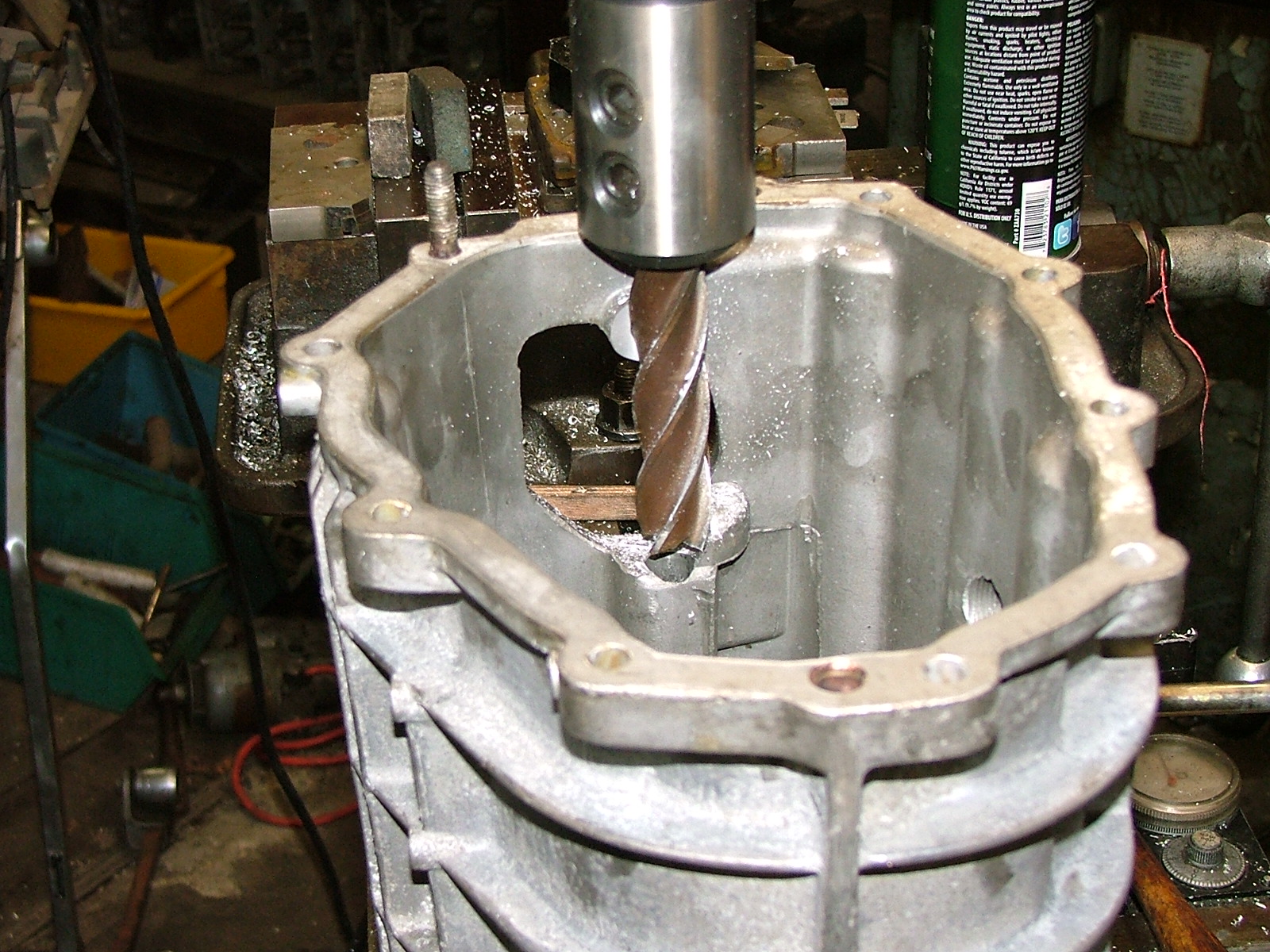

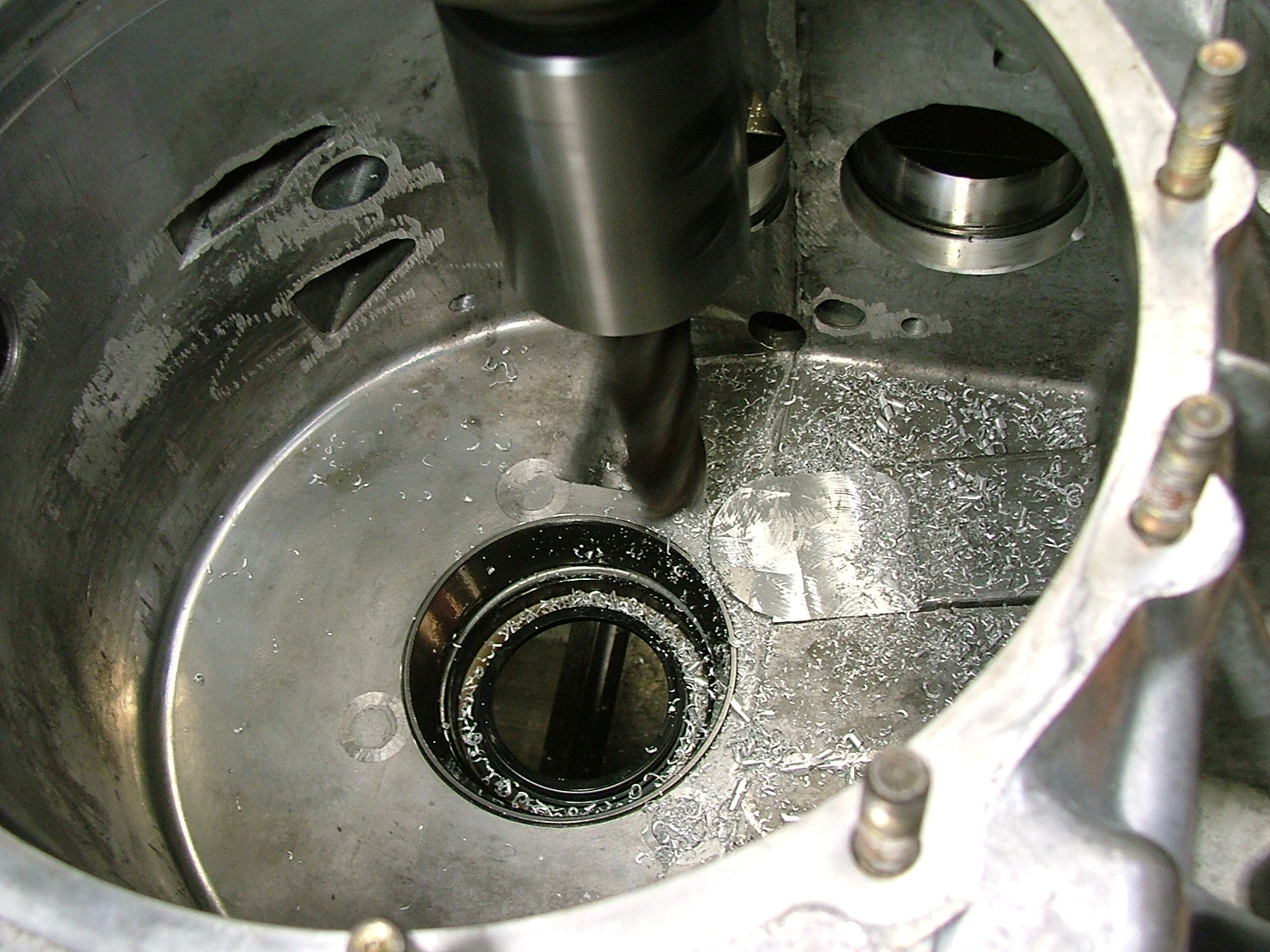

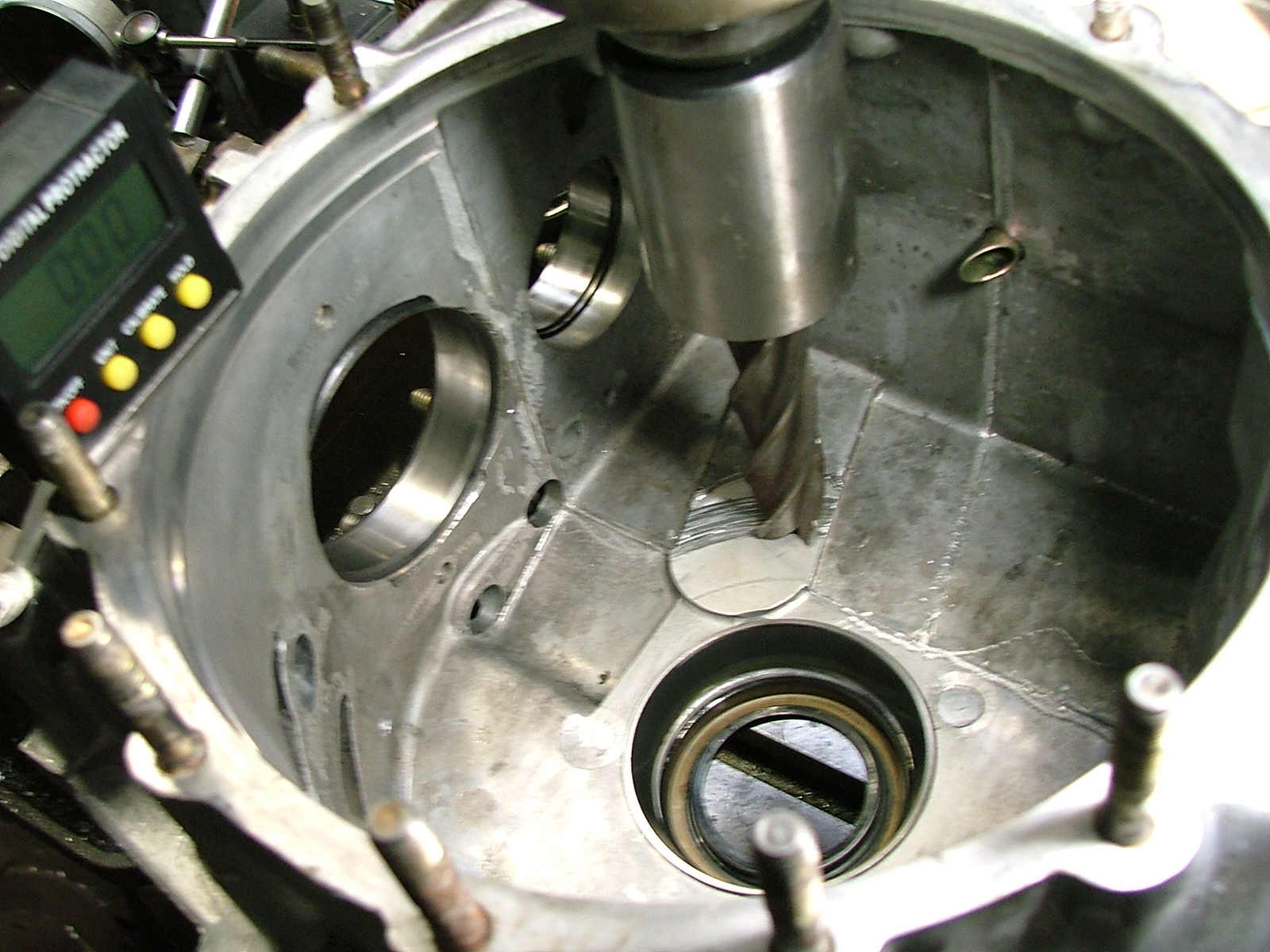

I'd like to say it went well machining but we went through. A plug will be fitted to the hole later.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

Attached Image

I forget why the bearing had to come off here? (IMG:style_emoticons/default/confused24.gif)

Attached Image

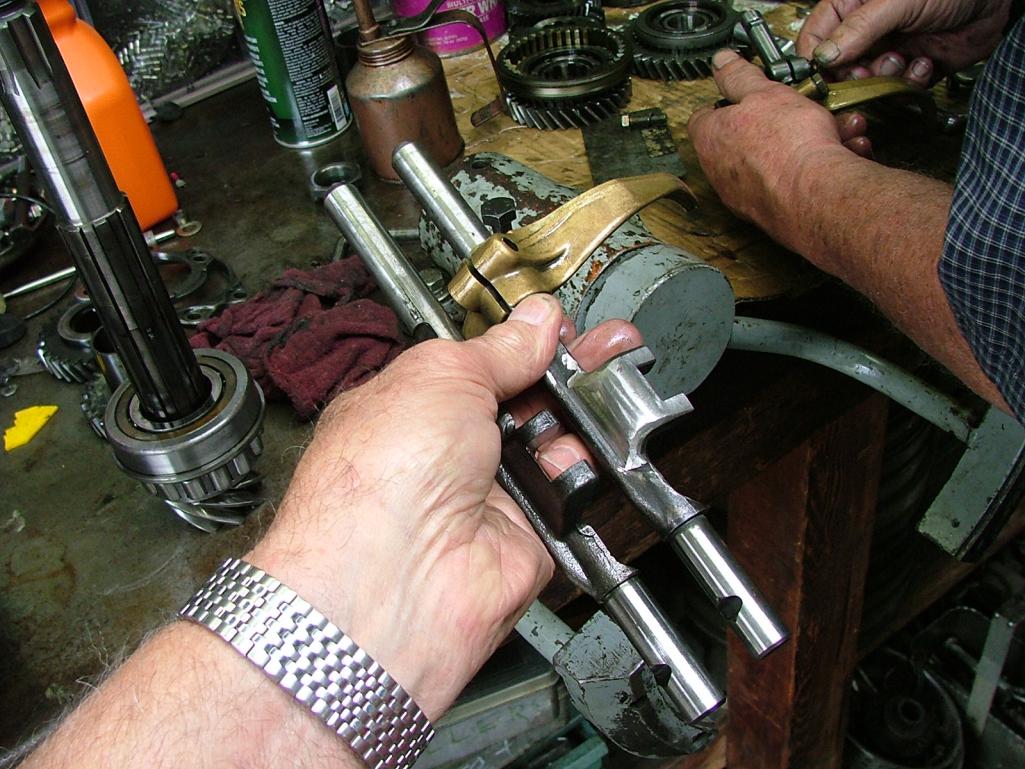

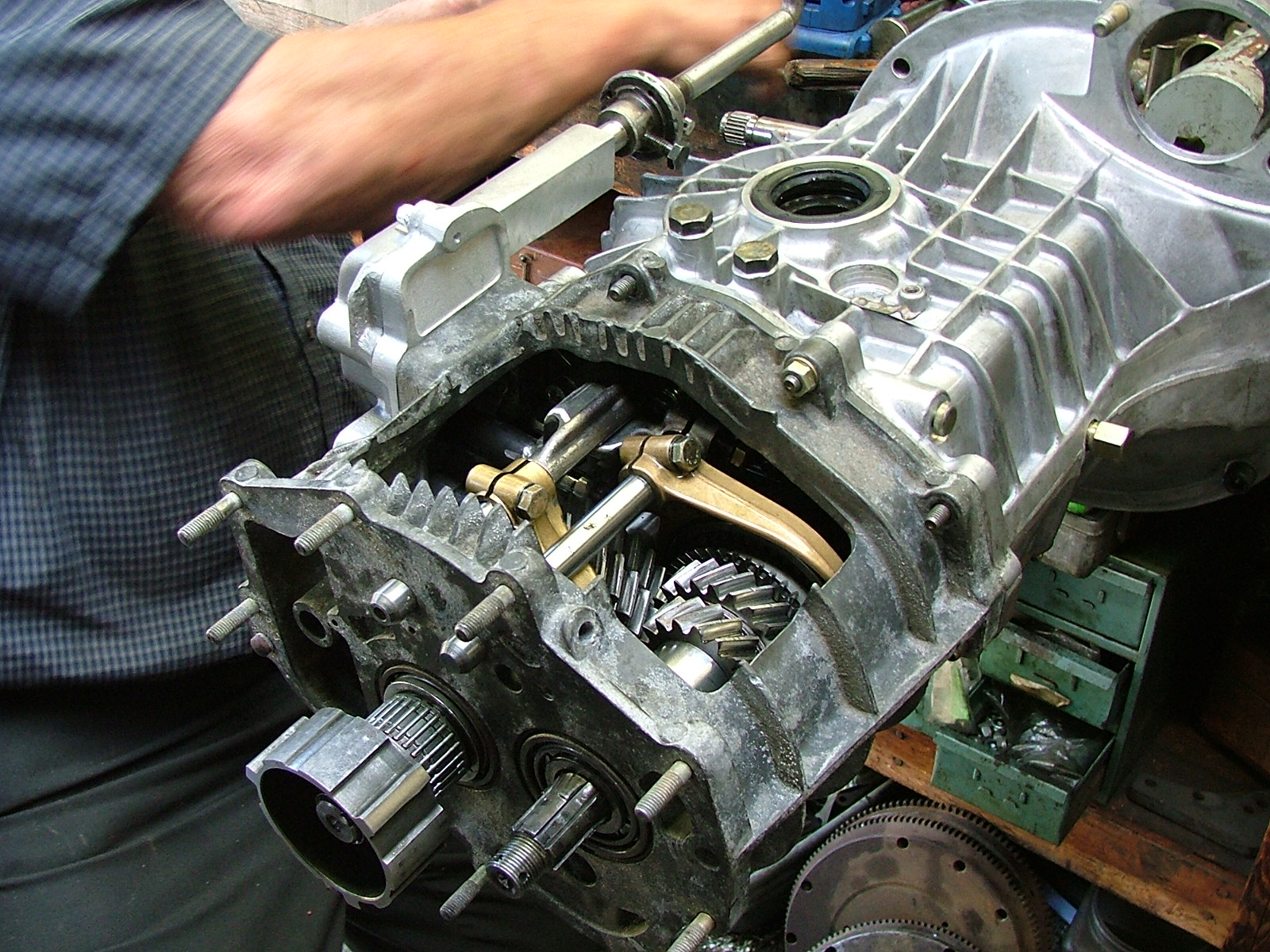

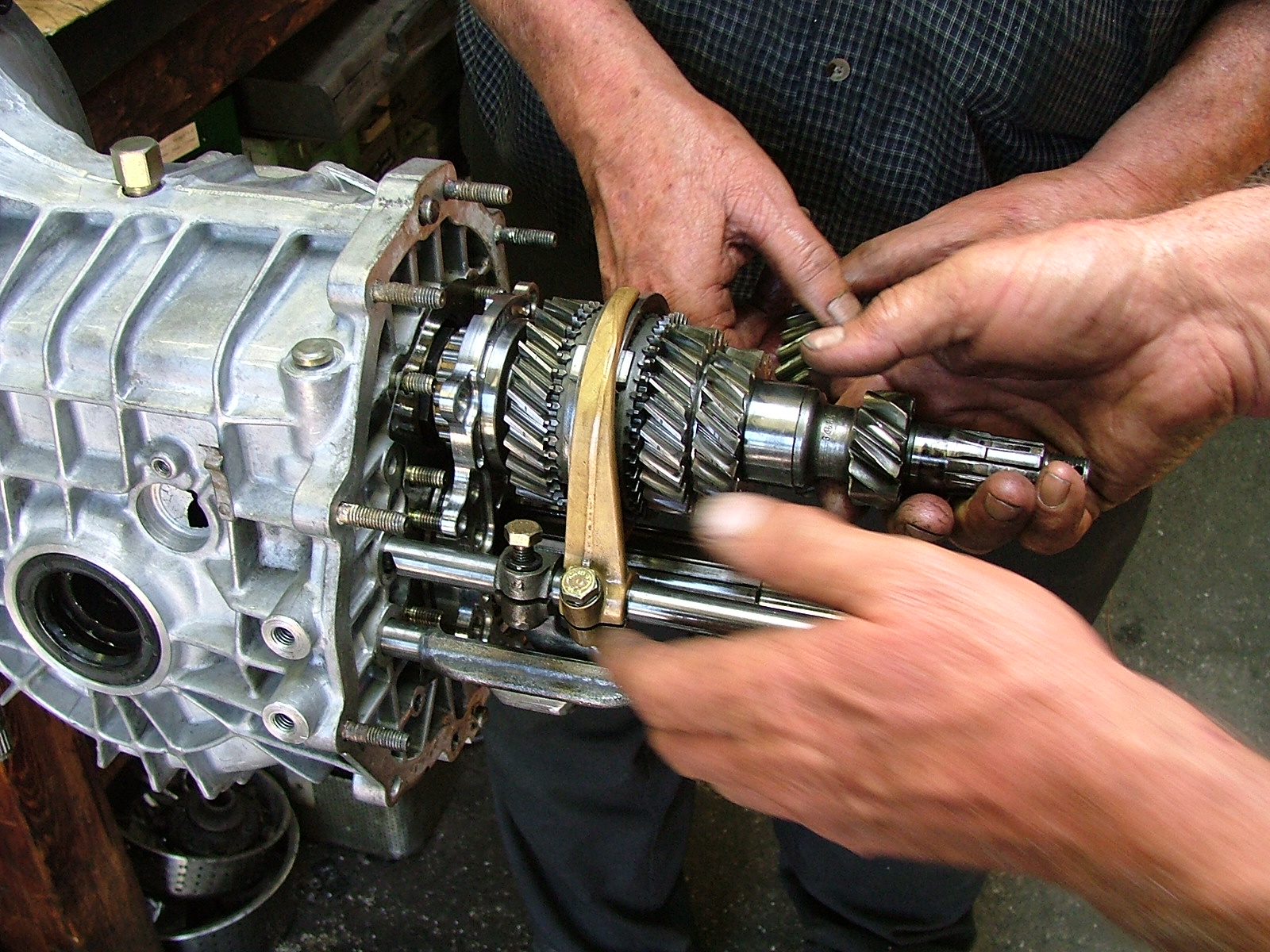

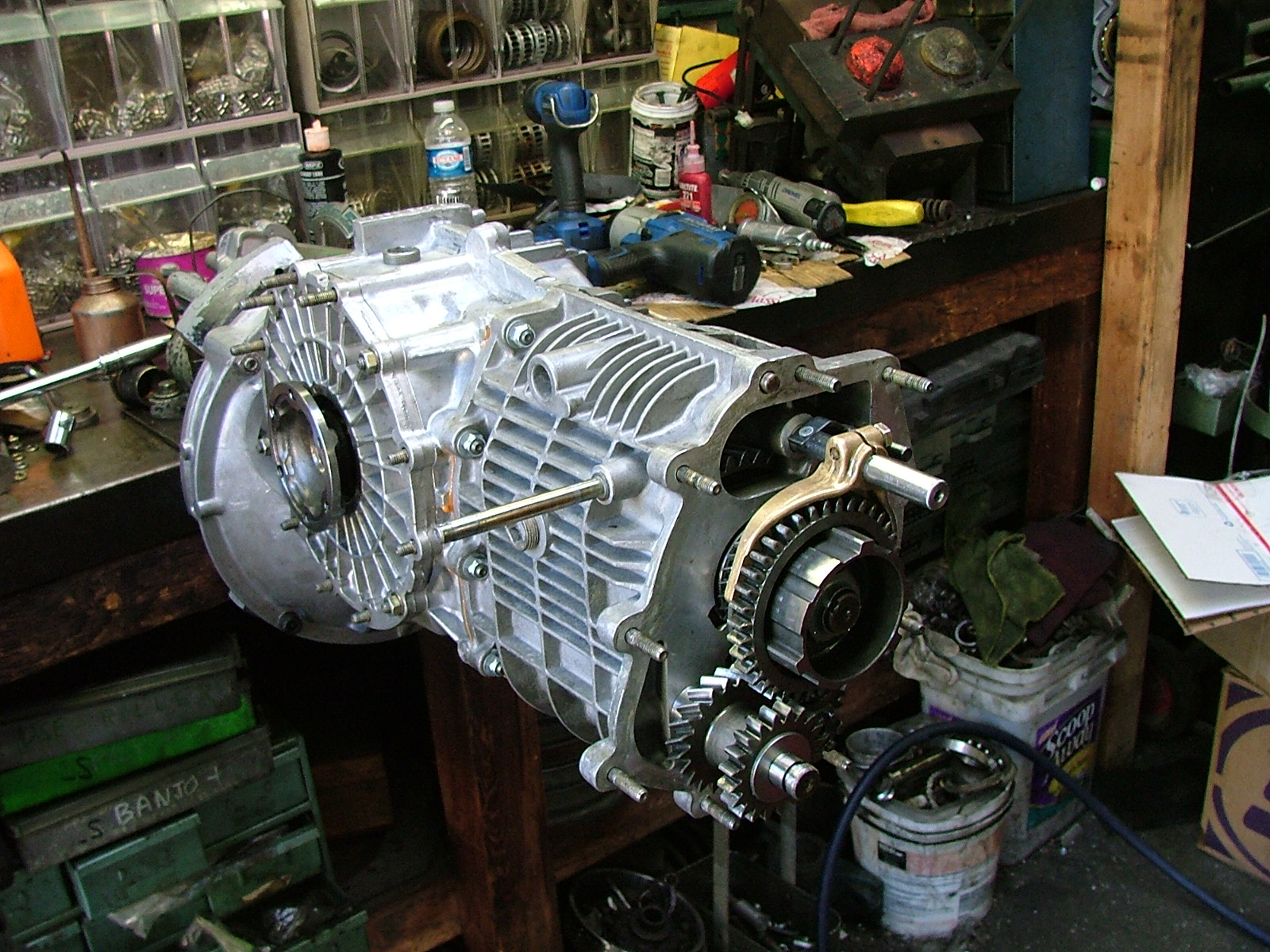

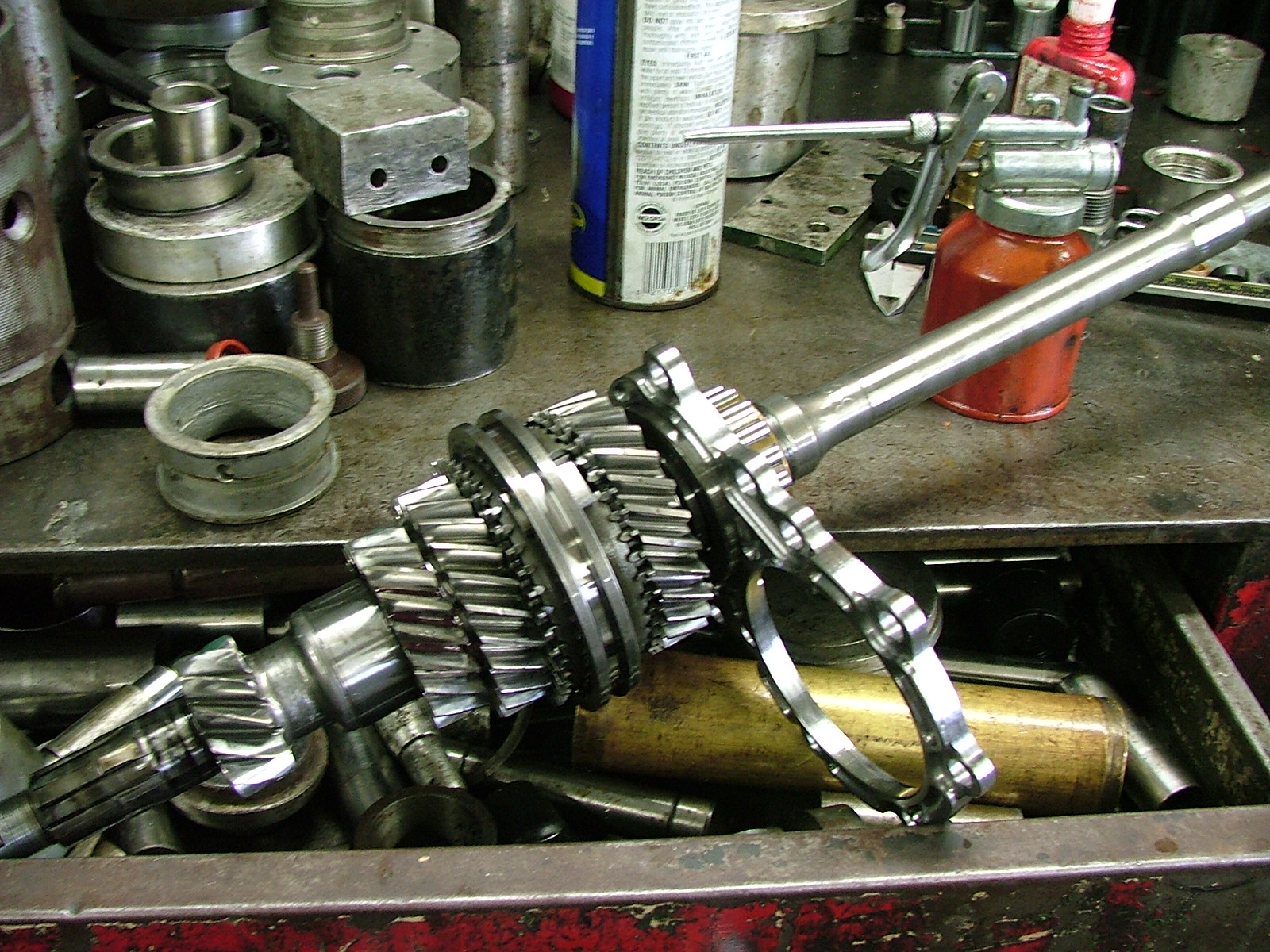

Installing the two shafts now simultaneously because of the new double bearing clamp pictures above in post 904 above, creates this situation, and this was tricky.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 4 2019, 10:34 PM
Post #910


Advanced Member
****

Group: Members
Posts: 4,851
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Looking good, and a top-shelf technician (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 10:43 PM
Post #911


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
With that bearing clamp tightened it is time to fit the inner support block which needed two clearances shown.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

Attached Image

Attached Image

Attached Image

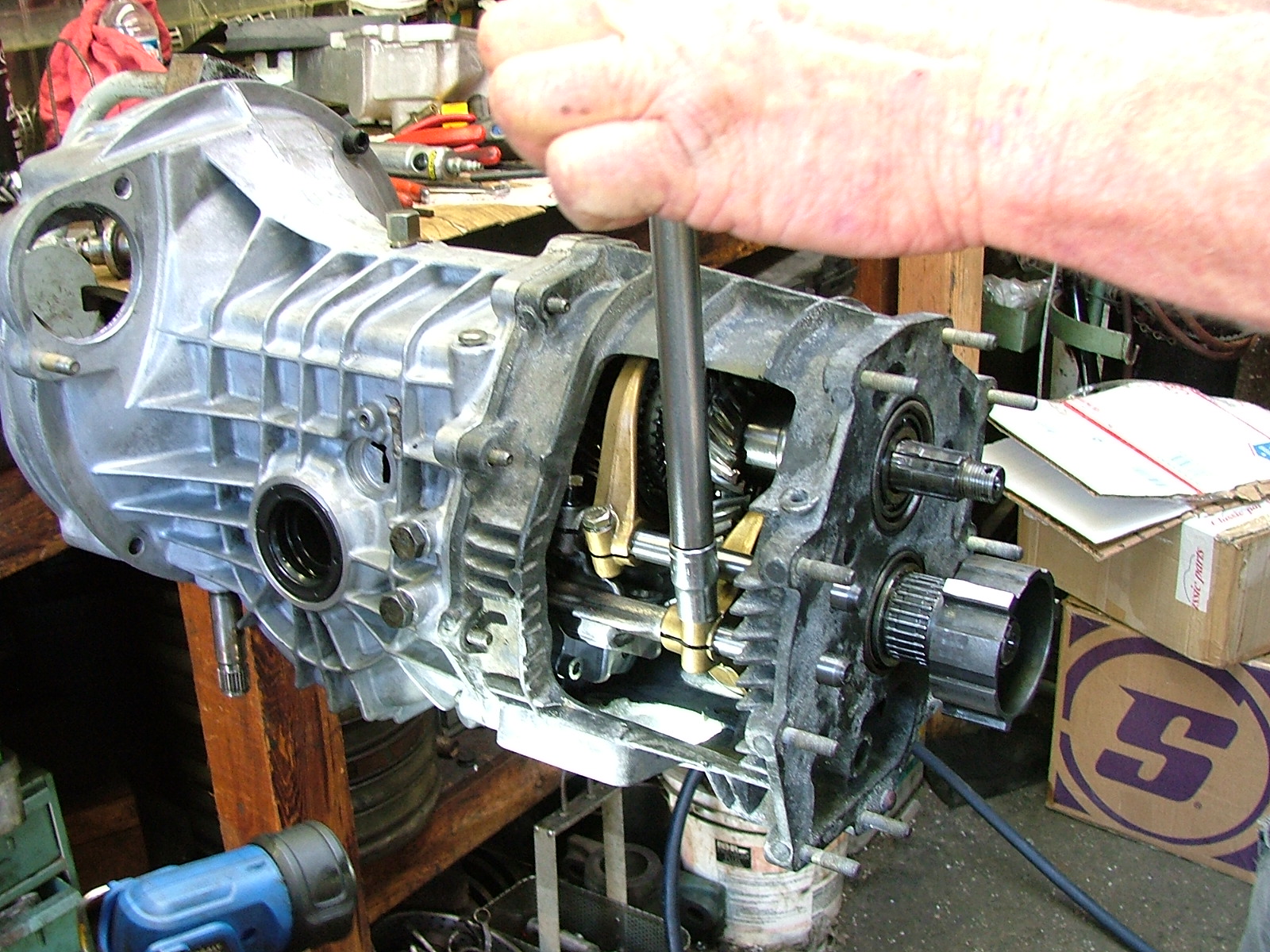

Shift rod adjustment

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 10:47 PM
Post #912


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(rgalla9146 @ Jun 4 2019, 02:35 PM) *

I love it.
Beautiful illustration.
Done by a guy who is obviously very experienced.
Just happens to have a pair of 356 Carrera 4 cam heads on the bench too.
Made my day.
Nice GT too.....what color is that again ? (IMG:style_emoticons/default/wub.gif)


Thanks! I know you have this kit too. My car color? Light ivory
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 10:50 PM
Post #913


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(Maltese Falcon @ Jun 4 2019, 09:34 PM) *

Looking good, and a top-shelf technician (IMG:style_emoticons/default/thumb3d.gif)


Thanks Marty! Yes, I think the planets aligned for me to find him here in my back yard, well about 35 minutes drive, but darn close. Very talented knowledgeable guy.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 11:07 PM
Post #914


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
Old school torque wrenches
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

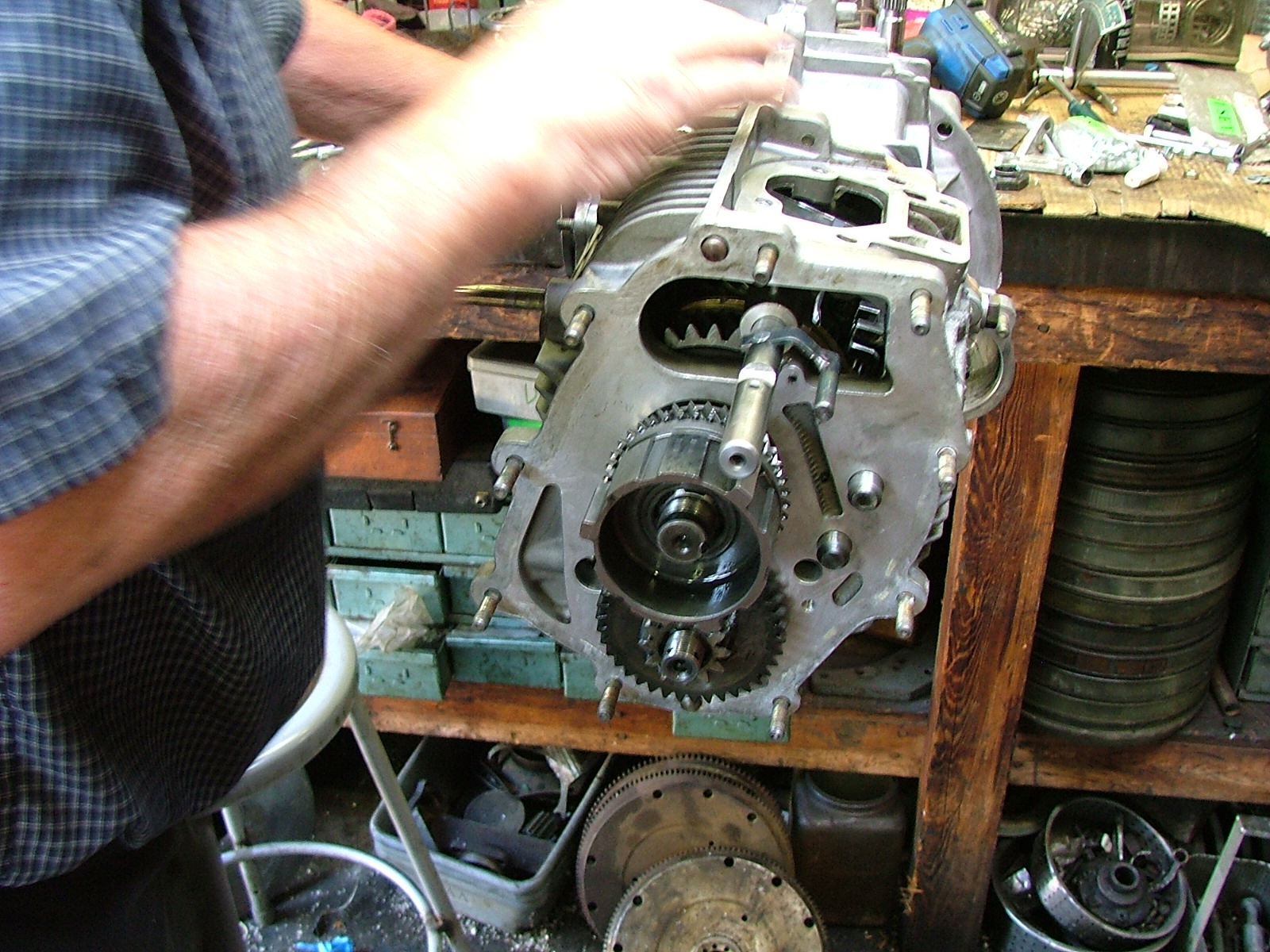

Another trial fit of the side shifter

Attached Image

And more adjustment

Attached Image

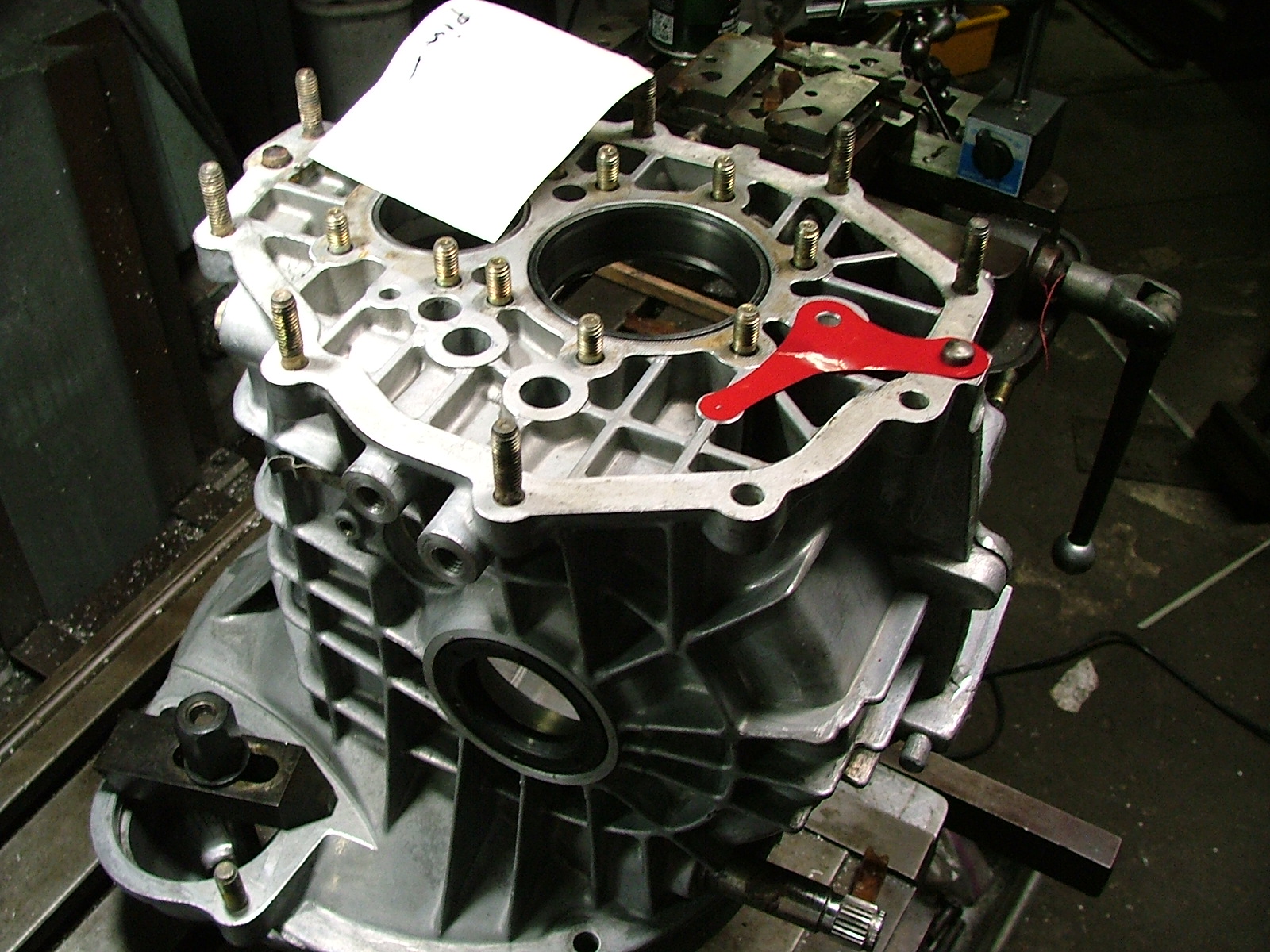

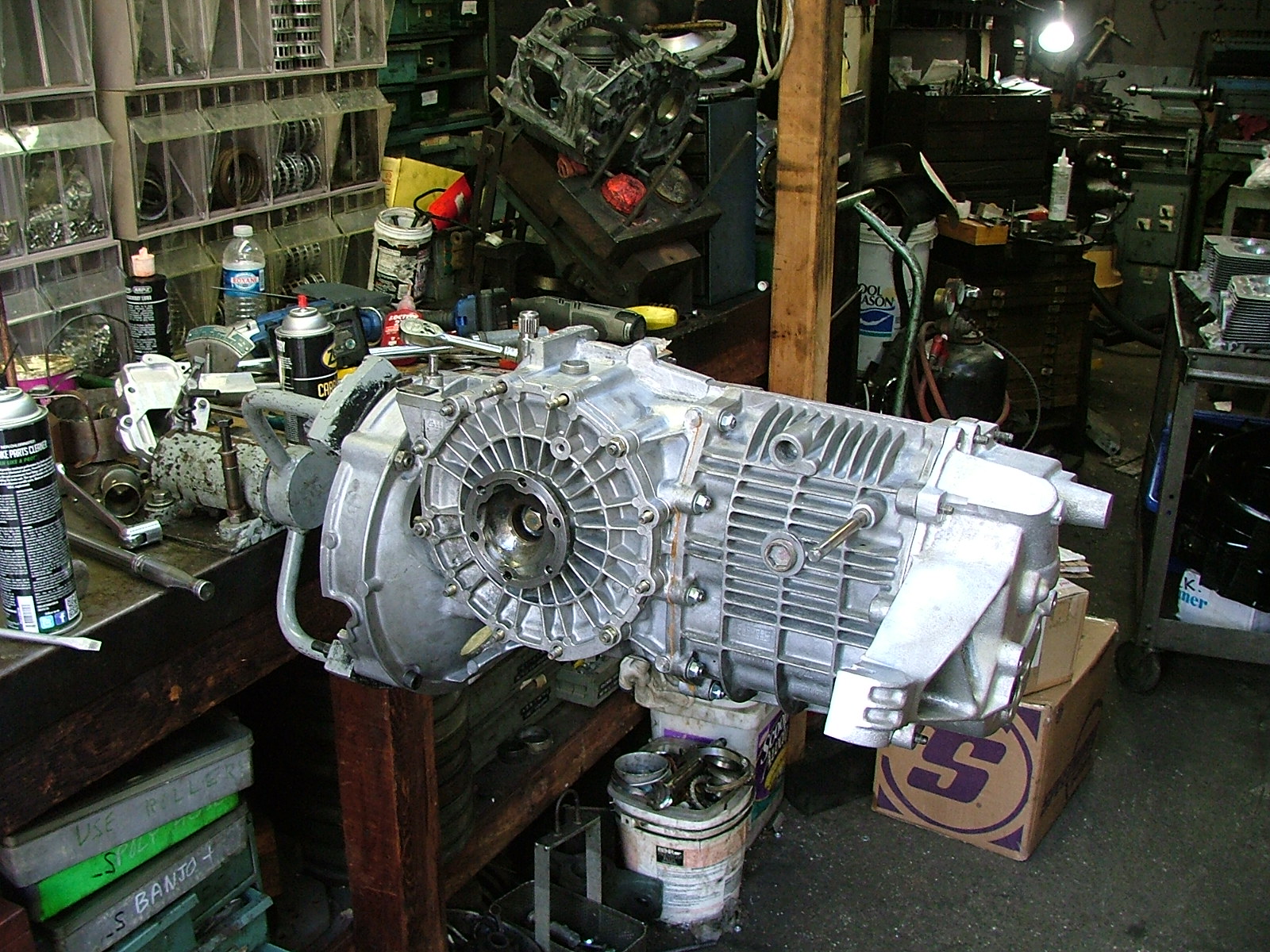

And now for the real case............

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 4 2019, 11:22 PM
Post #915


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

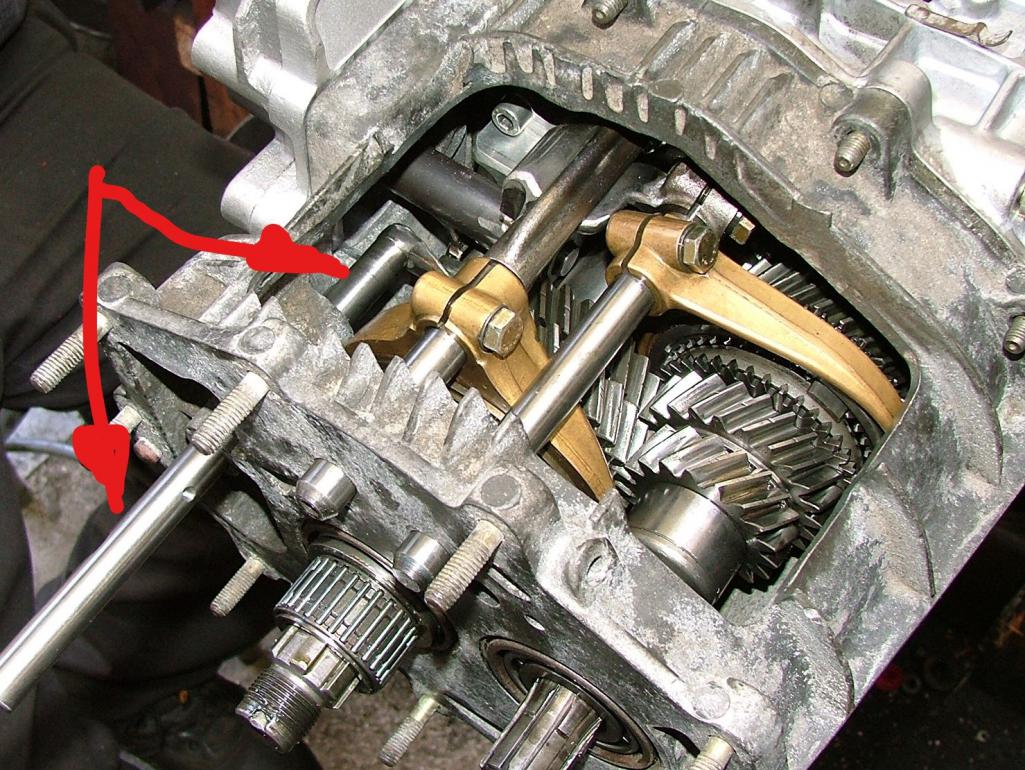

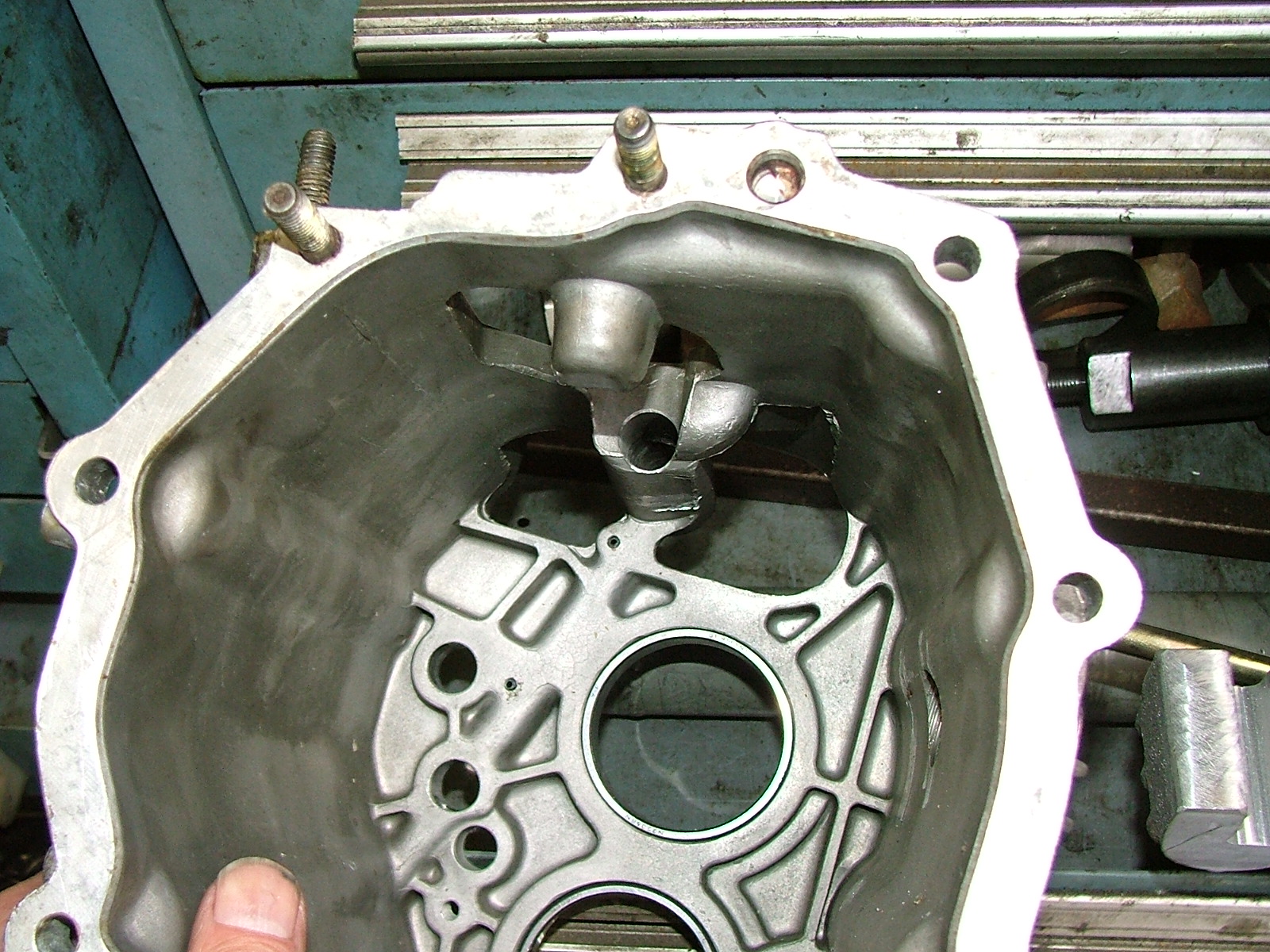

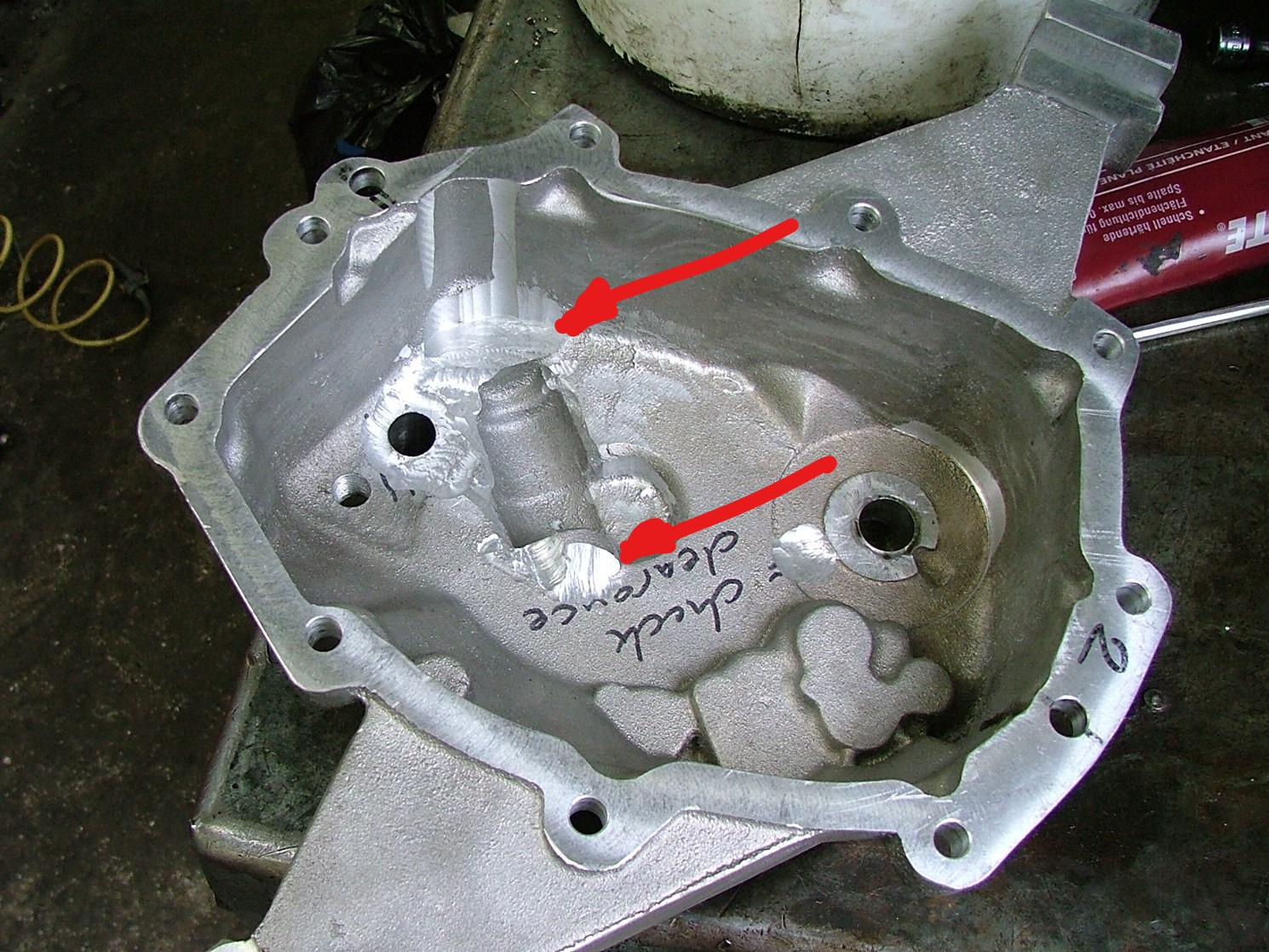

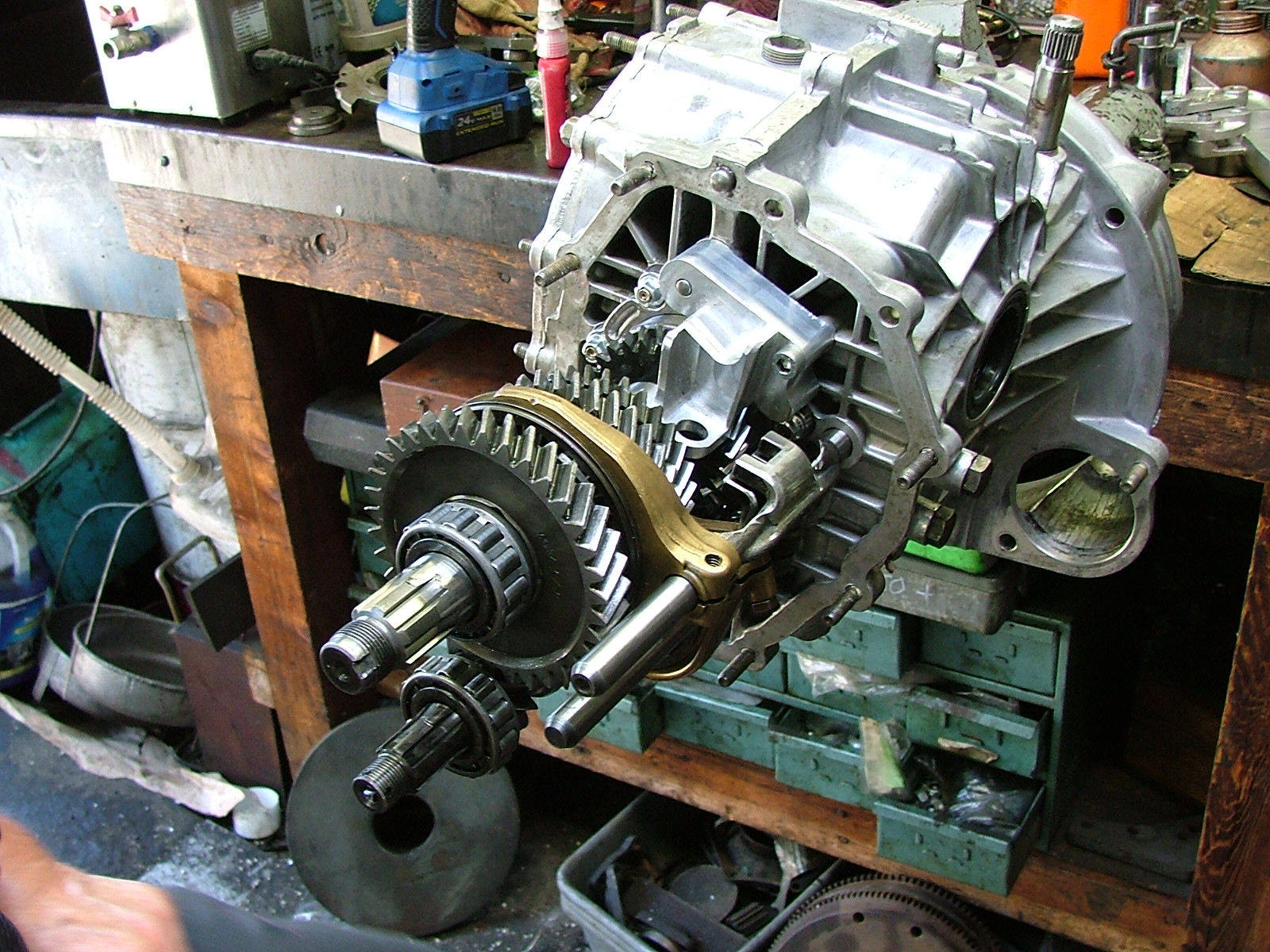

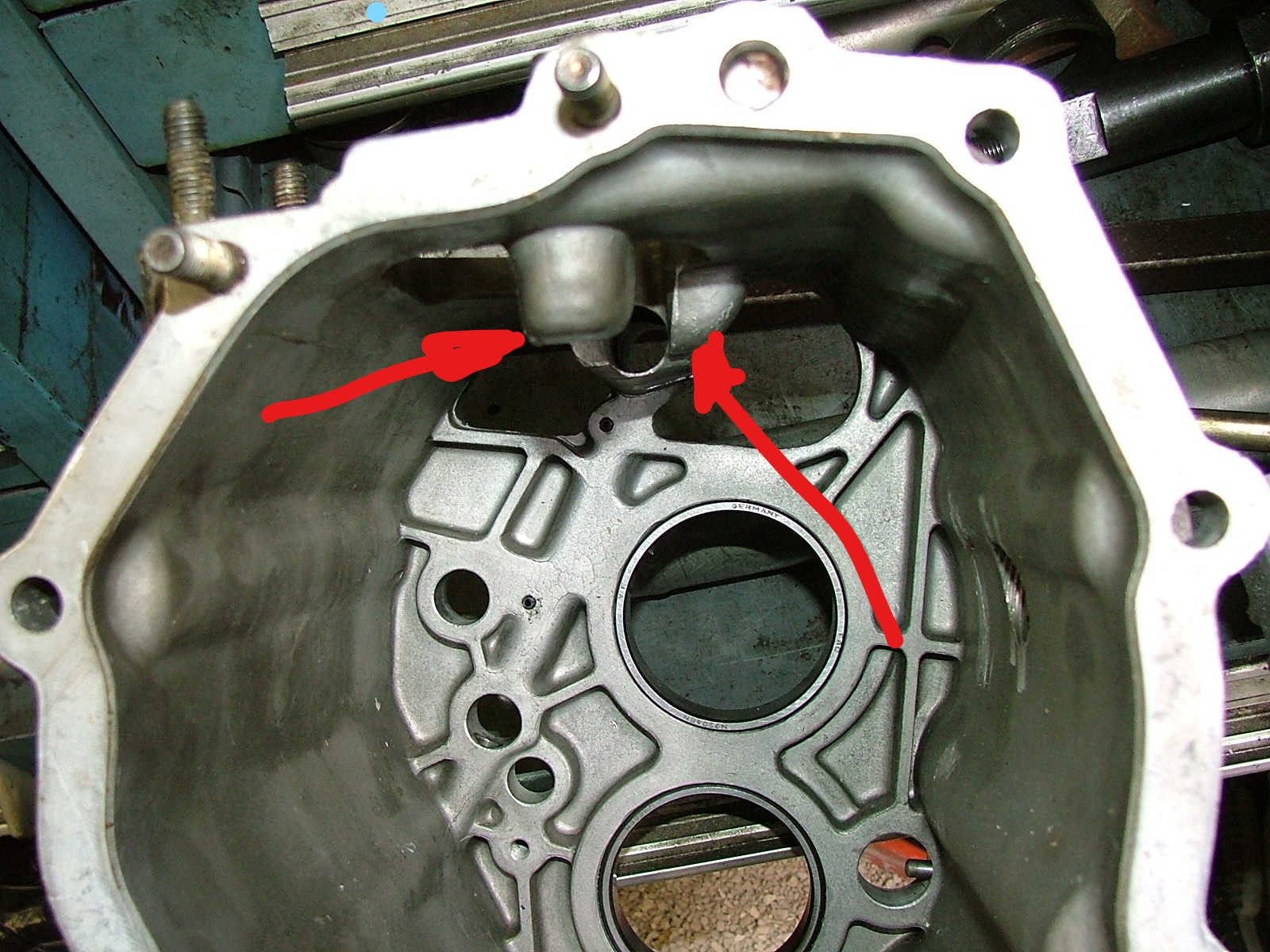

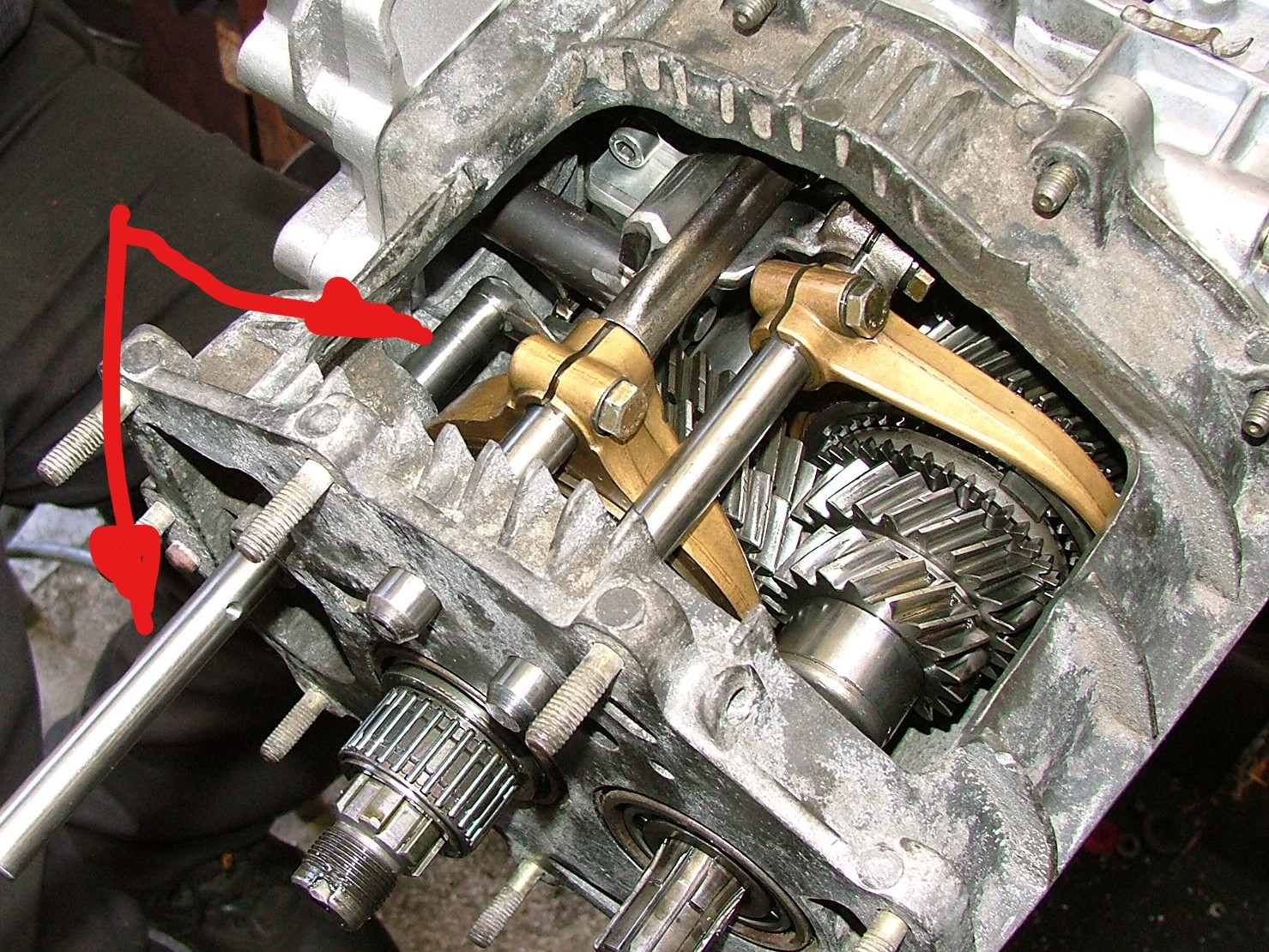

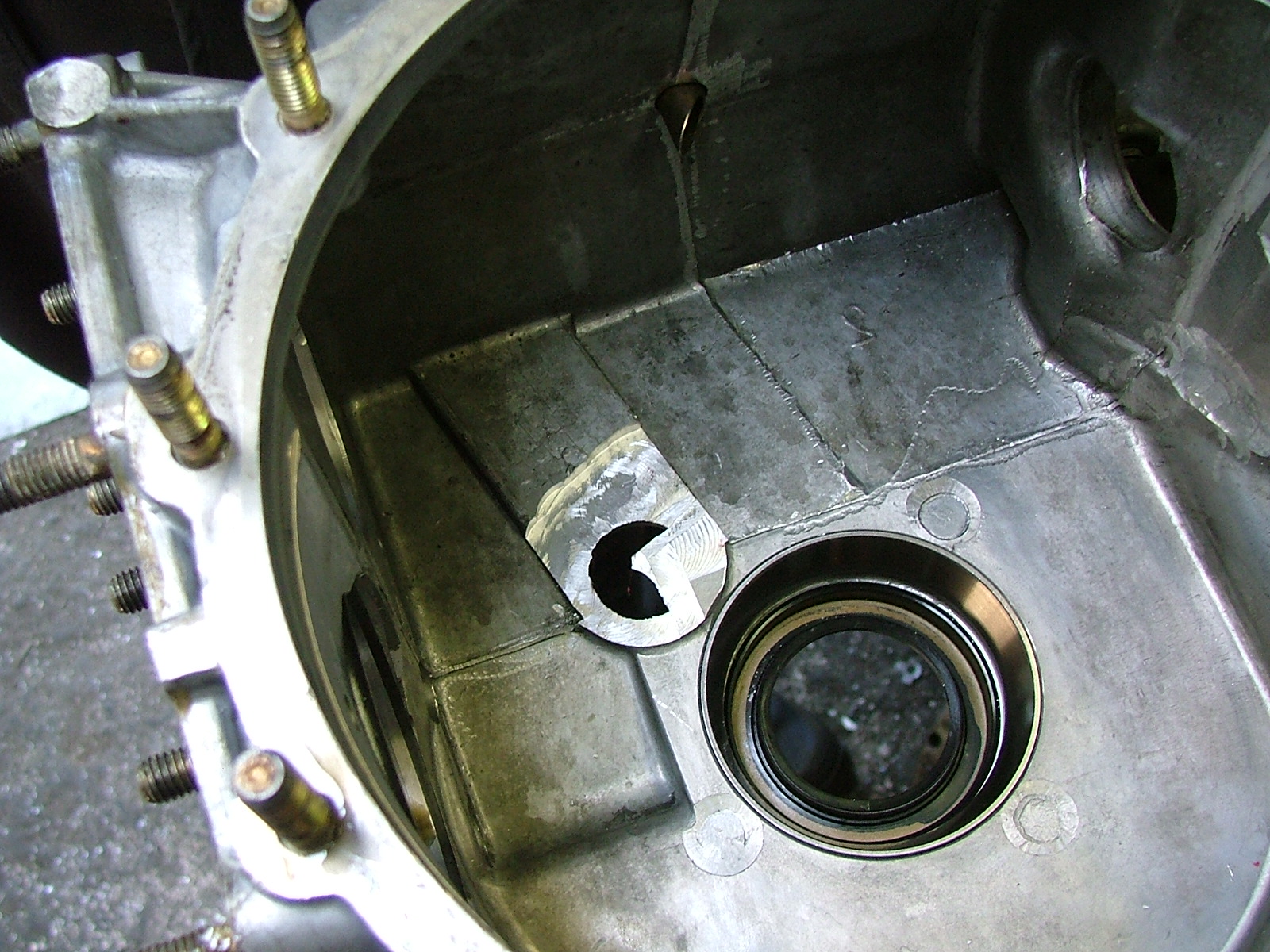

Well there is just two problems. This rod now has to be installed from the inside in the real case.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

So these are now in the way and must come off!

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Jun 5 2019, 05:10 AM
Post #916


Advanced Member
****

Group: Members
Posts: 4,652
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
QUOTE(Lucky9146 @ Jun 5 2019, 01:22 AM) *

Well there is just two problems. This rod now has to be installed from the inside in the real case.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image

So these are now in the way and must come off!

Attached Image

Attached Image


Some of your clearancing was due to installation of the bearing support plate,
some for the later case speedo pickup.
I didn't have to remove the protrusions in the center housing. ????
Older mag case ? (IMG:style_emoticons/default/sad.gif)
Great pics.
You're Lucky to have such an experienced tech.
I was pulling you leg about the color.
My GT is light ivory too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 5 2019, 10:20 PM
Post #917


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(rgalla9146 @ Jun 5 2019, 04:10 AM) *

QUOTE(Lucky9146 @ Jun 5 2019, 01:22 AM) *

Well there is just two problems. This rod now has to be installed from the inside in the real case.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)



So these are now in the way and must come off!




Some of your clearancing was due to installation of the bearing support plate,
some for the later case speedo pickup.
I didn't have to remove the protrusions in the center housing. ????
Older mag case ? (IMG:style_emoticons/default/sad.gif)
Great pics.
You're Lucky to have such an experienced tech.
I was pulling you leg about the color.
My GT is light ivory too.


Agreed on the bearing support plate and was trying to say that the improvement did lead to further clearancing. Don't know what to say about your not having to remove protrusions (IMG:style_emoticons/default/confused24.gif) Maybe like you said older mag case? Just trying to share my experience. Thanks for chiming in. (IMG:style_emoticons/default/beerchug.gif)
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 5 2019, 10:34 PM
Post #918


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
Keep in mind I am still documenting all that went on last Saturday.

So now with the case nubs machined off we are back at it and this shift rod goes in...

Attached Image

Attached Image

And on the 1st and 2nd gears

Attached Image

Trial fit of the aft cone said we still had material to remove

Attached Image

Attached Image

(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 5 2019, 10:57 PM
Post #919


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
With this additional machining complete and some hand work we are finally clear by the shift rod and fork and housing.

Attached Image

Here we are with the nose cone on and everything works, we call it quits on a very long Saturday.
Final assembly and button up to take place Monday morning.

Attached Image

(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Jun 7 2019, 08:12 AM
Post #920


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
Luft 6 happened almost a month ago already and I posted pictures on a tread shortly there after but did not post any of my car on this thread. This is one of my favorites that I took right after arriving.
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/white914.jpg)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


52 Pages V « < 44 45 46 47 48 > »
Reply to this topicStart new topic
2 User(s) are reading this topic (2 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 25th November 2024 - 05:19 AM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
