> BUILD-OFF CHALLENGE: Madmax914, '74 914 Subaru Turbo Conversion
madmax914
post Oct 13 2015, 09:56 PM
Post #21


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest

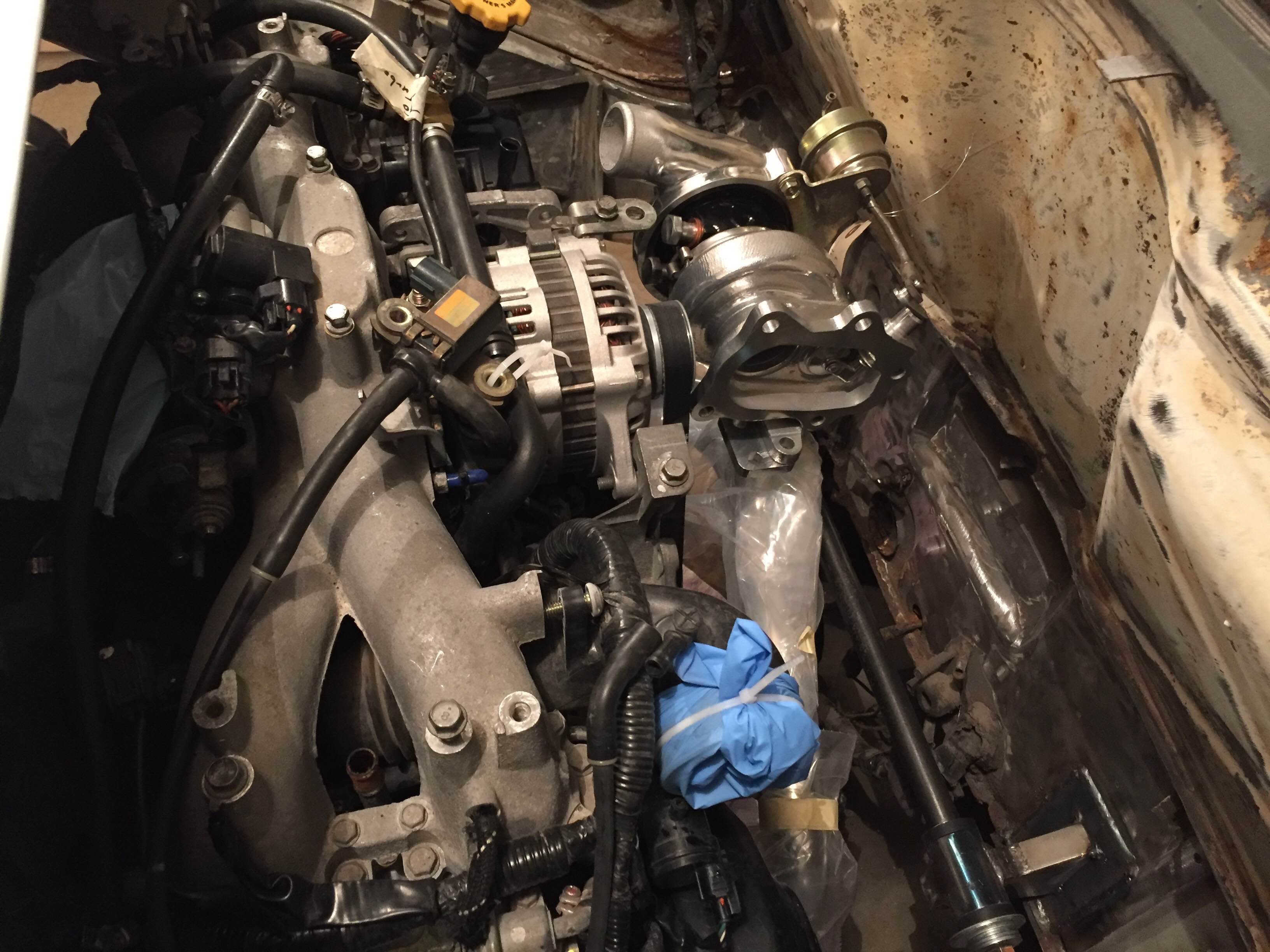

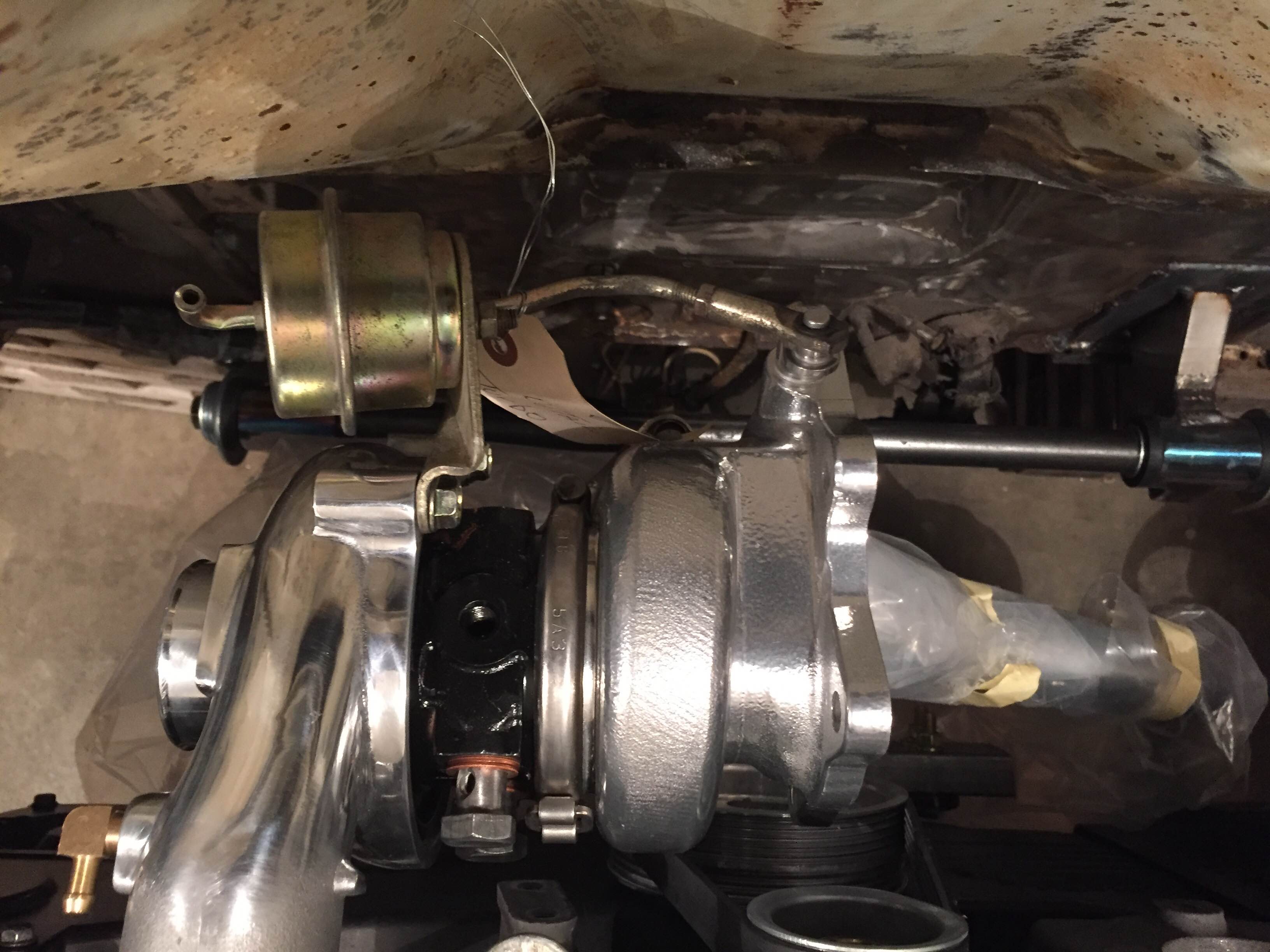

I have the motor and transmission in place so I can finish the motor mounts. The good news is the header and turbo fits nice between the motor and the firewall. There's about an inch between the turbo and firewall.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Oct 13 2015, 10:27 PM
Post #22


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Pretty nice fitment! What are you going to do about heat from the turbo?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 13 2015, 10:37 PM
Post #23


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(Andyrew @ Oct 13 2015, 09:27 PM) *

Pretty nice fitment! What are you going to do about heat from the turbo?

Probably a turbo blanket, the exhaust out the turbo will be ceramic coated. I'm going to try Lizard Skin spray on heat shield on the firewall.

Open to suggestion
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914GTSTI
post Oct 13 2015, 10:49 PM
Post #24


Member
**

Group: Members
Posts: 270
Joined: 16-September 07
From: Glendale AZ
Member No.: 8,123
Region Association: None
What is your idea for the motor cradle ?
Randy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 13 2015, 10:59 PM
Post #25


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(914GTSTI @ Oct 13 2015, 09:49 PM) *

What is your idea for the motor cradle ?
Randy

I'm not using a cradle, I will be doing a bulkhead mount very similar to the Patrick Motorsport 914-6 bulkhead mount. You can see the bulkhead cross bar that will mount to the motor.

Stay tuned for more to come. I should have more to show you this weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flmont
post Oct 14 2015, 10:26 PM
Post #26


Senior Member
***

Group: Members
Posts: 879
Joined: 21-October 08
From: Tucson,Az
Member No.: 9,676
Region Association: Southwest Region
whats the cost,..and pwr of a motor like that !!! (ball park..) Thnxs
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 15 2015, 08:51 AM
Post #27


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(flmont @ Oct 14 2015, 09:26 PM) *

whats the cost,..and pwr of a motor like that !!! (ball park..) Thnxs

I purchased this motor from a member here on World, it had been in a 914 and was removed to do a V-8 conversion.

You can pick up these JDM engines on Ebay or CL, they range from $1,600-$1,900. A STi motor will be in the $3,500-$5,500 range depending on year and mileage.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Oct 15 2015, 10:38 AM
Post #28


Senior Member
****

Group: Members
Posts: 4,048
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
I'm sure you're going to show is, but what will you attach the mount to on the engine side? A smallcar mount?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 15 2015, 11:10 AM
Post #29


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(Chris H. @ Oct 15 2015, 09:38 AM) *

I'm sure you're going to show is, but what will you attach the mount to on the engine side? A smallcar mount?

Yes, a Smallcar mount, rectangular steel tubing will connect the two Smallcar brackets and two arms will go forward and attach to the round stock on the fire wall.

Keep your fingers crossed that this will all work out. Its worked on many a Porsche six.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Oct 15 2015, 11:37 AM
Post #30


Senior Member
****

Group: Members
Posts: 4,048
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
Yeah I can picture that. Then the whole underside is clear for the exhaust. No mount bar at all. Like it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 15 2015, 11:55 AM
Post #31


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
That is the beauty of it all, nothing to interfere with exhaust or axles. I installed the cut down oil pan from Outfront now the lowers point of the car is the bottom of the car!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 15 2015, 12:00 PM
Post #32


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Yes that is what I am liking about this design. And the fact that I can play around again a nd redo something I have done 3X times (IMG:style_emoticons/default/headbang.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 15 2015, 12:12 PM
Post #33


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(914forme @ Oct 15 2015, 11:00 AM) *

Yes that is what I am liking about this design. And the fact that I can play around again a nd redo something I have done 3X times (IMG:style_emoticons/default/headbang.gif)

Before I started this, I over analyzed it quite a bit, measured, re-measured talked to other members and felt like it should work. So depending on how it all goes I have Jamie(Jrust) to credit or blame. (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Oct 15 2015, 12:22 PM
Post #34


914 Guru
*****

Group: Members
Posts: 6,310
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
QUOTE(madmax914 @ Oct 15 2015, 11:12 AM) *

Before I started this, I over analyzed it quite a bit, measured, re-measured talked to other members and felt like it should work. So depending on how it all goes I have Jamie(Jrust) to credit or blame. (IMG:style_emoticons/default/lol-2.gif)

Yes my genius is commonly misunderstood as idiocy (IMG:style_emoticons/default/huh.gif) . How are you going to do exhaust from your Turbo?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 15 2015, 02:04 PM
Post #35


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest
QUOTE(JRust @ Oct 15 2015, 11:22 AM) *

QUOTE(madmax914 @ Oct 15 2015, 11:12 AM) *

Before I started this, I over analyzed it quite a bit, measured, re-measured talked to other members and felt like it should work. So depending on how it all goes I have Jamie(Jrust) to credit or blame. (IMG:style_emoticons/default/lol-2.gif)

Yes my genius is commonly misunderstood as idiocy (IMG:style_emoticons/default/huh.gif) . How are you going to do exhaust from your Turbo?

When I bought the OF header I also bought an exhaust flange so I'll run 2-1/2" exhaust in to a single-inlet/single-outlet MagnaFlow muffler and out the rear of the car. I'm not sure what I'll do for tips. So the exhaust I got with the motor will go unused. If you have a need for it or know someone let me know. Besides it won't fit between the rear of the Subaru Transmission and the rear valance.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Oct 15 2015, 04:43 PM
Post #36


914 Guru
*****

Group: Members
Posts: 6,310
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
QUOTE(madmax914 @ Oct 15 2015, 01:04 PM) *

When I bought the OF header I also bought an exhaust flange so I'll run 2-1/2" exhaust in to a single-inlet/single-outlet MagnaFlow muffler and out the rear of the car. I'm not sure what I'll do for tips. So the exhaust I got with the motor will go unused. If you have a need for it or know someone let me know. Besides it won't fit between the rear of the Subaru Transmission and the rear valance.

I'm just curious how you'll loop it back from on high. I'll come up to see when you get there. Am considering just adding a Turbo to my NA 2.5 so I'd end up doing something similar exhaust wise
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 25 2015, 07:19 PM
Post #37


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest

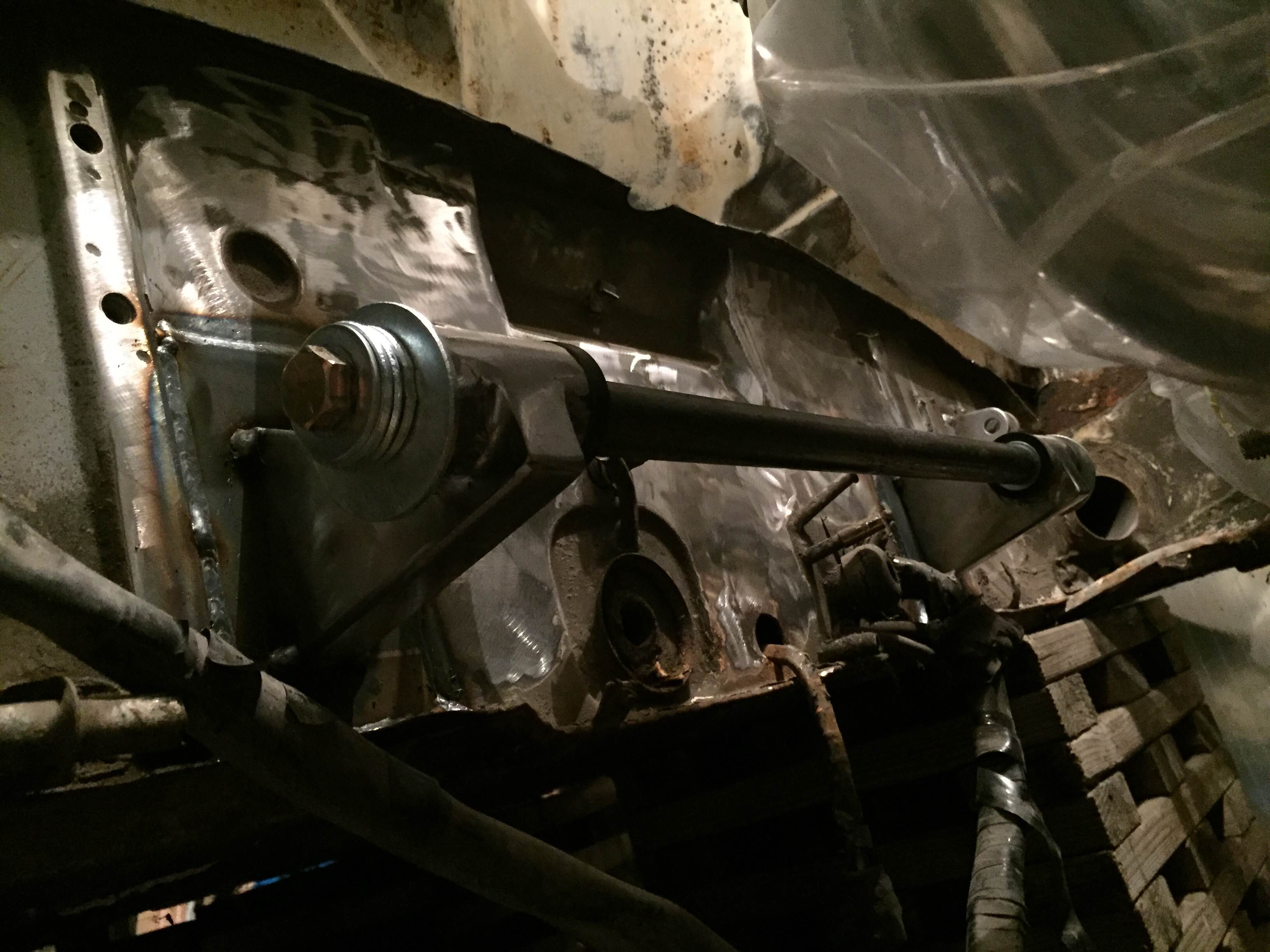

Finished the front bulkhead motor mount.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 25 2015, 07:23 PM
Post #38


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest

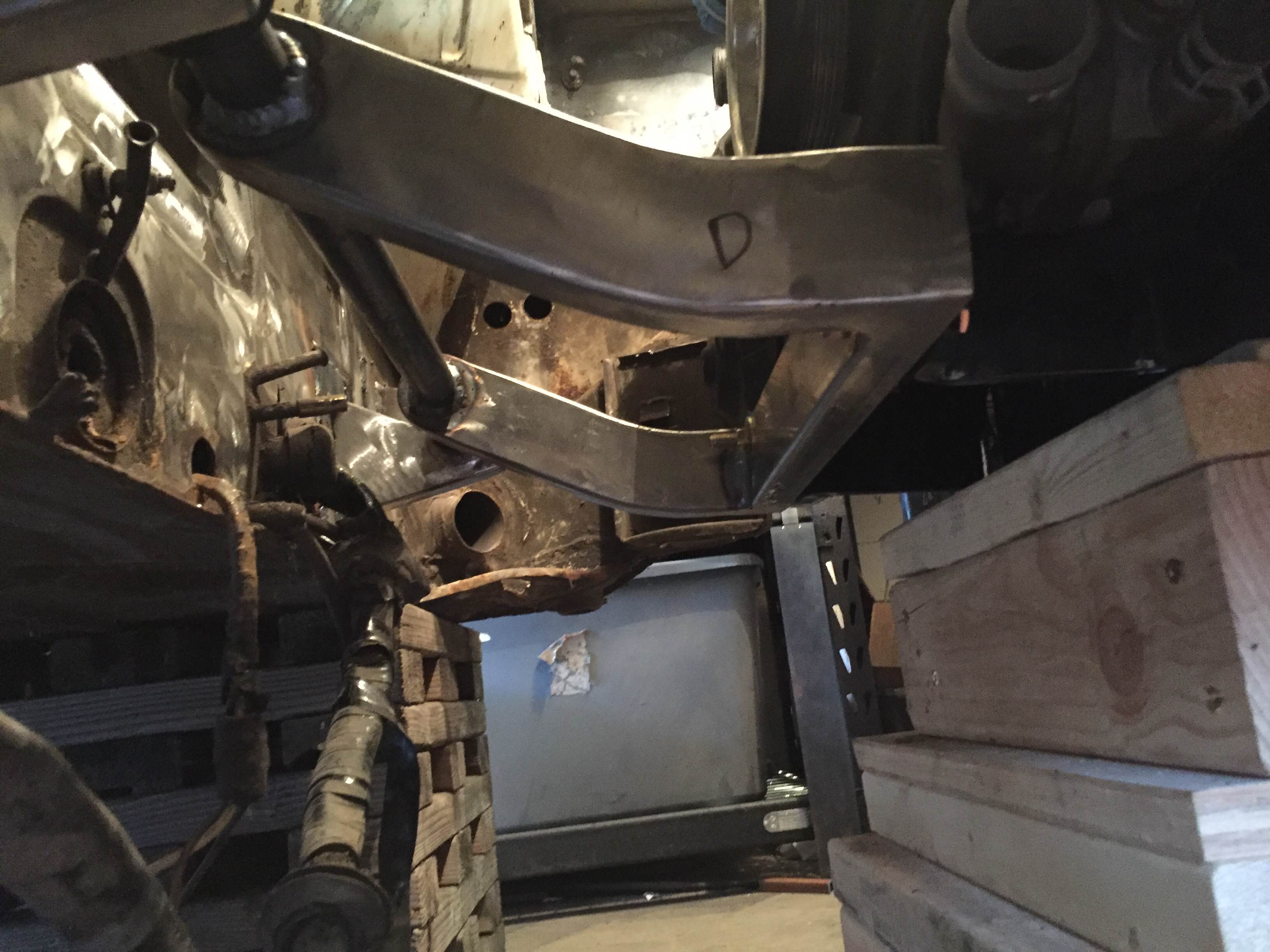

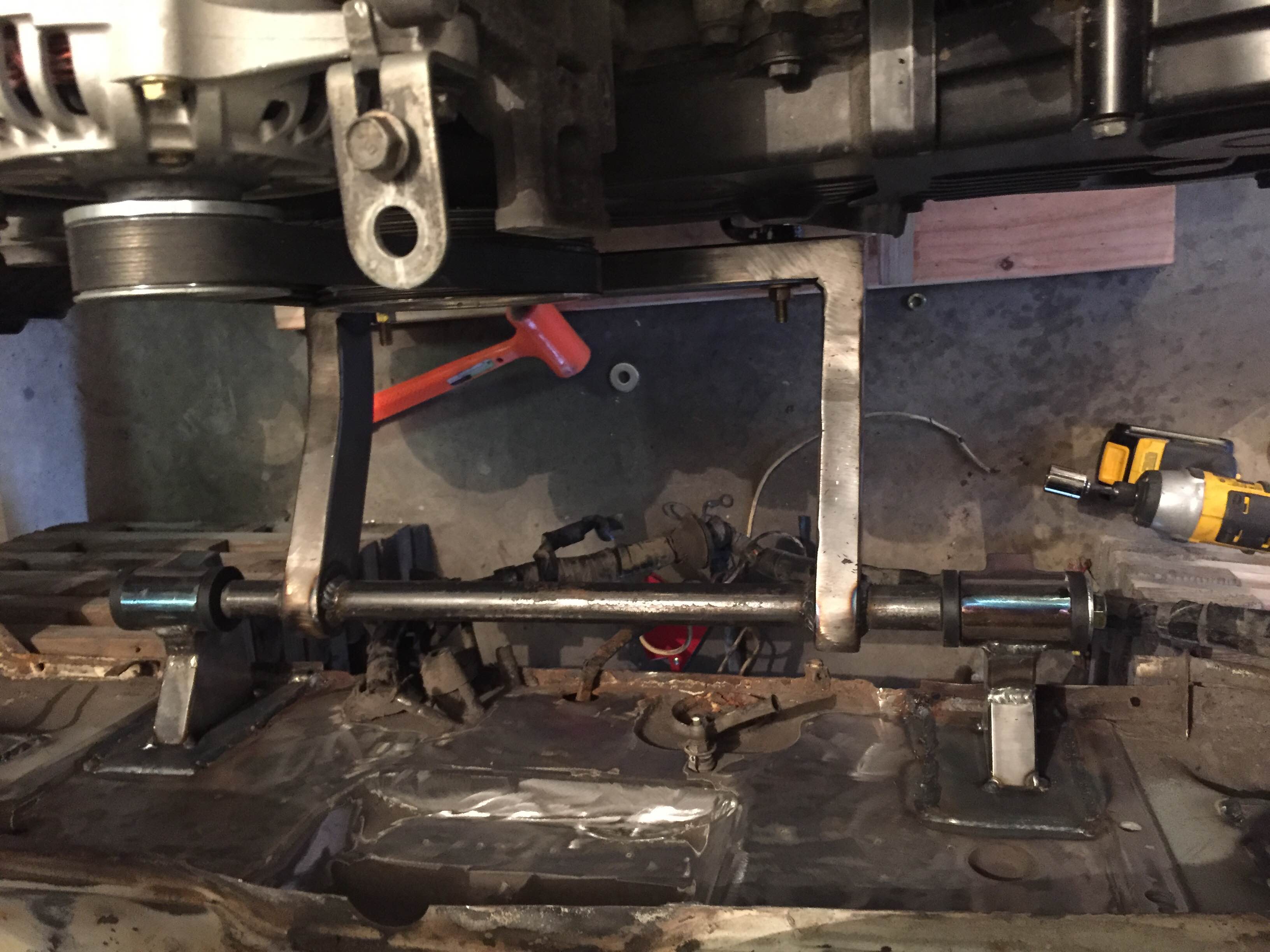

If you look close you can see the Small Car motor mount brackets that I attached the motormount to. They sold me just the brackets that bolt to the Subaru block.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
madmax914
post Oct 25 2015, 07:33 PM
Post #39


Member
**

Group: Members
Posts: 204
Joined: 16-February 14
From: Salem, Oregon
Member No.: 17,007
Region Association: Pacific Northwest

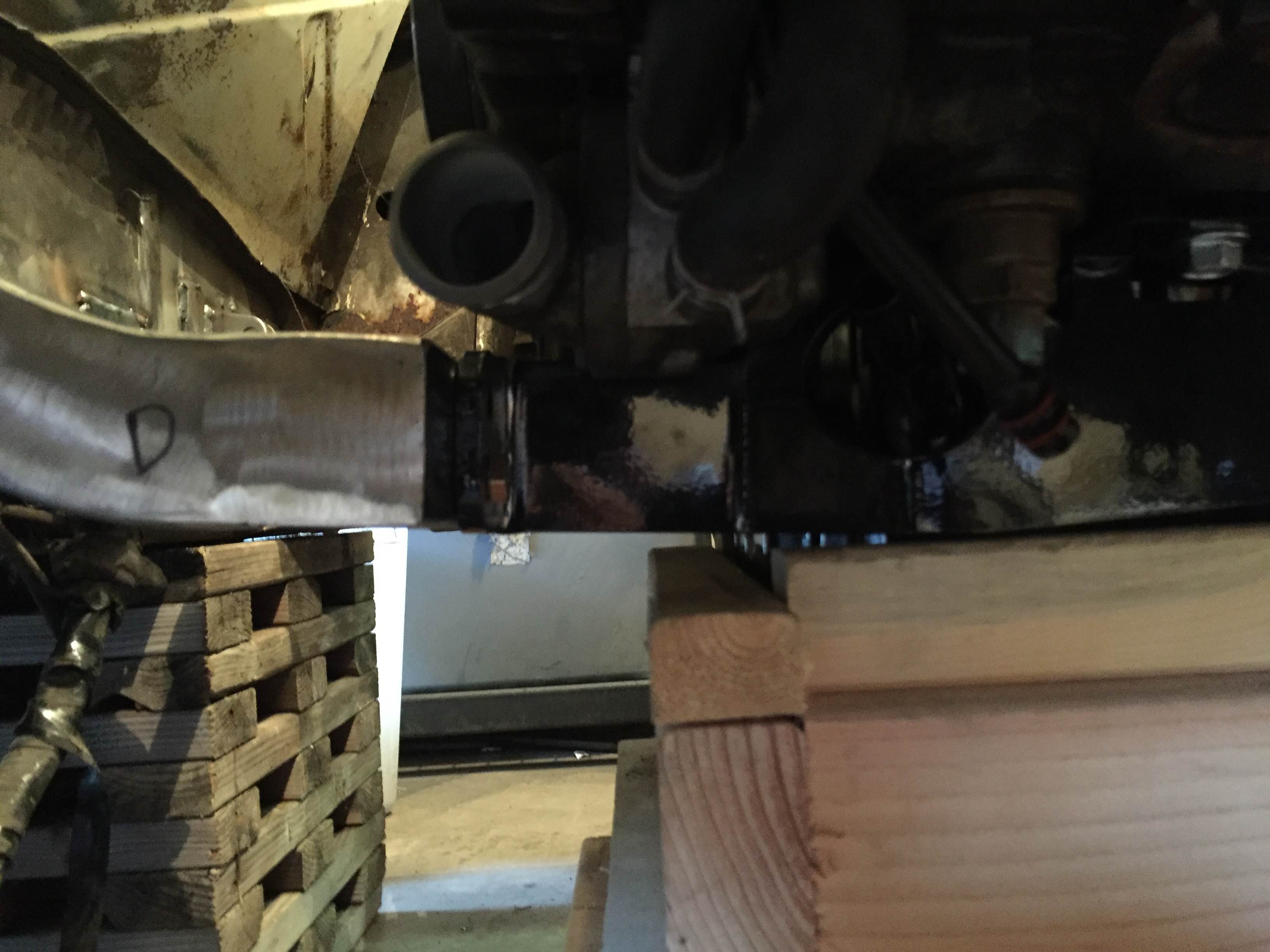

It's difficult to see but the oil pan is just about level with the bottom of the tub.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 25 2015, 07:51 PM
Post #40


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Nice looking mount!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
