> GB: LED Boards: REAR Brake/Turnsignals, Reverse LED Boards Now Available
Spoke
post Dec 30 2015, 09:37 AM
Post #1


Jerry
*****

Group: Members
Posts: 7,084
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
We're starting REAR boards first, then adding FRONT boards in Feb. Will not be taking orders for front boards until they are available.

Please respond to this thread if interested. Orders will be taken in sequential order to be fair. I will PM you with payment information.

We can only build so many boards at a time so this GB will likely take a few months to complete. If I don't PM you right away, please be patient. I try to keep the payment-to-shipping time to less than 3 weeks.

The rear LED board is available in 3 different configurations:

1) Brake Light: RED LEDs: Price: $90/pair
2) Turnsignal: RED LEDs: Price: $100/pair
3) Turnsignal: AMBER LEDs: Price: $100/pair

Reverse LED Board: $60/pair


Shipping:
CONUS: $10
Canada: $25
ROW: Determined at purchase.

CONUS payment examples:
Brake LED only: $90 + $10 = $100
Brake LED and RED/AMBER Turnsignal LED: $190 + $10 = $200

Each Brake/turnsignal pair includes:
o 2 PCBs
o Brake/Taillights: 56 RED LEDs
o Turnsignals:56 AMBER (Euro) or RED (US) LEDs - Rearward facing; 8 side-facing LEDs to replace the small side running light. Side LEDs are AMBER (Euro) or RED (US) to match taillight lens.

Electrical Connection:
o Brake: Pigtail with 1157 base to plug directly into existing bulb socket.
o Turnsignal: Pigtail with 1156 base (turnsignal) and 5007 base (small side light)

6 clips for each pair to mount the boards to existing taillight housing for plug-n-play installation.

6 screws per PCB pair for clips + 1 extra

1 piggyback spade connector per turnsignal PCB pair in case existing turnsignal flasher is replaced by EP36 LED flasher from your FLAPS (early tach with separate L and R turnsignal indicators).

1 year guarantee.

Electrical Characteristics:
Brake/Turnsignal: 0.35A @ 14V (4.9 Watt) each PCB
Taillight: 0.06A @ 14V (0.8 Watt) each PCB

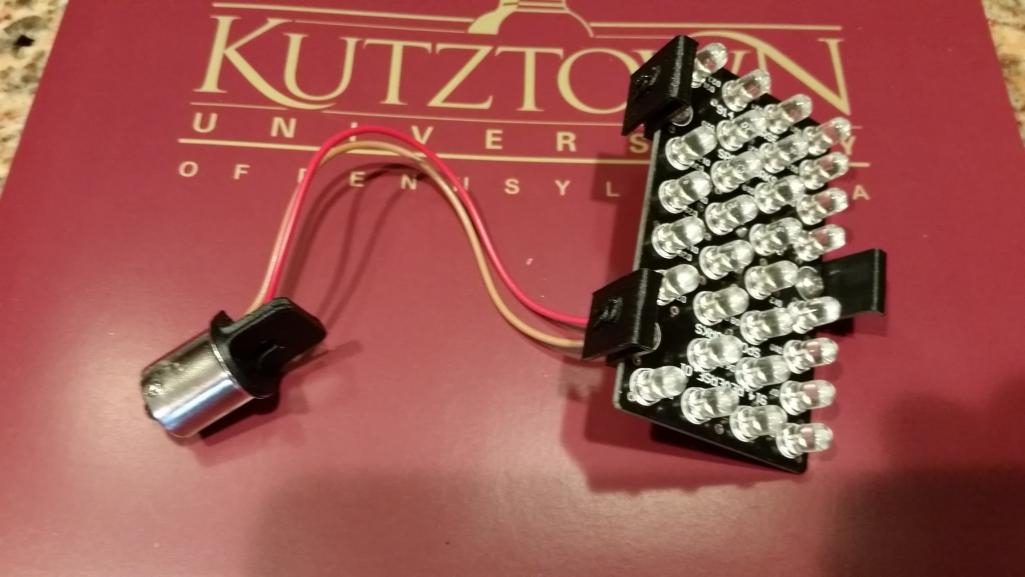

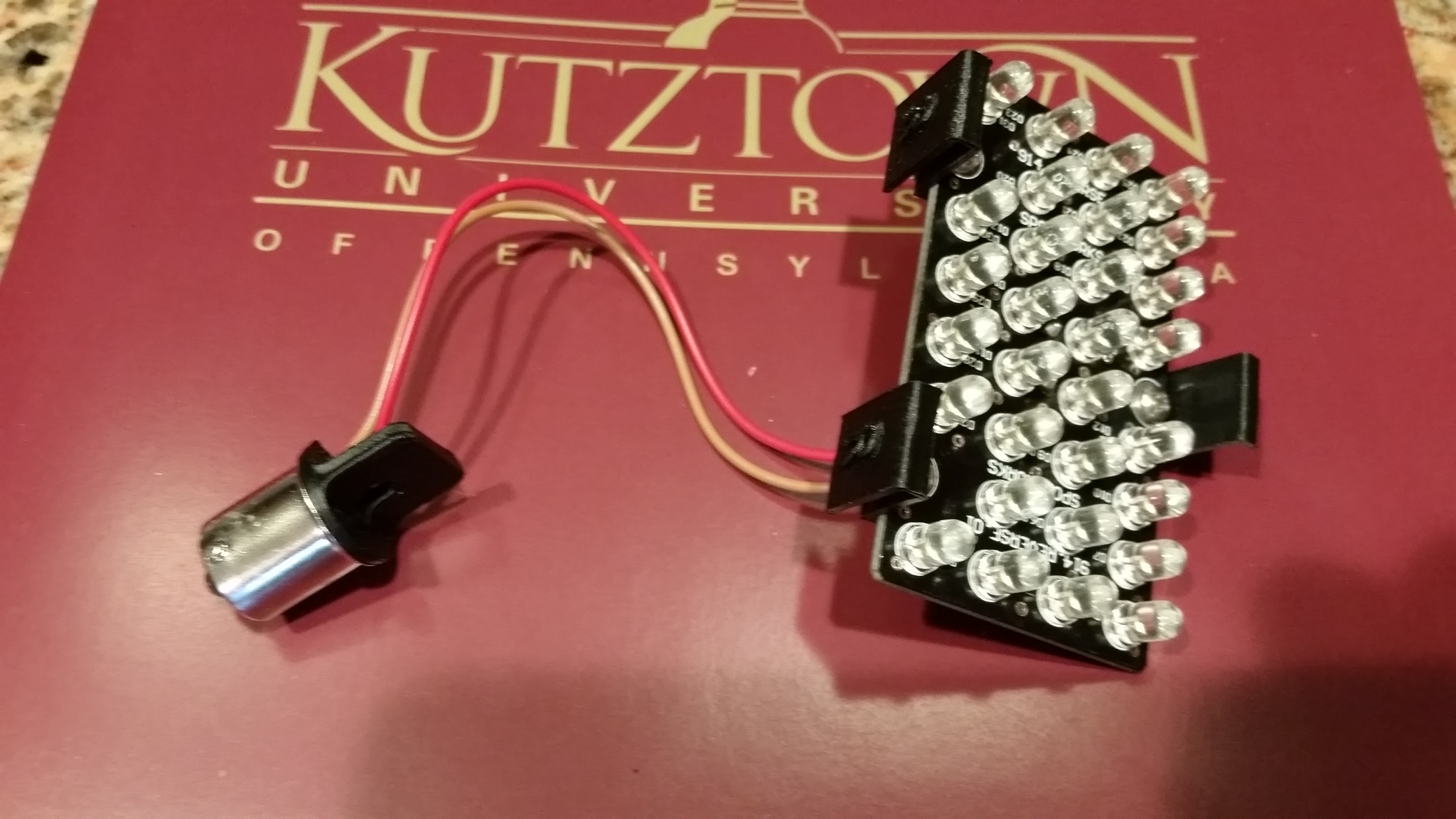

Example boards shown with early prototype brass clips. Clips are plastic for these boards.

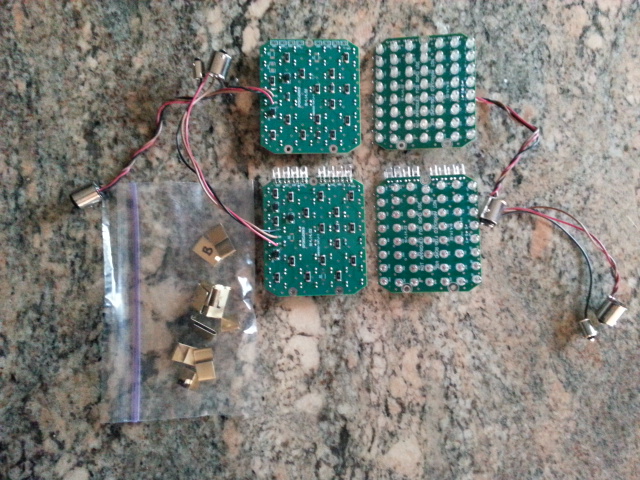

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgolia
post Dec 30 2015, 03:04 PM
Post #2


GeoJoe
***

Group: Members
Posts: 714
Joined: 5-February 10
From: PA
Member No.: 11,329
Region Association: North East States
Spoke, I am in for brake and red turn signal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Dec 30 2015, 03:16 PM
Post #3


914 Guru
*****

Group: Members
Posts: 6,310
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
I missed last one. I am in for a Pair of turn signal & brake in Red. Thanks for doing it again. Was kicking myself last time
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 30 2015, 03:18 PM
Post #4


914 Wiring Harnesses
*****

Group: Members
Posts: 8,739
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
So how do these look mounted in a housing? How do they look illuminated behind the lenses compared to standard incandescent bulbs and LED bulbs replacements?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 30 2015, 03:27 PM
Post #5


Jerry
*****

Group: Members
Posts: 7,084
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(Jeff Bowlsby @ Dec 30 2015, 04:18 PM) *

So how do these look mounted in a housing? How do they look illuminated behind the lenses compared to standard incandescent bulbs and LED bulbs replacements?


The first several posts of the link below show how everything looks in the housing. Posts 27-30 show the lights in action.

Previous GB
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
StratPlayer
post Dec 30 2015, 05:03 PM
Post #6


StratPlayer
****

Group: Members
Posts: 3,298
Joined: 27-December 02
From: SLC, Utah
Member No.: 27
Region Association: Rocky Mountains
Brake LED and RED/AMBER Turnsignal LED: $190 + $10 = $200

I'm in
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dangerranger01
post Dec 30 2015, 06:35 PM
Post #7


Member
**

Group: Members
Posts: 145
Joined: 12-August 05
From: Boring, Oregon U.S.A.
Member No.: 4,578
Region Association: None
Sign me up for Brake LED and AMBER Turnsignal LED: $190 + $10 = $200

Thanks!
And nothing for the reverse lights?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Dec 30 2015, 07:10 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
I'd like the LED brake light and AMBER turn signal.
Total $200.
Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Dec 30 2015, 07:52 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,637
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest
Spoke- I'm in for rear brake and red turnsignal boards, US style.

Thx.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whitetwinturbo
post Dec 30 2015, 08:16 PM
Post #10


Honey, does this wing make my ass look fat?
***

Group: Members
Posts: 1,391
Joined: 22-October 11
From: Newport Beach/Kalefornya/USA
Member No.: 13,704
Region Association: Southern California
.............I'm in for USA rear brake lights.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 30 2015, 09:23 PM
Post #11


Jerry
*****

Group: Members
Posts: 7,084
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(dangerranger01 @ Dec 30 2015, 07:35 PM) *
And nothing for the reverse lights?


I'm not planning to do reverse lights. I try to focus on lights that keep our cars safe in normal operation; brakes and turnsignals.

There's lots of off-the-shelf white LED lights available. Check out the following thread for LEDs for most all the other outside lights on the 914. Eric did a great job putting this together.

Eric9144 LED Supplimental
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PotterPorsche
post Dec 30 2015, 10:28 PM
Post #12


Member
**

Group: Members
Posts: 295
Joined: 10-November 13
From: Hayward CA
Member No.: 16,628
Region Association: None
Brake LED
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 30 2015, 10:45 PM
Post #13


Its alive
****

Group: Members
Posts: 4,814
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
I'm in for USA red brake and turn signals. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dangerranger01
post Dec 31 2015, 01:35 AM
Post #14


Member
**

Group: Members
Posts: 145
Joined: 12-August 05
From: Boring, Oregon U.S.A.
Member No.: 4,578
Region Association: None
Curious why you have colored LEDs...did you try white LEDs with the factory lenses, and were they not enough?


Also, just sent payment...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bahnzai
post Dec 31 2015, 05:15 AM
Post #15


Member
**

Group: Members
Posts: 328
Joined: 26-July 06
From: Columbia, SC
Member No.: 6,509
Region Association: South East States
I am in for a set of USA red turn signals and brake lights.
$100 + $90 + $10 = $200
Thanks,
Danny
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jbachert
post Dec 31 2015, 06:12 AM
Post #16


Newbie
*

Group: Members
Posts: 40
Joined: 2-January 13
From: Allentown, PA
Member No.: 15,329
Region Association: North East States
Sign me up for:

Brake LED and RED Turnsignal LED: $190 + $10 = $200


John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 31 2015, 07:53 AM
Post #17


Jerry
*****

Group: Members
Posts: 7,084
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(dangerranger01 @ Dec 31 2015, 02:35 AM) *

Curious why you have colored LEDs...did you try white LEDs with the factory lenses, and were they not enough?


LED visual spectrum is very tight whereas a standard bulb puts out most of the visual spectrum we can see. The red or amber lenses filter out all the frequencies of unwanted light so much of the light energy of the standard bulb is blocked by the lens.

It's one reason why the standard bulb burns 21W and LED boards like mine burn less than 5W and are much brighter.

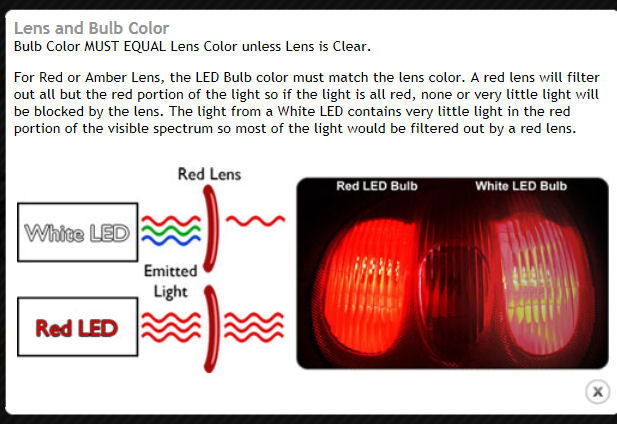

Here's an example of the filtering. Most of the standard bulb energy is blocked or filtered by the lens. Most of the red LED energy passes through the red lens. This is why red or amber LED lights look so intense.

Attached Image

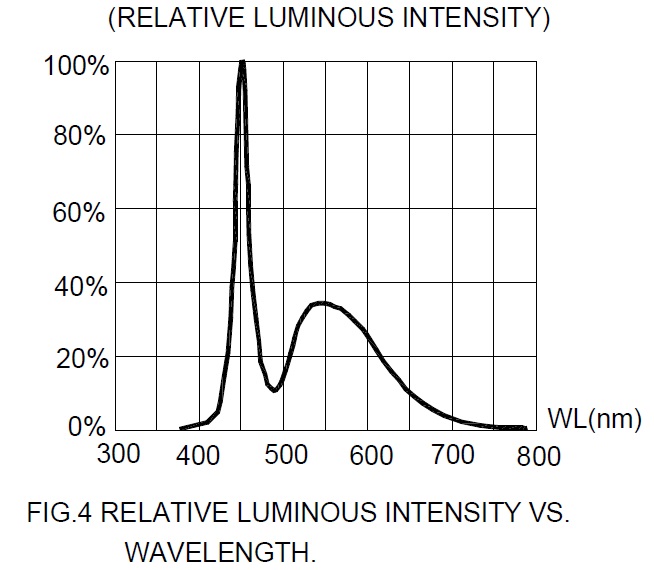

Here's the spectrum output of the white LEDs I use for front running lights. These are from CREE C503B-WAN.

Attached Image

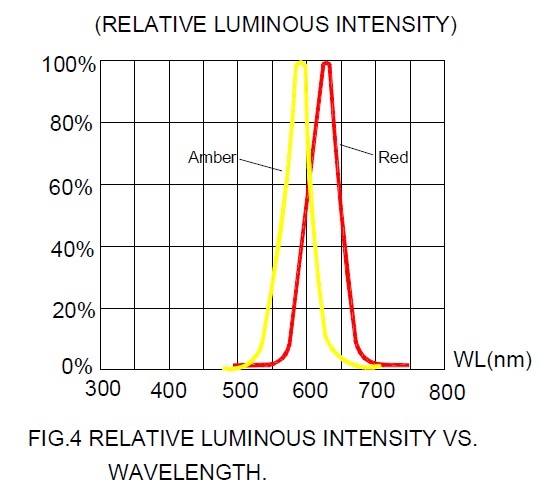

The spectrum for red (C503B-RCN) and amber (C503B-ACN) that I used for brake and turnsignals. Pretty much all the energy from the LEDs passes through the lens. It is striking how much energy is blocked when a red LED board is placed behind an amber lens or amber LED board in front of a red lens.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bahnzai
post Dec 31 2015, 09:05 AM
Post #18


Member
**

Group: Members
Posts: 328
Joined: 26-July 06
From: Columbia, SC
Member No.: 6,509
Region Association: South East States
Jerry,
PM received, and payment sent.
Thanks,
Danny
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Dec 31 2015, 10:15 AM
Post #19



***

Group: Members
Posts: 1,707
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States
Put me down for 1 set

Red / Red

Thanks

I'll be waiting on the fronts when you get around to doing them too.

Guess I will also be shopping for a new flasher relay.

Tom
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Dec 31 2015, 10:31 AM
Post #20


Apex killer!
***************

Group: Members
Posts: 23,819
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
QUOTE(Jeff Bowlsby @ Dec 30 2015, 05:18 PM) *

So how do these look mounted in a housing? How do they look illuminated behind the lenses compared to standard incandescent bulbs and LED bulbs replacements?

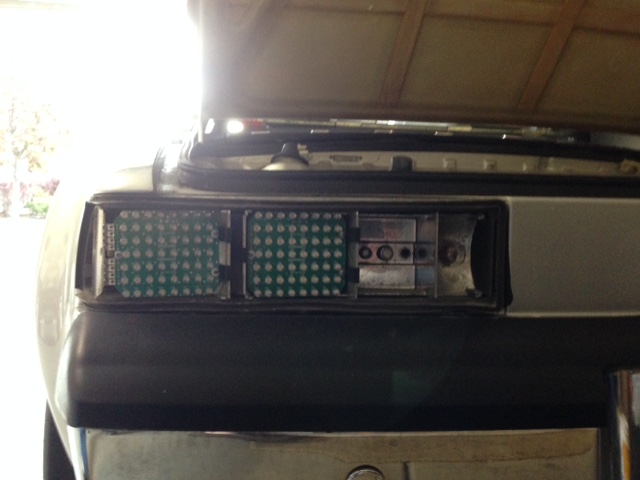

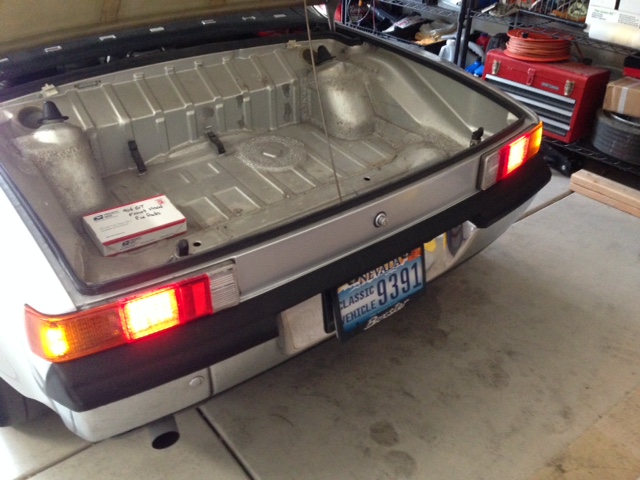

Like this... BRIGHT! (IMG:style_emoticons/default/w00t.gif)


Attached image(s)
Attached Image Attached Image
