> Pictures of 914s running 7 inch fuchs at both ends, Open the kimono
maddin
post Jan 26 2016, 02:05 AM
Post #41


Member
**

Group: Members
Posts: 168
Joined: 22-December 13
From: Australia
Member No.: 16,789
Region Association: Australia and New Zealand
Great topic! I now know what I want..16x7 it is! :-D
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 26 2016, 10:30 AM
Post #42


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

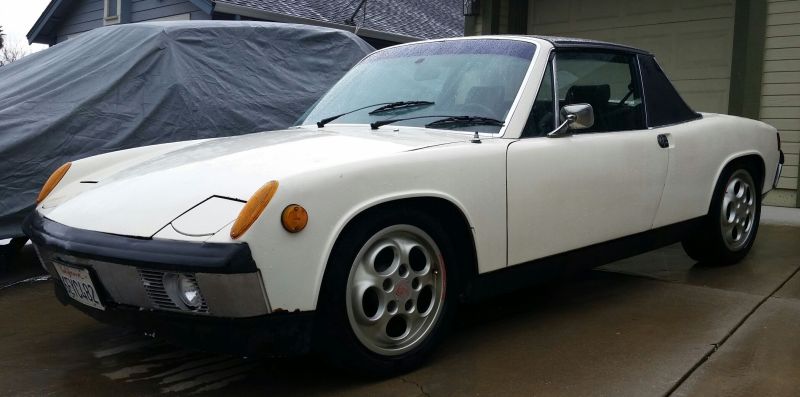

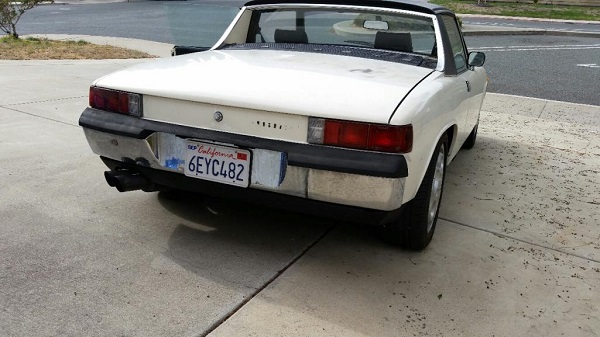

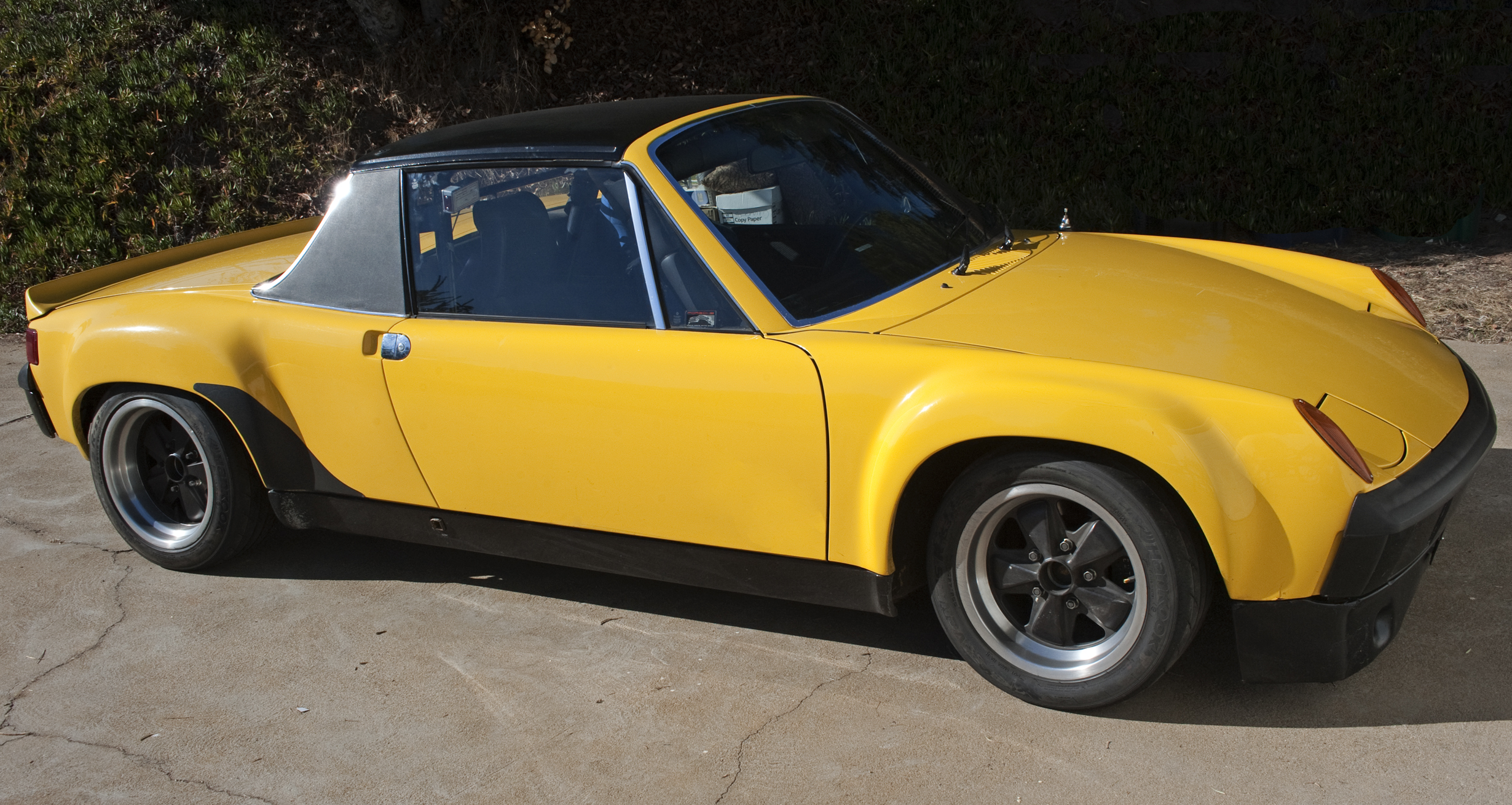

I know not Fuchs....

16x7 with 205/50-16s

53mm offset and 20mm to 25mm spacers (will have to confirm for sure) with would give an effective offset of 33mm to 28mm offset which is still 5mm more inboard than the Fuchs with a 23mm offset.

Previous owner installed them, the rear fenders look stock but I think the rear trailing edge might have been tweaked a little, I'd like to compare with a bone stock car one of these days.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 26 2016, 10:31 AM
Post #43


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
For the Fuchs, I know a few members have actually modified the rear trailing arm to move the hub inboard 15mm or so.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Jan 26 2016, 10:51 AM
Post #44


914 Wizard
**********

Group: Members
Posts: 11,739
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

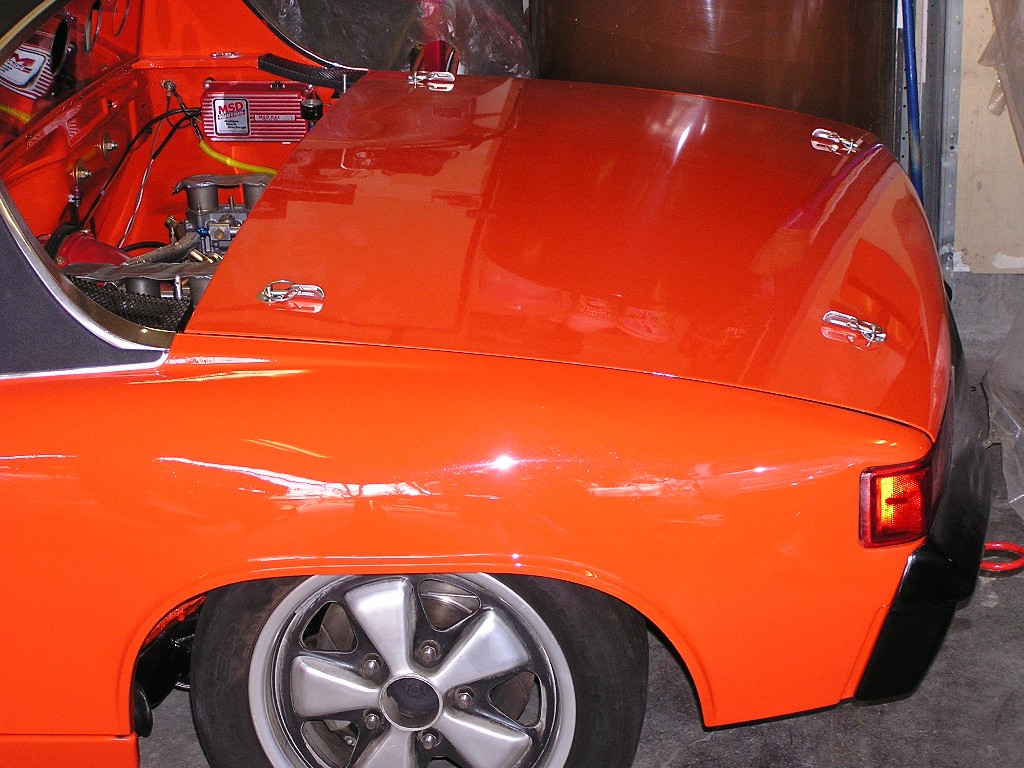

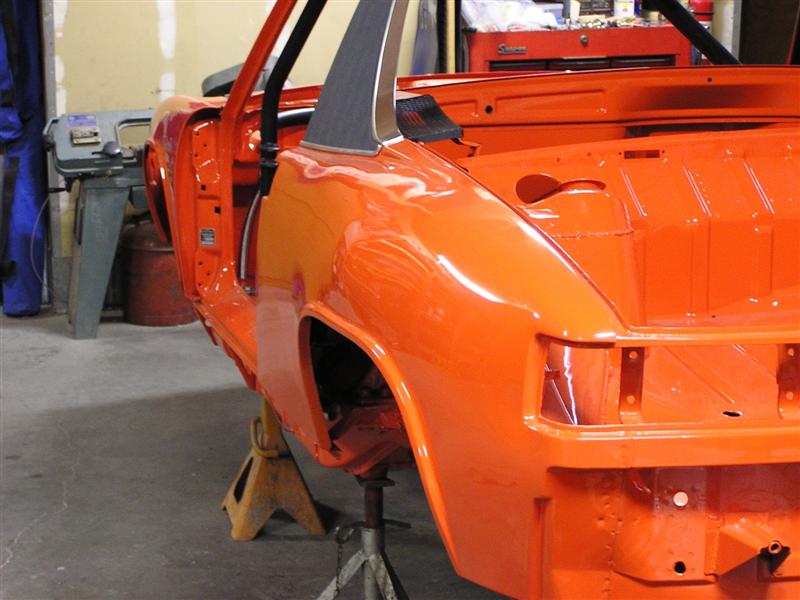

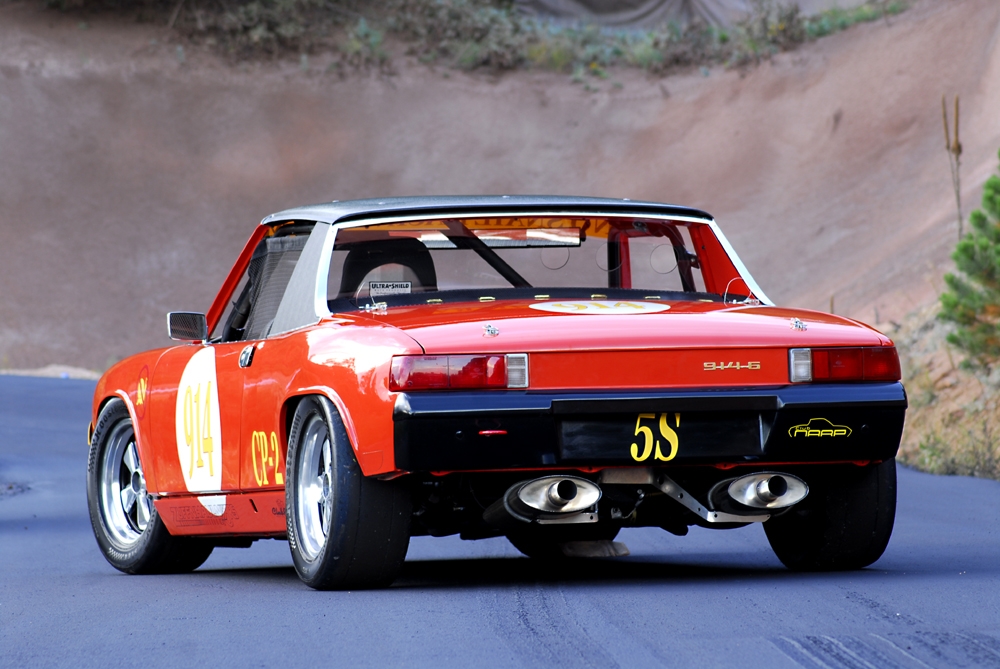

here is a picture of how much pulling, cutting, and welding it took to fit 15x8's under the rear:

(test wheel was a 5.5 x 14)


Attached image(s)
Attached Image Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Alapone
post Jan 26 2016, 11:25 AM
Post #45


Member
**

Group: Members
Posts: 108
Joined: 4-April 13
From: Nj
Member No.: 15,734
Region Association: None
I have 16x7 rear and 16x6 up front? I went with 205/40/16 all around has anyone else done this? The lowest profile in this thread is 45 I think.

I am trying to find out what is the highest profile I can go to without anything more than a gentle rolling for the fenders.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malaga_red75
post Jan 26 2016, 05:12 PM
Post #46


'74 2.5L N/A Subie
**

Group: Members
Posts: 454
Joined: 5-March 06
From: Menlo Park, CA
Member No.: 5,674
Region Association: None
QUOTE(bradtho @ Jan 25 2016, 06:28 PM) *

QUOTE(malaga_red75 @ Jan 25 2016, 05:34 PM) *

16x7 with rolled rear fenders.





this car looks great! why have I never seen pics of it before? maybe I need to spend more time reading our site!



I haven't posted in a while, and mostly lurk now. But I have a build and paint thread on here somewhere...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whitetwinturbo
post Jan 26 2016, 09:27 PM
Post #47


Honey, does this wing make my ass look fat?
***

Group: Members
Posts: 1,391
Joined: 22-October 11
From: Newport Beach/Kalefornya/USA
Member No.: 13,704
Region Association: Southern California
(IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Timo
post Jan 27 2016, 12:52 PM
Post #48


*******
***

Group: Members
Posts: 743
Joined: 13-January 03
From: Finland
Member No.: 137
Region Association: Europe

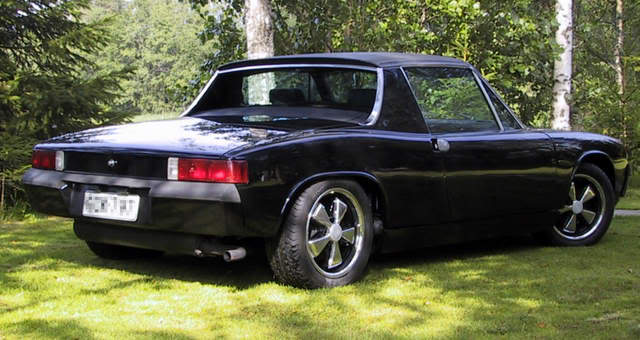

7x15 911R Fuchs and 205/55 tires.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i125.photobucket.com-137-1453920727.1.jpg)

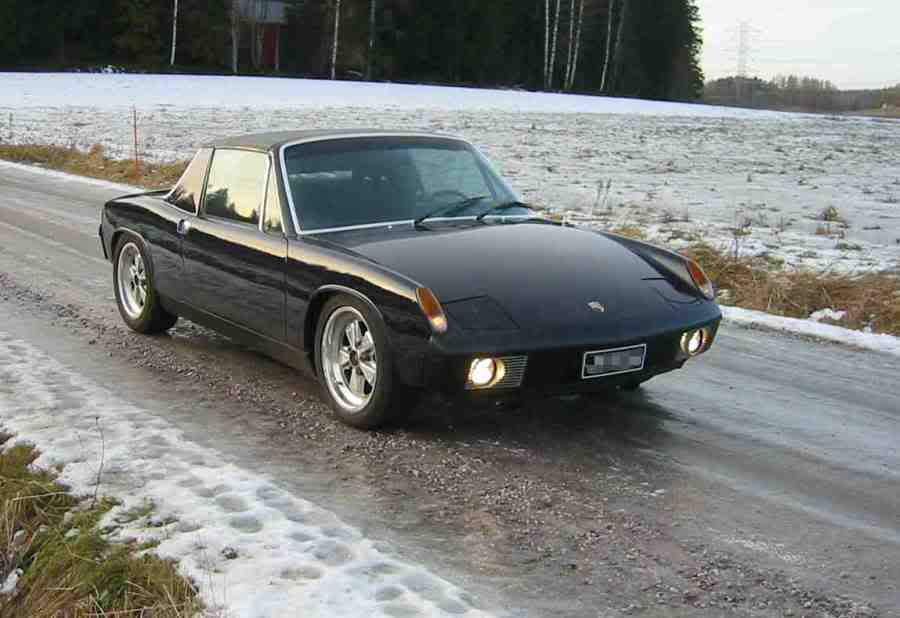

7x16 Fuchs with 205/50 front and 205/55 rear. Rear trailing arms 20mm narrowed.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i125.photobucket.com-137-1453920727.2.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
3d914
post Jan 27 2016, 01:12 PM
Post #49


Senior Member
***

Group: Members
Posts: 1,275
Joined: 24-September 03
From: Benson, AZ
Member No.: 1,191
Region Association: Southwest Region
QUOTE(bradtho @ Jan 20 2016, 09:00 PM) *

15x7 w/ 205/50 (could be 55, can't remember and out of town right now) all around. Like everyone else, stock front fenders, had to pull the rears, but Mark at Eurotech Bodywerkes did such a great job it's hard to tell. Rear driver side is super tight, but no rubbing after a year and a half. Front struts have raised spindles.

PM me if there's some specific angle you're after. I took a full set after I got my car painted.






I love this color! Sooo unique. Enjoy!

(Weird - quoted images show up in preview, but not in post!)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Alapone
post Jan 27 2016, 03:13 PM
Post #50


Member
**

Group: Members
Posts: 108
Joined: 4-April 13
From: Nj
Member No.: 15,734
Region Association: None
how much more are 16x7 worth than 16x6?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 27 2016, 04:41 PM
Post #51


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(Alapone @ Jan 27 2016, 01:13 PM) *

how much more are 16x7 worth than 16x6?



I thought the 16x6 are worth more...the easily fit a 914 narrow body and it "the" Fuch to use when making a set of 3 piece modular rims using Fuch centers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_3.0
post Jan 27 2016, 06:23 PM
Post #52


Newbie
*

Group: Members
Posts: 49
Joined: 8-January 14
From: Central Cal Coast
Member No.: 16,856
Region Association: Central California
Attached Image

15x7 front, 15x8 rear w/1" spacers
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
puffinator
post Jun 5 2016, 08:28 AM
Post #53


Member
**

Group: Members
Posts: 193
Joined: 6-August 13
From: Annapolis, MD
Member No.: 16,218
Region Association: MidAtlantic Region

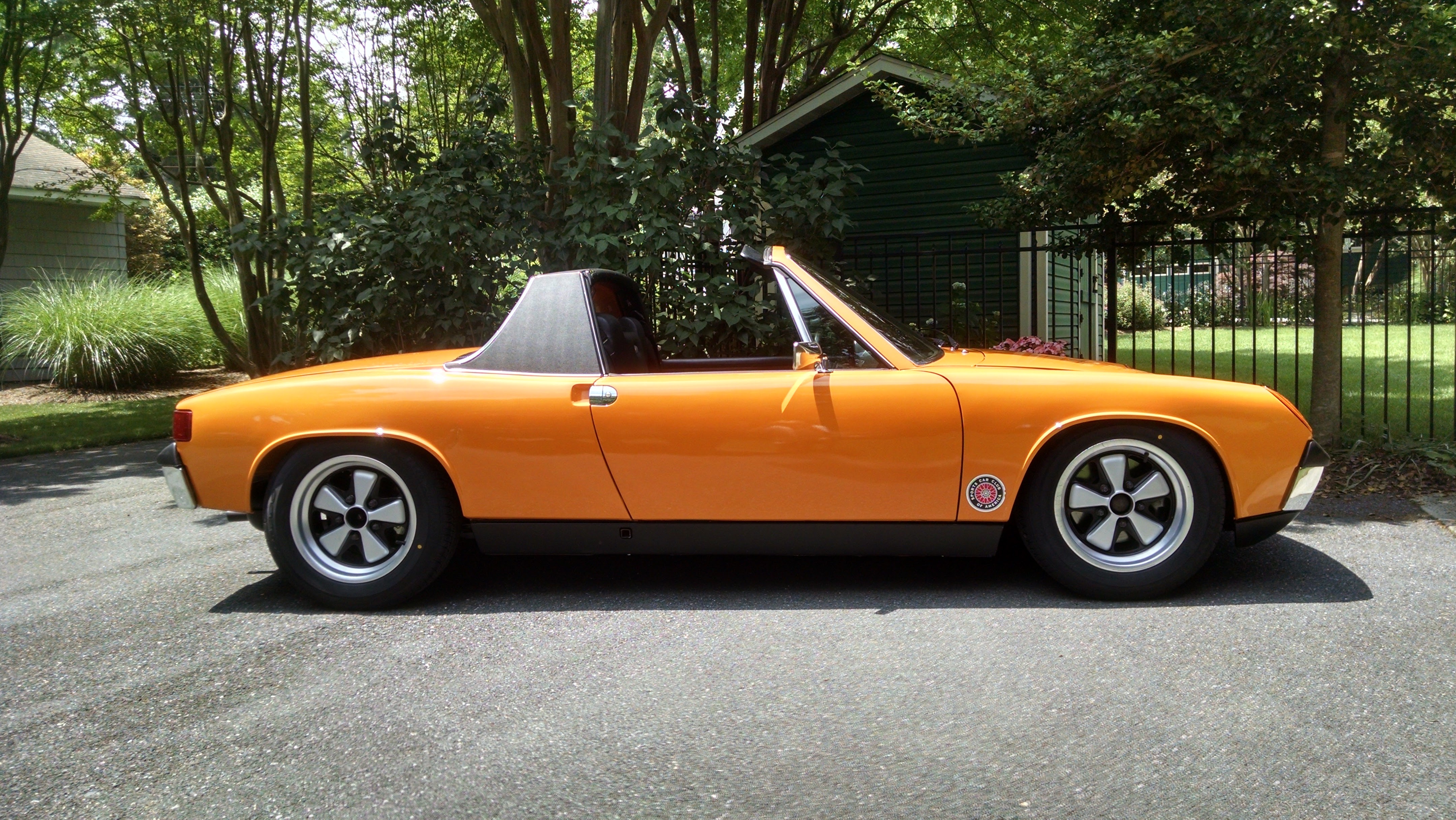

15x7 Fuchs with 195/65 Dunlop SP 5000

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
23e Heure
post Jun 10 2016, 11:31 AM
Post #54


Busy overtaking 911s
**

Group: Members
Posts: 323
Joined: 13-August 15
From: London
Member No.: 19,057
Region Association: England
QUOTE(puffinator @ Jun 5 2016, 03:28 PM) *

15x7 Fuchs with 195/65 Dunlop SP 5000

Attached Image



Thanks for reviving the thread, that's one great looking car.



Now... who can show me cars running 15x6 on the front with 15x7 on the rear?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Jun 10 2016, 01:19 PM
Post #55


914 Guru
*****

Group: Members
Posts: 6,309
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest

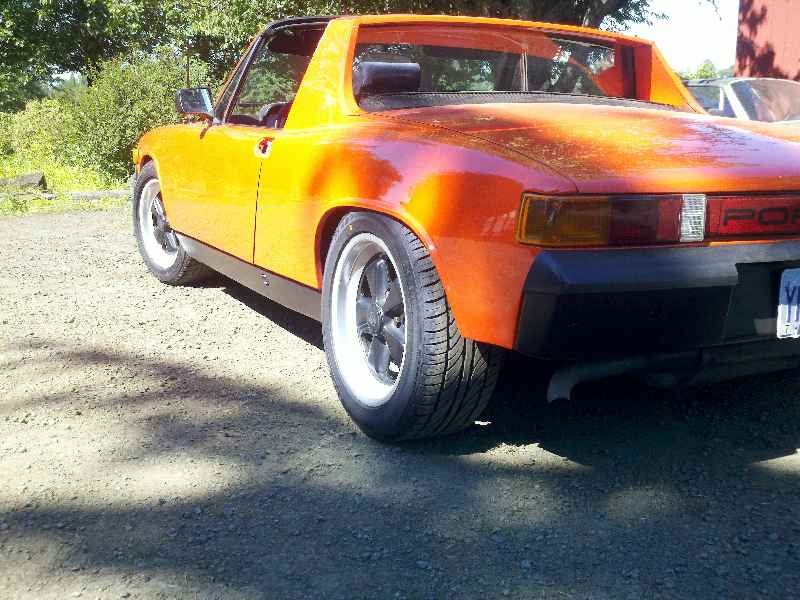

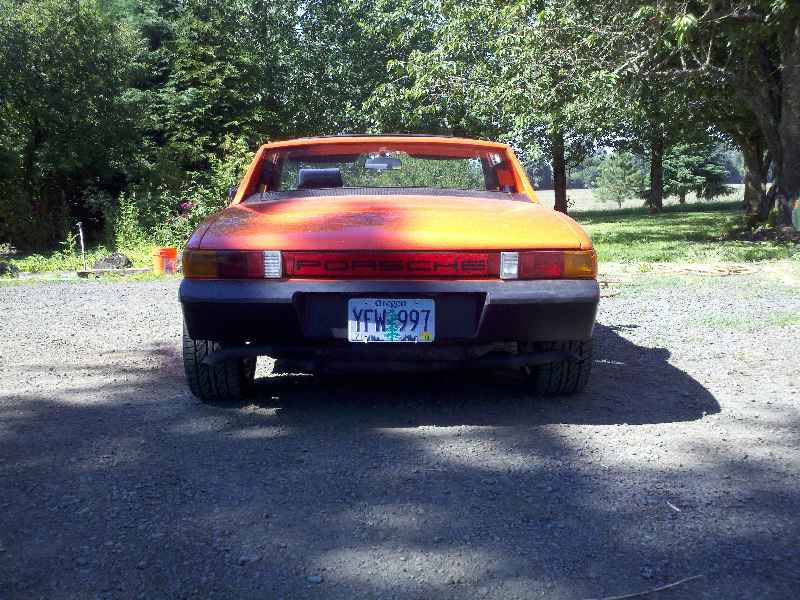

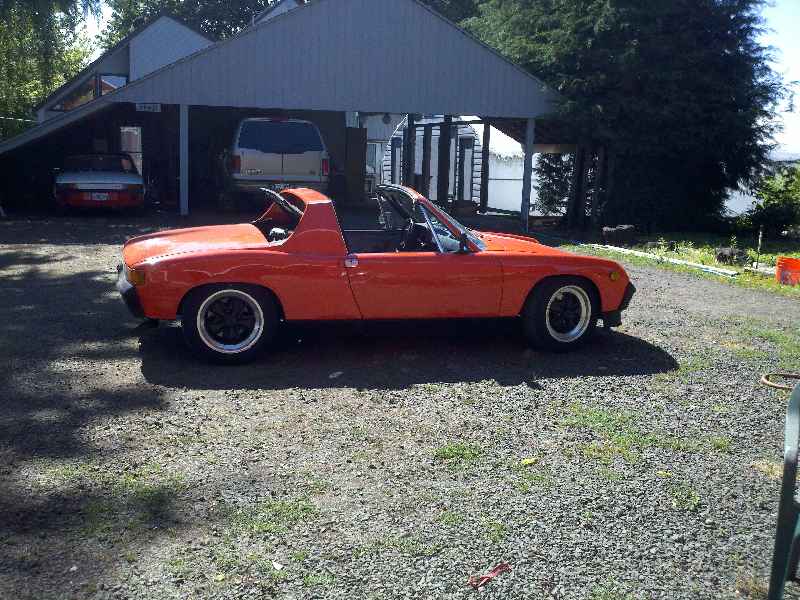

My old v8 car. Ran 951 fuchs on it 7x16 up front & 8x16 in back. 225,40,16's in back. This is with the rear fenders pulled & rolled. I had run 911 7x16's on all 4 corners before this with only the rear fenders lips rolled. Ran 214/45/16's on those with no problems.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DBCooper
post Jun 10 2016, 01:42 PM
Post #56


14's in the 13's with ATTITUDE
****

Group: Members
Posts: 3,079
Joined: 25-August 04
From: Dazed and Confused
Member No.: 2,618
Region Association: Northern California
Just for some perspective most of these cars, including mine, had the rear fenders "pulled." That's not always simple. Pulling mine cracked the paint, making me realize too late (DOHHH!!) that I should have heated it first with a hair drier to soften it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jun 10 2016, 02:08 PM
Post #57


914 Wizard
**********

Group: Members
Posts: 10,525
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

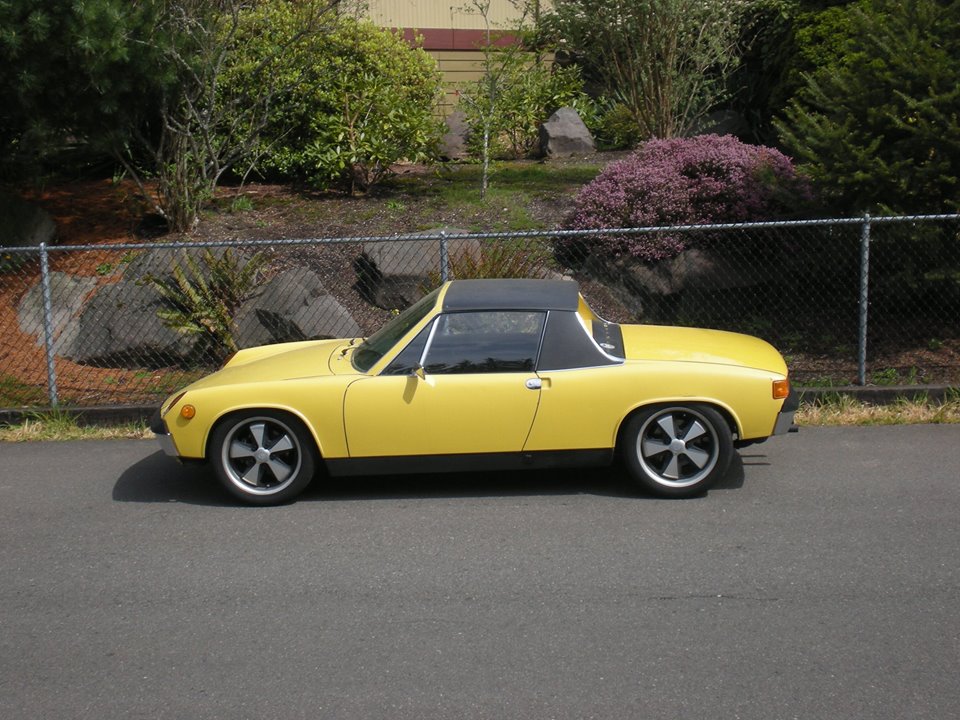

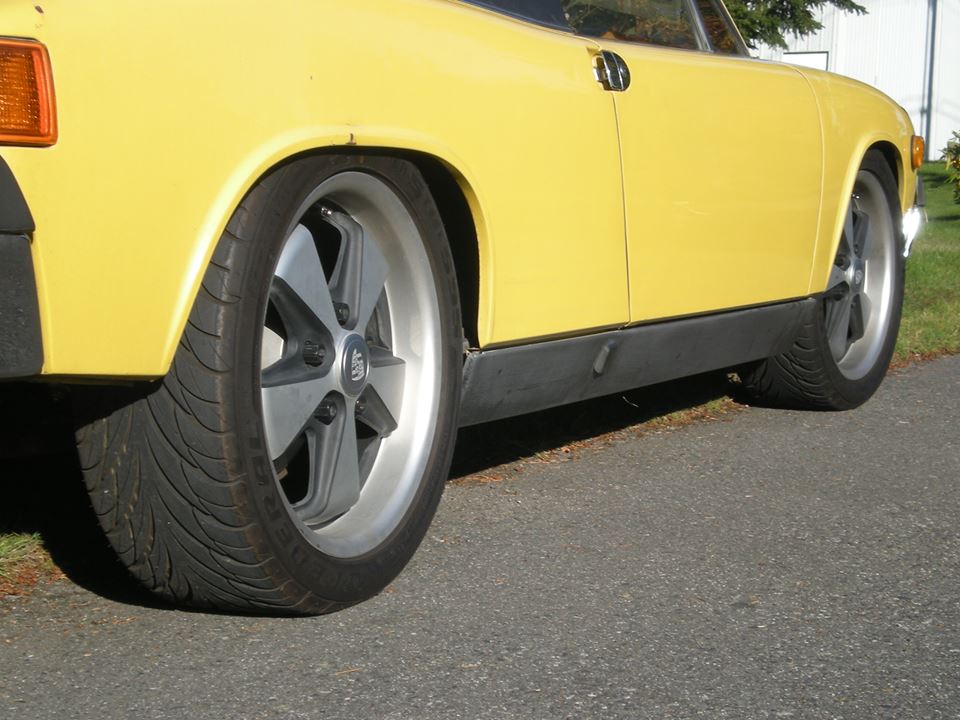

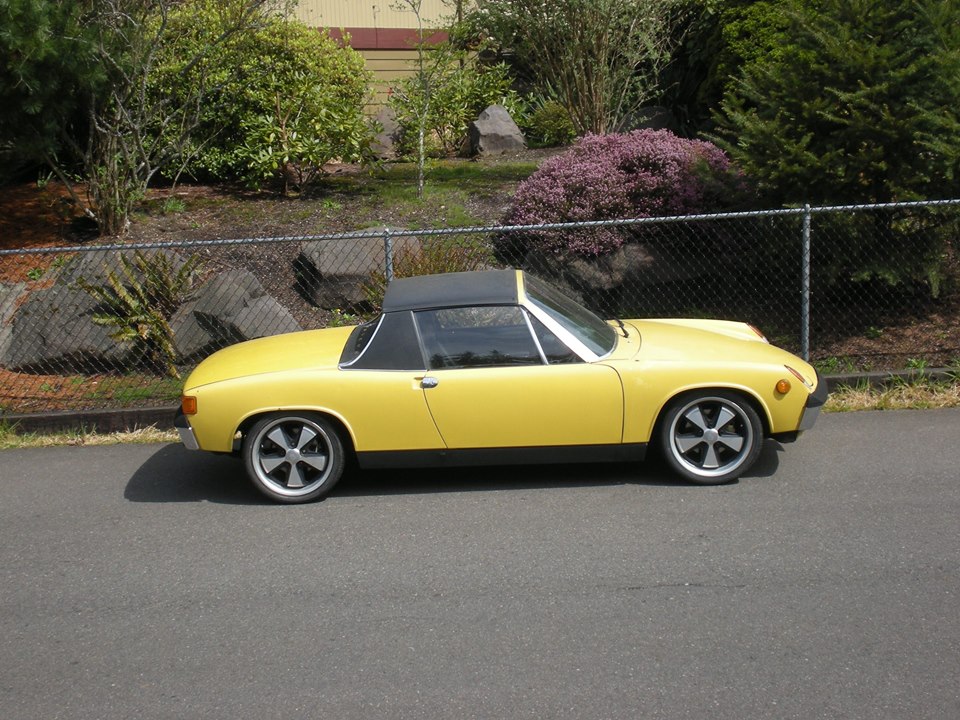

7 x 17 et40 CIP 1 has em $99 each on special slight finish blemished..
205/45
205/55


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
daytona
post Jun 10 2016, 02:53 PM
Post #58


daytona
**

Group: Members
Posts: 446
Joined: 13-April 14
From: Ormond Beach, Florida
Member No.: 17,249
Region Association: South East States
Hi all,
I love and appreciate this thread. I have a bone stock 74' 914 that I have been thinking about upgrading? to the 5 lug fuchs, and have been wondering how big I can go without modifying the rear fenders, or at least with minimal modification.
I have two questions that may add an additional dimension to this thread:
1.what hardware did you use for the 5 lugs (what year front suspension, and rear hub solution) ?
2. How do you feel that this upgrade changed/improved the handling of the 914?

Thanks for all the pics and info on this thread so far. I now want to do this more than ever.
Bill.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jun 10 2016, 03:12 PM
Post #59


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Handling should be exactly the same between 4 lug and 5 lug if same size tires/rims.

Max size varies car to car, side to side. Did you read all the replies?
Seems to be enough info to get you started using your car as a reference with what you have already. I suggest learn how offset works if not familiar with it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bradtho
post Jun 10 2016, 05:39 PM
Post #60


Member
**

Group: Members
Posts: 266
Joined: 22-December 09
From: Seattle, WA
Member No.: 11,165
Region Association: None
that's right, ignoring the changes from the rubber you won't be able to tell a difference. imo, there's only 1 reason to do the switch and that's the look. It's all about what wheels you like.

make sure you can find tires you like for whatever wheels you like. 15 & 16" tires are getting harder to find.
