> What does this wire go to?
surfdogskier
post Oct 5 2016, 12:19 PM
Post #1


Member
**

Group: Members
Posts: 164
Joined: 20-May 16
From: East TN
Member No.: 20,019
Region Association: None

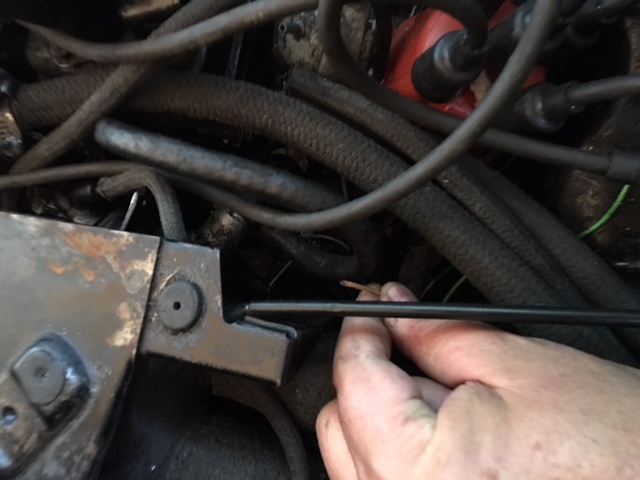

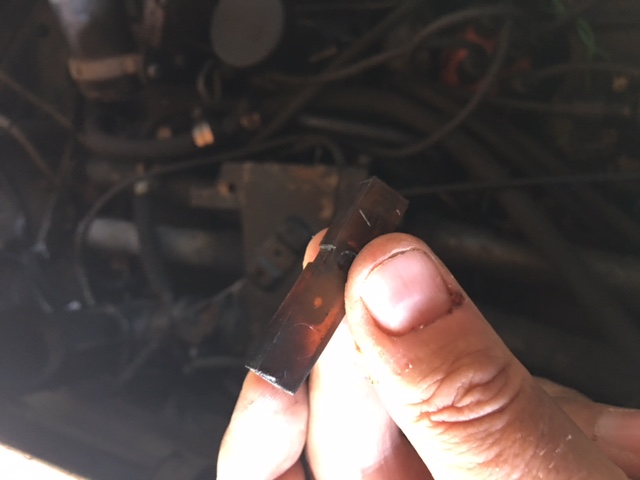

Can anyone tell me what this wire went to? It was located around the cold start plug. I was trying to see what it went to and ended up breaking off the wire and the plug. It is a large plug. I wonder if this thats something to do with my car not starting. The wire looks to be white or beige. There is another wire that is connected to some below this one that looks to be the same size.

My haynes porsche book isn't worth a crap trying to find out this stuff.

Thanks in advance!


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914fahrer
post Oct 5 2016, 12:53 PM
Post #2


Member
**

Group: Members
Posts: 103
Joined: 12-November 14
From: Berlin/Germany
Member No.: 18,115
Region Association: Germany

Check the connection to the cylinder head temp sensor and or the thermotime switch.
Both have this plug.Perhaps this helps http://bowlsby.net/914/WiringHarnesses/HarnDia_FI_W71-72.jpg
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Oct 5 2016, 01:14 PM
Post #3


914 Guru
*****

Group: Members
Posts: 5,250
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
If that is a D-jet car and the CHT lead is disconnected....unless it is connected to ground....the car will not run.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
surfdogskier
post Oct 5 2016, 01:51 PM
Post #4


Member
**

Group: Members
Posts: 164
Joined: 20-May 16
From: East TN
Member No.: 20,019
Region Association: None
QUOTE(914_teener @ Oct 5 2016, 03:14 PM) *

If that is a D-jet car and the CHT lead is disconnected....unless it is connected to ground....the car will not run.

Mine is a d-jet. Maybe this has been my issue all along. Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
surfdogskier
post Oct 5 2016, 01:52 PM
Post #5


Member
**

Group: Members
Posts: 164
Joined: 20-May 16
From: East TN
Member No.: 20,019
Region Association: None
QUOTE(914fahrer @ Oct 5 2016, 02:53 PM) *

Check the connection to the cylinder head temp sensor and or the thermotime switch.
Both have this plug.Perhaps this helps http://bowlsby.net/914/WiringHarnesses/HarnDia_FI_W71-72.jpg

Thanks for the link! I am goin to print this and keep it for future reference.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Valy
post Oct 5 2016, 02:08 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,677
Joined: 6-April 10
From: Sunnyvale, CA
Member No.: 11,573
Region Association: Northern California
If it's a brown wire, it goes to ground on one side. Just find out where the other end goes...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smg914
post Oct 5 2016, 02:11 PM
Post #7


Sahara Beige Steve
***

Group: Members
Posts: 1,970
Joined: 22-February 04
From: Tampa, FL
Member No.: 1,695
Region Association: None
The missing connection should go to the AAR. Auxiliary Air Regular
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smg914
post Oct 5 2016, 02:20 PM
Post #8


Sahara Beige Steve
***

Group: Members
Posts: 1,970
Joined: 22-February 04
From: Tampa, FL
Member No.: 1,695
Region Association: None
The RED wire is what you should be looking for.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Oct 5 2016, 02:29 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States
It is tuff for the forum to help with wiring. You are going to get 100 different ideas. If one end of that wire has a connector on it, look for the female (or male) part somewhere very damn close to it. If it is brown there might be a hidden case bolt with 4 or 5 spades on it that are all grounds, they should all have a wire on them, if one is missing.... TA DA. short of that......

I sing this guys praises every chance I get. The one I bought is not EXACTLY perfect, but it is a HUGE help.

PROSPERO'S GARAGE LINK

for $20 even an electrical illiterate like me can get things done. Look for your car in the list and buy one today.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Oct 5 2016, 02:52 PM
Post #10


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,648
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Caution: exposed "old" red wires turn BROWN with age. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Oct 5 2016, 04:33 PM
Post #11


914 Idiot
***************

Group: Members
Posts: 15,067
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
The CHT does have that type of connector on it. So does the sender for the oil temp. But the one in the area you mention just about has to be the one for the AAR, as SMG posted.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Oct 5 2016, 05:10 PM
Post #12


I drive my car everyday
*****

Group: Members
Posts: 8,325
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
I agree with Dave and smg. Only connector insulator like that in that area. If it grounds it blows the fuse on the relay board and the pump won't run. The aar wire just simply unplugged will not keep the car from running unless it shorts.

Malcolm, this forum is generally amazing with electrical diagnosis!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Oct 5 2016, 06:44 PM
Post #13


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States
QUOTE(The Cabinetmaker @ Oct 5 2016, 06:10 PM) *

Malcolm, this forum is generally amazing with electrical diagnosis!


Hope no one was offended.. But a good diagram can't be beat. And i have found that while pictures say 1000 words… Sometimes you are on your own for a few days.

I am always thankful for help, and options, who would'nt be?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pbanders
post Oct 5 2016, 10:28 PM
Post #14


Senior Member
***

Group: Members
Posts: 939
Joined: 11-June 03
From: Phoenix, AZ
Member No.: 805
QUOTE(surfdogskier @ Oct 5 2016, 12:51 PM) *

QUOTE(914_teener @ Oct 5 2016, 03:14 PM) *

If that is a D-jet car and the CHT lead is disconnected....unless it is connected to ground....the car will not run.

Mine is a d-jet. Maybe this has been my issue all along. Thanks!


My page (in my sig) has detailed D-Jet troubleshooting information. If your car isn't running, don't assume it's the FI. For the car to start, basic mechanical (compression), electrical (battery voltage), ignition (spark when cranking), fuel supply (pressure when cranking), BEFORE going after the FI. Make sure you have all of the parts of the FI system, the harness is connected correctly to the FI components, and that you have done basic checks on each of the components (see my page). Use a noid light (Amazon) to check that you have signal at each of the injectors, and if necessary, pull the injectors and verify that they're spraying fuel.
