> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Oct 6 2018, 05:05 PM
Post #1241


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

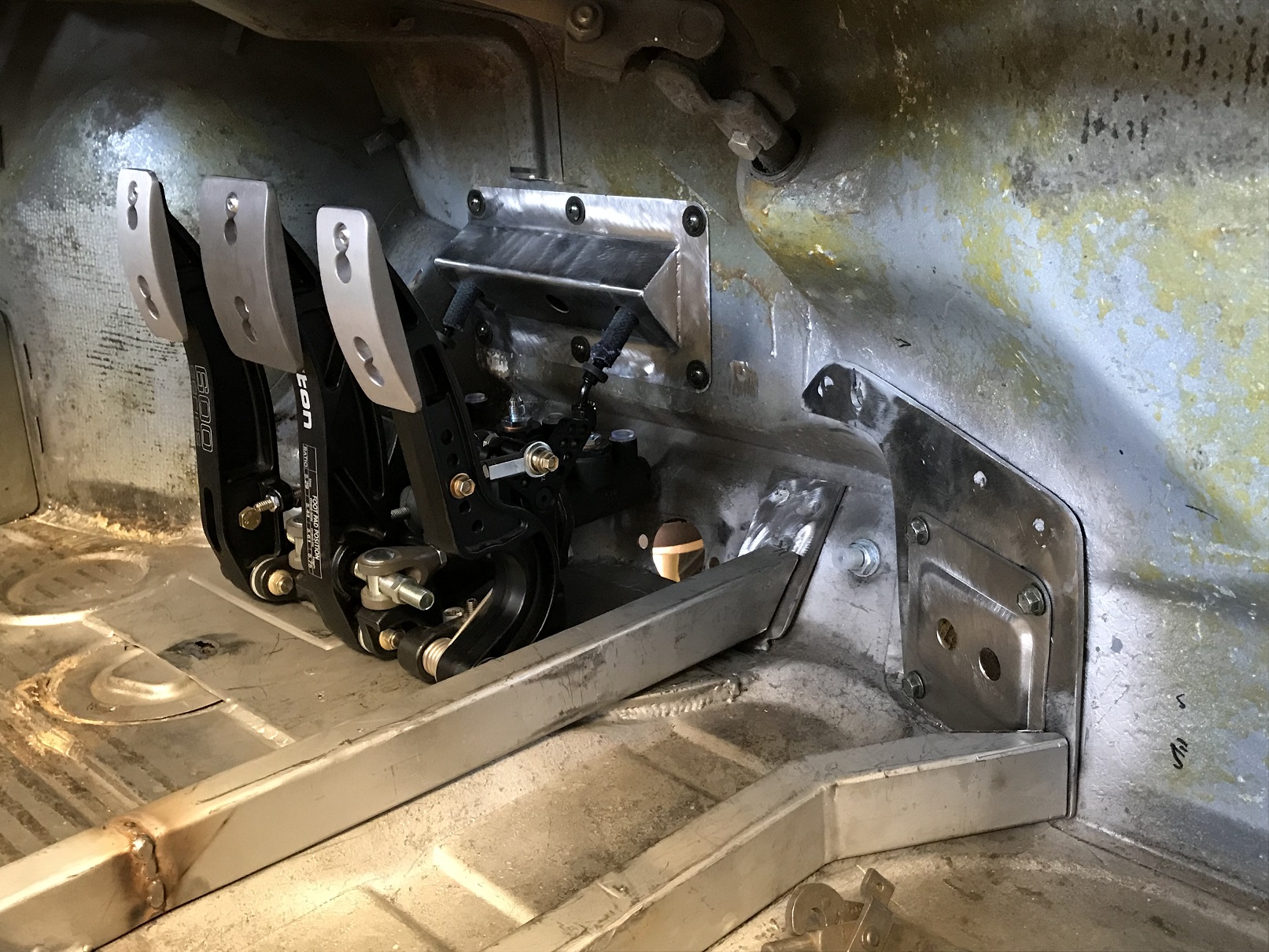

Whichever way I go with the hose routing, this is essentially final layout for the reservoir. Hoses not pushed all the way on as they are no fun to remove...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Oct 6 2018, 05:11 PM
Post #1242


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
There you go just cobbling stuff together without thinking about the details again. (IMG:style_emoticons/default/lol-2.gif)
I admit, I thought you were insane until I saw the pick of your 45 degree bracket. That does look nicer and I assume less strain on the hose. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 7 2018, 09:31 AM
Post #1243


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Why do I check this thread (IMG:style_emoticons/default/headbang.gif)








Great work as usual Chris. (IMG:style_emoticons/default/pray.gif)






Now to get my stuff done so I can get back to my builds.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 7 2018, 09:32 AM
Post #1244


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
BTW, love the drivers side gas fill.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 7 2018, 02:53 PM
Post #1245


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Thanks guys. It's always a motivation helper to get feedback, good (and otherwise!)

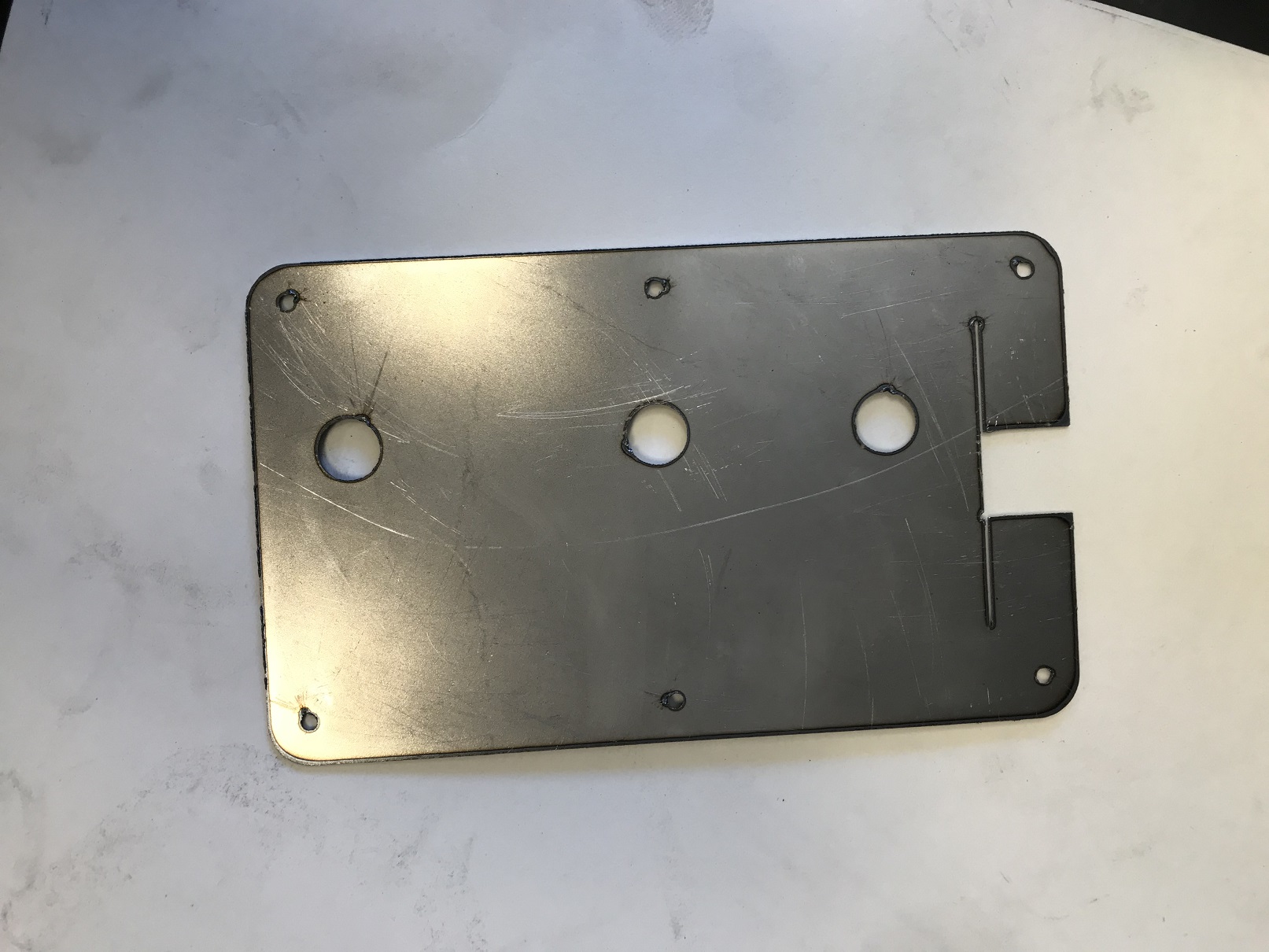

So thinking about the design of this panel got me wondering if I could get a little fancier and pull off a nicer final piece. After all, if I haven't given it at least three tries, I know I'm not done yet... (IMG:style_emoticons/default/laugh.gif)

So, what's going on here?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 7 2018, 02:55 PM
Post #1246


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

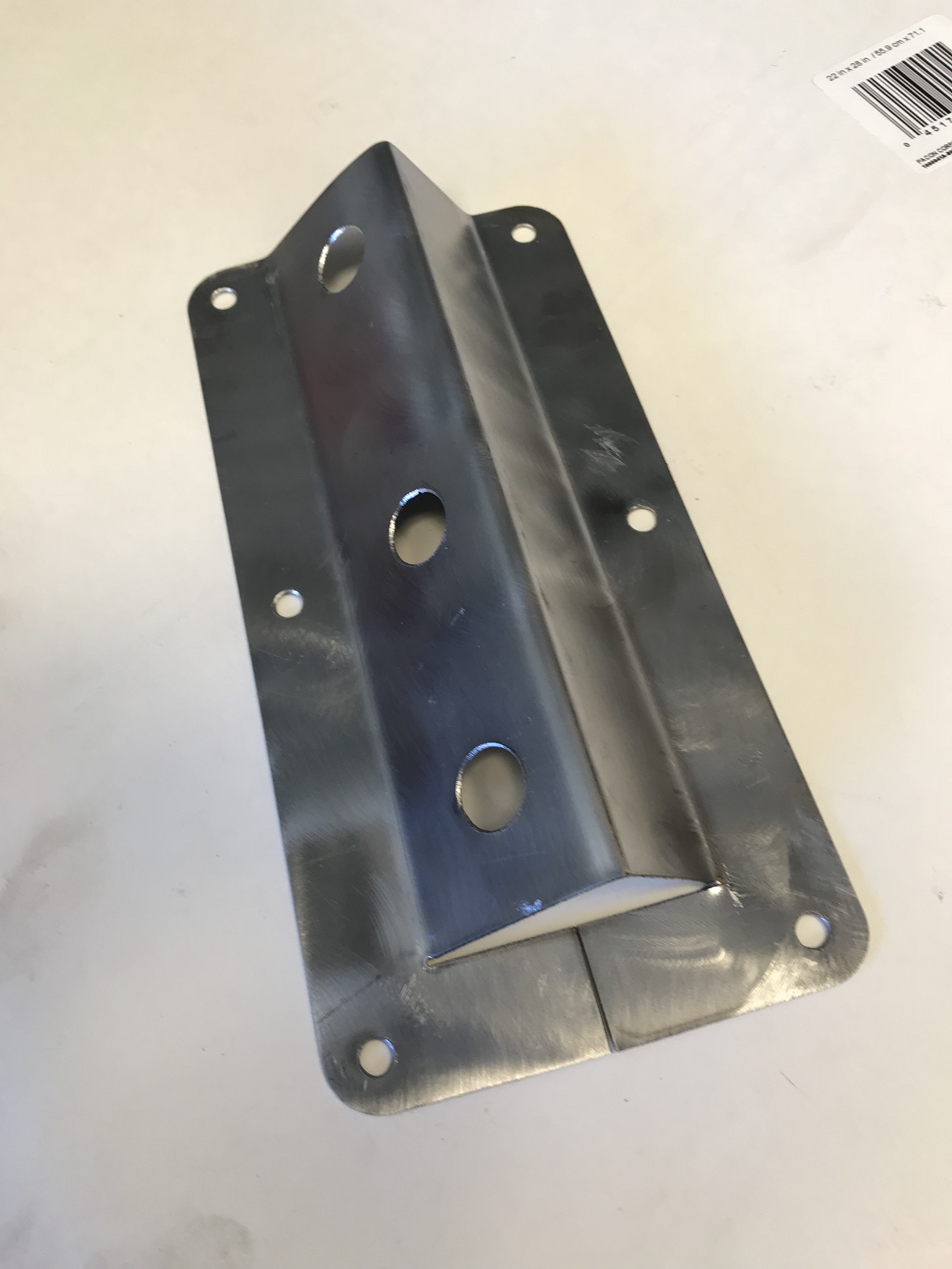

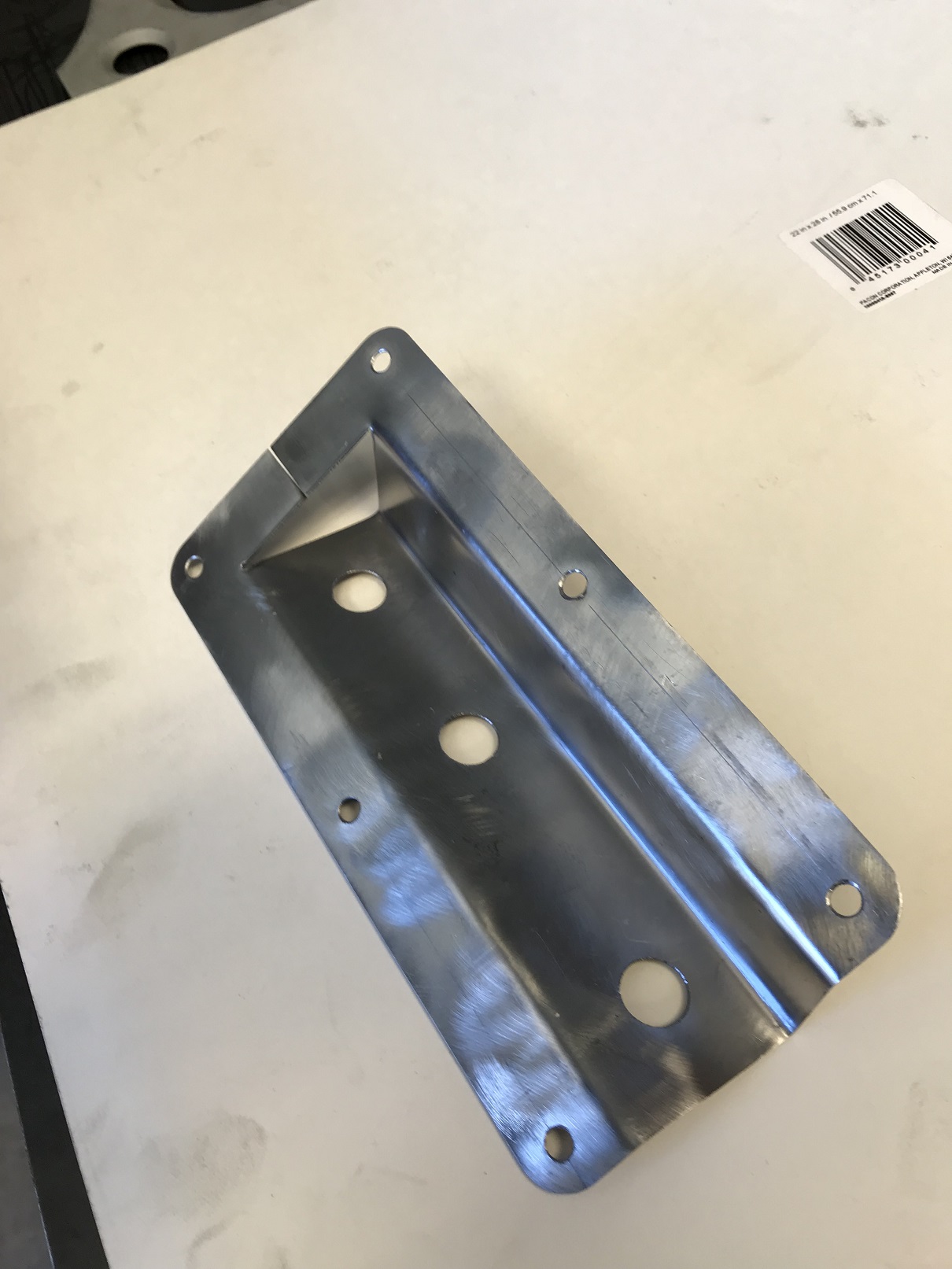

It struck me that if I redesigned the panel like above, and if I got my bends right, those tabs would end up touching and I'd have a much tidier outer edge.

And it worked! (IMG:style_emoticons/default/cheer.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 7 2018, 02:58 PM
Post #1247


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
My TIG welding is coming along and these little pieces are great practice, ahead of tackling the flares.

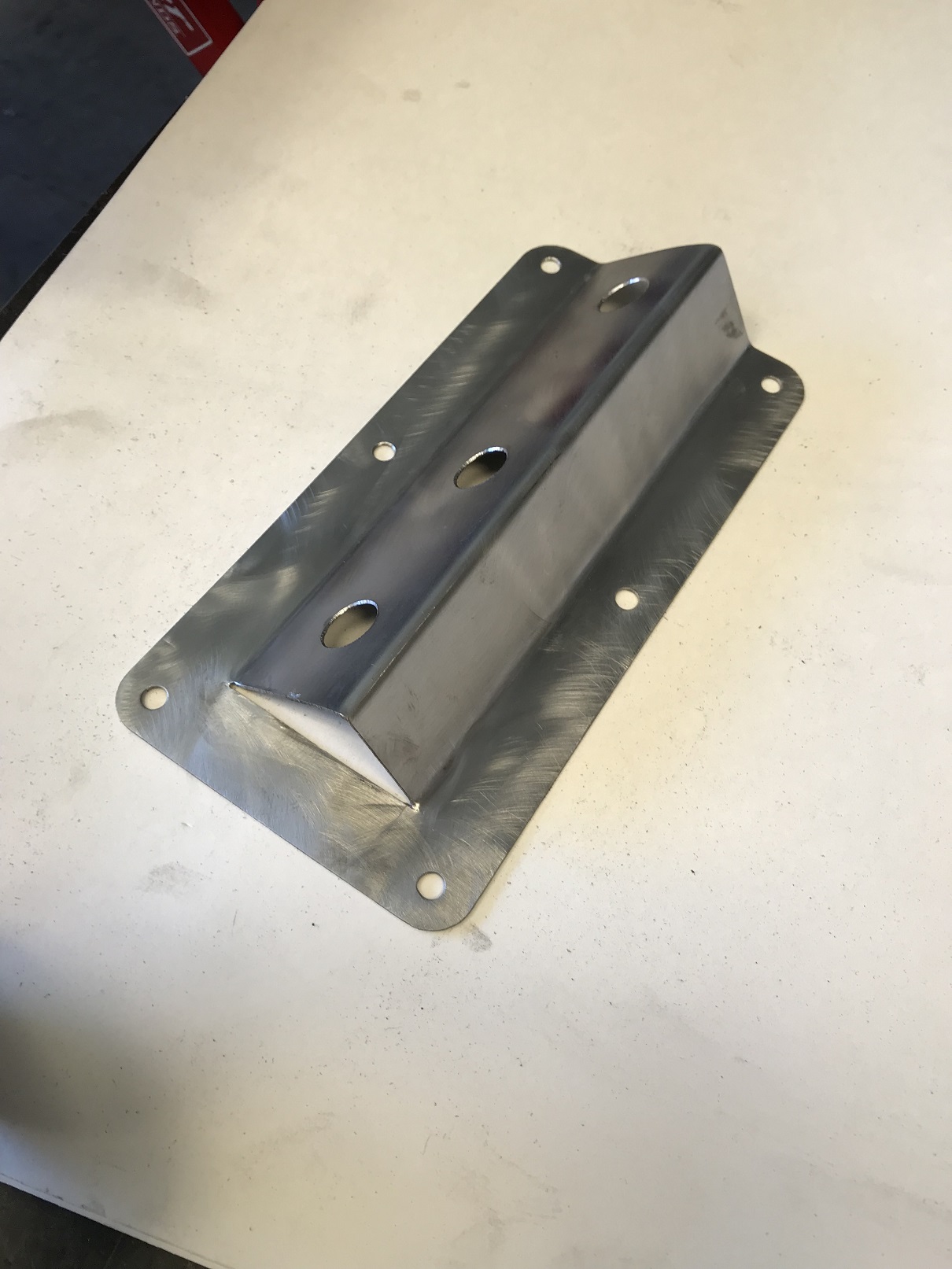

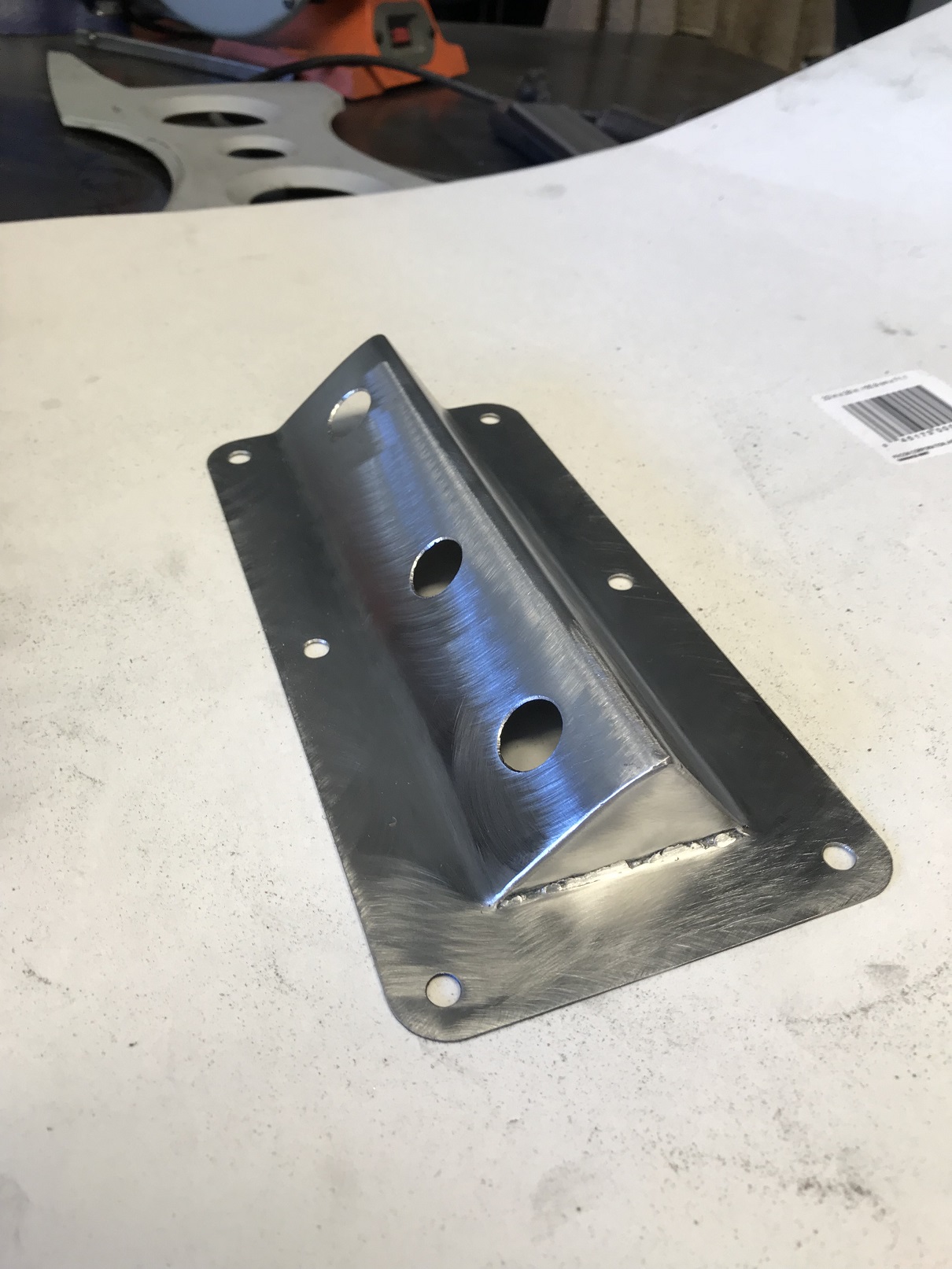

With the tabs joined, all I had to do was cut a little triangle and weld it in. I still haven't totally dressed the weld but you get the idea.

I'm happy with how it turned out.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 7 2018, 02:59 PM
Post #1248


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

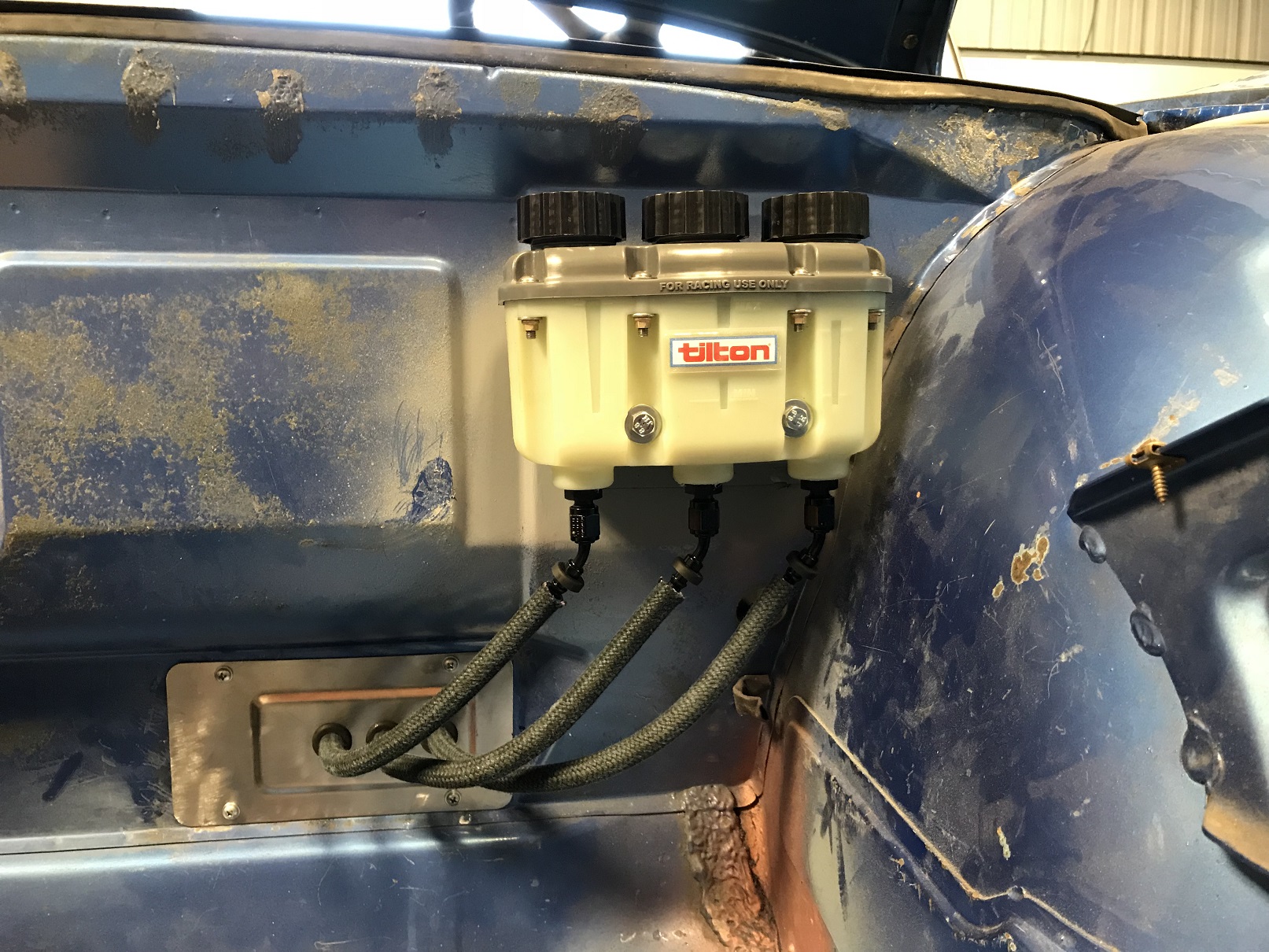

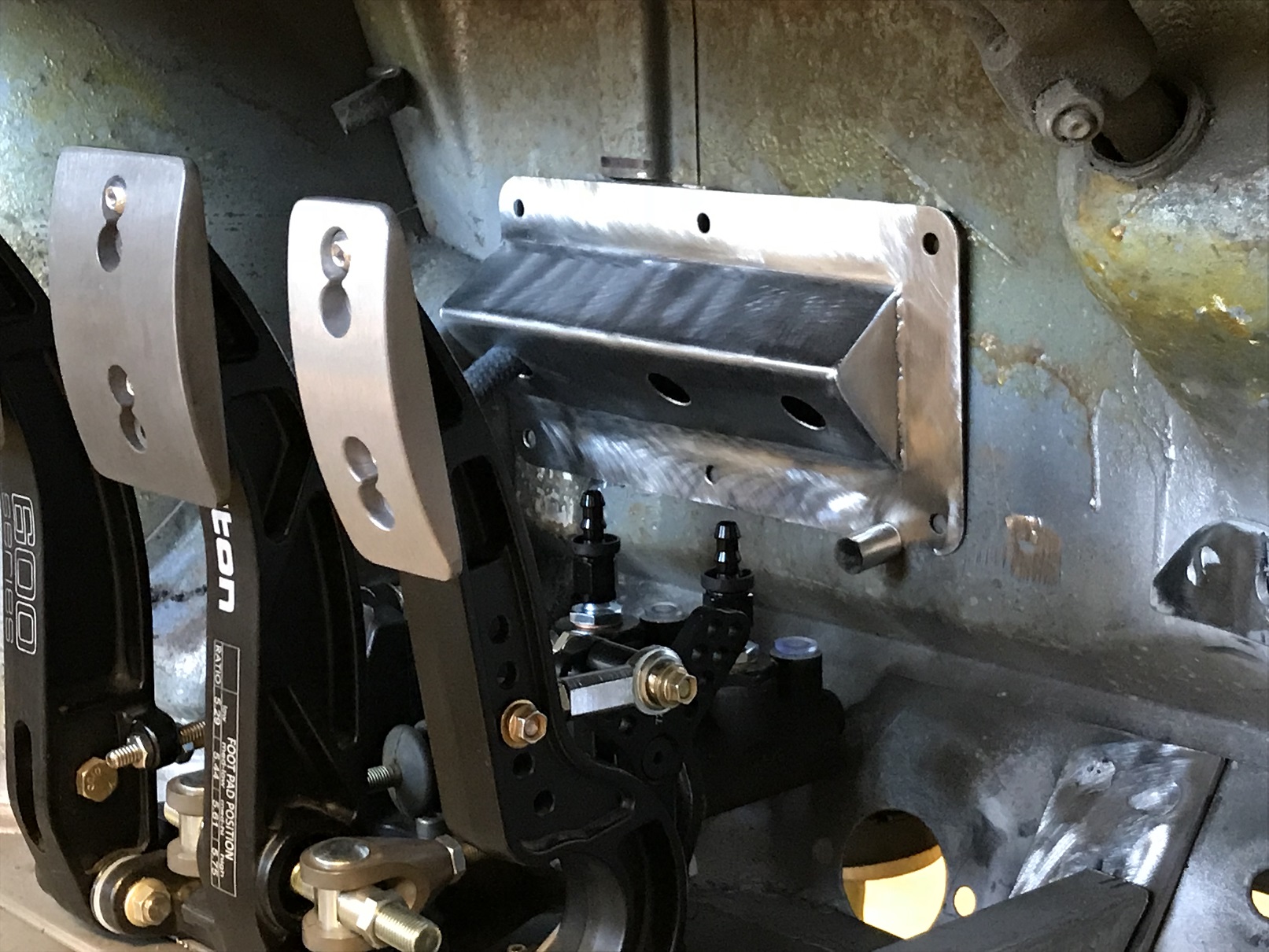

Mock up, just to see it in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matty900
post Oct 7 2018, 08:28 PM
Post #1249


Senior Member
***

Group: Members
Posts: 1,269
Joined: 21-February 15
From: Oregon
Member No.: 18,454
Region Association: Pacific Northwest
QUOTE(tygaboy @ Sep 2 2018, 01:28 PM) *

And the tank side. It'll be soft lines from here up to the pump. One supply, one return.

Looking good as always Chris.
You may want to consider 45's on this depending on the length of the hose to the tank and I am assuming pump. If you use Gates hose and have too much it likes to kink. If you use SS Braided hose, it will be stiffer to deal with but shouldn't kink. It will just be a little fun getting the lengths right.
Keep up the good work (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Oct 8 2018, 03:27 PM
Post #1250


RN
****

Group: Members
Posts: 2,801
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Chris, that hydraulic line set up is awesome.
Love the tig work. Really fantastic. I think NASA would
approve! Keep at it man. I need to apprentice under your guidance.
Cheers
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 9 2018, 04:35 PM
Post #1251


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Decision made, complete with holes drilled!
And don't miss the front brake line bulkhead fitting. It's a T on the other side. Pretty tidy.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 9 2018, 04:37 PM
Post #1252


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

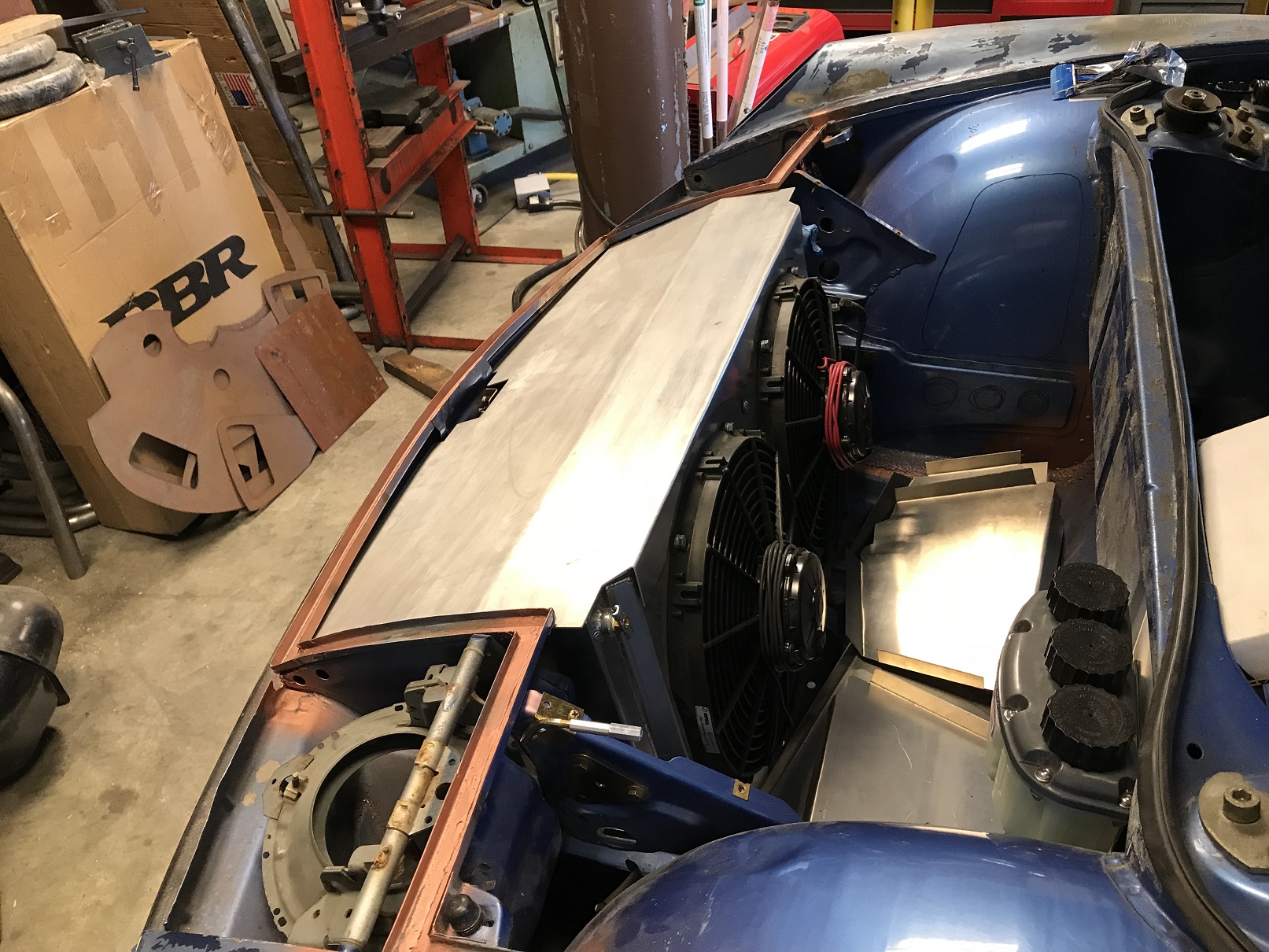

I figured it was time to get the radiator mounted. Still a few minor tweaks and some holes to drill to secure all the panels.

Suddenly, the frunk is feeling a bit crowded.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 9 2018, 04:41 PM
Post #1253


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

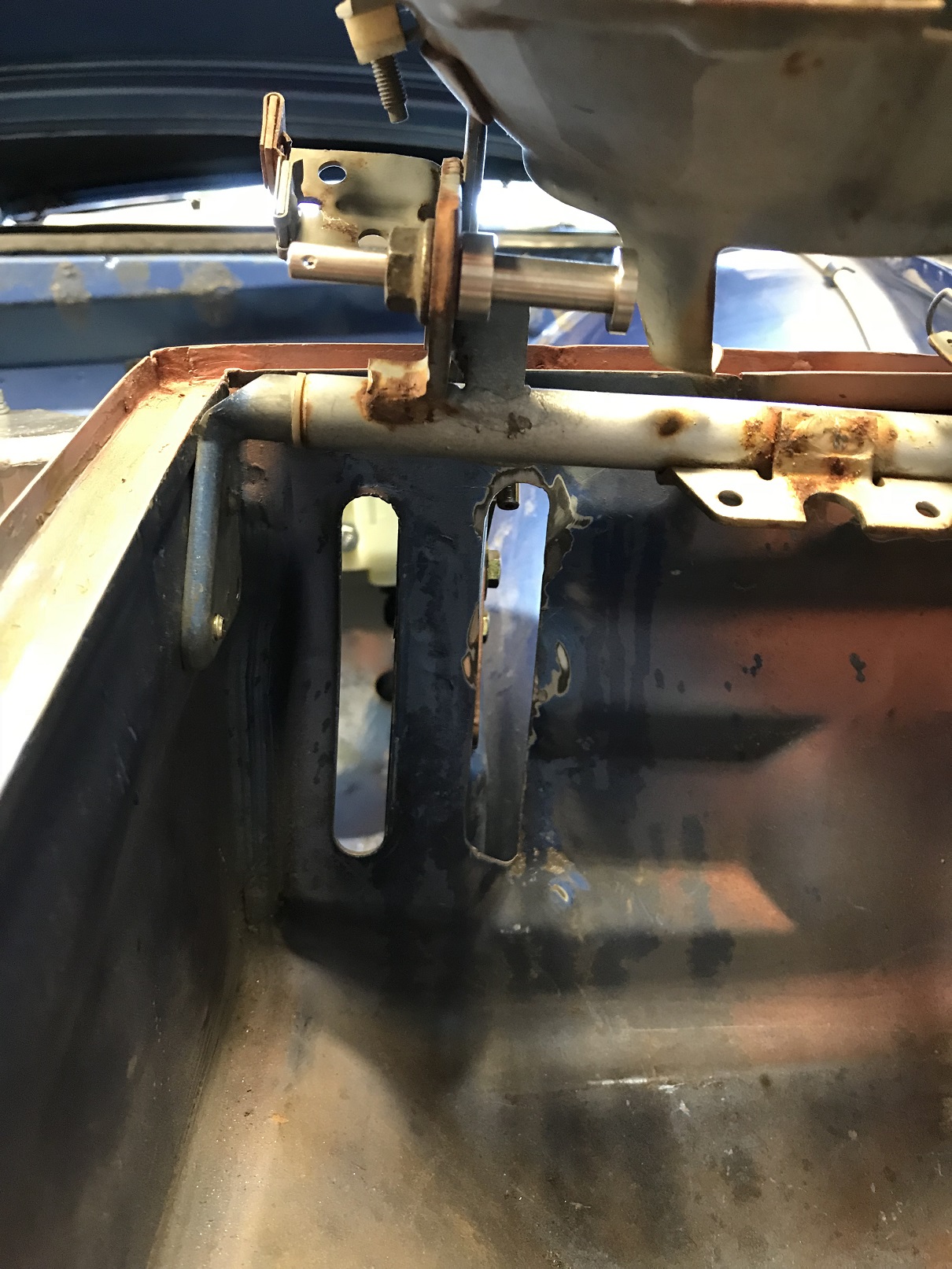

While I've been doing so much at the front of the car, I remembered I had a GT headlight kit. Got it from our friends at 914 Rubber: (IMG:style_emoticons/default/aktion035.gif)

So I started the install. A new opening has to be created for the "catch and release" lever. I have some add'l shaping to do but you get the idea.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 9 2018, 04:43 PM
Post #1254


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

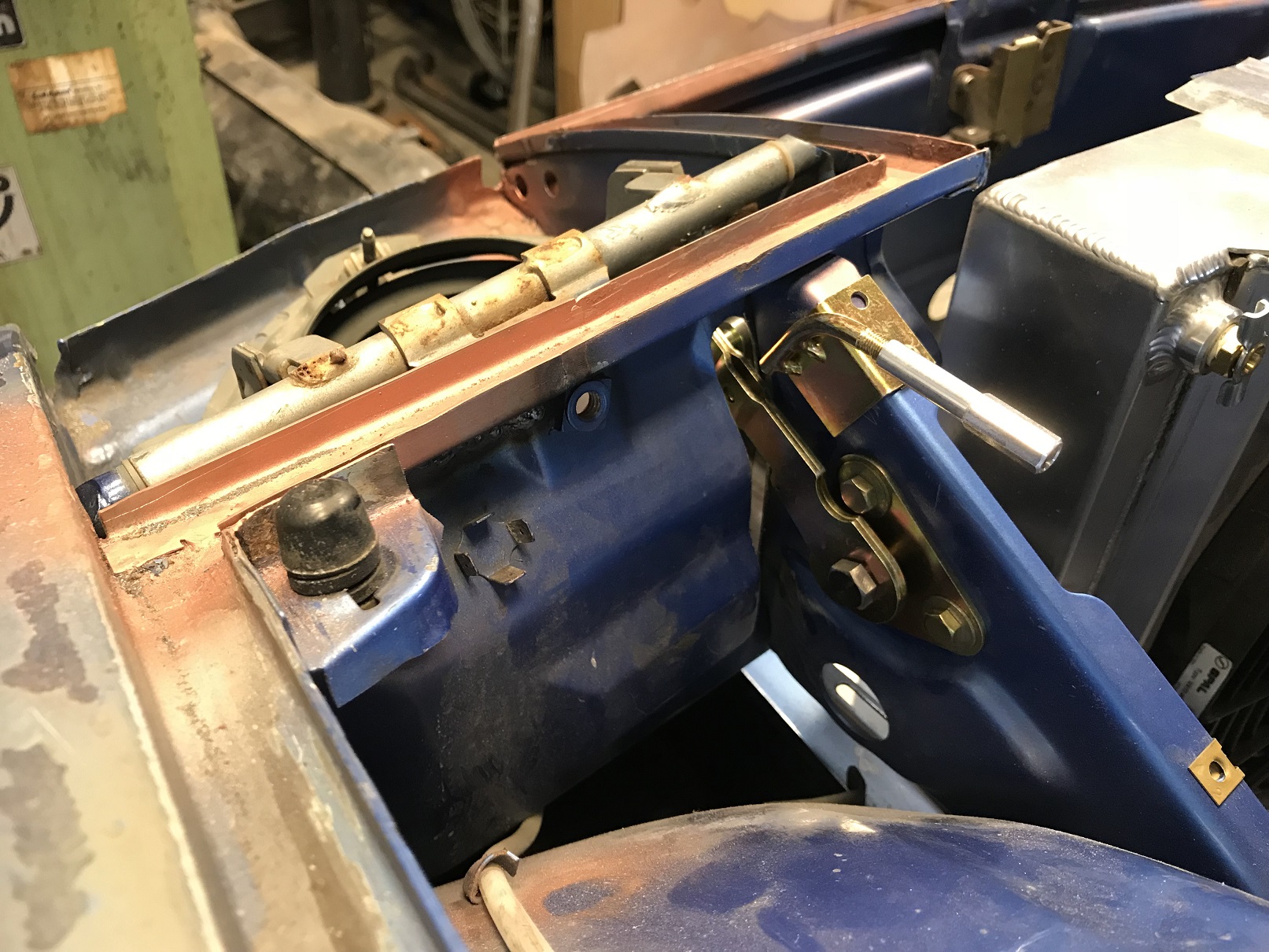

Here's the "catch and release" lever in place.

Overall, I'd say it's a really nice kit. You will have to supply some of your own hardware but it's only a few fairly standard fasteners so not a big deal.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Oct 9 2018, 06:28 PM
Post #1255


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(tygaboy @ Oct 9 2018, 04:37 PM) *

Suddenly, the frunk is feeling a bit crowded.


Where are you going to fit your luggage for that road trip we talked about when I was at your place? Looks tidy though, but knowing you, you still have a couple solid rocket boosters to stuff in there. (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 9 2018, 07:41 PM
Post #1256


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(bbrock @ Oct 9 2018, 05:28 PM) *

QUOTE(tygaboy @ Oct 9 2018, 04:37 PM) *

Suddenly, the frunk is feeling a bit crowded.


Where are you going to fit your luggage for that road trip we talked about when I was at your place? Looks tidy though, but knowing you, you still have a couple solid rocket boosters to stuff in there. (IMG:style_emoticons/default/idea.gif)


Looks like I'll need a trailer after all!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Oct 10 2018, 05:44 AM
Post #1257


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Are you planning to fully shroud the radiator so you have a small parcel shelf?

As always, loving the progress!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 10 2018, 08:10 AM
Post #1258


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Andyrew @ Oct 10 2018, 04:44 AM) *

Are you planning to fully shroud the radiator so you have a small parcel shelf?

As always, loving the progress!


Hey Andrew! Note that all I've done is Sharpie a possible fender vent... I've also Sharpied a "through the hood" vent design. I haven't committed to my, ahem, "exit strategy" at this point. (IMG:style_emoticons/default/happy11.gif)
Though your idea of a little parcel shelf is interesting... (IMG:style_emoticons/default/idea.gif)
We shall see.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 10 2018, 01:11 PM
Post #1259


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Oct 10 2018, 01:39 PM
Post #1260


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
Congratulations Chris! This has been a long time coming...enjoy the freedom!

Tony

QUOTE(tygaboy @ Oct 10 2018, 03:11 PM) *

Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
