> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
bbrock
post Oct 10 2018, 03:06 PM
Post #1261


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(tygaboy @ Oct 10 2018, 01:11 PM) *

Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)


That's AWESOME!!! (IMG:style_emoticons/default/cheer.gif) I take if from your post that you didn't wake up with "Retire Today" written on your calendar. Congrats!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 10 2018, 03:14 PM
Post #1262


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(bbrock @ Oct 10 2018, 02:06 PM) *

QUOTE(tygaboy @ Oct 10 2018, 01:11 PM) *

Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)


That's AWESOME!!! (IMG:style_emoticons/default/cheer.gif) I take if from your post that you didn't wake up with "Retire Today" written on your calendar. Congrats!


Yep, TOTALLY awesome. I feel compelled to say I wasn't fired or anything like that. The stars simply aligned and I happened to be in the right place at the right time. Certainly, I was smiled upon.

So if you need me, I'll be in the shop!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Oct 10 2018, 04:06 PM
Post #1263


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(tygaboy @ Oct 10 2018, 03:14 PM) *

QUOTE(bbrock @ Oct 10 2018, 02:06 PM) *

QUOTE(tygaboy @ Oct 10 2018, 01:11 PM) *

Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)


That's AWESOME!!! (IMG:style_emoticons/default/cheer.gif) I take if from your post that you didn't wake up with "Retire Today" written on your calendar. Congrats!


Yep, TOTALLY awesome. I feel compelled to say I wasn't fired or anything like that. The stars simply aligned and I happened to be in the right place at the right time. Certainly, I was smiled upon.

So if you need me, I'll be in the shop!


Very cool and I feel compelled to say I didn't think you were fired (IMG:style_emoticons/default/rolleyes.gif) My sister-in-law did something similar last year. She went to work prepared to renew her contract as a school teacher. Changes in the retirement offerings made it tempting and on the same day they announced changes in work requirements for the coming year that made retirement a no brainer. After 30 years, she went to work one morning expecting to re-up, and came home a free woman. Word has it she has been spending a lot of time hanging out at her daughter's pool. (IMG:style_emoticons/default/aktion035.gif) And now I'll be expecting to see you driving the rocket ship before Christmas. (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_7T3
post Oct 10 2018, 04:30 PM
Post #1264


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 1,866
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California
That's awesome and judging from your thread, you have got plenty to keep you busy!!!

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Oct 10 2018, 05:08 PM
Post #1265


RN
****

Group: Members
Posts: 2,801
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Congrats Chris. That’s awesome. Enjoy it, hopefully no one will say
“Chris, you need a hobby!” “What are ya gonna do with all that free time”

We know what you’ll be doing. This car is gonna take off now.

Cheers mate, we’ll done!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 10 2018, 06:36 PM
Post #1266


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Yep, it's all better than good. As I said to my wife:

"It's now official, I have a nice package!" (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Oct 10 2018, 07:17 PM
Post #1267


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif) Congratulations! Good luck with your new package too!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Oct 10 2018, 07:55 PM
Post #1268


From Wreck to Rockin
****

Group: Members
Posts: 2,056
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States

Congratulations!

Time to open up that 914 resto shop...

I think we are the winners here.

(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Oct 10 2018, 09:27 PM
Post #1269


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Woot woot!!!!! Big Congrats!!!

Well deserved!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dan10101
post Oct 10 2018, 11:11 PM
Post #1270


TORQUE-o-holic
***

Group: Members
Posts: 1,140
Joined: 29-April 03
From: Eagle Point, Or
Member No.: 626
Region Association: Pacific Northwest
QUOTE(tygaboy @ Oct 10 2018, 12:11 PM) *

Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)



Welcome Welcome!
Come on in, the waters fine!
I'm 13 months in and loving it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 11 2018, 09:16 AM
Post #1271


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(tygaboy @ Oct 10 2018, 12:11 PM) *

Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)



Congrats! You deserve it.

I really like that last bracket you made, the removal of the material on the side that meets up once bent is great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Curbandgutter
post Oct 11 2018, 03:41 PM
Post #1272


Senior Member
***

Group: Members
Posts: 565
Joined: 8-March 13
From: Murrieta CA
Member No.: 15,637
Region Association: Southern California
Excellent! Congratulations.......now you'll have so much time to do anything you want or nothing at all. I expect to see this one running by spring. What do you think?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 13 2018, 04:47 PM
Post #1273


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
I can't believe I'm actually starting on connecting things vs. making them!

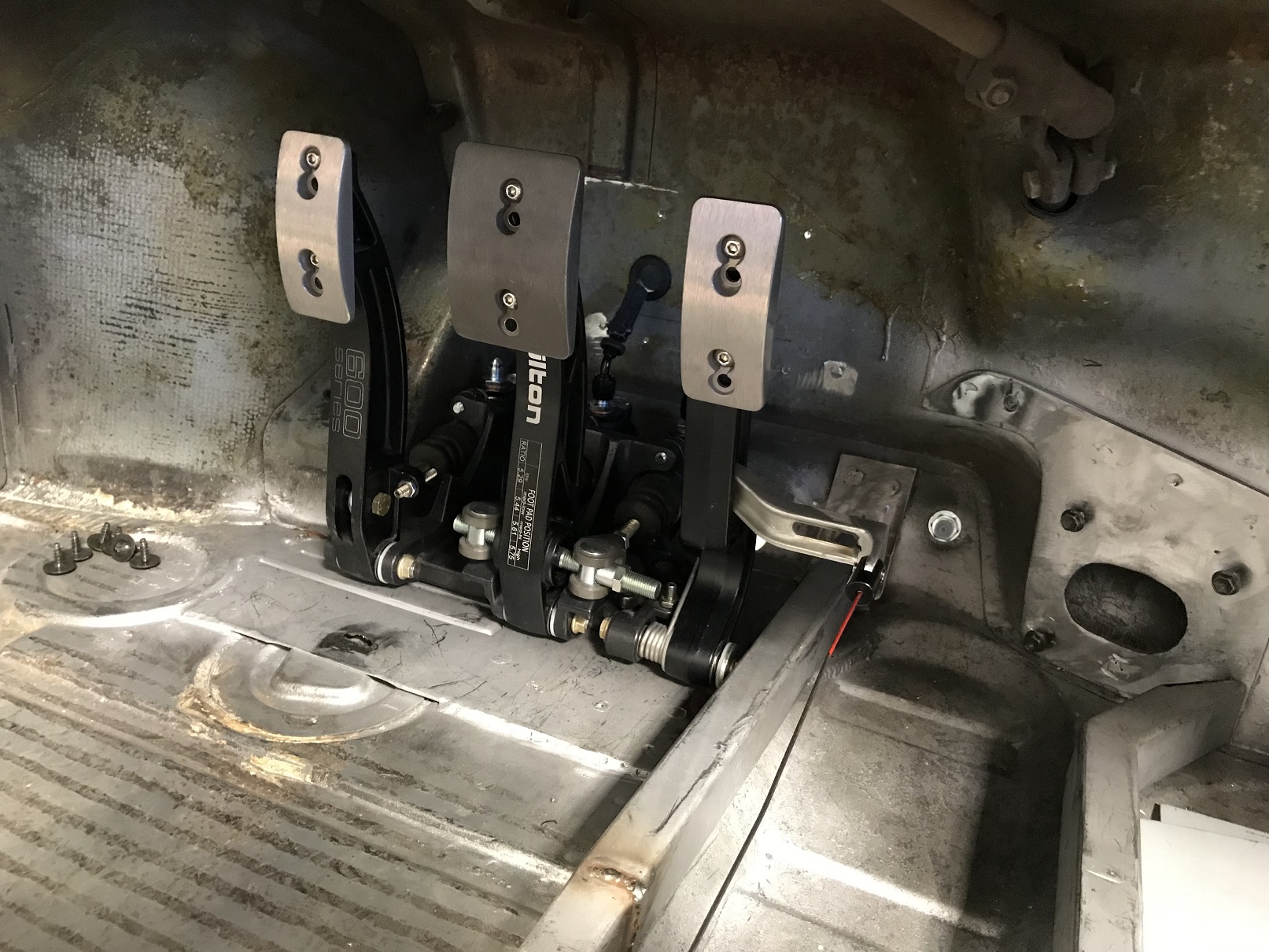

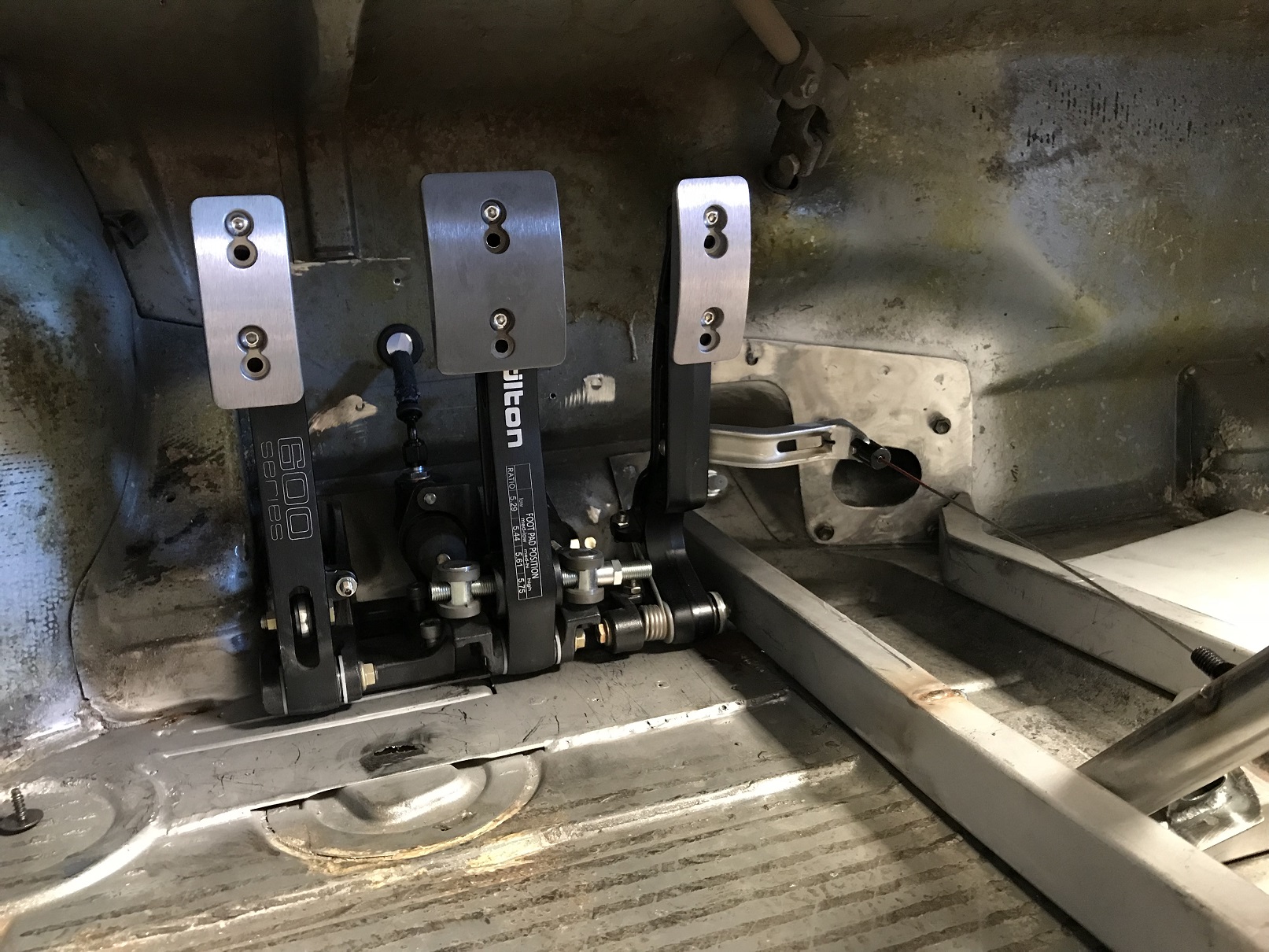

Here's a first-cut mock up to determine throttle cable bracket geometry.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 14 2018, 09:38 AM
Post #1274


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
That is great news, and well a bit sad. Great for you enjoy the retirement, enjoy doing the builds, and working on the stuff you want to work on. Spending the time with the people you want to spend it with. Now back to my reality I have 8 left before I can hit the eject button, unless plans change. And plans always change. (IMG:style_emoticons/default/shades.gif)

And I agree you need a trailer, I am sure you can fab some ugly looking trailer to tow behind the masterpiece. (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Oct 14 2018, 12:48 PM
Post #1275


914 Guru
*****

Group: Members
Posts: 7,254
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(tygaboy @ Oct 10 2018, 11:11 AM) *

Well, it's been an interesting morning. The net/net is that I now have lots more time to get this build done!

Who wants to join in and welcome me to RETIREMENT!!!

(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)



Congrats.. Thought you were still waffling over that?? Good for you.. I only have likely another 20 years with all the mouths to feed at my home.. I hope to see you on a road trip my way in the future.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 16 2018, 06:16 PM
Post #1276


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

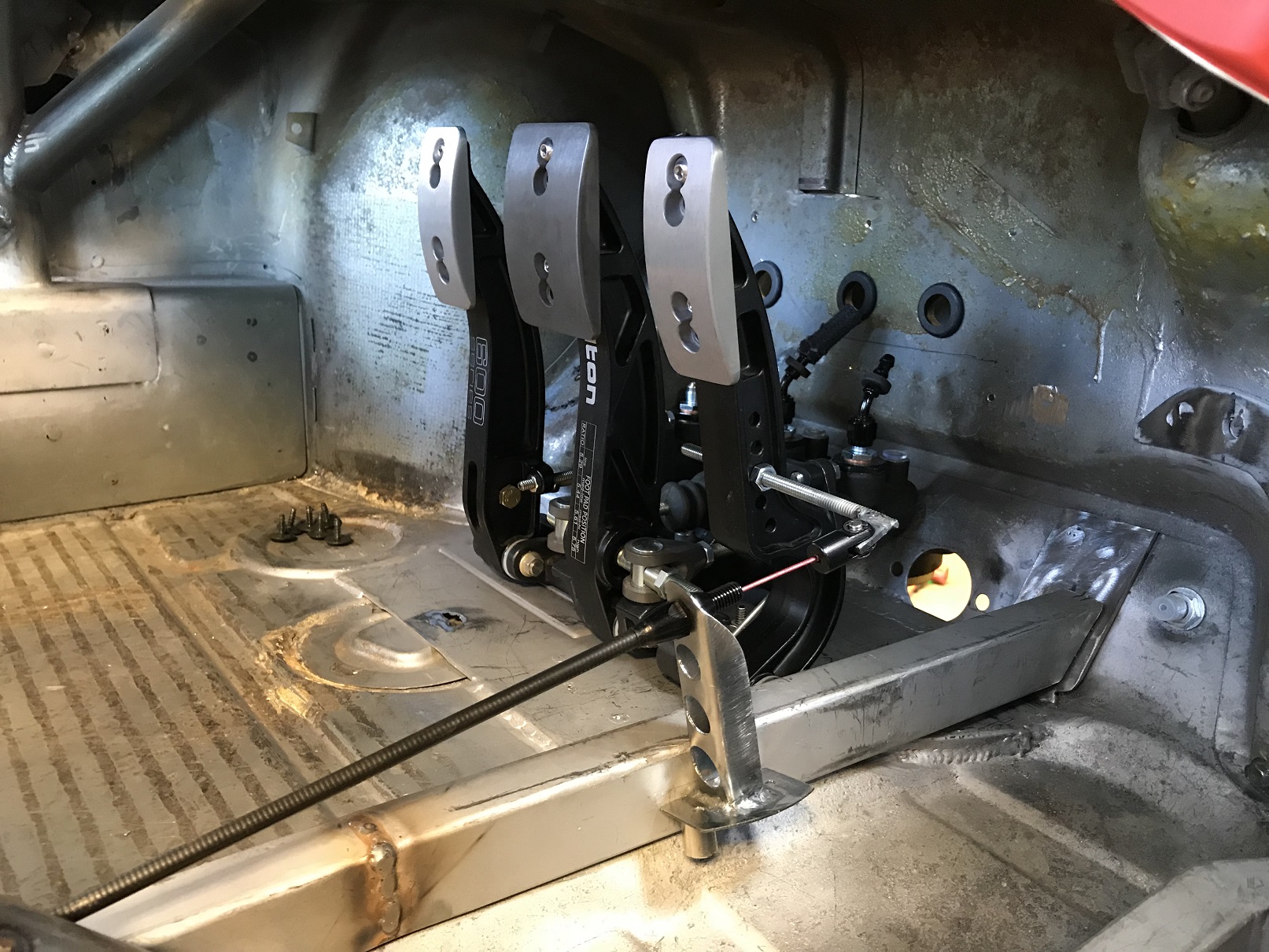

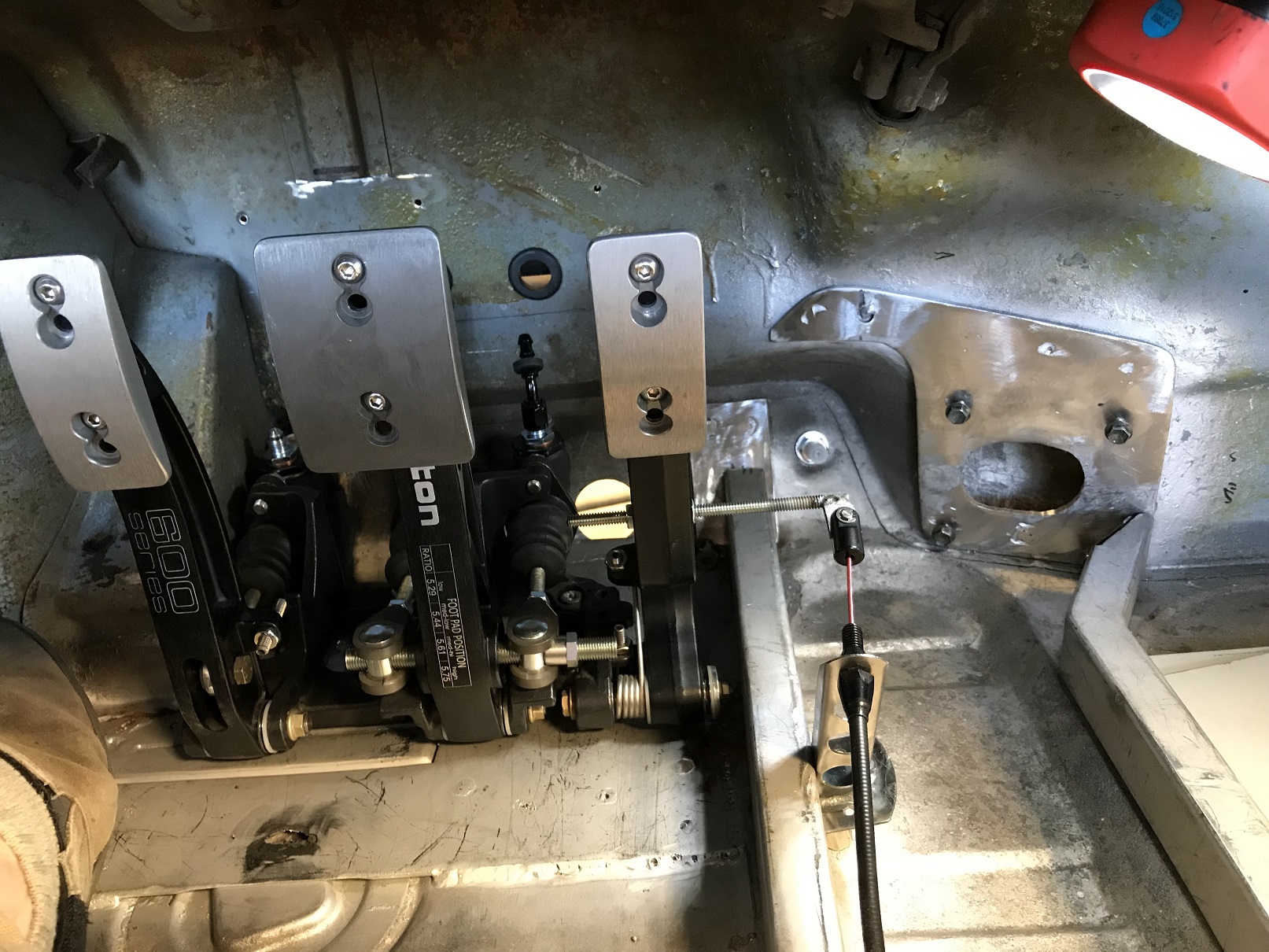

The 1/4" all thread performed its job for mock-up so it was time to figure out what to do for a final part. I used to be into motorcycles and in poking around in the parts boxes, I found the shifter for an Aprillia Mille.

Hmmm. Cast aluminum, just like the pedal assembly. I-beam design, just like the pedal assembly. Maybe this will work.

A little band sawing, welding, drilling and taping later and it's ready!
It'll all be hidden inside the tunnel cover but I think it's pretty neat.


Attached thumbnail(s)
Attached Image Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnod
post Oct 16 2018, 06:50 PM
Post #1277


Newbie
*

Group: Members
Posts: 6
Joined: 26-February 11
From: Canada
Member No.: 12,760
Region Association: Canada
Italian part in a German car.

That'll be the part that breaks. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 16 2018, 07:03 PM
Post #1278


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(johnod @ Oct 16 2018, 05:50 PM) *

Italian part in a German car.

That'll be the part that breaks. (IMG:style_emoticons/default/smile.gif)


Well, actually, that motor was manufactured by Rotax in Austria. Rotax was founded in 1920 in Dresden, Germany, as ROTAX-WERK AG. In 1930, it was taken over by Fichtel & Sachs and transferred its operations to Schweinfurt, Germany. Operations were moved to Wels, Austria, in 1943 and finally to Gunskirchen, Austria, in 1947. (thanks Wikipedia!)

So in the end, about as close to German(y) as it could possibly be!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 18 2018, 03:29 PM
Post #1279


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
More work connecting things. Today I worked on starting to close up the lower fire wall. This means I have to determine how to route the shifter cables. It always looks simple until you REALLY start fitting things with other things in place.

Note that the Boxster shifter cables have big, unremovable end assemblies so I can't just run then through a "little" hole. I need something that can split but still seal the cables.

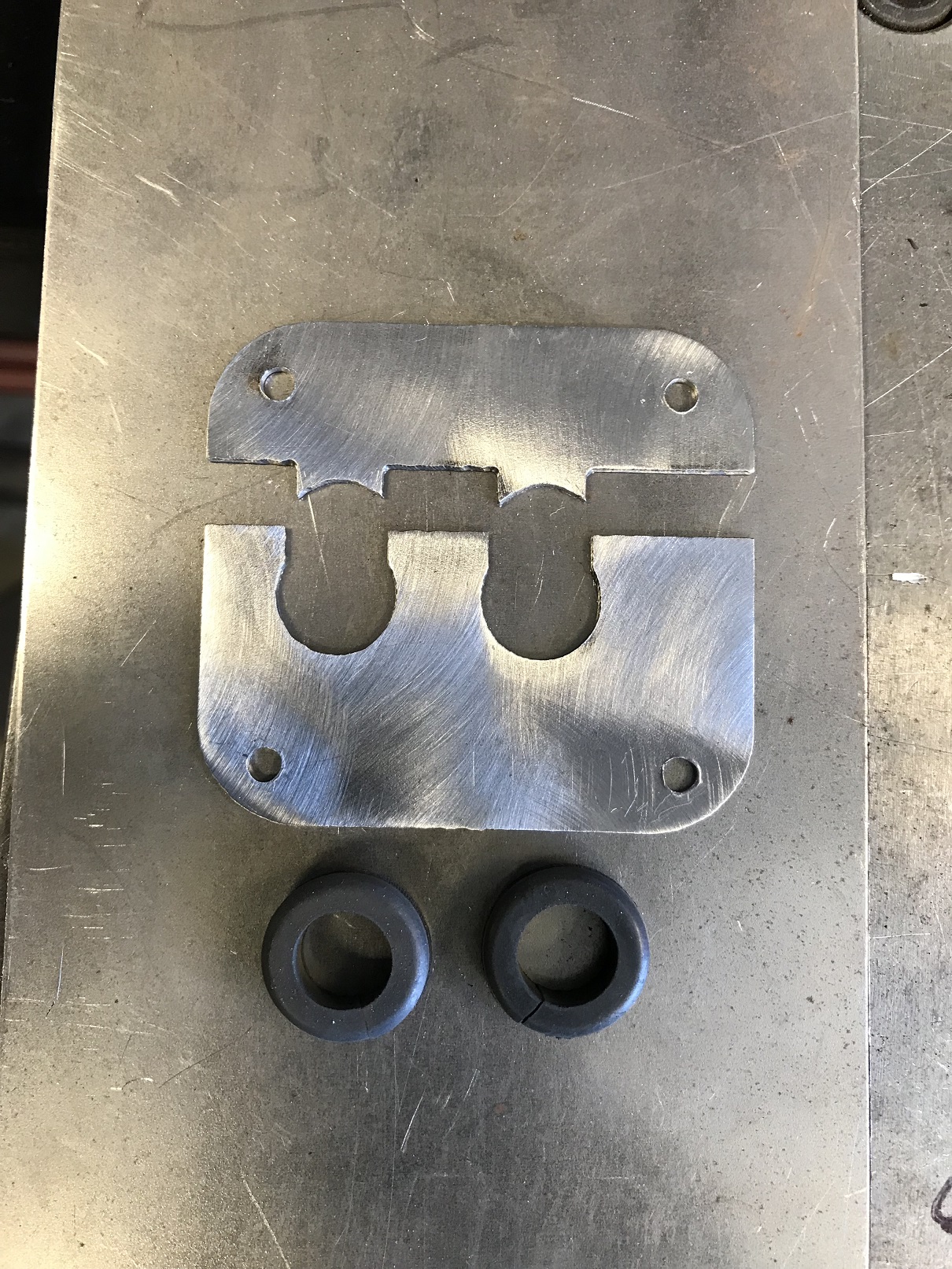

Version 1 seemed simple enough: Make a little split panel with split grommets that was large enough to cover a hole that the cable ends would fit through. I iterated through about 5 attempts on the design (and plasma cutting of each one) before I ended up with something I liked. It looks like this:





Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 18 2018, 03:37 PM
Post #1280


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The shifter cables do flex, but not so much that they could be made to come through the fire wall at 90 degrees. I didn't really understand just how far off they were until I tried to install the panel. Nope...couldn't even get it close.

So, Version 1 (a simple panel against the firewall) pretty much didn't even get to a mock up install before it was clear it was a non-starter.

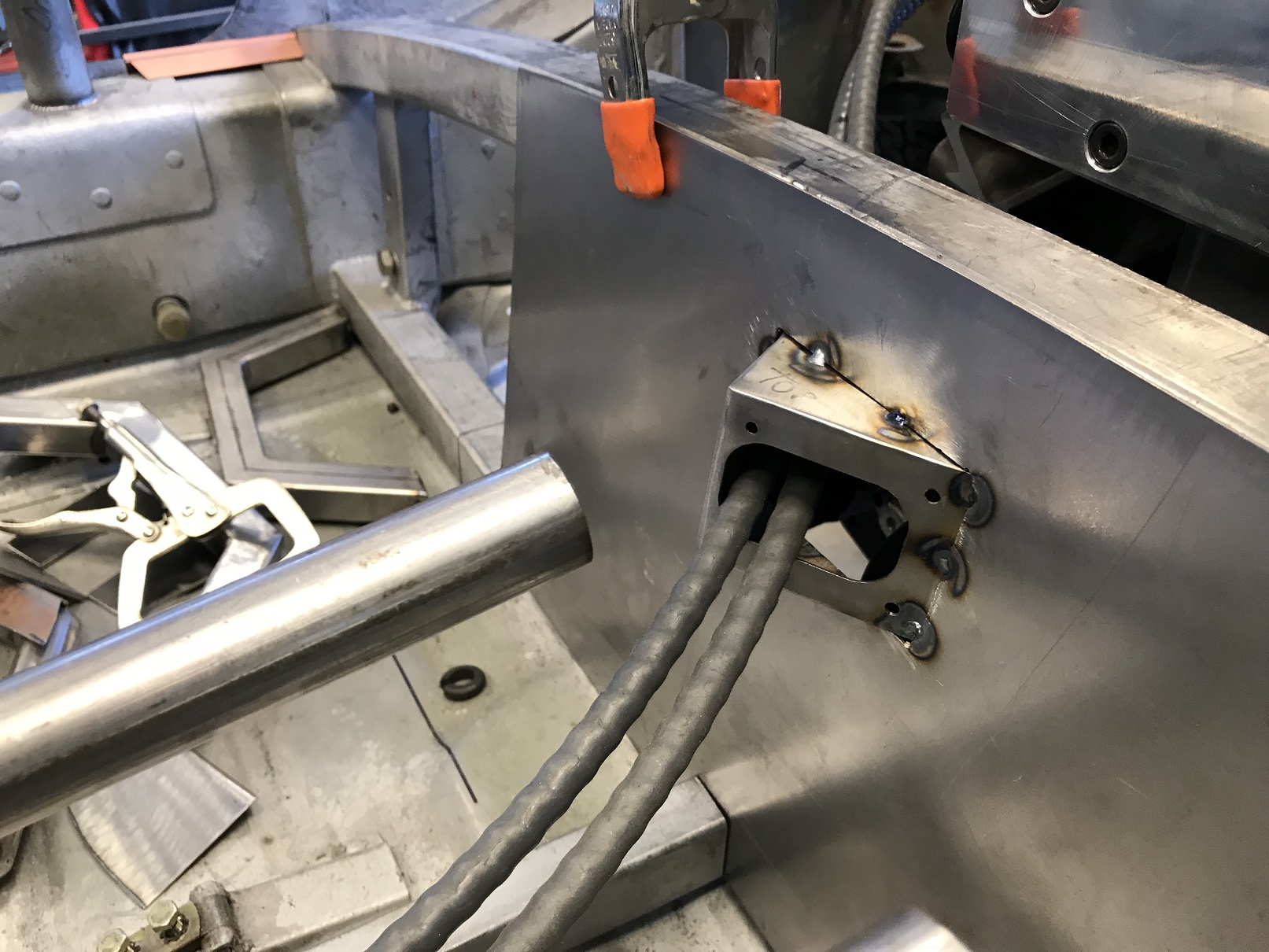

I took some measurements and figured it'd be best to make an angled box that retained the split panel I'd already made. Three iterations on this one before I got it to where I wanted it.

But in the end, it works! Cables sit in a relaxed position and the grommets are perpendicular to the cables. Yaaa! (IMG:style_emoticons/default/cheer.gif)

Including the various designs, plasma cuts, etc. I have about 6 hours in this little deal-io.

I would say "I'd better keep my day job...", but that's off the table! (IMG:style_emoticons/default/laugh.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


232 Pages V « < 62 63 64 65 66 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 25th November 2024 - 08:46 PM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
