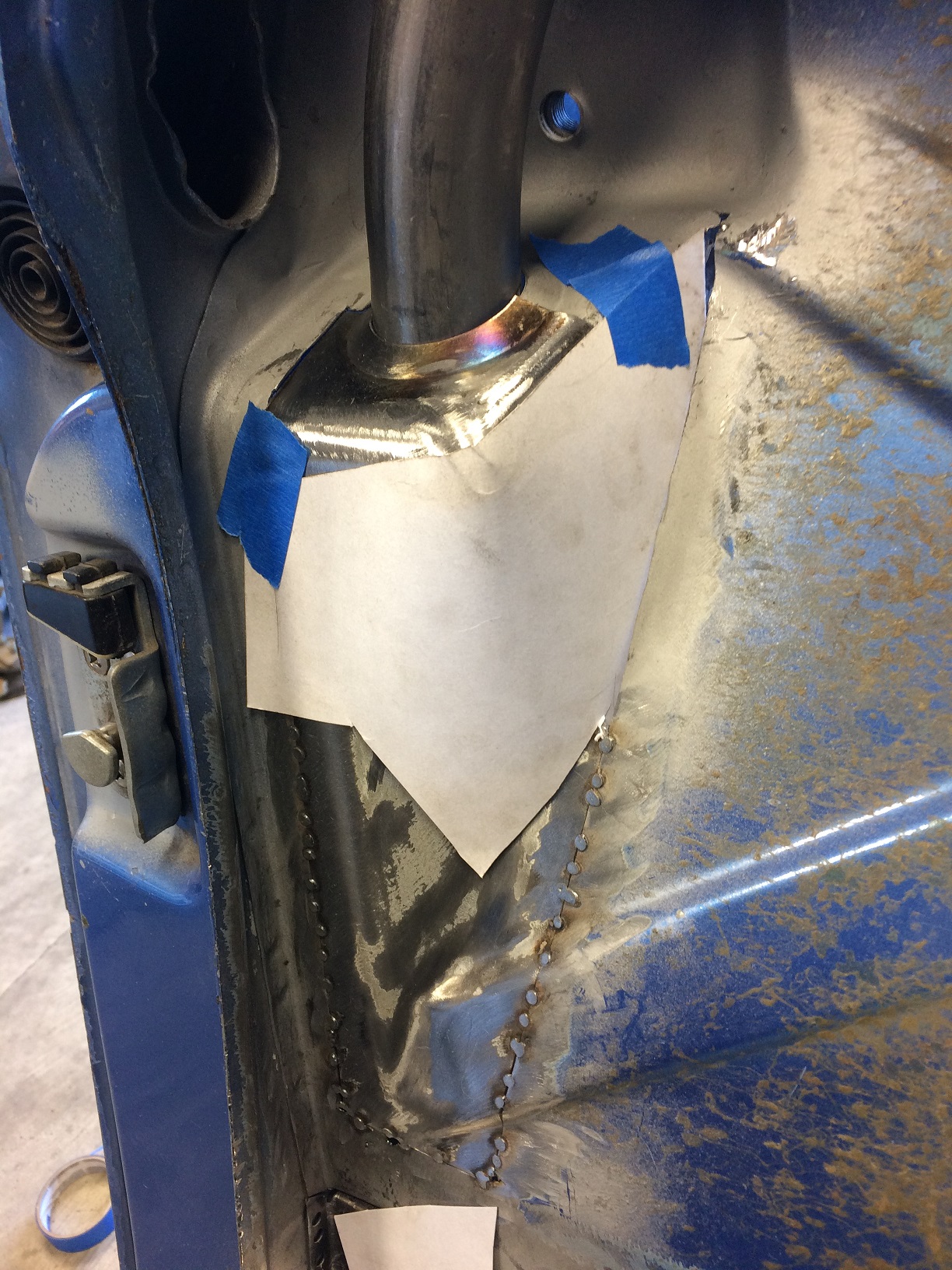

Continuing work on fabbing the parts needed to close in the roll hoop. I made up the front 1/2 of the "cap" on the passenger side.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 28 2016, 04:36 PM
Post #162


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

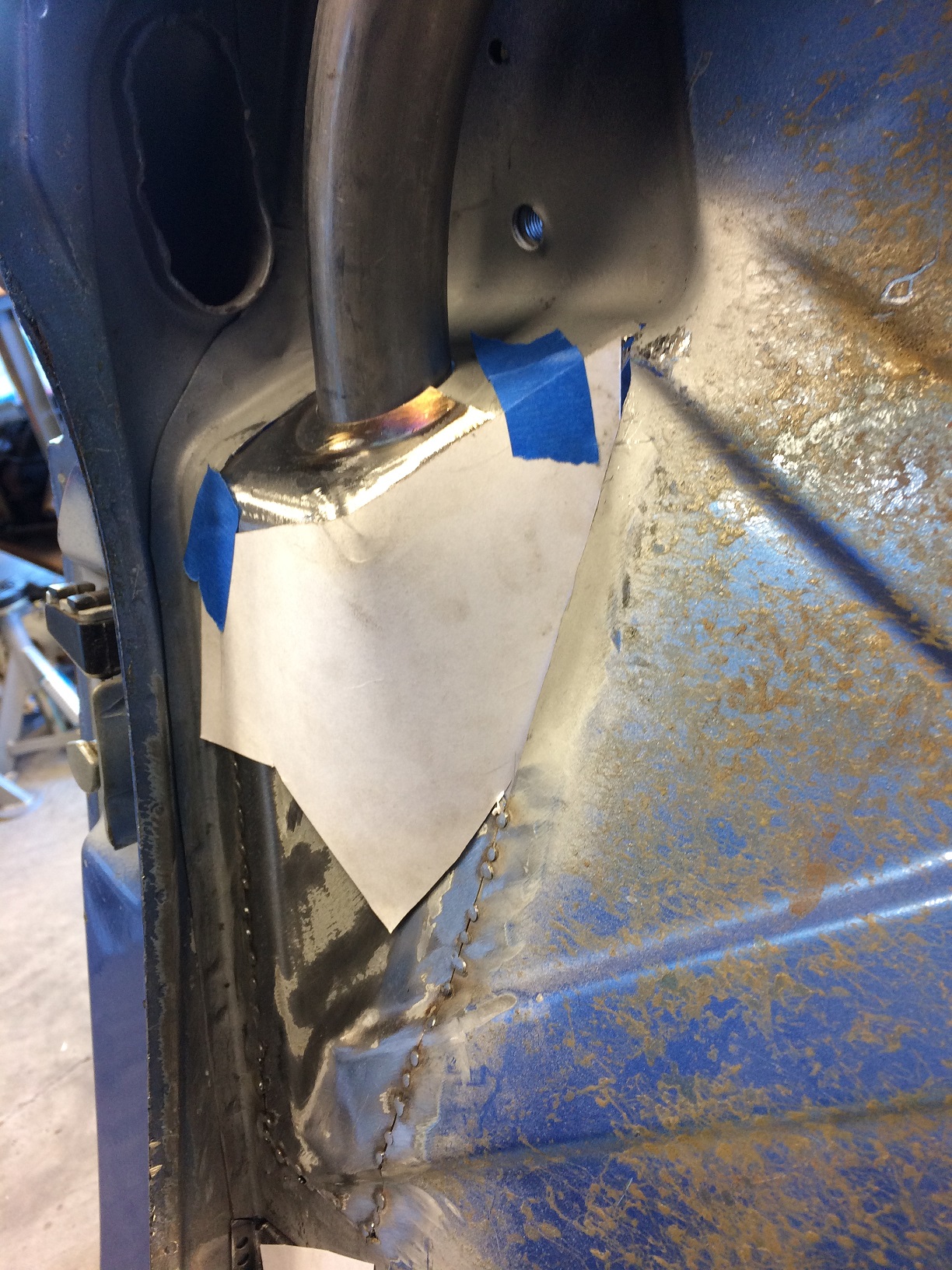

Then I started on the final part. Here's a look at how I approach making the paper template. Once this is fitting as desired, it's transferred to 18 gauge and formed / trimmed til it fits. Easy, no? (IMG:style_emoticons/default/sunglasses.gif)

Well, except then I get to (try and) make a mirror image for the other side. That's always the "interesting" part...


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 30 2016, 03:53 PM
Post #163


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

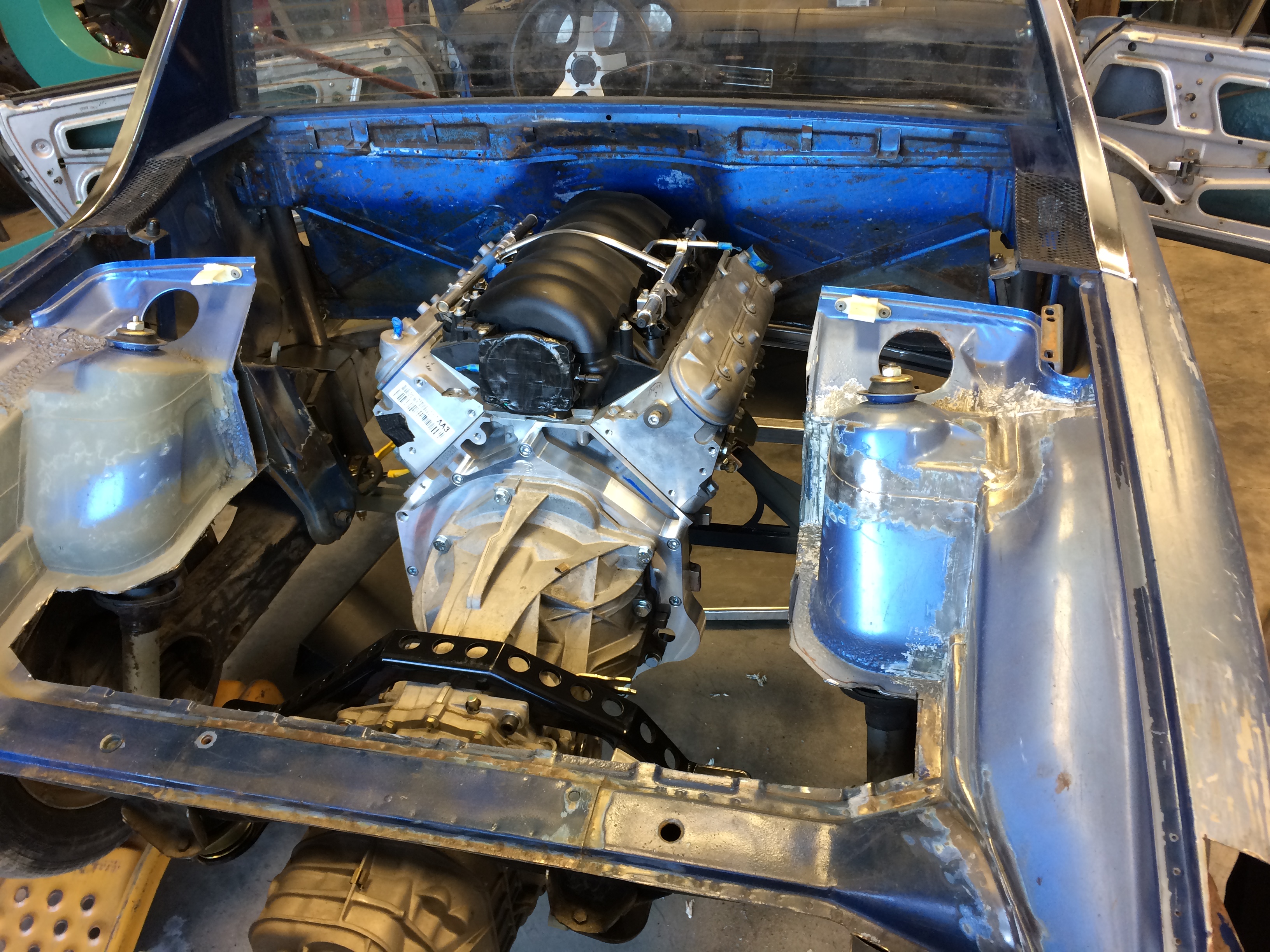

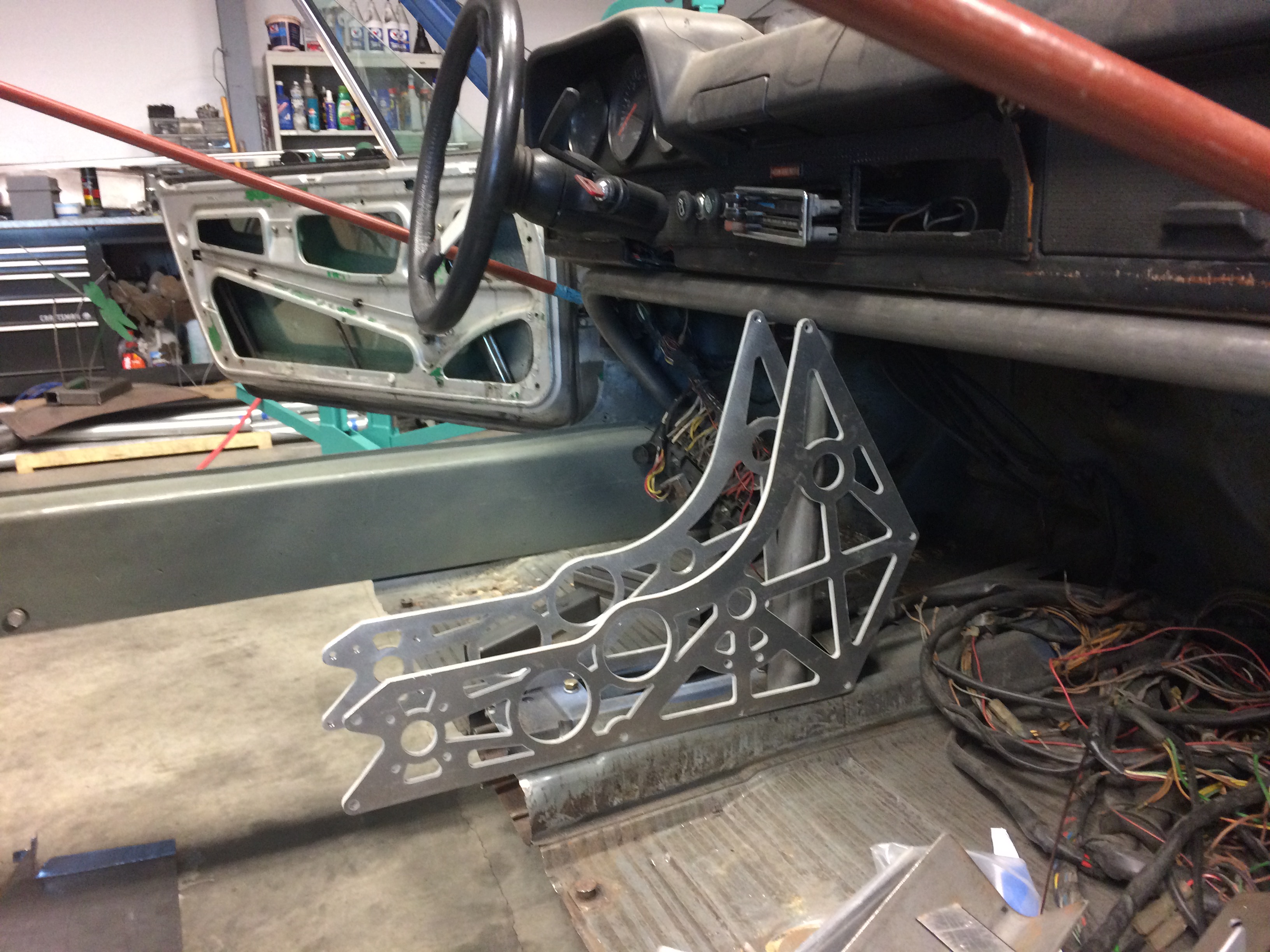

The ADD kicked in again and I got distracted with other areas of the car. I've been debating what to do re: keep vs lose the trunk. It would appear I've decided! (IMG:style_emoticons/default/sawzall-smiley.gif)

If you've seen Tony's car, you'll know why I think of this modification as partial "Cracker Replica". (IMG:style_emoticons/default/laugh.gif) Imitation being the sincerest form, and all that.

It certainly eases access to, um, everything!

And yes, there will be roll bar/chassis stiffening added.

This will never be mistaken for a sleeper but I do want to be able to store the top so while I still have trimming to do, I will leave a lip all around the edge as I plan to make a removable "trunk tray/liner" to provide a least some protection for the top.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 30 2016, 03:57 PM
Post #164


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

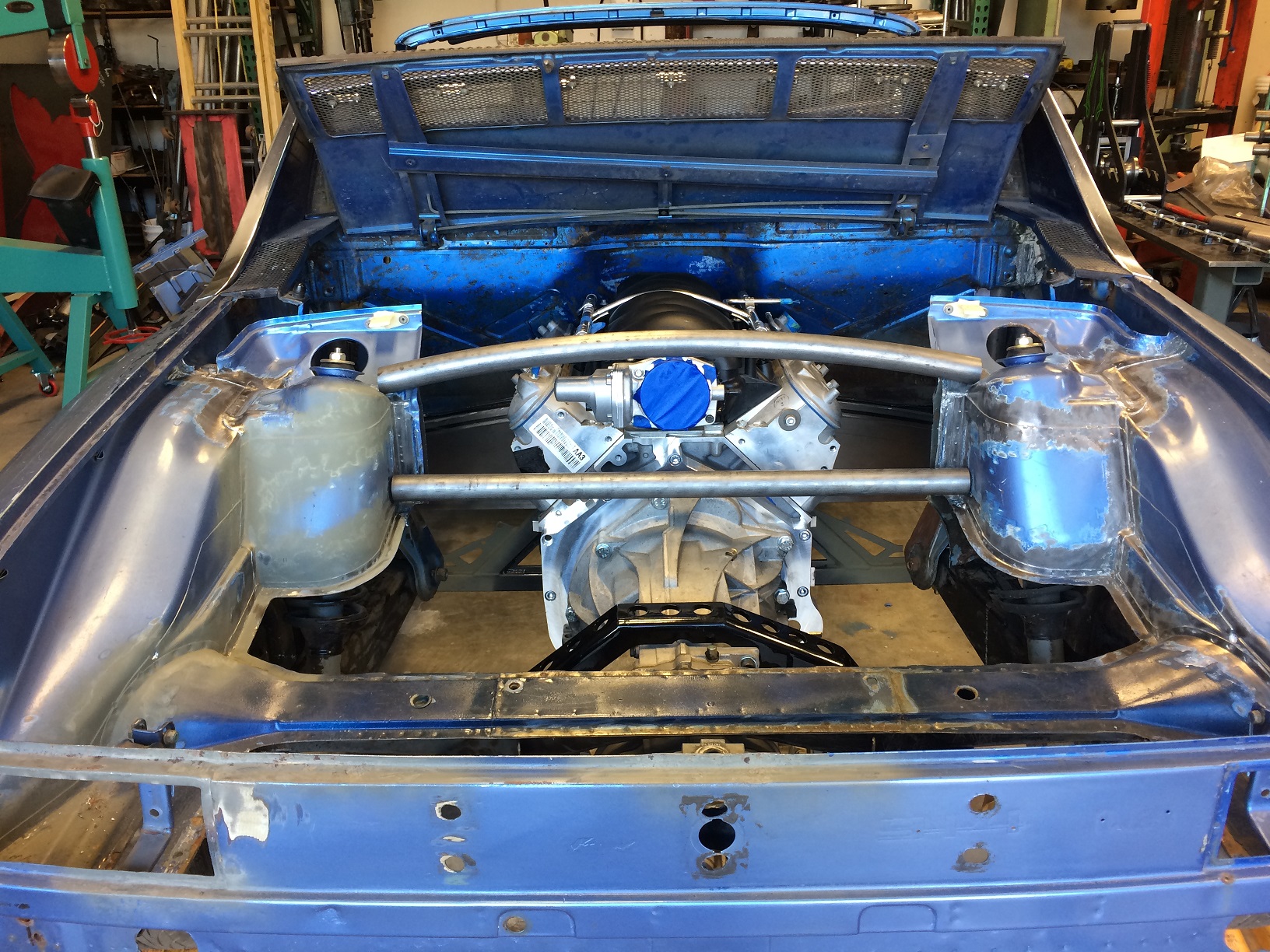

That darned ADD! Once the trunk was out, I played with an initial design for the console. This essentially gives away the styling cues I'm going with throughout the interior: a very industrial, trellis, open architecture-y look that leaves all the mechanical elements exposed.

A looooooong way yet to go but it gives you the idea.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Dec 30 2016, 06:19 PM
Post #165


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
That does look familiar...glad to have you aboard! After seeing your fabrication skills - I am very much looking forward to seeing the greatly enhanced "Cracker Replica" version.
Just make sure the cockpit fits a 6'5" frame (Um, drivers side...)! (IMG:style_emoticons/default/shades.gif)

Happy new-years to you Chris!

Tony

QUOTE(tygaboy @ Dec 30 2016, 04:57 PM) *

That darned ADD! Once the trunk was out, I played with an initial design for the console. This essentially gives away the styling cues I'm going with throughout the interior: a very industrial, trellis, open architecture-y look that leaves all the mechanical elements exposed.

A looooooong way yet to go but it gives you the idea.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
napasteve
post Dec 30 2016, 06:23 PM
Post #166


914 driving winemaker
***

Group: Members
Posts: 509
Joined: 2-January 13
From: Napa, CA
Member No.: 15,327
Region Association: Northern California
I don't see how this machine will remain earthbound.......
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 31 2016, 05:33 PM
Post #167


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

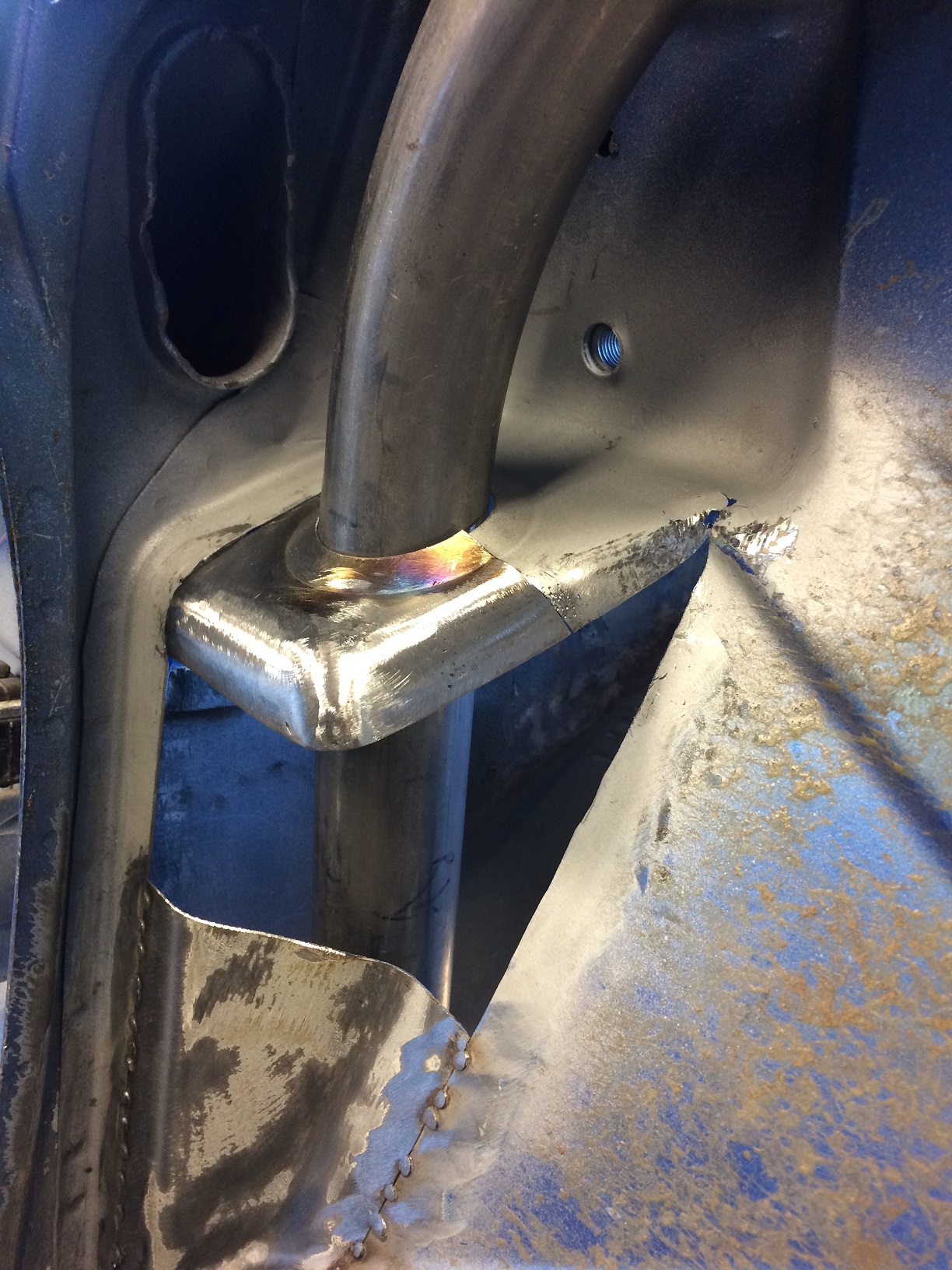

I did the final trimming of most of the main open area, leaving that lip for the removable cover I'm planning. I still have to remove the front of the trunk wall above and outside of the suspension consoles...

Then I started on fabrication on the stiffeners for between the consoles.

Another arch... Imagine that. The top bar will also serve as the point from which a bracket will extend forward to support the stock engine cover latch.

I'll end up plating around the consoles so neither of these are quite where they'll end up. But close enough for me to determine what I want to do. I have an idea for a panel that will sit between them. It'll add some additional strength as well as visual appeal!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 31 2016, 05:36 PM
Post #168


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(napasteve @ Dec 30 2016, 04:23 PM) *

I don't see how this machine will remain earthbound.......


Well, at the rate I'm going, it'll be earthbound for a while... I'm starting to wonder if the 9/14 date is hopeless. Not that I'm giving up, but... (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 31 2016, 05:47 PM
Post #169


914 Guru
*****

Group: Members
Posts: 7,252
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(tygaboy @ Dec 31 2016, 03:36 PM) *

QUOTE(napasteve @ Dec 30 2016, 04:23 PM) *

I don't see how this machine will remain earthbound.......


Well, at the rate I'm going, it'll be earthbound for a while... I'm starting to wonder if the 9/14 date is hopeless. Not that I'm giving up, but... (IMG:style_emoticons/default/confused24.gif)



That cutting up and gifting the pieces from the other car took up a bunch of your fab time.

Looking great though and you are further along then I am.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 31 2016, 10:33 PM
Post #170


RN
****

Group: Members
Posts: 2,801
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region


That cutting up and gifting the pieces from the other car took up a bunch of your fab time.

Looking great though and you are further along then I am.
[/quote]

Totally agree with Ben. However Chris your build is mind blowing.
The shifter console structure is a work of art.
Truly unique approach tying the chassis together in the manner you have.
It will be very cool to see this 914 in motion!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 2 2017, 04:26 PM
Post #171


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

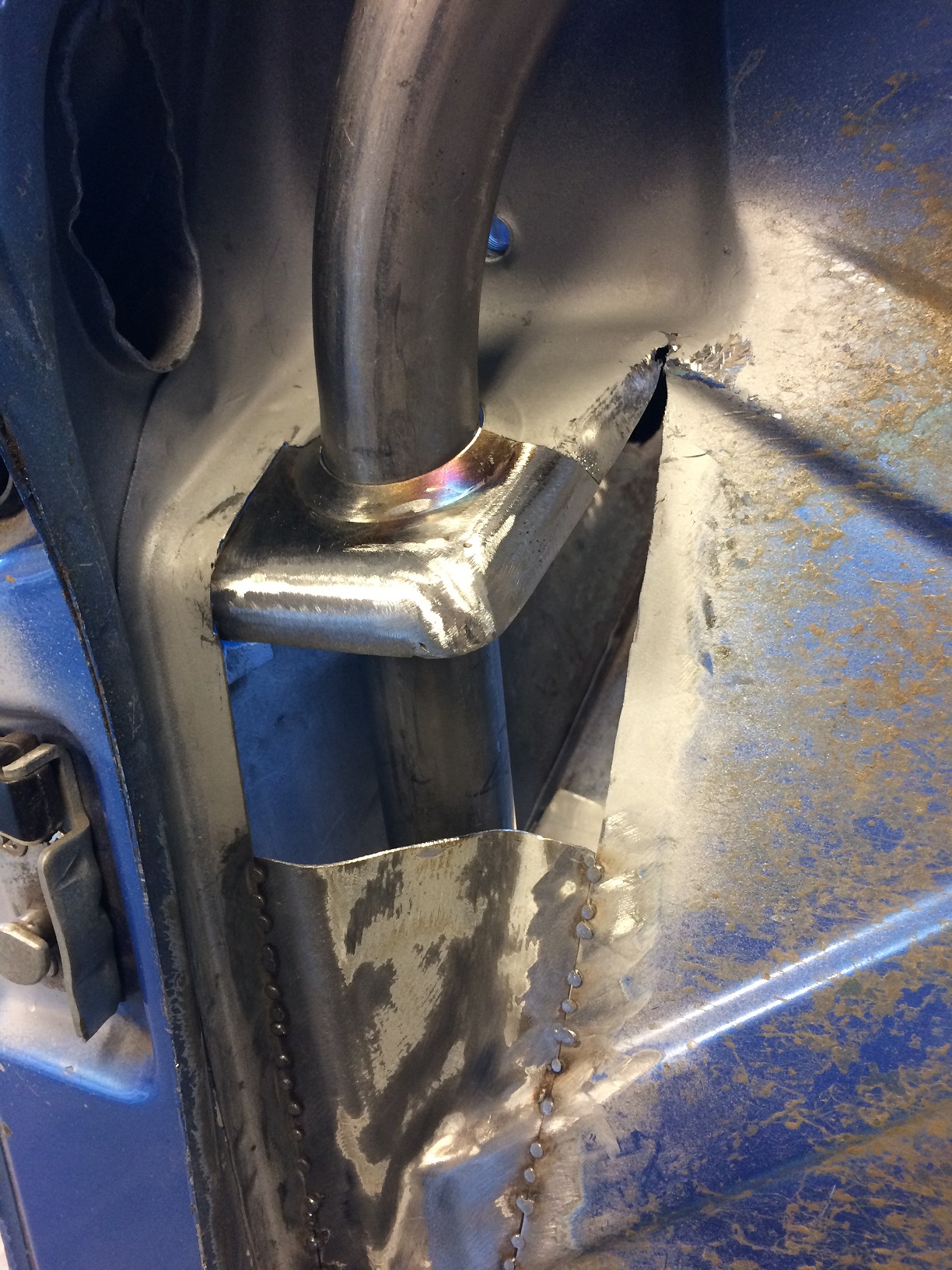

Did the final removal of the trunk and up around the suspension consoles. Then I started fabrication of the plates that will reinforce the consoles in prep for installing the stiffeners.
Man, doing this stuff takes forever... (IMG:style_emoticons/default/wacko.gif) but it REALLY opens things up and allows for optimal location of the rear part of the stiffening bars.

I have an idea for the trans mount cross member, too. Should be pretty neat looking and add some strength.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 8 2017, 01:56 PM
Post #172


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
It's raining in northern CA...
This is our back field. That's about 2.5 ' deep.... and it's flowing.

Kinda scary.

Makes for a good day to immerse myself in more fab work...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 8 2017, 01:59 PM
Post #173


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

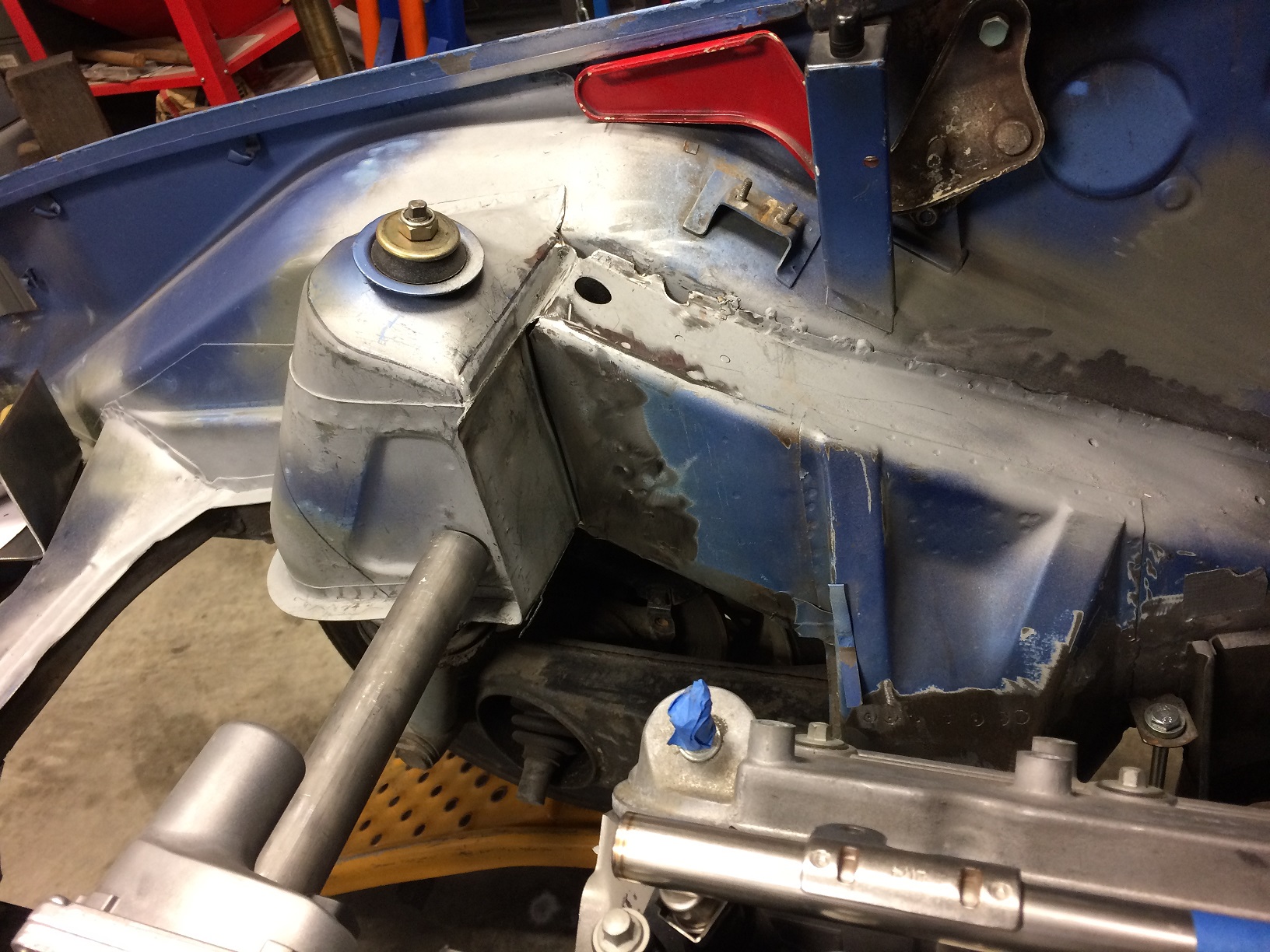

With the removal of the trunk sheet metal complete, we get to see a part of our cars I've rarely seen: The point where the long stops and sorta has a wimpy tie into the rear shock towers.

Gotta do something about that.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 8 2017, 02:01 PM
Post #174


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

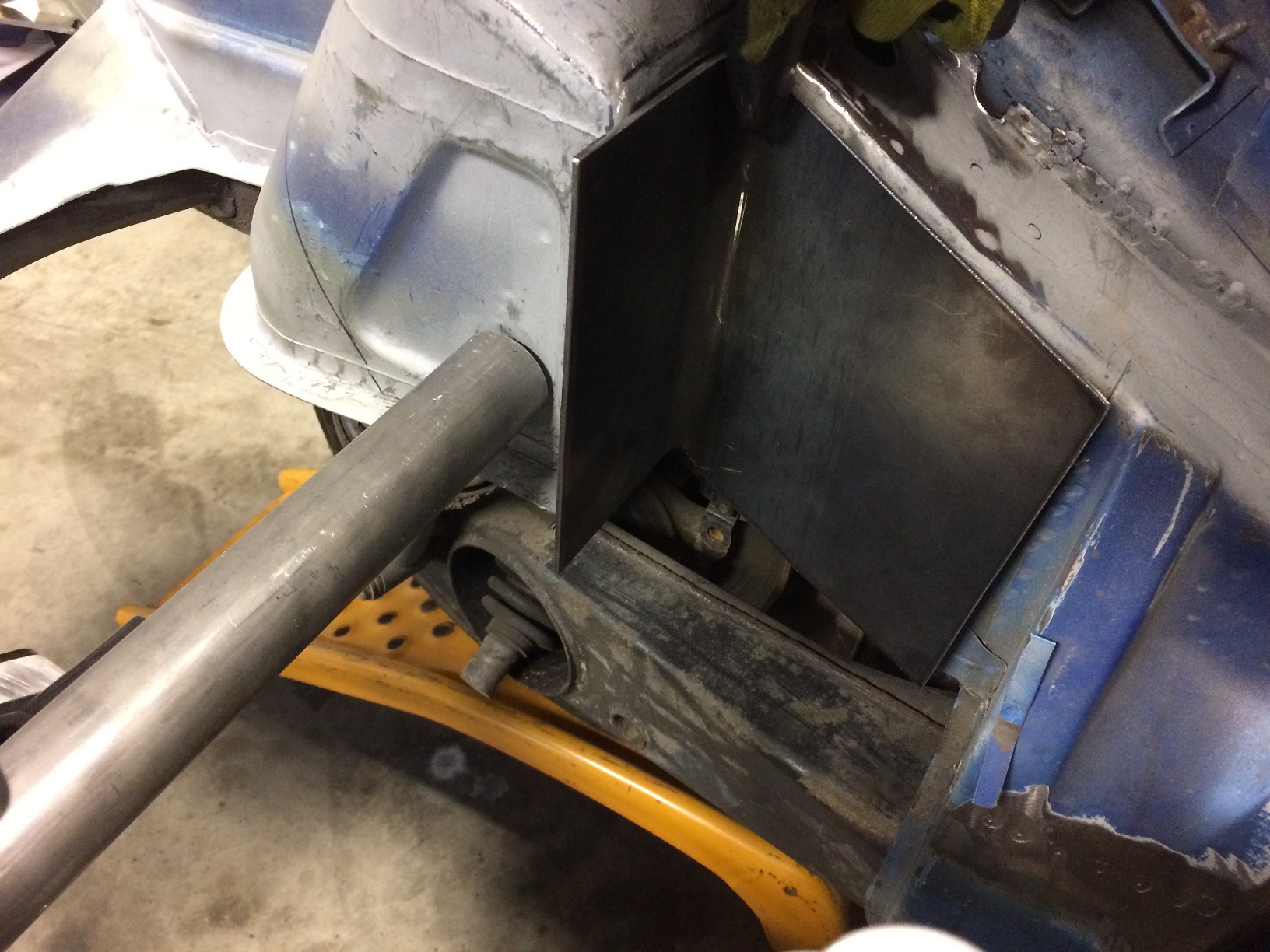

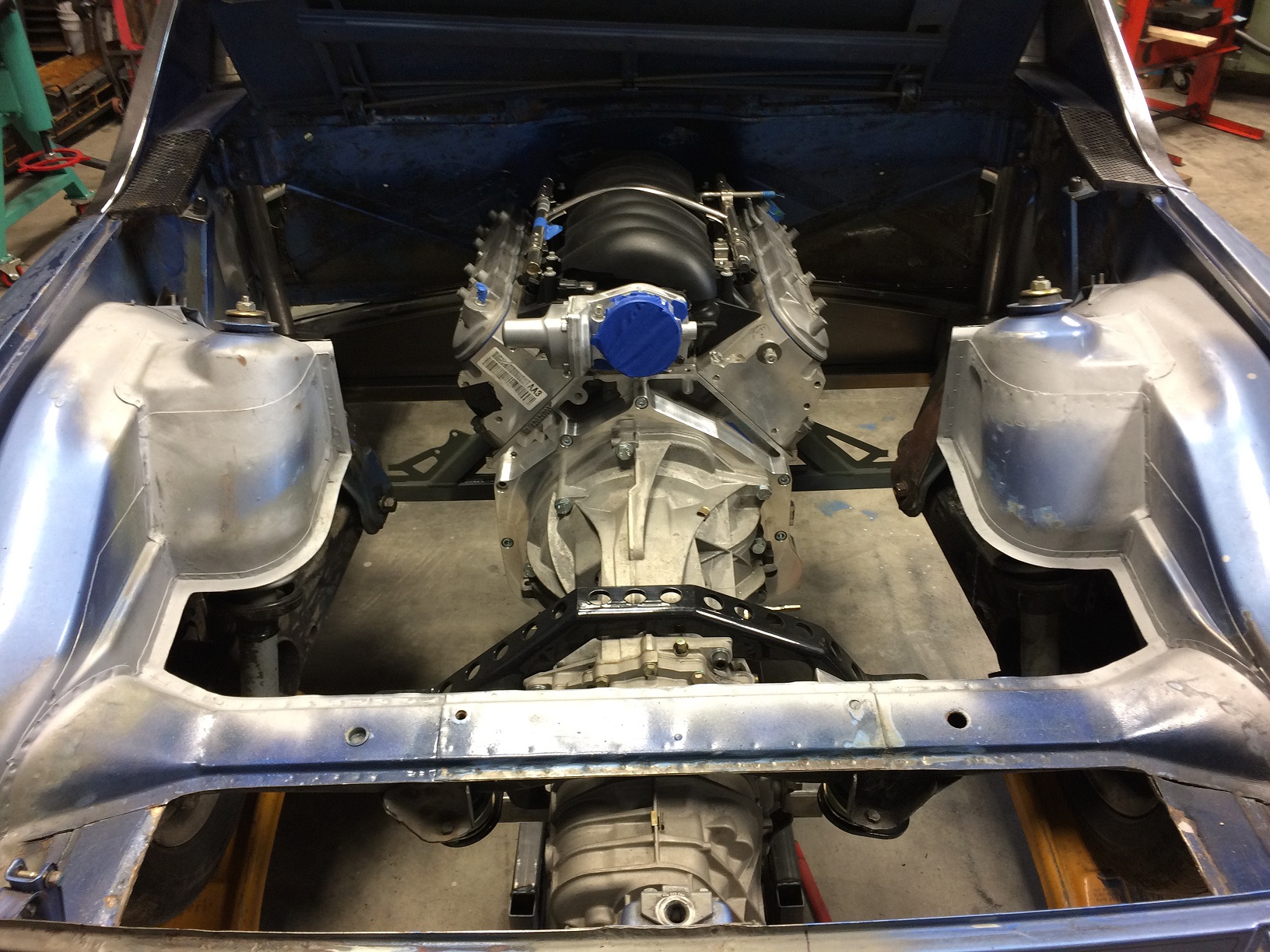

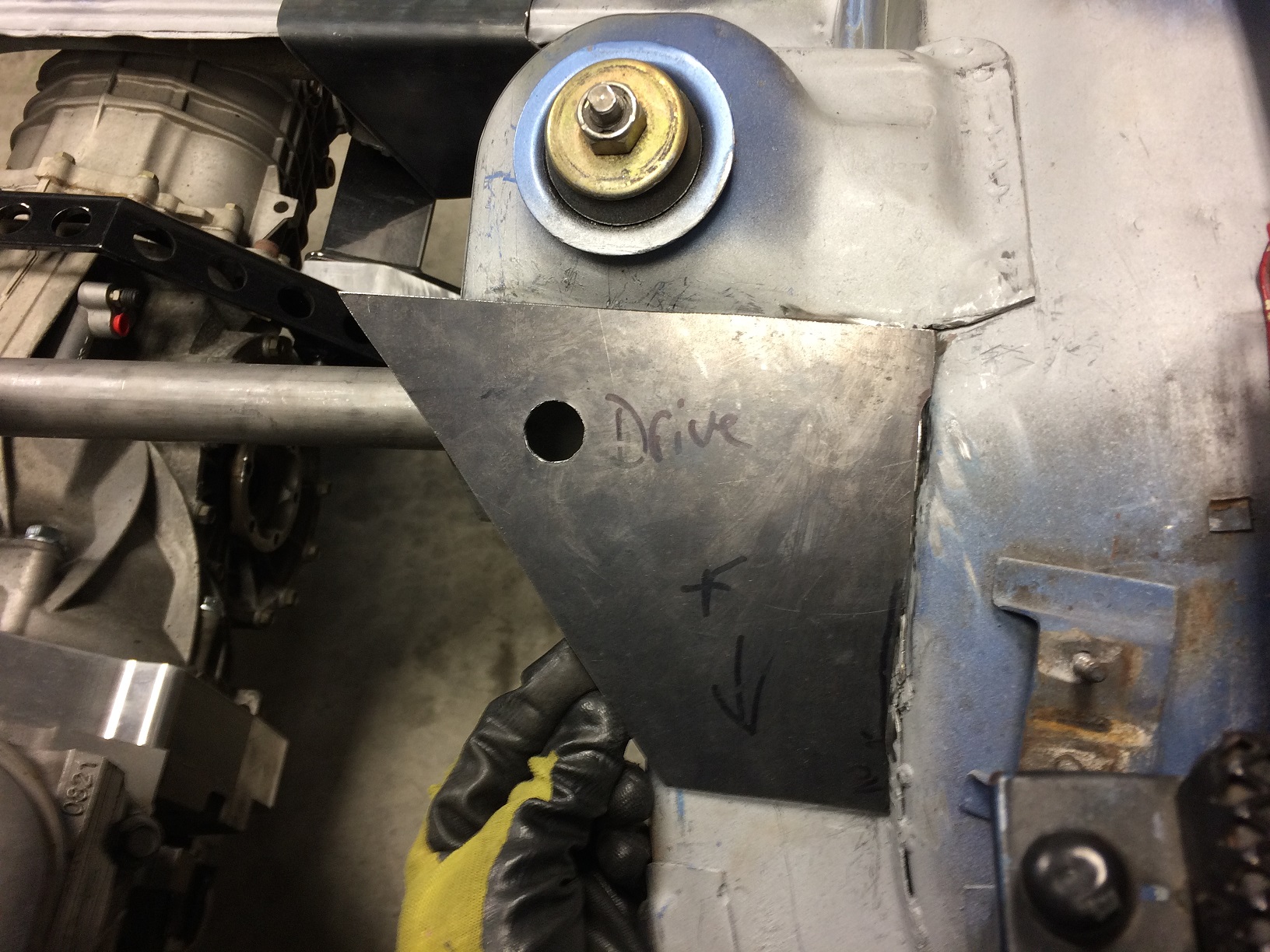

So I fabbed up a 1/8" plate that I bent and trimmed to fit. Here's an almost final fit.
I'll cap this off with...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 8 2017, 02:02 PM
Post #175


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
... a cap! Again, not the final fit, but you get the idea.
I think I'll box this from the inside edge down to the bottom of the long, making kind of a triangulated box.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
napasteve
post Jan 8 2017, 02:03 PM
Post #176


914 driving winemaker
***

Group: Members
Posts: 509
Joined: 2-January 13
From: Napa, CA
Member No.: 15,327
Region Association: Northern California
Any thought to some amphibious car features for the Beast? Might be handy if you need to run to town!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 8 2017, 02:25 PM
Post #177


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Great progress....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lennies914
post Jan 8 2017, 04:51 PM
Post #178


Slacker
***

Group: Members
Posts: 828
Joined: 9-January 10
From: NorCal
Member No.: 11,216
Region Association: Northern California
Happy New Year Chris!

Love following your progress on the car. You weren't kidding when you said it was going to be "top notch"!

(IMG:style_emoticons/default/pray.gif) (IMG:style_emoticons/default/pray.gif)

Sandy and I would love to come up and see the car this spring.

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 9 2017, 12:05 PM
Post #179


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Lennies914 @ Jan 8 2017, 02:51 PM) *

Happy New Year Chris!

Love following your progress on the car. You weren't kidding when you said it was going to be "top notch"!

(IMG:style_emoticons/default/pray.gif) (IMG:style_emoticons/default/pray.gif)

Sandy and I would love to come up and see the car this spring.

(IMG:style_emoticons/default/beerchug.gif)


Hi Lennie! Glad to hear you're enjoying the build. We'd love to see you and Sandy (PM sent).
When you come, plan to stay a while. And bring tools - I need all the help I can get!

Talk soon.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 12 2017, 07:30 PM
Post #180


914 Guru
*****

Group: Members
Posts: 5,451
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

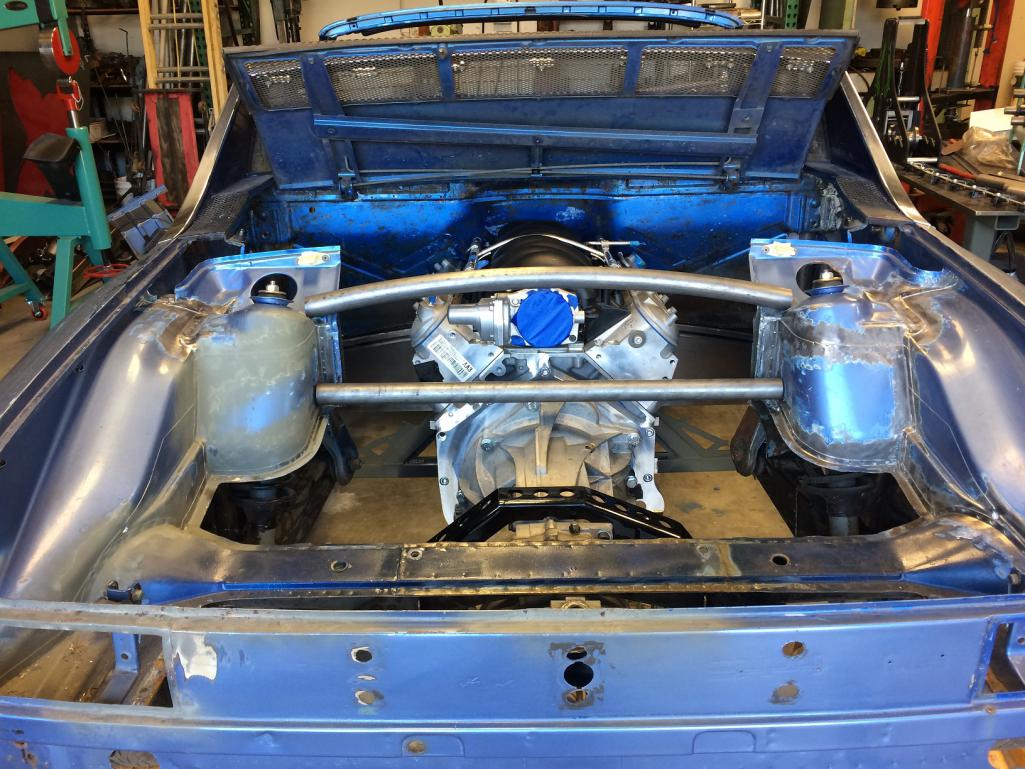

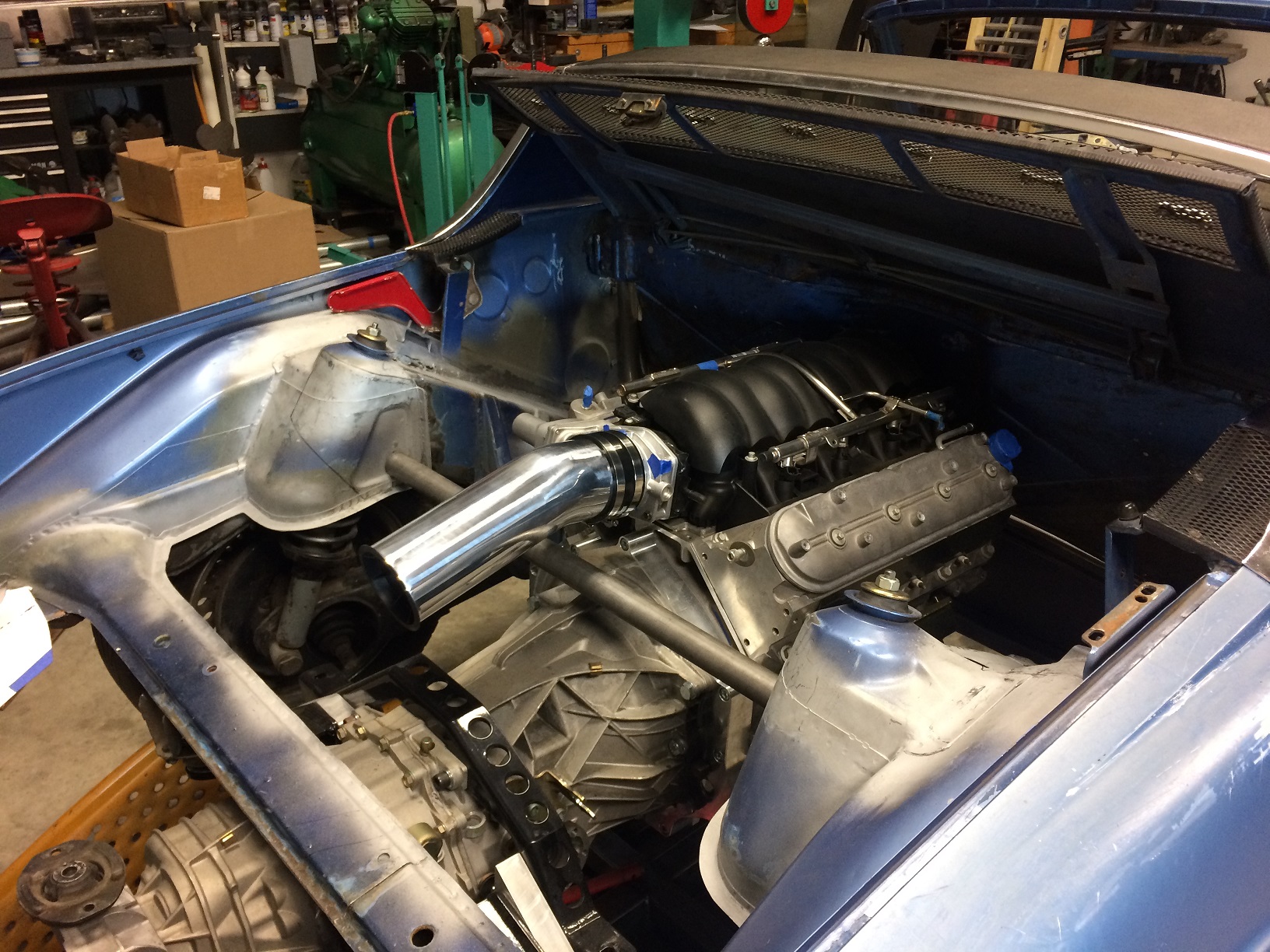

I started messing with the intake. In running the Mass Airflow Sensor (MAF), I have to follow a few rules about where the sensor has to be, relative to the throttle body. I need a minimum of 10 inches from the throttle body, six inches of straight tube, the sensor has to be set at between a 9:00 - 3:00 orientation...

So, a bit of a puzzle and a bit of mystery? (IMG:style_emoticons/default/dry.gif)

A puzzle is when you have all the pieces and "just" have to figure out how they fit.
A mystery is "profound, inexplicable, or of secretive quality or character."

I really do have a bit of both going on here: I have some pieces, I have some pieces yet to make.

But I swear, as I start looking at how I'll have to build the intake to meet the above criteria, fit the stiffening bars, run a suitable air cleaner AND make it all fit under the targa top (which needs to somehow still safely store in this area...) ???!?!?!?!?

Well, it's currently a flippin' MYSTERY to me! (IMG:style_emoticons/default/lol-2.gif) Certainly, the "secretive quality" part...

But fear not, World. I will solve it. (IMG:style_emoticons/default/shades.gif)

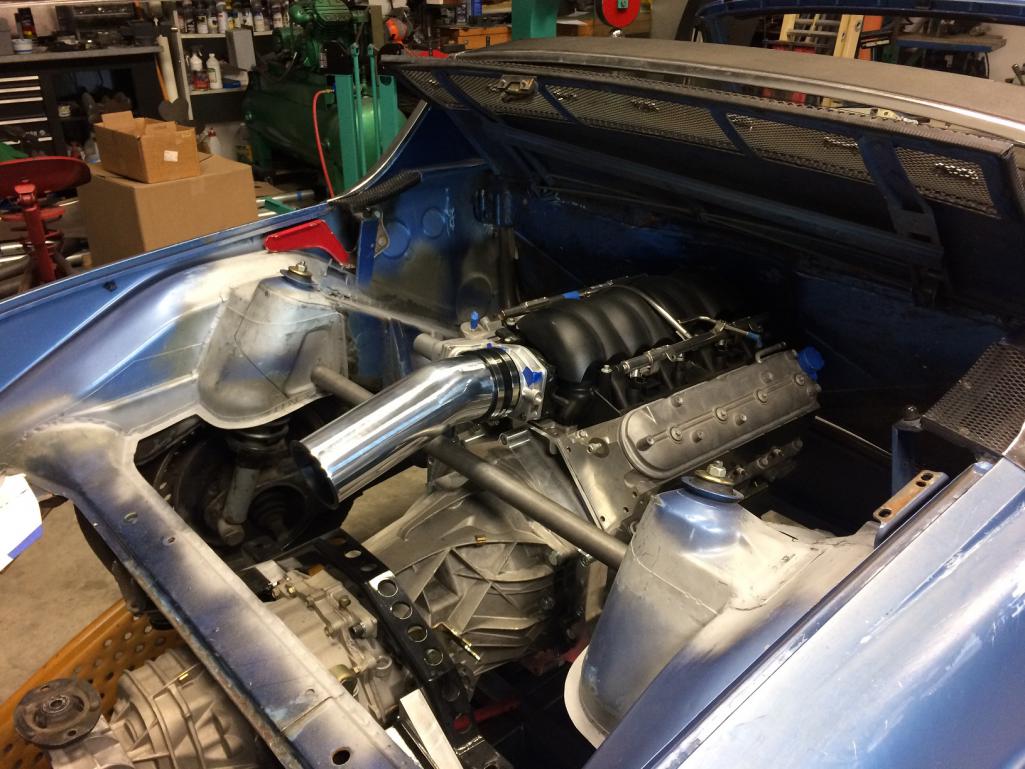

ps. I'm loving how this is starting to look. That's a 4" intake tube. Small children and pets will need to be careful they aren't sucked in!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


232 Pages V « < 7 8 9 10 11 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 23rd November 2024 - 06:03 AM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
