> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
Andyrew
post May 23 2019, 01:44 PM
Post #1621


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
I really like where this is heading (IMG:style_emoticons/default/smile.gif)
(IMG:http://www.914world.com/bbs2/uploads/post-19241-1558567772_thumb.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 23 2019, 02:08 PM
Post #1622


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(AZBanks @ May 23 2019, 12:40 PM) *

Amazing work. I keep coming back to this thread for inspiration.

I am amazed by what you are doing but can't help but feel that you are a a shoe-in to win the 2914 build-off challenge. (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/first.gif)


You think I can be done by then? (IMG:style_emoticons/default/biggrin.gif)
Well then, I better get back at it! (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 23 2019, 02:12 PM
Post #1623


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
OK, so back at it.
Today is coming up with the side panels for the new lower fire wall design.
First, using some construction paper, I worked out the dimensions and angles as best I could.

Why in the world didn't I plan ahead and do everything in nice, straight lines and 90 degree angles? (IMG:style_emoticons/default/blink.gif)

Oh, that's right, that would be too easy...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 23 2019, 02:17 PM
Post #1624


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

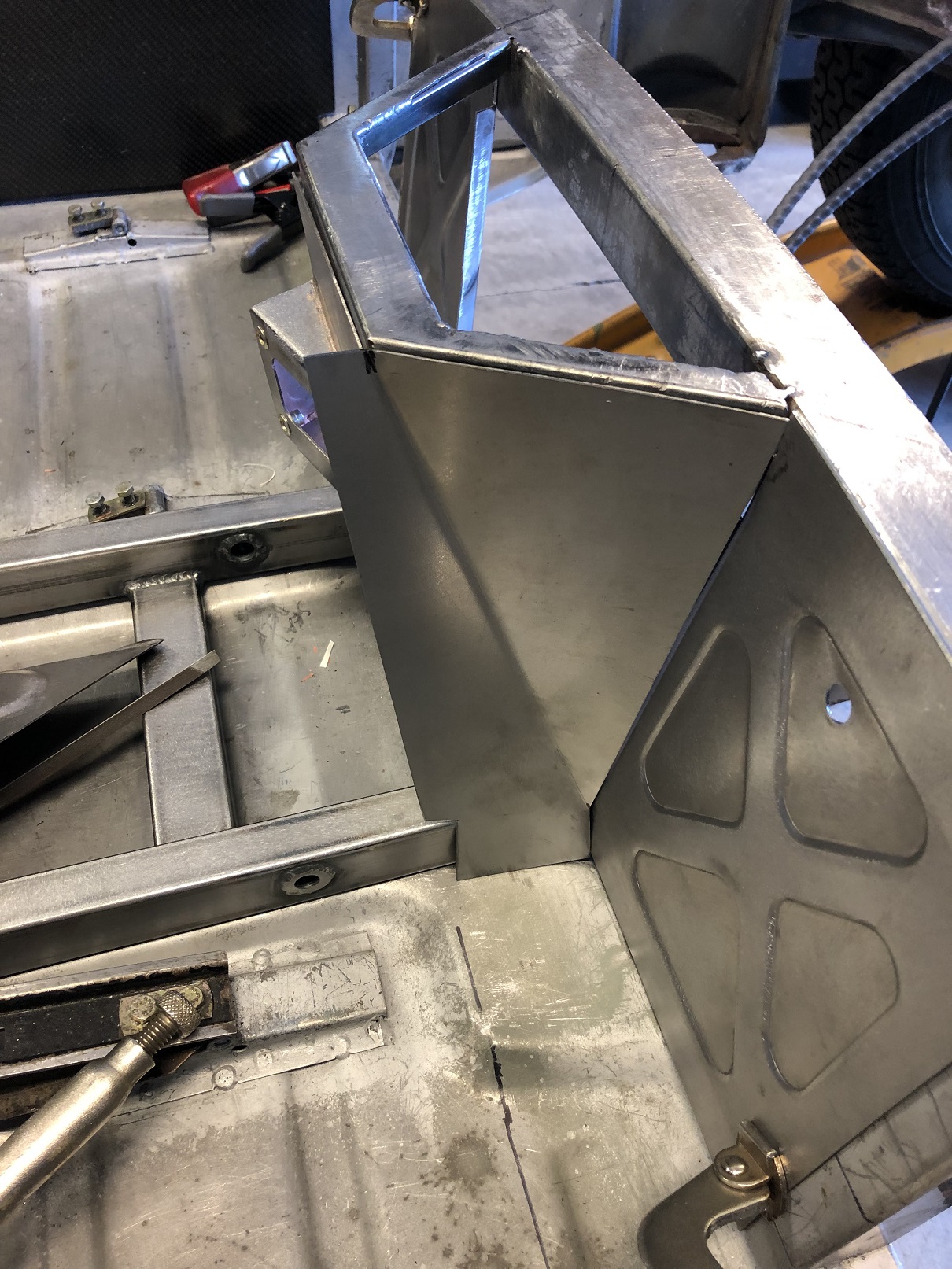

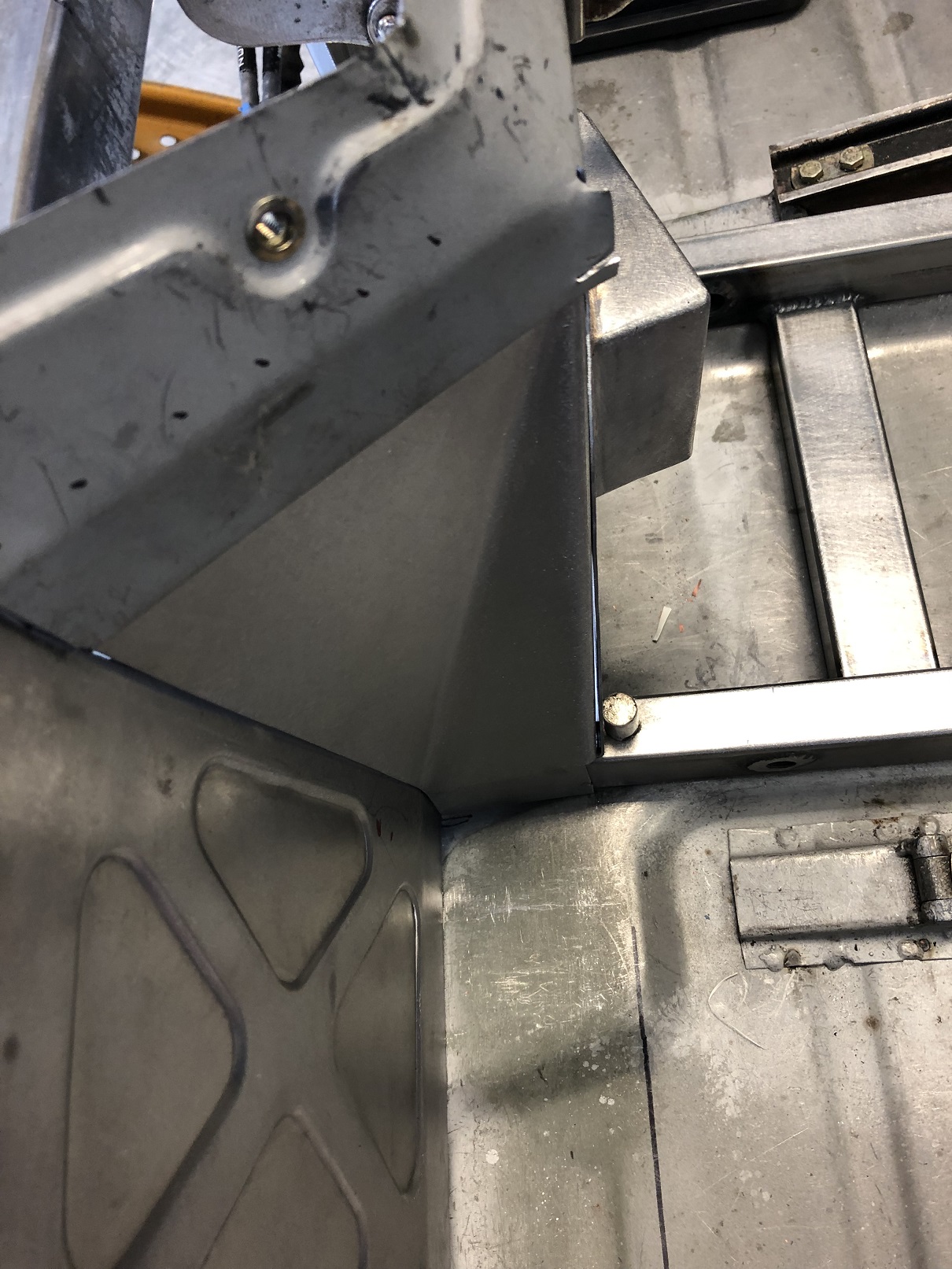

Many hours later, after a bit of swearing, realizing that bend order really is important ( (IMG:style_emoticons/default/headbang.gif) ) and one minor hammering on one of my fingers, here's the part.

Still some final tweaking to get the panels to contact more closely in a couple of the corners but it's looking pretty good.

Now, to duplicate that for the other side. Hopefully, more quickly and with no finger smashing!

Also note that the console will be built forward from this contraption so most all of of what you're seeing here will be hidden.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post May 23 2019, 02:51 PM
Post #1625


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Aesthetically, I think the bend in the panel looks amazing (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 23 2019, 05:05 PM
Post #1626


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Andyrew @ May 23 2019, 01:51 PM) *

Aesthetically, I think the bend in the panel looks amazing (IMG:style_emoticons/default/smile.gif)


Thanks Andrew - I like it, too. Plus, unless I wanted to try and reshape that lower panel (again!), I was going to be stuck with a bend or trying to shape a twisted panel to account for where the corners had to land.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 23 2019, 05:12 PM
Post #1627


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Just flip the paper template over and cut the mirror image. No plasma table for these pieces; they were all cut and trimmed by hand. I scribe the lines, rough cut with the band saw or tin snips, then sand to the scribe line with a 3"right angle air grinder.
If I take my time, I can get a nice, straight line.

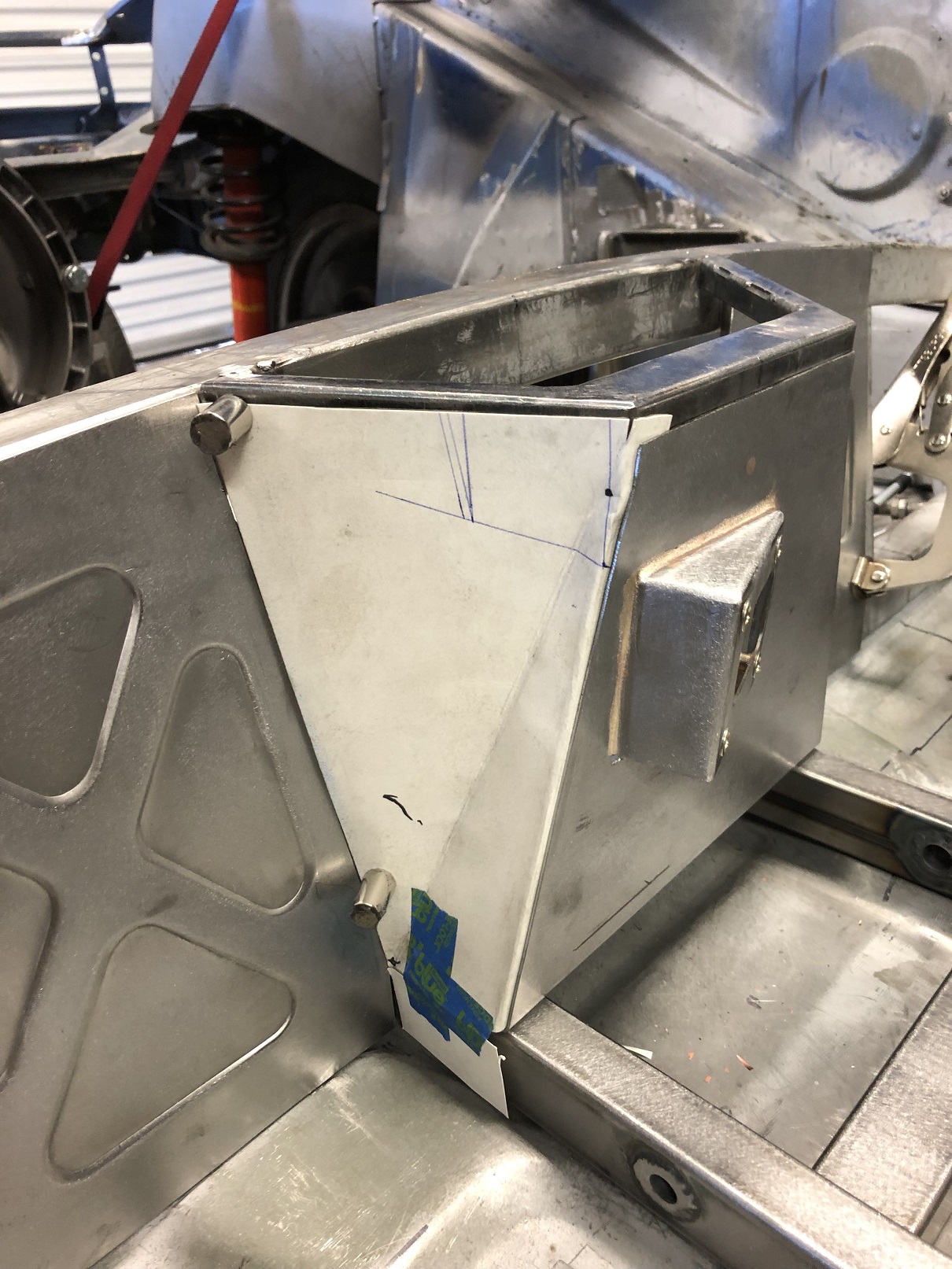

So here's the part, trimmed and with the first bend in it. LOTS of back and forth, fit, adjust, fit, adjust.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 23 2019, 05:13 PM
Post #1628


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

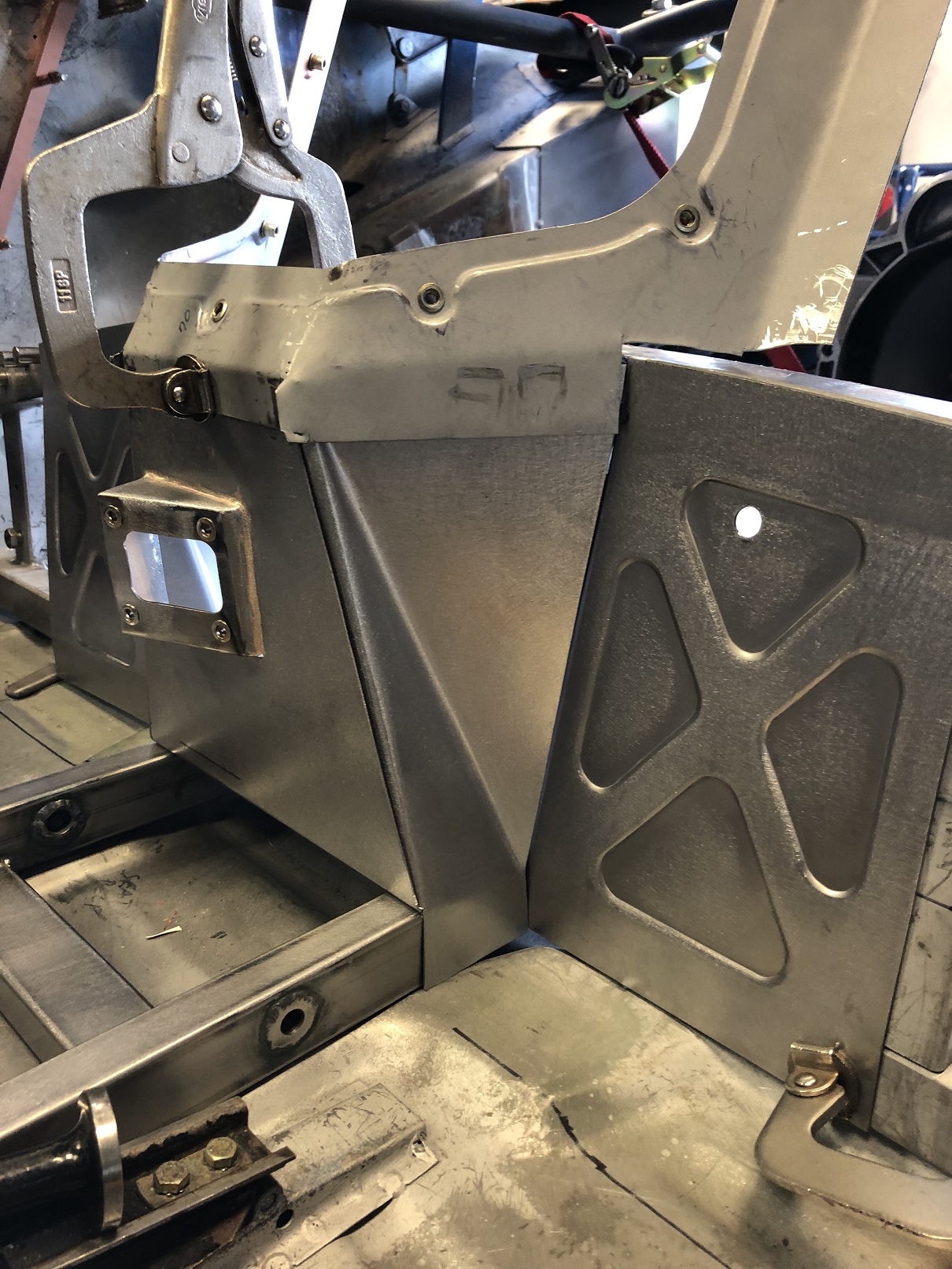

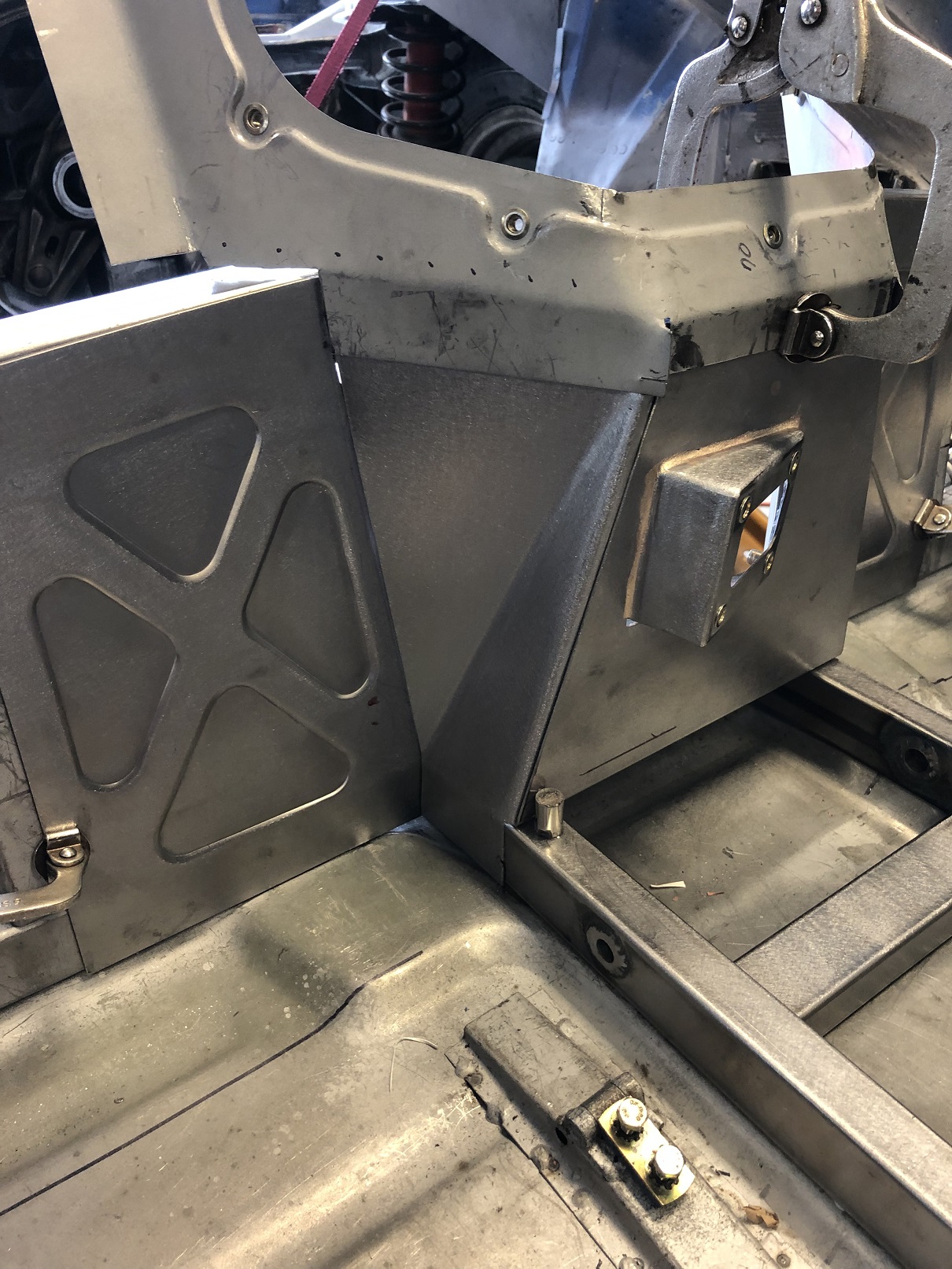

I won't bore you with the mundane, intermediate levels of completion. Here's the all but finished driver side panel!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post May 23 2019, 05:16 PM
Post #1629


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
Just plain love the craft going into this car. Beautiful work! (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 23 2019, 05:17 PM
Post #1630


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

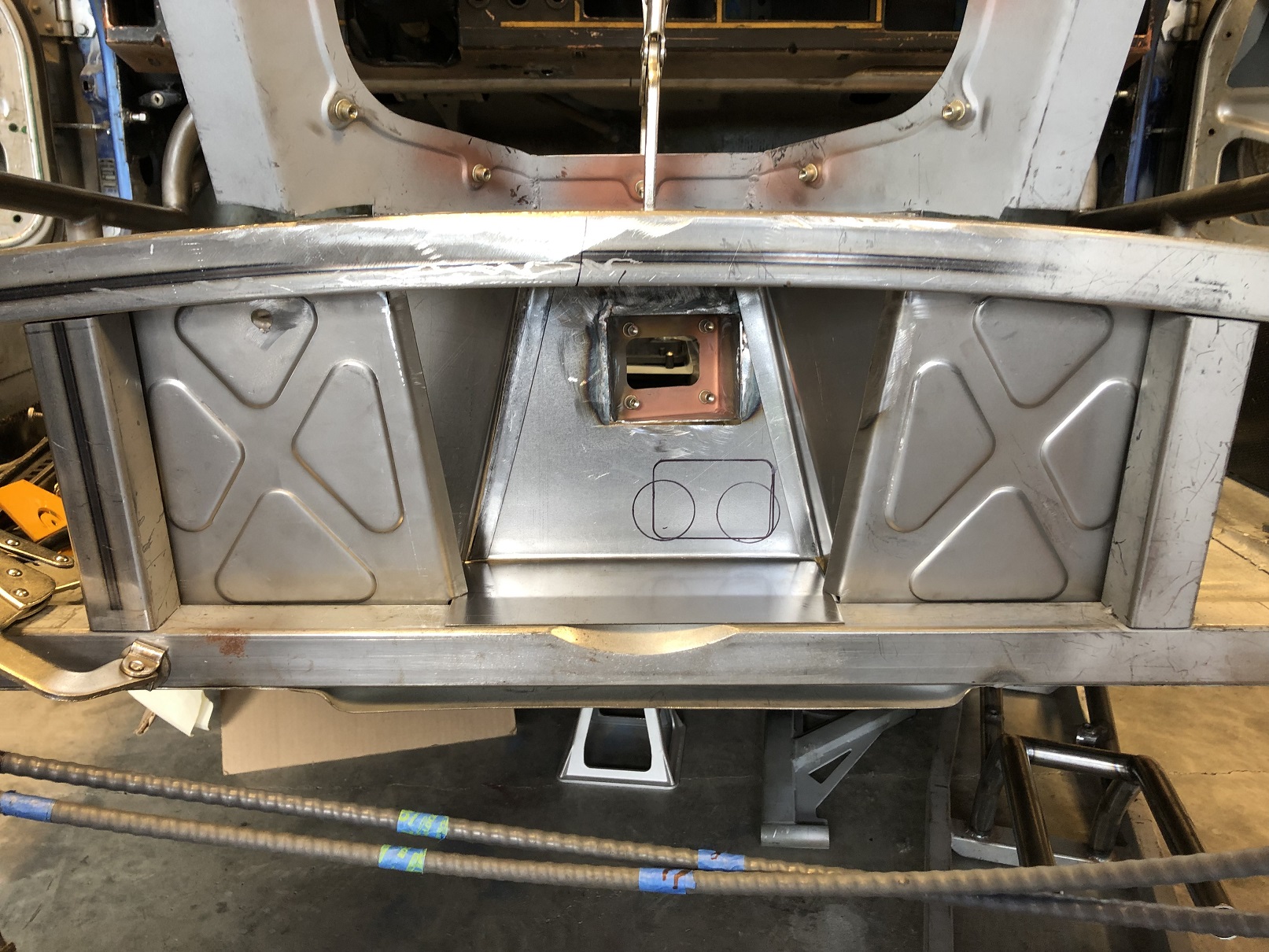

And the engine's view.

Next, it's figuring out the location for the bulkhead fittings for the fuel, brake and clutch lines and the throttle cable.

Geez, it looks like I'm almost ready for the final install of all these firewall pieces!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 24 2019, 10:47 AM
Post #1631


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

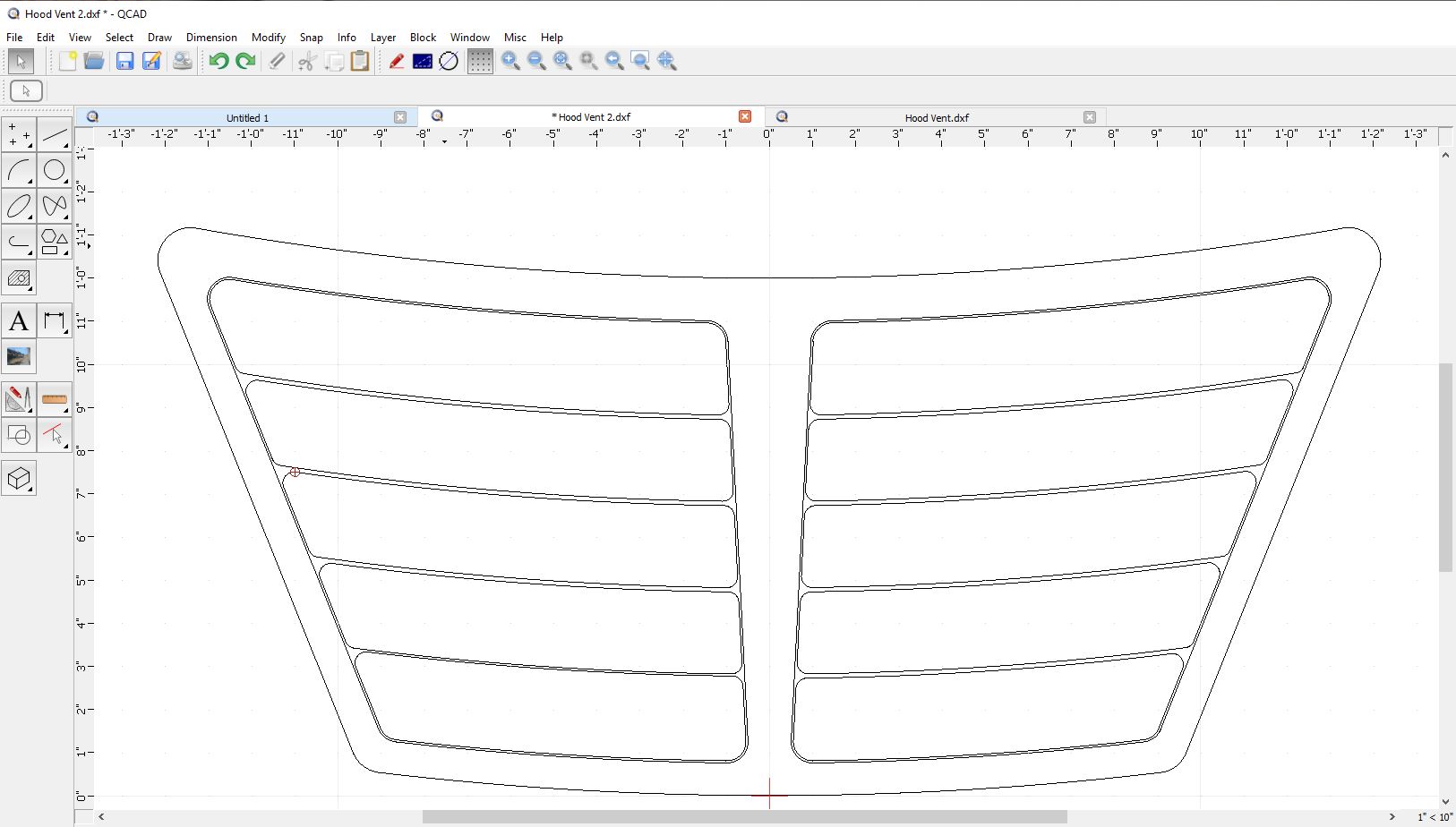

Working up a design for the hood vent. The overall shape is the same as the inner support structure. Initial thoughts are that this would be riveted to the outside of the hood as a design element.

The louvers still have to be attached in the design but in the end, they'll be rotated up to an appropriate angle.

Still lots to work out but it's a start.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post May 24 2019, 11:23 AM
Post #1632


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
I like it (IMG:style_emoticons/default/smile.gif)

Did you reference any angles on say the hood or fenders? When I had a hood vent I noticed that since whomever built it didnt reference any body lines it just didnt look right.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 24 2019, 11:40 AM
Post #1633


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Andyrew @ May 24 2019, 10:23 AM) *

I like it (IMG:style_emoticons/default/smile.gif)

Did you reference any angles on say the hood or fenders? When I had a hood vent I noticed that since whomever built it didnt reference any body lines it just didnt look right.


Yep, the curves are radius matched to the curve at the front of the hood.

I sketched various vent designs on the hood and when I got it to where I liked it, I measured everything it and this is the result.

I was planning to cut a blank and just lay it on to see how it looks and adjust as needed from there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 24 2019, 05:34 PM
Post #1634


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

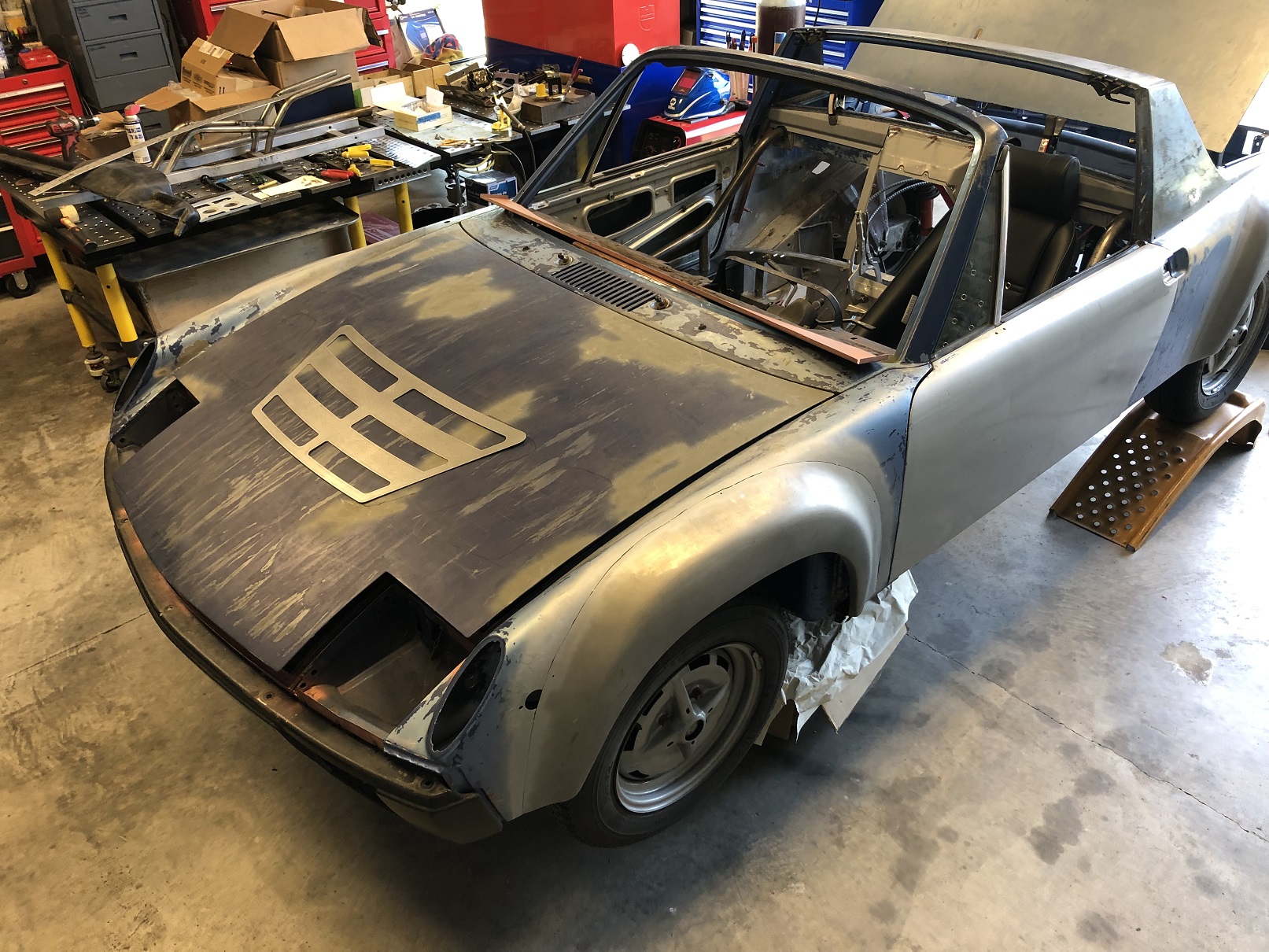

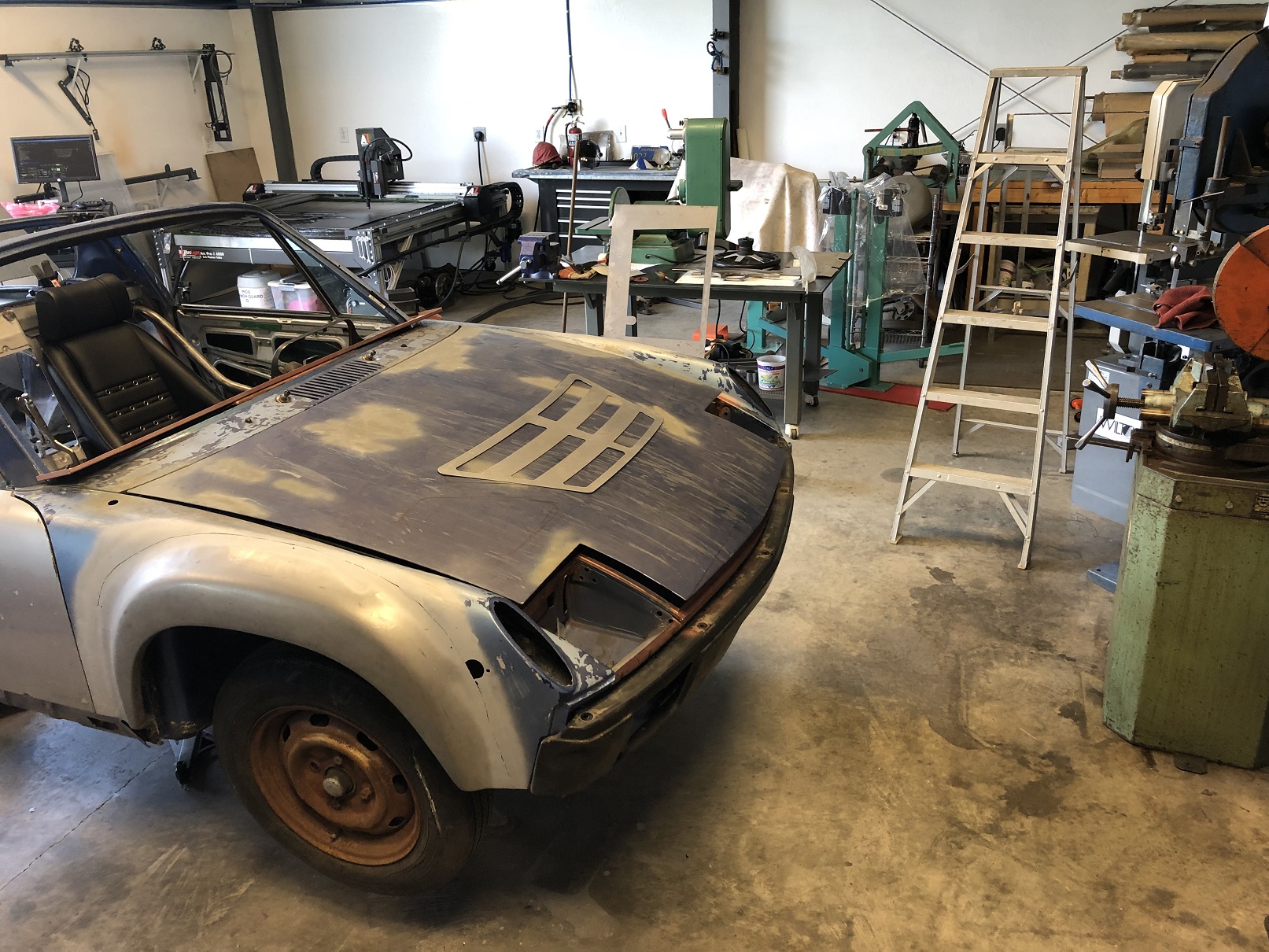

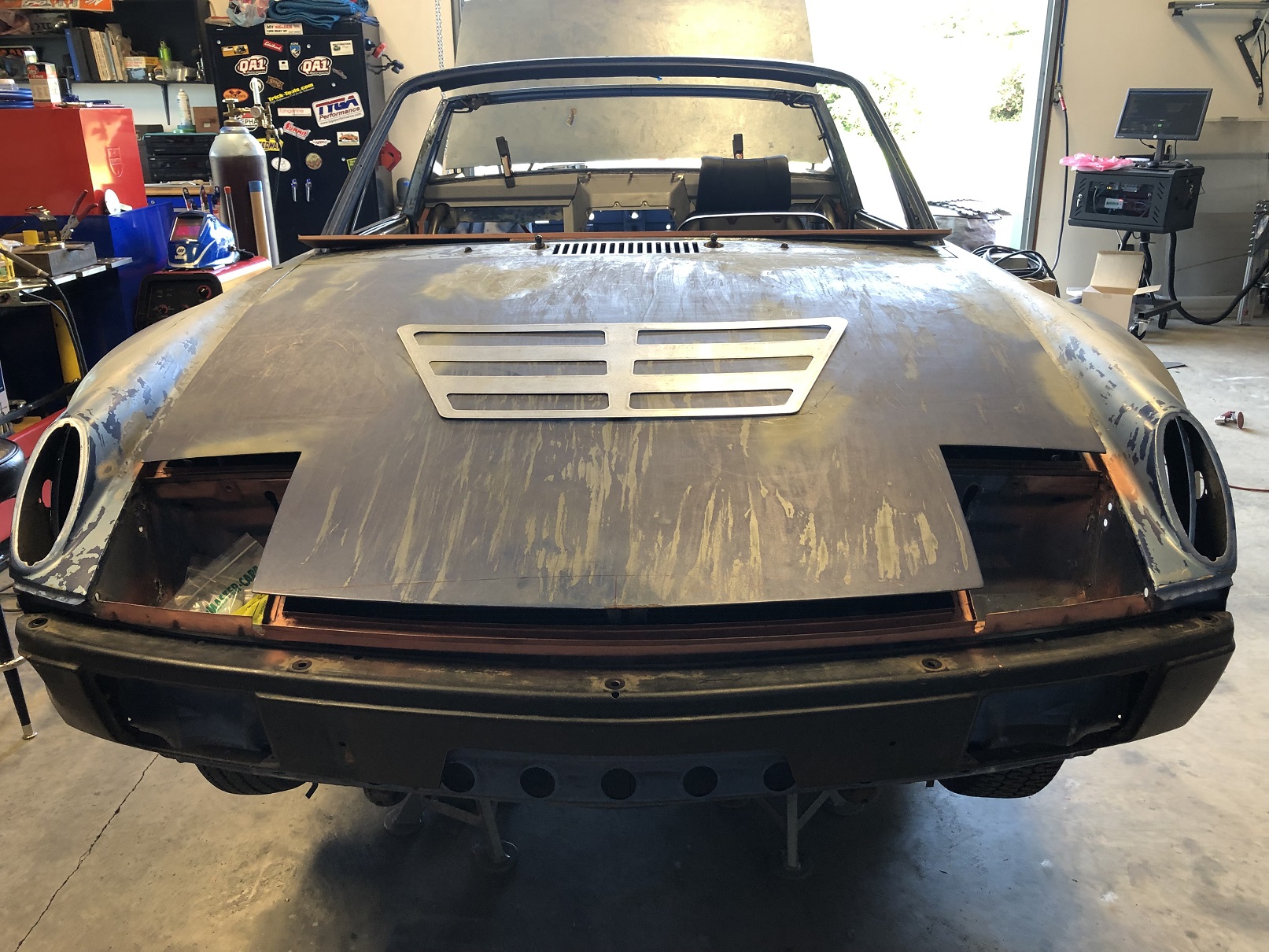

Draft cut of the hood vent, just to get a vibe on it in actual position.
I only cut out 1/2 the louvers, again, just to see what I think of the basic shape and size. I'll give it a couple days and see how I settle into it.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 24 2019, 05:37 PM
Post #1635


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Or maybe I should forgo the louvers - they're so "been there, done that", and go with a bit of doggy style! (IMG:style_emoticons/default/sheeplove.gif) (IMG:style_emoticons/default/lol-2.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markhoward
post May 24 2019, 06:04 PM
Post #1636


Member
**

Group: Members
Posts: 385
Joined: 5-March 17
From: Lafayette, CA
Member No.: 20,897
Region Association: Northern California
snoop dogg would approve!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Krieger
post May 24 2019, 11:40 PM
Post #1637


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
QUOTE(tygaboy @ May 24 2019, 04:34 PM) *

Draft cut of the hood vent, just to get a vibe on it in actual position.
I only cut out 1/2 the louvers, again, just to see what I think of the basic shape and size. I'll give it a couple days and see how I settle into it.


Dude, your car will have a nice six pack just like me! (IMG:style_emoticons/default/evilgrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post May 25 2019, 08:47 AM
Post #1638


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
I double dog dare you to go doggy style! (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
billium01
post May 25 2019, 10:31 AM
Post #1639


Member
**

Group: Members
Posts: 136
Joined: 12-April 13
Member No.: 15,764
Region Association: None
Ha! Looks good! Did you figure any calculations into the size of your arrangment? For the most part I'm just winging my radiator setup.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post May 25 2019, 12:17 PM
Post #1640


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
I am going to say just looking at the pictures, once the louvers are bent up, it will be plenty of exit area.
User is offlineProfile CardPM
