> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Jun 21 2020, 03:28 PM
Post #2721


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

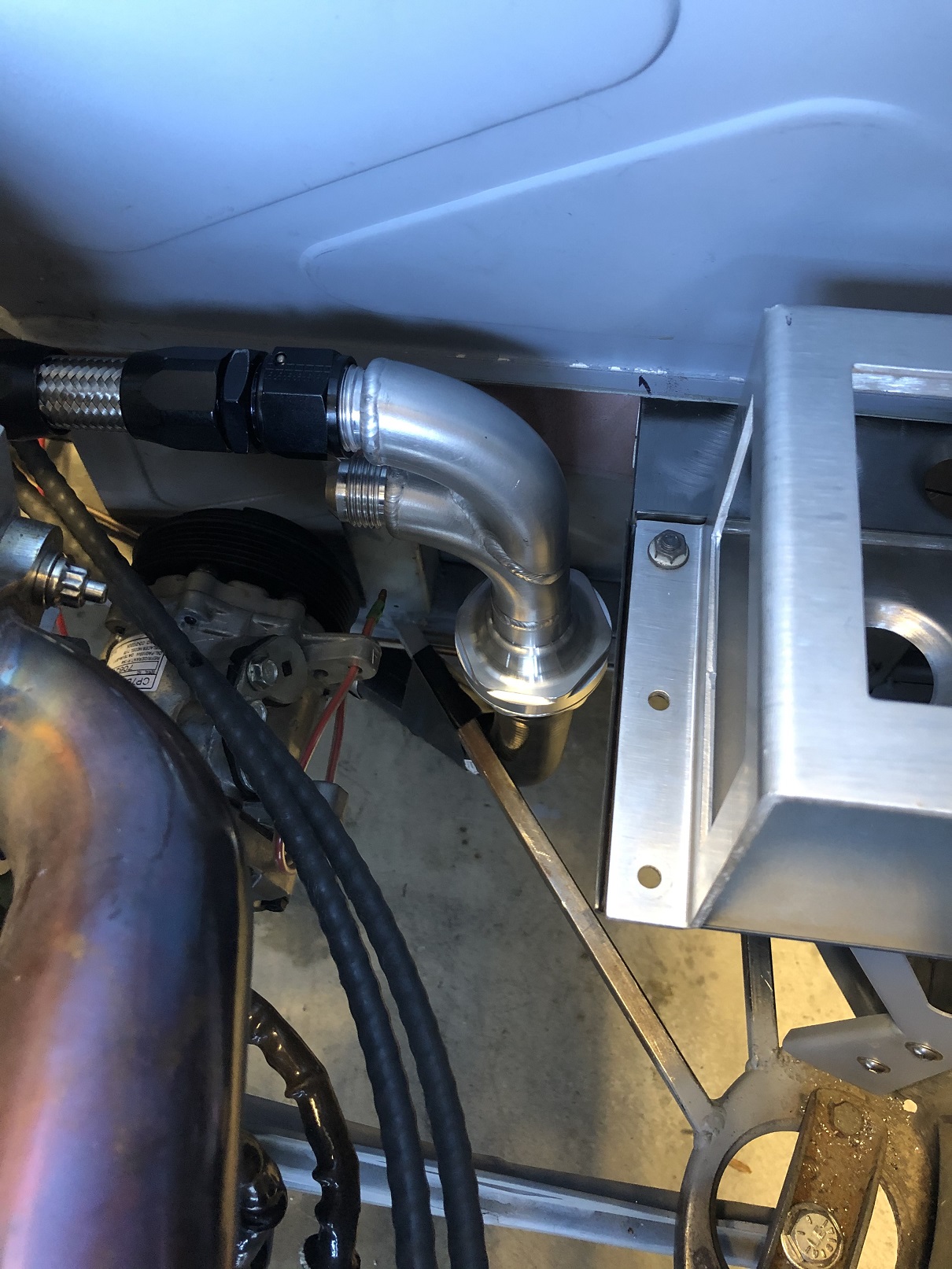

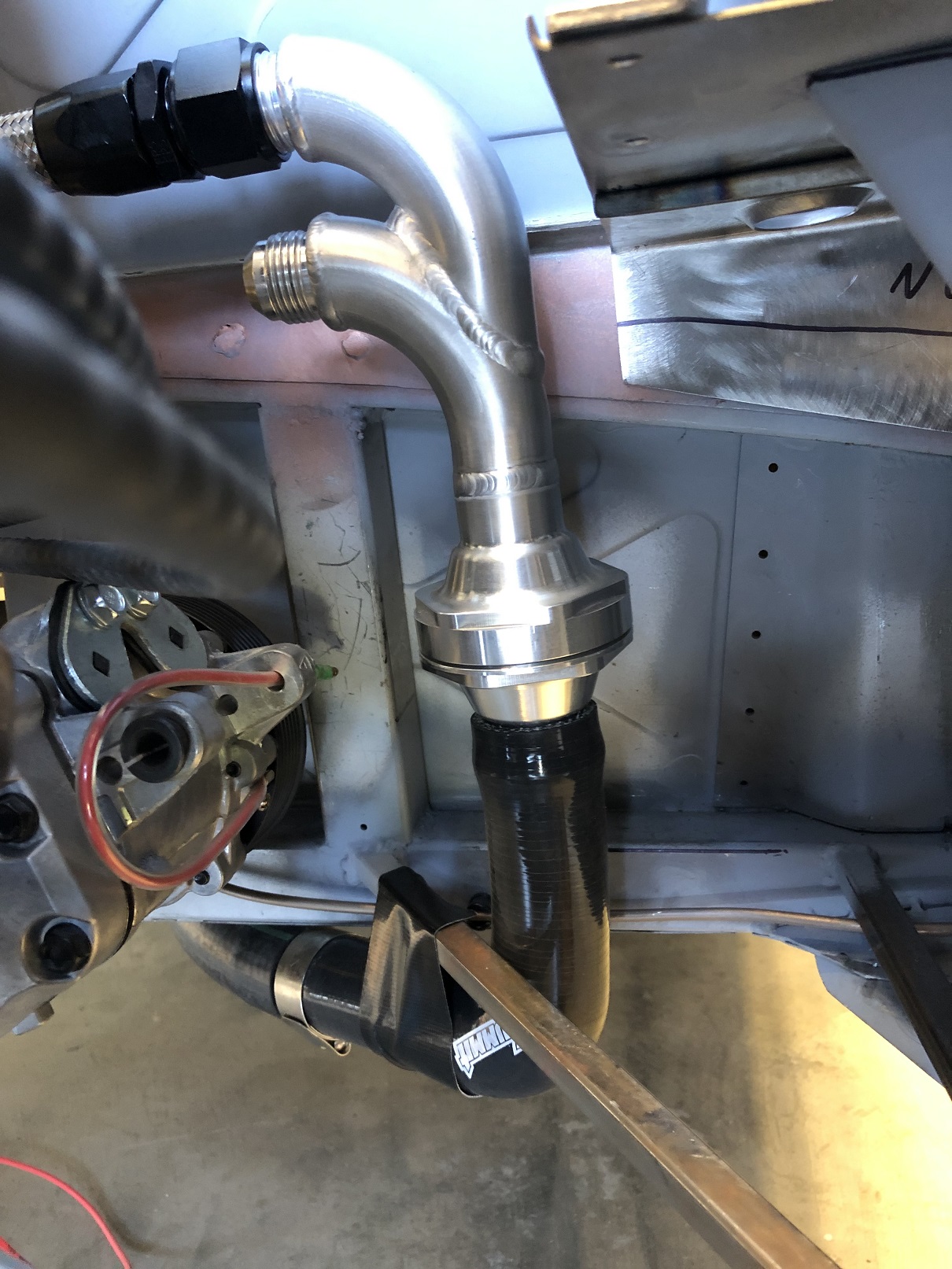

Test fitment success! Pardon my Gorilla tape mount, I need to fab another clamp to support the under-body hose.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Jun 21 2020, 03:39 PM
Post #2722


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
(IMG:style_emoticons/default/drooley.gif)

Sexy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jun 21 2020, 10:43 PM
Post #2723


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Very clean and tidy! Why don't you get a spare thermostat just in case yours fails and you can't find one for that housing in 10 years?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 22 2020, 08:13 AM
Post #2724


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Krieger @ Jun 21 2020, 09:43 PM) *

Very clean and tidy! Why don't you get a spare thermostat just in case yours fails and you can't find one for that housing in 10 years?


@Krieger Andy, the good news is that these in-line housings take standard Chevrolet thermostats so no worries about sourcing a replacement.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jun 22 2020, 09:32 AM
Post #2725


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Saweet!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Jun 22 2020, 10:05 AM
Post #2726


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
The other news is he doesnt really need one. With the electric water pump he can just shut the pump off till the car warms up. Or put it on a temp switch.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 22 2020, 04:03 PM
Post #2727


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

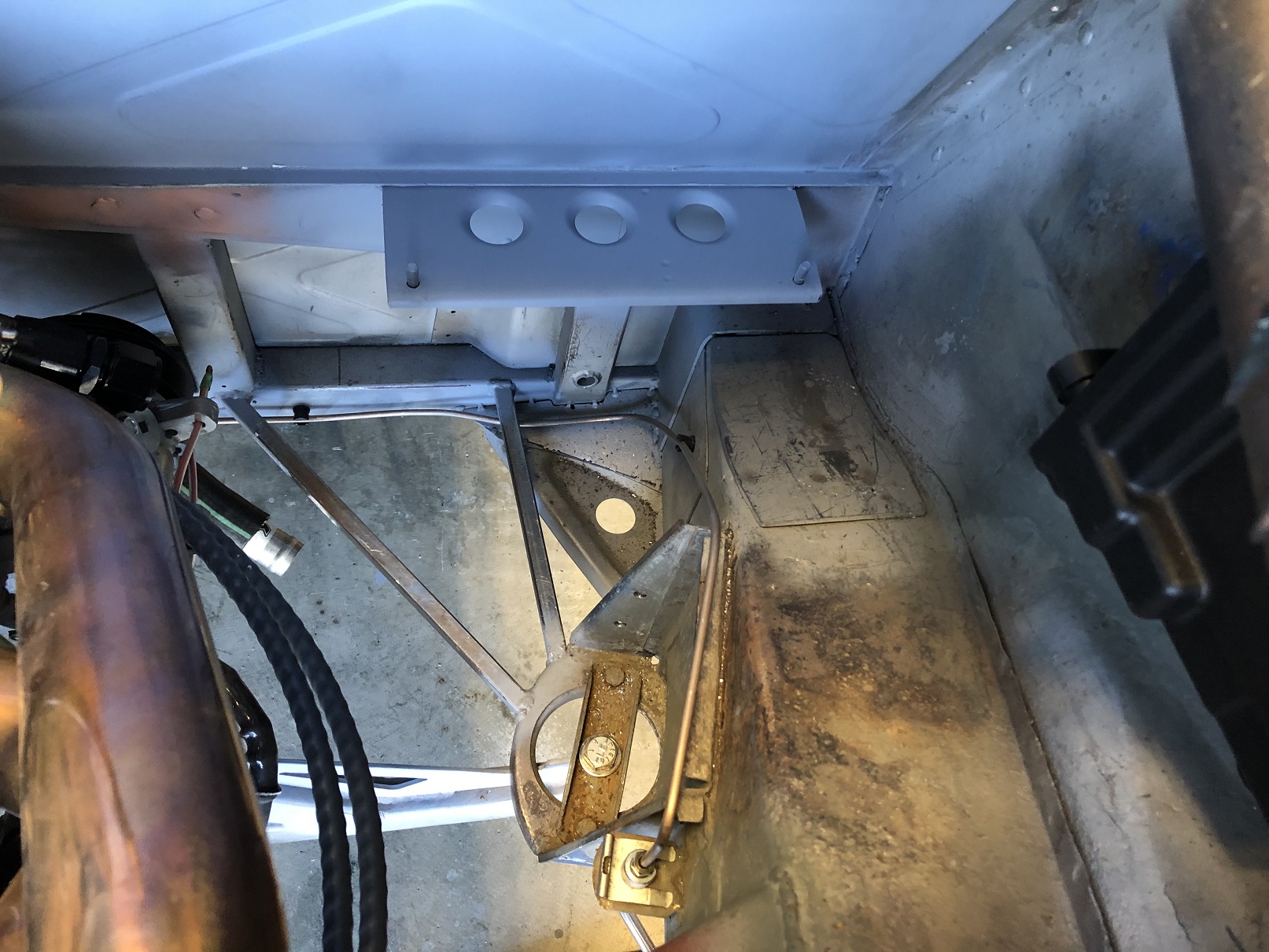

The front battery brace is plug welded to the fire wall's arched cross member.
I added a small triangular brace on the underside to provide a bit more support.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 22 2020, 04:06 PM
Post #2728


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

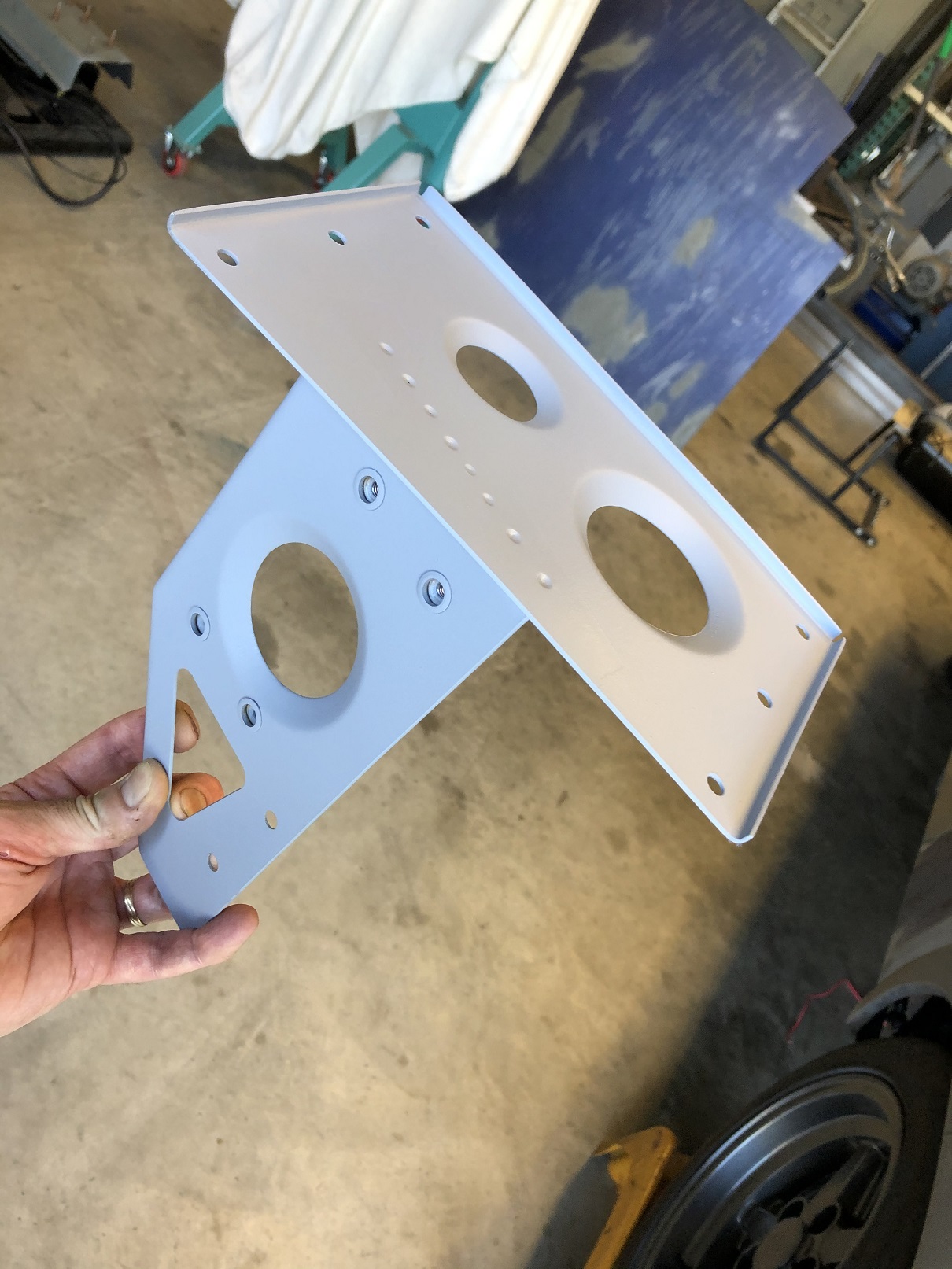

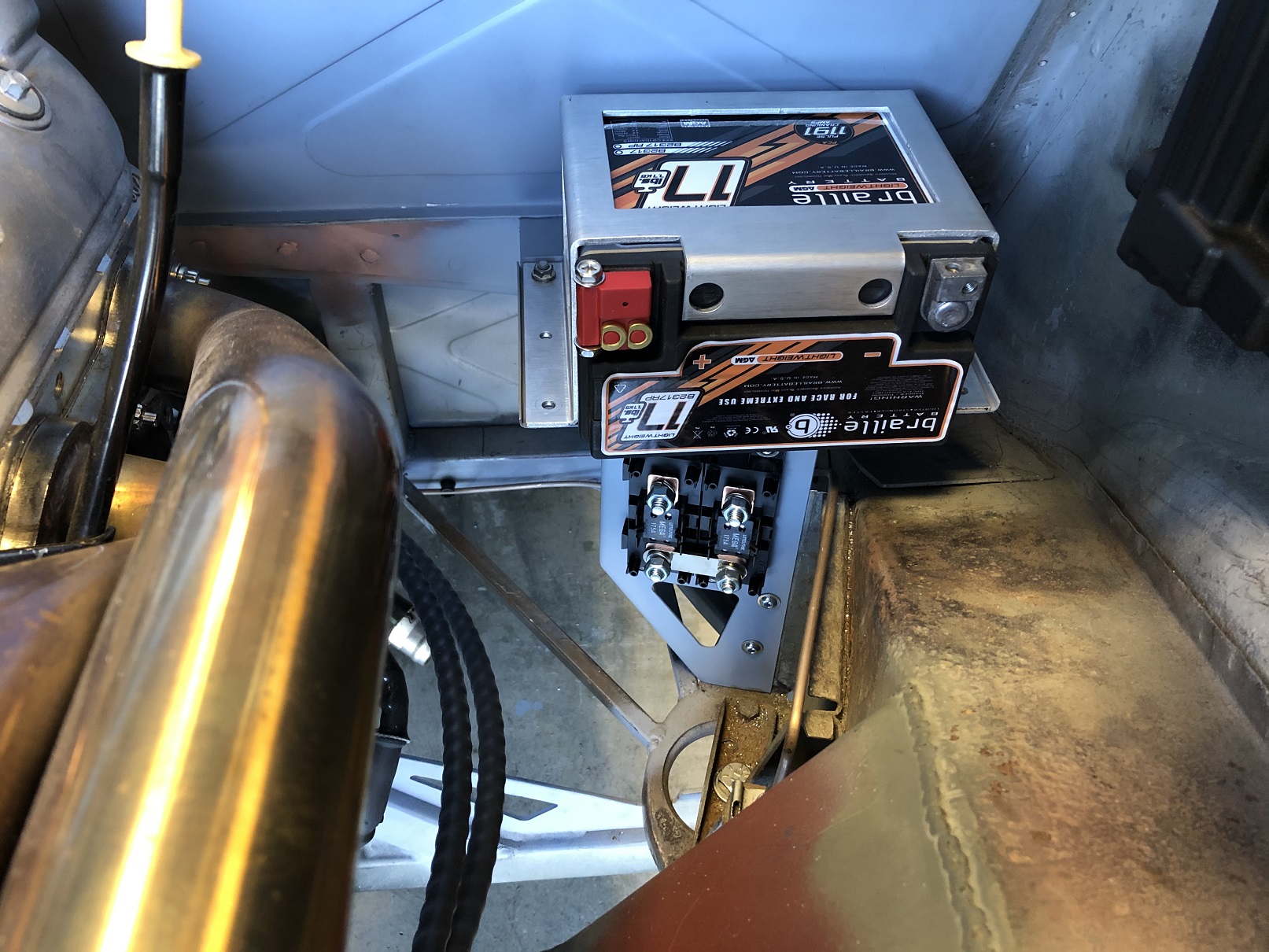

Then I realized I needed a place to mount the main harness fuses and after looking at things, I decided to redo the rear battery tray support, making it a suitable location for the fuses.
It was also an opportunity to use the spot welder. It does a great job so again, any local folks who could use it, let me know.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 22 2020, 04:08 PM
Post #2729


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

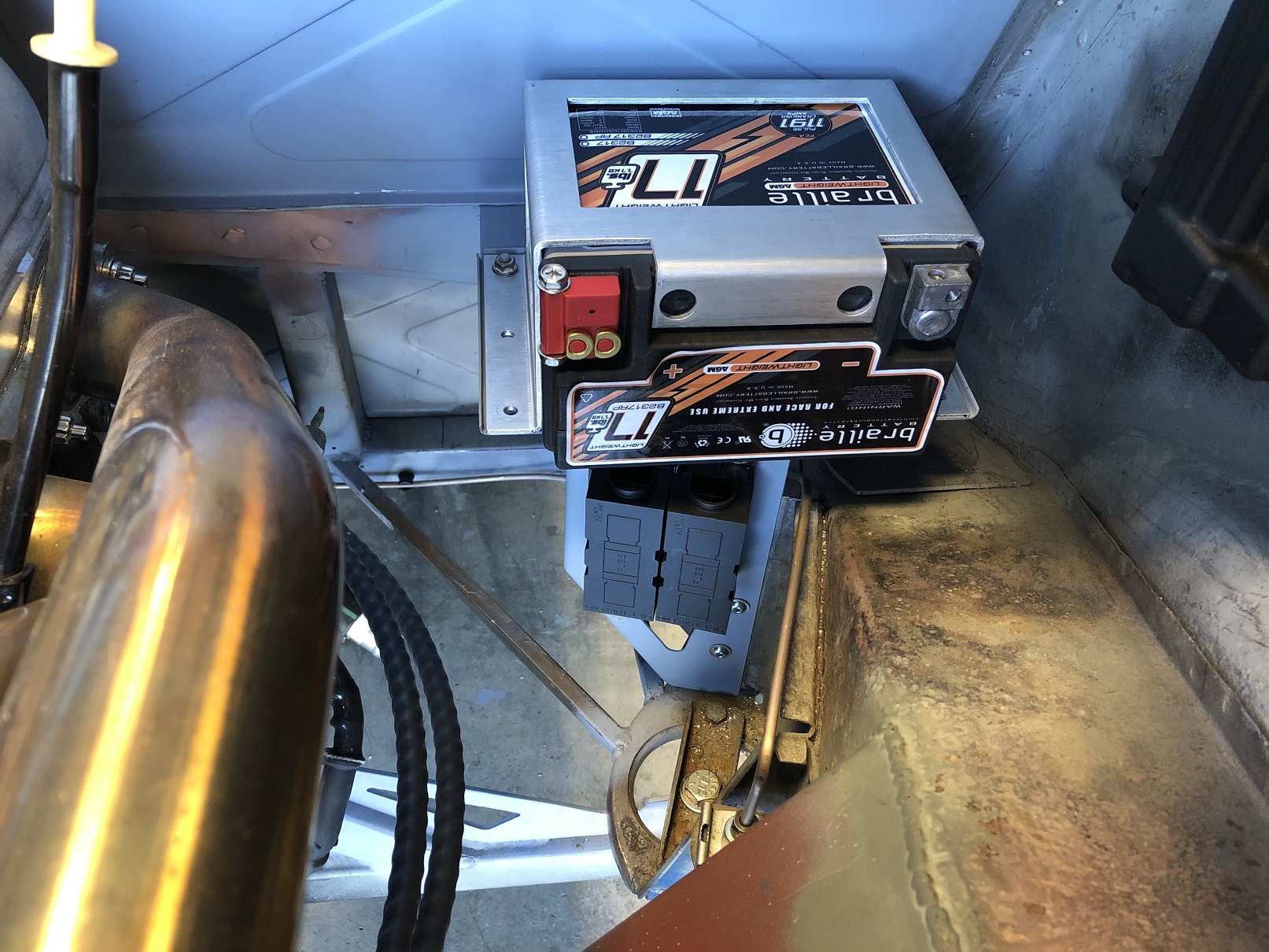

All done with everything in place, and with the fuse covers snapped on.

Time to start on the wiring...


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jun 22 2020, 05:09 PM
Post #2730


Michael
**********

Group: Members
Posts: 10,096
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
The manufacturers do not put that level of attention to detail into their designs. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 23 2020, 11:28 AM
Post #2731


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

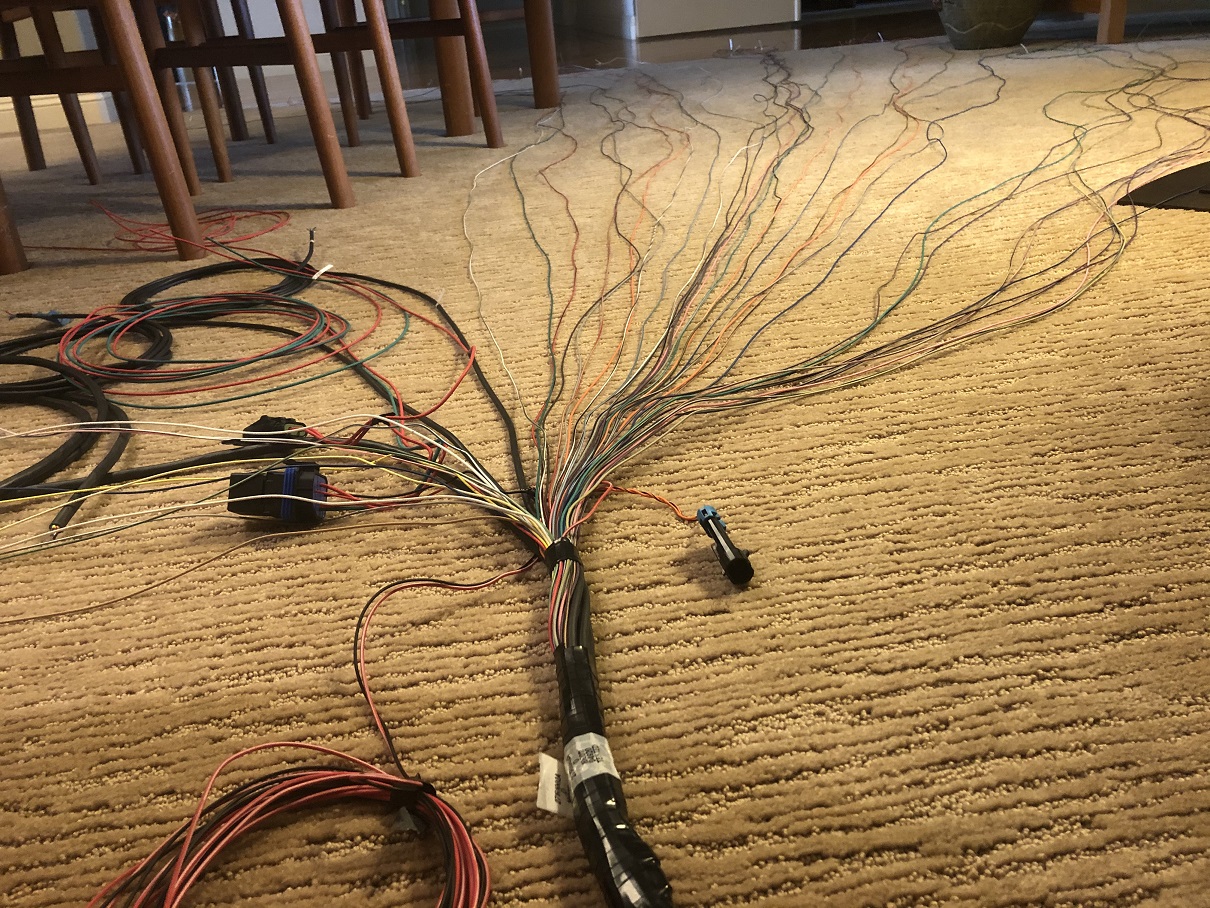

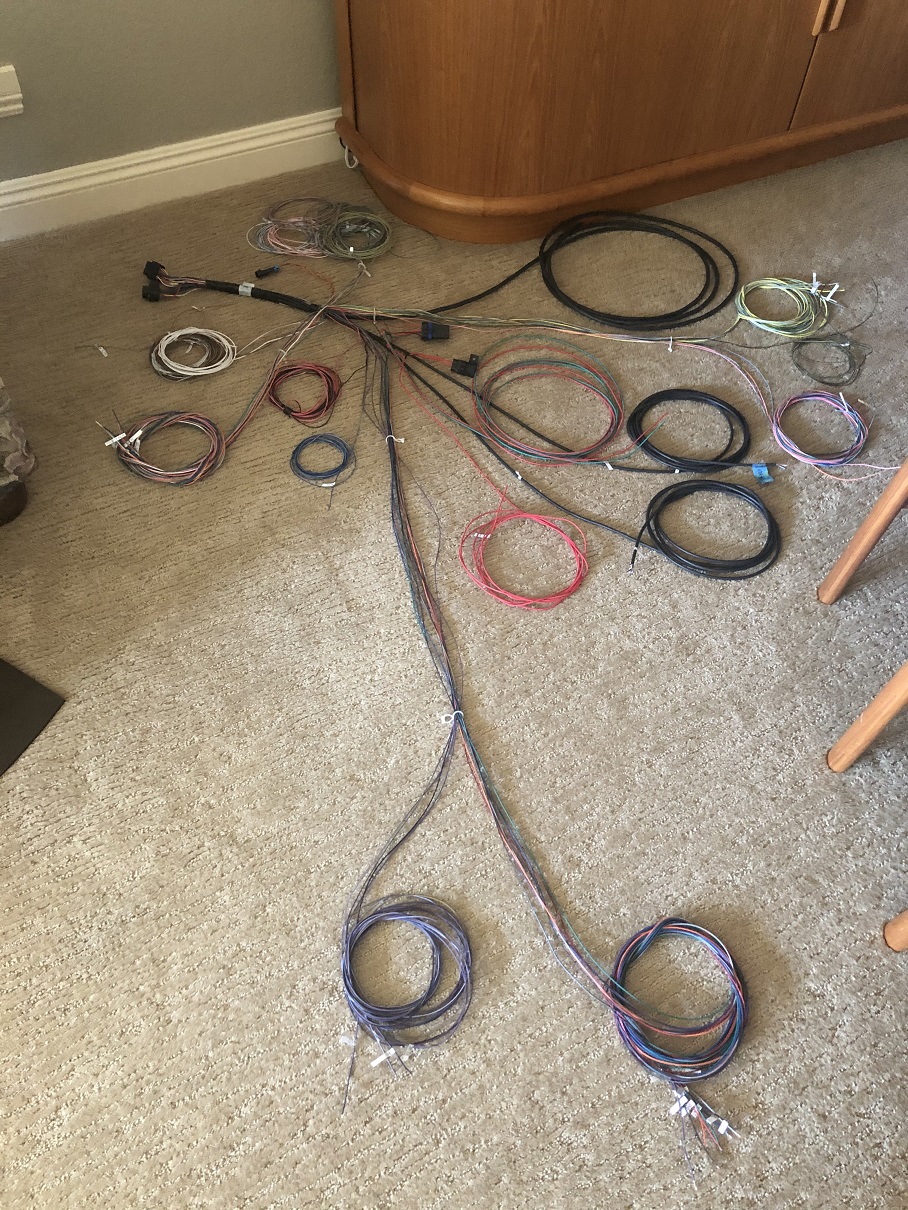

The engine harness is WAAAY too long. So with it now labeled, I split it almost completely, untangled it, then grouped the wires by sensor and/or location of sensor on the engine.

I'll secure things a bit more to make it easier to handle, plug it into the ECU and get started on routing.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 23 2020, 05:46 PM
Post #2732


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

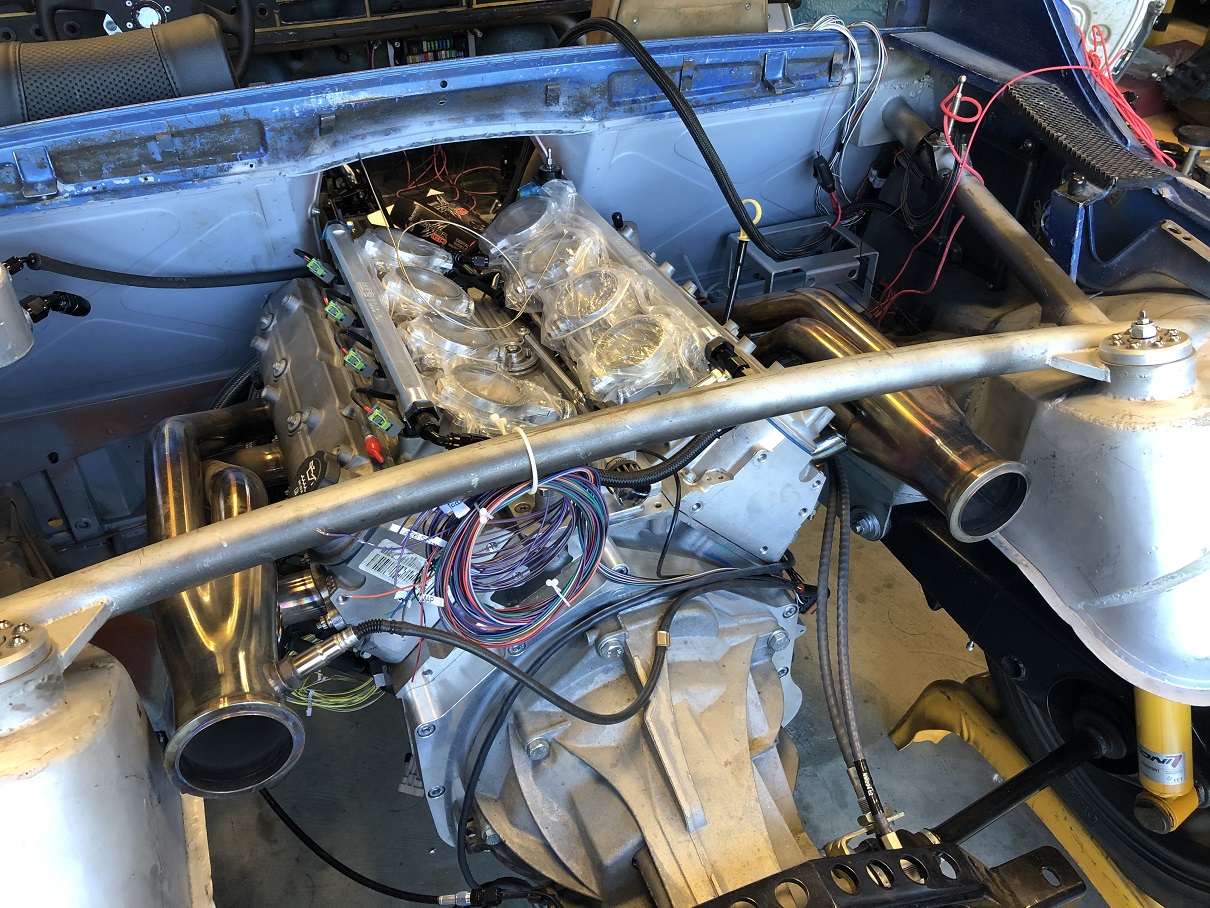

Getting the harness rough fitted wasn't as bad as I thought it might be. The part I'm happiest about is that nearly all the wiring will be hidden and all that will be visible is a small sub-harness there at the rear of the engine.

It looks messy now but once that bundle is terminated and connected, I think I can get it to be pretty tidy.

@RetroRacer Tony, I just know you're dying to come up and help! (IMG:style_emoticons/default/biggrin.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Jun 23 2020, 10:42 PM
Post #2733


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
QUOTE(tygaboy @ Jun 23 2020, 10:28 AM) *

The engine harness is WAAAY too long. So with it now labeled, I split it almost completely, untangled it, then grouped the wires by sensor and/or location of sensor on the engine.

I'll secure things a bit more to make it easier to handle, plug it into the ECU and get started on routing.

Looks like your harness was created in the Large Hadron Collider
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Jun 23 2020, 11:14 PM
Post #2734


Senior Member
***

Group: Members
Posts: 621
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
RE: Tony, I just know you're dying to come up and help!

Chris - you're making great progress! Might be time for a road trip to discuss.... will PM you,

- Tony
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 25 2020, 06:23 PM
Post #2735


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

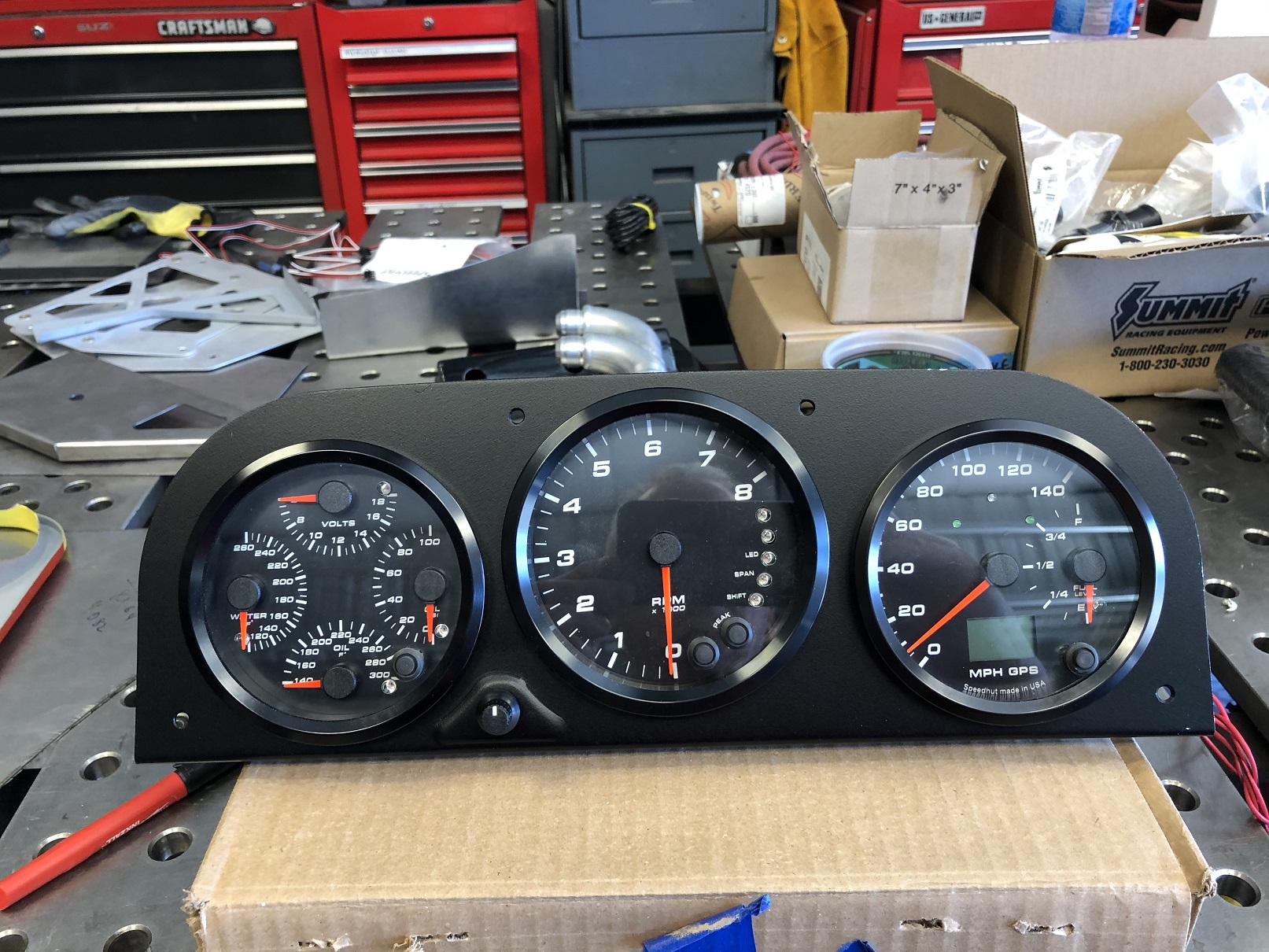

I worked up a new dash panel that now includes a neat little raised area for the gauge lighting dimmer knob. Yes, the pic is a repeat of what I posted in the "...SpeedHut gauge panel..." thread, but some of you may not have seen that. Thought you might want to see it here.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jun 25 2020, 06:24 PM
Post #2736


Michael
**********

Group: Members
Posts: 10,096
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Love it! (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 25 2020, 06:25 PM
Post #2737


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

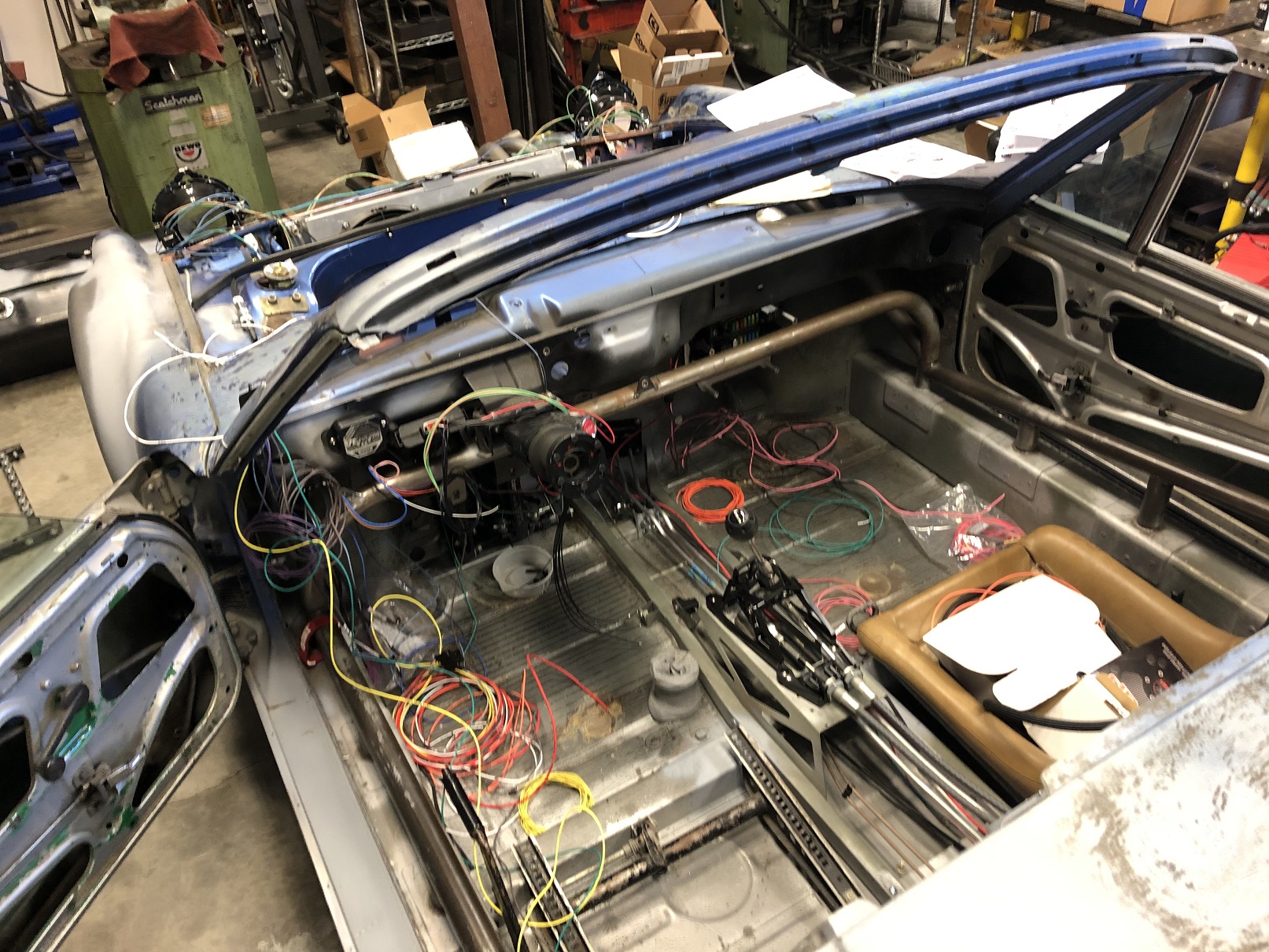

Another example of what must be a "worse before it gets better" situation.

This is my first go at building a complete electrical system and I opted for the "lay out all the wires where they need to be" approach. Clearly, I'm not quite there...!

I'll let you know if it works out! (IMG:style_emoticons/default/blink.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jun 25 2020, 08:47 PM
Post #2738


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Chris, thanks for the inspiration. With my car body off to the paint shop tomorrow, one of the next things on my list is to lay out, clean, and check the wiring harness.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 29 2020, 12:00 PM
Post #2739


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

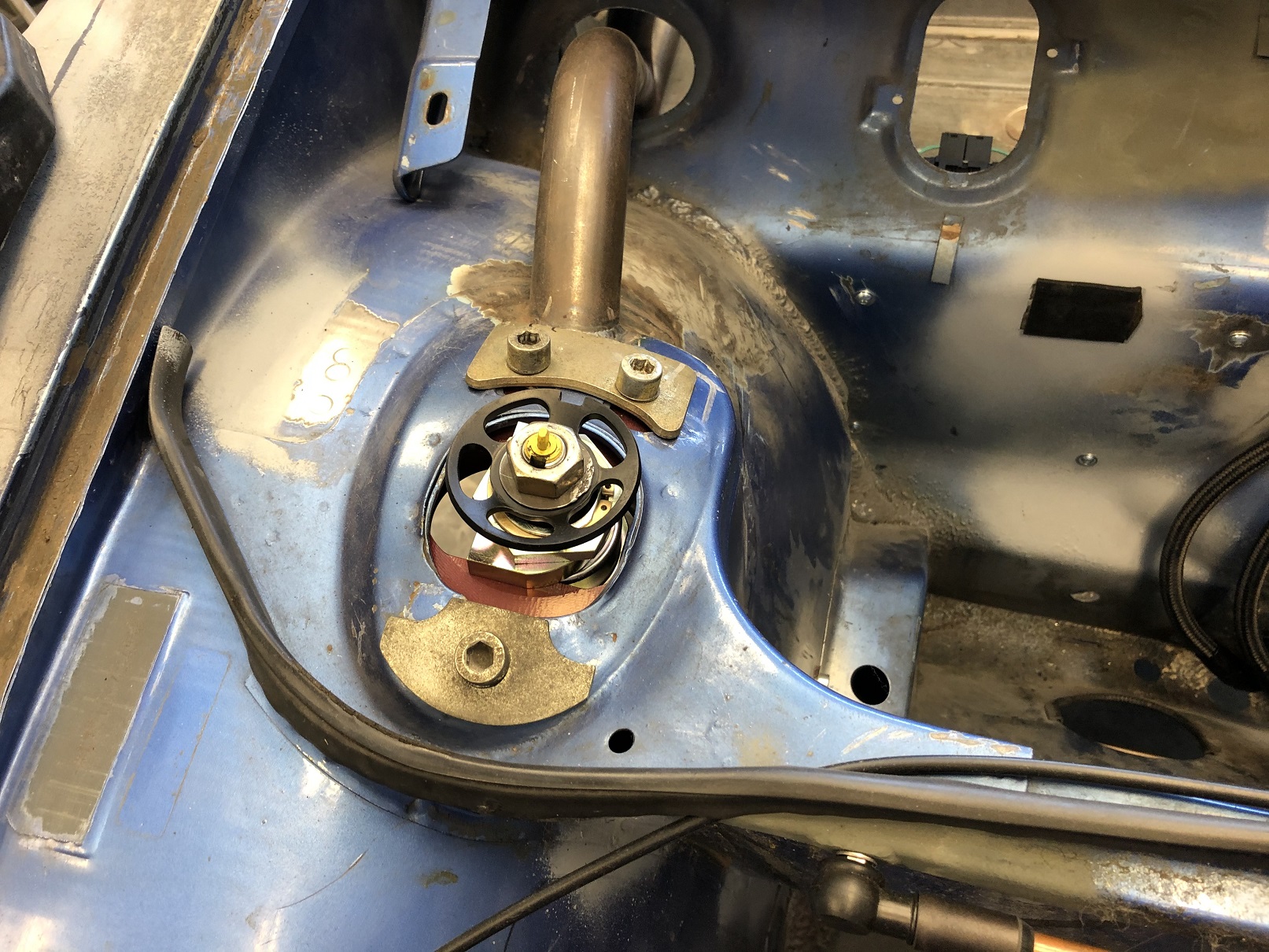

Instead of working on the wiring, I somehow got distracted by just how unattractive I found those strut top washers. They were BEGGING for some style points and for some lightness to be added.

I worked with Martin on this and V1 was trying to clamp the washer directly to the rotary table on the mill. That wasn't working so I ended up plasma cutting a couple 1/4" steel donuts that got tacked to the edge of the washers and served as a workable clamping surface. They worked perfectly! (IMG:style_emoticons/default/aktion035.gif)


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jun 29 2020, 12:01 PM
Post #2740


914 Guru
*****

Group: Members
Posts: 5,454
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

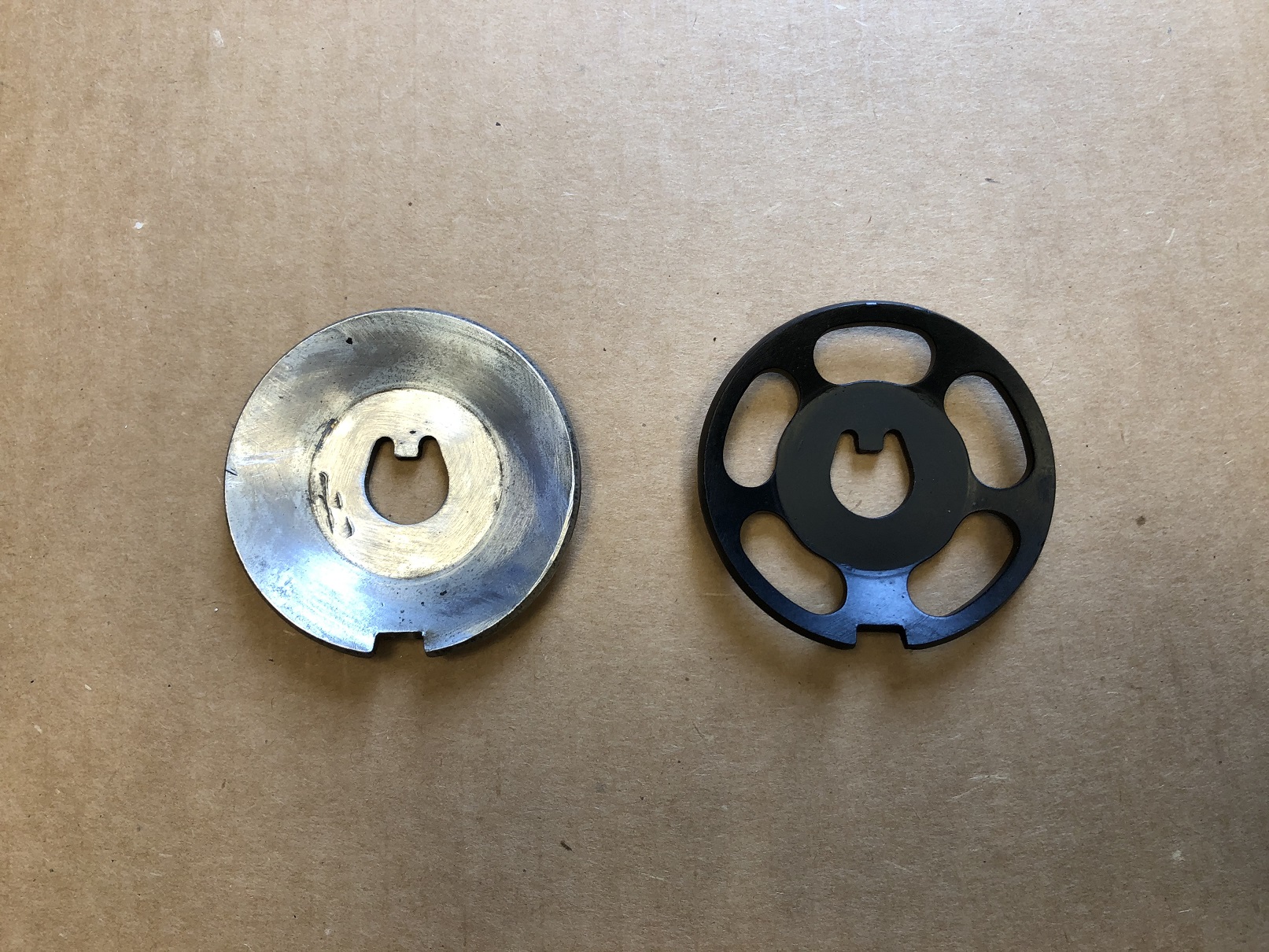

Before and after.

Sorry @Rand , I just can't seem to focus on "get it running, then worry about the fancy stuff."

But I do have to say, they look pretty cool and I love the way the Elephant camber plates can now peek through.

OK, I'm back to the wiring, I promise.


Attached thumbnail(s)
Attached Image Attached Image
