> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
914forme
post Aug 1 2020, 07:57 PM
Post #2801


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Uh Chris, your relays are so old school.

Here to help Try these
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
db9146
post Aug 1 2020, 08:49 PM
Post #2802


Senior Member
***

Group: Members
Posts: 953
Joined: 21-December 04
From: Atlanta, GA
Member No.: 3,315
Region Association: None
I used that set-up when I added FI to the engine in my -6. They work great, are small, and easily wired.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 1 2020, 09:33 PM
Post #2803


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(914forme @ Aug 1 2020, 06:57 PM) *

Uh Chris, your relays are so old school.

Here to help Try these

@914forme - Stephen, I'm a total newbie when it comes to all this electronics stuff and the guy helping me with the Arduino took care of ordering all the parts, incl. the relays. I'm quickly coming up to speed, but certainly have a way to go. So:

For my application, I need 8 relays. The only "nice" relay panels I seem to be able to find, like the one you pointed me to, all have spots for fuses, which I don't need or want, given I'm trying to conserve space.

Do you know of an 8 or 10 relay panel that's JUST for relays? I've searched the best I can but so far, all I find are the relay/fuse combos.

Continued help appreciated.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Aug 2 2020, 06:14 AM
Post #2804


Its alive
****

Group: Members
Posts: 4,814
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
Hey Chris! Didn’t mean to be the bearer of doom...busy weekend though, I’ll give you a ring Monday.

This think can fit 10 micro relays. I’ve used them a few times and been happy.

https://www.waytekwire.com/item/46357/EATON...-2-0-1-0A-RFRM/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Aug 2 2020, 06:53 PM
Post #2805


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
(IMG:style_emoticons/default/agree.gif)

@Tygaboy Chris, Yes that would be the one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ssuperflyoldguy
post Aug 2 2020, 10:31 PM
Post #2806


Member
**

Group: Members
Posts: 173
Joined: 15-November 15
From: NorCal - East Bay Baby!
Member No.: 19,364
Region Association: None
"and any other tool whores looking for a neat item:
Here's the kit I went with. Note I am a total wiring novice so there may be better/more appropriate items available...
[/quote]


This Certified xxxx-whore has been pushing PowerProbe for years, wish I got commission on every sale
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 8 2020, 09:10 AM
Post #2807


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

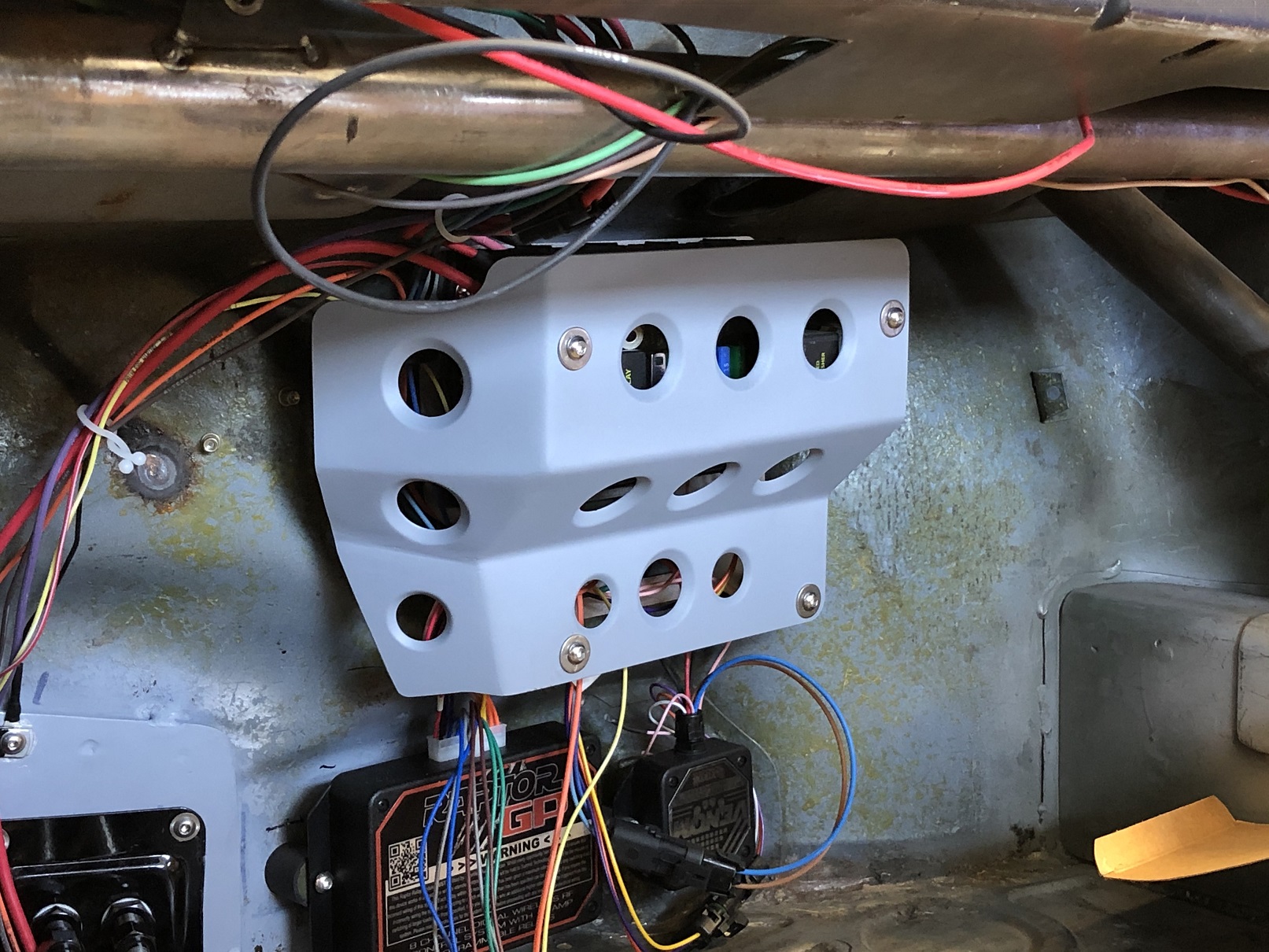

Mess 'o wires got you down? No problem - just hide them!

I worked up an initial version of a fuse panel cover. Only took three tries to get the bends to work out and have all the mounting holes align! (IMG:style_emoticons/default/laugh.gif)

One plane on the left side (out of view in this pic) couldn't be formed as part of the main panel so I'll fab that and weld it in. Pics once that's done. Then it's on to making a foot rest that ties from the floor up to the lower mounts of this cover.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sb914
post Aug 8 2020, 09:28 AM
Post #2808


Surf Guru
****

Group: Members
Posts: 4,399
Joined: 25-November 12
From: Brookings,Oregon
Member No.: 15,191
Region Association: Southern California
I get to see this car next weekend... (IMG:style_emoticons/default/piratenanner.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 8 2020, 01:56 PM
Post #2809


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

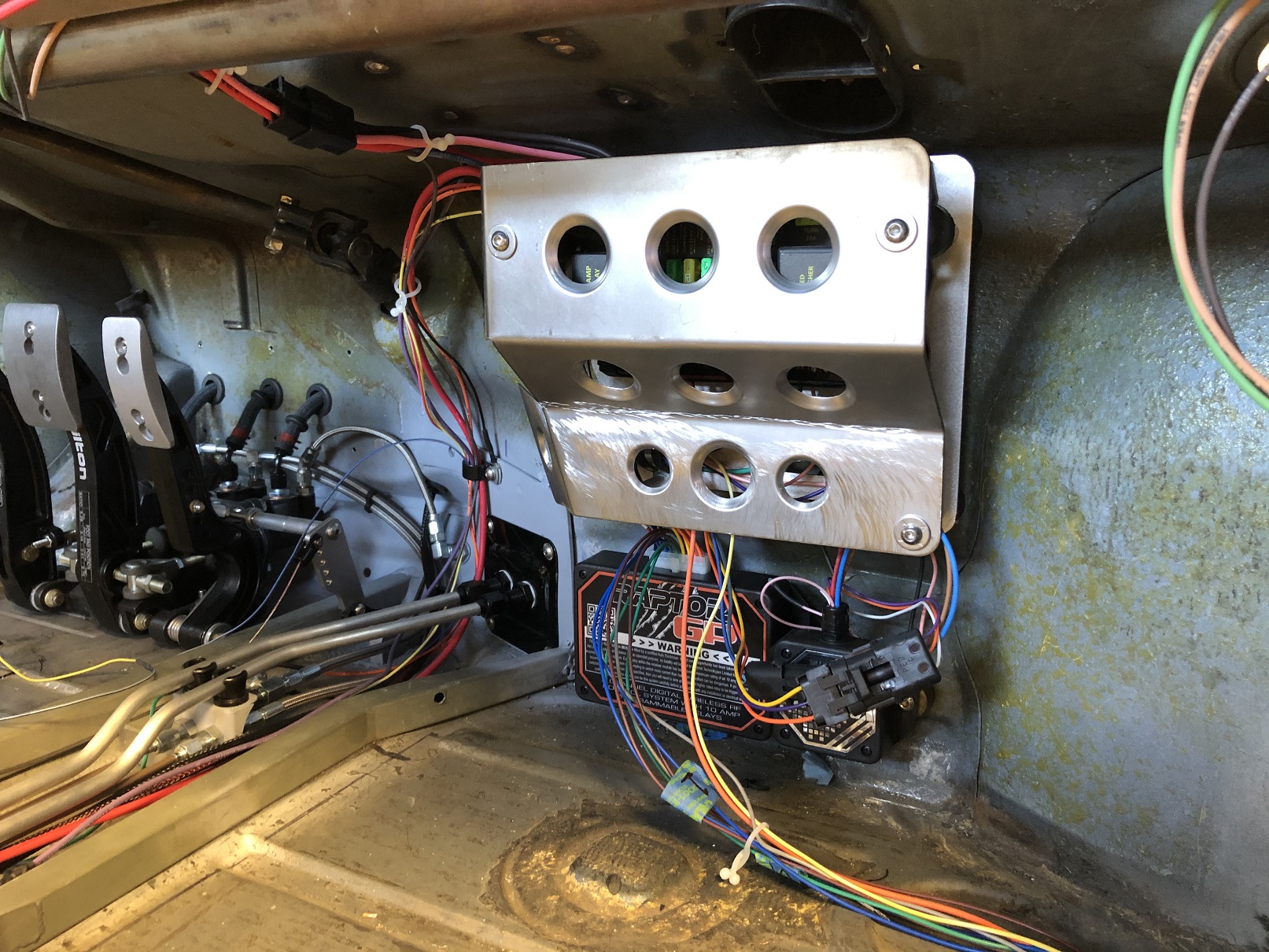

And here's the whole contraption in place. I need to get back to focusing on things that'll make it run.
I'm targeting Sept for its maiden voyage under its own power. (IMG:style_emoticons/default/driving.gif) Wish me luck!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Aug 8 2020, 02:27 PM
Post #2810


Senior Member
***

Group: Members
Posts: 555
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region
QUOTE(tygaboy @ Aug 8 2020, 03:56 PM) *

And here's the whole contraption in place. I need to get back to focusing on things that'll make it run.
I'm targeting Sept for its maiden voyage under its own power. (IMG:style_emoticons/default/driving.gif) Wish me luck!

Wow, very slick!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wysri9
post Aug 10 2020, 12:26 AM
Post #2811


Member
**

Group: Members
Posts: 199
Joined: 23-August 13
From: Aberdeen, Scotland
Member No.: 16,291
Region Association: England
QUOTE(tygaboy @ Aug 1 2020, 07:33 PM) *

QUOTE(914forme @ Aug 1 2020, 06:57 PM) *

Uh Chris, your relays are so old school.

Here to help Try these

@914forme - Stephen, I'm a total newbie when it comes to all this electronics stuff and the guy helping me with the Arduino took care of ordering all the parts, incl. the relays. I'm quickly coming up to speed, but certainly have a way to go. So:

For my application, I need 8 relays. The only "nice" relay panels I seem to be able to find, like the one you pointed me to, all have spots for fuses, which I don't need or want, given I'm trying to conserve space.

Do you know of an 8 or 10 relay panel that's JUST for relays? I've searched the best I can but so far, all I find are the relay/fuse combos.

Continued help appreciated.


I used this range
https://www.12voltplanet.co.uk/mounting-bra...lar-system.html

Not sure if it is available in the states.

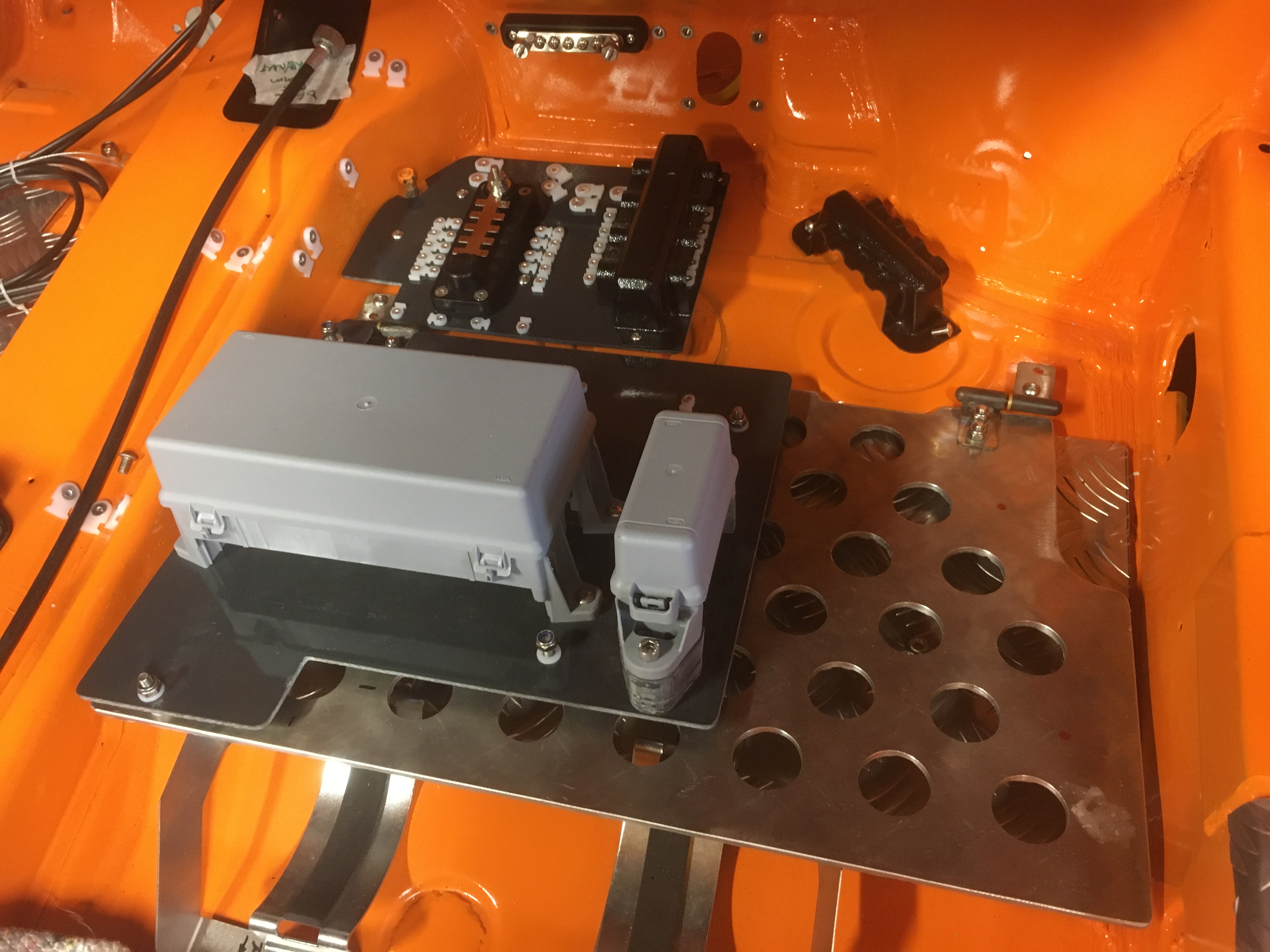

Here is a pic of my install in progress....


Attached Image

The electrics are centred underneath a hinged passenger side footplate.

You can see more in my Scottish Reincarnation thread.

Loving your build - oh for those fab skills......
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 10 2020, 09:09 AM
Post #2812


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
@wysri9 @914forme @jd74914 - Thanks for the info, guys. As mentioned, I'm still early in my electrical learning curve. My requirement is for a panel that supports 8 - 10 relays while being as small as possible - and I don't need add'l fuses. After a bit of searching, it seems I'm best off building what I want from a base starting point.

I found the Bussman 15310. It's a 60 position panel that can be configured to support just what I need, with room to expand, should that need arise.

I happily confess I wasn't aware of the Micro and Ultra Micro relays and what they mean to the overall size of the final unit. It seems I can get what I need in a ~ 5" x 3.5" x 2.75" box. Yes, it'll sit taller once mounted with space for the harness, but it looks like my best option.

Critiques and guidance appreciated, as always.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Aug 10 2020, 12:19 PM
Post #2813


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
More progress. Maybe not exciting to some of you, but VERY exciting to me as my build shows additional signs of life after all this time.

And ignore my comment about what the oil pressure gauge does. I had neglected to plug it into the harness. Once plugged in, it doesn't jump to full reading when first powered up.


https://www.youtube.com/watch?v=_6bDw49JNjw
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Aug 10 2020, 09:32 PM
Post #2814


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
All those wires make my head hurt (IMG:style_emoticons/default/wink.gif)
That Power Probe really saved me a ton of headache, THANK YOU for the information.
Looking Good.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Aug 10 2020, 10:06 PM
Post #2815


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Nice! Keep crossing all those little details off your list!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 11 2020, 06:50 AM
Post #2816


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
(IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Aug 11 2020, 08:22 AM
Post #2817


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Love the progress!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FL000
post Aug 11 2020, 11:24 AM
Post #2818


Member
**

Group: Members
Posts: 425
Joined: 31-January 12
From: Lancaster, CA
Member No.: 14,076
Region Association: Southern California
That is some high tech stuff you got going on there! The steering wheel controls will be slick.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Aug 11 2020, 03:01 PM
Post #2819


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
(IMG:style_emoticons/default/poke.gif) You're having entirely too much fun. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Aug 11 2020, 09:49 PM
Post #2820


914 Neferati
*****

Group: Members
Posts: 5,091
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Are you going to compile an owner's manual so you'll know what's what when you're old and feeble? (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
