> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
djway
post Nov 17 2020, 08:24 PM
Post #3181


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
Have you calculated the opening area this design provides you in square inches, compared that to the radiator area and then allow for thermal expansion?
In relation to articulated motorized vents, have you considered getting a Gyro system and using that along with the motorized vents to keep front end lift down? You know this things going to fly (IMG:style_emoticons/default/smile.gif) Elon is having a gyro sale.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Nov 18 2020, 08:12 AM
Post #3182


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
V9 looks much better. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 18 2020, 03:24 PM
Post #3183


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

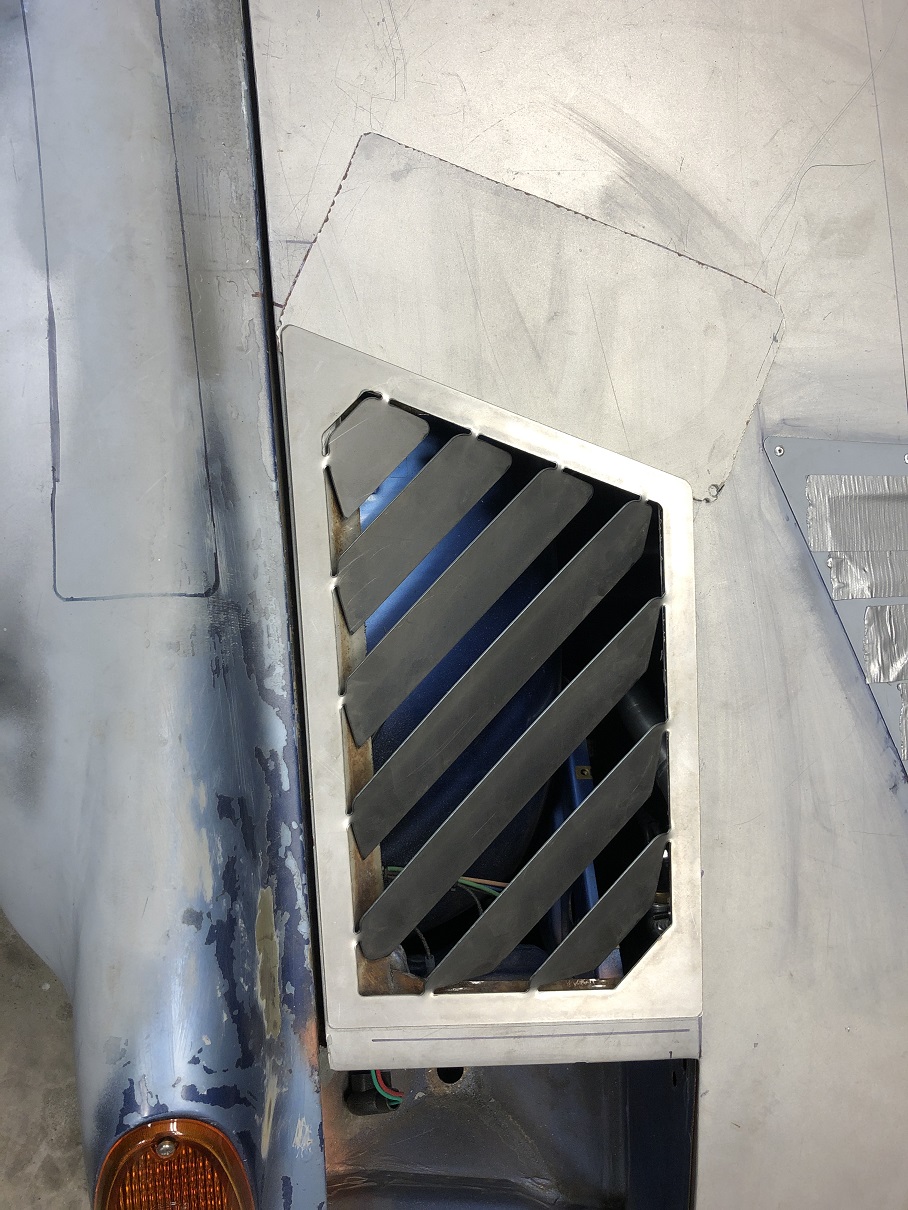

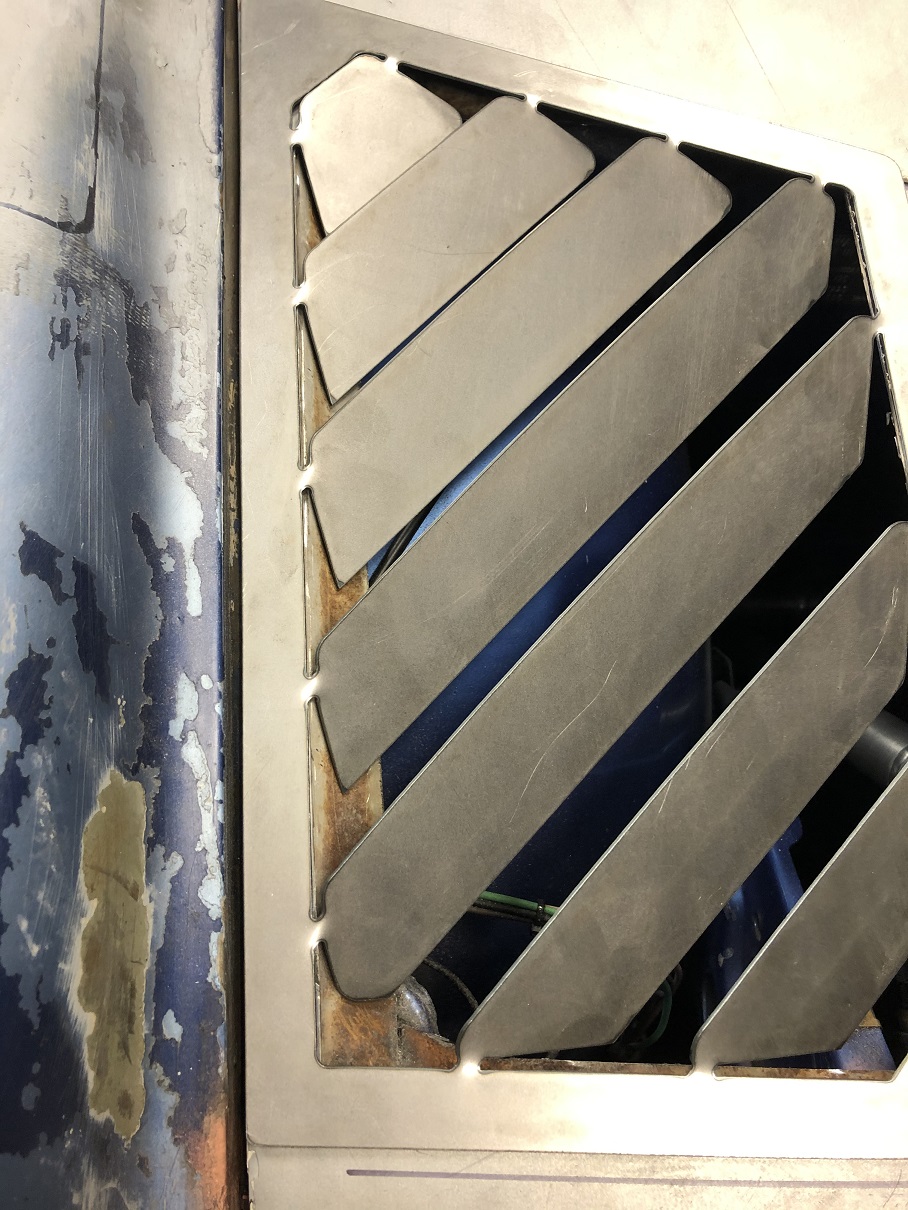

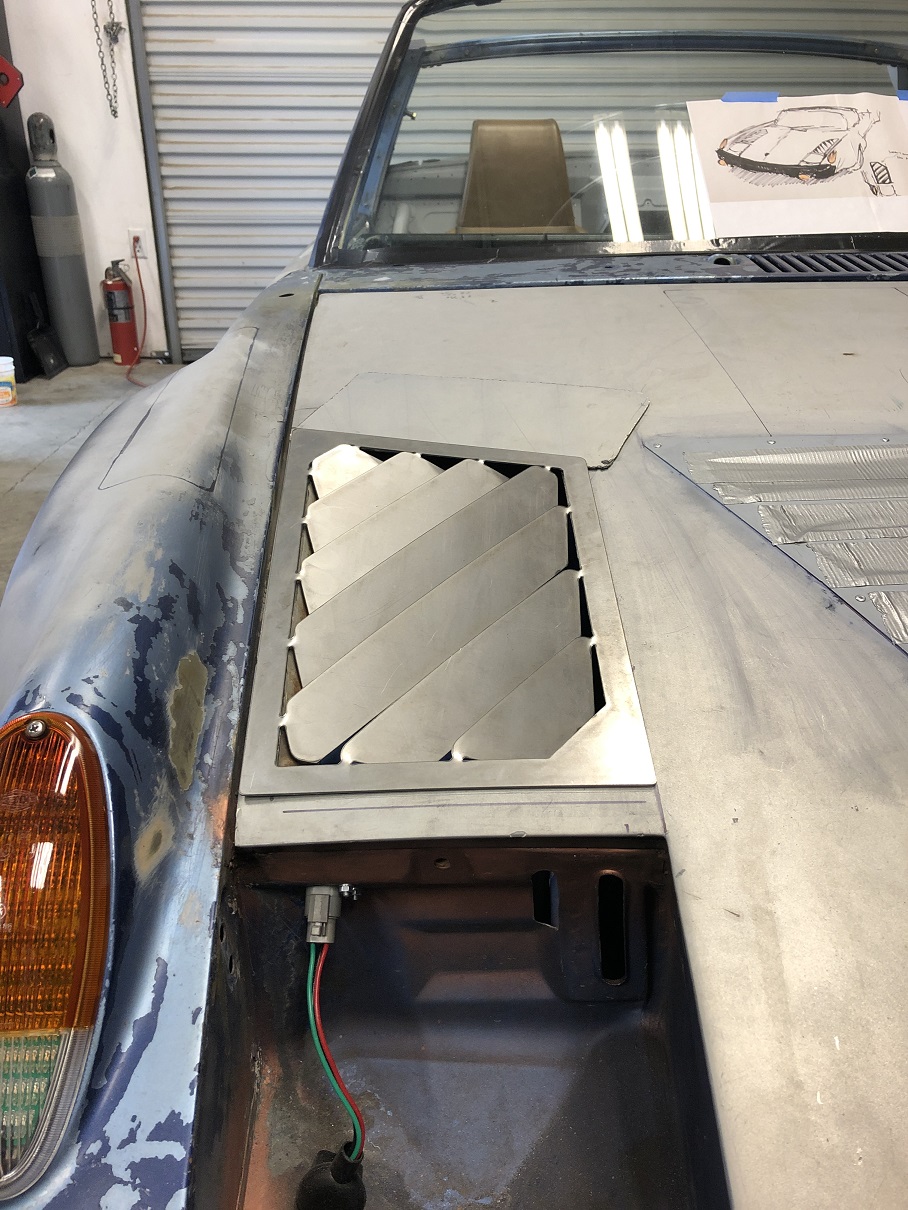

V9 in real life. After working with this "bend-a-vent" design, I think this is about as good a result as I'm going to get. And I think it'll work. I will do a final tweak on the outer edge of the vents where they need to clear the hood support structure. You can see I got pretty close. I'm also going to widen the frame a teeny bit, too.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 18 2020, 03:29 PM
Post #3184


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

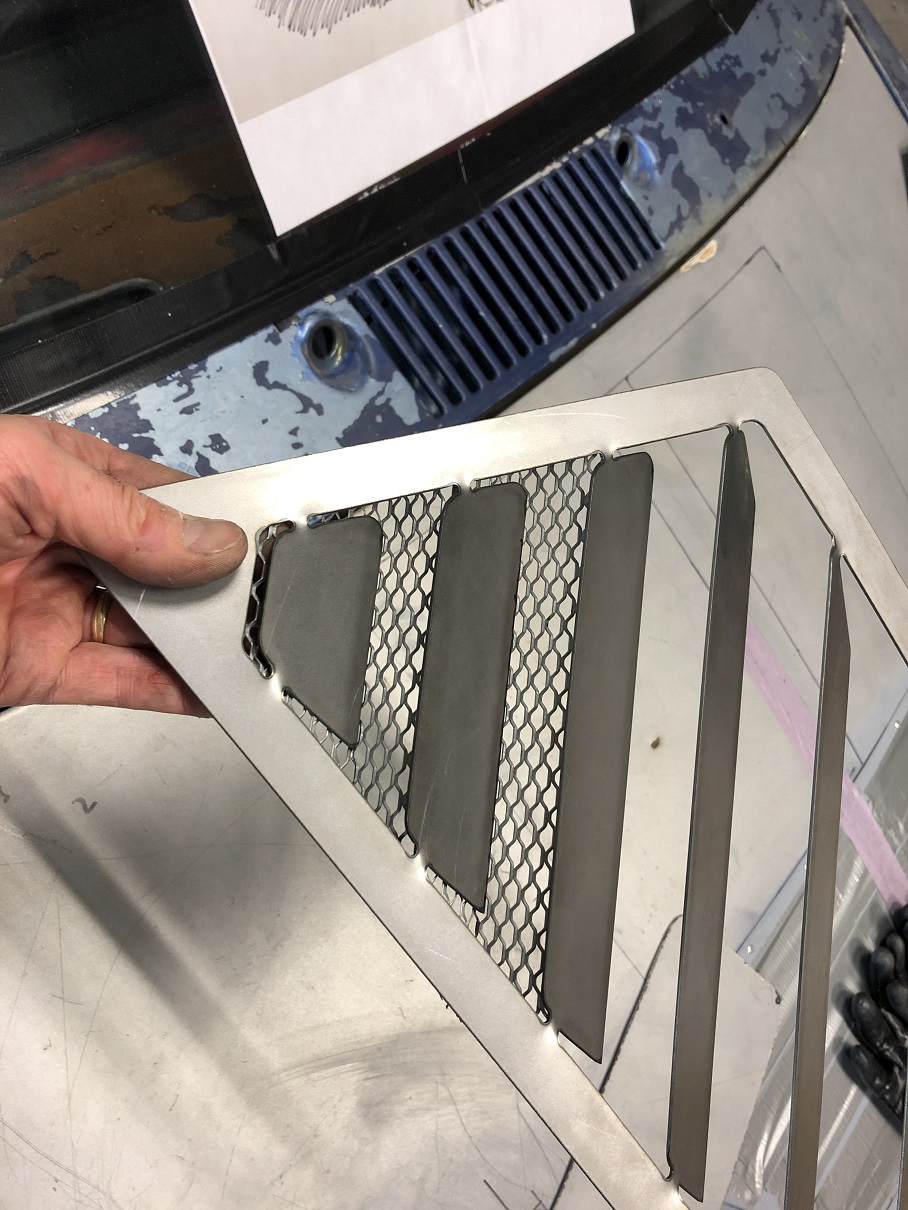

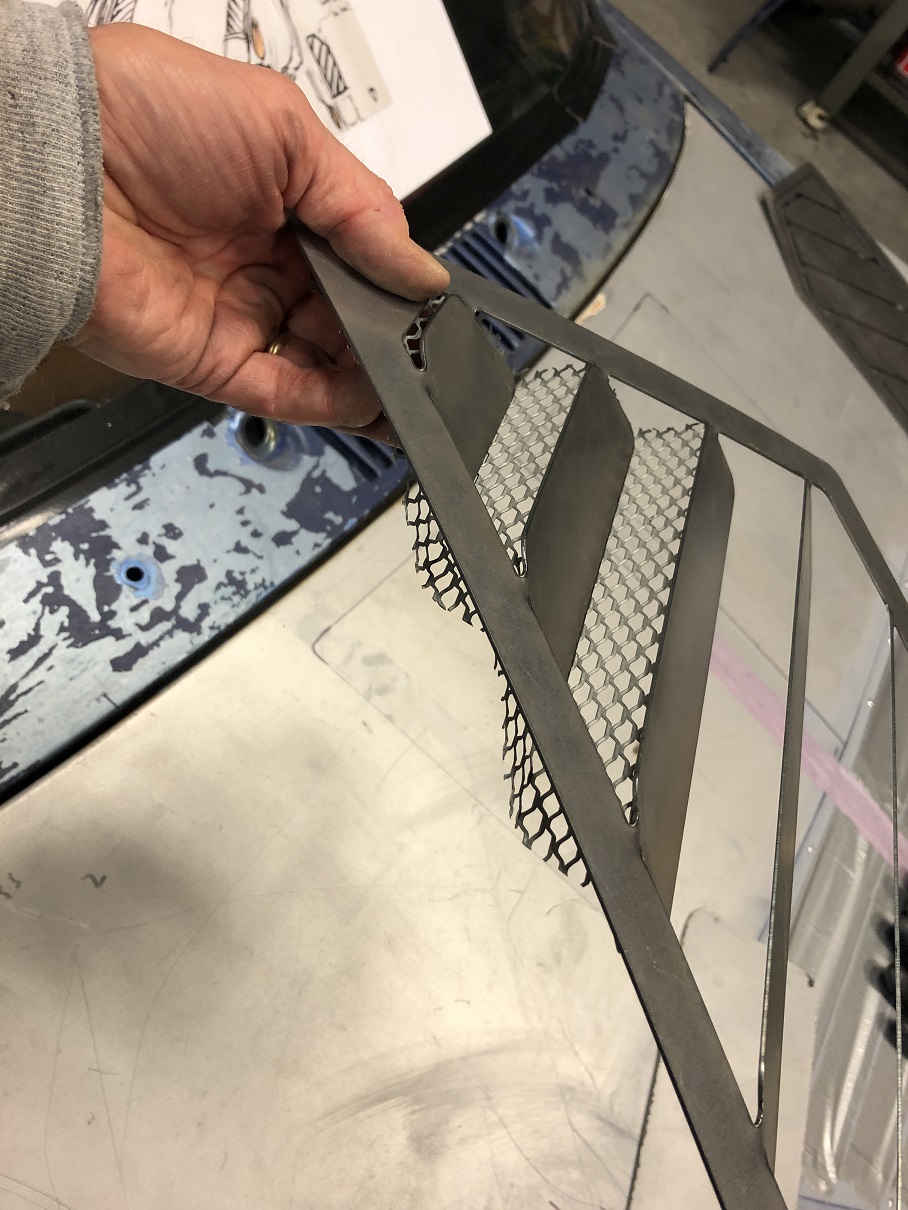

I figured I may as well give a go to an initial mock up of the vent screen. Before you complain about the material, it's all I happened to have laying around. Think "proof of concept". I only had enough mesh to do a few of the openings.

You can see it's a pretty simple set of Z-bends. The fun part will be closing off the "sides" of the screen, at the end of each vent. I'm thinking I'll fab some "walls" that drop vertically from the frame. We'll see.


Attached thumbnail(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 18 2020, 03:31 PM
Post #3185


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

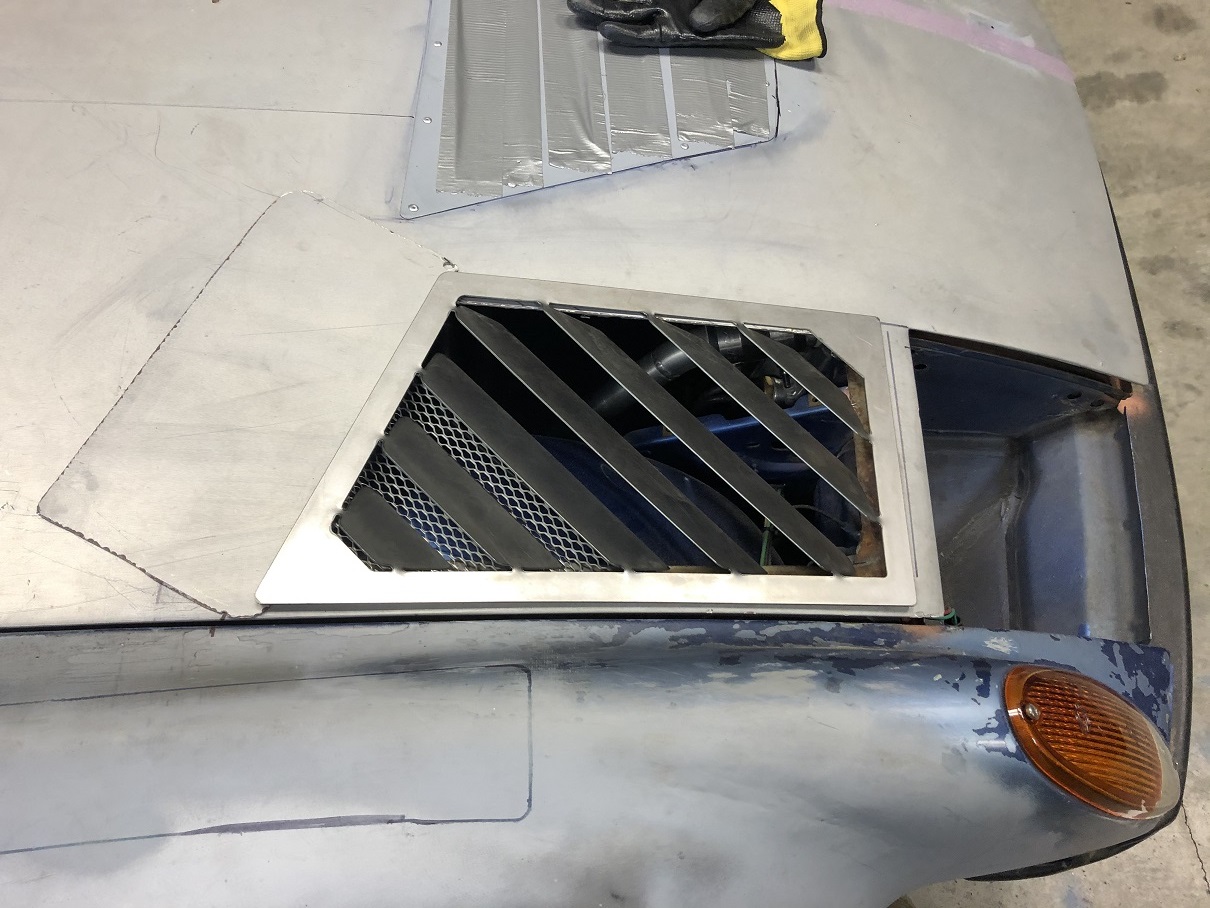

And sorta in place. I will say, the mesh does a nice job of finishing the vents. I'm happy with how this is starting to look.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Curbandgutter
post Nov 18 2020, 03:46 PM
Post #3186


Senior Member
***

Group: Members
Posts: 565
Joined: 8-March 13
From: Murrieta CA
Member No.: 15,637
Region Association: Southern California
LOOKING REALLY GOOD. I like the direction it's going. That screen really adds pop to it. Will you be building ductwork to force the air into those vents or are letting the air into the front trunk and then exhaust out the vents?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Nov 18 2020, 04:02 PM
Post #3187


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None
Very nice work, indeed!
Keep in mind that the screen will restrict some air low, which may be significant depending on your selection.
Again, nice work, and acutely interested in the final design.

Andys
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Nov 18 2020, 04:15 PM
Post #3188


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Oh yeah. (IMG:style_emoticons/default/smilie_pokal.gif) That looks great. I like the screening and the idea of closing off the sides. That is a winning design and I bet you will be getting requests for some of those from fellow large HP enthusiasts for their builds. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jmalone
post Nov 18 2020, 04:23 PM
Post #3189


Member
**

Group: Members
Posts: 119
Joined: 3-July 09
From: reno,NV
Member No.: 10,529
Region Association: Northern California
The screen looks great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikey63
post Nov 18 2020, 04:31 PM
Post #3190


Member
**

Group: Members
Posts: 126
Joined: 30-March 10
From: Windsor,Ca
Member No.: 11,529
Region Association: Northern California
I really like the screen added to the vents...finishes it off nicely!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Nov 18 2020, 05:49 PM
Post #3191


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
(IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914-300Hemi
post Nov 18 2020, 07:38 PM
Post #3192


Senior Member
***

Group: Members
Posts: 1,370
Joined: 7-September 06
From: San Dimas, CA
Member No.: 6,794
Region Association: Southern California
(IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Morph914
post Nov 18 2020, 07:46 PM
Post #3193


Member
**

Group: Members
Posts: 435
Joined: 22-August 16
From: St Augustine, FL
Member No.: 20,326
Region Association: South East States
Yes on the screen, looks much more finished, and will keep the critters out. (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 19 2020, 07:38 PM
Post #3194


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

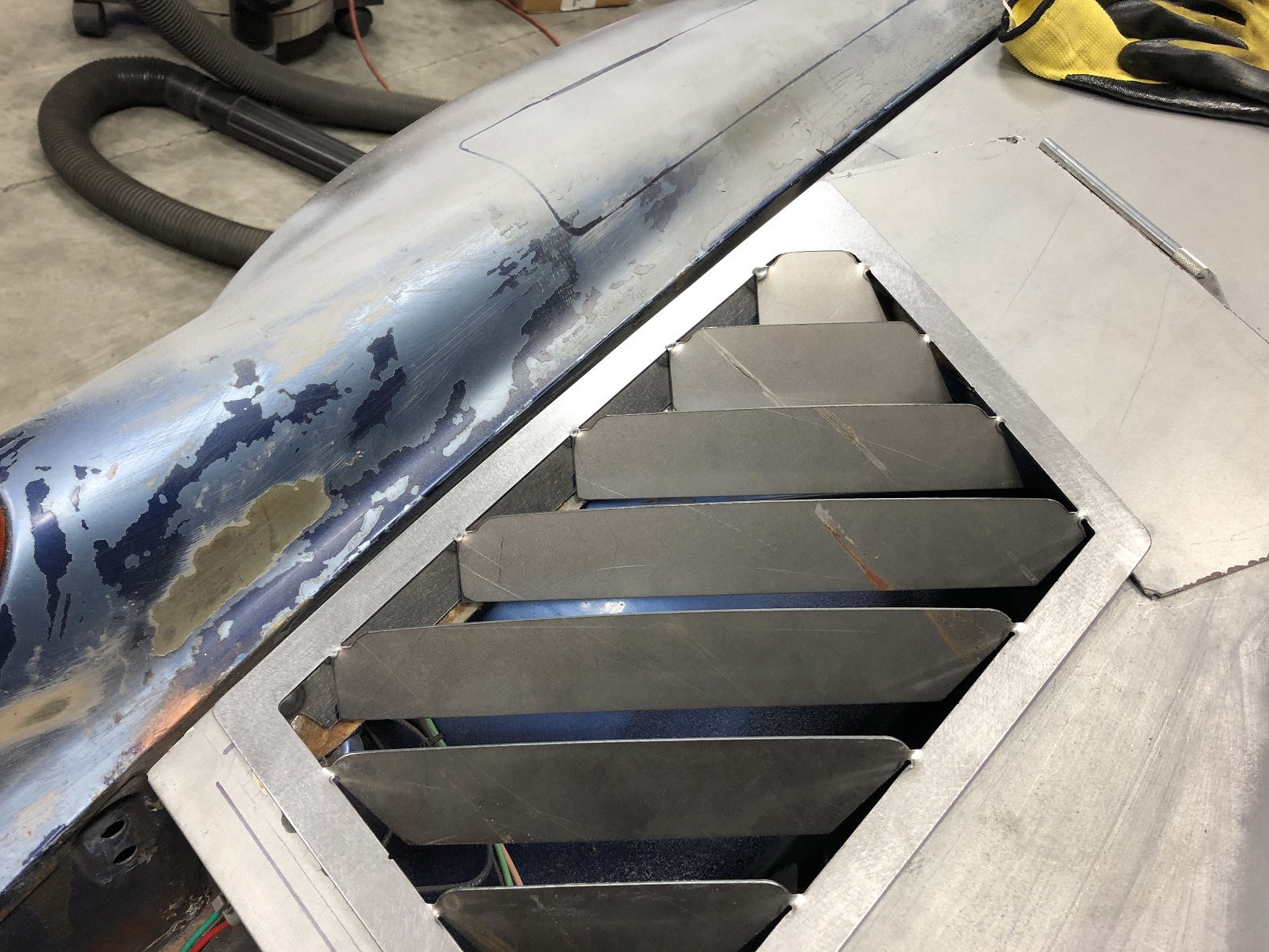

Another day, another design. I won't bore you with the details other than to say I had to make updates to make the "walls" fit the way I thought they should.

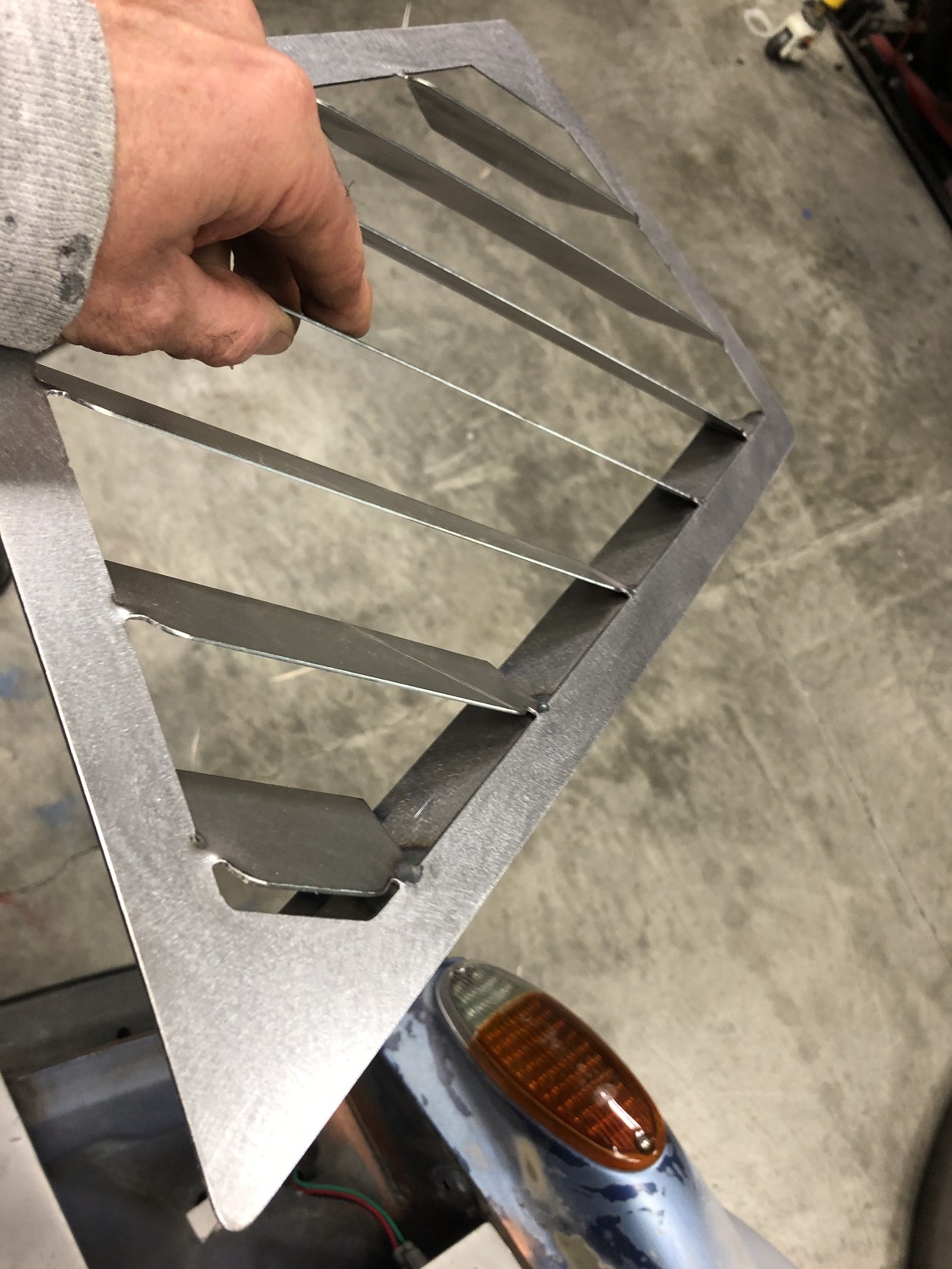

I made a template to get the shape of the hood and shaped the initial outer wall piece accordingly.
Then it was tack it to the frame and see what's what. The wall really adds a more finished look.

Yes, another design update will be happening now that I see how this contraption looks like it's going to fit.

Also, once the walls are in place, I have a nice guide to see exactly where I need to trim the hood. For example, I'll remove more of the support structure so it doesn't show under that outer wall, as it does in the pic. Now to work up the other wall parts and get this whole thing put together.

It's turned out to be a lot of work but it's coming along.


Attached thumbnail(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
cali914
post Nov 19 2020, 08:49 PM
Post #3195


cali914
**

Group: Members
Posts: 455
Joined: 26-April 06
From: Berkeley Ca.
Member No.: 5,934
Region Association: Northern California
It seems like the screens will work at idle but what about when the car is moving how will the air exit are they like louvers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Nov 19 2020, 08:55 PM
Post #3196


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
I would think the angle of the louvers could make a big difference. Hopefully even creating a low pressure area that will help draw the air out when dialed in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Nov 19 2020, 09:05 PM
Post #3197


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
Screens add a really nice visual touch for sure, and the workmanship—as always—is gorgeous. (IMG:style_emoticons/default/wub.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cali914
post Nov 19 2020, 09:07 PM
Post #3198


cali914
**

Group: Members
Posts: 455
Joined: 26-April 06
From: Berkeley Ca.
Member No.: 5,934
Region Association: Northern California
QUOTE(Rand @ Nov 19 2020, 06:55 PM) *

I would think the angle of the louvers could make a big difference. Hopefully even creating a low pressure area that will help draw the air out when dialed in.

That could only happen if their is a low pressure area usually behind the lip which allows the air to get sucked out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AZBanks
post Nov 19 2020, 09:27 PM
Post #3199


Senior Member
***

Group: Members
Posts: 1,063
Joined: 7-December 05
From: New River, AZ
Member No.: 5,245
Region Association: Southwest Region
Instead of a wall along the inside edge, can you cut the mesh in such a way that you can bend it up at the end to fill the triangular gap?

I'm not thermal or aerodynamic engineer but my thought is the hot air will flow across the relatively flay underside of the hood and the wall you are proposing will disrupt the flow forcing the air to go down to clear the wall and then make a 180 degree turn to go up the wall to exit.
If you replace the wall with mesh, the air has a cleaner exit path.

I expect the effect of the wall will be minimal in the total airflow exiting the vent but it seems an unnecessary disruption.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
live free & drive
post Nov 20 2020, 10:43 AM
Post #3200


Member
**

Group: Members
Posts: 178
Joined: 29-June 16
From: New Hampshire
Member No.: 20,159
Region Association: None
I think you need to go to the Jim Hall school of aerodynamics i.e. yarn, tape and driving.

https://www.youtube.com/watch?v=Z0rXyMwFMUI


I would conjecture the air wants to hit the raised louver perpendicular to the air-flow
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
