> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
dan10101
post Dec 6 2020, 04:17 PM
Post #3321


TORQUE-o-holic
***

Group: Members
Posts: 1,140
Joined: 29-April 03
From: Eagle Point, Or
Member No.: 626
Region Association: Pacific Northwest
I like the mesh idea. Can't wait to see what you come up with.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AZBanks
post Dec 6 2020, 05:08 PM
Post #3322


Senior Member
***

Group: Members
Posts: 1,063
Joined: 7-December 05
From: New River, AZ
Member No.: 5,245
Region Association: Southwest Region
QUOTE(tygaboy @ Dec 5 2020, 06:38 PM) *

QUOTE(AZBanks @ Dec 5 2020, 12:11 PM) *

I like the black but I think it would look even better if it matched the color of your wheels.
But then again, I am a sucker for dark grey metallic.


Holy Jebus, man! First it's the angles and now you're complaining about color? (IMG:style_emoticons/default/ar15.gif)
No Christmas card for you... (IMG:style_emoticons/default/santa_smiley.gif)




I'm ok with the missing Cristmas cars as long as I get my royalty checks when you become a multi-brazillionare from selling dark grey metallic RandAzBanks Black Edition ™ design hood vents. .0914% of net profits. Payable in 914 parts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 6 2020, 05:16 PM
Post #3323


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(914forme @ Dec 6 2020, 12:34 PM) *

Getting closer Chris,

Only thing I see is the first vent needs to be filled and just have the tip up on the front.

then you follow Tony's suggestion of decreasing hight of the tips. Angles are really getting good about mid way up your variable angle. I am away from my paper and pen otherwise I would draw it out.

Most of all have fun with the build.


@914forme Stephen - Thanks. Based on what I know from the first yarn test, I'm leaving things pretty much as they are in this latest version. I'll do another yarn test to see how it works but I wouldn't be surprised if I need to increase the vane angle.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 6 2020, 05:35 PM
Post #3324


914 Wizard
**********

Group: Members
Posts: 10,640
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
True but the other fender has backwards decreasing radius,, 914 is an uphill battle or favor..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 6 2020, 06:06 PM
Post #3325


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Chris, @tygaboy that is looking very cool. I think once you get the center support finalized and add the screening of some sort, you have a done deal. I can't wait to come see it. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Dec 6 2020, 09:30 PM
Post #3326


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
That strake looks soooo good!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 7 2020, 02:09 PM
Post #3327


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

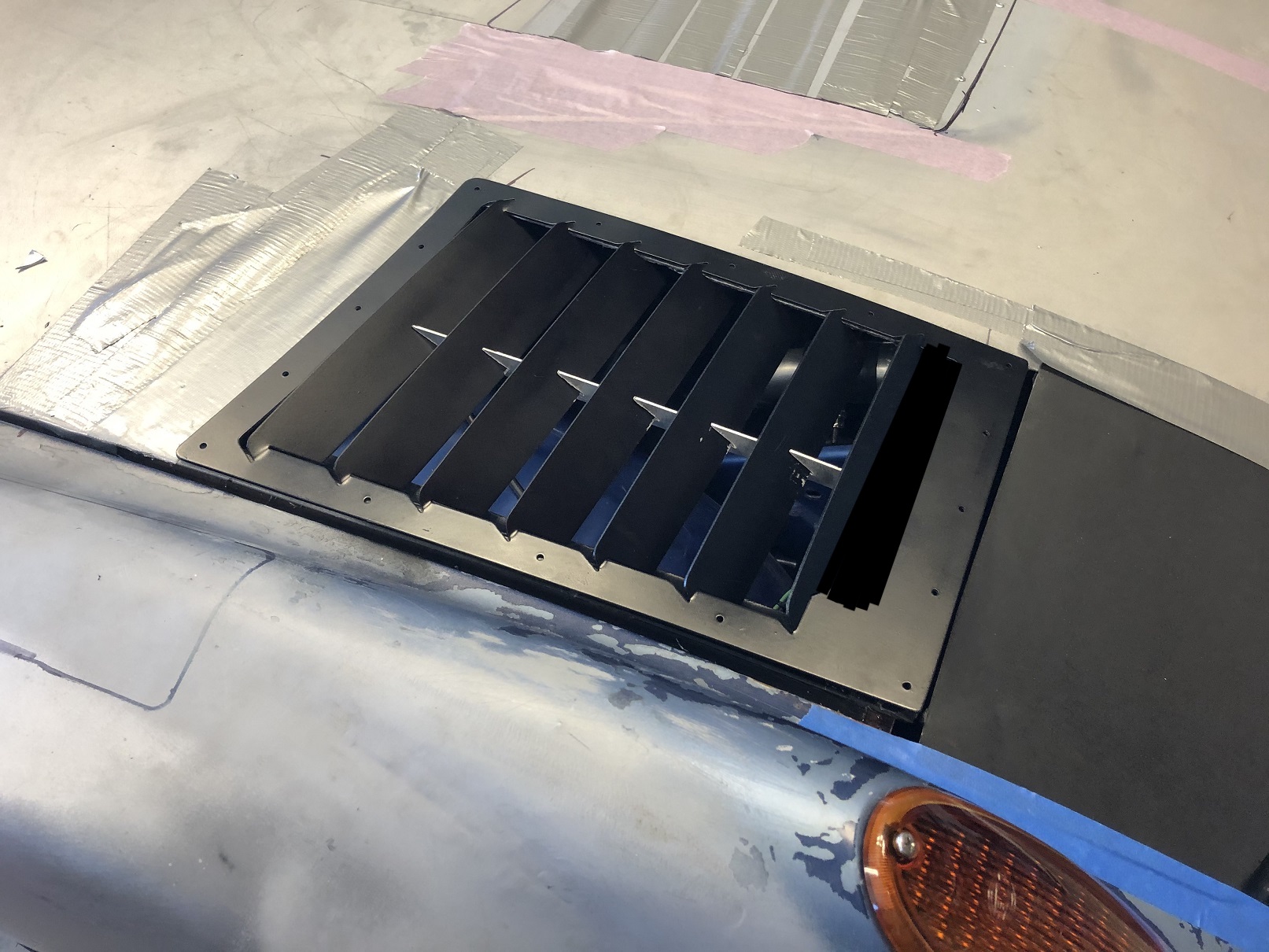

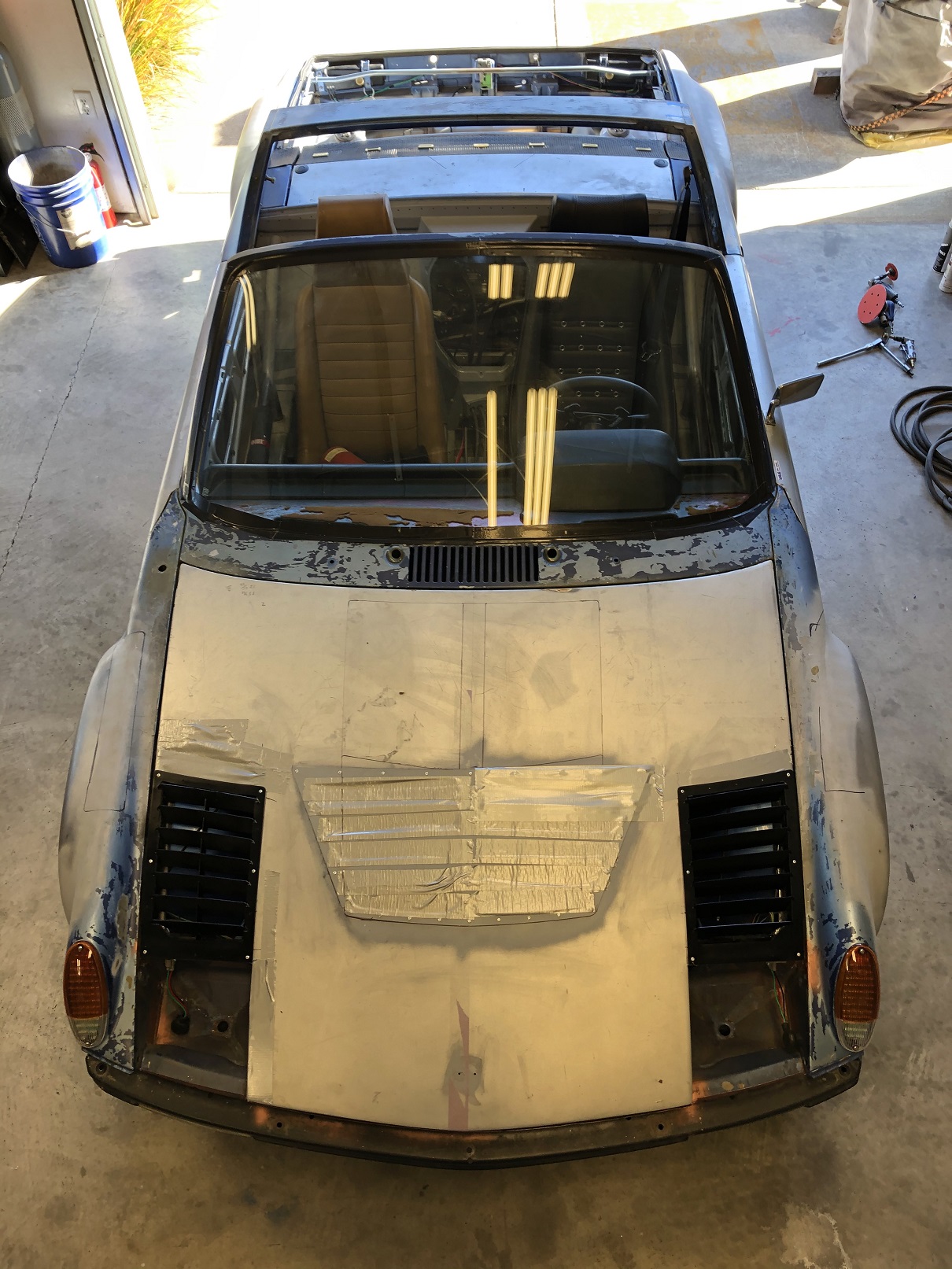

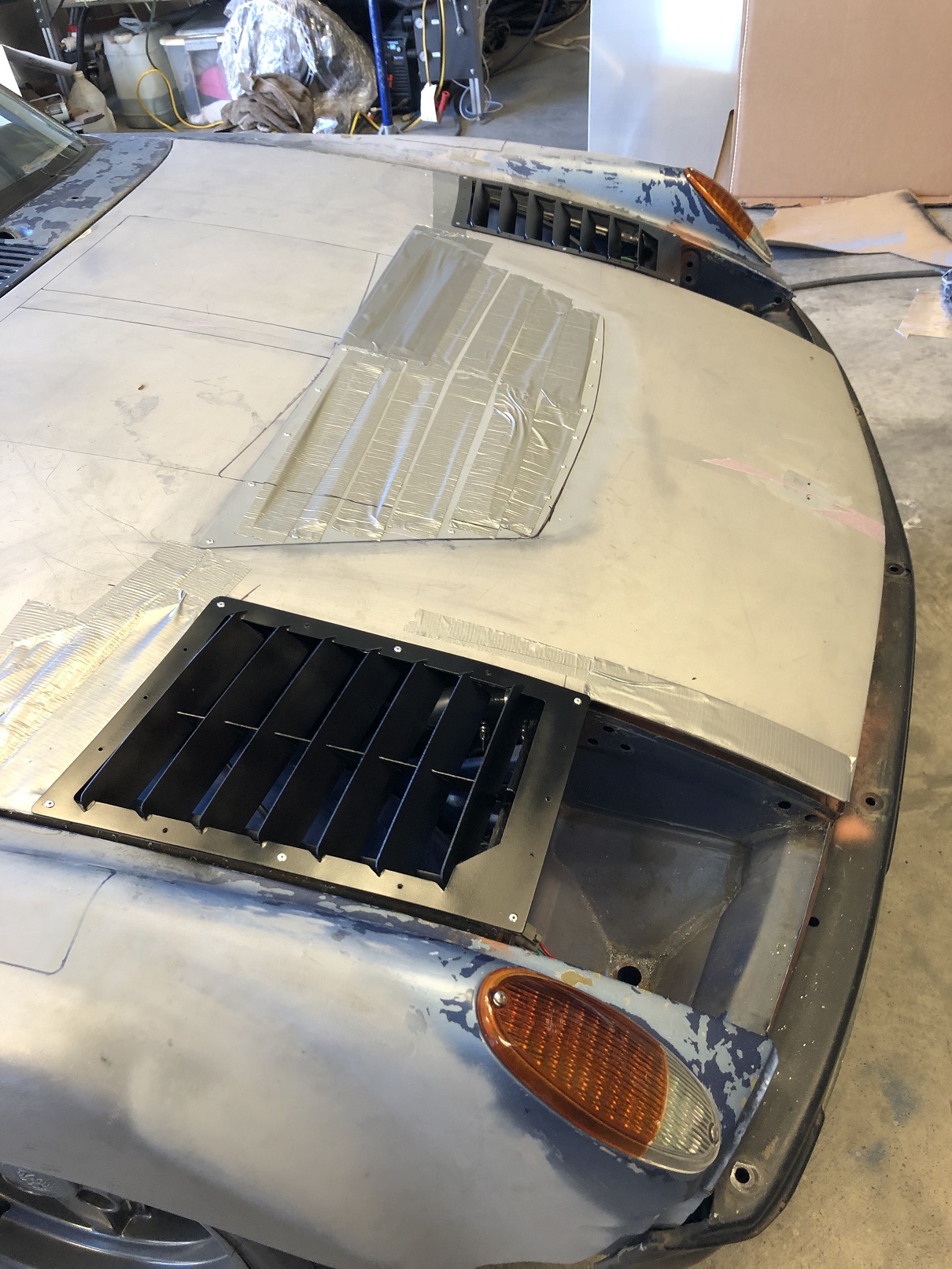

Both sides in with temp rivets, ready for the next yarn test.

This is the first time both sides have been in and even though these aren't the final versions, I have to say, I'm thrilled with how the car looks.
I think they hint there's something going on but they don't scream it. Just what I was hoping for.

Fingers crossed they work as expected.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 7 2020, 02:10 PM
Post #3328


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

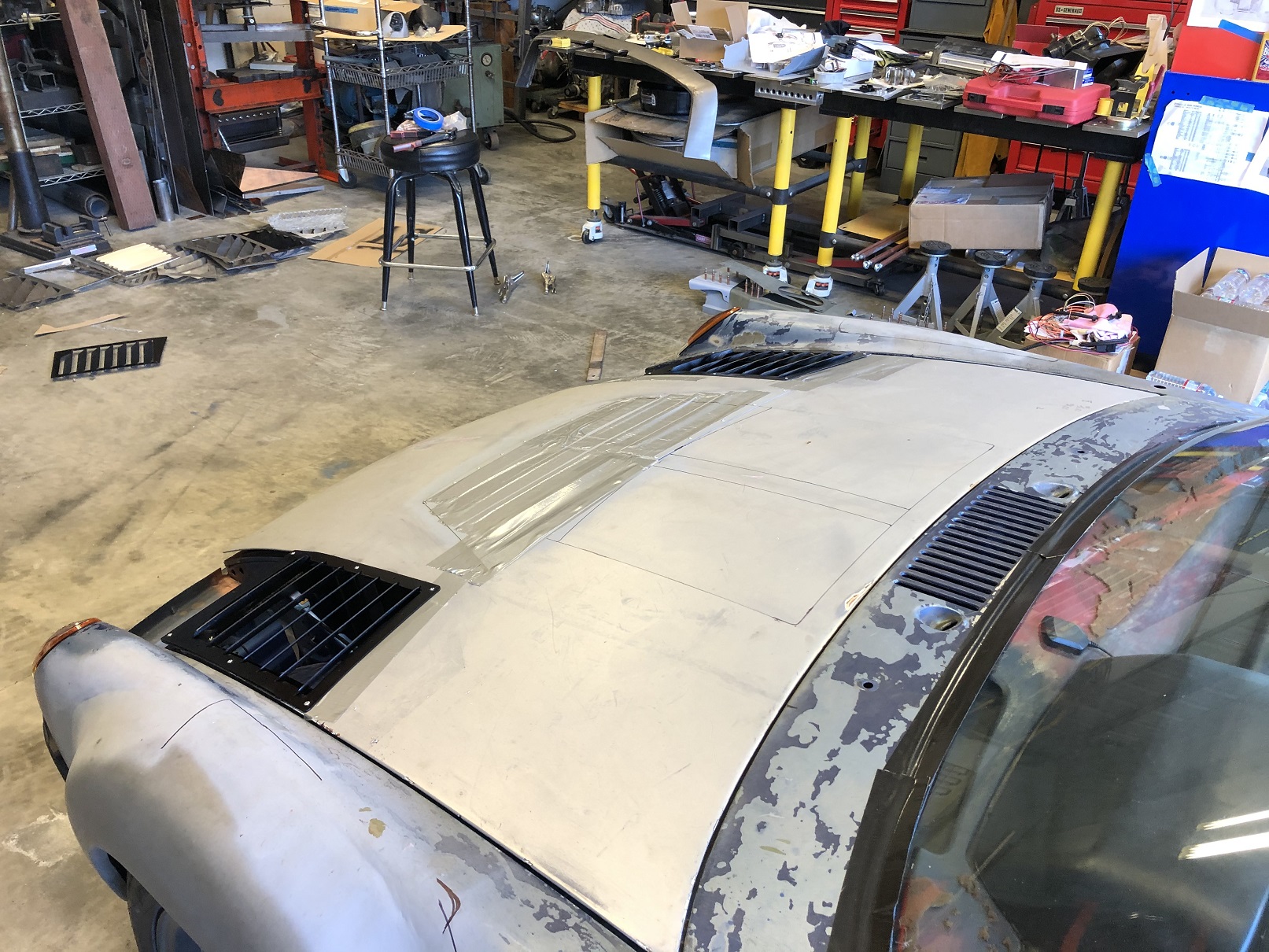

My current favorite pic.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikey63
post Dec 7 2020, 03:00 PM
Post #3329


Member
**

Group: Members
Posts: 126
Joined: 30-March 10
From: Windsor,Ca
Member No.: 11,529
Region Association: Northern California
Looking good Chris!! With both sides done, it really makes a huge difference.
(IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Dec 7 2020, 10:05 PM
Post #3330


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
Mmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmmm (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
altitude411
post Dec 7 2020, 11:08 PM
Post #3331


I drove my 6 into a tree
***

Group: Members
Posts: 1,306
Joined: 21-September 14
From: montana
Member No.: 17,932
Region Association: Rocky Mountains
(IMG:style_emoticons/default/unsure.gif) Well after 8 pages your almost there.... but you forgot KELTY360 and me (IMG:style_emoticons/default/sad2.gif)




..."and lights! You could put lights underneath that would show when you open the vents.
(IMG:style_emoticons/default/smile.gif) "---KELTY360


" (IMG:style_emoticons/default/idea.gif) ...and sensors with thermal resistors hooked to the servos that would automatically open them when needed. (IMG:style_emoticons/default/popcorn[1].gif)

* and of coarse obviously turn on the lights... (IMG:style_emoticons/default/piratenanner.gif) " ---altitude411

(IMG:style_emoticons/default/dry.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dan10101
post Dec 8 2020, 11:17 AM
Post #3332


TORQUE-o-holic
***

Group: Members
Posts: 1,140
Joined: 29-April 03
From: Eagle Point, Or
Member No.: 626
Region Association: Pacific Northwest
Chris,
I really like the look.

At the risk of initiating another 'do-over'
I just found this.
https://racelouvers.com/

It's more for those of us that don't have your skills but their testing is interesting.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 8 2020, 03:04 PM
Post #3333


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Vent test V2. A few things:
- it's actually yarn! I hope you're OK with the color. (IMG:style_emoticons/default/poke.gif)
- the two pieces on the hood to the left of the vent show what's going on where there isn't a vent: No air lift. @Cairo94507 , you asked about this after that first vent video.
- there are a couple pieces of yarn in the vents that got stuck on the tape and couldn't stand up.

In all, same basic non-scientific result:
- hardly any flow at the rear vanes
- overall, the vents seem to work


https://www.youtube.com/watch?v=_E-bt9EEZeI


Then it was the fan test. Same deal as before, the belt still needs to be adjusted, sorry.
And you can see how those couple stuck pieces stand right up, once unstuck.


https://www.youtube.com/watch?v=Esx5A2JaaCo


I may do other tests but I'll probably move forward with these as is.
Next, I think I'll look into building a duct from the fans to the vents.

Then it's on to the rear of the car. What has Tony @Retroracer drawn up for me this time? (IMG:style_emoticons/default/drooley.gif) (IMG:style_emoticons/default/happy11.gif) Guess you'll have to keep following the build. (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 8 2020, 03:19 PM
Post #3334


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
OK - I think you have a winner there. I liked the fan test the best. Looks like you have good air flow out the vents. Take a bow Chris- that is amazing. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Dec 8 2020, 06:56 PM
Post #3335


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Not done yet (IMG:style_emoticons/default/poke.gif)

See the picture, please close that space up, it will help you more than you think.

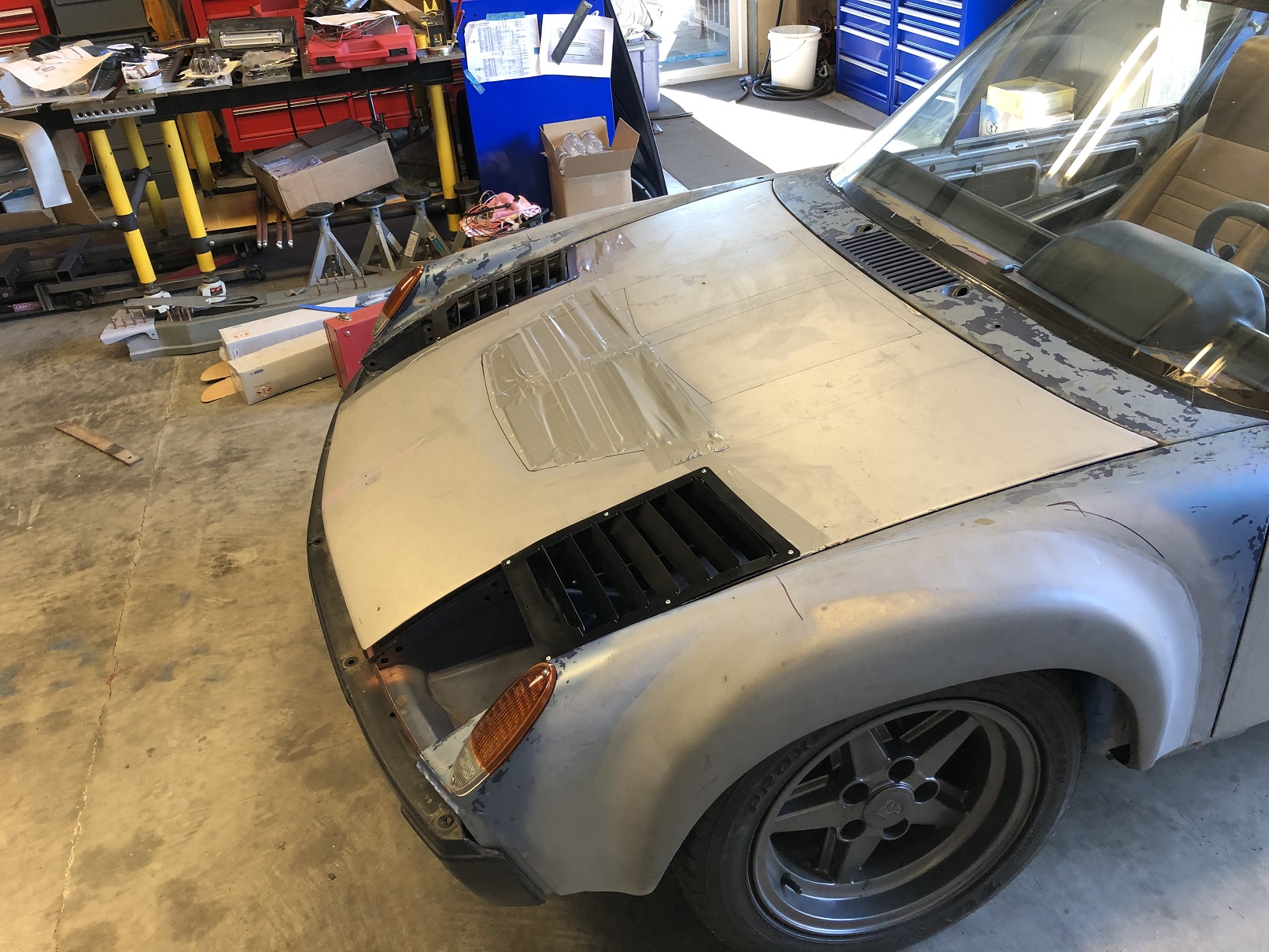

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Dec 8 2020, 07:05 PM
Post #3336


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
You can "lead a horse..." (IMG:style_emoticons/default/slap.gif)

QUOTE(914forme @ Dec 8 2020, 08:56 PM) *

Not done yet (IMG:style_emoticons/default/poke.gif)

See the picture, please close that space up, it will help you more than you think.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 8 2020, 07:35 PM
Post #3337


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Geez... What's that saying? "You can please some of the people..."
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Dec 8 2020, 09:22 PM
Post #3338


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
(IMG:style_emoticons/default/smilie_pokal.gif) Excellent work! Looks like better flow than your first test. Wonder what the yarn looks like at 70 mph FANtastic!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 9 2020, 09:01 AM
Post #3339


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(tygaboy @ Dec 8 2020, 02:04 PM) *

Vent test V2. A few things:
- it's actually yarn! I hope you're OK with the color. (IMG:style_emoticons/default/poke.gif)


Well.... (IMG:style_emoticons/default/dry.gif)
I'm sorry, but I don't think you have done your homework.
You really should probably read AND UNDERSTAND this:

Comparison of aerodynamic properties of wool and polyester knitted textiles

And consider following this advice found in a thread Best material for aerodynamic tufting

QUOTE
You might steam iron the yarn straight before using.

I like about 2.5" free length from the tape with a 2" spacing. You can make strips of tufts by wrapping the yarn around a cutting board in 2" spacing and placing tape across the rows of yarn. Them cut with a knife or razor blade.

What about interpretation of the results? How much movement is required to show non-laminar flow? I have heard that small movements of the last 1/3 does not mean anything.


I'm afraid it is back to the drawing board for you (IMG:style_emoticons/default/av-943.gif) Now seriously, why isn't there a peanut emoji? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 9 2020, 09:26 AM
Post #3340


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
@bbrock - OK, Brent, you're on!

From the study:
"The aerodynamic drag force acting on a circular cylinder clad with knitted wool and polyester textiles has been investigated in wind tunnel experiments in this study."

Now I get it. Citing studies about drag on "cylindrical objects"? (Forget where I could go with that plus "wind tunnel"...)

In this case, the "you're a dick" comment essentially writes itself. (IMG:style_emoticons/default/av-943.gif)

All I can say is that I if I run into any issues with lubrication, I certainly won't be mentioning it in this thread. (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
