> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Oct 28 2021, 05:55 PM
Post #3721


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

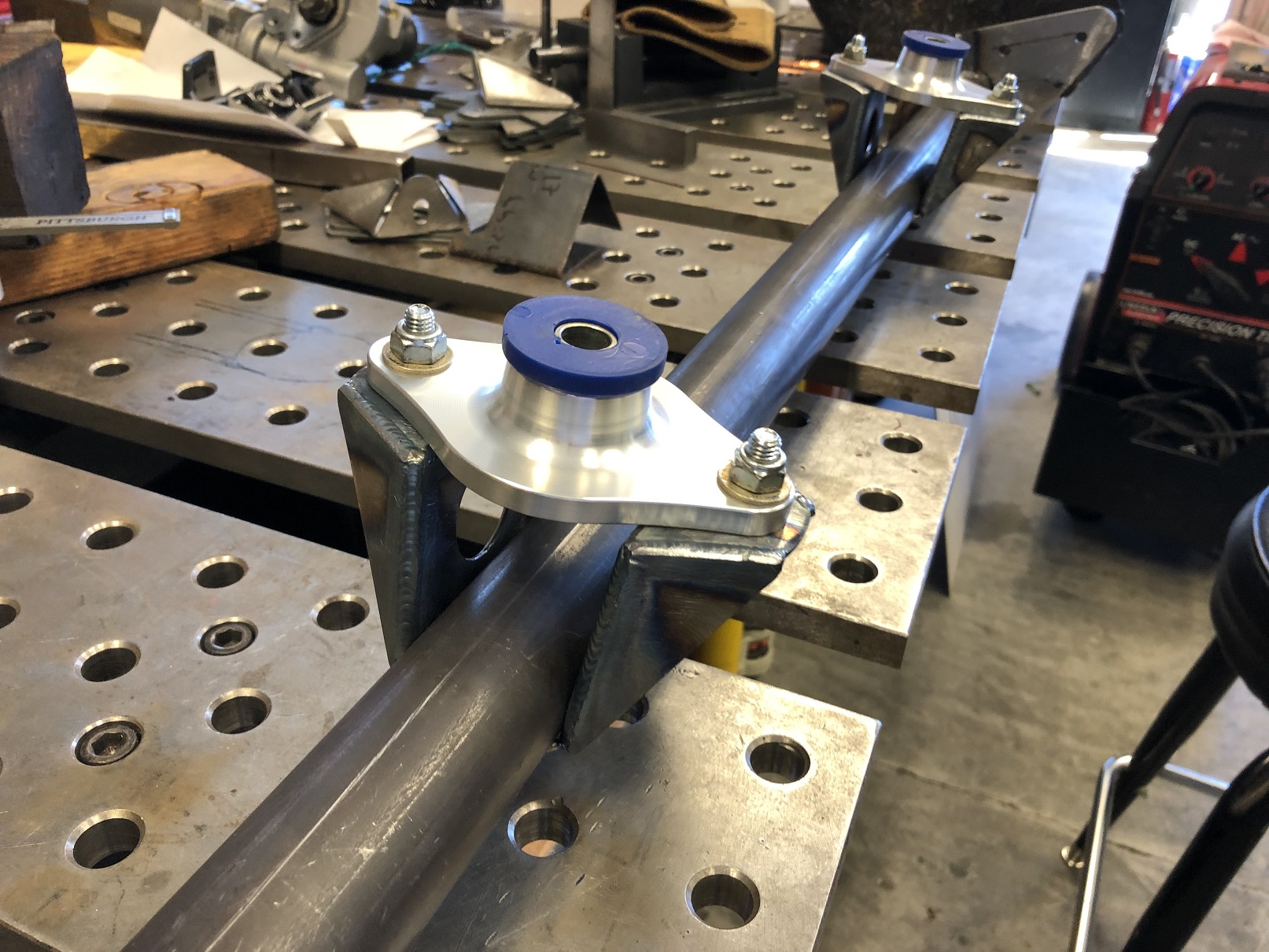

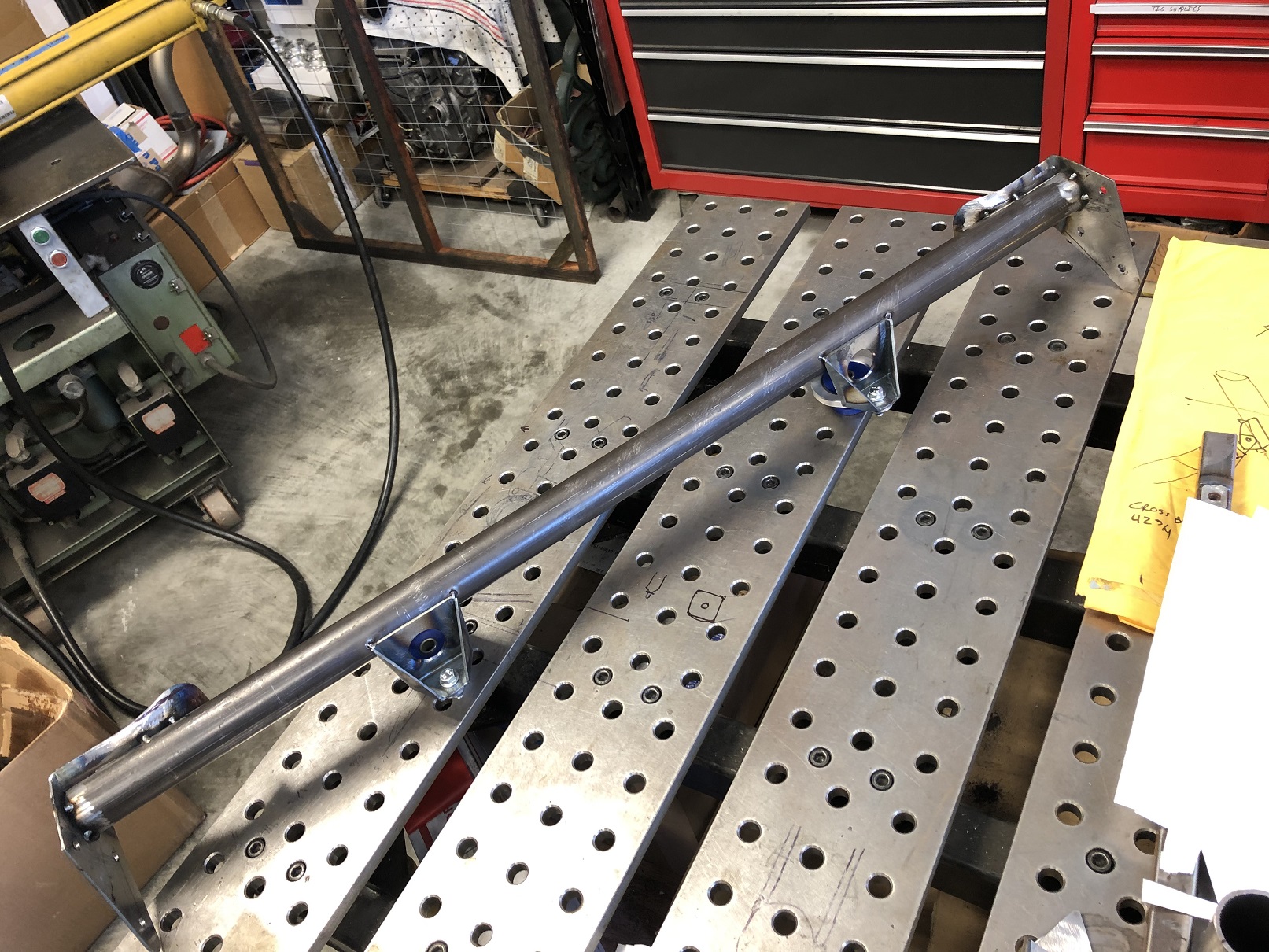

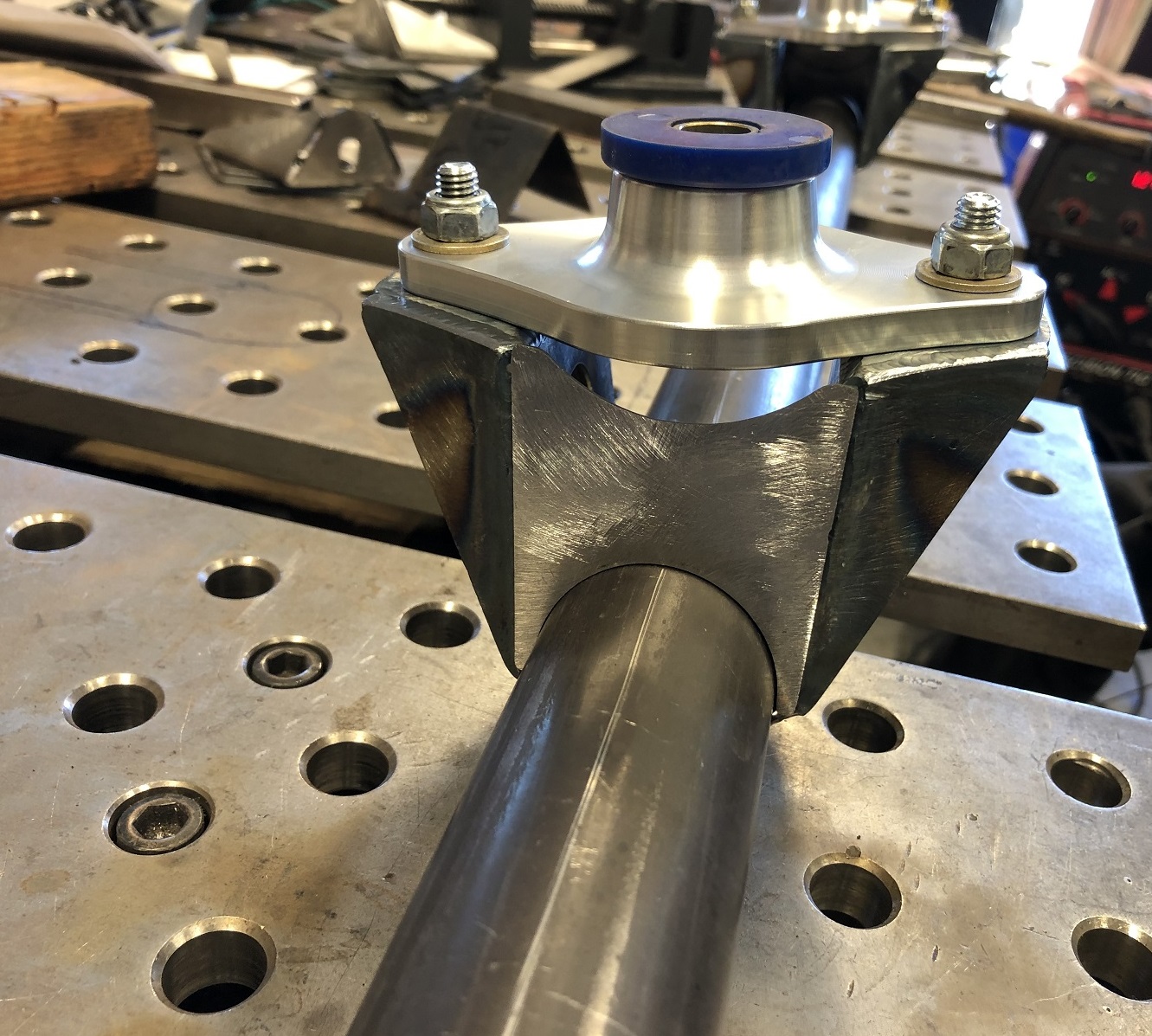

With the various components fitted and things tacked in place, the entire contraption gets pulled to weld on the bench.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2021, 05:58 PM
Post #3722


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

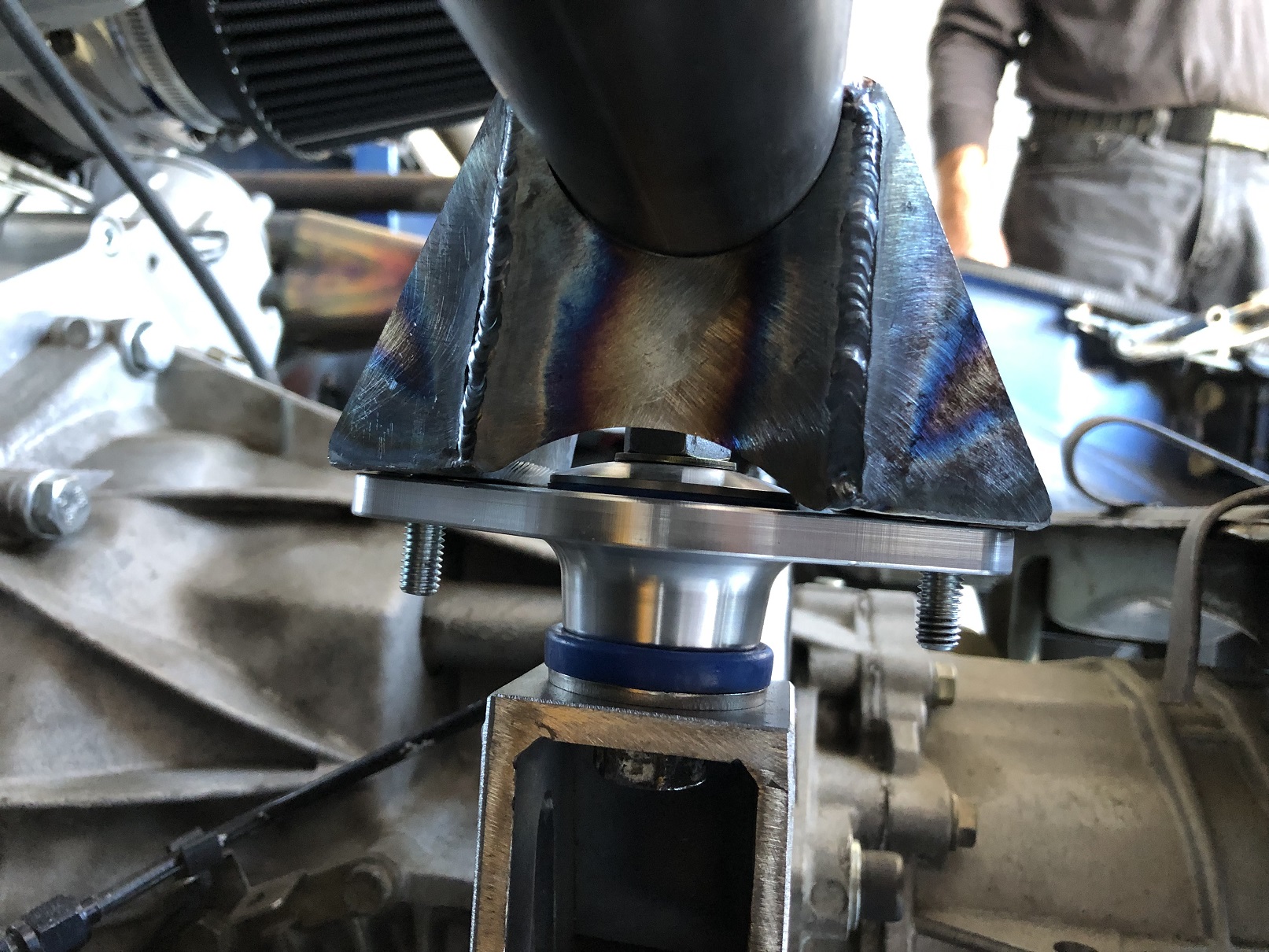

Leaving the mounts attached helps ensure the hanger brackets stay in plane to each other during welding. Yes, the melty parts get removed before any significant welding begins.
The welds you see on the edges of the hanger brackets are to close up the scoring cuts I made to force the bend to occur RIGHT where I wanted it. This approach means that from the other side, the side you'll see, it looks like one piece!
Plus, this allows for a crisper bend which, to my eye, makes the part look a bit lighter.
(IMG:style_emoticons/default/shades.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2021, 06:08 PM
Post #3723


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

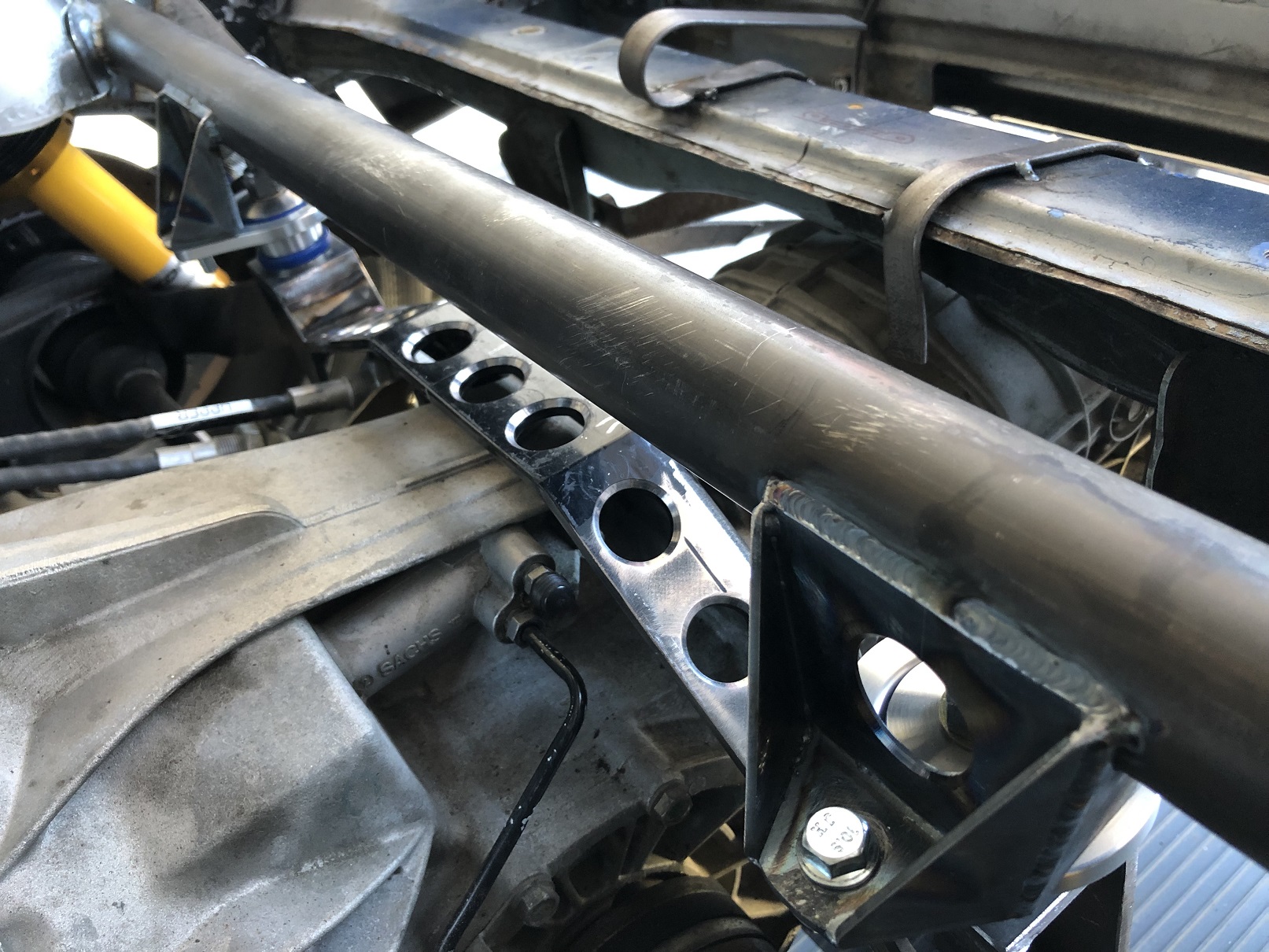

Next was to CAD up a small gusset that ties one hanger bracket to the other.
If you look at the factory trans mount, you'll see a similar design - just nowhere near as stylish. (IMG:style_emoticons/default/laugh.gif)

I added these on the outside only. I'm leaving the inside open to allow for getting the nut and a wrench in there to install/remove the mount.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2021, 06:10 PM
Post #3724


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

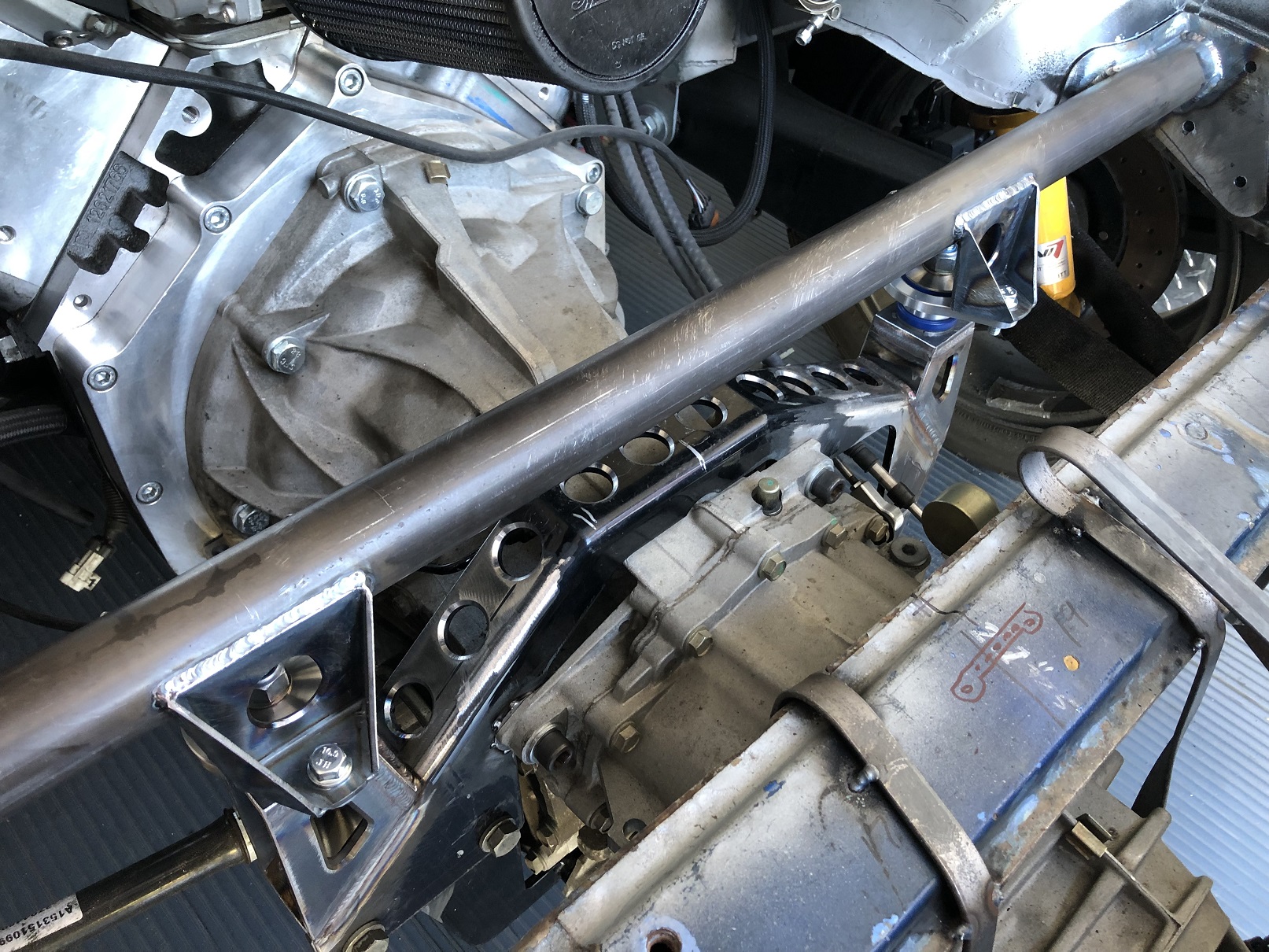

All welded and back in for a test fit.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2021, 06:14 PM
Post #3725


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

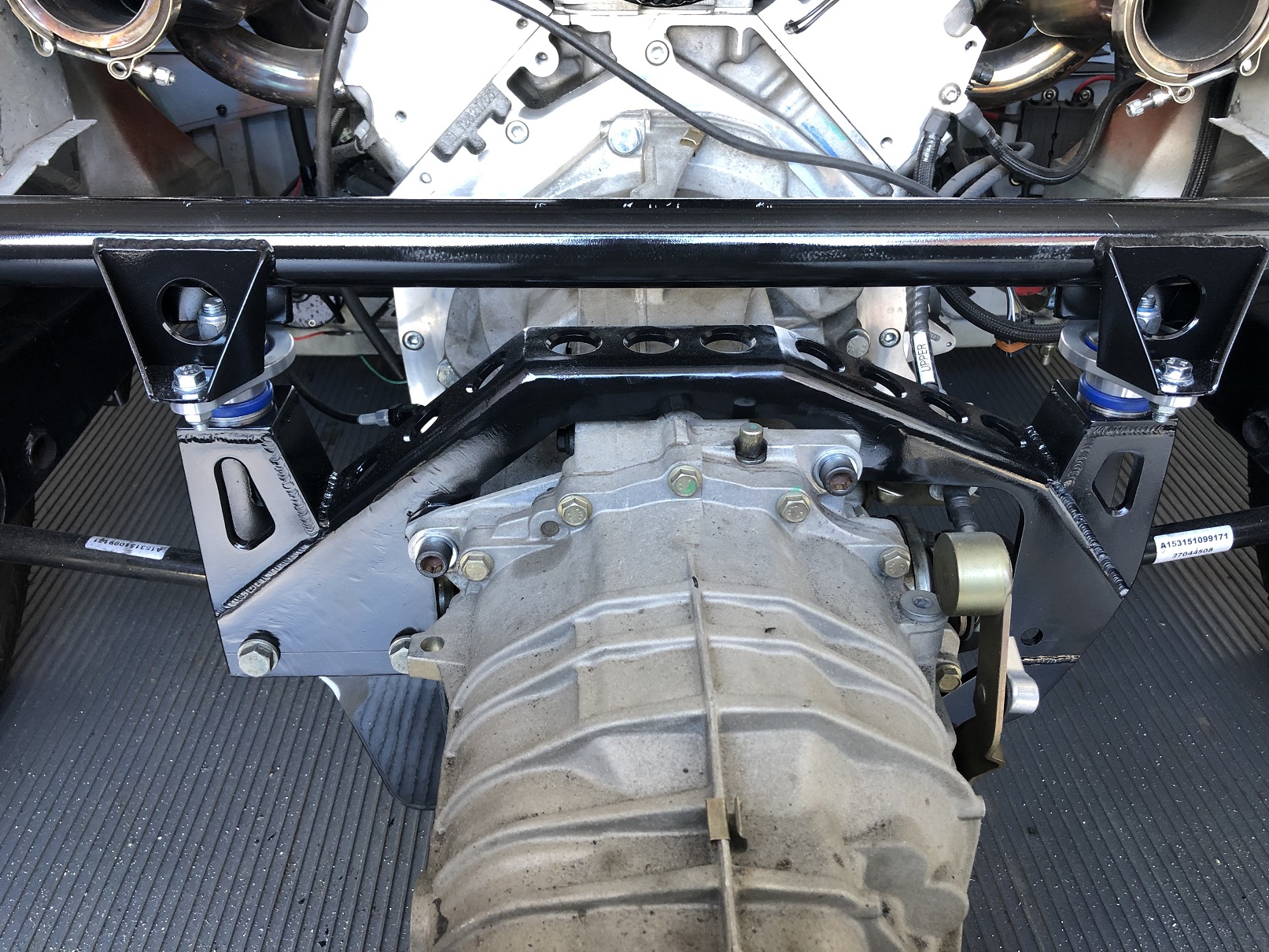

It's always a bit nerve-wracking when you weld something out of the car then "see" if it still fits...
With things only set in place, not even bolted down, everything lined up perfectly. Man, I love it when a plan comes together! (IMG:style_emoticons/default/piratenanner.gif)

Last step is to bolt the mounts to the hanger brackets and weld the spreader plates to the chassis.

And no, that's not a missed weld at the gusset-to-cross bar joint.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tazz9924
post Oct 28 2021, 07:42 PM
Post #3726


Senior Member
***

Group: Members
Posts: 716
Joined: 31-May 15
From: Mooresville NC
Member No.: 18,779
Region Association: None
QUOTE(tygaboy @ Oct 28 2021, 04:14 PM) *

It's always a bit nerve-wracking when you weld something out of the car then "see" if it still fits...
With things only set in place, not even bolted down, everything lined up perfectly. Man, I love it when a plan comes together! (IMG:style_emoticons/default/piratenanner.gif)

Last step is to bolt the mounts to the hanger brackets and weld the spreader plates to the chassis.

And no, that's not a missed weld at the gusset-to-cross bar joint.

Did you tig weld them?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 28 2021, 08:41 PM
Post #3727


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Sweet!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Oct 28 2021, 10:13 PM
Post #3728


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
Tingly (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Oct 28 2021, 11:05 PM
Post #3729


Advanced Member
****

Group: Members
Posts: 4,764
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
WOW! That looks sooo good! (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cassmcentee
post Oct 29 2021, 04:21 AM
Post #3730


Member
**

Group: Members
Posts: 220
Joined: 12-July 18
From: Squaw Valley, CA
Member No.: 22,304
Region Association: Central California
"A Thing of Beauty"!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 29 2021, 08:51 AM
Post #3731


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Krieger @ Oct 28 2021, 10:05 PM) *

WOW! That looks sooo good! (IMG:style_emoticons/default/piratenanner.gif)


@Krieger - Credit where credit is due, Andy. As I mentioned when this mod started, it was your eye for design and derogatory comments (IMG:style_emoticons/default/lol-2.gif) helpful suggestion that prompted the effort. If not for you, it likely never would have happened.

When you're next here, you need to sign the cross bar!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Oct 29 2021, 02:14 PM
Post #3732


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
You dreamers/fabricators/welders never cease to amaze me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Oct 29 2021, 10:59 PM
Post #3733


Advanced Member
****

Group: Members
Posts: 4,764
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
QUOTE(tygaboy @ Oct 29 2021, 07:51 AM) *

QUOTE(Krieger @ Oct 28 2021, 10:05 PM) *

WOW! That looks sooo good! (IMG:style_emoticons/default/piratenanner.gif)


@Krieger - Credit where credit is due, Andy. As I mentioned when this mod started, it was your eye for design and derogatory comments (IMG:style_emoticons/default/lol-2.gif) helpful suggestion that prompted the effort. If not for you, it likely never would have happened.

When you're next here, you need to sign the cross bar!



It would be an honor! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 2 2021, 02:15 PM
Post #3734


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
With all the dimensions verified, the transmission mount gets (mostly) welded in. I still have to get under the car and finish a could areas. But more than enough is done to allow me to remove the factory cross bar. And you know I've been chomping to get rid of it since @Krieger Andy first suggested I come up with a new mount.

I thought you might enjoy seeing it happen, so, here you go!


https://www.youtube.com/watch?v=ZR5kpPJnKXs
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 2 2021, 02:18 PM
Post #3735


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

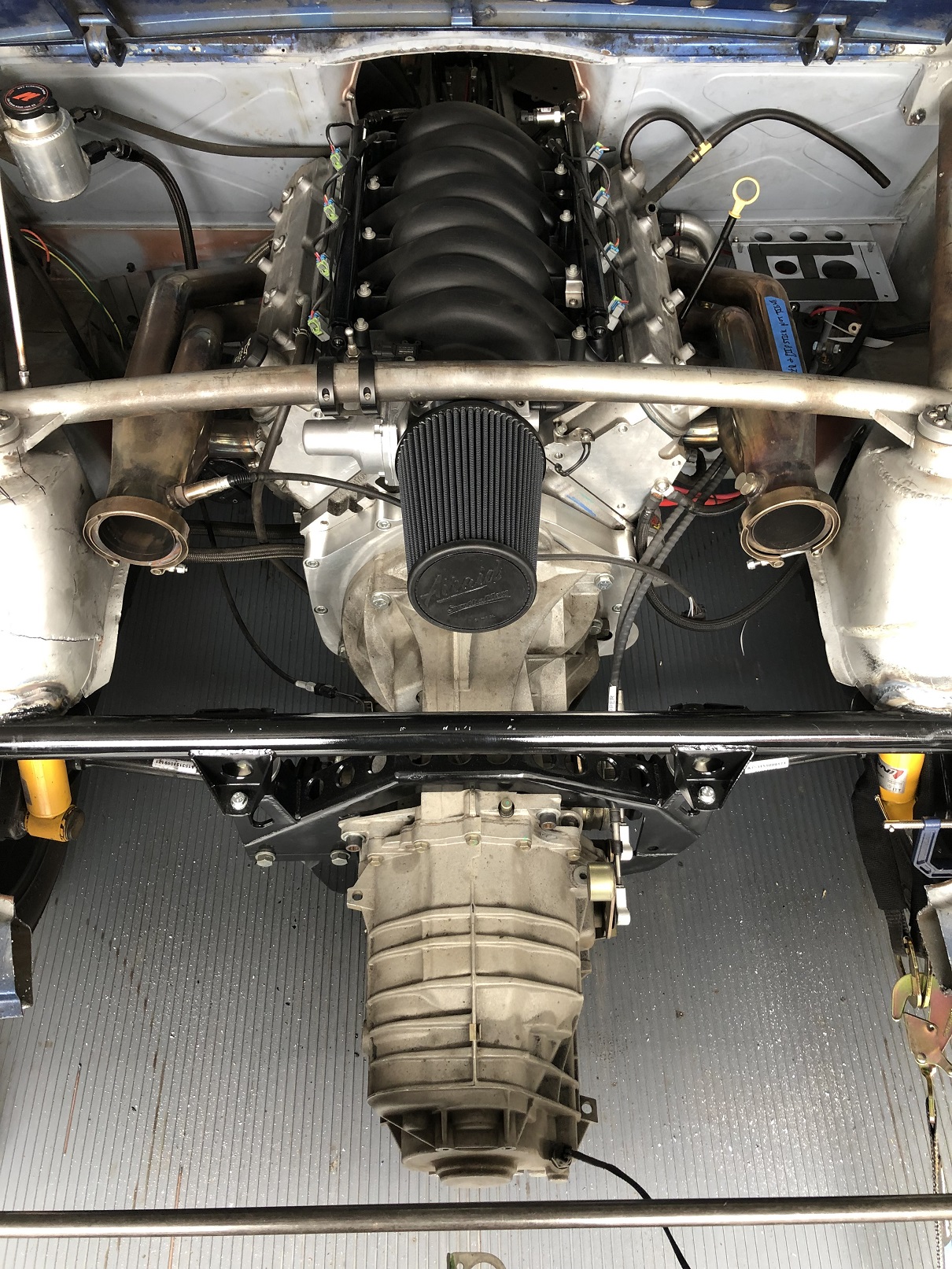

So here's the new look my engine compartment is sporting! I think it looks amazing.
(IMG:style_emoticons/default/drooley.gif) (IMG:style_emoticons/default/wub.gif)
So much tidier and a way better match to the vibe of the build.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikey63
post Nov 2 2021, 02:24 PM
Post #3736


Member
**

Group: Members
Posts: 126
Joined: 30-March 10
From: Windsor,Ca
Member No.: 11,529
Region Association: Northern California
NICE!!!!! (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/sawzall-smiley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Nov 2 2021, 03:55 PM
Post #3737


Michael
**********

Group: Members
Posts: 10,094
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Wow! Where did all the "stuff" go? Much cleaner look- me like. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 2 2021, 05:25 PM
Post #3738


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
"Mr. DeMille, I'm ready for my close up." (IMG:style_emoticons/default/laugh.gif)

I've been thinking about finishes so I figured it wouldn't hurt to give it a quick squirt of black, since that's part of a theme I'm considering: All the tubes in black, the body in non-black. Still not sure.

Something else that struck me was to have that big ol' main transmission mount cad plated, like the shifter bits you see there on the right side of the trans.
I think what's there now is too much black.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 2 2021, 05:27 PM
Post #3739


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

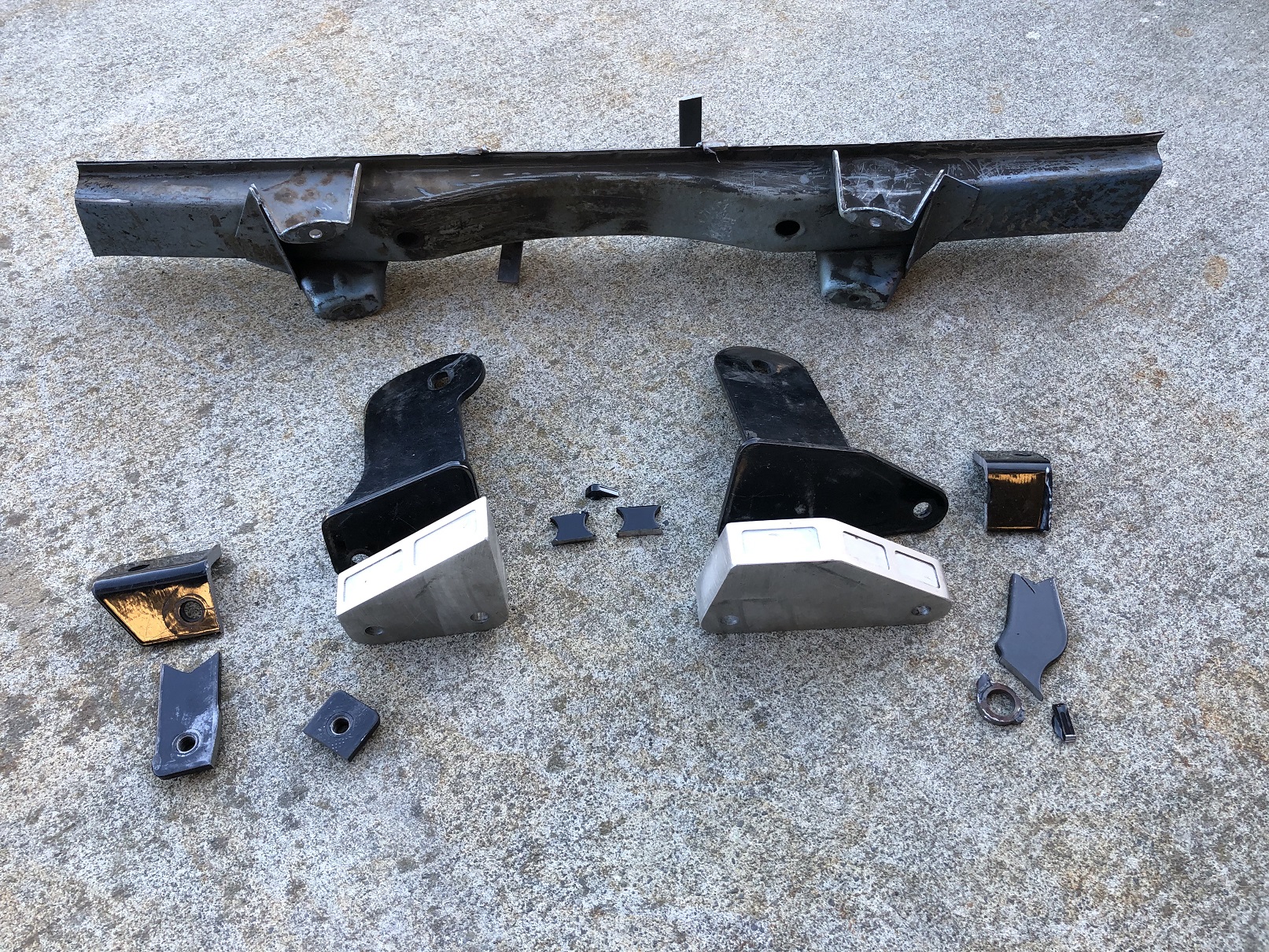

Here are the major parts that got removed. If anyone wants to move their Boxster trans and engine forward 1.5", let me know. I'll give you a good deal on some custom aluminum spacers... (IMG:style_emoticons/default/happy11.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 2 2021, 05:28 PM
Post #3740


Advanced Member
****

Group: Members
Posts: 4,764
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Saweeet! That looks so dang clean! Excellent work! (IMG:style_emoticons/default/smilie_pokal.gif) I would have suggested it sooner if I knew you were going to mention me by name in a video! (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
