> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
Cairo94507
post Dec 11 2021, 08:02 AM
Post #3801


Michael
**********

Group: Members
Posts: 10,094
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Hi Chris, @Tygaboy
I like the taillight panel venting and think that would be a very cool place for the intake. I like the design with the slanted openings- did you consider trying to match the sail panel angles for the openings? Just spitballing while looking at it. Not sure about the trunk lid vents- For me, with the front vents, which I love, the rear lid goes to far.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cassmcentee
post Dec 11 2021, 08:04 AM
Post #3802


Member
**

Group: Members
Posts: 220
Joined: 12-July 18
From: Squaw Valley, CA
Member No.: 22,304
Region Association: Central California
Looking Good Chris!

Food for thought: Instead of levered vents
What about a "Torpedo Outlet"?!?
Attached Image
Could be a design play from the shape of the front fender... much like this first submarine pic
Attached Image
could have a vent "Butterfly" like this second sub pic
Attached Image
By "Torpedo Outlet" I mean like what you see on a submarine only facing backwards
Even crazier... tie the torpedo vent to the gas pedal so that it opens upon acceleration.
Like the butterfly on a blower...

Early morning design impressions with my second cup of coffee!
Cheers,
Cass
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
willieg
post Dec 11 2021, 10:56 AM
Post #3803


Member
**

Group: Members
Posts: 138
Joined: 13-August 18
From: Pleasant Hill
Member No.: 22,389
Region Association: Northern California
Chris
Now that you have opened up your forum to idjits like myself, with more creativity than sense, I have two suggestions. First, for the intake. Use the rear of the trunk, where you already have two options, and run the intake to an air filter that is attached to your rear valence work. From the back of the car, the only part of the intake that is visible would be black mesh covering the filter.

Second, obviously you are very anxious to cut on the trunk lid. What about modifying the trunk lid to act as a downforce spoiler? NO…..not the whole trunk lid, although that would look awesome, but just the rear part of the trunk lid. You probably have the electronics to tell a spoiler to open at a specific speed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
live free & drive
post Dec 11 2021, 08:00 PM
Post #3804


Member
**

Group: Members
Posts: 177
Joined: 29-June 16
From: New Hampshire
Member No.: 20,159
Region Association: None
I always thought Armando did a nice job on integrating this transmission cooler in the back-panel - food for thought:

https://pbase.com/9146gt/the9146gt_901_916_...and_fabrication
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Dec 12 2021, 10:46 AM
Post #3805


914 Neferati
*****

Group: Members
Posts: 5,090
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
You may need to call your 914 the VENTura model. (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 15 2021, 05:51 PM
Post #3806


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Back to the wiring since I figured I should focus on things that'll get the car back on the road...

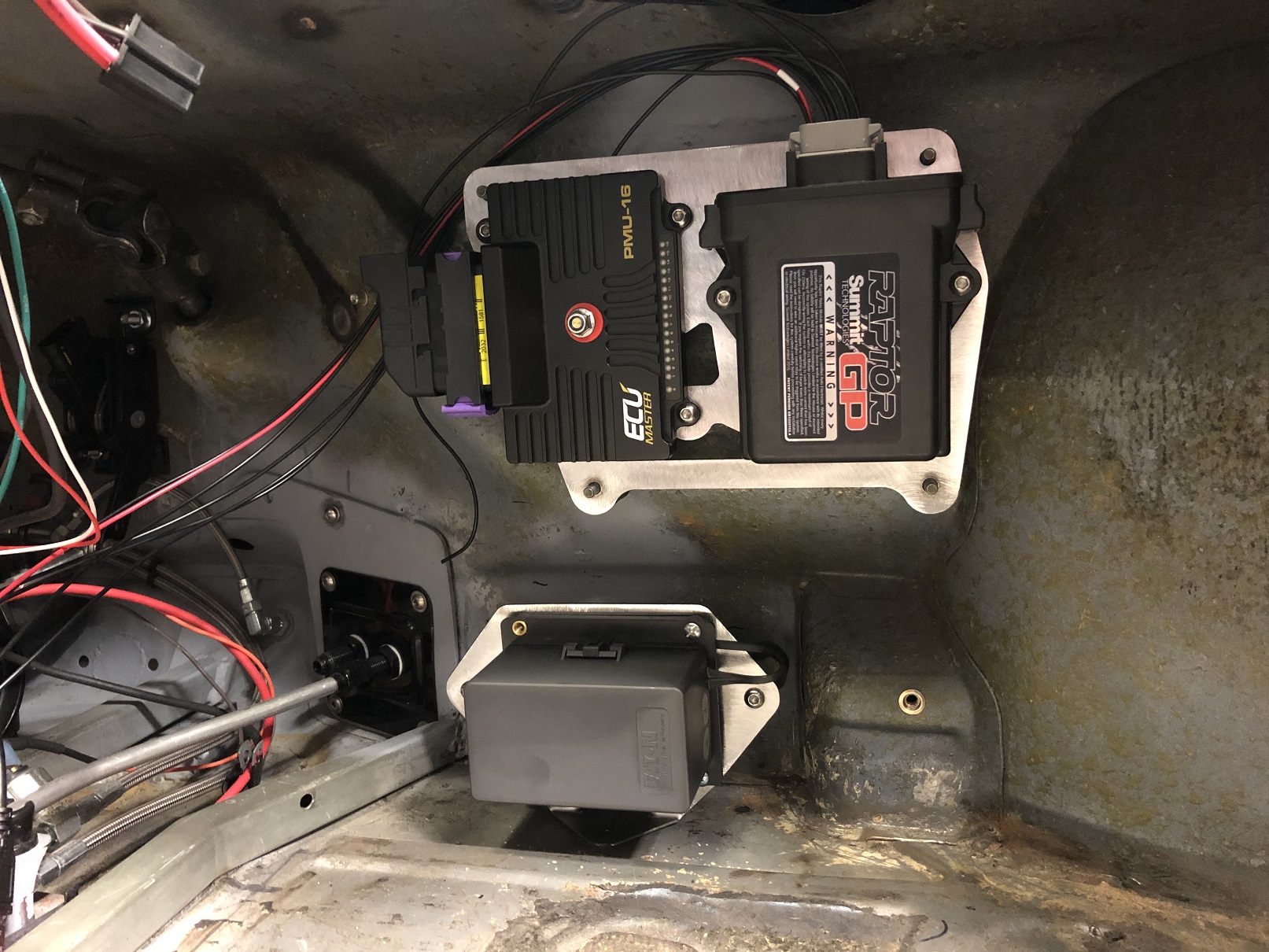

Out with the old, in with the new: First thing is to mount the new components. The ECU Master power management unit (PMU) you see here replaces:
- the Arduino "magic box"
- 8 relays needed by the Arduino
- the wireless turn signal management unit
- all but a few of the fuses and relays

I also upgraded the Raptor wireless unit to the smaller "GP" version in the pic.

The ECU aside, what's pictured are the only other electronic components needed to operate the car. Much tidier, if I do say so.

Next up: wiring!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 17 2021, 10:05 AM
Post #3807


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

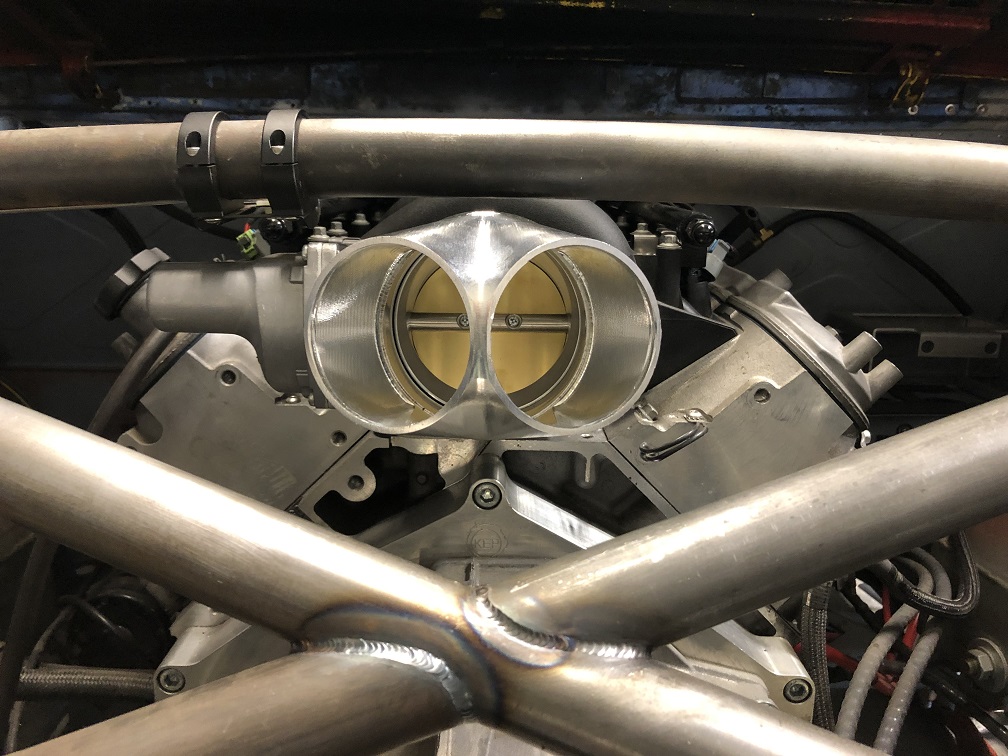

I swear I'm working on the wiring! But a main component arrived for the other intake design I'm planning. Aluminum CNC 2 x 3" to 4" merge. This attaches to the throttle body and will then have symmetric intake tubes running to a matched set of air boxes/cleaners - one on each side of the engine.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 17 2021, 02:39 PM
Post #3808


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

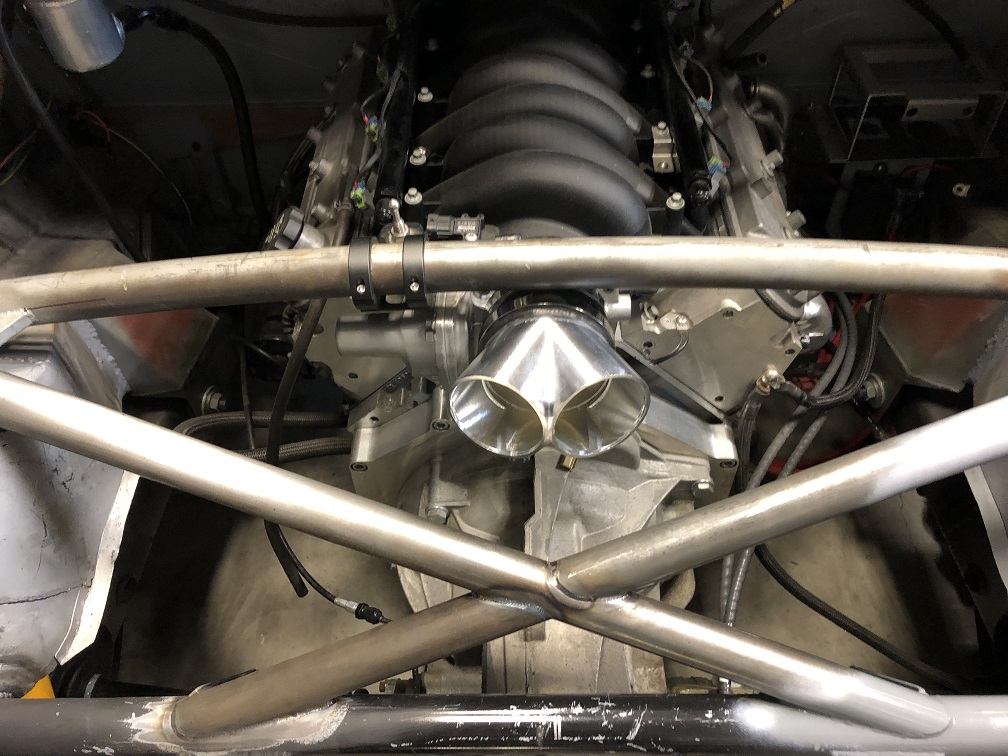

Ready for the intake tube routing!


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 18 2021, 02:01 PM
Post #3809


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

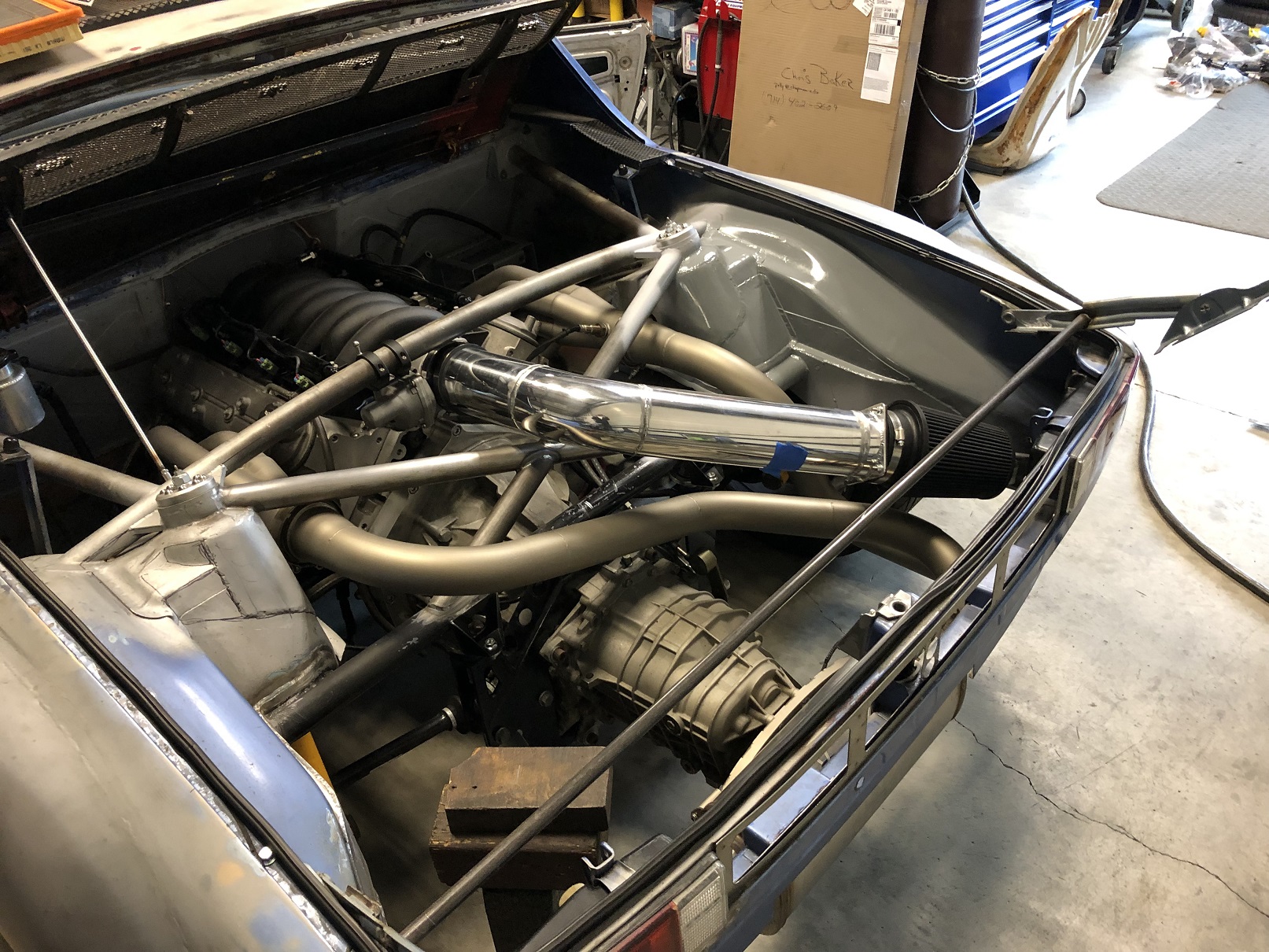

Not even I can keep up with what's going on with this build! (IMG:style_emoticons/default/laugh.gif)
Headers and exhaust are back from ceramic coating. This color is "titanium' - at least at the place I used. It's a bit less gold than the Ceracote I had on the exhaust before and being a bit more subtle, I prefer it.

And I think I'm going to pull cold air through the rear panel vs. venting the trunk lid. At least for now, anyway. On to building an appropriate air box.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Dec 18 2021, 02:50 PM
Post #3810


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
Looking amazing! I agree with your thoughts on not putting vents in the deck lid.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Dec 18 2021, 08:03 PM
Post #3811


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
Hmm. Well at least you're in good company... (IMG:style_emoticons/default/shades.gif)

This was the first iteration - much improved later on (second pic) but this gives you an idea. Yours will be infinitely better, I know, but I was building this purely for performance.

For those that might think I am a bit hard on Chris - we are ok; he has thick skin. (IMG:style_emoticons/default/beerchug.gif)

Cracker

QUOTE(tygaboy @ Dec 18 2021, 03:01 PM) *

And I think I'm going to pull cold air through the rear panel vs. venting the trunk lid. At least for now, anyway. On to building an appropriate air box.

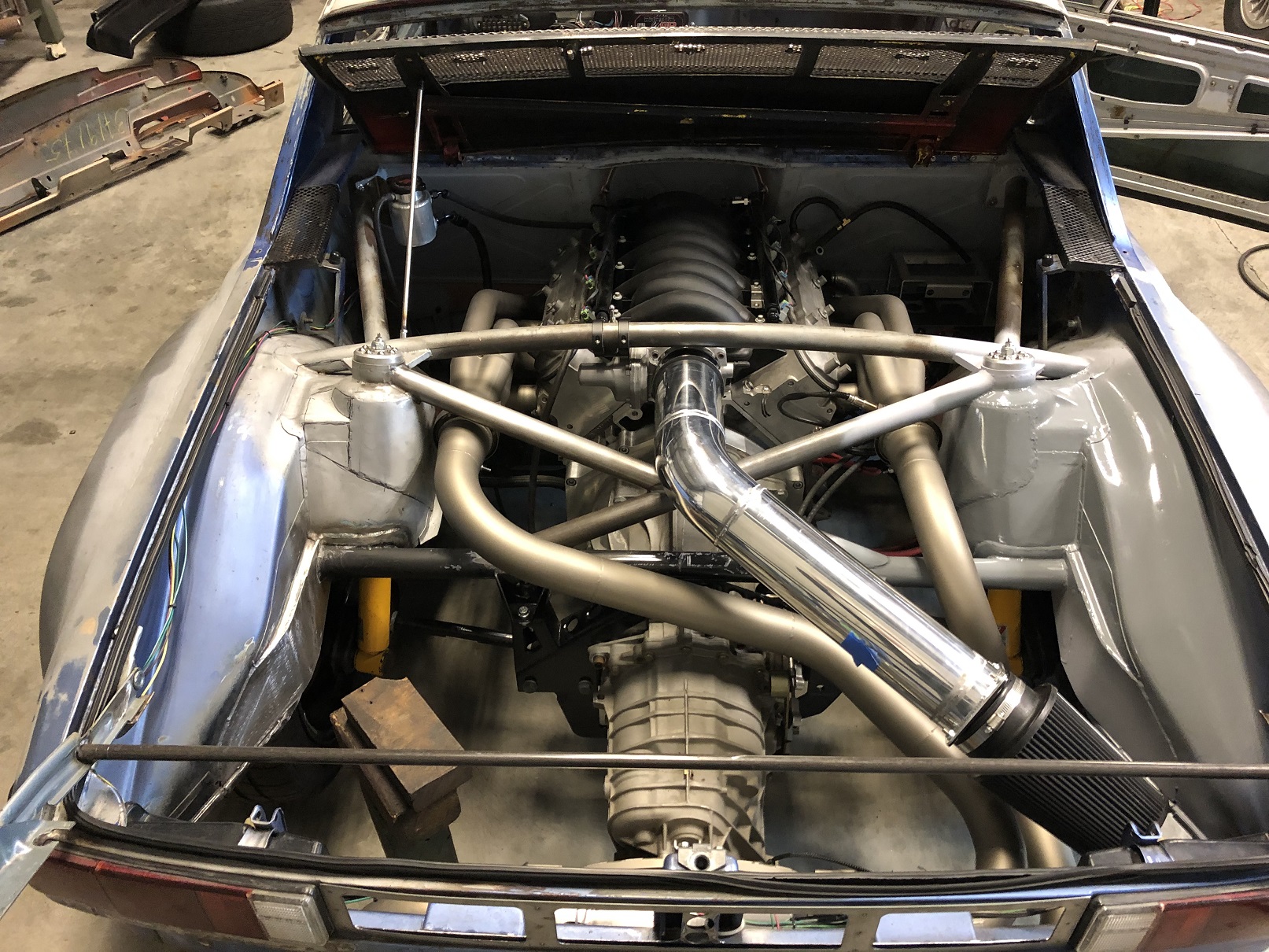

First attempt...

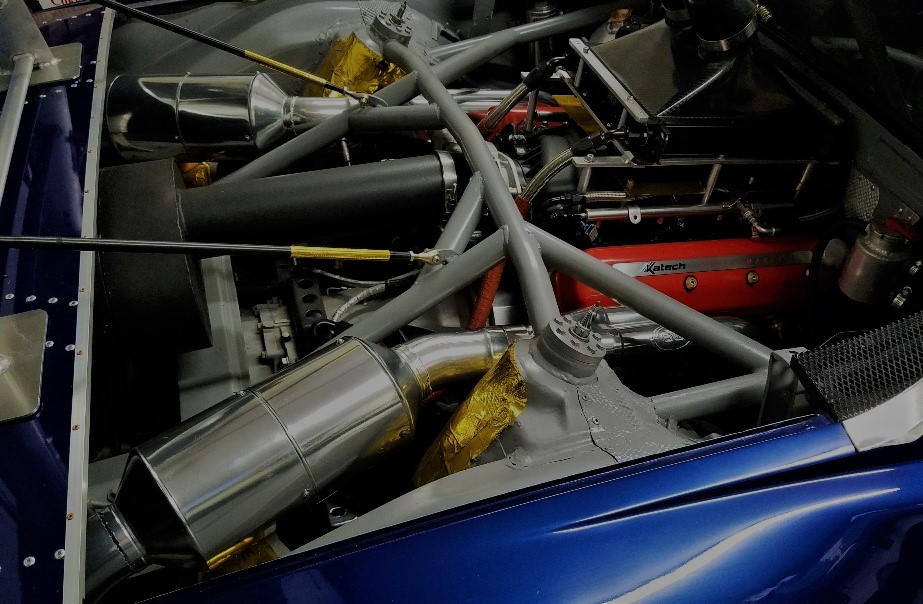

Attached Image

Final iteration...

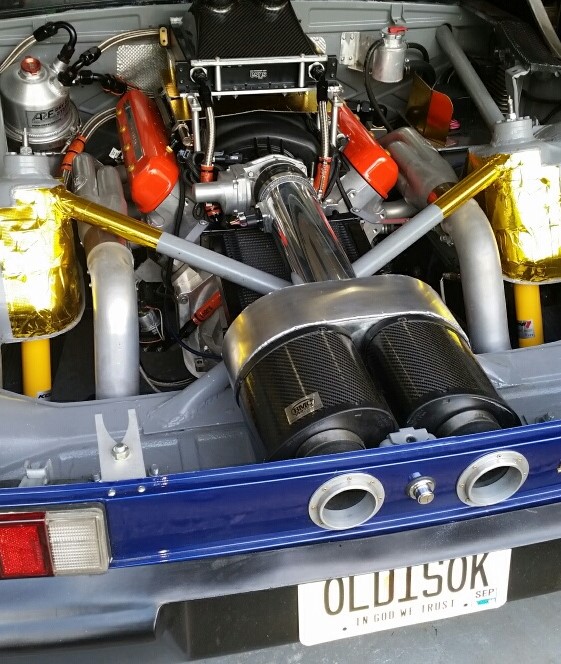

Attached Image

We be friends...
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 18 2021, 10:01 PM
Post #3812


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Isn't the air space immediately behind the car turbulent and/or low pressure?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Dec 18 2021, 10:23 PM
Post #3813


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
I won't post on Chris's build thread anymore on this but the answer is yes, you are correct. These two men, from Porsche Motorsport were in North America for meetings and at Barber Motorsports Park while I was running. They came up and asked if they could look the Teener over and take pictures - I obliged and we ended up having a good long conversation about the 914 platform. One thing that puzzled them was the intake design (appropriately included in the picture below) - they marveled at how fast the car accelerated - it didn't make sense to them. Many other knowledgeable "racers" have questioned my intake design - bottom line - it works - period. To make matters even more confusing for folks - my oil cooler intake was captured from the roof and onto the intake - people thought my intake was exhaust and oil cooler was an intake. Fun. (IMG:style_emoticons/default/shades.gif)

I look forward to seeing what Chris comes up with - at least the first 10 or so variations... (IMG:style_emoticons/default/poke.gif) Enough of my old build - Chris, get this car finished!!! (IMG:style_emoticons/default/stirthepot.gif)

Cracker

QUOTE(bkrantz @ Dec 18 2021, 11:01 PM) *

Isn't the air space immediately behind the car turbulent and/or low pressure?


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tazz9924
post Dec 19 2021, 04:09 PM
Post #3814


Senior Member
***

Group: Members
Posts: 716
Joined: 31-May 15
From: Mooresville NC
Member No.: 18,779
Region Association: None
QUOTE(Cracker @ Dec 18 2021, 08:23 PM) *

I won't post on Chris's build thread anymore on this but the answer is yes, you are correct. These two men, from Porsche Motorsport were in North America for meetings and at Barber Motorsports Park while I was running. They came up and asked if they could look the Teener over and take pictures - I obliged and we ended up having a good long conversation about the 914 platform. One thing that puzzled them was the intake design (appropriately included in the picture below) - they marveled at how fast the car accelerated - it didn't make sense to them. Many other knowledgeable "racers" have questioned my intake design - bottom line - it works - period. To make matters even more confusing for folks - my oil cooler intake was captured from the roof and onto the intake - people thought my intake was exhaust and oil cooler was an intake. Fun. (IMG:style_emoticons/default/shades.gif)

I look forward to seeing what Chris comes up with - at least the first 10 or so variations... (IMG:style_emoticons/default/poke.gif) Enough of my old build - Chris, get this car finished!!! (IMG:style_emoticons/default/stirthepot.gif)

Cracker

QUOTE(bkrantz @ Dec 18 2021, 11:01 PM) *

Isn't the air space immediately behind the car turbulent and/or low pressure?


Attached Image

Do you have a picture gallery of your car somewhere? i would really love to look at whatever you have!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 20 2021, 04:52 PM
Post #3815


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

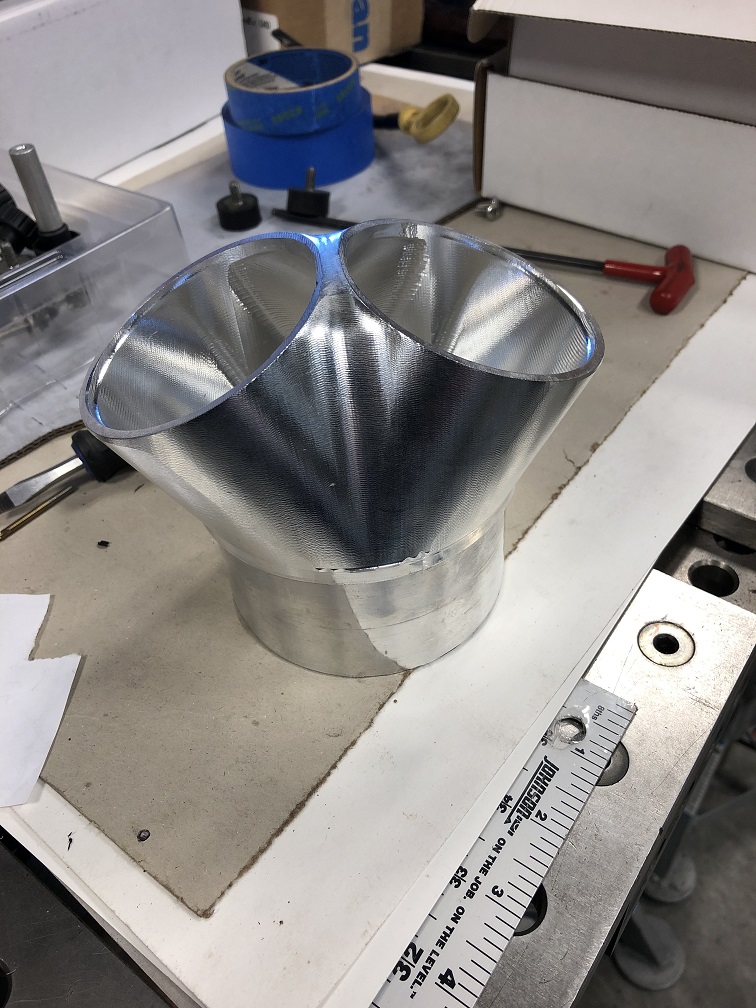

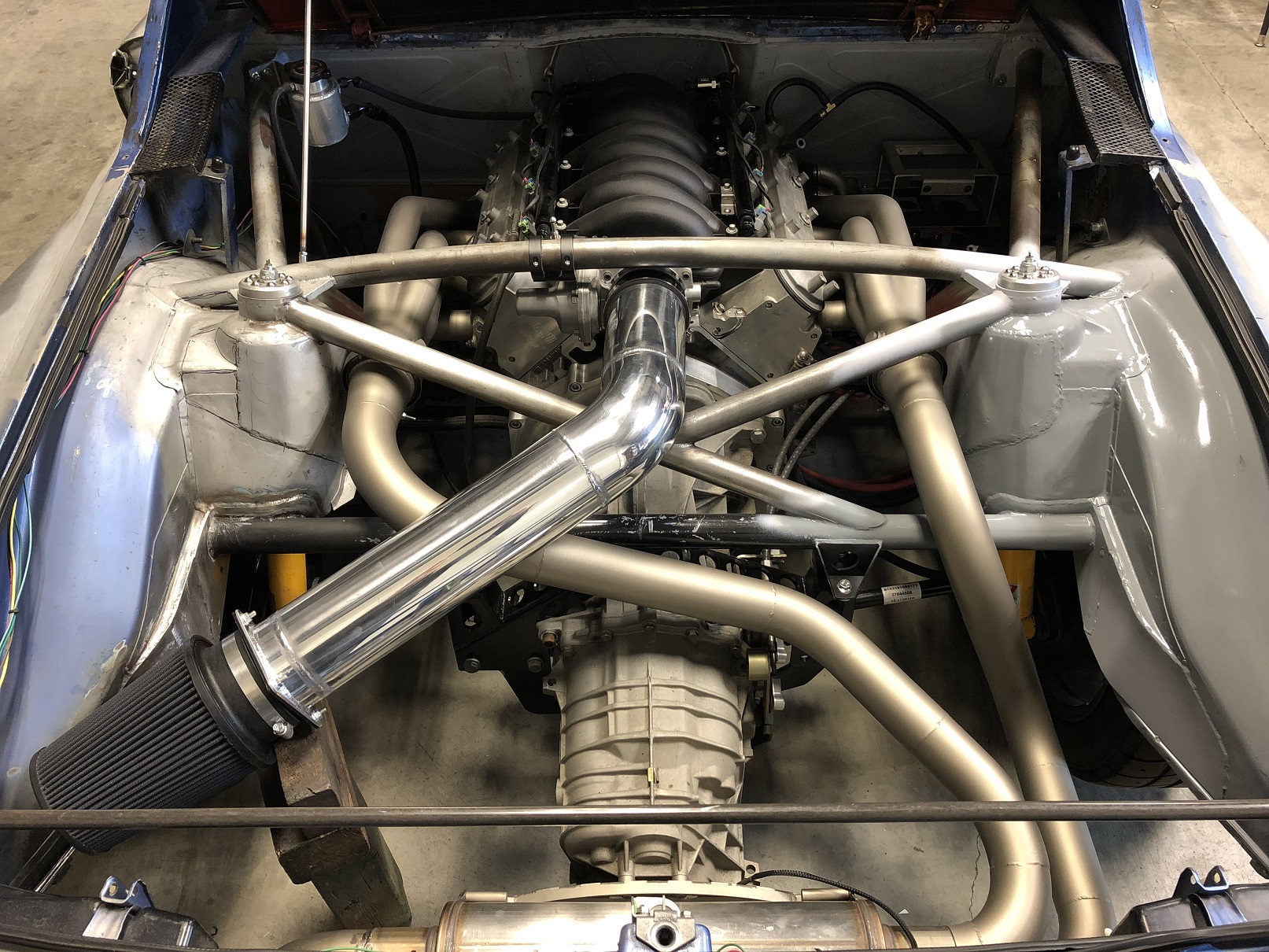

More input from Tony @cracker - and I don't know why I didn't even try it earlier: Run everything to the right side. He suggested building the air box inside the fender, behind the rear wheel so the intake tube would "end" inside the trunk.
I'm noodling on that part but I think the "go right" design is a keeper.
I'll likely cut/reweld the intake tube to get it to exactly match the angles of the exhaust.

And no, this will never end! (IMG:style_emoticons/default/lol-2.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Dec 20 2021, 04:57 PM
Post #3816


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
And to complicate matters, I just watched a PAIR (not a set, a PAIR!) of 16 x 8 Fuchs sell for $4100 on Bring a Trailer. I thought that was insane so went to the Fuchs site to see what brand new ones cost. $948.72 each.

What am I not understanding? I guess maybe date codes are everything so some folks.

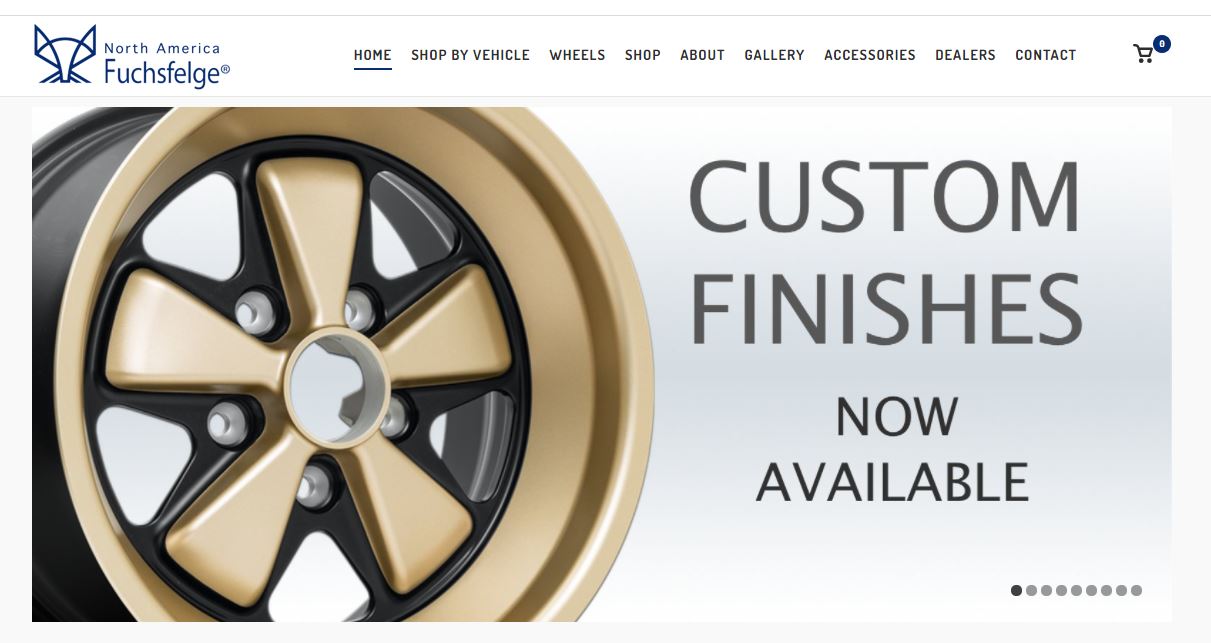

Anyway, the REAL problem is I see this banner on the site. I think I need a set just like this in 8s and 9s!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Dec 21 2021, 06:50 PM
Post #3817


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
I'll bite Chris...those wheels would look absolutely killer with a blue car (someday; year; or decade)! (IMG:style_emoticons/default/poke.gif)

Cracker
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Dec 21 2021, 07:07 PM
Post #3818


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
You gotta take cracker a little at a time. It's like a low carb diet. (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Dec 21 2021, 07:14 PM
Post #3819


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
Not accurate, Rand...you take "cracker" with good cheese and wine and enjoy the moment(s). (IMG:style_emoticons/default/shades.gif)


QUOTE(Rand @ Dec 21 2021, 08:07 PM) *

You gotta take cracker a little at a time. It's like a low carb diet. (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Dec 21 2021, 07:36 PM
Post #3820


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
The cheese is boost.
I don't whine.
I will enjoy the moment.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
