QUOTE(Rand @ Oct 23 2017, 11:53 AM) *

Gotcha. Totally get it on the butt welds. Beautiful headers! Huge respect to the great welders.

The grinding comment just brought up the image of the "eagle crap" welds I've seen. (IMG:style_emoticons/default/biggrin.gif)

(IMG:style_emoticons/default/owned.gif) (IMG:style_emoticons/default/blush.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 26 2017, 05:12 PM
Post #722


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

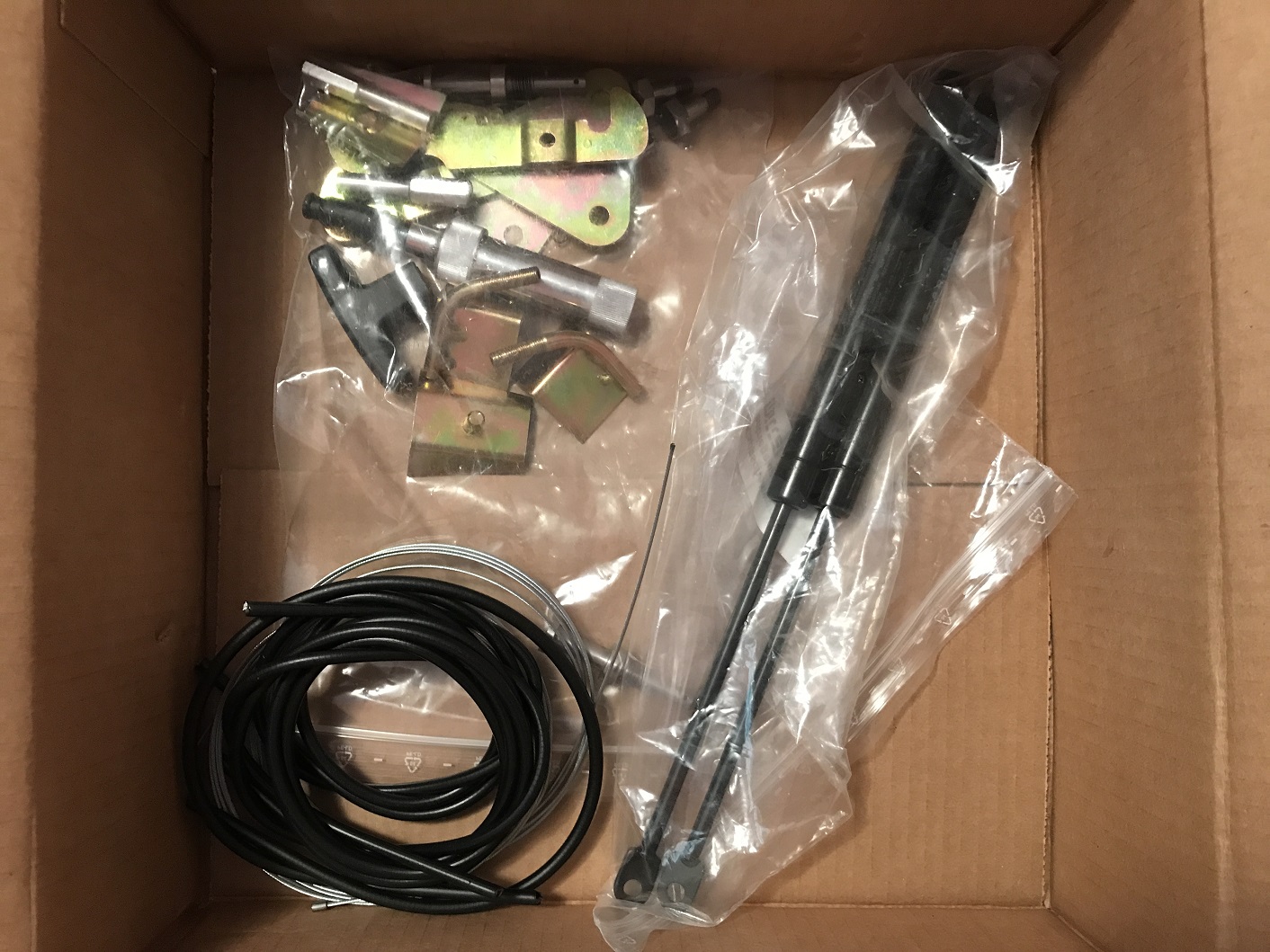

914 Rubber's GT Headlight Kit arrived today! (IMG:style_emoticons/default/aktion035.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 26 2017, 05:29 PM
Post #723


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

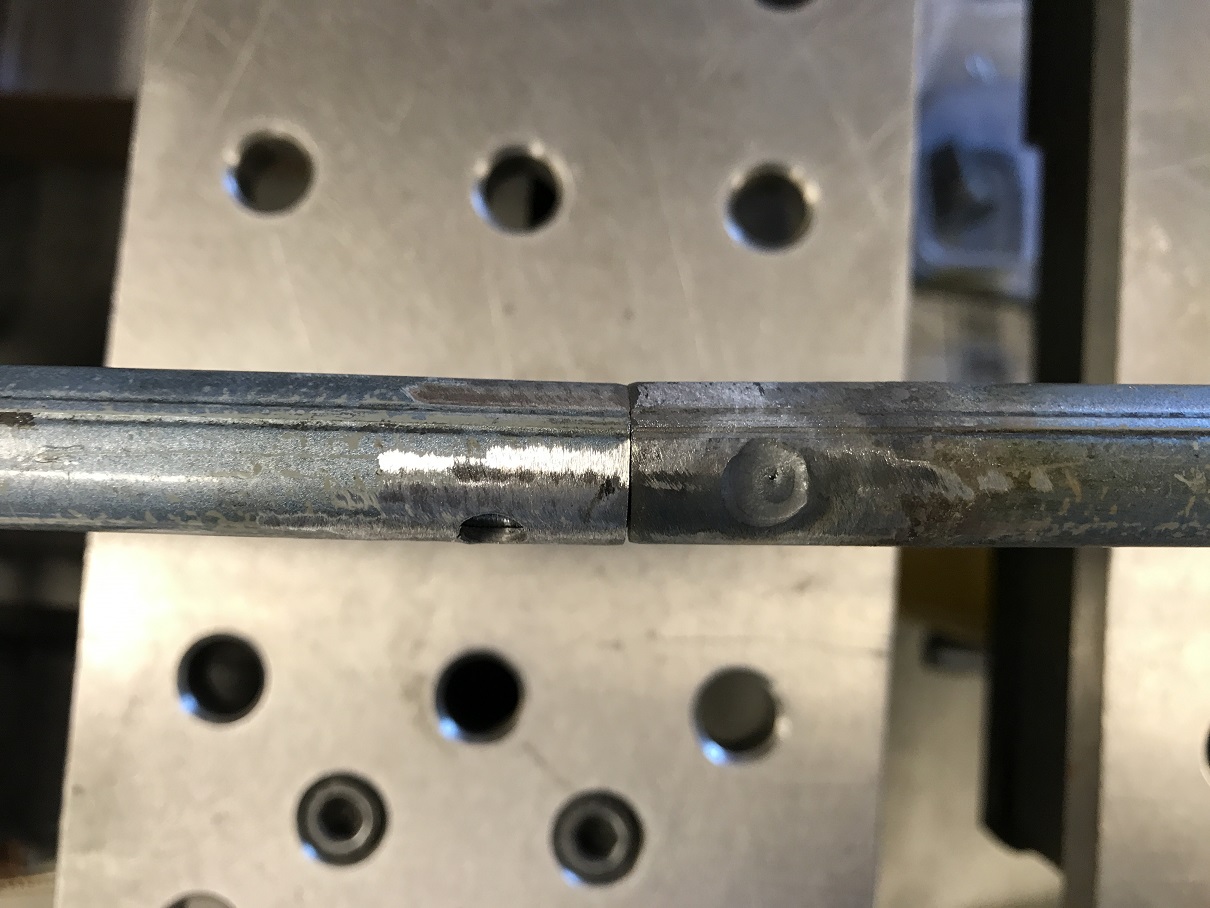

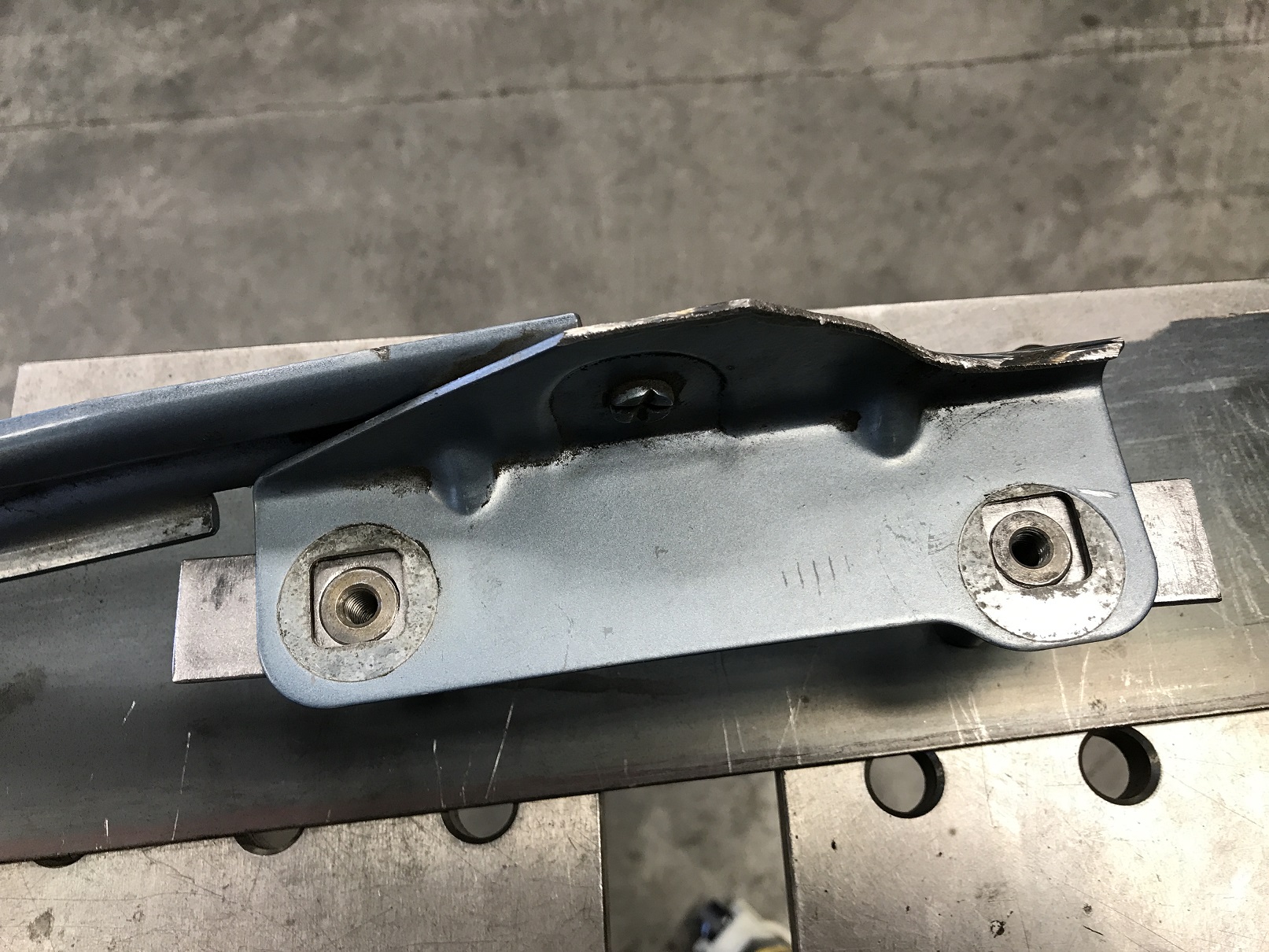

As usual, I'm all over the place. This evening, it was narrowing the flip rear trunk hinge. The Buick it came from is a bit wider than a 914...

I cut the cross bar in the middle then clamped each hinge half to the underside of the trunk seal channel, where that part will eventually be bolted. Then I tied the now overlapping crossbars to each other and determined center, then cut equal amounts off each side.

I then used the lathe to turn down a suitable bolt to make a slug that I plug welded into the cross bars. I'm determined to doing everything I can with TIG vs MIG and this was a good little project for that. So...A little TIG-ity, TIG and... one narrowed flip trunk hinge!


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Oct 26 2017, 05:30 PM
Post #724


914 Guru
*****

Group: Members
Posts: 7,254
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Love it.. Its on my short list but gotta spend 400 on a set of refurbished rockers..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Oct 26 2017, 10:57 PM
Post #725


Advanced Member
****

Group: Members
Posts: 4,764
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
I like it!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 09:08 AM
Post #726


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

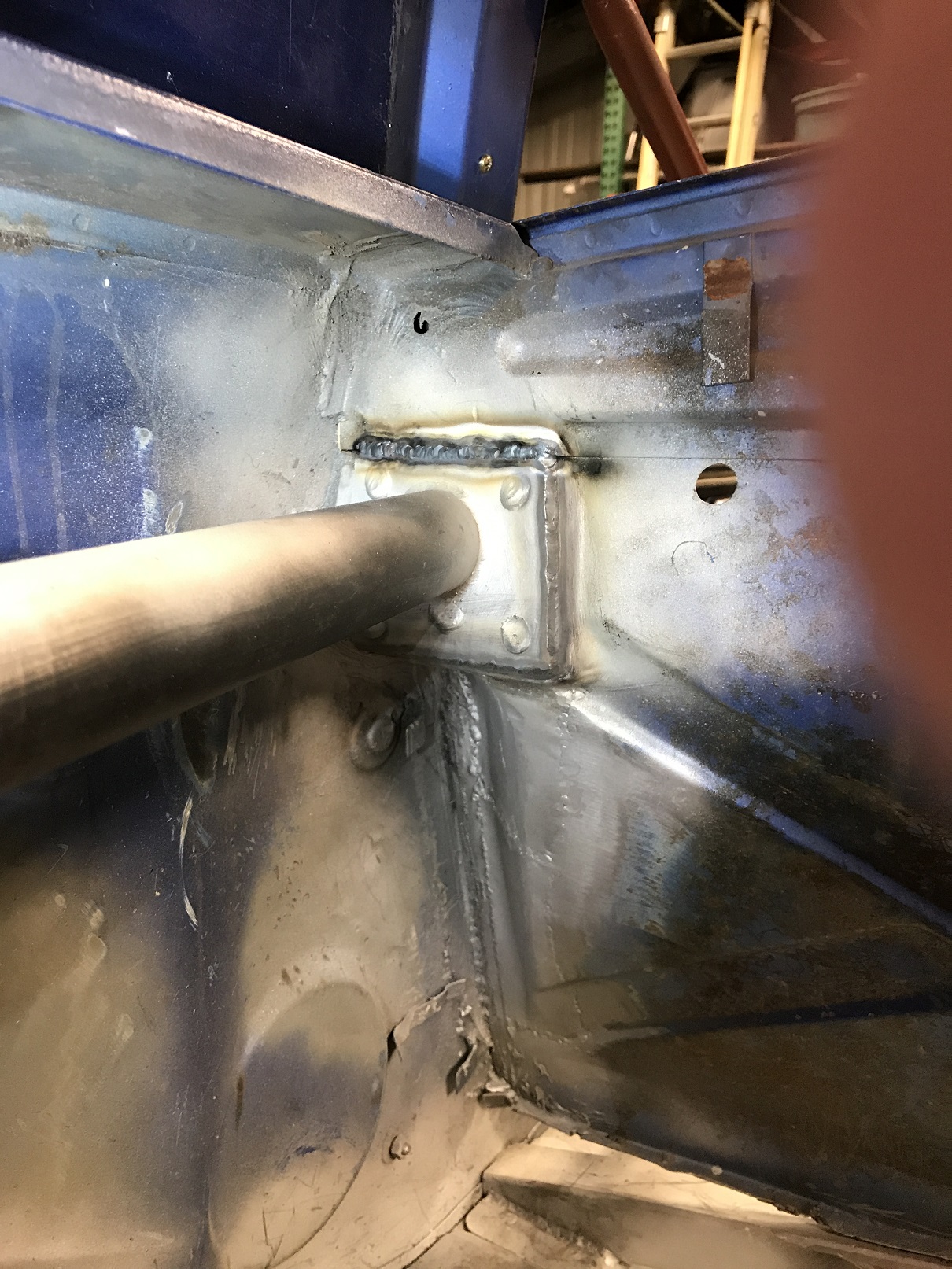

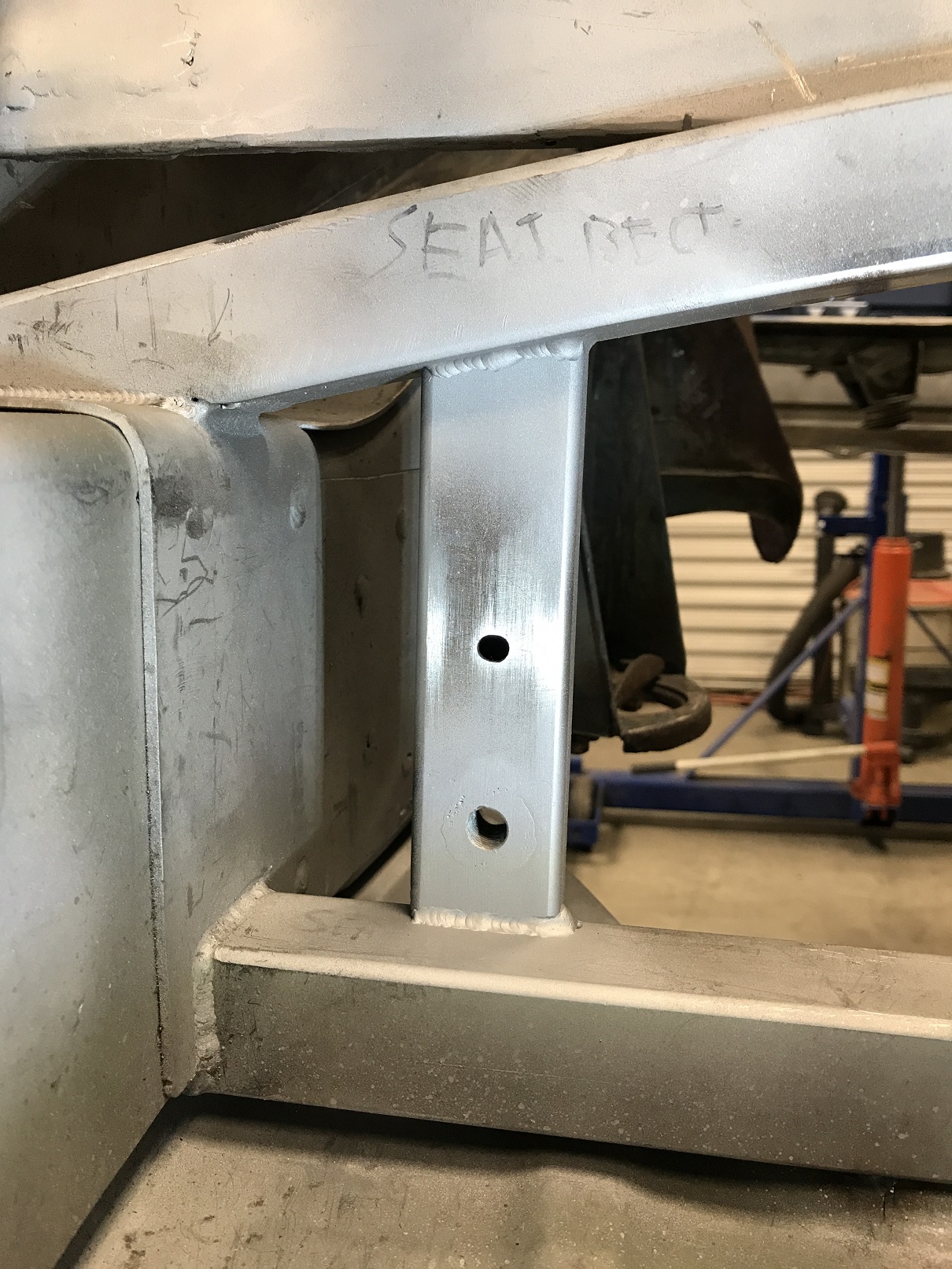

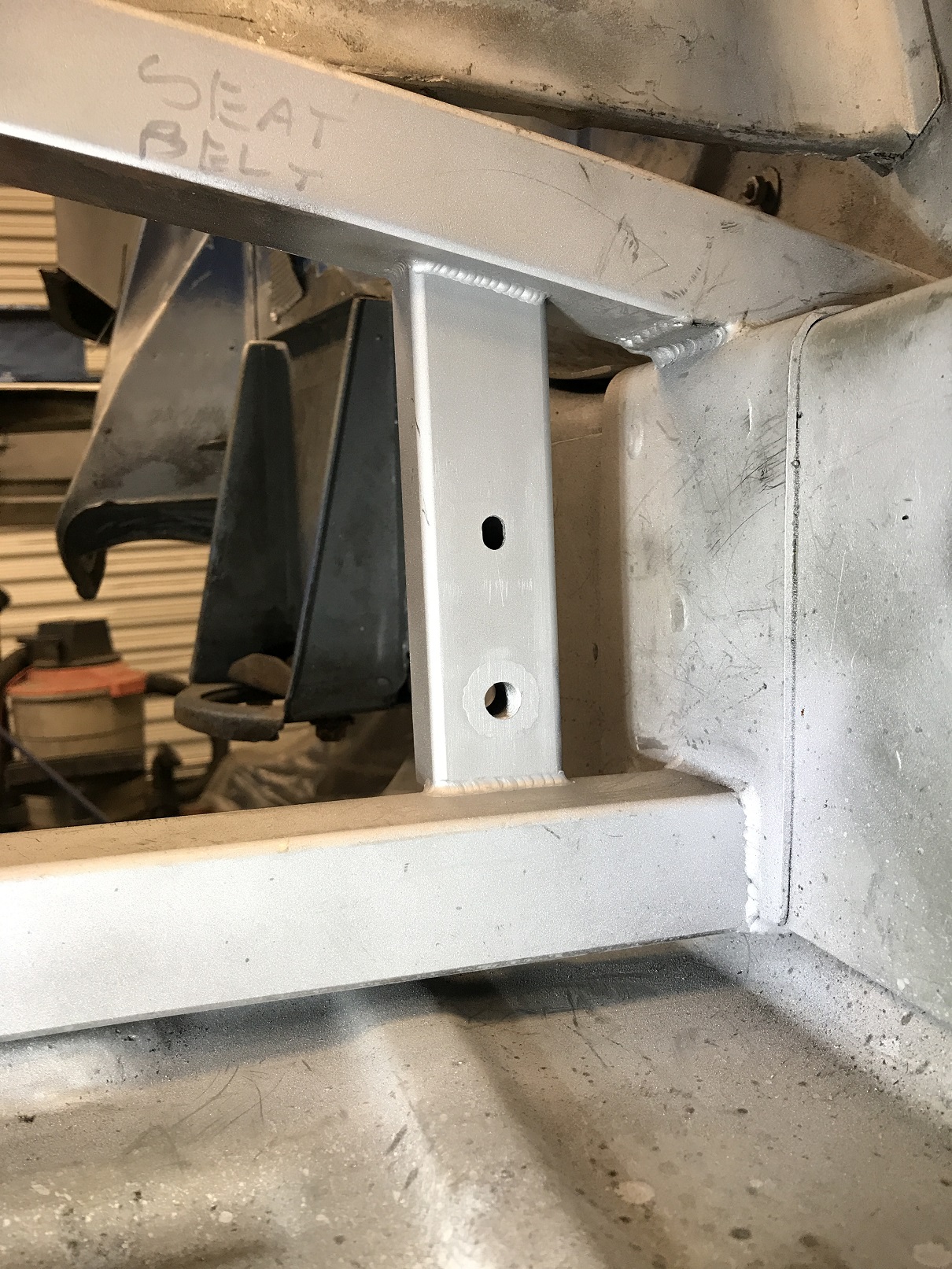

The chassis stiffening is nearly completed. Got the seat belt retractor mounts welded in.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 09:09 AM
Post #727


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

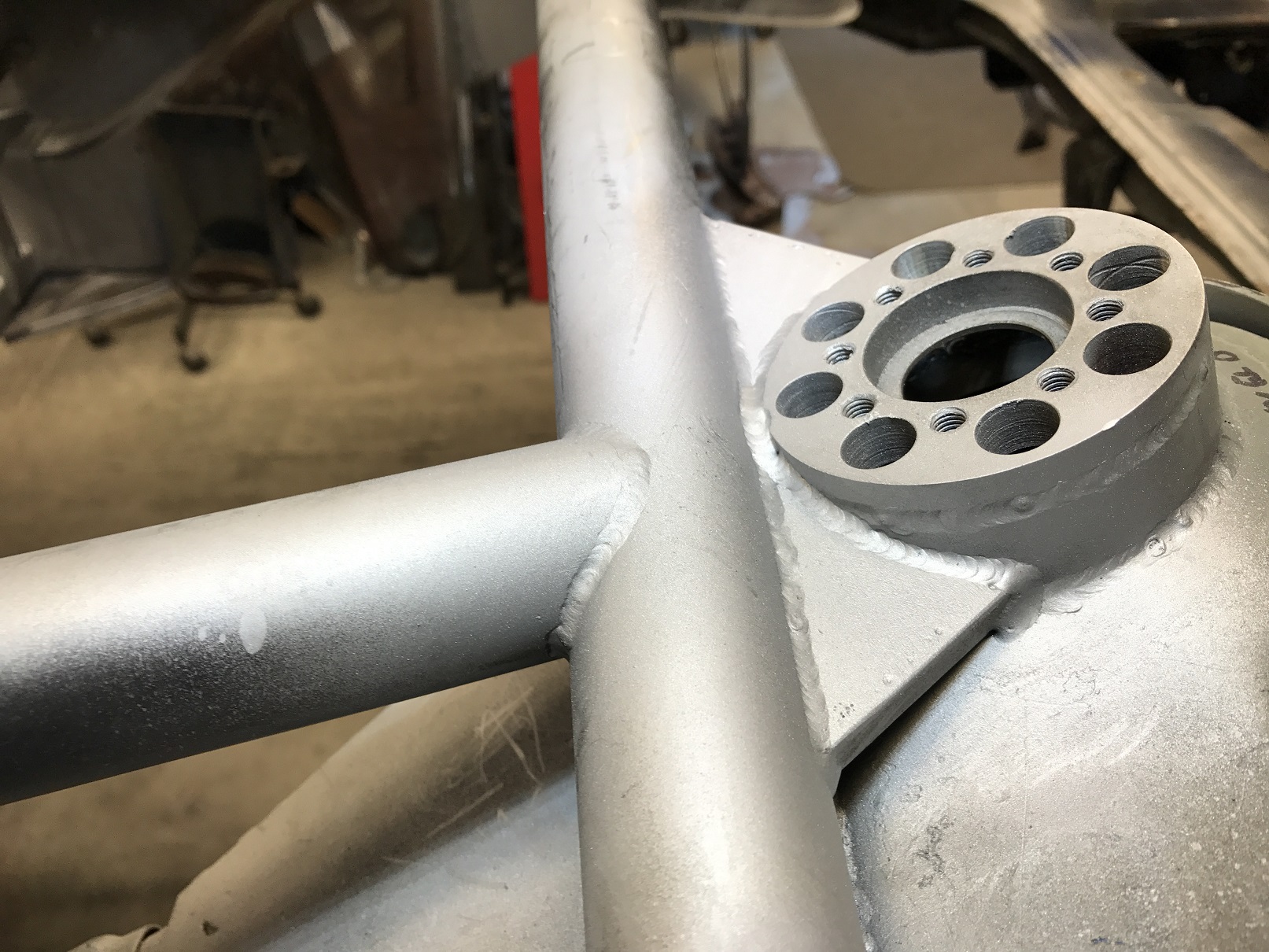

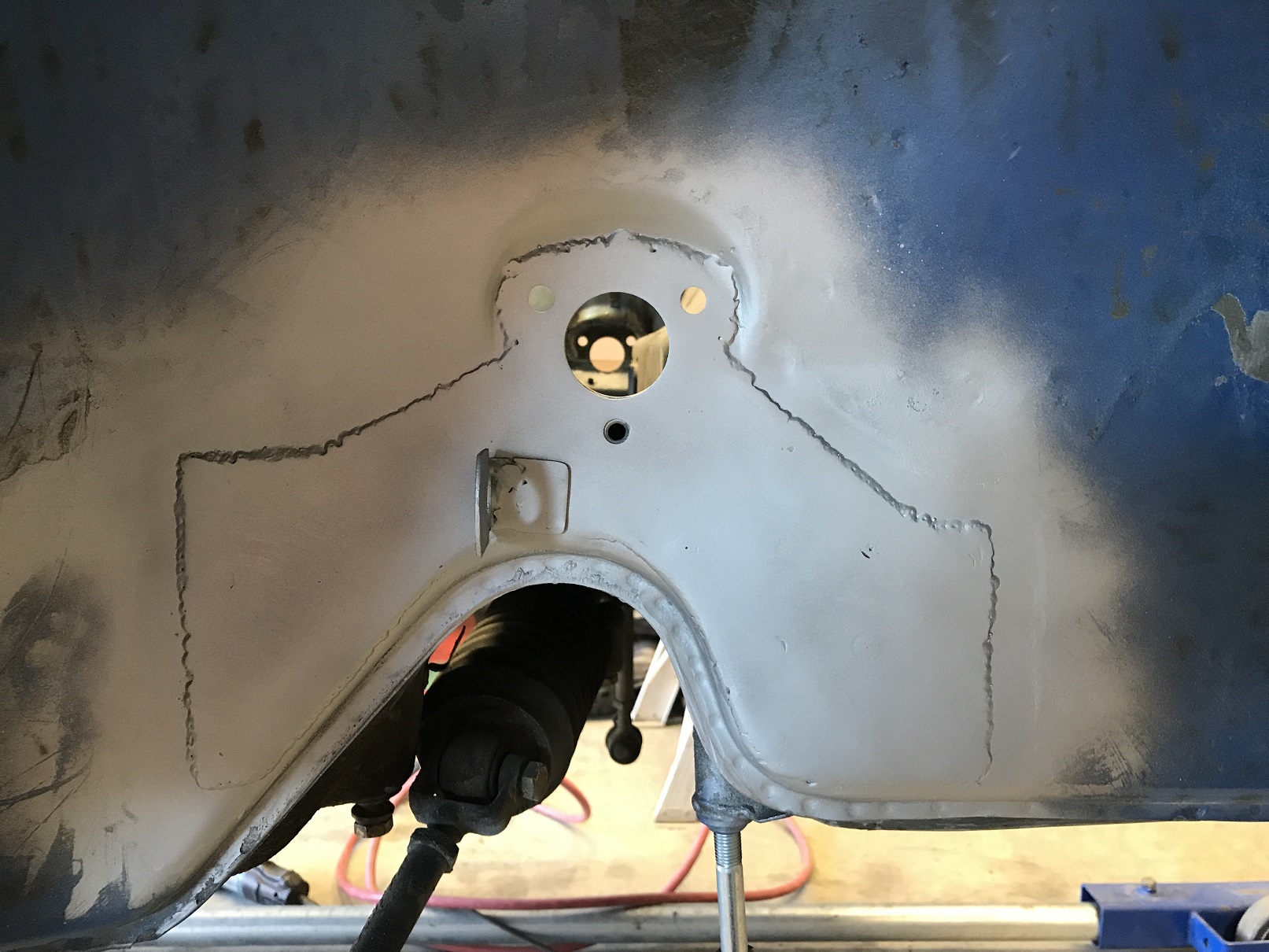

Final rear suspension tower reinforcement.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 09:10 AM
Post #728


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Locking down the rear suspension-to-fire wall support pad.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 09:11 AM
Post #729


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

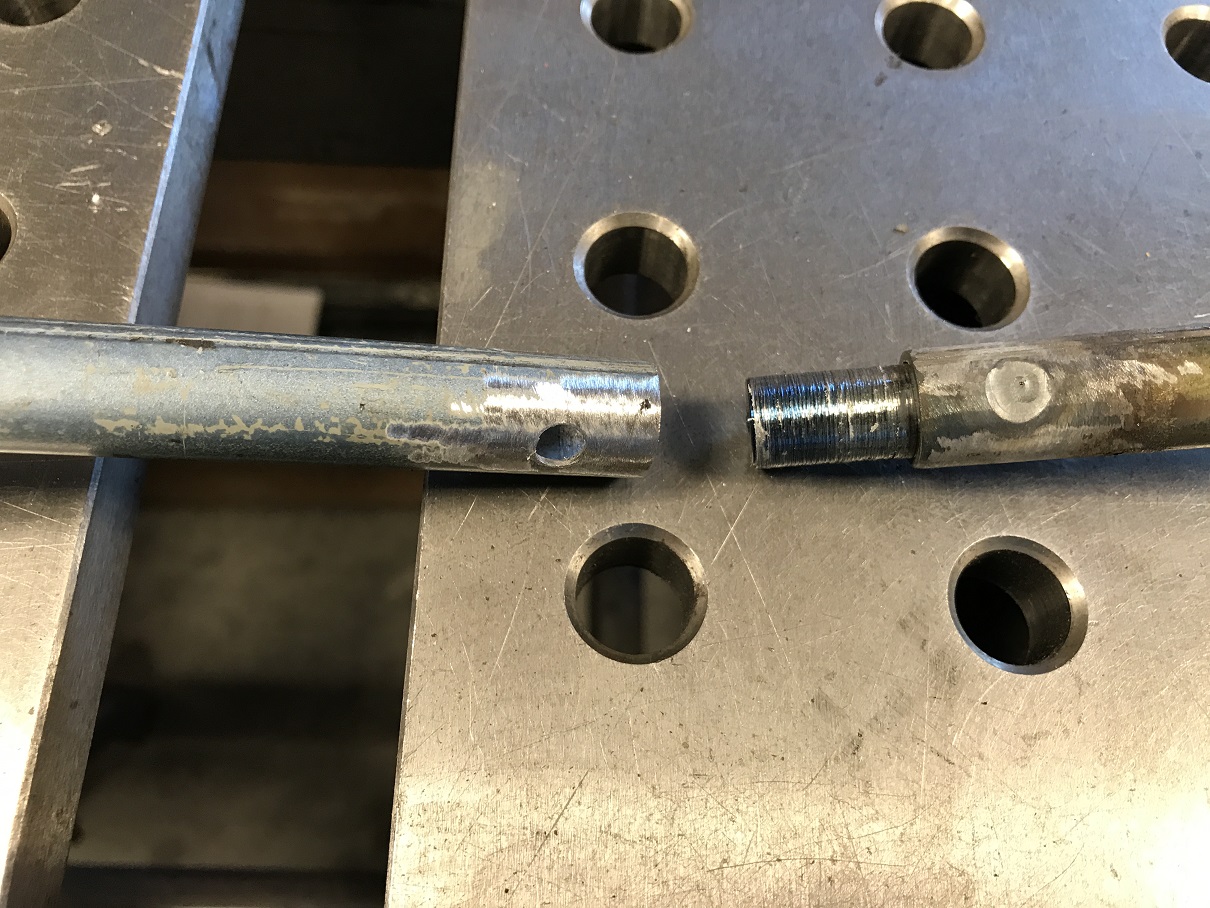

Final front suspension support tube.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 03:10 PM
Post #730


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

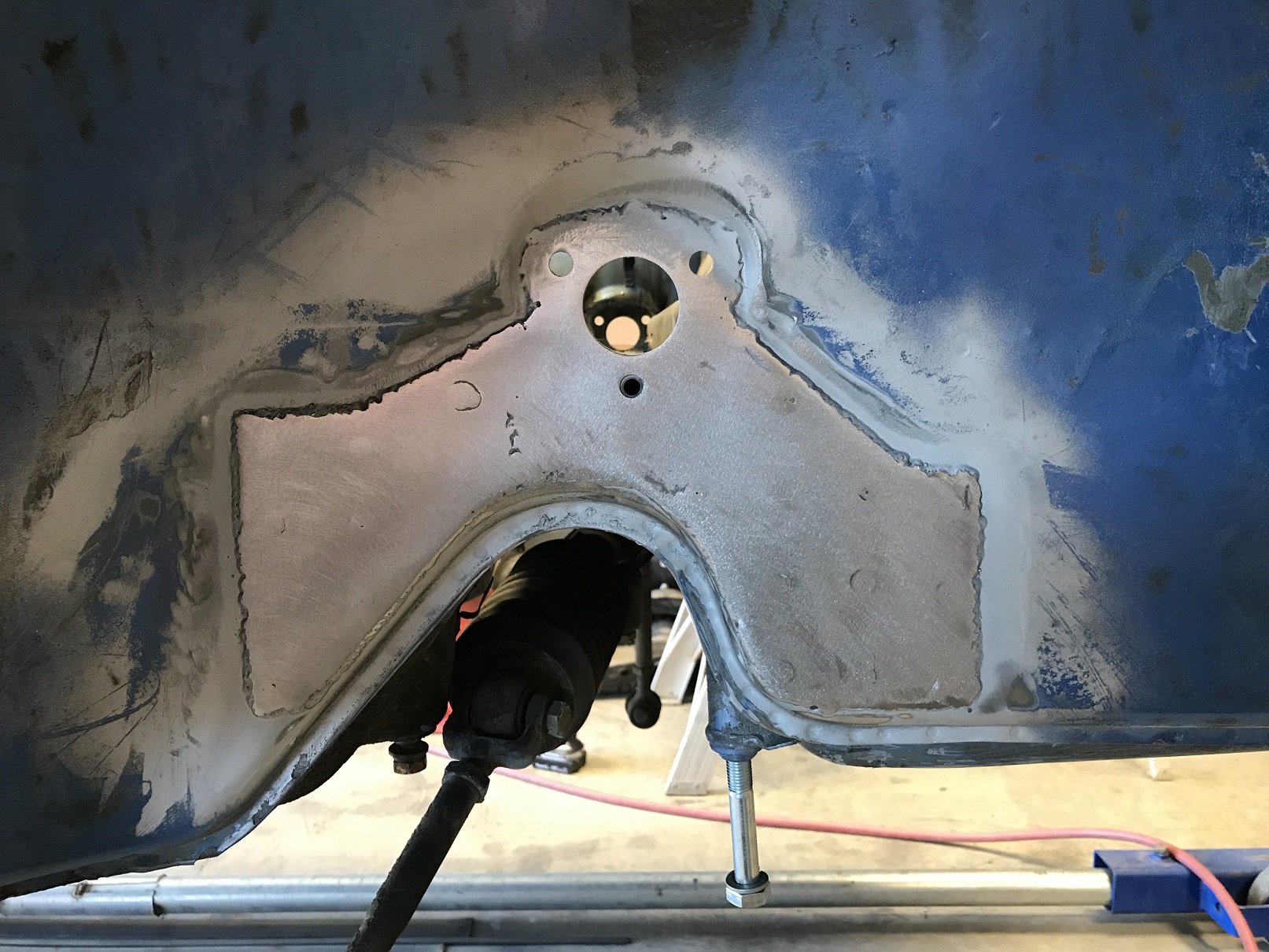

Finished installing the MadDog Motorsports front sway bar reinforcement plates.
I decided to to tidy up the rosette welds. Once it's back from blasting and epoxy prime, I'll seam seal around the perimeter. That'll all but disappear the wonky weld lines.

And the Elephant sway bar has their magical misalignment bushings. The bar literally swings, there's so little stiction. Really impressive.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 03:11 PM
Post #731


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Brake line brackets installed and a little primer to protect things for now...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 05:12 PM
Post #732


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

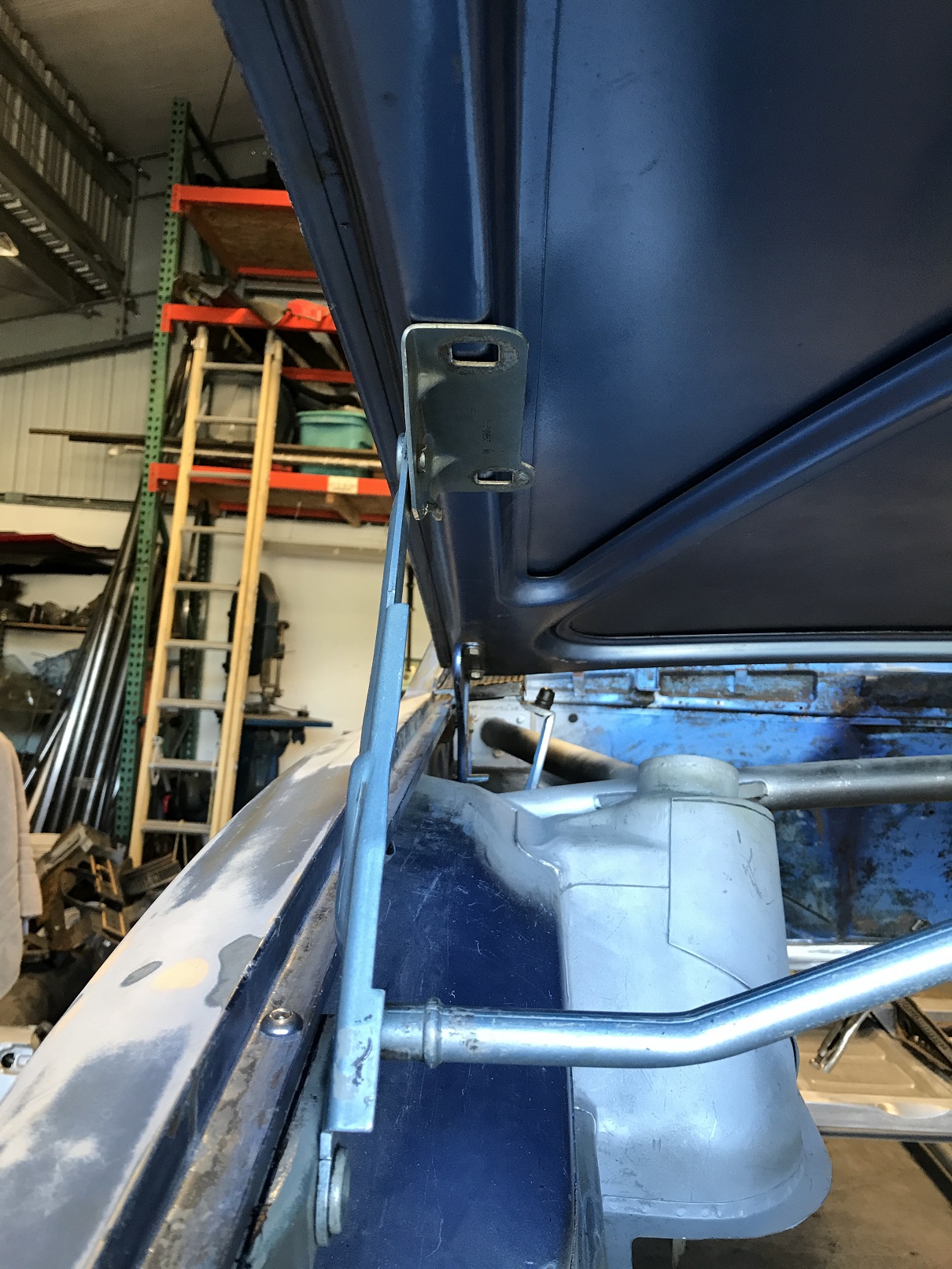

Back to the flip trunk hinge.
I worked out the hinge attachment location. (Andy/Krieger was kind enough to let me measure and photograph his installation. Thanks Andy!)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 05:14 PM
Post #733


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

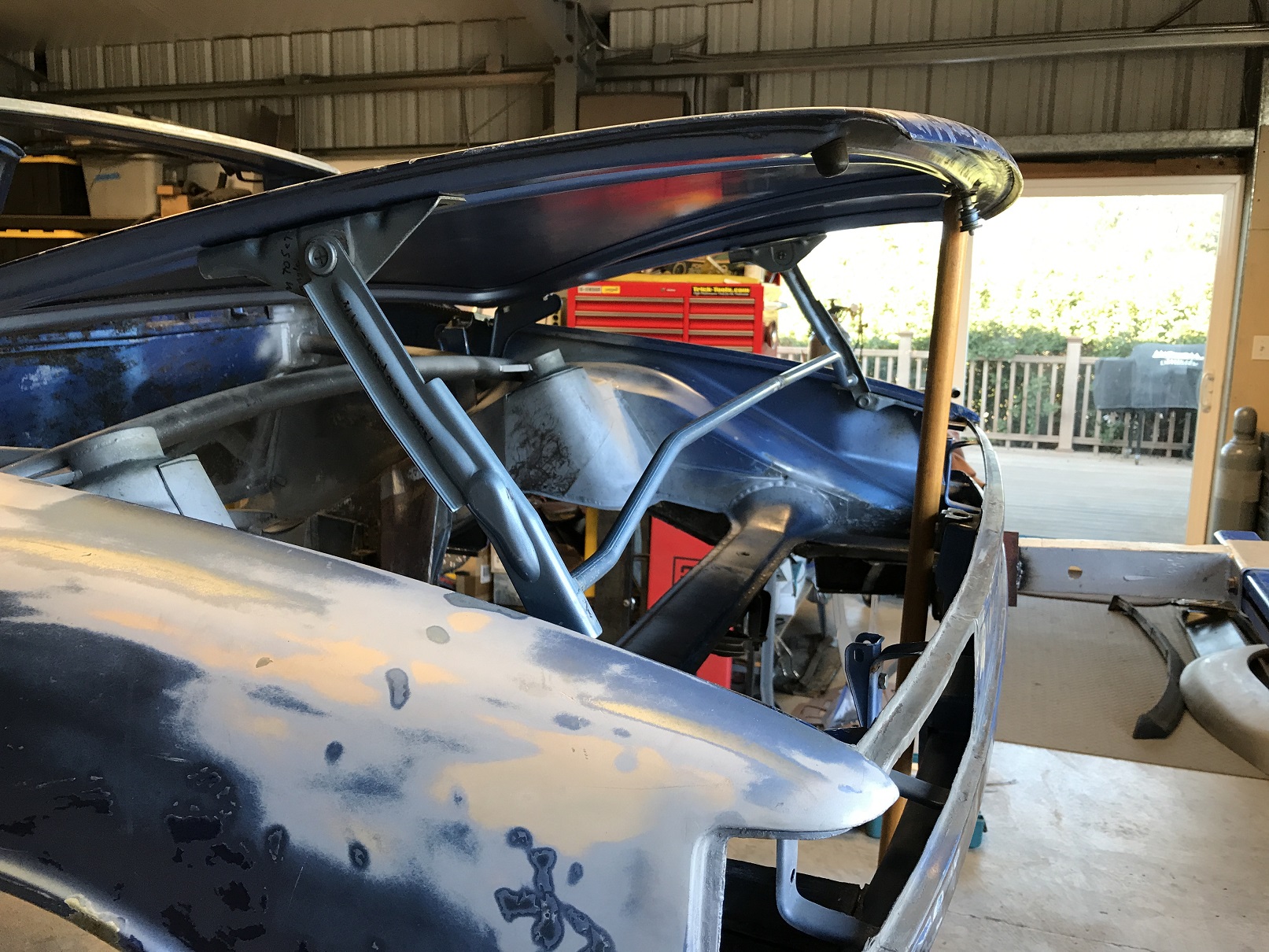

I bolted the trunk lid to the stock hinges and adjusted the fit.
Then, with the flip hinge in place and the trunk shut, I can climb under and mark where to install the threaded bosses in the outer stiffener panel of the trunk lid.

I still have final trimming and finishing on that one part of the hinge so pardon the sharp edges!


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Oct 28 2017, 05:27 PM
Post #734


Advanced Member
****

Group: Members
Posts: 4,764
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
(IMG:style_emoticons/default/aktion035.gif) The similar color and your attention to detail will helps it look OEM!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 28 2017, 06:09 PM
Post #735


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
That is going to be one impressive rear trunk lid. Cannot wait for videos of it in action.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Oct 28 2017, 07:03 PM
Post #736


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
Really slick Chris...the King of fabrication!!! (IMG:style_emoticons/default/beerchug.gif)

Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 28 2017, 07:24 PM
Post #737


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Chris I would love to see the measurements, as I have the same setup in my shop, waiting.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 28 2017, 10:51 PM
Post #738


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(914forme @ Oct 28 2017, 06:24 PM) *

Chris I would love to see the measurements, as I have the same setup in my shop, waiting.


Stephen -
Sure thing! In fact, I was thinking about you as I was doing this work, knowing you'd be doing the same install at some point. Once everything is in place and I know there's adequate adjustability and it all works as planned, I'll post some pics with measurements.
I can already tell you that to get things where I wanted them, the location of the hinge on my car is measuring out about 1/4" - 3/8" forward of where Andy has his.

The good news is that, near as I can tell so far, the specific location of the hinge (within maybe around 1" - 1 1/2"), isn't that critical. It'll be easier to document once I get it hooked up to the trunk lid and verify my assumptions about the geometry of this contraption!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 29 2017, 11:59 AM
Post #739


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

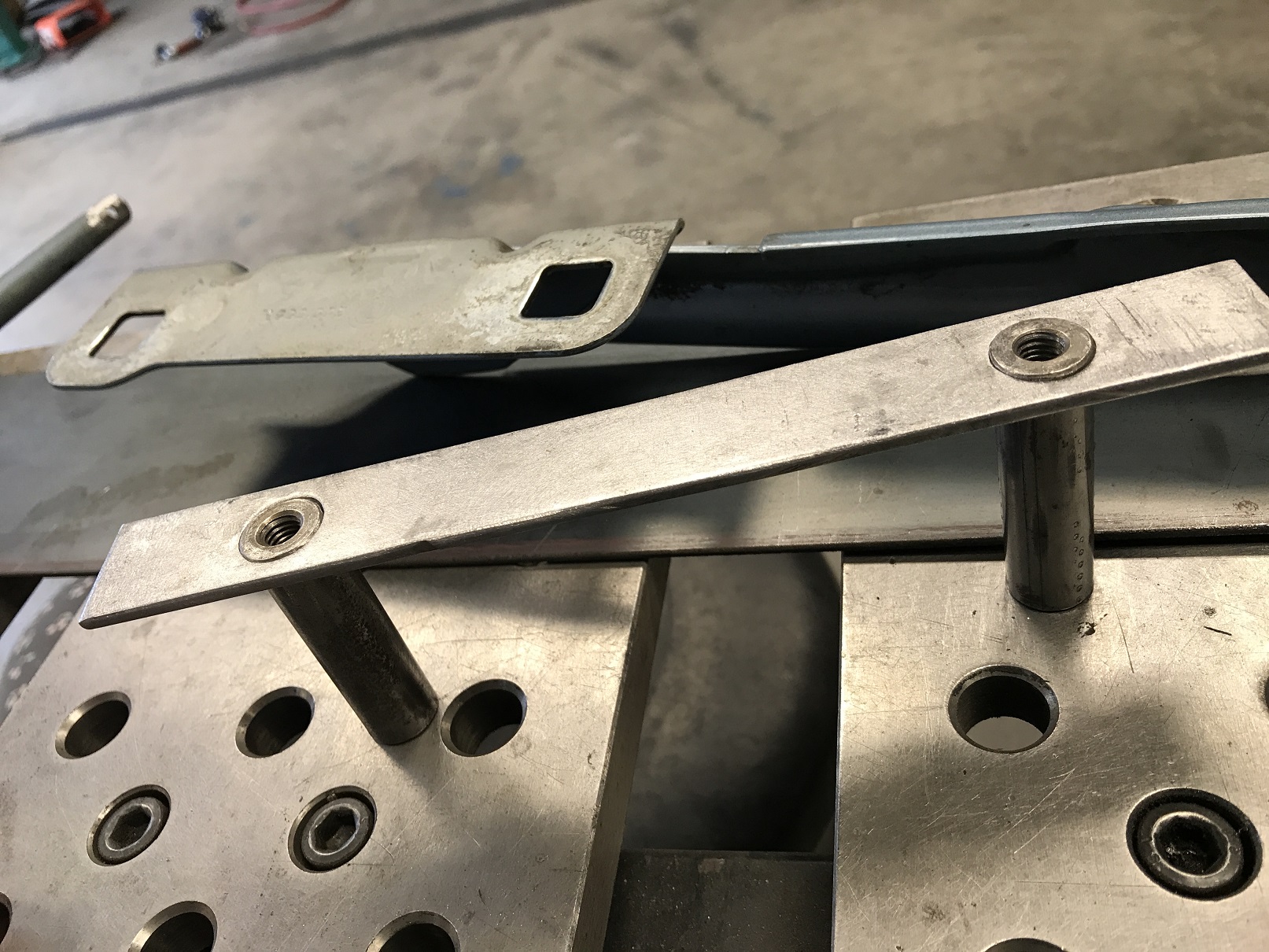

This morning was fabrication of the flip trunk threaded bosses and reinforcement plates that I'll plug weld onto the underside of the trunk, along the outer stiffeners.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 29 2017, 12:01 PM
Post #740


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Plenty of room for adjustment!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
