> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Nov 7 2017, 03:18 PM
Post #761


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
I'm fortunate to be able to work from home and today, I took my lunch hour and got busy prepping the driver side rear suspension tower for finalization of the stiffening components.

Here's the before of the underside of the triangulation plate that starts at the long and wraps the tower. Ahead of welding, everything will be primed on the inside...


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 7 2017, 03:22 PM
Post #762


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

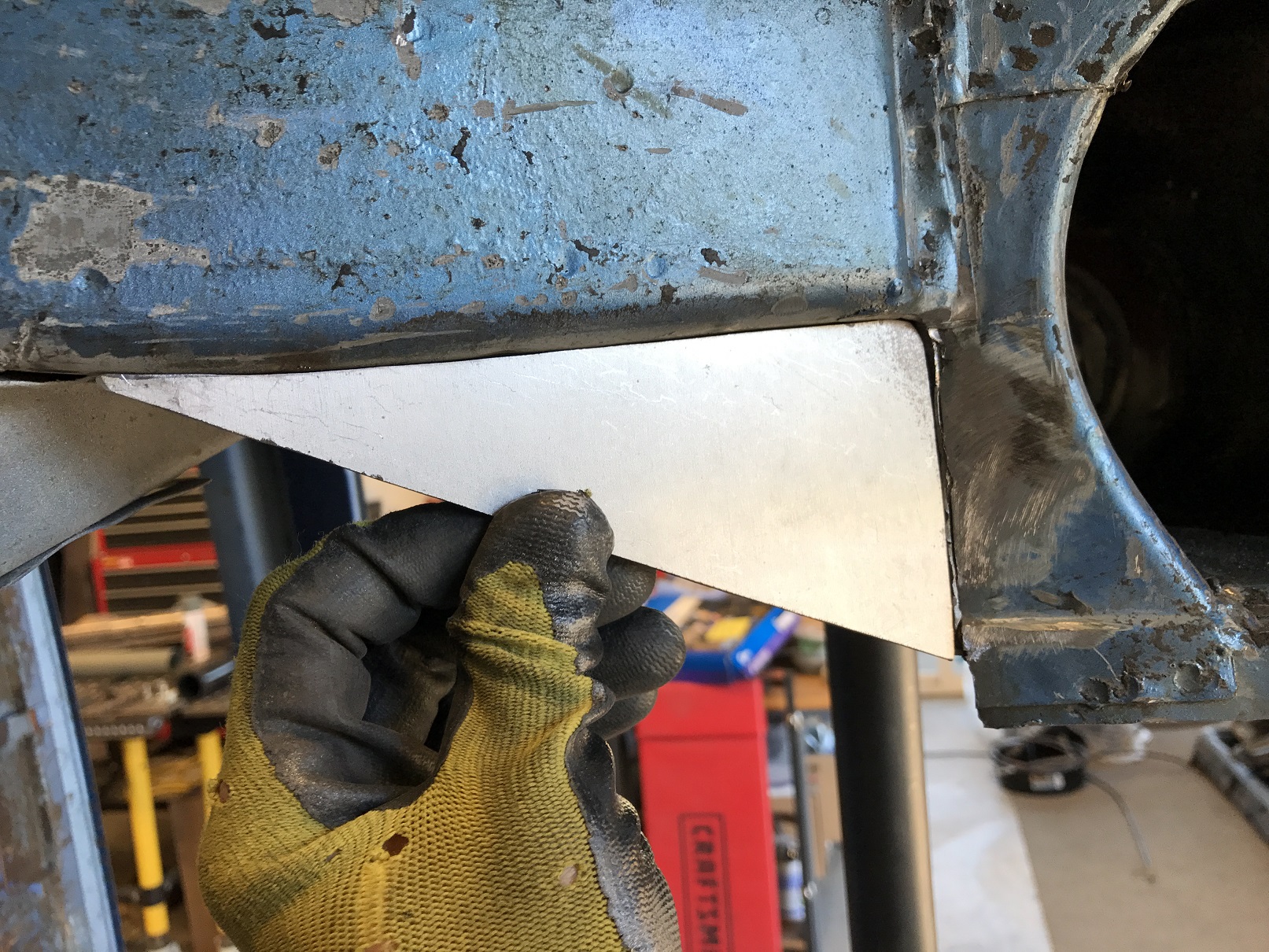

Easy piece to fab. Paper template to start then some final tuning to get a nice tight fit.

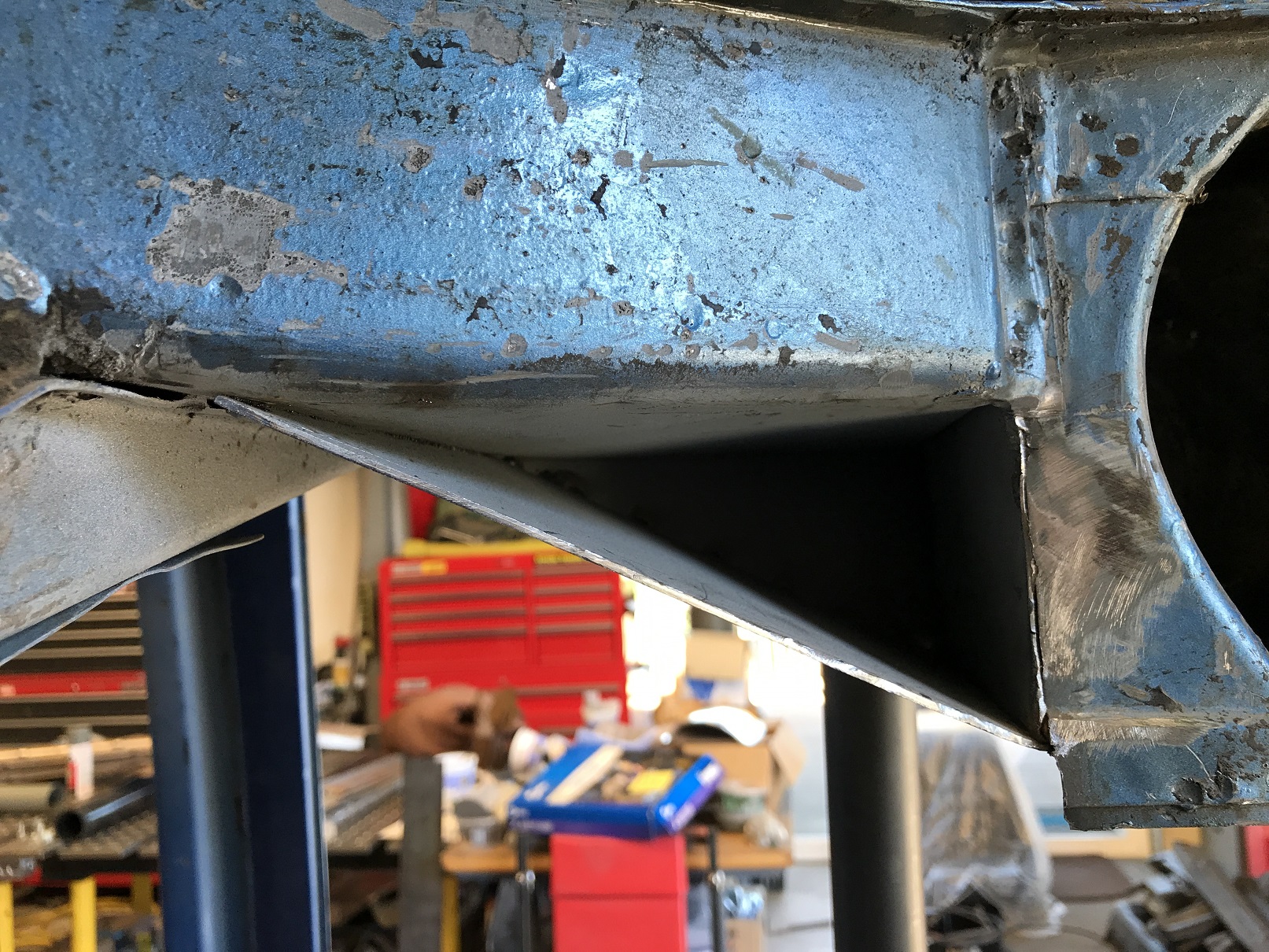

That "loose" piece of sheet metal (the vertical one in the pic) is the front side of the suspension tower. It gets sandwiched between the plate I'm holding and the rear of the tower. Once welded, it'll all be nicely locked down.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gms
post Nov 9 2017, 04:19 PM
Post #763


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
QUOTE(tygaboy @ Nov 4 2017, 02:46 PM) *

And here it is in action! (IMG:style_emoticons/default/aktion035.gif)
I haven't added the springs or any stop/bumpers, plus with the car on the rotisserie, the trunk doesn't end up where it really will, but you get the idea...


https://www.youtube.com/watch?v=D21URm1SNFE


the video was helpful, i was trying to figure out where the trunk was going.
that is pretty cool
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 9 2017, 04:23 PM
Post #764


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(gms @ Nov 9 2017, 02:19 PM) *

QUOTE(tygaboy @ Nov 4 2017, 02:46 PM) *

And here it is in action! (IMG:style_emoticons/default/aktion035.gif)
I haven't added the springs or any stop/bumpers, plus with the car on the rotisserie, the trunk doesn't end up where it really will, but you get the idea...


https://www.youtube.com/watch?v=D21URm1SNFE


the video was helpful, i was trying to figure out where the trunk was going.
that is pretty cool



Most people just put larger calipers and rotors to their cars when doing conversions, but noooooo, you have to add an air brake to stop that beast!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Nov 9 2017, 05:07 PM
Post #765


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(Mueller @ Nov 9 2017, 03:23 PM) *

QUOTE(gms @ Nov 9 2017, 02:19 PM) *

QUOTE(tygaboy @ Nov 4 2017, 02:46 PM) *

And here it is in action! (IMG:style_emoticons/default/aktion035.gif)
I haven't added the springs or any stop/bumpers, plus with the car on the rotisserie, the trunk doesn't end up where it really will, but you get the idea...


https://www.youtube.com/watch?v=D21URm1SNFE


the video was helpful, i was trying to figure out where the trunk was going.
that is pretty cool



Most people just put larger calipers and rotors to their cars when doing conversions, but noooooo, you have to add an air brake to stop that beast!


(IMG:style_emoticons/default/lol-2.gif) Ooh! I can't wait to see the parachute contraption he fabricates.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 12 2017, 12:45 PM
Post #766


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Car is off the rotisserie so I can get the tunnel built and determine what I need to fab to support all the systems: fuel, electrical, shifter cables, A/C lines, throttle cable, hydraulics for clutch and brakes...

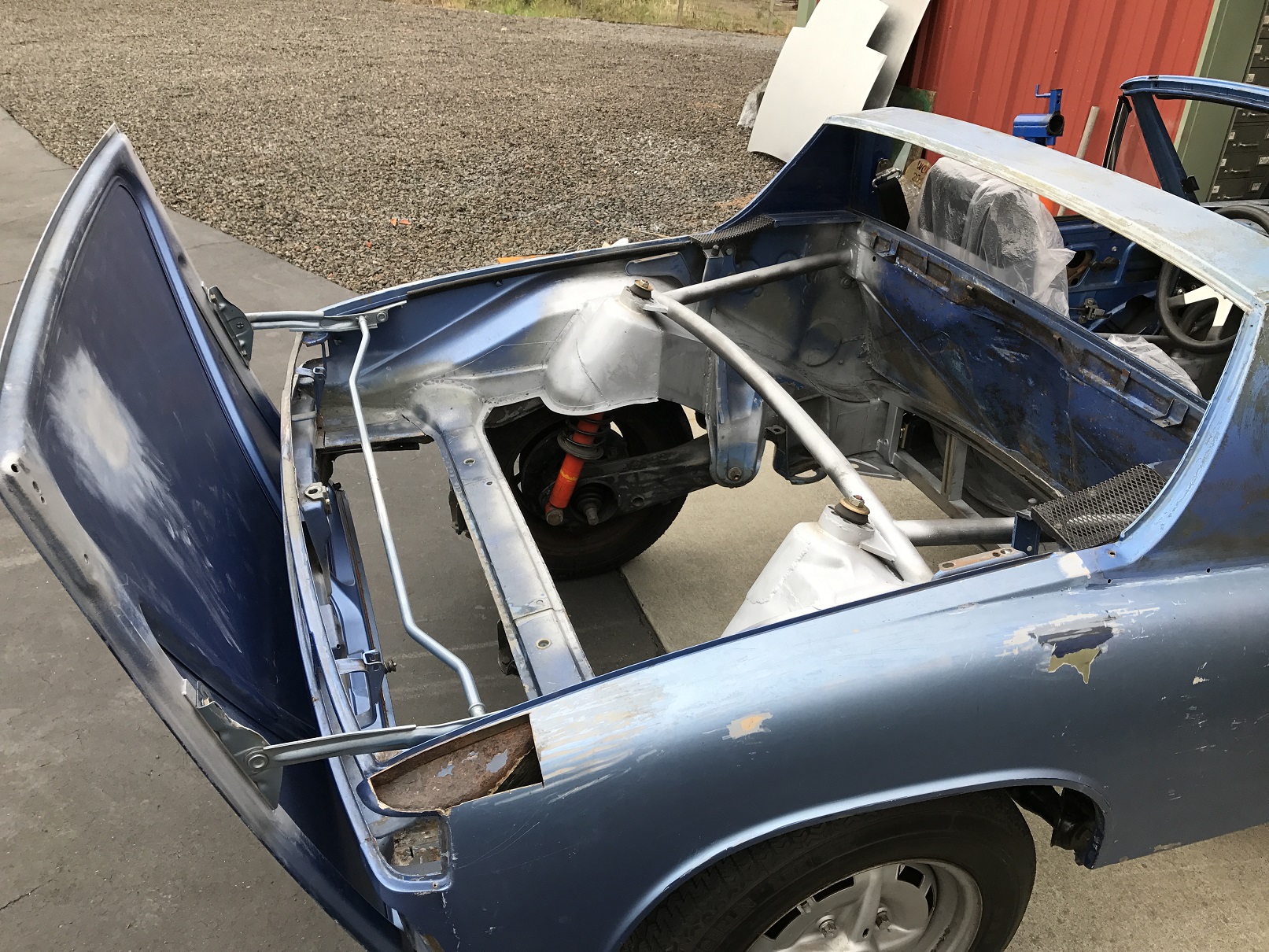

But for now, here's a better look at why I love this trunk hinge set up: Access to everything!


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 12 2017, 12:50 PM
Post #767


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

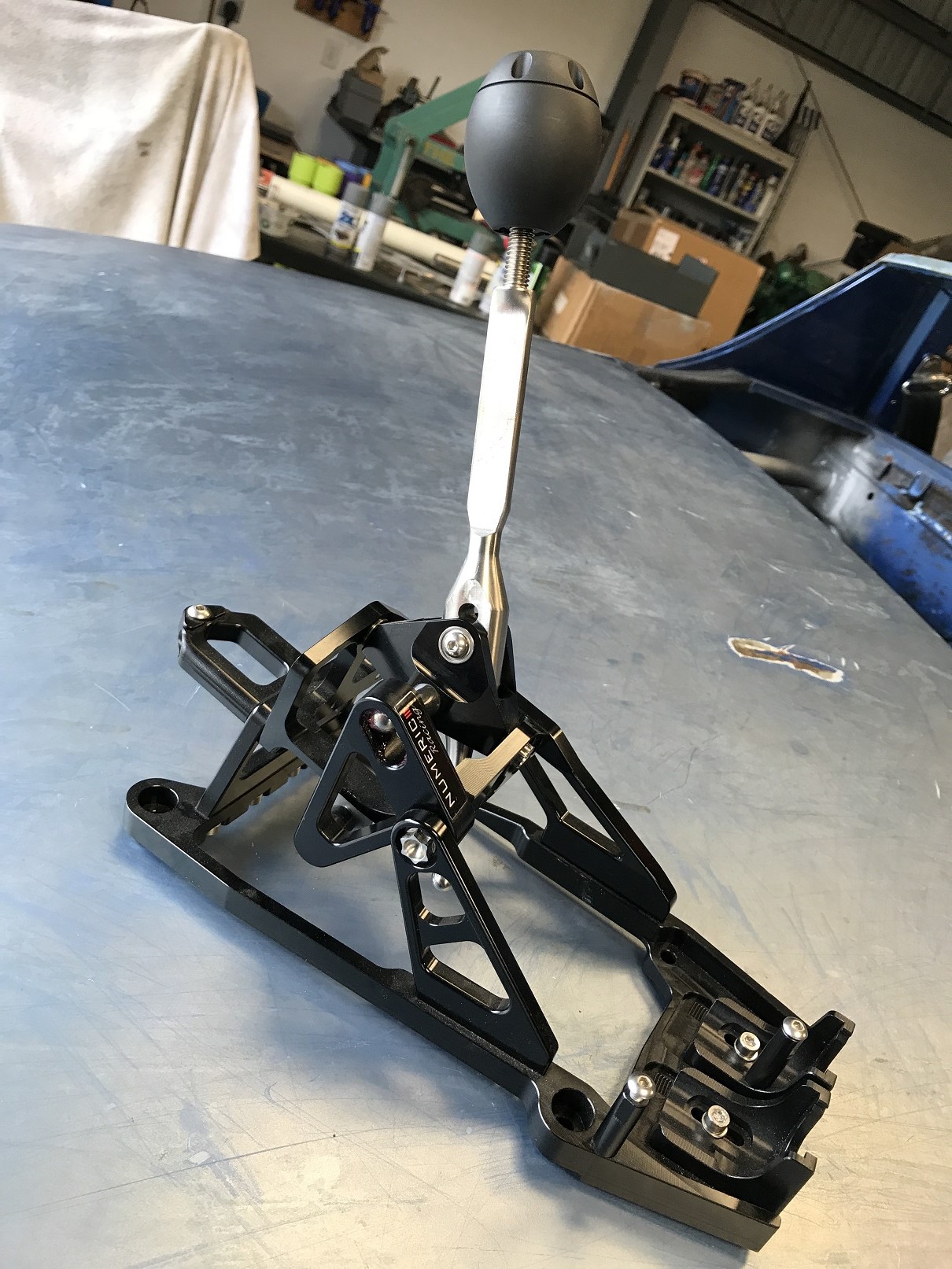

I'm running the Numeric Racing Boxster shifter and don't plan to run a boot. It comes with the notched top to work with the stock Boxster shift knob. I like the NRG knob, which is threaded so that shift shaft had to be "adjusted".

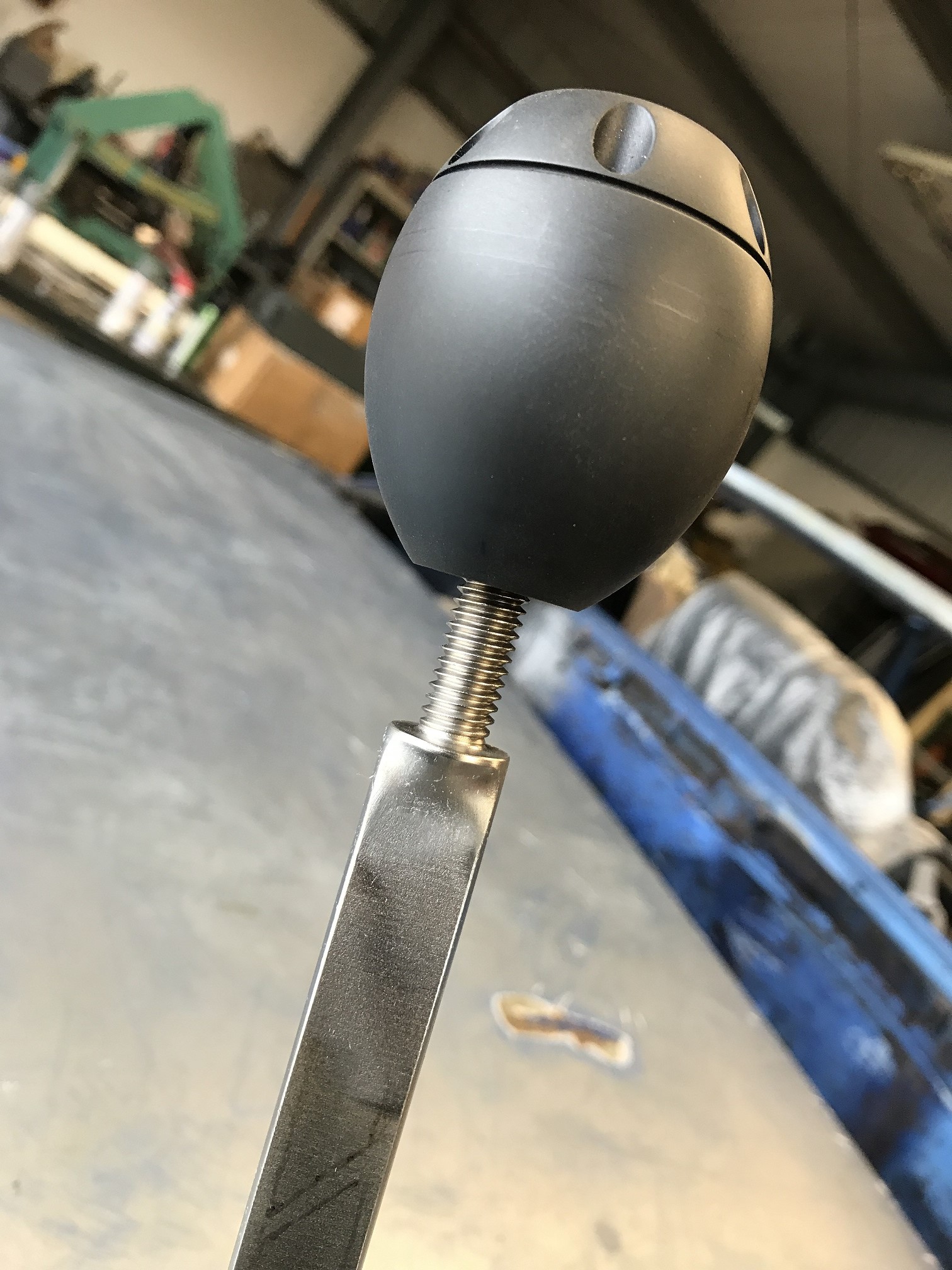

Here's the modded part with a stainless bolt welded and blended onto the end.
Next will be a tapered aluminum sleve/jam nut set up to cover the exposed threads.


Attached thumbnail(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 12 2017, 12:51 PM
Post #768


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

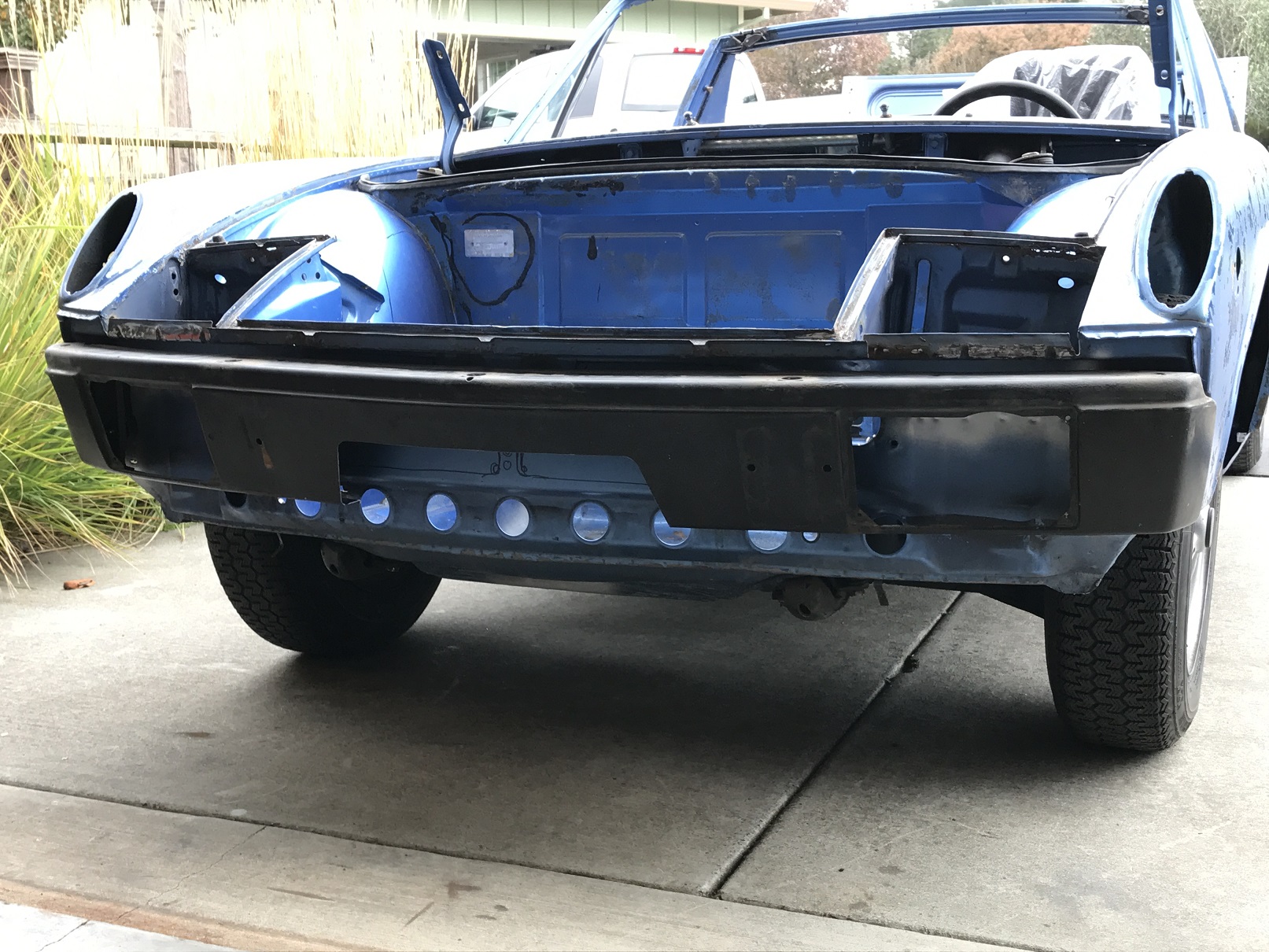

I put my draft version of the cut out bumper on, just to see. I think I like it.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Nov 12 2017, 02:13 PM
Post #769


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Looks a little small IMHO. Maybe Im wrong, could be the same size as the 916 cutout.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Nov 12 2017, 02:13 PM
Post #770


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
That shifter is awesome!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Nov 12 2017, 08:36 PM
Post #771


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
QUOTE(tygaboy @ Nov 12 2017, 01:45 PM) *

Car is off the rotisserie so I can get the tunnel built and determine what I need to fab to support all the systems: fuel, electrical, shifter cables, A/C lines, throttle cable, hydraulics for clutch and brakes...

But for now, here's a better look at why I love this trunk hinge set up: Access to everything!



(IMG:style_emoticons/default/drooley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 19 2017, 07:18 PM
Post #772


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

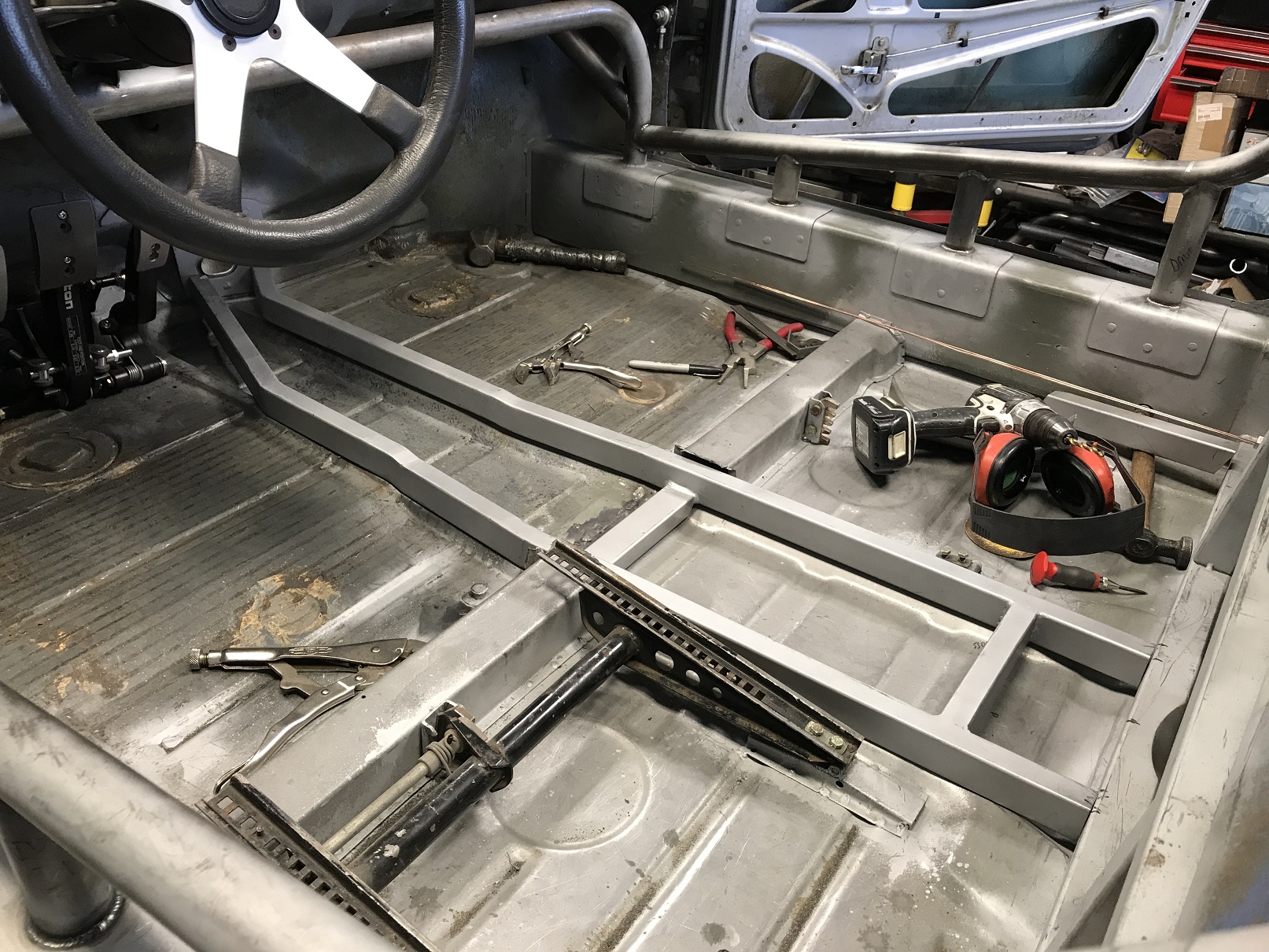

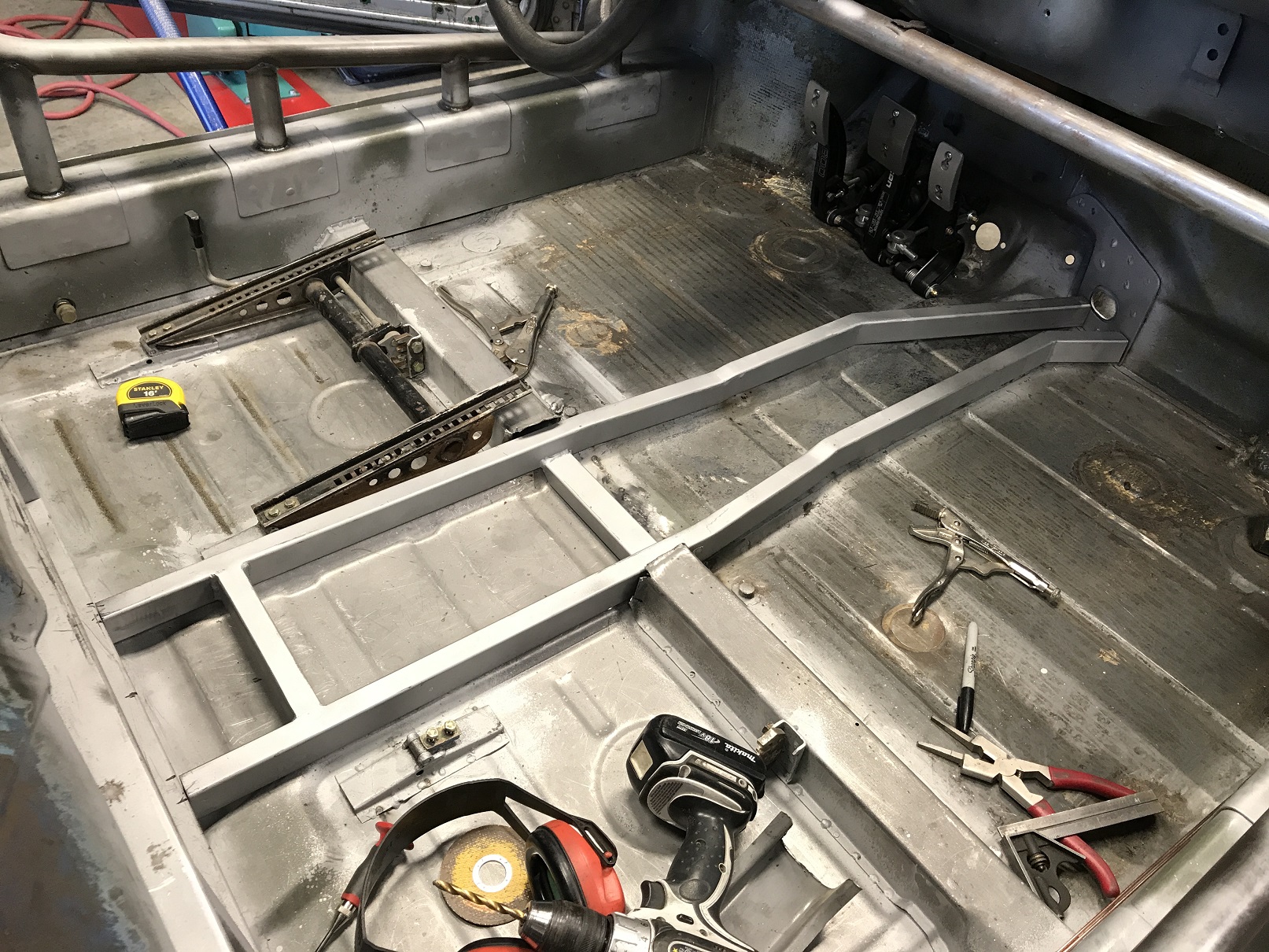

Got the base of the tunnel/console fabricated. I drilled holes in the floor so it'll be rosette welded all along the underside.

Not yet sure how I'm going to tie in the cross brace.


Attached thumbnail(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 19 2017, 07:23 PM
Post #773


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The drive train is back in so I could get going on the tunnel, determine exactly where the shifter would go, etc.

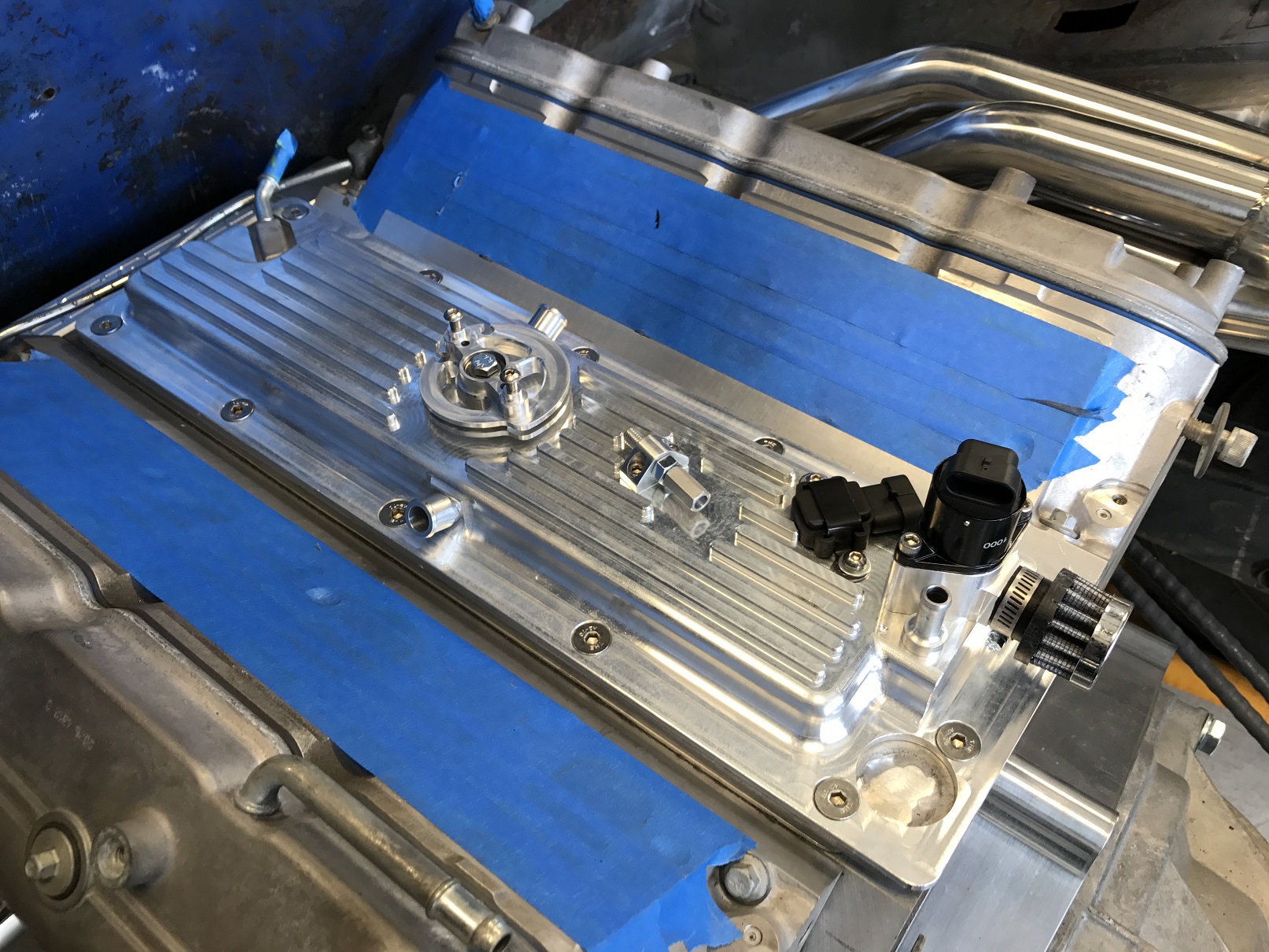

So I couldn't resist messing with the induction. I hadn't played with the valley cover. It's pretty. (IMG:style_emoticons/default/wub.gif)

Not sure if I'll leave that throttle set up as is or try and move the stop and see if I can hide the throttle cable vs having it run out the rear and loop back forward. We'll see.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 19 2017, 08:27 PM
Post #774


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

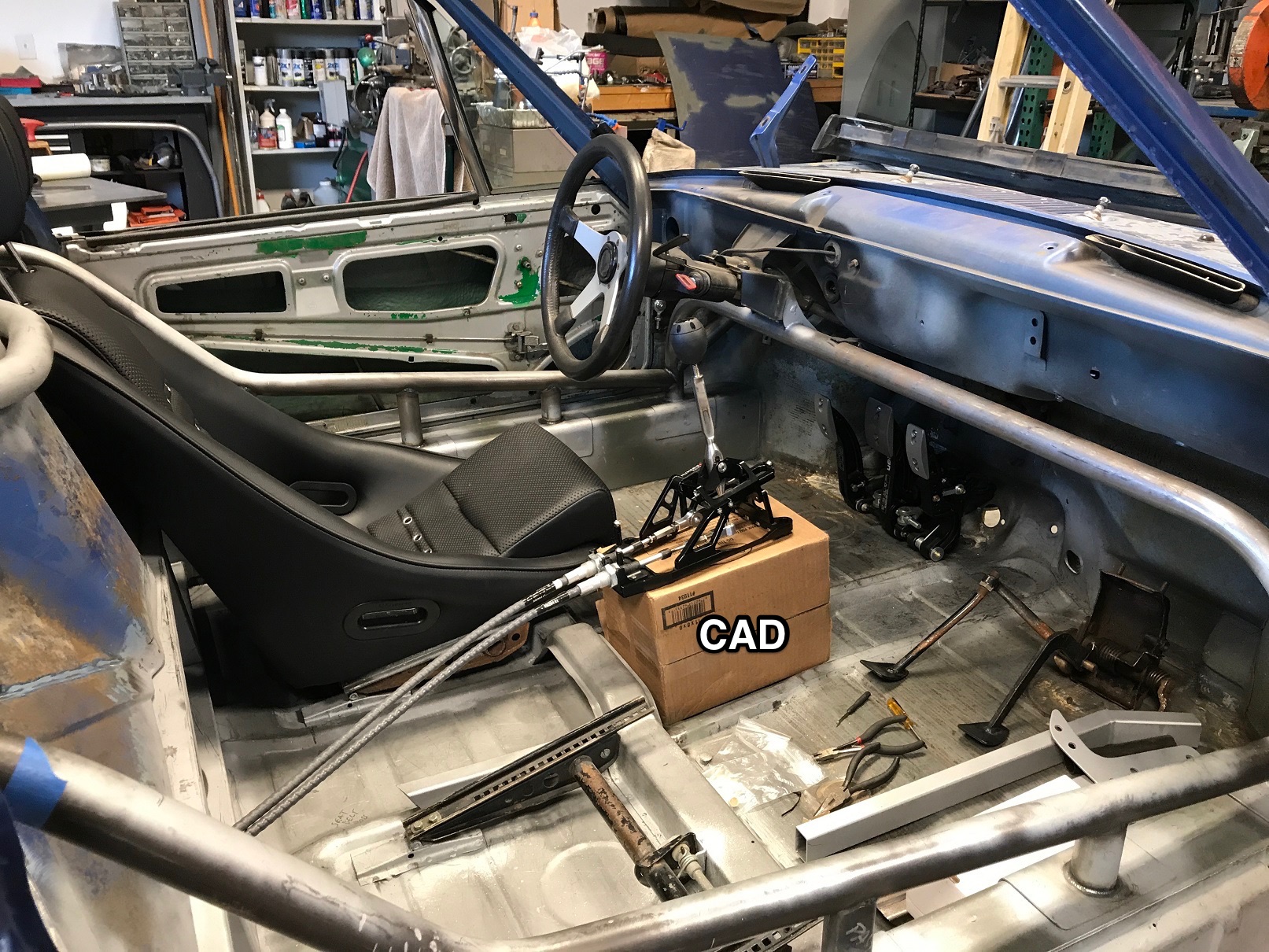

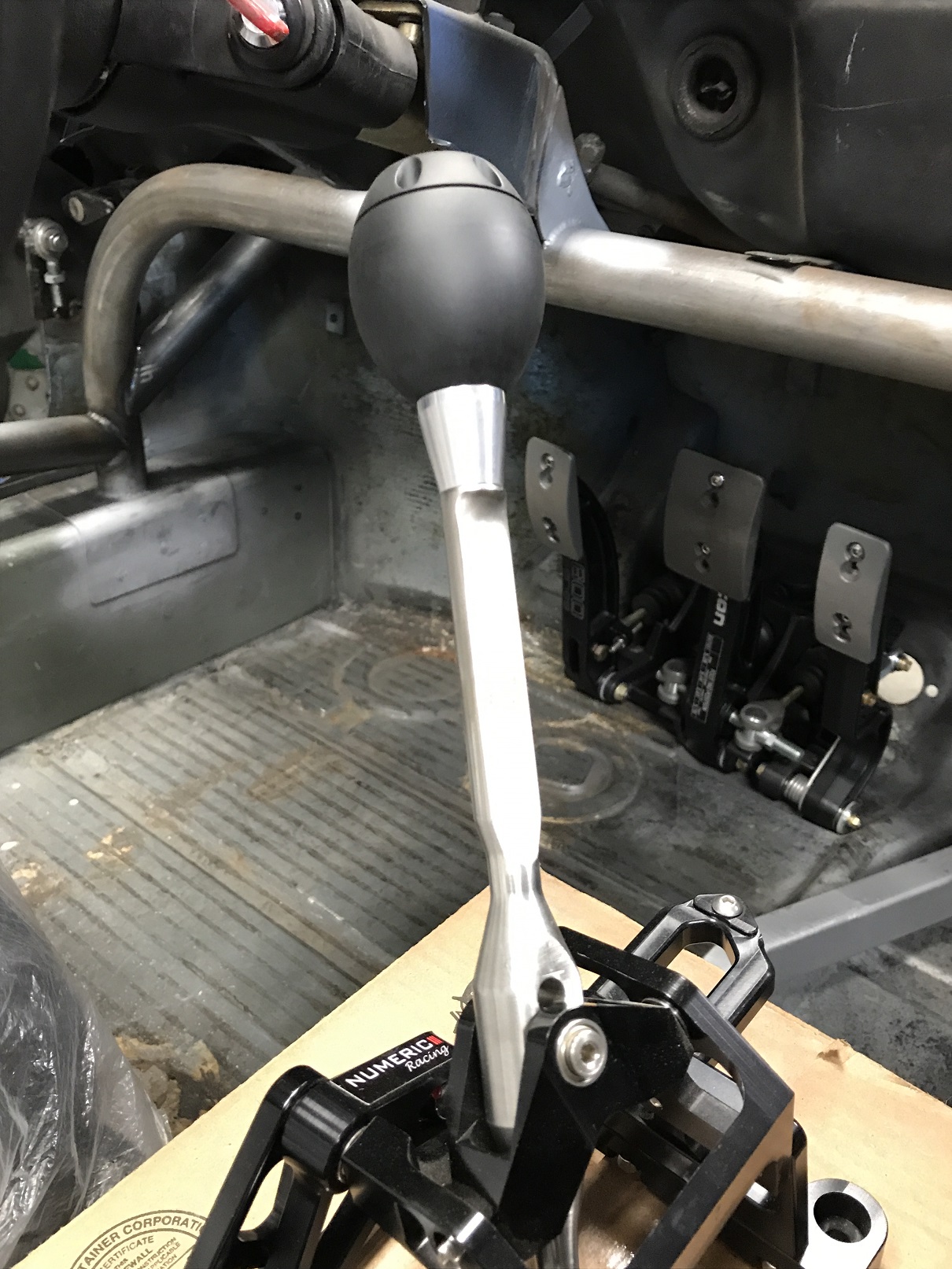

And one of the mock-up of the likely shifter location... And for you funny guys:
I'll use metal and not cardboard in the final installation.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 19 2017, 08:28 PM
Post #775


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Nice shifter, great attention to detail with the serrations on the adjustable clamps!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Nov 19 2017, 10:52 PM
Post #776


RN
****

Group: Members
Posts: 2,801
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
QUOTE(tygaboy @ Nov 4 2017, 12:46 PM) *

And here it is in action! (IMG:style_emoticons/default/aktion035.gif)
I haven't added the springs or any stop/bumpers, plus with the car on the rotisserie, the trunk doesn't end up where it really will, but you get the idea...


https://www.youtube.com/watch?v=D21URm1SNFE



That trunk mechanism is awesome. Fantastic stuff Chris.
Wow.
(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
falcor75
post Nov 20 2017, 12:33 AM
Post #777


Senior Member
***

Group: Members
Posts: 1,579
Joined: 22-November 12
From: Sweden
Member No.: 15,176
Region Association: Scandinavia
Dont forget the seatbelt anchors Before you move on and cover that area up... (IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 22 2017, 06:34 PM
Post #778


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Minor update: Got the spacer done to cover the extra threaded area.

One more mod to go on the shifter. If you guess what it's going to be, you'll win a "You win!" comment from me! (IMG:style_emoticons/default/laugh.gif)


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 22 2017, 06:51 PM
Post #779


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(falcor75 @ Nov 19 2017, 10:33 PM) *

Dont forget the seatbelt anchors Before you move on and cover that area up... (IMG:style_emoticons/default/bye1.gif)


You guys just don't miss a thing, do you? Yep, I hadn't welded it in yet as I was still debating some of the details of the seat belt attachment. I've decided and today, I ordered the belts from Seat Belt Planet.

I went with the 914 belt set with 15" extra added to the length in the retractor to account for the new, lower location. And I swapped out the standard cable and buckle style for a belt and different buckle that will fit through the slots in the seats.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914forme
post Nov 22 2017, 09:02 PM
Post #780


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Attached Image

All the good ones use CAD (Carboard Aided Design) I have a tone of them around, and well, I don't consider myself that good.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
