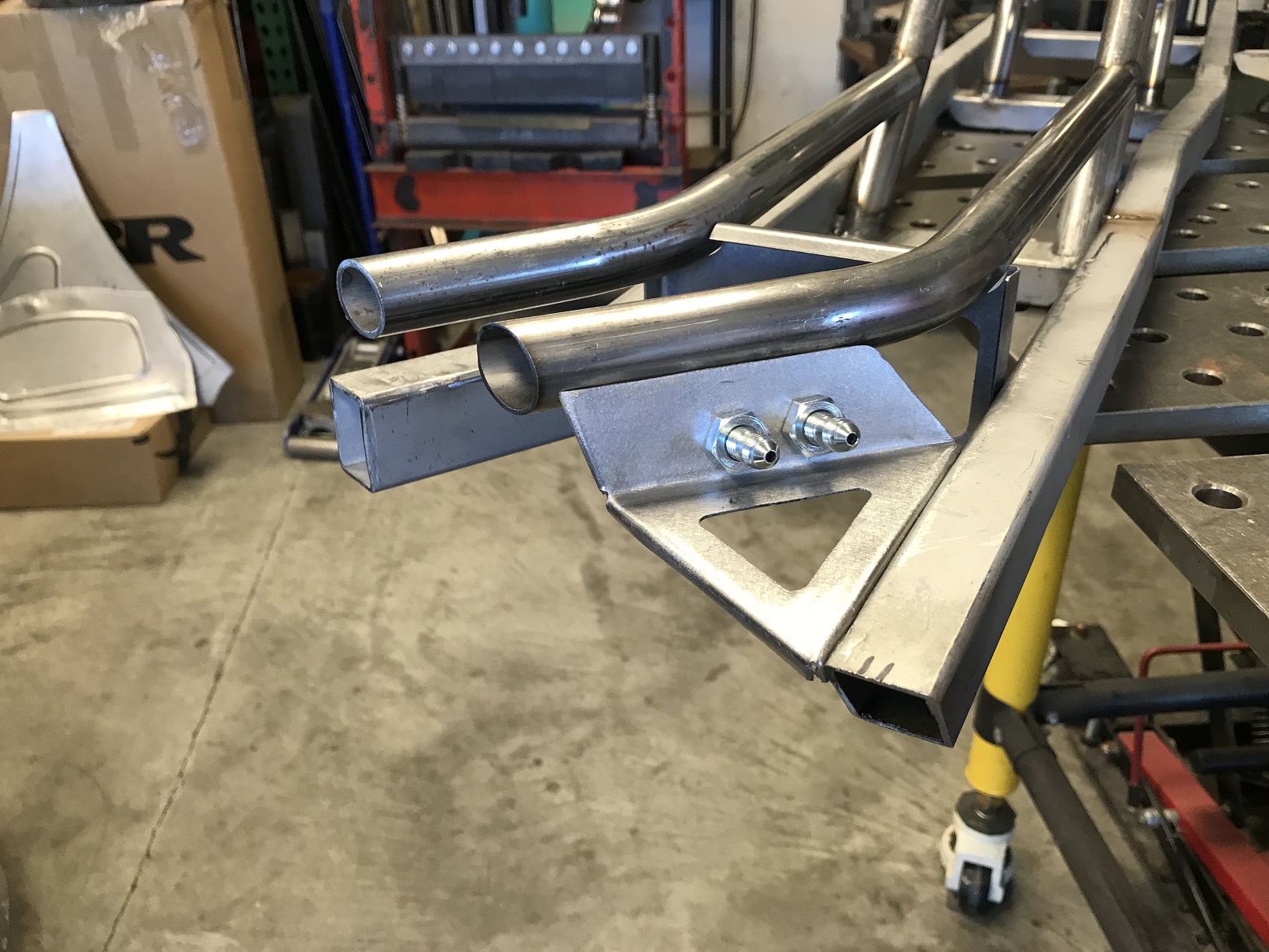

The brake line bulk head was a tricky little bugger. Lots of bends in many directions that required planning to determine which should be bent first, next, etc. Of course I didn't figure that out until I made the first bend... (IMG:style_emoticons/default/dry.gif)
But in the end, it turned out pretty well.

It'll be soft lines from the clutch and brake master cyls to this bulk head (recommended by a number of racer buddies and the fellows at BRMS), then hard lines through the car.

Mostly this bulk head fab has been head scratching and test fitting to be sure I can get to all the connections and that I'm not creating an "impossible to service" situation.

But this all looks like it'll work fine. Onward... (IMG:style_emoticons/default/smash.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 3 2018, 04:24 PM
Post #884


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

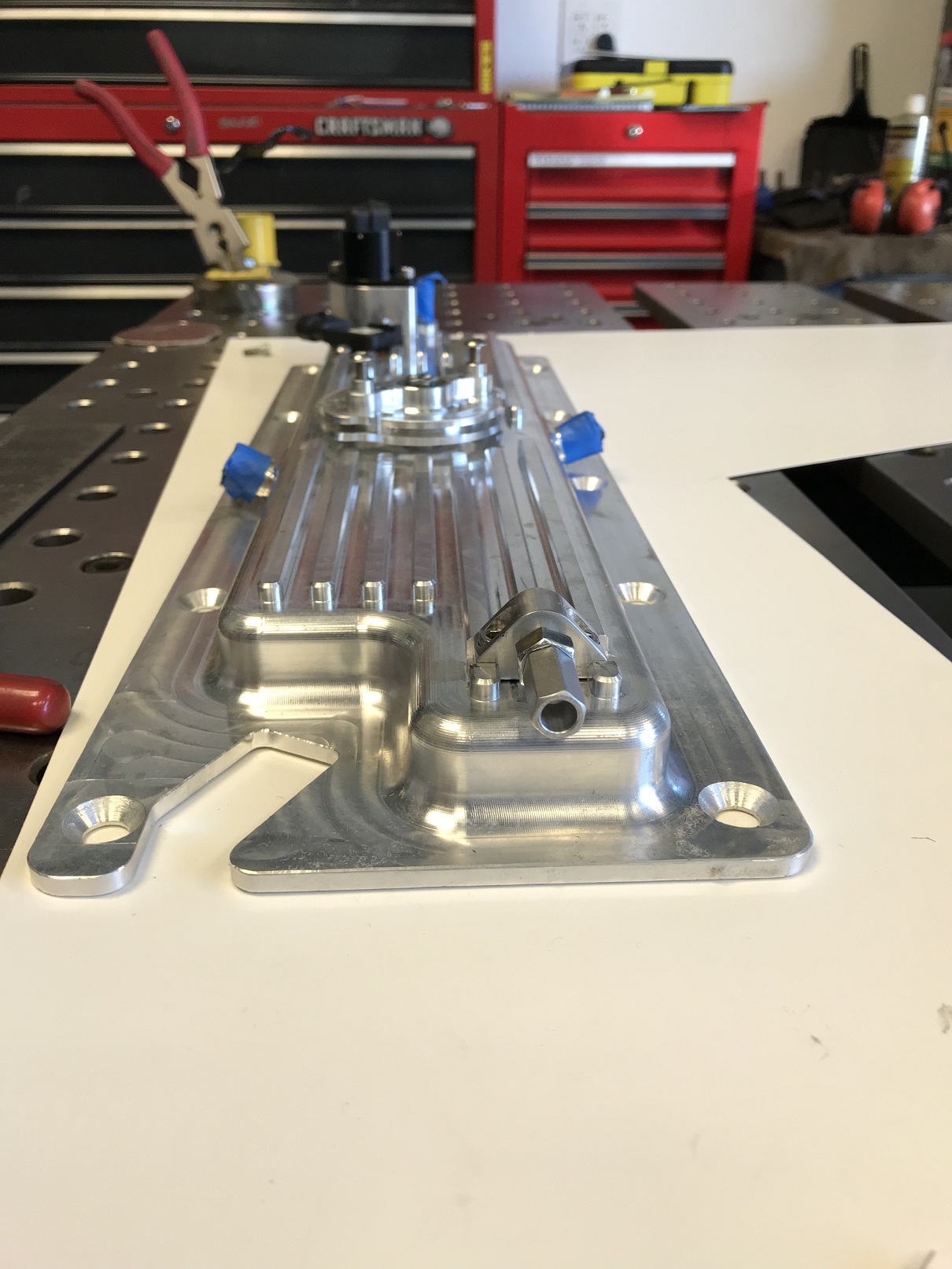

and the back side. I can get a brake line wrench on there...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 11 2018, 05:41 PM
Post #885


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

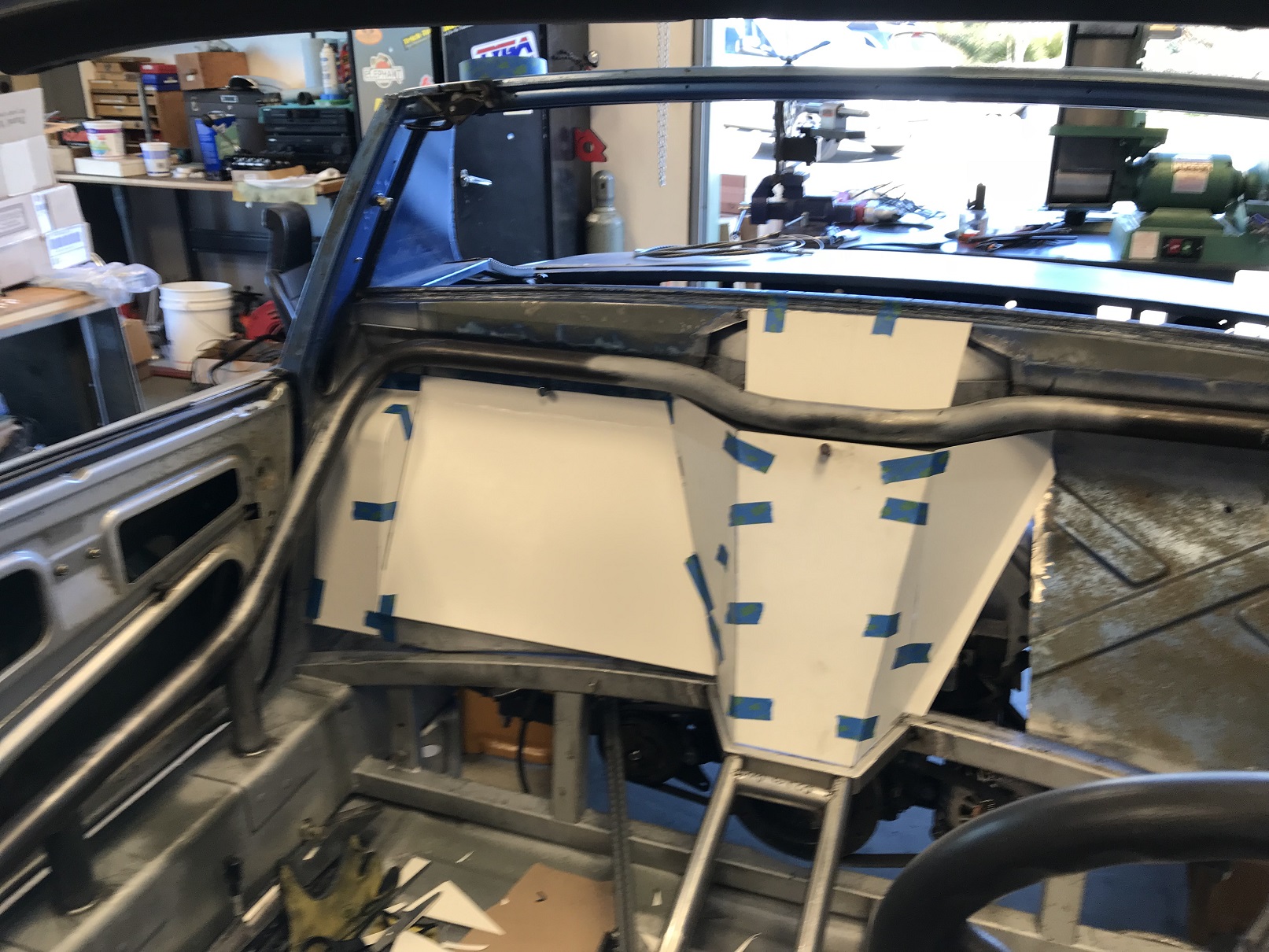

I've been stuck on what I want to do with the fire wall and the access cover. Partly landing on a design and partly determining how to close things off so the cover will seal.
The latest thinking is that I'll remove virtually all the stock fire wall (leaving the window seal area and the vertical section below what) and build a new one from scratch.

Part of today I:
- fabbed a new, larger upper rear section of the console. This is to give me more room for fuel, clutch, brake, throttle cable, etc.
- mocked up a wire frame of design V1 of the access panel


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 11 2018, 05:45 PM
Post #886


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

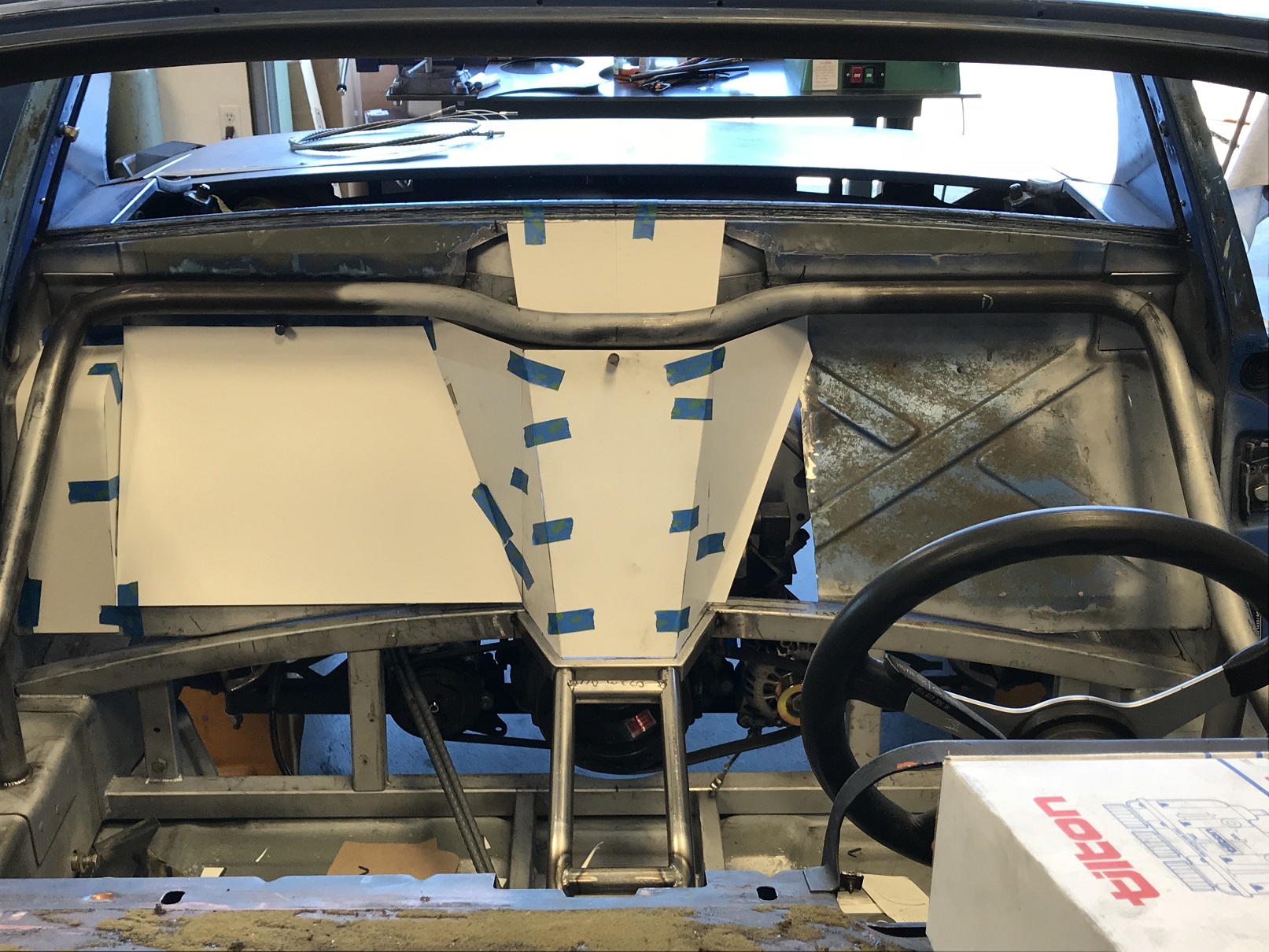

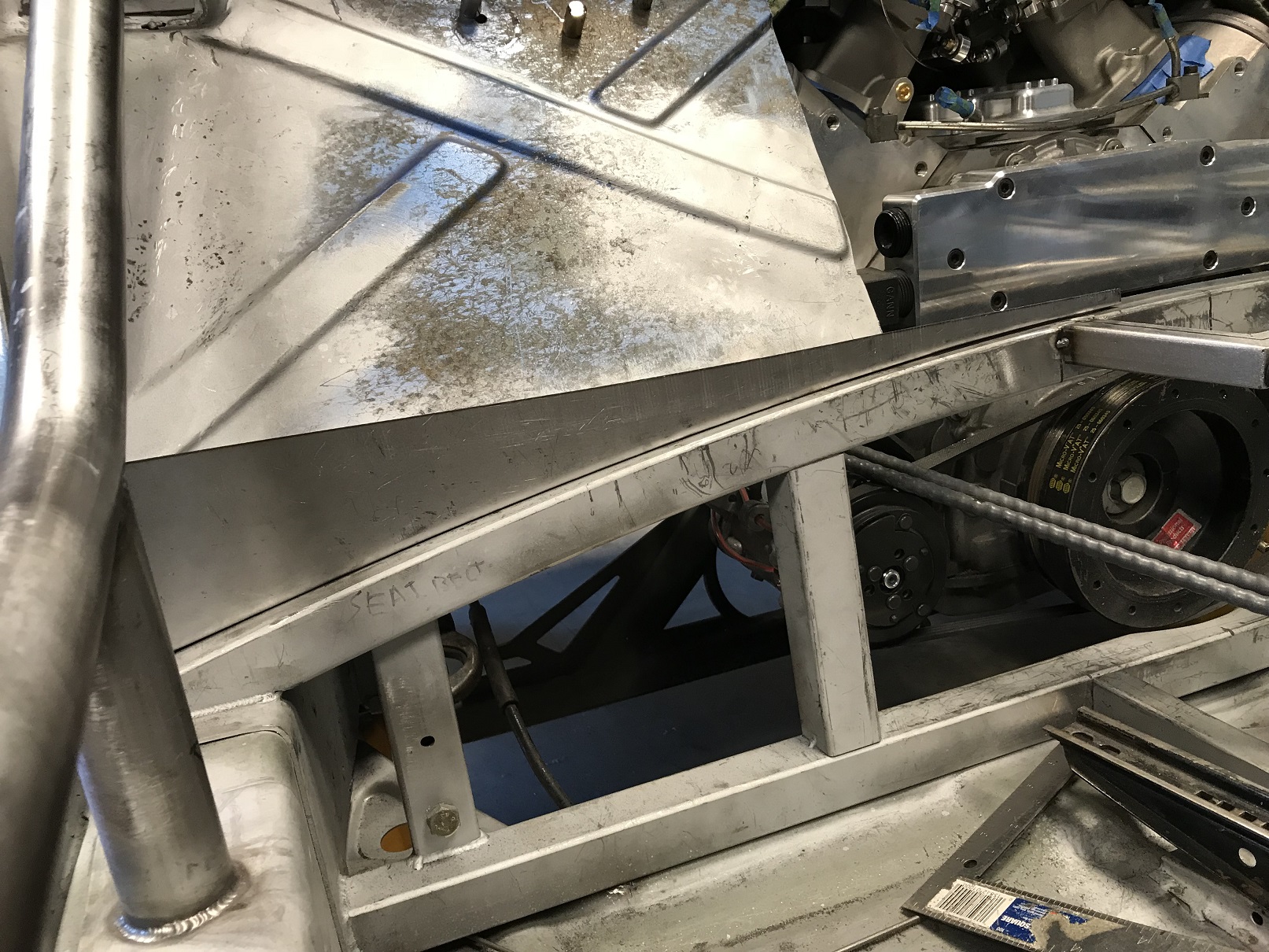

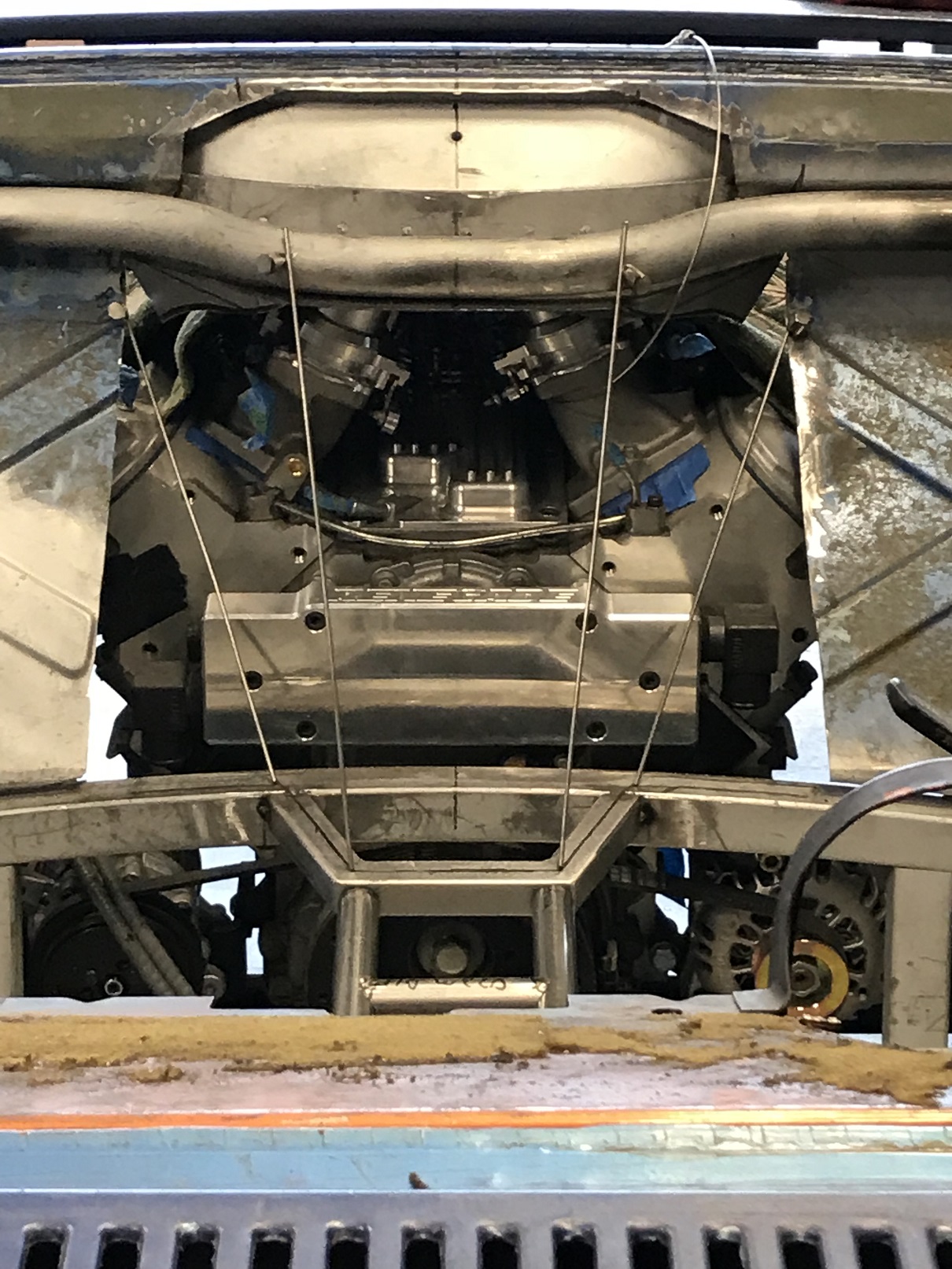

Then I started on the new fire wall panels.

I plan to copy most of the planes / angles of the stock fire wall. Here's the first practice piece that will serve as the lower vertical.

It's got a 90 degree tipped edge that I'll spot weld to the cross bar from the engine side, same as the factory part.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Feb 11 2018, 07:01 PM
Post #887


Jerry
*****

Group: Members
Posts: 7,087
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Awesome work! Your car is a race car with a 914 wrapper. Beautiful metal work.

One thing I noticed on post #822 pertains to your ebrake cable routing. Looks like you've removed or remade the metal part that redirects the cable going to the handle. I never liked this arrangement as you couldn't see what was under it since I had tons of rust in the floor and longs.

I took a different approach to this cable redirector and made it a roller.

From post #822:
Attached Image

I welded a bolt to the floor on a couple of stiffener plates.

Attached Image

The roller works well and doesn't have that hidden area under the original redirector plate.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 11 2018, 10:05 PM
Post #888


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Spoke @ Feb 11 2018, 05:01 PM) *

Awesome work! Your car is a race car with a 914 wrapper. Beautiful metal work.

One thing I noticed on post #822 pertains to your ebrake cable routing. Looks like you've removed or remade the metal part that redirects the cable going to the handle. I never liked this arrangement as you couldn't see what was under it since I had tons of rust in the floor and longs.

I took a different approach to this cable redirector and made it a roller.

The roller works well and doesn't have that hidden area under the original redirector plate.


Thanks for the kind words. Hopefully, it'll turn out the way I have it planned. If so, it'll be awesome! (IMG:style_emoticons/default/laugh.gif)

And I really like your roller design. I think I'll copy you on that one. Clean, simple and easier to manage... Nice! Thanks for the pics! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andrewb
post Feb 12 2018, 02:03 AM
Post #889


Member
**

Group: Members
Posts: 113
Joined: 25-May 10
From: UK
Member No.: 11,762
Region Association: None
[/quote]

Nice...

As always, there's one in every crowd... (but around here, it's usually more!)

Kinda like how you post all this amazing work on your repairs and the comment you get is about the pic of the badger! Gotta love 914 Worlders! (IMG:style_emoticons/default/beerchug.gif)
[/quote]

The badger was kind of an inside joke. Andrew PMd me to ask if I knew that my last name means "badger" in Old English. Then he asked for more animal pics. I had to do it.
[/quote]

This is a car forum ??? (IMG:style_emoticons/default/new_shocked.gif) (IMG:style_emoticons/default/new_shocked.gif)

Seriously Chris - there are only 2 threads I follow on here - yours and Brent's.
If I don't comment on yours it's 'cos I'm usually lost for words (IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 16 2018, 08:50 PM
Post #890


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

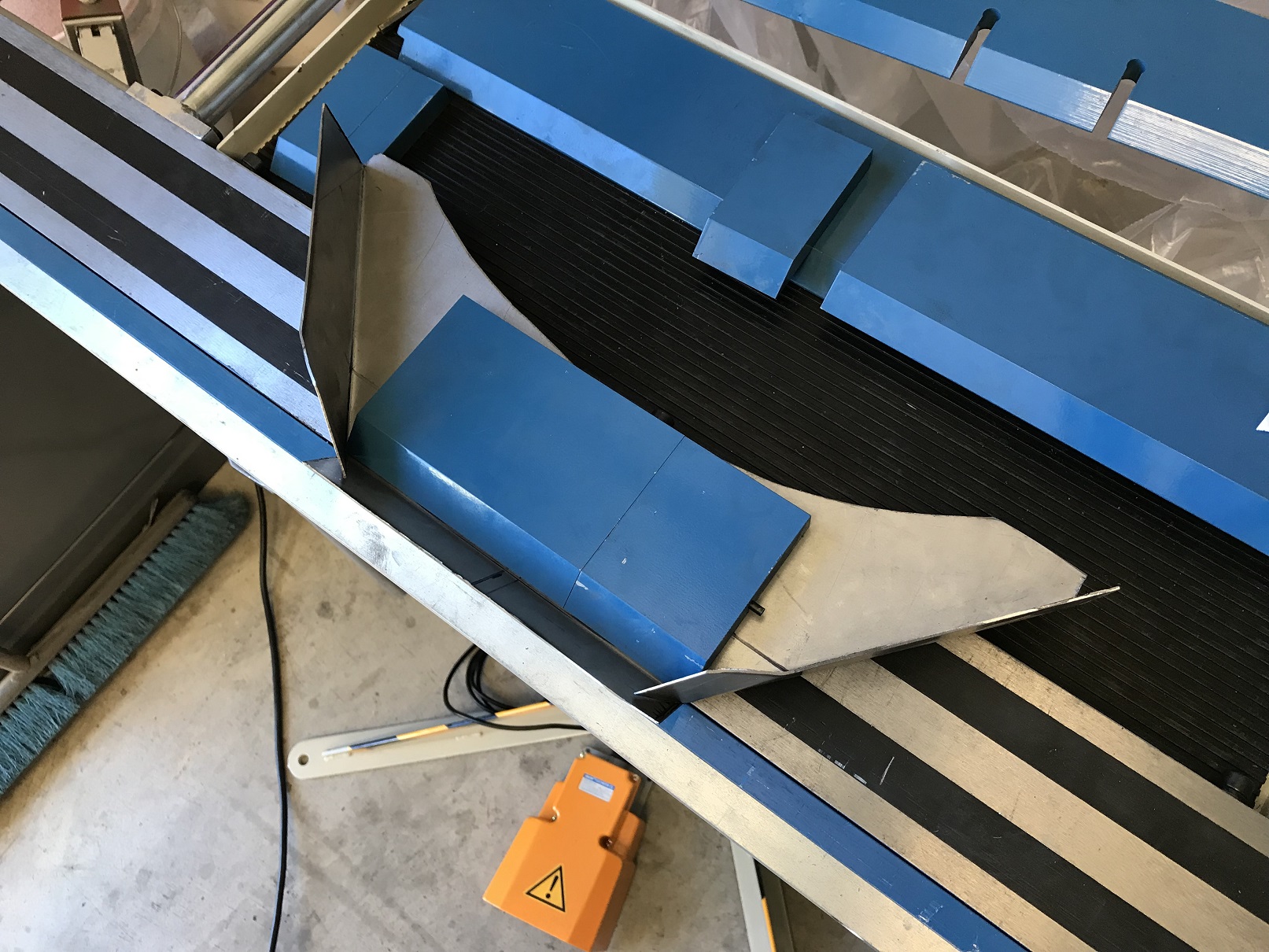

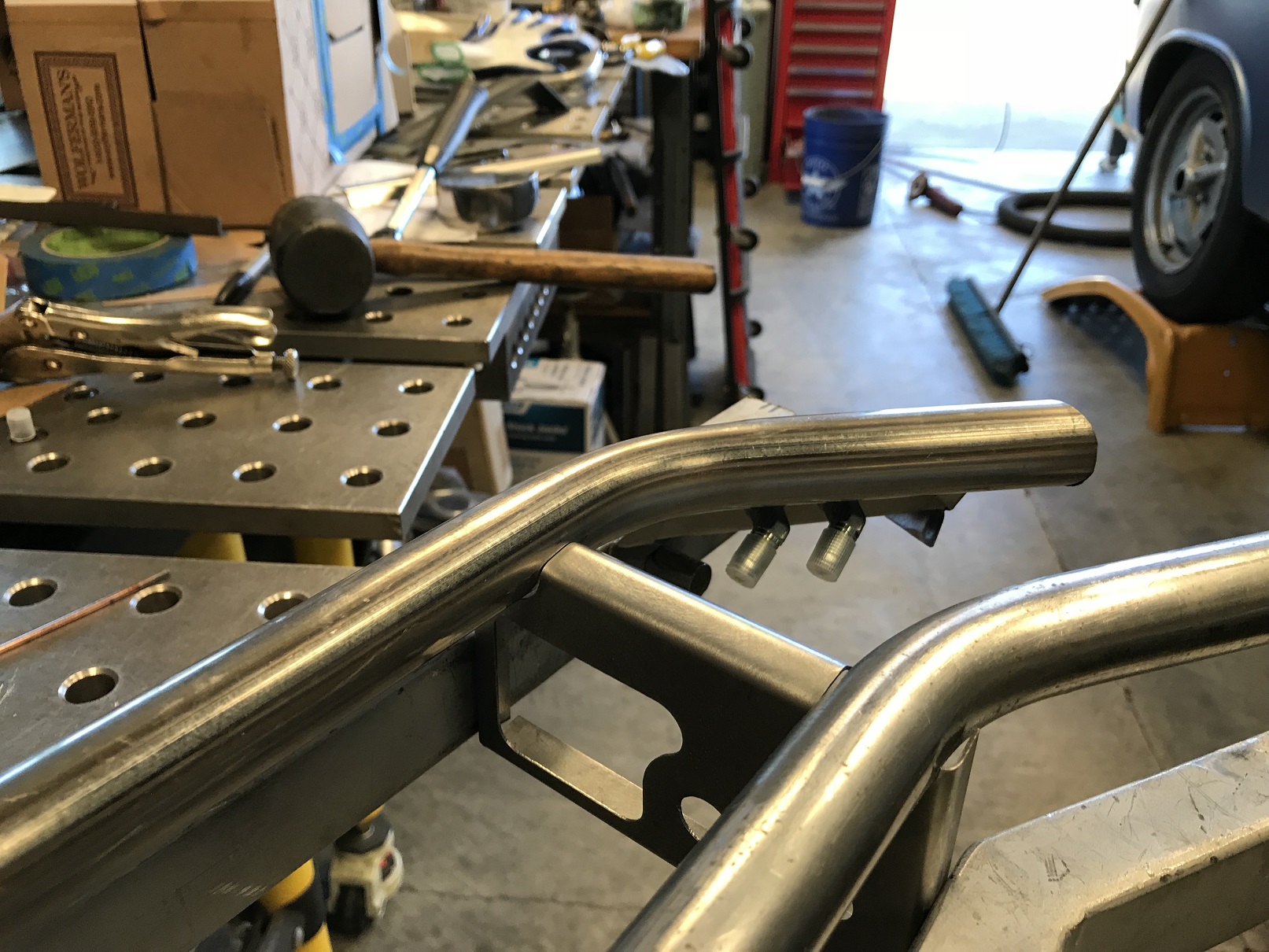

Took today off so was able to work a bit on the firewall.
Love, love, love this bender. It makes quick(er) work of making these parts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 16 2018, 08:52 PM
Post #891


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
This piece serves to seal off the top of the access opening. Lots more work to do...

The induction system is off as I need to relocate the throttle cable stop to the opposite end of the valley cover topper as the Borla stacks are designed for a front engine set up. I didn't want to run the throttle cable all the way around the engine!

Pics once it's done. It's looking really tidy.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 17 2018, 05:42 PM
Post #892


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

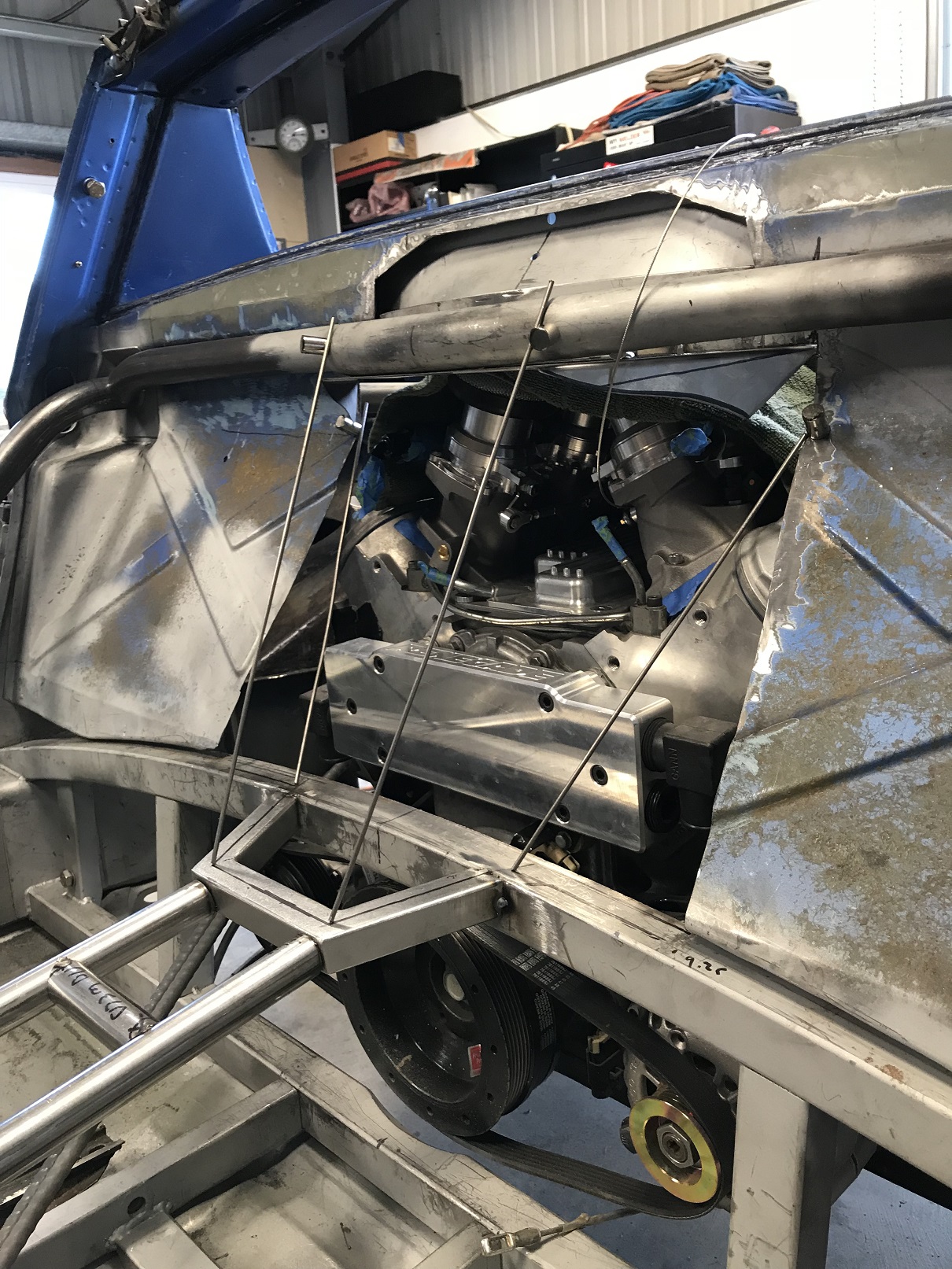

This is the current thinking re: the replacement firewall design. The center section (below the cross bar) will be removable. I get all the clearance I need for fuel lines, etc, it's easy to service things that would otherwise be a real pain to get to.

I'm still working on the design above the cross bar but I really like the "mini-tub" look that it has going on behind the door bar.

(Hey, it is the RaceRod, so I figure it's OK... (IMG:style_emoticons/default/happy11.gif) )

Now, can I duplicate all this in metal and have it look the way I want? (IMG:style_emoticons/default/idea.gif)

Wish me luck.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 17 2018, 05:45 PM
Post #893


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

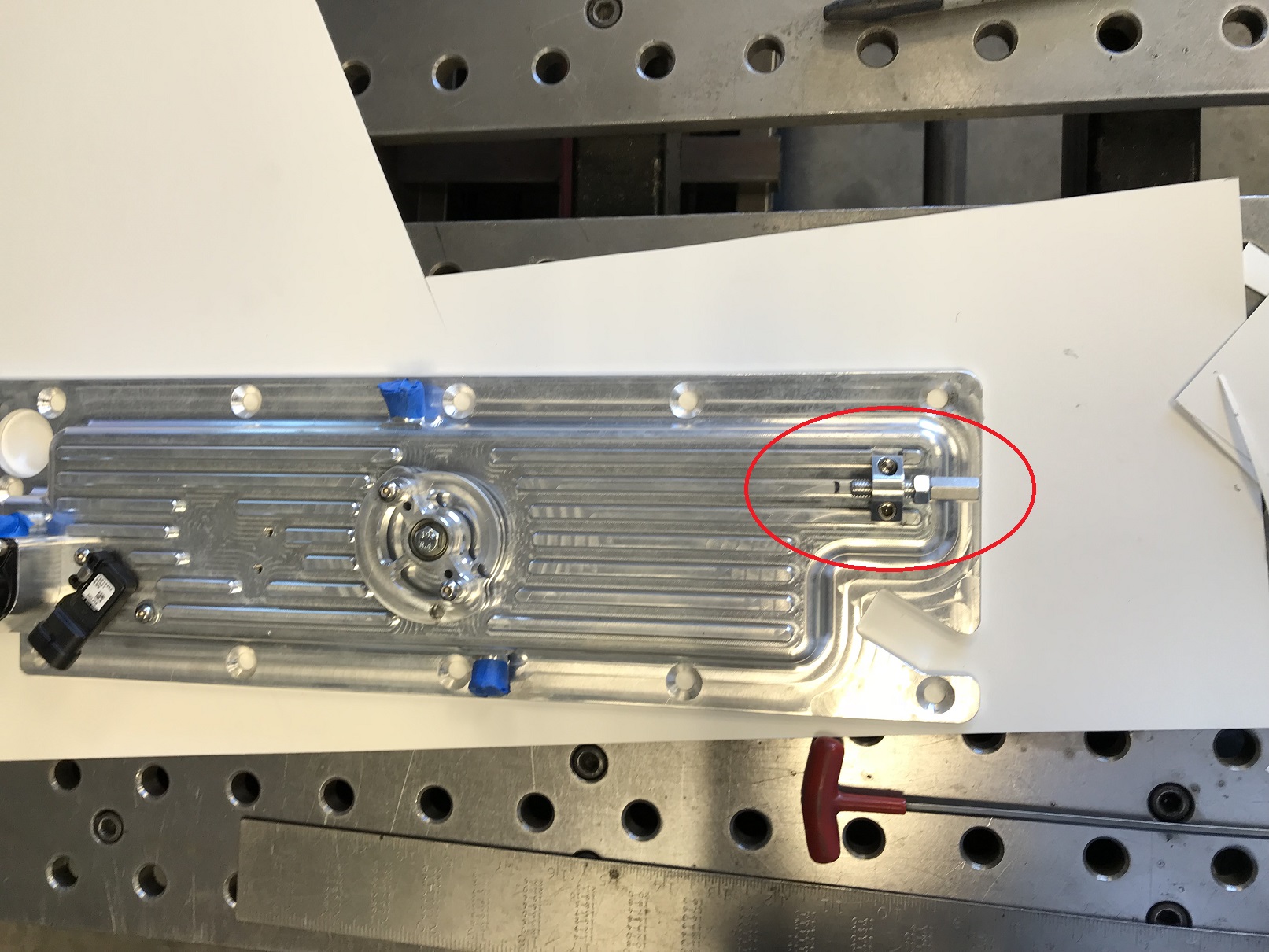

And the throttle cable stop relocation has been completed. Here are the before and after shots.
Before it was angled, now it's a straight shot, just ~180 degrees out from how it came!

It turned out nice and tidy! (IMG:style_emoticons/default/aktion035.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 17 2018, 05:47 PM
Post #894


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
After


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Feb 17 2018, 05:56 PM
Post #895


Advanced Member
****

Group: Members
Posts: 4,764
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
I like the look of the firewall. Great job on throttle cable stop too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Feb 17 2018, 05:59 PM
Post #896


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
Are you going to make WCR in June (with the RaceRod)???? Looks great as usual Chris!

BTW: Is there a "clearance" requirement to have the "bulge" in the center of the firewall (I don't see one) or is this just your fancy-pants expression of teener-art?

T
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 17 2018, 06:19 PM
Post #897


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Cracker @ Feb 17 2018, 03:59 PM) *

Are you going to make WCR in June (with the RaceRod)???? Looks great as usual Chris!

BTW: Is there a "clearance" requirement to have the "bulge" in the center of the firewall (I don't see one) or is this just your fancy-pants expression of teener-art?

T


Tony, I think there's very little chance of this running in time for June, but who knows.

The way I've decided to route the fuel lines and throttle cable are contributing to the bulge. I suppose it could be smaller but it doesn't get in the way of anything so I'm giving myself some extra room in the engine compartment.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 18 2018, 04:17 PM
Post #898


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
As Yoda might say:

"To the new fire wall, he is committed."


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Feb 19 2018, 09:48 AM
Post #899


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Chris, even if the car shows up on a trailer it will let people drool over it in person (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 19 2018, 03:53 PM
Post #900


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Mueller @ Feb 19 2018, 07:48 AM) *

Chris, even if the car shows up on a trailer it will let people drool over it in person (IMG:style_emoticons/default/smile.gif)


Mike - Thanks for the nice thoughts! Not sure it's quite drool worthy (though that'd be a great outcome!). I'll wait til it's running, at least, before taking it out in public.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


232 Pages V « < 43 44 45 46 47 > »
Reply to this topicStart new topic
2 User(s) are reading this topic (2 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 25th November 2024 - 01:46 AM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
