> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Mar 31 2018, 06:12 PM
Post #961


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Exciting, I know...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 31 2018, 06:13 PM
Post #962


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

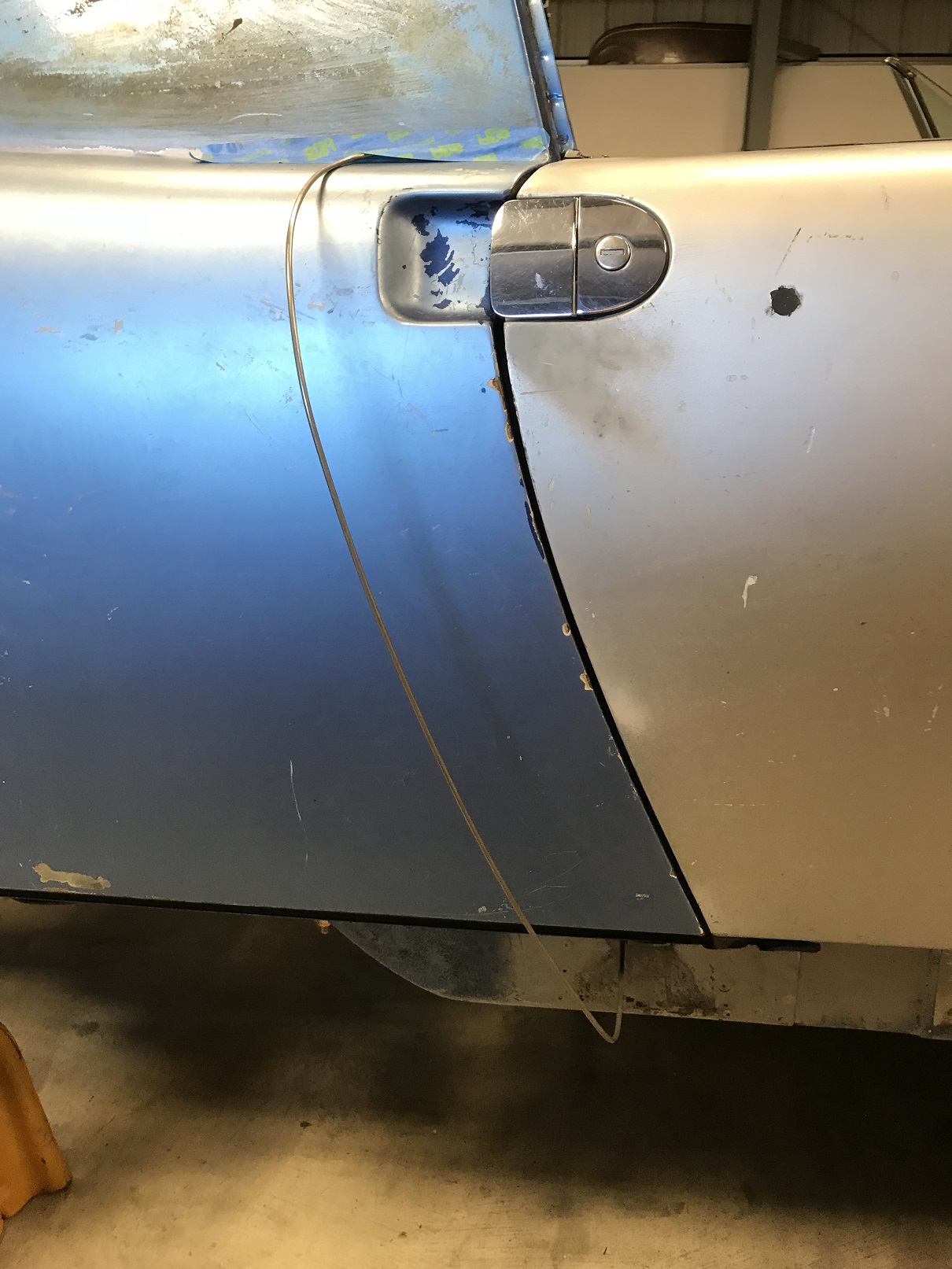

I am getting pretty good at making inside curve flanges and ending up with a nice fit.
I do, however, plan to keep my day job.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 31 2018, 06:18 PM
Post #963


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Perhaps most exciting is that next week, I head to the East coast for the 4-day coach building class with Wray Schelin of Proshapers! (IMG:style_emoticons/default/smash.gif)

Very excited...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Mar 31 2018, 06:22 PM
Post #964


RN
****

Group: Members
Posts: 2,801
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Hahaha this build is far from boring.
Your Mrs. and mine think alike.
I get told about my attitude in the garage sometimes as well.
One day I will understand this creation. I wish you would provide all of us tuning in
with blueprints and roadmaps. Heheh Carry on Chris!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Mar 31 2018, 06:49 PM
Post #965


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Chris, Enjoy the class, I am sure you will pickup some new skills. I have a couple on them on my list, to do when I get a chance.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Mar 31 2018, 10:55 PM
Post #966


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(tygaboy @ Mar 31 2018, 06:11 PM) *

(My wife was gardening and poked her head into the shop at one point and said "No more "Goddamnits", please?")


(IMG:style_emoticons/default/av-943.gif) One evening my wife asked how the car project was going and I said it was going much better than I had expected. She said, "Really!? Then what's all the cussing?" I just grinned and said, "That's just part of the charm." I've instructed her that if the cursing stops, she should dial 911 because it surely means I've knocked myself unconscious.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:15 PM
Post #967


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

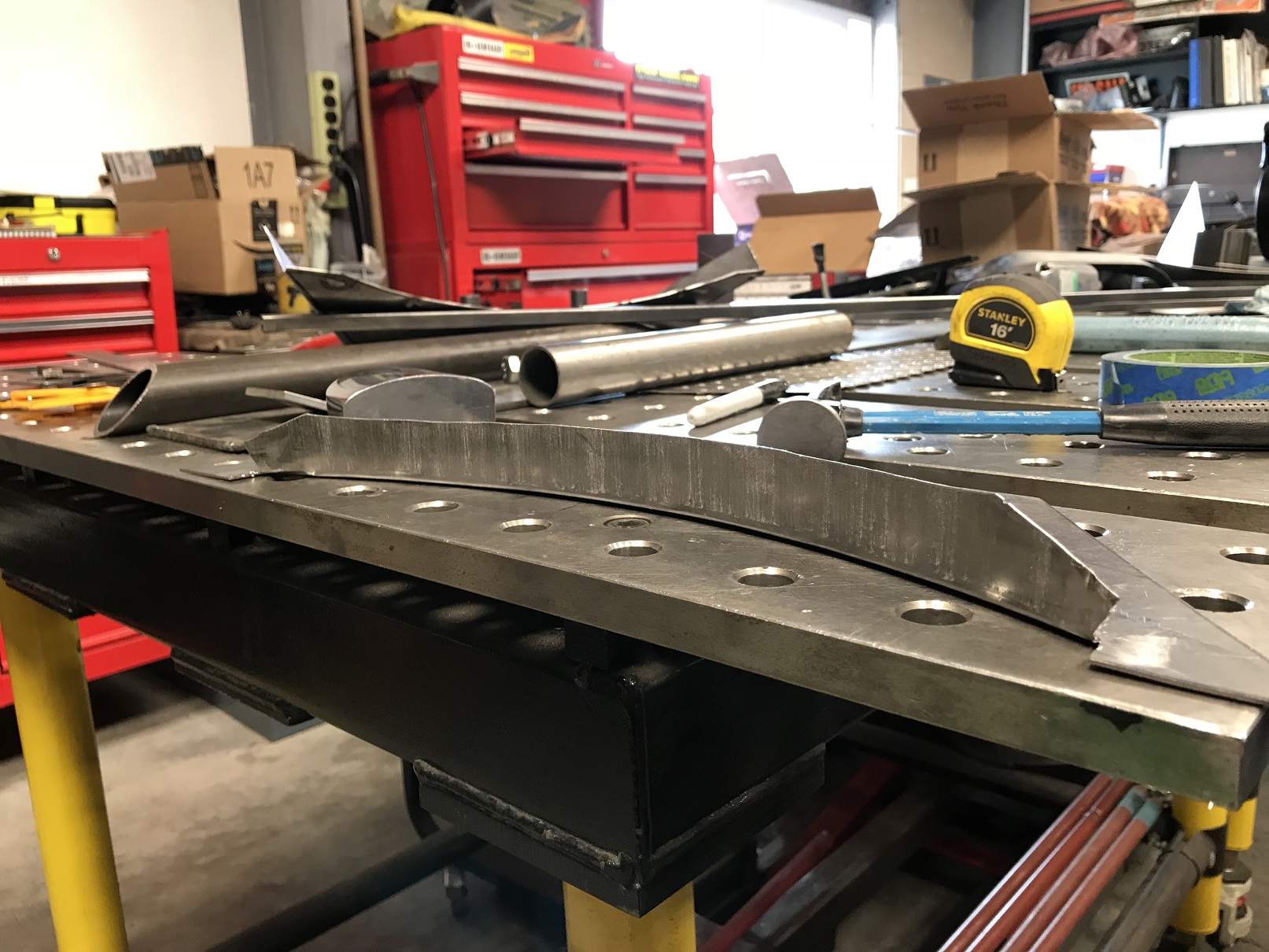

Well, even yesterday's re-do #4 turns out to be another practice part. I want a taller flange so I can spot weld vs butt weld when I install the top piece. So... back to it. Again.

Here's a bit more detail of the how I made the piece.

Cut the blank, mark the bend line and use the bead roller to start tipping the flange.
The flange on this one is ~ 2x larger that the previous version so it took bit more effort to tip the flange. That's a fair bit of metal to move around.

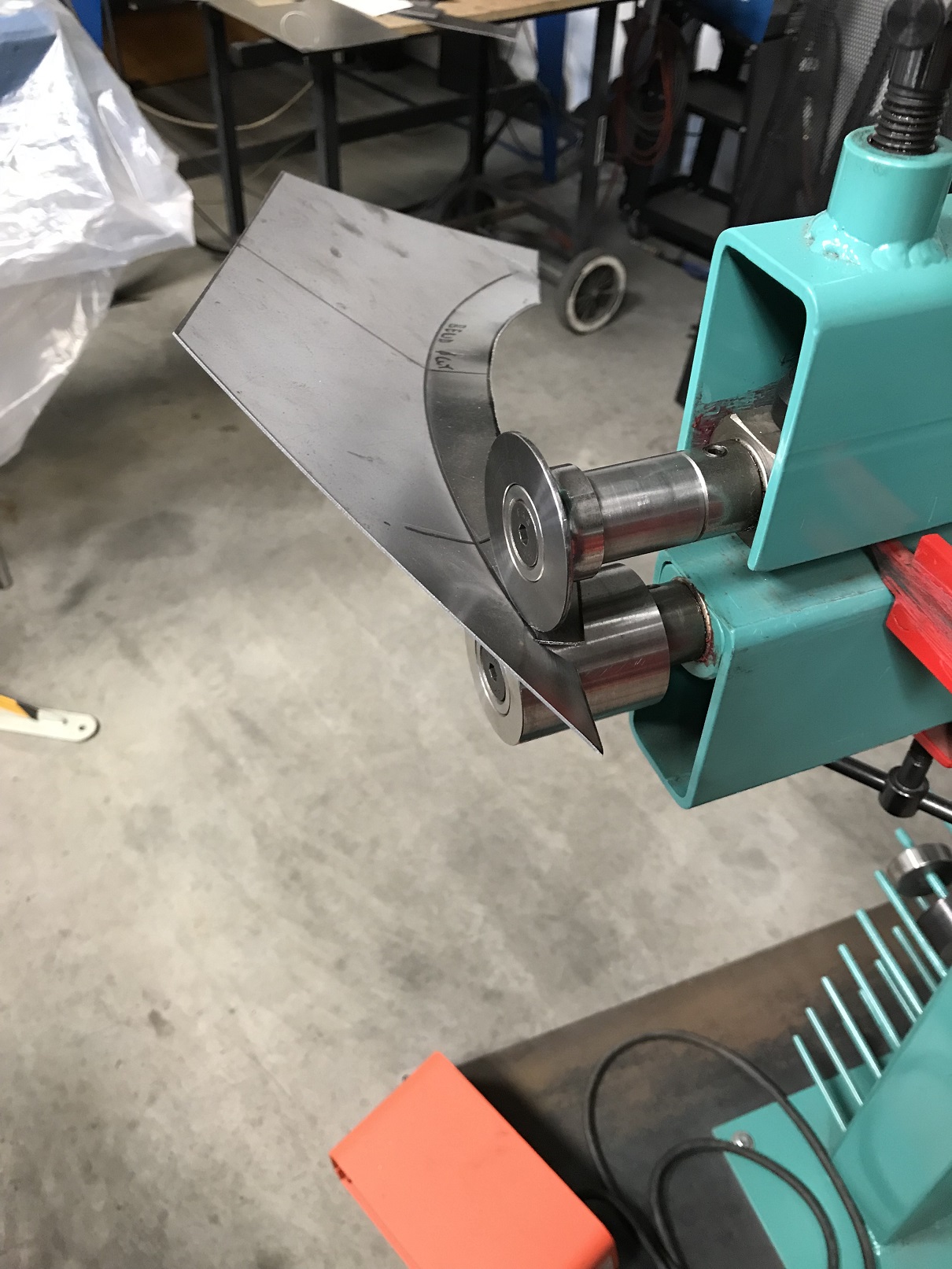

Here's the first pass through the bead roller. You can see how tipping on an inside curve starts to curve the flat area of the material.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:16 PM
Post #968


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

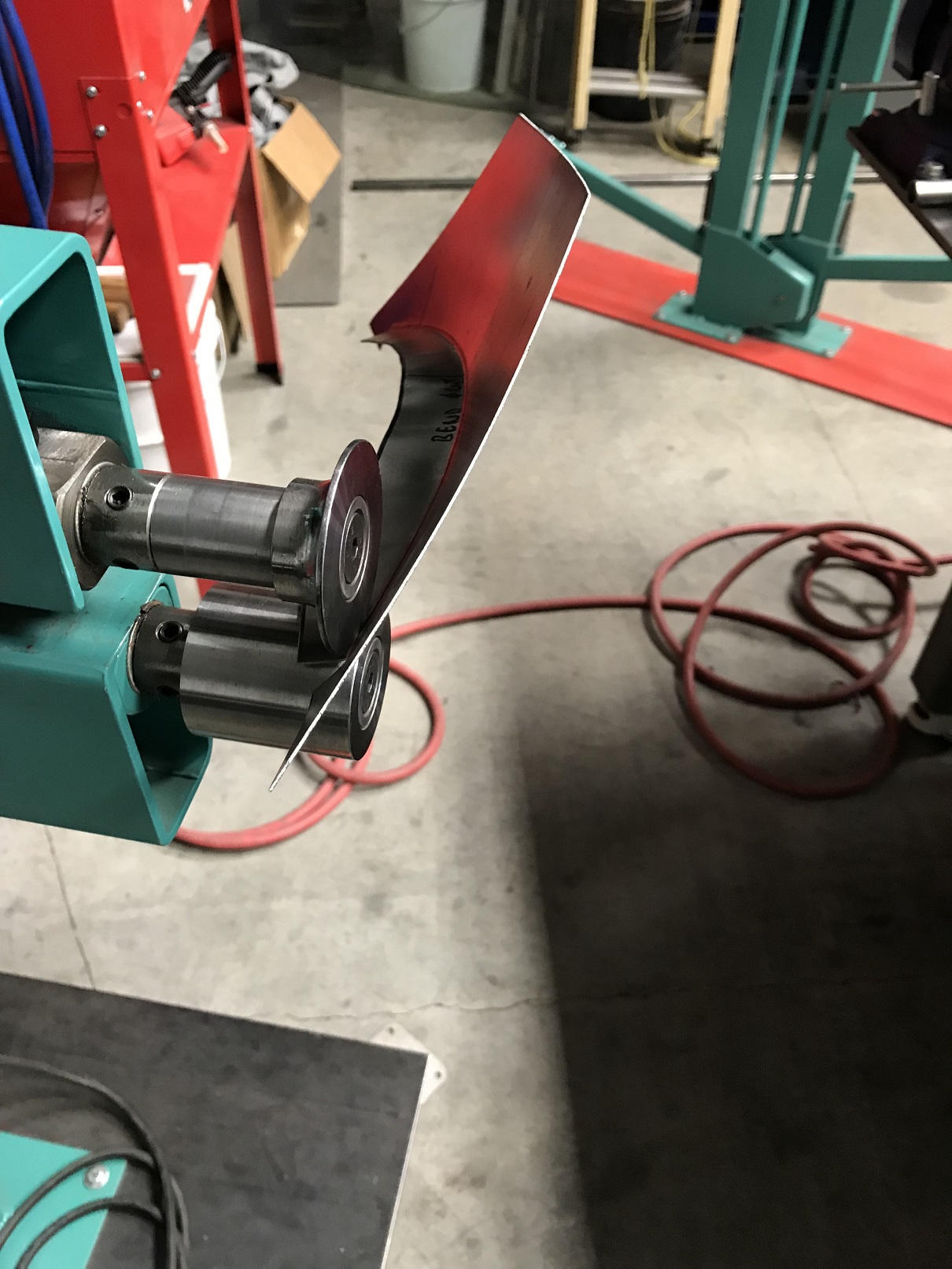

Pass # 2, more angle and more curving going on.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:19 PM
Post #969


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

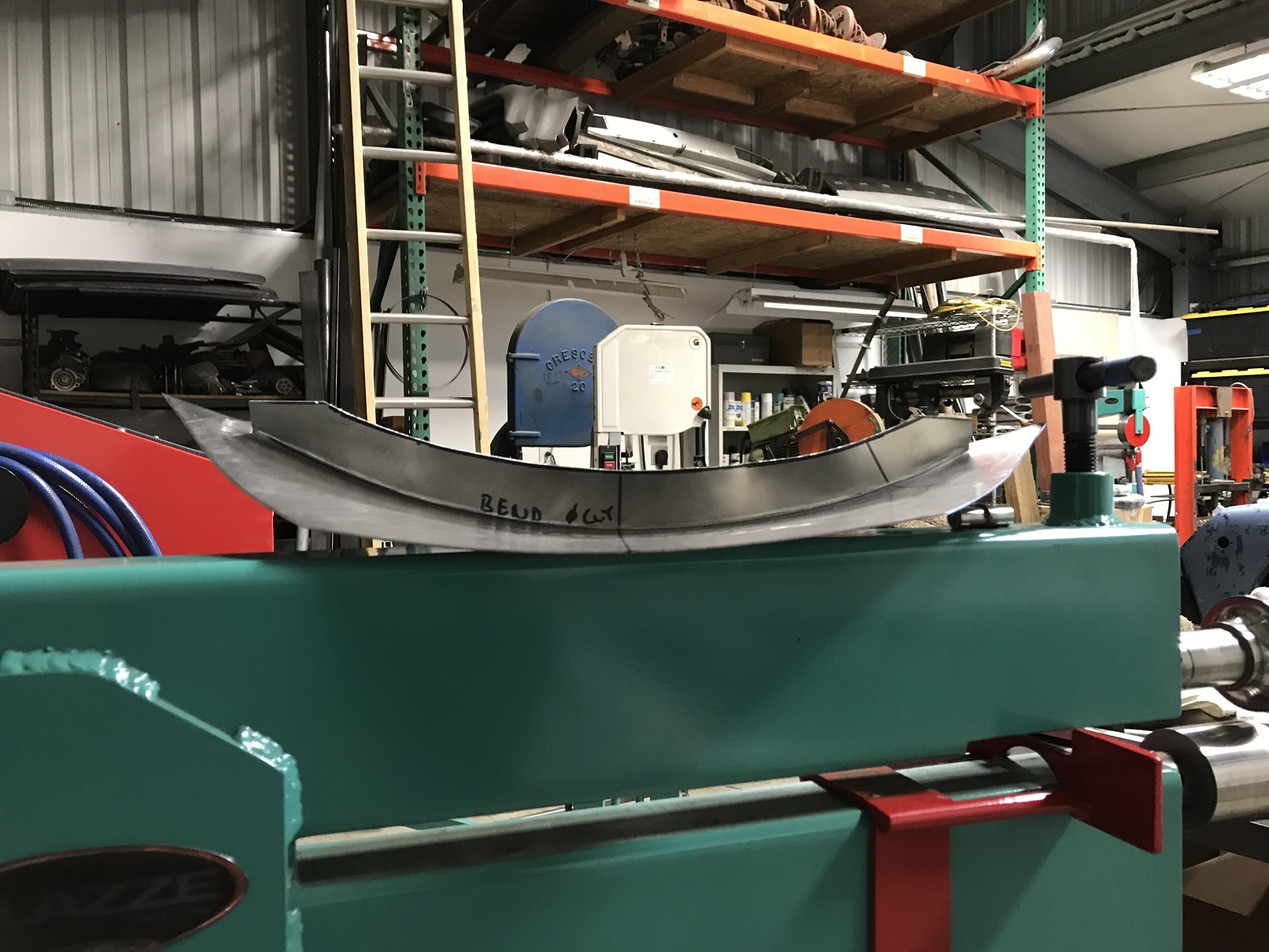

Third pass, almost there. Pretty curvy!I stopped here as I wanted to do some stretching to get it flatter ahead of the next bead rolling operation.

Note that the initial tipping was done with the thin top die and the large, flat lower.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:20 PM
Post #970


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

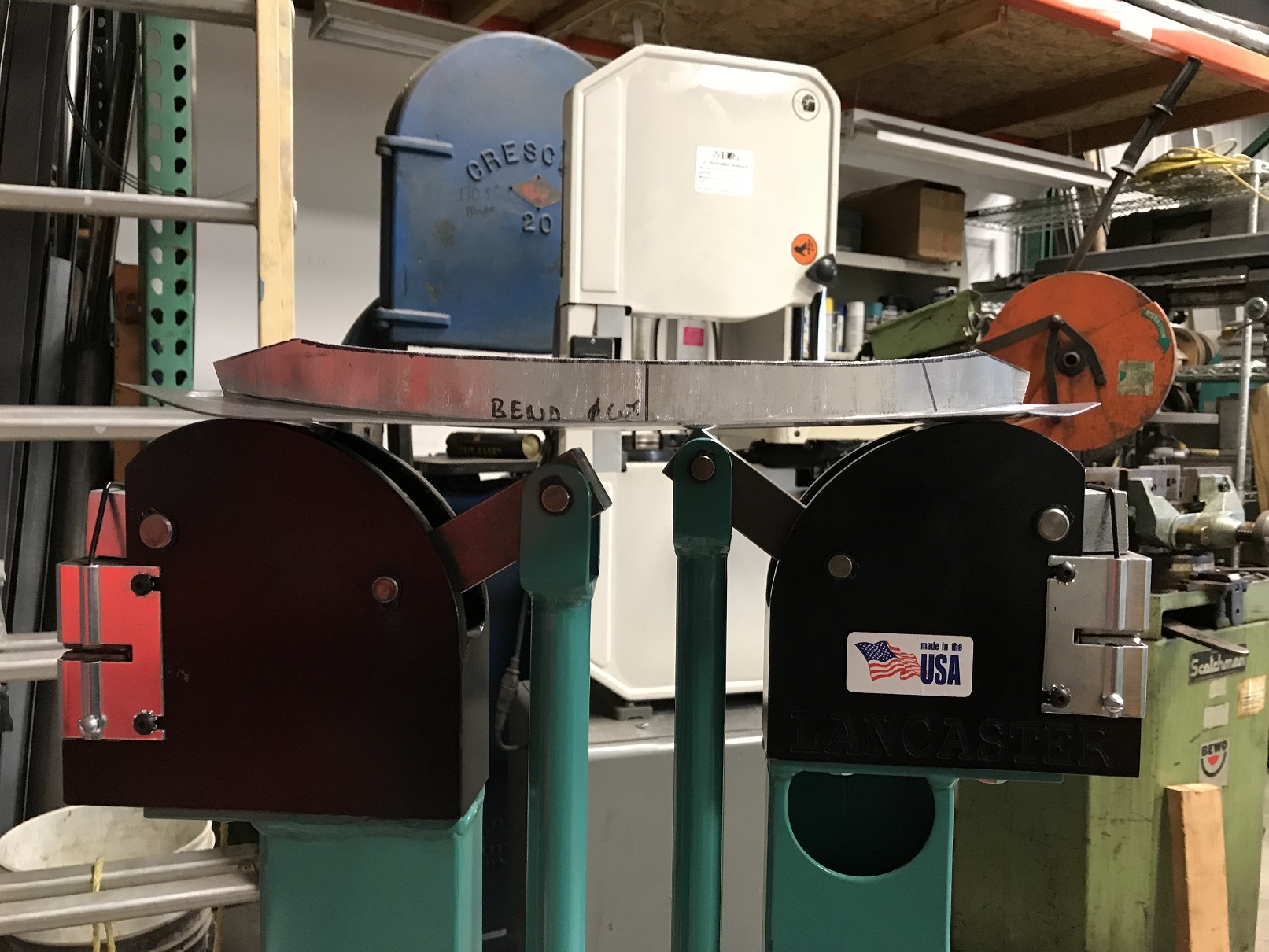

A bit of stretching to get things to lay down a bit.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:22 PM
Post #971


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Stretch, check, stretch check, etc, etc...

Done!

What I didn't show was the final couple passes through the bead roller were using a wide, flat top die against the same flat lower to smooth the flange and crisp up the corner.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:24 PM
Post #972


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

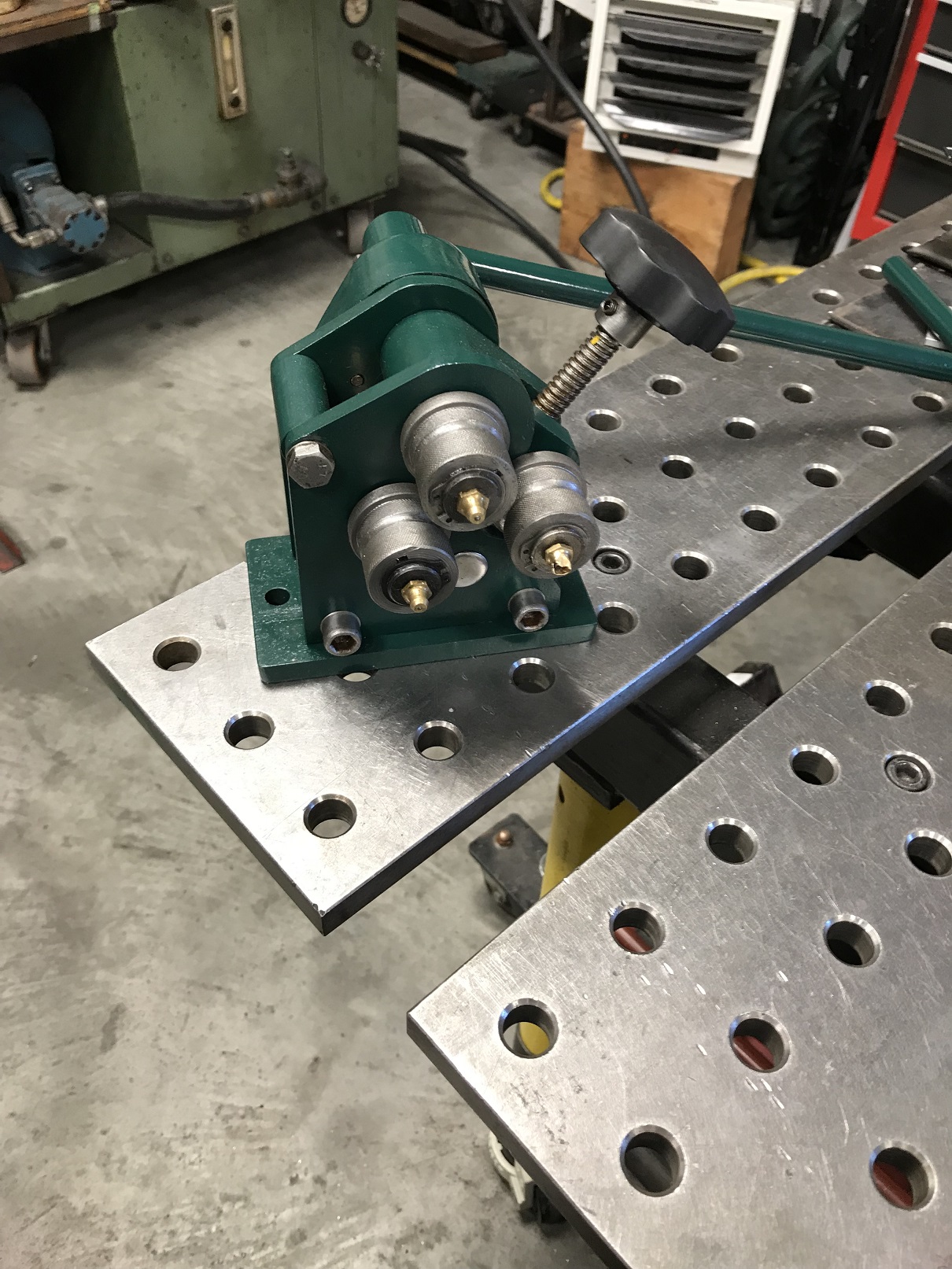

For the tool whores. A teeny little roll bender, just perfect for 1/8" rod.
Why would I want that? (IMG:style_emoticons/default/idea.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:33 PM
Post #973


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Yes, it's April 1. No, this isn't an April Fool's joke. Tho I may end up thinking this was foolish.

I'm headed to the coach building class next week and I'm contemplating, just contemplating, mind you, giving a go to making an all steel wide body.

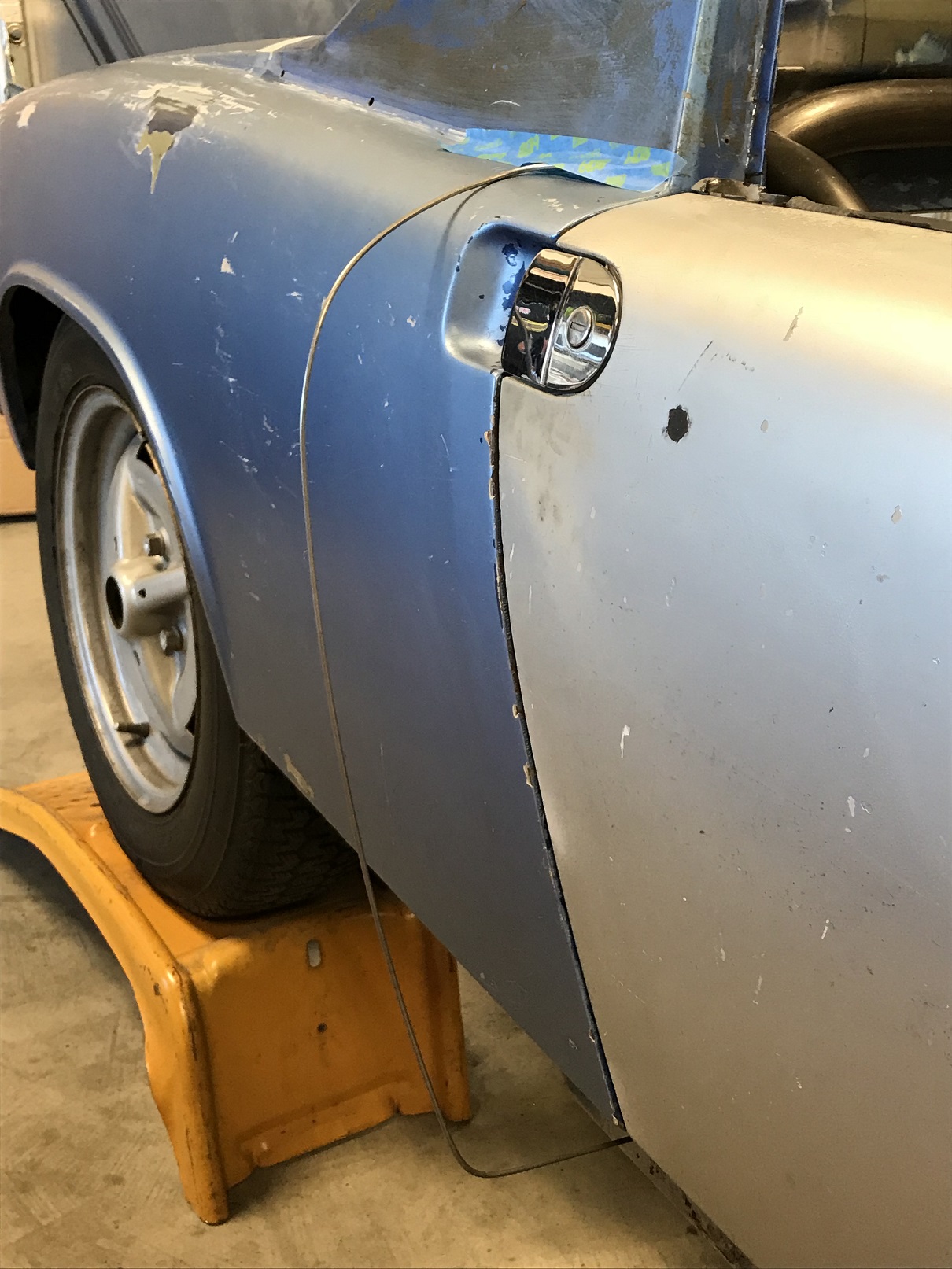

So as a complete waste of time, I started messing about, trying my hand at working up the beginnings of a wire frame...


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 12:37 PM
Post #974


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The design would have to enable me to:

- run a radiator in each rear side scoop, ala the DP2 design pictured below.
(He's running an LS3 and having no cooling issues - and he has a muffler right behind each rad...)

- retain a fully functional front trunk. That'd actually be pretty neat and is a main driver for this silly idea

Yes, LOTS of things to think about and it may all be abandoned. But this build is, well, about the build.

Will it ever run? Who knows... Do I care? Not right now, too much fun in playing around and learning.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Timo
post Apr 1 2018, 12:52 PM
Post #975


*******
***

Group: Members
Posts: 743
Joined: 13-January 03
From: Finland
Member No.: 137
Region Association: Europe
QUOTE(tygaboy @ Apr 1 2018, 08:37 PM) *

Will it ever run? Who knows... Do I care? Not right now, too much fun in playing around and learning.


I like your attitude !! Keep up good work and sending pics (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 03:26 PM
Post #976


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

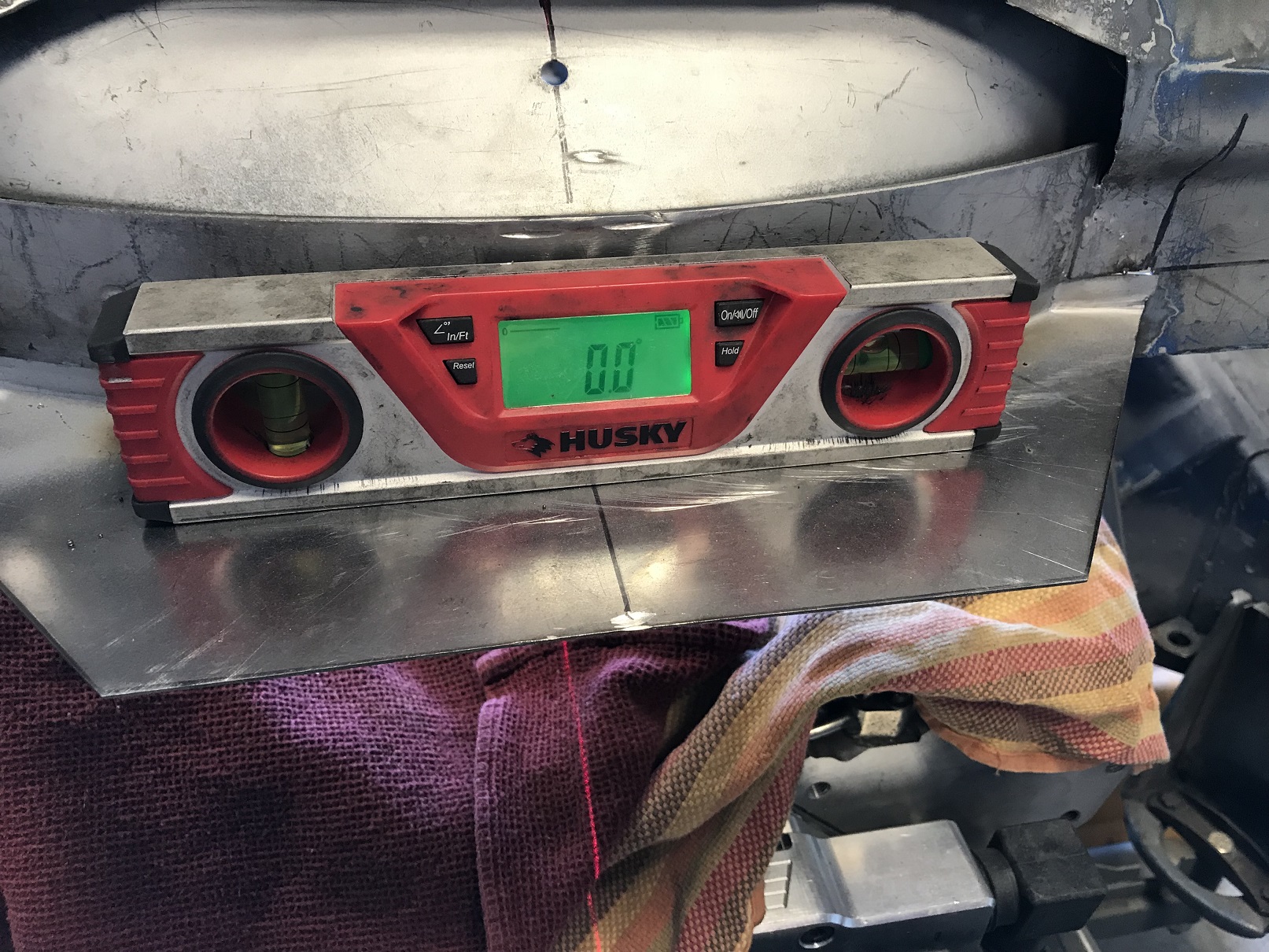

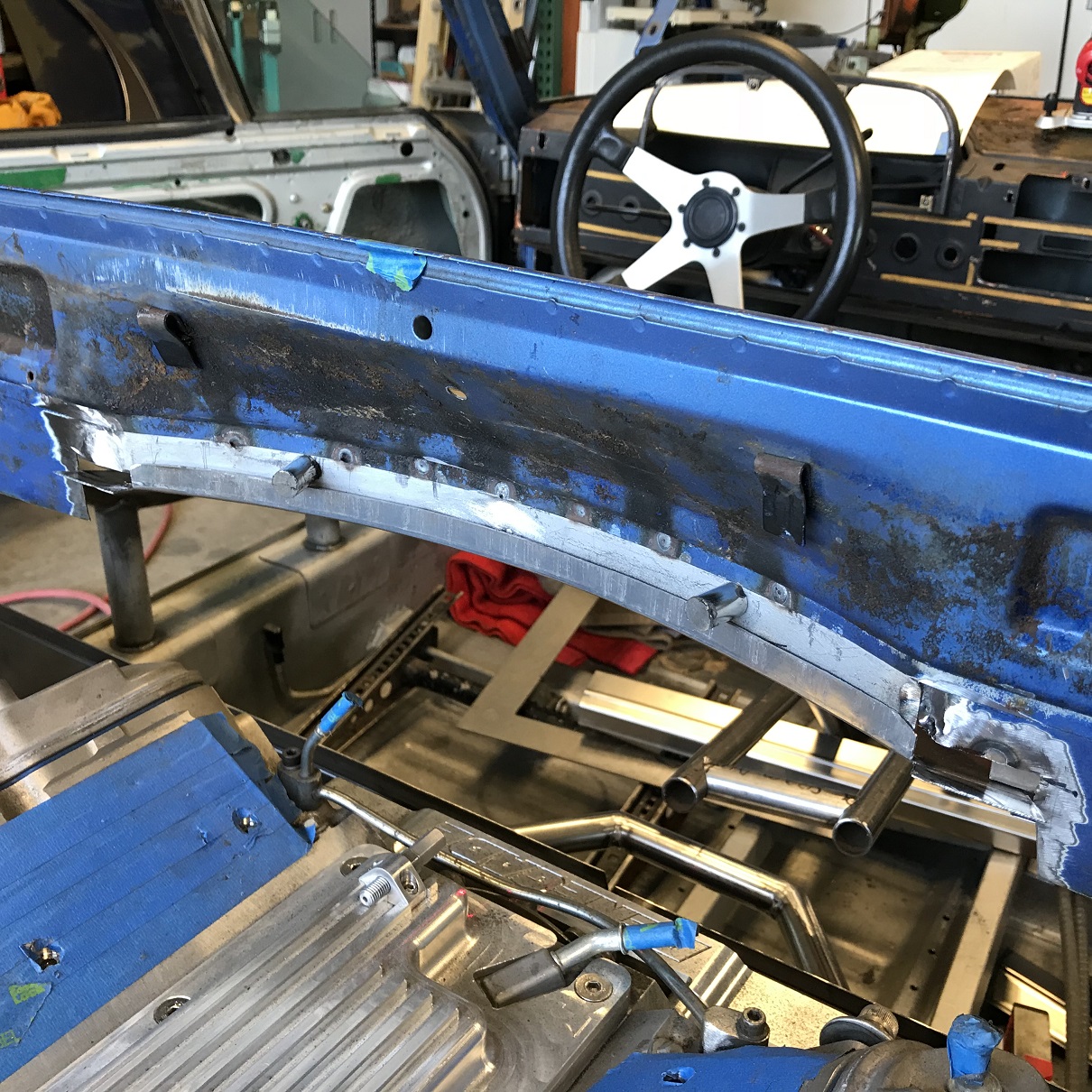

Top piece Version 5 centered, leveled and tacked in.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 03:28 PM
Post #977


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

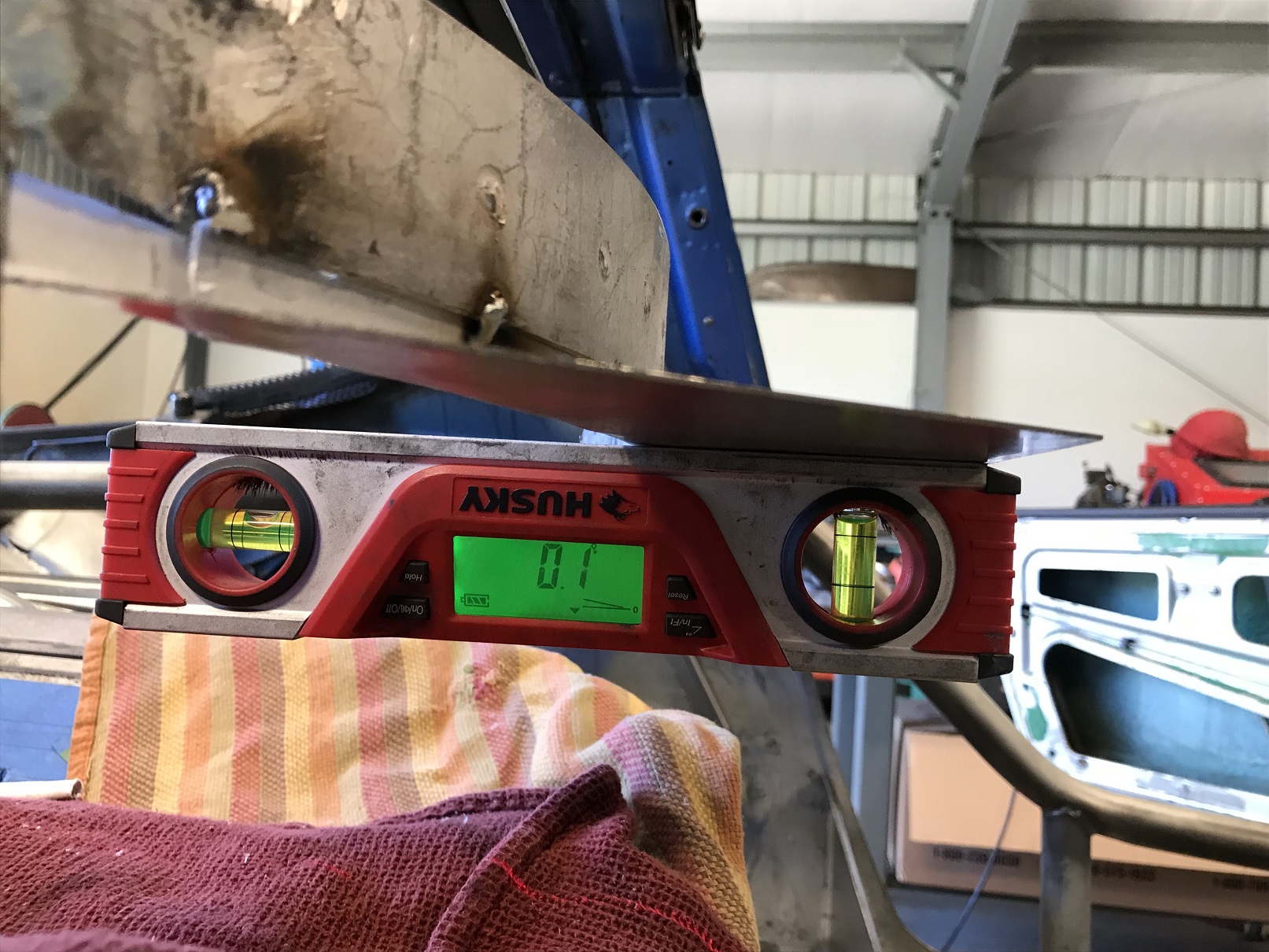

Trying not to let "perfect" get in the way of "0.1 is really, really close"...! (IMG:style_emoticons/default/lol-2.gif)
I can tweak it a bit but for now, I'll take it.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 03:33 PM
Post #978


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

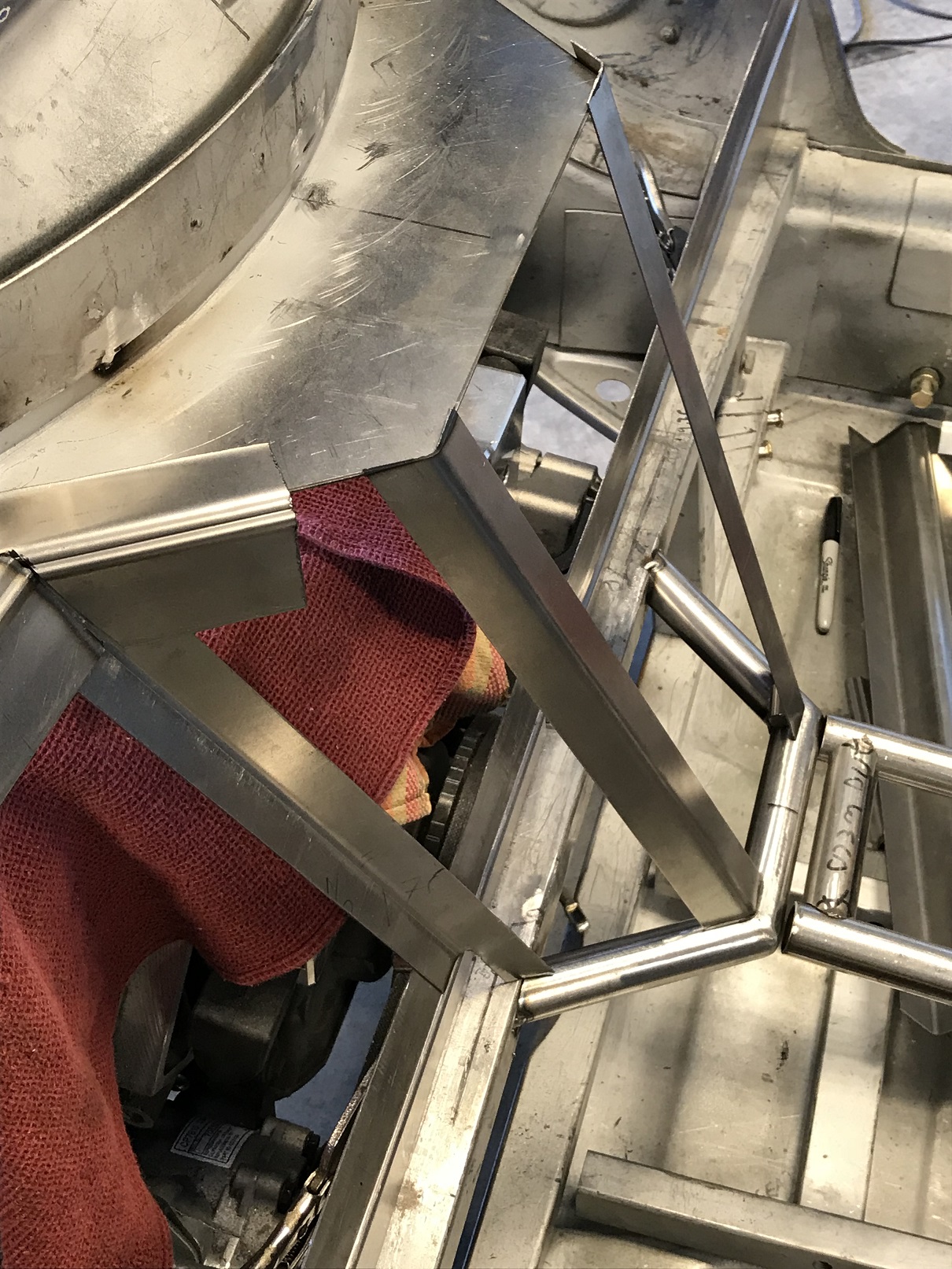

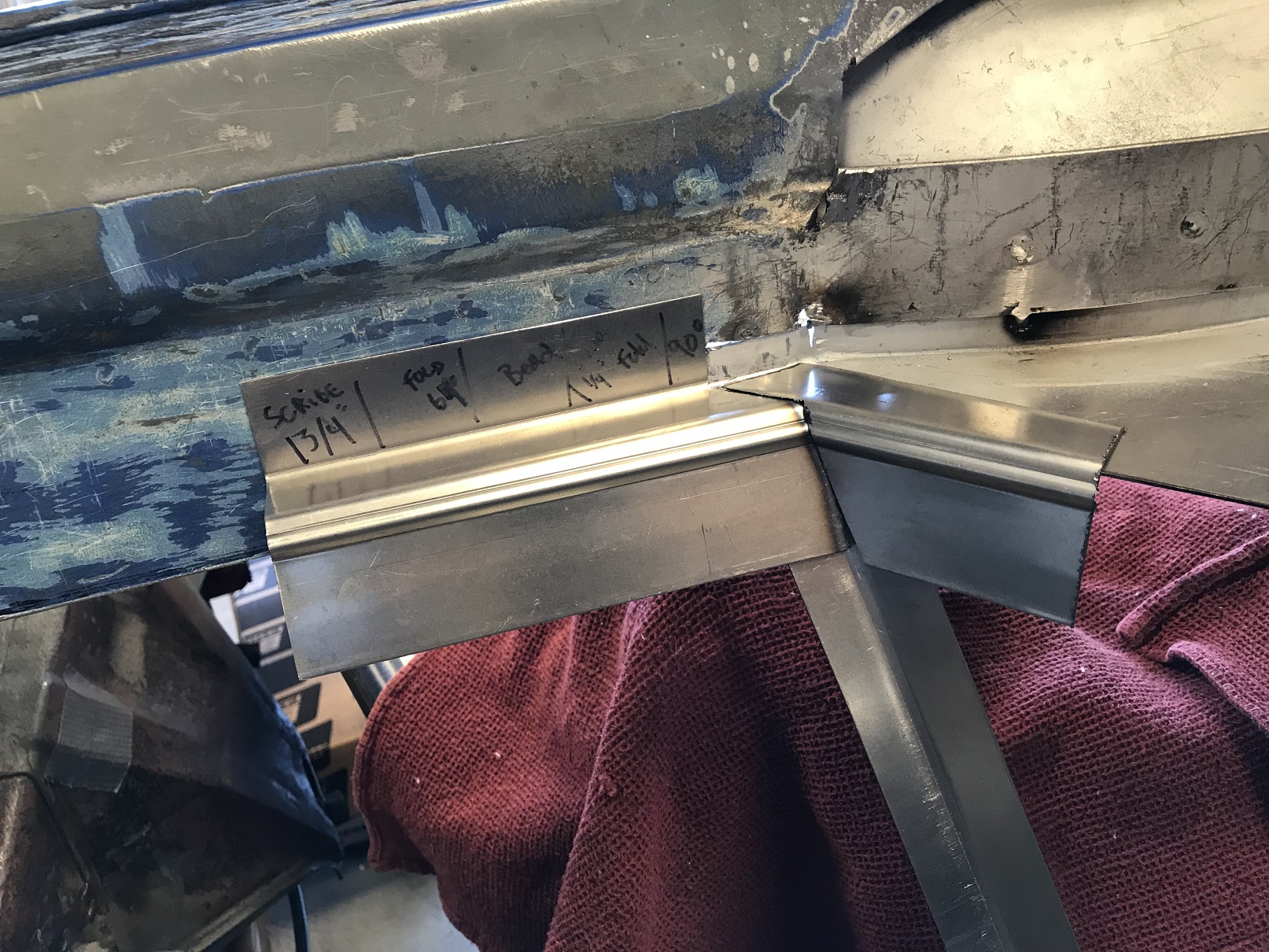

And with that top piece mocked in, I can start on the practice parts to work a design for how all the corners will come together. I'm determined to have that bead transition around all the flat panels but these corners are certainly going to be tricky.

I may have to enlist my bicycle building friend to help me learn how to braze and file so I can get the transitions to look good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Apr 1 2018, 04:26 PM
Post #979


914 Guru
*****

Group: Members
Posts: 7,254
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
I like the wire fixtures.. It will look really cool.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 1 2018, 04:32 PM
Post #980


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

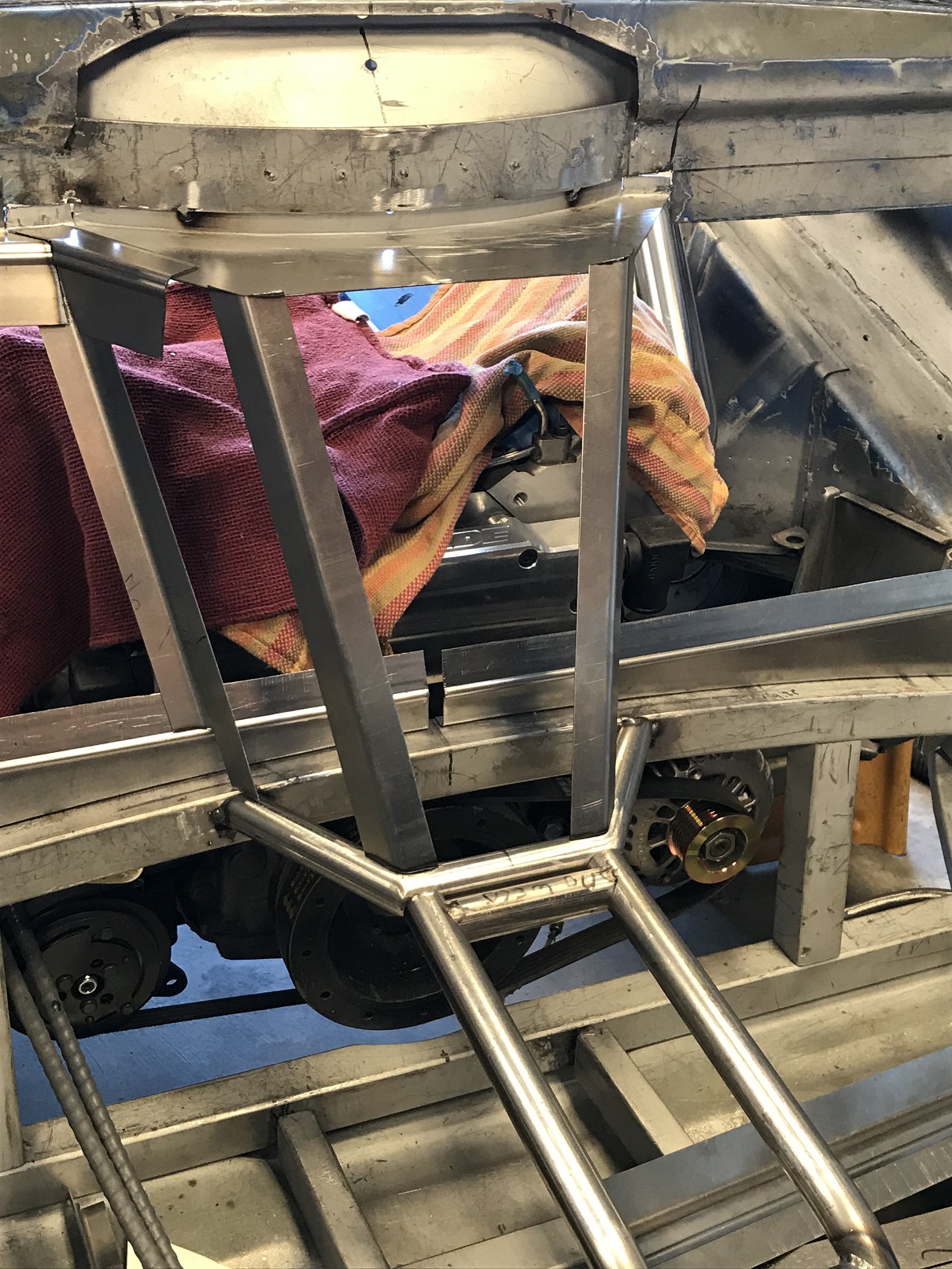

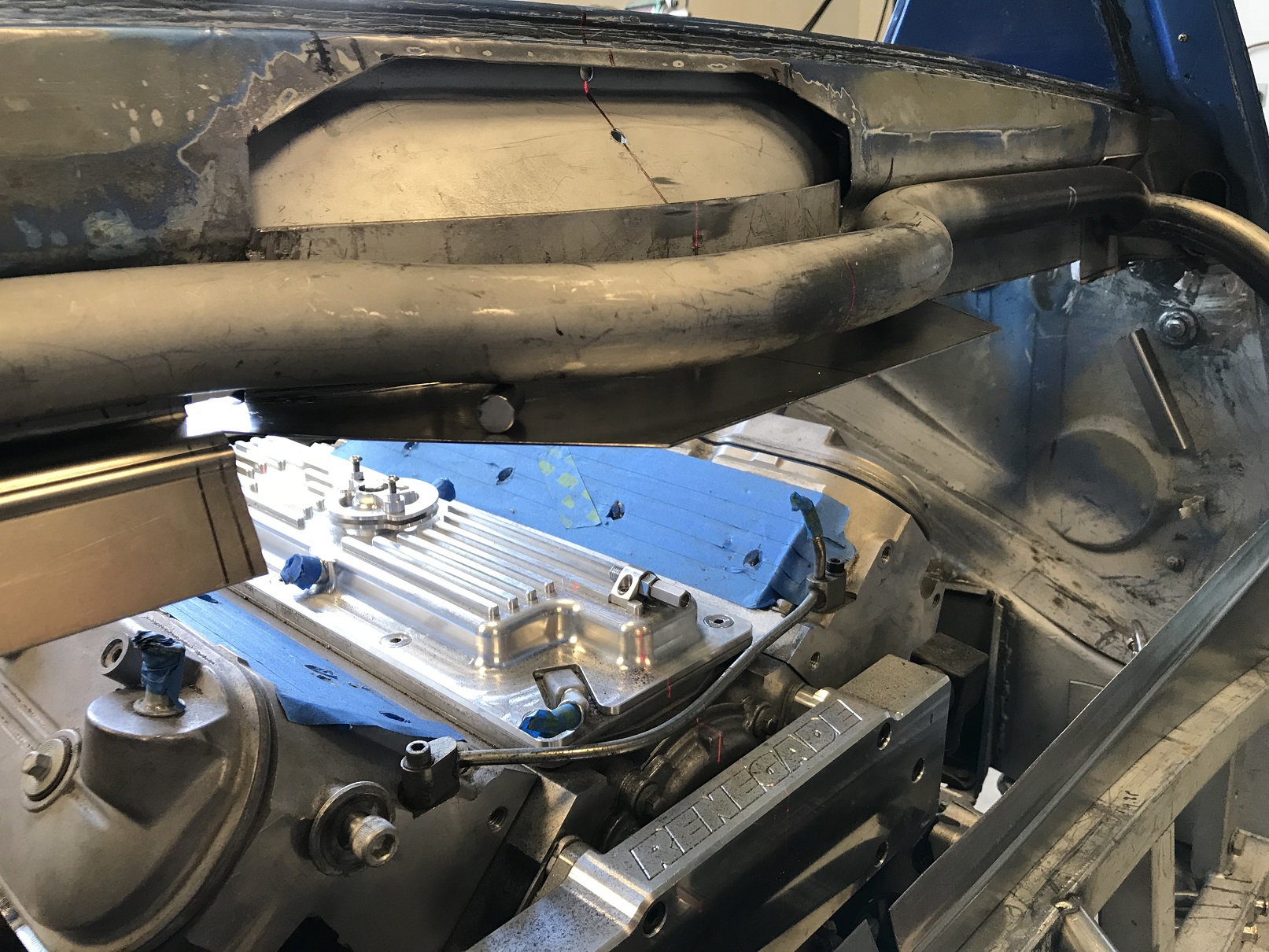

And with that top piece in, I could start "connecting the dots" and get a feel for what this thing will look like and how it'll work. Still not sure if the access panel will be one piece or a few.

And while it's not quite a blueprint, hopefully this will give a better idea of what I'm trying to do.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
