> Cairo's (Michael) 6 - Part 2, 3.2 coming out and '95 3.6 going in...
billh1963
post Oct 16 2017, 01:36 PM
Post #161


Car Hoarder!
****

Group: Members
Posts: 3,404
Joined: 28-March 11
From: North Carolina
Member No.: 12,871
Region Association: South East States
QUOTE(Cairo94507 @ Oct 16 2017, 09:28 AM) *



However, in talking about the front of the car, it was decided that the front panel on the car needs to be replaced to make the front end correct. (IMG:style_emoticons/default/sad.gif) As you can imagine, this was disappointing to me since it was already replaced a few years ago. (IMG:style_emoticons/default/wacko.gif) But, in the end, it will be cheaper and easier to get the front end panels correct this way. I have posted a WTB and am once again chasing down an early nose panel. (IMG:style_emoticons/default/type.gif)



Might want to look at the auction MDShantz is having....might be a front clip in there

Or this one: http://www.914world.com/bbs2/index.php?showtopic=317488
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 16 2017, 02:48 PM
Post #162


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

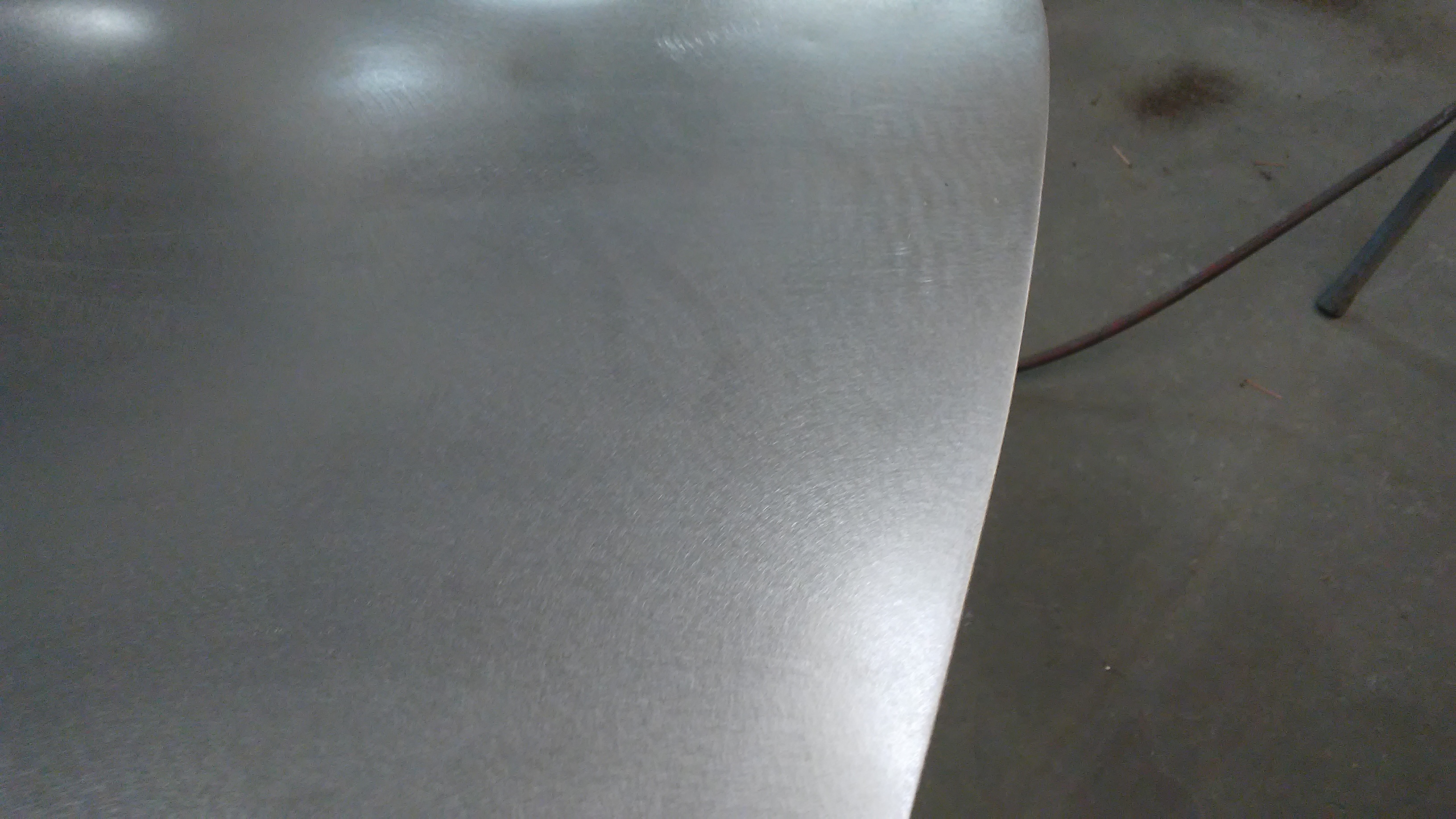

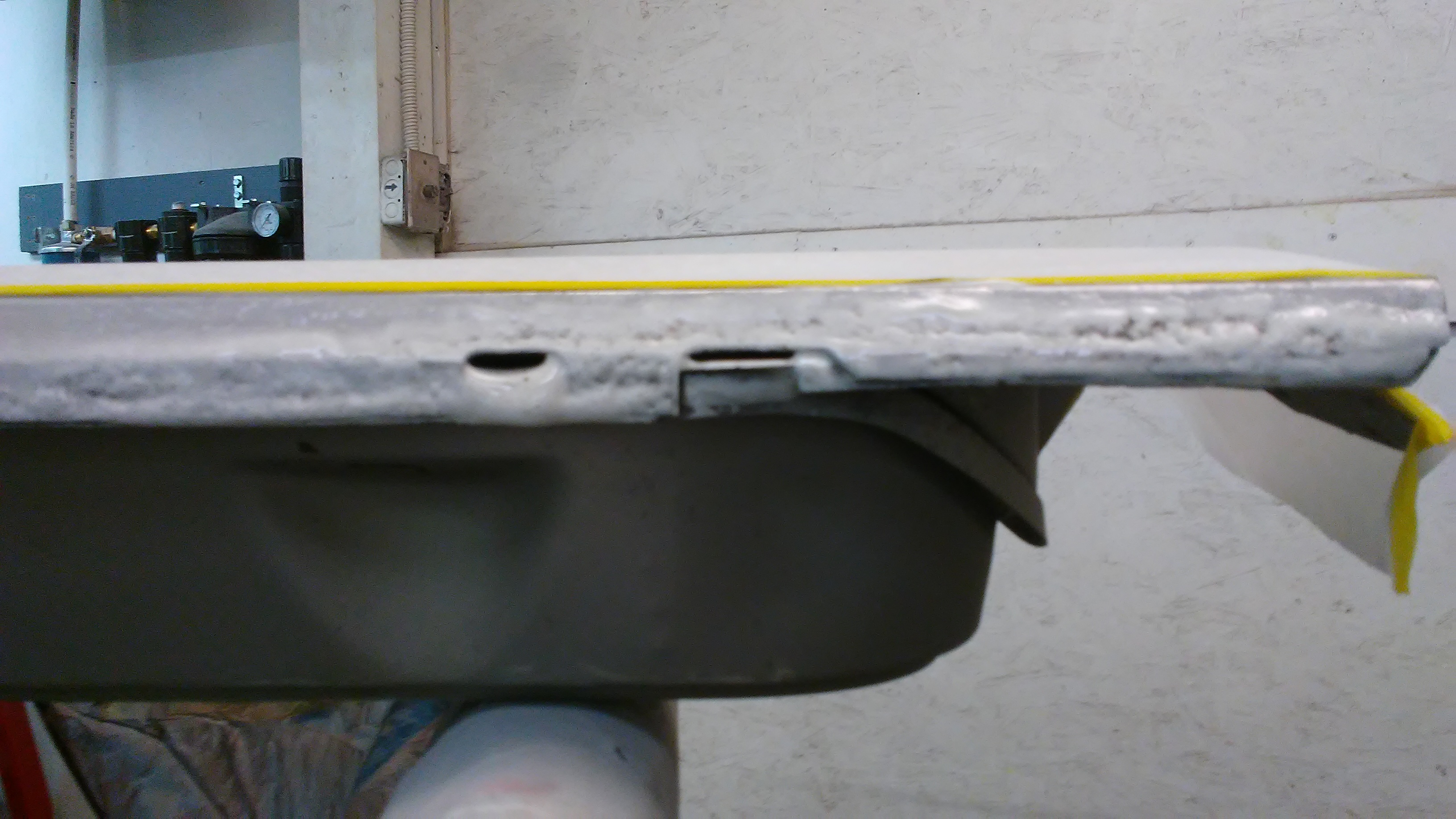

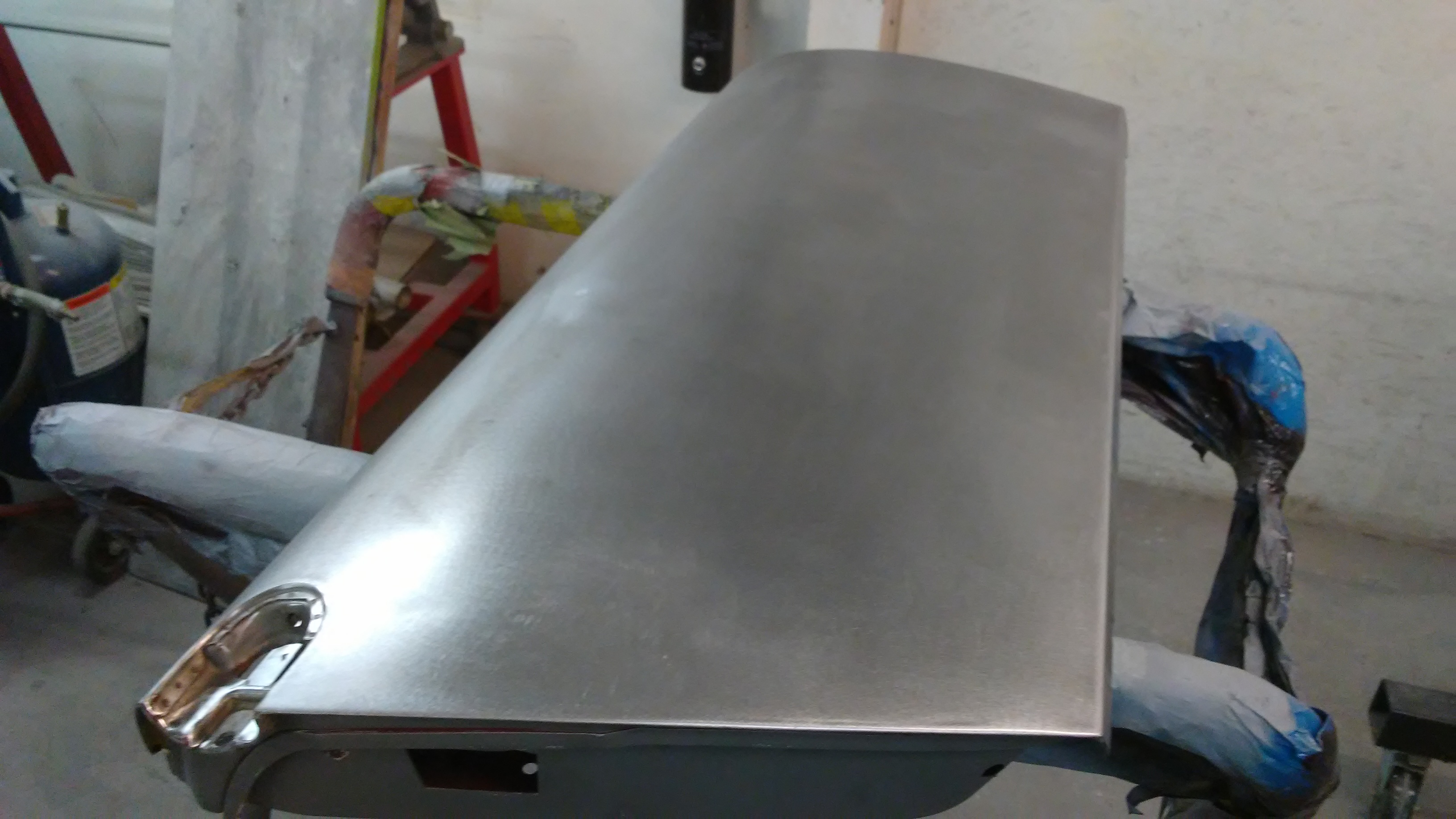

Working on the doors fixing some lite damage here and there.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 16 2017, 03:05 PM
Post #163


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

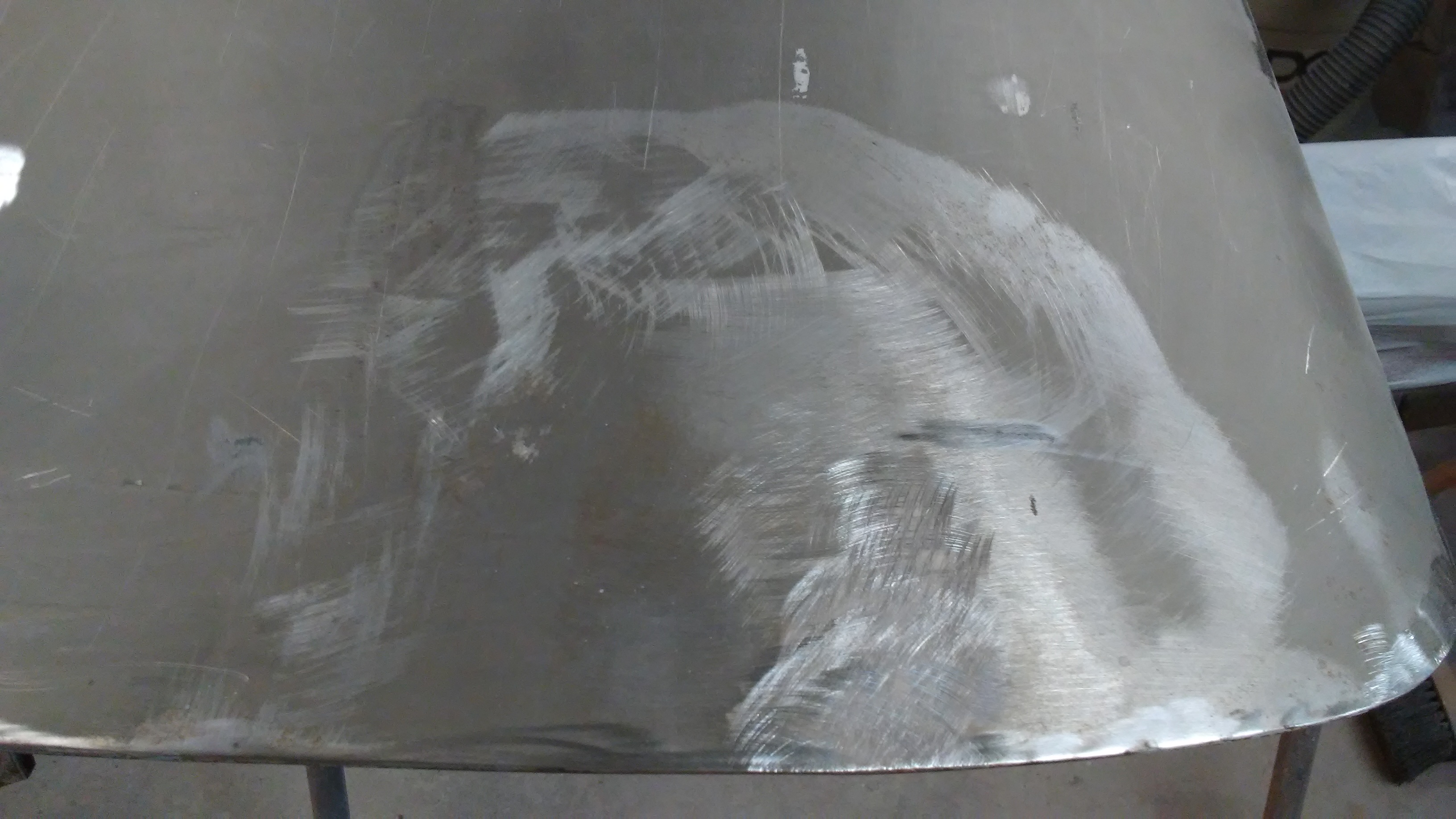

More progress pics.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 16 2017, 03:32 PM
Post #164


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

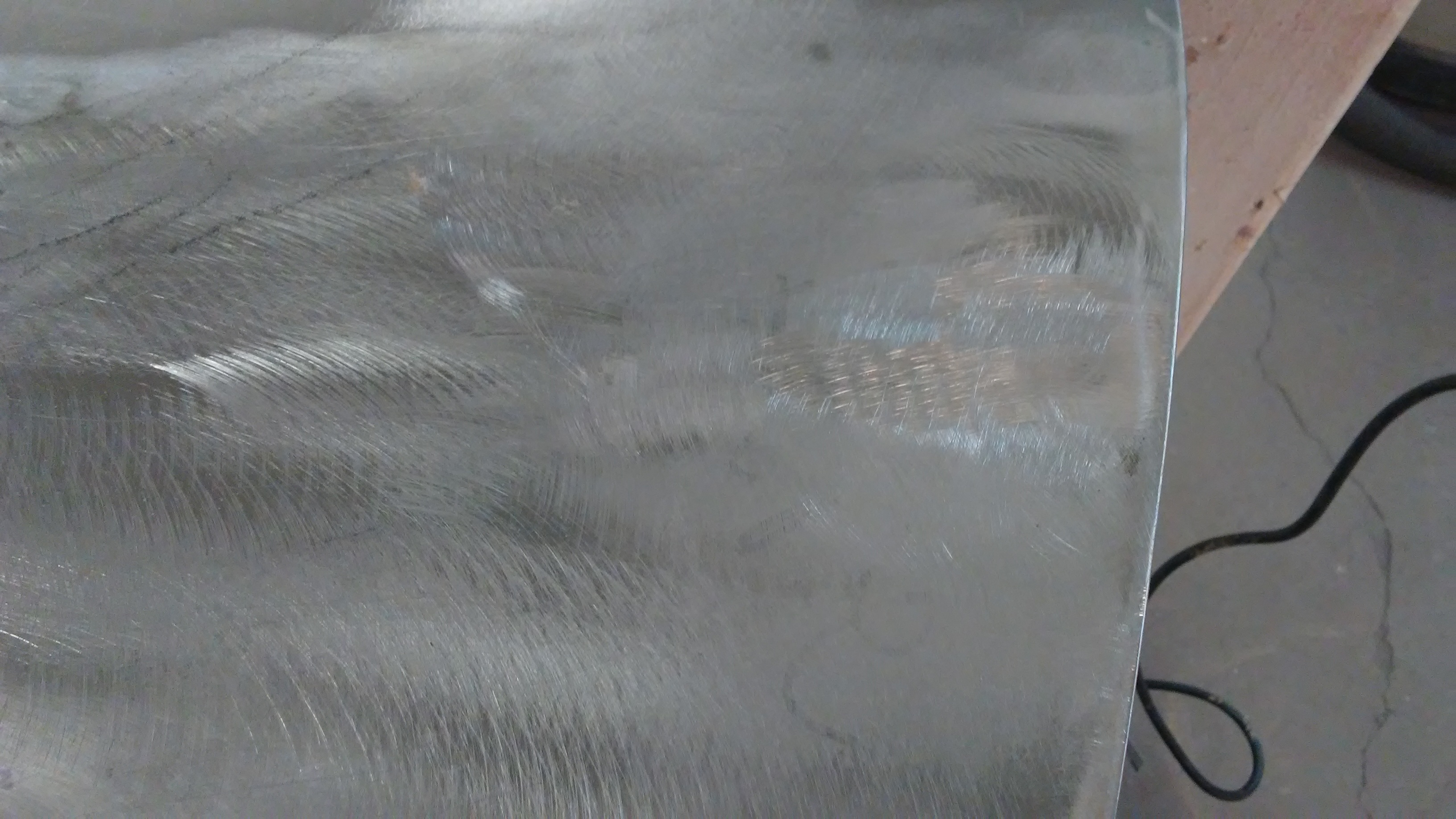

More.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Oct 16 2017, 04:24 PM
Post #165


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Now that's what I'm talkin' about. That is how a car is supposed to be prepared when it is a full media blasted restoration. Great work Kent. Have some cheesy-bread on me. (IMG:style_emoticons/default/beerchug.gif) Now I can't wait for December. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
siverson
post Oct 16 2017, 05:24 PM
Post #166


Advanced Member
****

Group: Benefactors
Posts: 2,451
Joined: 5-May 03
From: San Diego, CA
Member No.: 654
Region Association: Southern California
Looks good!

> chasing down an early nose panel

What part are you looking for exactly?

-Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Oct 16 2017, 07:43 PM
Post #167


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Hi Steve - I believe I have sourced an early nose, the whole front panel behind the bumper. Should something happen I will reach out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 11:11 AM
Post #168


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
QUOTE(Cairo94507 @ Oct 16 2017, 03:24 PM) *

Now that's what I'm talkin' about. That is how a car is supposed to be prepared when it is a full media blasted restoration. Great work Kent. Have some cheesy-bread on me. (IMG:style_emoticons/default/beerchug.gif) Now I can't wait for December. (IMG:style_emoticons/default/smilie_pokal.gif)


Mmmmm...that was good, don't forget the cheese infused butter.

Mike treated jim and I to an excellent sreak dinner last Sat. Delicious, Thanks Mike.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 11:13 AM
Post #169


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

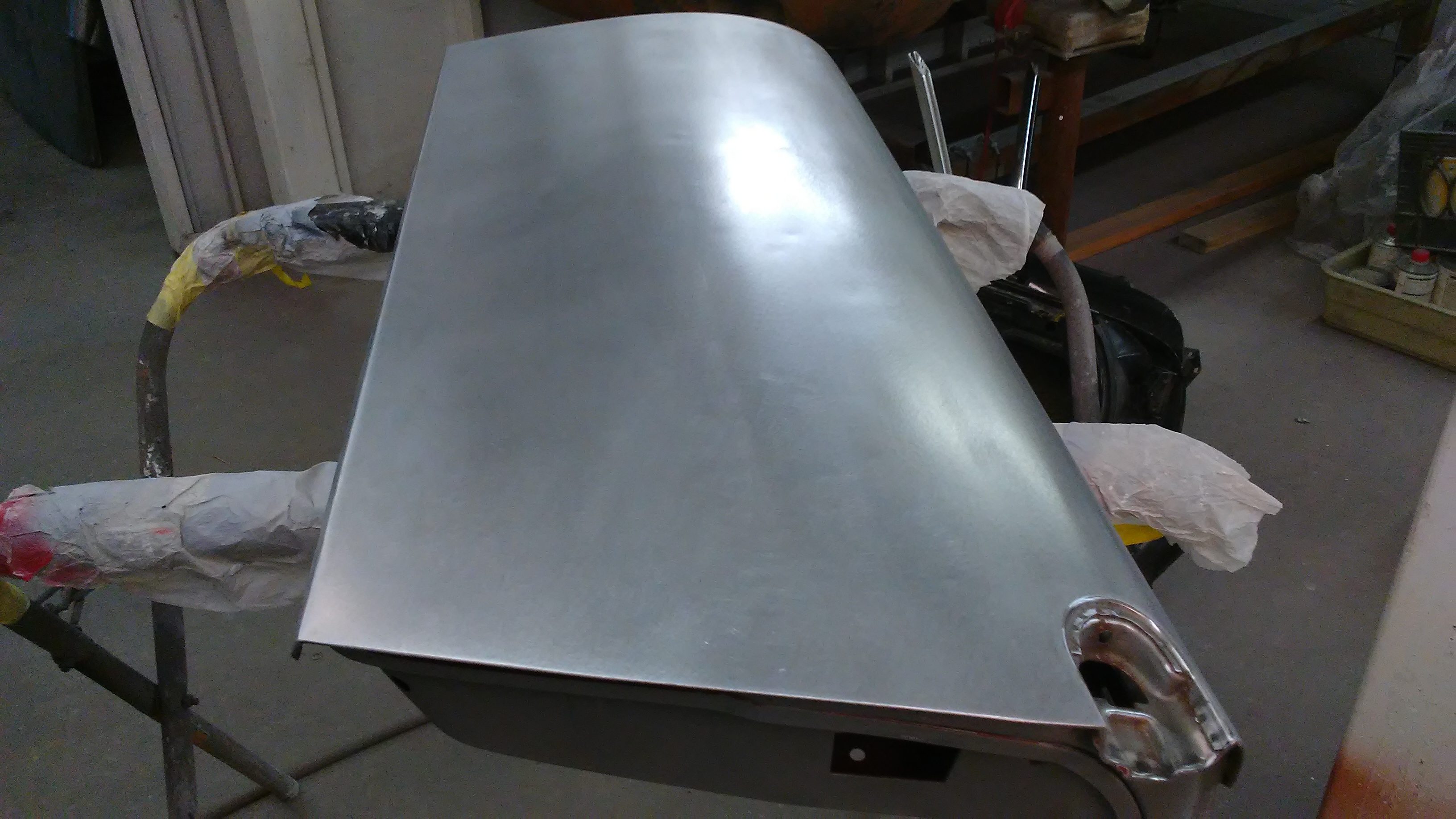

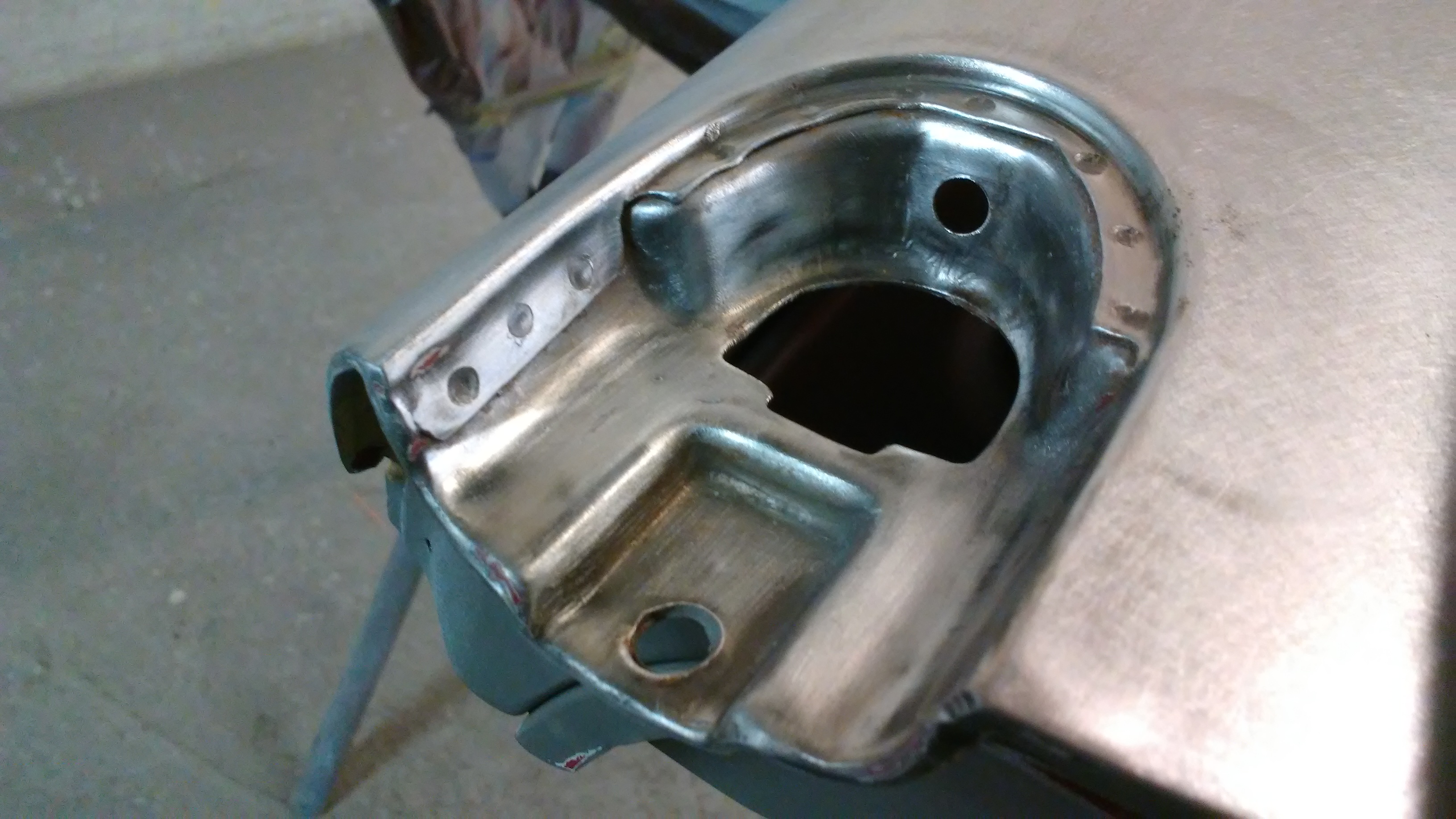

Door number 2.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 11:14 AM
Post #170


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

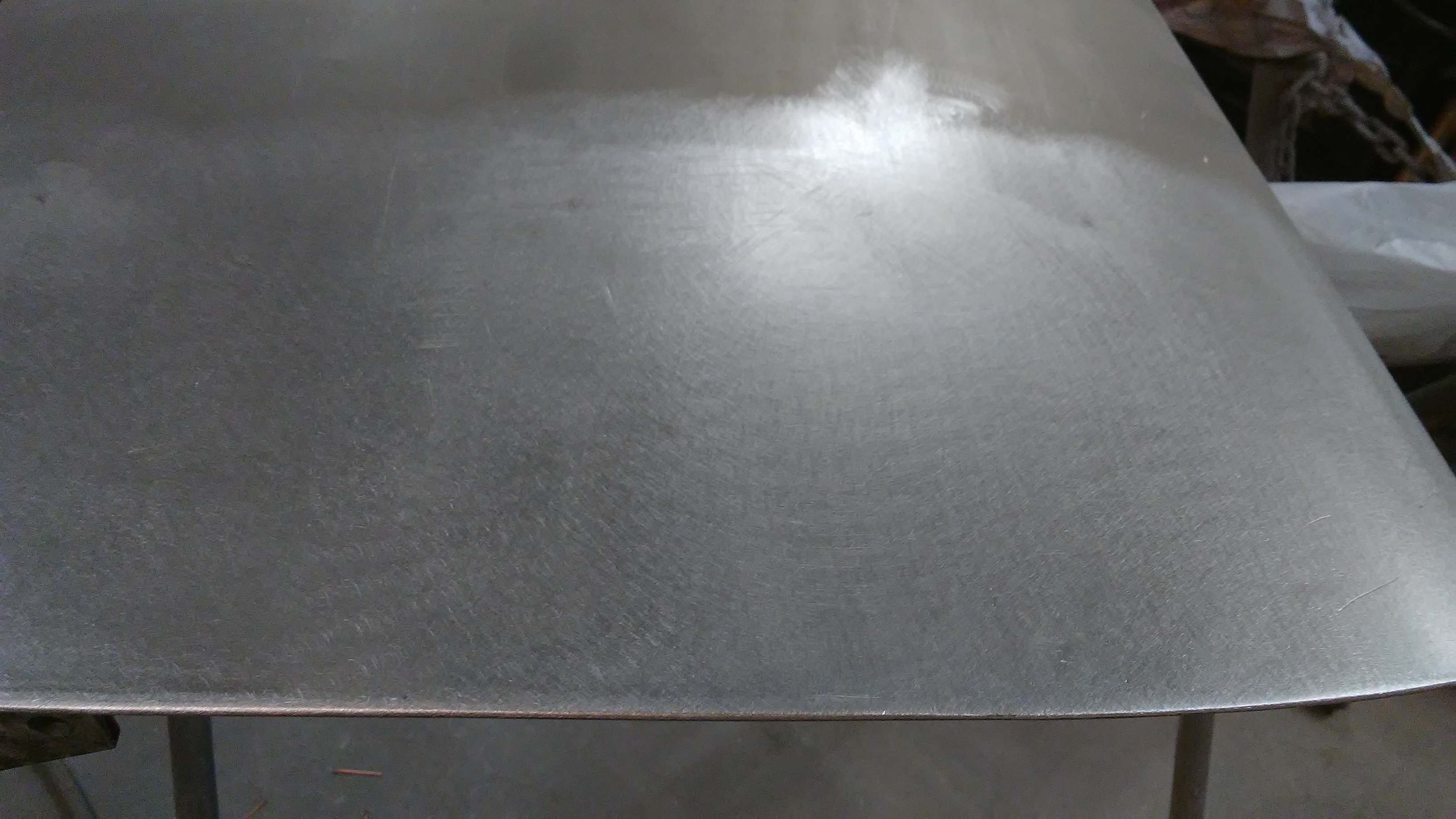

Pic.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 12:56 PM
Post #171


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

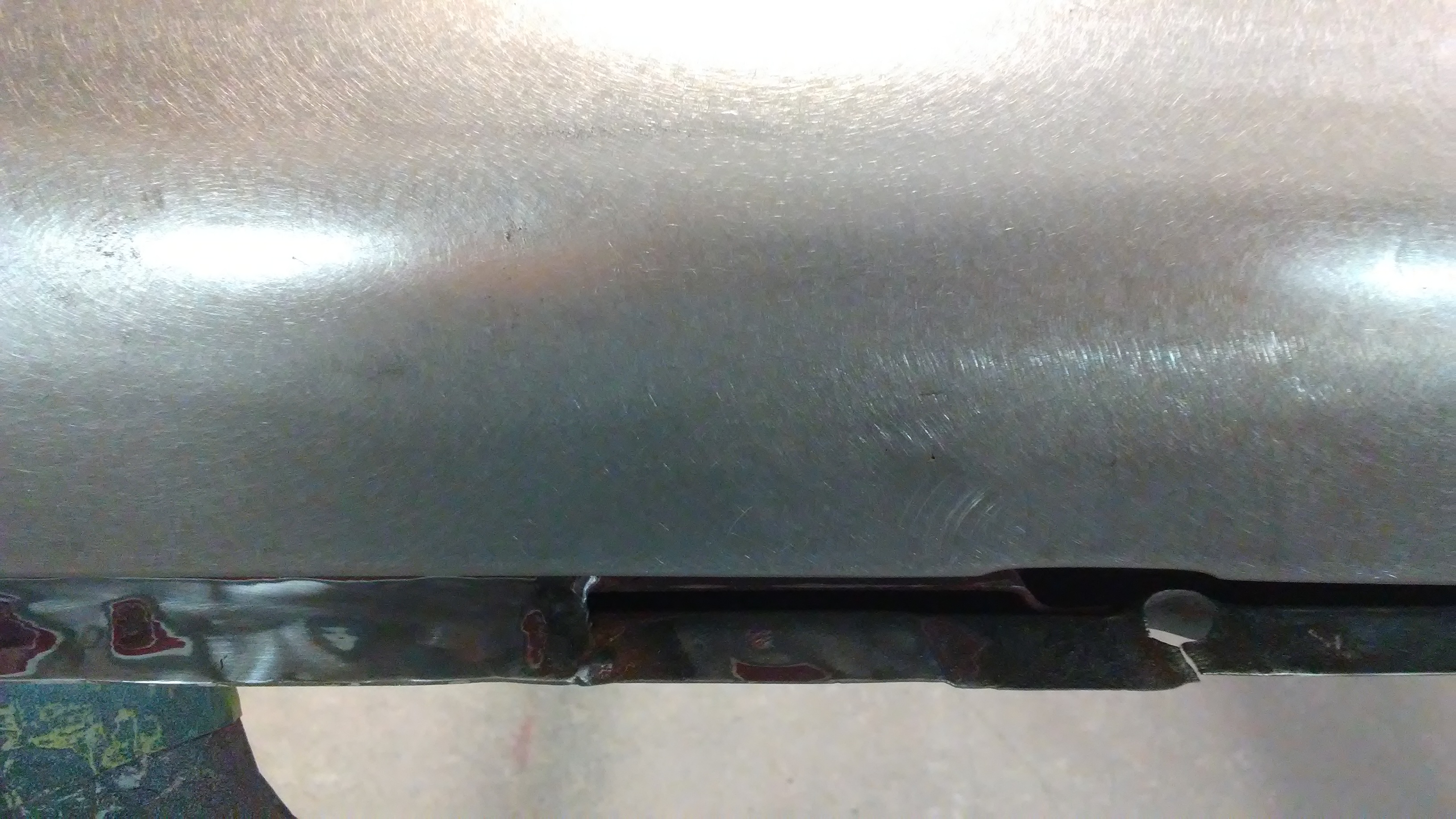

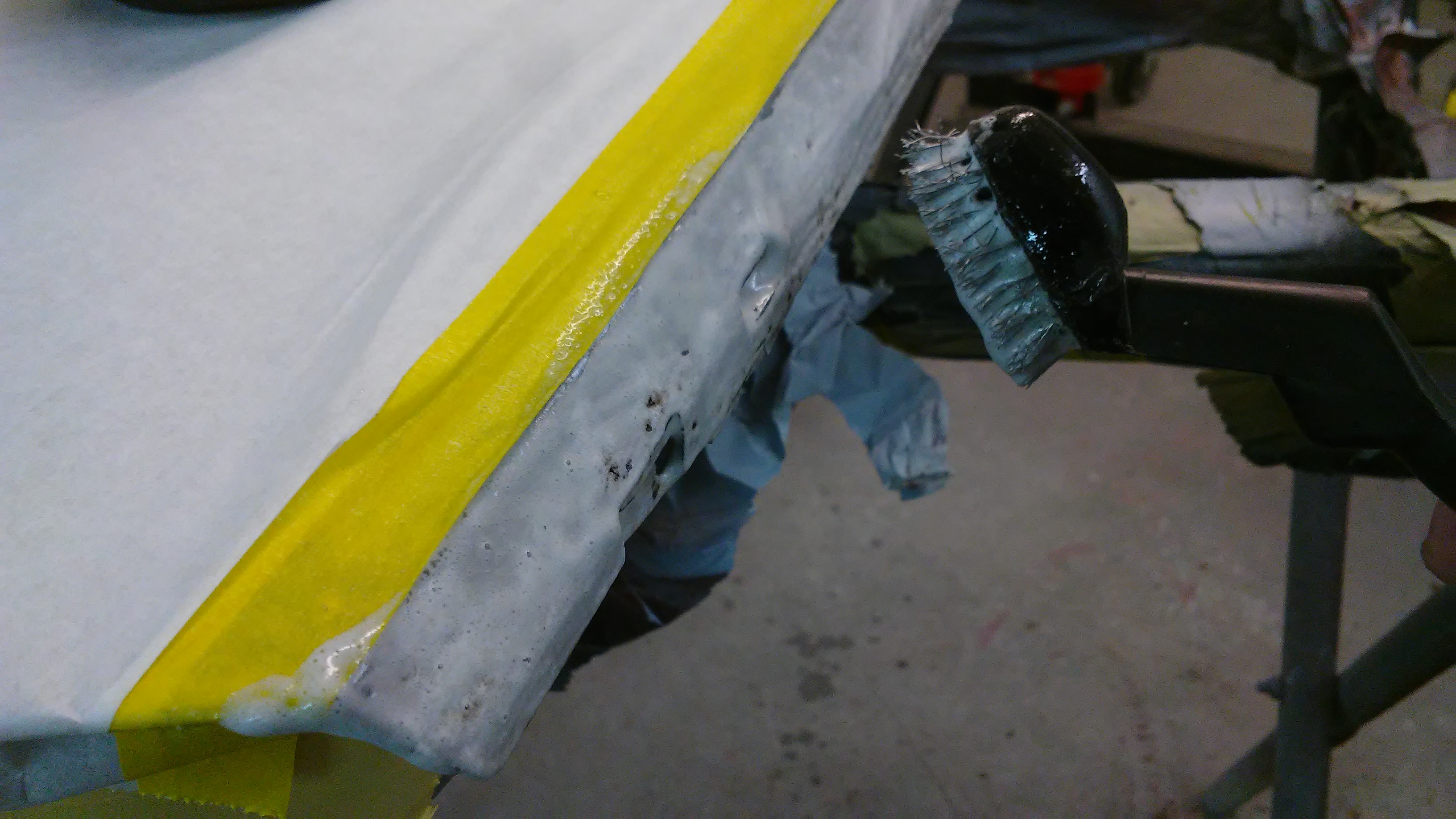

At first glance I thought a PO had drilled right through the nut plate for the mirror mount. Lookin closer, I saw that they had drilled two holes just off to the side of the nut plate. I welded up the holes then located and drilled holes to reveal the threads in the nut plate.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 12:57 PM
Post #172


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California
More pics


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 01:10 PM
Post #173


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

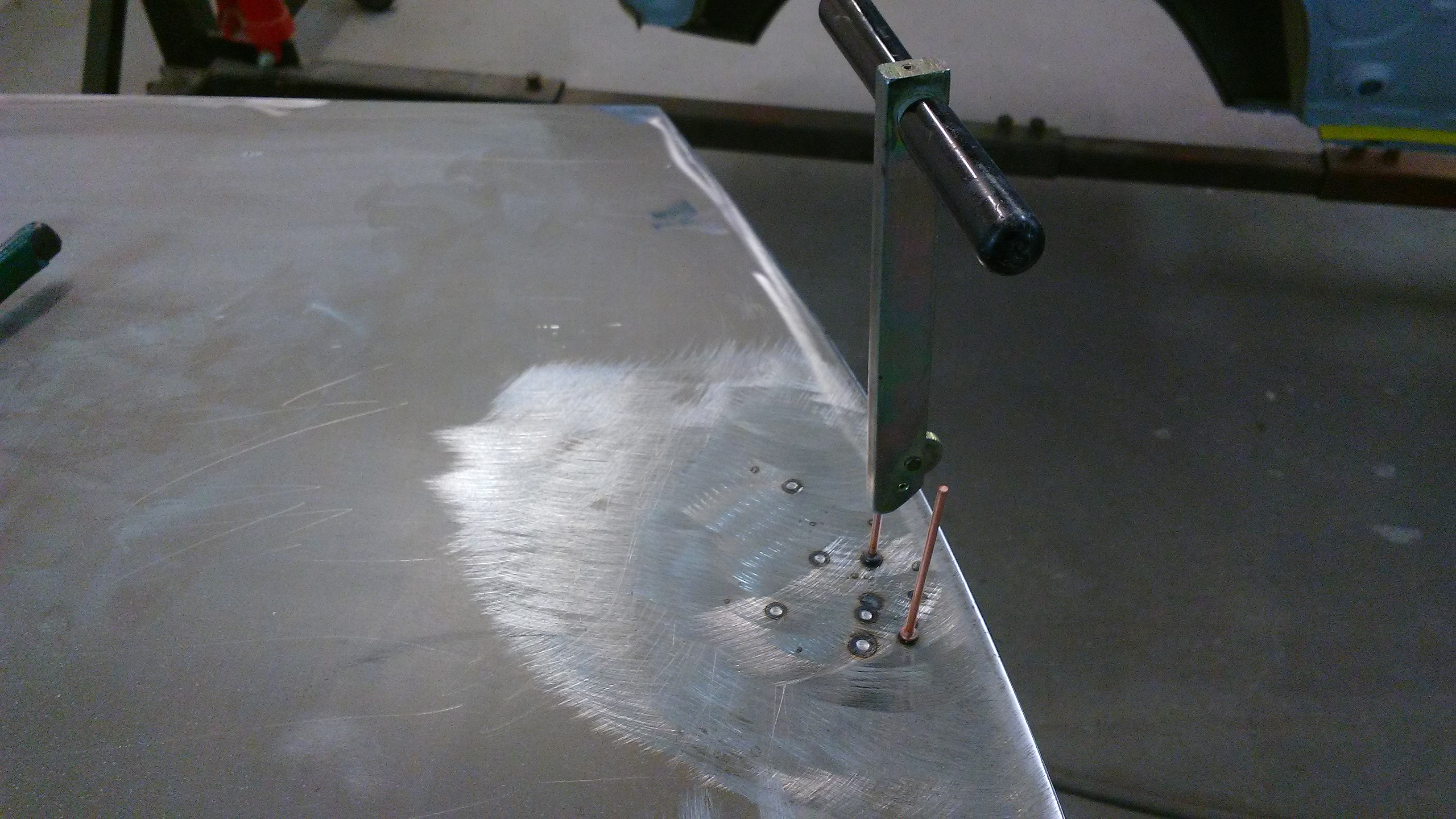

I showed how I locate and drill the holes for the mirror in Jims thread but I figured I show it in Mikes thread also.

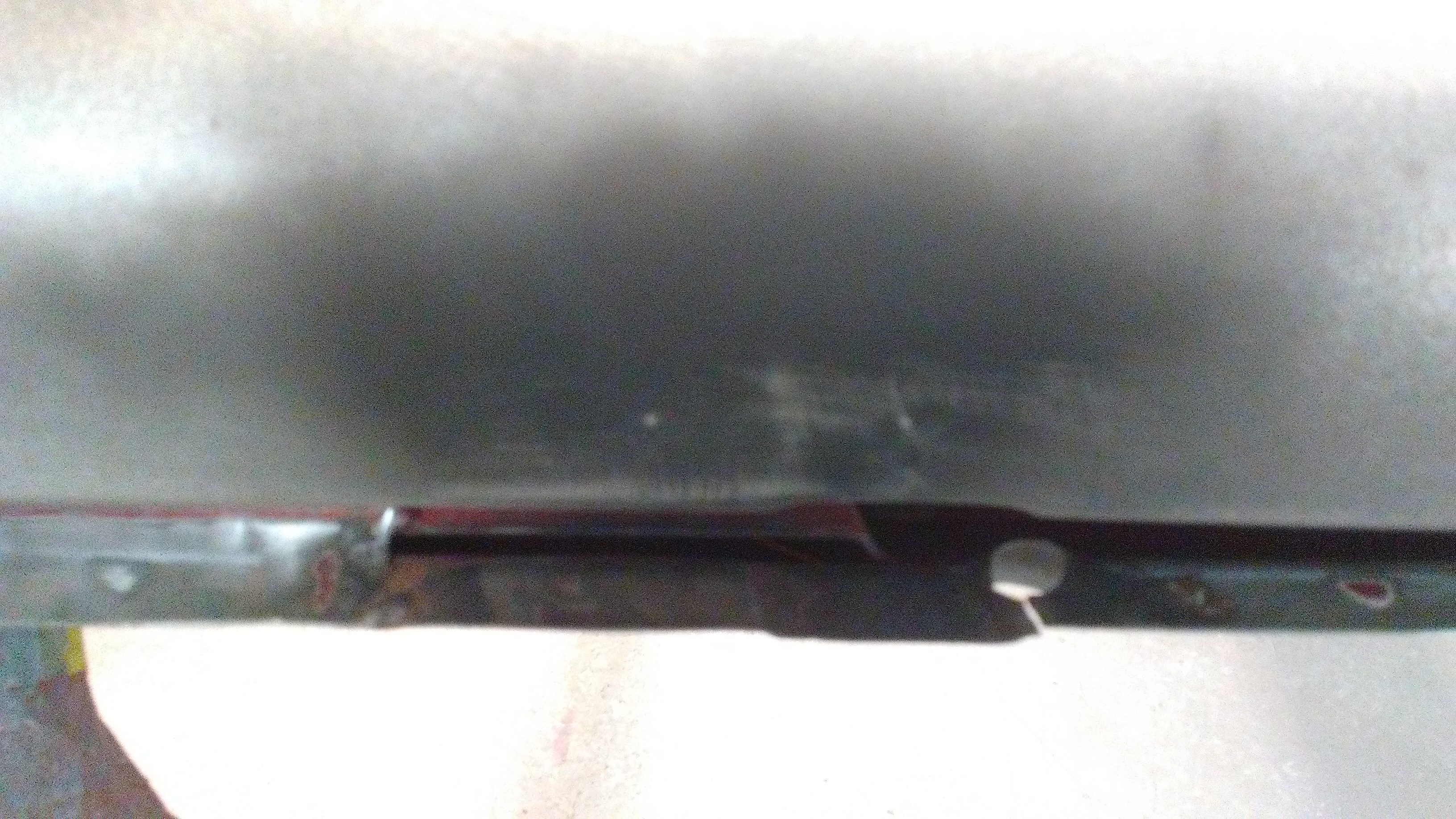

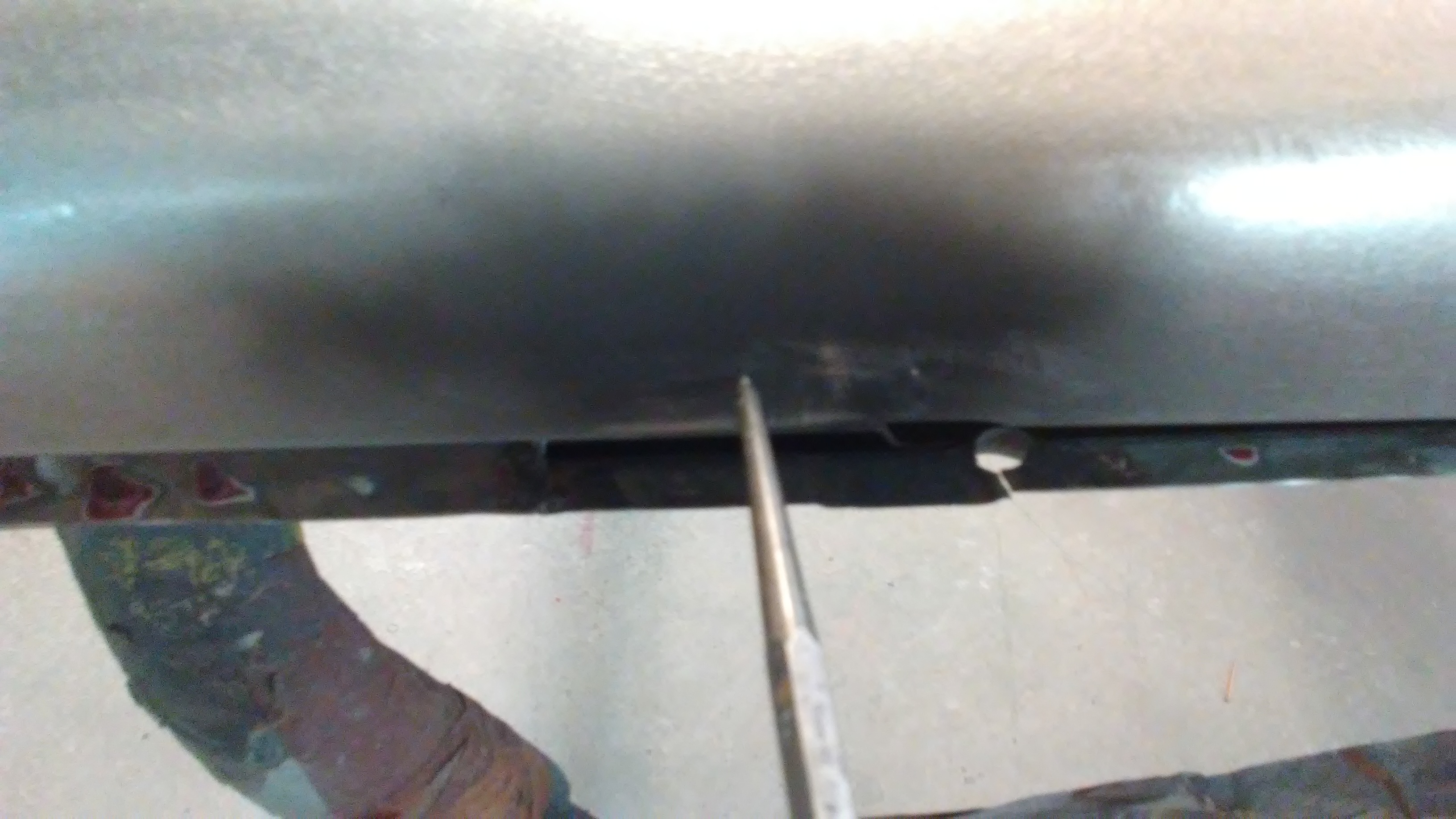

I sprayed some black paint on the area.

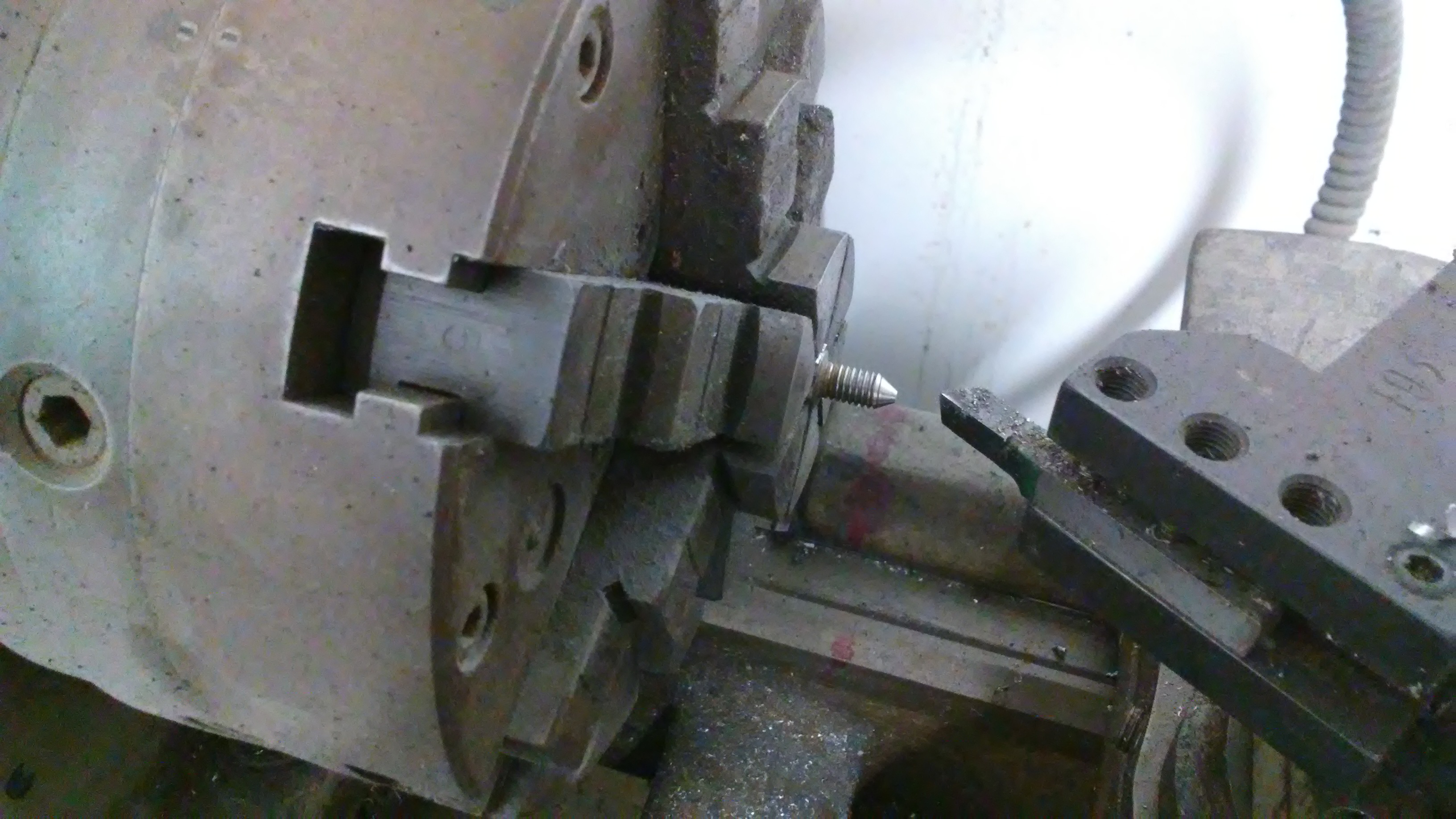

Lathed a point on a bolt.

Screwed it in to the nut plate from inside of the door till it made a point in the metal.

Slightly sanded the area to reveal the mark then removed the bolt.

Used a punch to mark a guide for the drill.

Drilled a small hole.

Screwed a bolt in from the back to use as a stop so the threads don't get damaged.

Used a larger drill bit to open the hole to the correct size.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 01:14 PM
Post #174


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

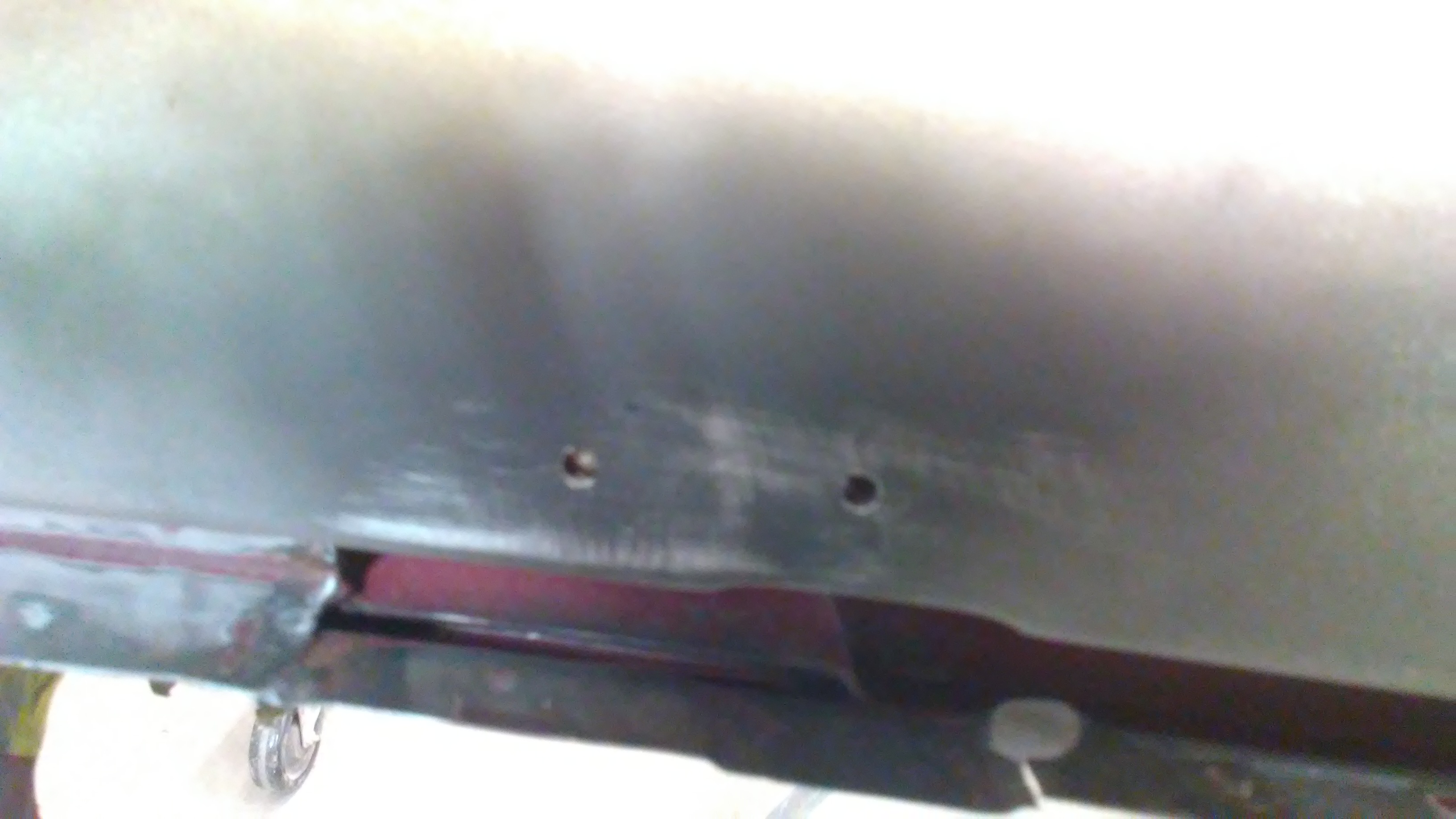

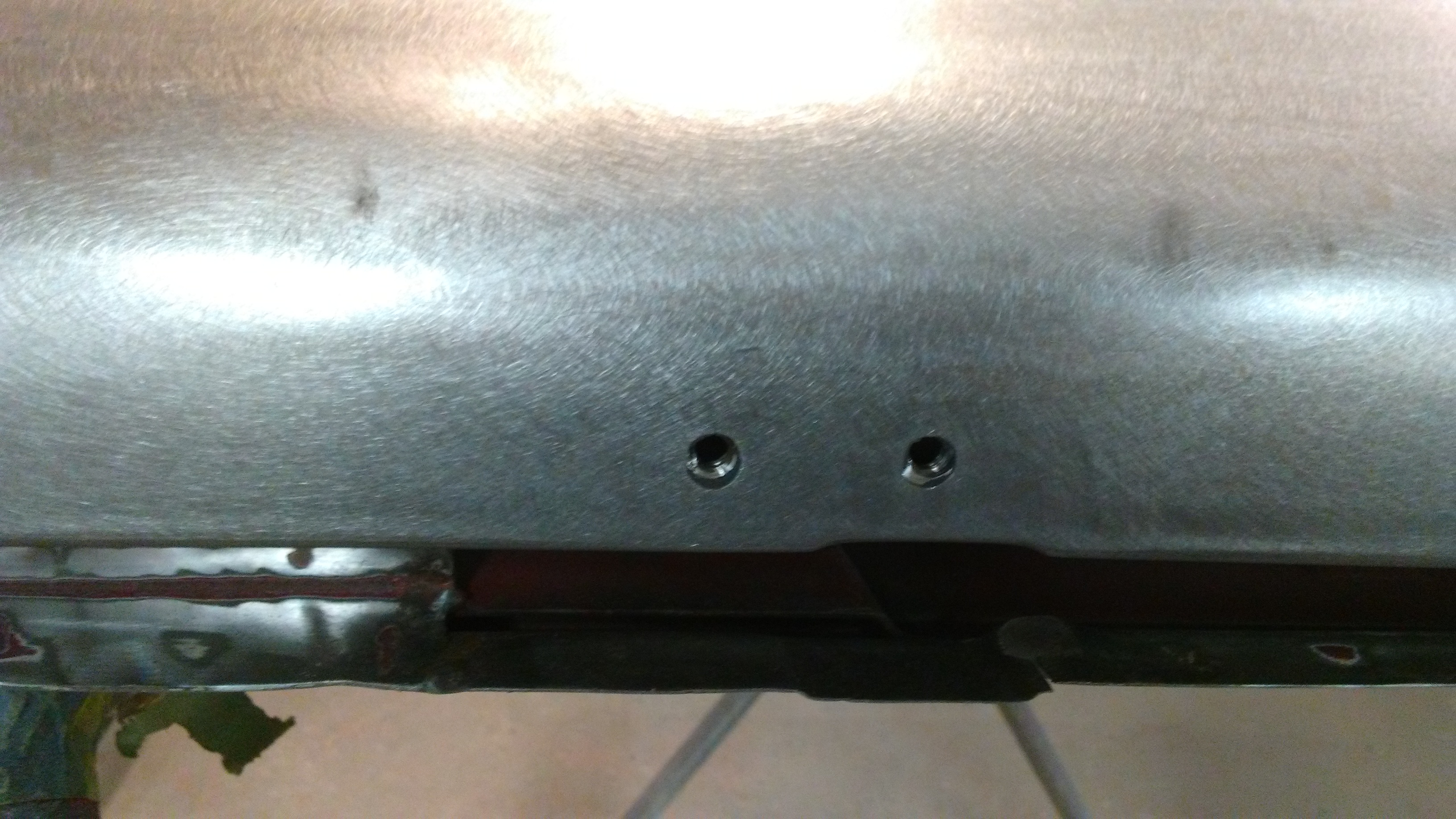

In the second pic you can see the bolt in the left hole that is used as a stop for the drill so that the threads don't get damaged.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 01:15 PM
Post #175


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

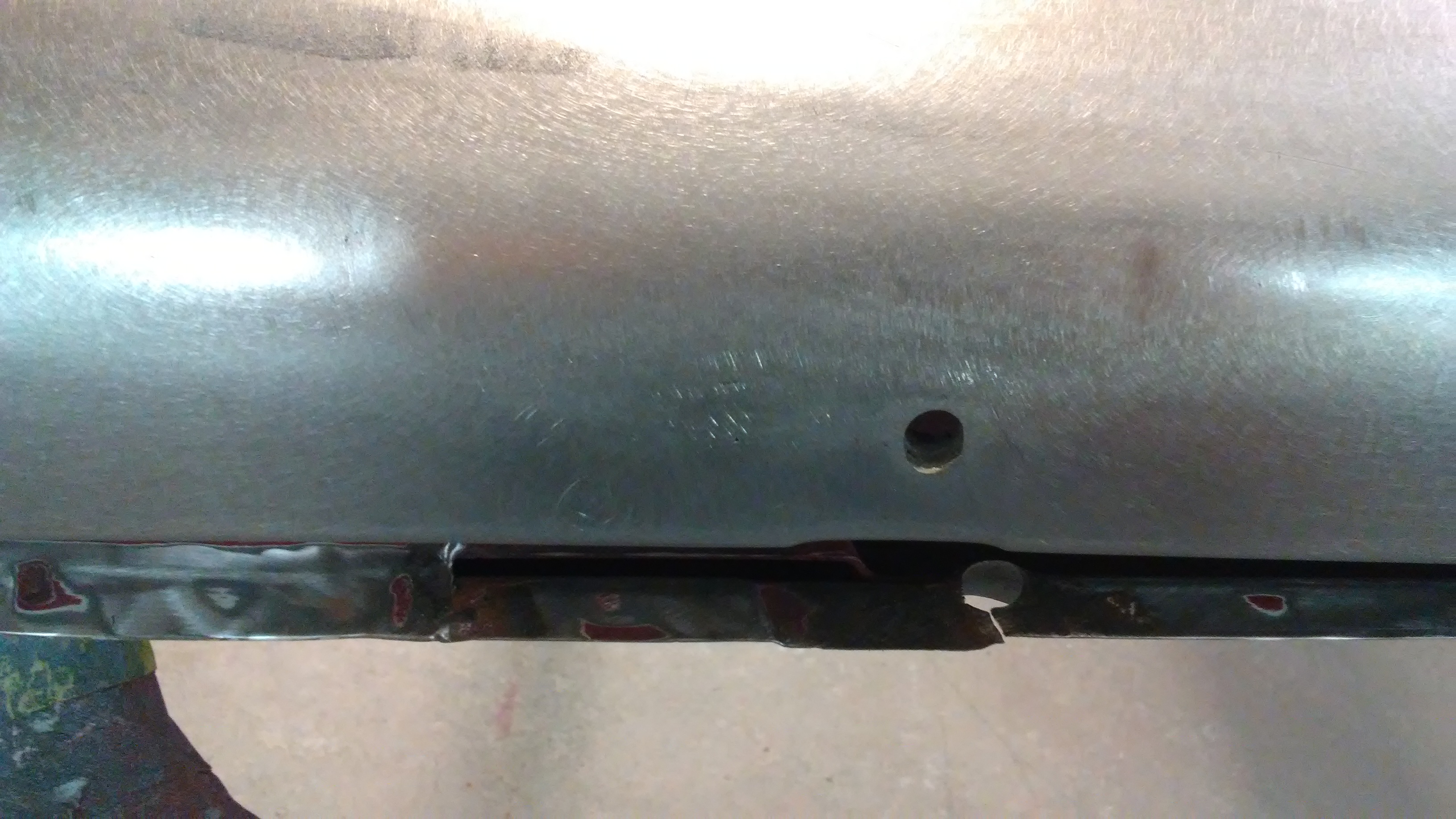

Holes for Passenger mirror.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 03:06 PM
Post #176


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

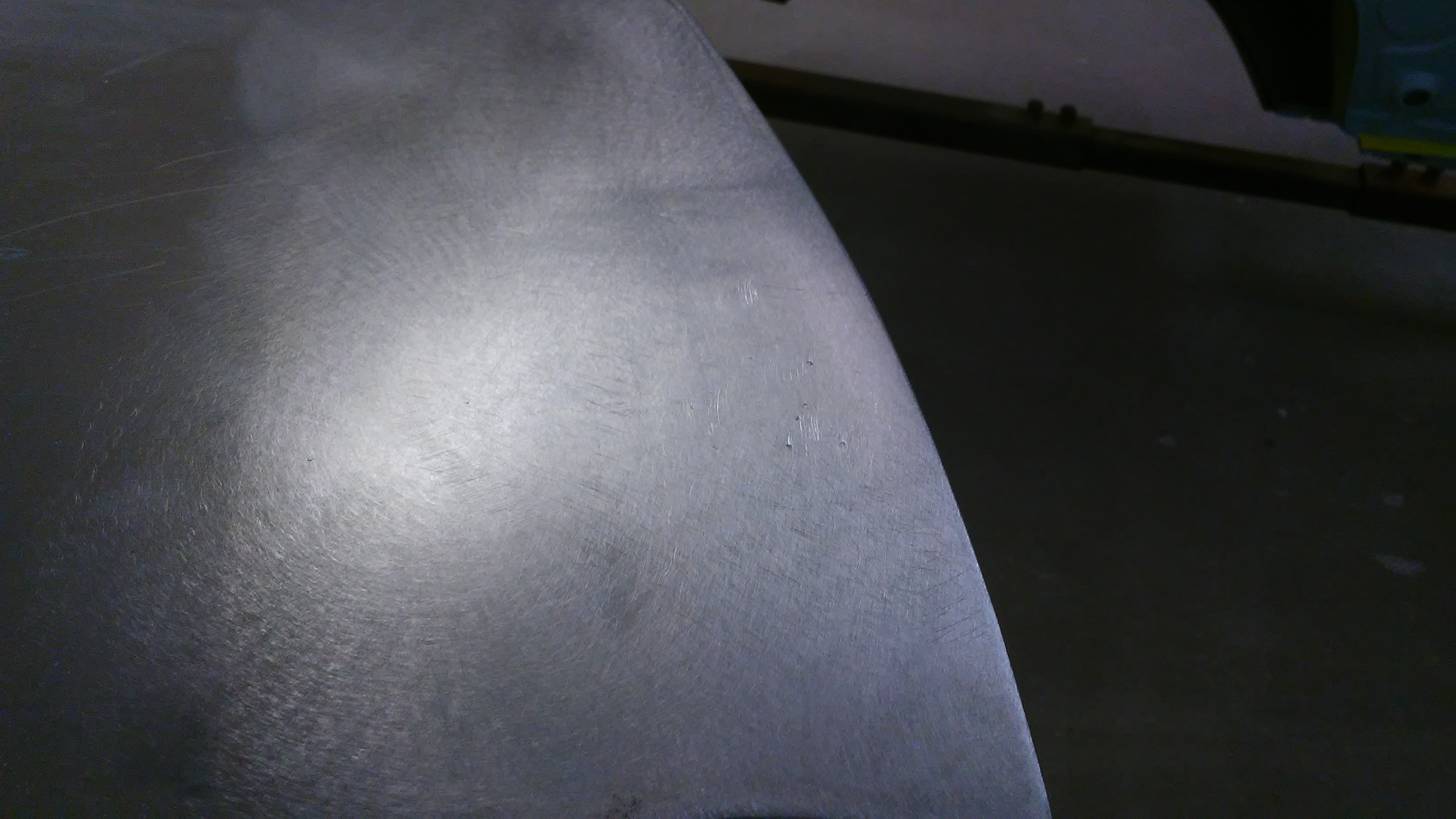

More pics.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Oct 17 2017, 04:52 PM
Post #177


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Hi Kent - Thanks for the hard work and photos showing it all. I believe you will have a nice nose panel pretty soon.

I have said it before but it never hurts to hear it again. When doing a full restoration or resto-mod (since my car is getting an '87 3.2 and a couple other minor changes) on these cars, or any other type of work, documentation is what wins the day and maintains value.

If one were to ever sell a car claiming it was a bare metal restoration, and they did not have the photos, sorry- you lose. I have seen to many threads claiming bare metal restorations and then you see the pics and the cars were only partially stripped.

The same goes for rebuilt engines, pictures and receipts are needed or it is a core engine or running engine with no history and valued accordingly.

When our cars were inexpensive, who really cared? But now that any clean 914 is bringing $25K or more and Sixes are hitting the $100K mark, people expect to see the paperwork. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914350
post Oct 17 2017, 07:01 PM
Post #178


Senior Member
***

Group: Members
Posts: 548
Joined: 21-April 14
From: Torrance Ca.
Member No.: 17,275
Region Association: Southern California

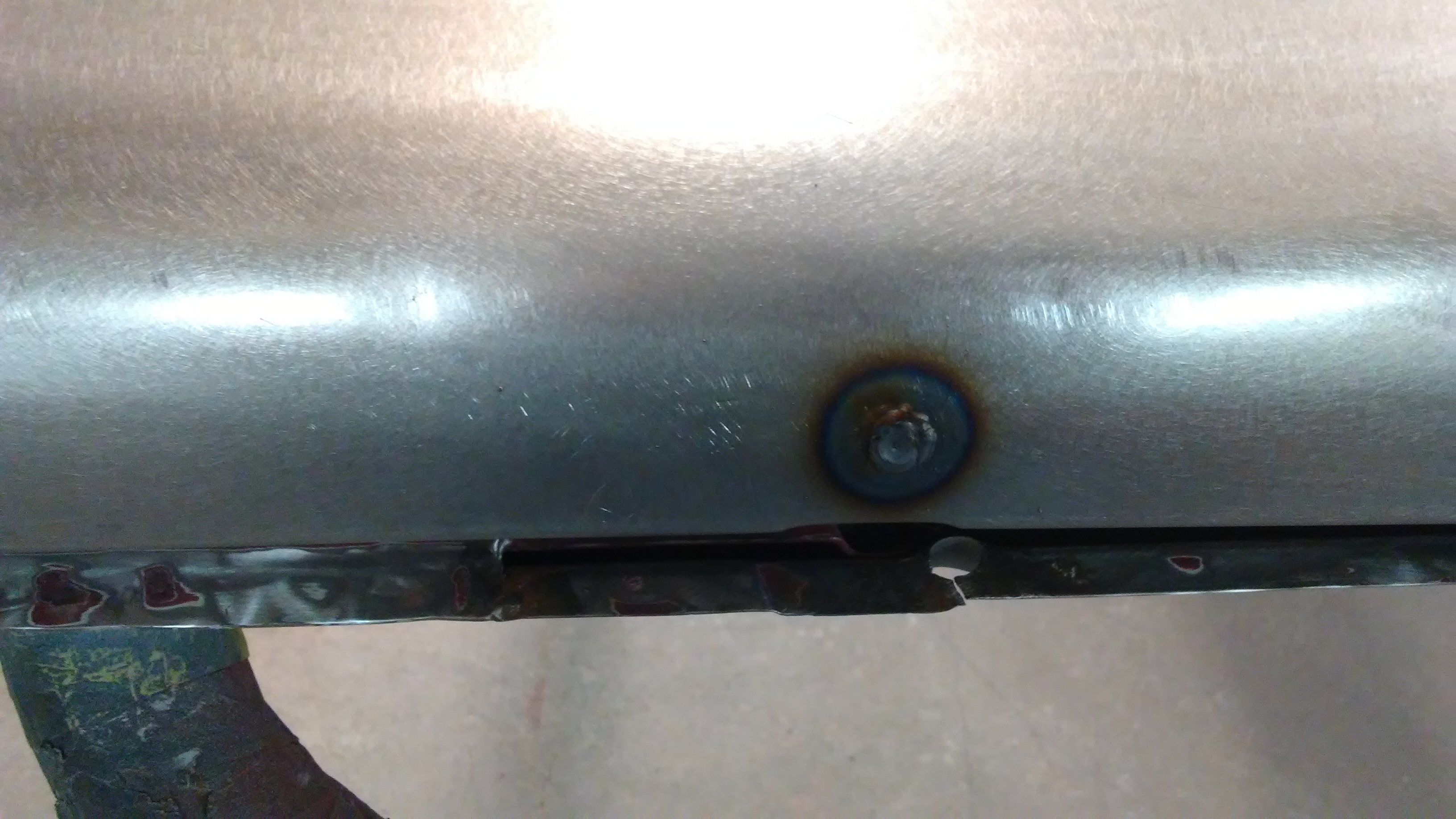

Pic.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Oct 17 2017, 10:35 PM
Post #179


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
Michael and Kent the car/project is looking awesome................
The craftsmanship is stunning.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Oct 18 2017, 06:30 AM
Post #180


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Thanks Cary - But the credit goes to Kent. He alone is taking care of this chassis to make it like new. (IMG:style_emoticons/default/beerchug.gif)
