| 914 Ranch |
 Oct 6 2024, 01:03 AM
Post
#781
|
|
Team Sharp where the 914 grow wings  Group: Members Posts: 1,442 Joined: 29-January 16 From: TheNorth Shore Retreat. Deland Member No.: 19,611 Region Association: South East States  |

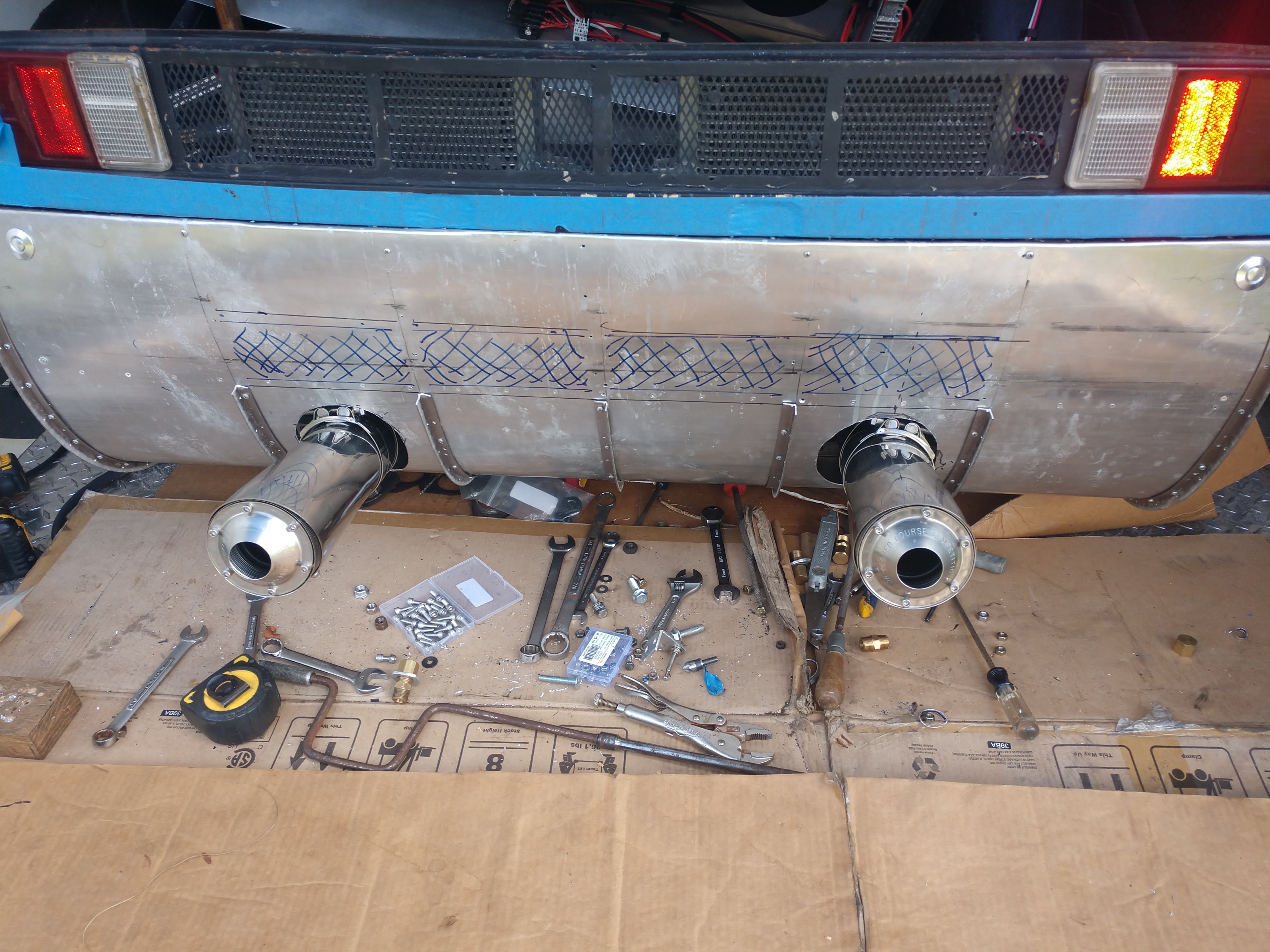

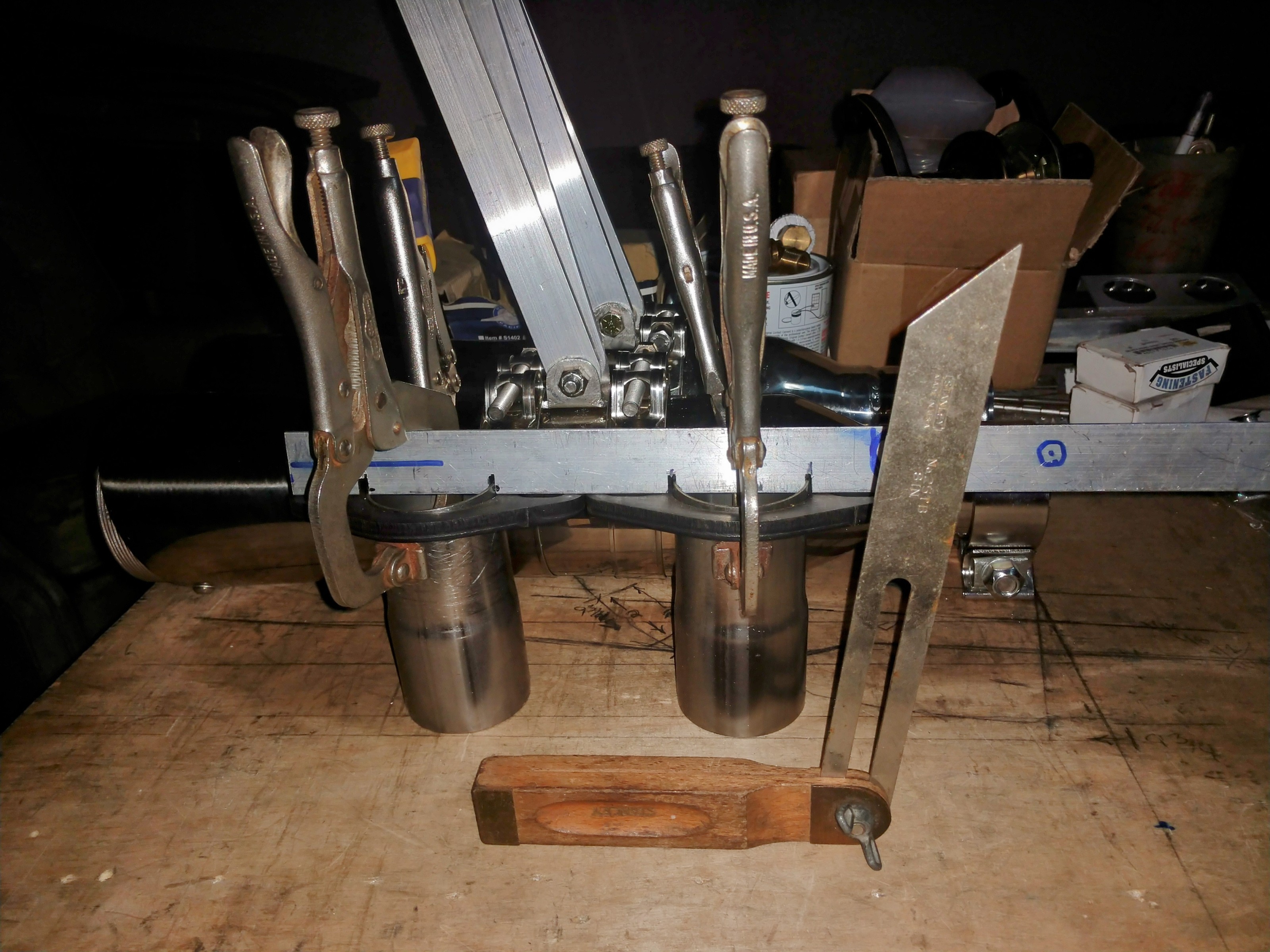

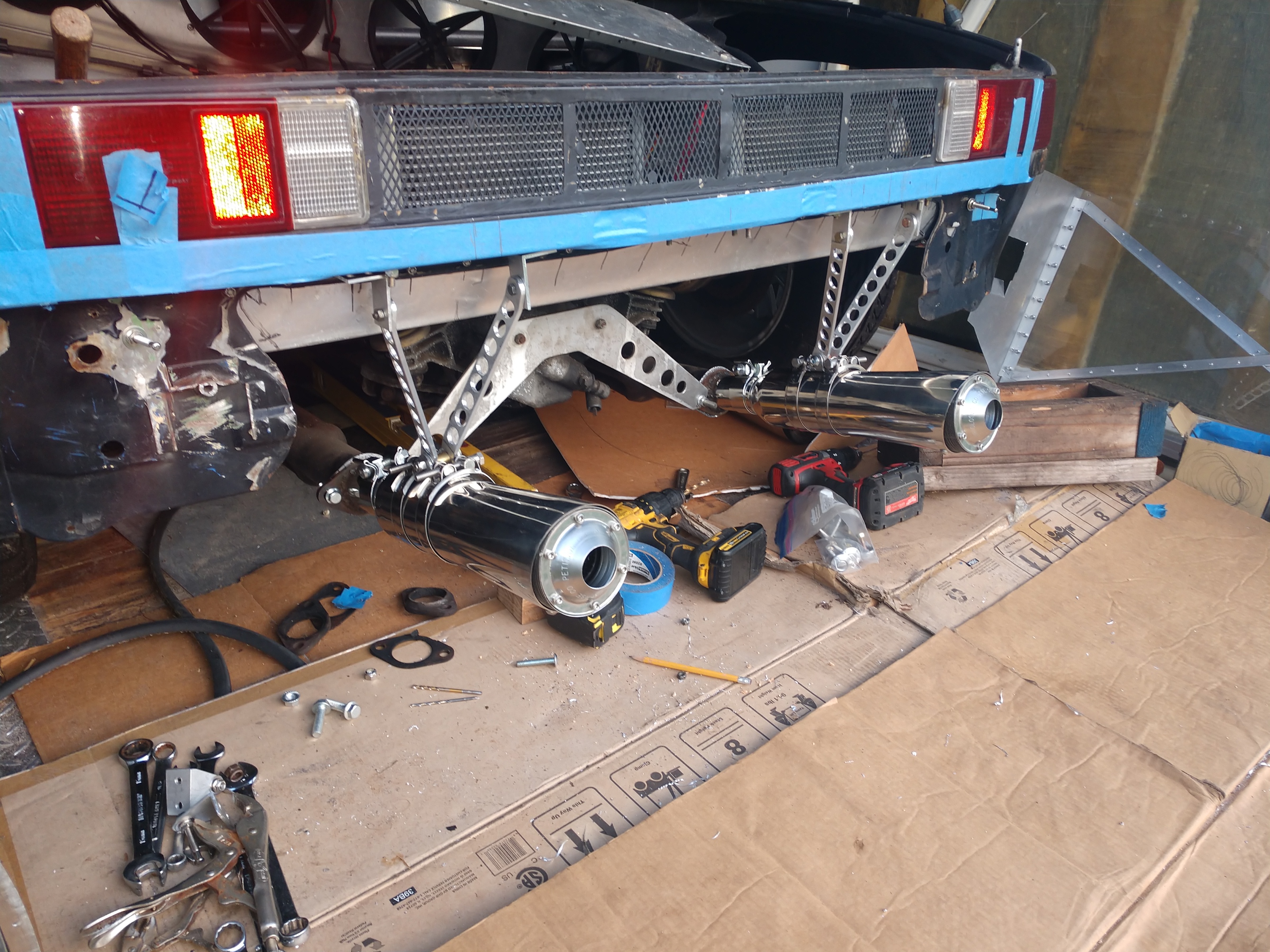

Trying to get the muffler flanges to the correct angle. My approach, I bought 4 flanges cause I figured I'm at least 2 crashes away from final. I have to mount the diffuser before I can install the mufflers in order to get the correct height location for the holes in the diffuser. I have the center lines but I can't get the height of the top of the hole untill the mufflers are installed. The diffuser slips on over the mufflers.
 |
   |

|
| 914 Ranch |
Oct 6 2024, 01:17 AM
Post
#782
|
|
Team Sharp where the 914 grow wings Group: Members Posts: 1,442 Joined: 29-January 16 From: TheNorth Shore Retreat. Deland Member No.: 19,611 Region Association: South East States |

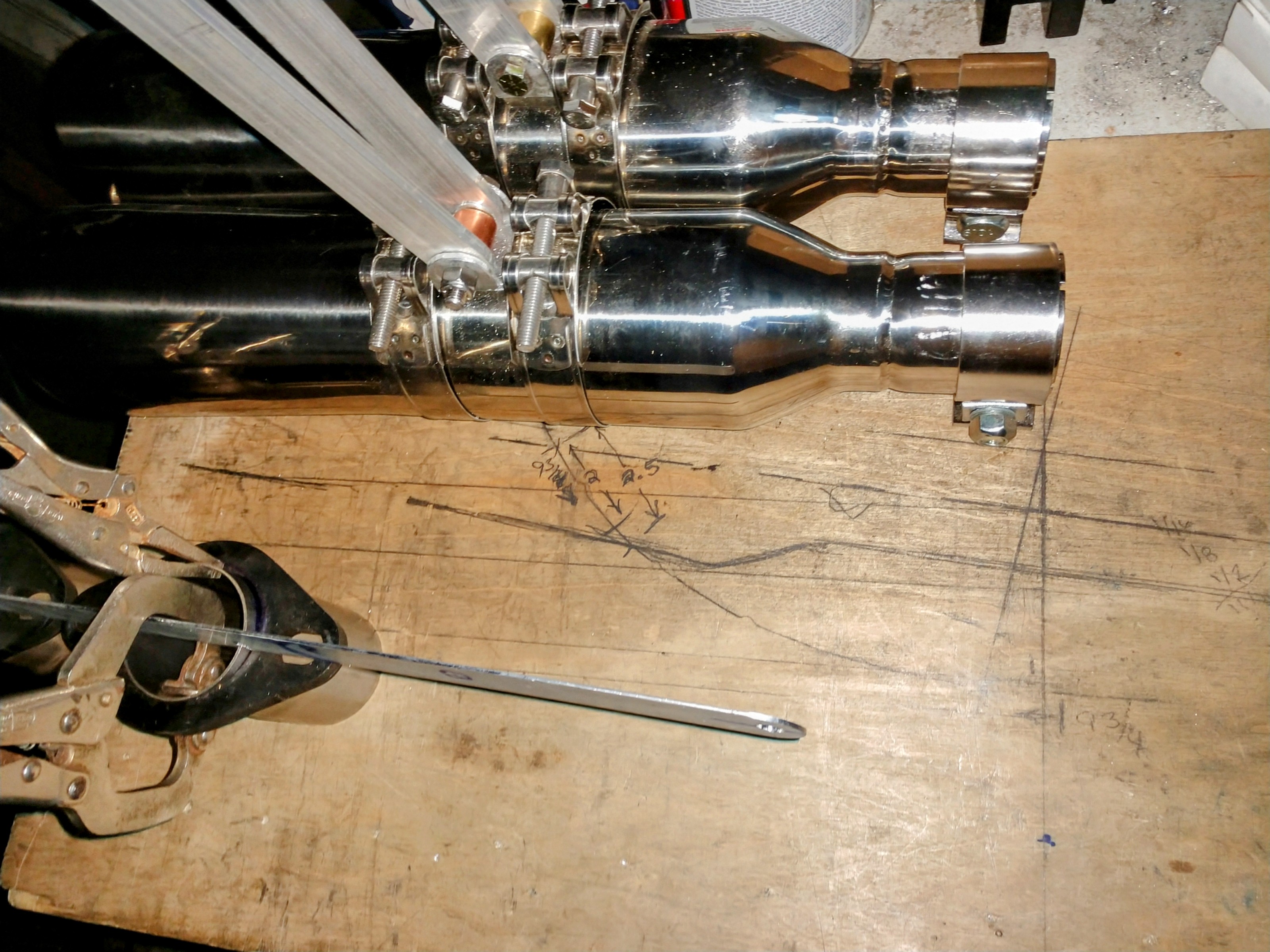

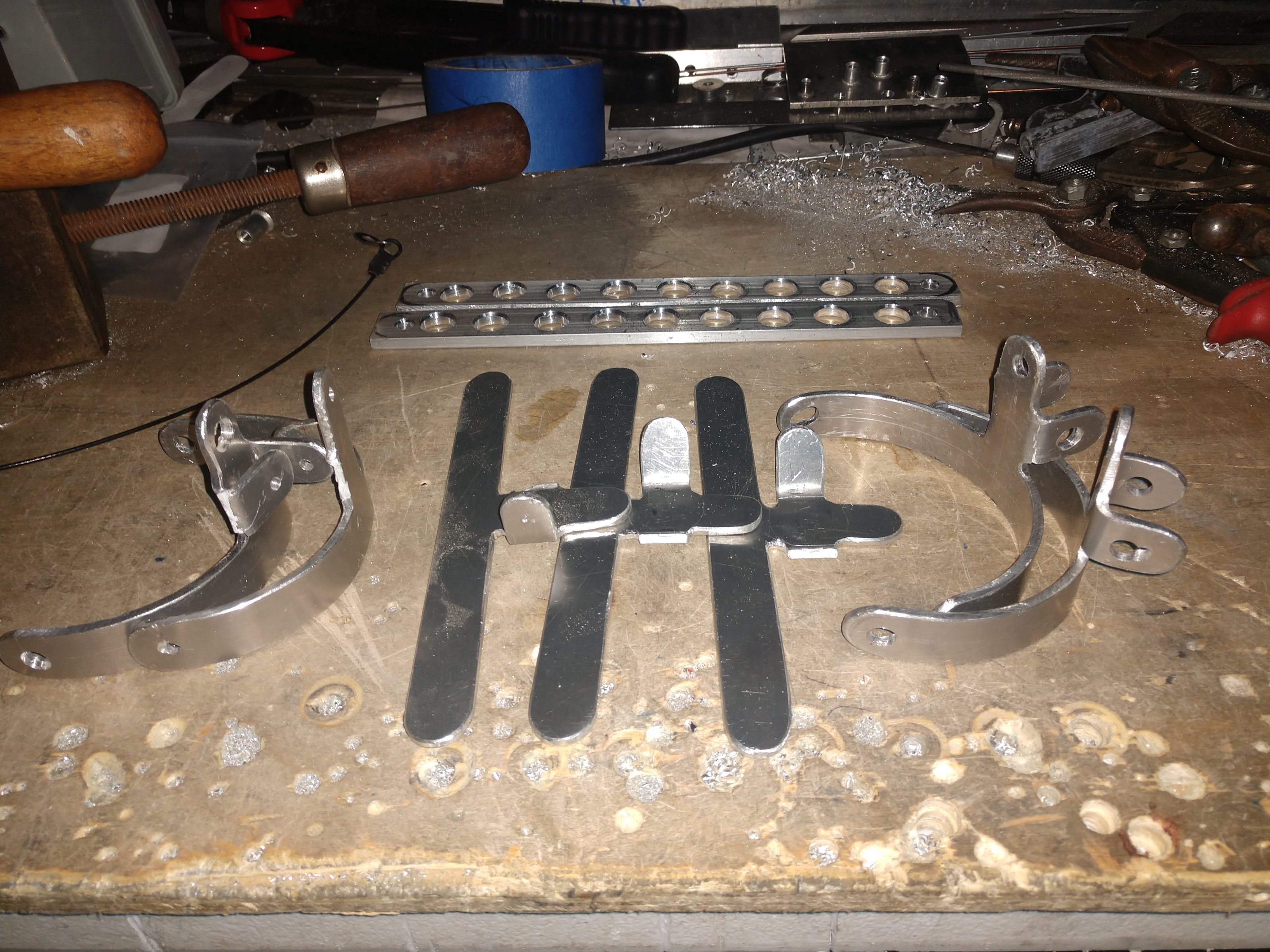

This is where I did the geometry for the mufflers. Right where I could use it for the angle and the location of the intersection points on the opening for the mufflers.
 |
|
|
|
| 914 Ranch |
Oct 16 2024, 08:27 AM
Post
#783
|
|
Team Sharp where the 914 grow wings Group: Members Posts: 1,442 Joined: 29-January 16 From: TheNorth Shore Retreat. Deland Member No.: 19,611 Region Association: South East States |

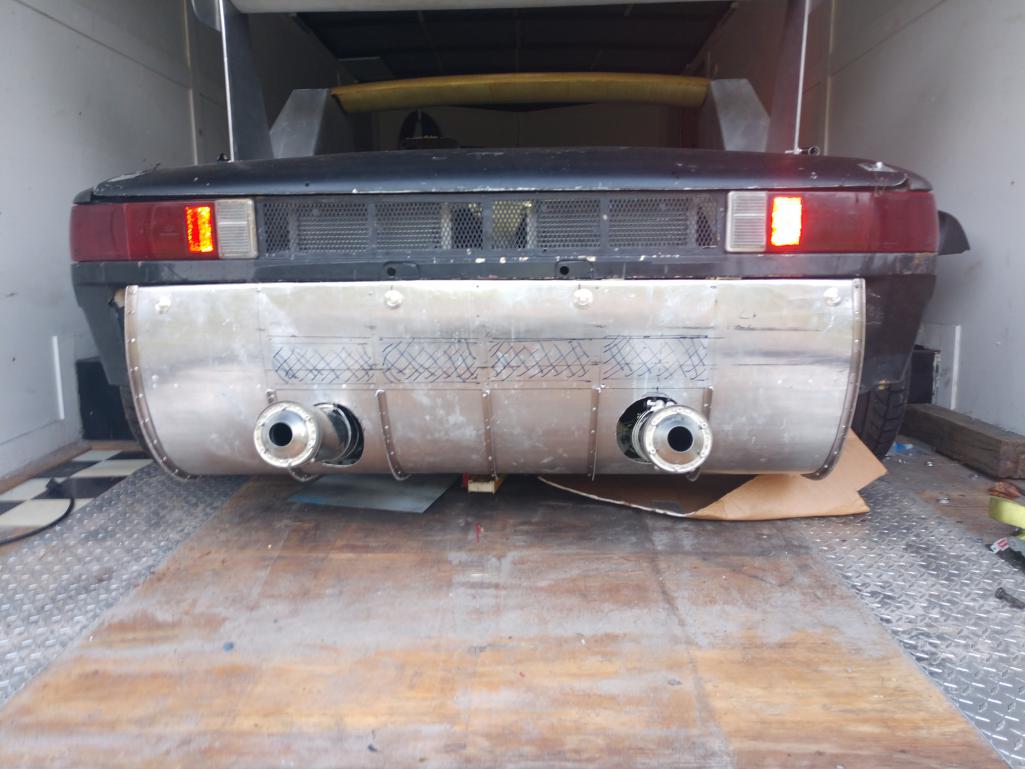

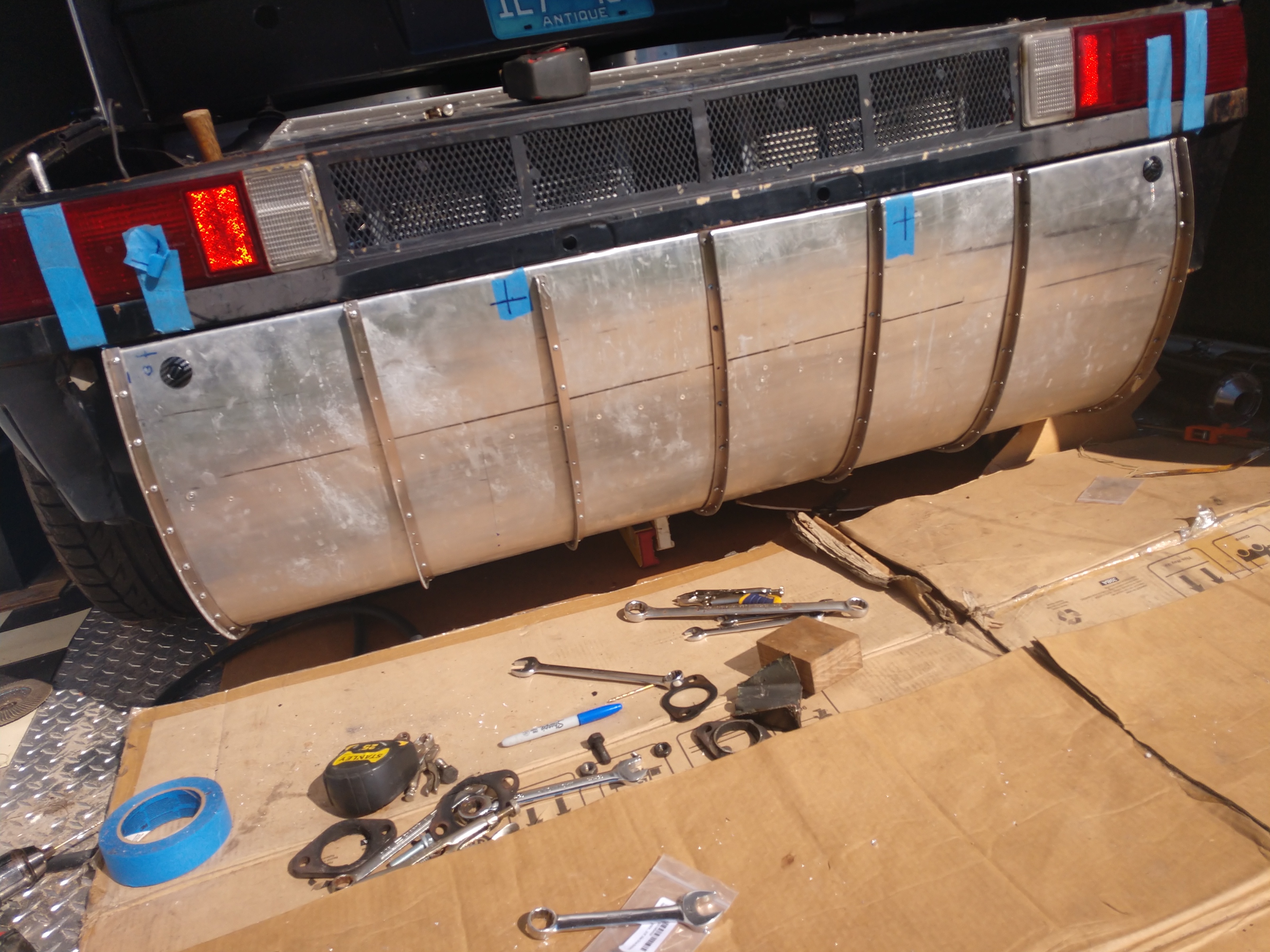

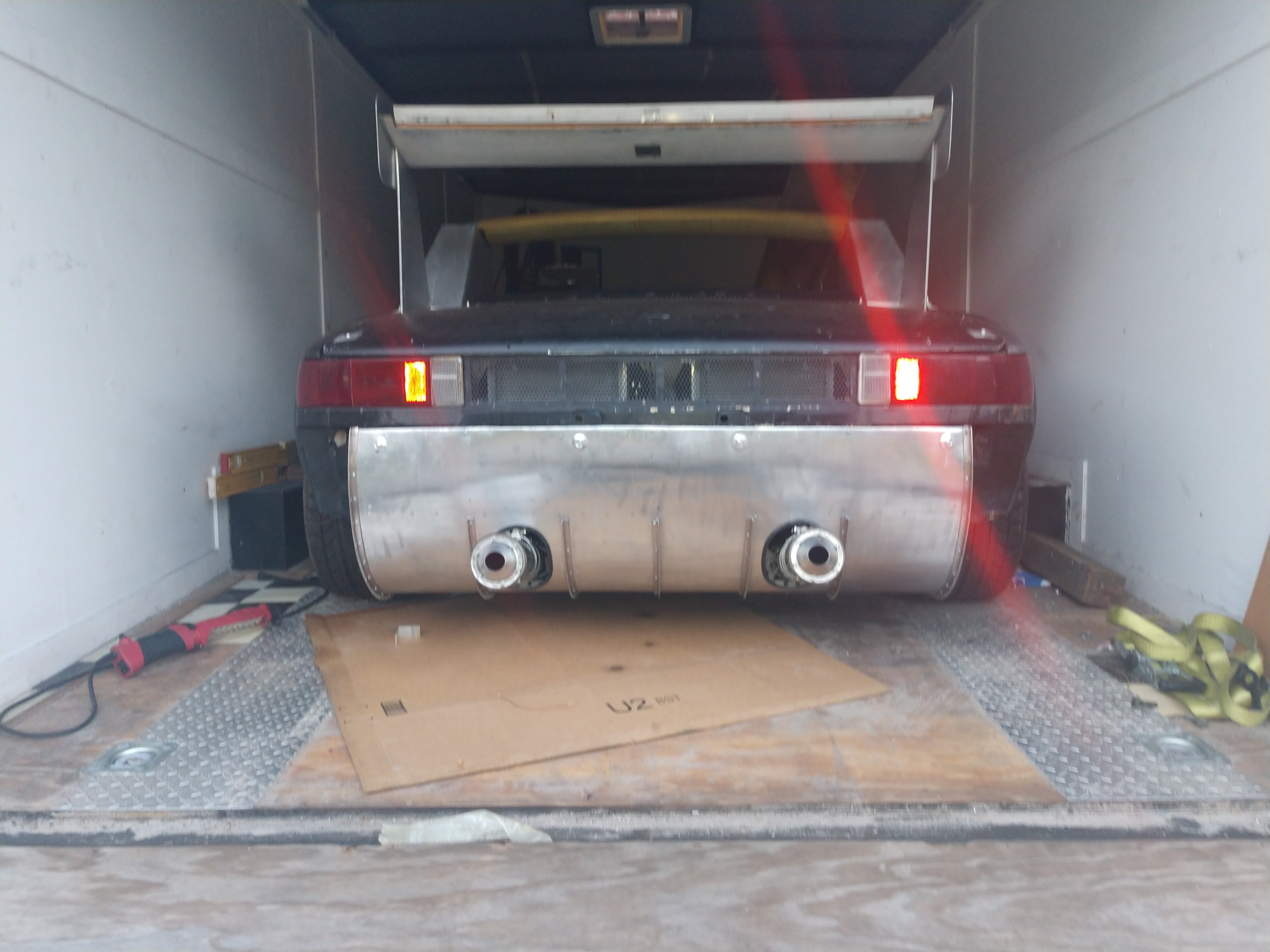

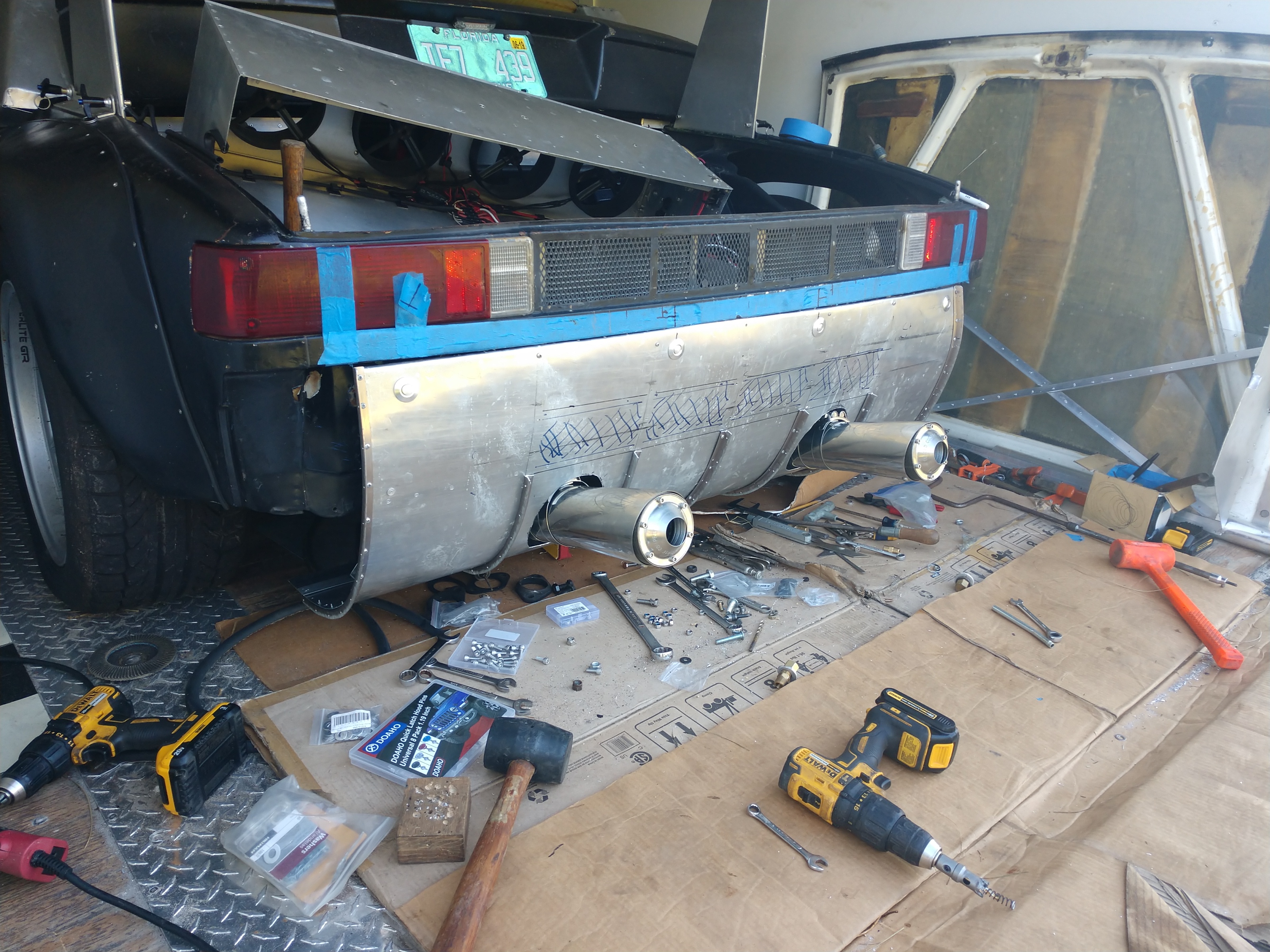

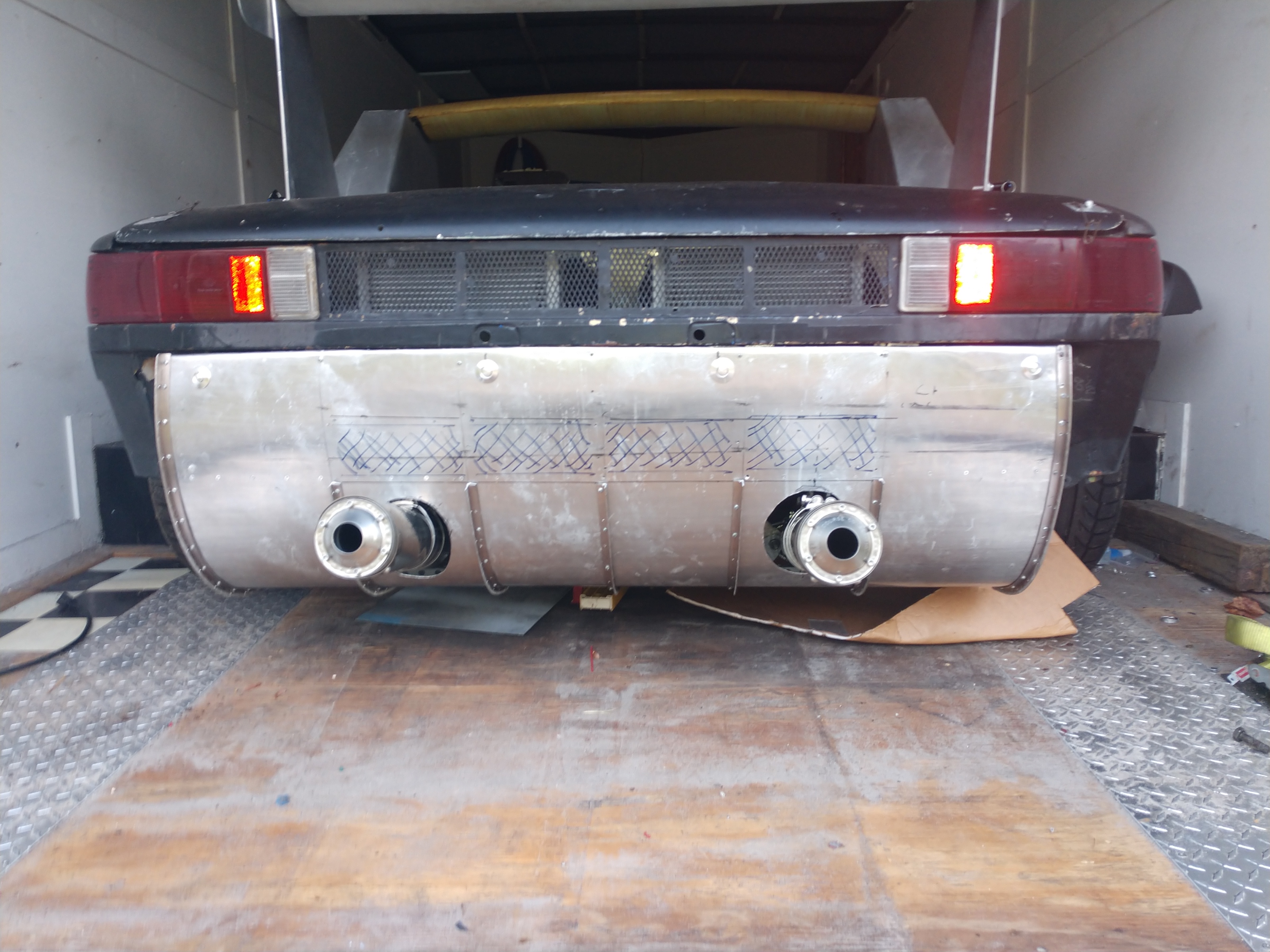

Got some more work going on the right direction. Have the diffuser mounting going on and it's looking pretty Kool.
 Looking at it I'm thinking about cut outs for the mufflers and air exit from in the body. |
|
|
|
|
