> Through-the-Hood Filler Kit
Marek
post Oct 27 2018, 01:38 PM
Post #1


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None
FS: Through-the-Hood Filler Kit for 914

Finally

The kit contains all you need, to make your "through the hood filler look" complete
with out any welding or painting !!!!

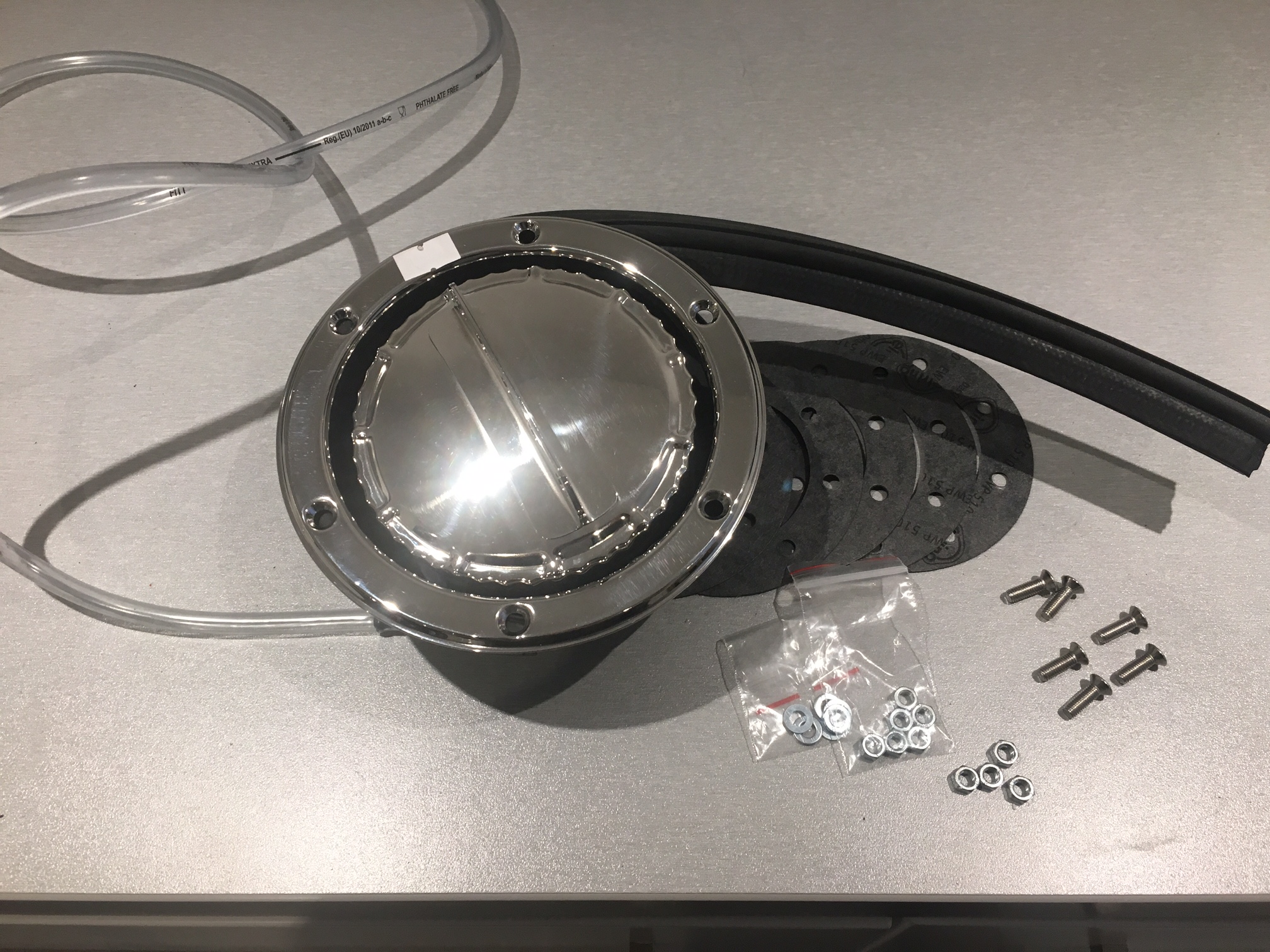

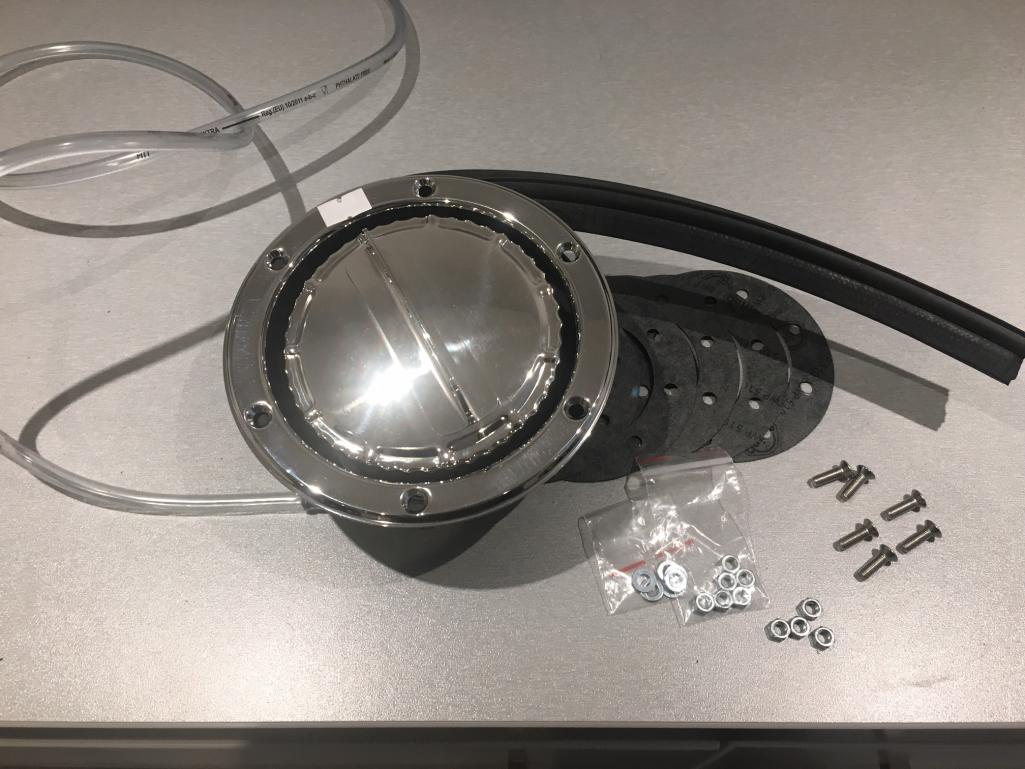

the kit includeds

* Original 100mm vented Blau fuel cap, in stainless steel with a 5 hole fin

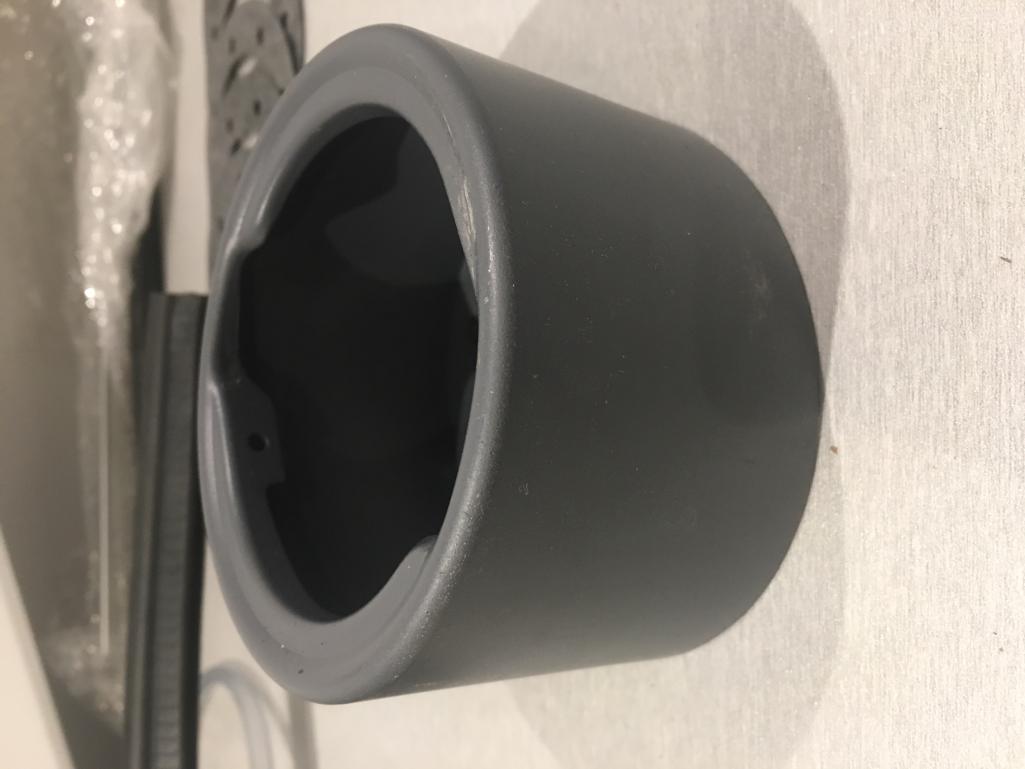

* A bolt on fuel neck you screw direct on to your tank , gaskets to adjust the height
you can combine the gasket depending on the height you need

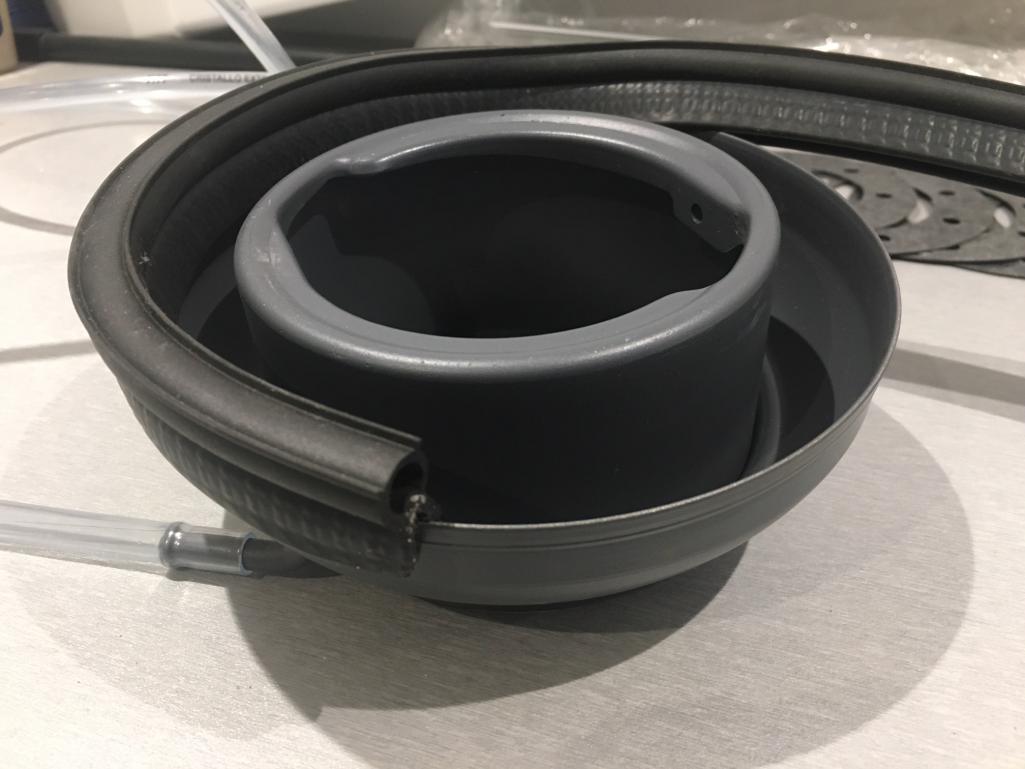

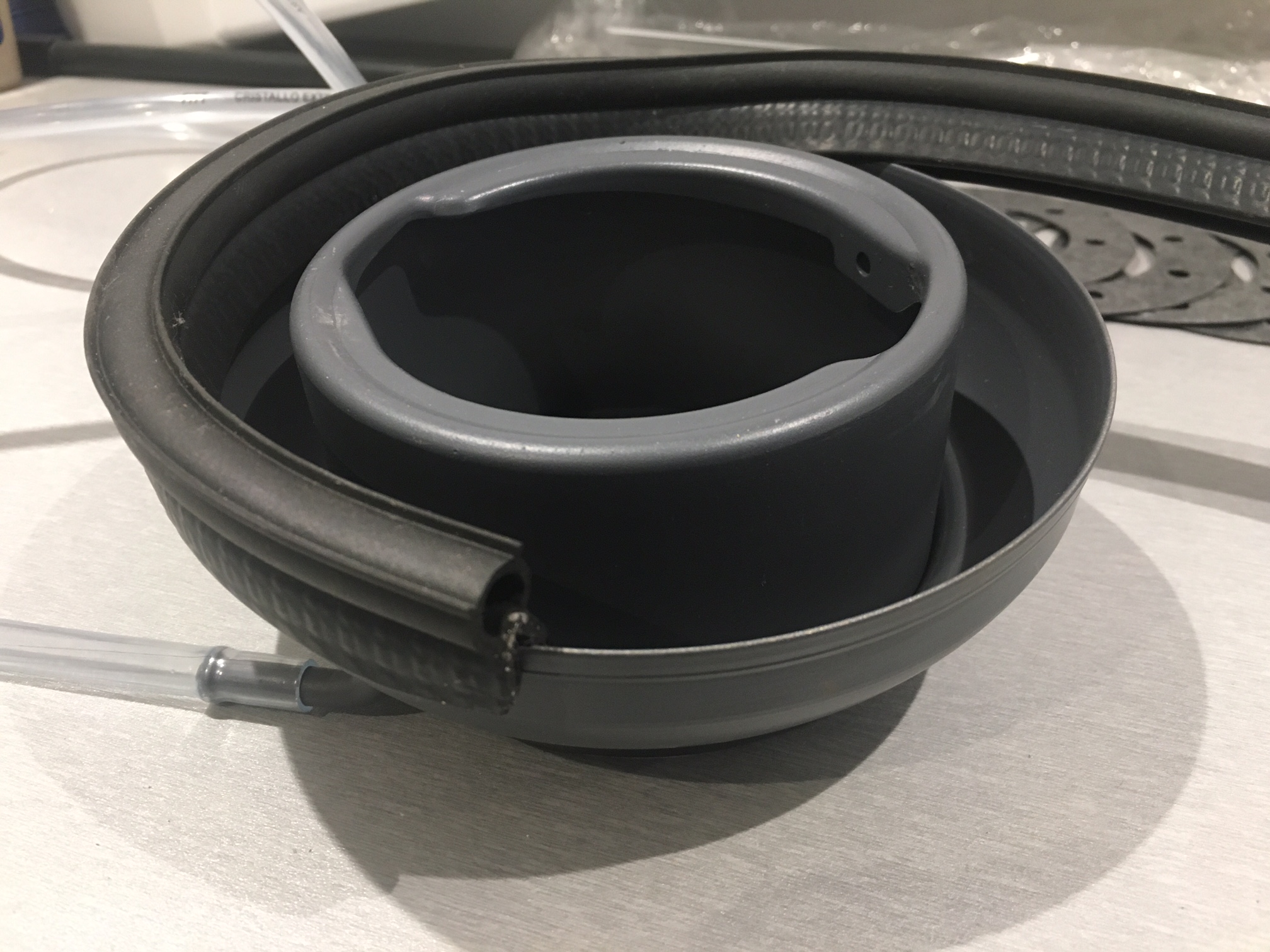

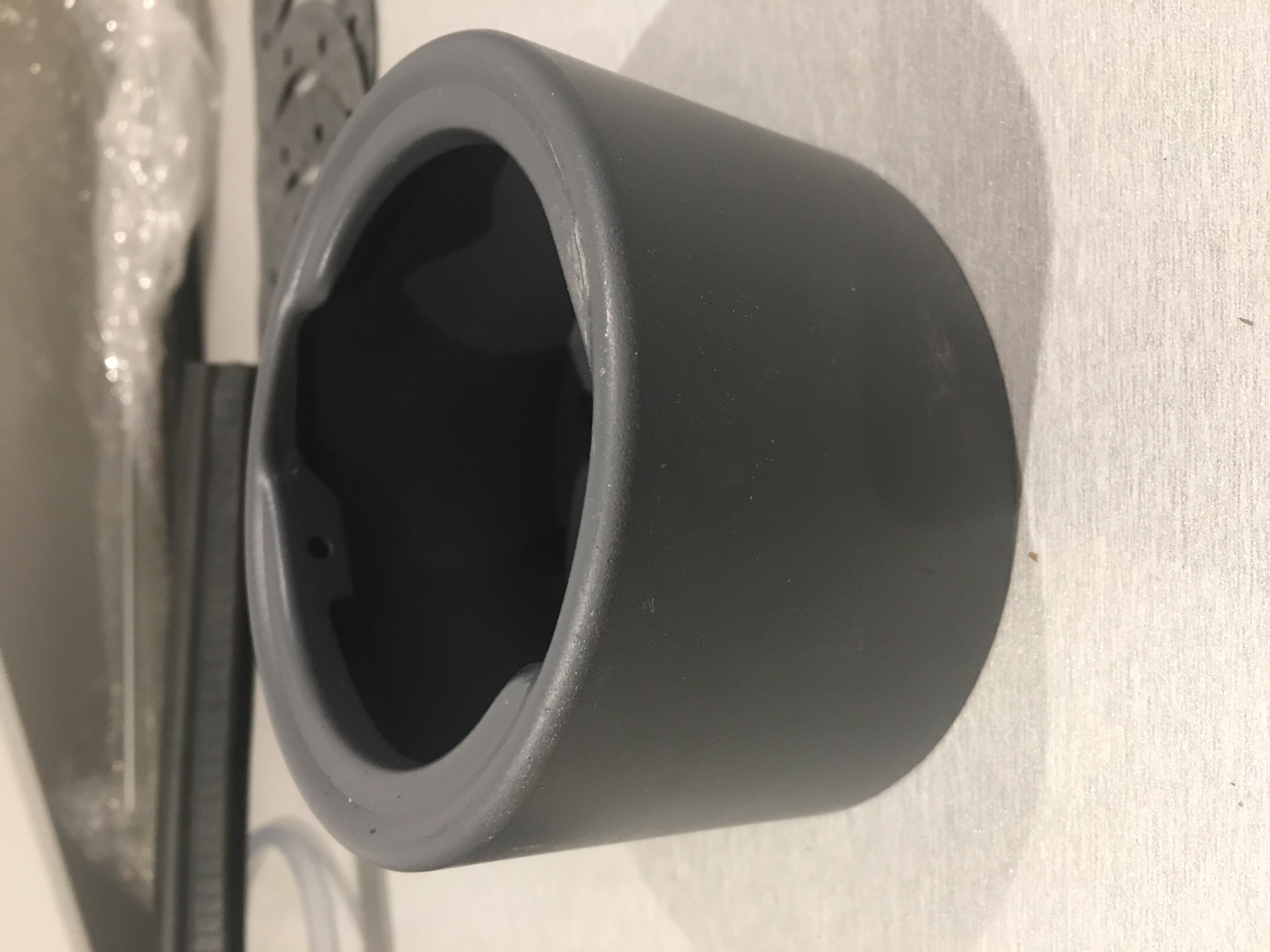

* A "Dog bowl" to overfill fuel or rain it has a 1 m long drain tube,
on top it has a rubber seal, so its tight closing against the hood, without damage

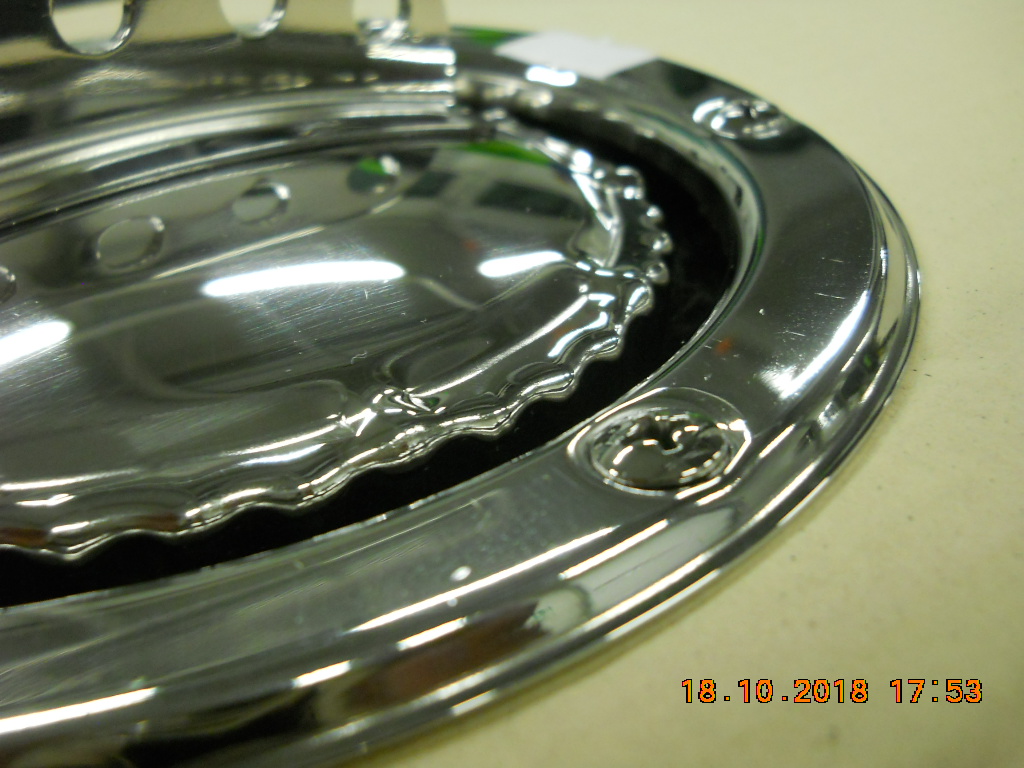

* A Stainless bezel to mount on the hood, by screwing it on, with the incl 6 screws
btw every bolt , screw etc you need are included incl a shortl instruction

the only work you have to do your self is

*messure up and drill a hole 127 mm in your bonnet , use some epoxy primer on the edge
*remove the expansion tank on top of the tank by unscrewing the 8 bolts
*screw on the Fuel kneck , it got the correct angle put gaskets under it to get the height
( BE AWARE YOU CAN ADJUST THE TANK IT SELF A BIT ,SO MAKE SURE ITS STRAP´ ON THIGHT BEFORE YOU DO ANYTHING )
*put on the dog bowl ,mount the gasket and drain tube ,use silicone to set the height of the dogbowl
*screw on the top stainless or silver bezel with the included 6 stainless screws to the "under the hood" bezel , you might need to shorten the screws os they dont scrath the rubber seal , and use a drop of loctite to be sure the screws a lock thight

A silver mat painted cap / bezel option is available , see pics later in the post

For those of you that are not a fan of the screw on bezel on the hood , there is a option!

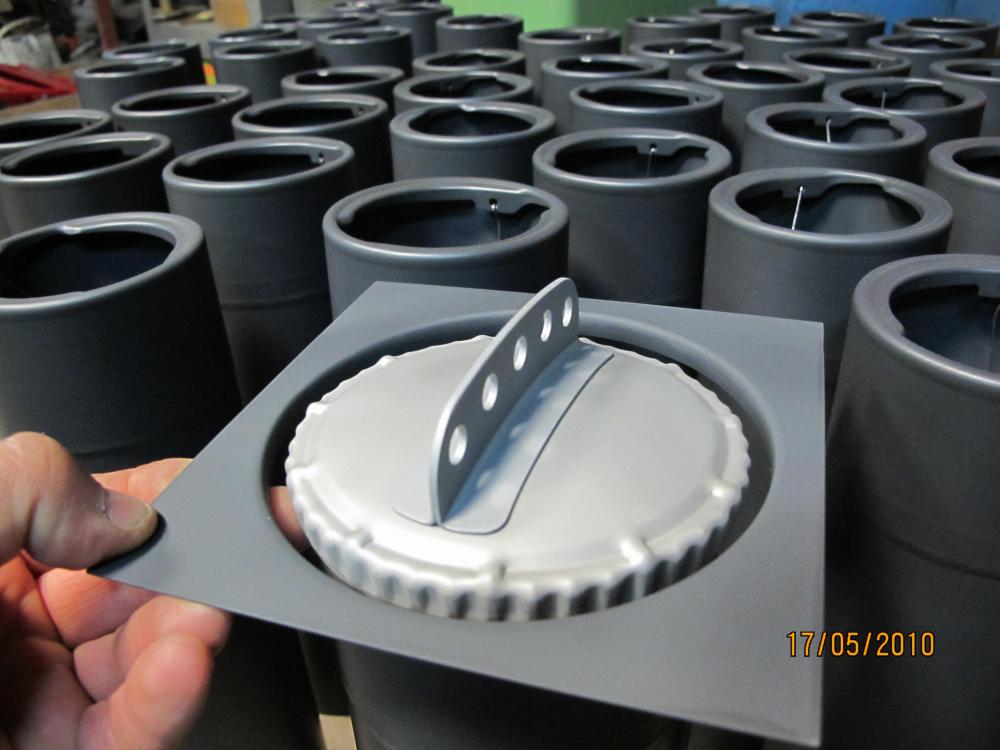

For the 911 kit we offered a square adapter you see on the last picture
its easy and simple and you get the perfect "hole in you hood" but its requiers welding / paint job
This version is also on stock now with a Silver or polished


Price 350 EURO + shipping ( to USA 37€ ) - 445 USD incl postage to US
Importen Do note !!!

I am shipping by DHL from Germany which is the cheapest option, I have been using them the last 10 years , so full tracking number never had a problem
BUT expect up to 4 weeks delivery , DHL said its long security checks in at US customs

Paypal ok, BUT save 25 EURO by a direct bank wire

By interest drop me a mail early911parts@gmail.com

I have posted some pictures below and much more to come ASAP

Regards

Marek ( Denmark )


Attached thumbnail(s)
Attached Image Attached Image Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marek
post Oct 27 2018, 01:44 PM
Post #2


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None

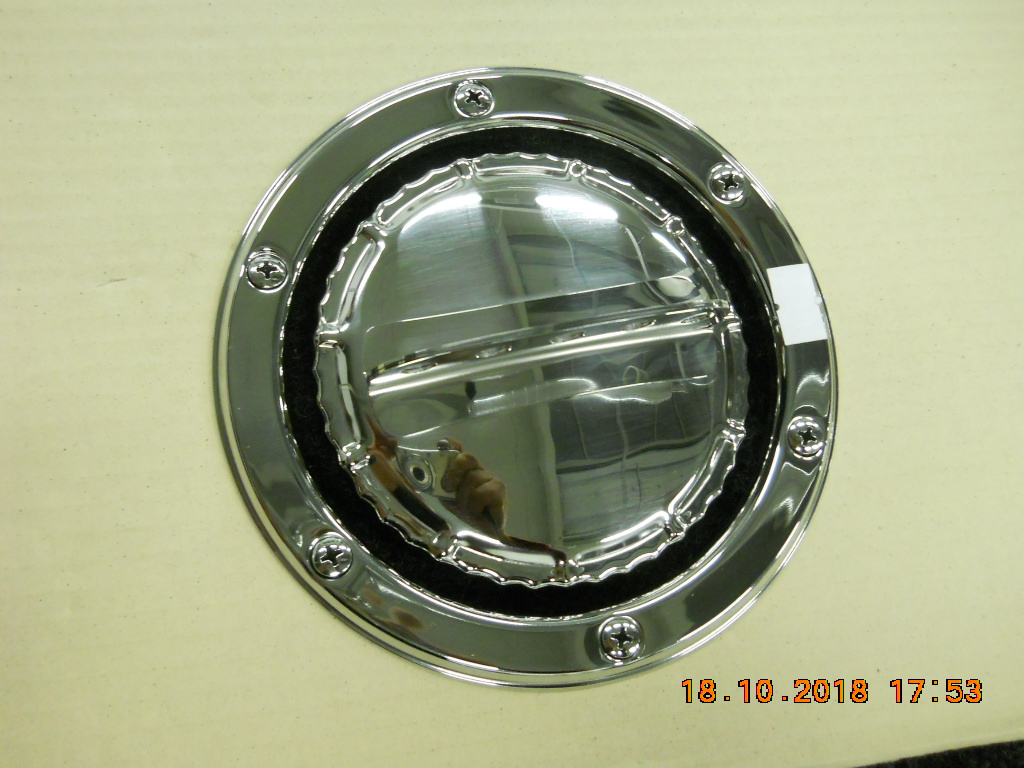

The finish look mounted

More installation pictures will follow ASAP

Marek


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sfrenck
post Oct 27 2018, 03:38 PM
Post #3


Member
**

Group: Members
Posts: 492
Joined: 28-February 10
From: Wilmington, DE
Member No.: 11,411
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/popcorn[1].gif)

Take some pics of the finished product a little further away? Hood up and hood down?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pdlightning
post Oct 27 2018, 09:13 PM
Post #4


Pdlightning
**

Group: Members
Posts: 209
Joined: 4-February 11
From: Santa Clarita
Member No.: 12,660
Region Association: Southern California
Sure looks pretty!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Oct 28 2018, 06:46 AM
Post #5


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None
looks great; i'll be interested pending your other installation photos.

what is the price in US dollars?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post Oct 28 2018, 09:24 AM
Post #6


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
Can I get it in non-polished?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Oct 28 2018, 09:41 PM
Post #7


Senior member, and old dude
****

Group: Members
Posts: 3,754
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
QUOTE(Chi-town @ Oct 28 2018, 08:24 AM) *

Can I get it in non-polished?


If you send it out for anodizing it would look hot.

Bob B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BuddyV
post Oct 28 2018, 10:53 PM
Post #8


Robert
***

Group: Members
Posts: 564
Joined: 8-April 05
From: Santa Rosa, CA
Member No.: 3,898
Region Association: Northern California
QUOTE(burton73 @ Oct 28 2018, 08:41 PM) *

QUOTE(Chi-town @ Oct 28 2018, 08:24 AM) *

Can I get it in non-polished?


If you send it out for anodizing it would look hot.

Bob B



I second that idea..... DO IT!!!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post Oct 28 2018, 11:31 PM
Post #9


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
QUOTE(burton73 @ Oct 28 2018, 08:41 PM) *

QUOTE(Chi-town @ Oct 28 2018, 08:24 AM) *

Can I get it in non-polished?


If you send it out for anodizing it would look hot.

Bob B



I was thinking more a raw brushed stainless (IMG:style_emoticons/default/sunglasses.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marek
post Oct 29 2018, 01:52 AM
Post #10


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None

Hi Guys

I will post more pics asap from the instalation this week

BUT It will only come in 2 finishes a polished version and a silver painted one, as on the 4th pic in the first post

the cap it self is stainless , not sure you can anodize stainless
but its possible to polish the cap your self ,if you want a more brusched look

I did this kit also for the 911 now allmost 9 years ago and sold over 1000 pcs thanks to the magnus walker fever :-) and have seen different versions what people did to it , but I will only offer the 2 versions polished and silver painted, the silver have a satin finish to it

M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post Oct 29 2018, 10:18 AM
Post #11


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
Silver painted works (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ValcoOscar
post Oct 29 2018, 10:38 AM
Post #12


Garage Life
****

Group: Members
Posts: 2,482
Joined: 19-November 13
From: SoCal
Member No.: 16,669
Region Association: Southern California
FOR ME...I like the last image of Post #1...weld in trim piece.

Is this piece included in complete 914 kit?

IMHO I don't care for fastened trim ring.

Oscar
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marek
post Nov 5 2018, 01:01 PM
Post #13


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None
Sorry guys , forgot that the boys in the shop had 3 days off last week

Thanks for all the response I got

Here are a few more info and answeres to some of the questions I got

how its the bezel screwed on

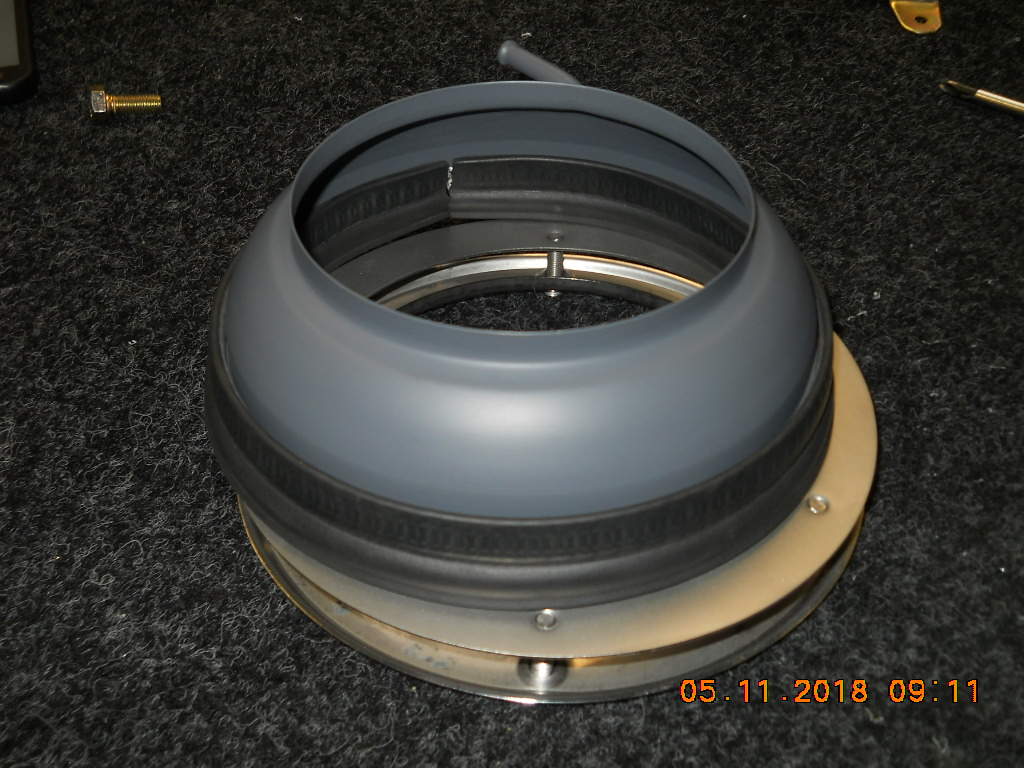

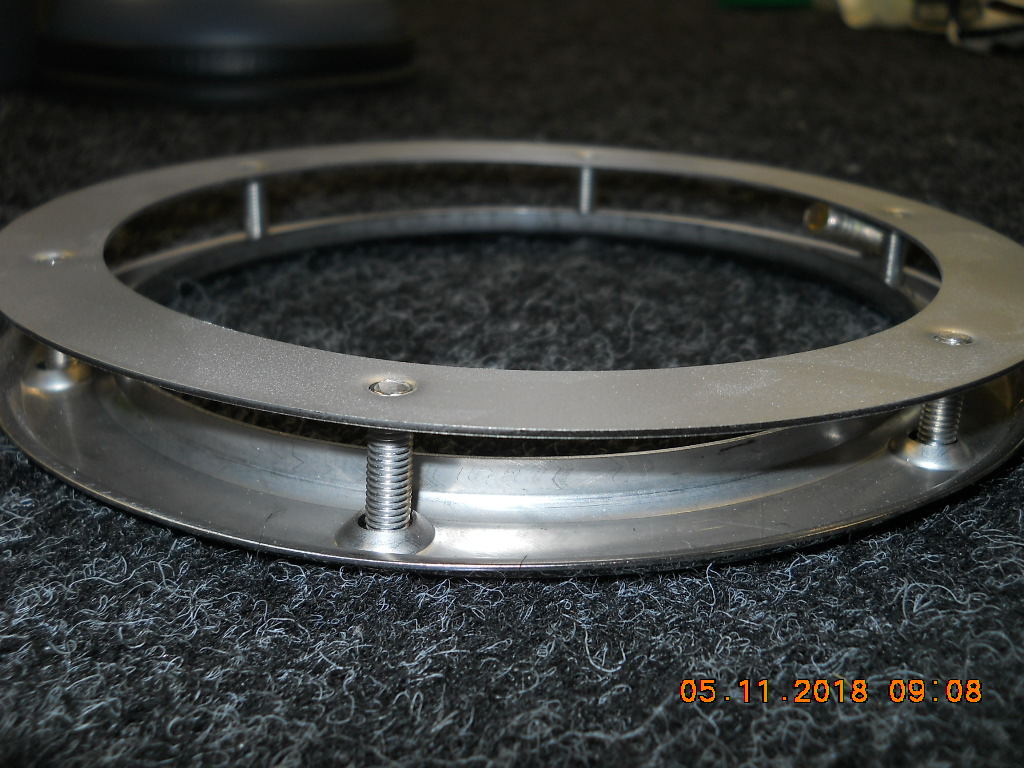

By the "down under the hood" :-) bezel as you see on the pictures

the included screws are 5*12 mm in some case depending what bonnet you got steel or fiber , you have might to shorten the screws a bit, so they dont scratch or puncture the rubber seal and a good idea is to use a drop of loctite on each screw , when you are all messured up

( hope the "upside down" pics makes sense :-)

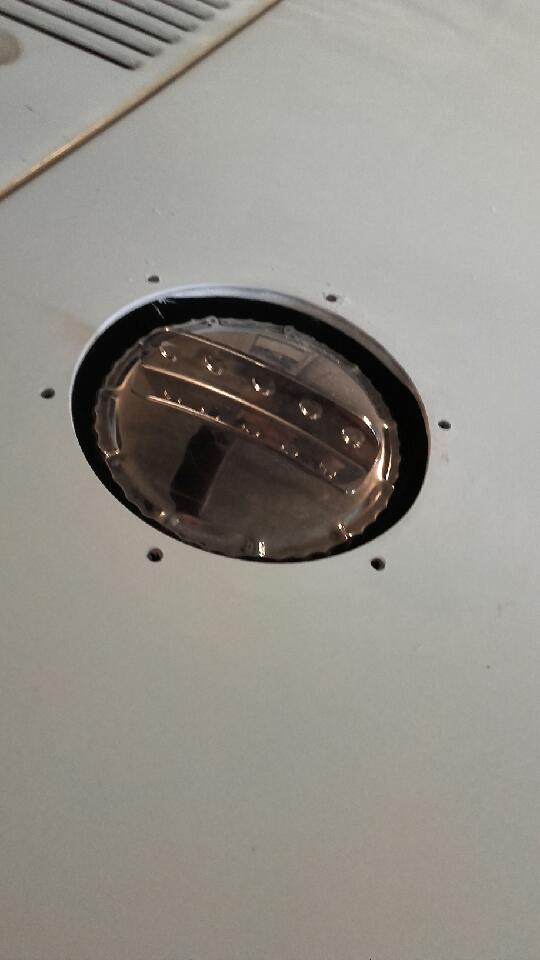

you also see the the hole we made in the bonnet by messuring up the bezel the hole must be 127 mm
as you can see the cap is a bit below level
there are servel "spacers" in the kit , ( 5 mm , 8 mm , 1 mm etc ) going all up to 1,5 Cm which should cover it , we have tried this on 3 cars and all where different

by any questions please send me a mail to early911parts@gmail.com

first paid kits are now in the mail , I hope I got back to everybody , or pls send me a mail

Regards
Marek


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marek
post Nov 19 2018, 02:54 PM
Post #14


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None

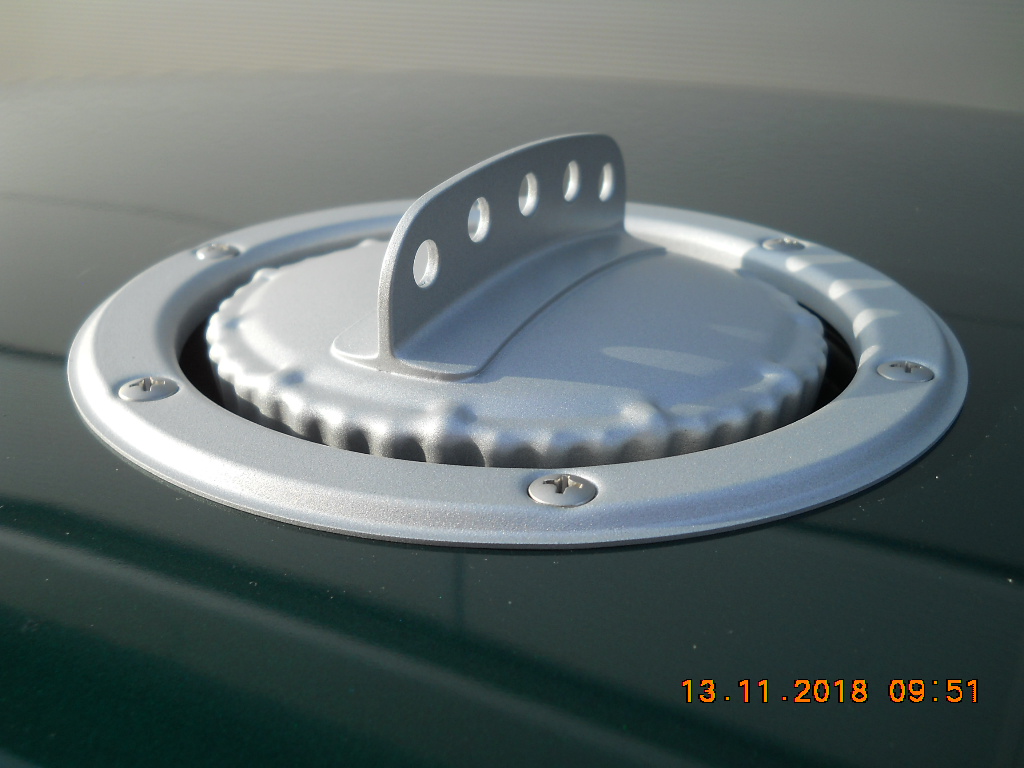

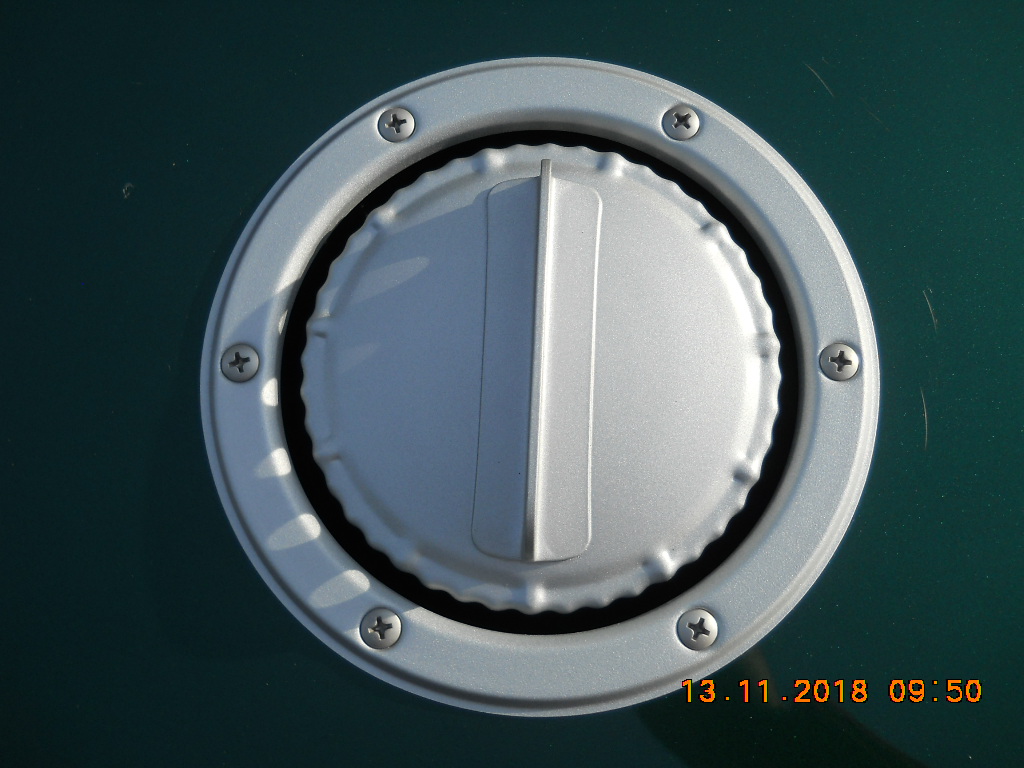

Silver painted version , tested and on stock

The screws are glass blasted stainless steel screws



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnvan8
post Nov 20 2018, 04:08 PM
Post #15


Newbie
*

Group: Members
Posts: 2
Joined: 21-October 14
From: Orange, CA
Member No.: 18,044
Region Association: None
Very interested. What is the best way to figure out exact location to cut hood? Is there a template or is it better to cut specifically to where your tank/hood are located in relation to each other?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 20 2018, 04:38 PM
Post #16


914 Guru
*****

Group: Members
Posts: 7,475
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(ValcoOscar @ Oct 29 2018, 08:38 AM) *

FOR ME...I like the last image of Post #1...weld in trim piece.

Is this piece included in complete 914 kit?

IMHO I don't care for fastened trim ring.

Oscar

(IMG:style_emoticons/default/agree.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marek
post Nov 20 2018, 04:57 PM
Post #17


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None
QUOTE(johnvan8 @ Nov 20 2018, 02:08 PM) *

Very interested. What is the best way to figure out exact location to cut hood? Is there a template or is it better to cut specifically to where your tank/hood are located in relation to each other?



Well john , no template but I can post some ruff messurements to point you in a direction ,
but we can not make a template due to the bonnet and tank can be a few mm off in messurement on every car
so it requiers some messuring , I can tell how we did
we removed the expansion tank on top of the tank by unscrewing the 8 bolts
we tape the fuel opening with papper tape
we marked a cross on the center of the fuel openning
then we drilled a small hole 20 mm or so ,as closed to the center mark as we could predict
and when we saw we are close to center we did the hole larger and larger step by step
hope it gives an idea

Marek
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marek
post Nov 20 2018, 05:00 PM
Post #18


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None
Hi Oscar the weld in trim is included,

Marek

QUOTE(mb911 @ Nov 20 2018, 02:38 PM) *

QUOTE(ValcoOscar @ Oct 29 2018, 08:38 AM) *

FOR ME...I like the last image of Post #1...weld in trim piece.

Is this piece included in complete 914 kit?

IMHO I don't care for fastened trim ring.

Oscar

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ValcoOscar
post Nov 20 2018, 05:20 PM
Post #19


Garage Life
****

Group: Members
Posts: 2,482
Joined: 19-November 13
From: SoCal
Member No.: 16,669
Region Association: Southern California
QUOTE(Marek @ Nov 20 2018, 03:00 PM) *

Hi Oscar the weld in trim is included,

Marek

QUOTE(mb911 @ Nov 20 2018, 02:38 PM) *

QUOTE(ValcoOscar @ Oct 29 2018, 08:38 AM) *

FOR ME...I like the last image of Post #1...weld in trim piece.

Is this piece included in complete 914 kit?

IMHO I don't care for fastened trim ring.

Oscar

(IMG:style_emoticons/default/agree.gif)




Now we're talking (IMG:style_emoticons/default/piratenanner.gif) ...I need to bridge a few weeks but I'll be placing an order for two kits as a Christmas gift to myself. (IMG:style_emoticons/default/santa_smiley.gif)

In addition, can I also purchase a separate weld in trim ring ONLY?

Oscar
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Marek
post Nov 20 2018, 05:23 PM
Post #20


Newbie
*

Group: Members
Posts: 20
Joined: 27-April 15
From: Copenhagen , Denmark
Member No.: 18,672
Region Association: None
Sure no problem just drop me a mail when you are ready

Marek

QUOTE(ValcoOscar @ Nov 20 2018, 03:20 PM) *

QUOTE(Marek @ Nov 20 2018, 03:00 PM) *

Hi Oscar the weld in trim is included,

Marek

QUOTE(mb911 @ Nov 20 2018, 02:38 PM) *

QUOTE(ValcoOscar @ Oct 29 2018, 08:38 AM) *

FOR ME...I like the last image of Post #1...weld in trim piece.

Is this piece included in complete 914 kit?

IMHO I don't care for fastened trim ring.

Oscar

(IMG:style_emoticons/default/agree.gif)




Now we're talking (IMG:style_emoticons/default/piratenanner.gif) ...I need to bridge a few weeks but I'll be placing an order for two kits as a Christmas gift to myself. (IMG:style_emoticons/default/santa_smiley.gif)

In addition, can I also purchase a separate weld in trim ring ONLY?

Oscar
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · FS/WTB: 914 Parts · Next Newest »


2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 8th February 2025 - 03:46 AM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
