> Replacing trunk hinge, Success, and hinge bolt mod.
Olympic 914
post Dec 4 2018, 02:38 PM
Post #1



***

Group: Members
Posts: 899
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



Going to have to repair/replace the trunk hinge on the car this winter. It was repaired before.... but it failed in a different spot. I wonder if the trunk lid gasket was too tight and caused this failure?

I am planning on taking the engine out to make it easier to get in there and position it correctly and do a good job welding.

How many of you have done this repair leaving the engine in?

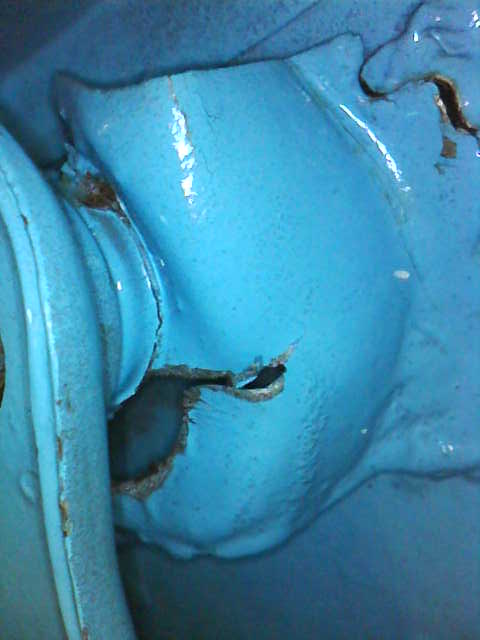

Attached Image

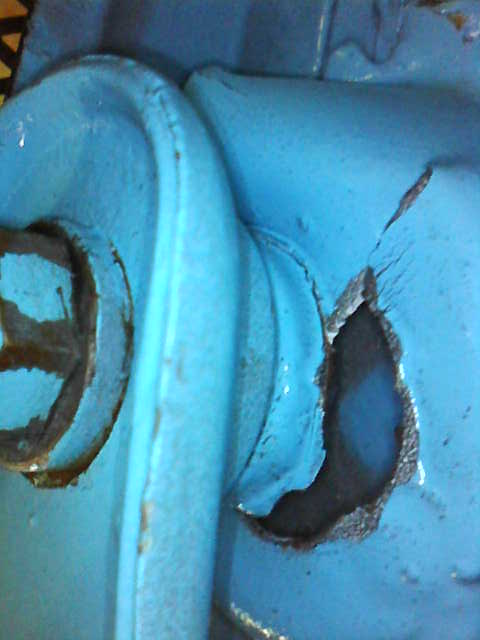

Attached Image


I am not an experienced welder and trying to weld it while bent over the fender and trying to even get the mig in there seems too hard.

I have already had the engine out twice since last Oct. so I am getting quite good at it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 4 2018, 02:40 PM
Post #2


914-6 GT in waiting
**********

Group: Members
Posts: 12,344
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



If you don’t need it to be original, Jwest makes a bolt in trunk hinge kit.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Dec 4 2018, 05:14 PM
Post #3


914 Guru
*****

Group: Members
Posts: 5,217
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



engine in easy if you can spot weld, and now with McMark'd trunk hinge tool, can be retensioned easily


QUOTE(Olympic 914 @ Dec 4 2018, 01:38 PM) *

Going to have to repair/replace the trunk hinge on the car this winter. It was repaired before.... but it failed in a different spot. I wonder if the trunk lid gasket was too tight and caused this failure?

I am planning on taking the engine out to make it easier to get in there and position it correctly and do a good job welding.

How many of you have done this repair leaving the engine in?


Attached Image


Attached Image


I am not an experienced welder and trying to weld it while bent over the fender and trying to even get the mig in there seems too hard.

I have already had the engine out twice since last Oct. so I am getting quite good at it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Dec 4 2018, 05:15 PM
Post #4


914 Guru
*****

Group: Members
Posts: 5,217
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



by the way in the back of the tech tips 700 is the procedure and placement diagram

QUOTE(dr914@autoatlanta.com @ Dec 4 2018, 04:14 PM) *

engine in easy if you can spot weld, and now with McMark'd trunk hinge tool, can be retensioned easily


QUOTE(Olympic 914 @ Dec 4 2018, 01:38 PM) *

Going to have to repair/replace the trunk hinge on the car this winter. It was repaired before.... but it failed in a different spot. I wonder if the trunk lid gasket was too tight and caused this failure?

I am planning on taking the engine out to make it easier to get in there and position it correctly and do a good job welding.

How many of you have done this repair leaving the engine in?


Attached Image


Attached Image


I am not an experienced welder and trying to weld it while bent over the fender and trying to even get the mig in there seems too hard.

I have already had the engine out twice since last Oct. so I am getting quite good at it.


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Dec 4 2018, 05:59 PM
Post #5



***

Group: Members
Posts: 899
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



QUOTE(dr914@autoatlanta.com @ Dec 4 2018, 06:15 PM) *

by the way in the back of the tech tips 700 is the procedure and placement diagram



Just checked my copy of the 700 Tech tips and was unable to find the placement diagram..... (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Dec 4 2018, 06:10 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,704
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California



QUOTE(mepstein @ Dec 4 2018, 01:40 PM) *

If you don’t need it to be original, Jwest makes a bolt in trunk hinge kit.


(IMG:style_emoticons/default/agree.gif)

This was the method I chose.
They come with backing plates so the sheet metal is clamped and the load spread out over more metal than the welded bracket.
I also like that the pivot is adjustable to help fine tune the trunk lid position.
Definitely not for the 'originality crowd' but a good functional solution.

Jim
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914werke
post Dec 4 2018, 06:34 PM
Post #7


"I got blisters on me fingers"
****

Group: Members
Posts: 4,982
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



The failure mode isn't tension, but rust. Or more precisely lack of lubrication that leads to rust. Once the shoulder bolt wears out its lube, its the beginning of the end.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Dec 4 2018, 06:54 PM
Post #8


Advanced Member
****

Group: Members
Posts: 3,867
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California



QUOTE(914werke @ Dec 4 2018, 04:34 PM) *

The failure mode isn't tension, but rust. Or more precisely lack of lubrication that leads to rust. Once the shoulder bolt wears out its lube, its the beginning of the end.



Looks like shear to me.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
amfab
post Dec 5 2018, 02:58 PM
Post #9


Member
**

Group: Members
Posts: 347
Joined: 17-May 16
From: Los Angeles
Member No.: 20,004
Region Association: None



+2 for the JWest system.
Hardest part was getting the old hinge bits off
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Dec 5 2018, 03:22 PM
Post #10


914 Guru
*****

Group: Members
Posts: 5,217
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



the bottom of page 132

QUOTE(Olympic 914 @ Dec 4 2018, 04:59 PM) *

QUOTE(dr914@autoatlanta.com @ Dec 4 2018, 06:15 PM) *

by the way in the back of the tech tips 700 is the procedure and placement diagram



Just checked my copy of the 700 Tech tips and was unable to find the placement diagram..... (IMG:style_emoticons/default/confused24.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Dec 5 2018, 06:05 PM
Post #11



***

Group: Members
Posts: 899
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



Damn.... My copy only goes to pg 125. (IMG:style_emoticons/default/huh.gif) (IMG:style_emoticons/default/hissyfit.gif)


QUOTE(dr914@autoatlanta.com @ Dec 5 2018, 04:22 PM) *

the bottom of page 132

QUOTE(Olympic 914 @ Dec 4 2018, 04:59 PM) *

QUOTE(dr914@autoatlanta.com @ Dec 4 2018, 06:15 PM) *

by the way in the back of the tech tips 700 is the procedure and placement diagram



Just checked my copy of the 700 Tech tips and was unable to find the placement diagram..... (IMG:style_emoticons/default/confused24.gif)


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Dec 5 2018, 08:10 PM
Post #12


Advanced Member
****

Group: Members
Posts: 2,487
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176



See current thread...'Replacing bracket for hinge pillar'
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Dec 6 2018, 08:16 AM
Post #13


Senior Member
***

Group: Members
Posts: 1,179
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None



I haven't done it (yet) but I believe the JWest set up is an engine-in job.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Jan 26 2019, 03:00 PM
Post #14



***

Group: Members
Posts: 899
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



OK, decided to pull the engine to do this job.

Taped cardboard all around to protect the paint from grinding and welding spatter.

Cut the old ones out. the best way to locate the position is to mount the hinges to the trunk lid, put it in place lining up the trunk and then put a couple spot welds on it to hold things. take it back apart and then weld it up right.

After getting in there I didn't like the looks of the other hinge, So I cut them both out. and ordered new mounts form RD

Got the old ones cut out.

Attached Image

New mounts welded in. much easier without the engine in. you can just sit on a little stool and weld away...

Attached Image

Attached Image

Didn't want this happening again, and someone else had mentioned doing a grease fitting mod to the bolts. so over the lathe for a bit to cut a grease groove, then drilled and tapped for a fitting.

I also polished off all the paint on the mating surfaces with a wire wheel in the Dremel

Attached Image

Attached Image

Easy to get a grease gun in there and put a couple squirts in to keep things moving smoothly.

Attached Image

Kind of looks like it should be this way.




User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Jan 26 2019, 06:12 PM
Post #15


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,142
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388



(IMG:style_emoticons/default/agree.gif) They look great, that trick was published in Pano a long time ago.

One quick question just for curiosity sake. I see you mounted the shoulder bolt in a what I am thinking was a piece of solid round that you threaded for the shoulder bolt to seat in. So not to ruin the the bolt threads by putting them in your chuck. Am I correct?

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Jan 26 2019, 08:45 PM
Post #16



***

Group: Members
Posts: 899
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



QUOTE(914forme @ Jan 26 2019, 07:12 PM) *

(IMG:style_emoticons/default/agree.gif) They look great, that trick was published in Pano a long time ago.

One quick question just for curiosity sake. I see you mounted the shoulder bolt in a what I am thinking was a piece of solid round that you threaded for the shoulder bolt to seat in. So not to ruin the the bolt threads by putting them in your chuck. Am I correct?


Yes, That, and giving me extra space so I didn't have to worry about crashing into the chuck. and I was able to use the same piece to cross drill the bolt with the drill press.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Jan 26 2019, 09:04 PM
Post #17


I. I. R. C.
*****

Group: Members
Posts: 5,344
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None



Bingo! That's what I call the "Upfixen" mod.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Jan 26 2019, 11:04 PM
Post #18


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,142
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388



QUOTE(Olympic 914 @ Jan 26 2019, 09:45 PM) *

QUOTE(914forme @ Jan 26 2019, 07:12 PM) *

(IMG:style_emoticons/default/agree.gif) They look great, that trick was published in Pano a long time ago.

One quick question just for curiosity sake. I see you mounted the shoulder bolt in a what I am thinking was a piece of solid round that you threaded for the shoulder bolt to seat in. So not to ruin the the bolt threads by putting them in your chuck. Am I correct?


Yes, That, and giving me extra space so I didn't have to worry about crashing into the chuck. and I was able to use the same piece to cross drill the bolt with the drill press.


(IMG:style_emoticons/default/agree.gif) I bought my Lathe and Mill used, and the last owner, not only ran into the chuck, but also expanded the 3 jaw to the point it hit the bed, and cross slide. (IMG:style_emoticons/default/WTF.gif) I could never get the chuck to center properly. New 4 Jaw solved the issue. Tonight I was thinking about a new bed, and cross slide.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jan 27 2019, 11:23 AM
Post #19


Senior Member
***

Group: Members
Posts: 592
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



I replaced my plastic rollers with metal ones. I think I got them from AA. FYI. Nice work BTW.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
second wind
post Jan 27 2019, 01:44 PM
Post #20


Member
**

Group: Members
Posts: 297
Joined: 30-December 10
From: Los Angeles, California
Member No.: 12,543
Region Association: Southern California



QUOTE(Olympic 914 @ Jan 26 2019, 01:00 PM) *

OK, decided to pull the engine to do this job.

Taped cardboard all around to protect the paint from grinding and welding spatter.

Cut the old ones out. the best way to locate the position is to mount the hinges to the trunk lid, put it in place lining up the trunk and then put a couple spot welds on it to hold things. take it back apart and then weld it up right.

After getting in there I didn't like the looks of the other hinge, So I cut them both out. and ordered new mounts form RD

Got the old ones cut out.

Attached Image

New mounts welded in. much easier without the engine in. you can just sit on a little stool and weld away...

So.....any chance you could make a batch of those nifty bolts and bless us other guys? Thank you. gg
Attached Image

Attached Image

Didn't want this happening again, and someone else had mentioned doing a grease fitting mod to the bolts. so over the lathe for a bit to cut a grease groove, then drilled and tapped for a fitting.

I also polished off all the paint on the mating surfaces with a wire wheel in the Dremel

Attached Image

Attached Image

Easy to get a grease gun in there and put a couple squirts in to keep things moving smoothly.

Attached Image

Kind of looks like it should be this way.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post

2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 24th March 2019 - 02:12 PM
