> 915 gearbox NEW reinforced differential cases
bugat5speed
post May 26 2019, 03:12 AM
Post #1


Member
**

Group: Members
Posts: 92
Joined: 1-August 06
From: Germany
Member No.: 6,554
Our new reinforced 915 differential cases are nearly ready for sale. We are currently doing the final milling procedures on a 5-axis machine to the casted gearbox cases. The cases are made from casted alumnium and are heat treated. Very solid material, which has been used on many other very stabile products yet. They were engineered much stronger than the original cases ever were. Differential bearings of 930 gearbox can be mounted. Differences on shape only on 2nd sight.
First finnished parts in the next two-three weeks.
First internal project is building a 915 gearbox with this case for a G-model with 964 engine.

More info at short notice on:
www.bott-fahrzeugtechnik.de
www.bott-parts.de

pictures to follow

Martin
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bugat5speed
post May 26 2019, 03:26 AM
Post #2


Member
**

Group: Members
Posts: 92
Joined: 1-August 06
From: Germany
Member No.: 6,554
currently have Problems to upload pictures. Size only about 700 kB?

Will try later
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post May 26 2019, 07:38 AM
Post #3


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
Pricing?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bugat5speed
post May 27 2019, 12:19 AM
Post #4


Member
**

Group: Members
Posts: 92
Joined: 1-August 06
From: Germany
Member No.: 6,554
Price will be 2.690 Euro incl. VAT. For export to the US it is 2.260 Euro.

Still not able to upload pictures. Reduced size to only about 700 kB.

Does anyone know how to solve the problem?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 27 2019, 07:38 AM
Post #5


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(bugat5speed @ May 27 2019, 02:19 AM) *

Price will be 2.690 Euro incl. VAT. For export to the US it is 2.260 Euro.

Still not able to upload pictures. Reduced size to only about 700 kB.

Does anyone know how to solve the problem?


Email me the pics and I'll post - Mark@MarkEpstein.net

@bugat5speed
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 27 2019, 10:50 AM
Post #6


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region

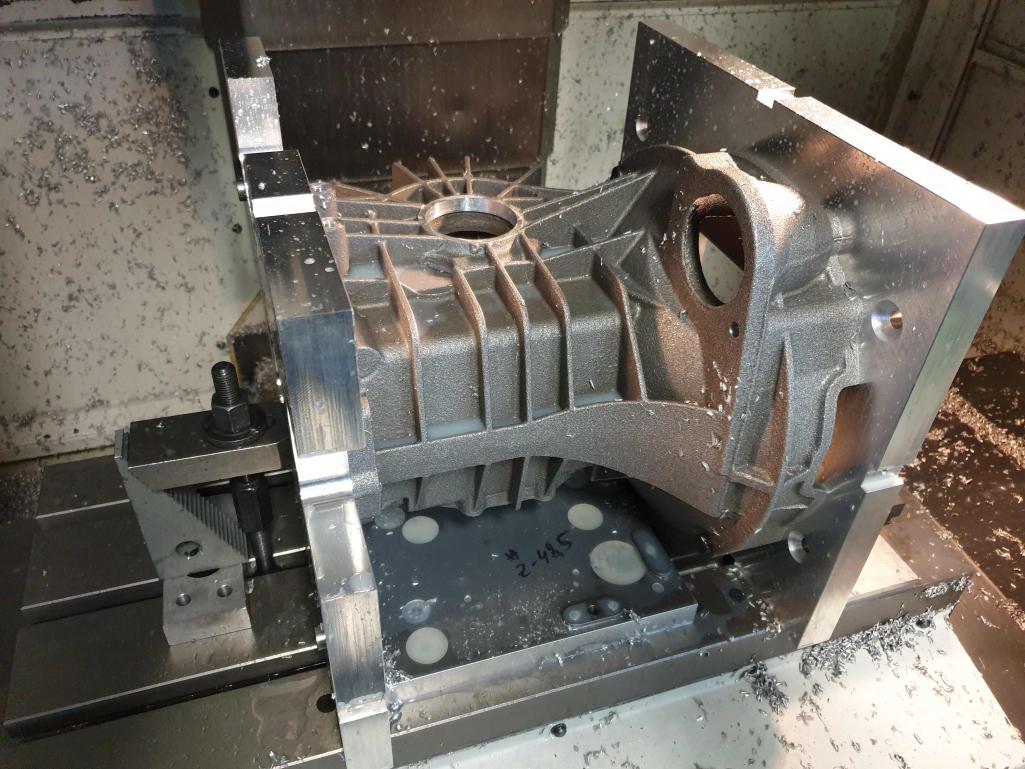

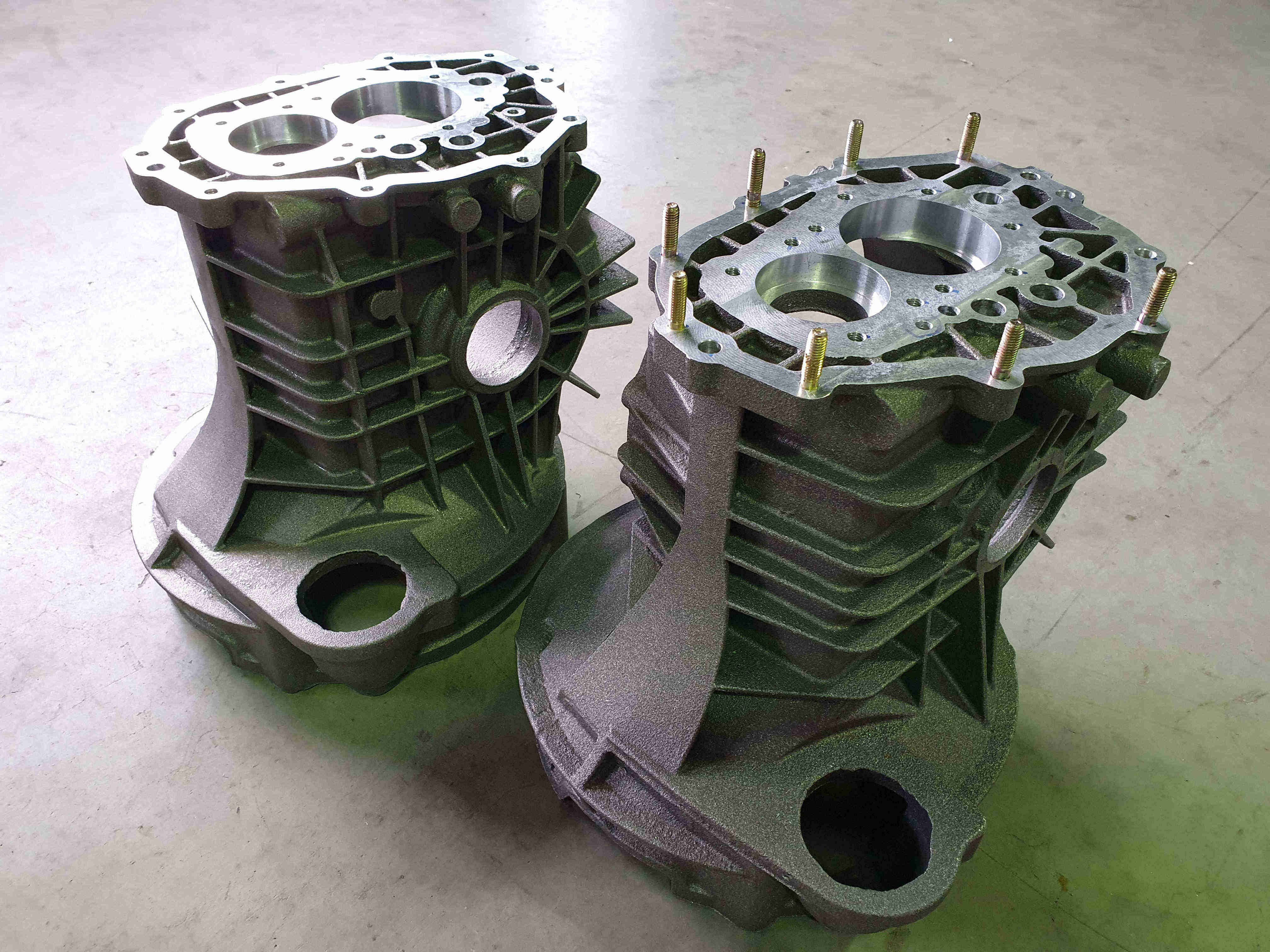

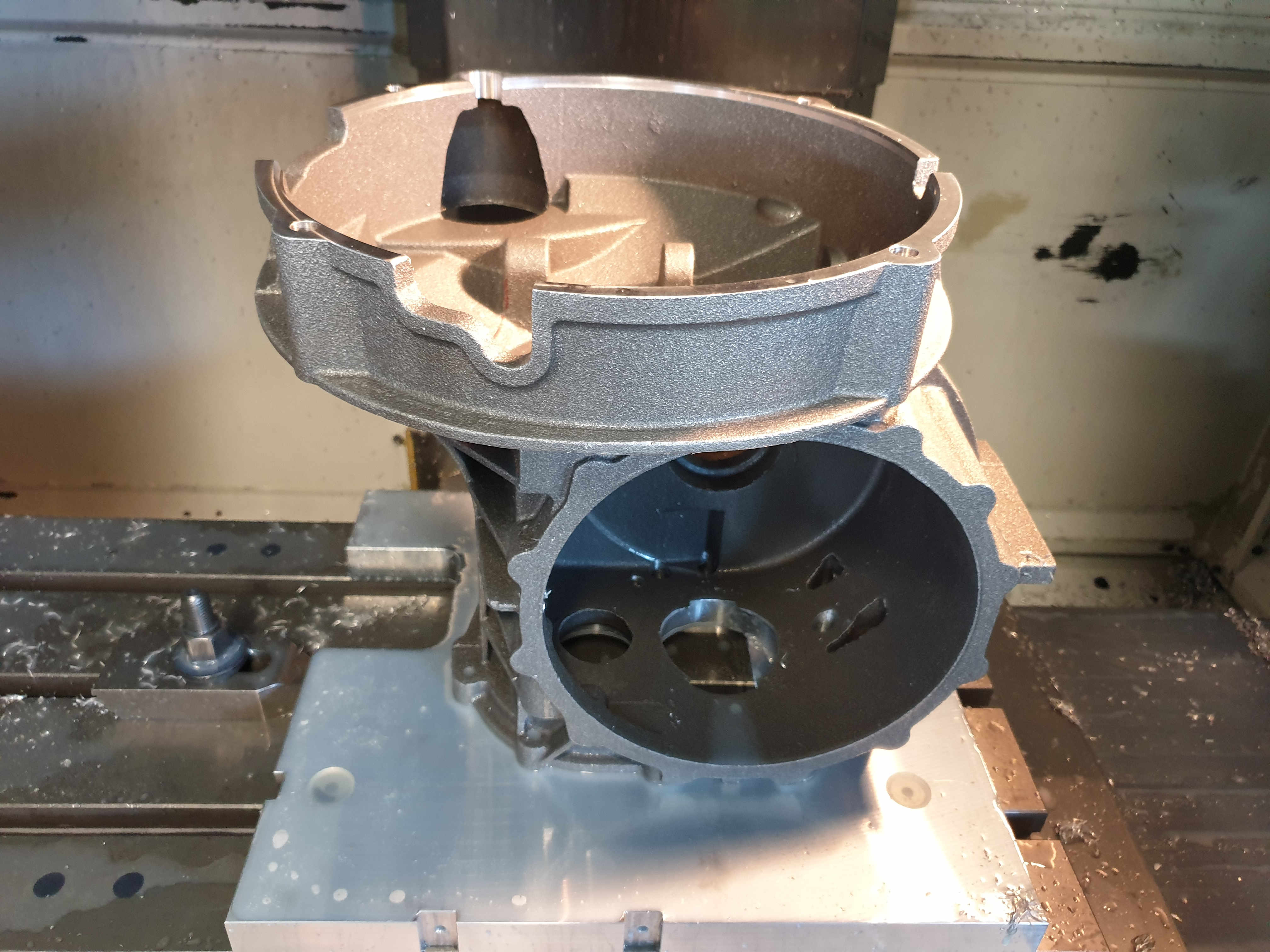

Pics


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mb911
post May 29 2019, 07:35 AM
Post #7


914 Guru
*****

Group: Members
Posts: 7,251
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Wow looks amazing..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bretth
post May 29 2019, 07:43 AM
Post #8


Senior Member
***

Group: Members
Posts: 899
Joined: 23-June 15
From: Central TX
Member No.: 18,882
Region Association: Southwest Region
That is awesome.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bugat5speed
post May 29 2019, 12:12 PM
Post #9


Member
**

Group: Members
Posts: 92
Joined: 1-August 06
From: Germany
Member No.: 6,554
Did mill two sides of the gearbox on my own CNC milling centre to make sure that it fits well. Today gave the parts away for 5-axis milling of the other sides. My mill is quite small and it is only a 3 axis machine with a 4th axis to be added.
Think the first two samples will be finnished next week.
We cut the threads for the 916 bracket into the surface wher ethe bearings sit, so it also can easily be used for strong 916 conversions.
Thank you for your positive comments.
As soon as I have them back from milling I will make further pictures and post them here.

Martin
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post May 29 2019, 01:47 PM
Post #10


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Beautiful casting!

should I start looking for a 915 box now? (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post May 29 2019, 02:08 PM
Post #11


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Mueller @ May 29 2019, 03:47 PM) *

Beautiful casting!

should I start looking for a 915 box now? (IMG:style_emoticons/default/smile.gif)


If I read the website correctly, this piece is ~ $3,500 in addition to the 915 trans. Cool but out of my budget.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bugat5speed
post May 30 2019, 02:18 AM
Post #12


Member
**

Group: Members
Posts: 92
Joined: 1-August 06
From: Germany
Member No.: 6,554
Hi,
export Price in $ about 2.600 $. The sales Price in Germany is inclusive german VAT, which can be subtracted for Export to the US.

Lots of old 915 trannies have very bad cases. Especially the Magnesium cases are on one side very bad in surface, but on the other side they are mostly completely worn out. If you take such a gearbox and put torque on them you will not have fun for a long time.

We are building some gearboxes for cars with very powerful engines which are partly being used for races and we know, that the old cases do not stand this.

Even the later aluminium cases have their Problems (worn out bearing places) and could be more stabile. Ring and pinion are not held in Position if high torque is applicated and that destroys the parts.

That was the starting idea for our case...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Dec 28 2023, 10:33 AM
Post #13


Advanced Member
****

Group: Members
Posts: 4,649
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
QUOTE(bugat5speed @ May 30 2019, 03:18 AM) *

Hi,
export Price in $ about 2.600 $. The sales Price in Germany is inclusive german VAT, which can be subtracted for Export to the US.

Lots of old 915 trannies have very bad cases. Especially the Magnesium cases are on one side very bad in surface, but on the other side they are mostly completely worn out. If you take such a gearbox and put torque on them you will not have fun for a long time.

We are building some gearboxes for cars with very powerful engines which are partly being used for races and we know, that the old cases do not stand this.

Even the later aluminium cases have their Problems (worn out bearing places) and could be more stabile. Ring and pinion are not held in Position if high torque is applicated and that destroys the parts.

That was the starting idea for our case...


What is the status on these parts ?
