> Rebuiding Inside-out
bkrantz
post Dec 29 2019, 10:05 PM
Post #101


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

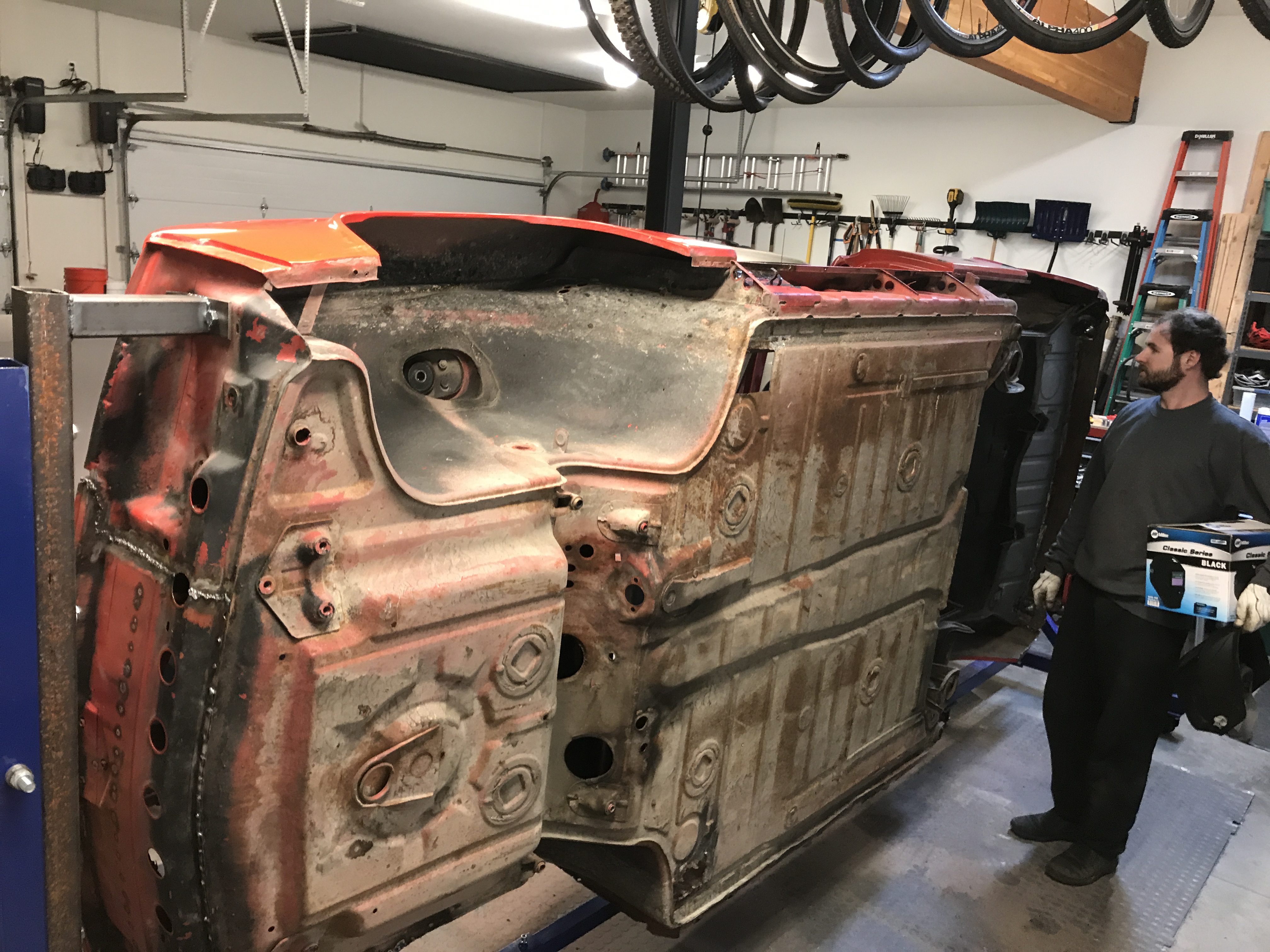

Just the right position now for the next task: rehab the rusted floor.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 30 2019, 09:17 PM
Post #102


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

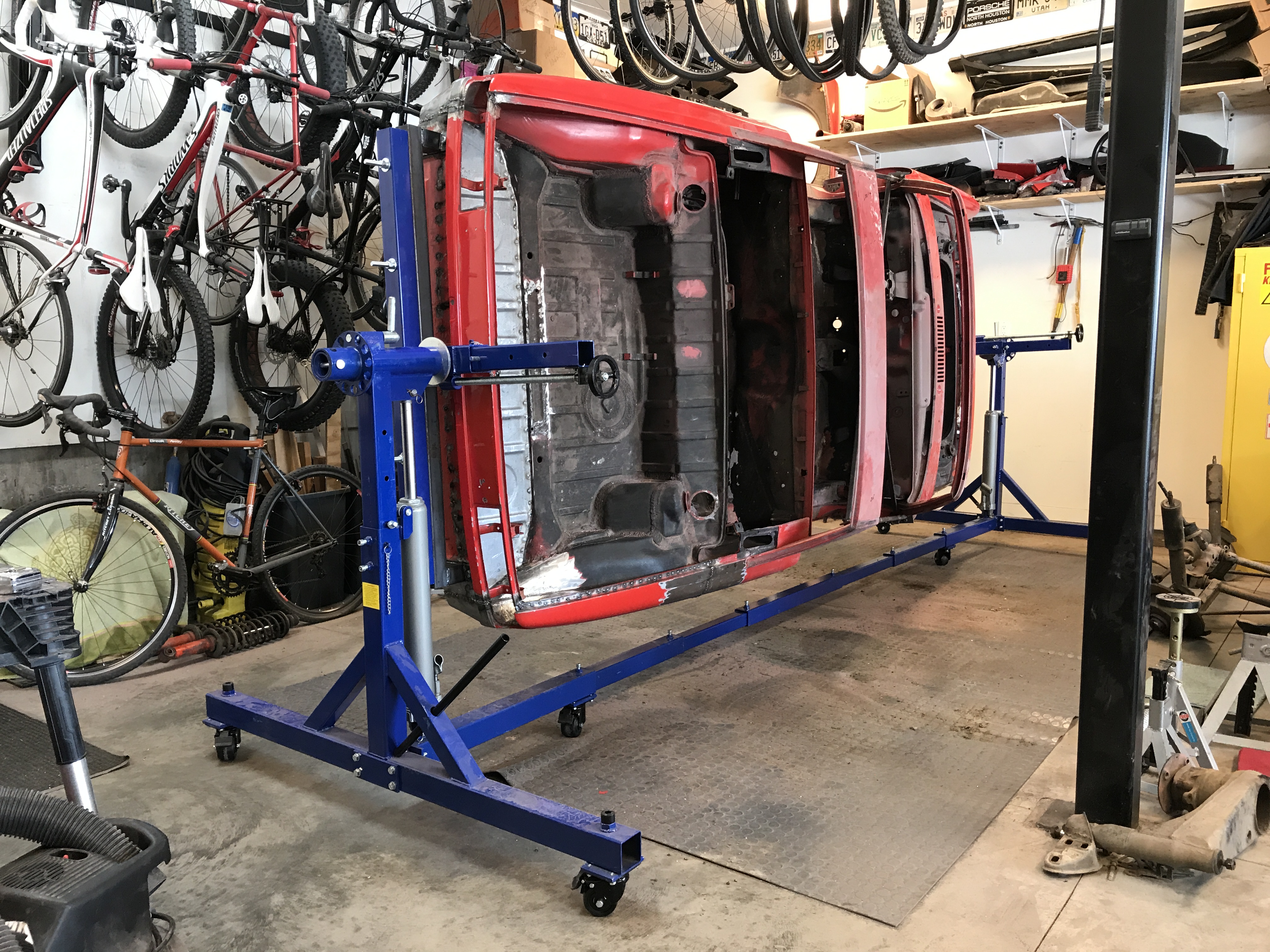

Another view of the car on the lift. I bought this rotisserie from Northern Tool. The design has two key features. Hydraulic rams at either end allow easy lifting and dropping by about 18 inches. This made it easy to attach the brackets with the car on jack stands, and then elevate it enough to clear the side while rotating to sideways. The second feature allows for tuning the position of the car relative to the pivots, thus getting the center of gravity close to the rotation axis.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Dec 31 2019, 08:02 AM
Post #103


Advanced Member
****

Group: Members
Posts: 2,999
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
It appears you achieved your goal while your son was in town. At this point the work becomes fun!

Did you uncover any surprises when you removed the suspension?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 31 2019, 09:02 AM
Post #104


914 Wizard
**********

Group: Members
Posts: 10,638
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
wow your goin for it...your garage is @Ferg worthy... (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Dec 31 2019, 09:14 AM
Post #105


Advanced Member
****

Group: Members
Posts: 2,999
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
QUOTE(sixnotfour @ Dec 31 2019, 08:02 AM) *

wow your goin for it...your garage is @Ferg worthy... (IMG:style_emoticons/default/beerchug.gif)


Jeff - he needs a few more bikes! (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 31 2019, 09:23 PM
Post #106


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(Kansas 914 @ Dec 31 2019, 07:02 AM) *

It appears you achieved your goal while your son was in town. At this point the work becomes fun!

Did you uncover any surprises when you removed the suspension?


None obvious. We did drop the front as a complete assembly, and I still have to take it apart.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jan 1 2020, 05:45 PM
Post #107


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
What? No updates on the 1st? (IMG:style_emoticons/default/w00t.gif) (IMG:style_emoticons/default/welder.gif)
Haha
Happy New Years Bob.
Your progress is looking great from way over here.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jan 1 2020, 06:30 PM
Post #108


914 Guru
*****

Group: Members
Posts: 6,523
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Sweet Rotisserie. I've always like the type like this with the hydraulic ram.

I measured my garage and determined that I'll have to remove the garage door opener and the upper guide tracks if I hope to use a rotisserie. (IMG:style_emoticons/default/sad.gif)

Looking like you've got this beat and are will on your way to easy street to work on the undersides.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 1 2020, 09:44 PM
Post #109


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(raynekat @ Jan 1 2020, 04:45 PM) *

What? No updates on the 1st? (IMG:style_emoticons/default/w00t.gif) (IMG:style_emoticons/default/welder.gif)
Haha
Happy New Years Bob.
Your progress is looking great from way over here.


Thanks, Doug--back at you guys, too.

Shirlee wanted to get outside and enjoy another snowy day, so we hiked the ridge behind our house--about 1000 ft up.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 1 2020, 09:45 PM
Post #110


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

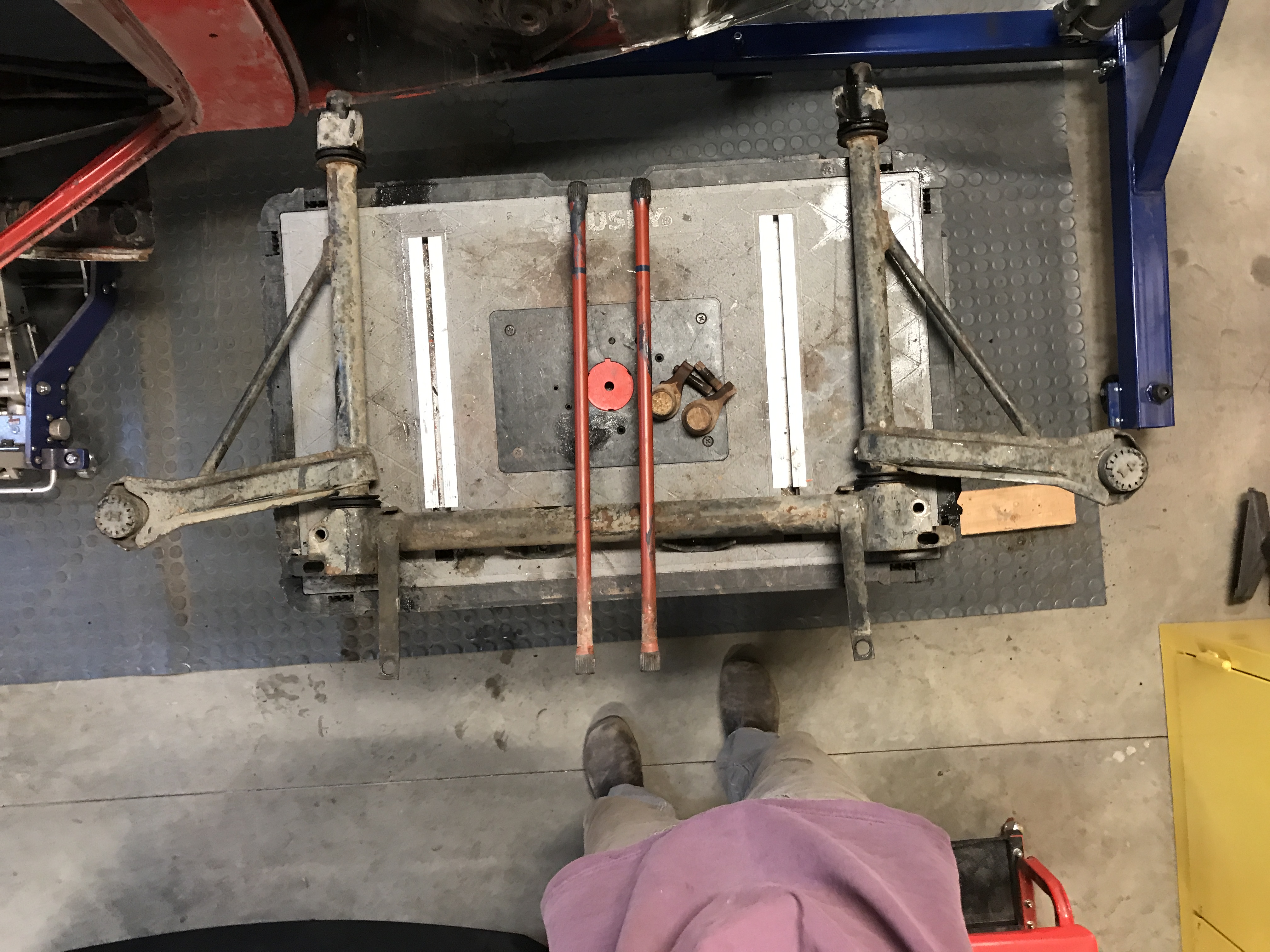

And after that I got about an hour of garage time. Enough to separate the struts and steering rack from the front suspension, and pull the torsion bars.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 1 2020, 09:47 PM
Post #111


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

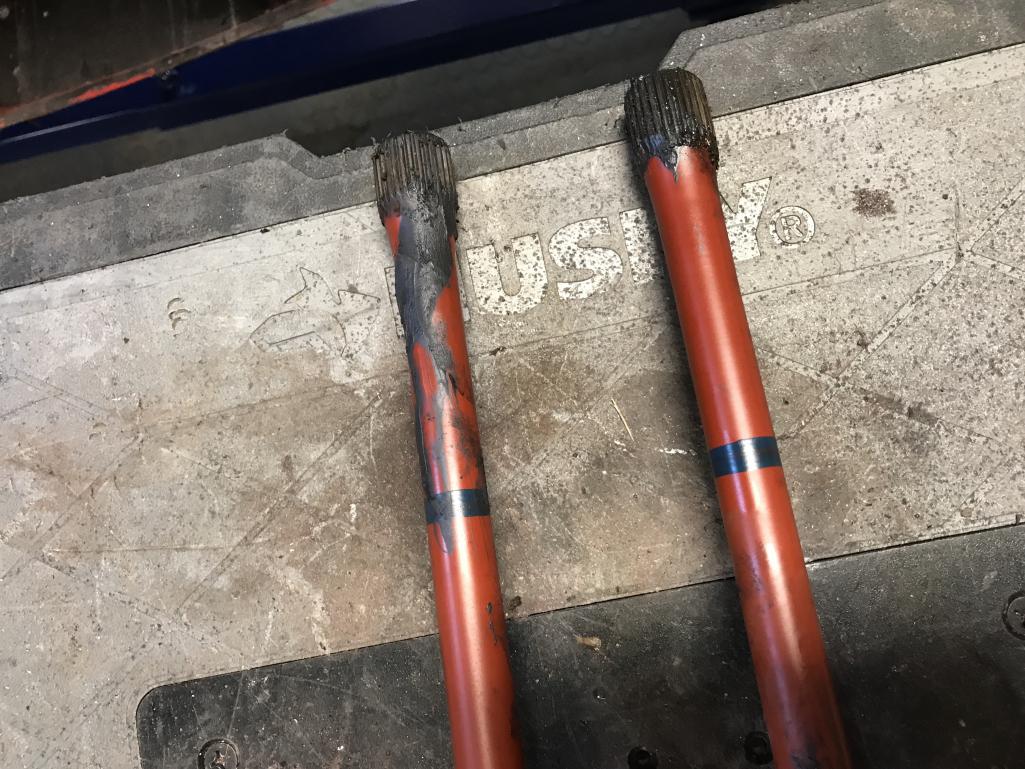

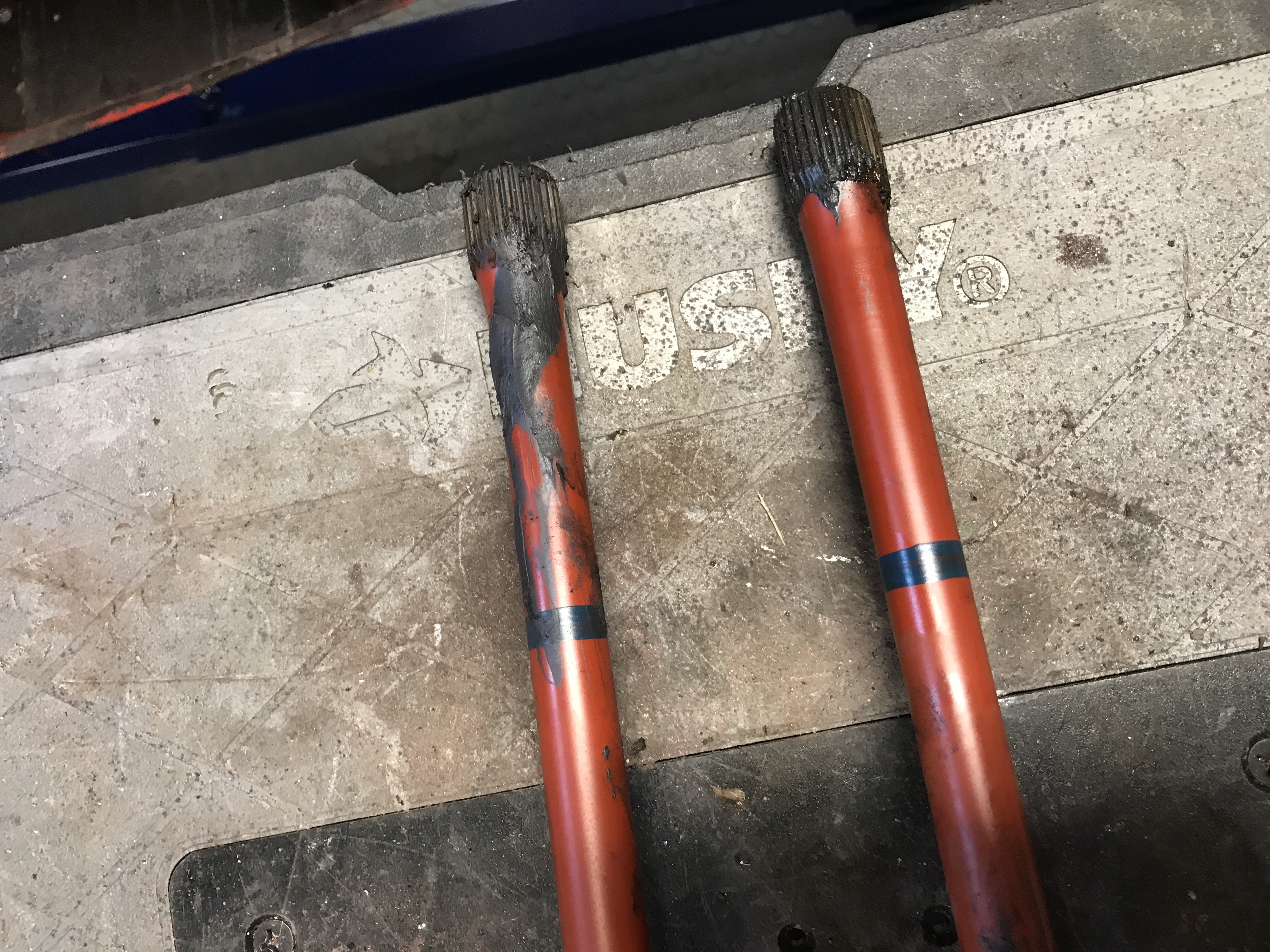

Torsion bars look like blue strip coding.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Jan 2 2020, 07:02 AM
Post #112


Advanced Member
****

Group: Members
Posts: 2,999
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
QUOTE(bkrantz @ Jan 1 2020, 08:47 PM) *

Torsion bars look like blue strip coding.

I'm sure you know this but don't mix up right and left torsion bars when re-installing. There should be a R & L stamped on the end.

Keep up the good work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 2 2020, 08:59 PM
Post #113


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(Kansas 914 @ Jan 2 2020, 06:02 AM) *

QUOTE(bkrantz @ Jan 1 2020, 08:47 PM) *

Torsion bars look like blue strip coding.

I'm sure you know this but don't mix up right and left torsion bars when re-installing. There should be a R & L stamped on the end.

Keep up the good work!


Thanks for the reminder. I did see the L and R stamps.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 2 2020, 09:02 PM
Post #114


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

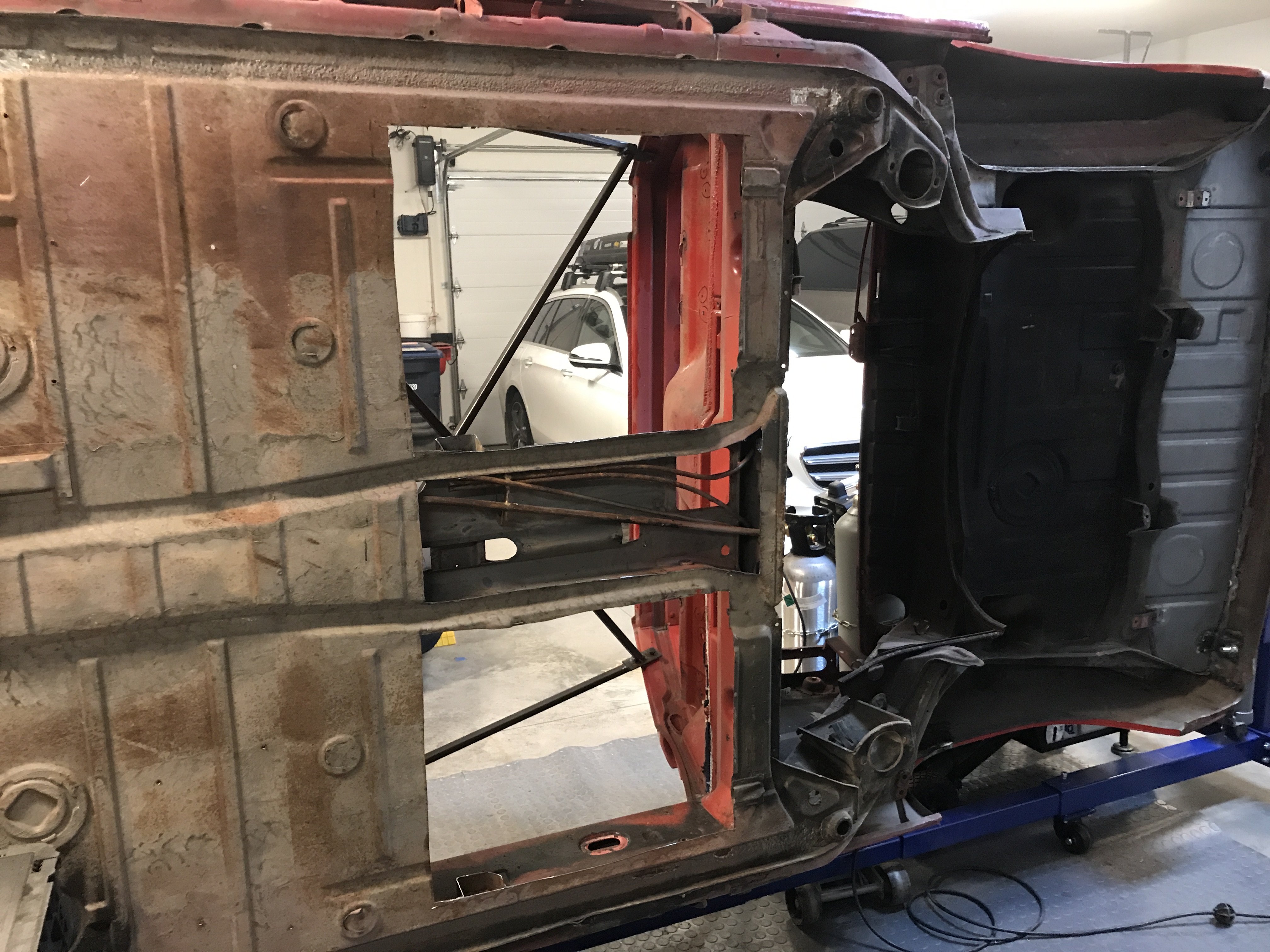

And on the the floor, starting with some rough cuts between all the welded seams. Next step is drilling out LOTS of spot welds.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 2 2020, 09:04 PM
Post #115


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

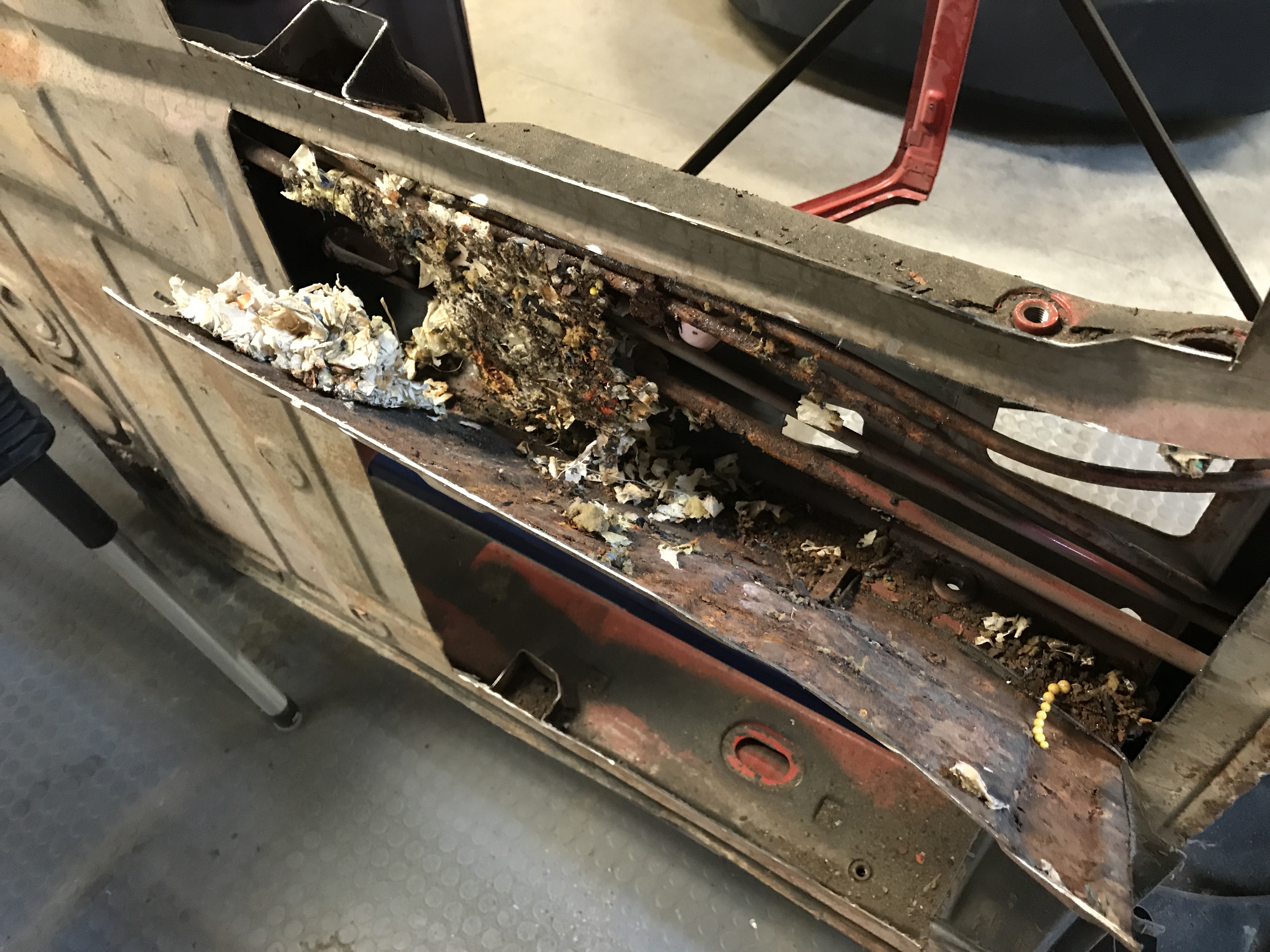

Inside the center tunnel is the obligatory mouse nest.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
raynekat
post Jan 2 2020, 09:33 PM
Post #116


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
QUOTE(bkrantz @ Jan 2 2020, 07:04 PM) *

Inside the center tunnel is the obligatory mouse nest.


Now that is pretty glorious....and Shirlee, I don't jest. (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2020, 09:07 PM
Post #117


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(raynekat @ Jan 2 2020, 08:33 PM) *

QUOTE(bkrantz @ Jan 2 2020, 07:04 PM) *

Inside the center tunnel is the obligatory mouse nest.


Now that is pretty glorious....and Shirlee, I don't jest. (IMG:style_emoticons/default/wink.gif)



And that's just the part I could not vacuum out through the holes in the top of the tunnel.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2020, 09:09 PM
Post #118


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Now for the surgical removal of the rest of the rear floor, starting on the left side. BTW access on the rotisserie, and also raising the lowering the car height, is glorious.

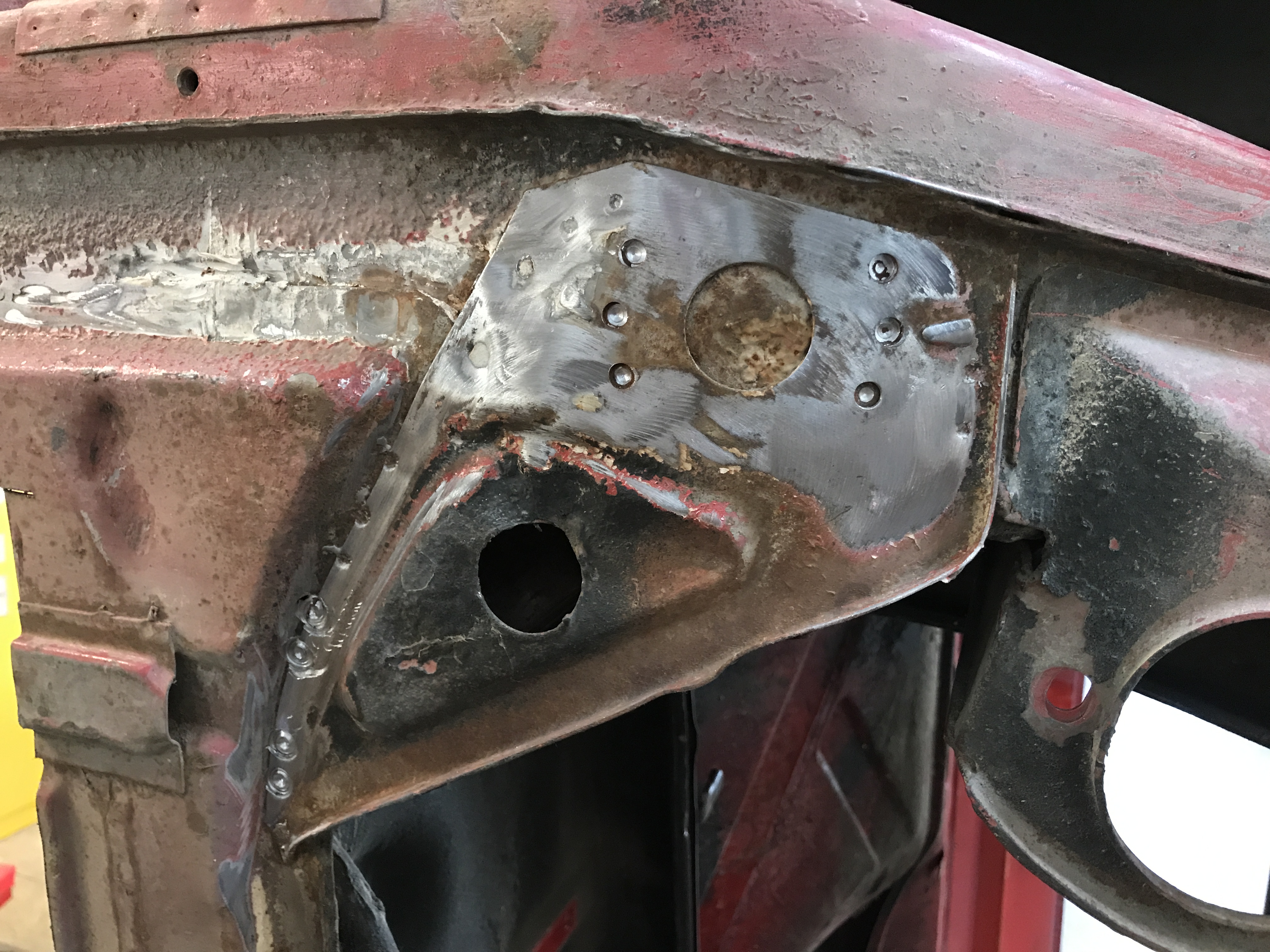

First drill out the welds and remove the jacking donut.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2020, 09:11 PM
Post #119


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

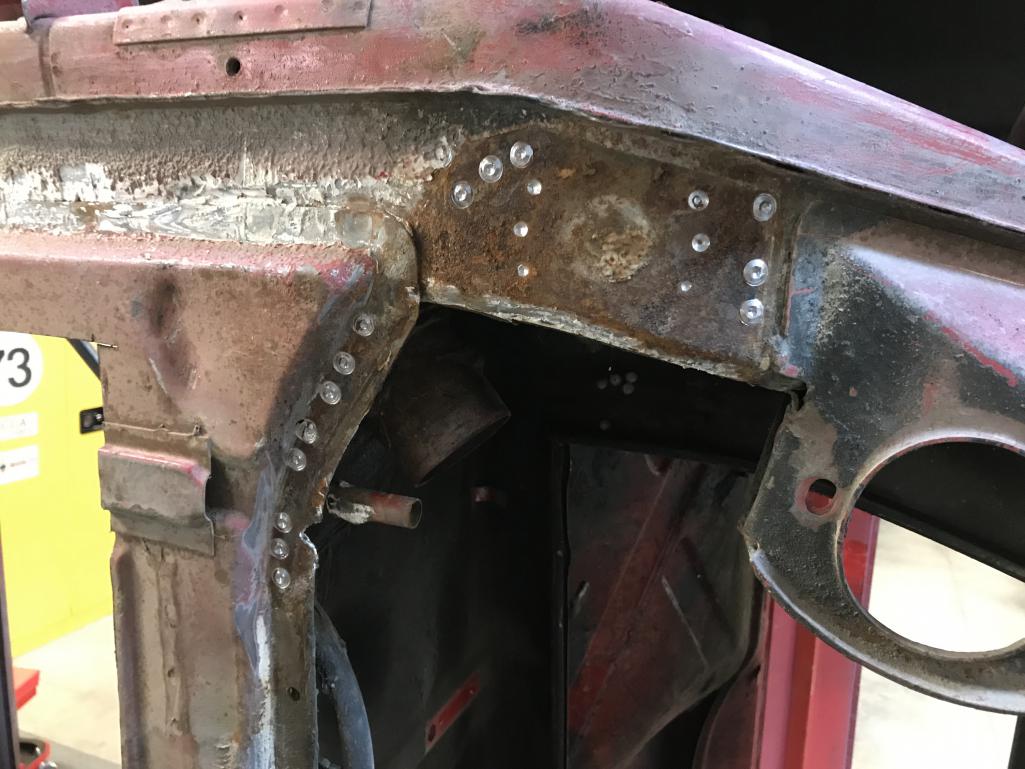

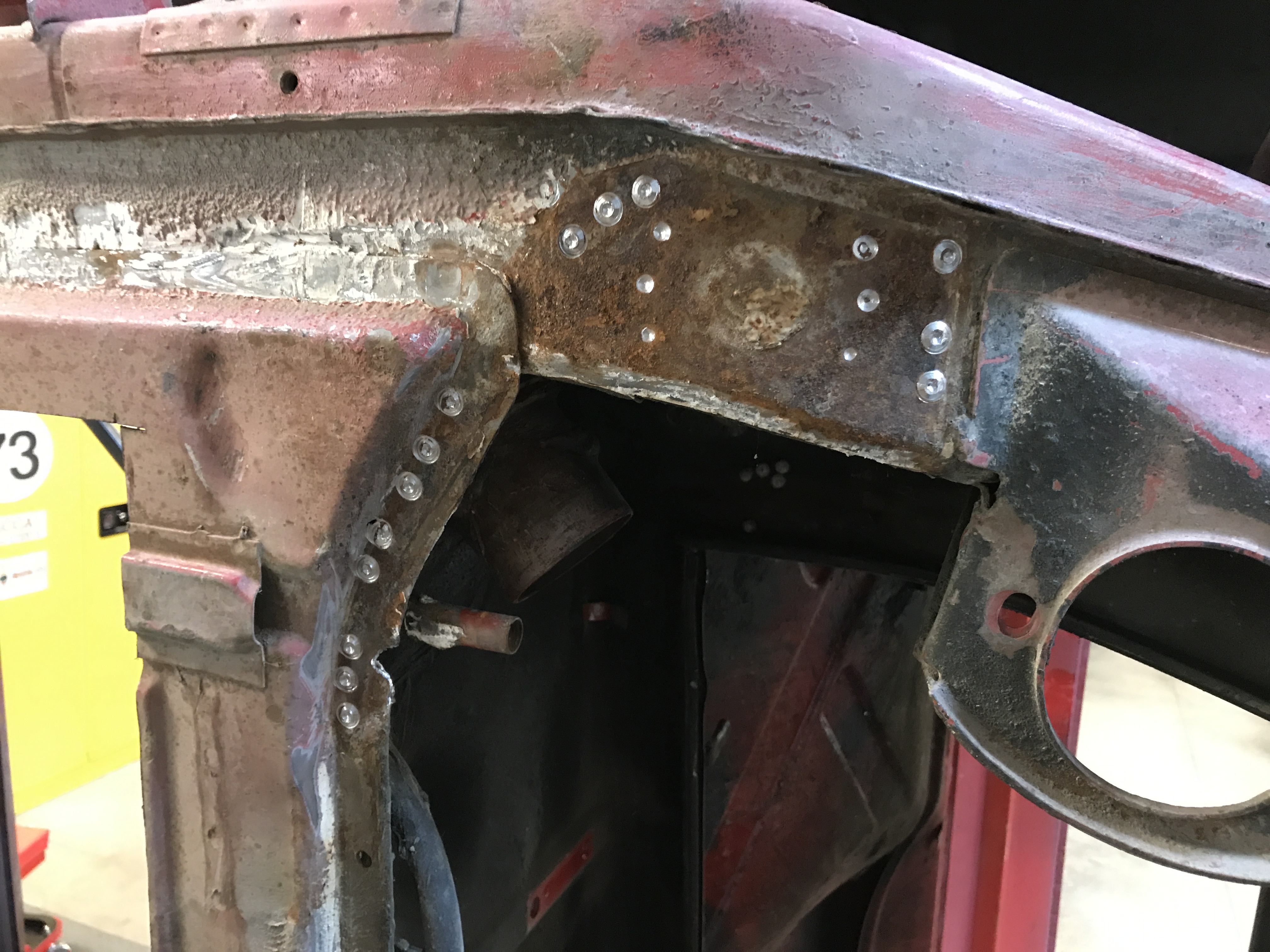

Then drill out the welds and remove the triangular gusset.



Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 3 2020, 09:12 PM
Post #120


914 Guru
*****

Group: Members
Posts: 8,150
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

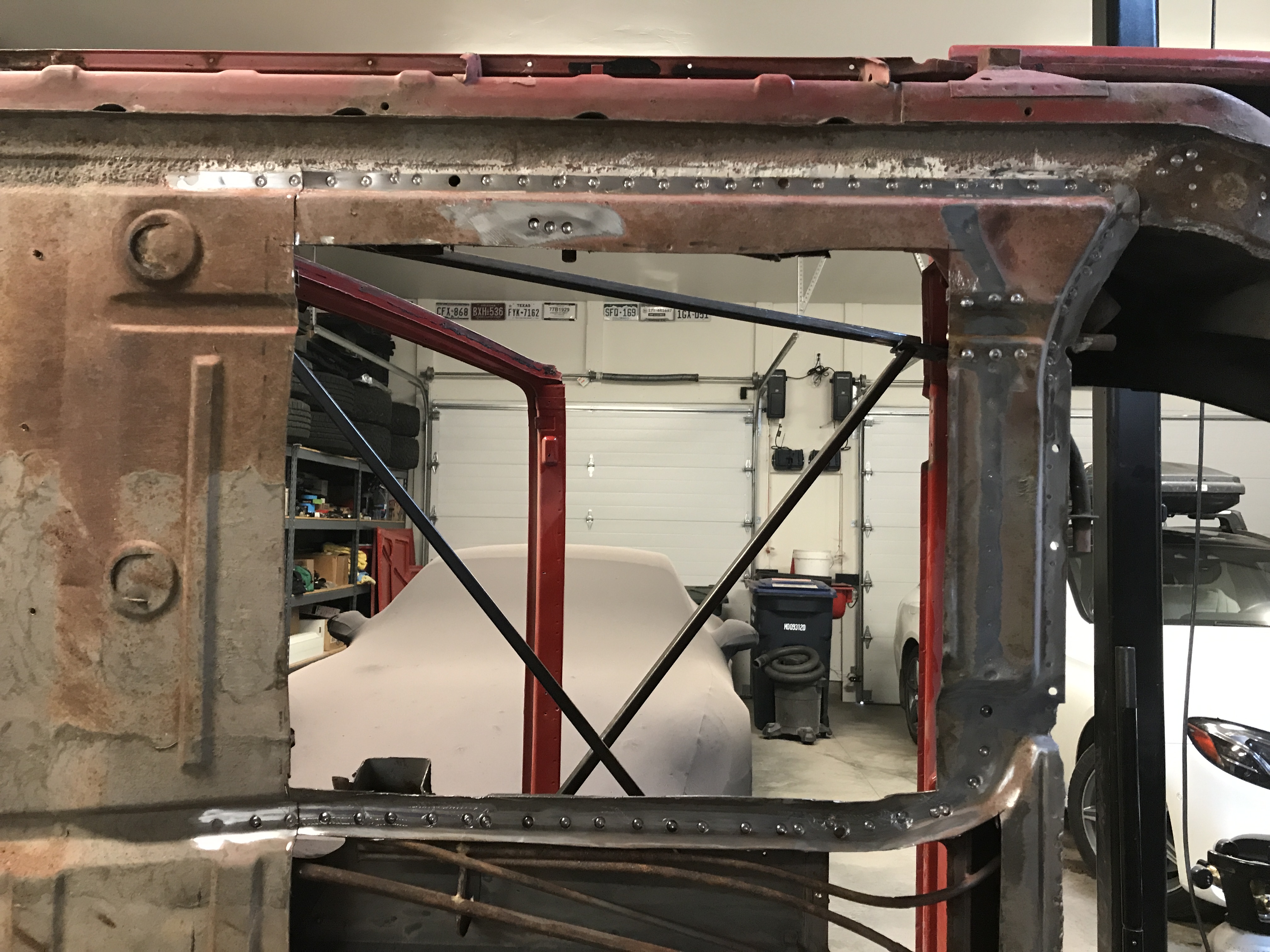

Then a happy hour or so of drilling out spot welds along the sill, tunnel, and firewalls.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
