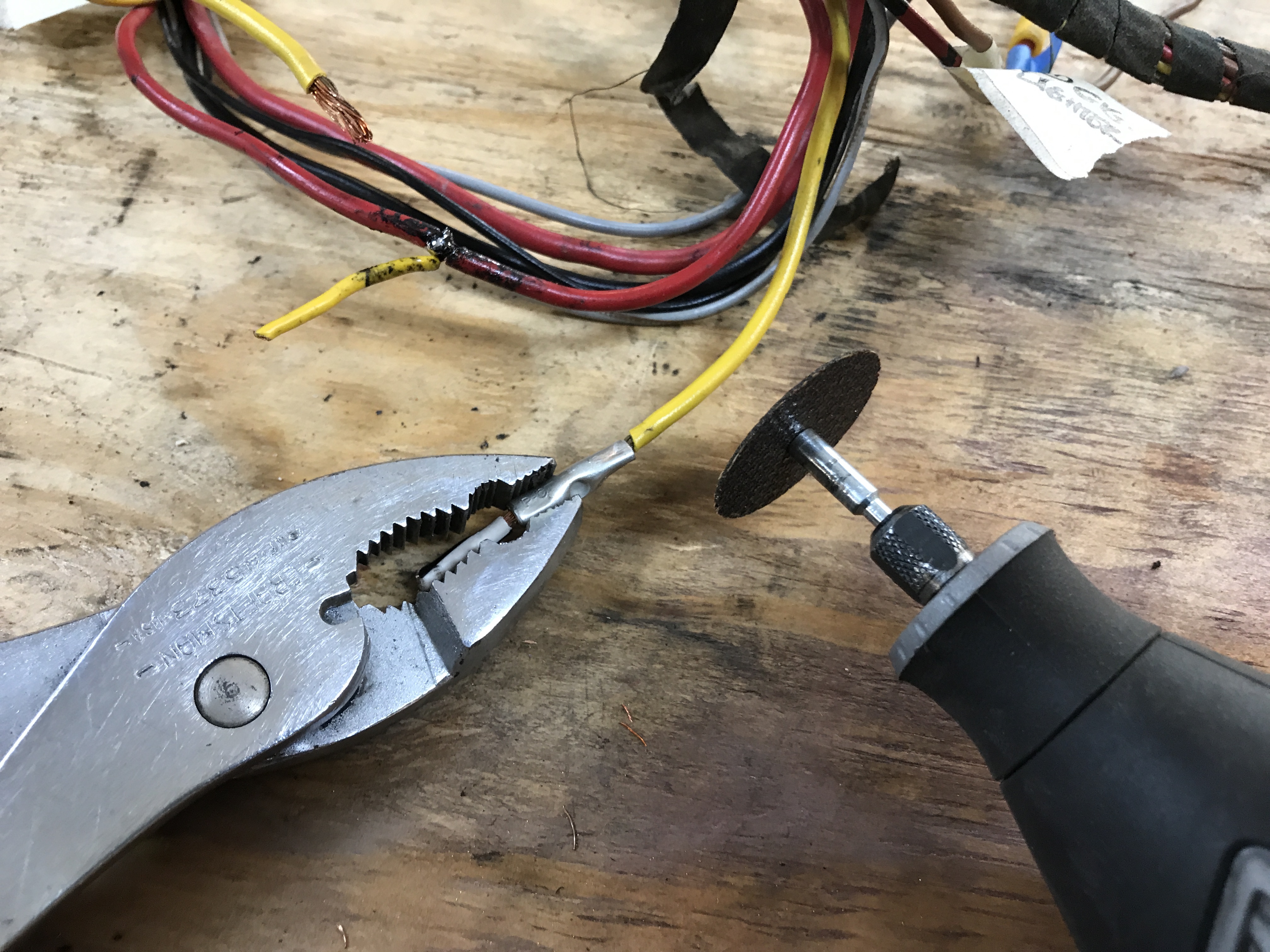

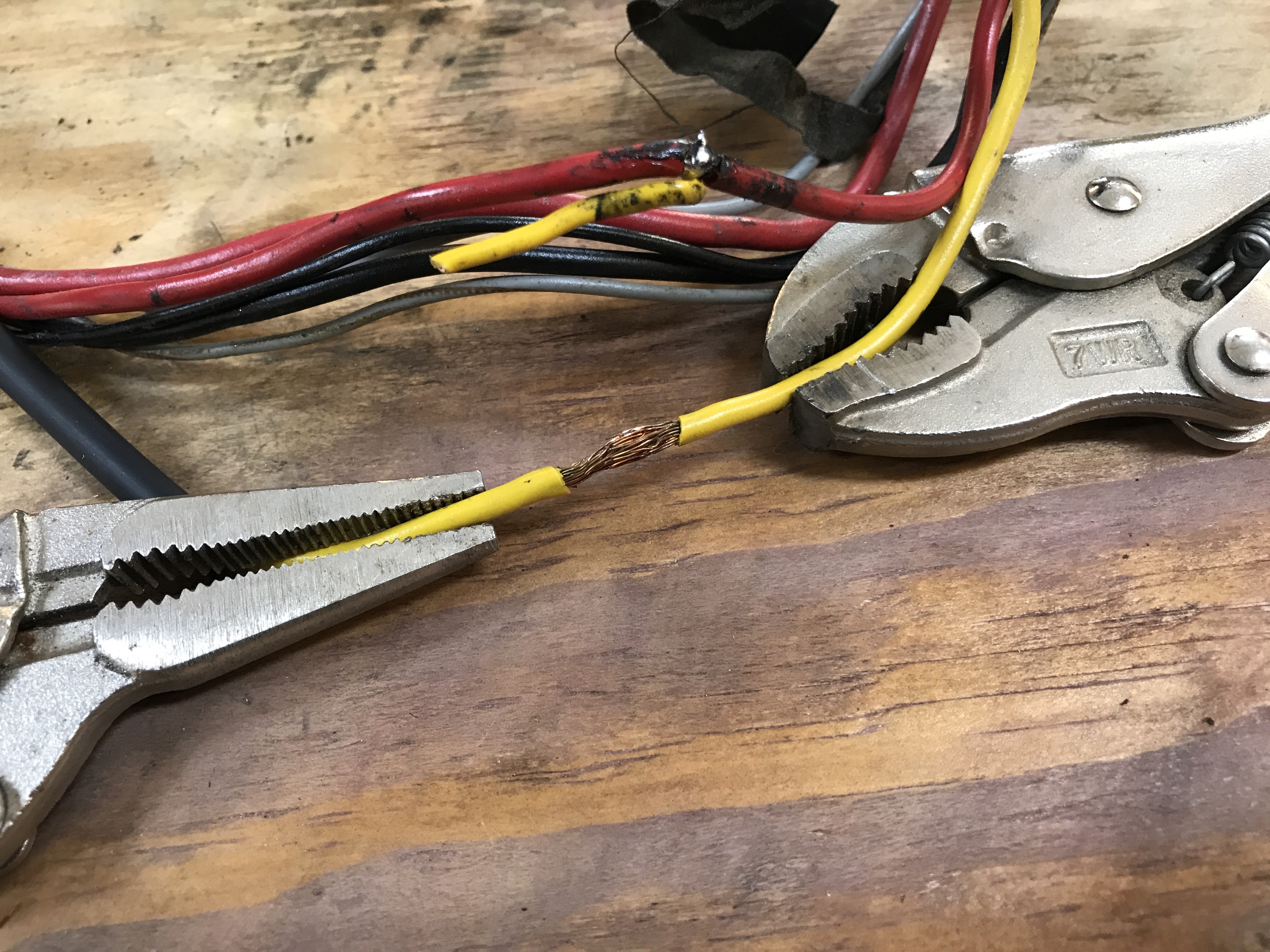

Starting with the yellow wire, I carefully removed the crimp connectors.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:36 PM
Post #1102


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Then weave the wire cores together.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:37 PM
Post #1103


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

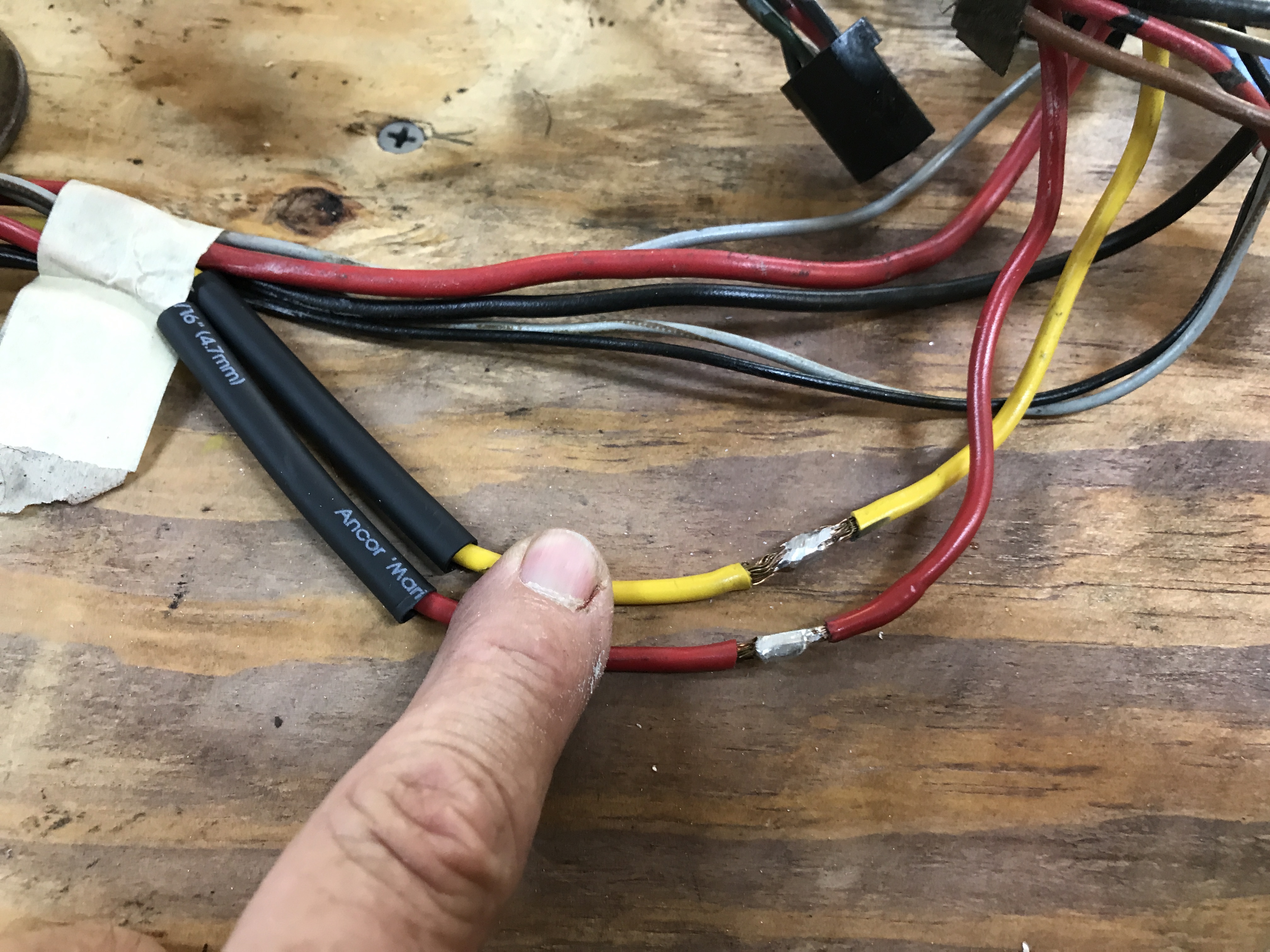

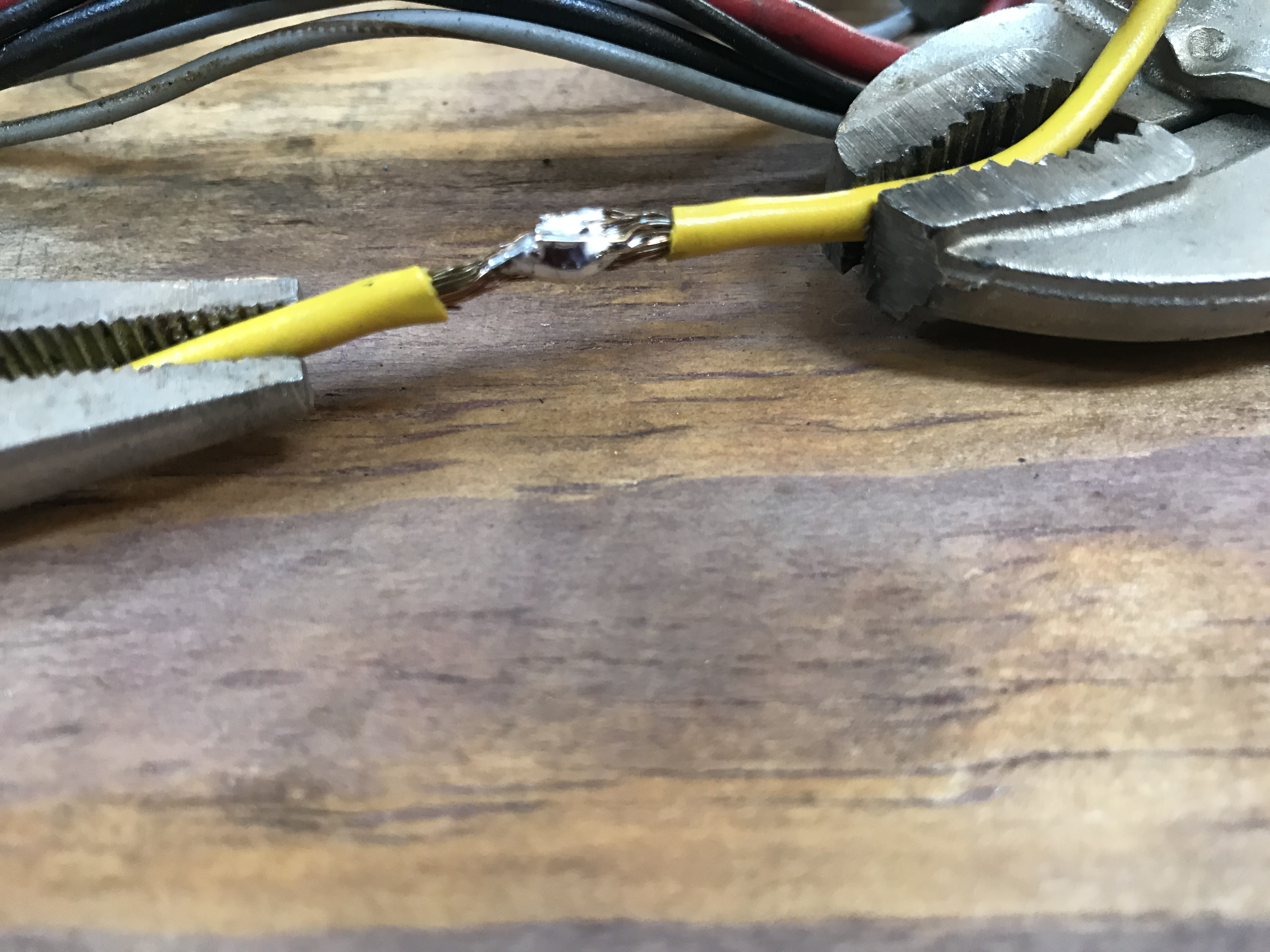

Then solder.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:39 PM
Post #1104


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I did the same for the red lead (and I managed to remember the heat shrink tubing for both).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:40 PM
Post #1105


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

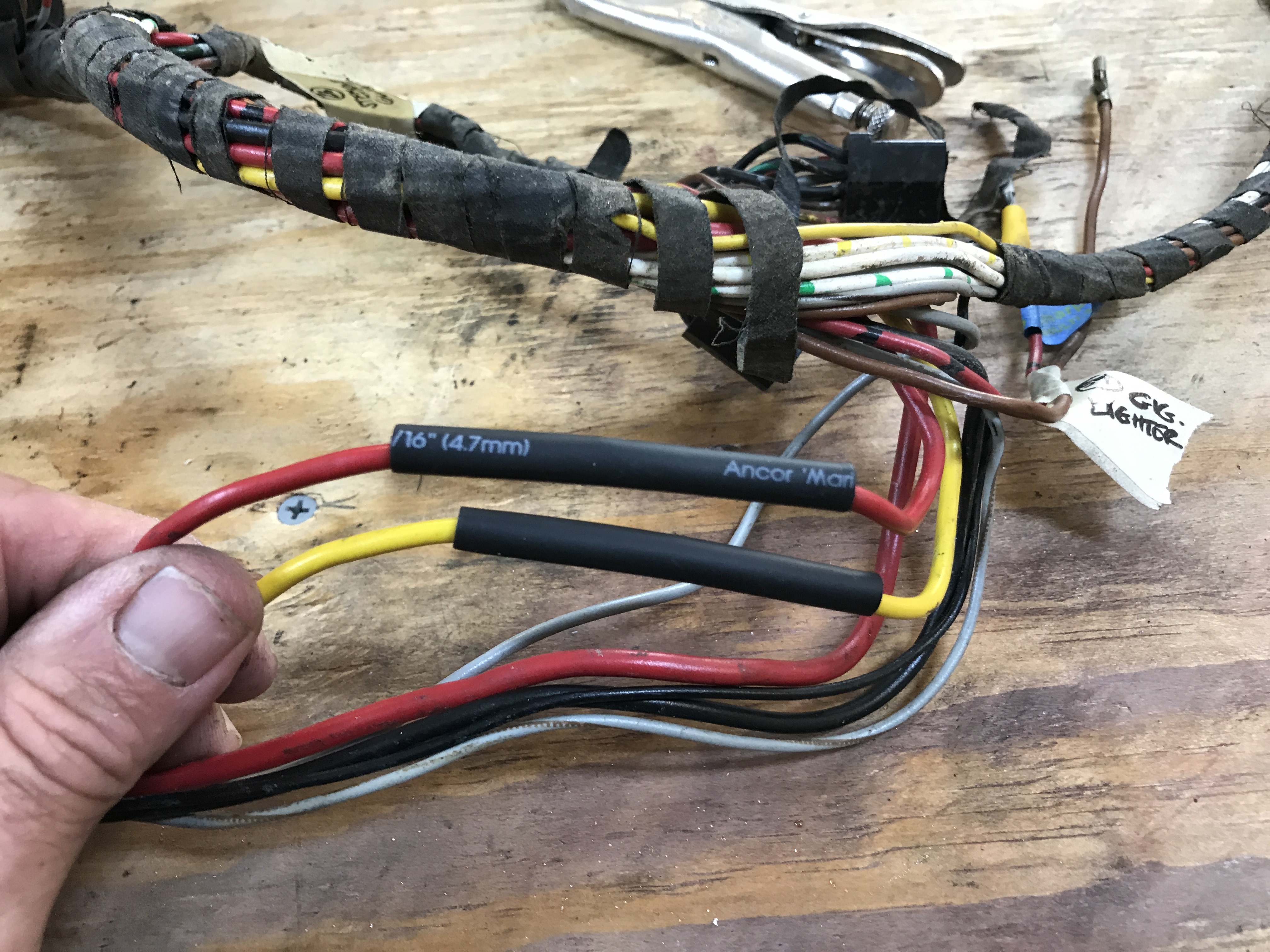

Slide the tubing into place. This is marine grade with internal adhesive.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:41 PM
Post #1106


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

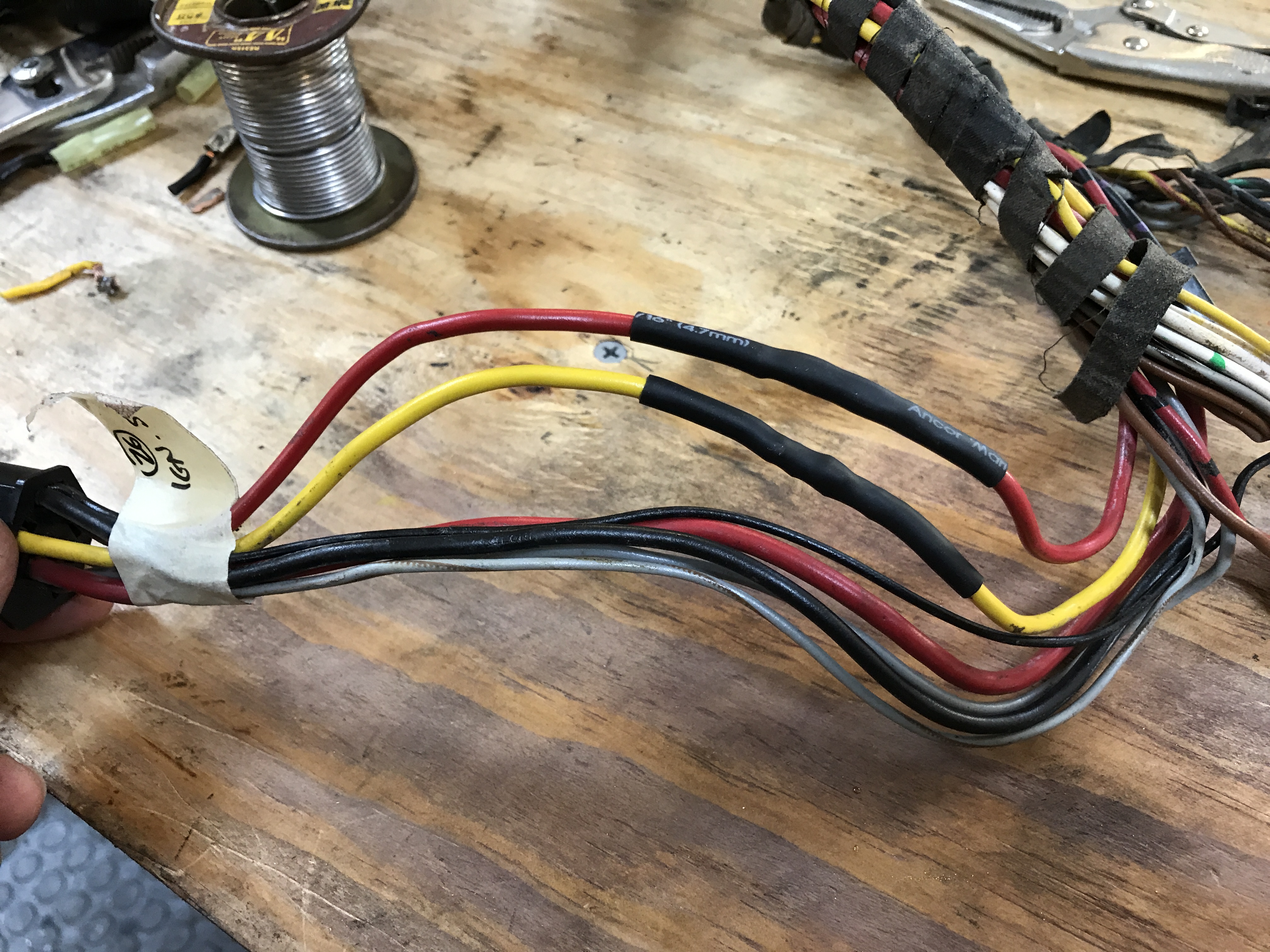

Then hit it with the heat gun.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:42 PM
Post #1107


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

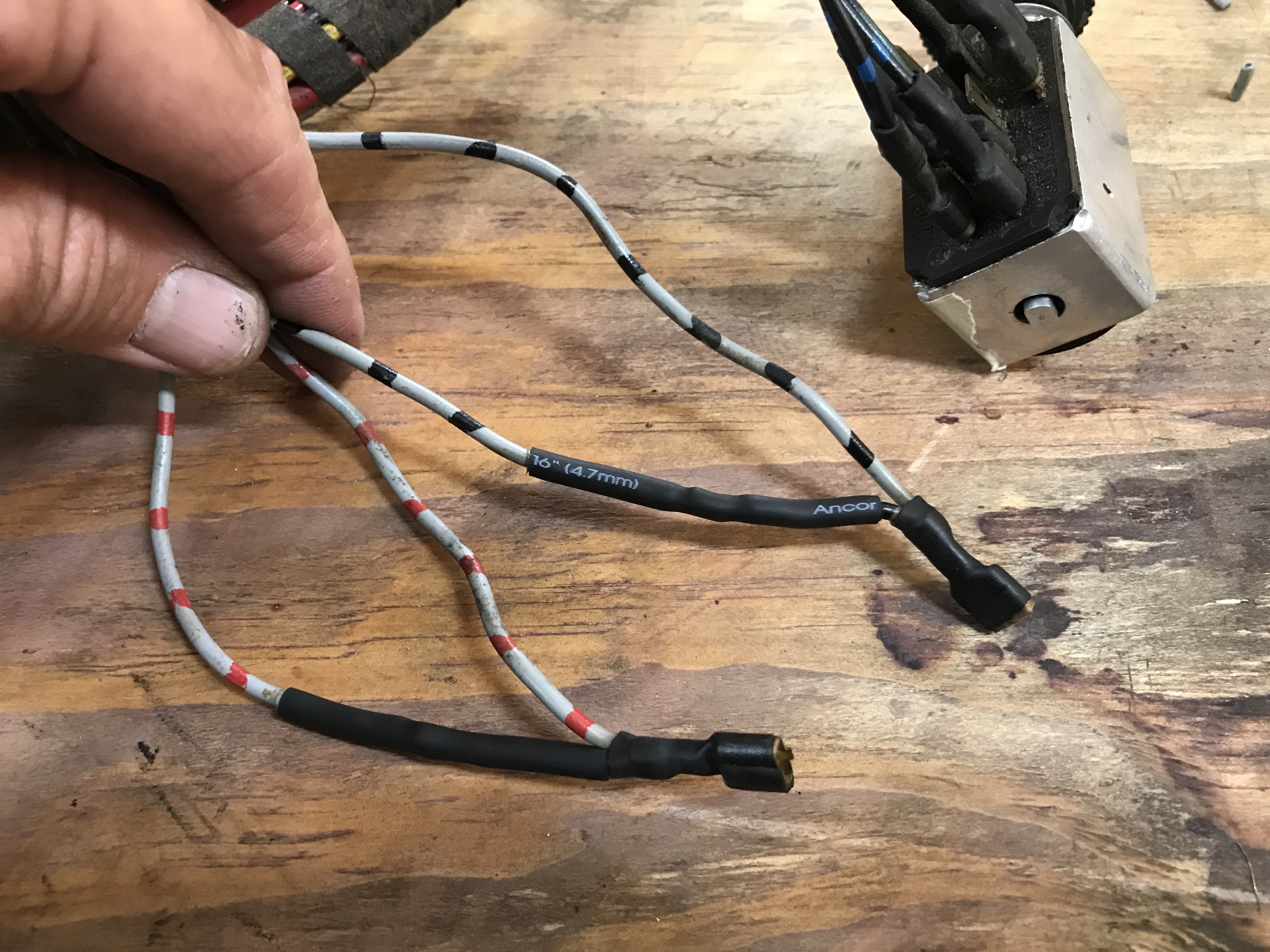

I did the same repair on two leads to the light switch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:44 PM
Post #1108


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

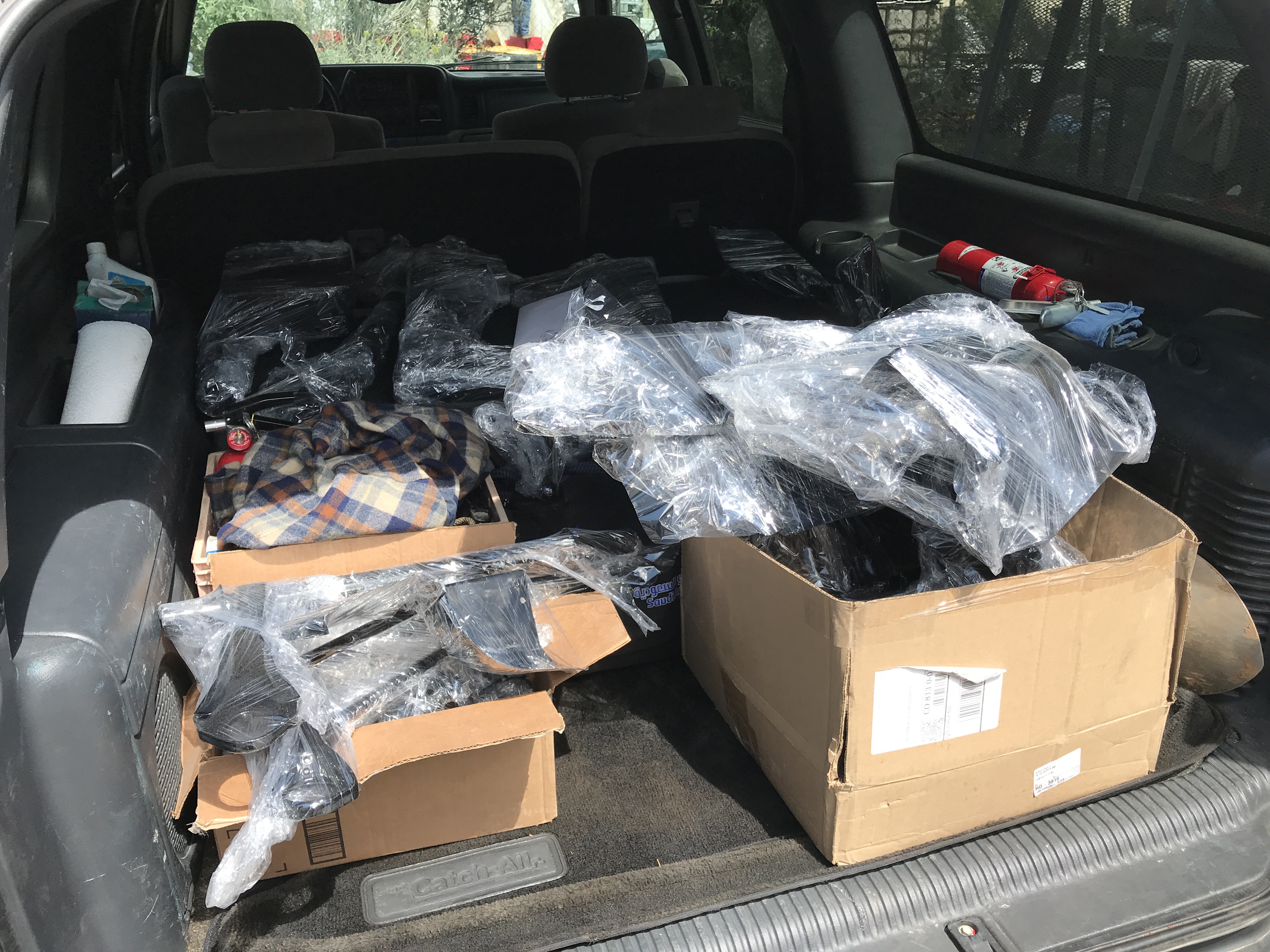

Today was another milestone. I went to the powder coat shop to fetch the first batch of refinished components. I used Evolution Powdercoating in Durango--highly recommended.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:46 PM
Post #1109


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

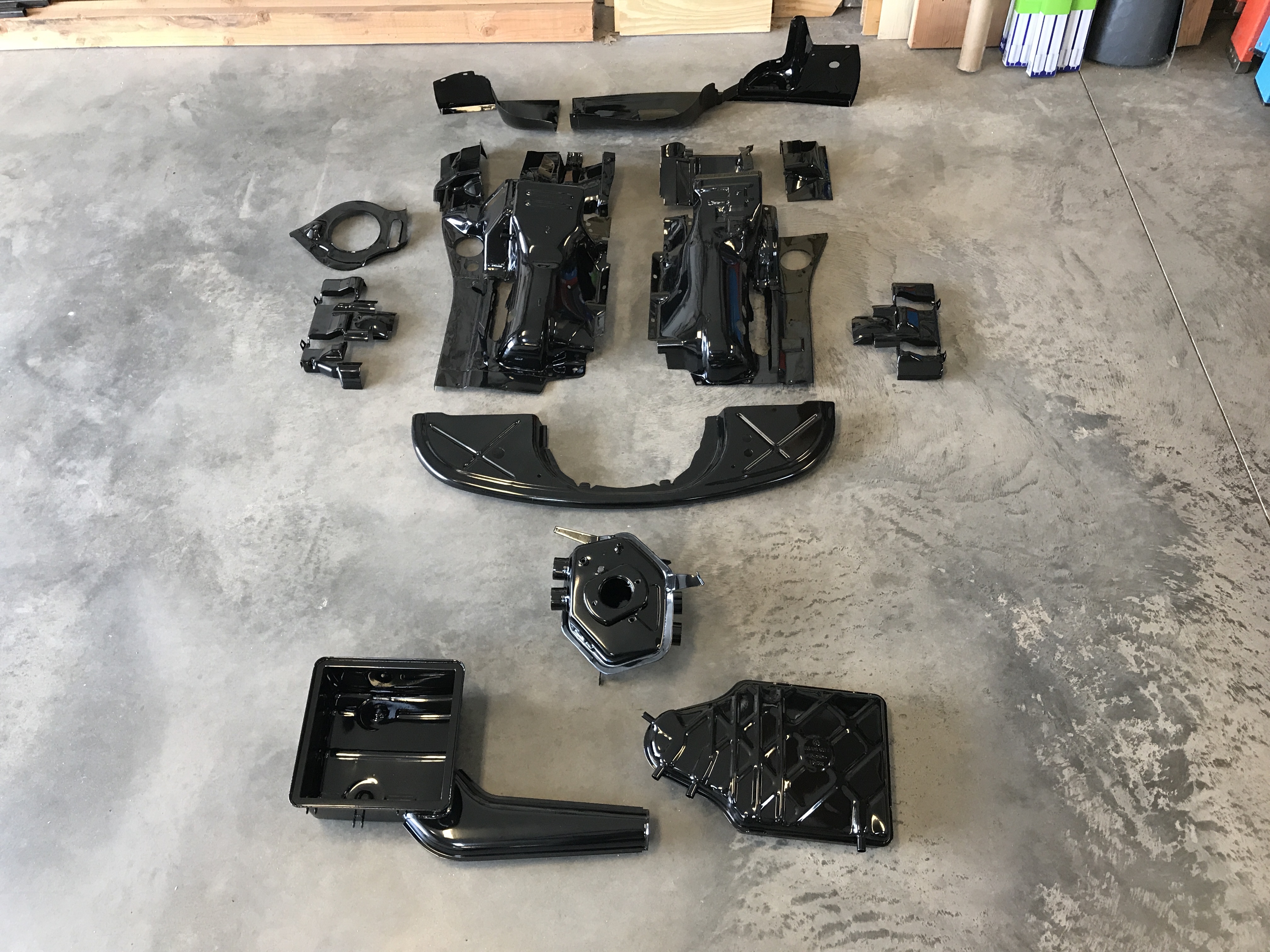

Checking out all the parts. I remember everything except the heat exchanger ductwork, which got high temp powder coat.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:47 PM
Post #1110


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

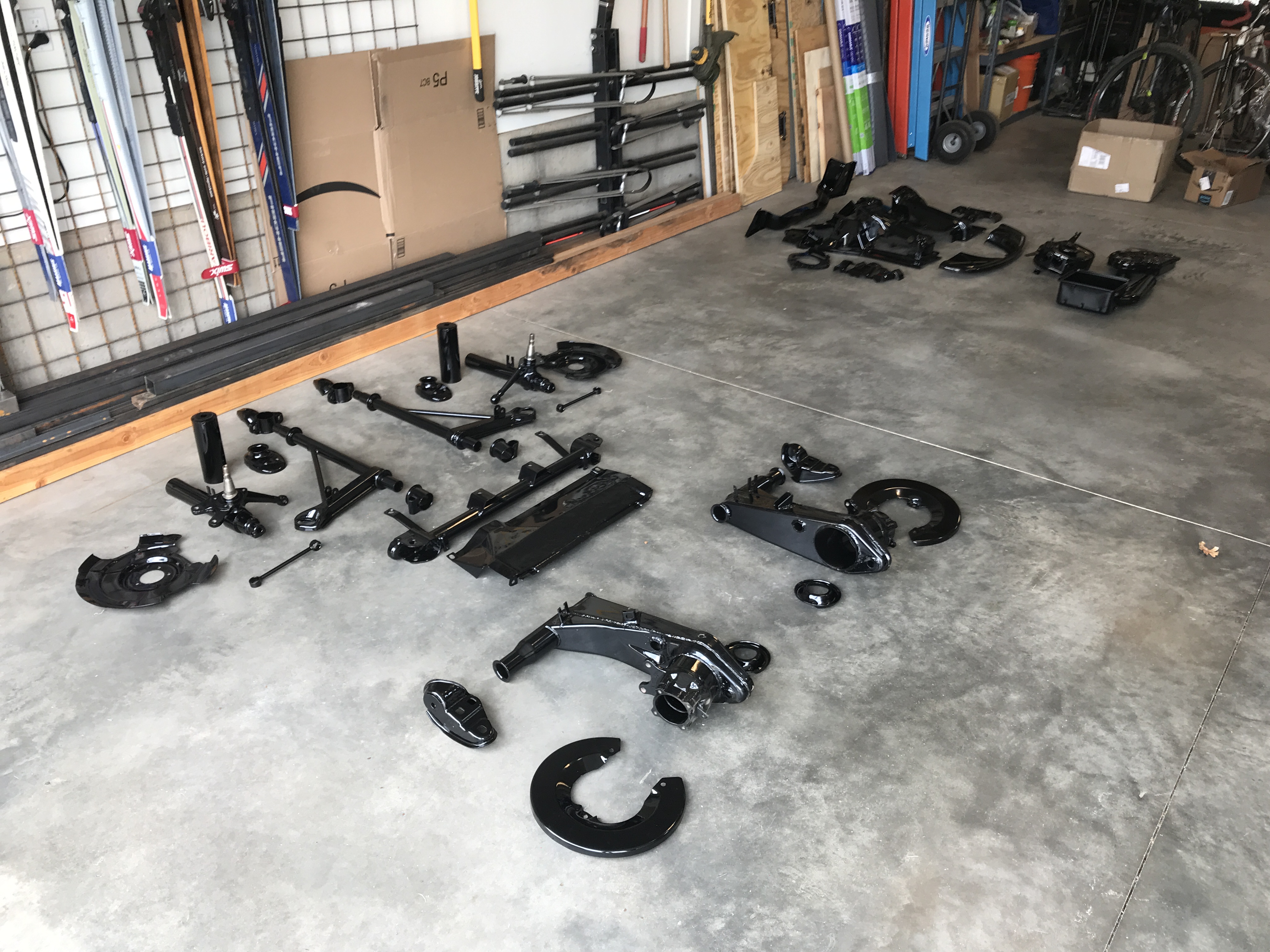

Here's the engine sheet metal, air filter housing, and intake plenum.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:49 PM
Post #1111


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

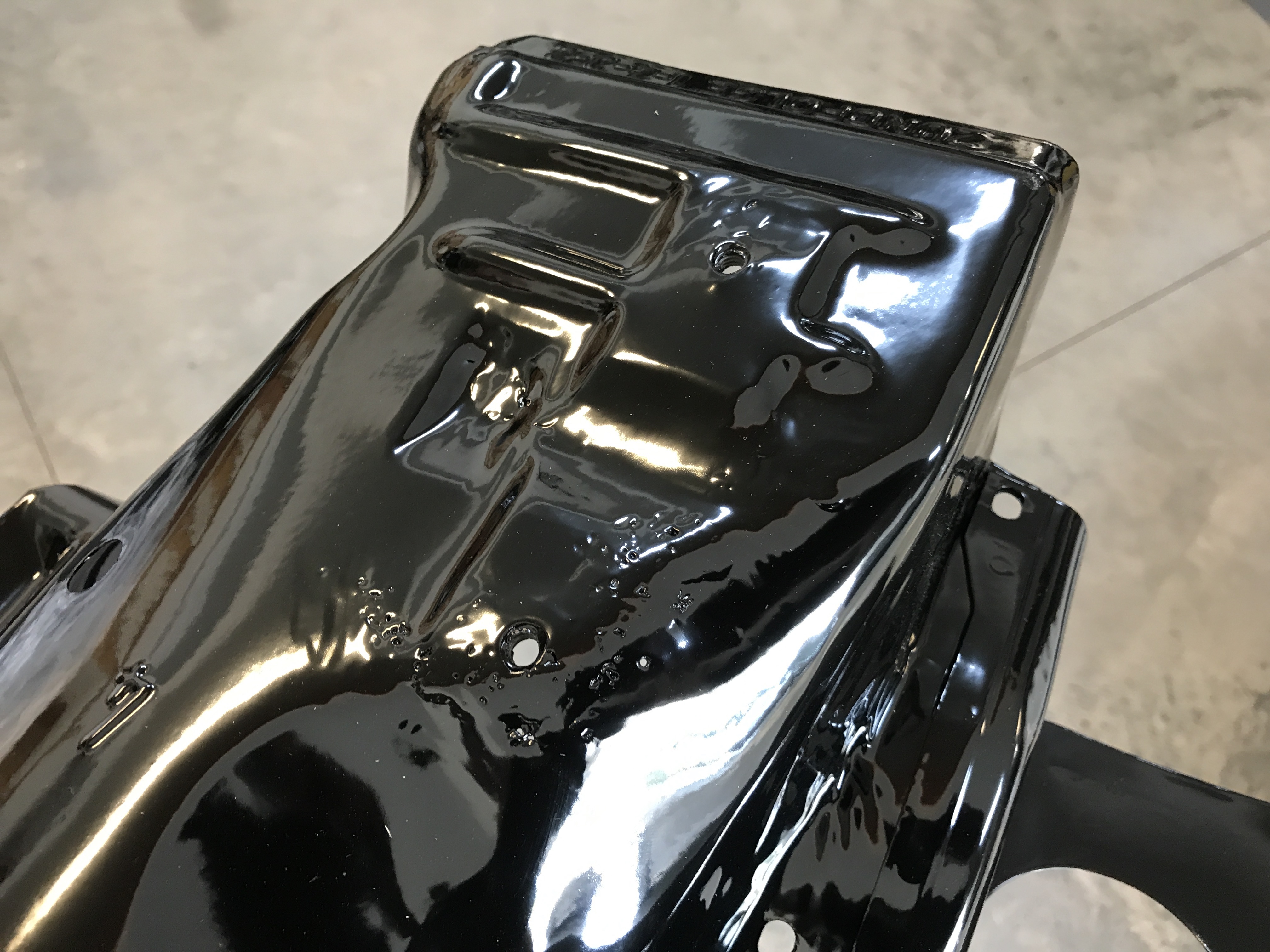

Of course, powder coat, like paint, reveals any flaws in the metal. The section where I welded cracks is not perfect, but will work.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:50 PM
Post #1112


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

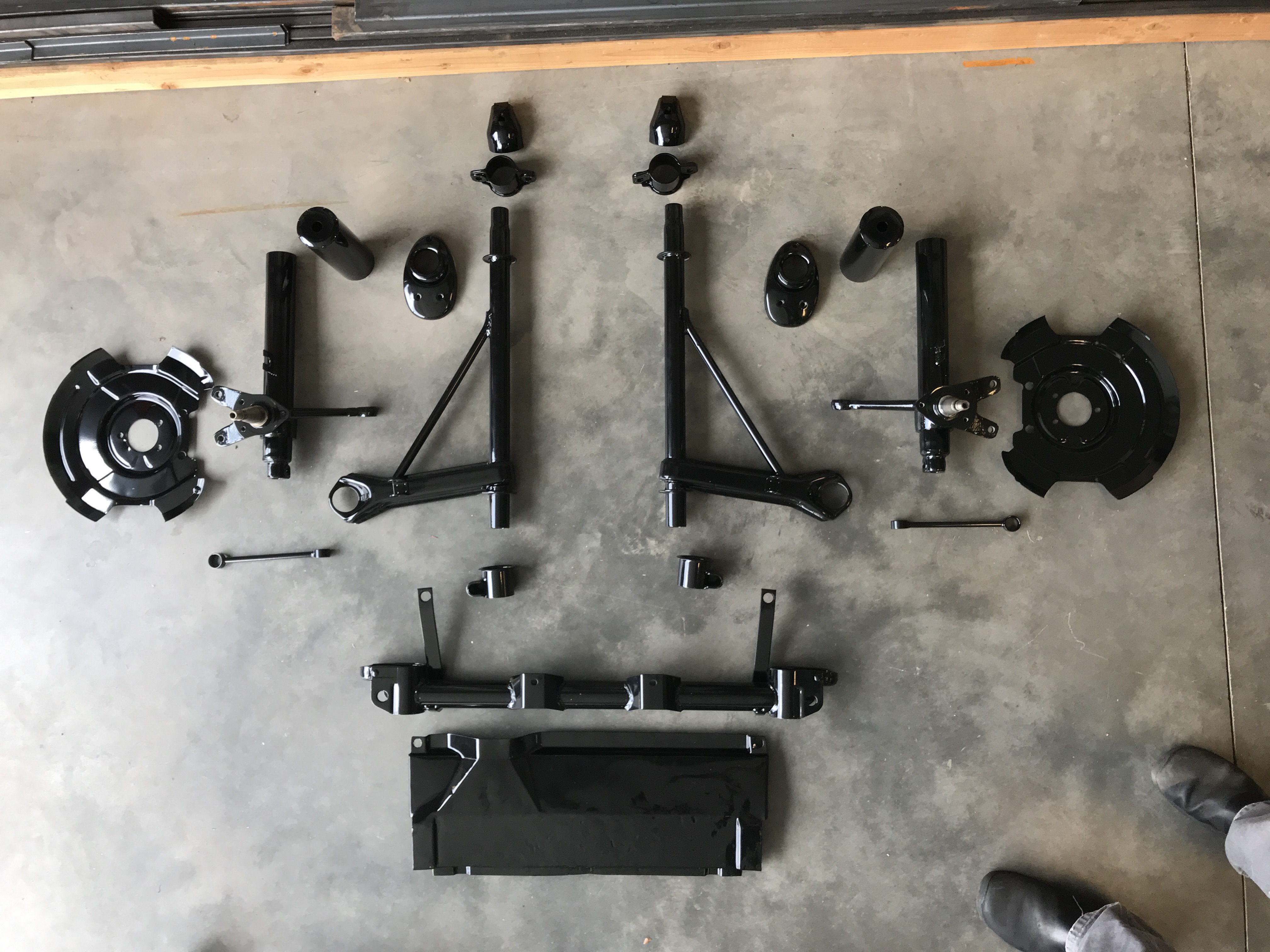

Here's the front suspension, with a slightly lumpy steering cover.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 14 2020, 08:53 PM
Post #1113


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

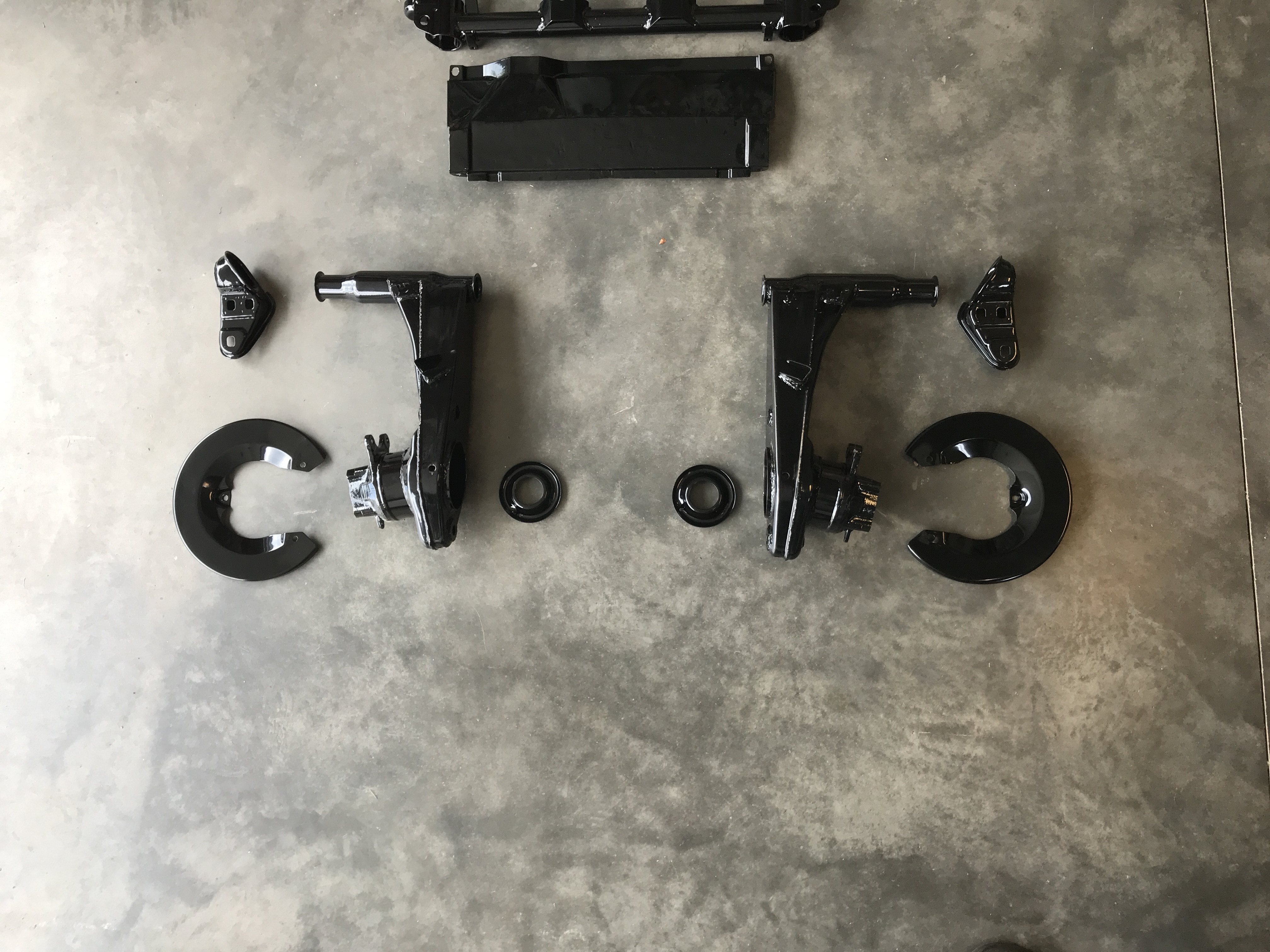

And the rear suspension. The biggest miscommunication led to getting the inside of the rear wheel bearing cavity powder coated. I will need to remove this before installing the bearings. The shop did a great job of protecting other areas and all threaded holes.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2020, 08:13 PM
Post #1114


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

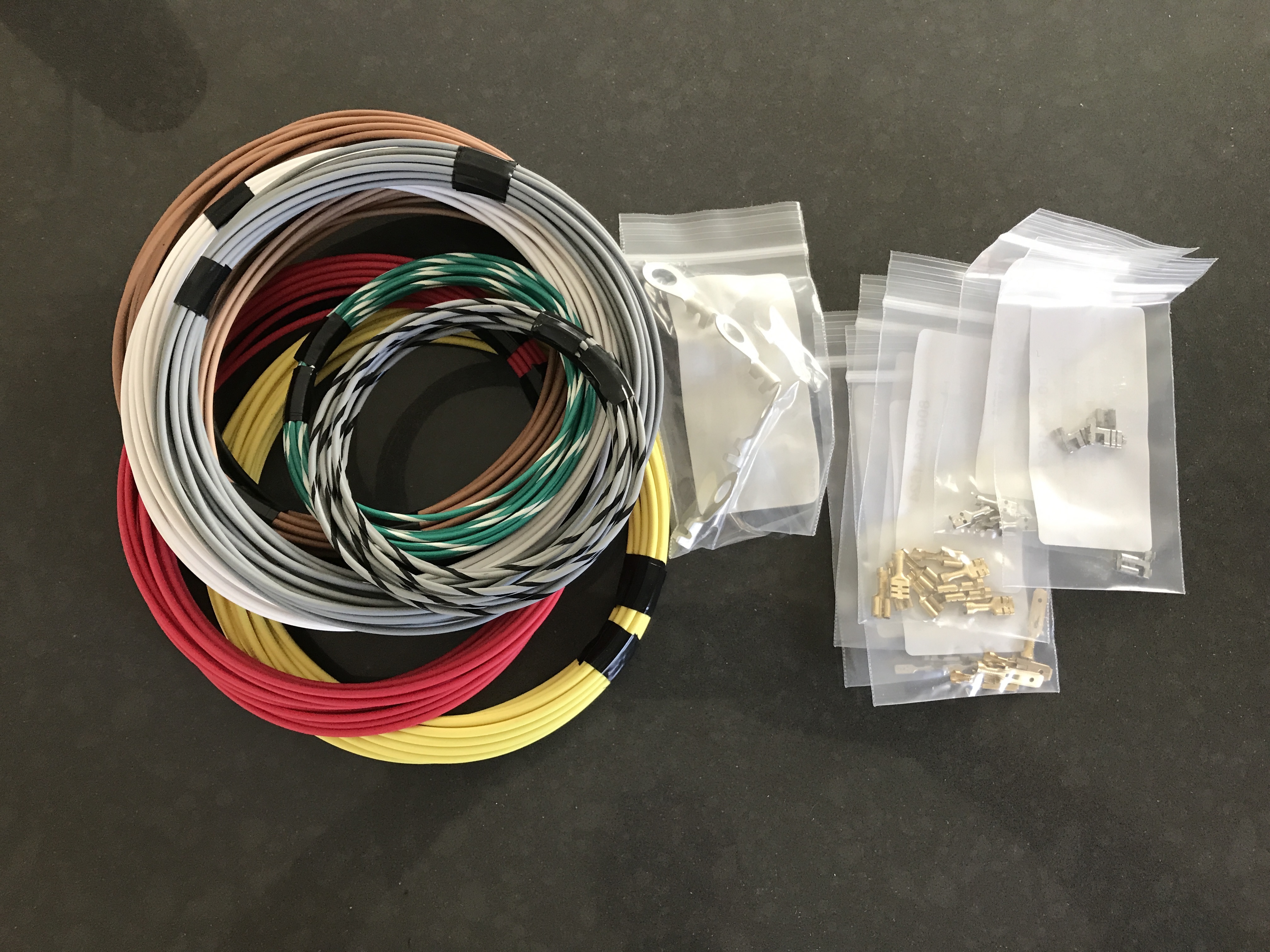

I got my supply of colored wire (4RCustomsWire) and metric connectors (Bel Metric).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2020, 08:14 PM
Post #1115


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

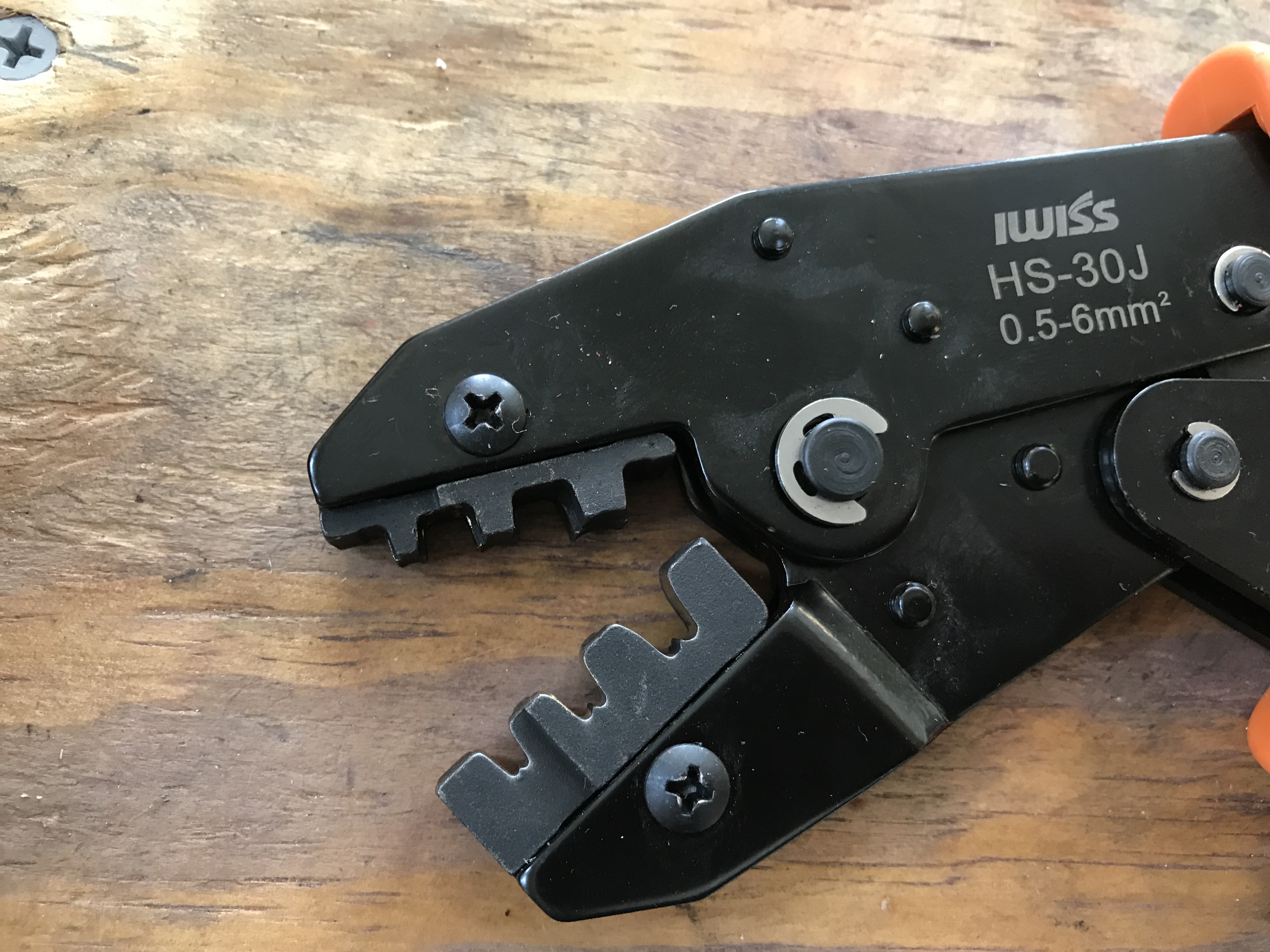

Also a first time to use my fancy crimp tool, with correct jaws fitted.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2020, 08:15 PM
Post #1116


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

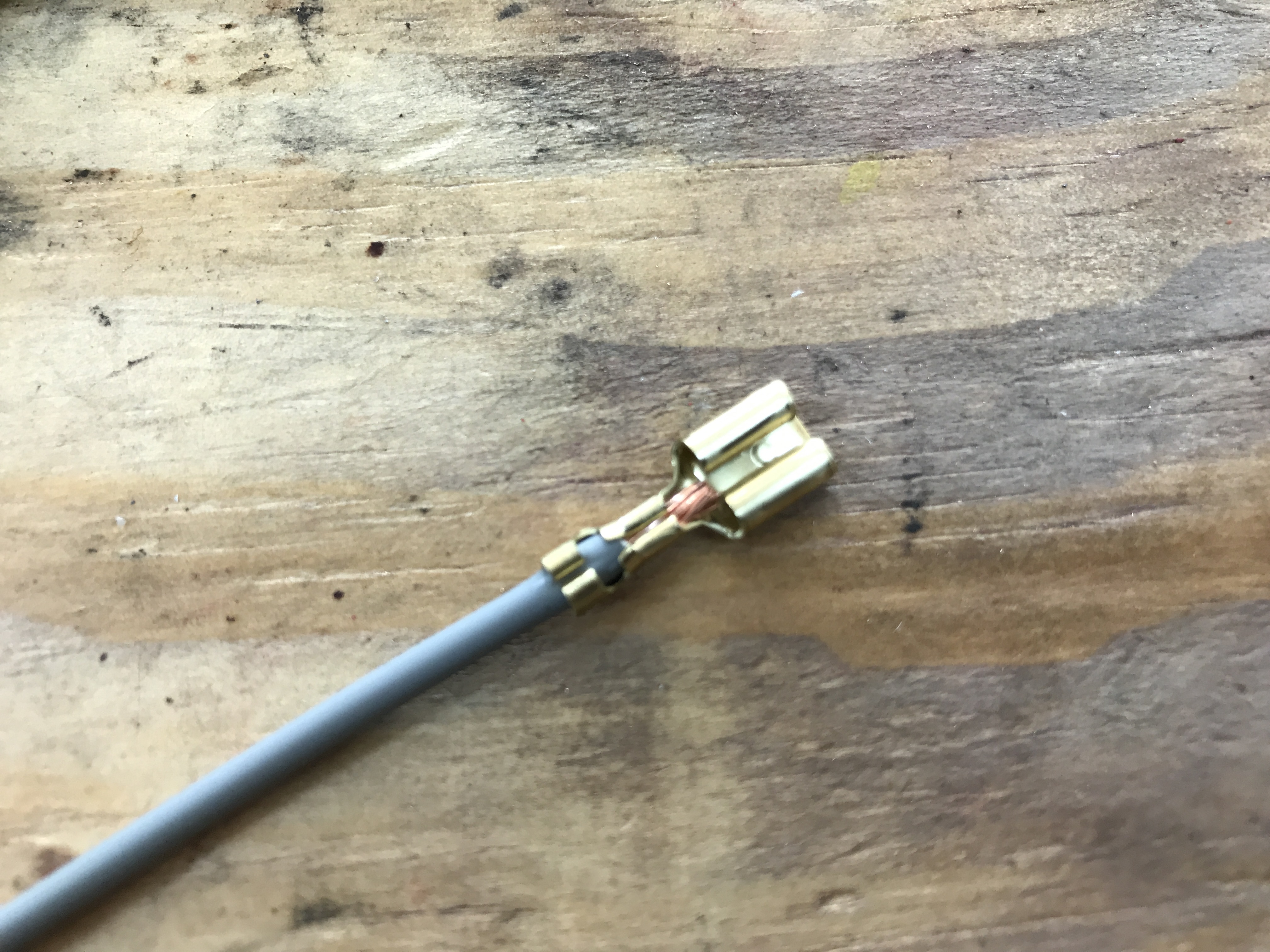

Here's a test crimp, with a typical spade connector. Looks very correct.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2020, 08:18 PM
Post #1117


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

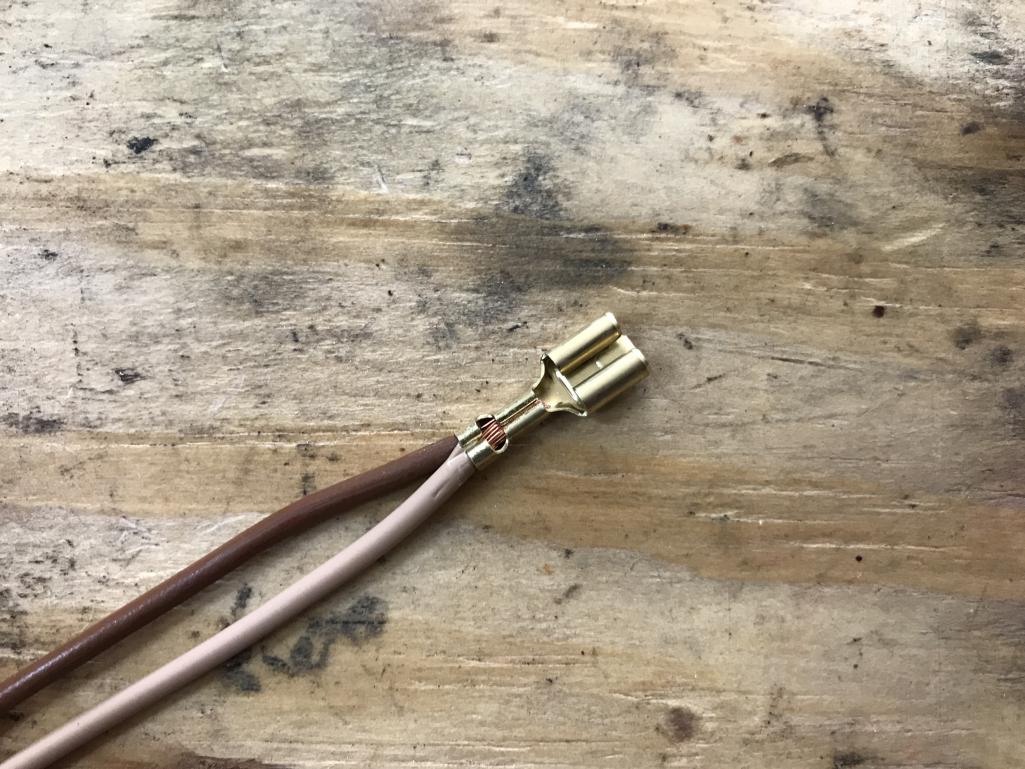

And here's a typical repair: replacing about 6 inches of mangled original wire with the new piece soldered onto the remaining lead, covered with heat shrink tubing, a new connector, and heat shrink on that, too.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2020, 08:19 PM
Post #1118


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

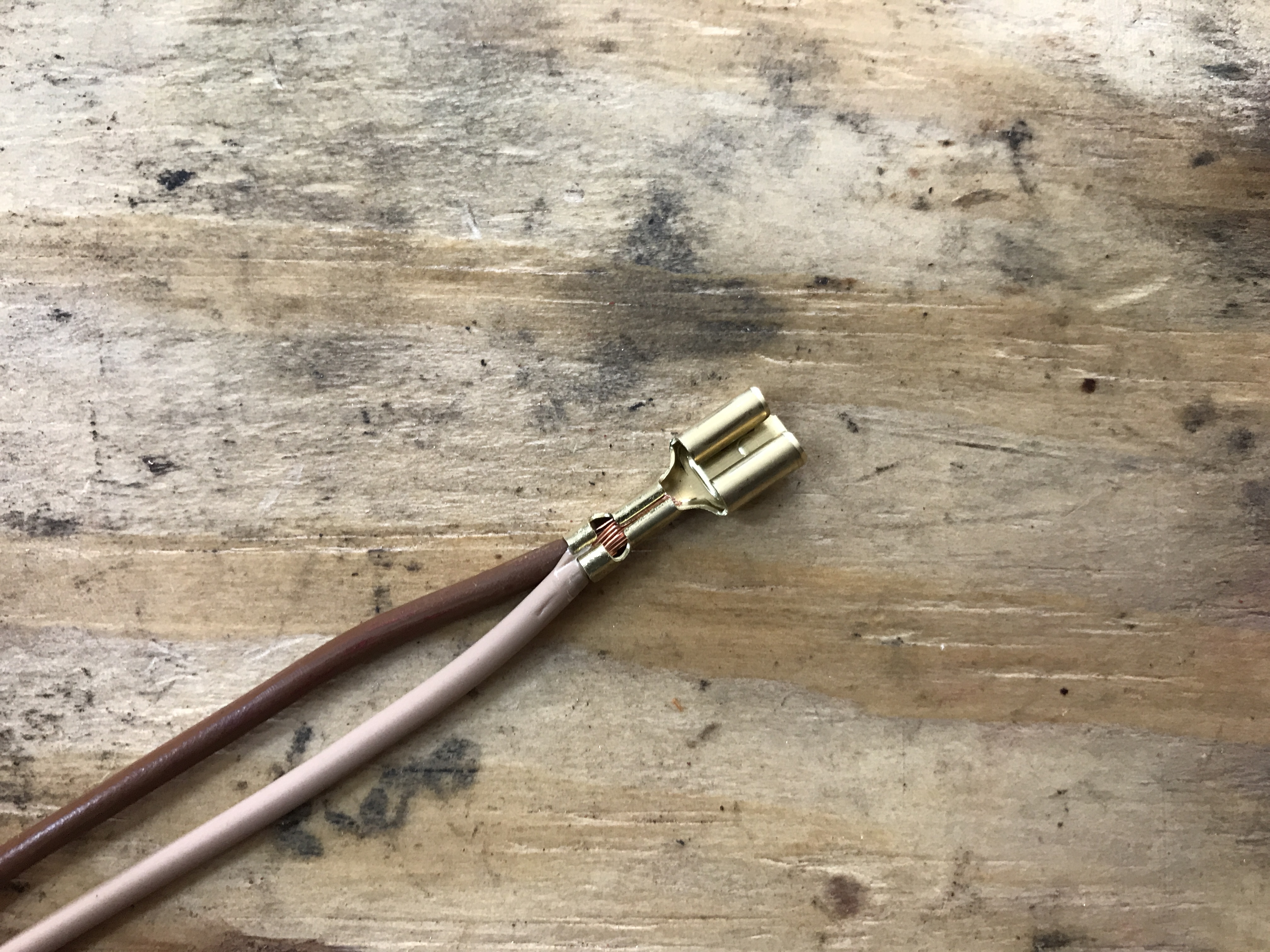

For another repair, I replaced a complete section of wire, from one connector to the next. The crimp tool handles double wire without a problem. (The new wire color match is not perfect, tan vs. brown).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2020, 08:20 PM
Post #1119


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

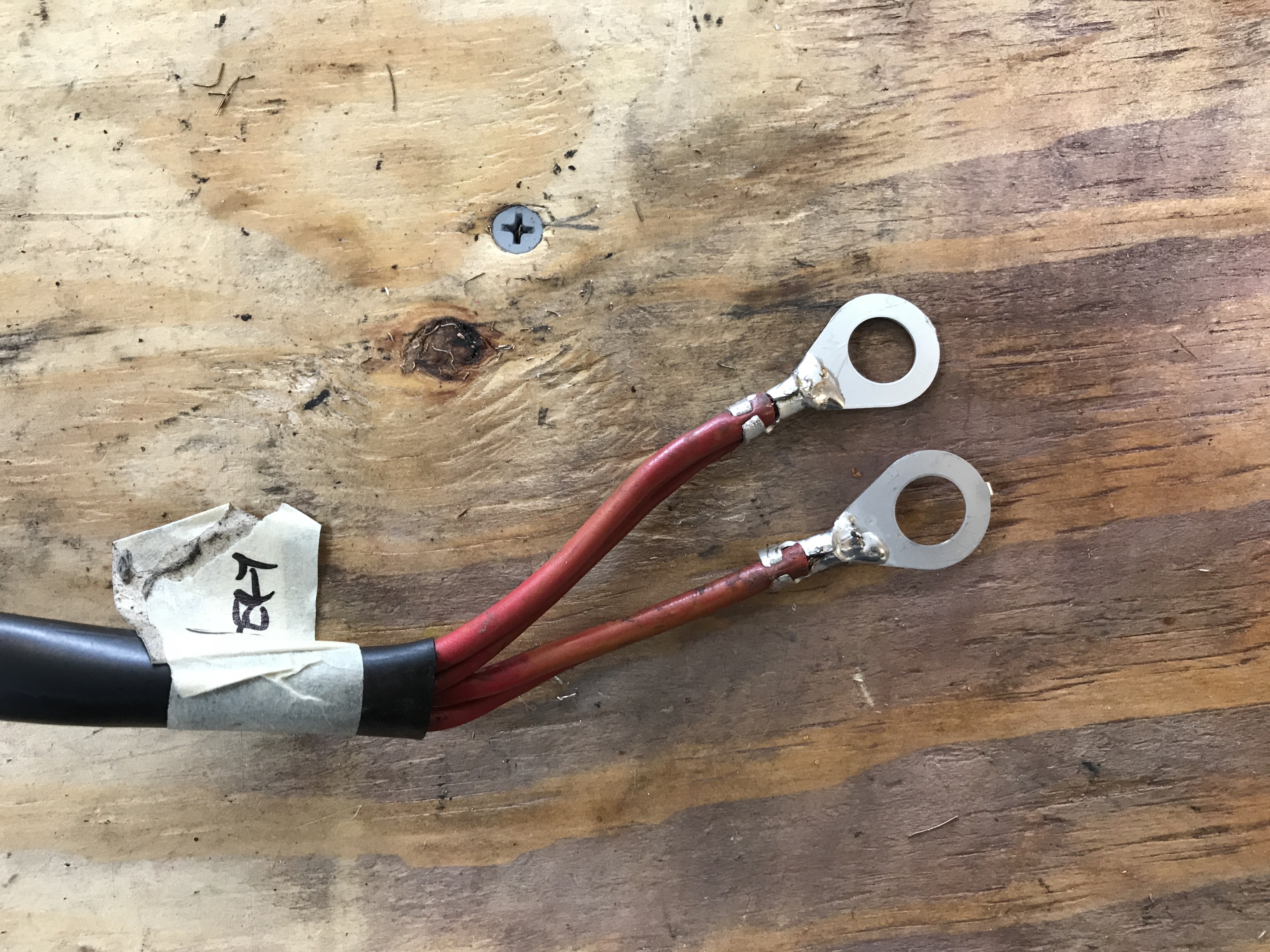

New ring terminals for the battery tie-in, crimped and soldered.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Aug 15 2020, 08:21 PM
Post #1120


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

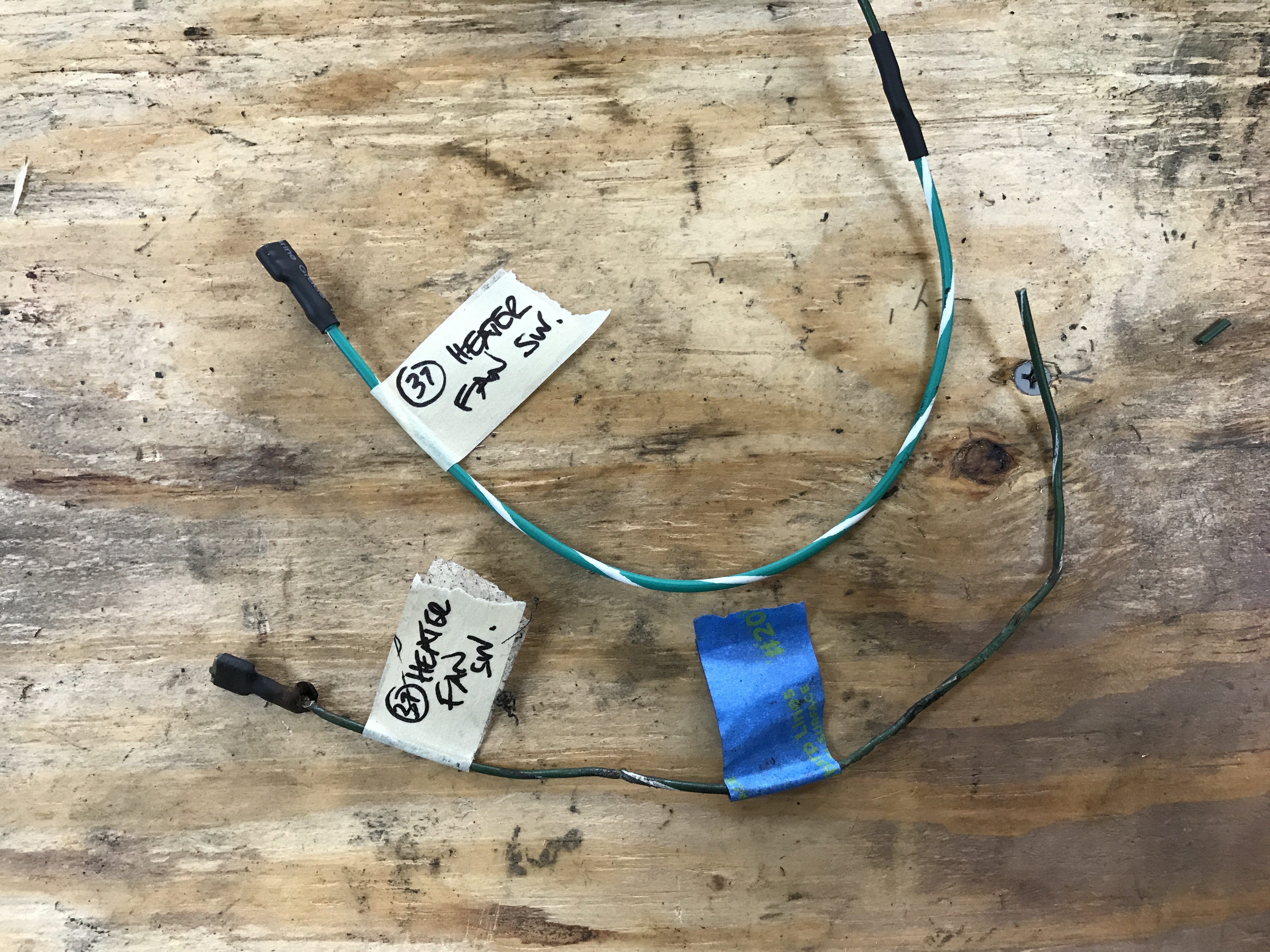

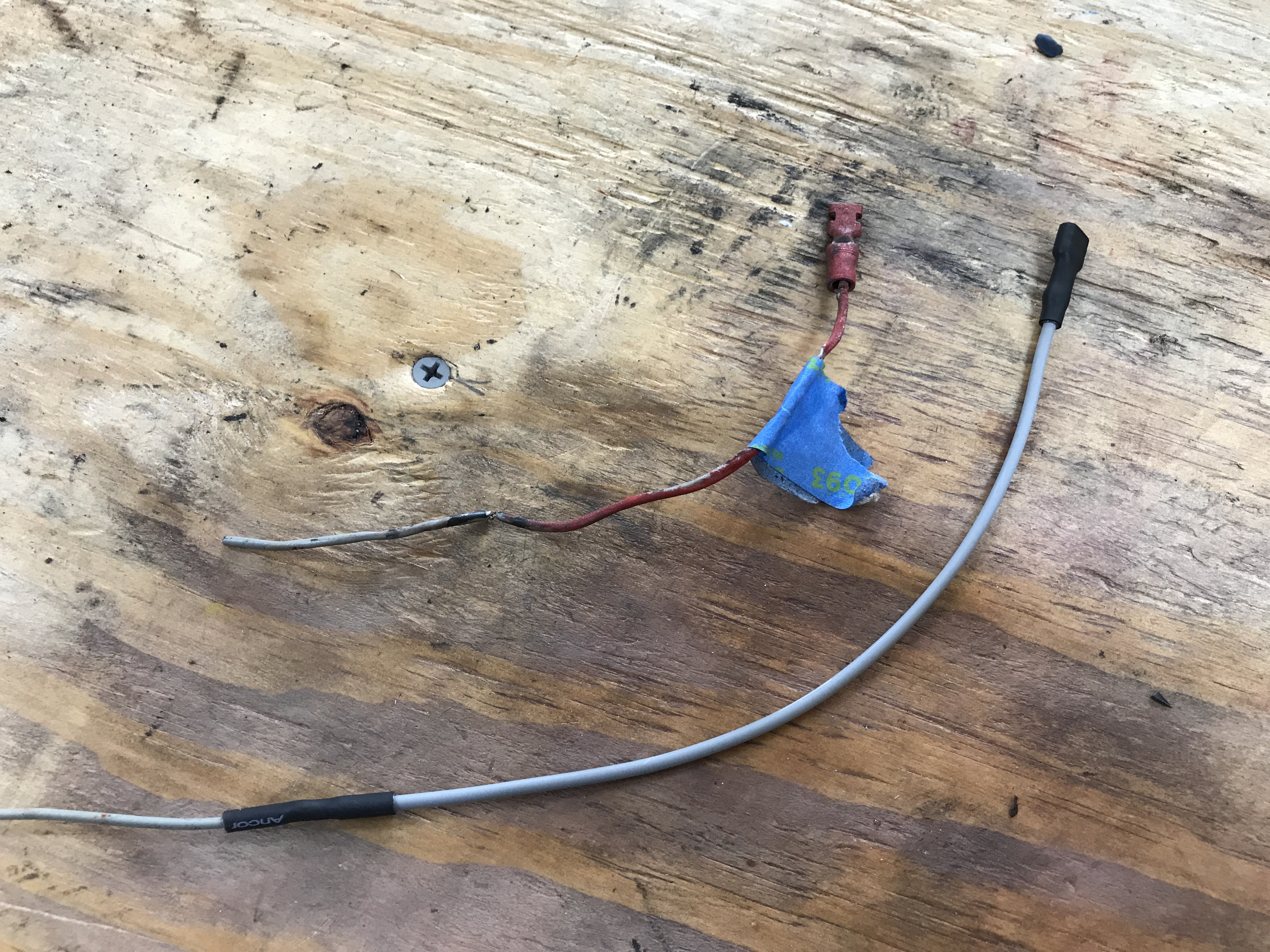

Another repair for a mangled lead--I even matched the green wire with white stripe (sort of).
