> Rebuiding Inside-out
bkrantz
post Sep 13 2020, 06:53 PM
Post #1301


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Thanks, Blown. I enjoy stopping to take phots, and it keeps me from rushing at times. And posting online gives me some motivation to keep up momentum.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 06:55 PM
Post #1302


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

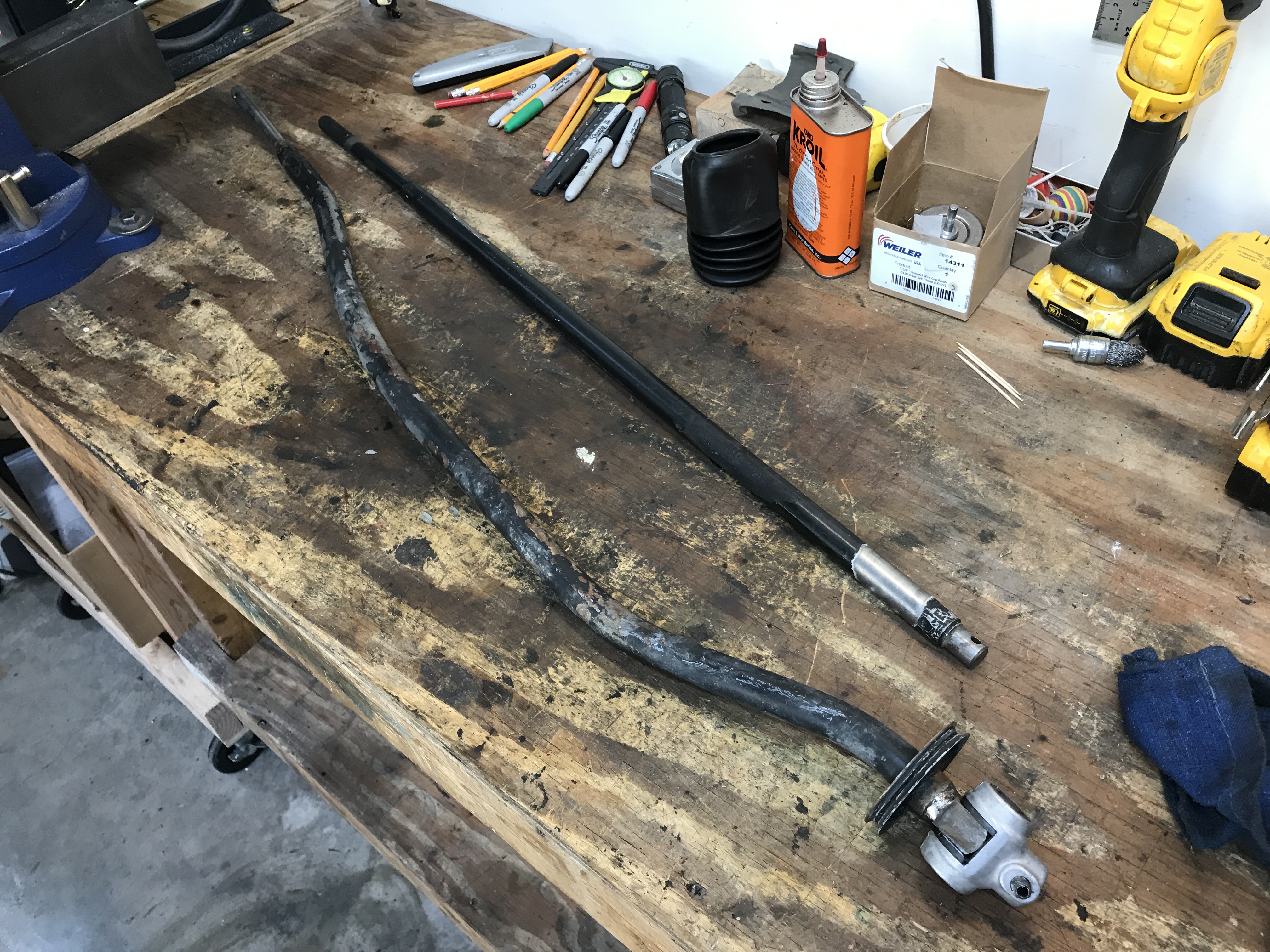

I inspected the shift rods today. The both look fine, just in need of paint (or powder-coat).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 06:56 PM
Post #1303


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

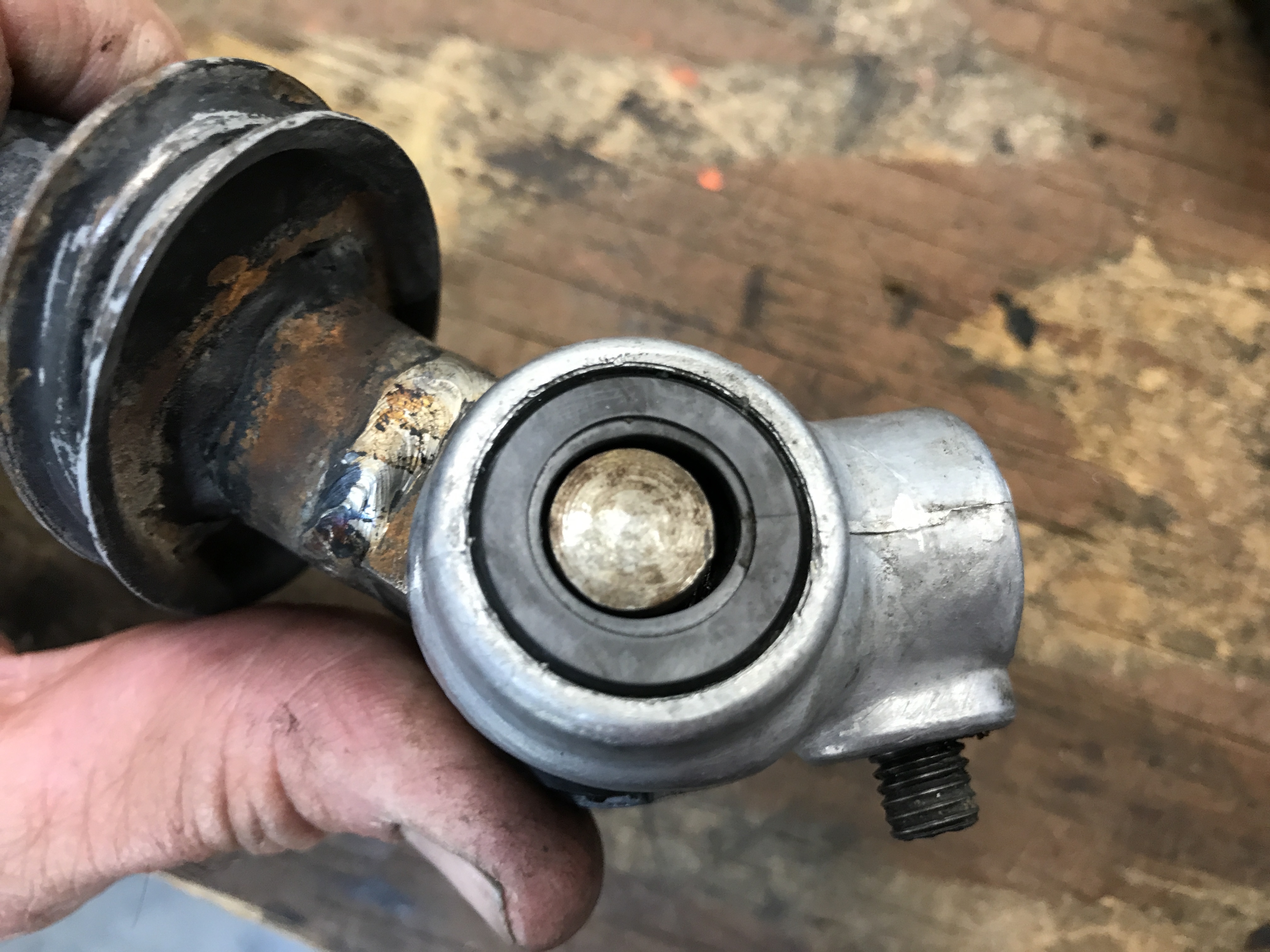

The linkage, though, looks a bit (or more) loose. The plastic bushings might be worn. (IMG:style_emoticons/default/biggrin.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 06:58 PM
Post #1304


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

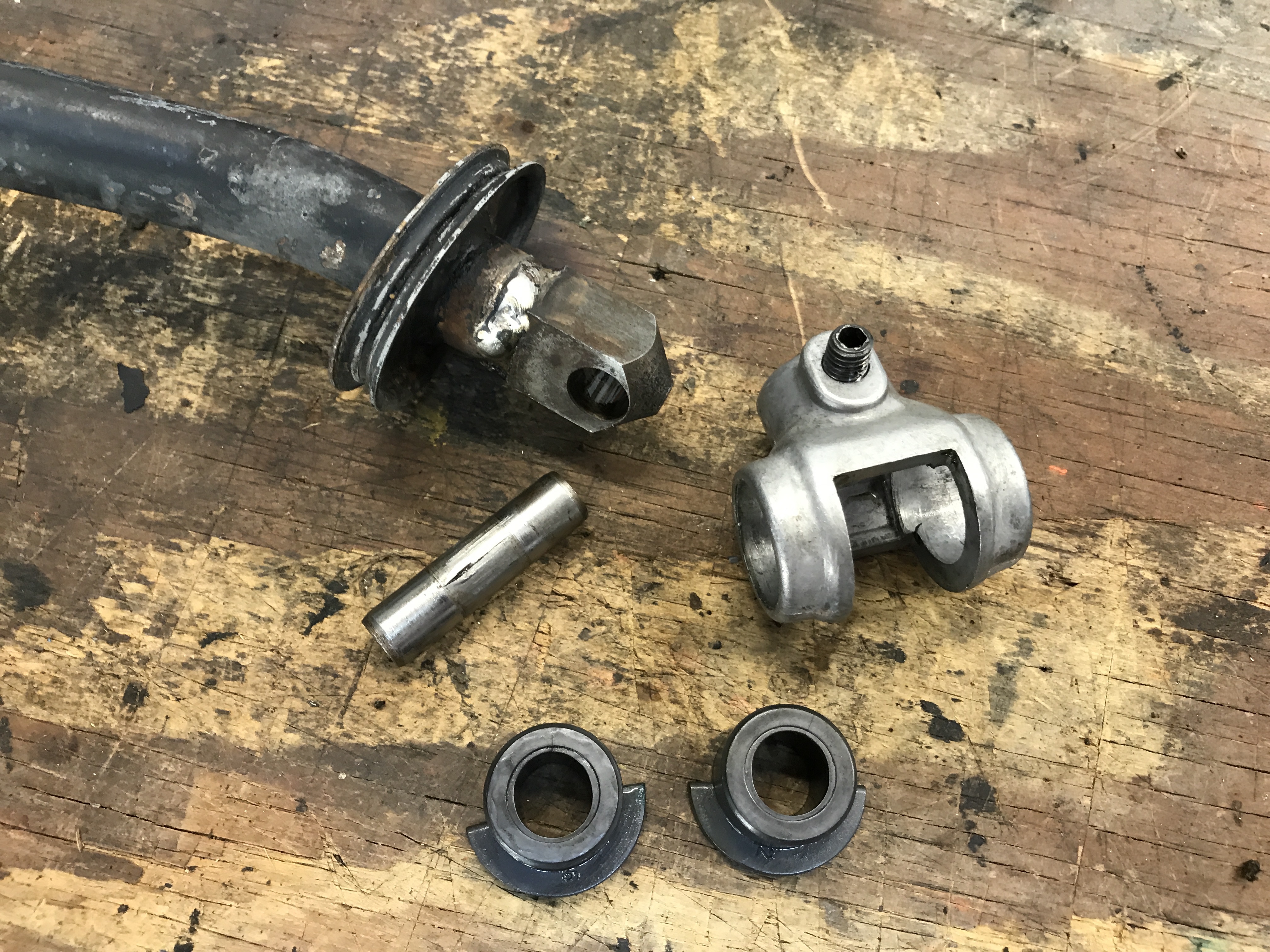

It took about 30 seconds to remove the pivot shaft with my press. The bushings are definitely done.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:01 PM
Post #1305


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

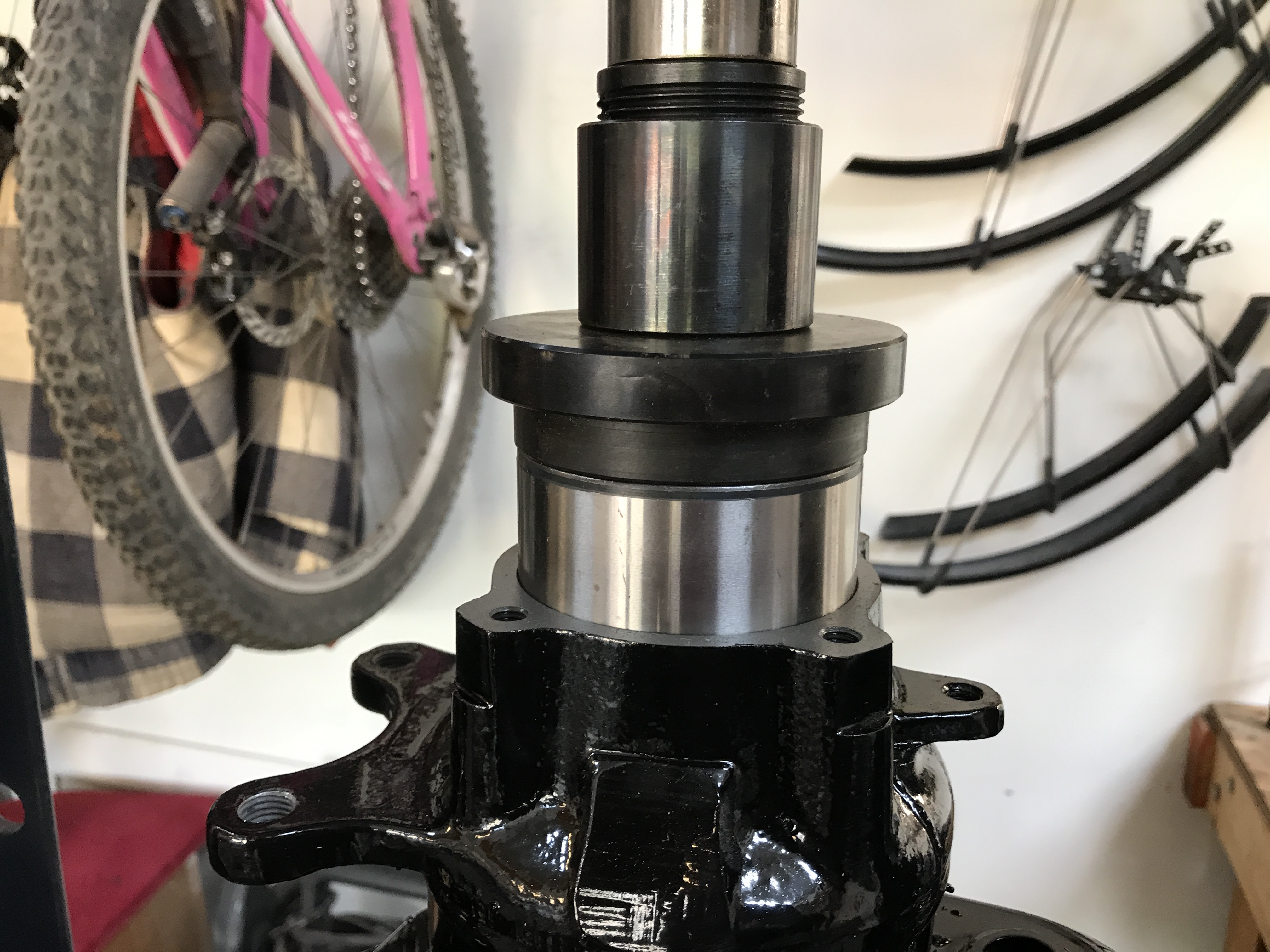

Speaking of the press, I installed the rear wheel bearings in the trailing arms today. Based on my bench testing, I decided to coat the bearing cavity in the arm, which was blasted to bare metal, with Boeshield T-9.

Very easy to press the bearing, with little force required.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:02 PM
Post #1306


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

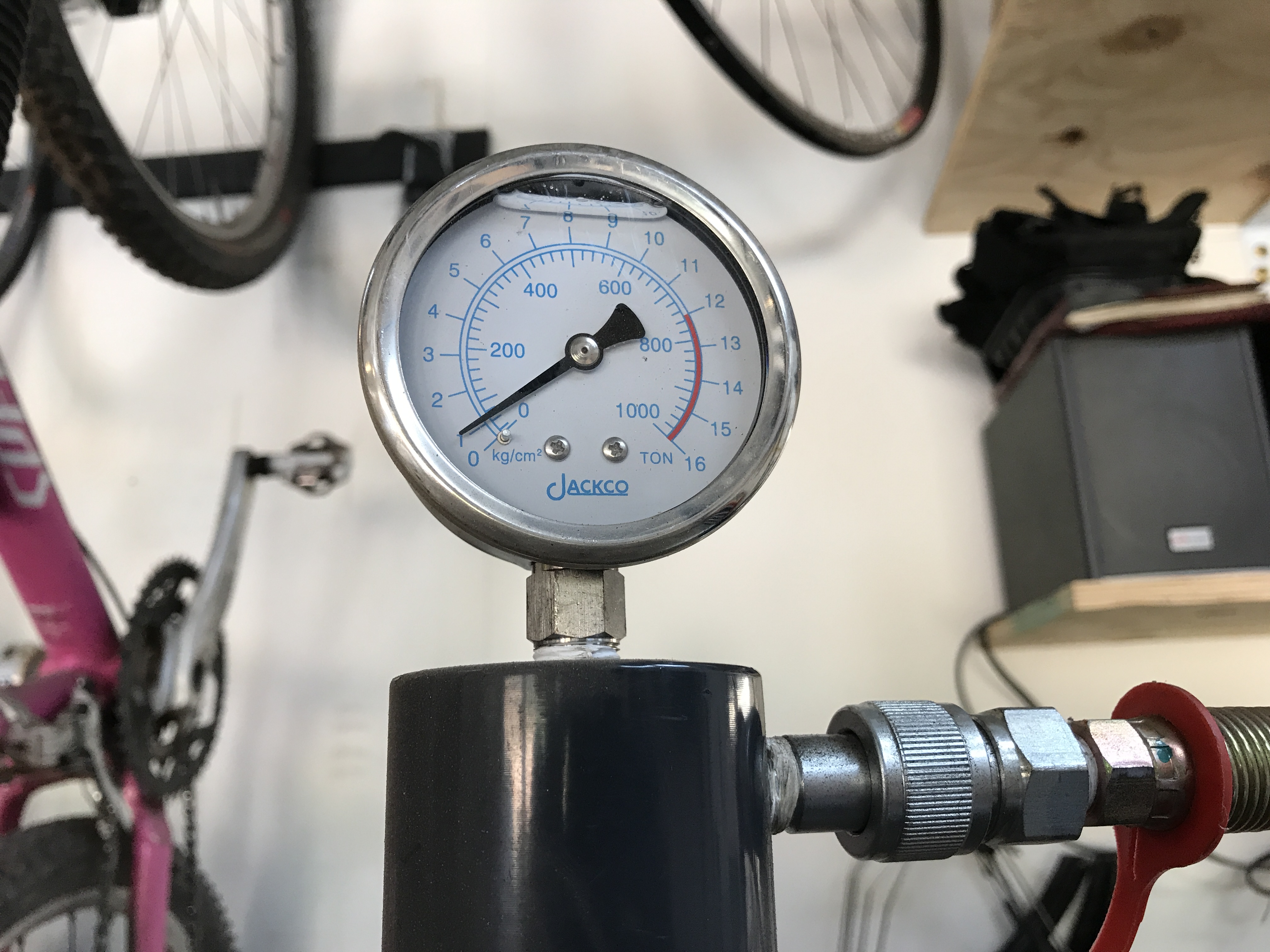

I like using a press with a pressure gauge, so that when the bearing is seated, I can see the pressure ramp up.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:04 PM
Post #1307


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

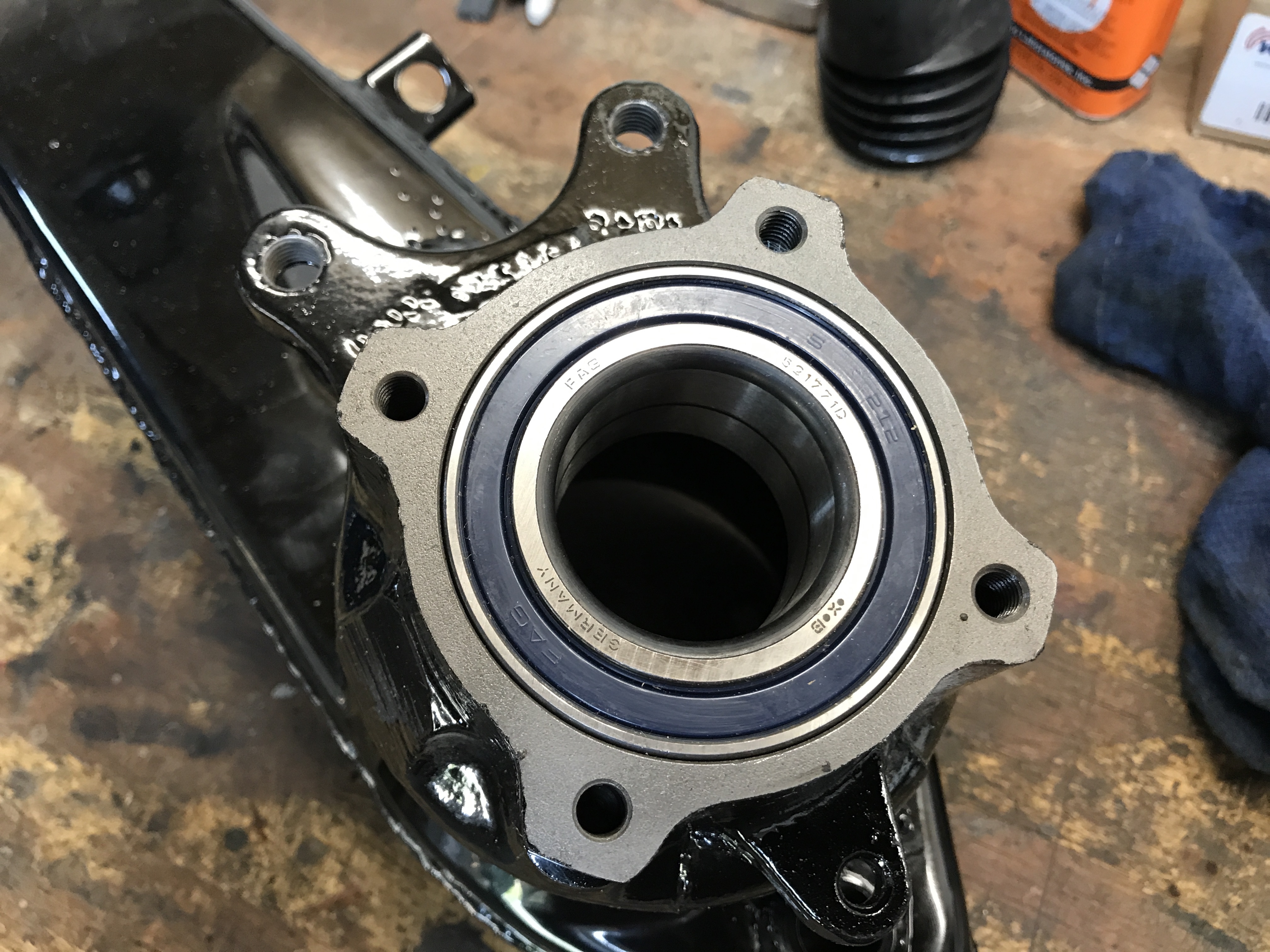

Bearing in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:05 PM
Post #1308


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

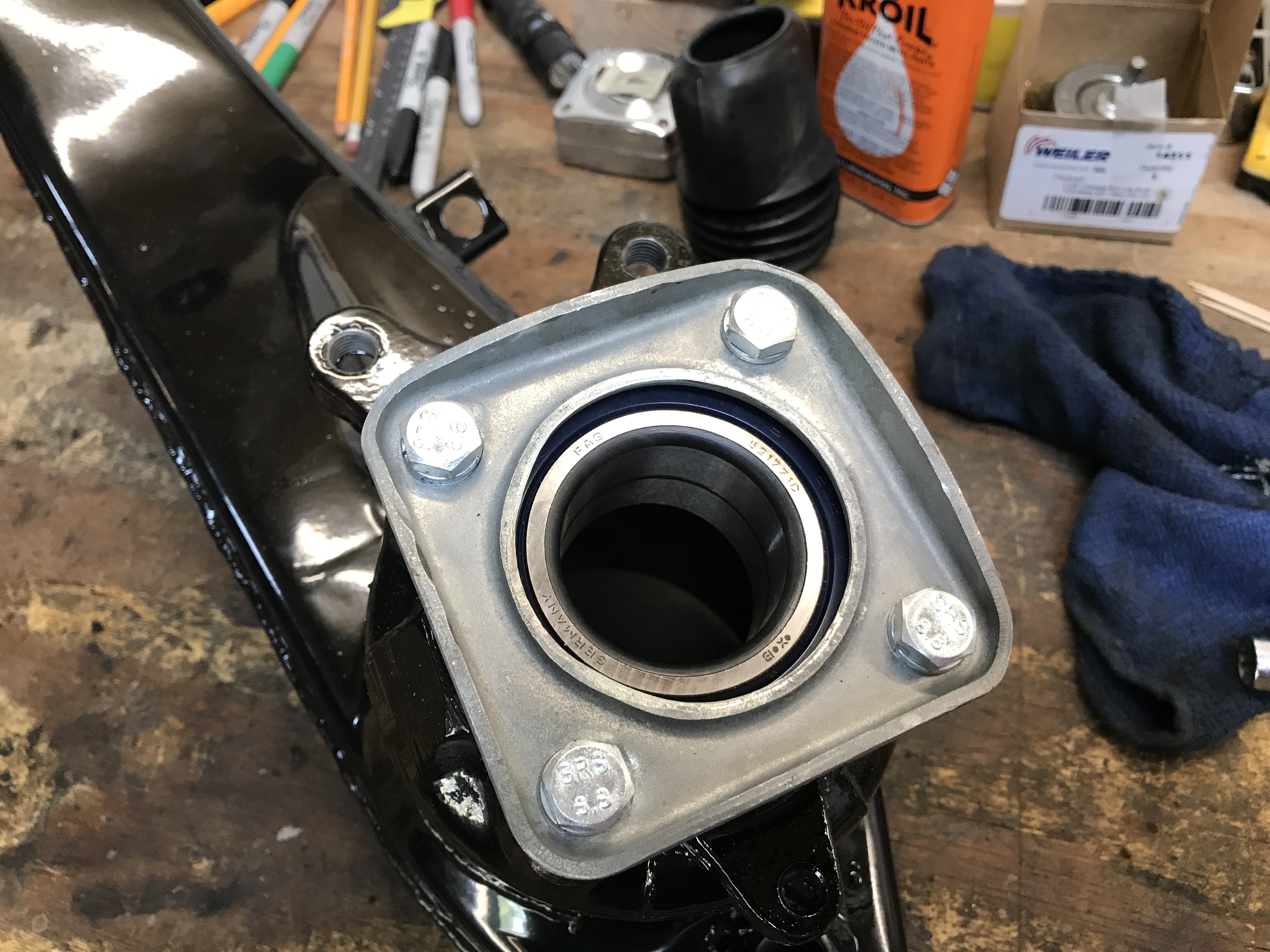

And retainer with shiny new hardware. Mmmm.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:06 PM
Post #1309


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

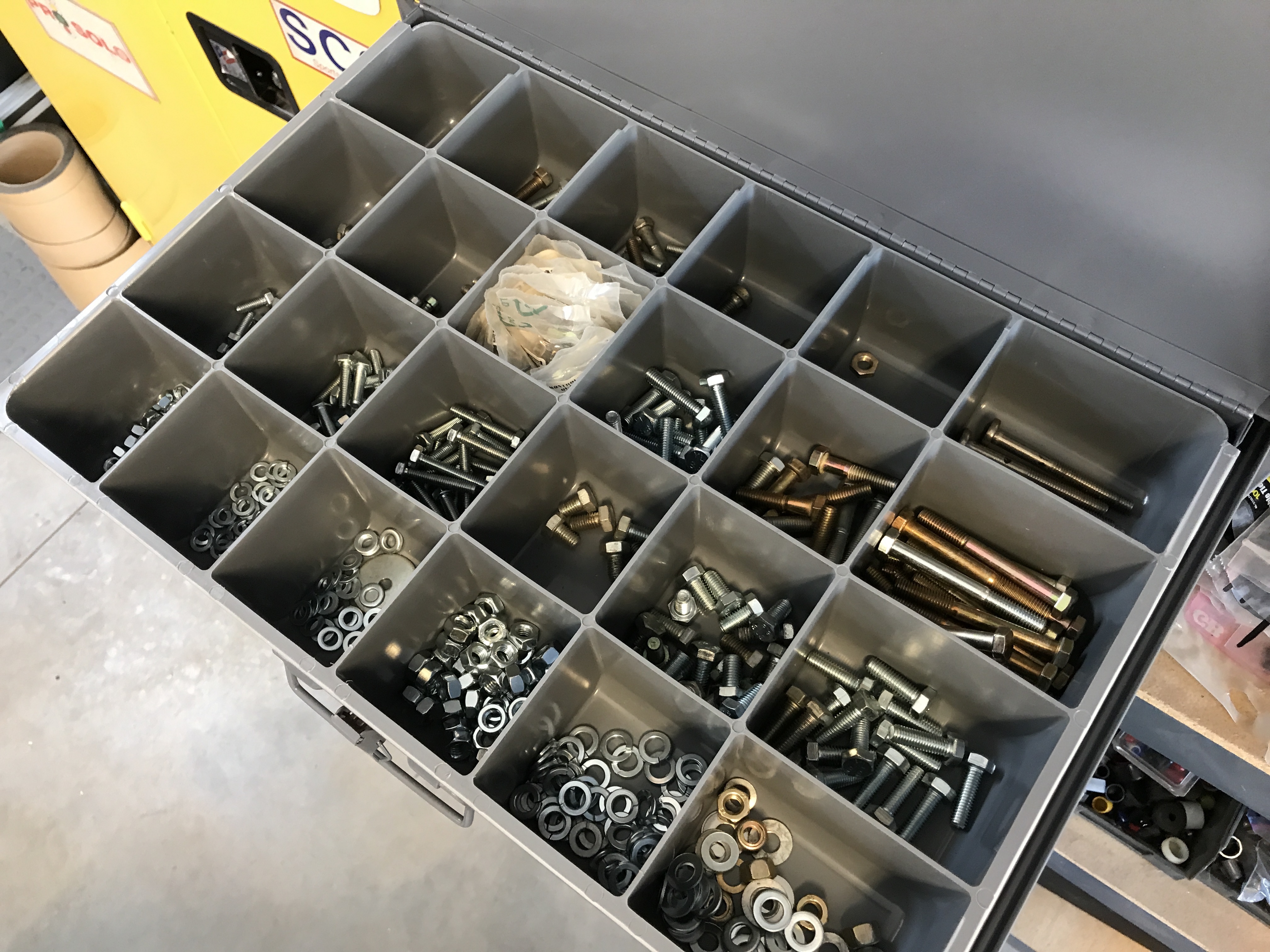

Good reason to tap into my newly created home hardware supply, sourced from McMaster-Carr.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:06 PM
Post #1310


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Lots of shiny stuff!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:07 PM
Post #1311


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

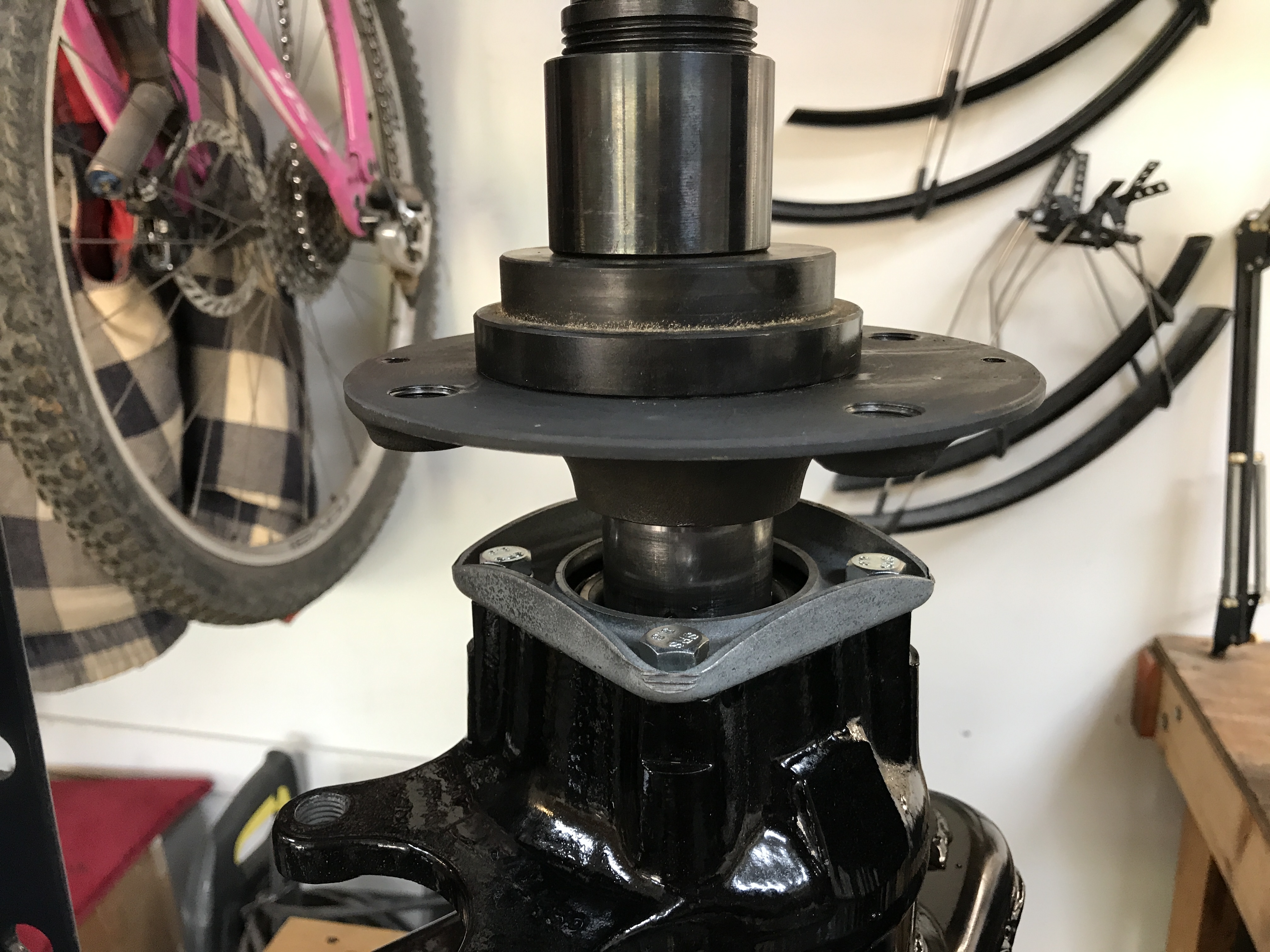

Then time to press in the wheel flanges. Note: inner races of the bearing supported from below.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:09 PM
Post #1312


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

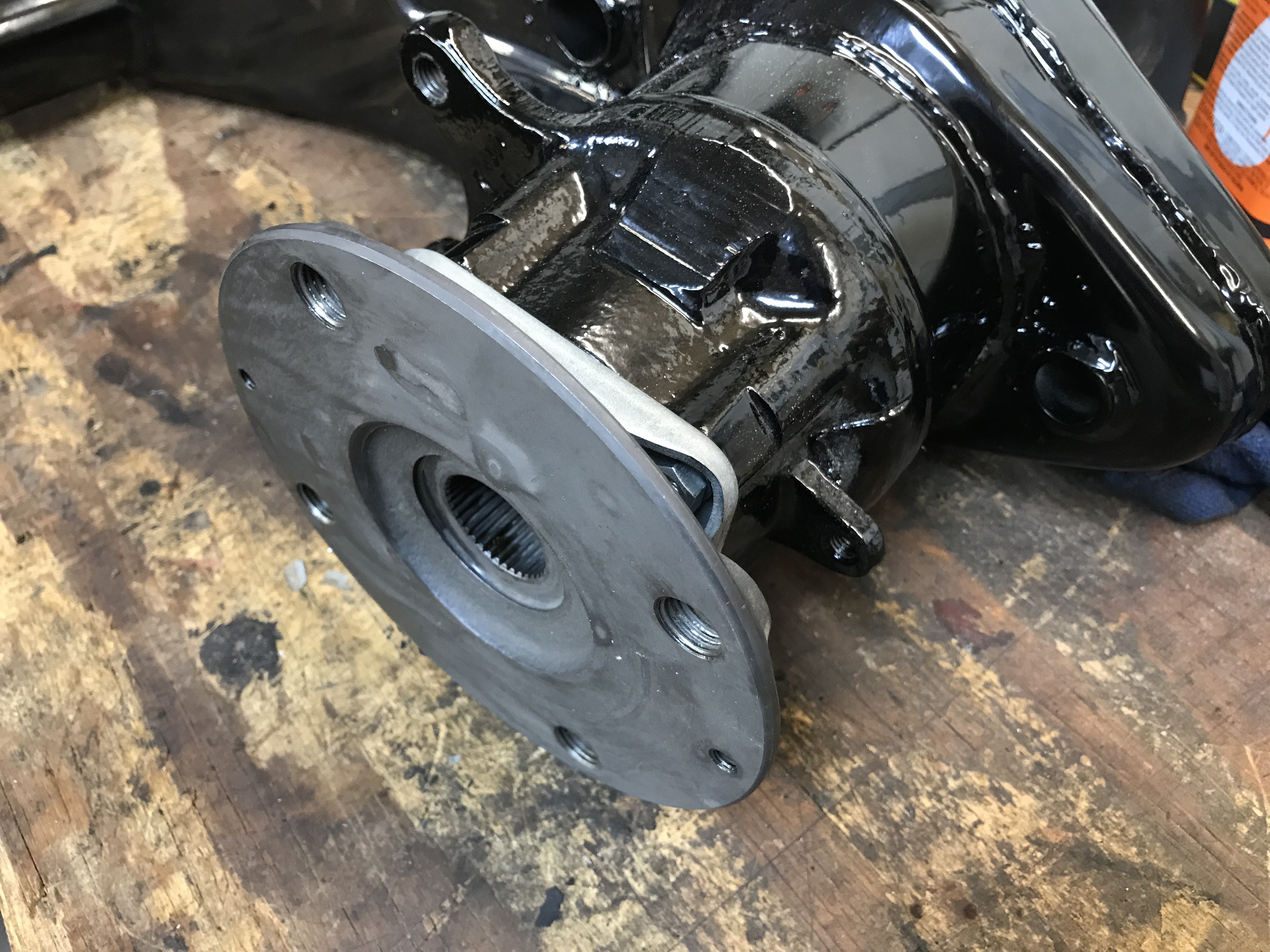

Flange in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2020, 07:10 PM
Post #1313


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

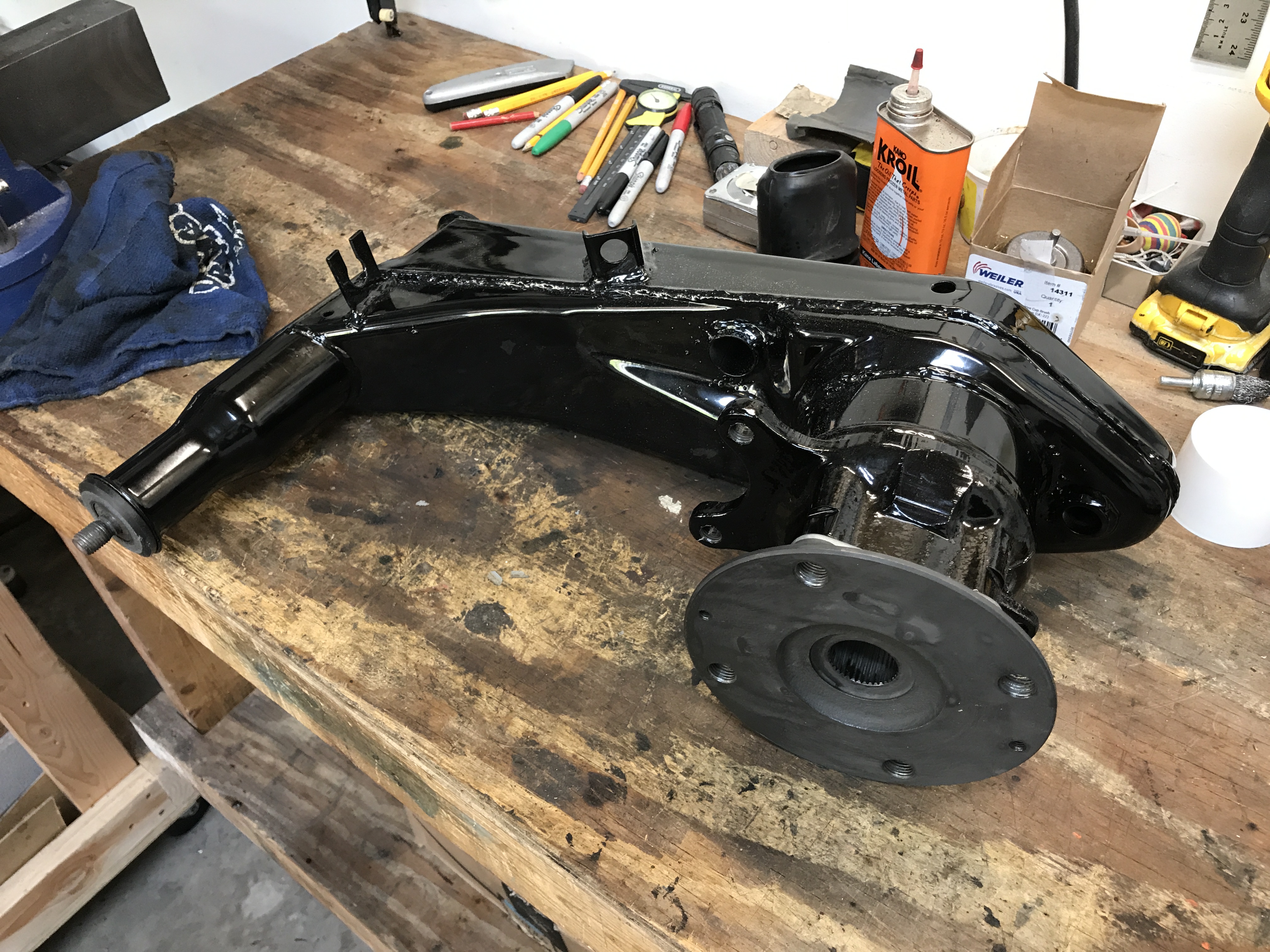

Trailing arms done!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Sep 13 2020, 08:01 PM
Post #1314


Advanced Member
****

Group: Members
Posts: 2,999
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
Terrific work Bob.

I have a bead blaster you are welcome to use if you need to work on some of the really bad stuff.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Sep 13 2020, 11:37 PM
Post #1315


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
Tools are Swell!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 14 2020, 07:30 PM
Post #1316


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(djway @ Sep 13 2020, 11:37 PM) *

Tools are Swell!

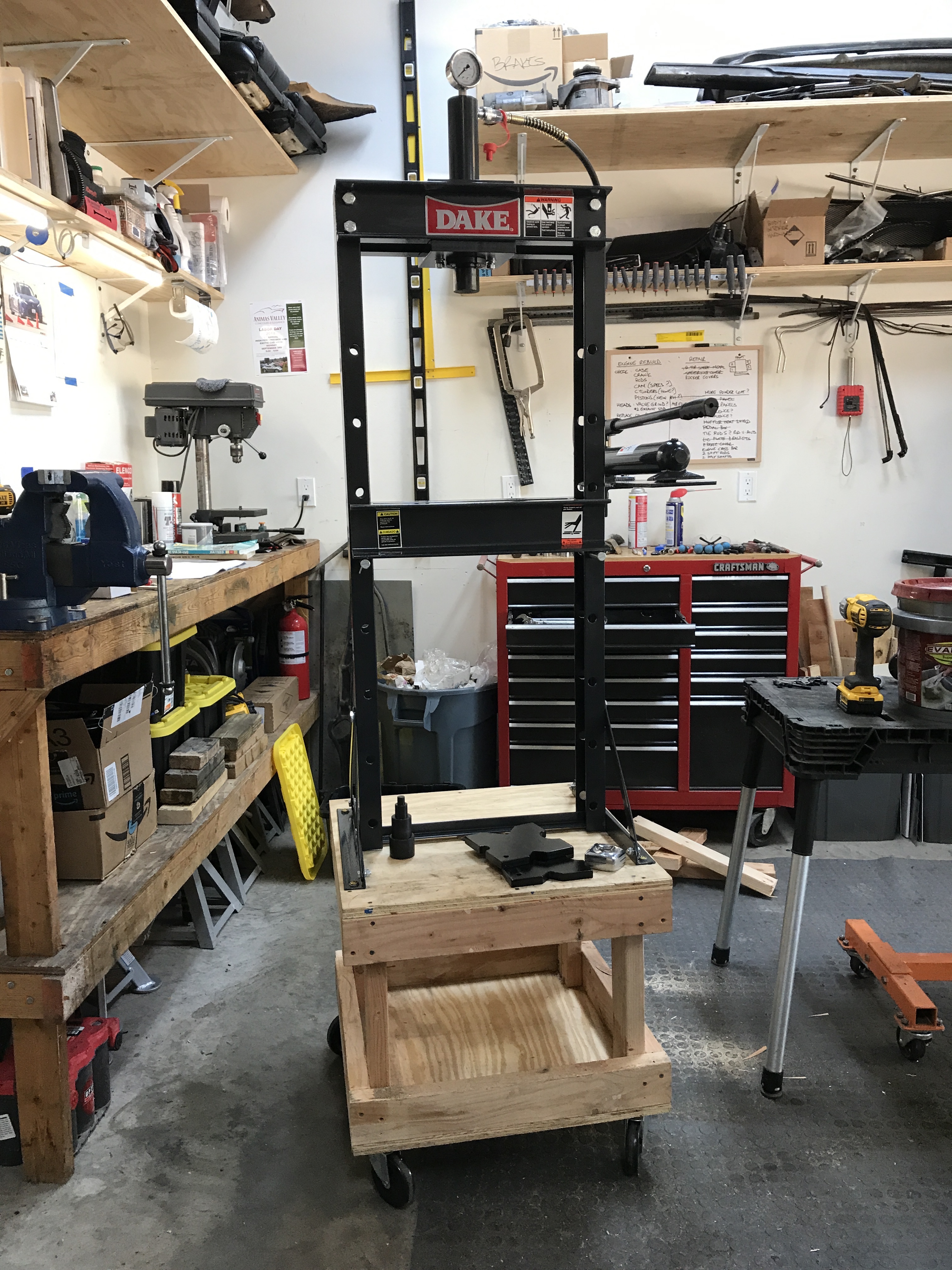

Agreed. Here's my latest that I picked up from the local freight delivery company today. I was stupid when I bought the Dake bench top model since the working height is only about 16 inches. My excuse is that I replaced an older bench top press.

But I need something with more reach, so I got the Dake floor model. This has a 38 inch working height.

My son will inherit the bench model.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 14 2020, 07:33 PM
Post #1317


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

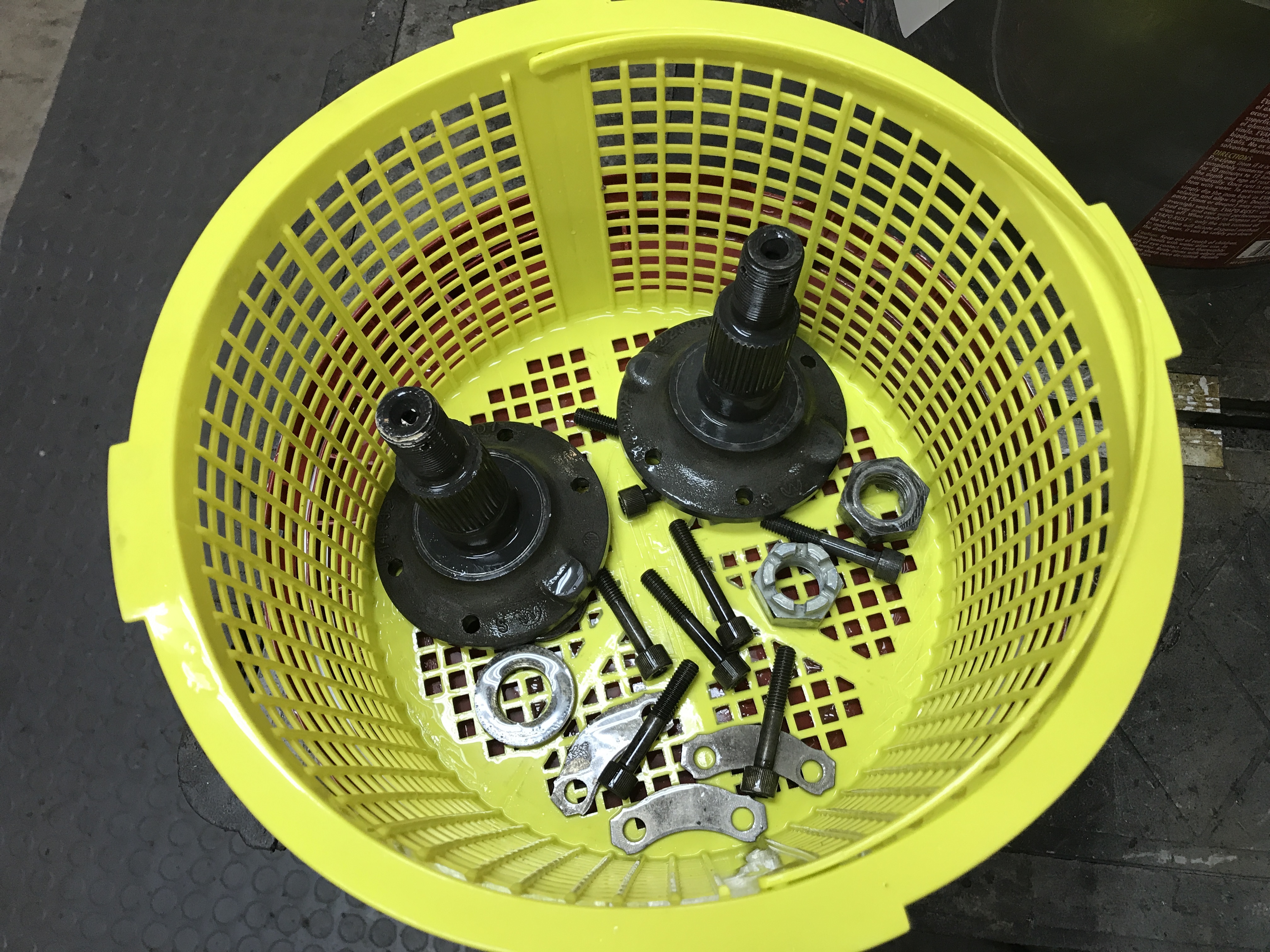

Another batch of parts after Evaporators-rust treatment.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 14 2020, 07:36 PM
Post #1318


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

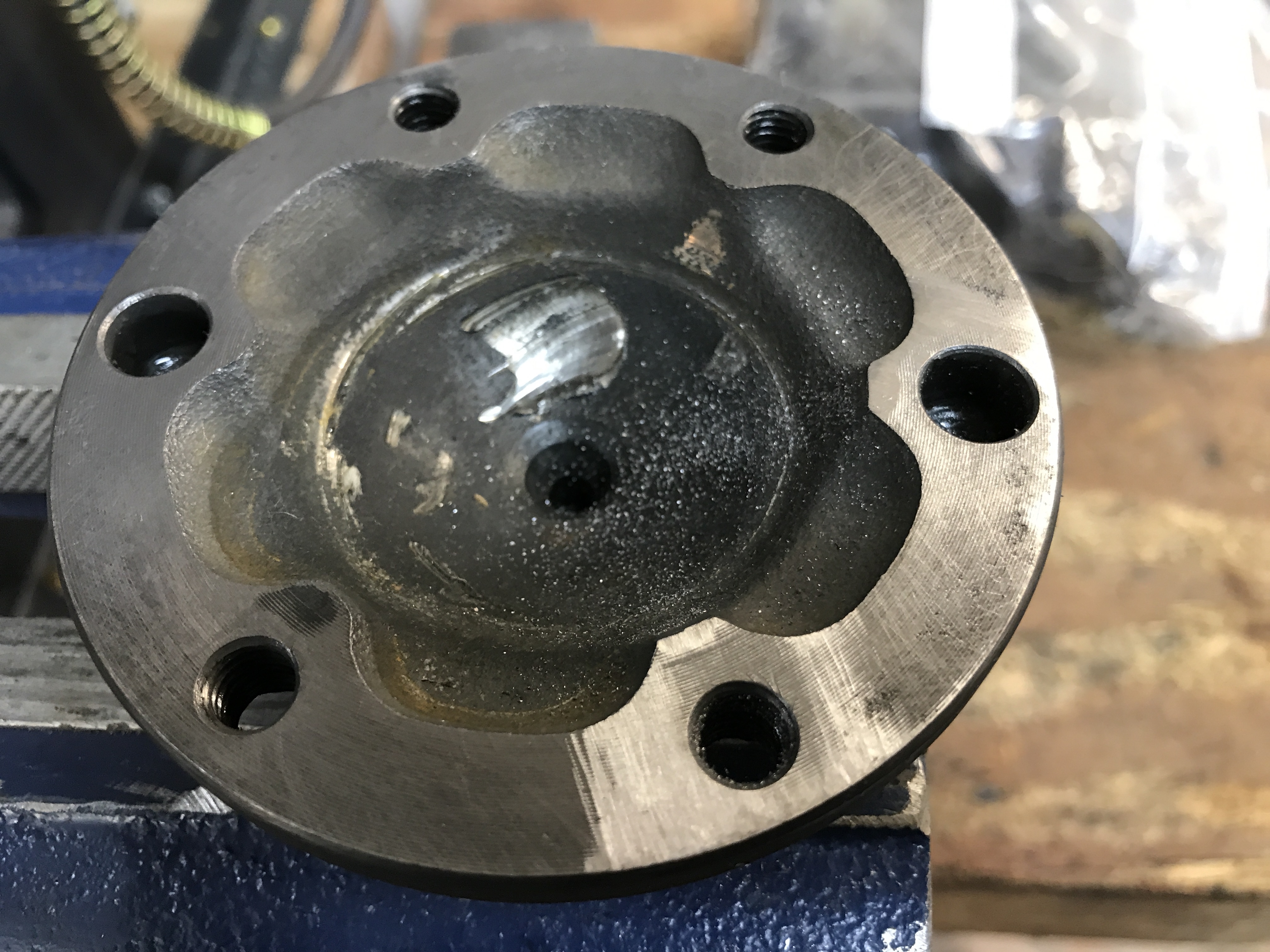

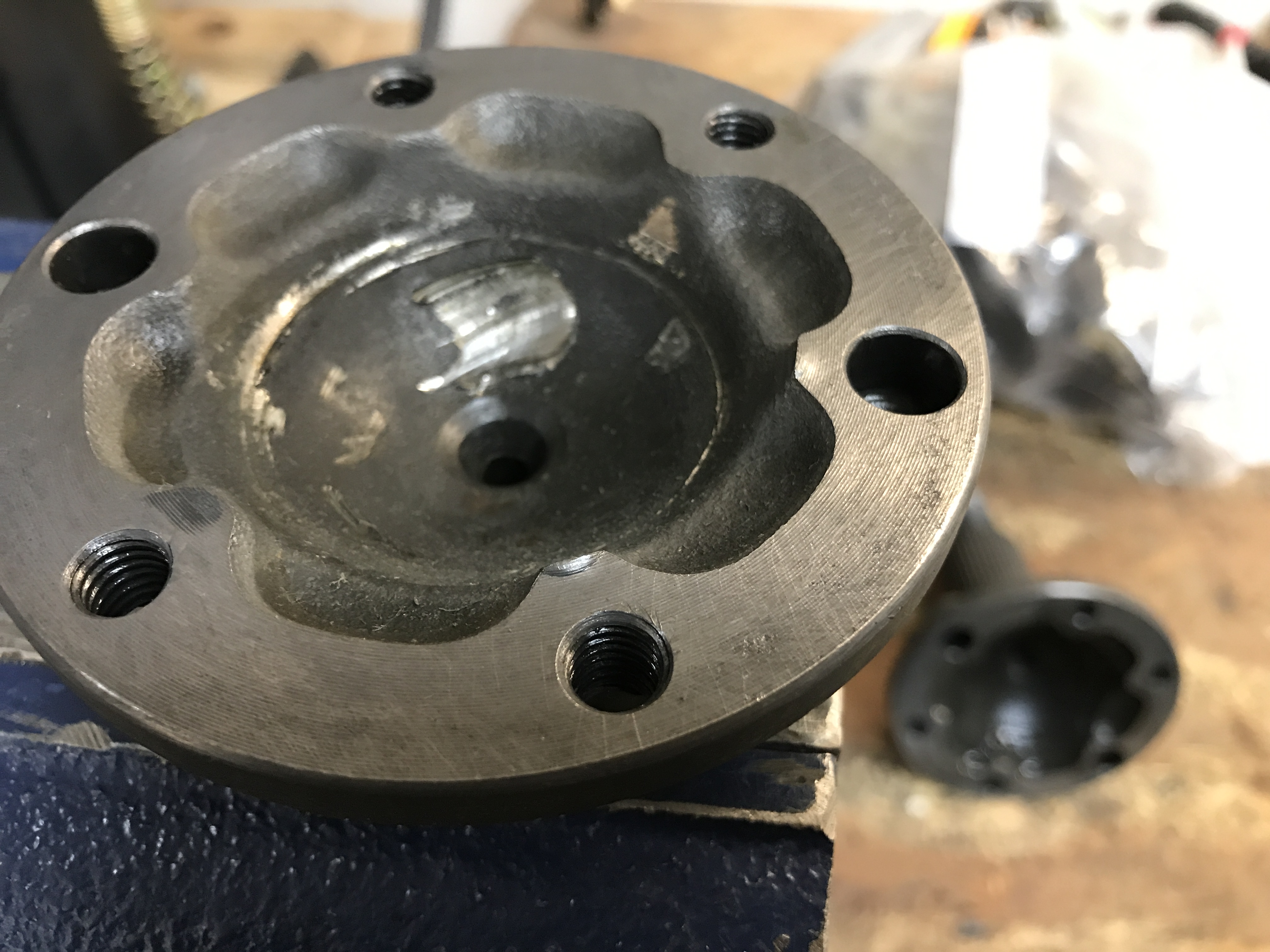

One of the half-shaft flanges has some upturned edges on the inside.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 14 2020, 07:37 PM
Post #1319


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Took care of those with a flat file.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 14 2020, 07:40 PM
Post #1320


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

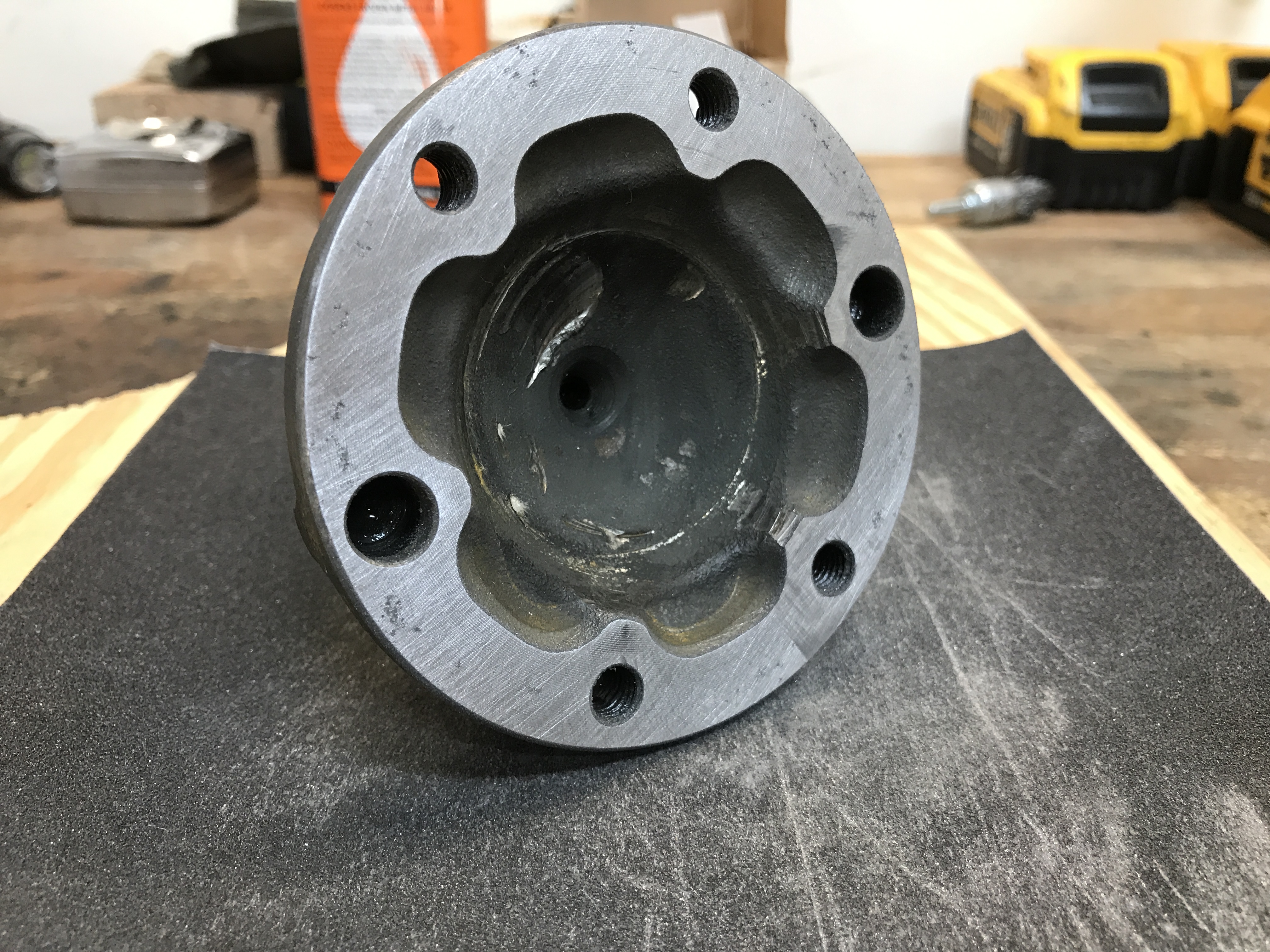

To test the flange flatness, as was discussed in another thread, I scuffed the mounting faces on some emery paper. Looks good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
