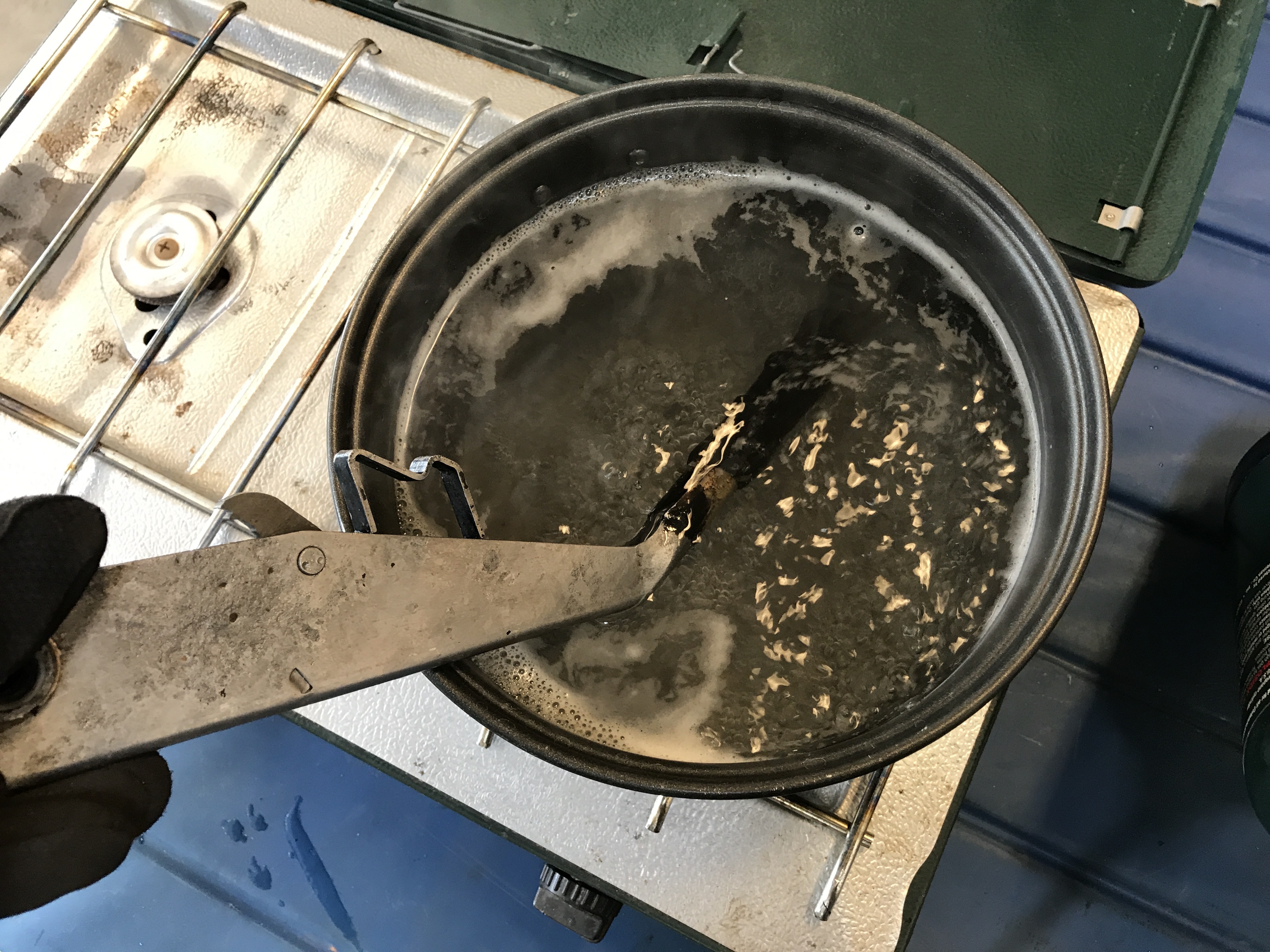

A bit of garage cooking, to warm up the plastic grip.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:19 PM
Post #1382


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

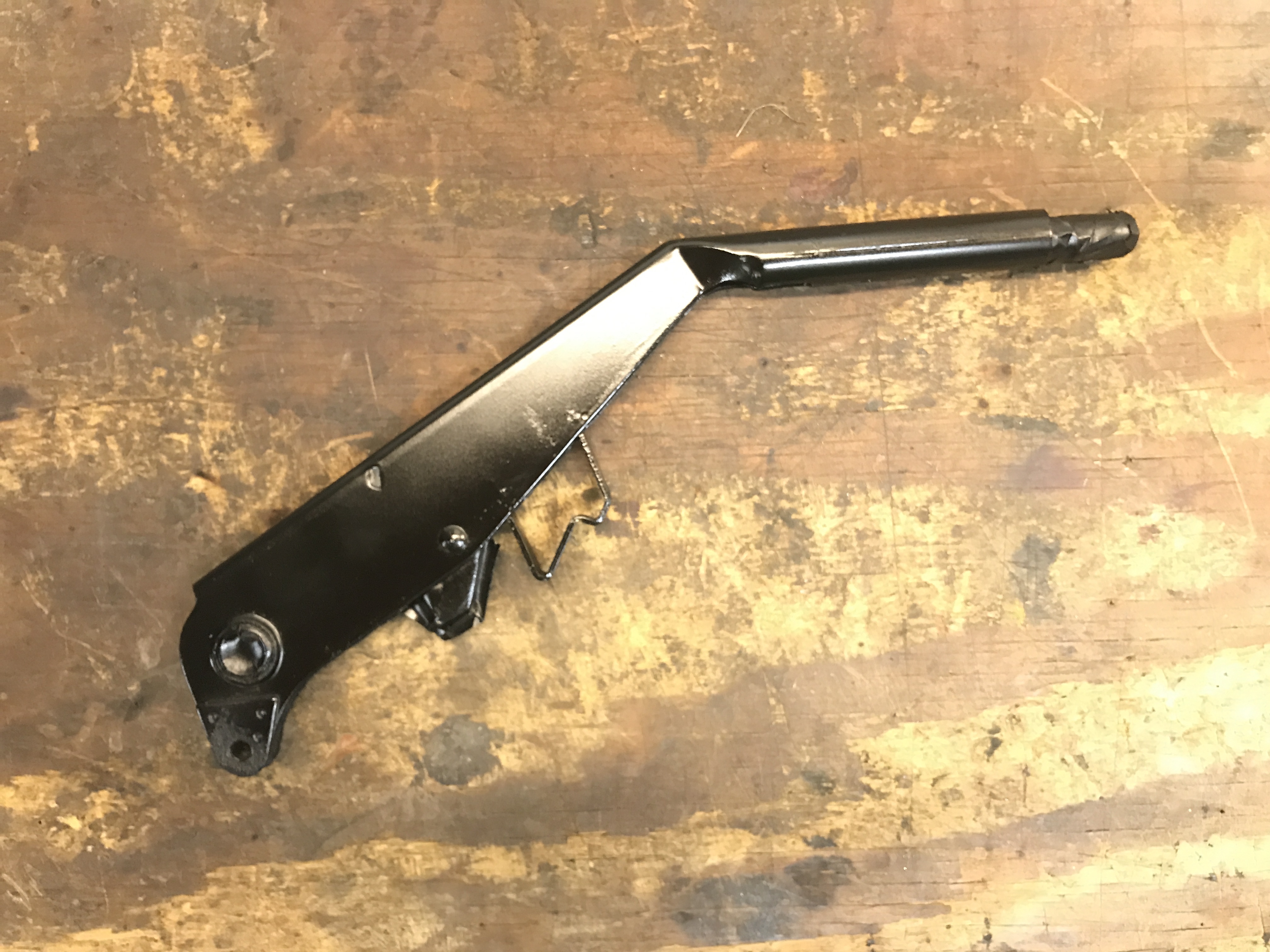

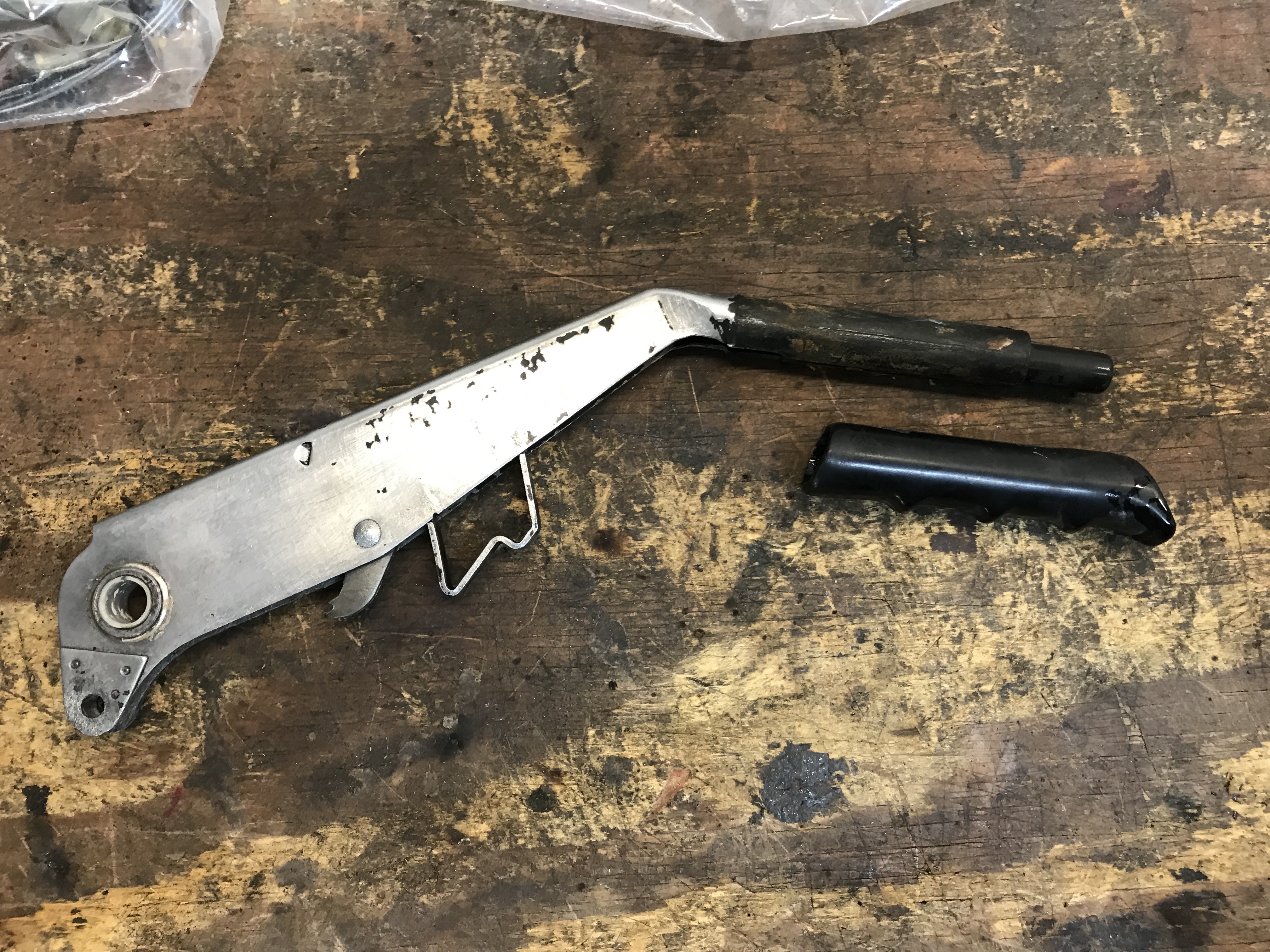

Grip removed, and a bit more cleanup.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:24 PM
Post #1383


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Primed and painted.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Sep 19 2020, 07:29 PM
Post #1384


Advanced Member
****

Group: Members
Posts: 2,164
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Much better looking there Bob. Nice
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:31 PM
Post #1385


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

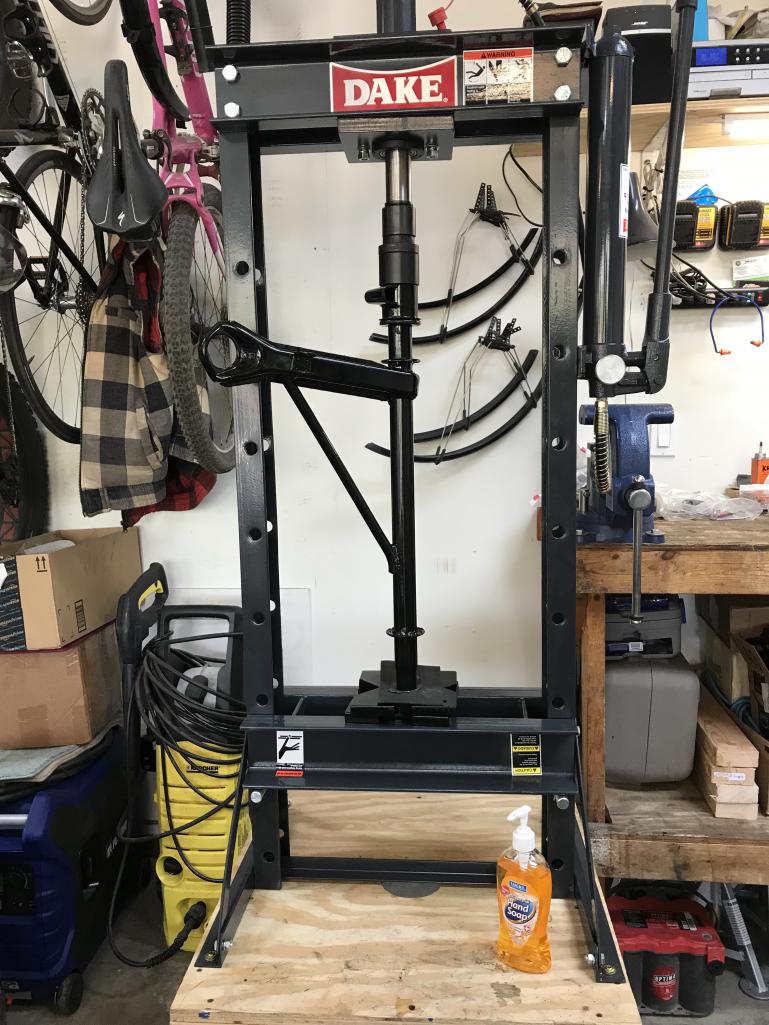

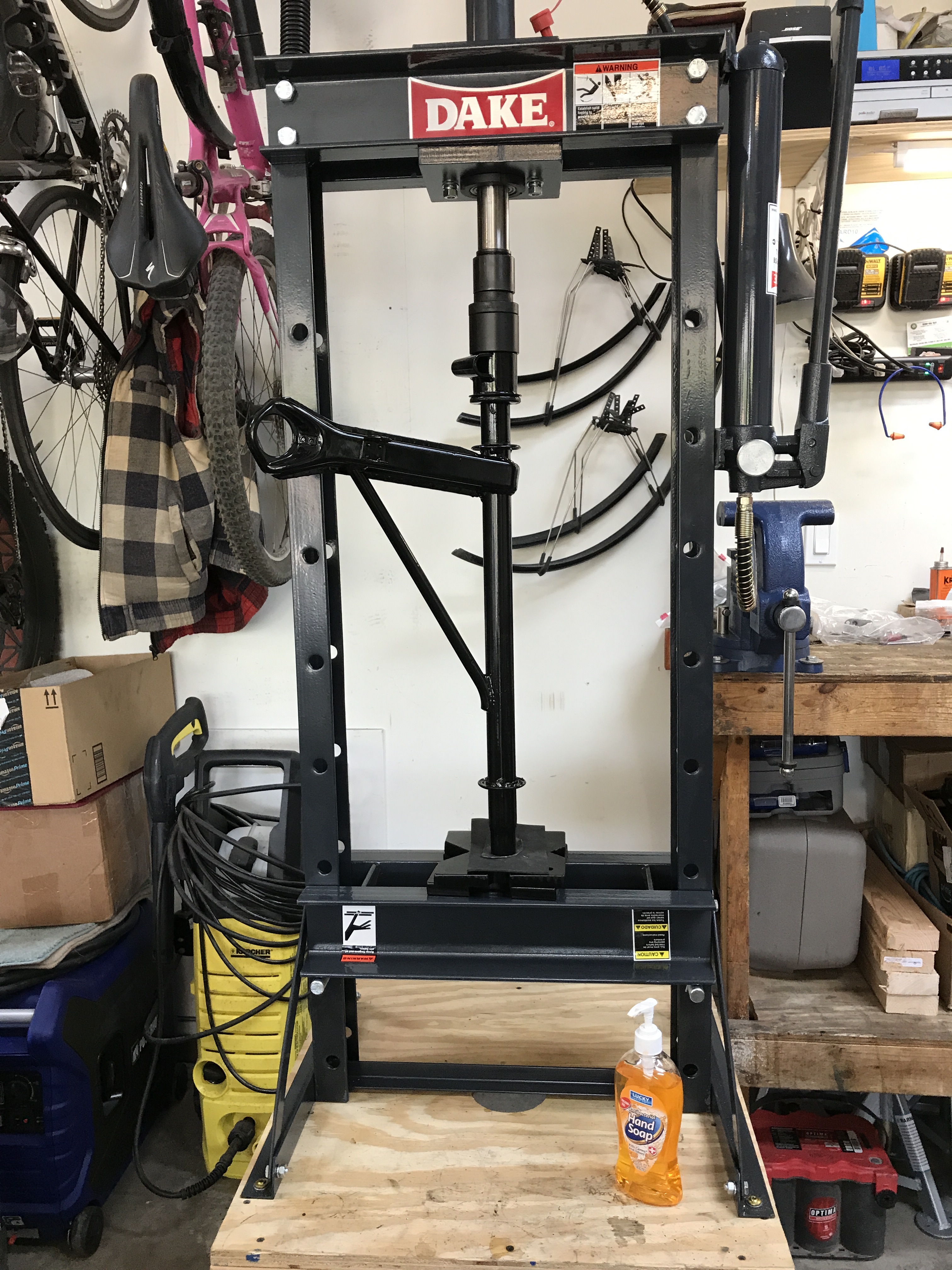

Now for the big job of the day: installing the rubber bushings on the front A-arms.

I decided to try some different methods. First, I did not heat the bushings or other parts. Second, I put my new taller press to use. I had the same Dake press in a bench top model but could not fit the A-arms (or some other things). My son has been wishing for a press, so his birthday will come early.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:34 PM
Post #1386


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Here's my process.

1. Press the bushing into the rear housing. Lots of liquid soap.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:36 PM
Post #1387


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

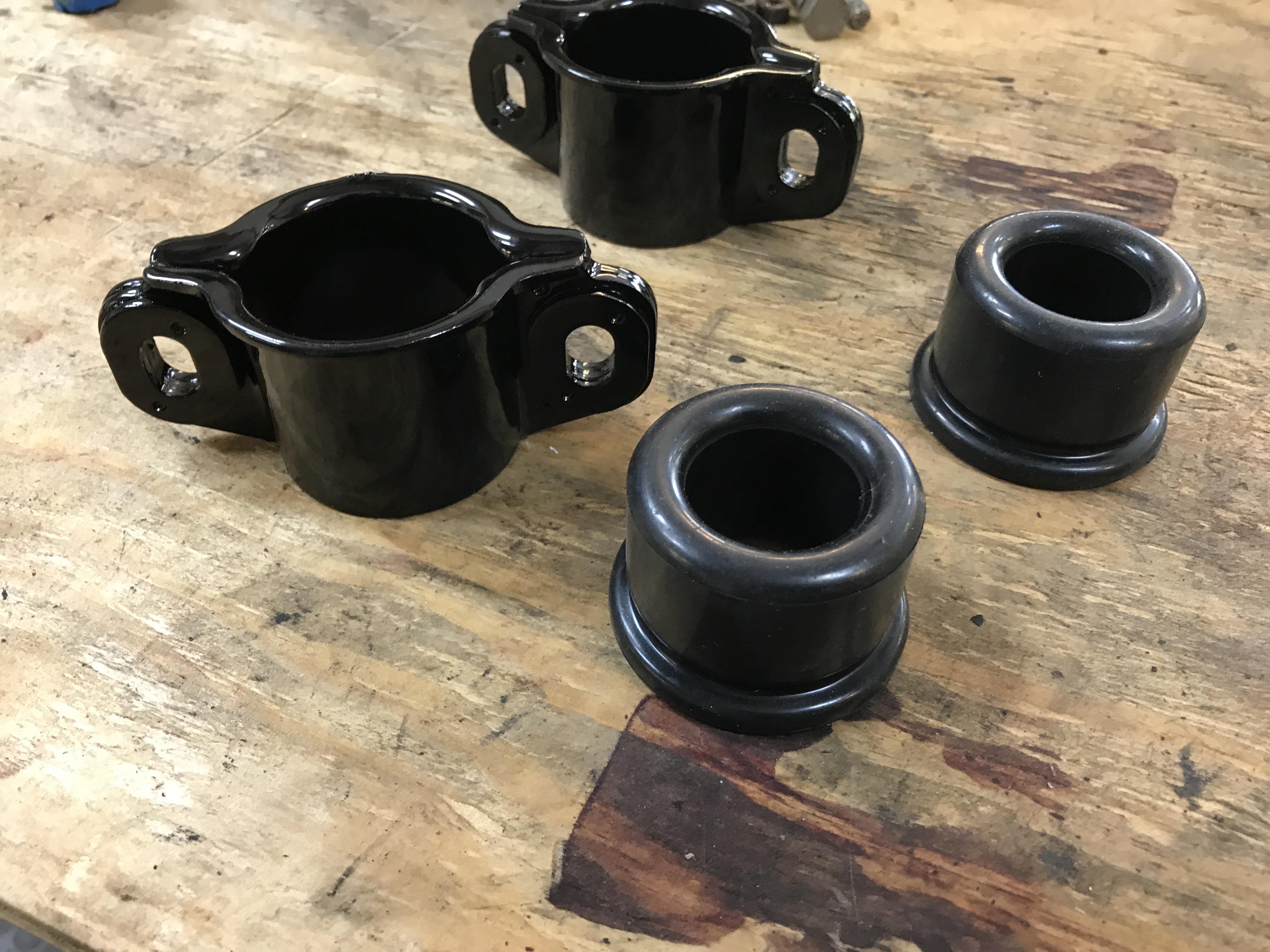

2. Bushing pressed in.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:37 PM
Post #1388


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

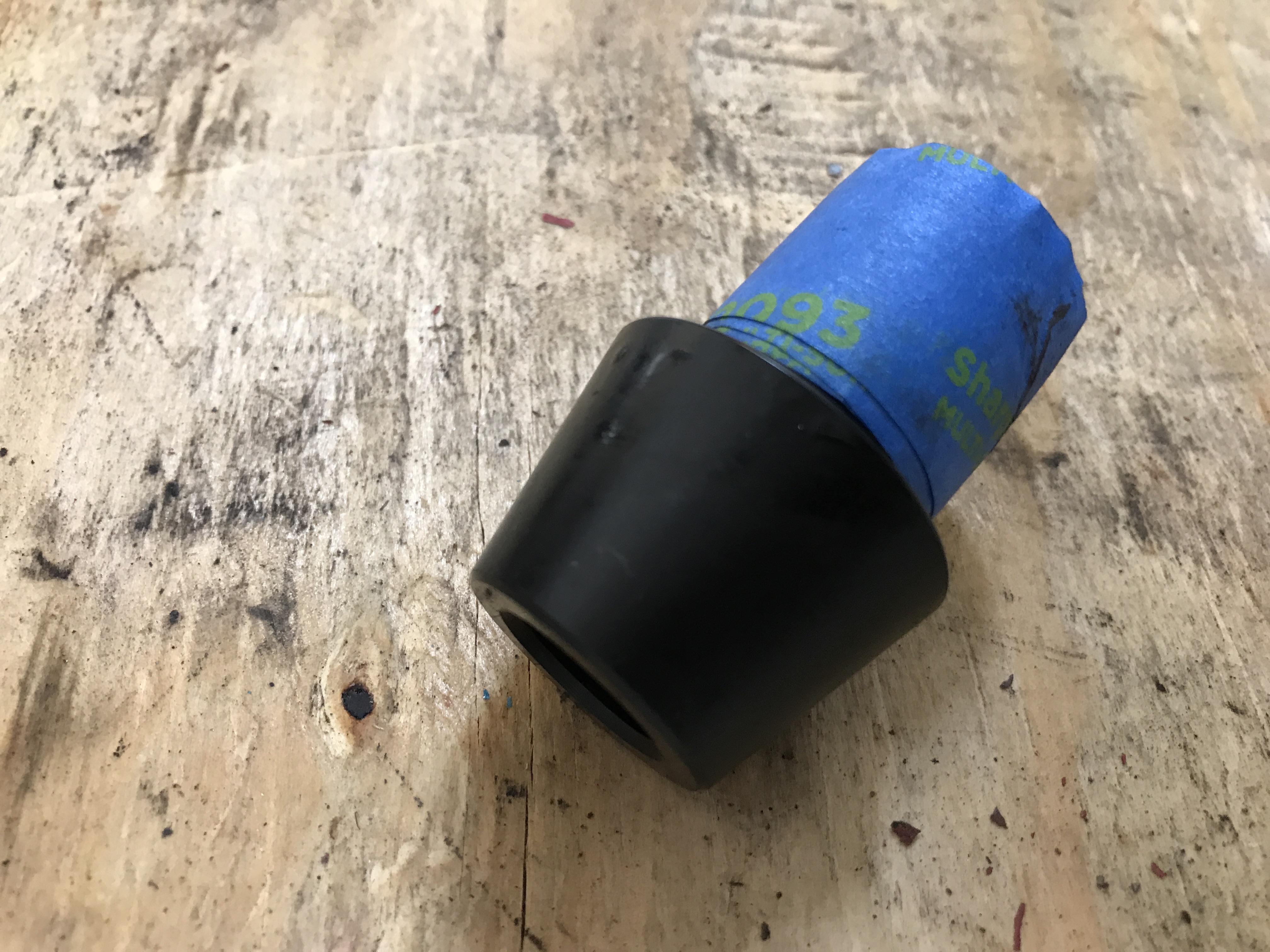

Here's the 914 Rubber inner guide, to ease the bushing onto the A-arm. The tape makes for a snug fit to center the guide.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:38 PM
Post #1389


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

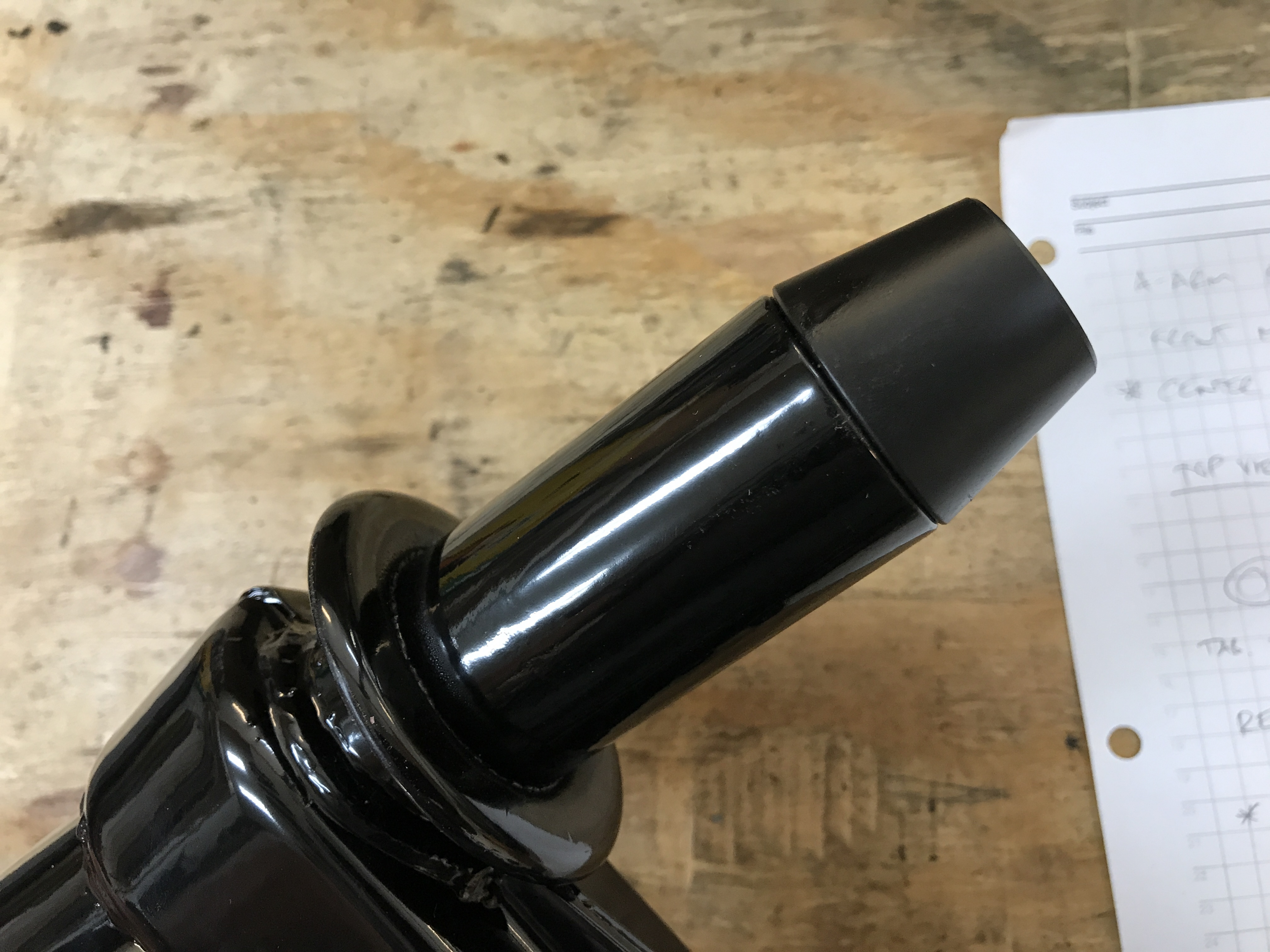

The guide in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:40 PM
Post #1390


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

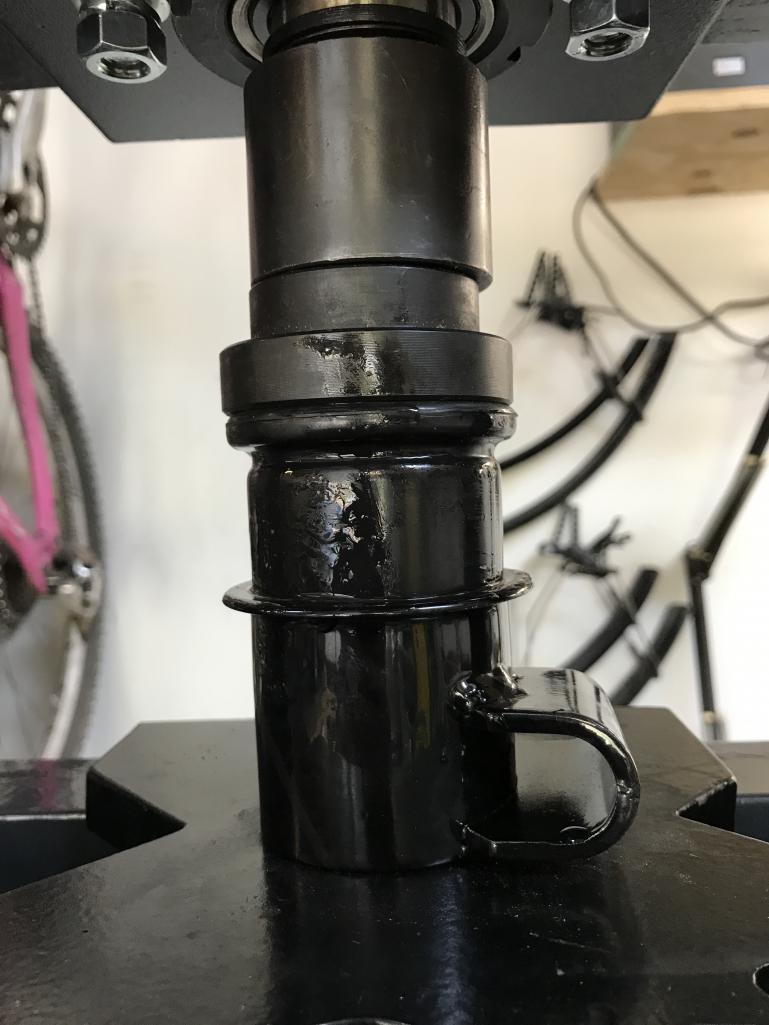

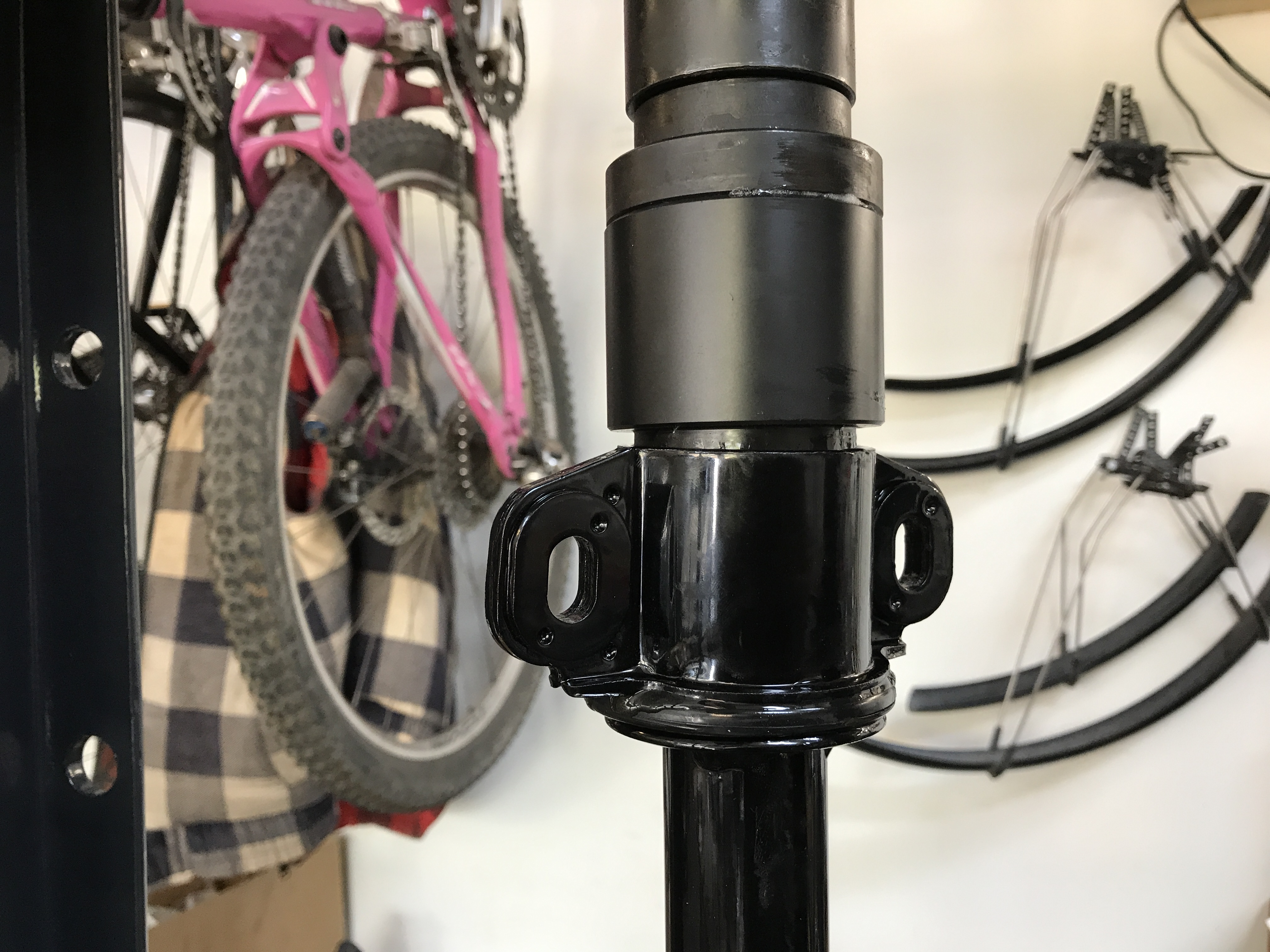

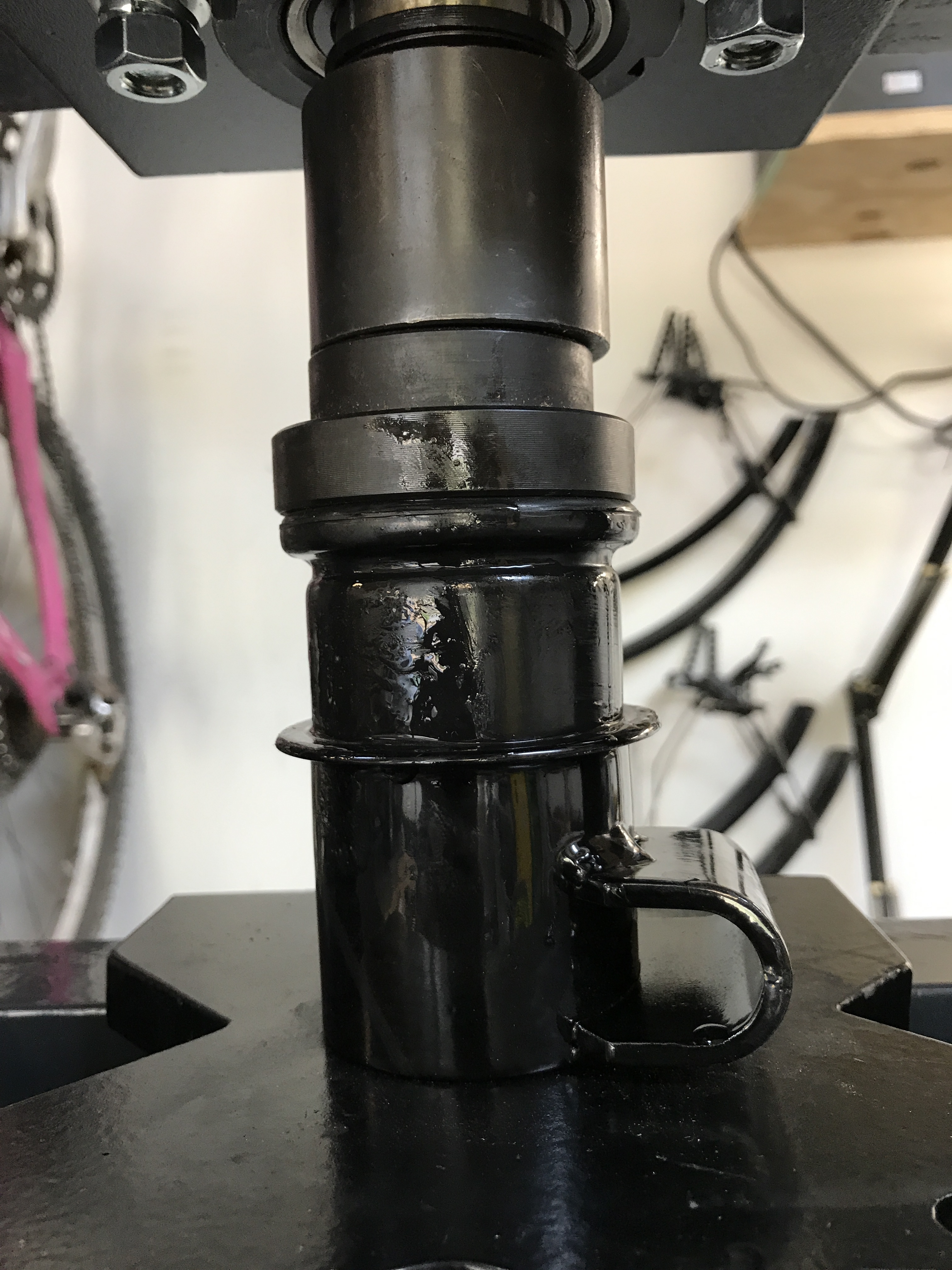

3. Starting to press the bushing on, over the guide. The stack include the other 915 Rubber guide, with the recessed end inserted into the housing. Lots more soap.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:43 PM
Post #1391


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

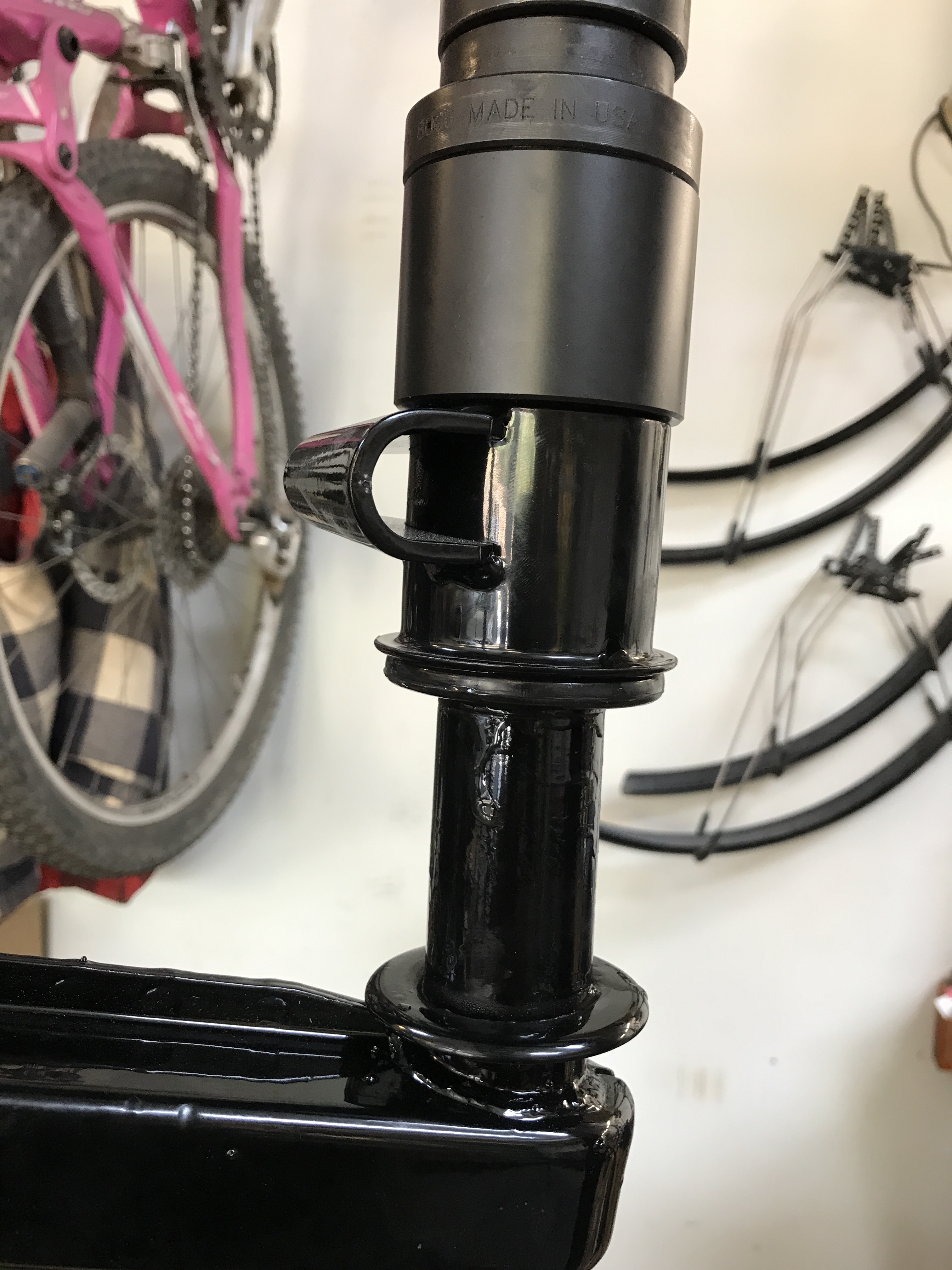

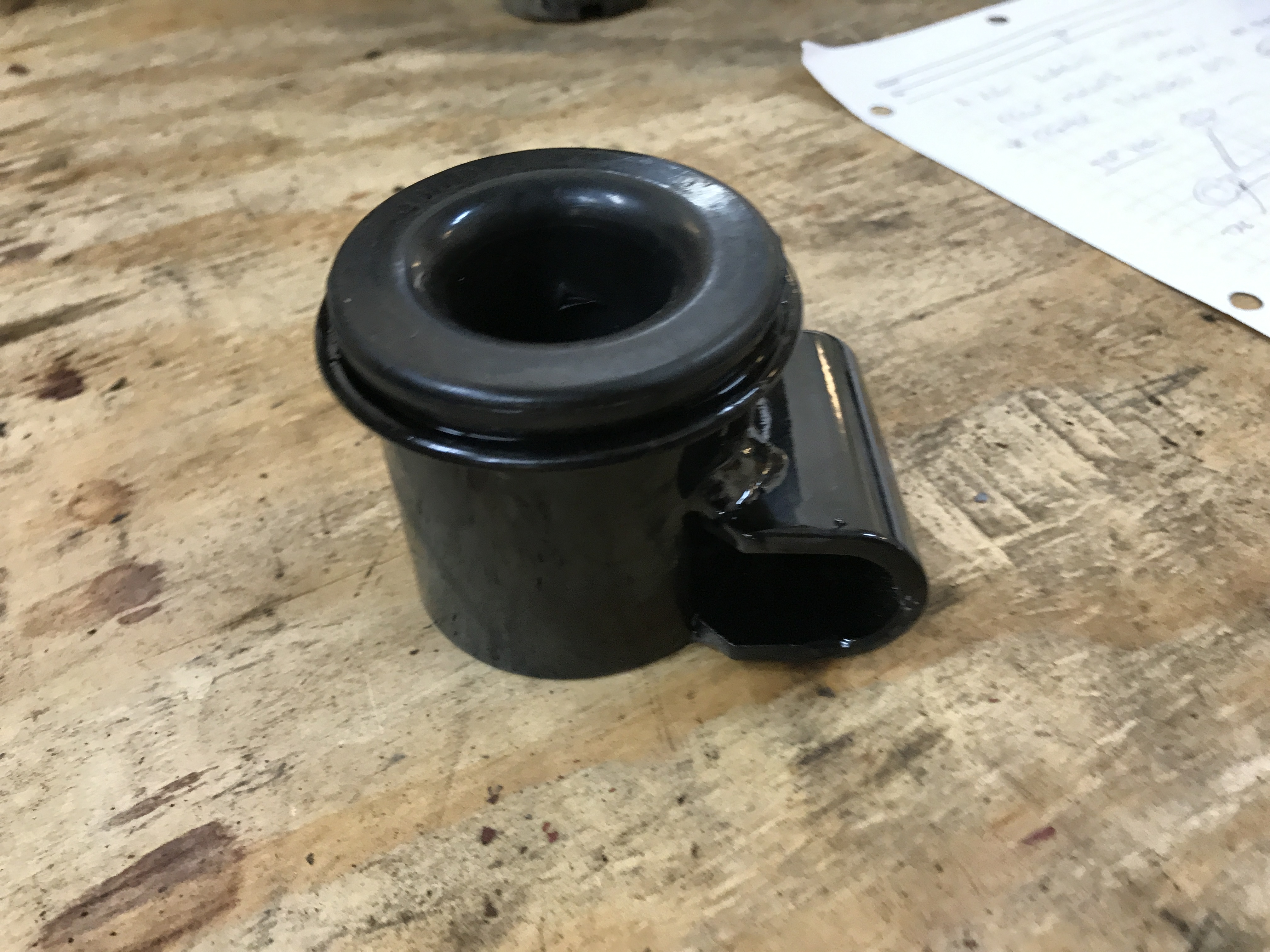

Pressed all the way on. With the pressure released, the bushing rebounded a bit.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:46 PM
Post #1392


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
So I reversed the guide and pressed again against the housing. I also left the pressure on for a few minutes to allow the rubber bushing to creep into place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:48 PM
Post #1393


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

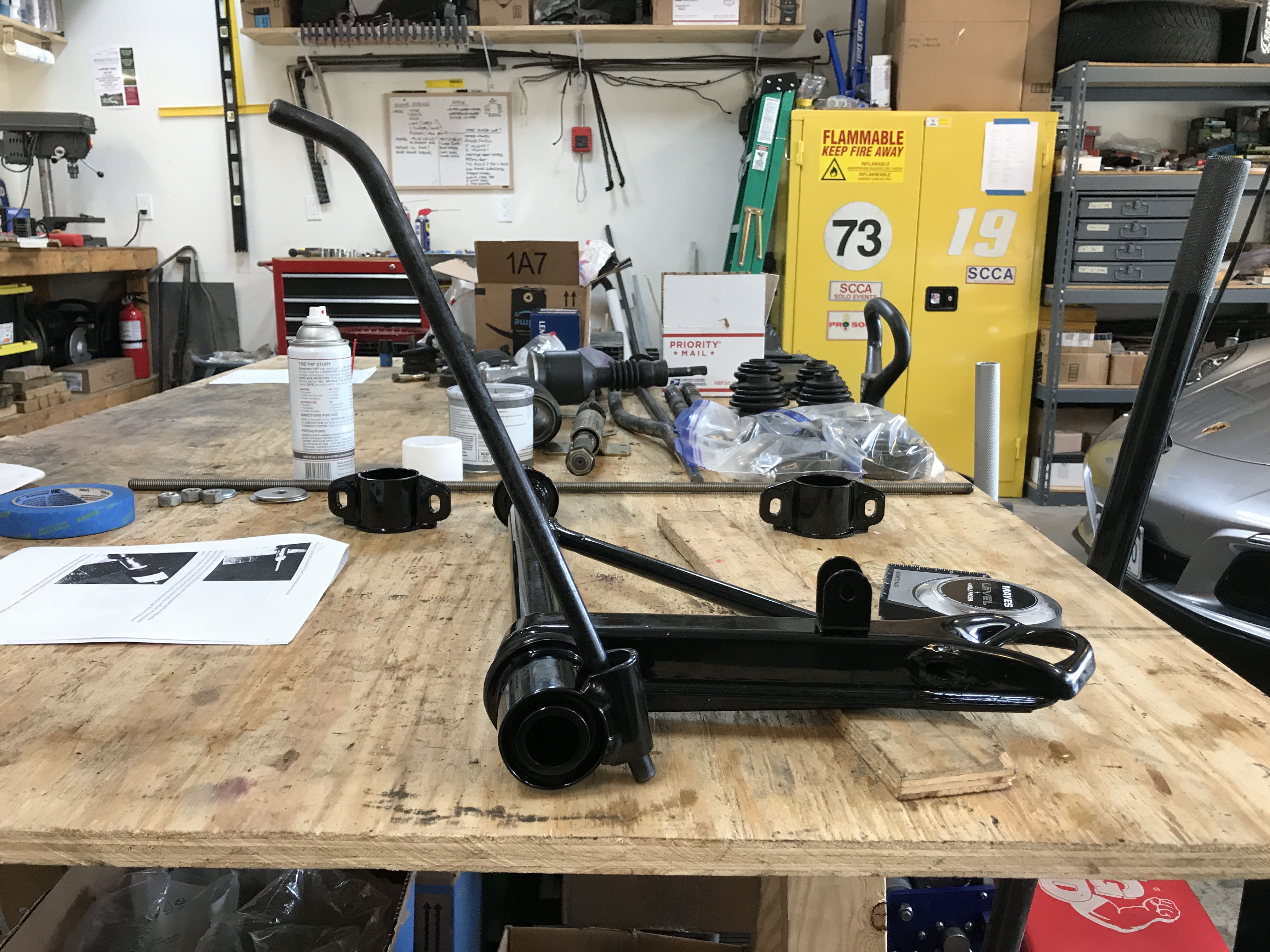

4. Once installed, the bushing and housing must be adjusted to the proper angle to ease A-arm installation.

First, set the arm horizontal (and right side up).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:50 PM
Post #1394


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

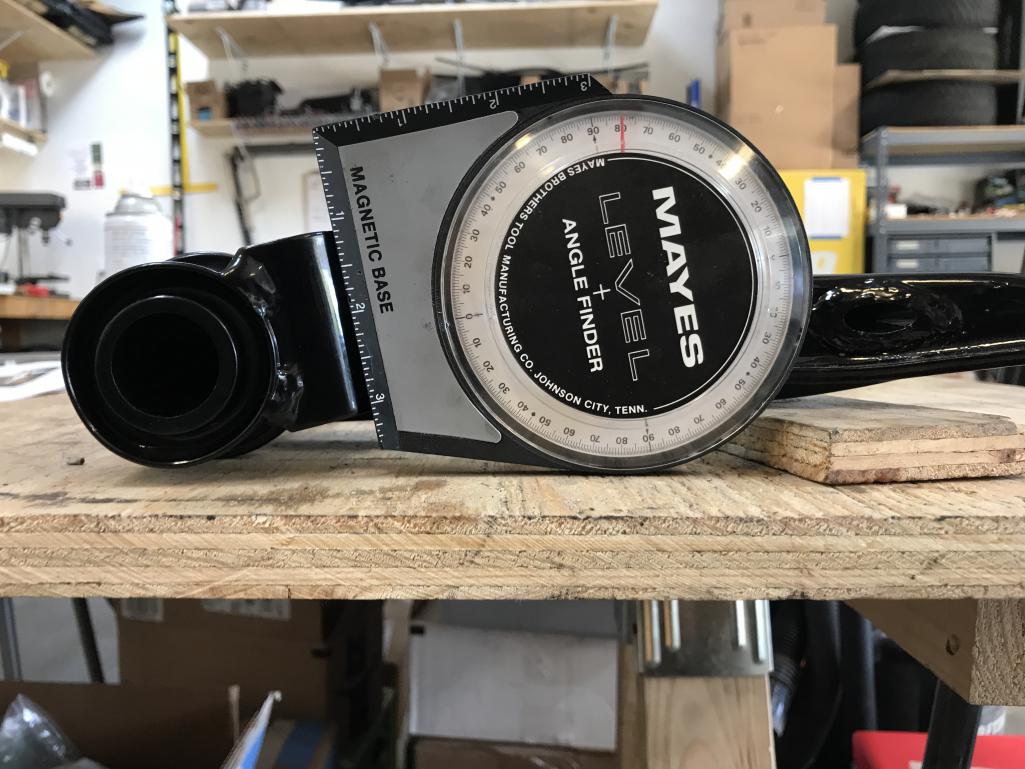

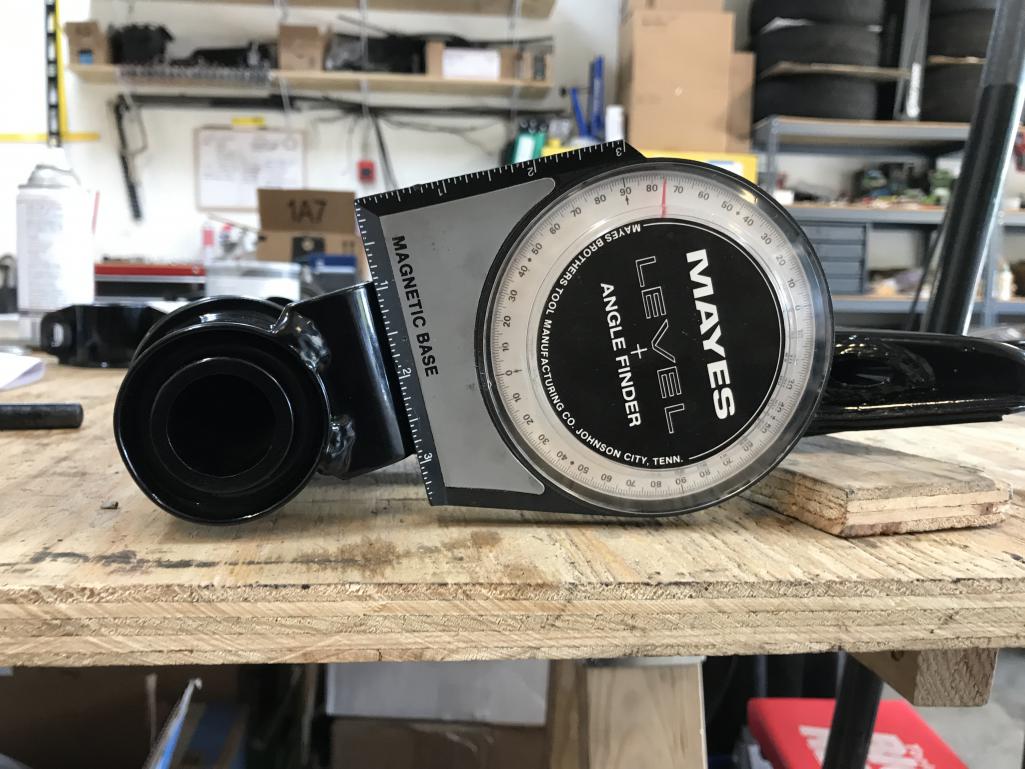

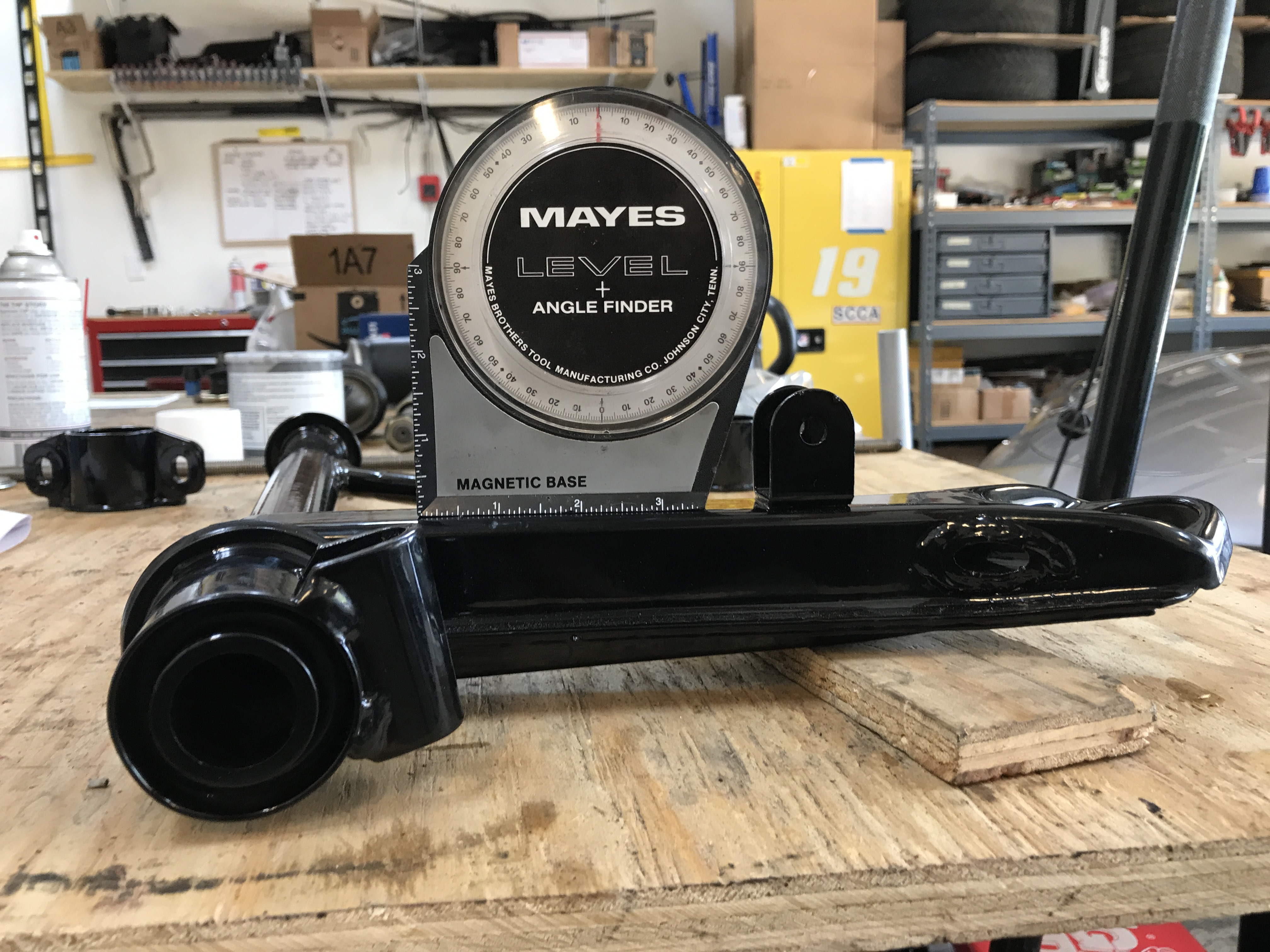

Then, check the angle of the housing. It should be 14 degrees from vertical, rotated "up". First check shows only 10.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:51 PM
Post #1395


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

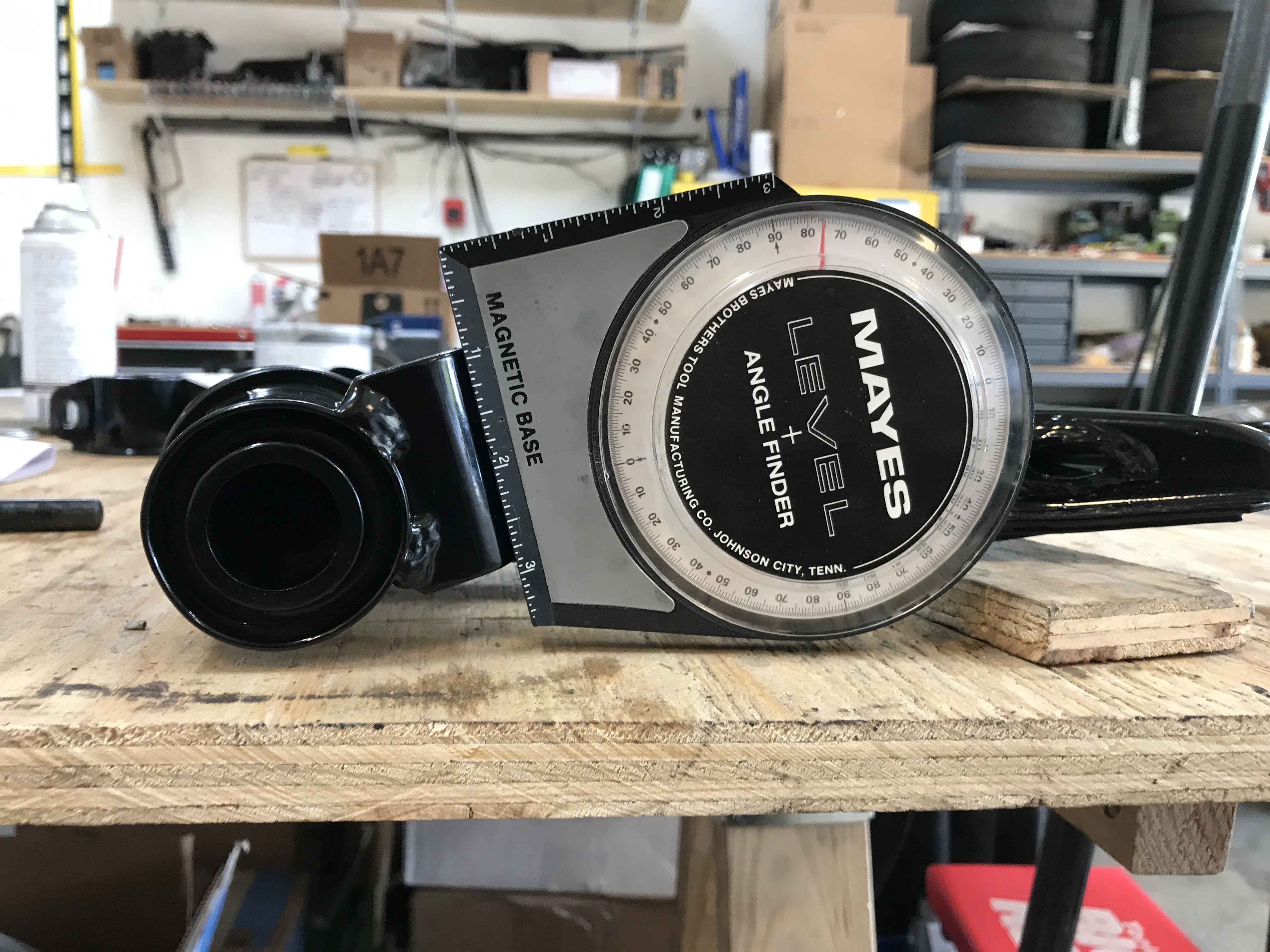

A bit of twisting.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:51 PM
Post #1396


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

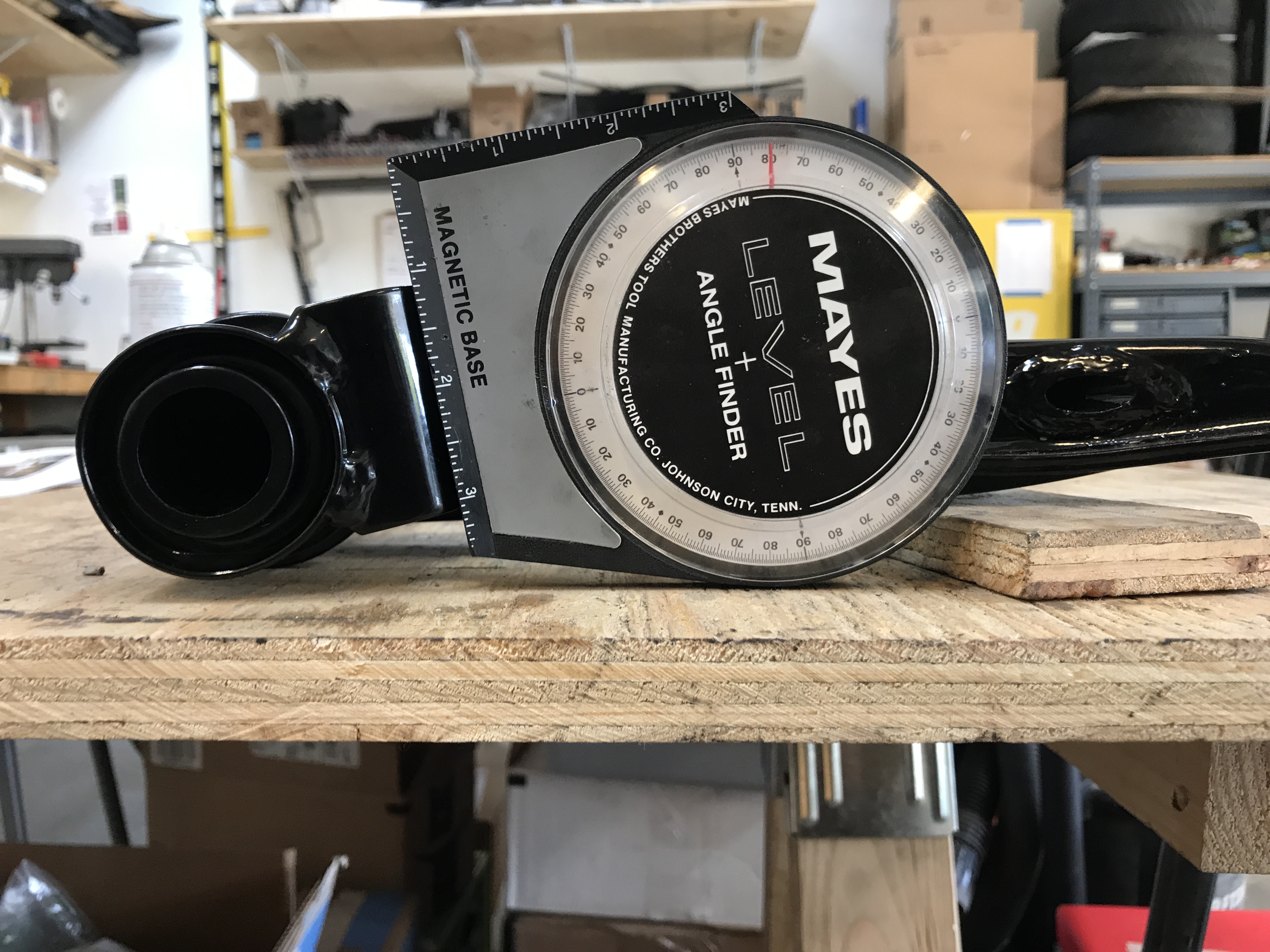

Now 14 degrees.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:54 PM
Post #1397


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
5. Install the rubber bushings into the front A-arm body mounts. Note that the mounts have a top and bottom, with the raised bosses on the top.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:56 PM
Post #1398


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

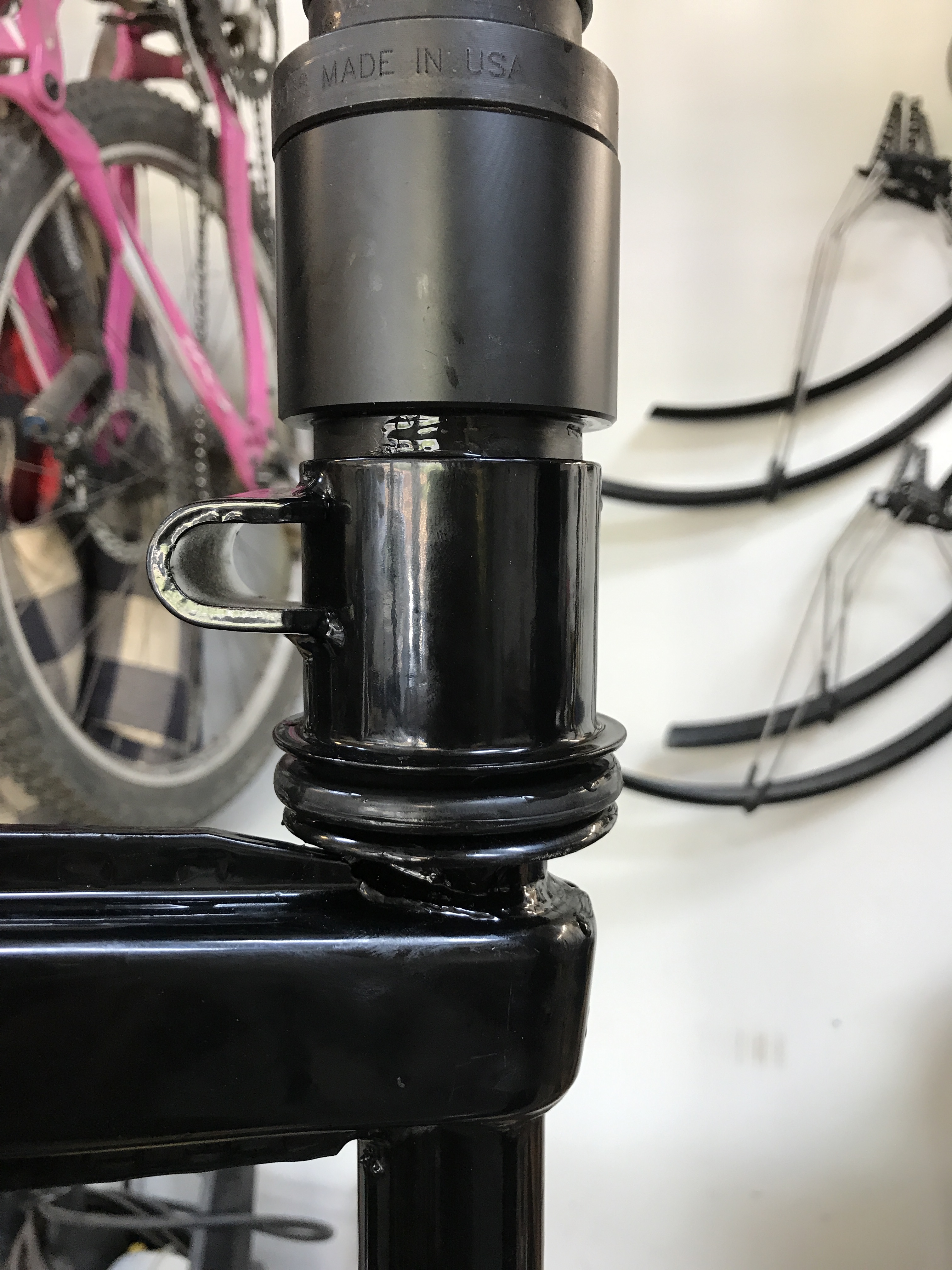

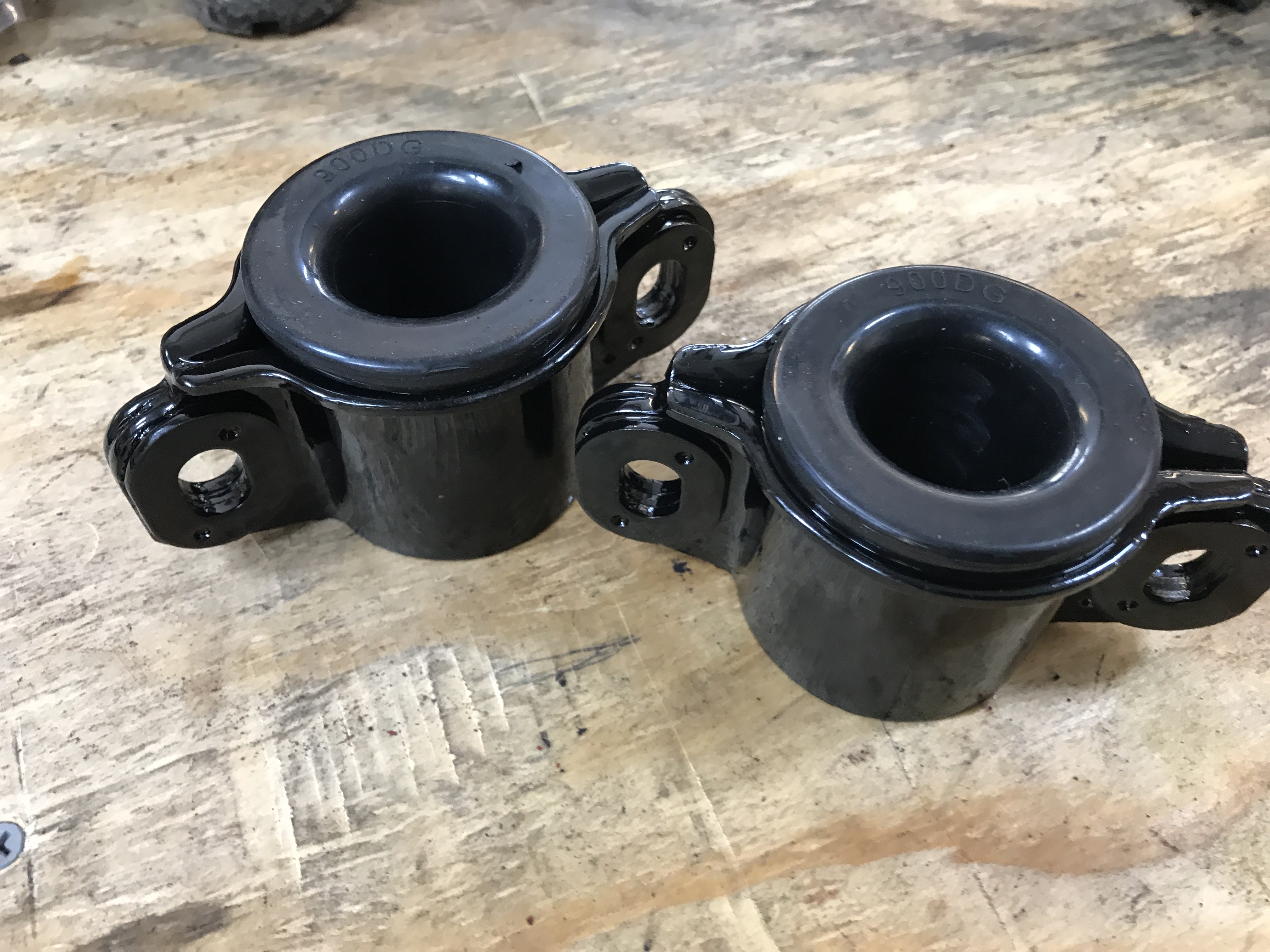

Like the rears, lots of soap, and press the rubber bushings into the mounts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:56 PM
Post #1399


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Ready for the A-arms.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2020, 07:59 PM
Post #1400


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

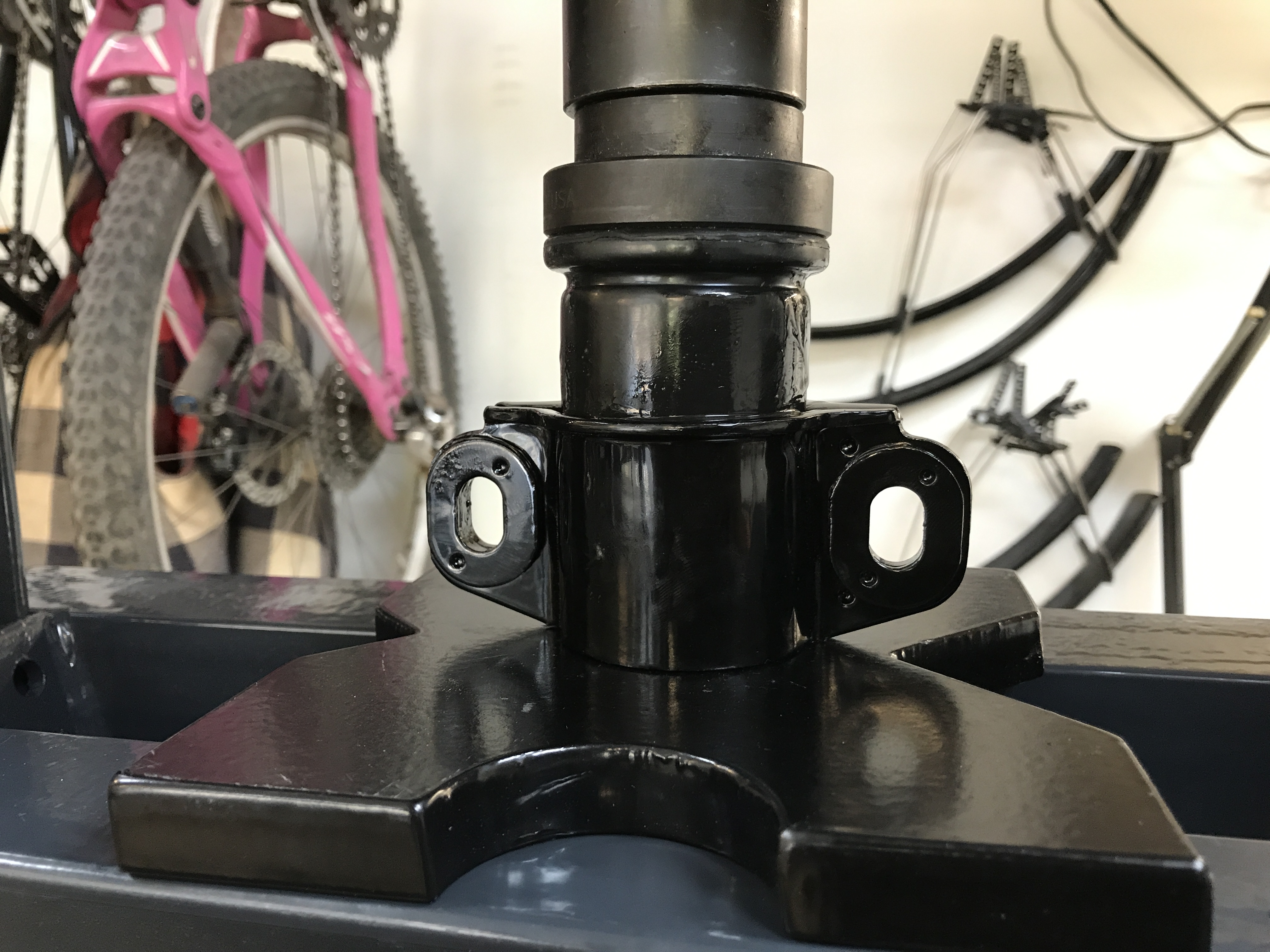

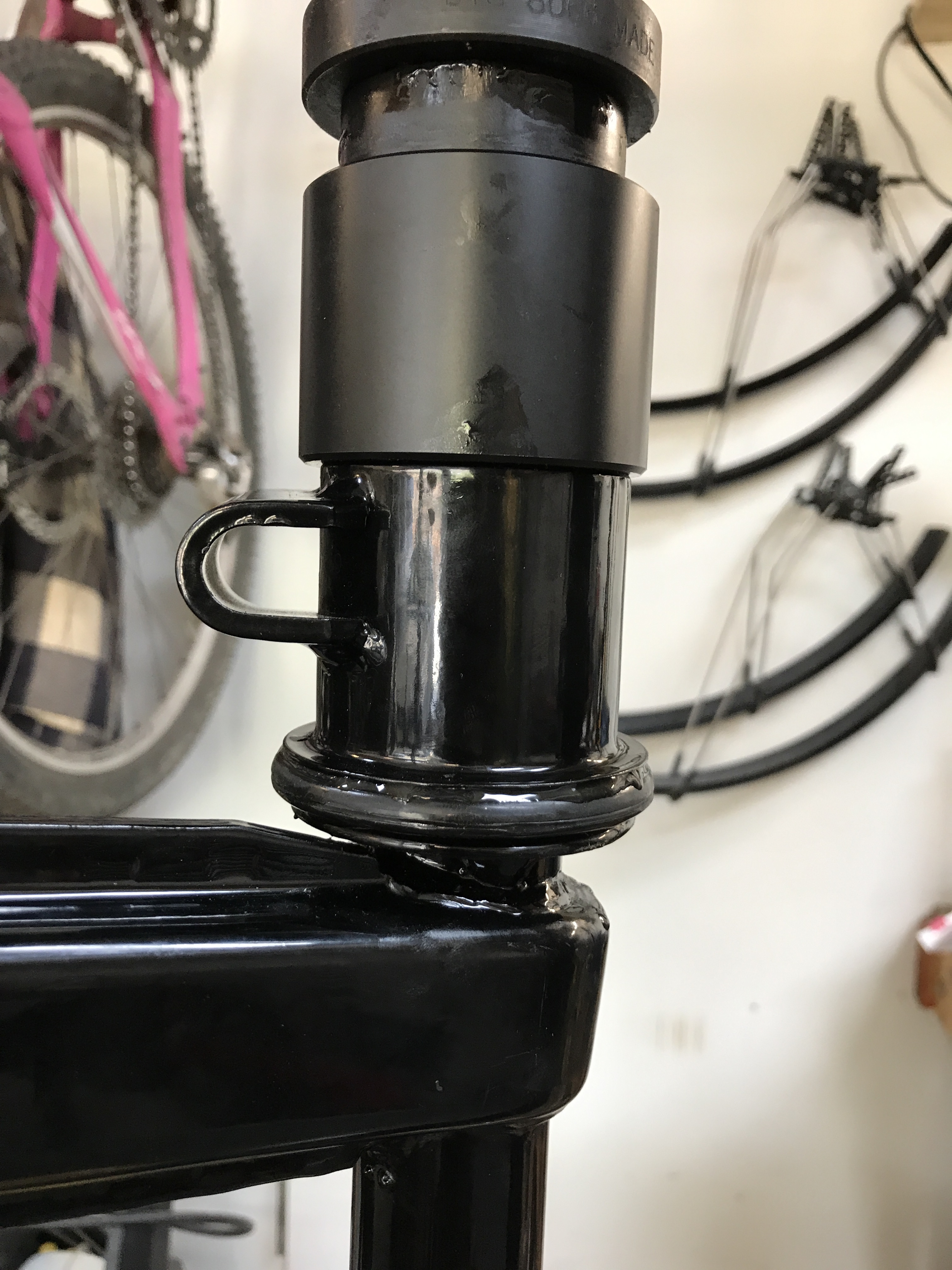

6. Pressed into place.
