Driver floor. I snuck a piece into the forward part of the tunnel.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 10 2020, 08:59 PM
Post #1642


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

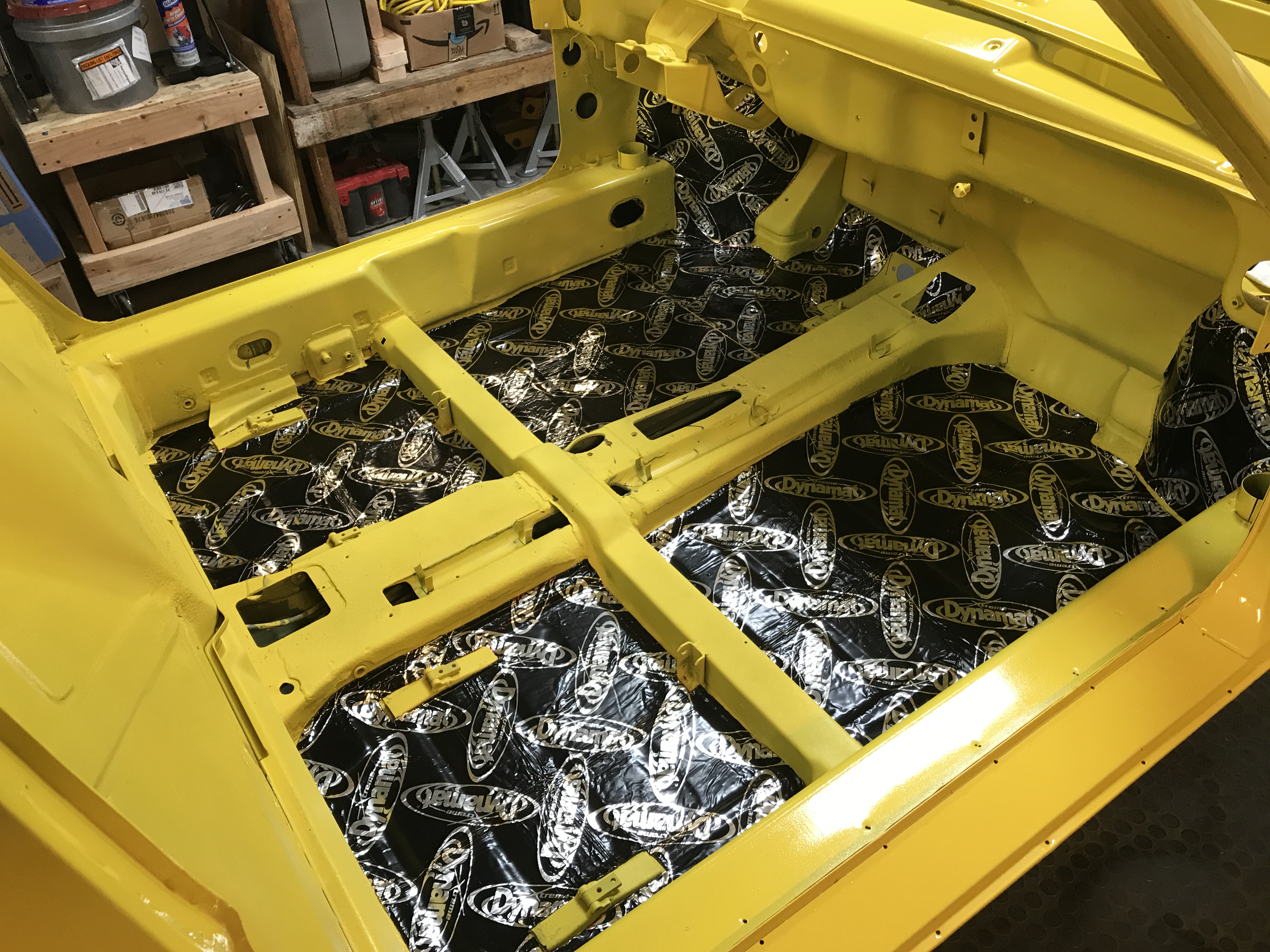

Done with the floor!


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 10 2020, 09:00 PM
Post #1643


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Now for the fire wall. I want a multi-layer system on the inside since I do not want to use a pad on the engine side.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 10 2020, 09:01 PM
Post #1644


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

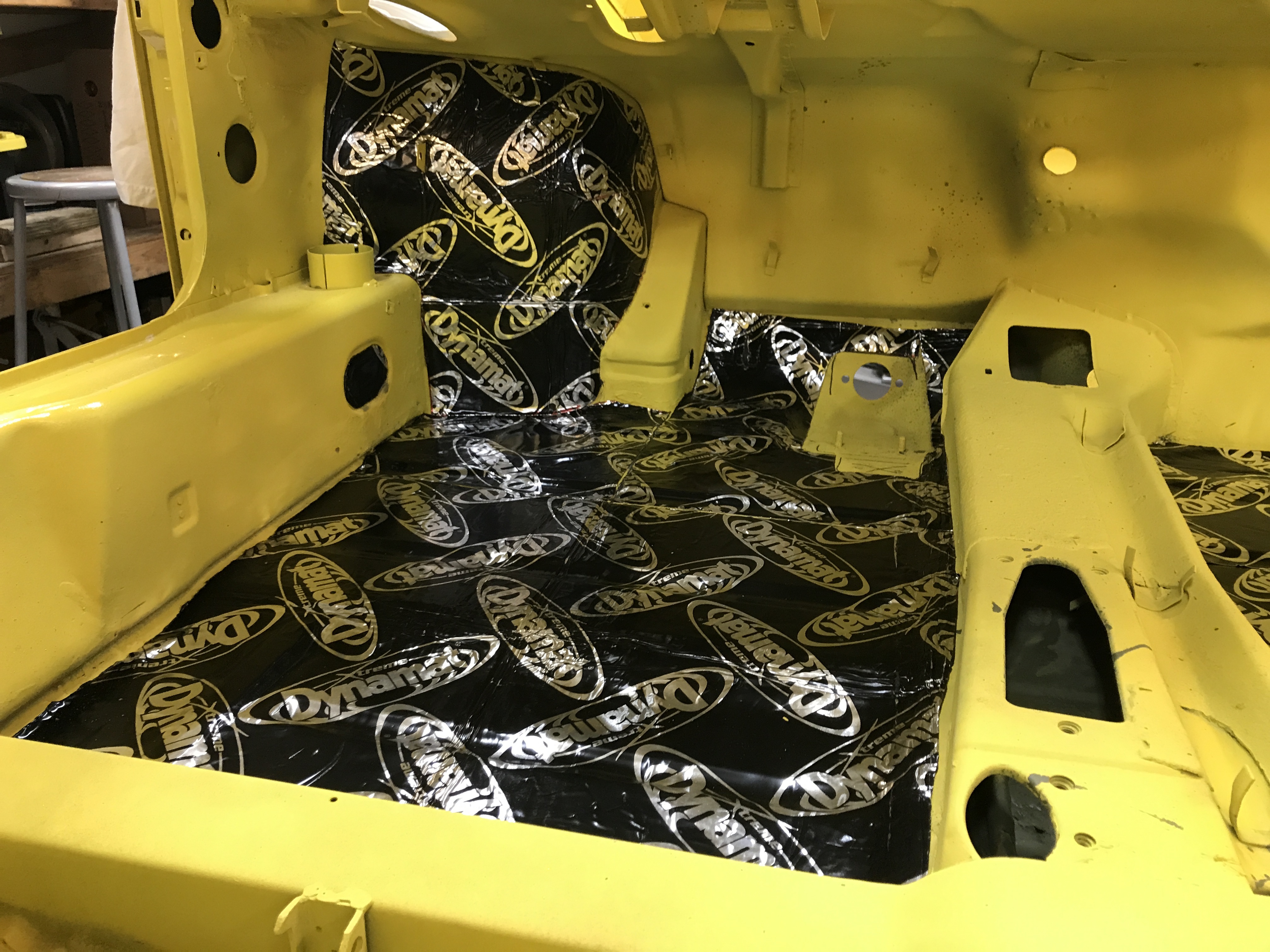

The first layer is more Dynamat.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 11 2020, 08:32 PM
Post #1645


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

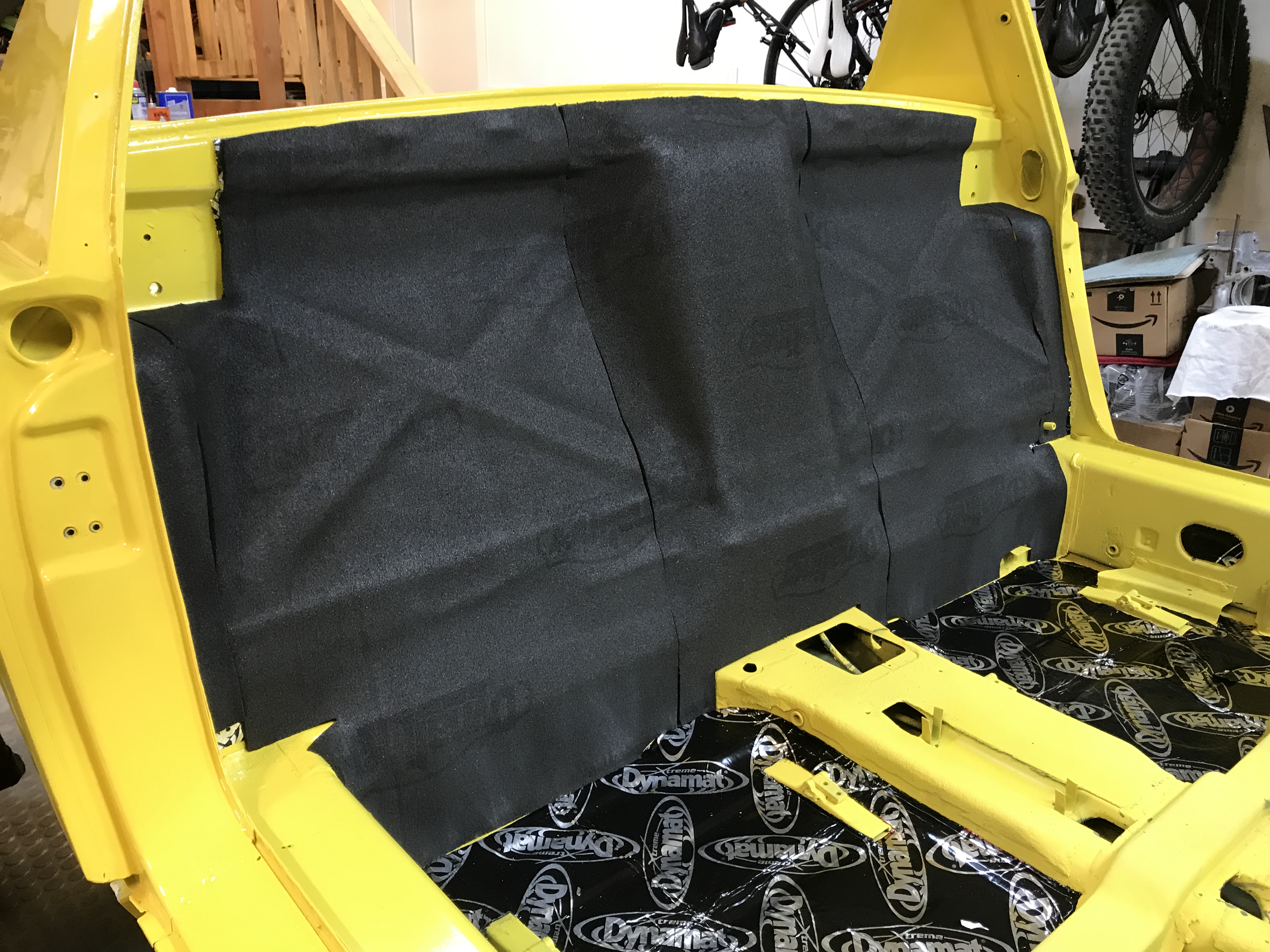

Now for the second layer on the fire wall. This is 1/4 inch Dynaliner.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 11 2020, 08:33 PM
Post #1646


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

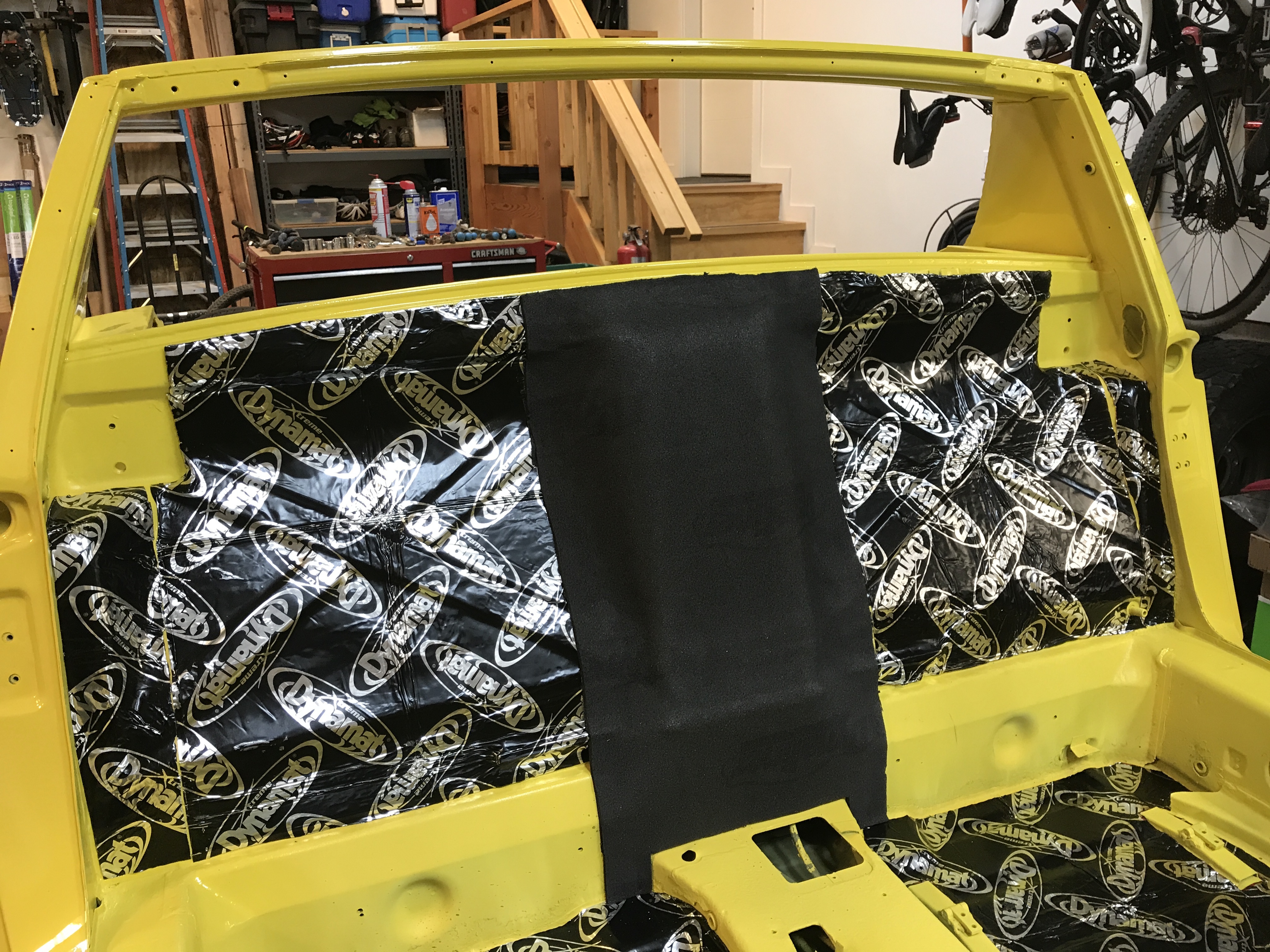

Center section.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 11 2020, 08:34 PM
Post #1647


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

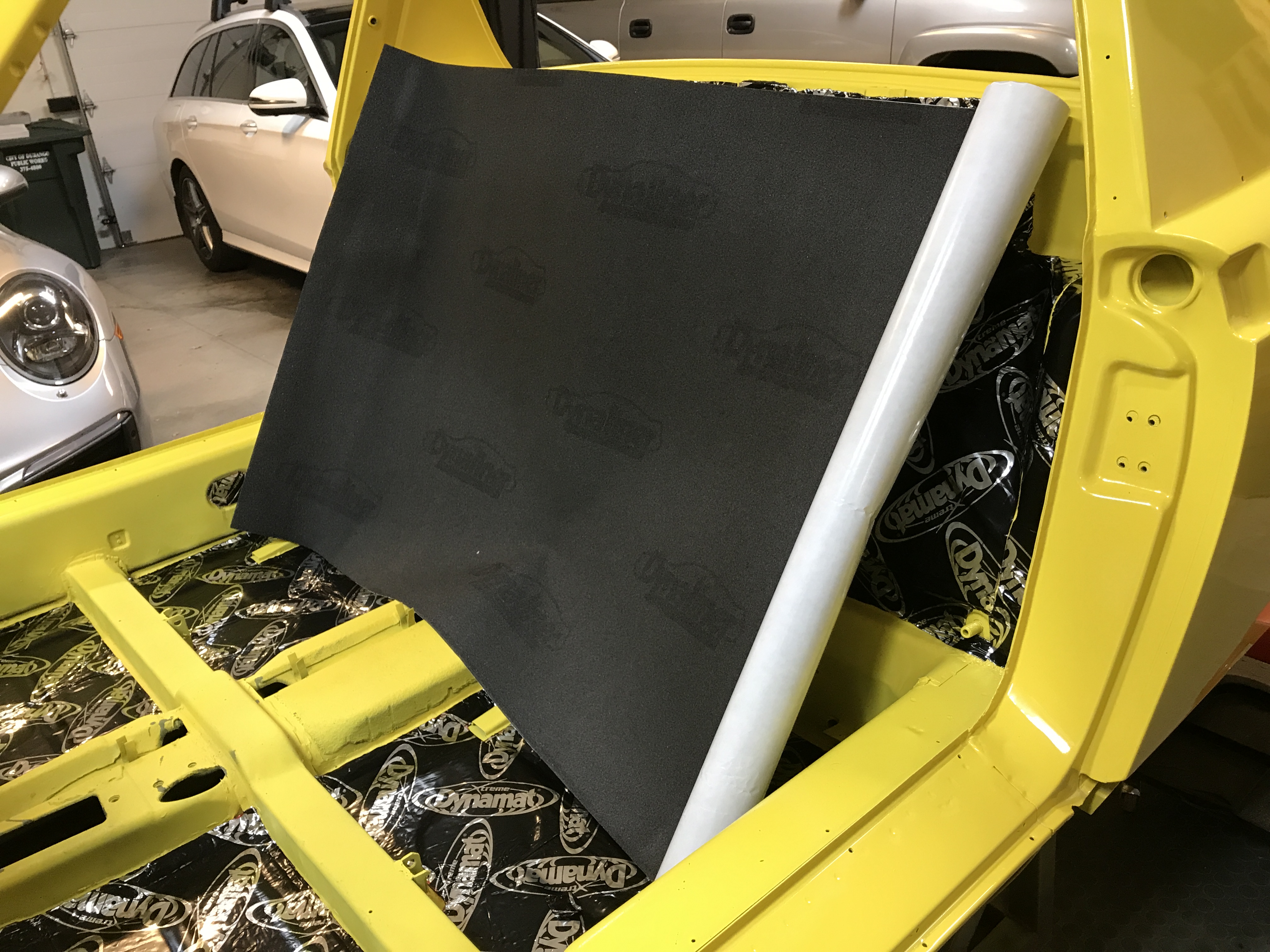

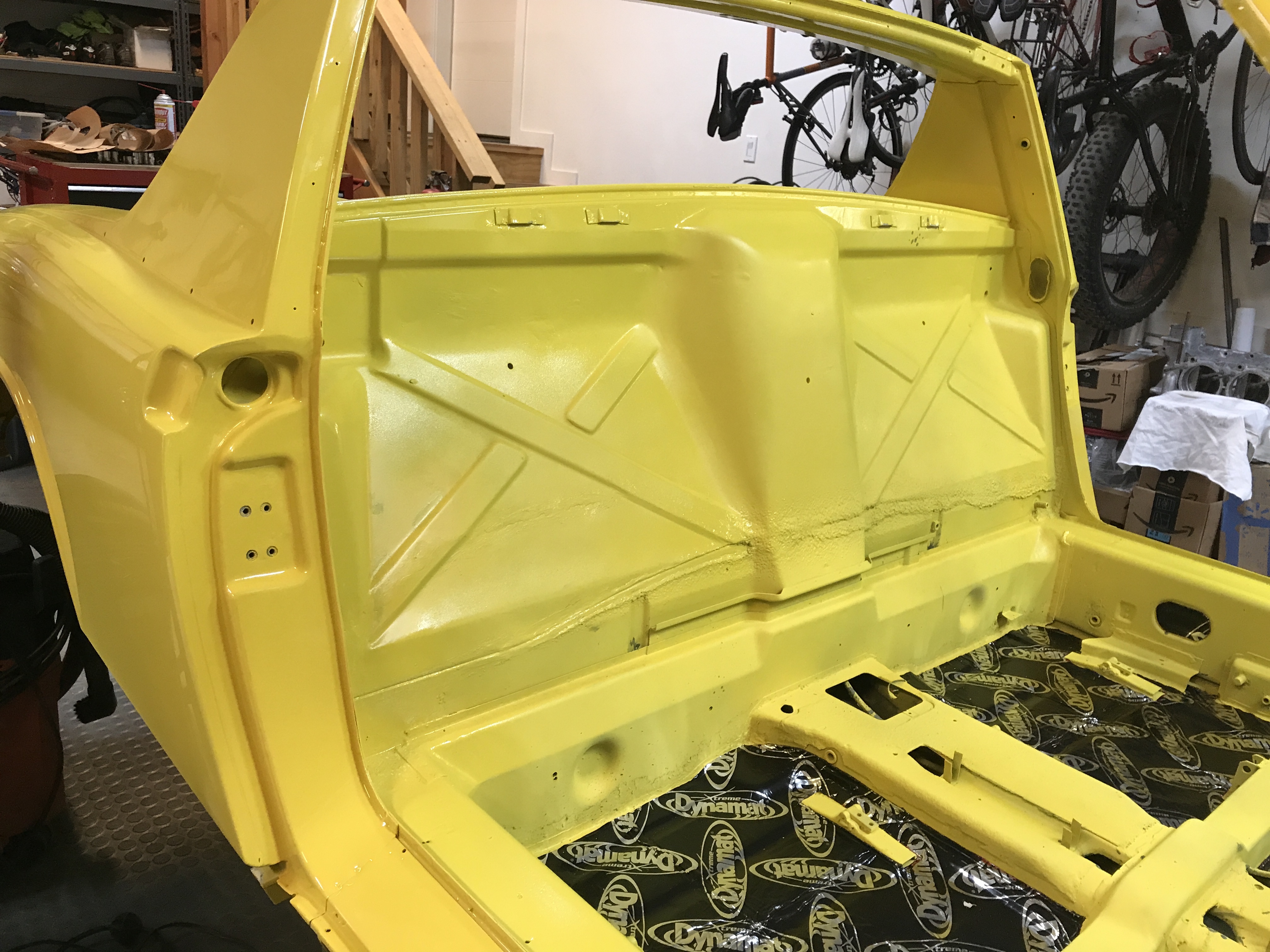

Full coverage (except for seat belt mounting areas). I plan to cover this with carpet, just not sure yet what type.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 11 2020, 08:43 PM
Post #1648


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

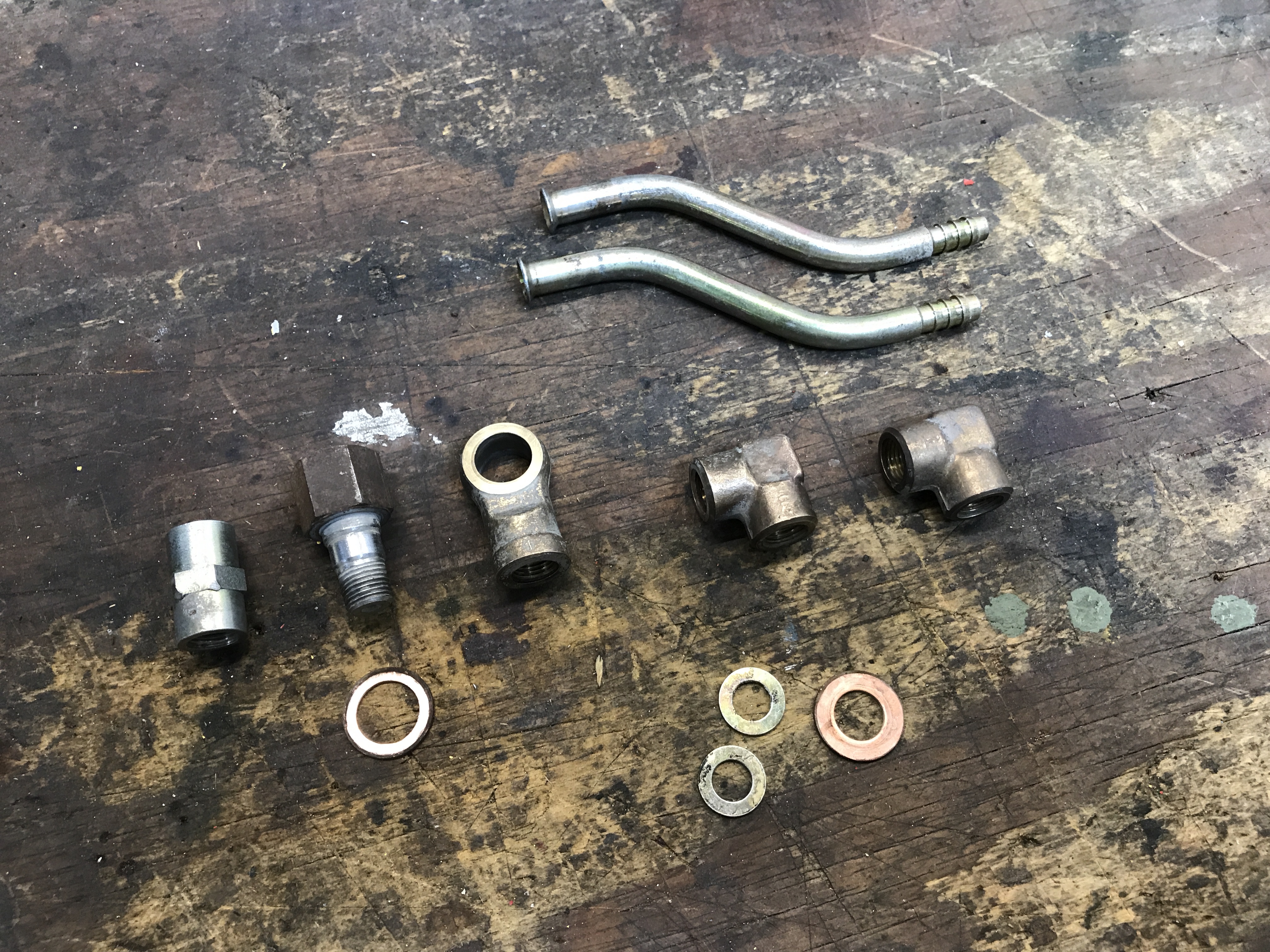

I also gathered the brake line fittings for cleaning. The master cylinder front line adapter is steel, and still needs some rust removal. Soaking that tonight in Evaporust.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 11 2020, 09:04 PM
Post #1649


914 Guru
*****

Group: Members
Posts: 7,278
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(bkrantz @ Dec 10 2020, 06:49 PM) *

QUOTE(mb911 @ Dec 9 2020, 08:06 PM) *

QUOTE(bkrantz @ Dec 9 2020, 06:15 PM) *

Going through more parts delivered while I was out of town. Here are the yellow zinc parts, done by Restoration Part Plating of Kenosha.



Kenosha WI?


Yes



Finishing and plating? That would now be 4 of our members that had stuff plated there.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 11 2020, 10:40 PM
Post #1650


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(mb911 @ Dec 11 2020, 08:04 PM) *

QUOTE(bkrantz @ Dec 10 2020, 06:49 PM) *

QUOTE(mb911 @ Dec 9 2020, 08:06 PM) *

QUOTE(bkrantz @ Dec 9 2020, 06:15 PM) *

Going through more parts delivered while I was out of town. Here are the yellow zinc parts, done by Restoration Part Plating of Kenosha.



Kenosha WI?


Yes



Finishing and plating? That would now be 4 of our members that had stuff plated there.


And all tracing back to your recommendation. You should get a commission!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Dec 12 2020, 05:58 PM
Post #1651


Advanced Member
****

Group: Members
Posts: 3,705
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States
QUOTE(bkrantz @ Dec 11 2020, 09:34 PM) *

Full coverage (except for seat belt mounting areas). I plan to cover this with carpet, just not sure yet what type.


WOW, great work and thank you for posting. Our project is still in the selective demo phase. Good thing we have RD or we would be lost
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 12 2020, 07:52 PM
Post #1652


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(930cabman @ Dec 12 2020, 04:58 PM) *

QUOTE(bkrantz @ Dec 11 2020, 09:34 PM) *

Full coverage (except for seat belt mounting areas). I plan to cover this with carpet, just not sure yet what type.


WOW, great work and thank you for posting. Our project is still in the selective demo phase. Good thing we have RD or we would be lost


Agreed. I am grateful to all our dedicated 914 suppliers. And I show that gratitude by sending them lots of money! (IMG:style_emoticons/default/biggrin.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 12 2020, 07:57 PM
Post #1653


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

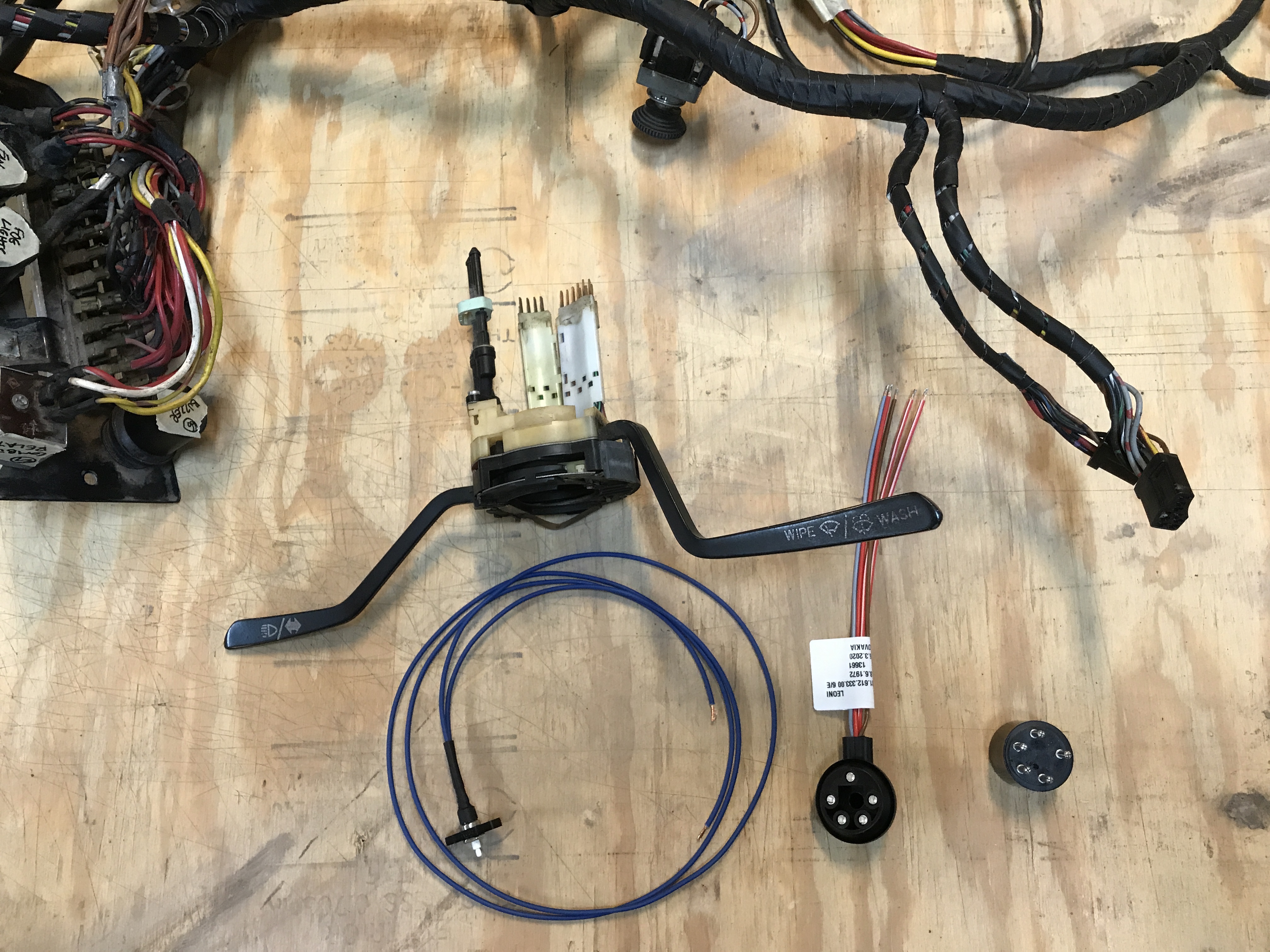

A slight detour. Before I install the wiring harness, I need to install the washer pump switch from Carmagic. No more spare tire pressure and fluid flowing through the steering column.

Anyway, I will install this with a round relay and socket.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 12 2020, 07:59 PM
Post #1654


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

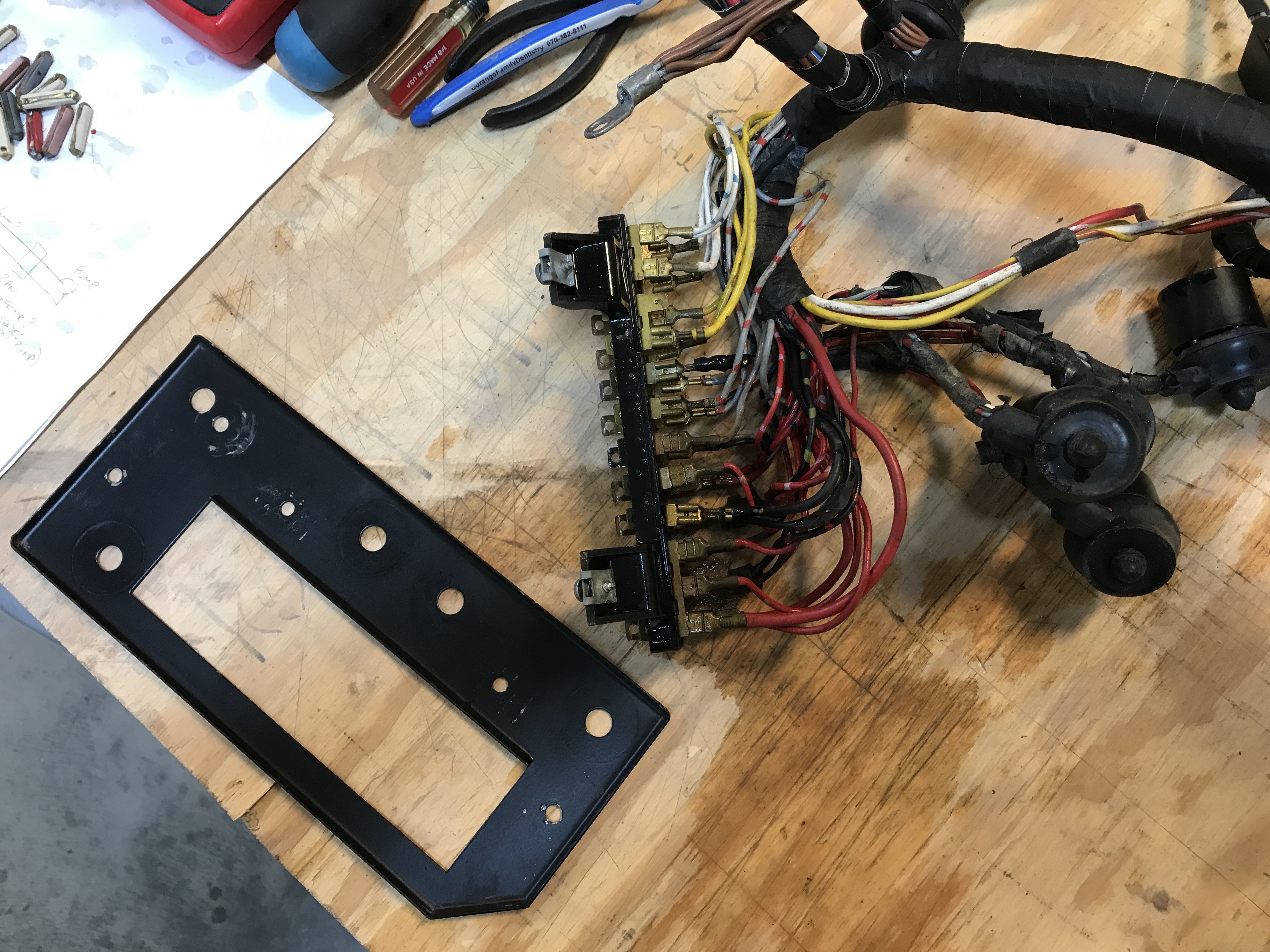

A detour on the detour: getting the wiring harness out reminded me that I still need to clean the fuse-relay panel, and the connecting wires.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 12 2020, 08:00 PM
Post #1655


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

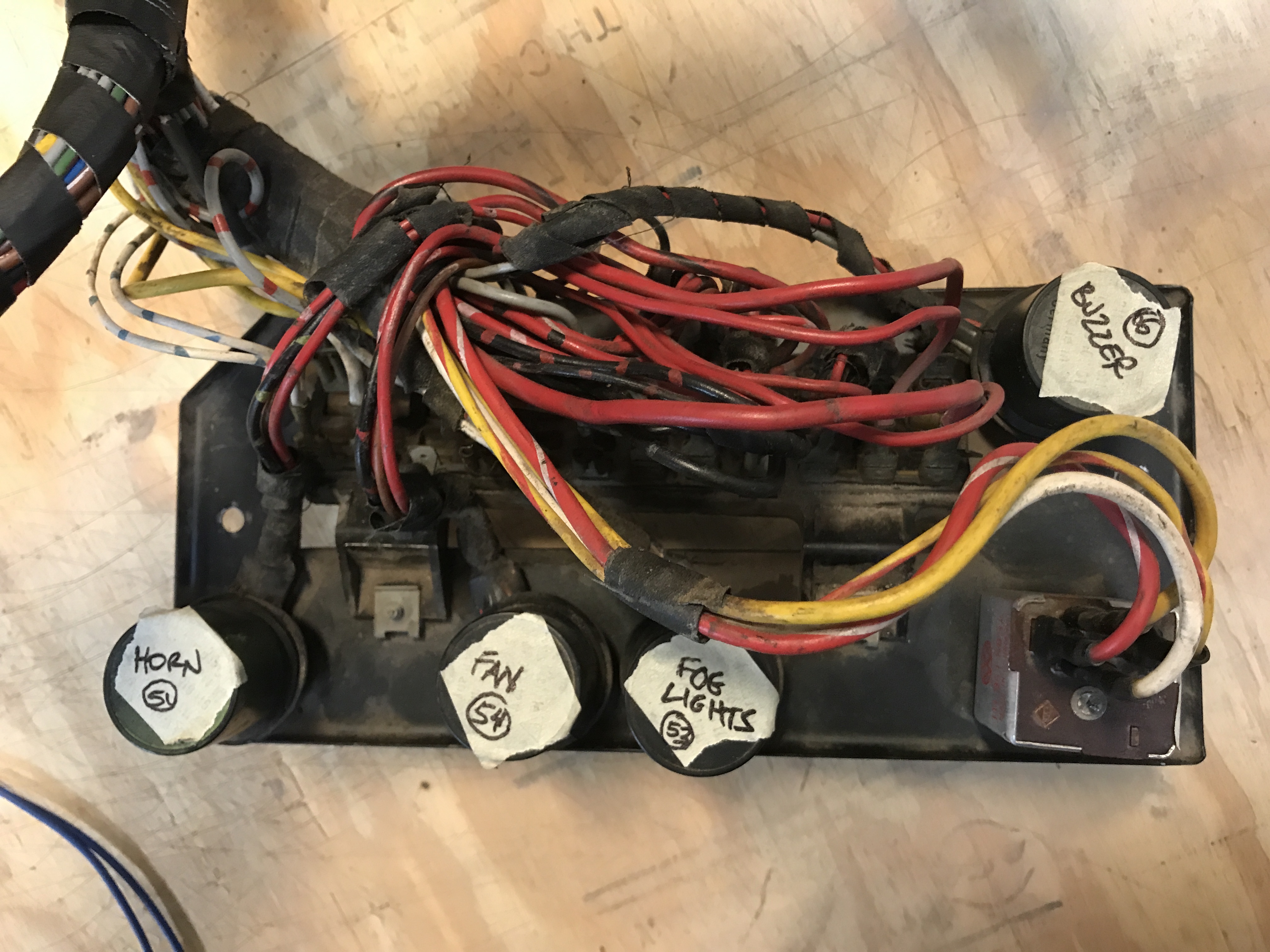

Partial disassembly and cleaning. Not sure I dare unplug all the connectors!


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 12 2020, 08:43 PM
Post #1656


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
QUOTE(bkrantz @ Dec 12 2020, 07:00 PM) *

Partial disassembly and cleaning. Not sure I dare unplug all the connectors!


As long as you have a schematic handy, I would. It's a good time to make sure all the connections are clean and tight and some DAPO didn't get creative with where they routed circuits.

I labeled mine with little zip tie tags before pulling them off but in the end I didn't really use the labels and just followed the schematic because sure enough, a few wires had been switched around over the years.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 13 2020, 08:00 PM
Post #1657


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(bbrock @ Dec 12 2020, 07:43 PM) *

QUOTE(bkrantz @ Dec 12 2020, 07:00 PM) *

Partial disassembly and cleaning. Not sure I dare unplug all the connectors!


As long as you have a schematic handy, I would. It's a good time to make sure all the connections are clean and tight and some DAPO didn't get creative with where they routed circuits.

I labeled mine with little zip tie tags before pulling them off but in the end I didn't really use the labels and just followed the schematic because sure enough, a few wires had been switched around over the years.


Thanks, Brent. When I refurbished the harness I checked and repaired everything, from shorted and melted wires to corrosion to DAPO stupidity. I can't remember why I did not clean the fuse-relay panel then, probably got distracted by something more fun.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 13 2020, 08:03 PM
Post #1658


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
A personal milestone today: I installed the first hard parts! Yay, me! (IMG:style_emoticons/default/cheer.gif)

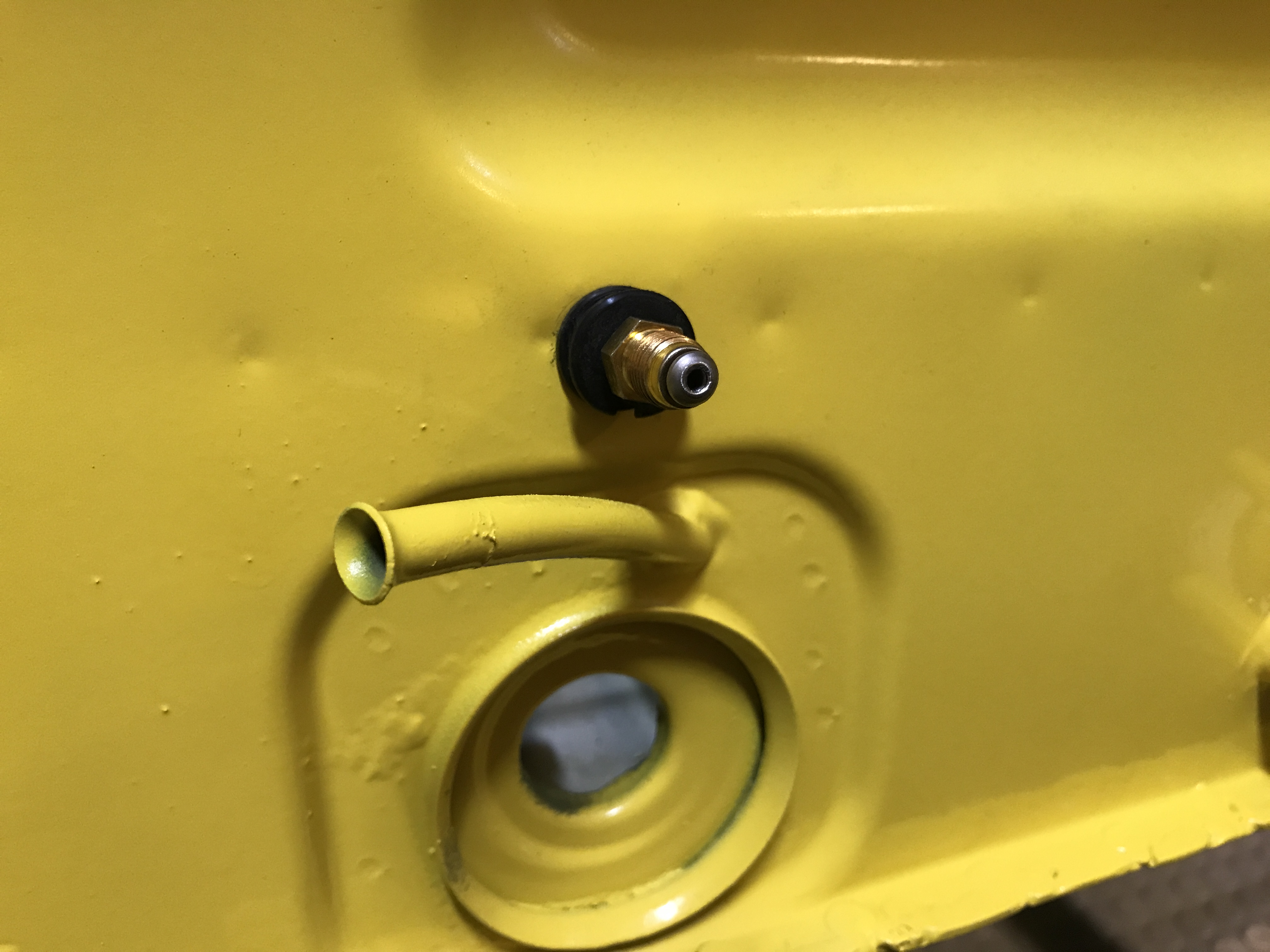

I started with the brake line in the tunnel. This has a short segment that goes through the firewall.



Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 13 2020, 08:10 PM
Post #1659


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

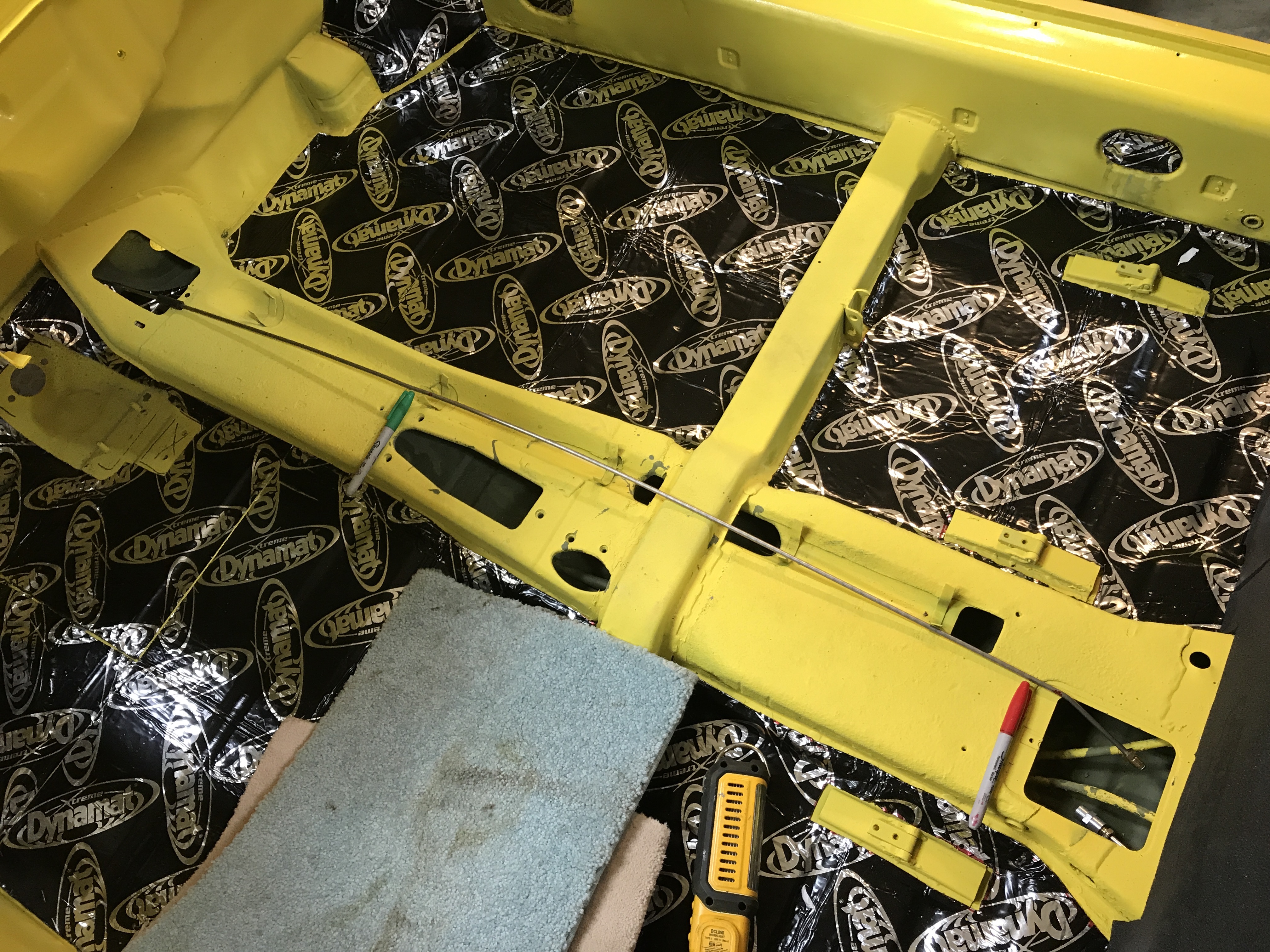

And the long section that goes to the front. Here it is on top of the tunnel. The Sharpies show the locations of the tabs to hold the line to the top of the tunnel. I transferred the locations to the brake line to locate some rubber tubing for protection.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 13 2020, 08:11 PM
Post #1660


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

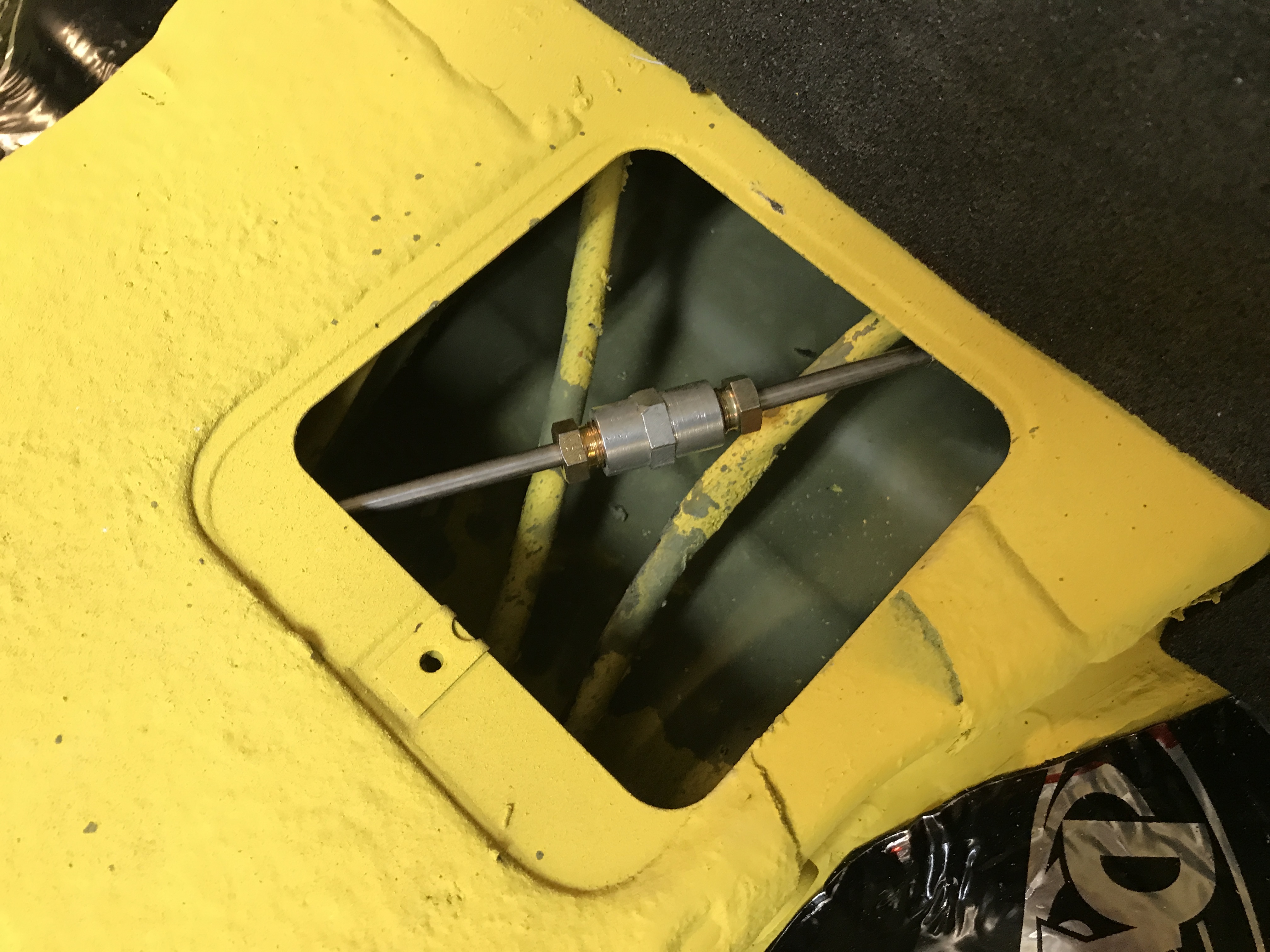

The two lines come together at this union--first time using a wrench on the rebuild!


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
