Finishing up the relay board. The potting compound looks pretty solid after 36 hours.

And some leaks, from over-filling.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:06 PM
Post #1822


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

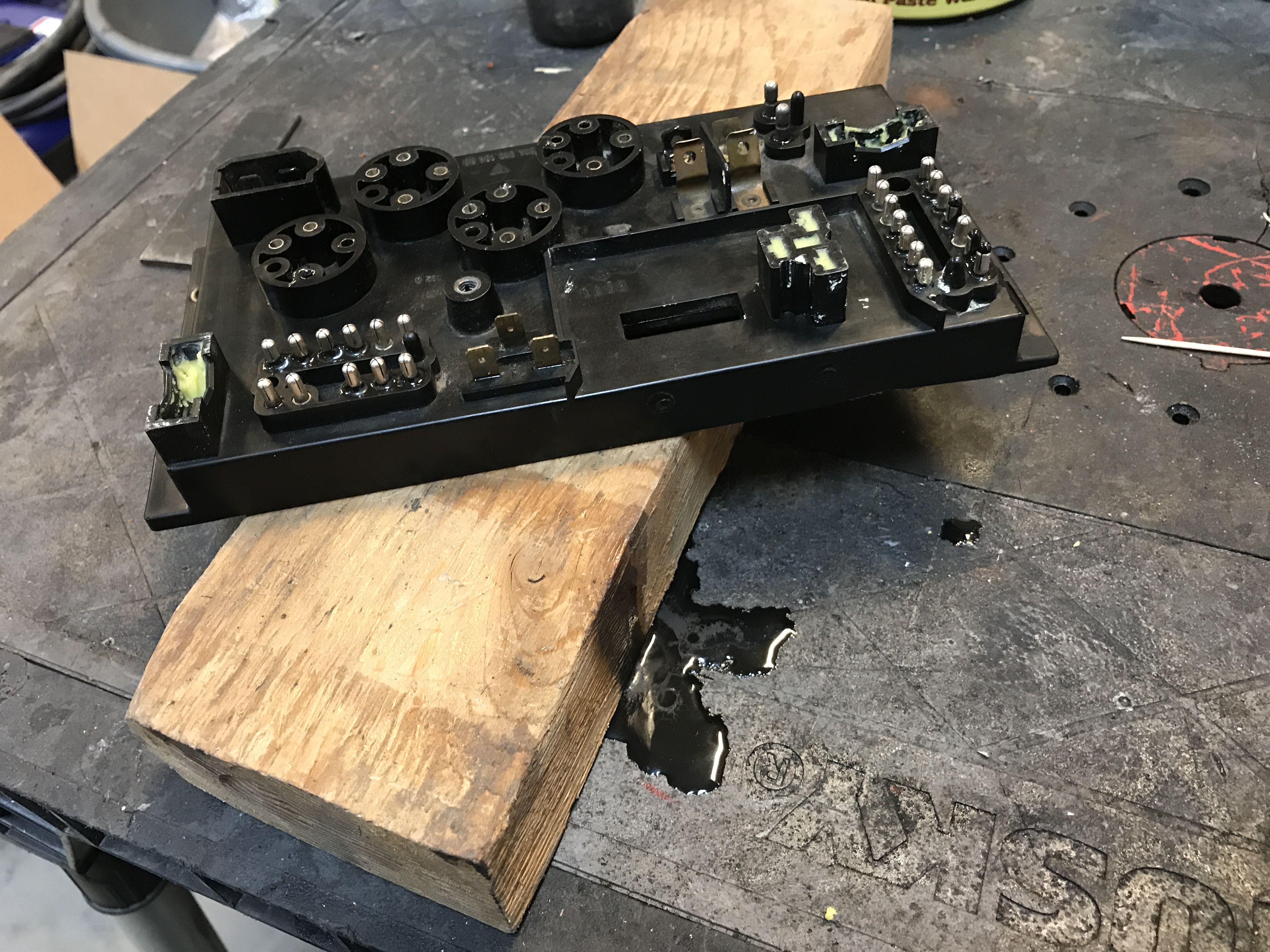

Compound leaked through the side notches, and onto one of the 12-pin sockets.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:07 PM
Post #1823


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

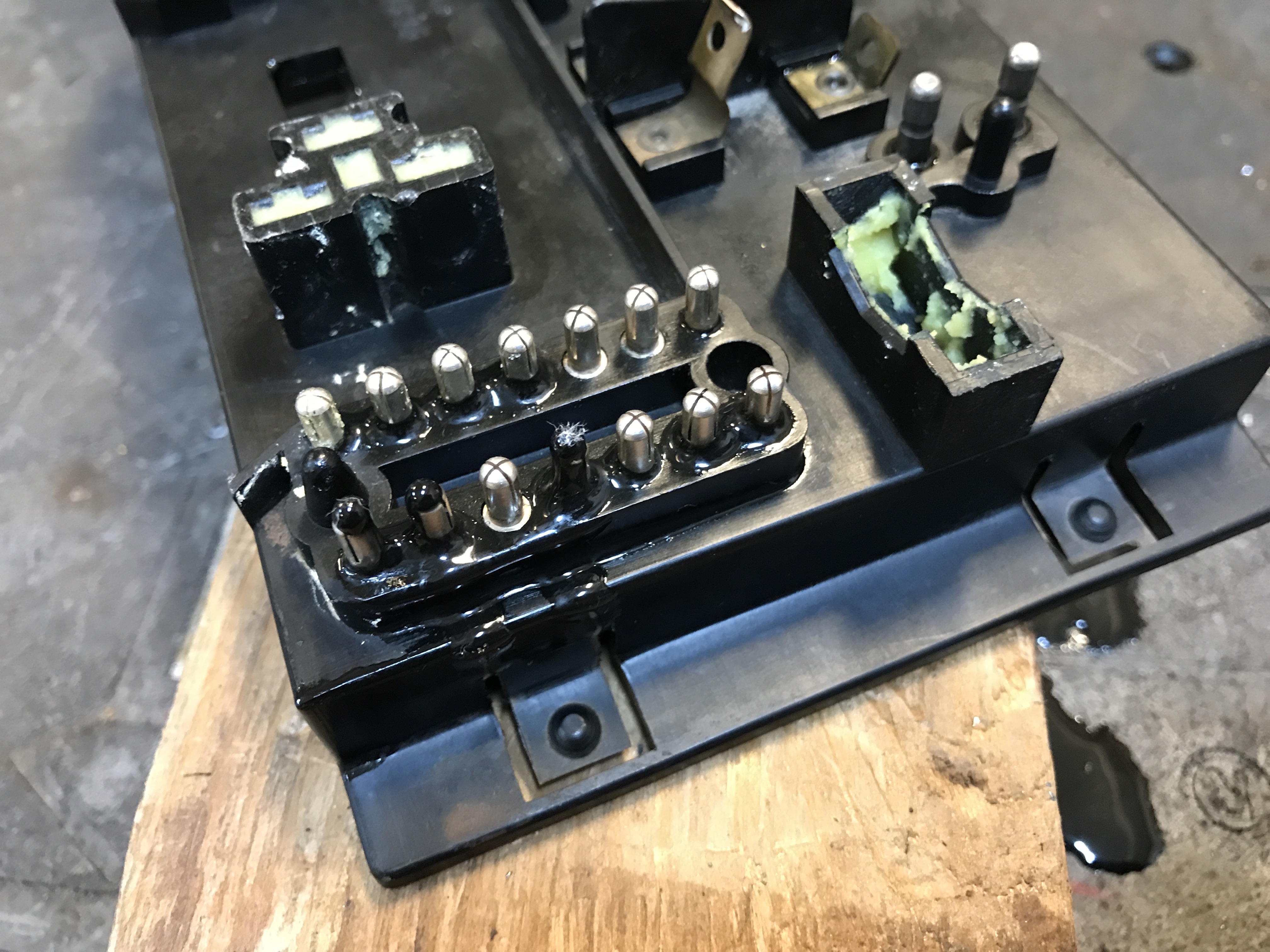

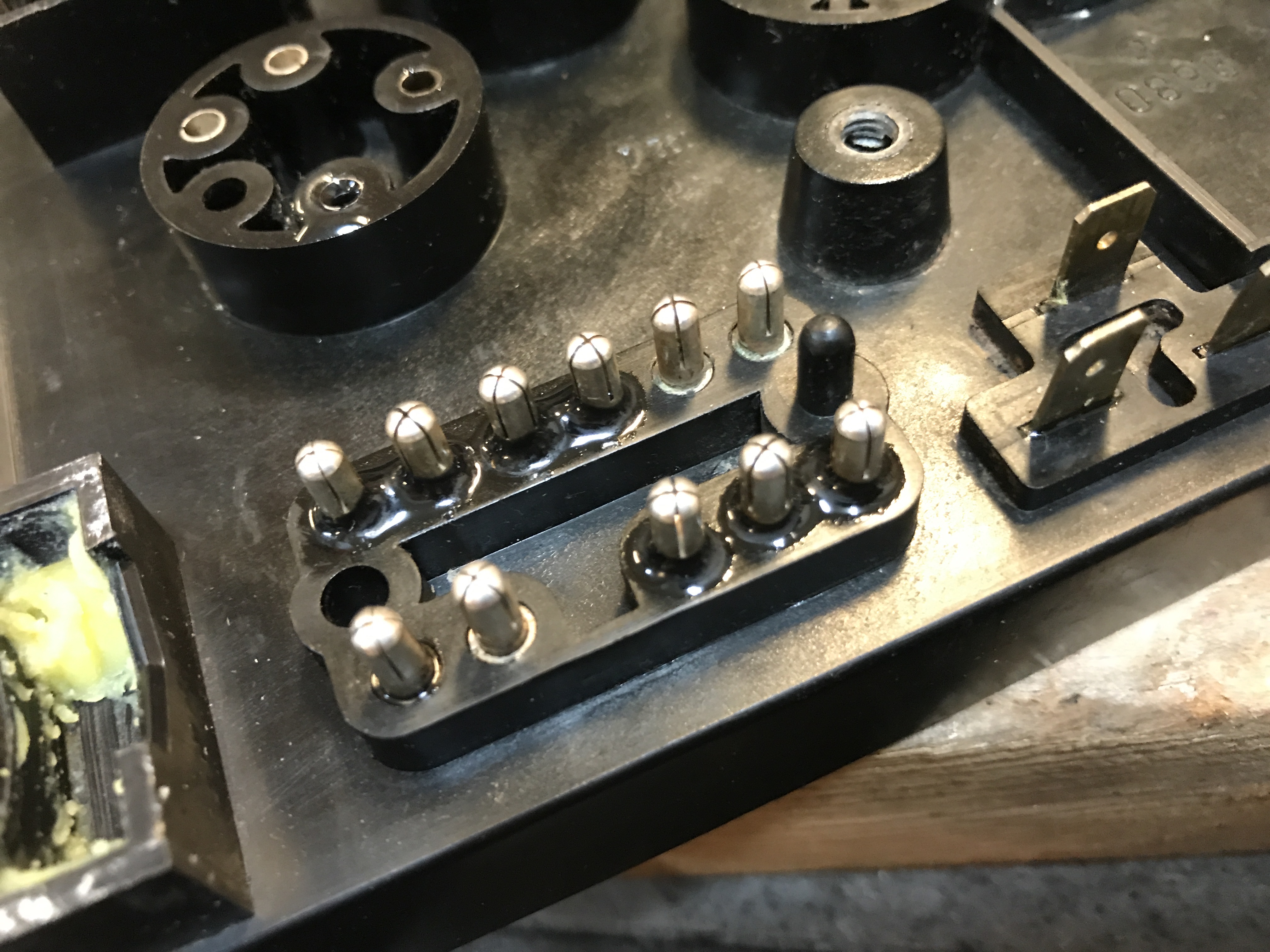

And the compound found more leak points, including the pins of the other 12-pin socket.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:08 PM
Post #1824


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

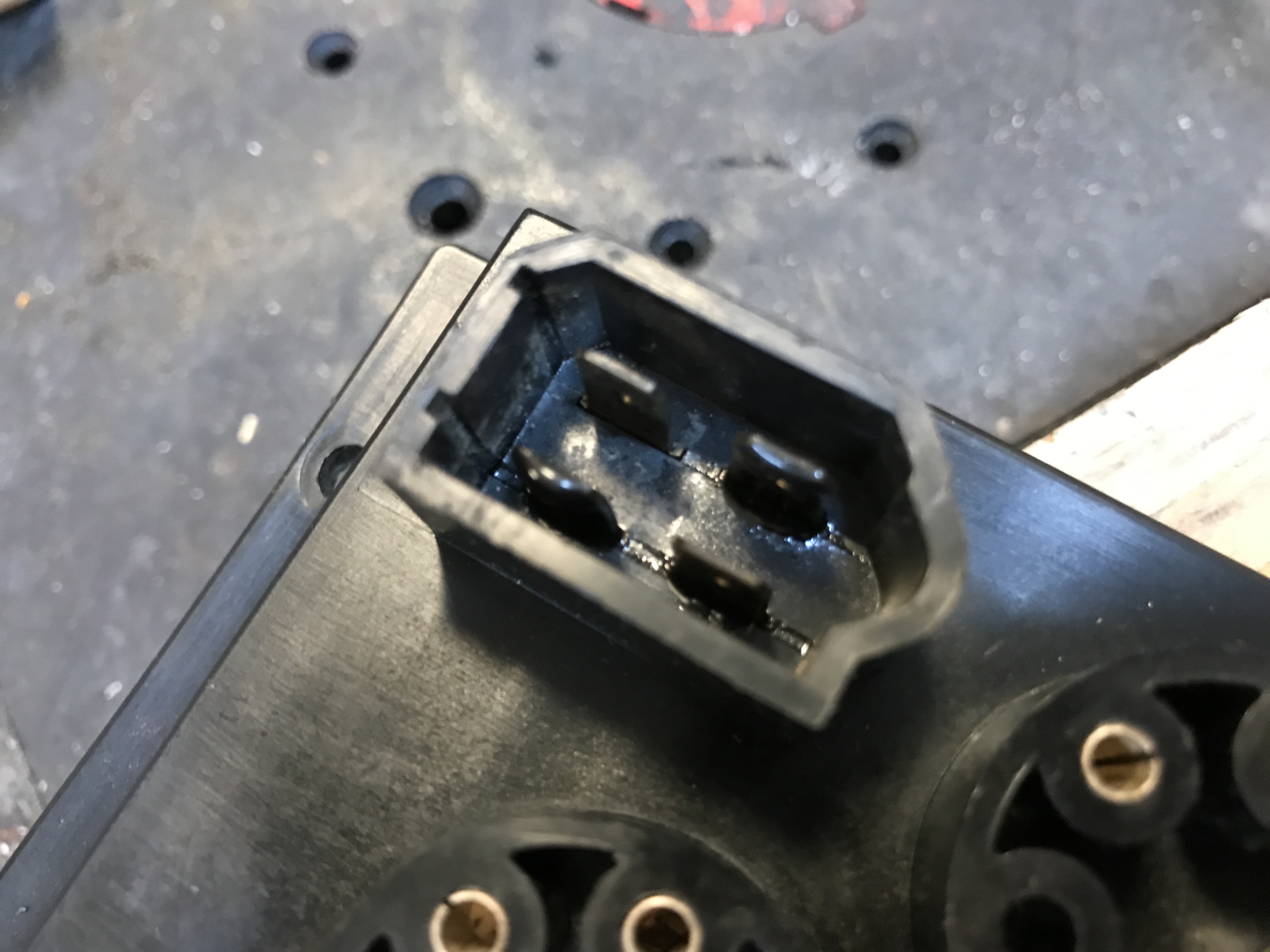

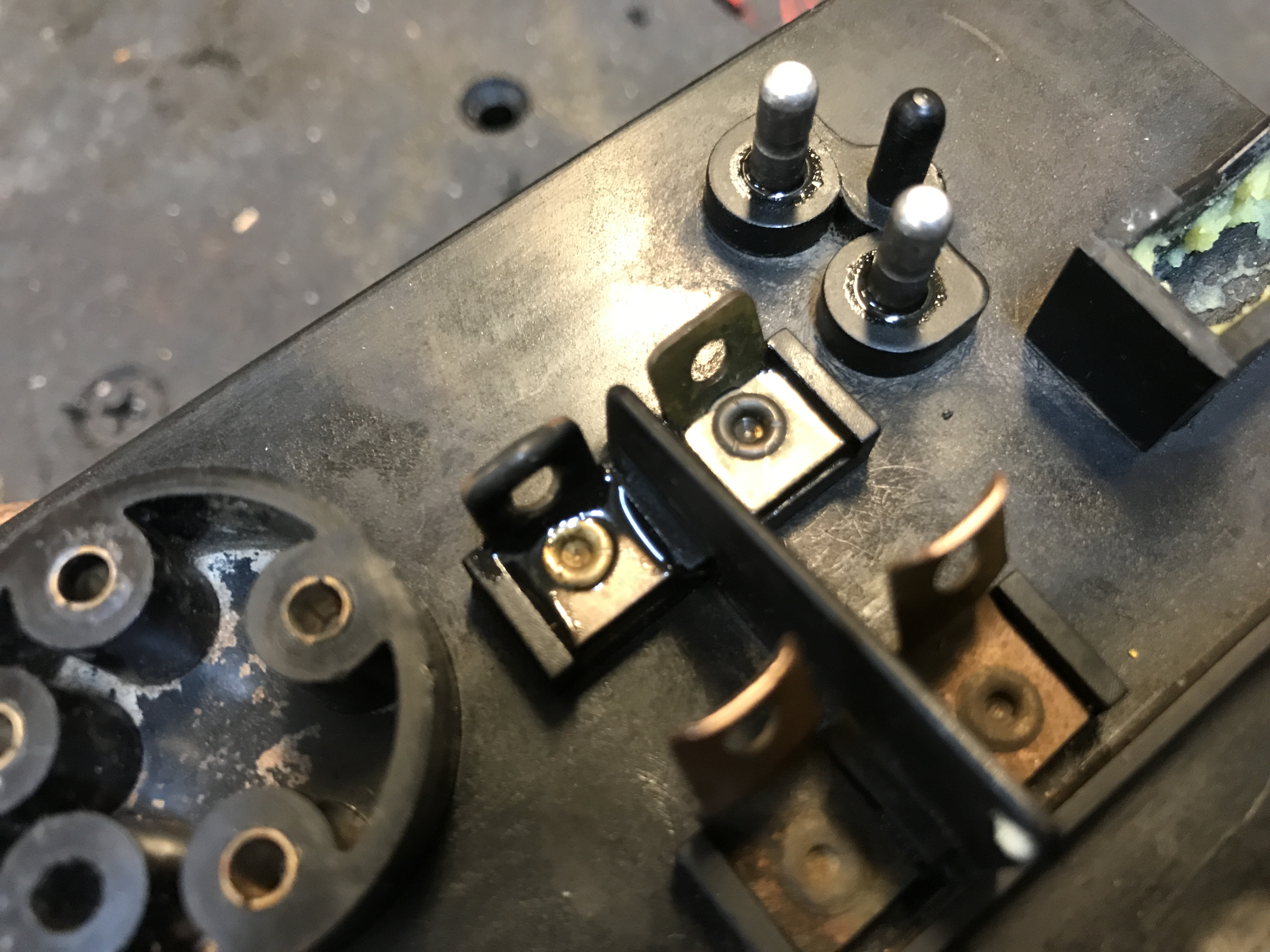

And the 3-pin socket, and one tab for the fuses.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:10 PM
Post #1825


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

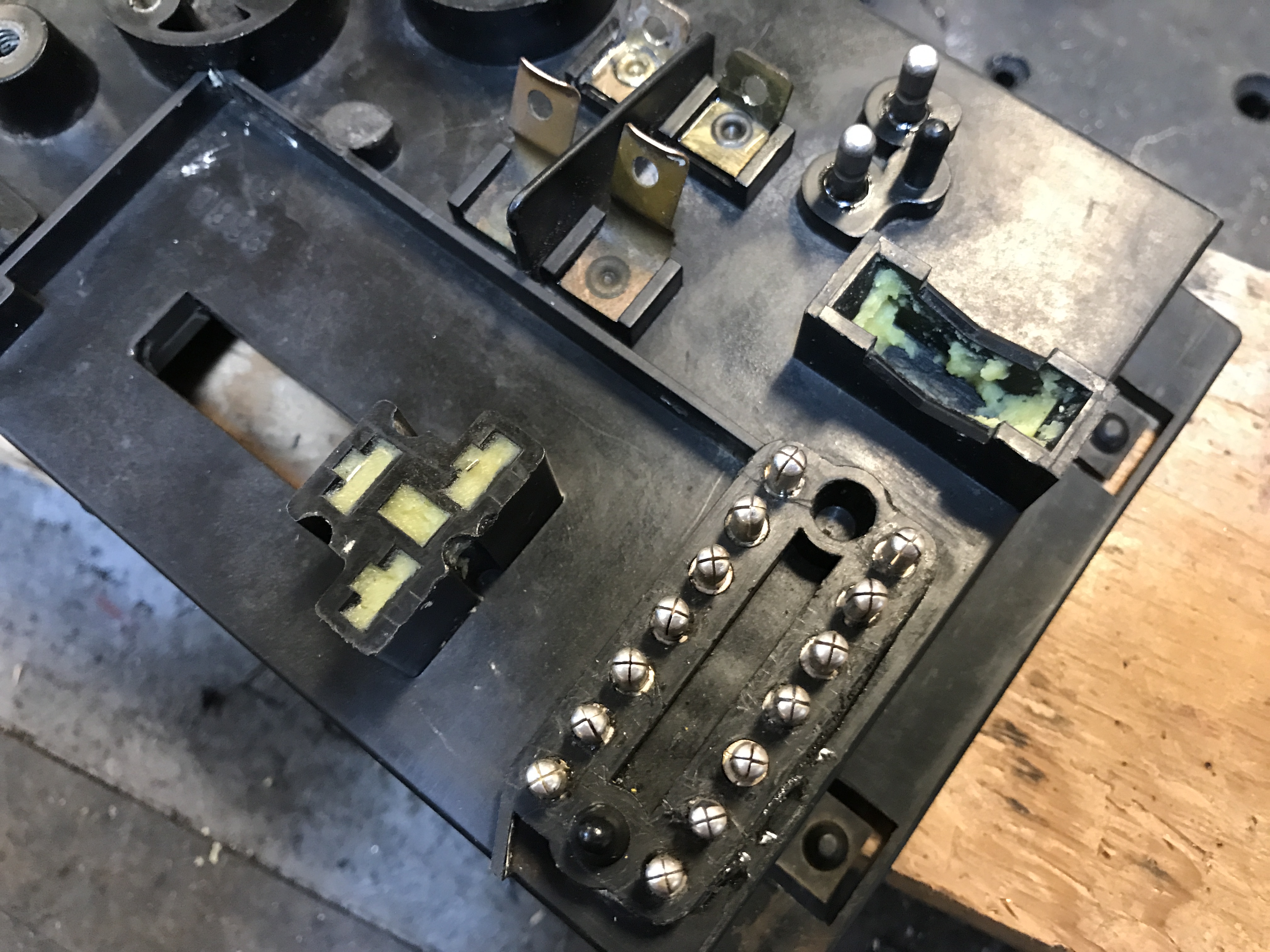

And the 4-tab socket. Damned stuff was very sneaky.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:11 PM
Post #1826


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
At least the wax in the big holes worked.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:12 PM
Post #1827


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

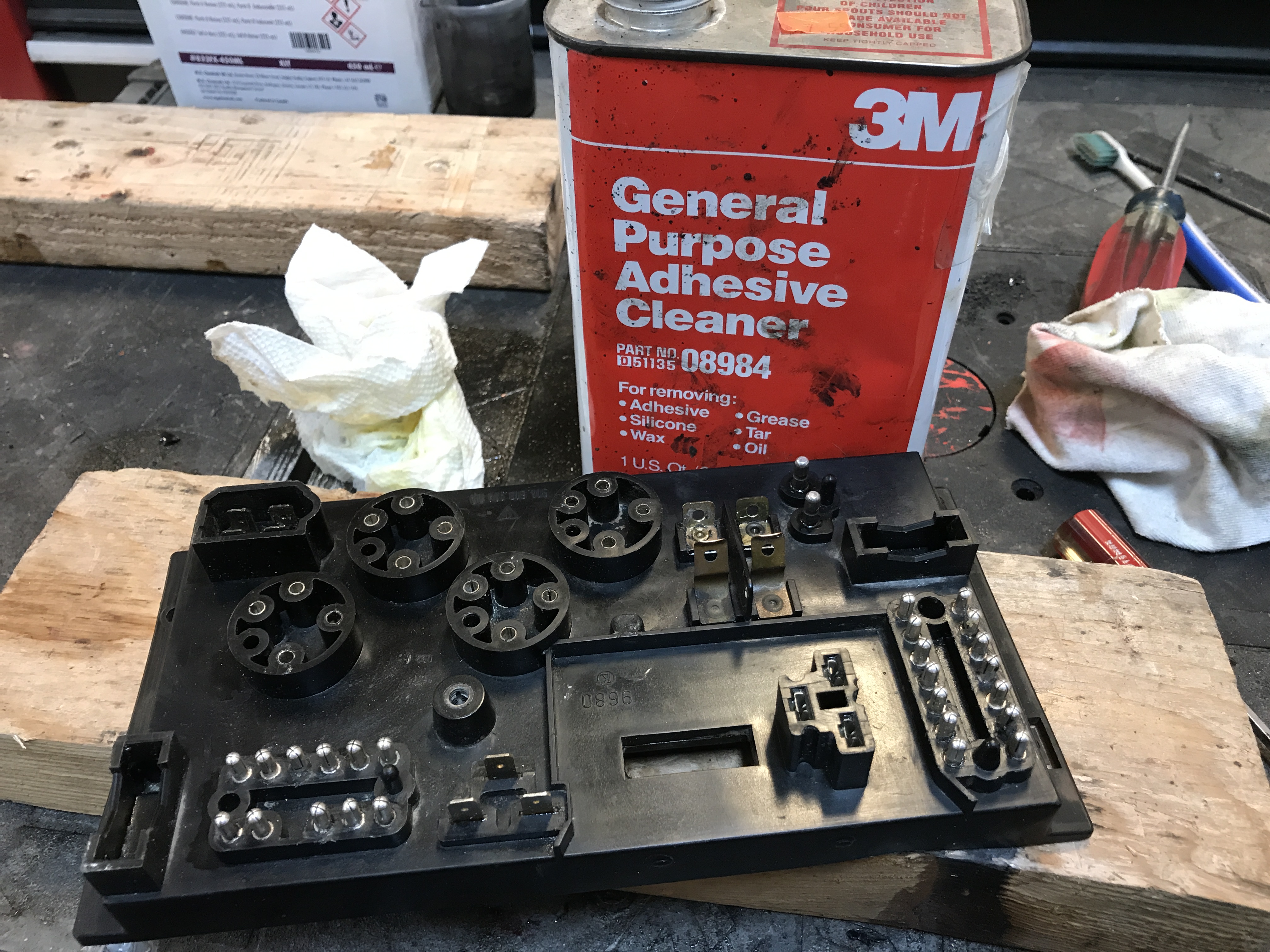

And was easy to clean out with a tooth pick, Q-tip, and 3M solvent. I also scraped the compound off the other pins and tabs where it leaked through.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:16 PM
Post #1828


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

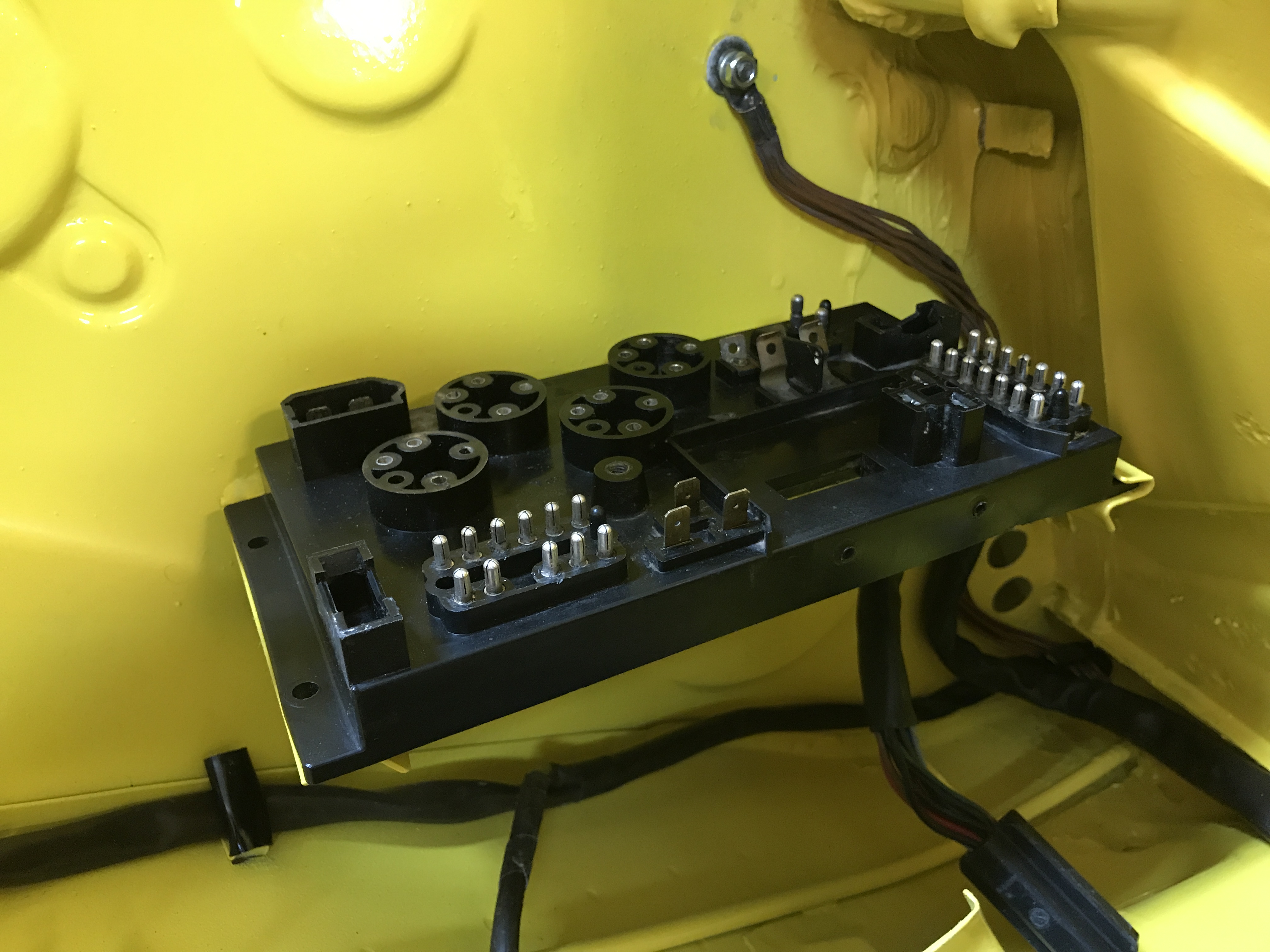

Ready to go!

A few lessons:

To fill the underside takes 70-75 ml. Any more will overflow.

The wax worked to fill the big holes, but a thin compound will find a way through other small holes.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:18 PM
Post #1829


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

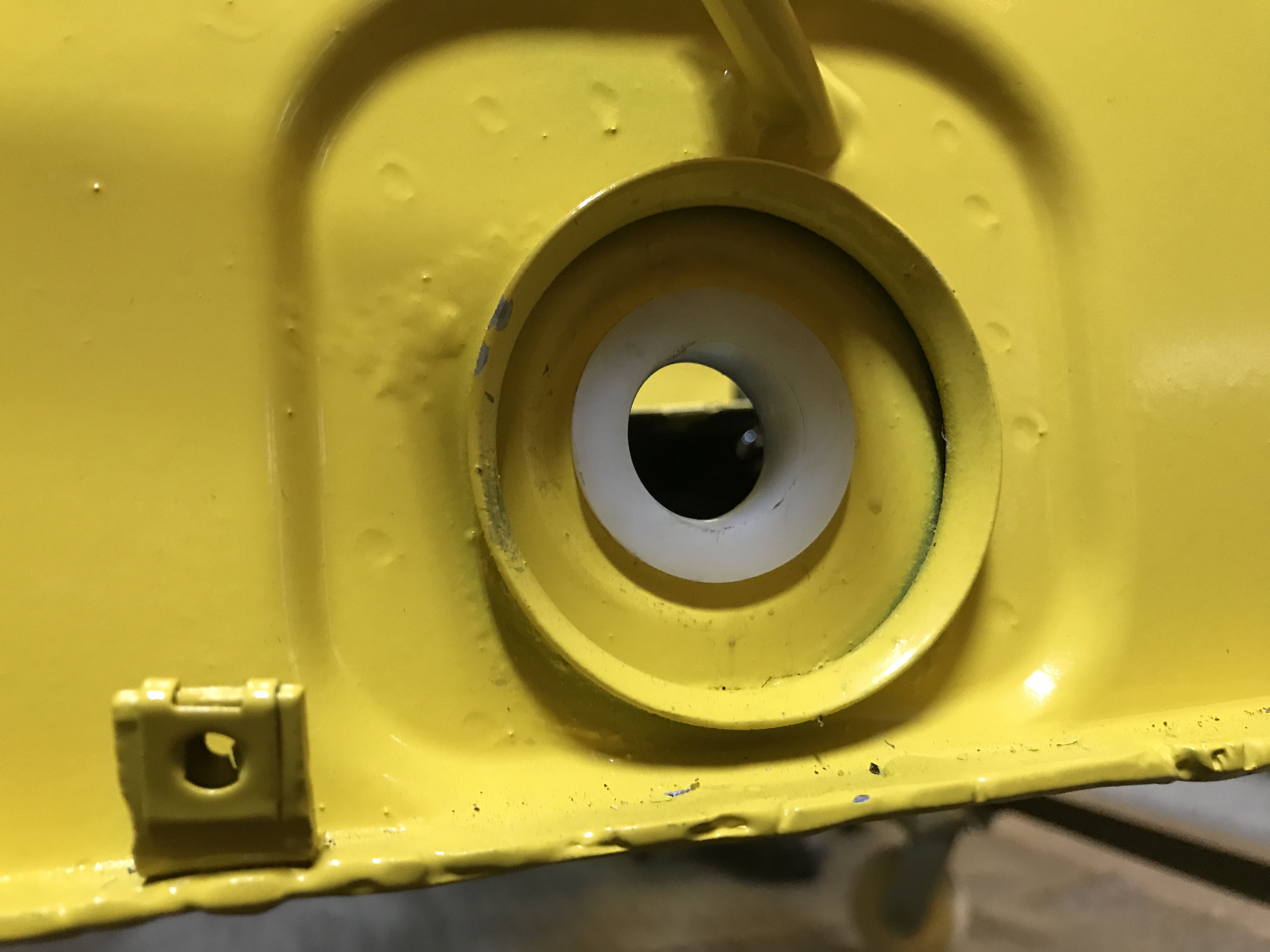

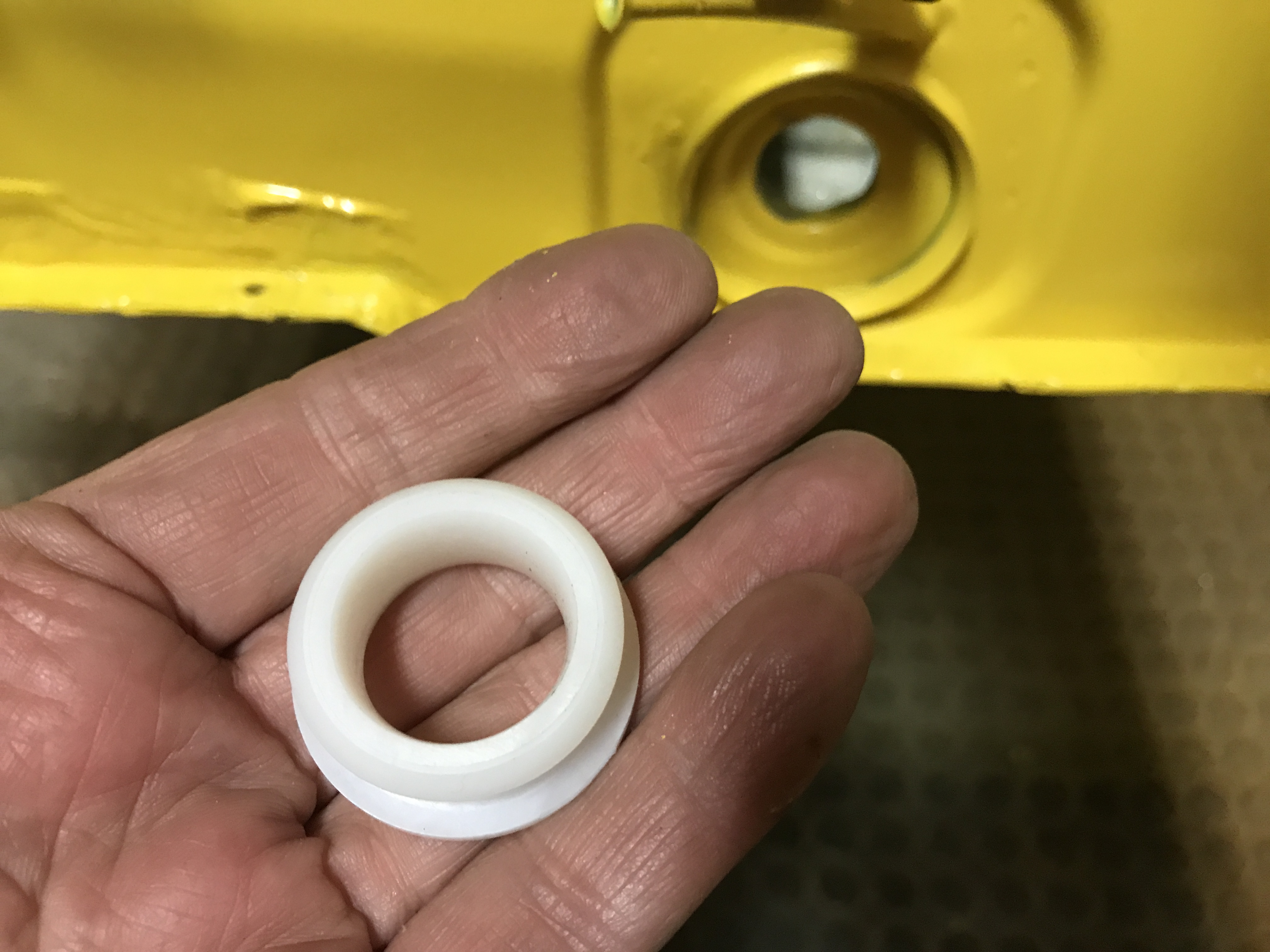

One more task done today: a new shift rod bushing in the firewall.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 28 2020, 08:21 PM
Post #1830


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
This was a bit difficult to install. I tried pressing with a 2x4 levered against the car dolly frame without success. With a step-down spacer and big hammer, I was able to get it most of the way in, and finished with a pry tool against the inner lip.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 29 2020, 07:40 PM
Post #1831


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

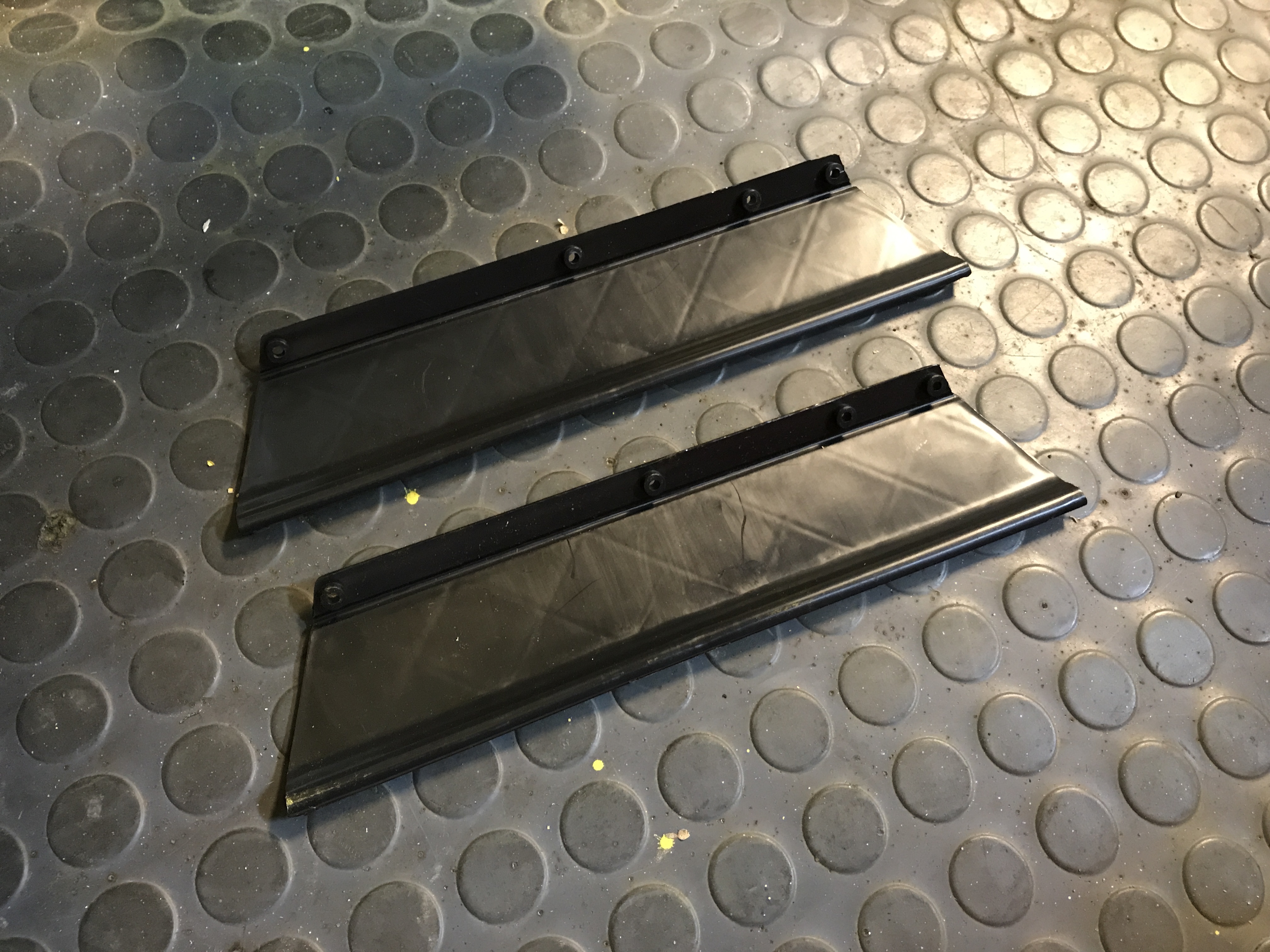

Next, mounting new air deflectors.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 29 2020, 07:42 PM
Post #1832


914 Guru
*****

Group: Members
Posts: 7,280
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
@bkrantz there was something that left here today for your project.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 29 2020, 07:42 PM
Post #1833


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

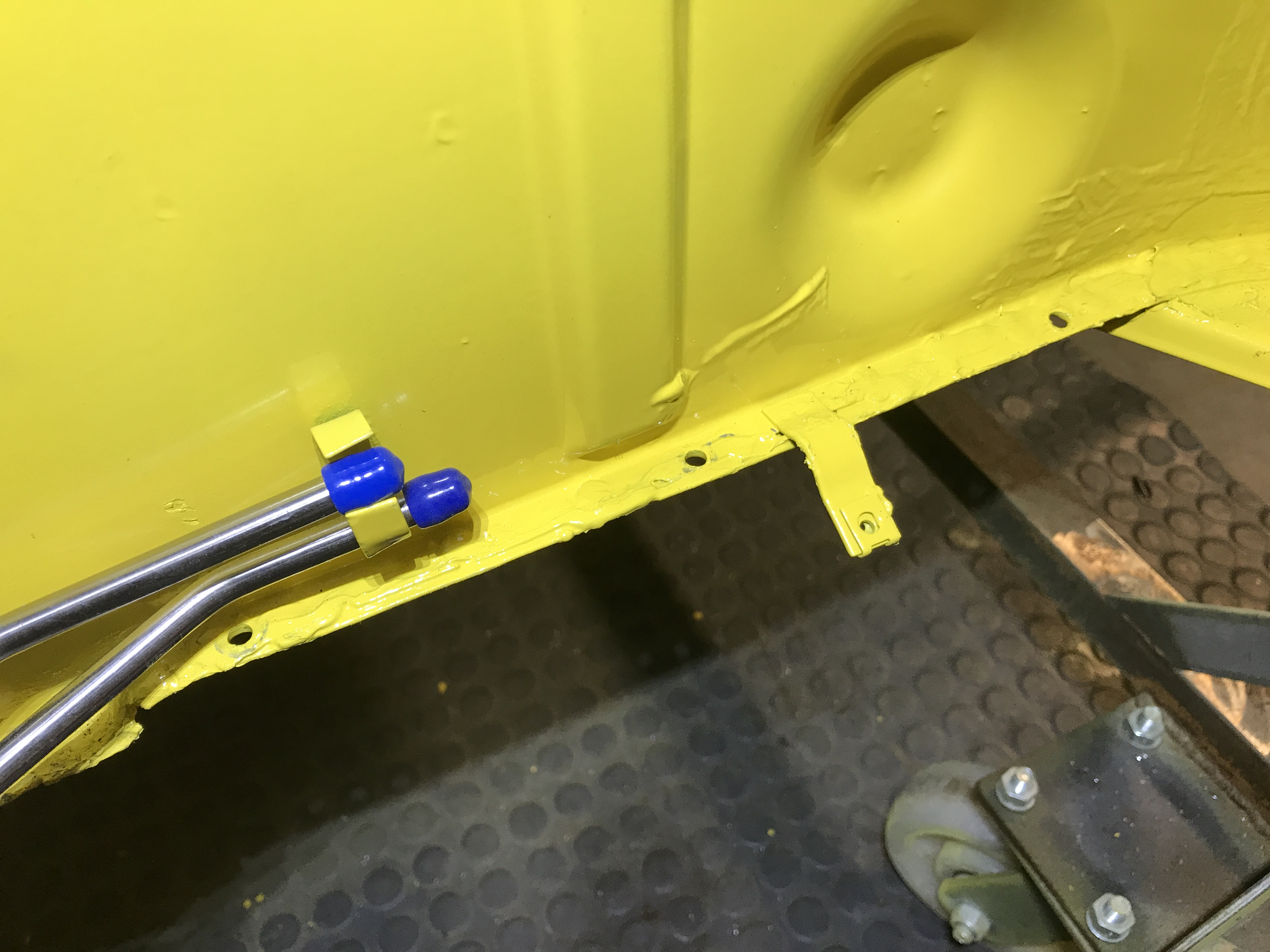

Three holes on the right side, that match the center and end holes on the deflector.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 29 2020, 07:45 PM
Post #1834


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

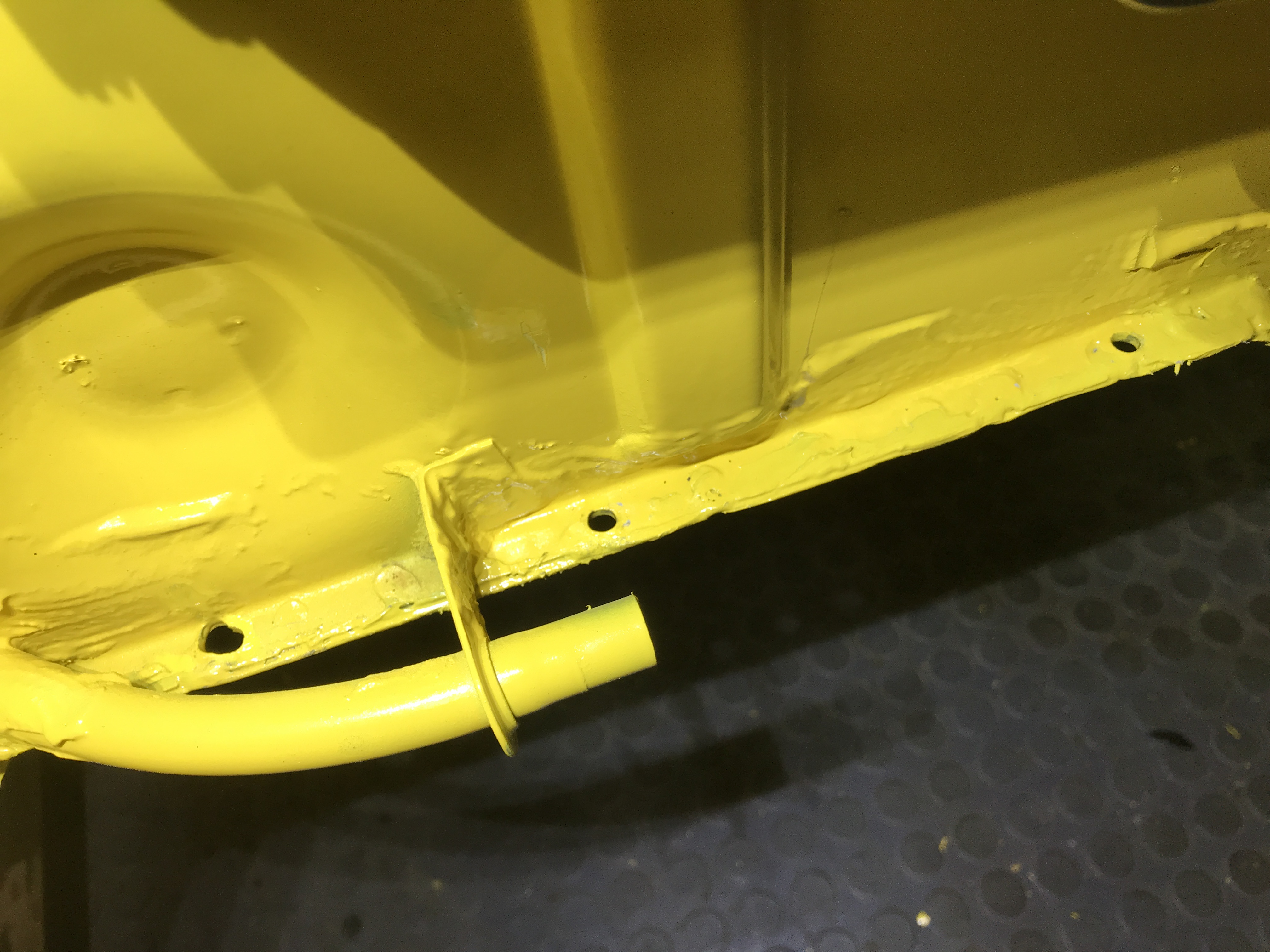

And 3 holes on the left. Note the parking brake tube blocks the left end hole on the deflector. Instead, the deflector has a 4th hole offset from the left end.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 29 2020, 07:48 PM
Post #1835


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

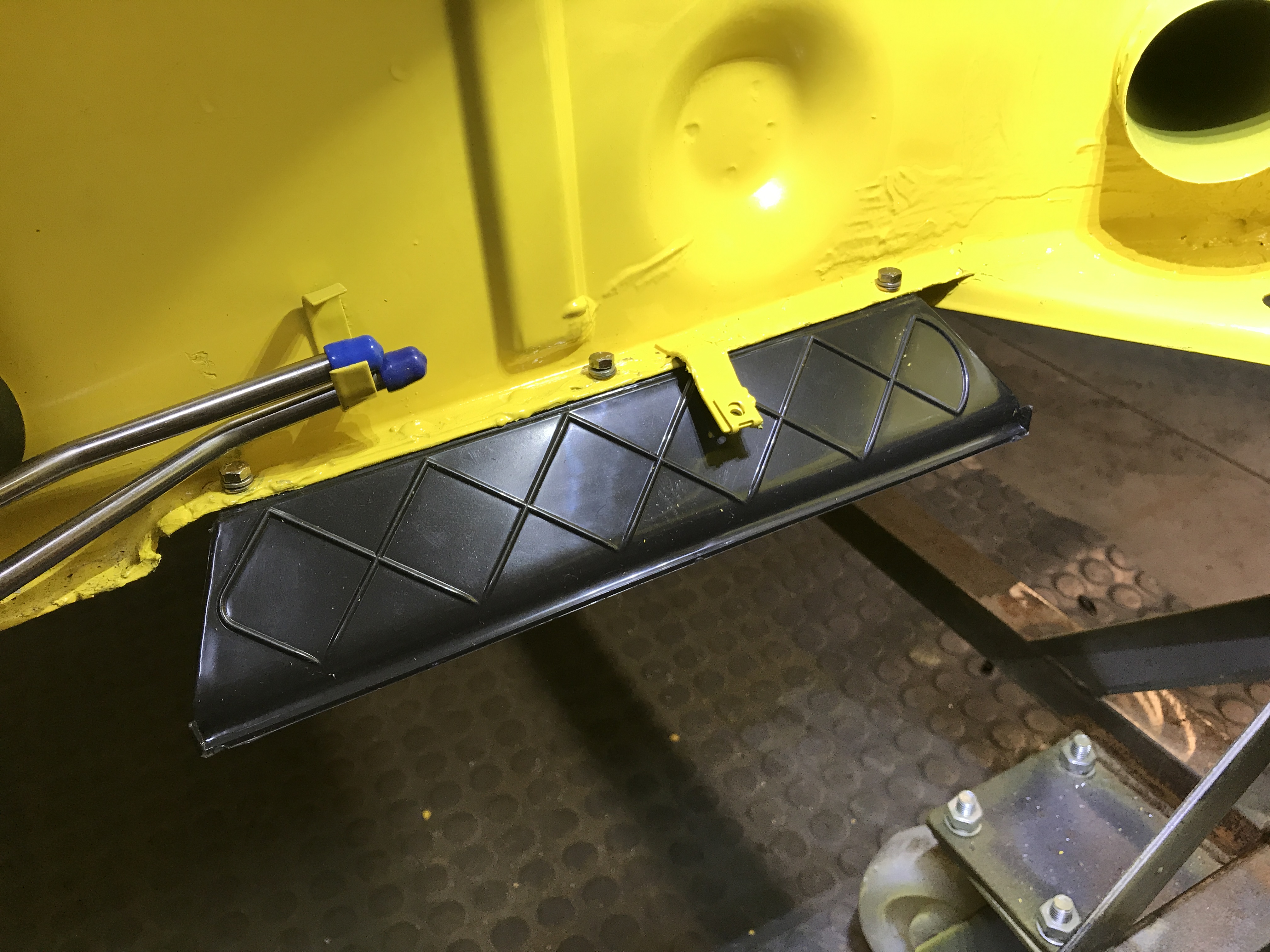

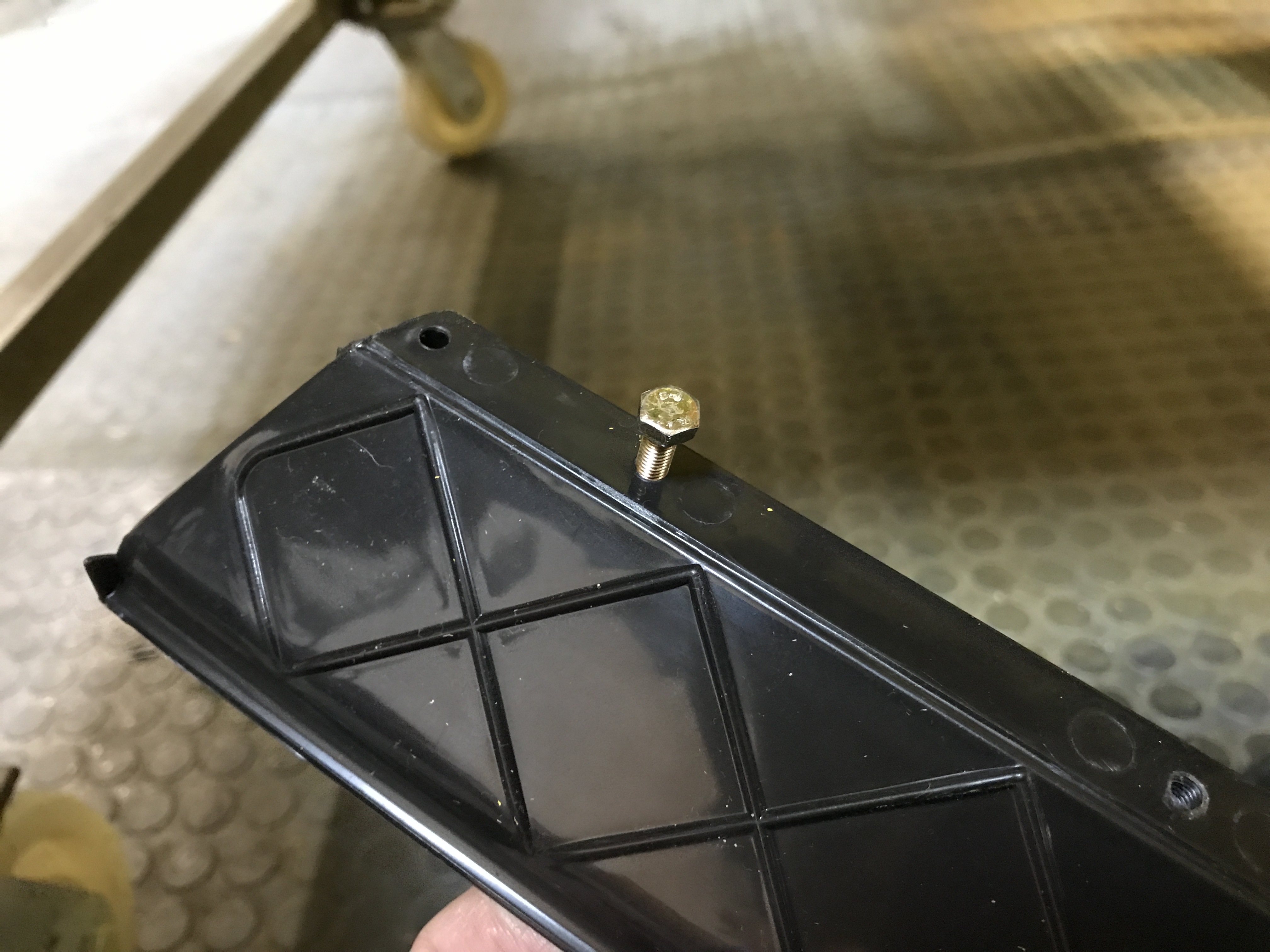

The bolts screw into under-sized holes in the plastic deflectors. It helps to "thread" these holes before mounting.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 29 2020, 07:49 PM
Post #1836


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

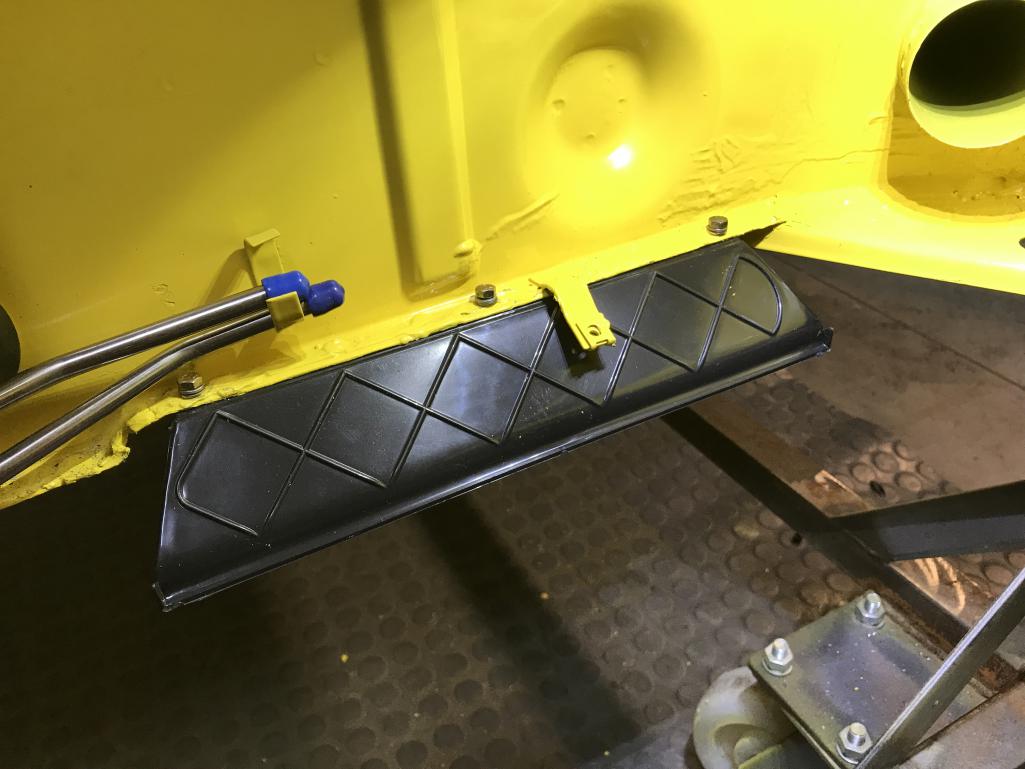

Left side in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 29 2020, 07:50 PM
Post #1837


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

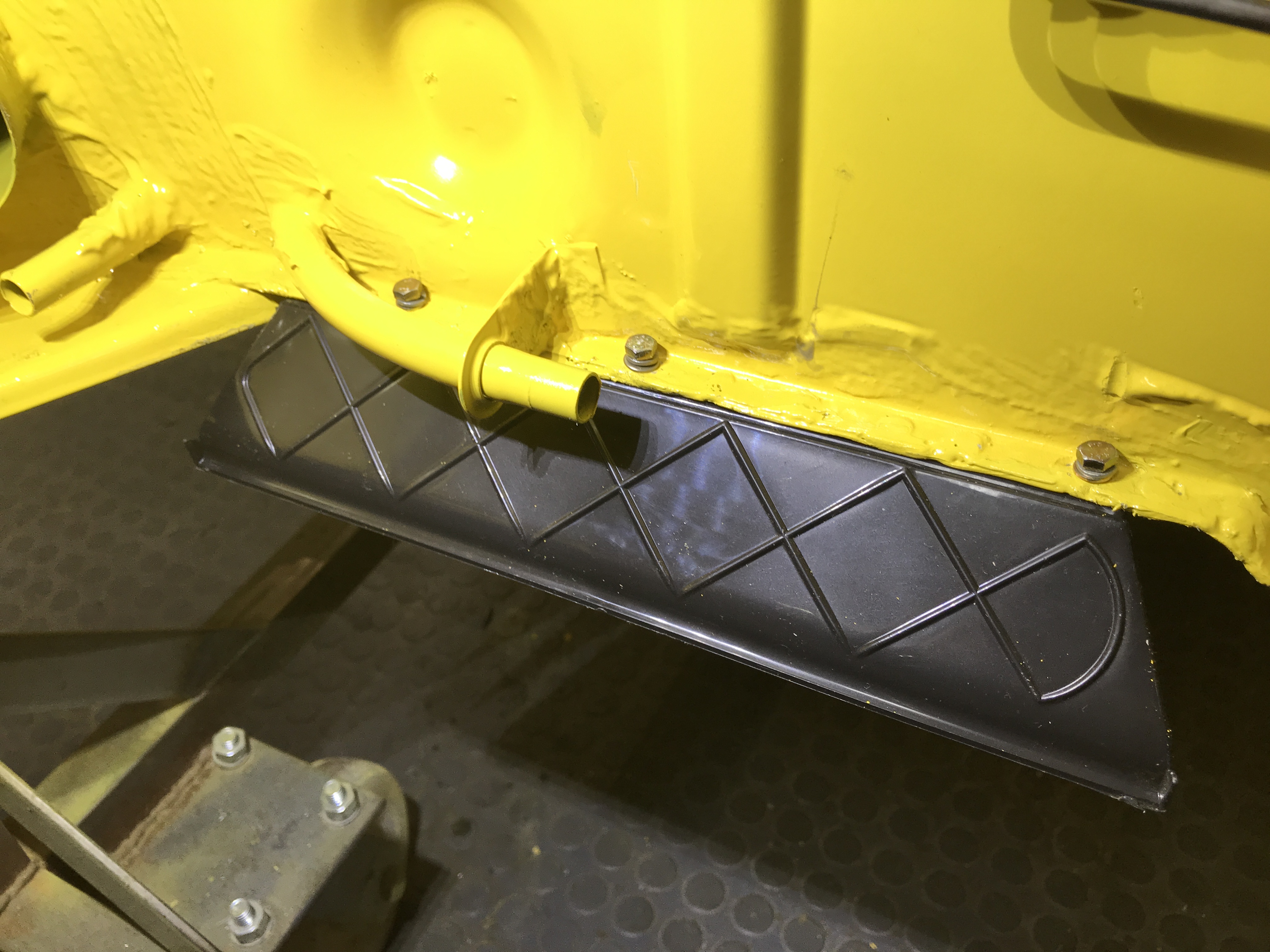

And right side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 29 2020, 07:53 PM
Post #1838


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

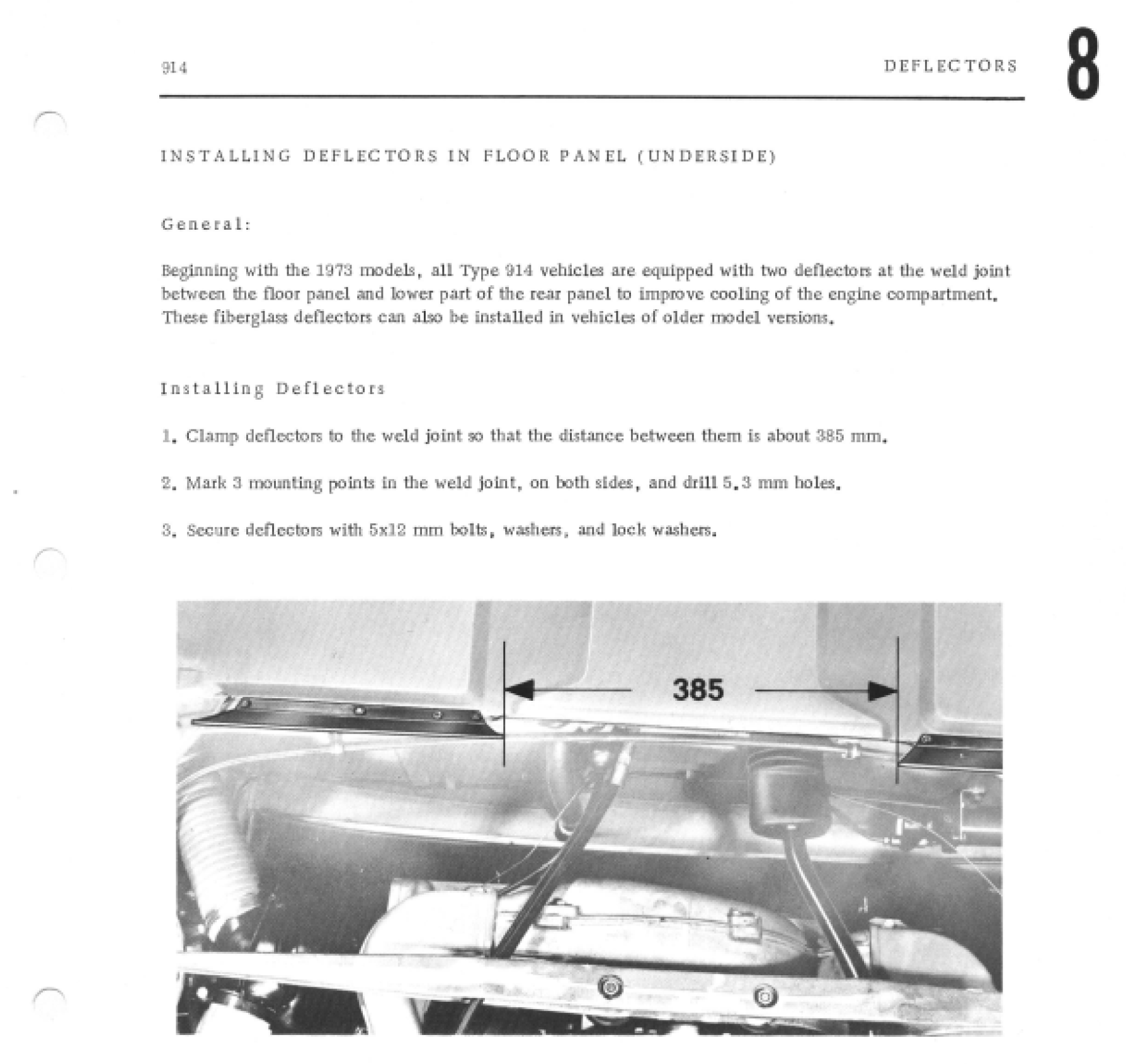

Note the factory manual has a page about mounting the deflectors.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 30 2020, 07:56 PM
Post #1839


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

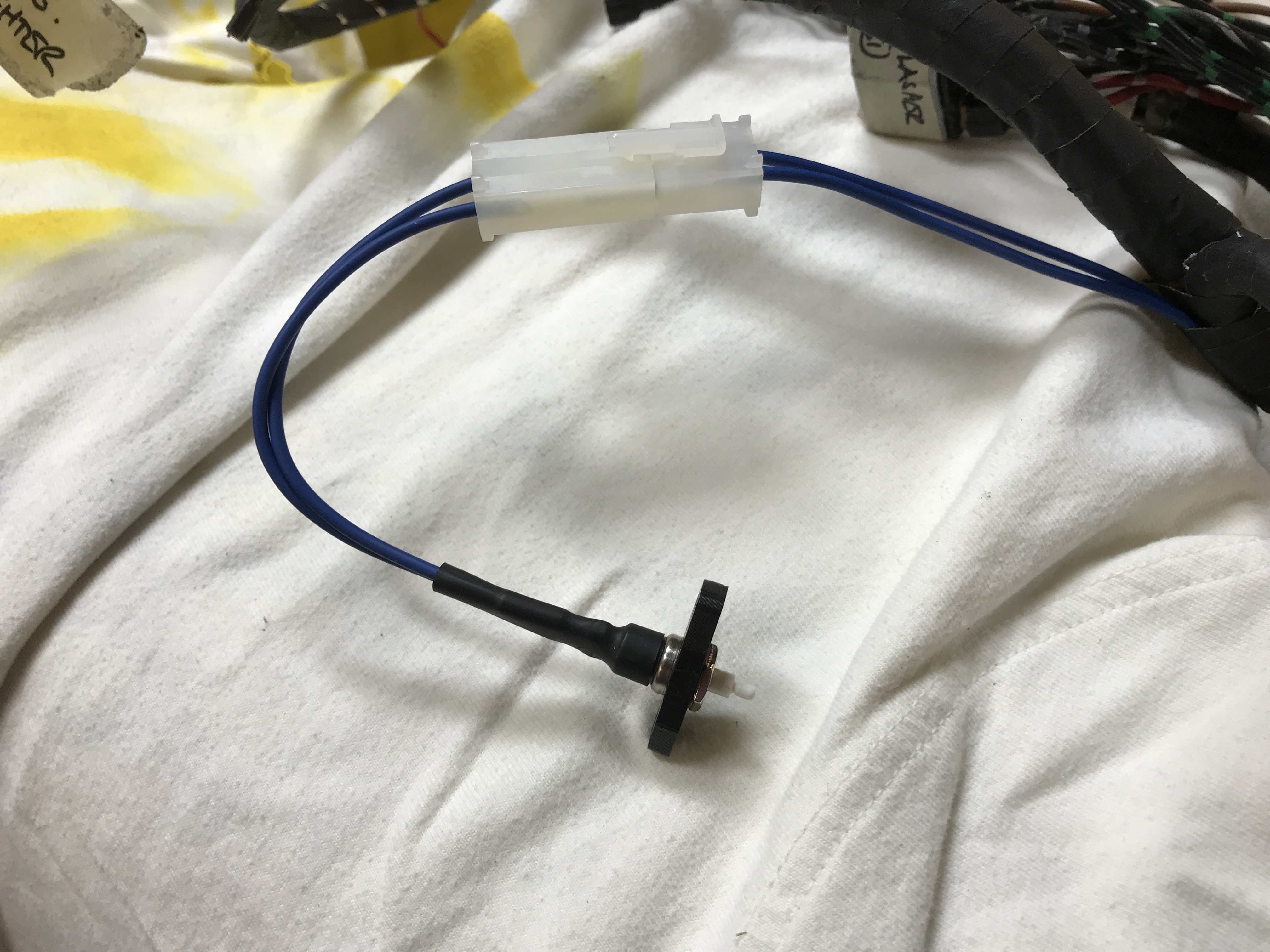

A couple of weeks ago, before installing the wiring harness, I added a switch (from CarMagic) for a new washer pump to the steering column sub-harness.

I had also ordered a plug connector so the switch can detach from the harness if I ever need to pull the column control stalk module. Here is the connector installed.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Dec 30 2020, 07:56 PM
Post #1840


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

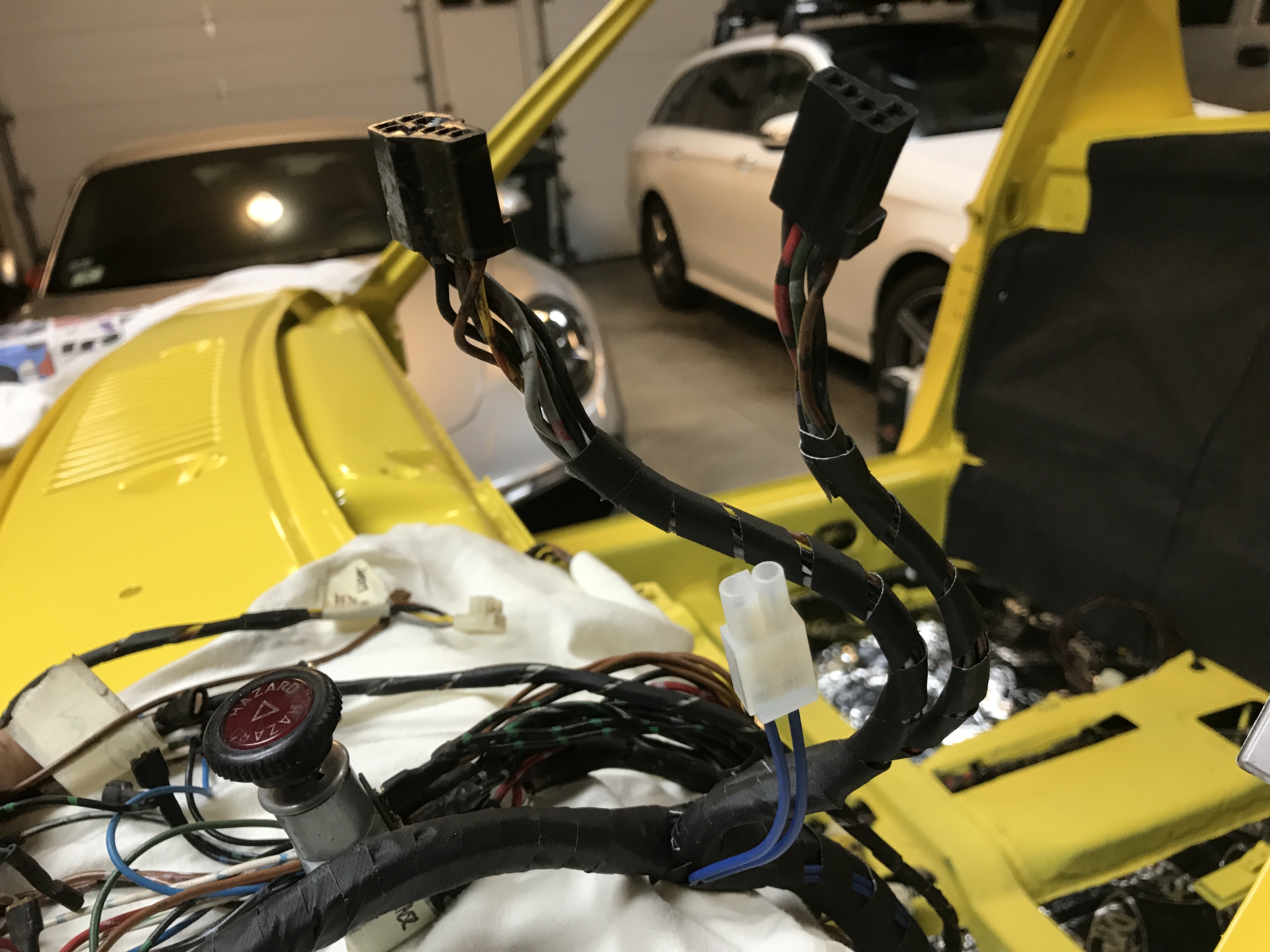

Half the connector stays with the harness.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
