> Rebuiding Inside-out
bkrantz
post Mar 12 2021, 08:38 PM
Post #2401


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

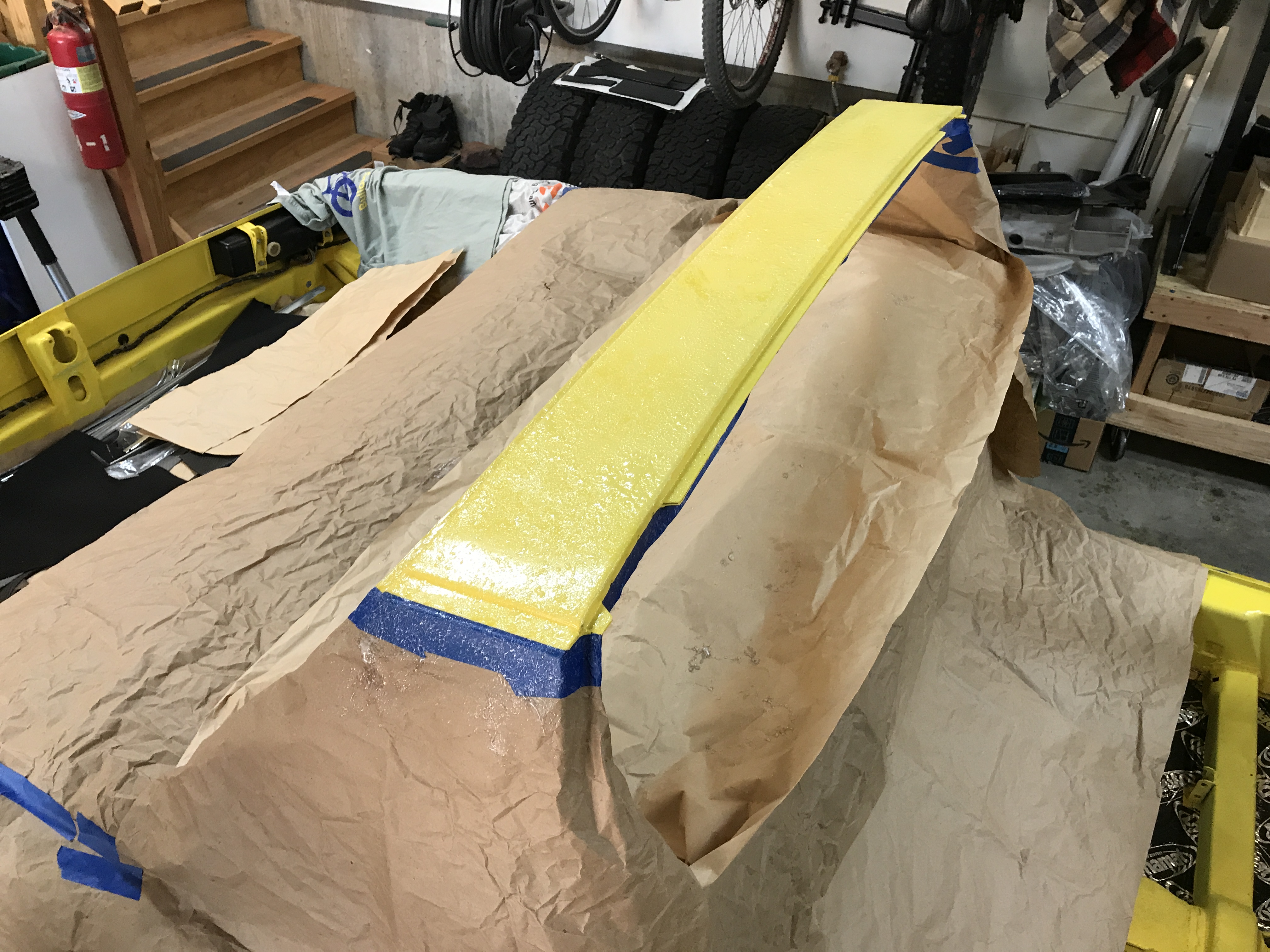

Then sprayed DAP Weldwood Landau adhesive on the targa top.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:39 PM
Post #2402


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

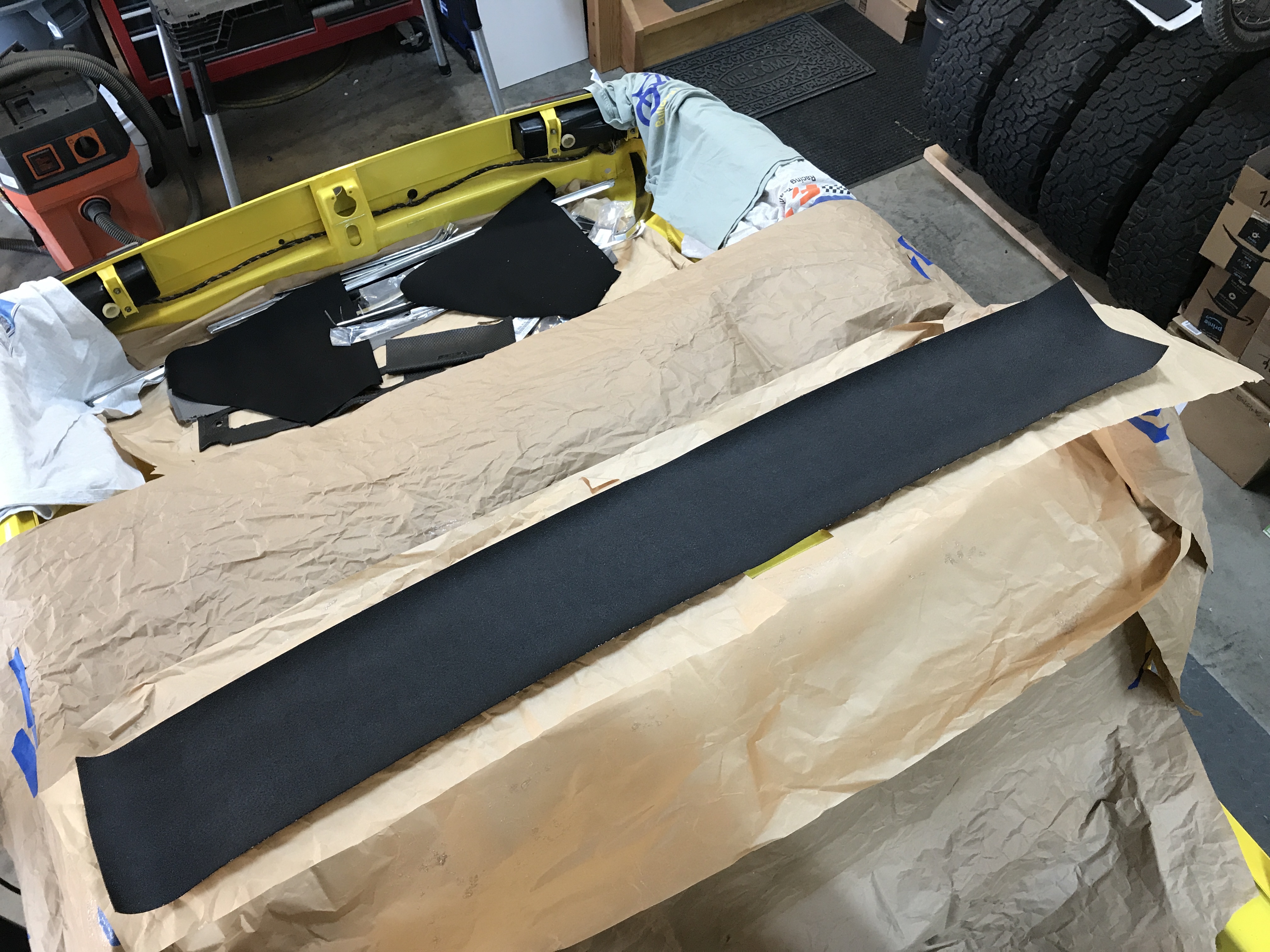

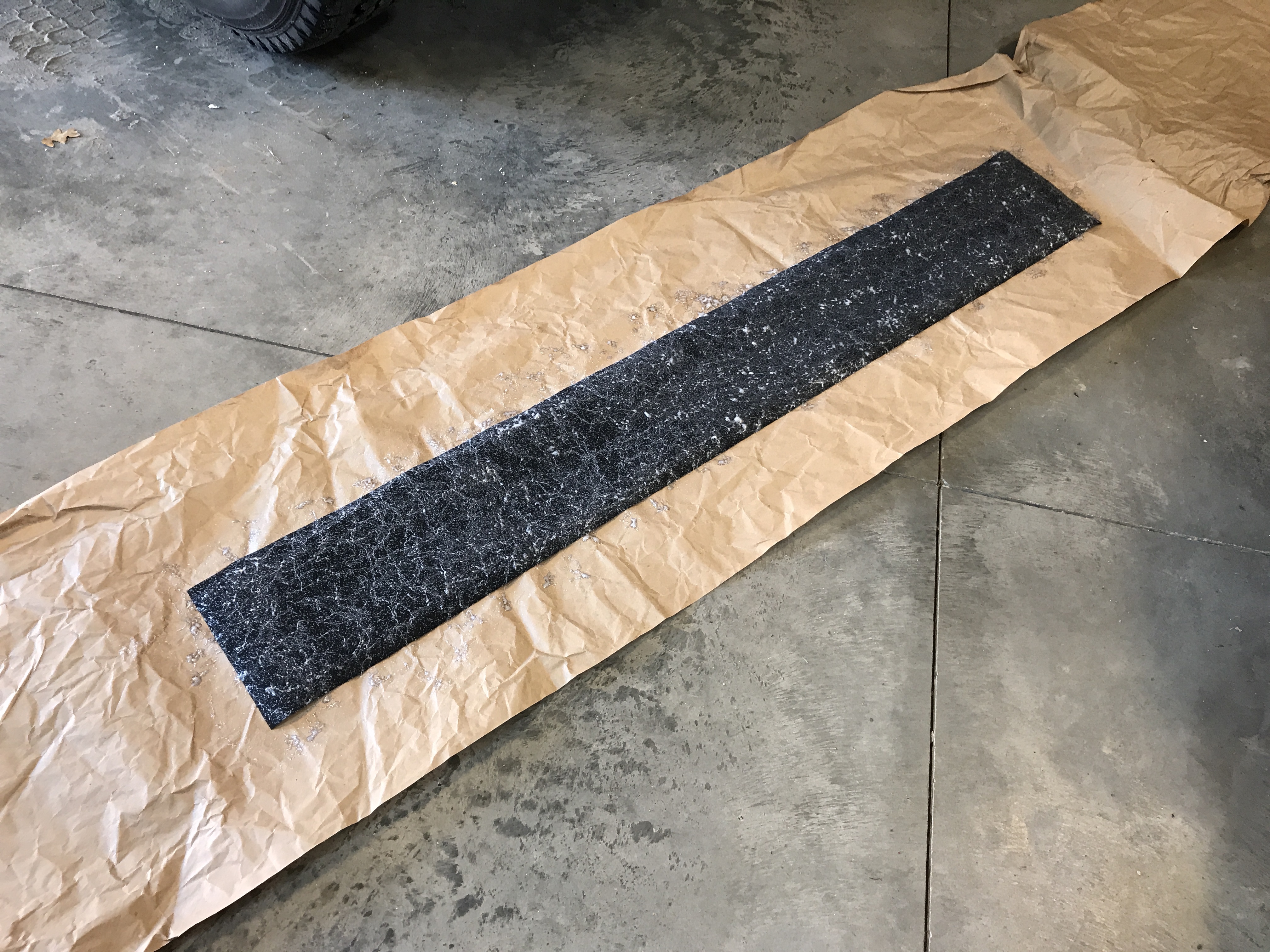

And the back side of the vinyl.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:40 PM
Post #2403


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
With the adhesive tacky, I put it on top of some masking paper sheets while I got it in position.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:41 PM
Post #2404


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

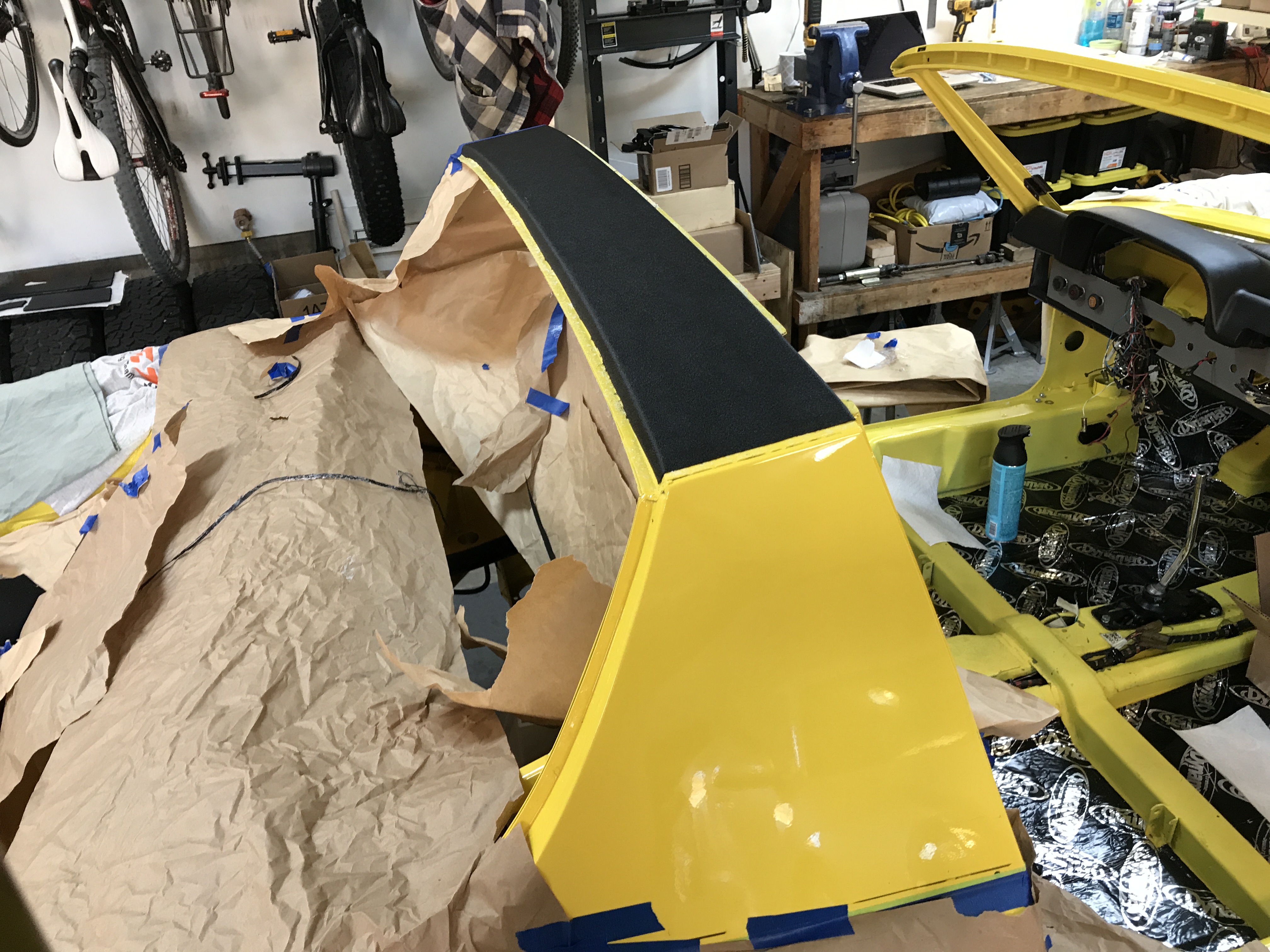

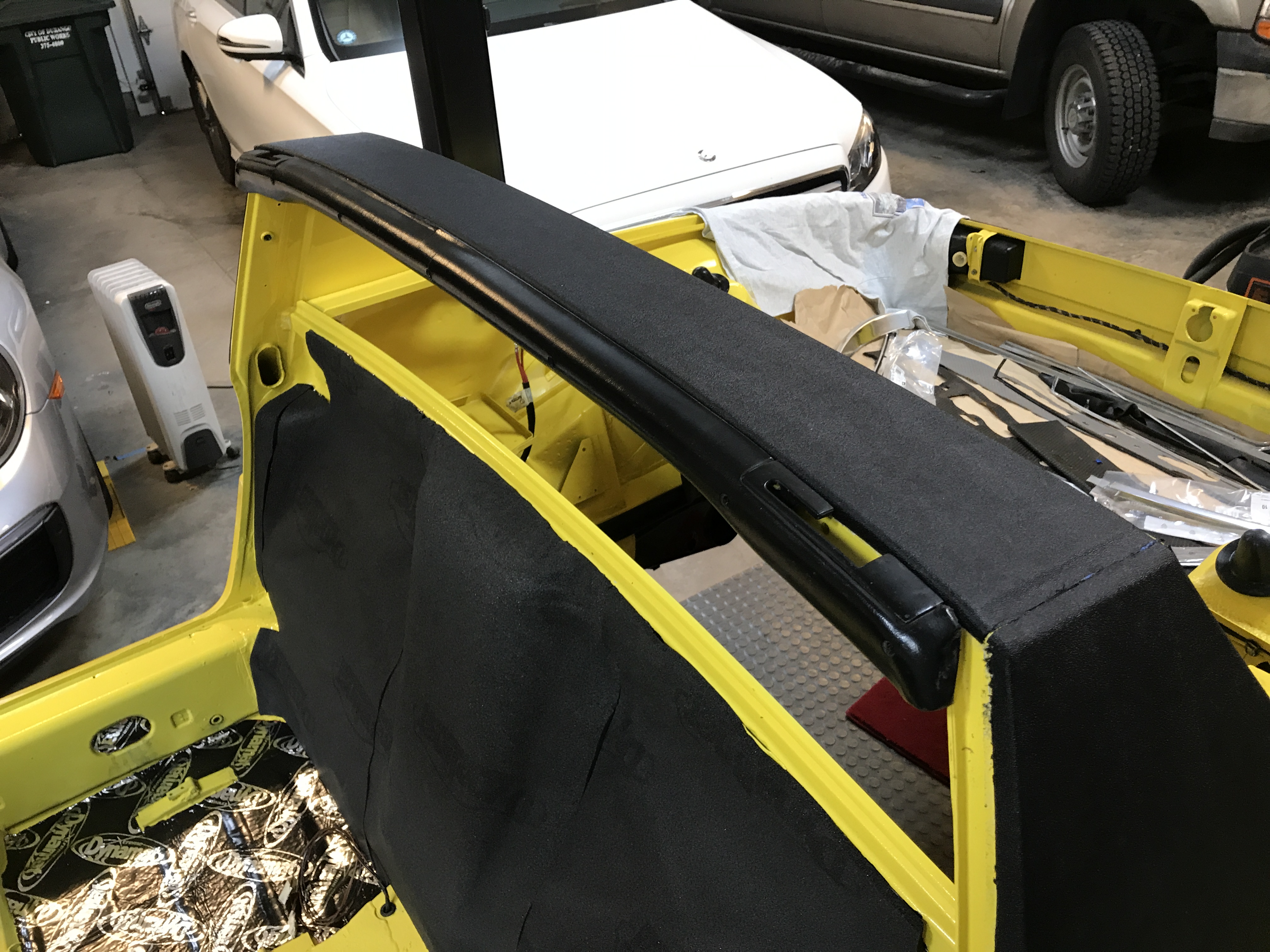

Rubbed down and trimmed.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:42 PM
Post #2405


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

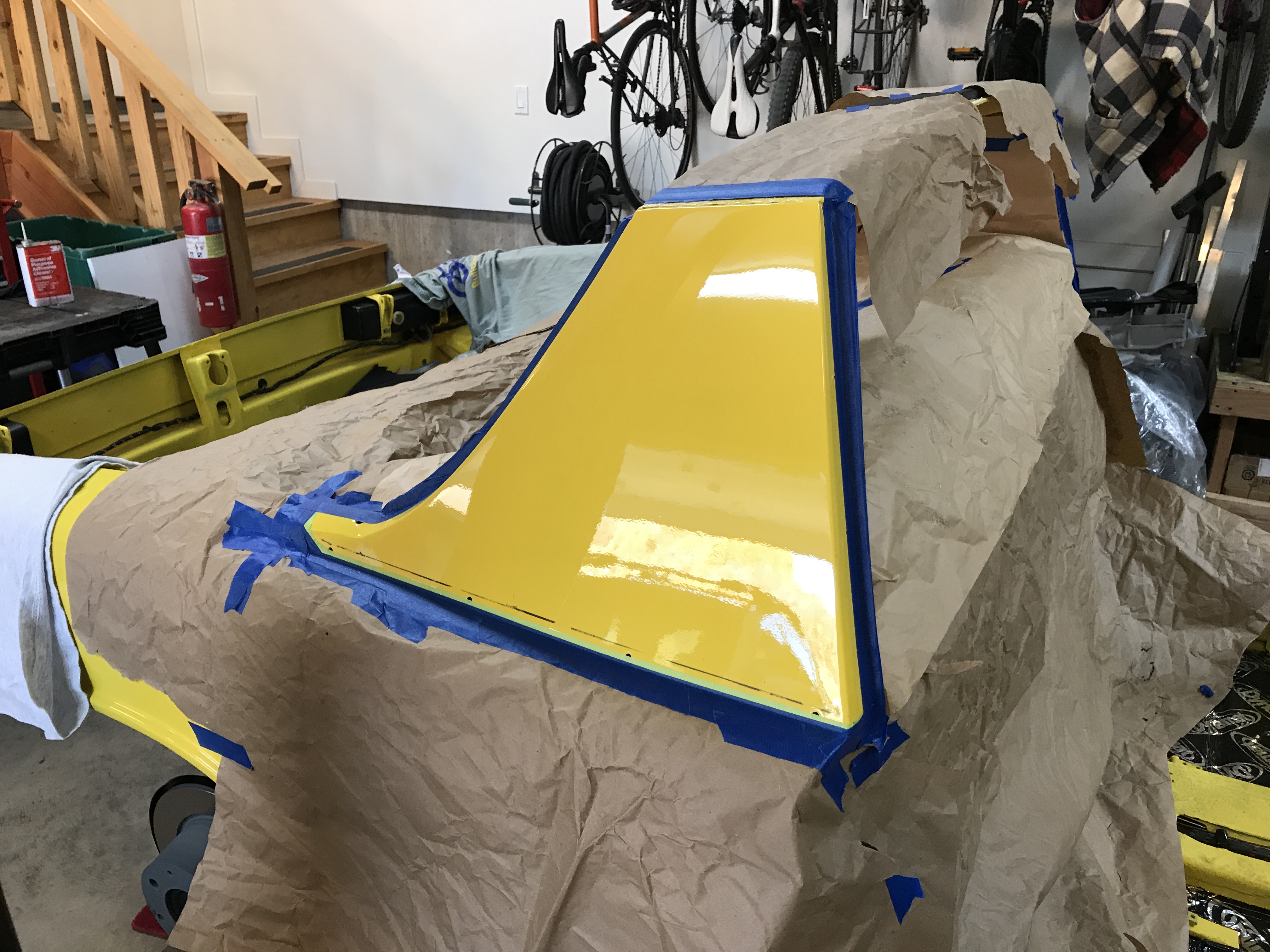

For the sail, I masked off the panel.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:43 PM
Post #2406


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

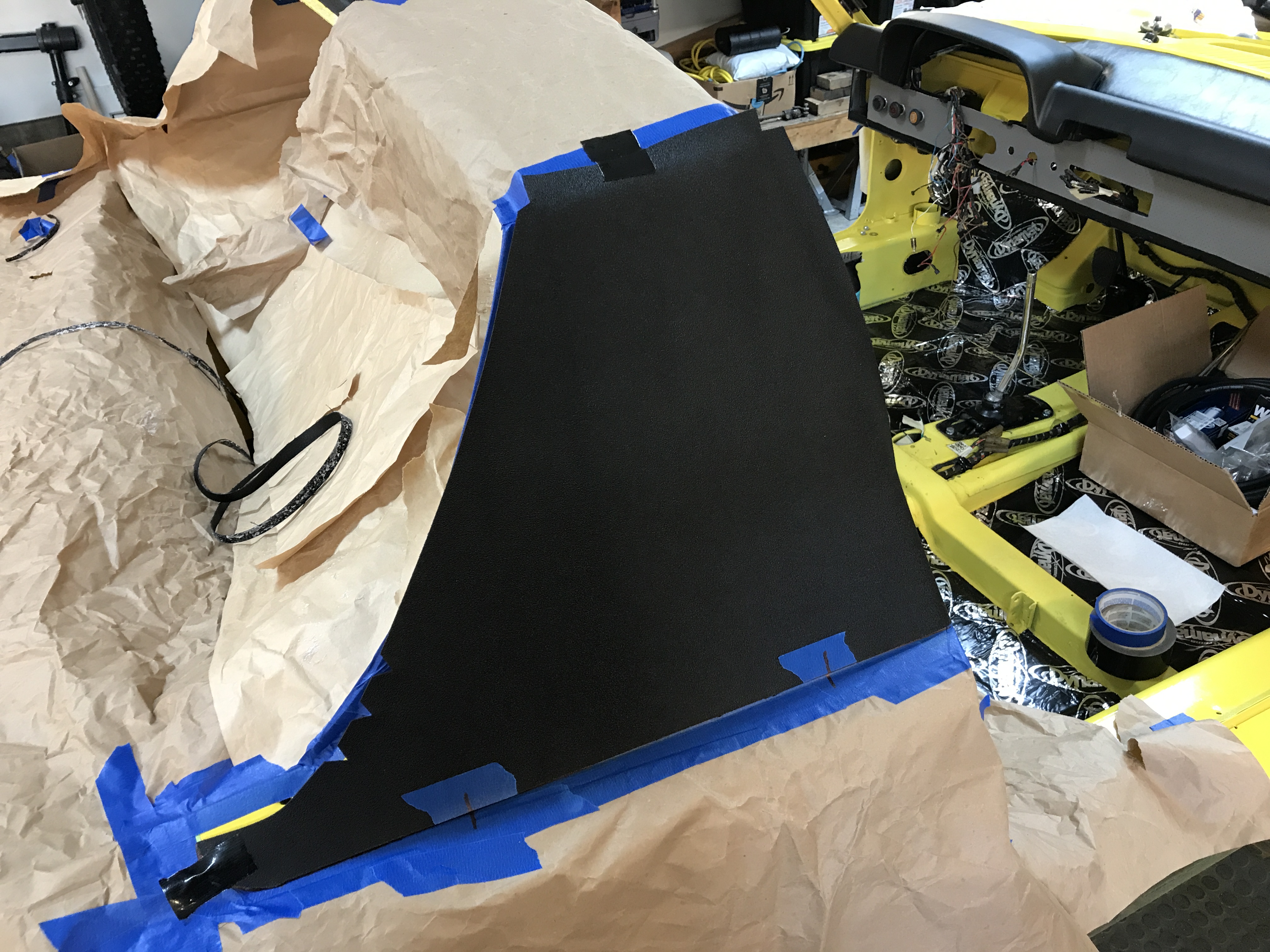

Test fitting the vinyl, and making reference location marks.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:44 PM
Post #2407


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

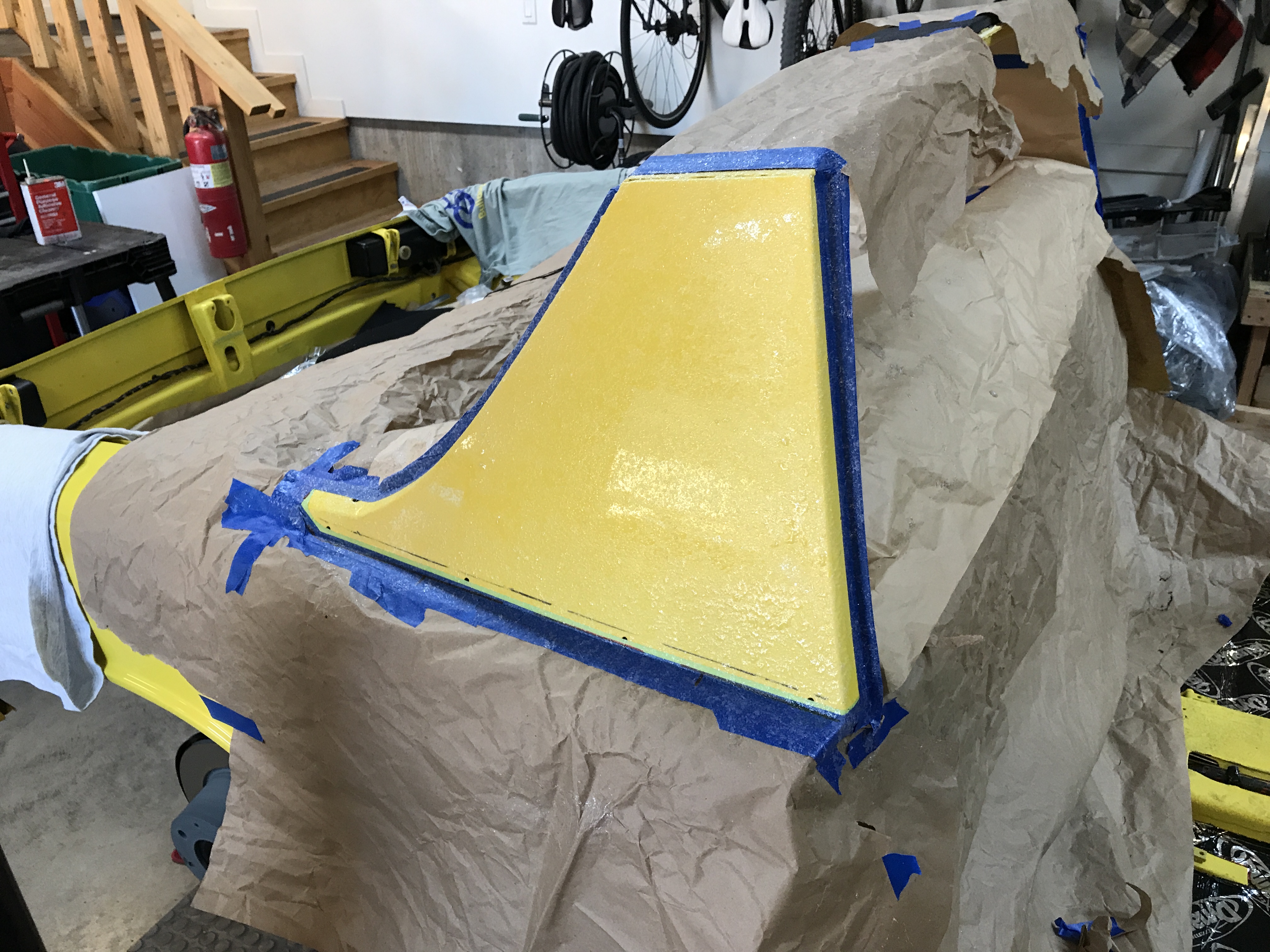

More DAP spray on the sail...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:45 PM
Post #2408


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

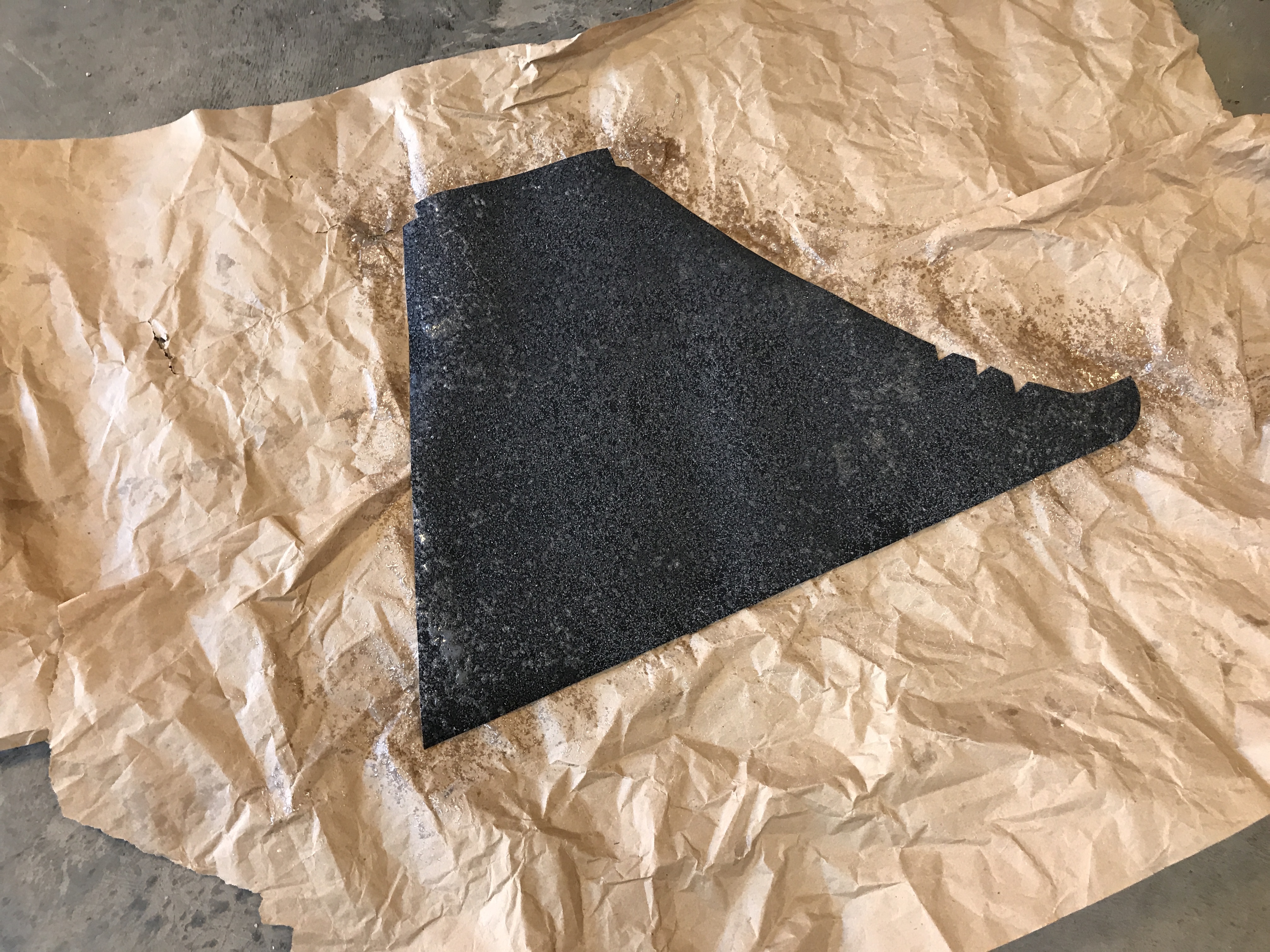

And on the vinyl.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 12 2021, 08:46 PM
Post #2409


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

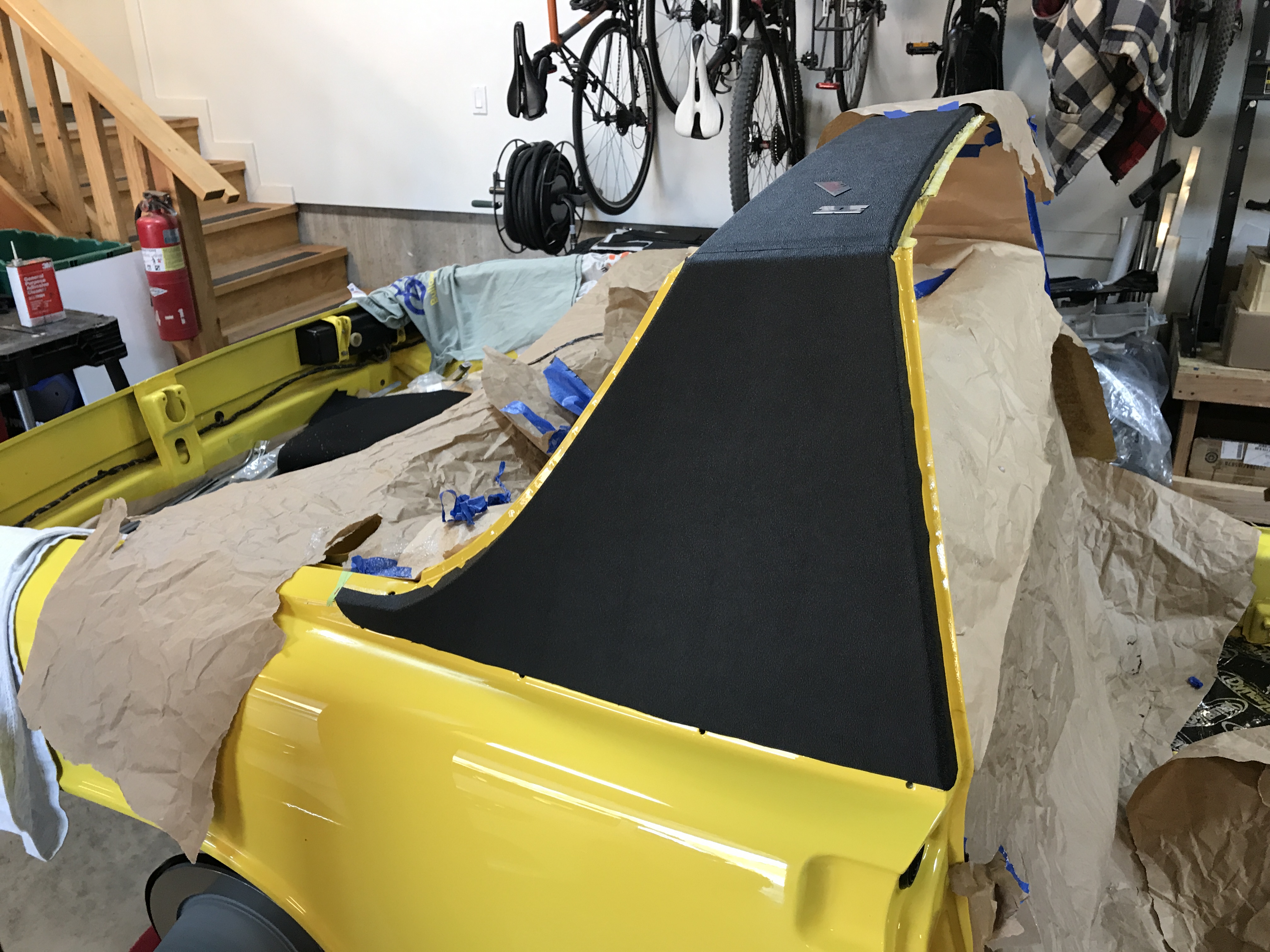

Vinyl stuck on, smoothed out, and initial trim.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kroelofsen
post Mar 13 2021, 08:15 AM
Post #2410


Member
**

Group: Members
Posts: 100
Joined: 27-June 19
From: The Netherlands
Member No.: 23,255
Region Association: Europe
(IMG:style_emoticons/default/piratenanner.gif) that looks nice... have to do this myself somewhere this year...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Puebloswatcop
post Mar 13 2021, 10:34 AM
Post #2411


Senior Member
***

Group: Members
Posts: 1,403
Joined: 27-December 14
From: Mineola, Texas
Member No.: 18,258
Region Association: Southwest Region
Looks so nice. Keep the posts coming.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2021, 08:17 PM
Post #2412


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Thanks, guys. Not a hard job but it takes patience and luck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2021, 08:18 PM
Post #2413


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

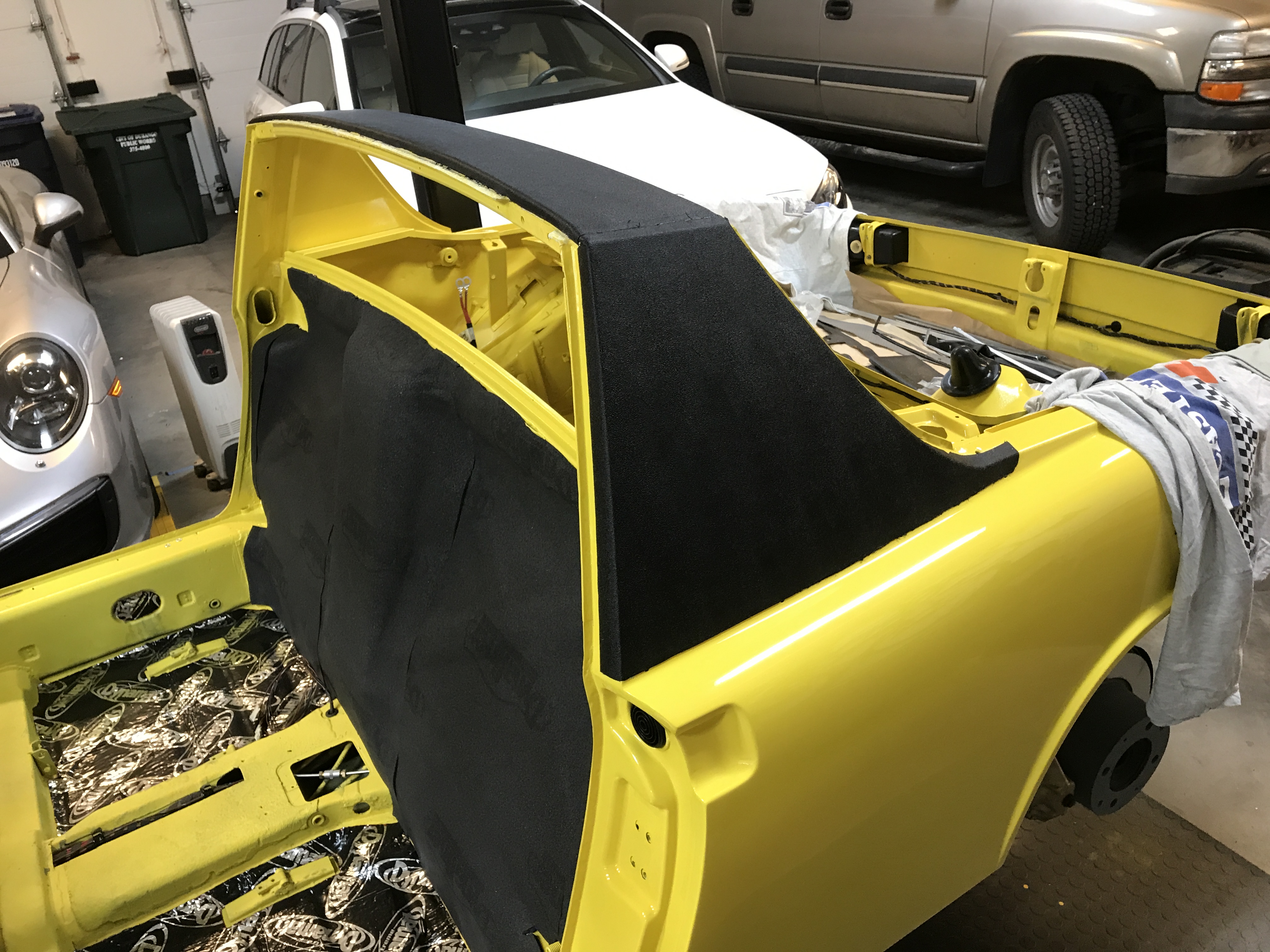

Got the left sail done.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2021, 08:19 PM
Post #2414


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

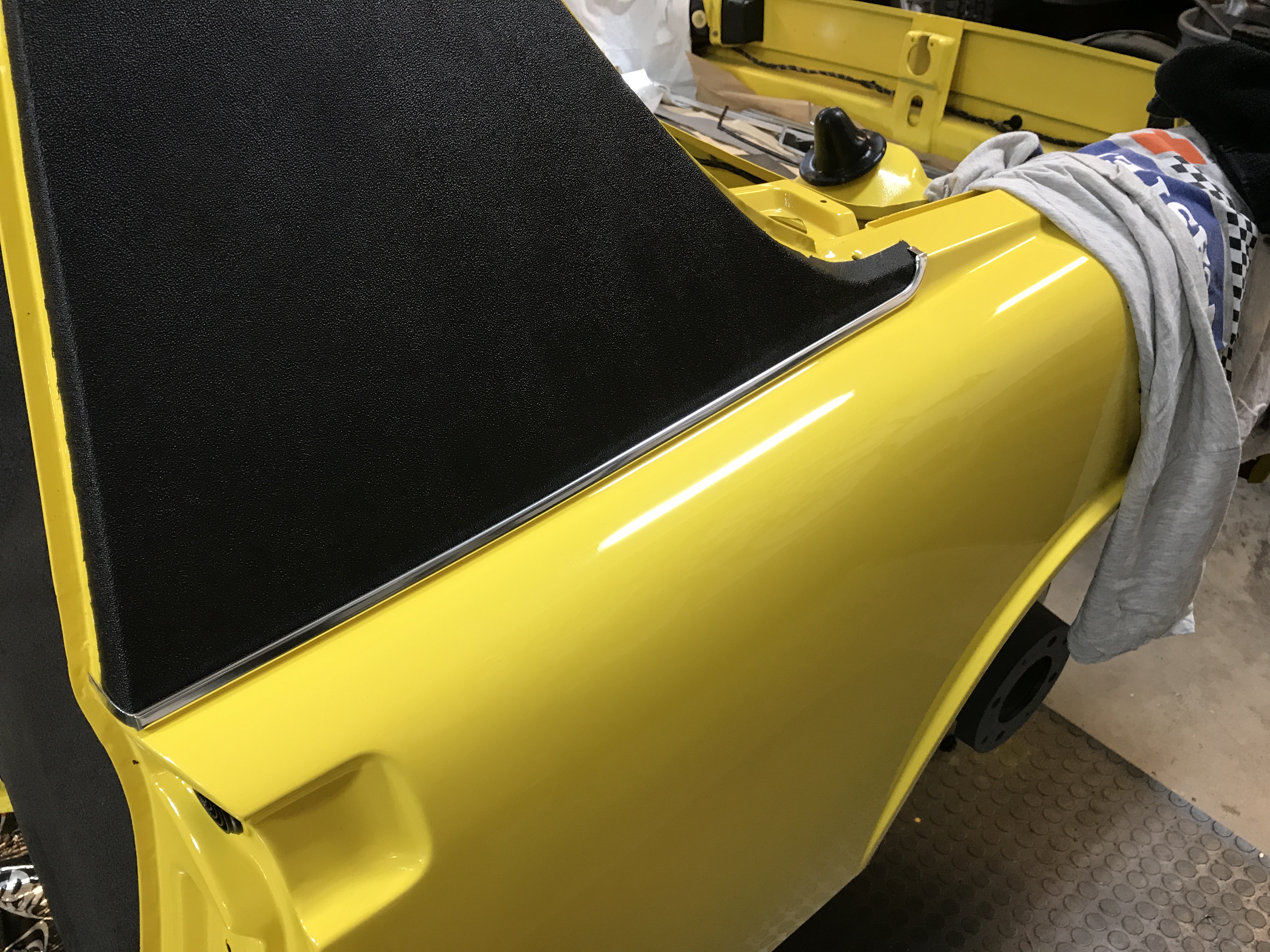

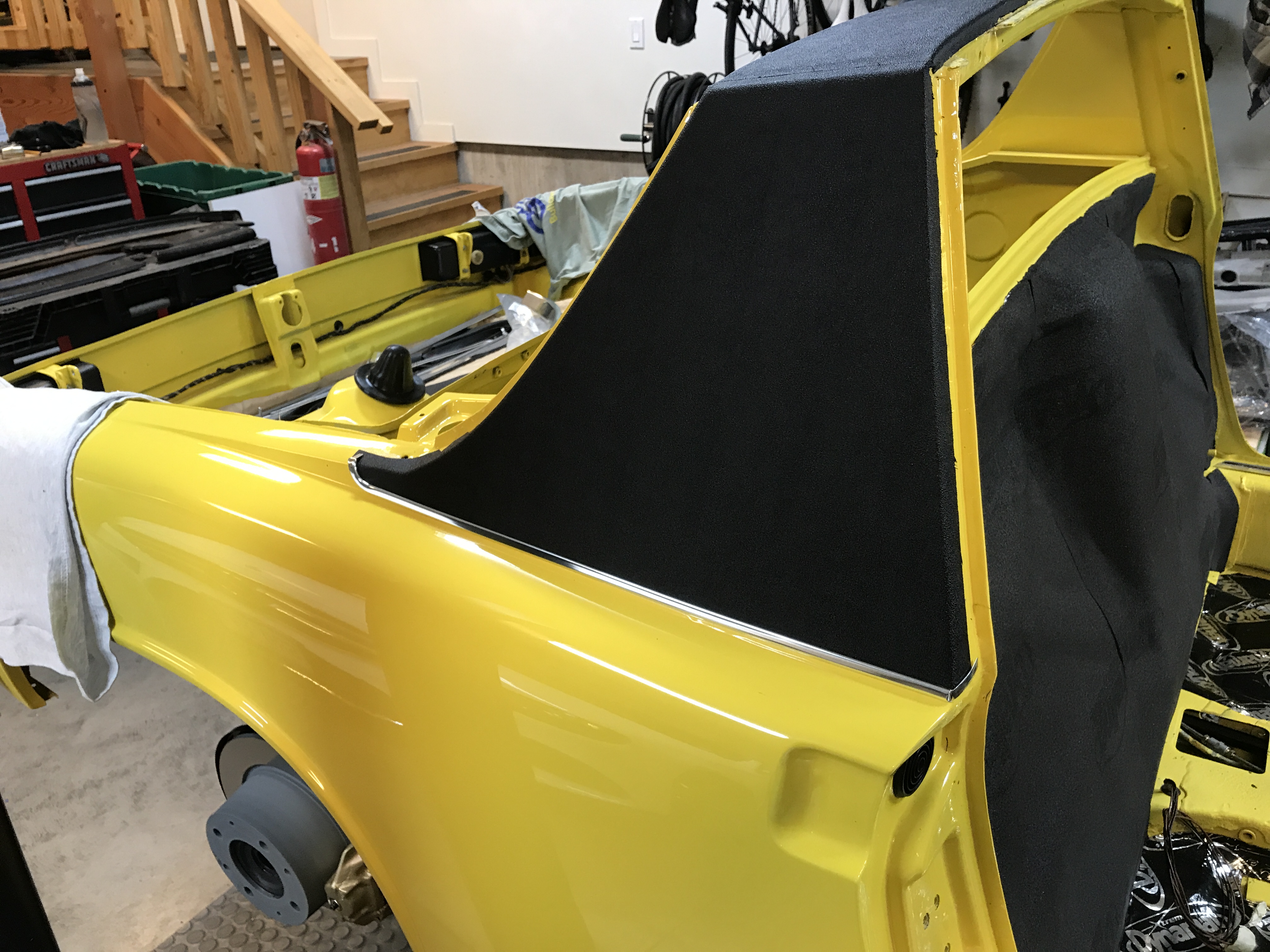

And installed the lower trim. This is a new (repro?) Porsche piece, but took some tweaking around the curve to get it to lie flat.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2021, 08:20 PM
Post #2415


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Same on the right side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2021, 08:22 PM
Post #2416


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Test fit of the original targa pad. Its in pretty good shape, except for a couple of small cracks and a slight bulge in the middle. Have to see if I can improve this.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 13 2021, 08:26 PM
Post #2417


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

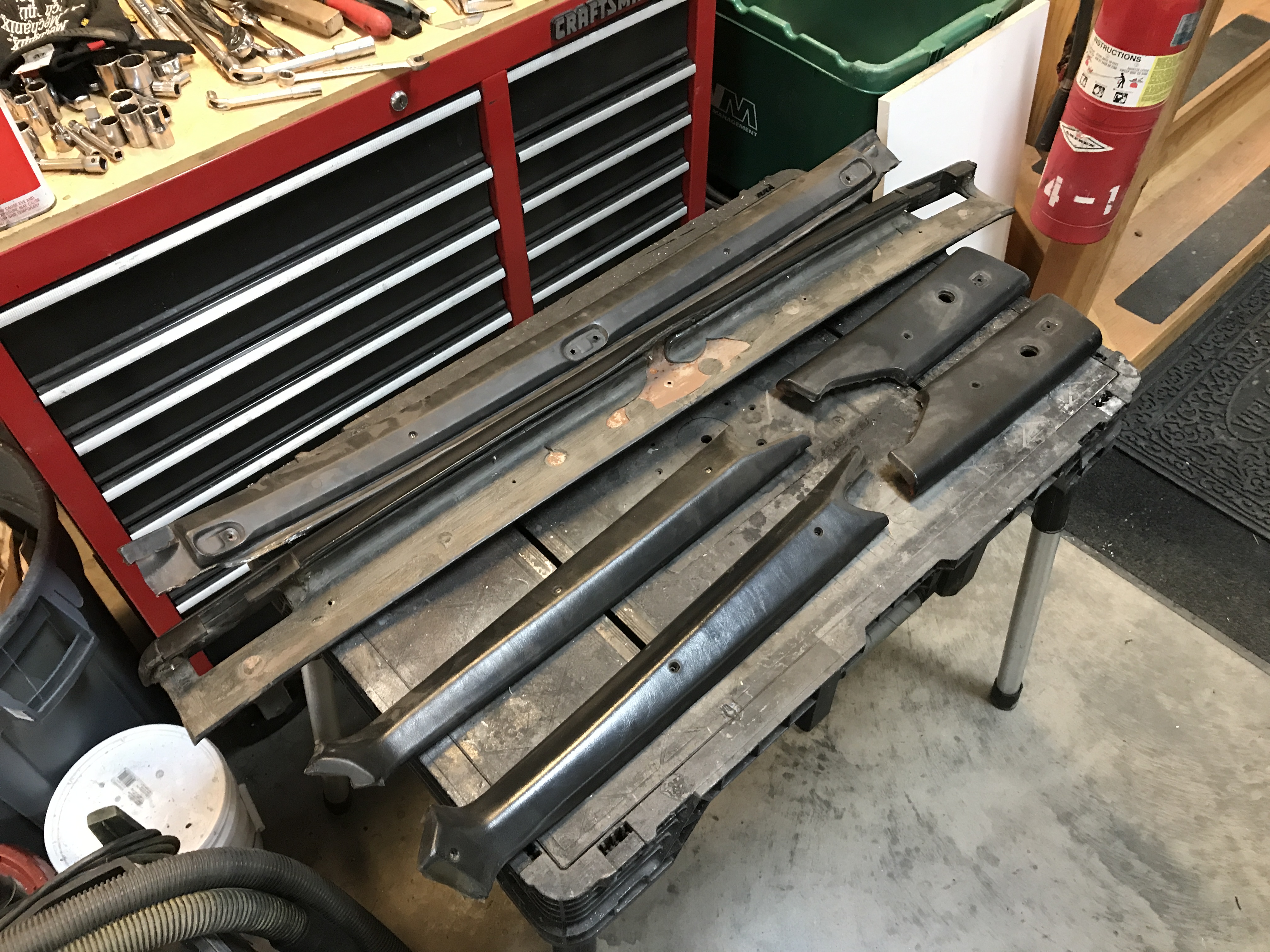

I got out all the interior padded trim pieces. Got some clean-up to do.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Mar 14 2021, 06:55 AM
Post #2418


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
looking soooo good!! fun to watch others do this, i took almost same approach for the sail panel installation with the reference marks for alignment , i have done mine several time and it took the 3rd to do it right and look great. it’s almost a 2 person job to get that long top targa bar piece in place, did you have help? love the attention to detail, and that black/yellow combo is awesome! did you rebuild the fresh air defrost fan housing? 914rubber now has all the parts to do it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 14 2021, 06:37 PM
Post #2419


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(DRPHIL914 @ Mar 14 2021, 05:55 AM) *

looking soooo good!! fun to watch others do this, i took almost same approach for the sail panel installation with the reference marks for alignment , i have done mine several time and it took the 3rd to do it right and look great. it’s almost a 2 person job to get that long top targa bar piece in place, did you have help? love the attention to detail, and that black/yellow combo is awesome! did you rebuild the fresh air defrost fan housing? 914rubber now has all the parts to do it.


Thanks, doc. I was alone, but got the position right with the inter-leaved paper sheets (and some good luck). The color combo is what I dreamed about, and happy to see it real--and I still like it.

I cleaned, rebuilt, and tested my fresh air fan and housing, with the 914Rubber kit. That should be going in soon.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 14 2021, 06:40 PM
Post #2420


914 Guru
*****

Group: Members
Posts: 8,154
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I installed the steering shaft, after I realized this should have gone in before the dash. It was a bit fiddly, but I got it. I was waiting until I got the carpet installed, but that will be a while since I have not made up my mind about color.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
