bkrantz
post May 3 2021, 07:25 PM
Post #2701


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

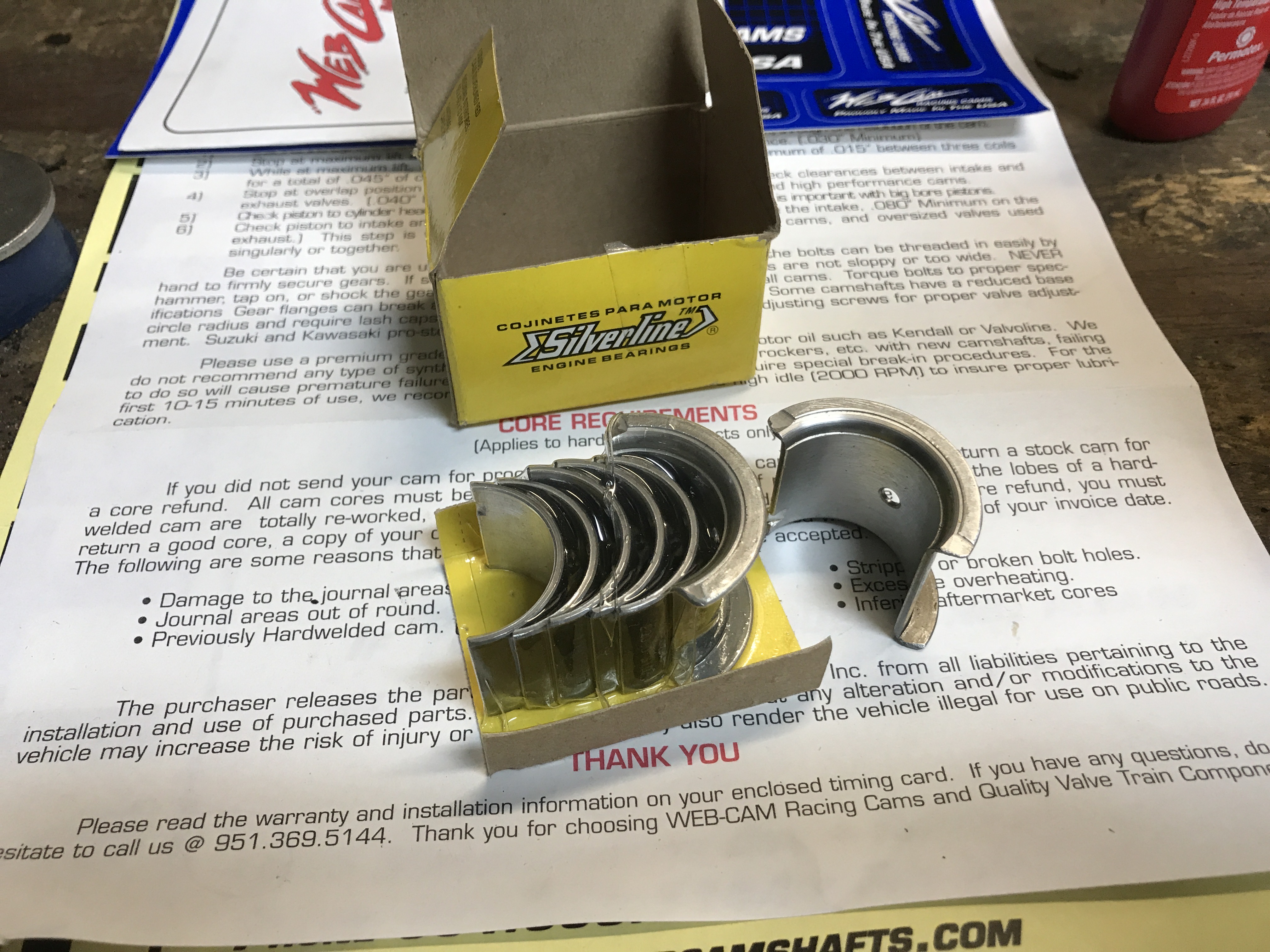

Then time for the cam bearings. I have a full set, plus an extra half with thrust edges.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 3 2021, 07:26 PM
Post #2702


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

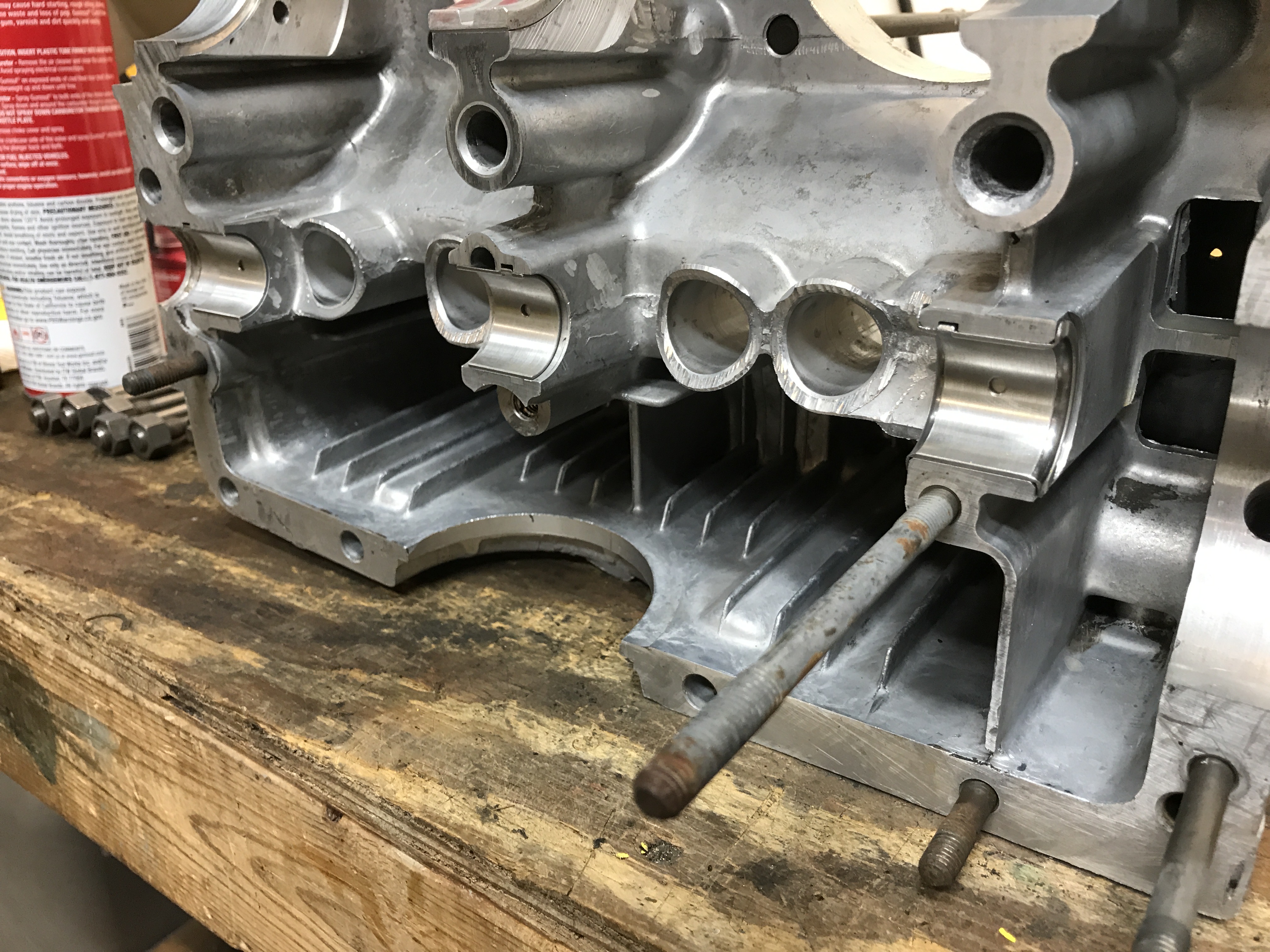

Cam bearings installed in the right case half.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 3 2021, 07:27 PM
Post #2703


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

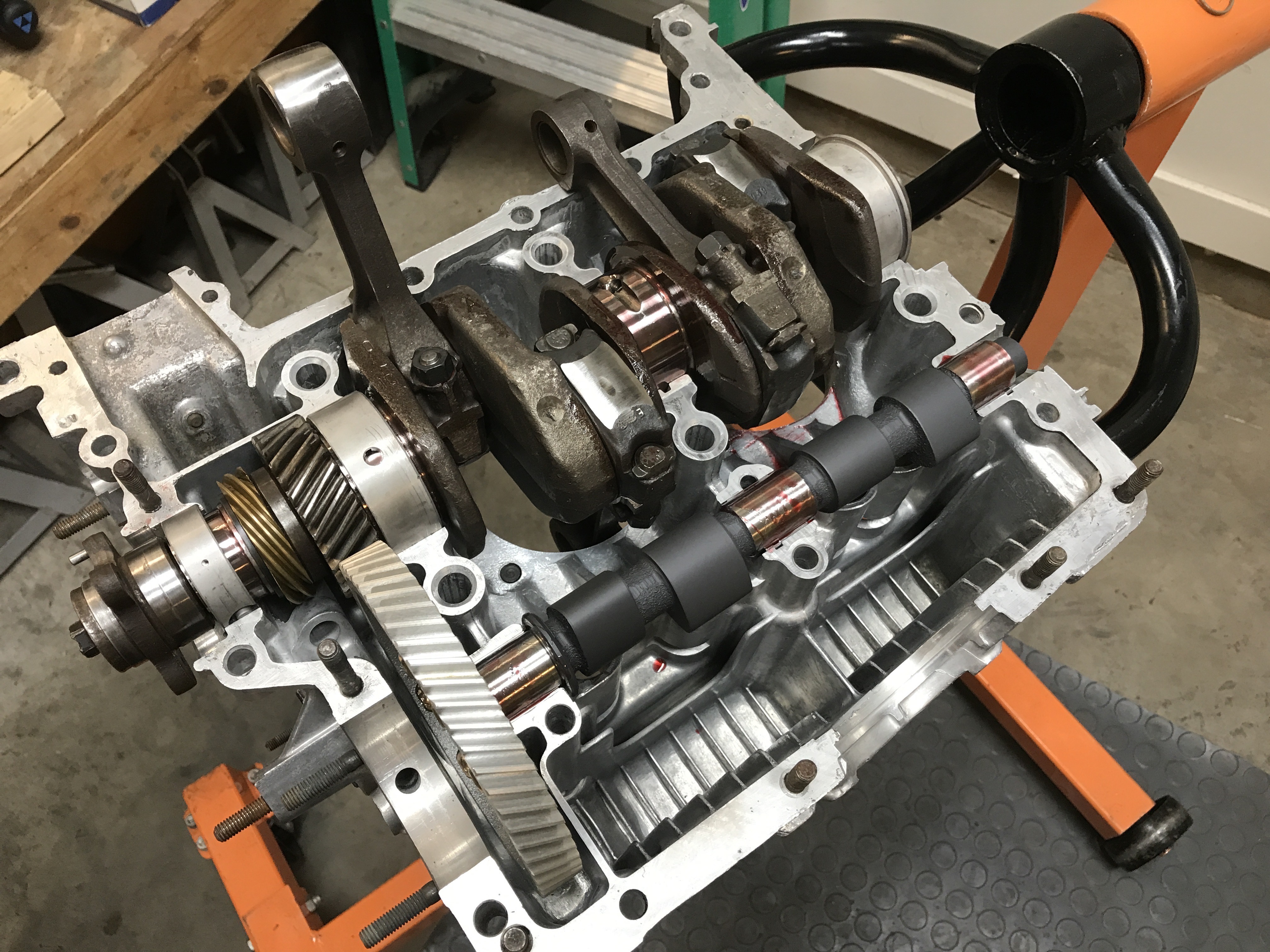

Cam installed.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 3 2021, 07:28 PM
Post #2704


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

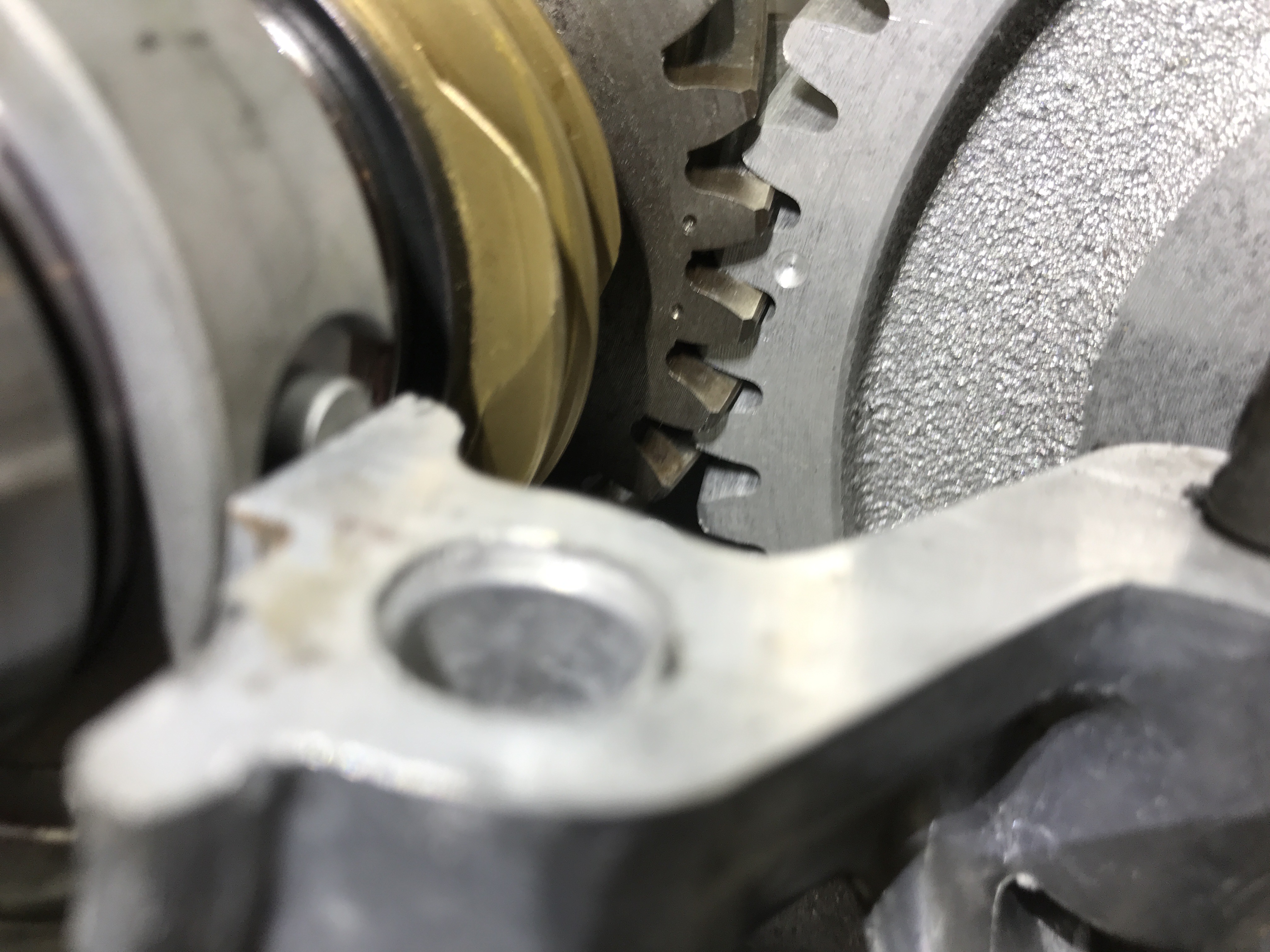

Gears indexed--probably the easiest step in the engine build.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 3 2021, 07:29 PM
Post #2705


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

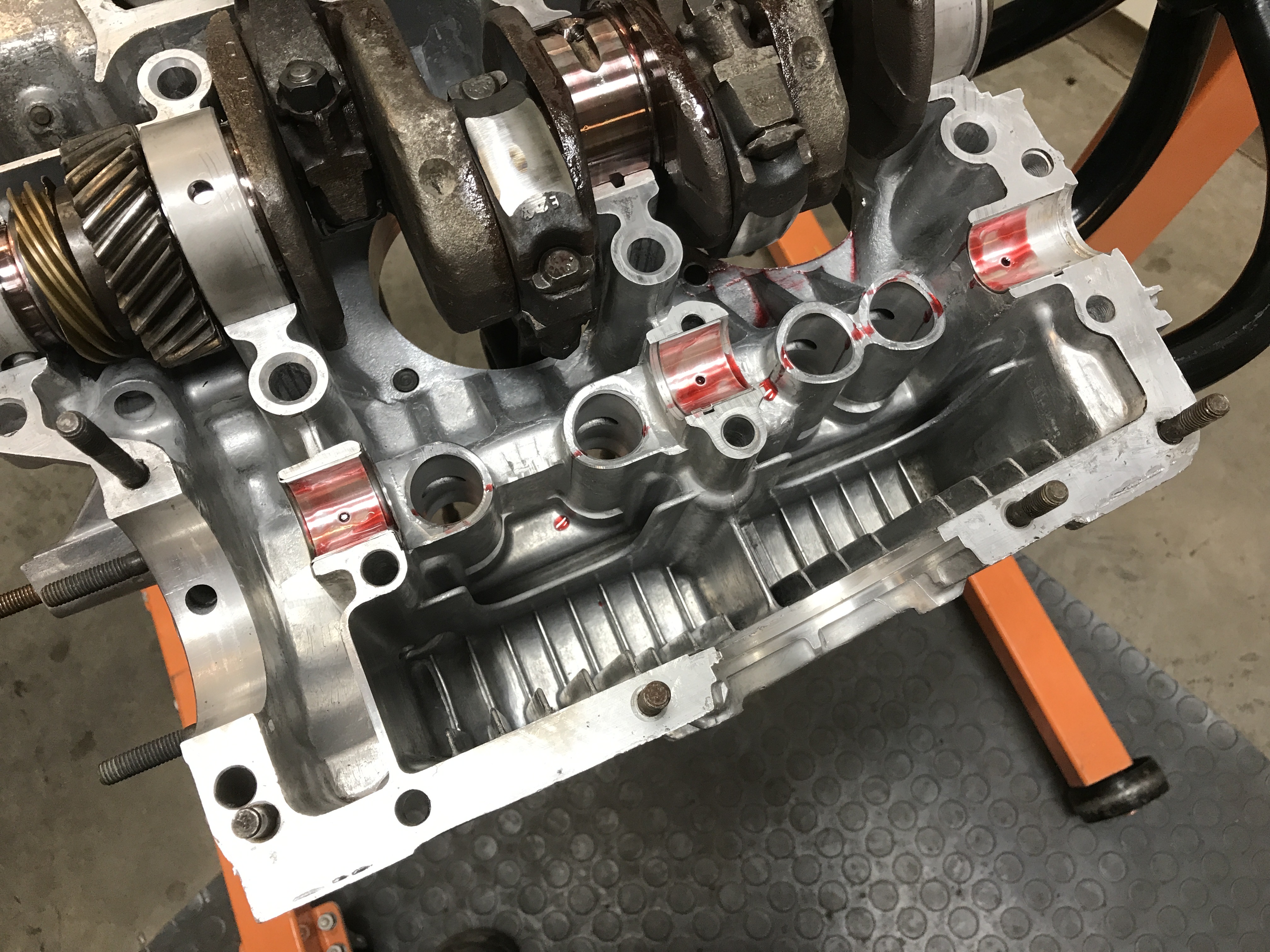

And cam bearings in the left case half. This is where the extra half cam thrust bearing goes, including the tab.

That should be everything before putting the case together for real. I will not install the distributor drive gear since I plan to run an electronic ignition with no dizzy.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kroelofsen
post May 4 2021, 04:55 AM
Post #2706


Member
**

Group: Members
Posts: 100
Joined: 27-June 19
From: The Netherlands
Member No.: 23,255
Region Association: Europe
QUOTE(bkrantz @ May 4 2021, 03:23 AM) *

Bolted and torqued.

Hi, I did exactly the same but later had to remove the washers as the bolt heads were touching the oil pump... check it before joining the 2 engine halves...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 06:56 PM
Post #2707


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(kroelofsen @ May 4 2021, 04:55 AM) *

QUOTE(bkrantz @ May 4 2021, 03:23 AM) *

Bolted and torqued.

Hi, I did exactly the same but later had to remove the washers as the bolt heads were touching the oil pump... check it before joining the 2 engine halves...


@kroelofsen , Thank you!!! You saved me hours of aggravation and expense. I owe you at least a six-pack. See below for what I found.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 06:57 PM
Post #2708


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

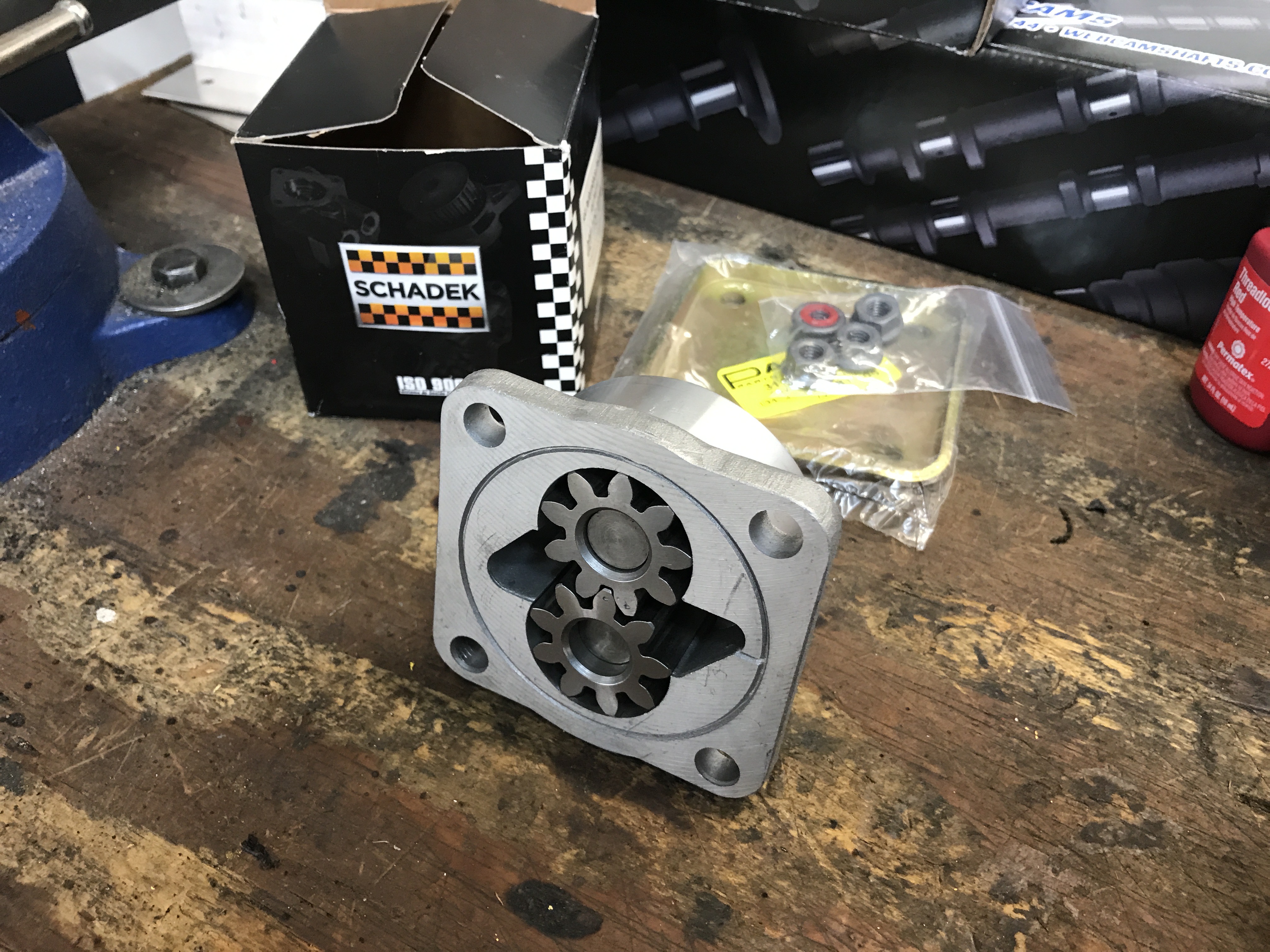

I got out my new oil pump, a Shradek 26mm.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 06:59 PM
Post #2709


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

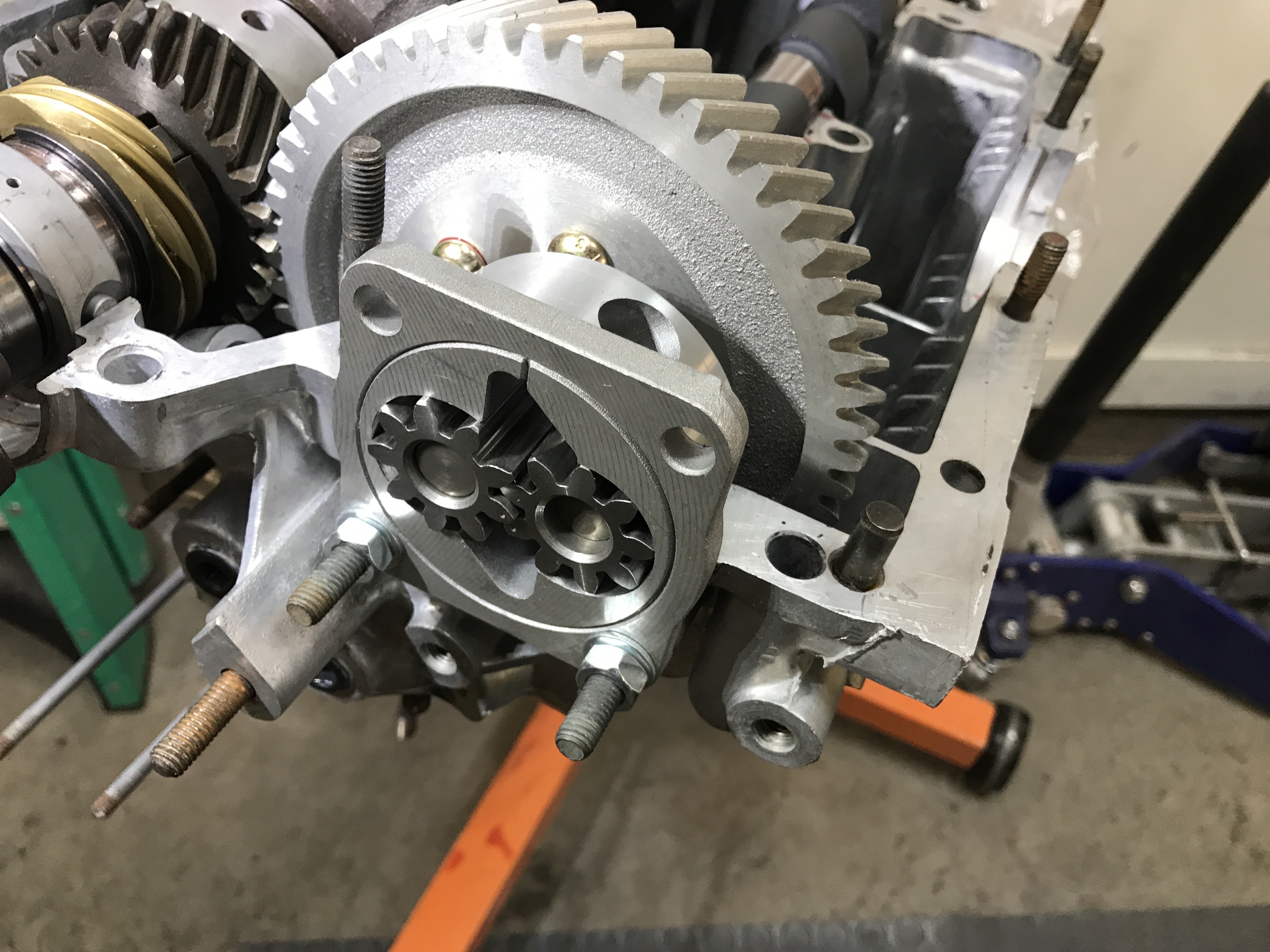

And slid the pump into place, with the cam as I left it yesterday, with the washers on the gear bolts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 07:00 PM
Post #2710


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

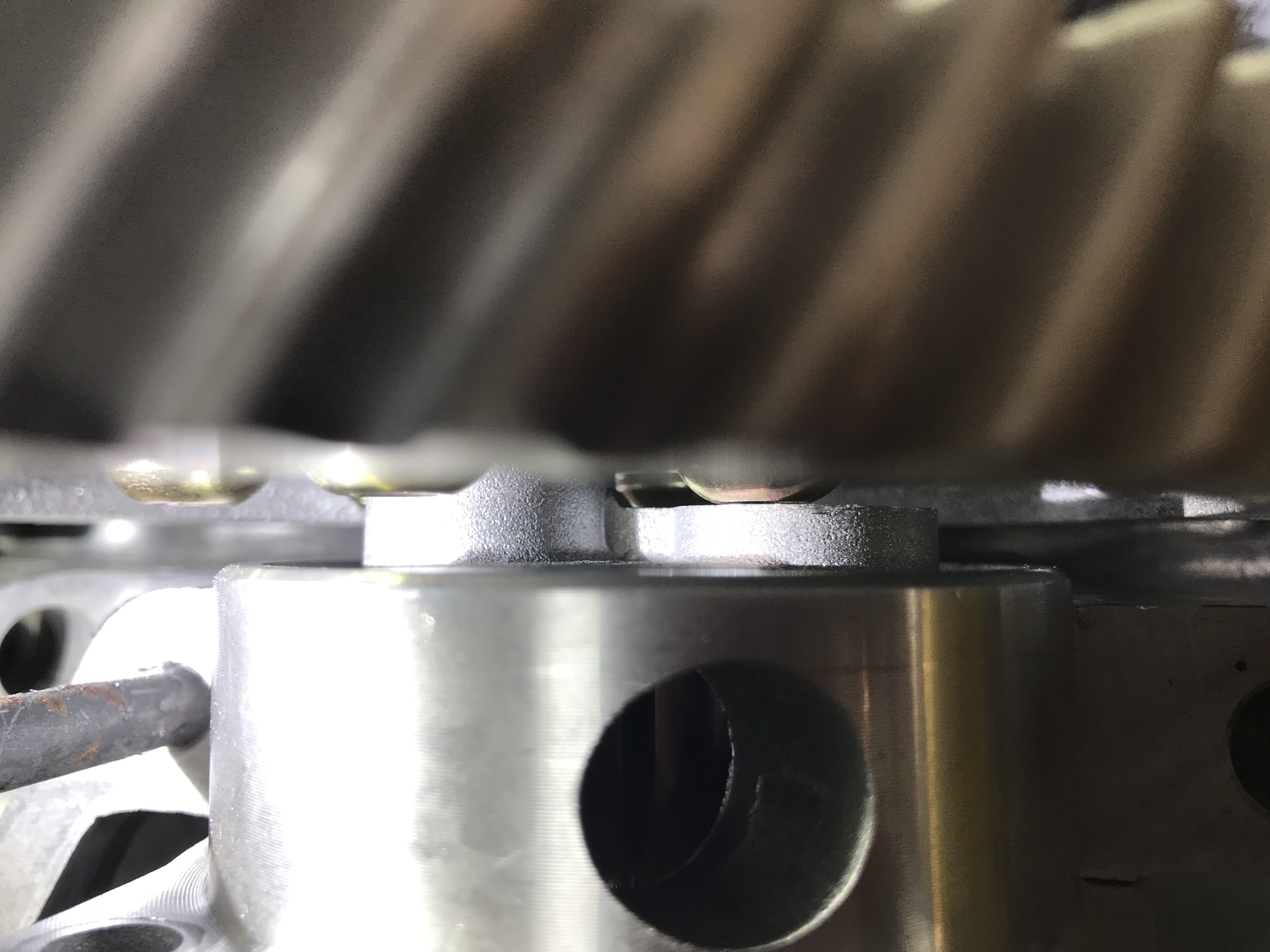

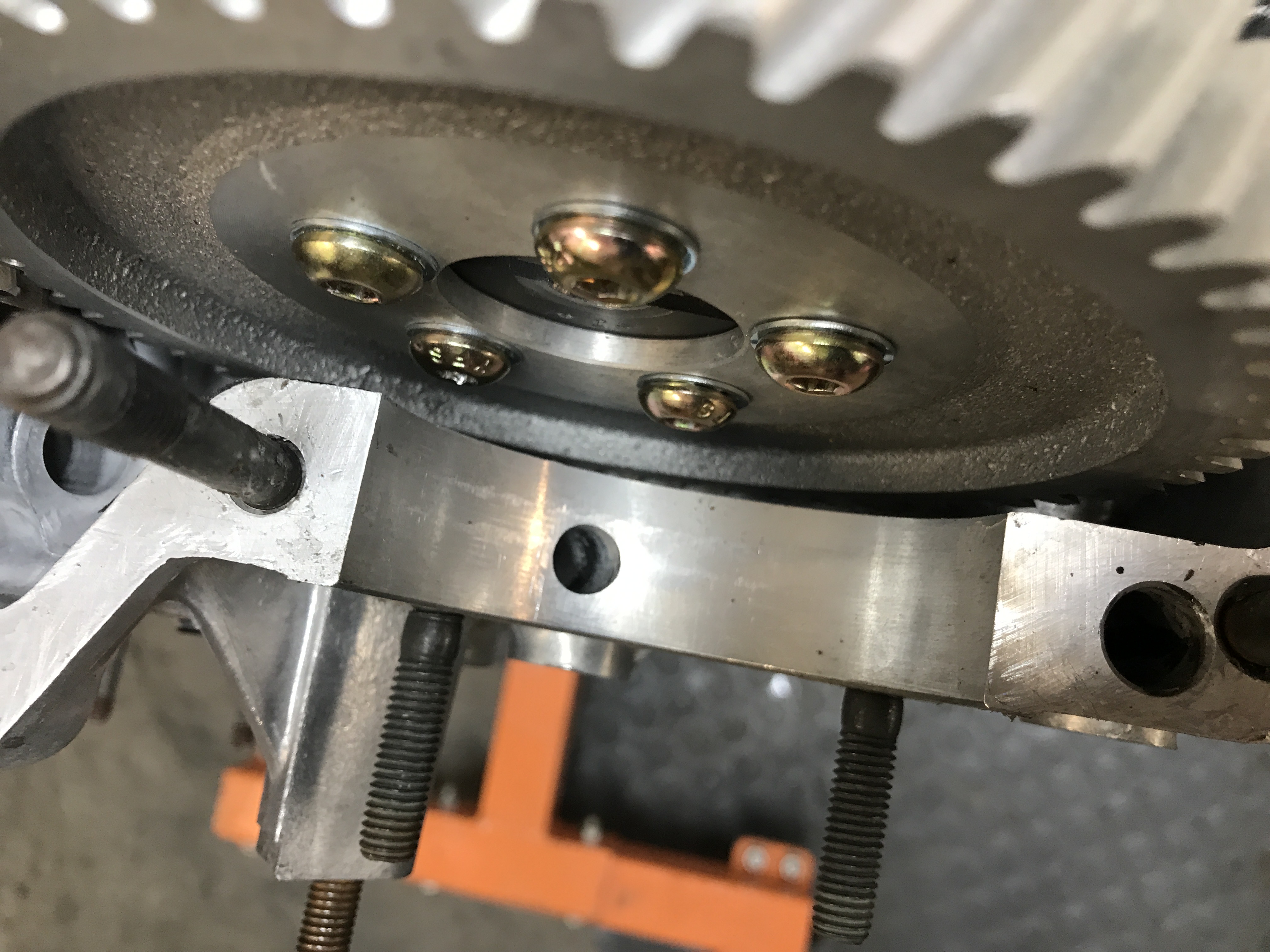

And found contact between the bolt heads and the pump body.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 07:02 PM
Post #2711


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

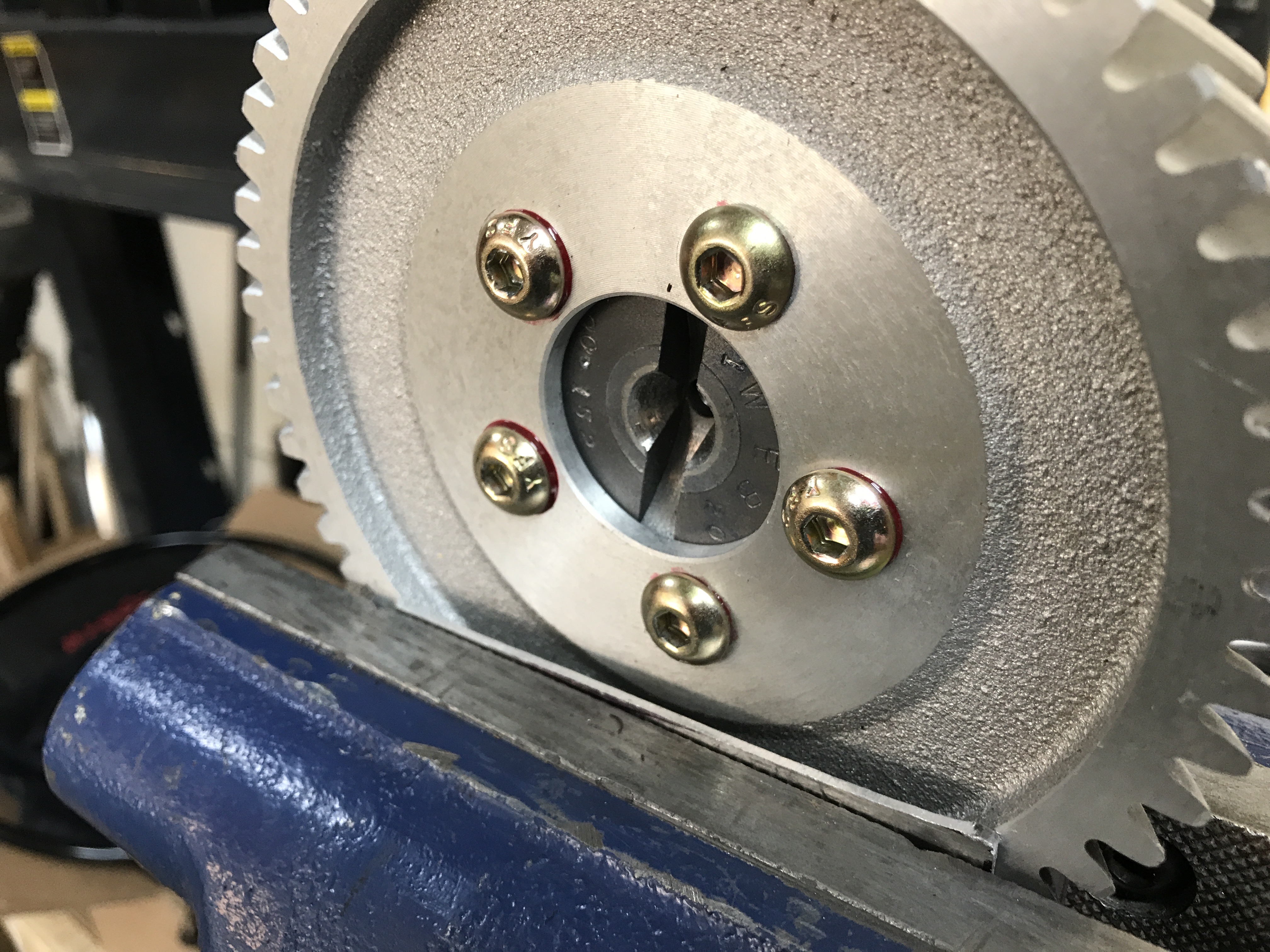

So I pulled the cam R&R'd the bolts to omit the washers. Just high-temp red Loctite to hold the bolts in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 07:03 PM
Post #2712


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Cam and pump back in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 07:05 PM
Post #2713


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

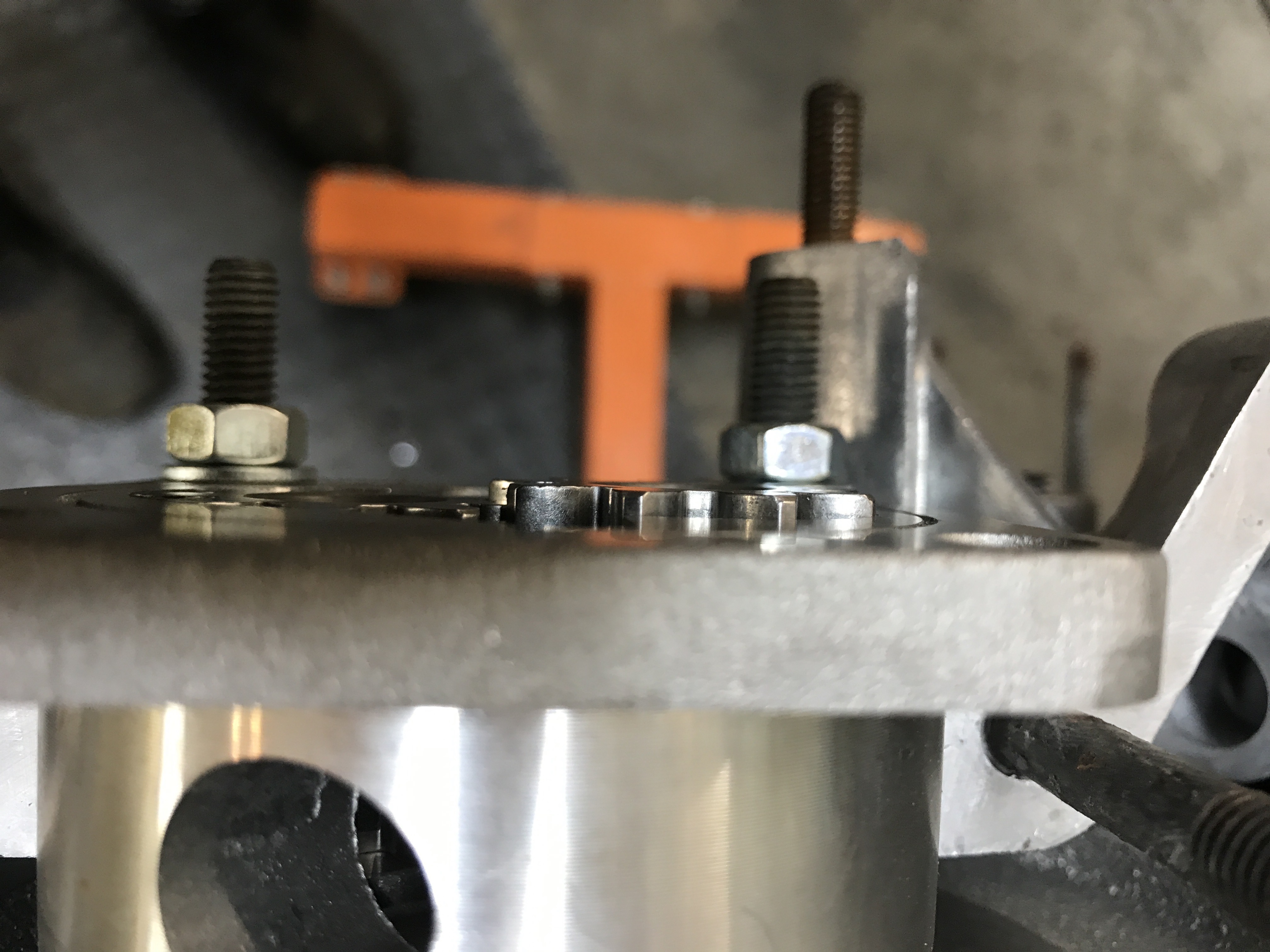

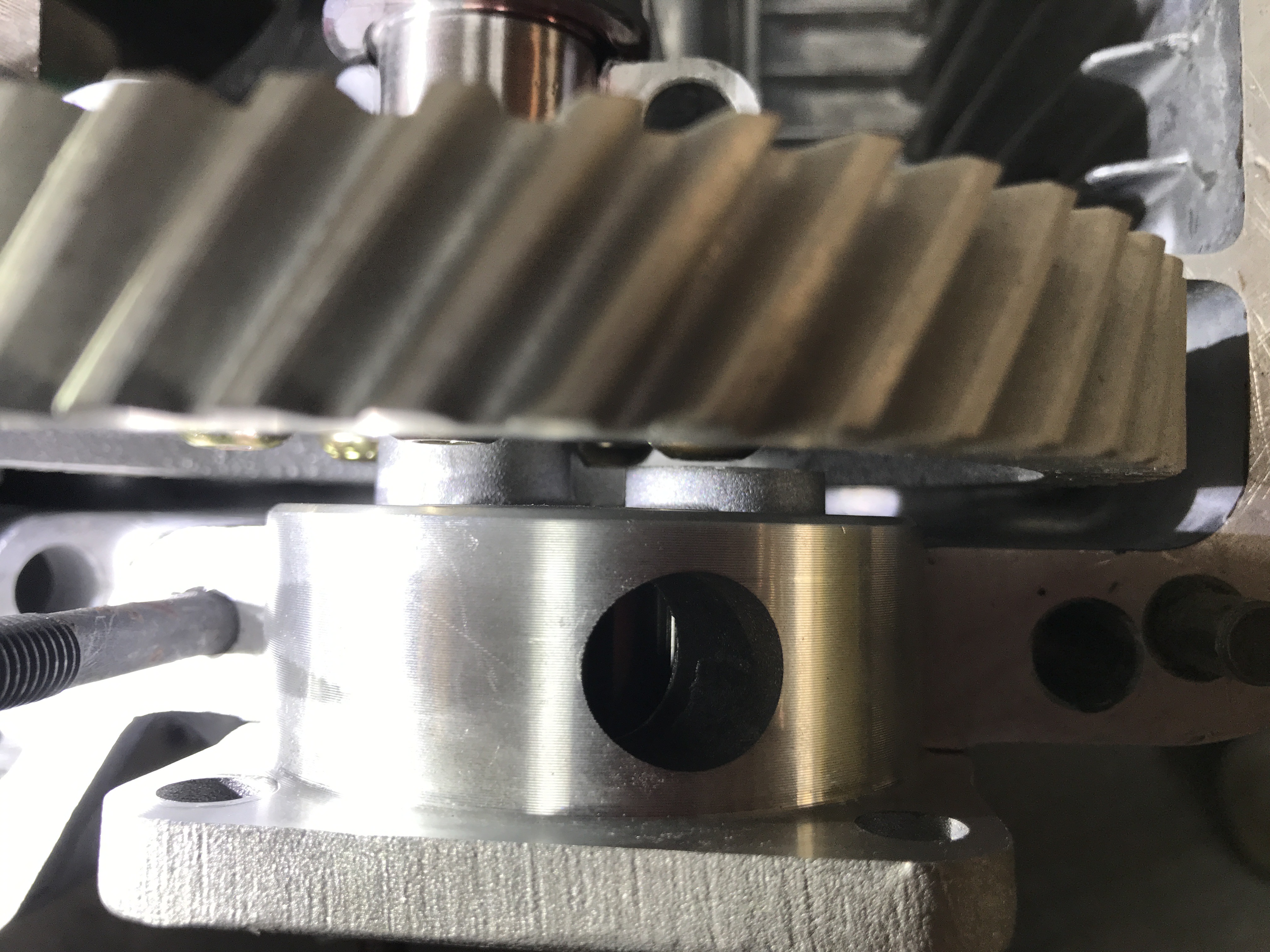

Now there is daylight between the bolt heads and the pump.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 07:05 PM
Post #2714


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

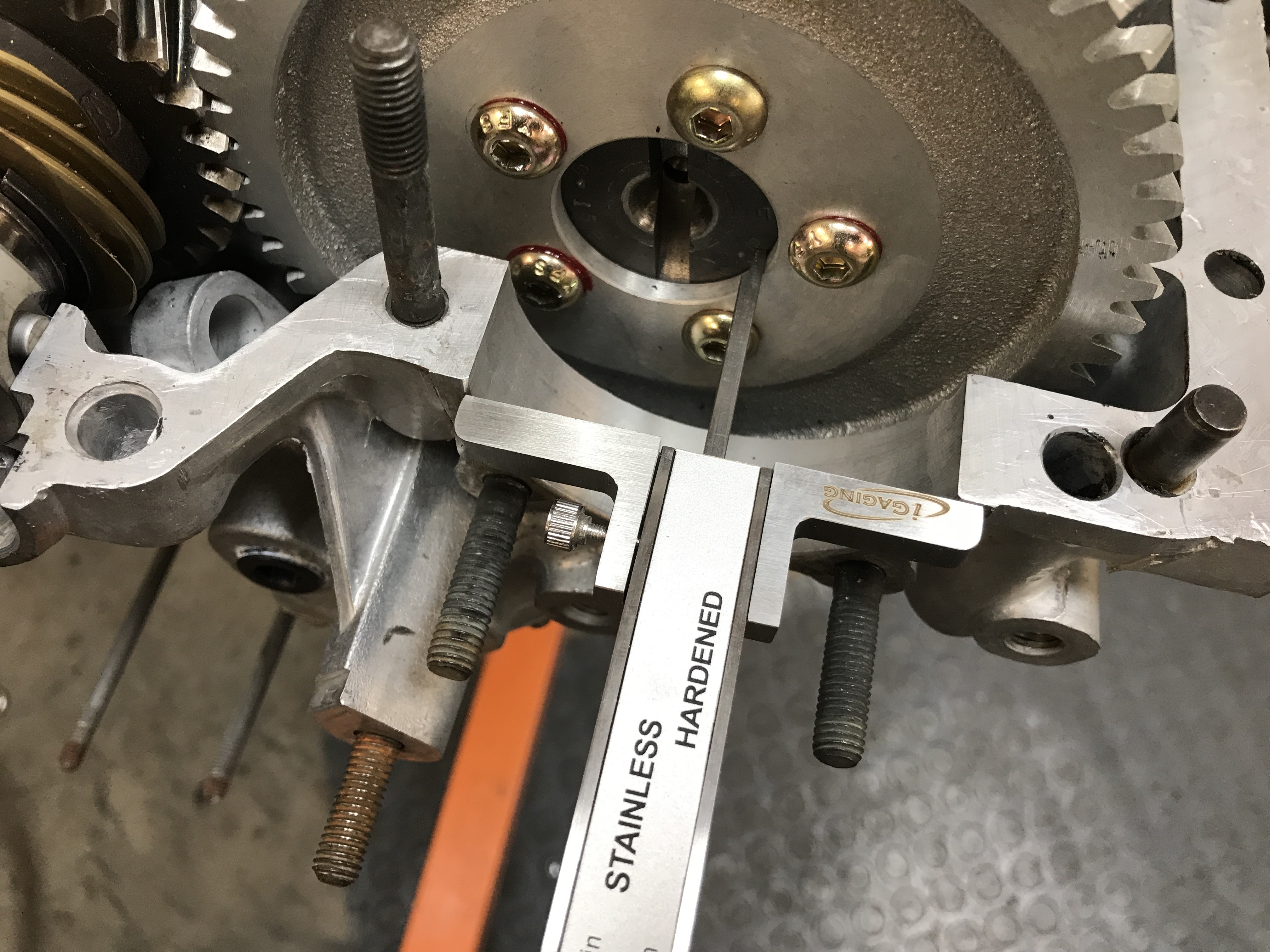

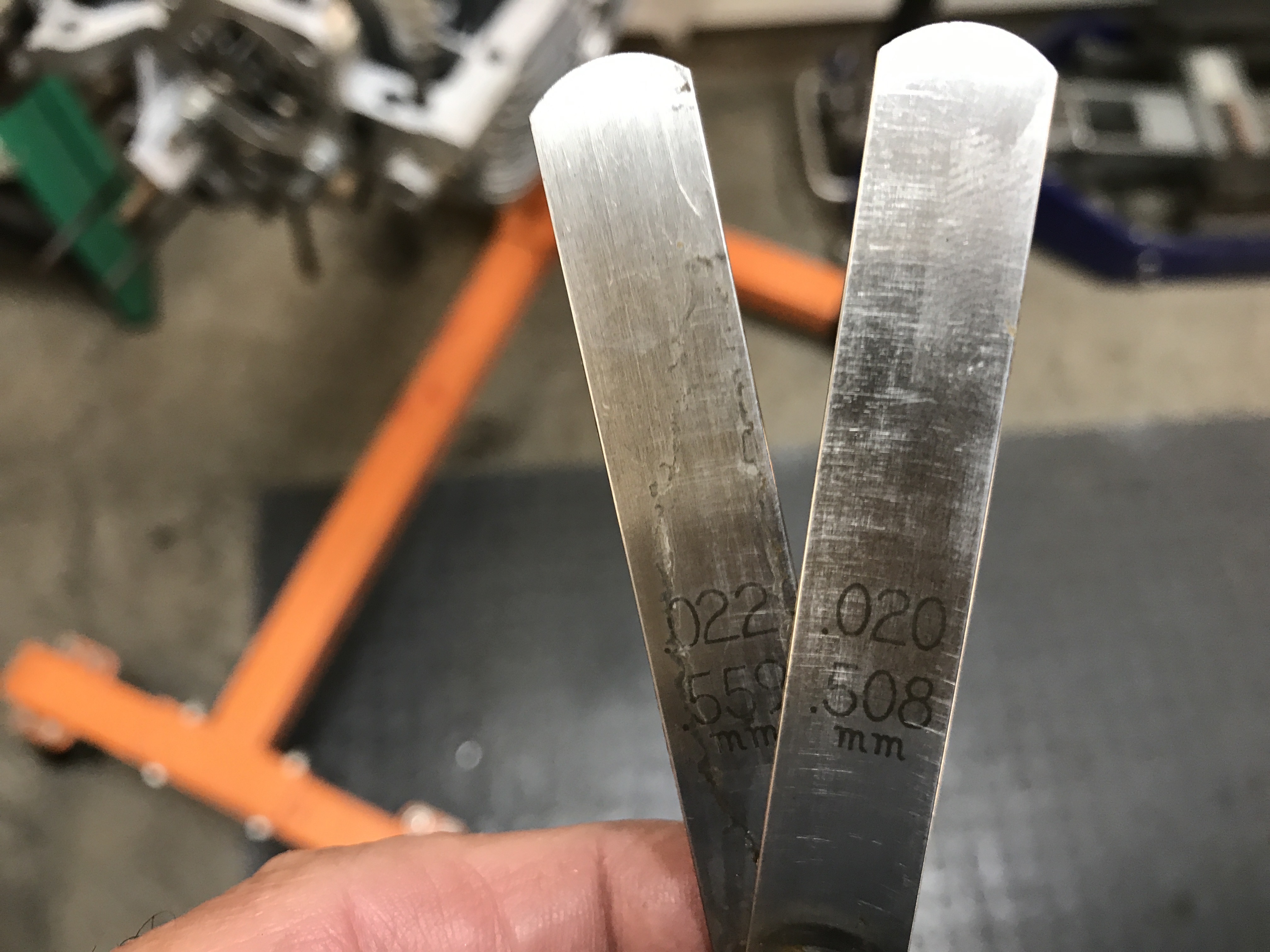

I measured .042 inch clearance.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 4 2021, 07:07 PM
Post #2715


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

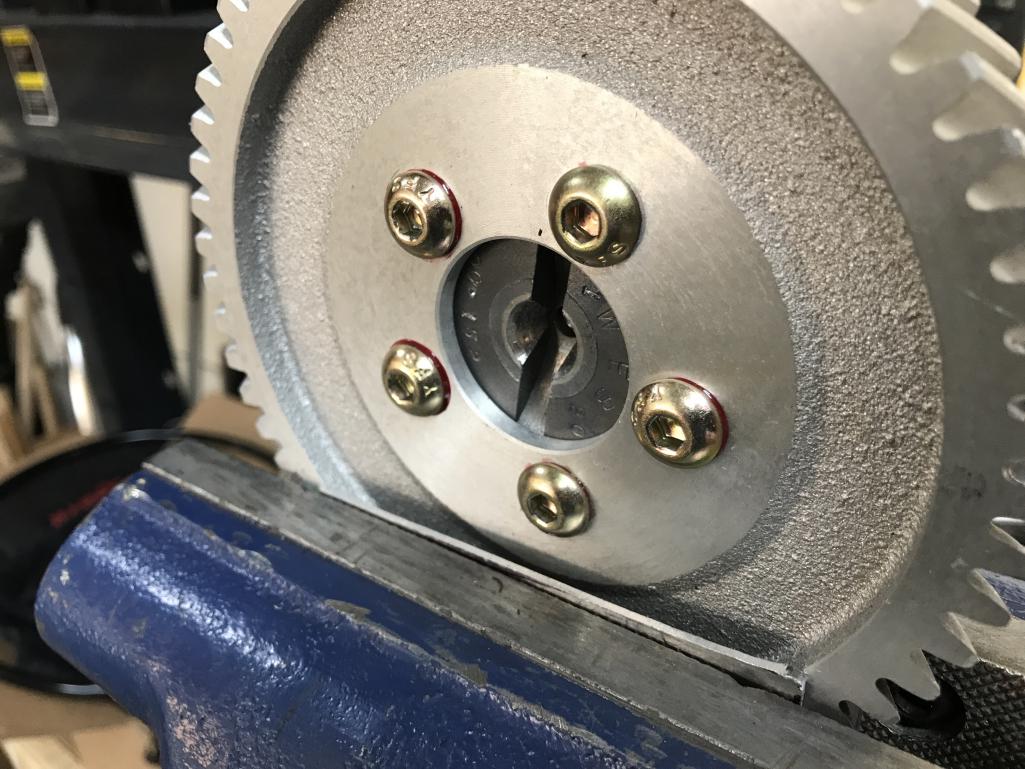

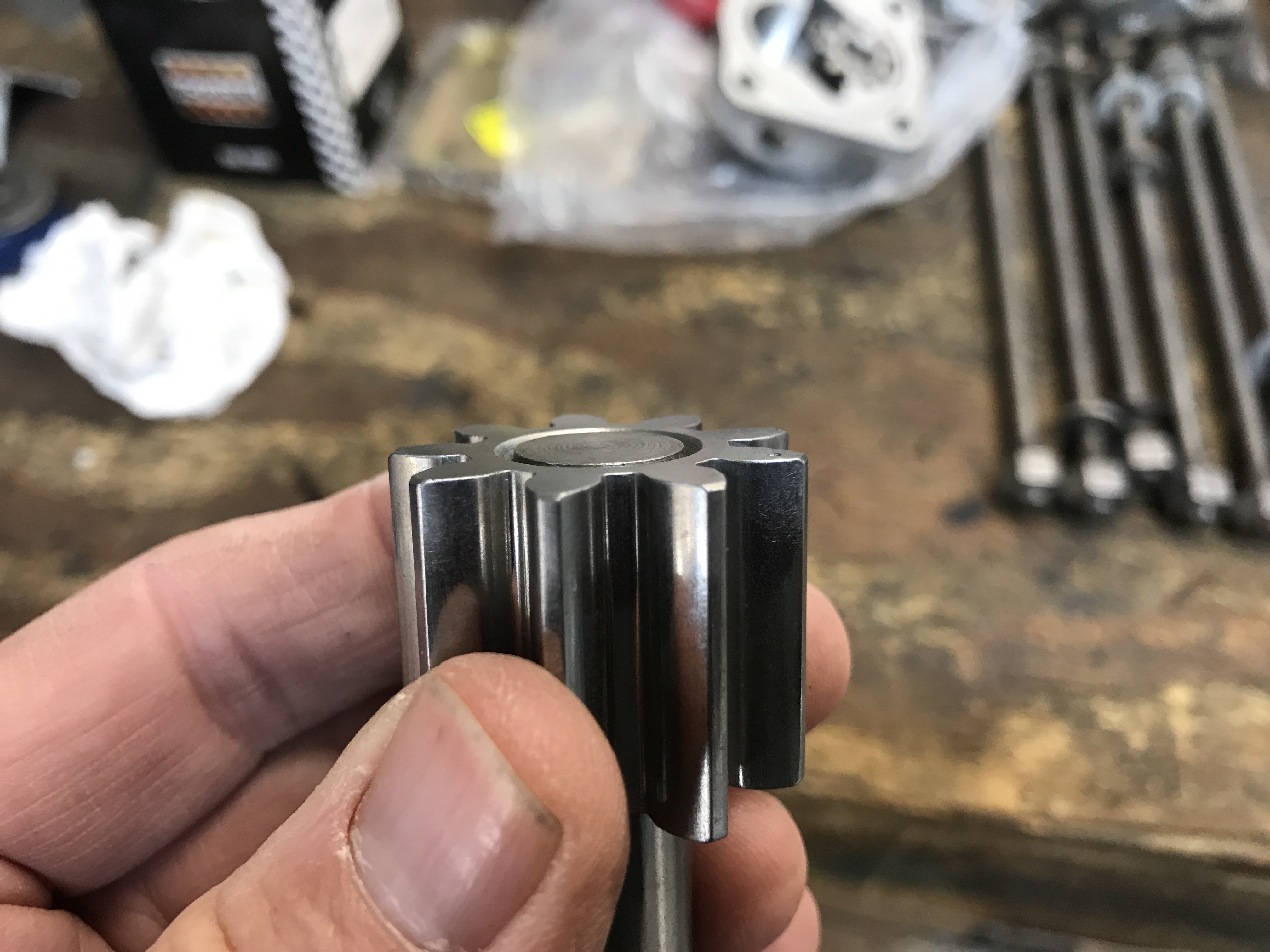

But then found another problem. The rotor stud is bottoming out against the cam end, and so does not sit completely inside the pump body.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 5 2021, 07:55 PM
Post #2716


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

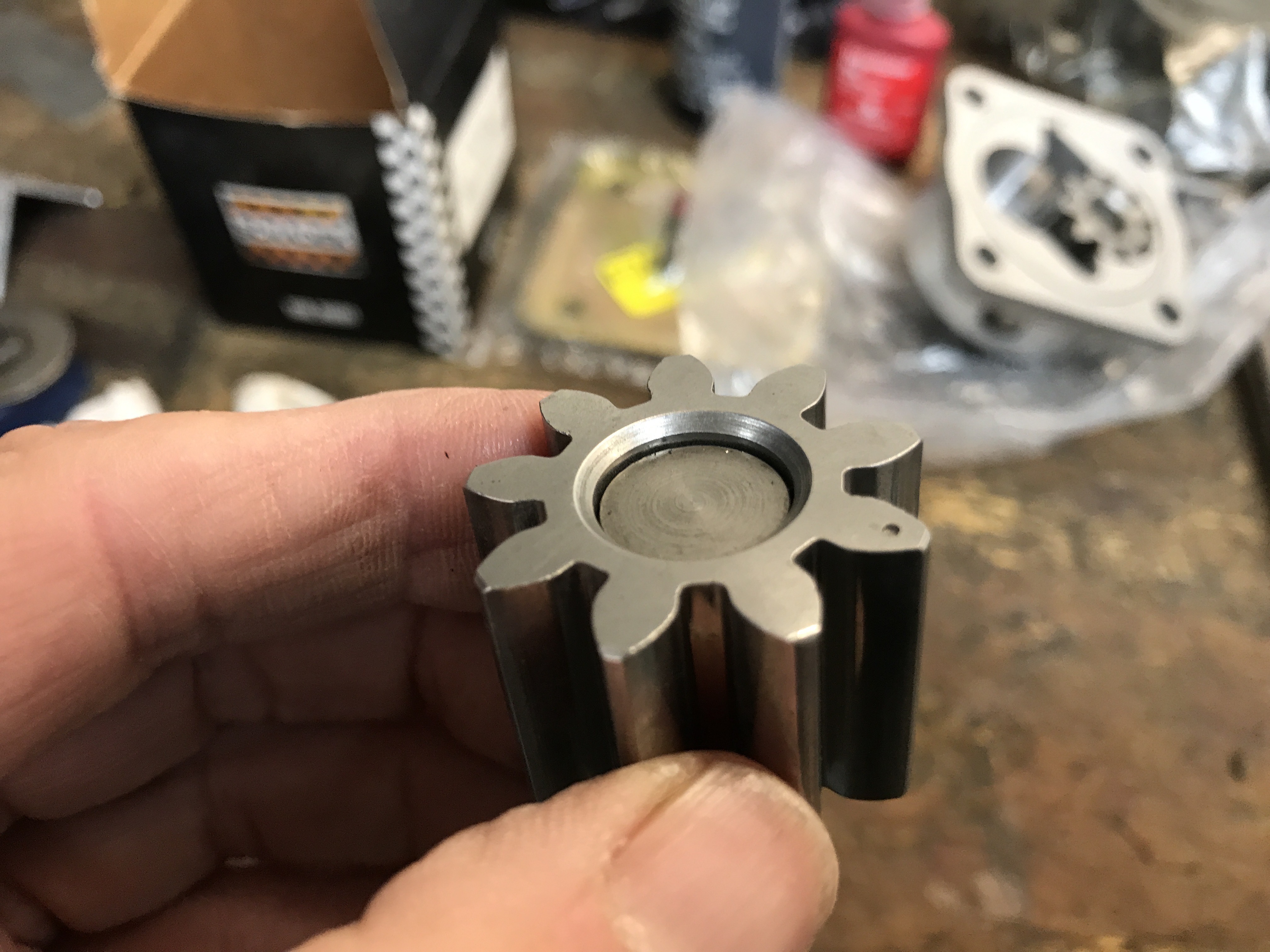

Checking the drive rotor, the shaft is not pushed all the way into to gear.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 5 2021, 07:56 PM
Post #2717


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

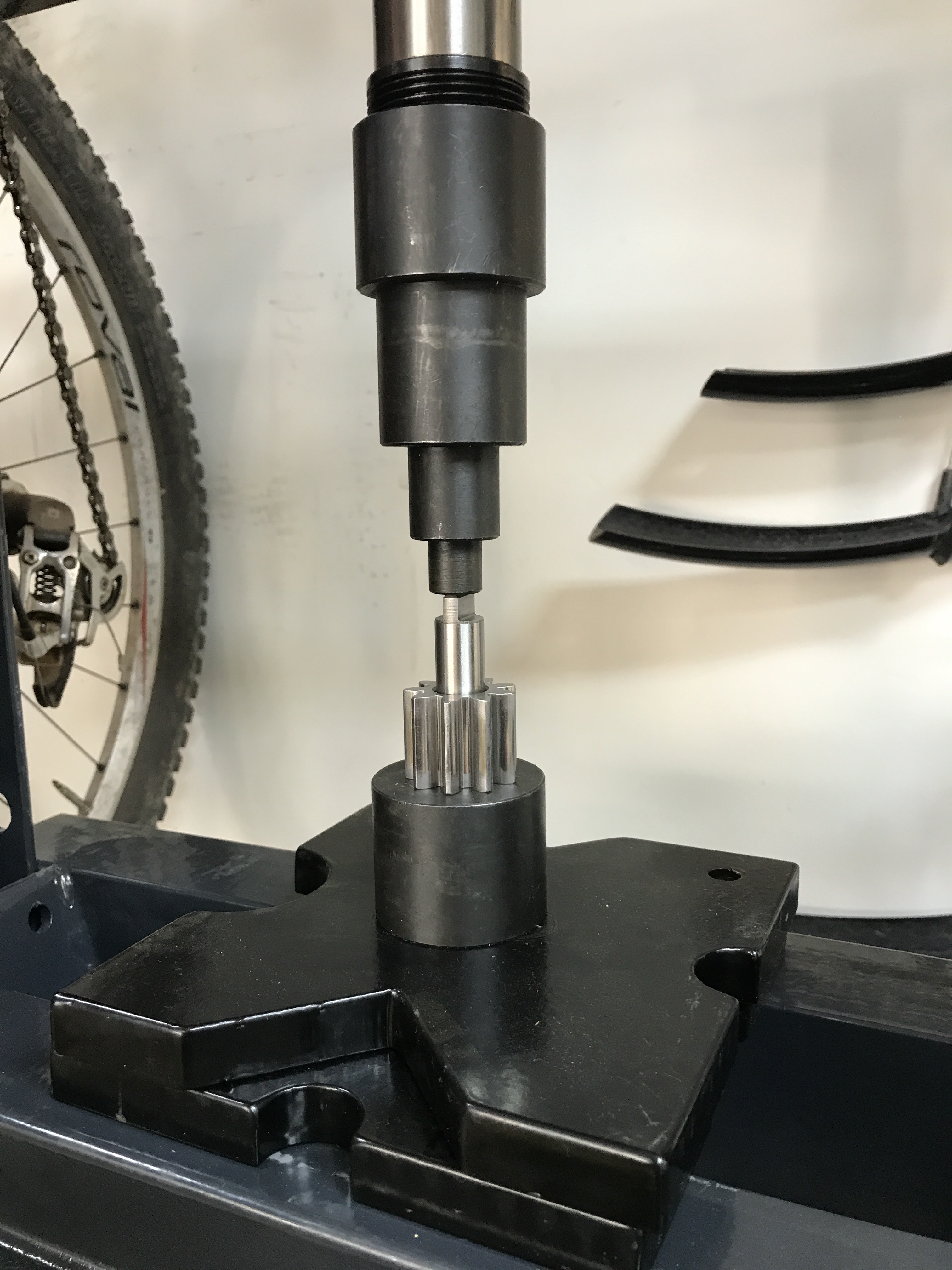

A quick visit to the hydraulic press...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 5 2021, 07:57 PM
Post #2718


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Now the shaft is flush.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 5 2021, 07:58 PM
Post #2719


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I also checked the clearance of the oil pump case against the end of the cam. The depth to the cam end is 38.85 mm.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 5 2021, 08:00 PM
Post #2720


914 Guru
*****

Group: Members
Posts: 8,066
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

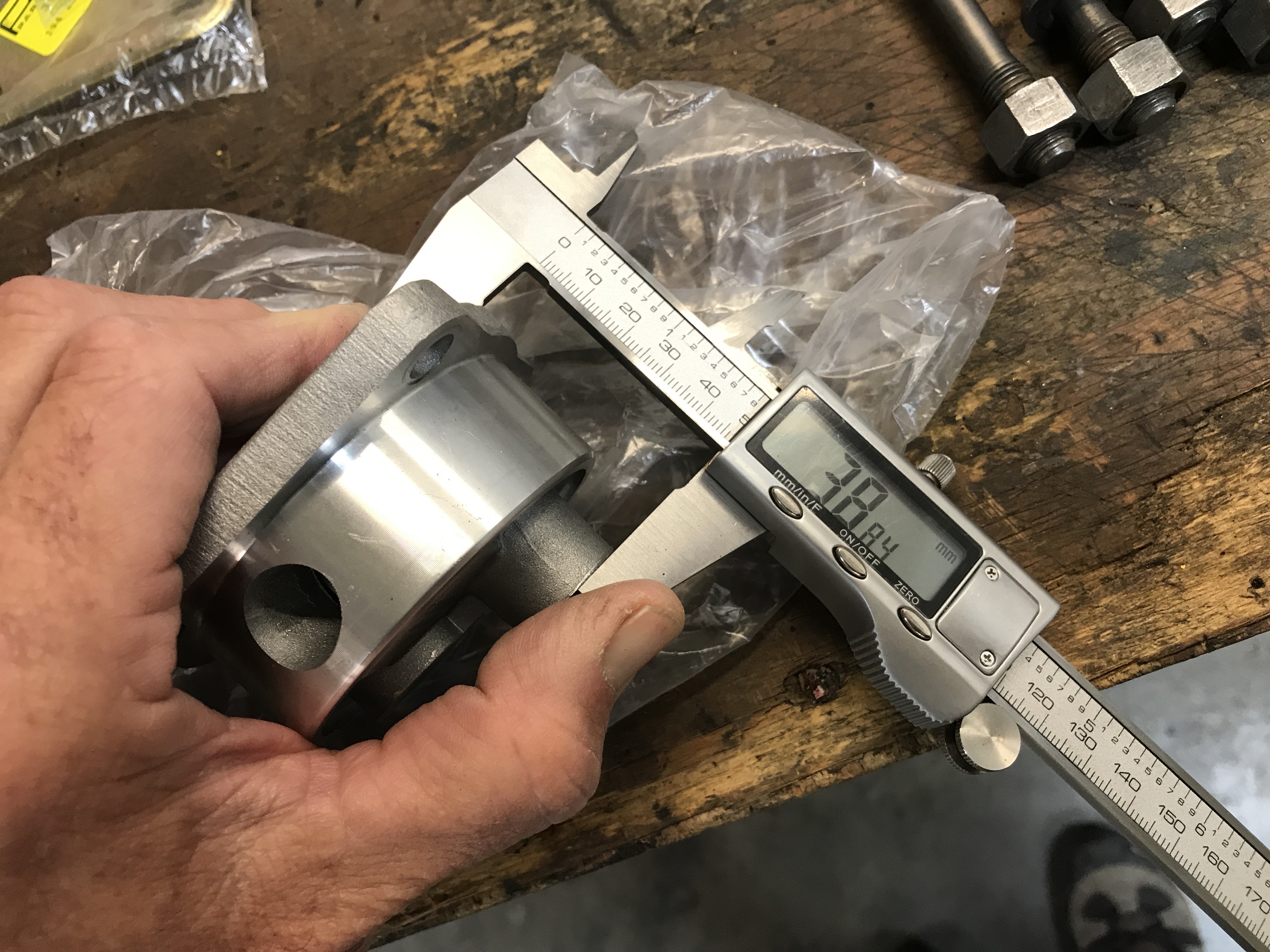

The depth of insertion of the pump case is 38.84 mm--no clearance!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
