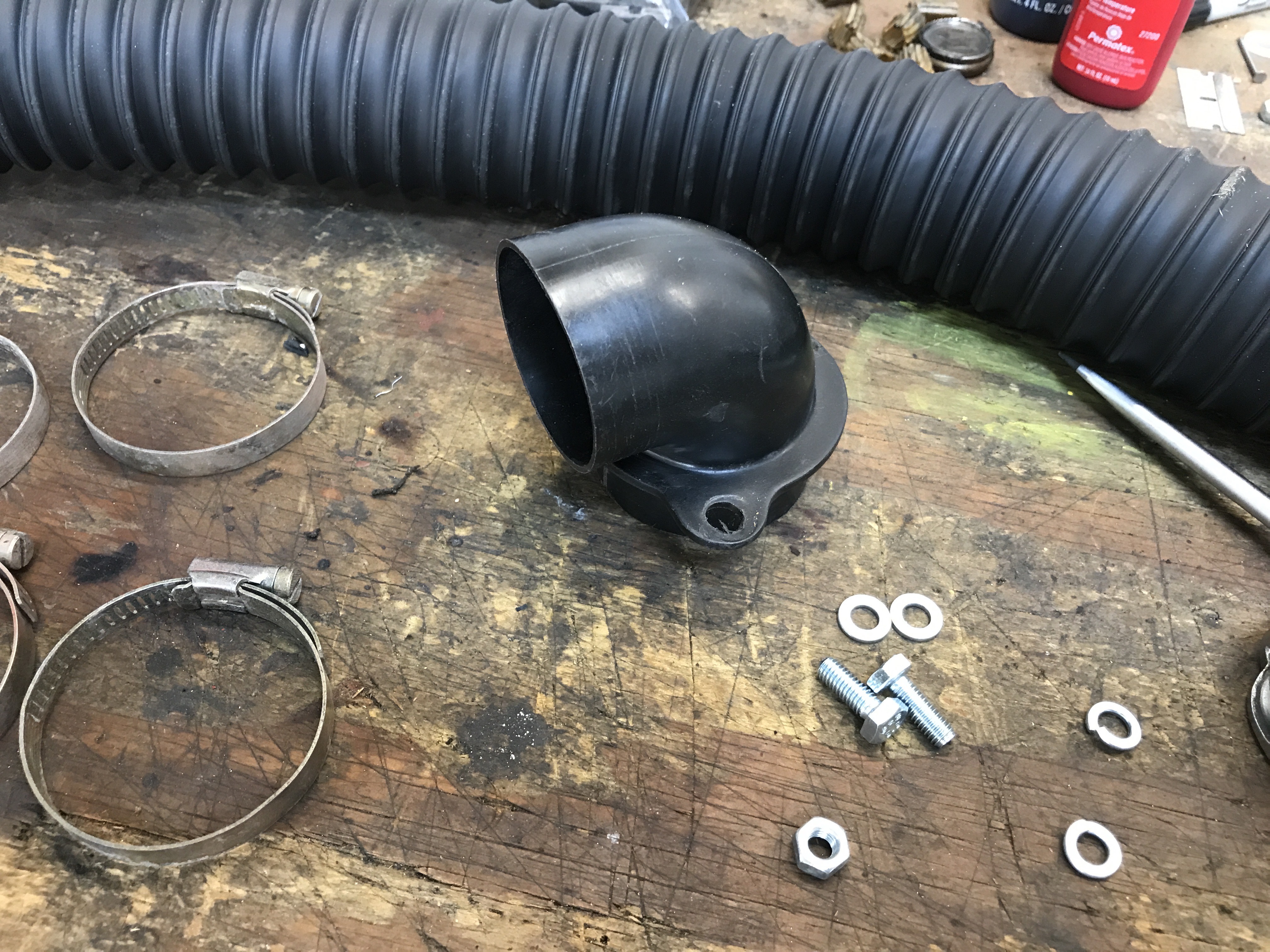

This is to connect the mixer boxes with the feed fitting for the side dash vents.
Attached thumbnail(s) |
bkrantz |
May 7 2021, 07:21 PM
Post
#2742
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

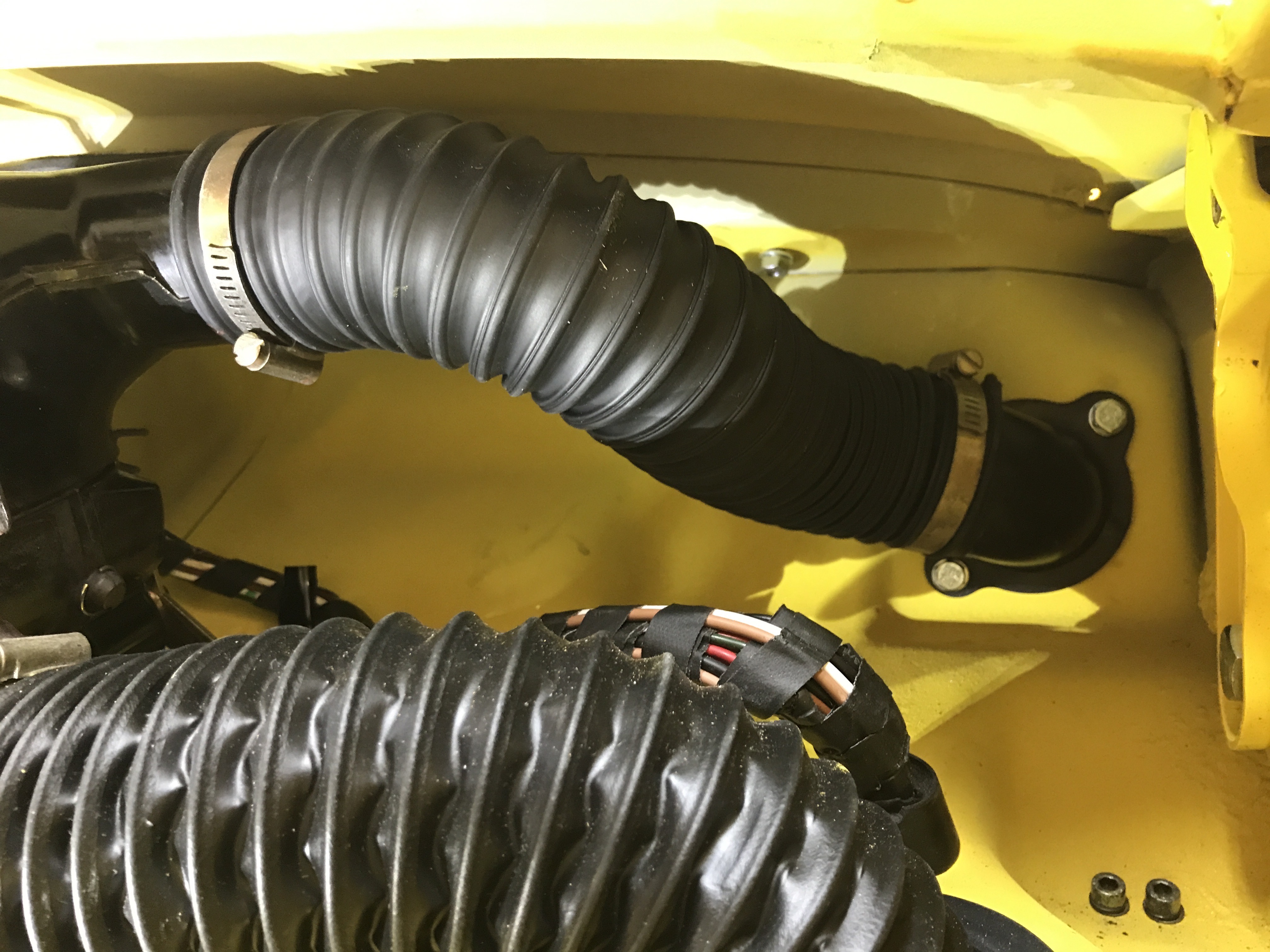

I did the left side, and with a bit of twisting, the hose conforms to the right shape.
Attached thumbnail(s) |
Puebloswatcop |
May 8 2021, 07:57 AM
Post
#2743
|
Senior Member Group: Members Posts: 1,395 Joined: 27-December 14 From: Mineola, Texas Member No.: 18,258 Region Association: Southwest Region |
Love following your build. It has been full of the small details that plague these builds along with your solutions to the problems. Thanks for sharing. +1, tons of details most of which are never addressed (myself included) Great job and thank you for documenting. Is there an end date for the build? Thanks, guys. I was aiming for September, since we have our big annual car show on Labor Day (except last year). But now I have some other things showing up on my calendar. And even if I had nothing else, it would be a challenge. Since winter can start here in October, I think I should pace this into next spring. Thats okay, I start each day looking forward to what you have done and the progress you have made, when you are finished I won't have my morning build to watch. It has been a fun journey. |
mb911 |
May 8 2021, 08:02 AM
Post
#2744
|
914 Guru Group: Members Posts: 7,163 Joined: 2-January 09 From: Burlington wi Member No.: 9,892 Region Association: Upper MidWest |
|
bkrantz |
May 8 2021, 08:04 PM
Post
#2745
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
I got some 50 mm hose, that almost matches the 60 mm stuff from 914 Rubber. It is also a bit stiffer. Where did you find that? I need to do that as well. https://www.mcmaster.com/53335K61/ |
bkrantz |
May 8 2021, 08:05 PM
Post
#2746
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

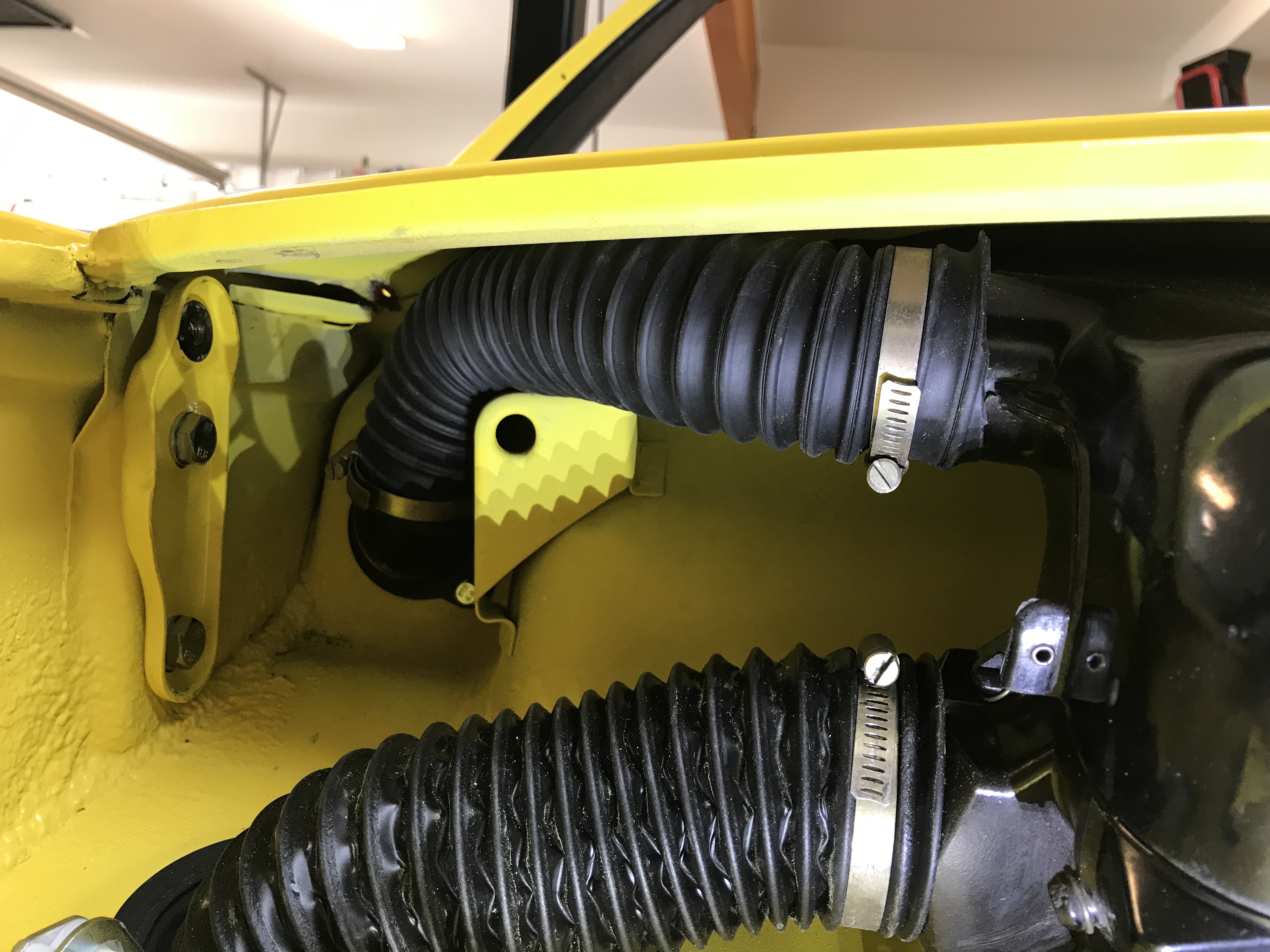

I got the right side vent hose installed. This one has to curve around the windshield washer reservoir and mount.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:06 PM
Post
#2747
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

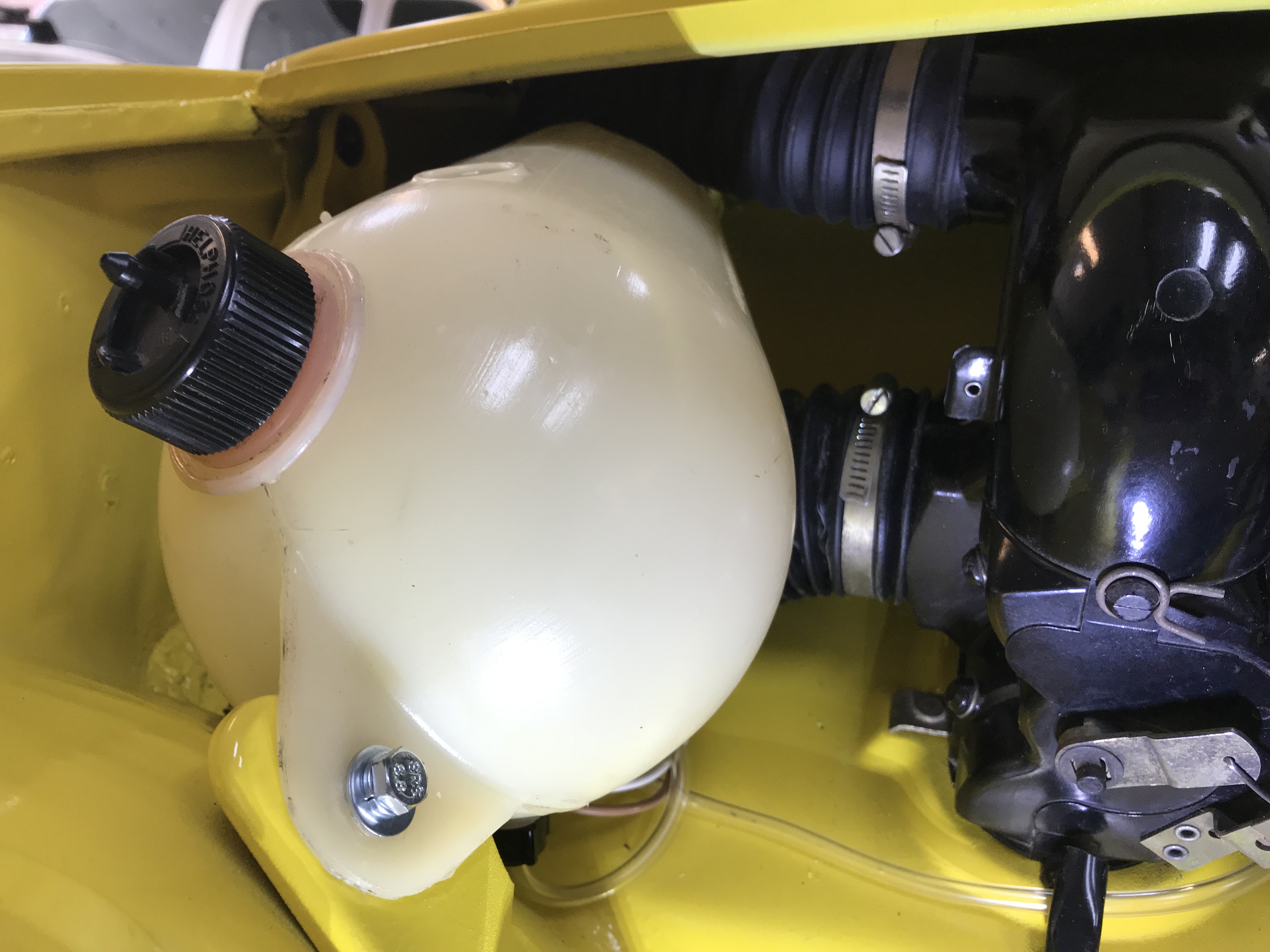

With the reservoir installed, a tight but workable fit.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:07 PM
Post
#2748
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

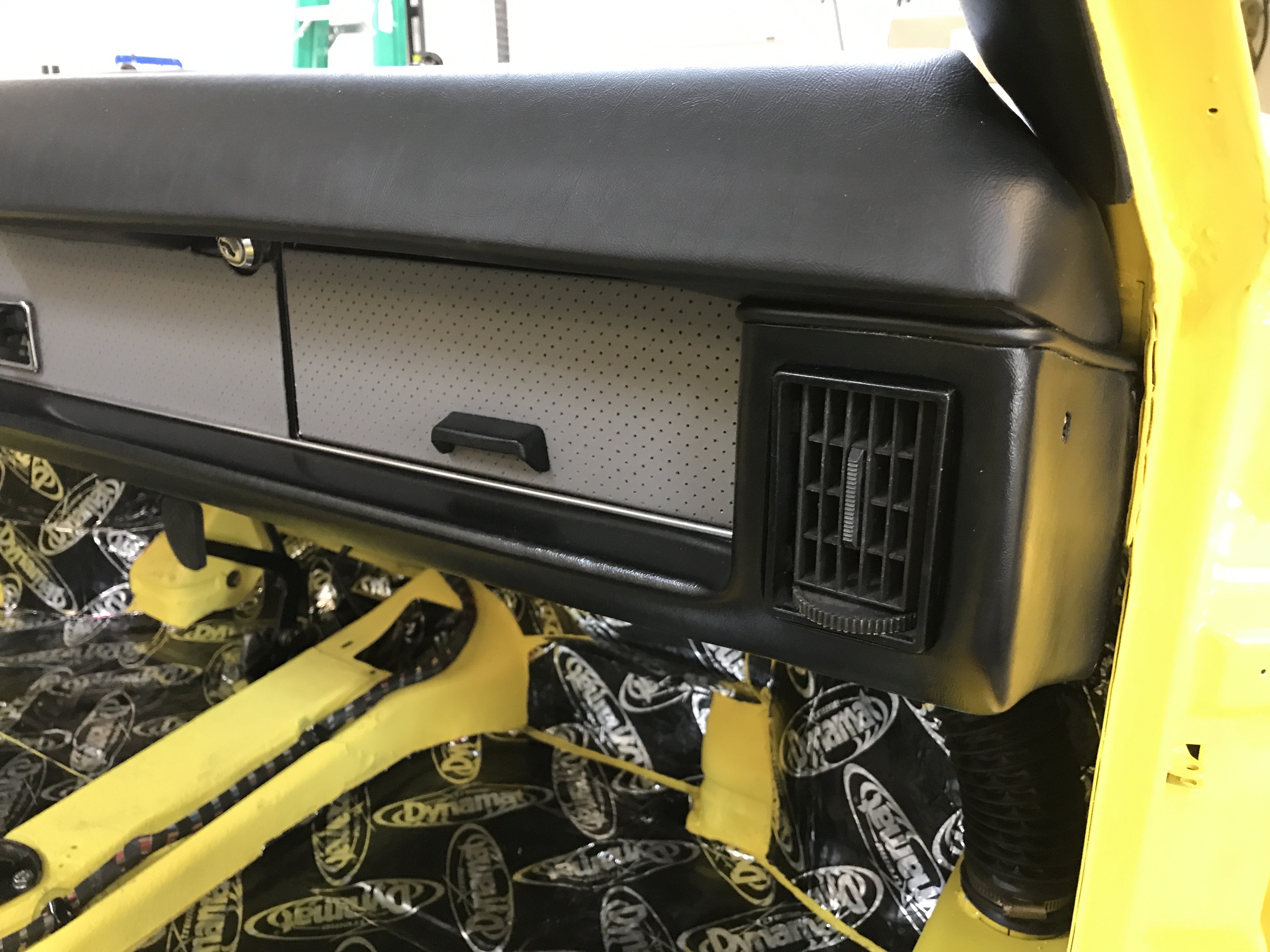

I got out the side vents to finish up the system.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:08 PM
Post
#2749
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

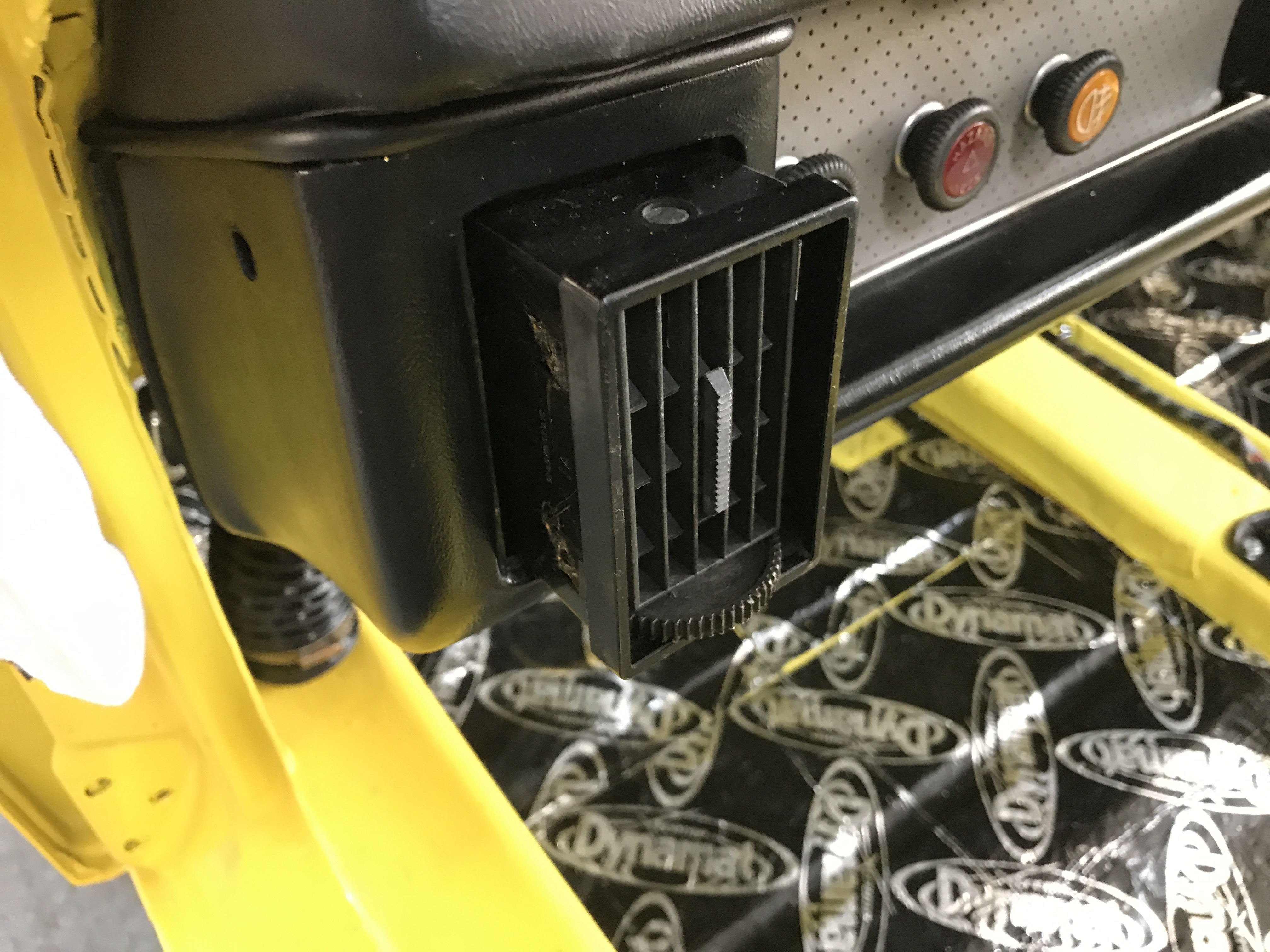

They do not fit tightly into the dash front, and can fall out.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:09 PM
Post
#2750
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

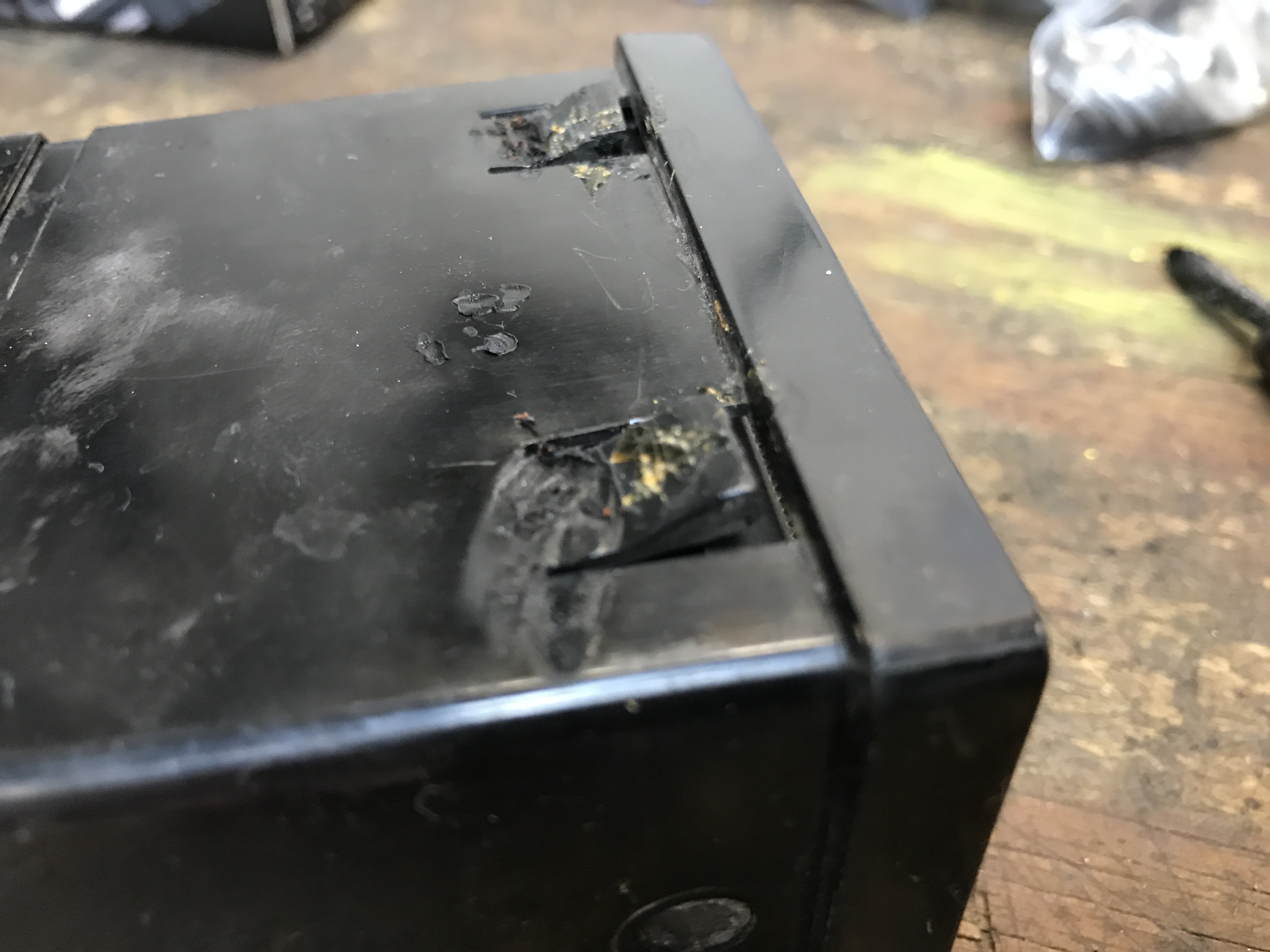

The problem is the retaining tabs. Most are not sticking out to engage the lip of the dash opening. Here, the front tab is correct, but the rear tab is recessed.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:12 PM
Post
#2751
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

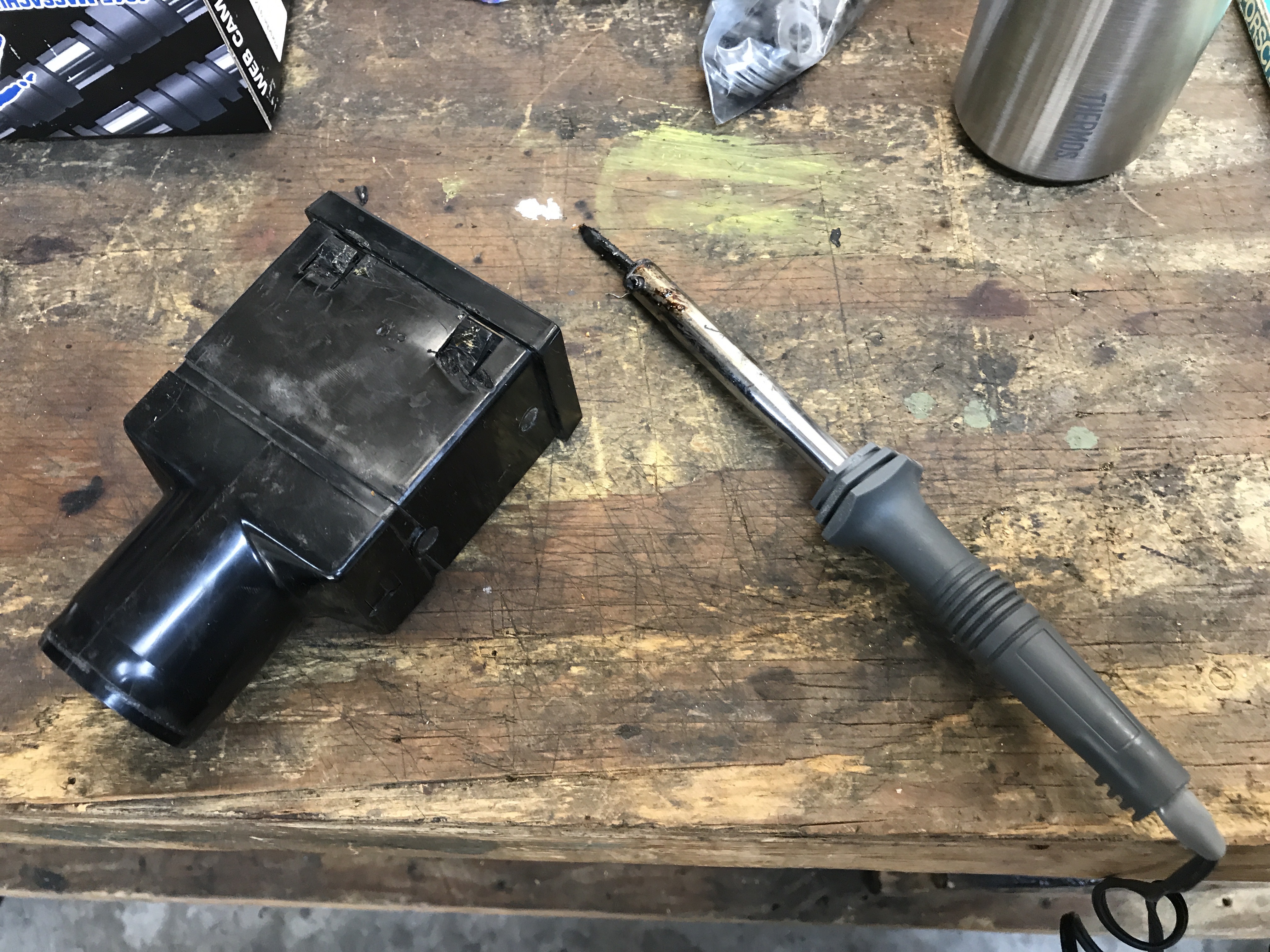

I got out my junk soldering iron, and applied a bit of local heat.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:12 PM
Post
#2752
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

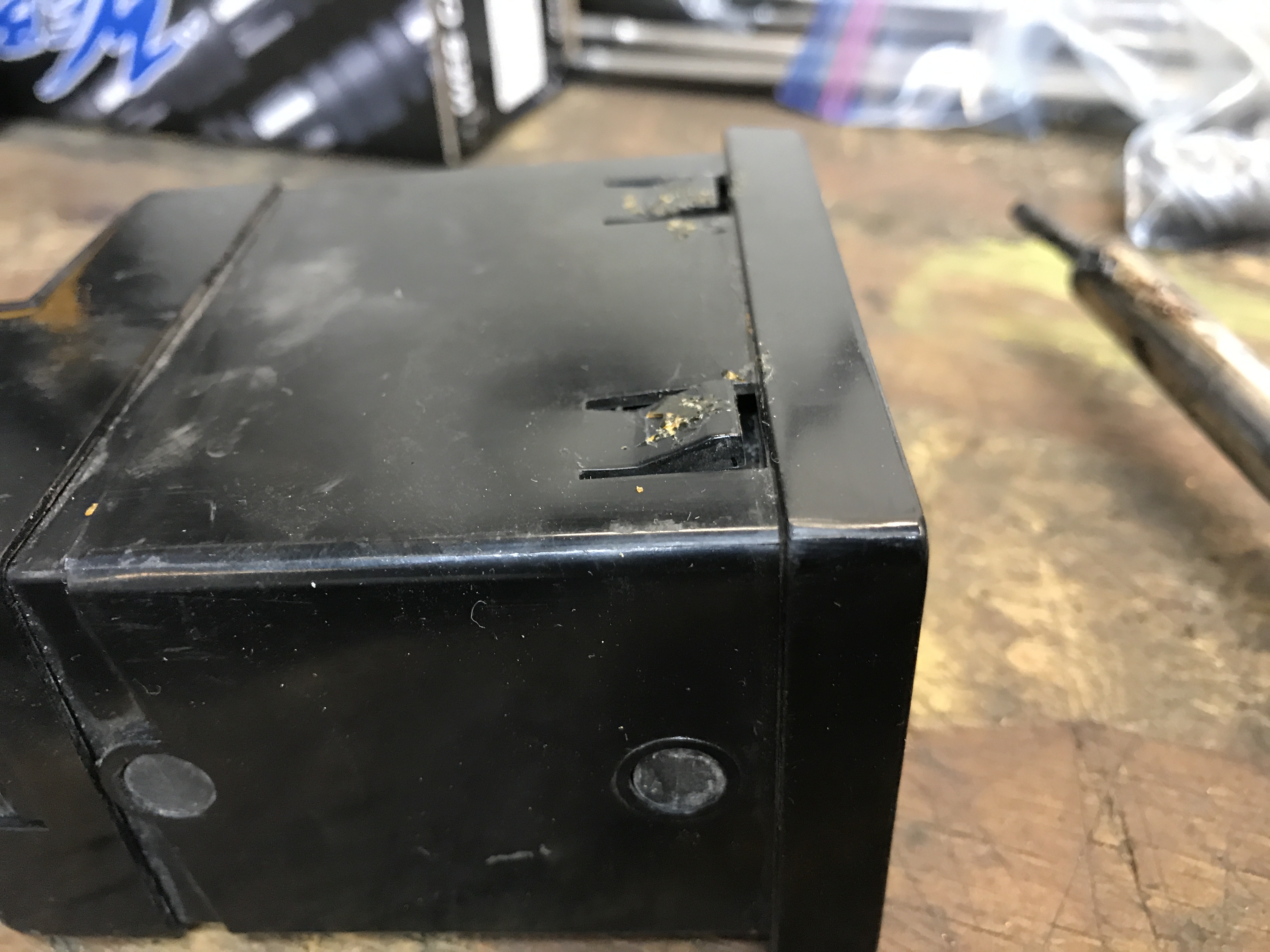

All the tabs now stick out.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:13 PM
Post
#2753
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And the vents snap tightly into the dash.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:15 PM
Post
#2754
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Then I decided to complete the engine case assembly.

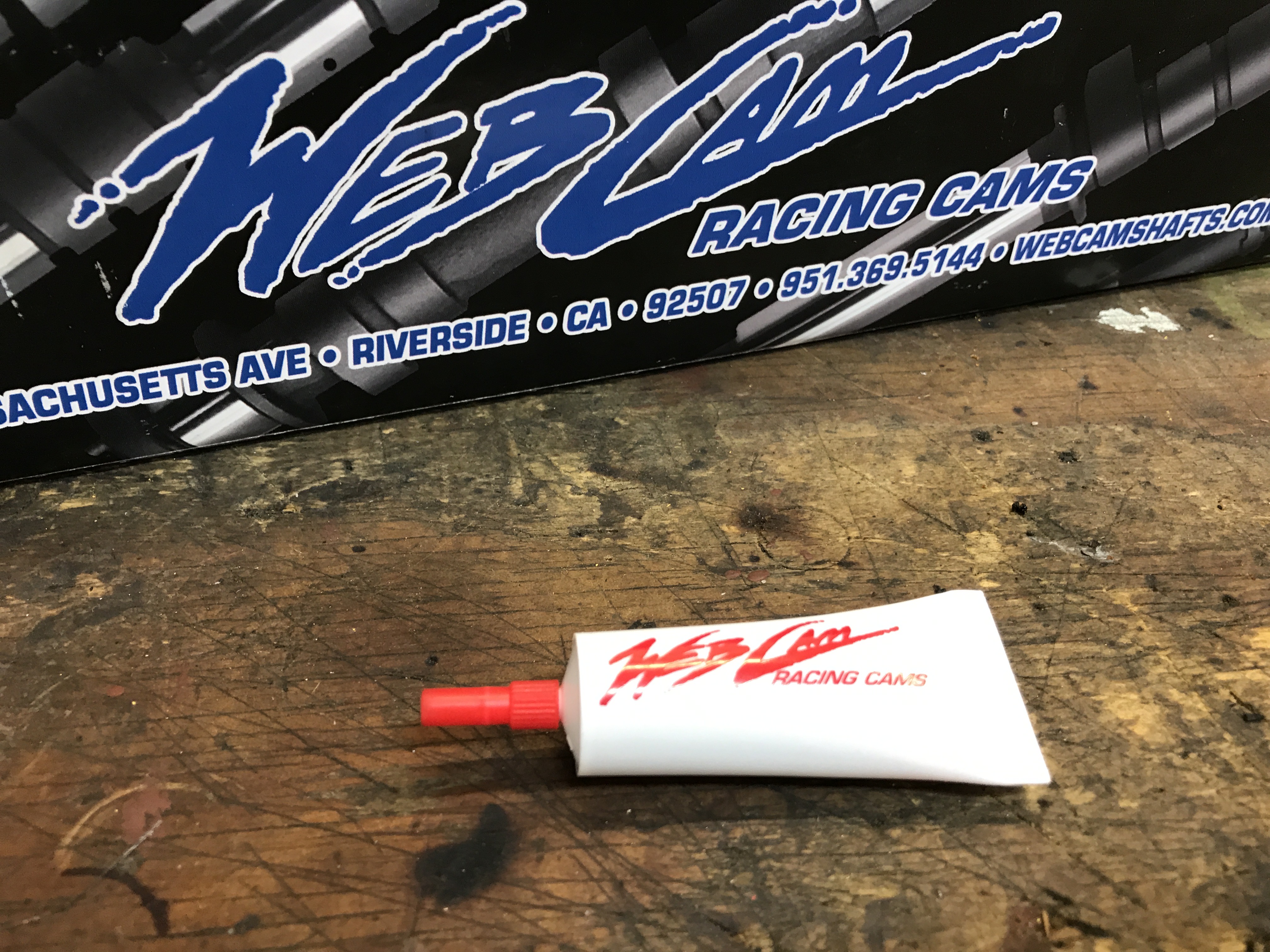

Here is the Web Cam lube--in the tube. Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:16 PM
Post
#2755
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

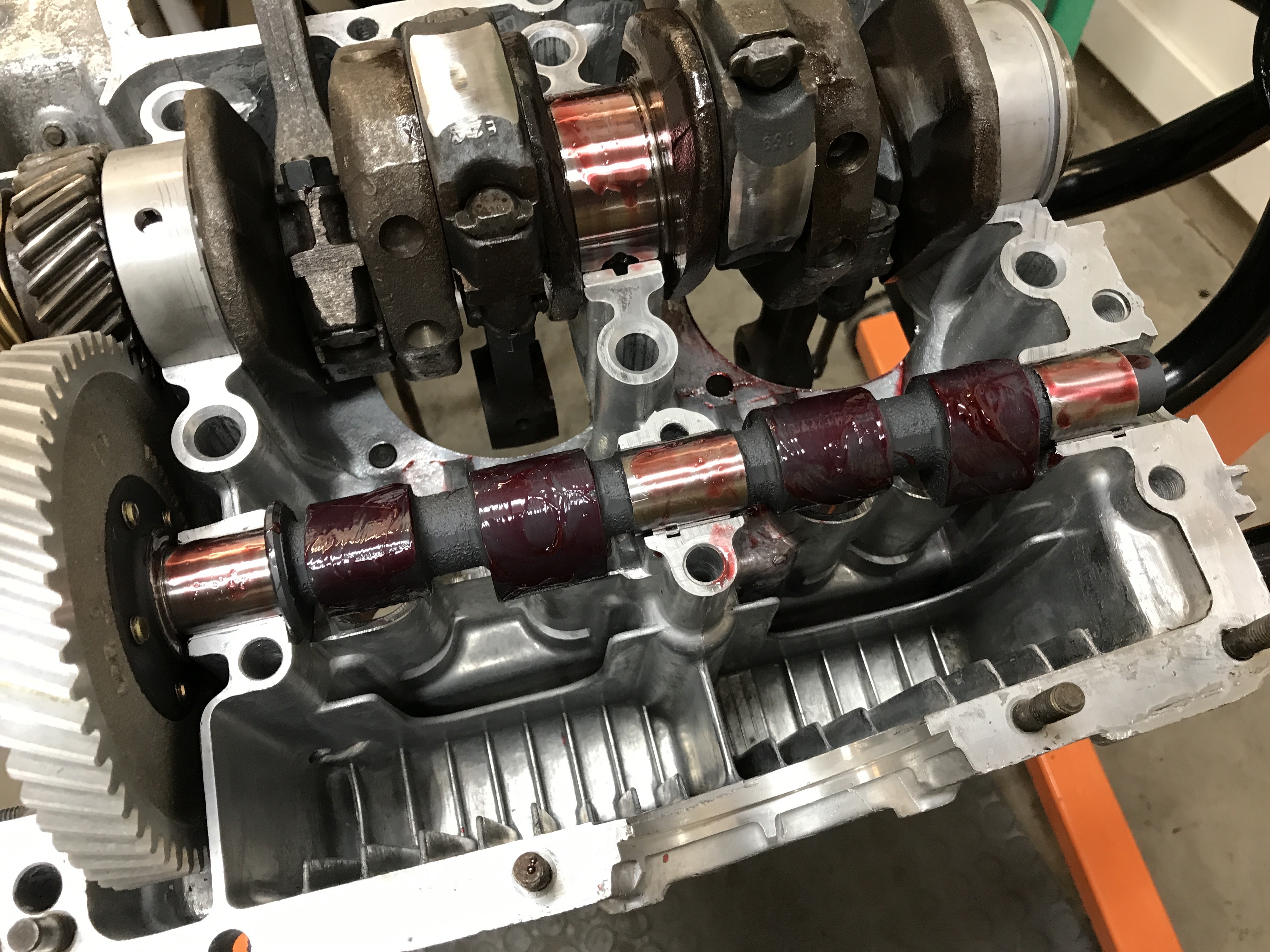

And on the cam. This establishes a red theme for the assembly!
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:17 PM
Post
#2756
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

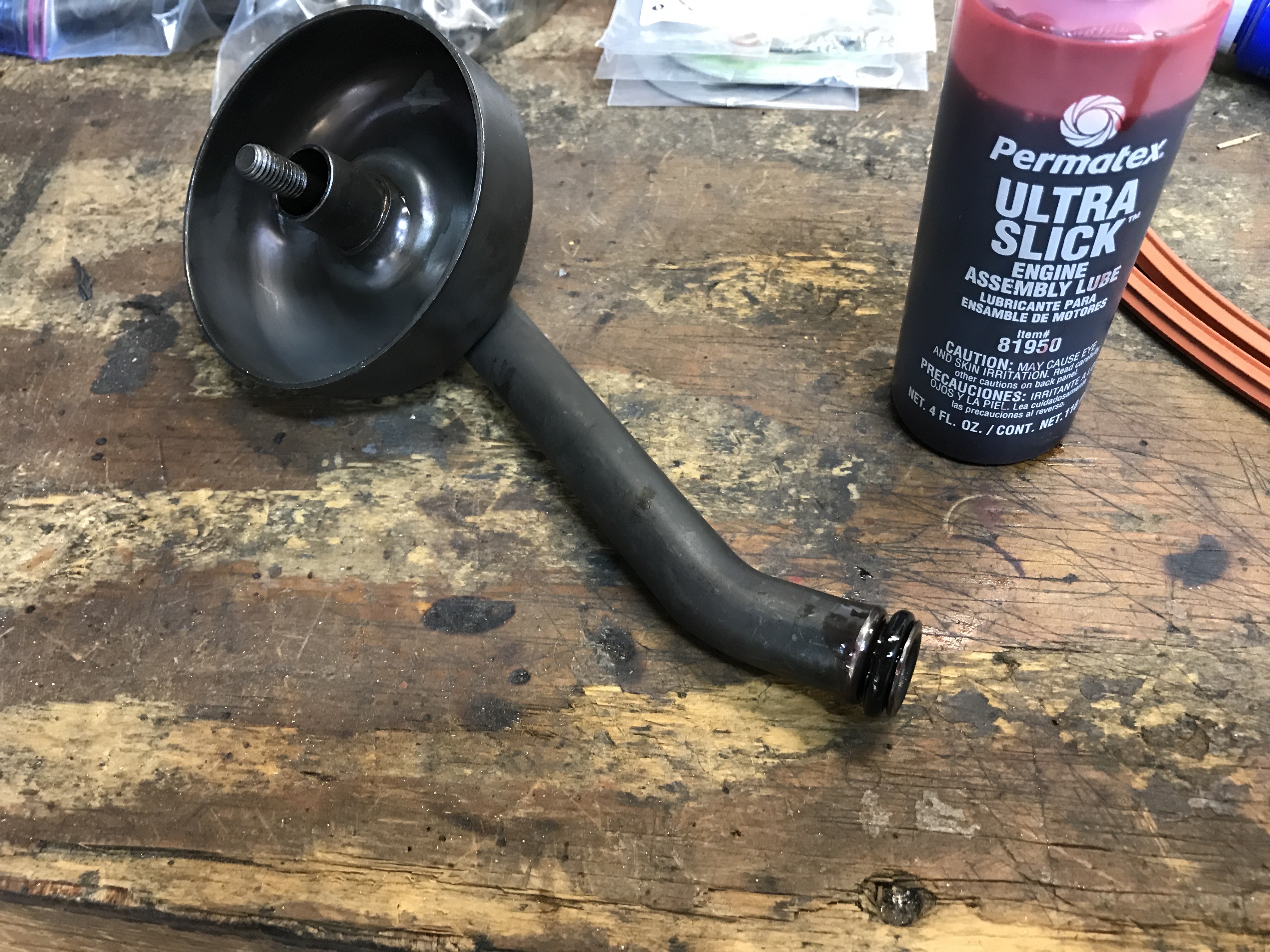

I replaced the oil pickup tube O-ring, and gave it a bit of assembly lube (red).
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:18 PM
Post
#2757
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

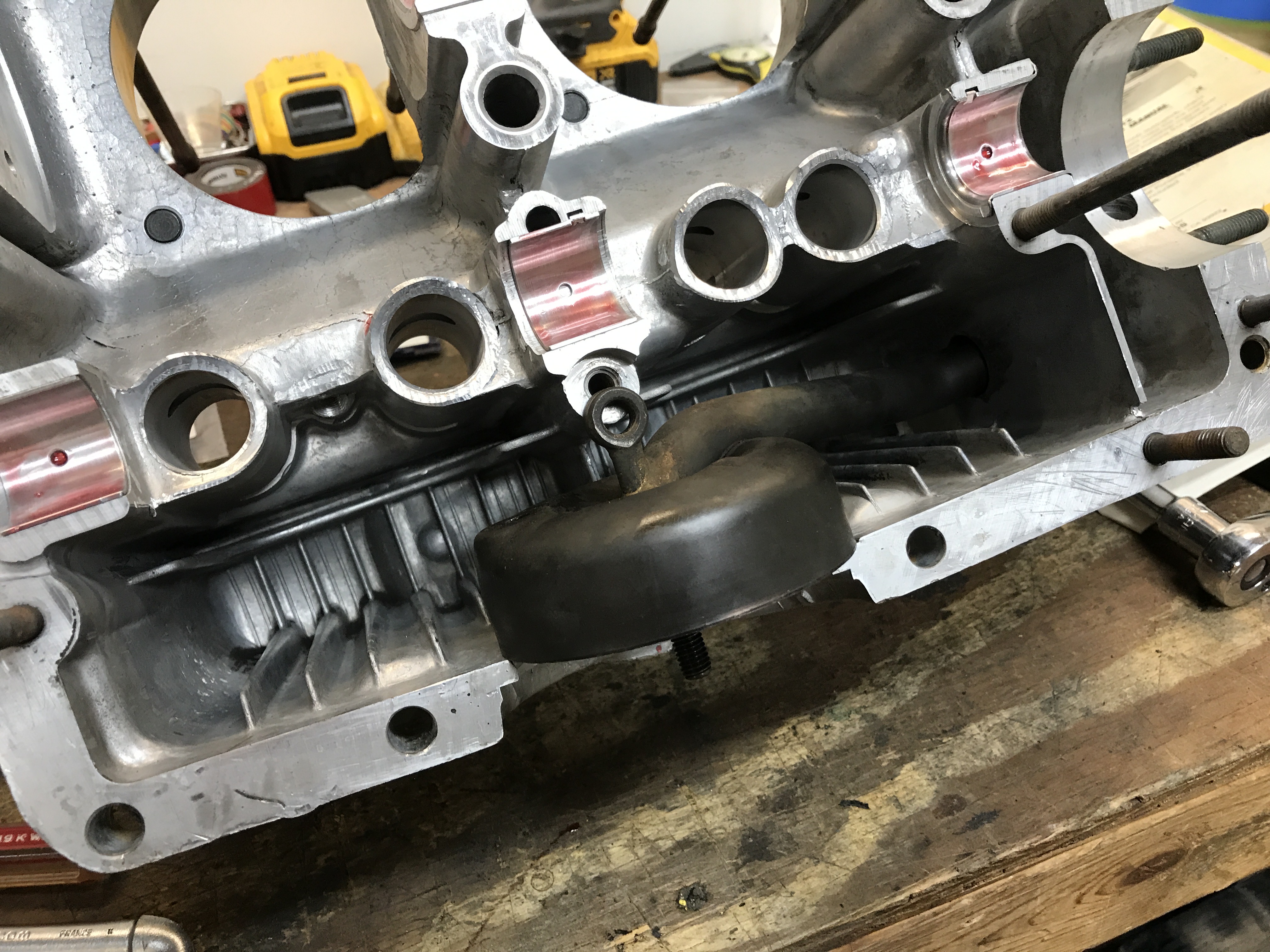

And installed the pickup.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:19 PM
Post
#2758
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

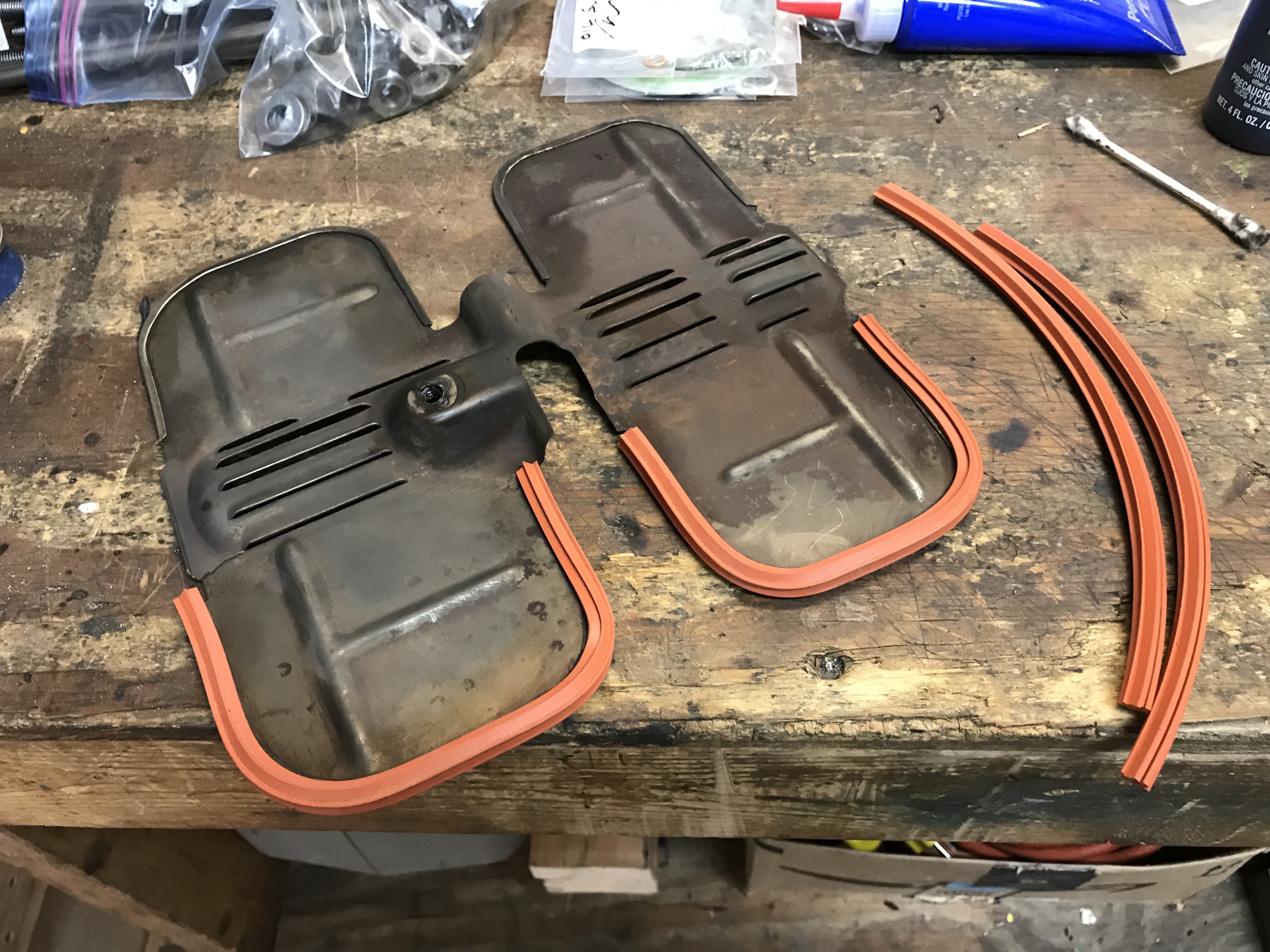

Then new rubber edge seals on the baffles.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:19 PM
Post
#2759
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And installed that.
Attached thumbnail(s) |
bkrantz |
May 8 2021, 08:21 PM
Post
#2760
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

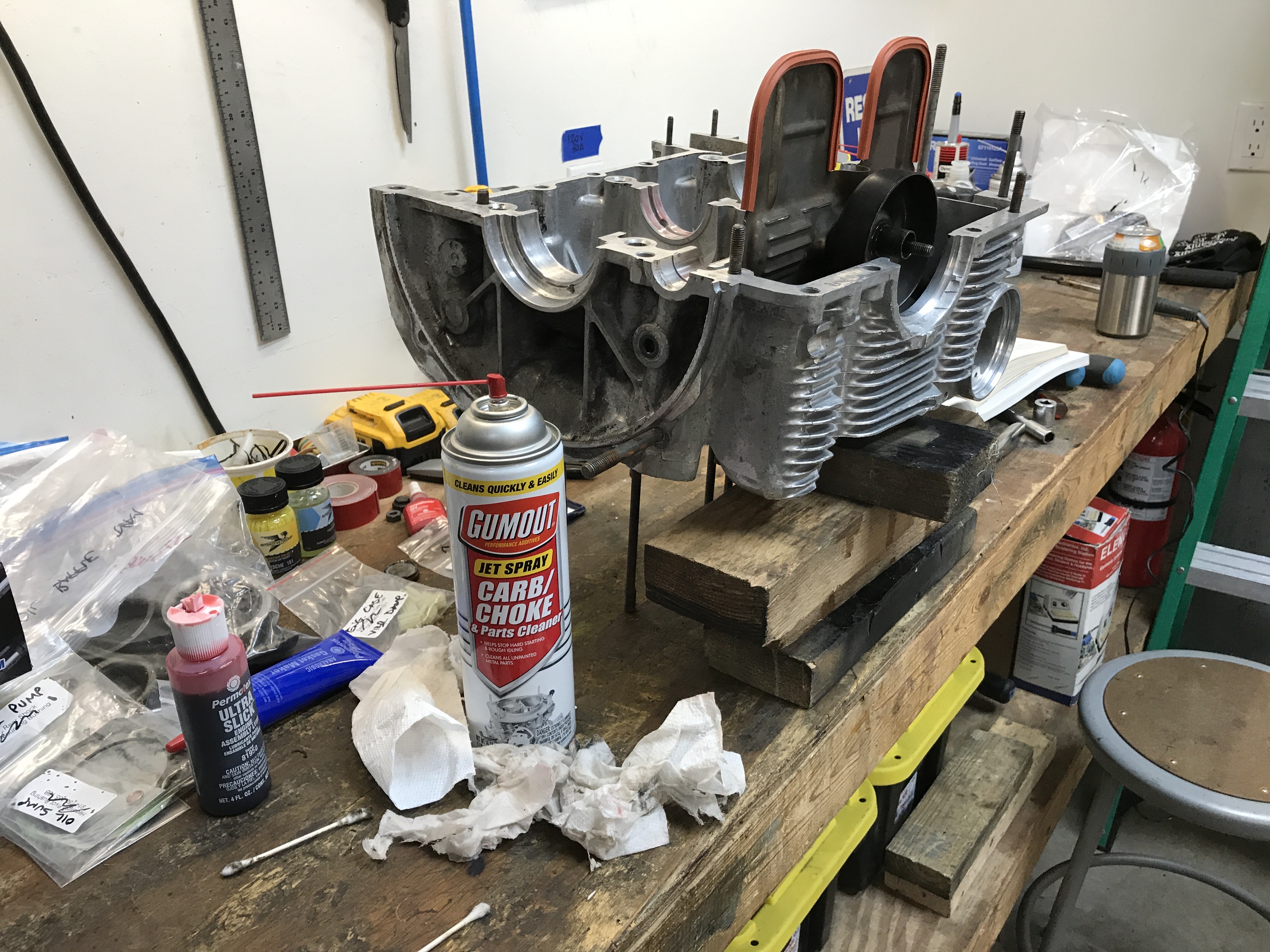

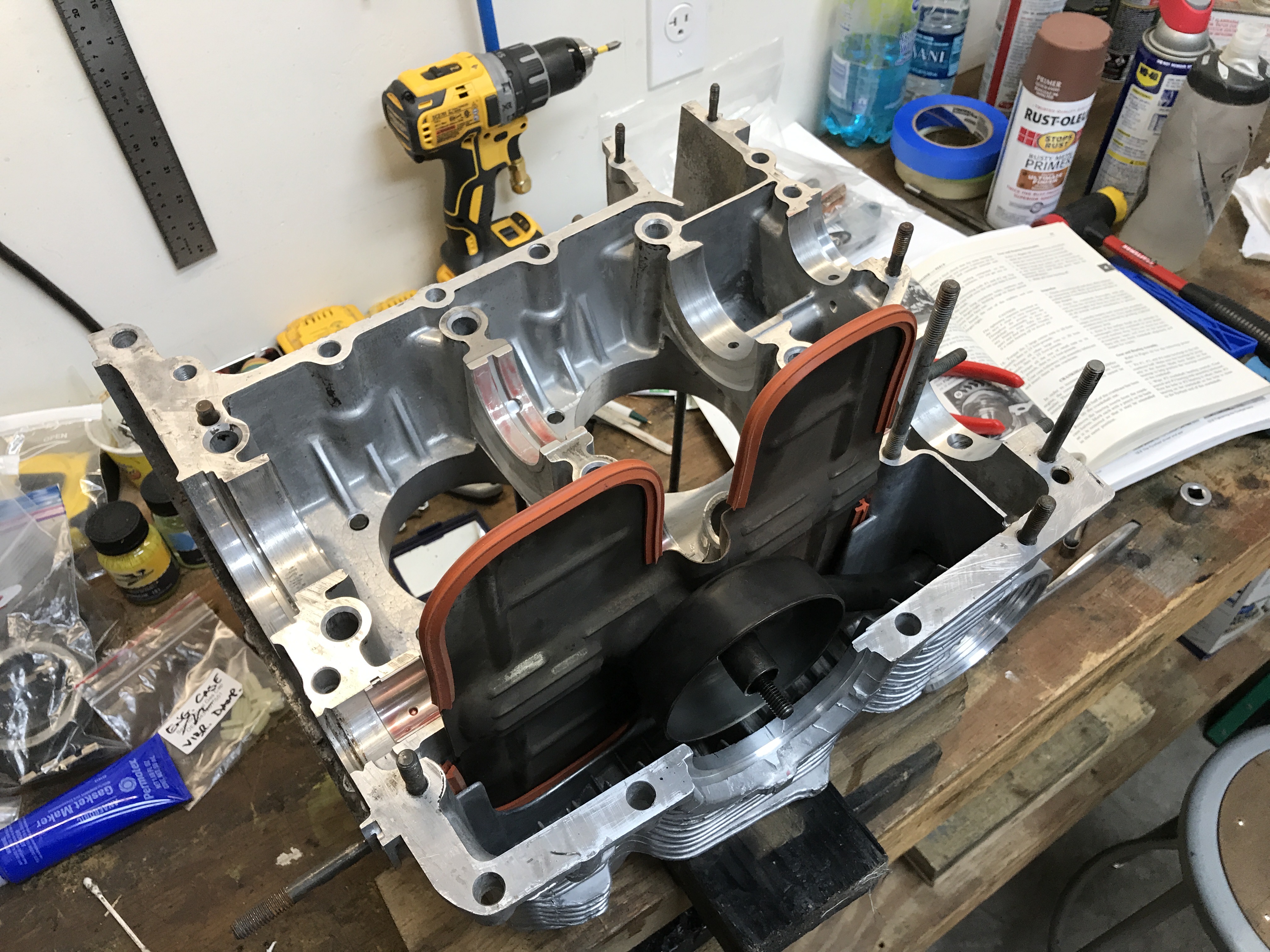

Then came lots of cleaning of the mating surfaces on both case halves.
Attached thumbnail(s) |
