Last bit of case prep for the machine shop: removing the oil dipstick tube. I measured the exposed tube length at least 3 times (and wrote it down somewhere).
I know some people have tapped it out from the inside, but I decided to try pulling it. Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:41 PM
Post
#3242
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

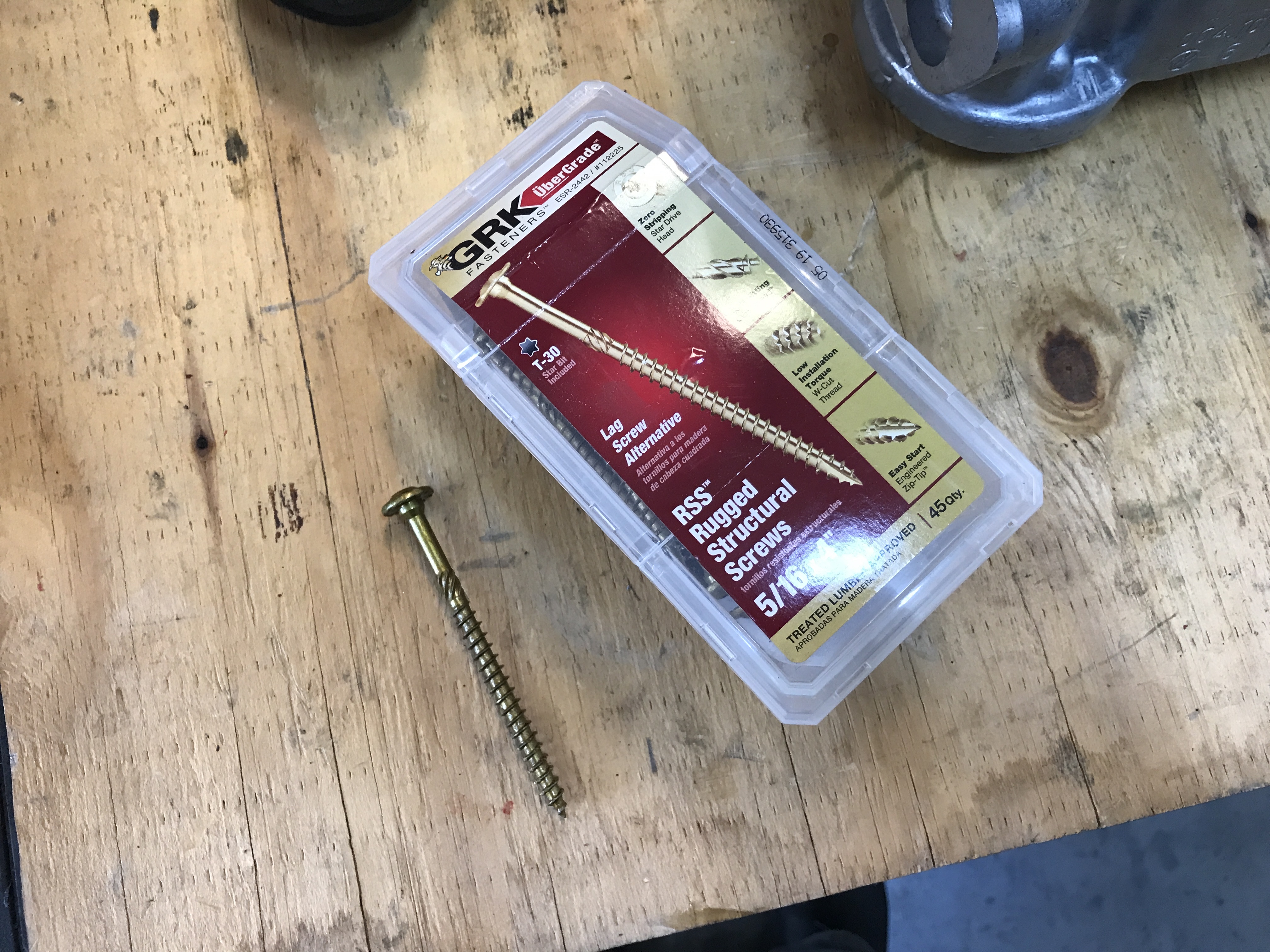

This was the best in my shop fit for an internal screw, a 5/16" structural fastener.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:43 PM
Post
#3243
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

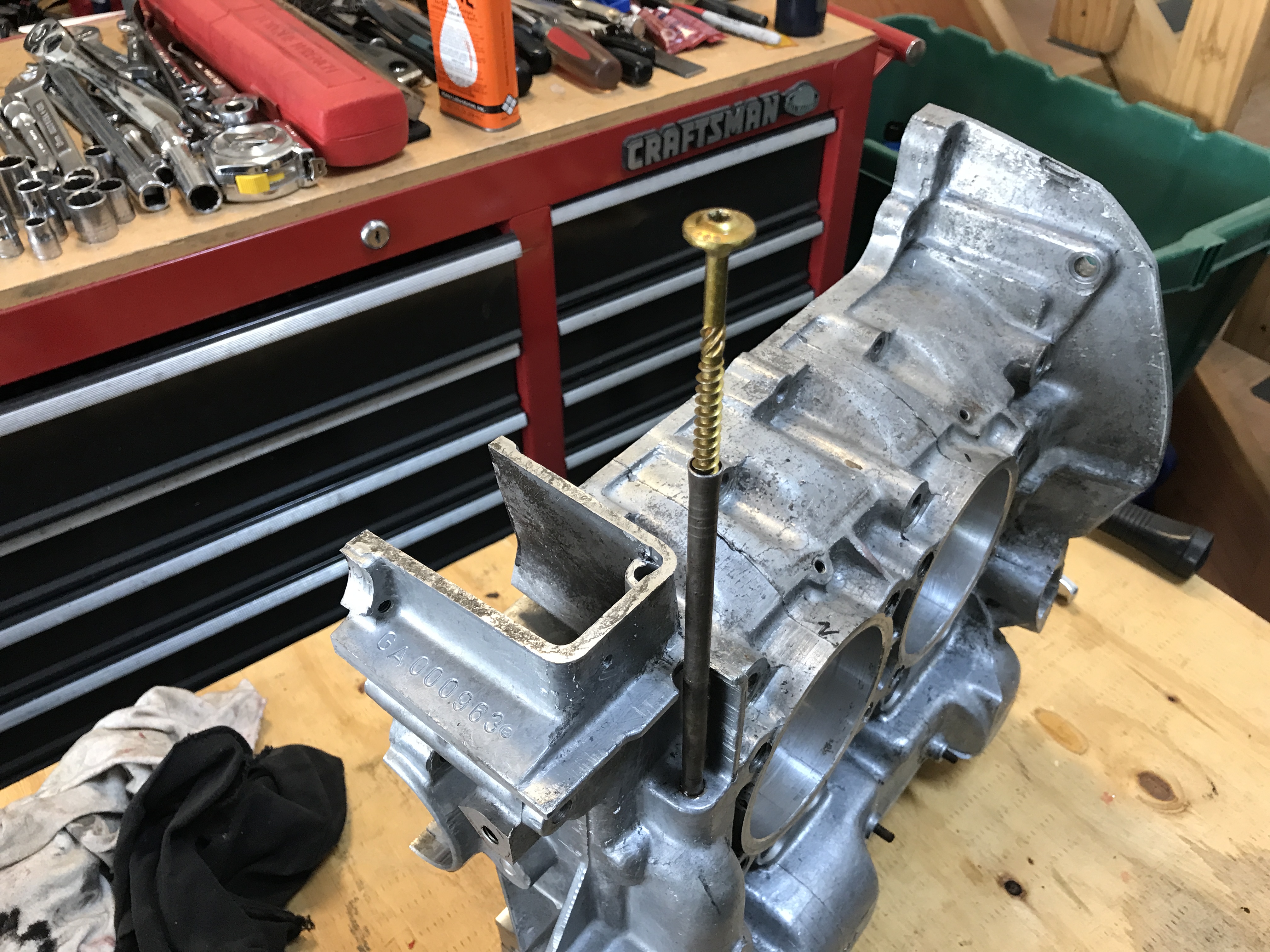

Screw in place, with just a bit of resistance while twisting.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:44 PM
Post
#3244
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

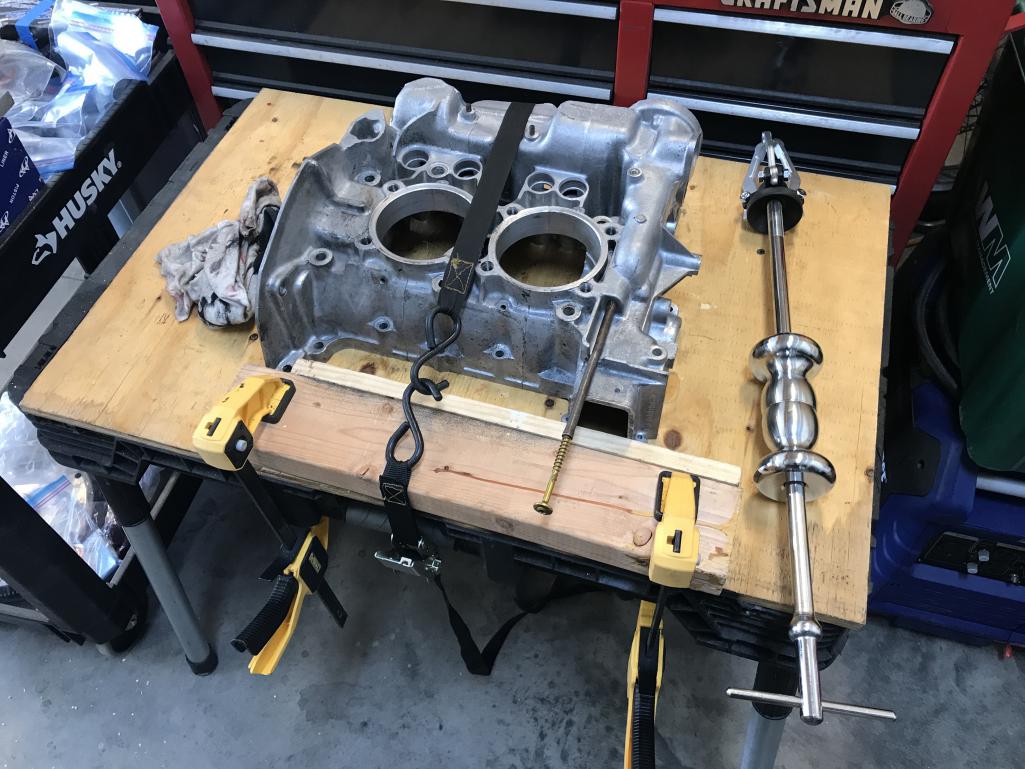

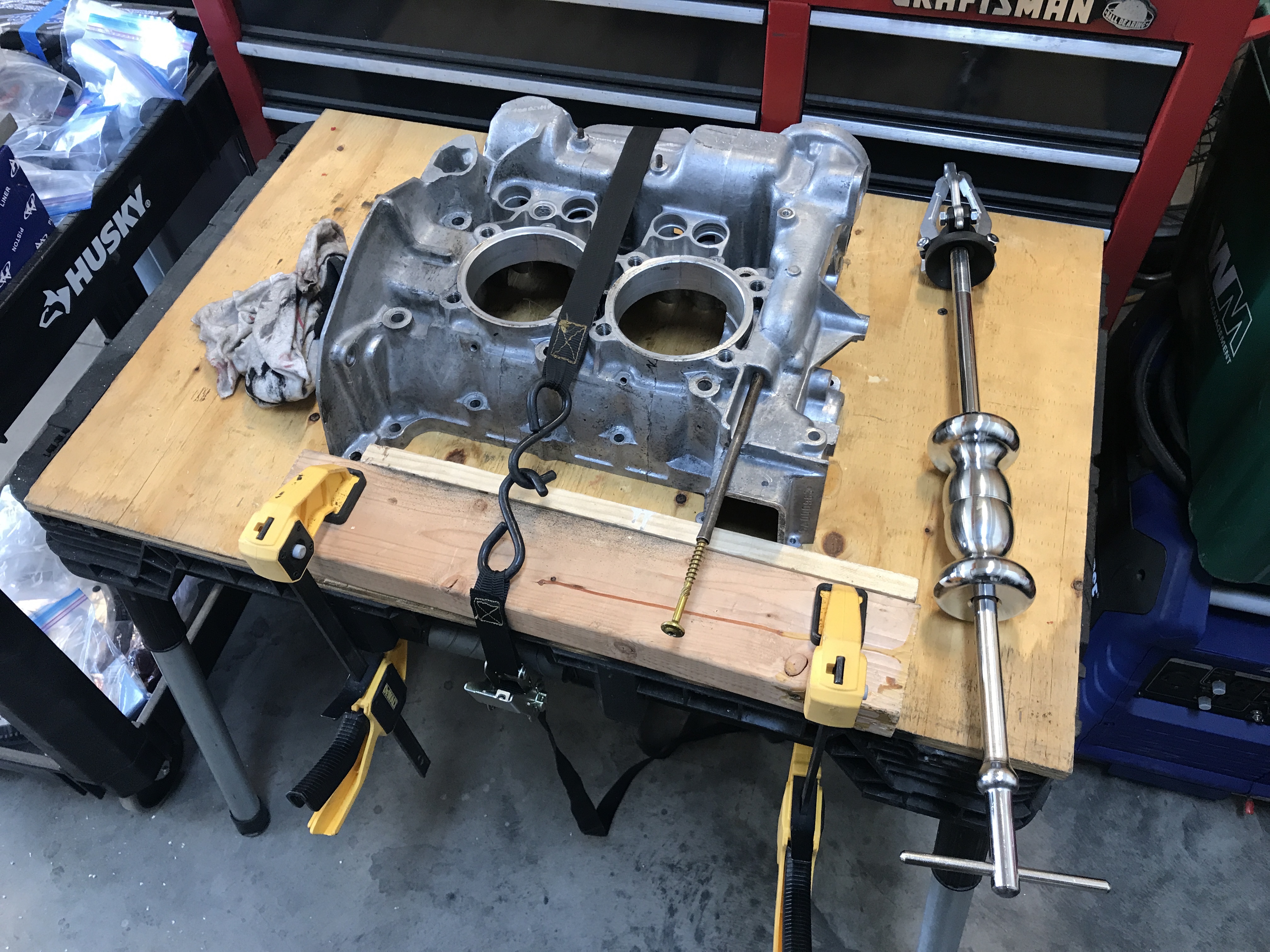

Ready to pull.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:47 PM
Post
#3245
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

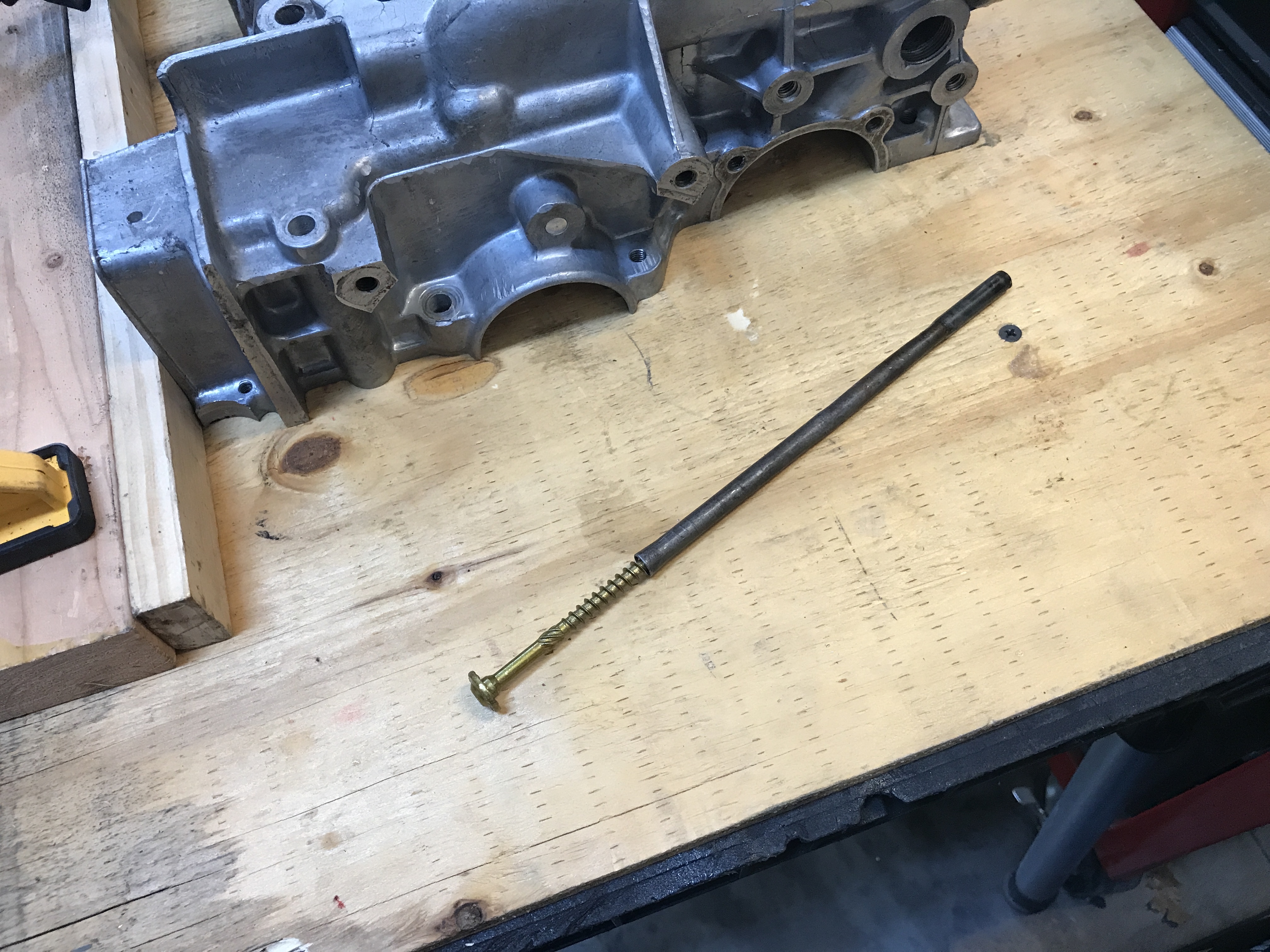

It took about 3 moderate whacks with the puller, and the tube came out. BTW, I did squirt some Kroil at the tube base about 48 hours ago.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:48 PM
Post
#3246
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

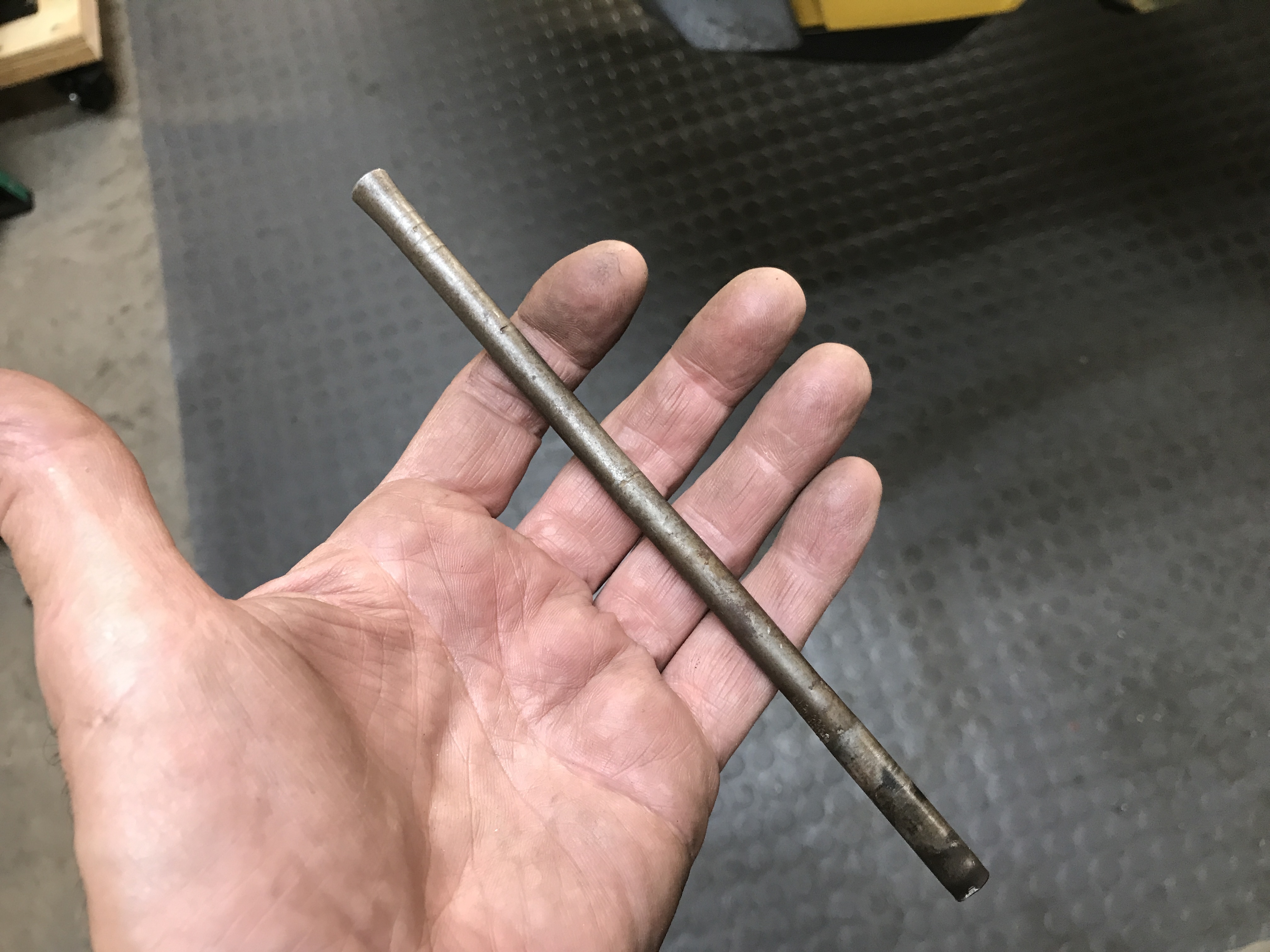

The tube could be used again, but looks a bit lumpy. I will see about making a replacement.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:50 PM
Post
#3247
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

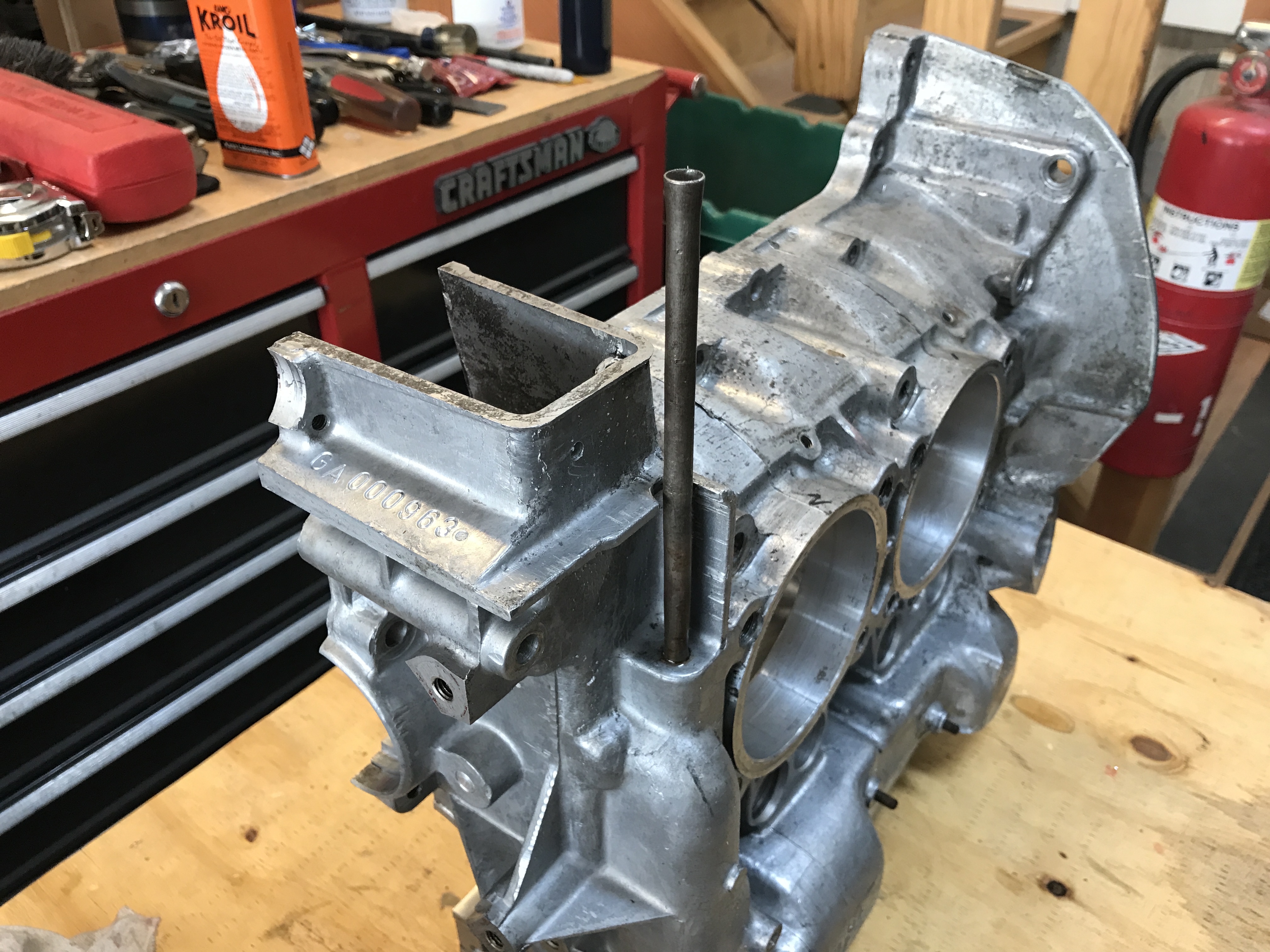

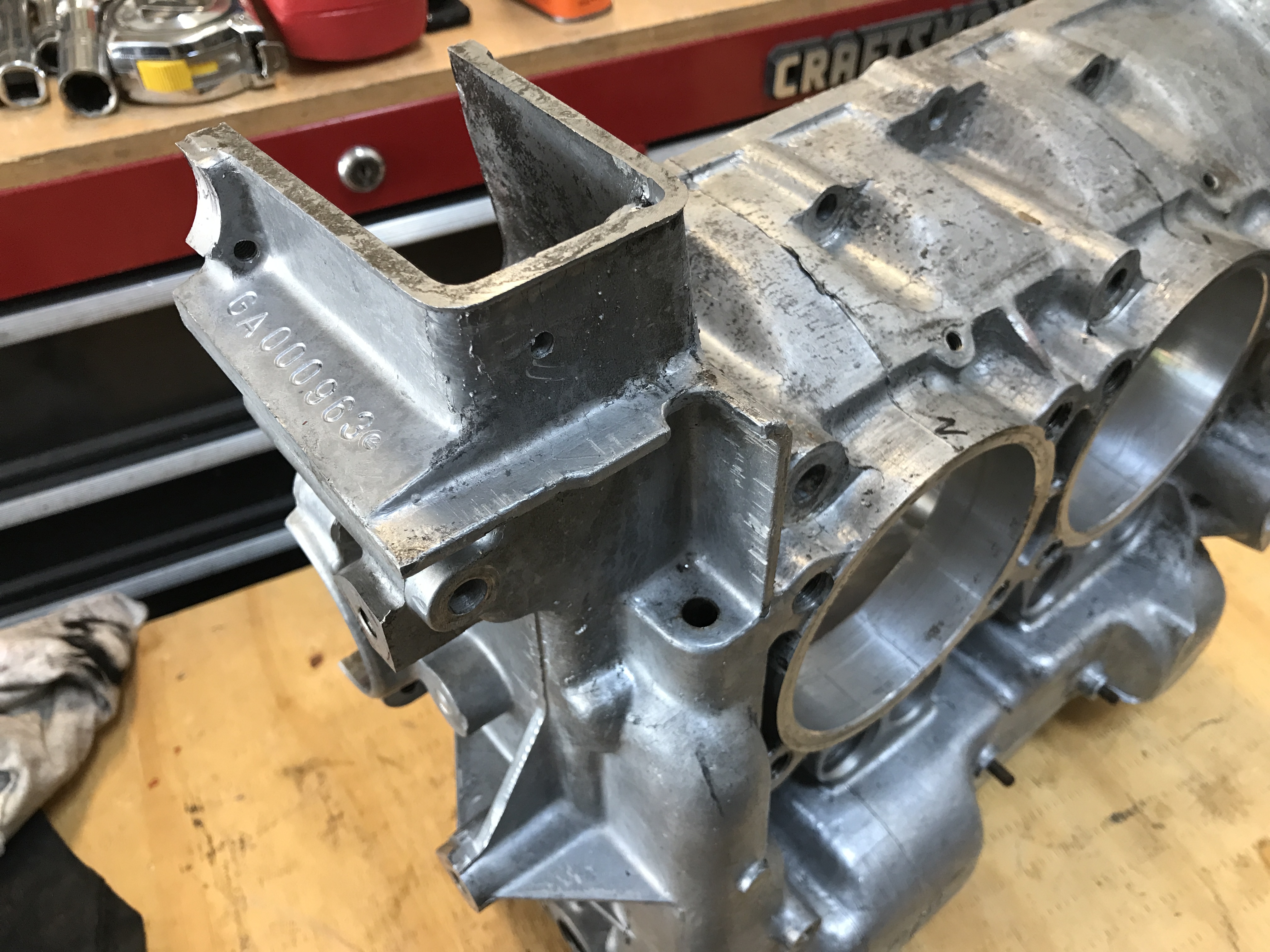

The case is essentially fully stripped of hardware, and ready for machine work.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:52 PM
Post
#3248
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

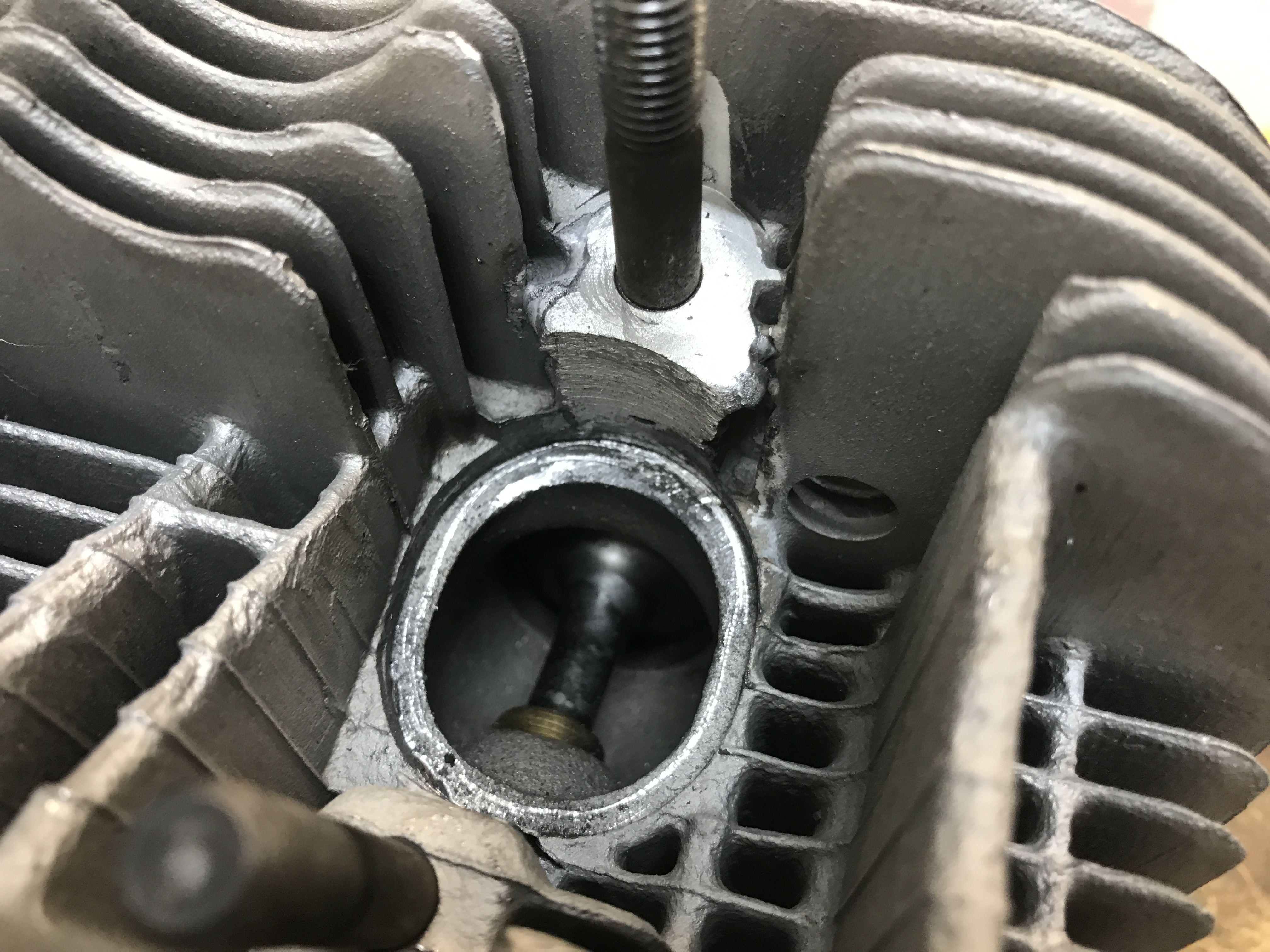

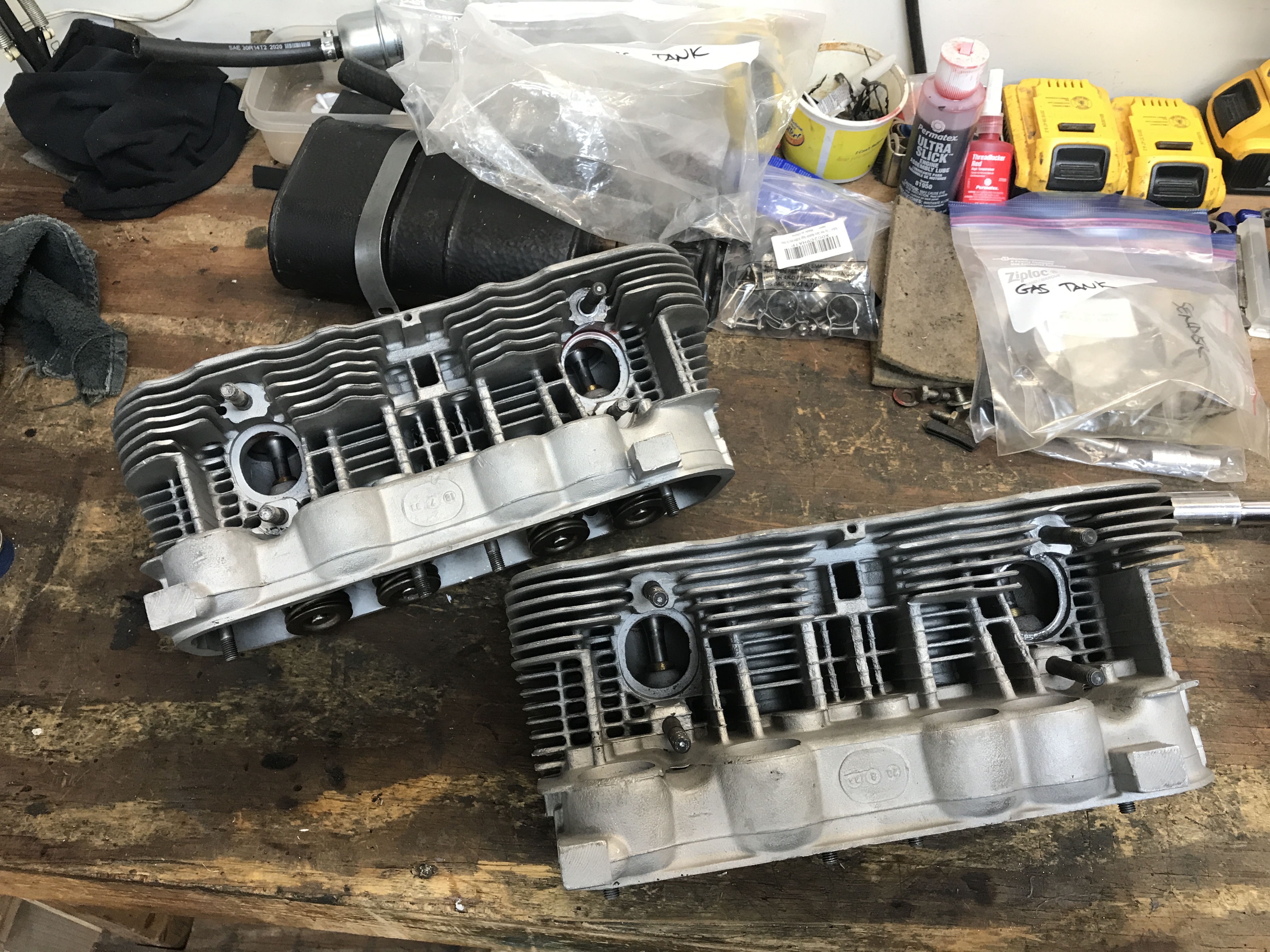

Speaking of machine work, I have both heads with all exhaust studs now pointing in the right direction.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:54 PM
Post
#3249
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
This is where the shop welded in new aluminum and drilled and tapped a new stud hole. I still need to clean up the exhaust gasket surface a bit.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:55 PM
Post
#3250
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

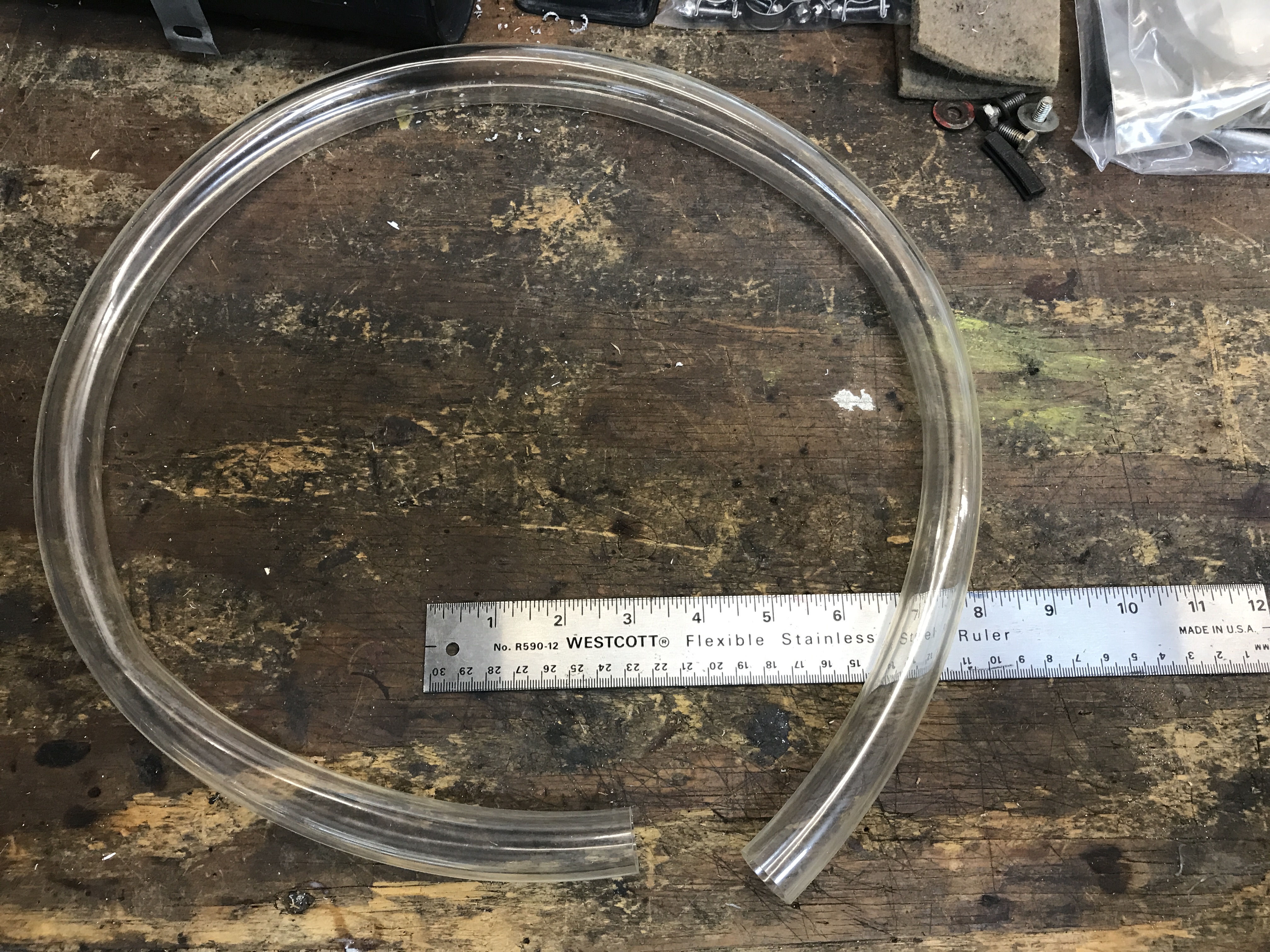

New clear tubing for the gas filler overflow, 19 mm ID, 24 mm OD.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:57 PM
Post
#3251
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

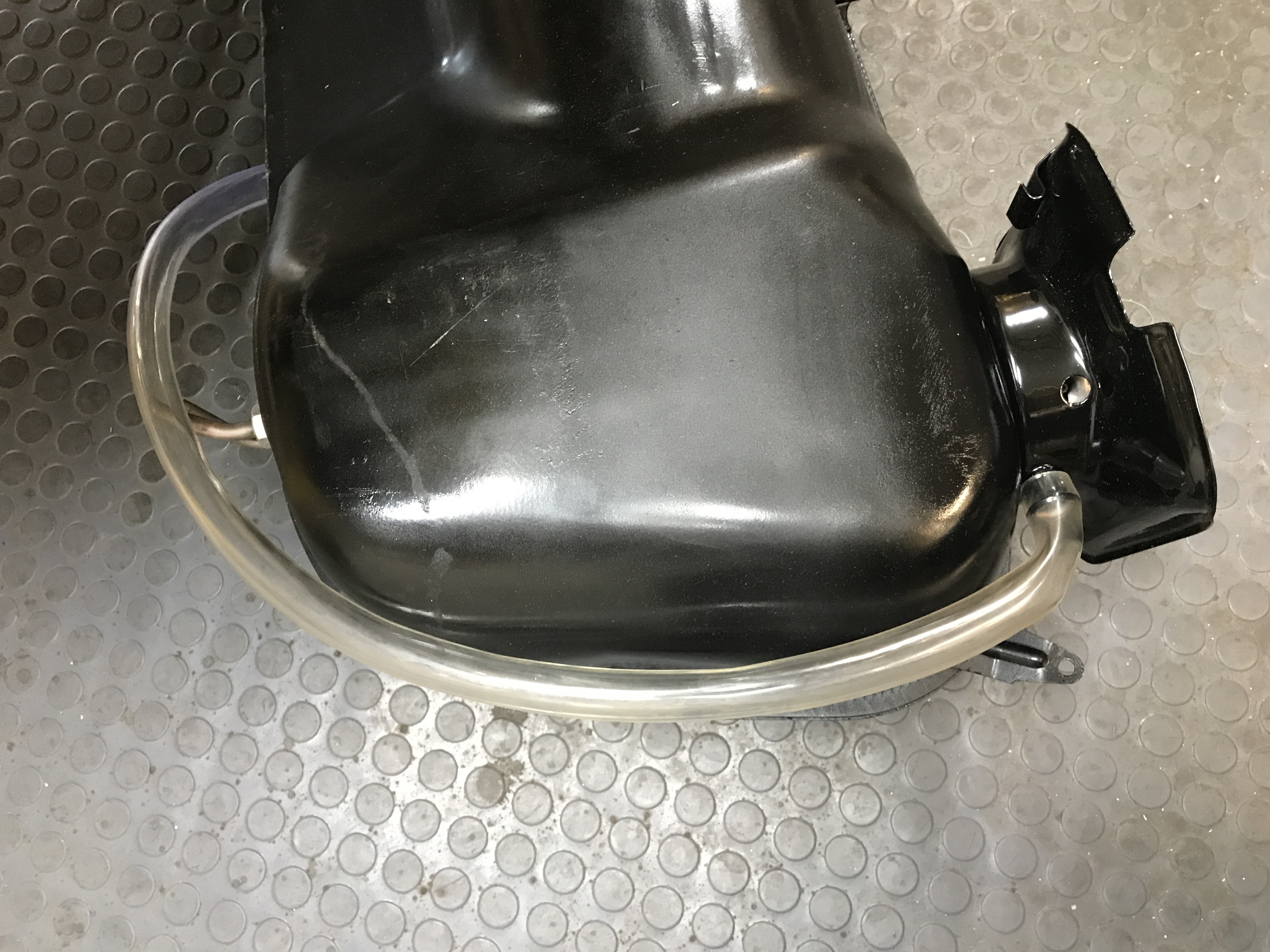

I used a bit of heat to try to make a more defined bend just below the overflow fitting.
Attached thumbnail(s) |
bkrantz |
Jul 4 2021, 08:59 PM
Post
#3252
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
I have not checked the latest list in a while. Looks like slow progress.
Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:40 PM
Post
#3253
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

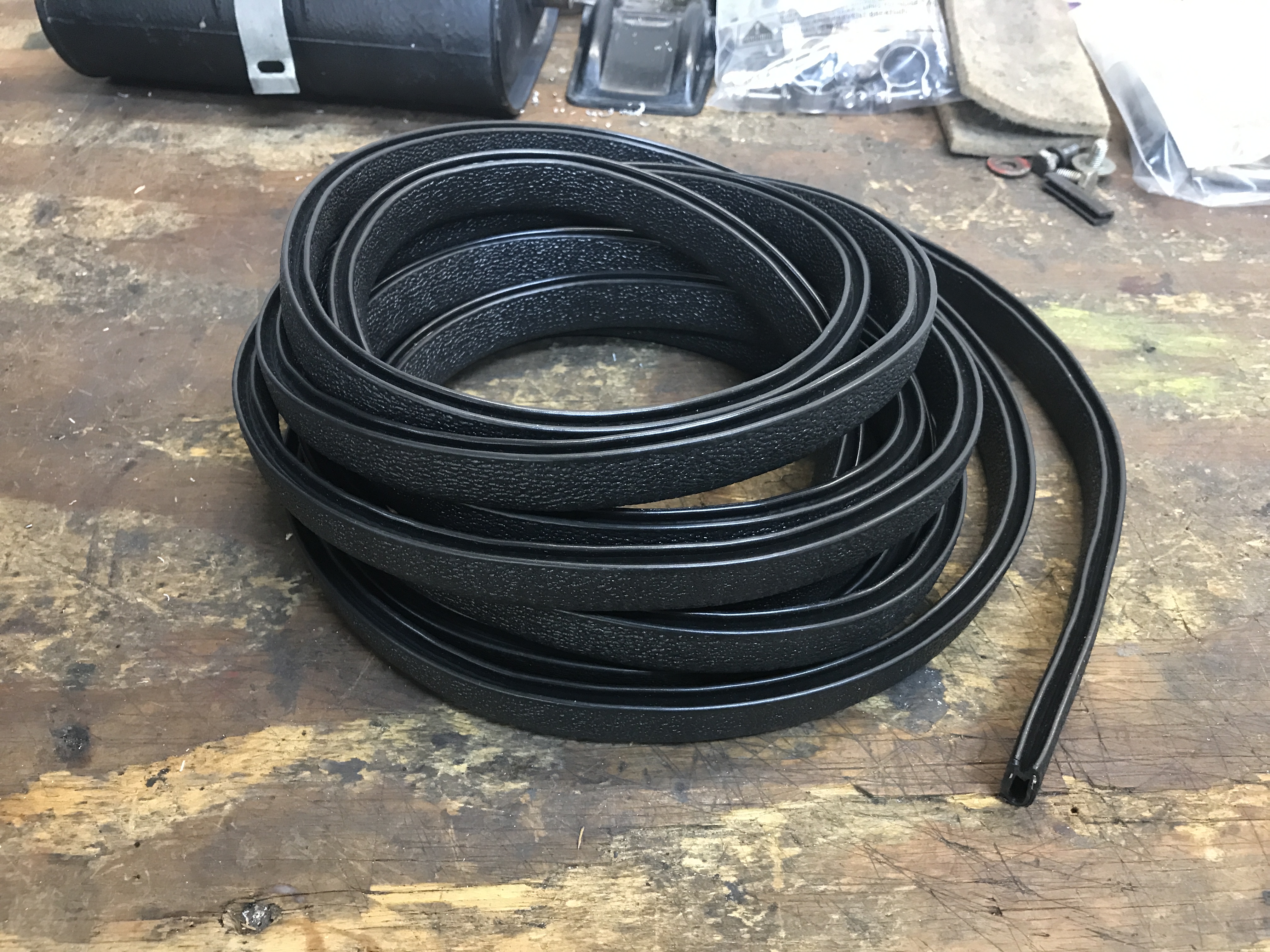

Back to soft stuff. This is PVC edge trim (from J&J Auto Fabrics).
Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:41 PM
Post
#3254
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

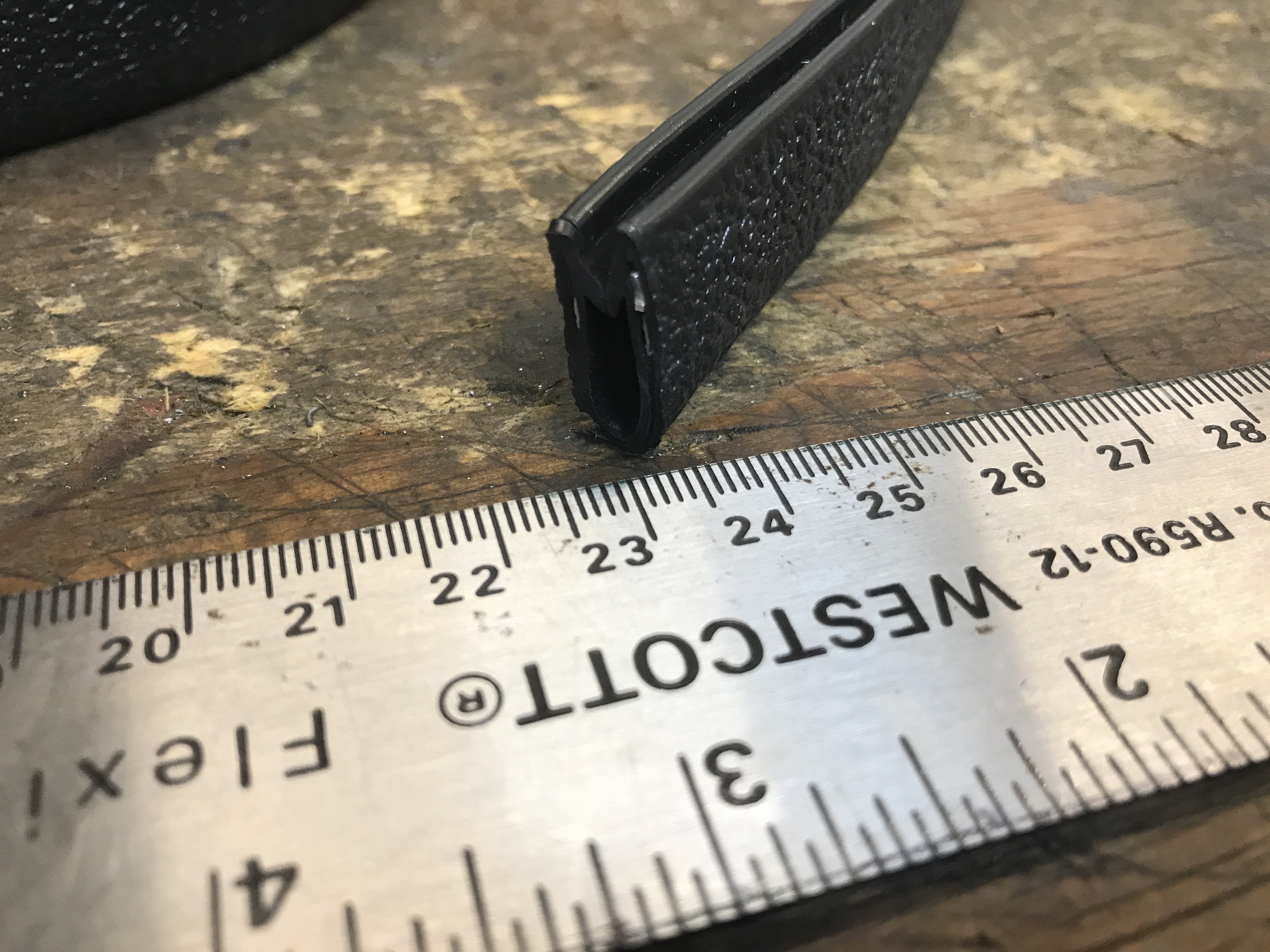

This edge measures 1/8 x 3/4".
Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:43 PM
Post
#3255
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

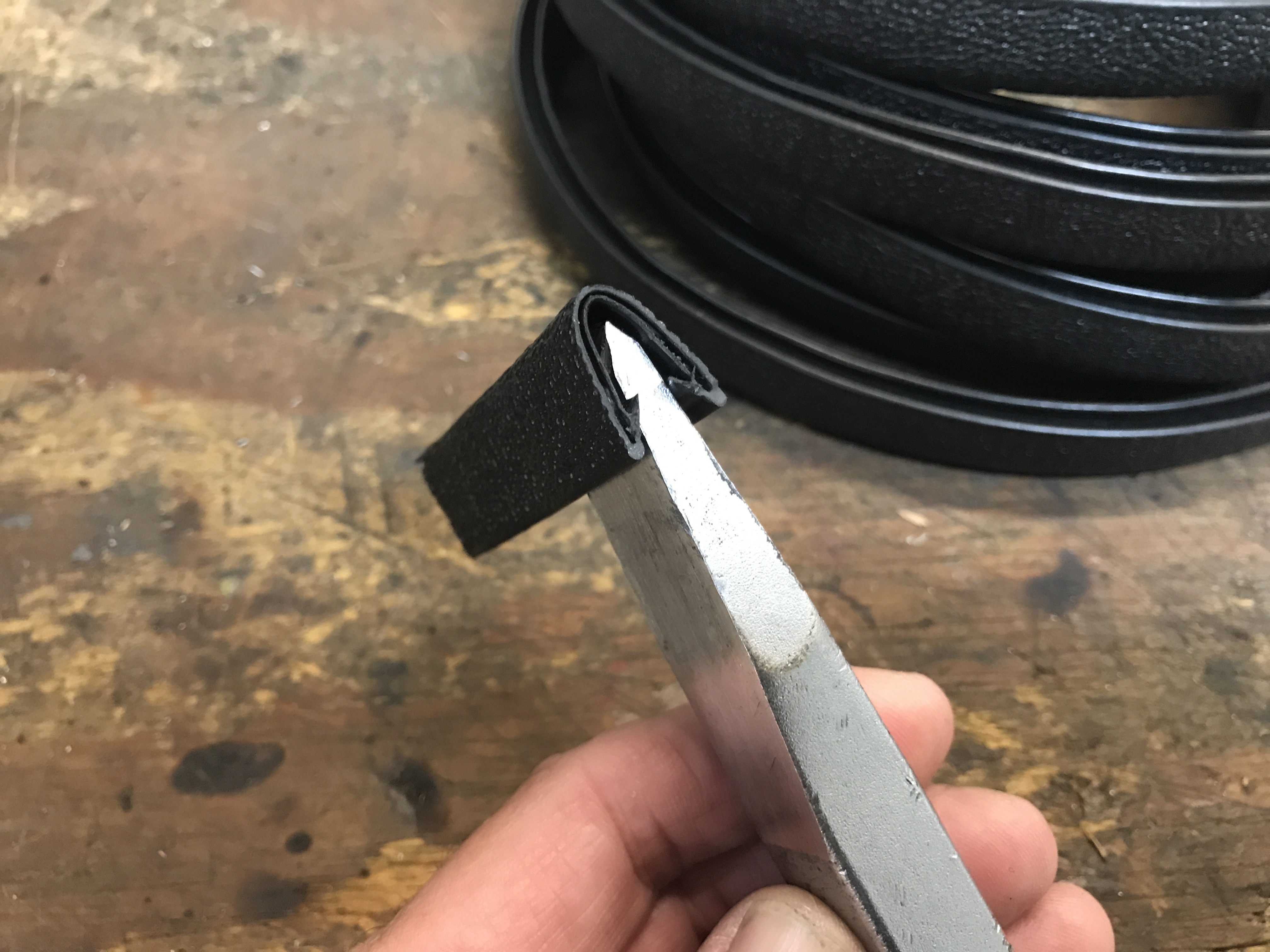

I spread the opening to make it possible to insert the soft perlon panel cut edge.
Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:44 PM
Post
#3256
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

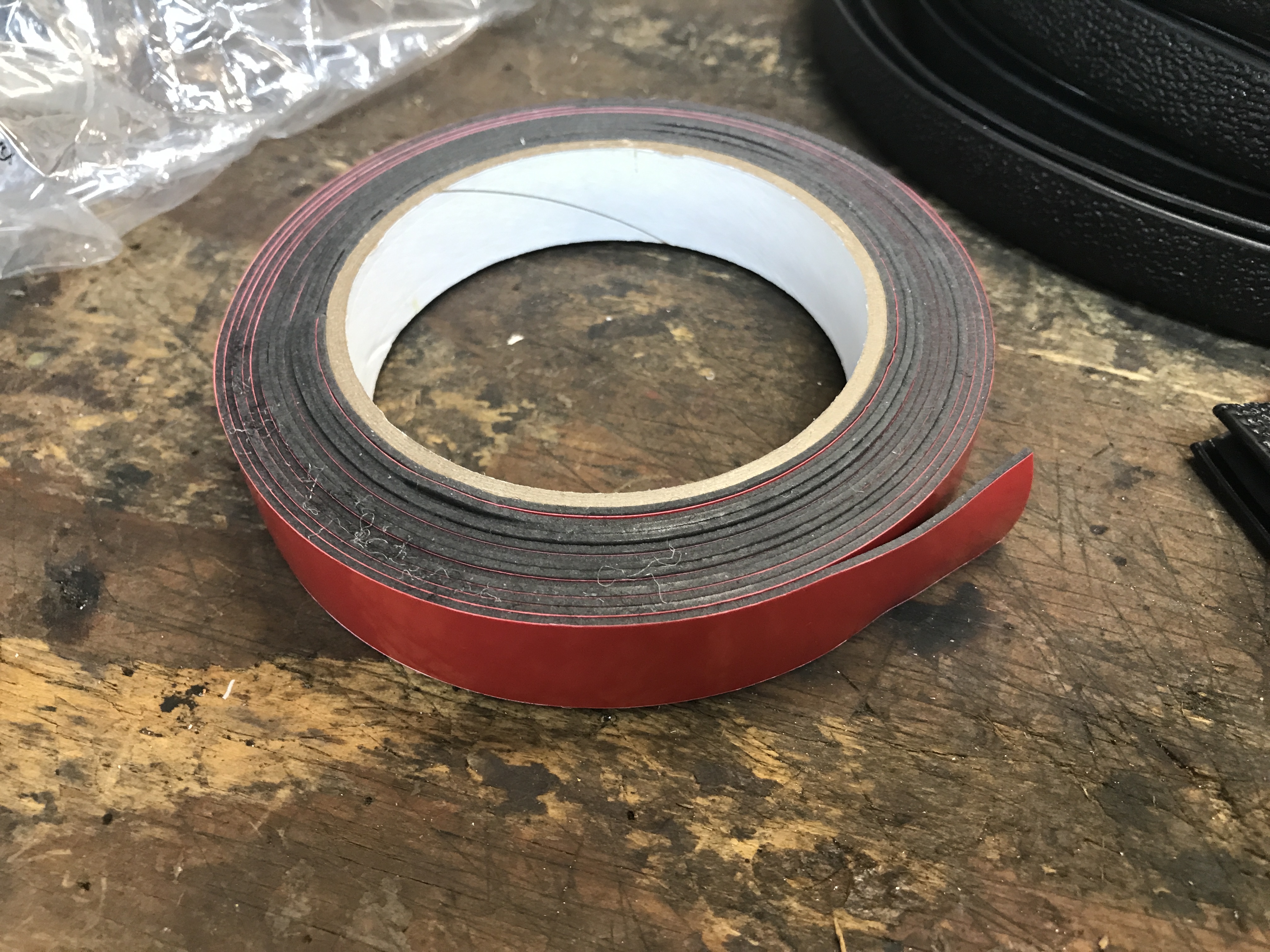

The other ingredient: 3/4" 3M adhesive tape.
Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:45 PM
Post
#3257
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

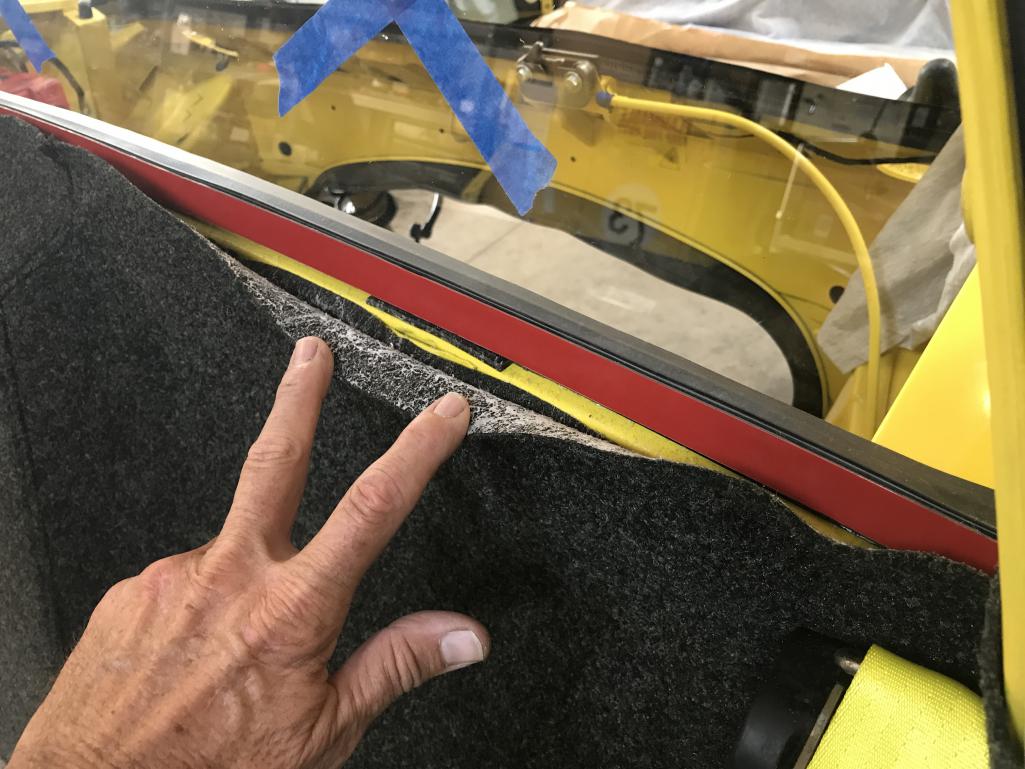

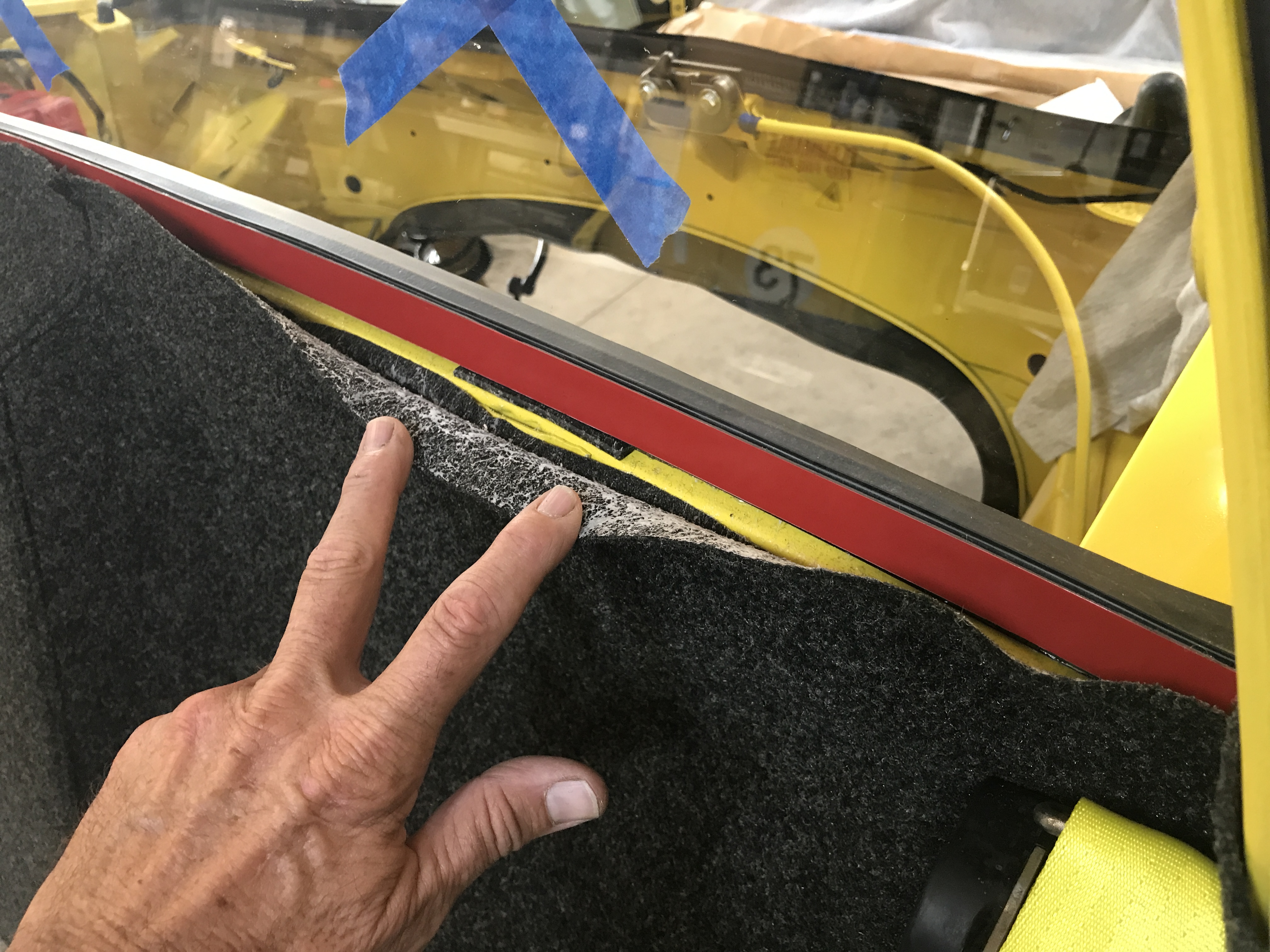

Step 1: run the 3M tape along the lower edge of the glass.
Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:47 PM
Post
#3258
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Step 2: Get the PVC edging on the perlon cut edge, and try to make it even (not shown).
Step 3: Pull the covering off the tape and stick the edging in place. Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:48 PM
Post
#3259
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

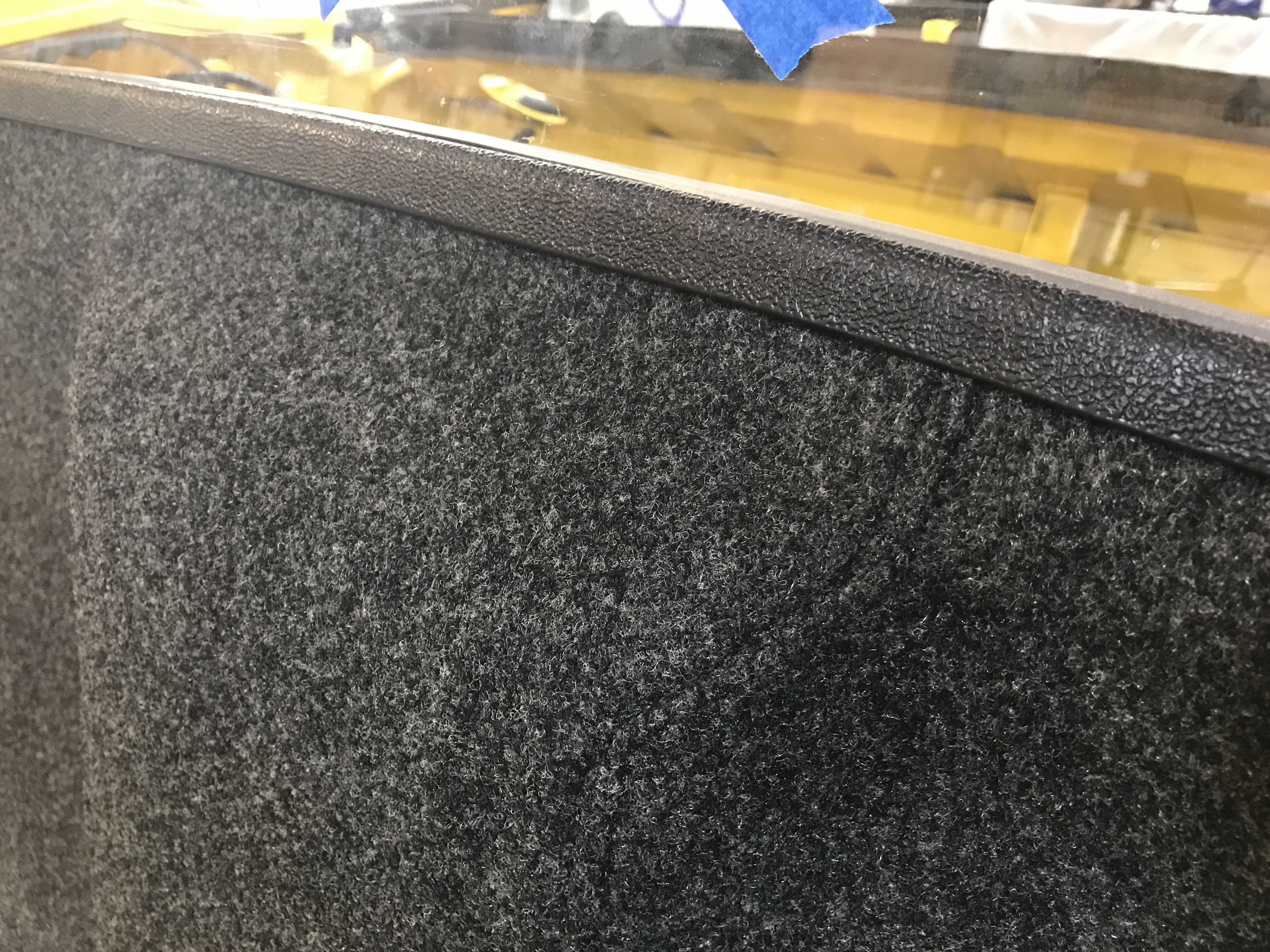

I like it.
Attached thumbnail(s) |
bkrantz |
Jul 5 2021, 07:49 PM
Post
#3260
|
914 Guru Group: Members Posts: 8,065 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

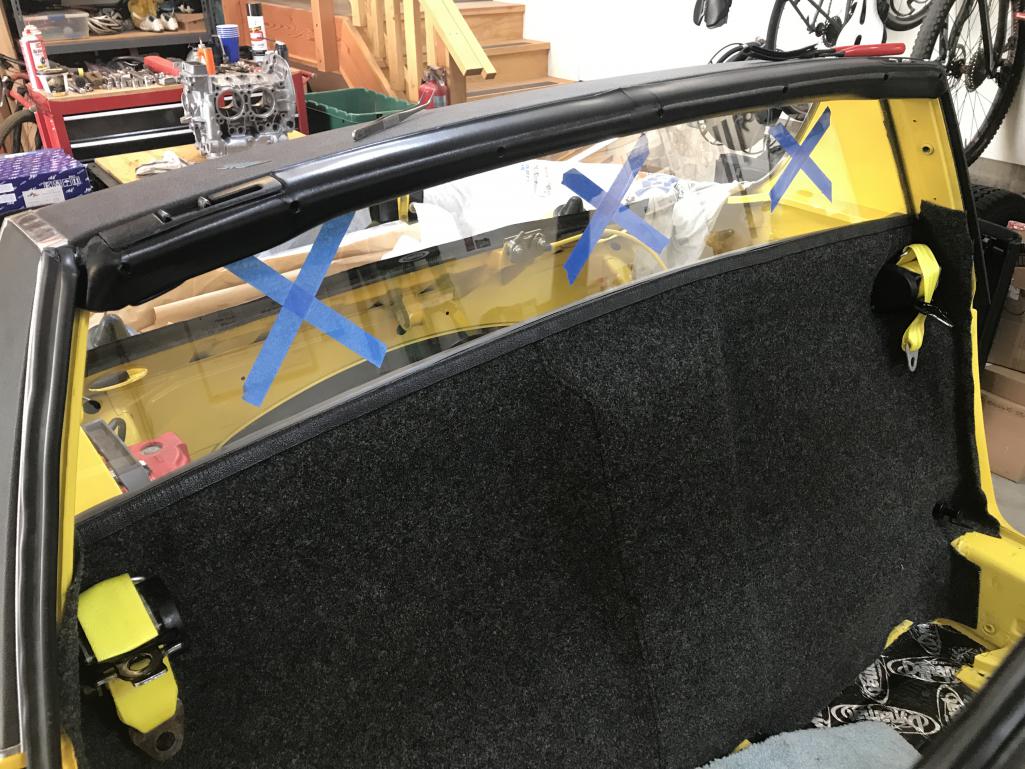

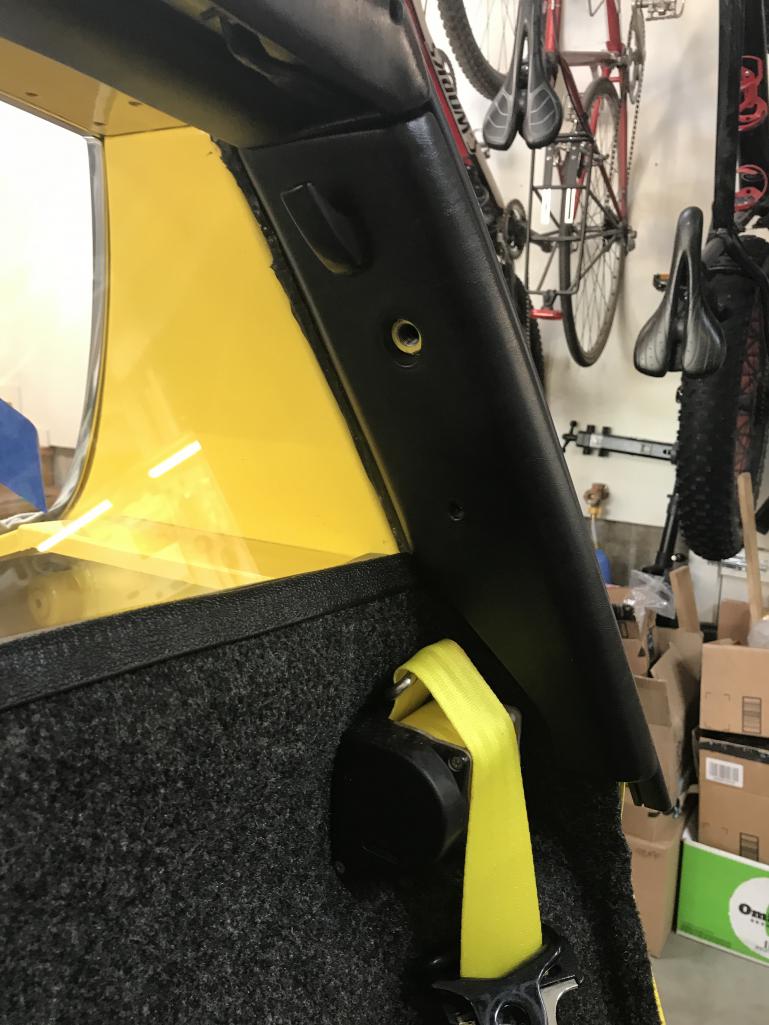

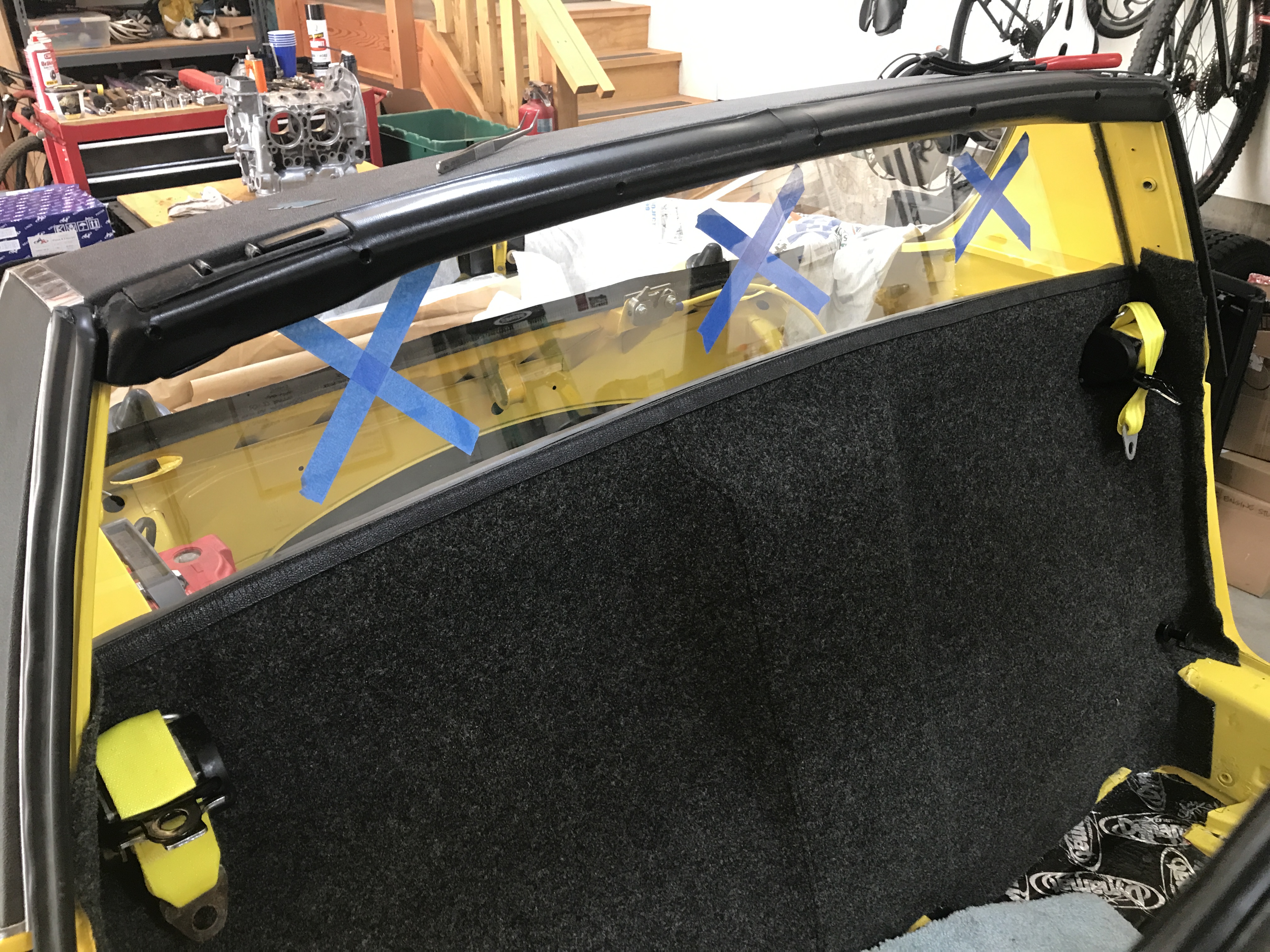

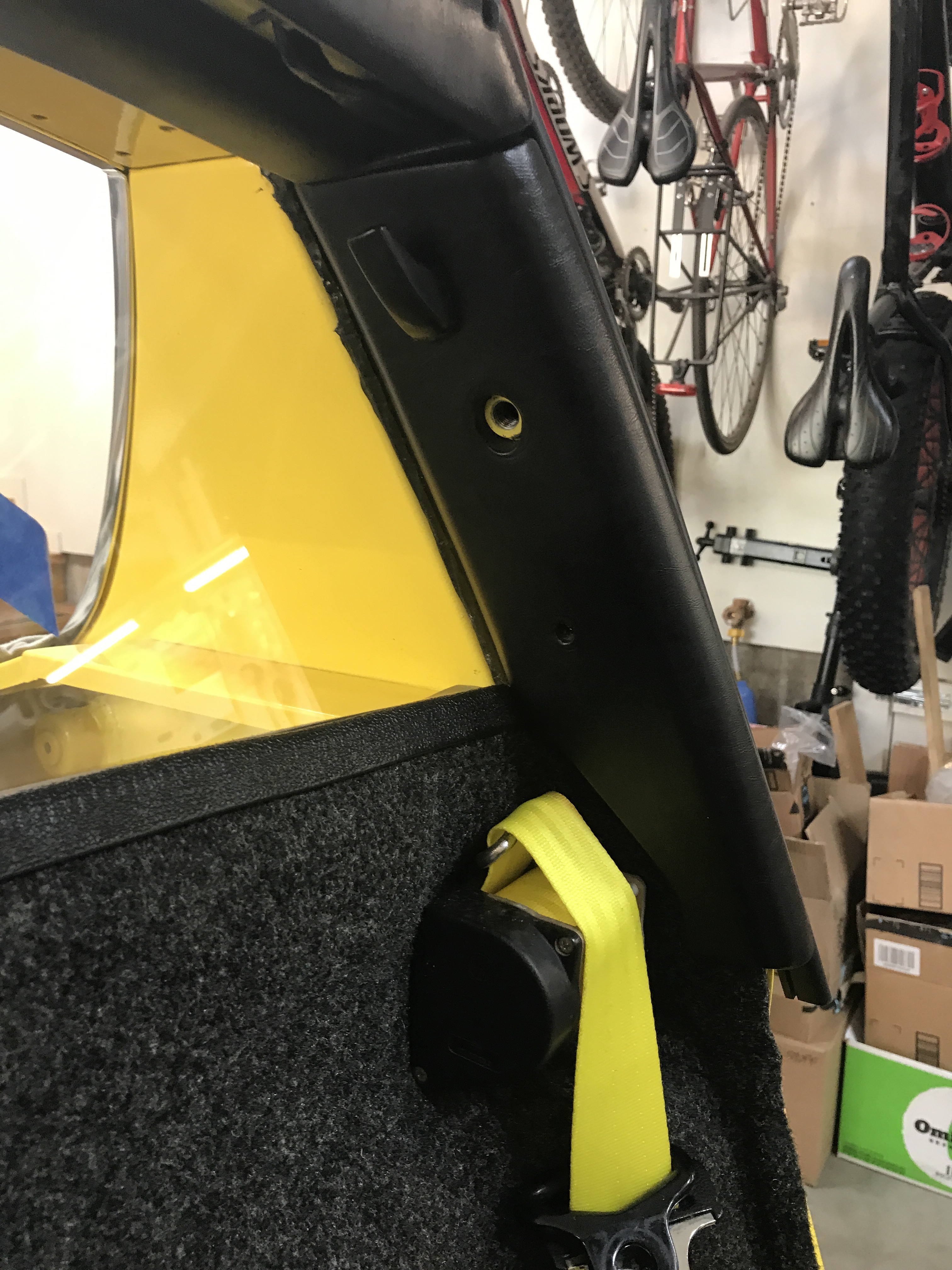

With the edge in place, I could install the side targa pads.
Attached thumbnail(s) |
